1. Action Controller
Overview
Ror lab. season 2
- the 15th round -
February 2th, 2013
Hyoseong Choi

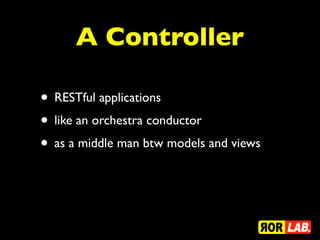

2. A Controller
• RESTful applications
• like an orchestra conductor
• as a middle man btw models and views

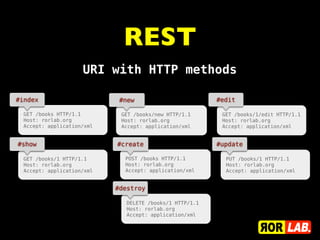

3. REST
GET /books HTTP/1.1
Host: rorlab.org
Accept: application/xml
#index
POST /books HTTP/1.1
Host: rorlab.org
Accept: application/xml
#create
GET /books/1 HTTP/1.1
Host: rorlab.org
Accept: application/xml
#show
PUT /books/1 HTTP/1.1
Host: rorlab.org
Accept: application/xml
#update
GET /books/new HTTP/1.1
Host: rorlab.org
Accept: application/xml
#new
DELETE /books/1 HTTP/1.1
Host: rorlab.org
Accept: application/xml
#destroy
GET /books/1/edit HTTP/1.1
Host: rorlab.org
Accept: application/xml
#edit
URI with HTTP methods

4. URI?
• Uniform Resource Identifier
= URL + URN
= Uniform Resource Locator
+ Uniform Resource Name
http://domain_name/posts/114

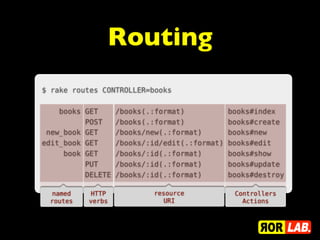

5. Routing
$ rake routes CONTROLLER=books
books GET /books(.:format) books#index
POST /books(.:format) books#create
new_book GET /books/new(.:format) books#new
edit_book GET /books/:id/edit(.:format) books#edit
book GET /books/:id(.:format) books#show
PUT /books/:id(.:format) books#update
DELETE /books/:id(.:format) books#destroy
named
routes
HTTP
verbs
resource
URI
Controllers
Actions

6. MVC

7. MVC
View Model
Controller

8. Methods & Actions
• A “class” has methods
• A controller < ApplicationController
• public methods => “action” <= routing
$ rake routes CONTROLLER=clients
clients GET /clients(.:format) clients#index
POST /clients(.:format) clients#create
new_client GET /clients/new(.:format) clients#new
edit_client GET /clients/:id/edit(.:format) clients#edit
client GET /clients/:id(.:format) clients#show
PUT /clients/:id(.:format) clients#update
DELETE /clients/:id(.:format) clients#destroy
actions

9. Parameters
• Two kinds of parameters
- Query string
- POST data
• by params hash for both of these
• “Routing” parameters

10. Hash & Array Params
GET /clients?ids[]=1&ids[]=2&ids[]=3
params[:ids] ?
[ “1”, “2”, “3”]
for Query String

11. Hash & Array Params
<form accept-charset="UTF-8" action="/clients" method="post">
<input type="text" name="client[name]" value="Acme" />
<input type="text" name="client[phone]" value="12345" />
<input type="text" name="client[address][postcode]" value="12345" />
<input type="text" name="client[address][city]" value="Carrot City" />
</form>
for POST data
params[:client] ?
{
“name” => “Acme”,
“phone” => “12345”,
“address” => {
“postcode” => “12345”,
“city” => “Carrot City”
}
}

12. JSON/XML Params
{ "company": { "name": "acme", "address": "123 Carrot Street" } }
JSON parameter
automatically converted to
params hash by Rails
{ :name => “acme”, “address” => “123 Carrot Street” }
params[:company]

13. default_url_options
➙ global default parameter
class PostsController < ApplicationController
# The options parameter is the hash passed in to 'url_for'
def default_url_options(options)
{:locale => I18n.locale}
end
end

14. url_for
<%= url_for(:action => 'index') %>
# => /blog/
<%= url_for(:action => 'find', :controller => 'books') %>
# => /books/find
<%= url_for(:action => 'login', :controller => 'members', :only_path => false, :protocol => 'https') %>
# => https://www.example.com/members/login/
<%= url_for(:action => 'play', :anchor => 'player') %>
# => /messages/play/#player
<%= url_for(:action => 'jump', :anchor => 'tax&ship') %>
# => /testing/jump/#tax&ship
<%= url_for(Workshop.new) %>
# relies on Workshop answering a persisted? call (and in this case returning false)
# => /workshops
<%= url_for(@workshop) %>
# calls @workshop.to_param which by default returns the id
# => /workshops/5
# to_param can be re-defined in a model to provide different URL names:
# => /workshops/1-workshop-name
<%= url_for("http://www.example.com") %>
# => http://www.example.com
<%= url_for(:back) %>
# if request.env["HTTP_REFERER"] is set to "http://www.example.com"
# => http://www.example.com
<%= url_for(:back) %>
# if request.env["HTTP_REFERER"] is not set or is blank
# => javascript:history.back()

15. Session
• ActionDispatch::Session::CookieStore
• ActionDispatch::Session::CacheStore
• ActionDispatch::Session:: ActiveRecordStore
• ActionDispatch::Session::MemCacheStore
stateless ➤ stateful in controllers
Session Repositories :

16. class LoginsController < ApplicationController
# "Create" a login, aka "log the user in"
def create
if user = User.authenticate(params[:username], params[:password])
# Save the user ID in the session so it can be used in
# subsequent requests
session[:current_user_id] = user.id
redirect_to root_url
end
end
end
Session
Accessing the Session
lazily loaded

17. class LoginsController < ApplicationController
# "Delete" a login, aka "log the user out"
def destroy
# Remove the user id from the session
@_current_user = session[:current_user_id] = nil
redirect_to root_url
end
end
Session
Removing a Session Key
cf. reset_session

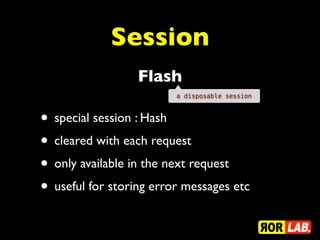

18. Session
• special session : Hash
• cleared with each request
• only available in the next request
• useful for storing error messages etc
Flash
a disposable session

19. redirect_to root_url, notice: "You have successfully logged out."
redirect_to root_url, alert: "You're stuck here!"
redirect_to root_url, flash: { referral_code: 1234 }
Session
Flash

20. <html>
<!-- <head/> -->
<body>
<% flash.each do |name, msg| -%>
<%= content_tag :div, msg, class: name %>
<% end -%>
<!-- more content -->
</body>
</html>
Session
Flash

21. <% if flash[:just_signed_up] %>
<p class="welcome">Welcome to our site!</p>
<% end %>
Session
Flash

22. class MainController < ApplicationController
# Let's say this action corresponds to root_url, but you want
# all requests here to be redirected to UsersController#index.
# If an action sets the flash and redirects here, the values
# would normally be lost when another redirect happens, but you
# can use 'keep' to make it persist for another request.
def index
# Will persist all flash values.
flash.keep
# You can also use a key to keep only some kind of value.
# flash.keep(:notice)
redirect_to users_url
end
end
Session
Flash
flash.keep

23. class ClientsController < ApplicationController
def create
@client = Client.new(params[:client])
if @client.save
# ...
else
flash.now[:error] = "Could not save client"
render :action => "new"
end
end
end
Session
Flash
flash.now

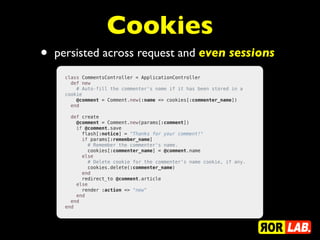

24. Cookies
• persisted across request and even sessions
class CommentsController < ApplicationController
def new
# Auto-fill the commenter's name if it has been stored in a
cookie
@comment = Comment.new(:name => cookies[:commenter_name])
end
def create
@comment = Comment.new(params[:comment])
if @comment.save
flash[:notice] = "Thanks for your comment!"
if params[:remember_name]
# Remember the commenter's name.
cookies[:commenter_name] = @comment.name
else
# Delete cookie for the commenter's name cookie, if any.
cookies.delete(:commenter_name)
end
redirect_to @comment.article
else
render :action => "new"
end
end
end

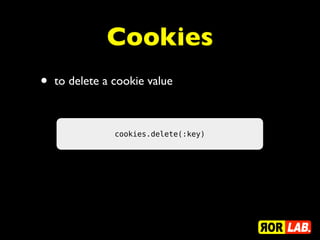

25. • to delete a cookie value
cookies.delete(:key)
Cookies

26. xml & json data
class UsersController < ApplicationController
def index
@users = User.all
respond_to do |format|
format.html # index.html.erb
format.xml { render :xml => @users}
format.json { render :json => @users}
end
end
end

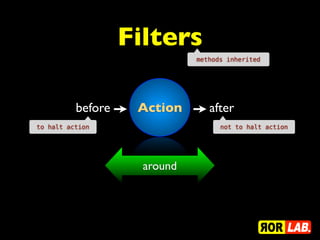

27. Filters
Action
before after
around
methods inherited
not to halt action
to halt action

28. Filters
class ApplicationController < ActionController::Base
before_filter :require_login
private
def require_login
unless logged_in?
flash[:error] = "You must be logged in to access this section"
redirect_to new_login_url # halts request cycle
end
end
# The logged_in? method simply returns true if the user is logged
# in and false otherwise. It does this by "booleanizing" the
# current_user method we created previously using a double ! operator.
# Note that this is not common in Ruby and is discouraged unless you
# really mean to convert something into true or false.
def logged_in?
!!current_user
end
end
booleanizing operator

29. Filters
class LoginsController < ApplicationController
skip_before_filter :require_login, :only => [:new, :create]
end
• skip_before_filter

30. Filters
class ChangesController < ActionController::Base
around_filter :wrap_in_transaction, :only => :show
private
def wrap_in_transaction
ActiveRecord::Base.transaction do
begin
yield
ensure
raise ActiveRecord::Rollback
end
end
end
end
• around_filter

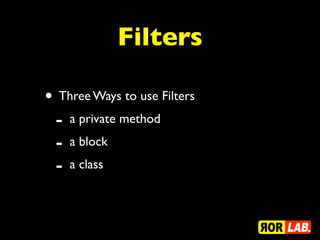

31. Filters
• Three Ways to use Filters
- a private method
- a block
- a class

32. Filters
• Using a Block in more simple cases
class ApplicationController < ActionController::Base
before_filter do |controller|
redirect_to new_login_url unless controller.send(:logged_in?)
end
end

33. Filters
• Using a Class in more complex cases
class ApplicationController < ActionController::Base
before_filter LoginFilter
end
class LoginFilter
def self.filter(controller)
unless controller.send(:logged_in?)
controller.flash[:error] = "You must be logged in"
controller.redirect_to controller.new_login_url
end
end
end

34. CSRF
• Site to site hacking
• First step for this
:create/update/destroy with non-GET request
• RESTful default to protect CSRF
• Nevertheless, non-GET request still
vulnerable

35. CSRF
• To add a non-guessable token with form helpers
<%= form_for @user do |f| %>
<%= f.text_field :username %>
<%= f.text_field :password %>
<% end %>
<form accept-charset="UTF-8" action="/users/1"
method="post">
<input type="hidden"
value="67250ab105eb5ad10851c00a5621854a23af5489"
name="authenticity_token"/>
<!-- fields -->
</form>

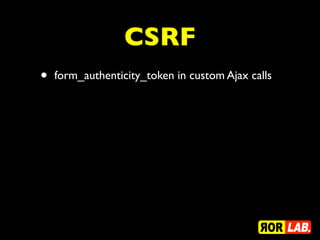

36. CSRF
• form_authenticity_token in custom Ajax calls

37. Request & Response
Objects
• Two methods in every controller
- `request` method => request object
- `response` method => response object

38. Request Objects

39. Request Objects
• Three hash parameters for request objects
-path_parameters
-query_parameters : query string
-request_parameters : post data

40. Response Objects
• like in an `after` filter

41. Response Objects
response.headers["Content-Type"] = "application/pdf"

42. HTTP
Authentications

43. HTTP
Authentications
• Two types
- Basic authentication
: using base 64 encoding
- Digest authentication
: using MD5 encoding

44. HTTP
Authentications
• Basic authentication
class AdminController < ApplicationController
http_basic_authenticate_with :name => "humbaba", :password => "5baa61e4"
end

45. HTTP
Authentications
• Digest authentication
class AdminController < ApplicationController
USERS = { "lifo" => "world" }
before_filter :authenticate
private
def authenticate
authenticate_or_request_with_http_digest do |username|
USERS[username]
end
end
end
Safari v 6.0.2
undefined method `unpack' for nil:NilClass

46. Streaming & File
Downloads
require "prawn"
class ClientsController < ApplicationController
# Generates a PDF document with information on the client and
# returns it. The user will get the PDF as a file download.
def download_pdf
client = Client.find(params[:id])
send_data generate_pdf(client),
:filename => "#{client.name}.pdf",
:type => "application/pdf",
:disposition => "attachement"
end
private
def generate_pdf(client)
Prawn::Document.new do
text client.name, :align => :center
text "Address: #{client.address}"
text "Email: #{client.email}"
end.render
end
end
send_data
•send_data
•send_file

47. Streaming & File
Downloads
class ClientsController < ApplicationController
# Stream a file that has already been generated and stored on disk.
def download_pdf
client = Client.find(params[:id])
send_file("#{Rails.root}/files/clients/#{client.id}.pdf",
:filename => "#{client.name}.pdf",
:type => "application/pdf")
end
end
send_file

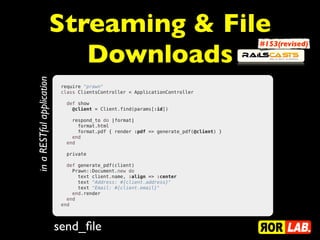

48. Streaming & File
Downloads
send_file
in
a
RESTful
application
require "prawn"
class ClientsController < ApplicationController
def show
@client = Client.find(params[:id])
respond_to do |format|
format.html
format.pdf { render :pdf => generate_pdf(@client) }
end
end
private
def generate_pdf(client)
Prawn::Document.new do
text client.name, :align => :center
text "Address: #{client.address}"
text "Email: #{client.email}"
end.render
end
end
#153(revised)

49. Streaming & File
Downloads
send_file
in
a
RESTful
application
• in config/initializer/mime_types.rb
Mime::Type.register "application/pdf", :pdf

50. Parameter
Filtering
config.filter_parameters << :password
• in config/application.rb

51. Rescue
class ApplicationController < ActionController::Base
rescue_from User::NotAuthorized, :with => :user_not_authorized
private
def user_not_authorized
flash[:error] = "You don't have access to this section."
redirect_to :back
end
end
class ClientsController < ApplicationController
# Check that the user has the right authorization to access clients.
before_filter :check_authorization
# Note how the actions don't have to worry about all the auth stuff.
def edit
@client = Client.find(params[:id])
end
private
# If the user is not authorized, just throw the exception.
def check_authorization
raise User::NotAuthorized unless current_user.admin?
end
end

52. Force HTTPS
protocol
class DinnerController
force_ssl
end
class DinnerController
force_ssl :only => :cheeseburger
# or
force_ssl :except => :cheeseburger
end
# Force all access to the app over SSL, use Strict-Transport-
Security, and use secure cookies.
config.force_ssl = true

53. 감사합니다.
