This document summarizes various Rails form helpers including: - time_zone_select and time_zone_options_for_select for selecting time zones - country_select for selecting countries - select_date and date_select for selecting dates - File uploading helpers like file_field and handling uploaded files - Customizing forms using form builders or the SimpleForm gem - Dealing with nested and duplicated form parameters - Using fields_for to work with nested attributes

1. Ror lab. season 2
- the 14th round -
Action View
Form Helpers -2
January 12th, 2013
Hyoseong Choi

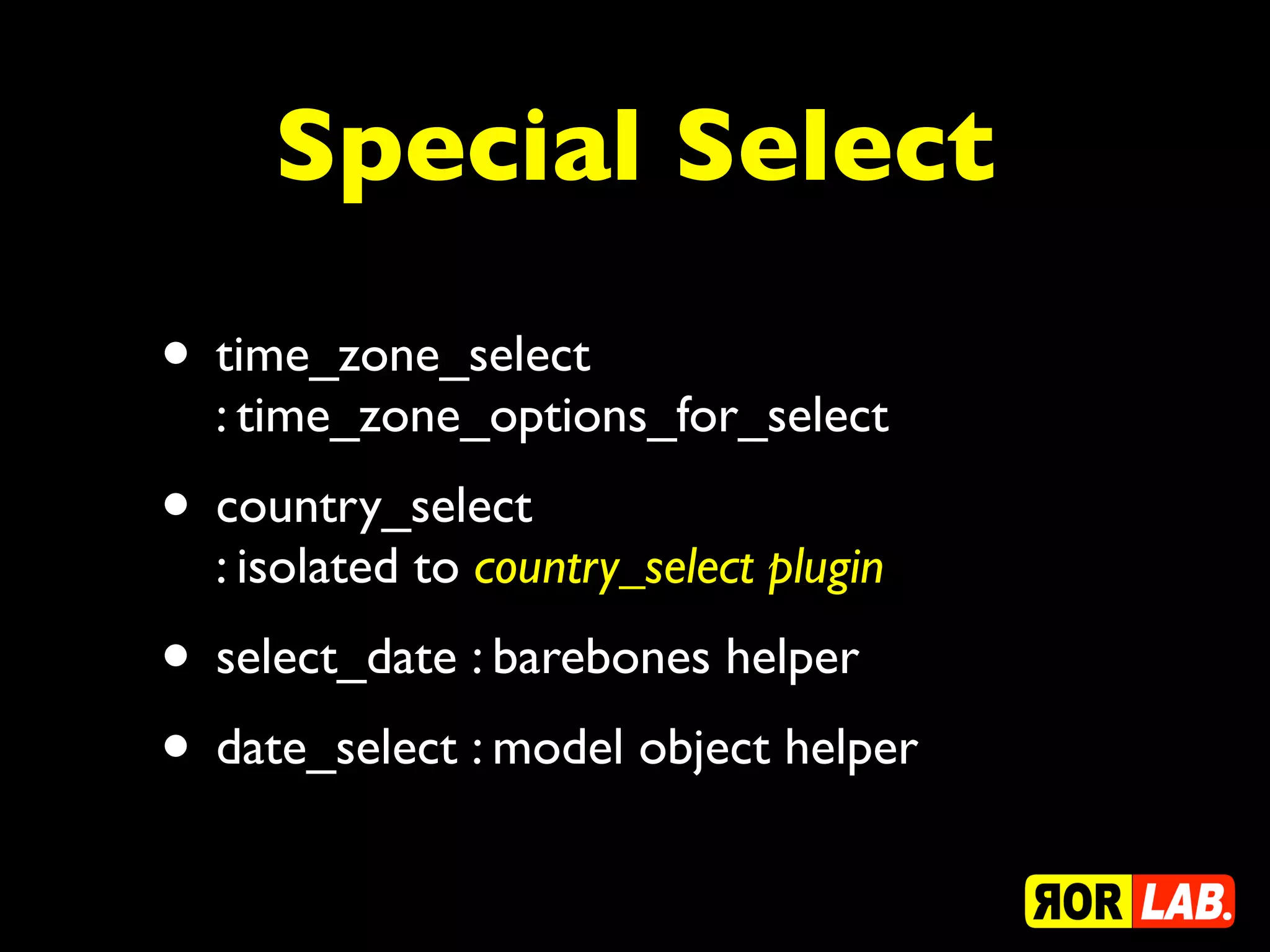

2. Special Select
• time_zone_select
: time_zone_options_for_select
• country_select
: isolated to country_select plugin
• select_date : barebones helper
• date_select : model object helper

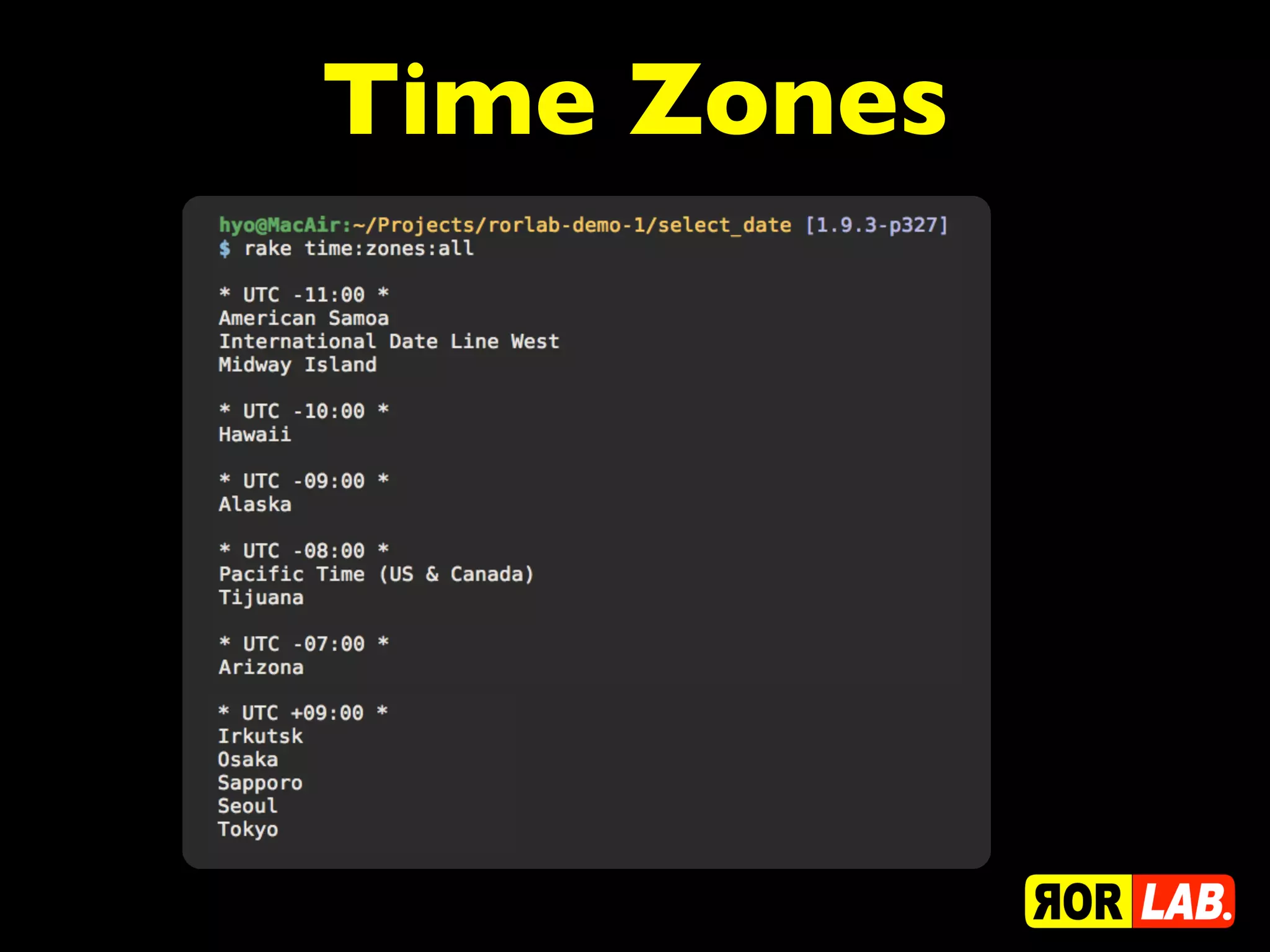

3. Time Zones

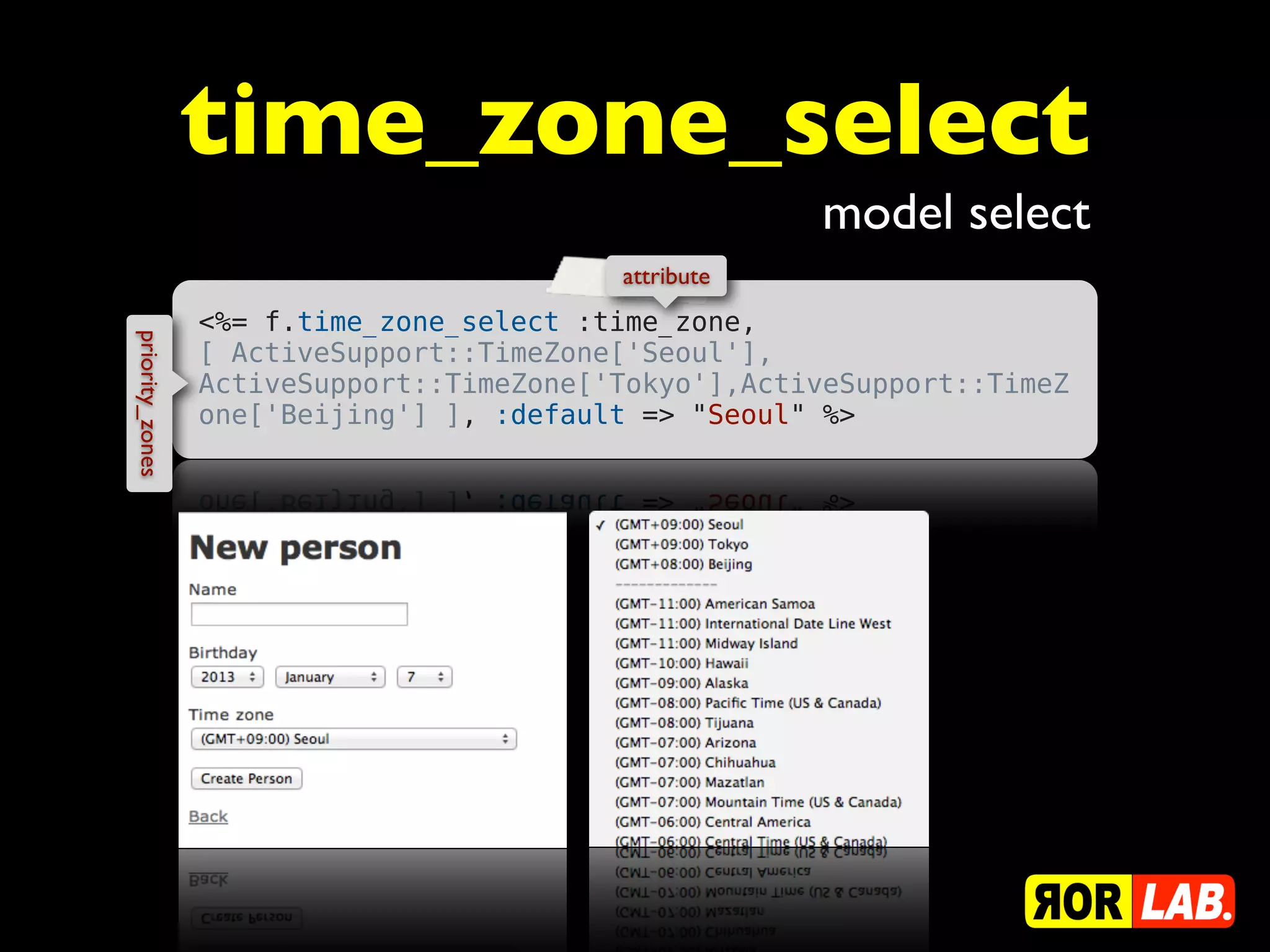

4. time_zone_select
model select
attribute
<%= f.time_zone_select :time_zone,
priority_zones
[ ActiveSupport::TimeZone['Seoul'],
ActiveSupport::TimeZone['Tokyo'],ActiveSupport::TimeZ
one['Beijing'] ], :default => "Seoul" %>

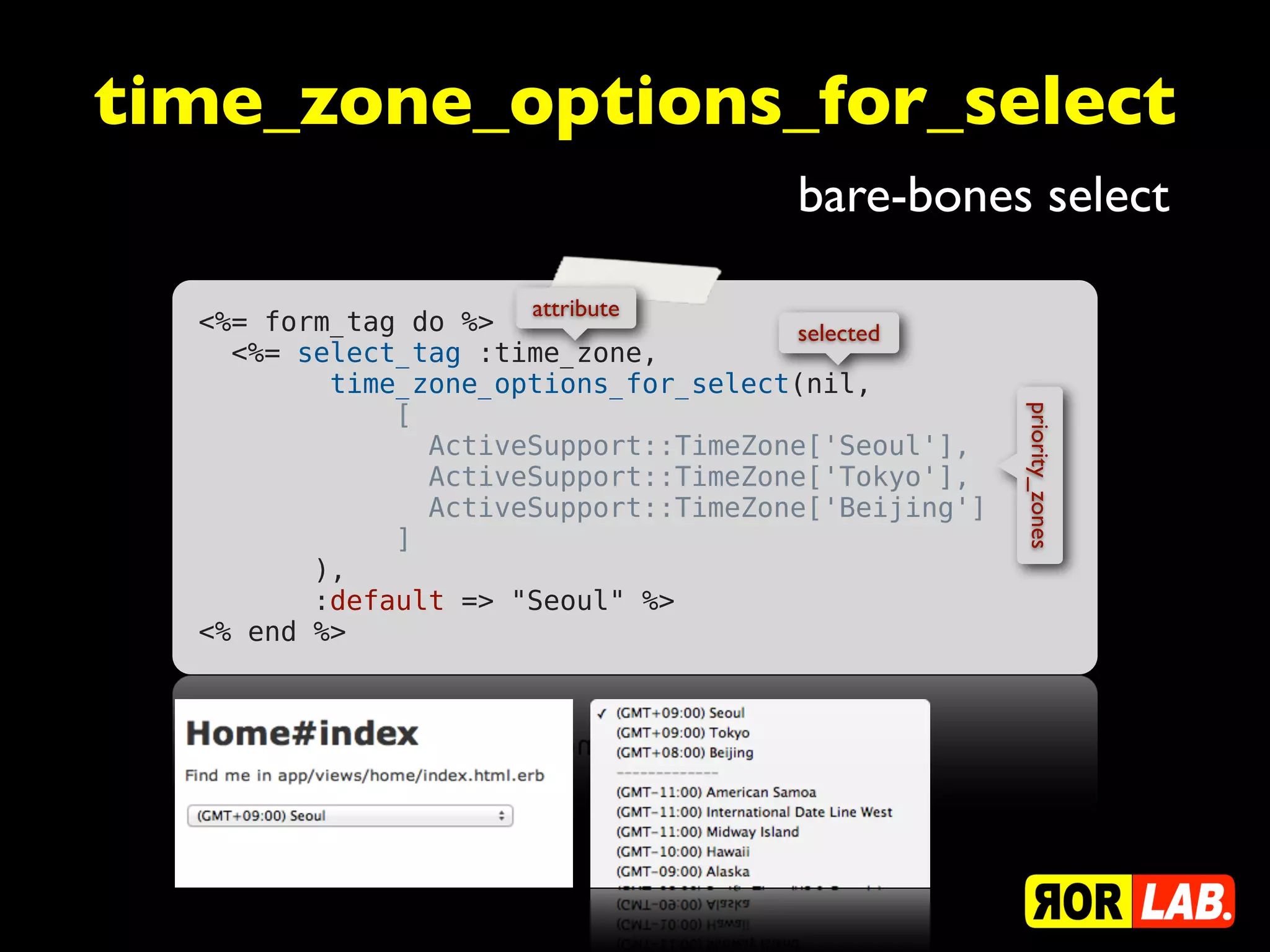

5. time_zone_options_for_select
bare-bones select
attribute
<%= form_tag do %> selected
<%= select_tag :time_zone,
time_zone_options_for_select(nil,
[
priority_zones
ActiveSupport::TimeZone['Seoul'],
ActiveSupport::TimeZone['Tokyo'],
ActiveSupport::TimeZone['Beijing']
]
),
:default => "Seoul" %>
<% end %>

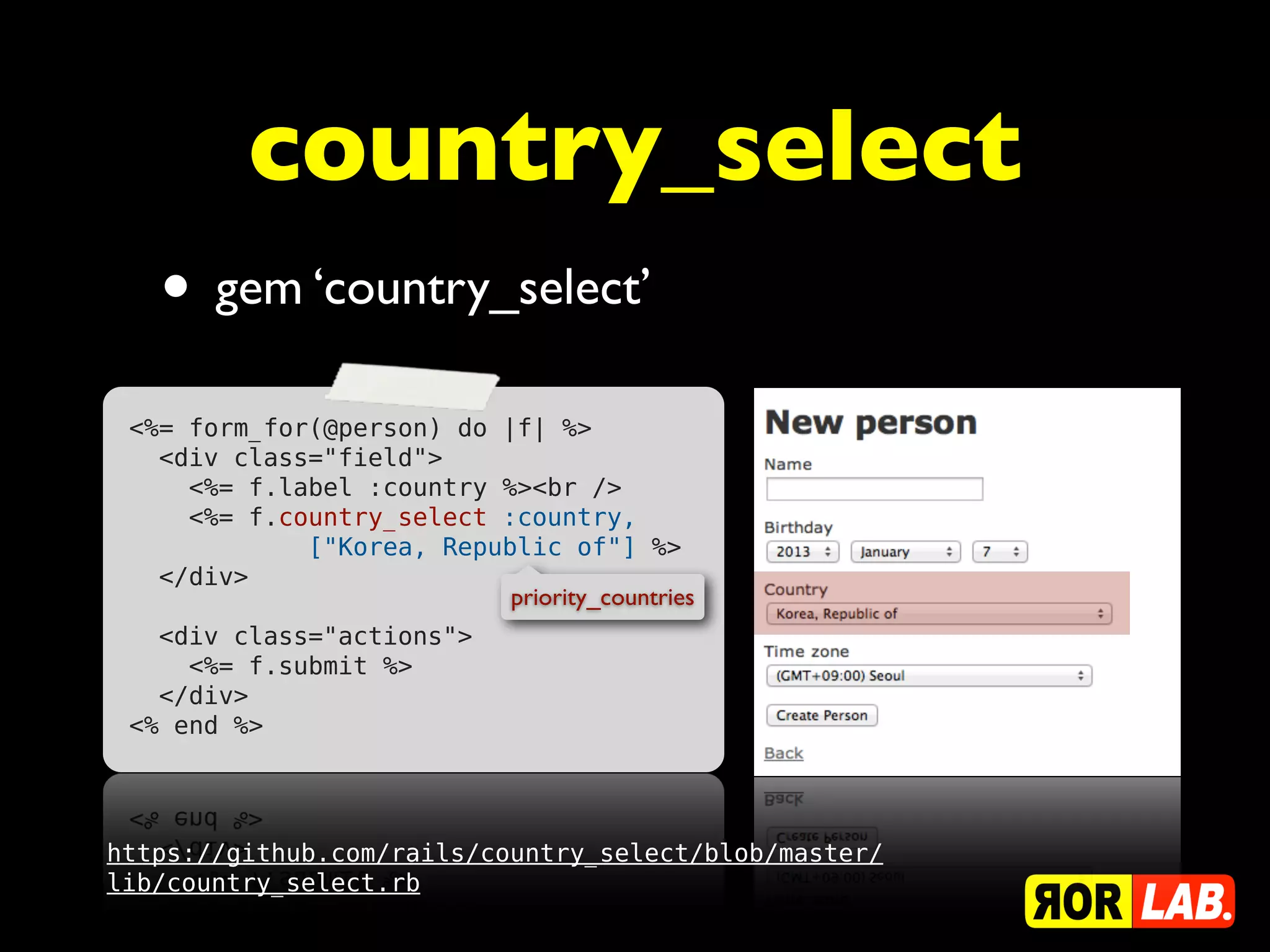

6. country_select
• gem ‘country_select’
<%= form_for(@person) do |f| %>
<div class="field">
<%= f.label :country %><br />
<%= f.country_select :country,
["Korea, Republic of"] %>
</div>
priority_countries
<div class="actions">
<%= f.submit %>
</div>
<% end %>
https://github.com/rails/country_select/blob/master/
lib/country_select.rb

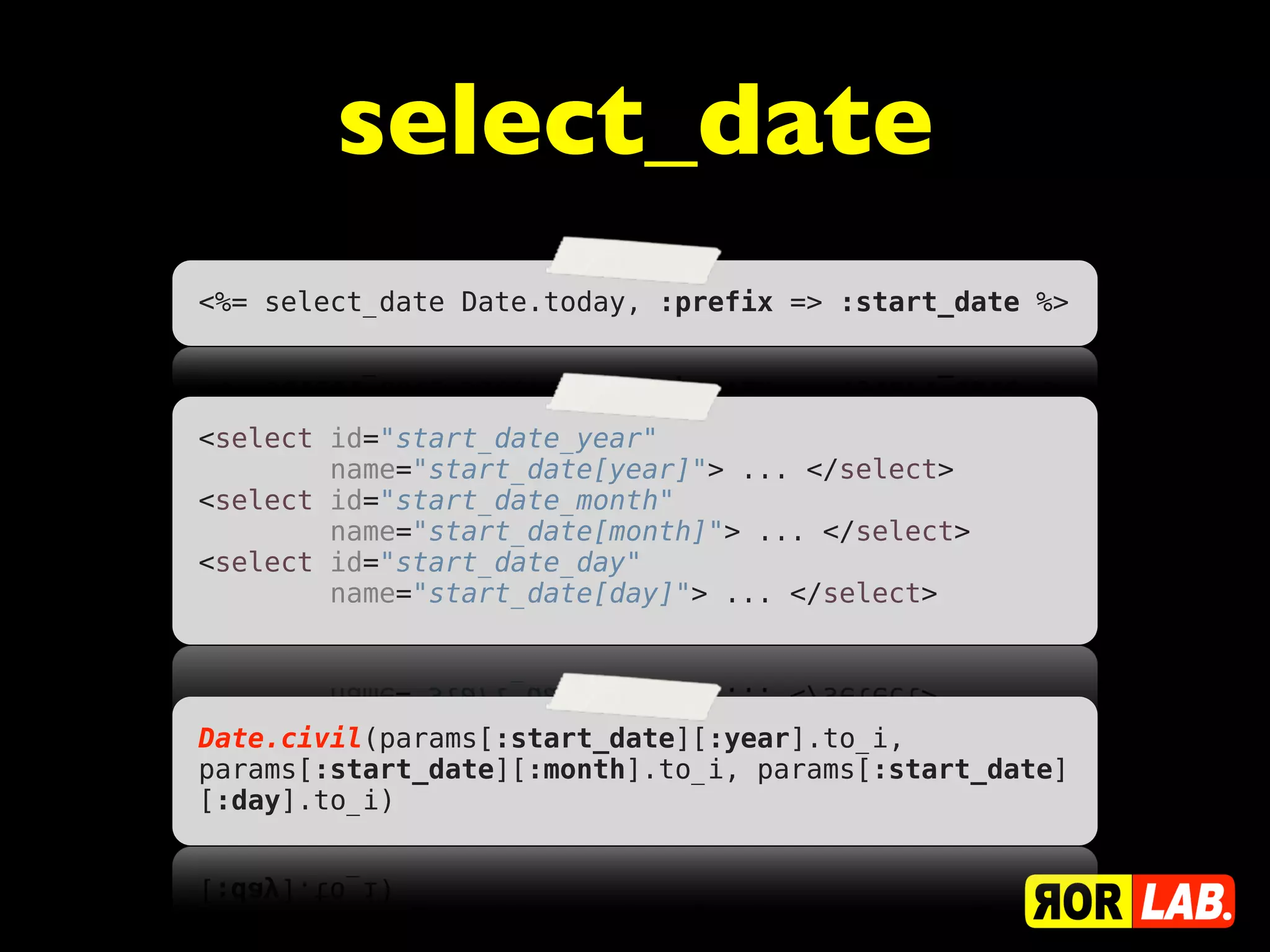

7. select_date
<%= select_date Date.today, :prefix => :start_date %>
<select id="start_date_year"
name="start_date[year]"> ... </select>
<select id="start_date_month"
name="start_date[month]"> ... </select>
<select id="start_date_day"
name="start_date[day]"> ... </select>
Date.civil(params[:start_date][:year].to_i,
params[:start_date][:month].to_i, params[:start_date]
[:day].to_i)

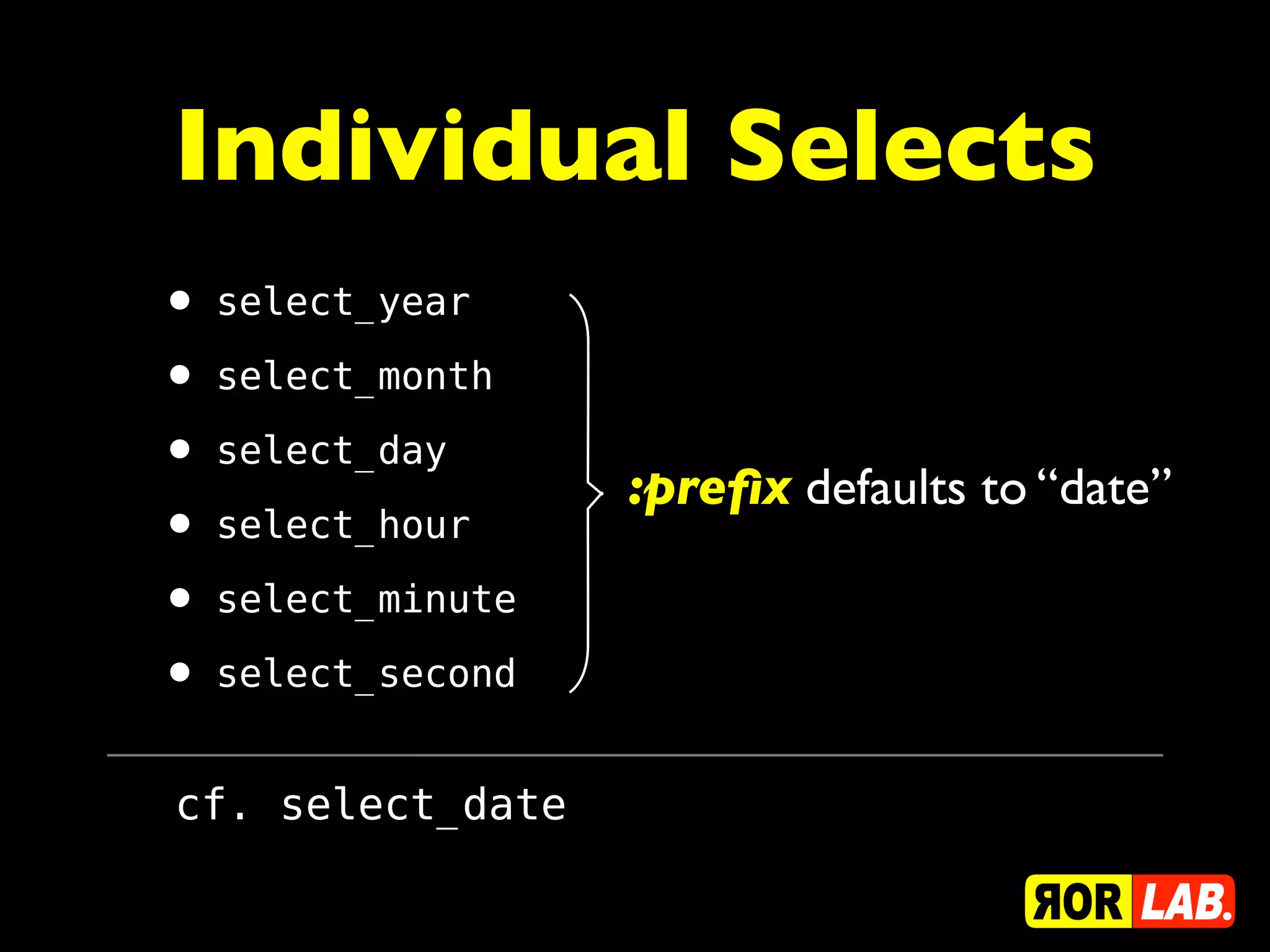

8. Individual Selects
• select_year
• select_month
• select_day :prefix defaults to “date”
• select_hour
• select_minute
• select_second
cf. select_date

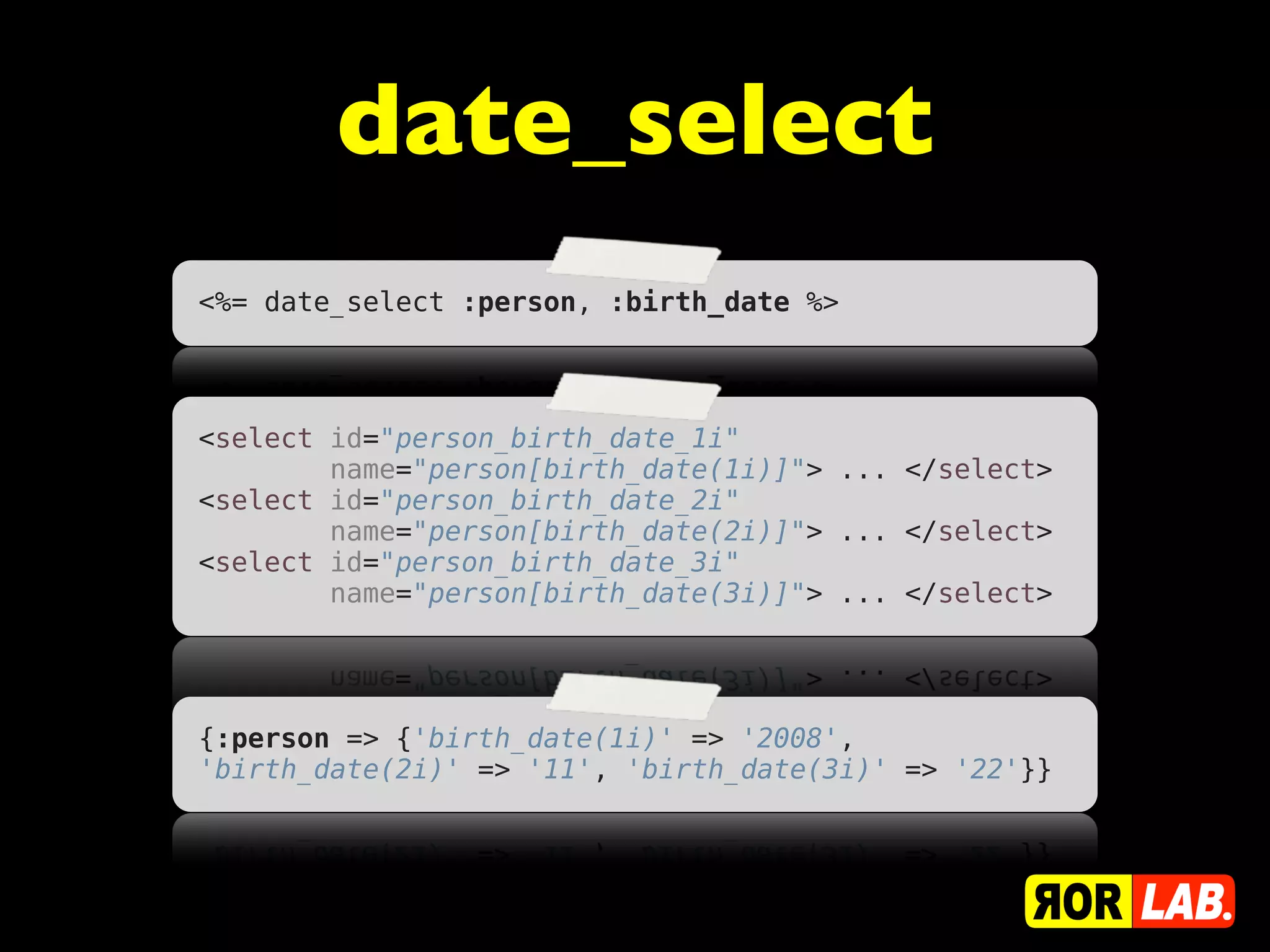

9. date_select
<%= date_select :person, :birth_date %>
<select id="person_birth_date_1i"
name="person[birth_date(1i)]"> ... </select>
<select id="person_birth_date_2i"
name="person[birth_date(2i)]"> ... </select>
<select id="person_birth_date_3i"
name="person[birth_date(3i)]"> ... </select>
{:person => {'birth_date(1i)' => '2008',
'birth_date(2i)' => '11', 'birth_date(3i)' => '22'}}

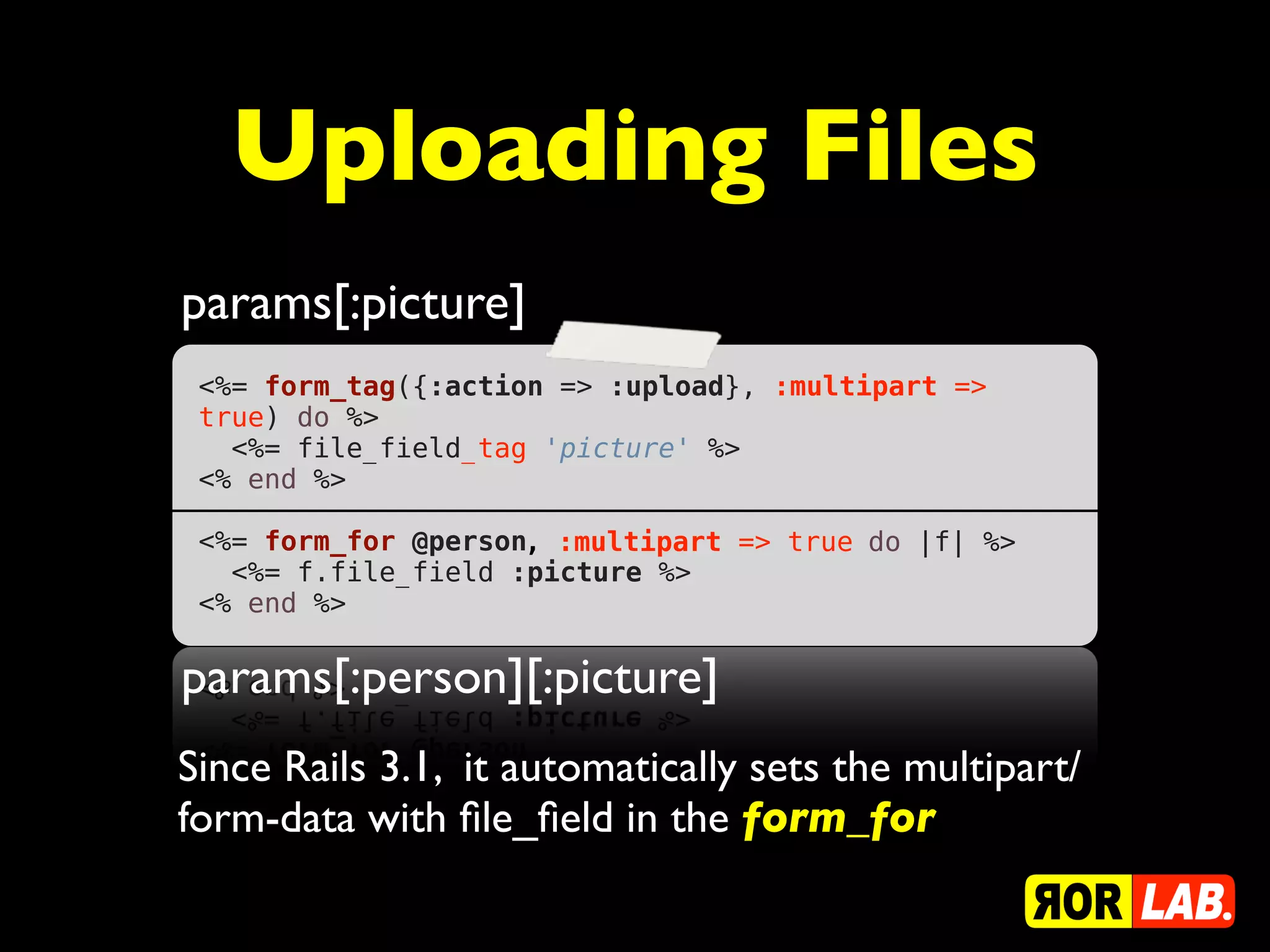

10. Uploading Files
params[:picture]
<%= form_tag({:action => :upload}, :multipart =>
true) do %>
<%= file_field_tag 'picture' %>
<% end %>
<%= form_for @person, :multipart => true do |f| %>
<%= f.file_field :picture %>
<% end %>
params[:person][:picture]
Since Rails 3.1, it automatically sets the multipart/
form-data with file_field in the form_for

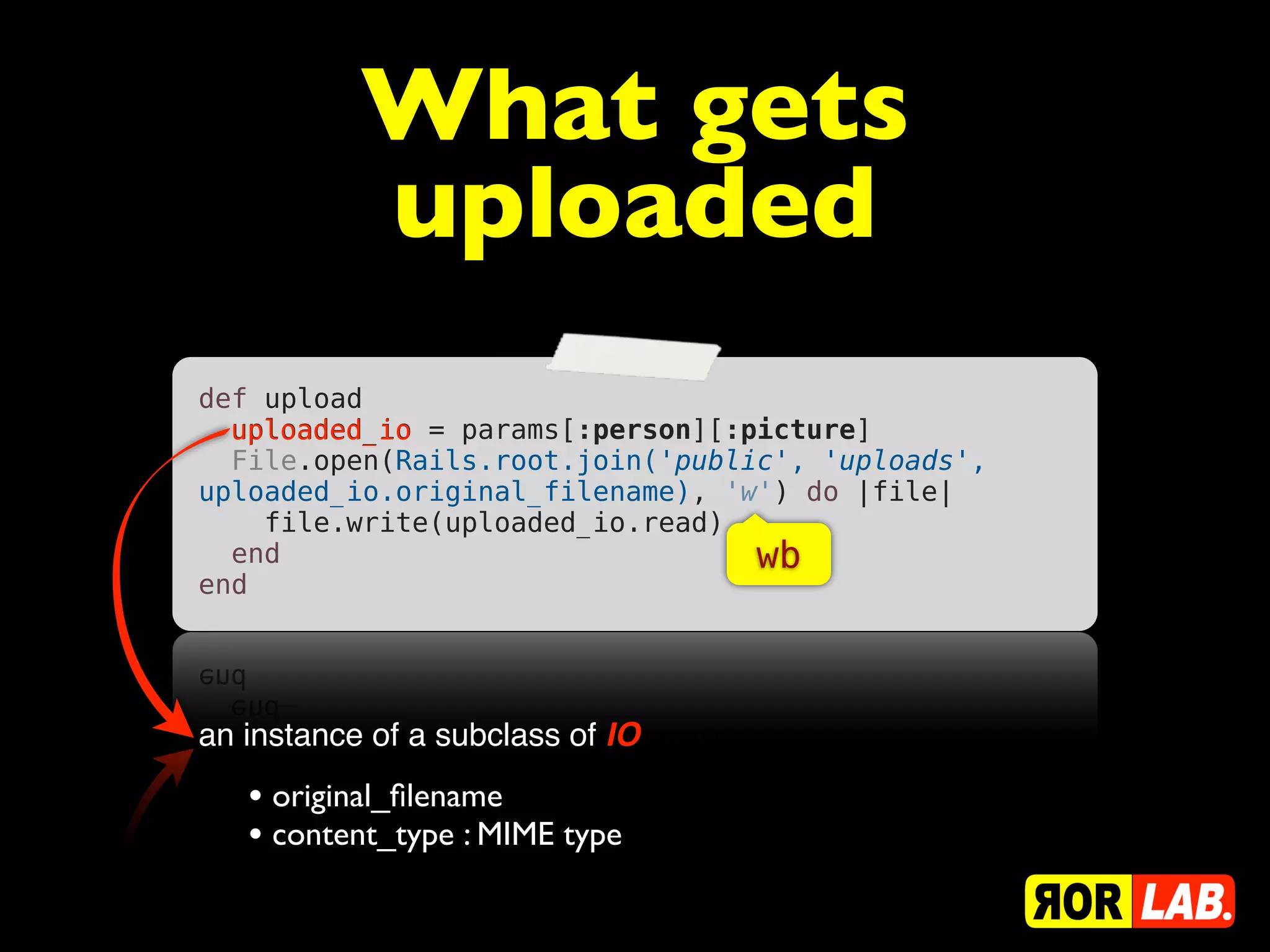

11. What gets
uploaded
def upload
uploaded_io = params[:person][:picture]
uploaded_io
File.open(Rails.root.join('public', 'uploads',
uploaded_io.original_filename), 'w') do |file|
file.write(uploaded_io.read)
end wb
end
an instance of a subclass of IO
• original_filename
• content_type : MIME type

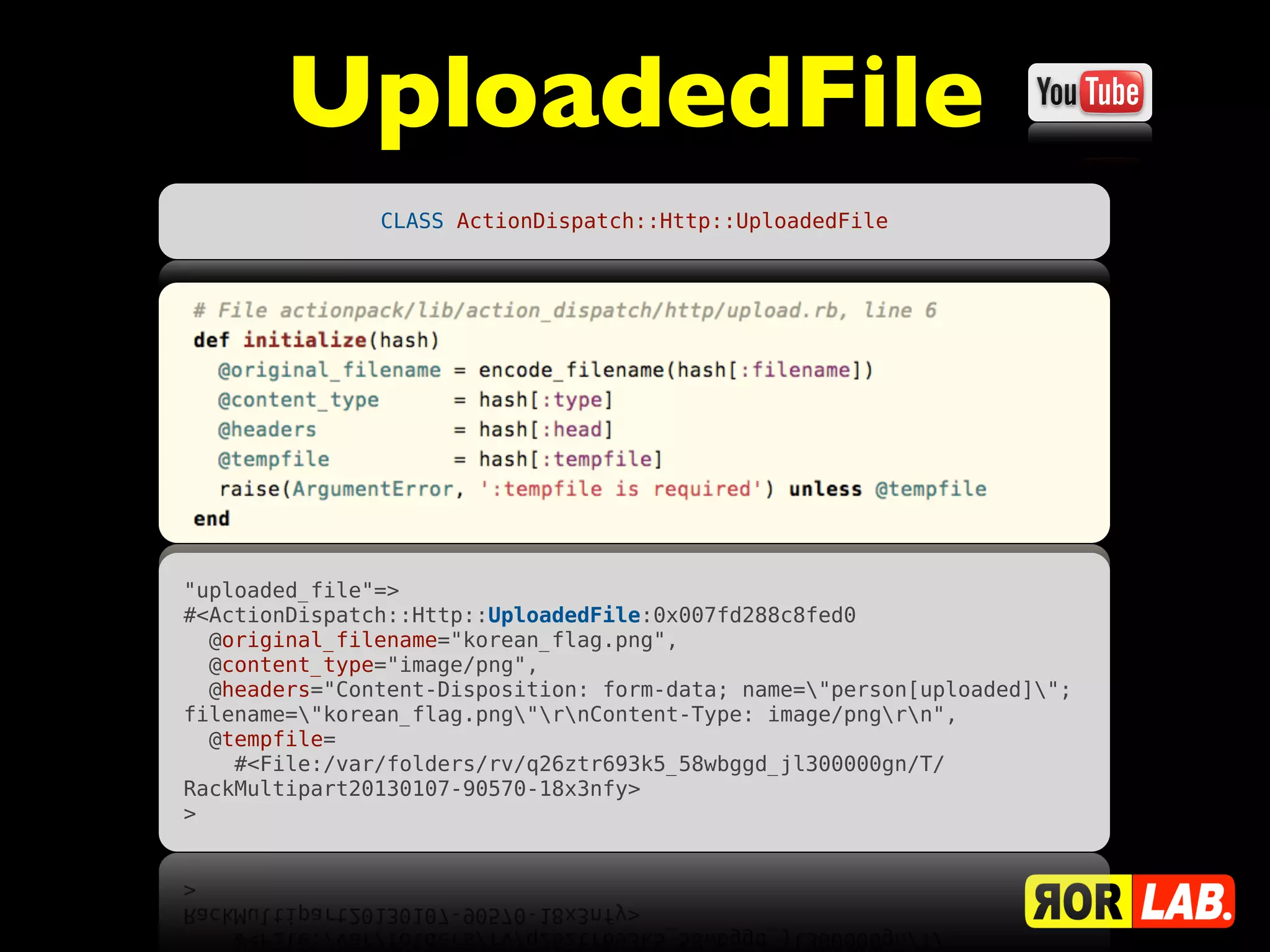

12. UploadedFile
CLASS ActionDispatch::Http::UploadedFile
"uploaded_file"=>
#<ActionDispatch::Http::UploadedFile:0x007fd288c8fed0
@original_filename="korean_flag.png",
@content_type="image/png",
@headers="Content-Disposition: form-data; name="person[uploaded]";
filename="korean_flag.png"rnContent-Type: image/pngrn",
@tempfile=
#<File:/var/folders/rv/q26ztr693k5_58wbggd_jl300000gn/T/
RackMultipart20130107-90570-18x3nfy>
>

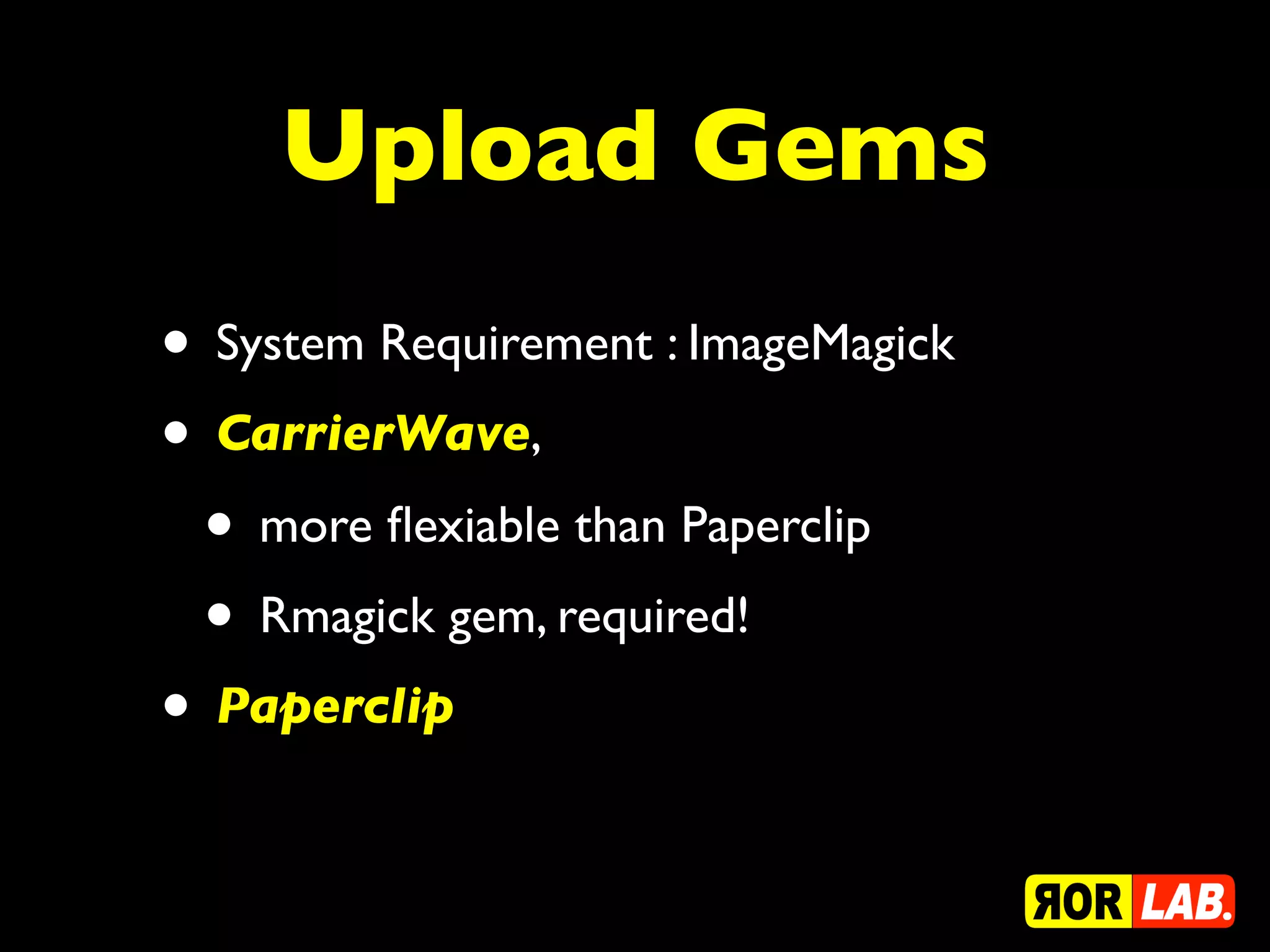

13. Upload Gems
• System Requirement : ImageMagick
• CarrierWave,
• more flexiable than Paperclip
• Rmagick gem, required!
• Paperclip

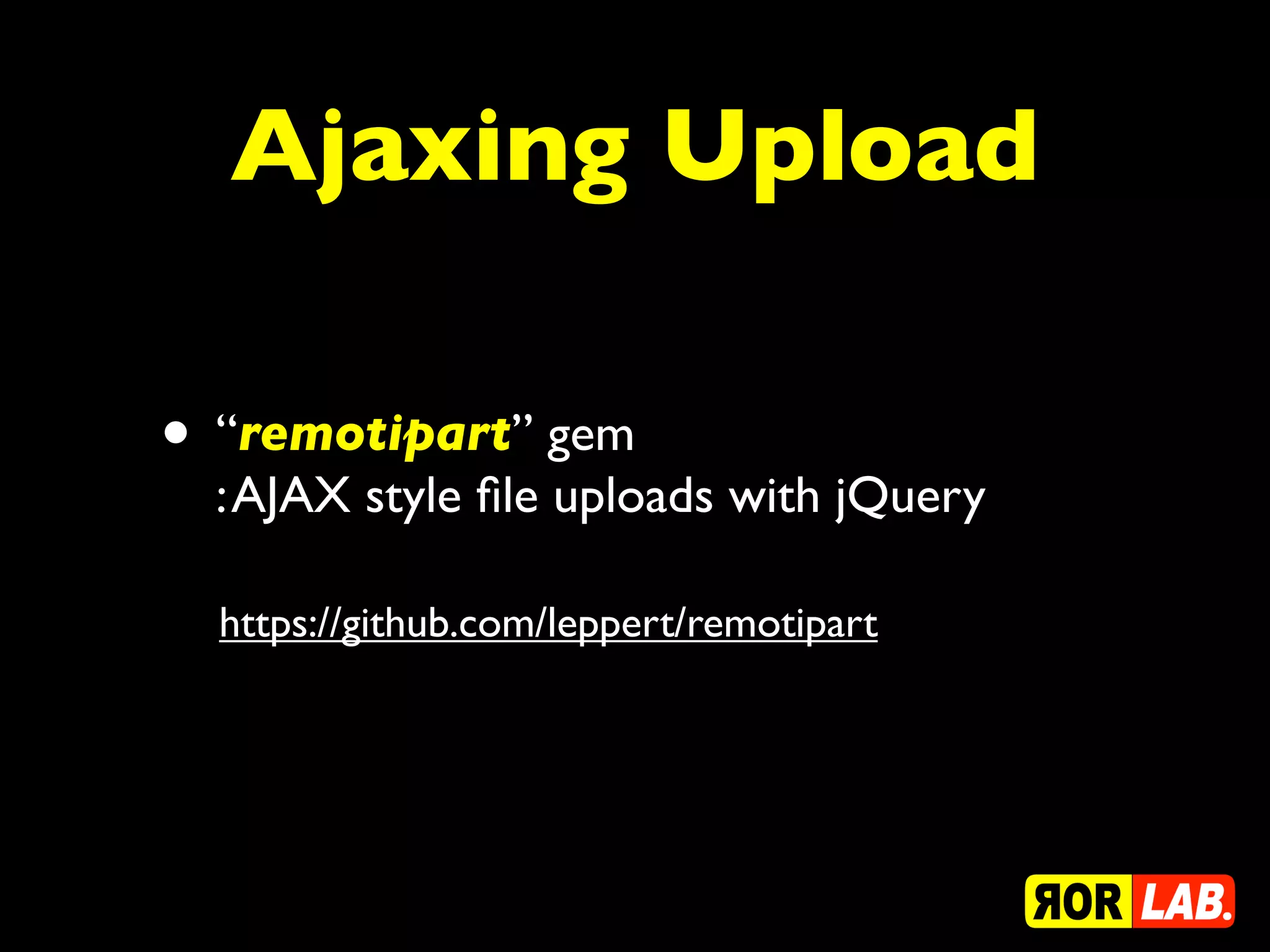

14. Ajaxing Upload
• “remotipart” gem
: AJAX style file uploads with jQuery
https://github.com/leppert/remotipart

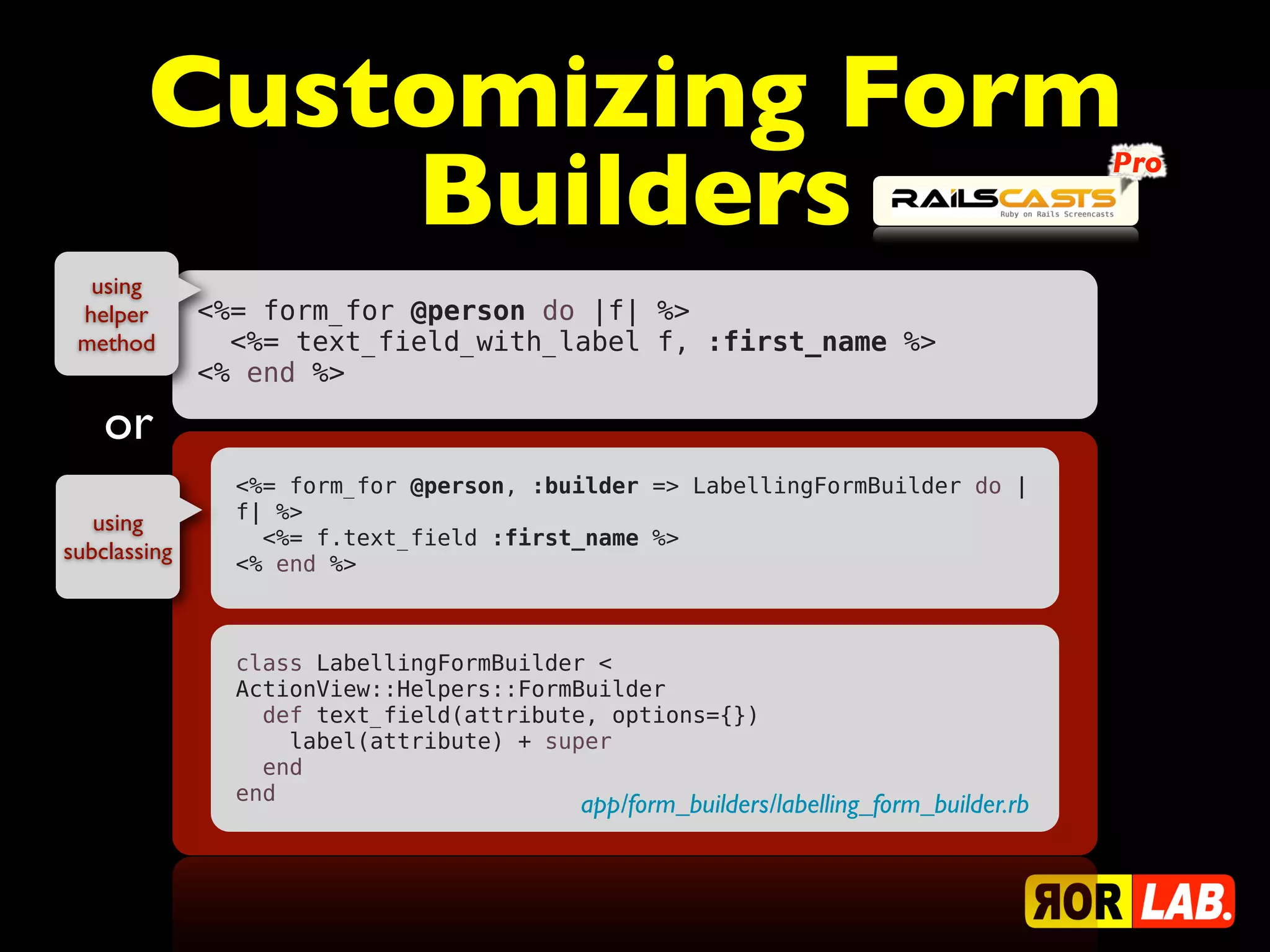

15. Customizing Form
Builders Pro
using
helper <%= form_for @person do |f| %>
method <%= text_field_with_label f, :first_name %>
<% end %>
or
<%= form_for @person, :builder => LabellingFormBuilder do |
f| %>
using
<%= f.text_field :first_name %>
subclassing <% end %>
class LabellingFormBuilder <
ActionView::Helpers::FormBuilder
def text_field(attribute, options={})
label(attribute) + super
end
end
app/form_builders/labelling_form_builder.rb

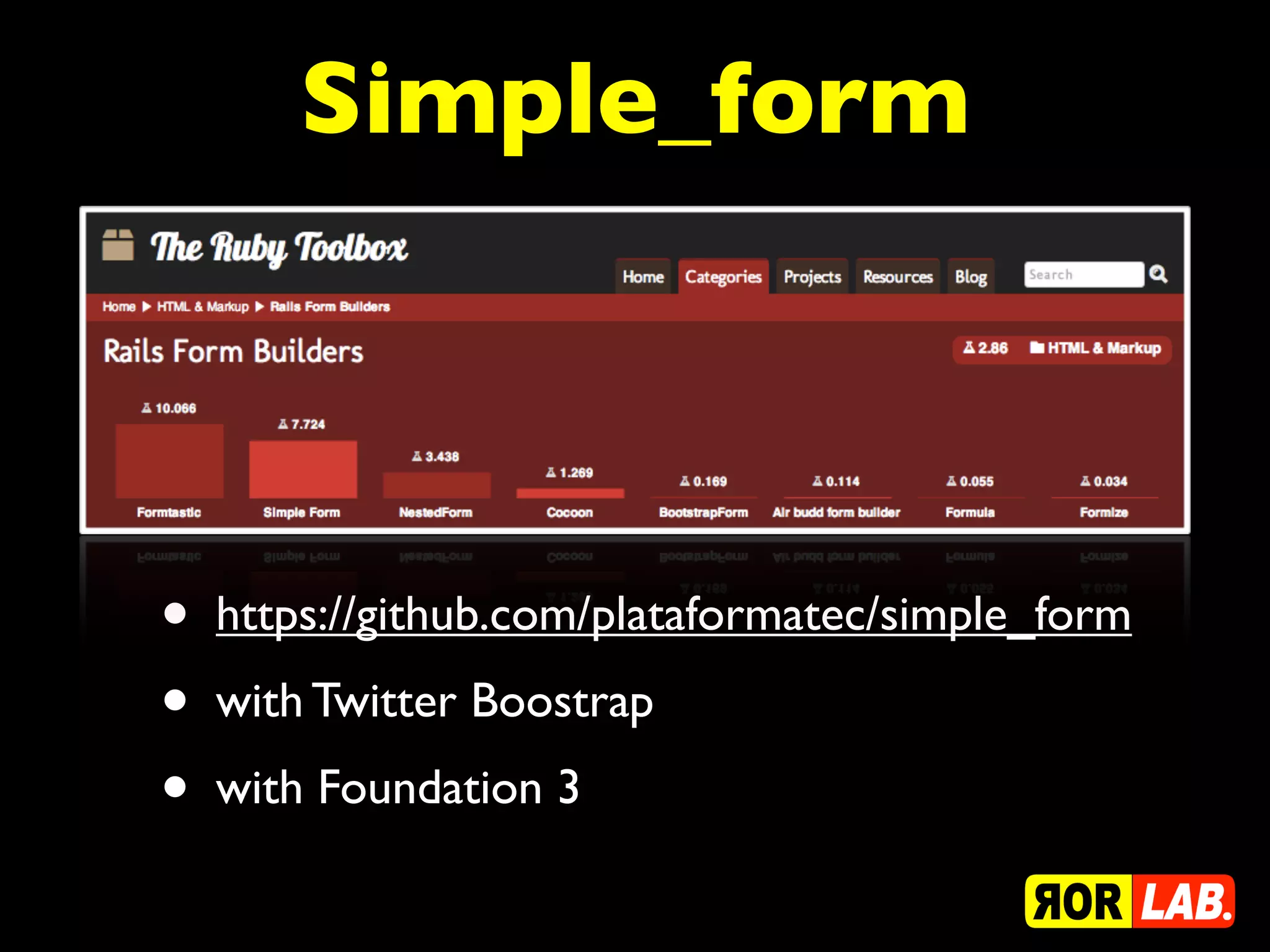

16. Simple_form
• https://github.com/plataformatec/simple_form
• with Twitter Boostrap
• with Foundation 3

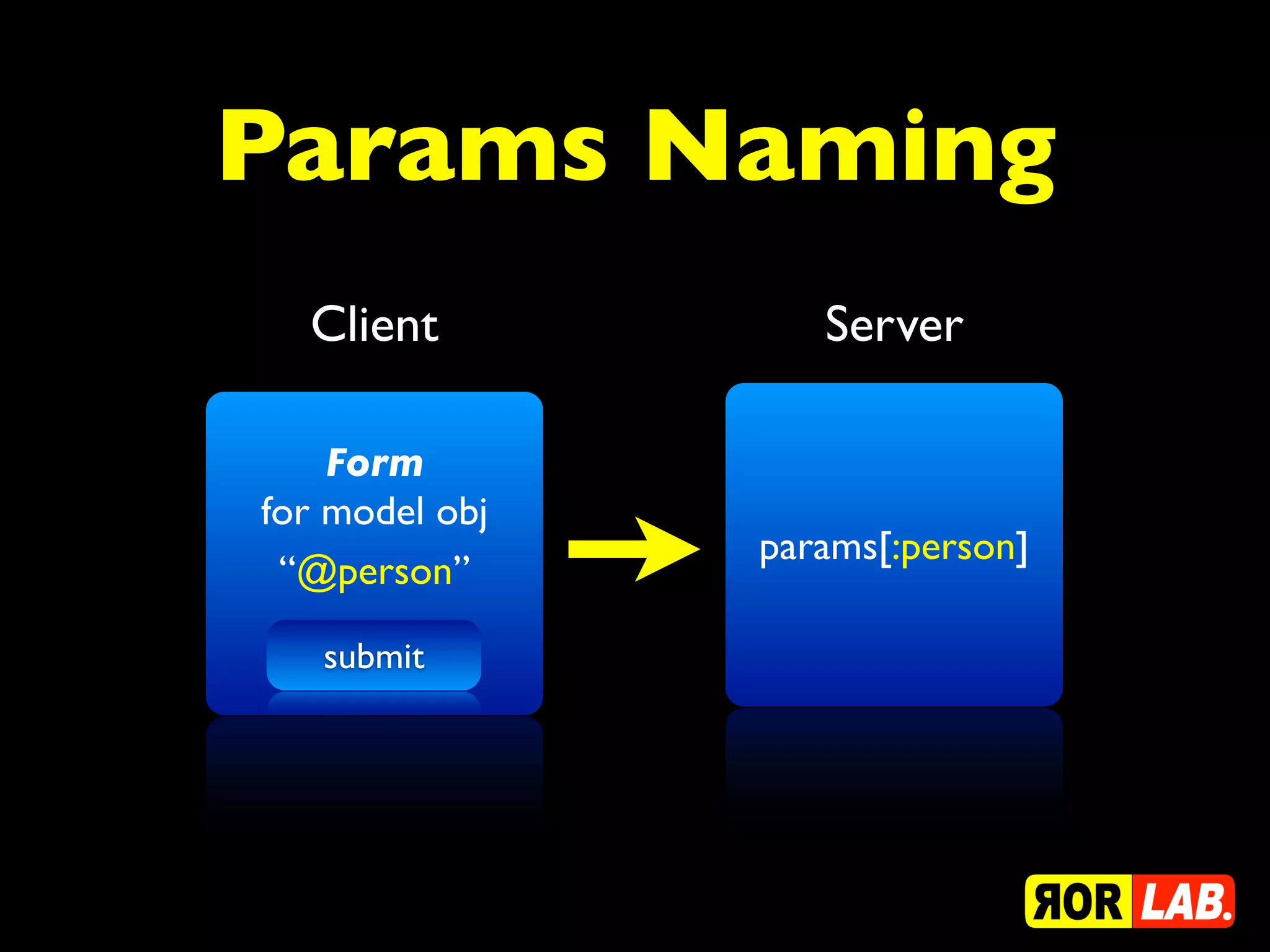

17. Params Naming
Client Server
Form
for model obj
params[:person]
“@person”
submit

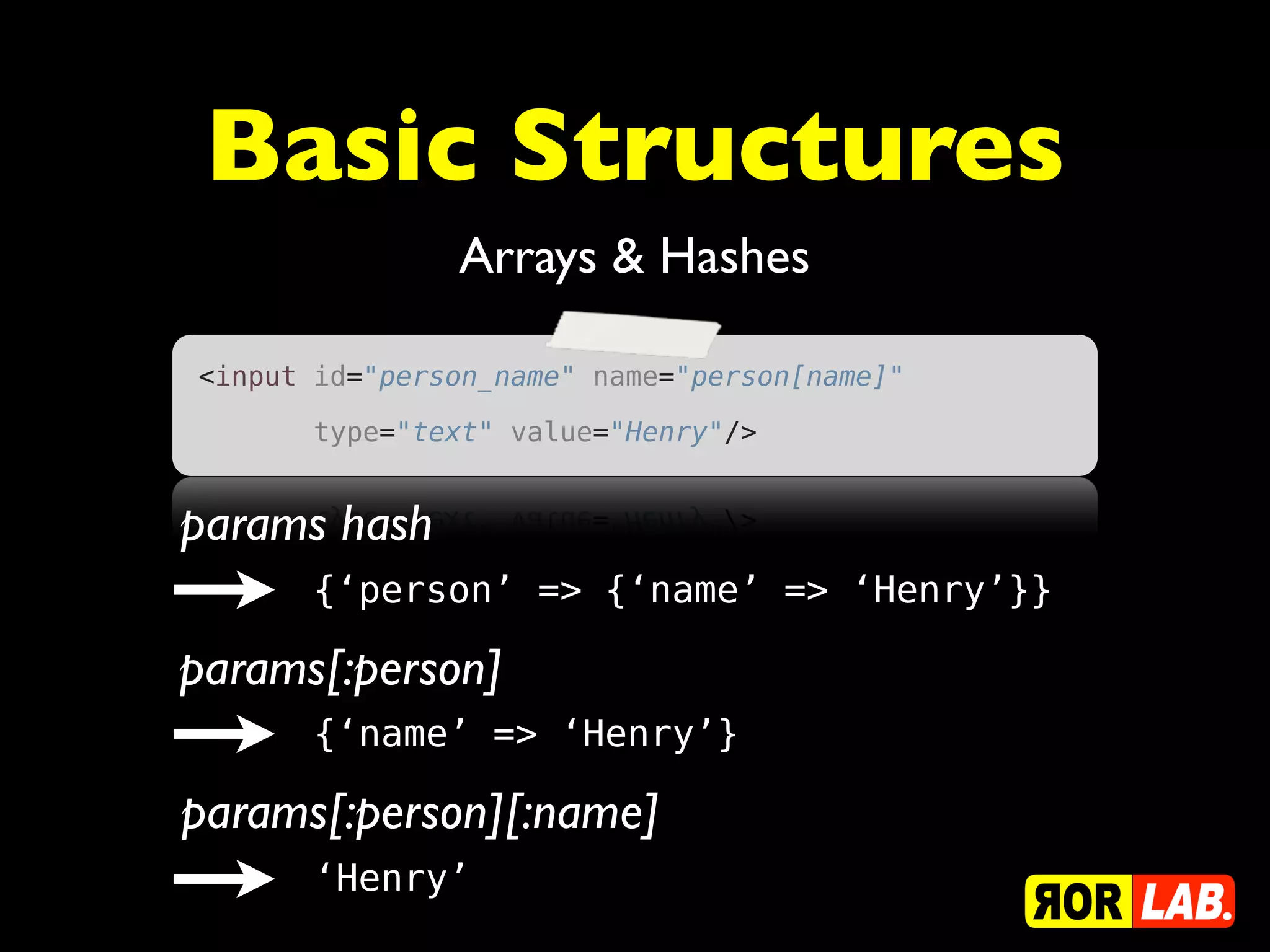

18. Basic Structures
Arrays & Hashes
<input id="person_name" name="person[name]"
type="text" value="Henry"/>
params hash
{‘person’ => {‘name’ => ‘Henry’}}
params[:person]
{‘name’ => ‘Henry’}
params[:person][:name]
‘Henry’

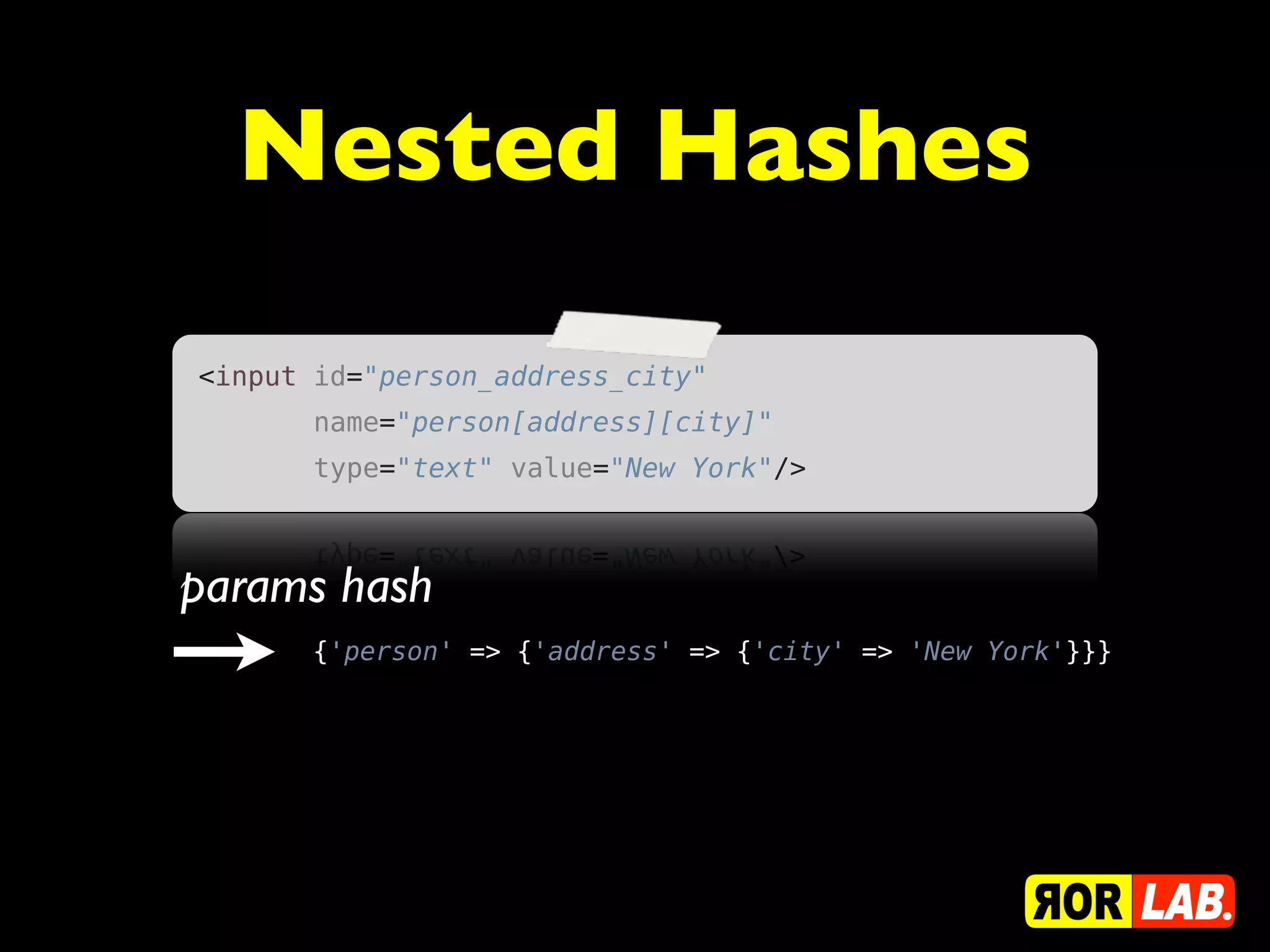

19. Nested Hashes
<input id="person_address_city"
name="person[address][city]"
type="text" value="New York"/>
params hash
{'person' => {'address' => {'city' => 'New York'}}}

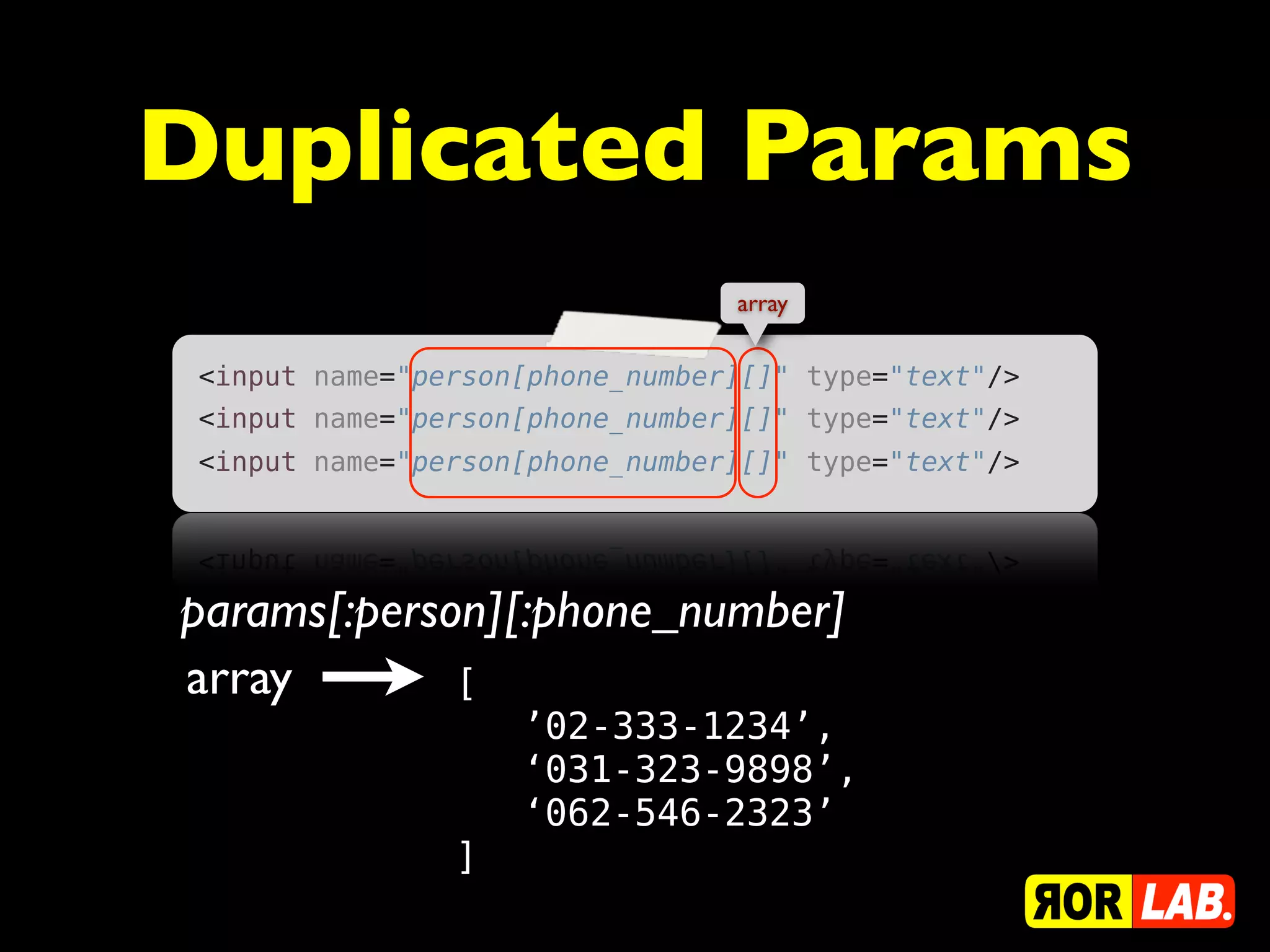

20. Duplicated Params
array
<input name="person[phone_number][]" type="text"/>
<input name="person[phone_number][]" type="text"/>
<input name="person[phone_number][]" type="text"/>
params[:person][:phone_number]
array [
’02-333-1234’,
‘031-323-9898’,
‘062-546-2323’
]

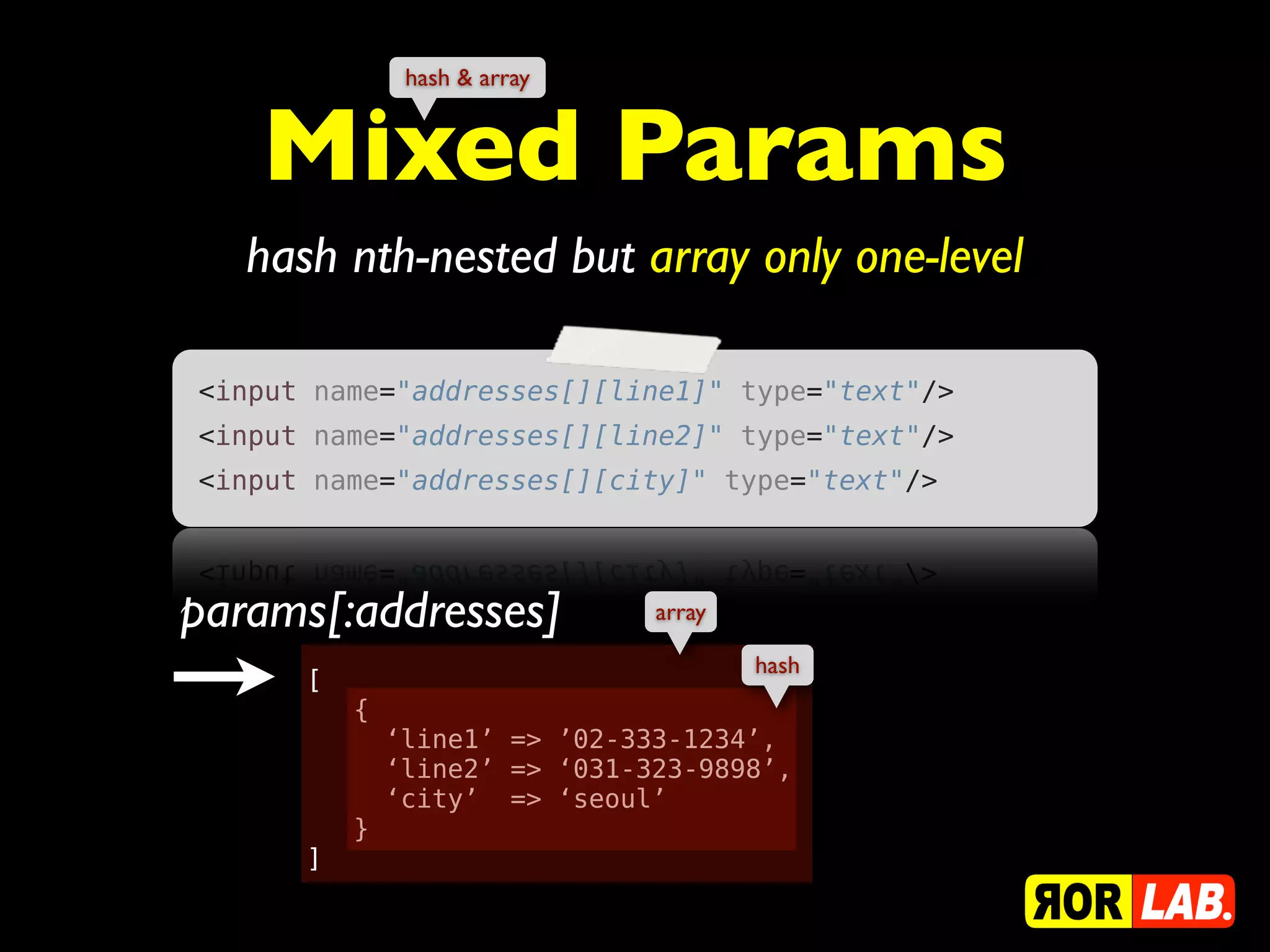

21. hash & array
Mixed Params
hash nth-nested but array only one-level
<input name="addresses[][line1]" type="text"/>
<input name="addresses[][line2]" type="text"/>
<input name="addresses[][city]" type="text"/>
params[:addresses] array
hash
[
{
‘line1’ => ’02-333-1234’,
‘line2’ => ‘031-323-9898’,
‘city’ => ‘seoul’
}
]

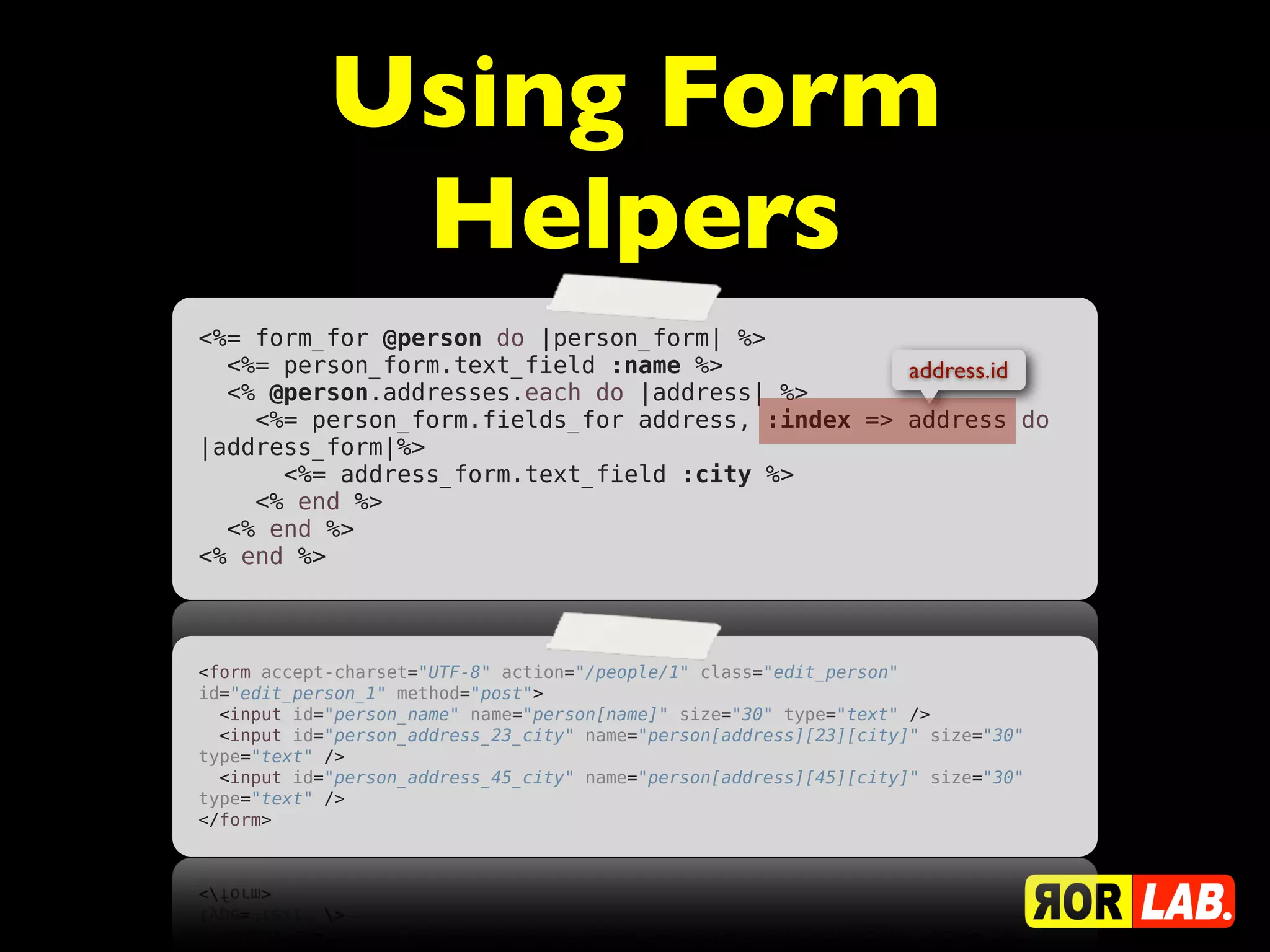

22. Using Form
Helpers
<%= form_for @person do |person_form| %>
<%= person_form.text_field :name %> address.id
<% @person.addresses.each do |address| %>
<%= person_form.fields_for address, :index => address do
|address_form|%>
<%= address_form.text_field :city %>
<% end %>
<% end %>
<% end %>
<form accept-charset="UTF-8" action="/people/1" class="edit_person"
id="edit_person_1" method="post">
<input id="person_name" name="person[name]" size="30" type="text" />
<input id="person_address_23_city" name="person[address][23][city]" size="30"
type="text" />
<input id="person_address_45_city" name="person[address][45][city]" size="30"
type="text" />
</form>

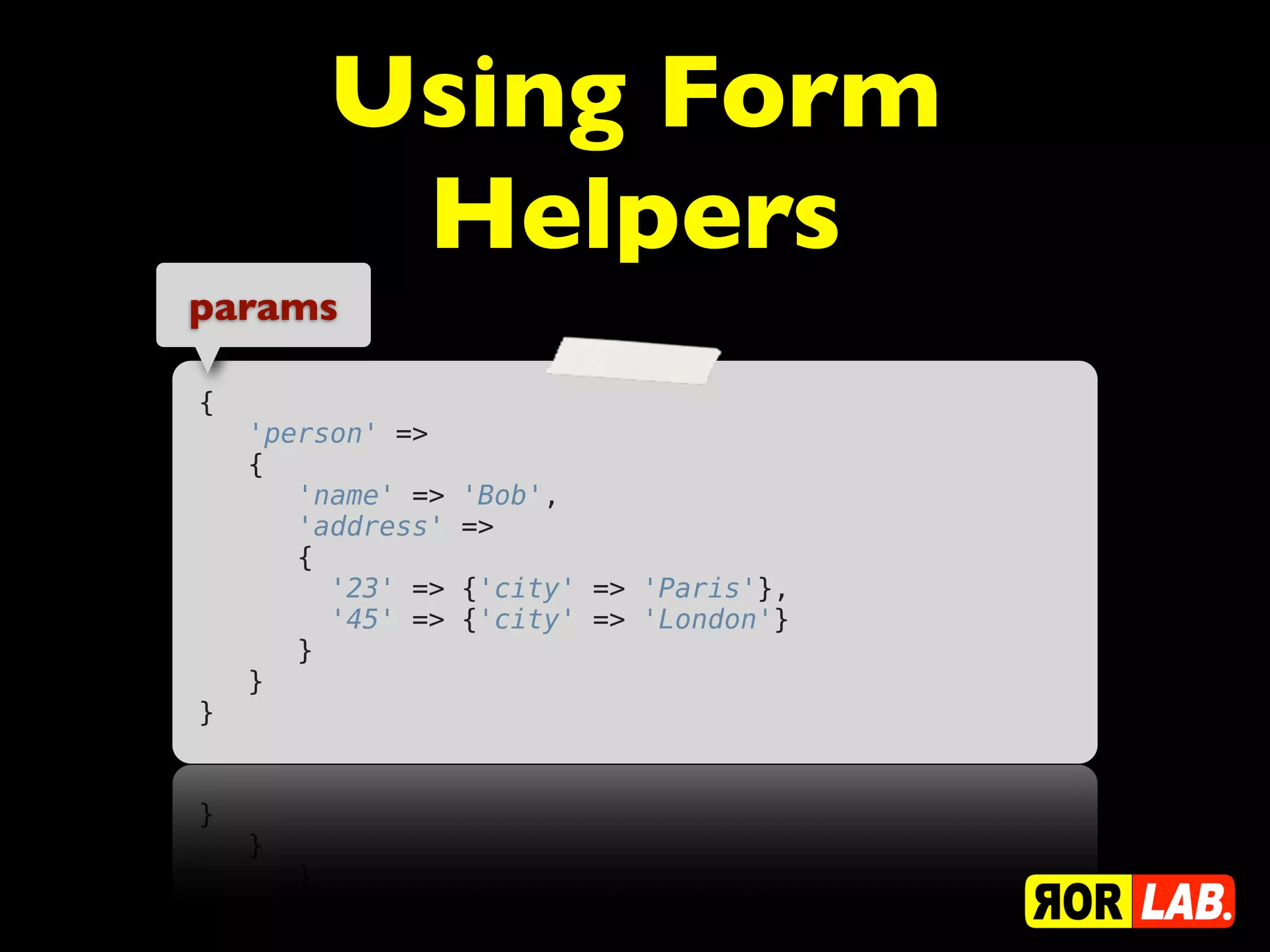

23. Using Form
Helpers
params
{
'person' =>
{
'name' => 'Bob',
'address' =>
{
'23' => {'city' => 'Paris'},
'45' => {'city' => 'London'}
}
}
}

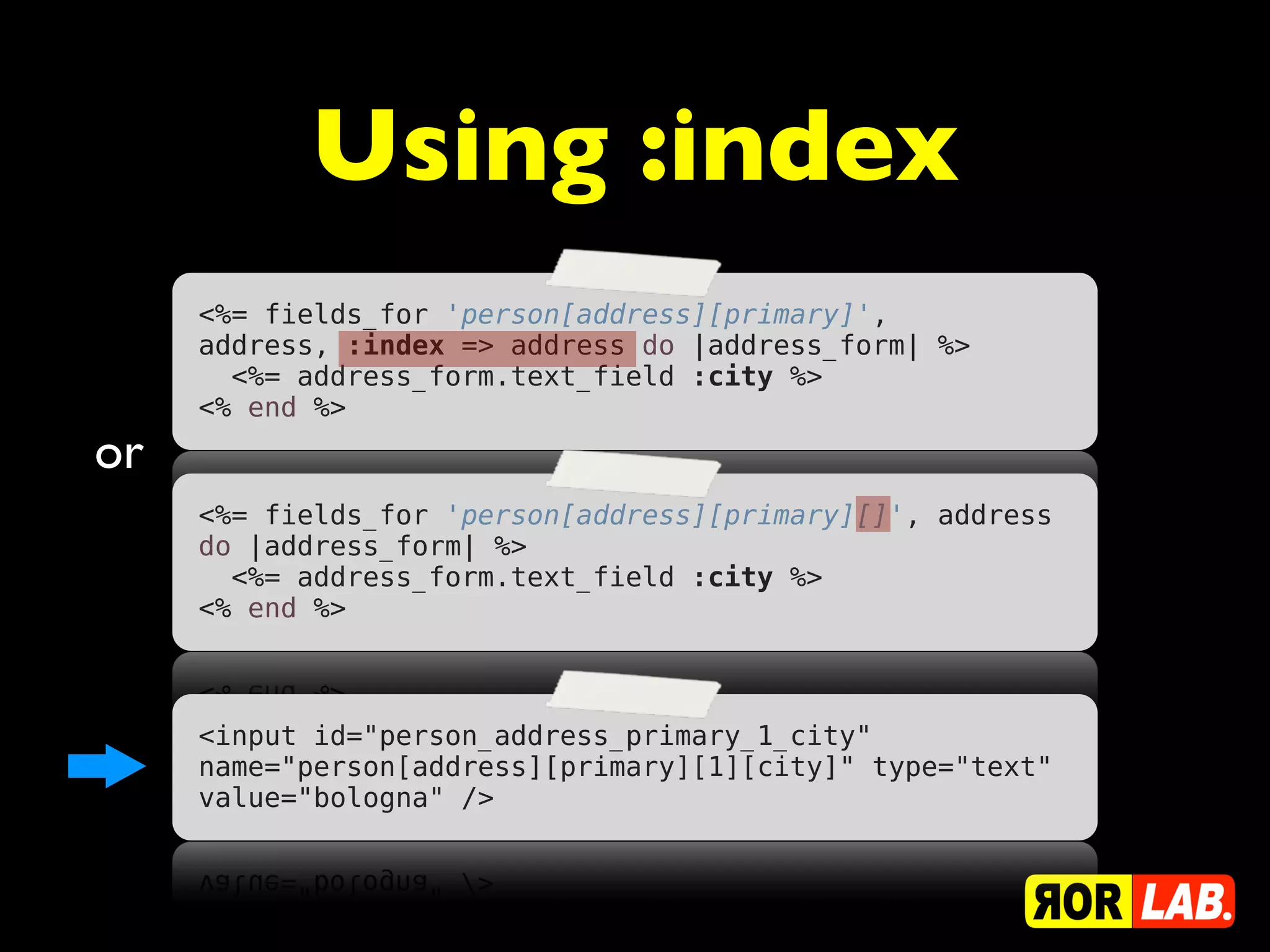

24. Using :index
<%= fields_for 'person[address][primary]',
address, :index => address do |address_form| %>
<%= address_form.text_field :city %>
<% end %>
or
<%= fields_for 'person[address][primary][]', address
do |address_form| %>
<%= address_form.text_field :city %>
<% end %>
<input id="person_address_primary_1_city"
name="person[address][primary][1][city]" type="text"
value="bologna" />

25. Form to External
Resources - 1
form_tag
<%= form_tag 'http://farfar.away/
form', :authenticity_token => 'external_token') do %>
Form contents
<% end %>
<%= form_tag 'http://farfar.away/
false
form', :authenticity_token => false) do %>
Form contents
<% end %> payment gateway

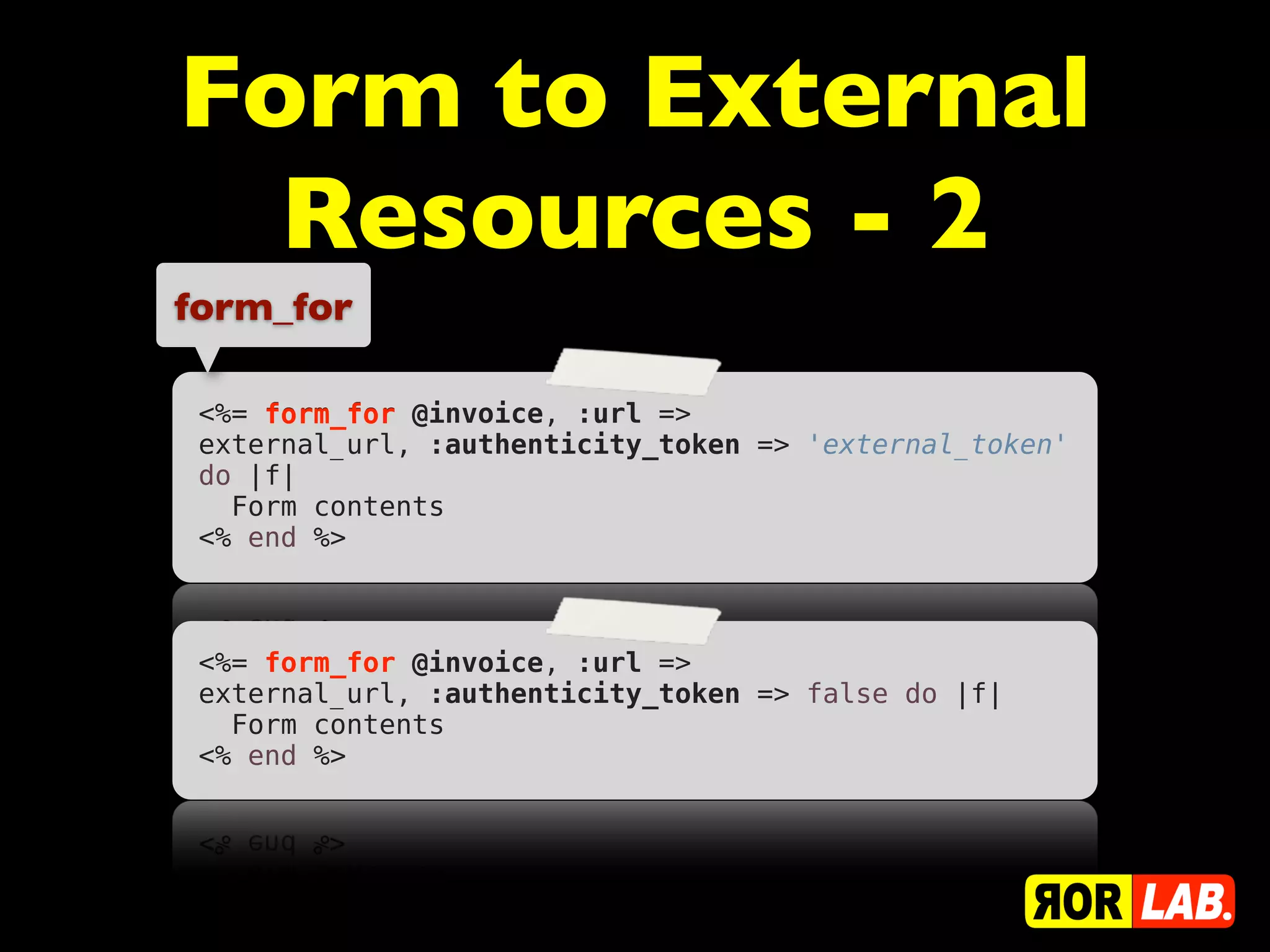

26. Form to External
Resources - 2
form_for
<%= form_for @invoice, :url =>
external_url, :authenticity_token => 'external_token'
do |f|
Form contents
<% end %>
<%= form_for @invoice, :url =>
external_url, :authenticity_token => false do |f|
Form contents
<% end %>

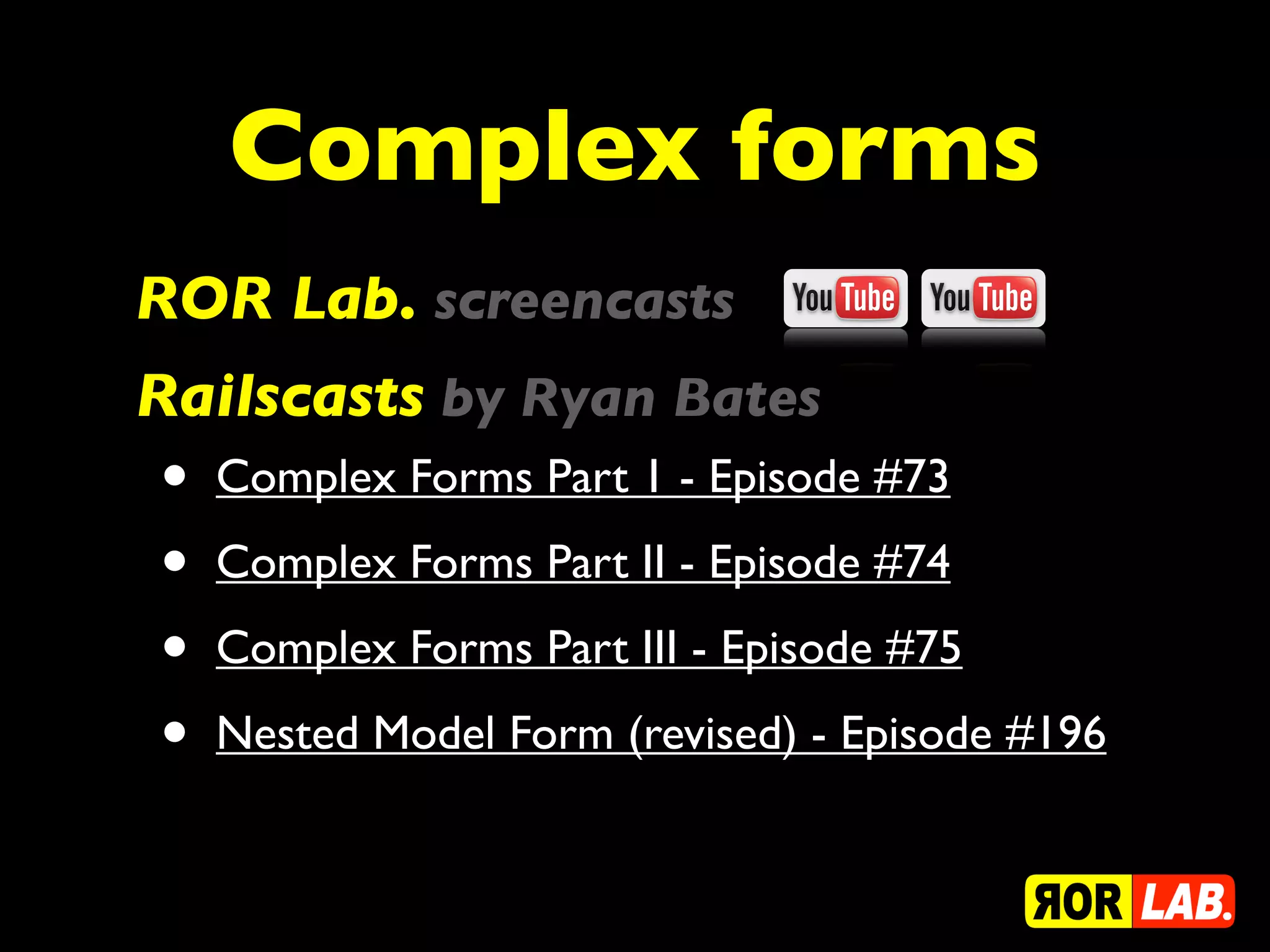

27. Complex forms
ROR Lab. screencasts
Railscasts by Ryan Bates
• Complex Forms Part 1 - Episode #73
• Complex Forms Part II - Episode #74
• Complex Forms Part III - Episode #75
• Nested Model Form (revised) - Episode #196

28. 감사합니다.

29.
ROR Lab.
