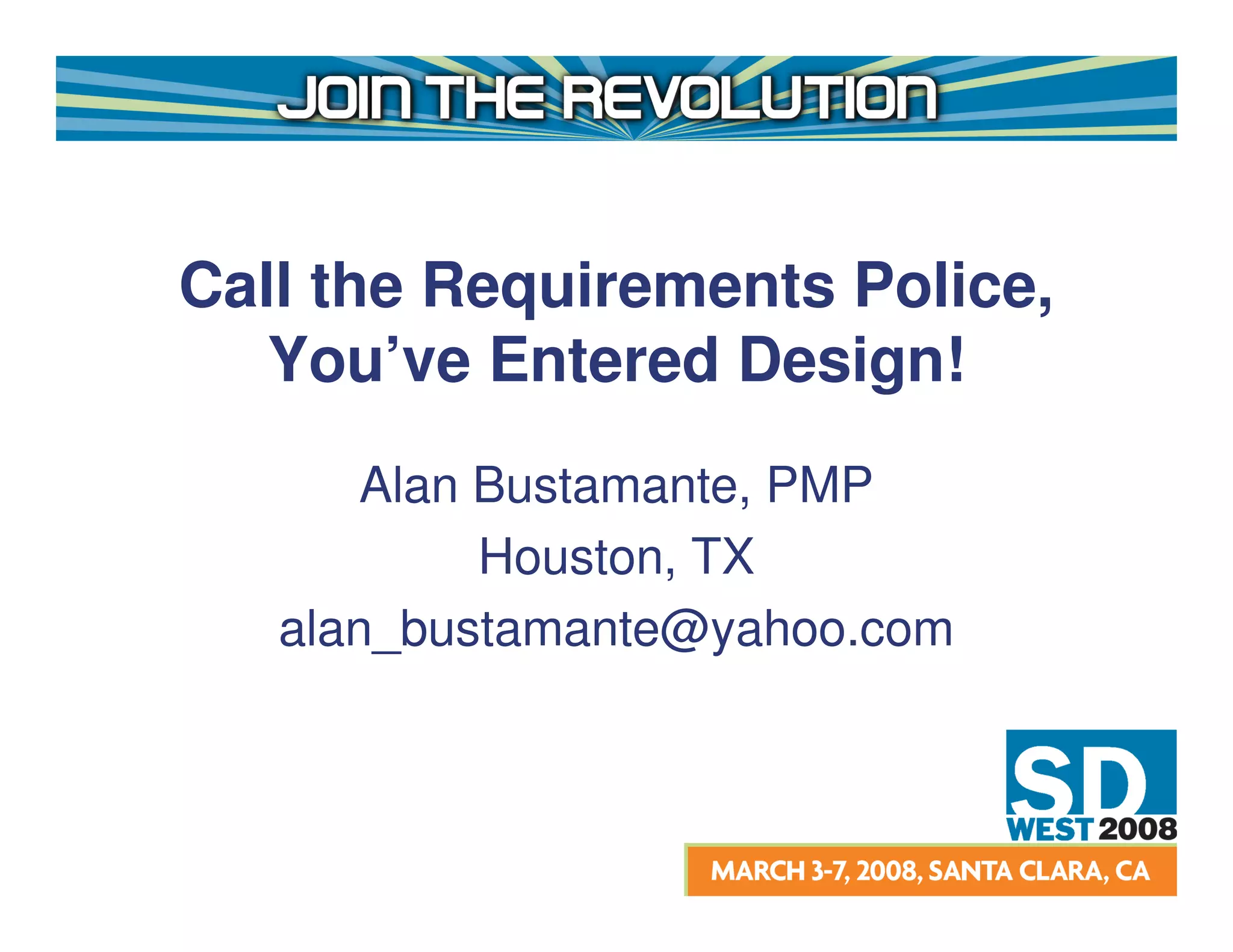

The document discusses best practices for separating requirements and design, as including too much design detail in requirements documentation can lead to increased rework, unrealistic customer expectations, and unnecessary constraints on developers, and it provides recommendations such as using control-agnostic use cases and defining data elements in a shared glossary rather than within use cases.

1. Call the Requirements Police,
You’ve Entered Design!
Alan Bustamante, PMP
Houston, TX
alan_bustamante@yahoo.com

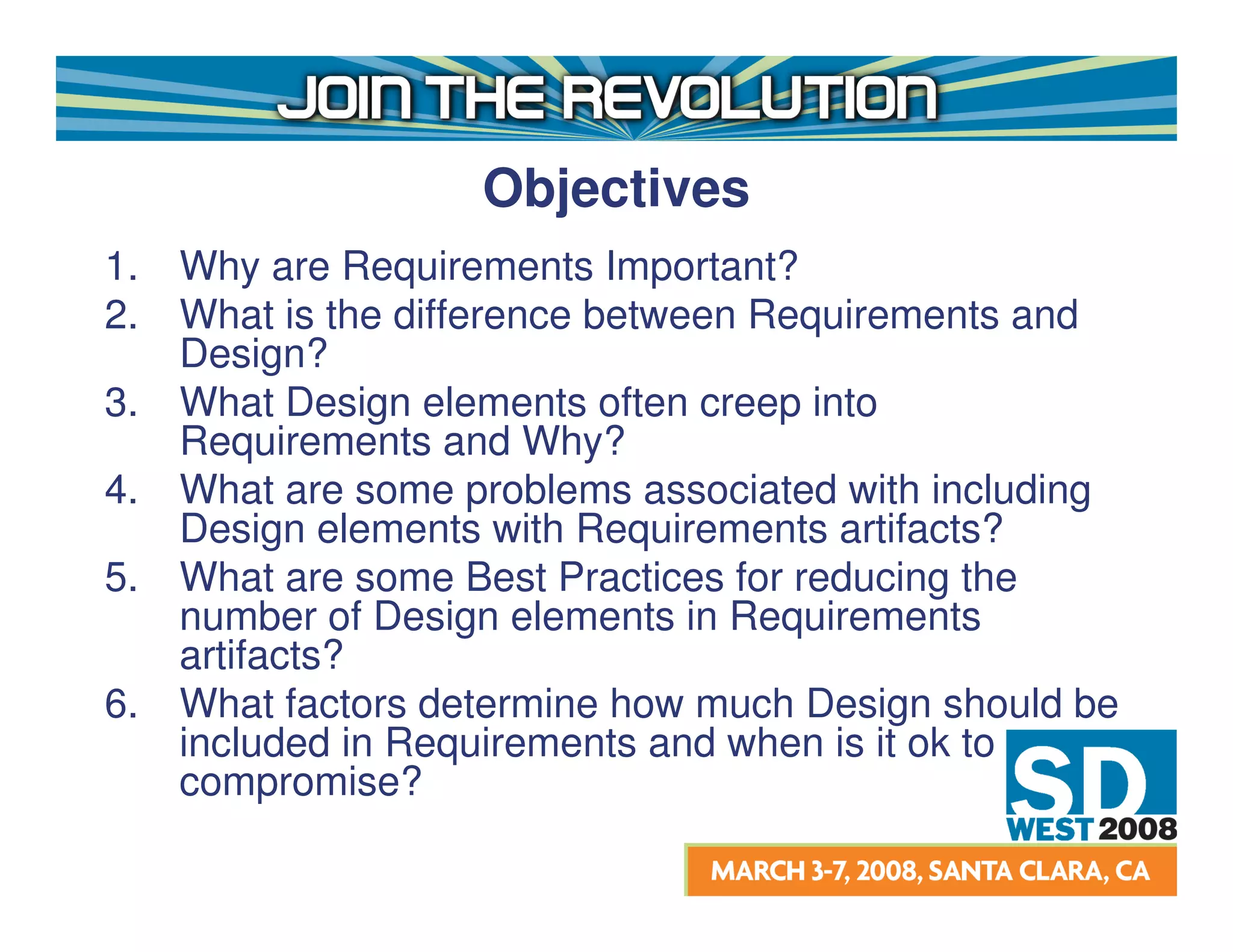

2. Objectives
1. Why are Requirements Important?
2. What is the difference between Requirements and
Design?
3. What Design elements often creep into
Requirements and Why?
4. What are some problems associated with including
Design elements with Requirements artifacts?
5. What are some Best Practices for reducing the
number of Design elements in Requirements
artifacts?
6. What factors determine how much Design should be
included in Requirements and when is it ok to
compromise?

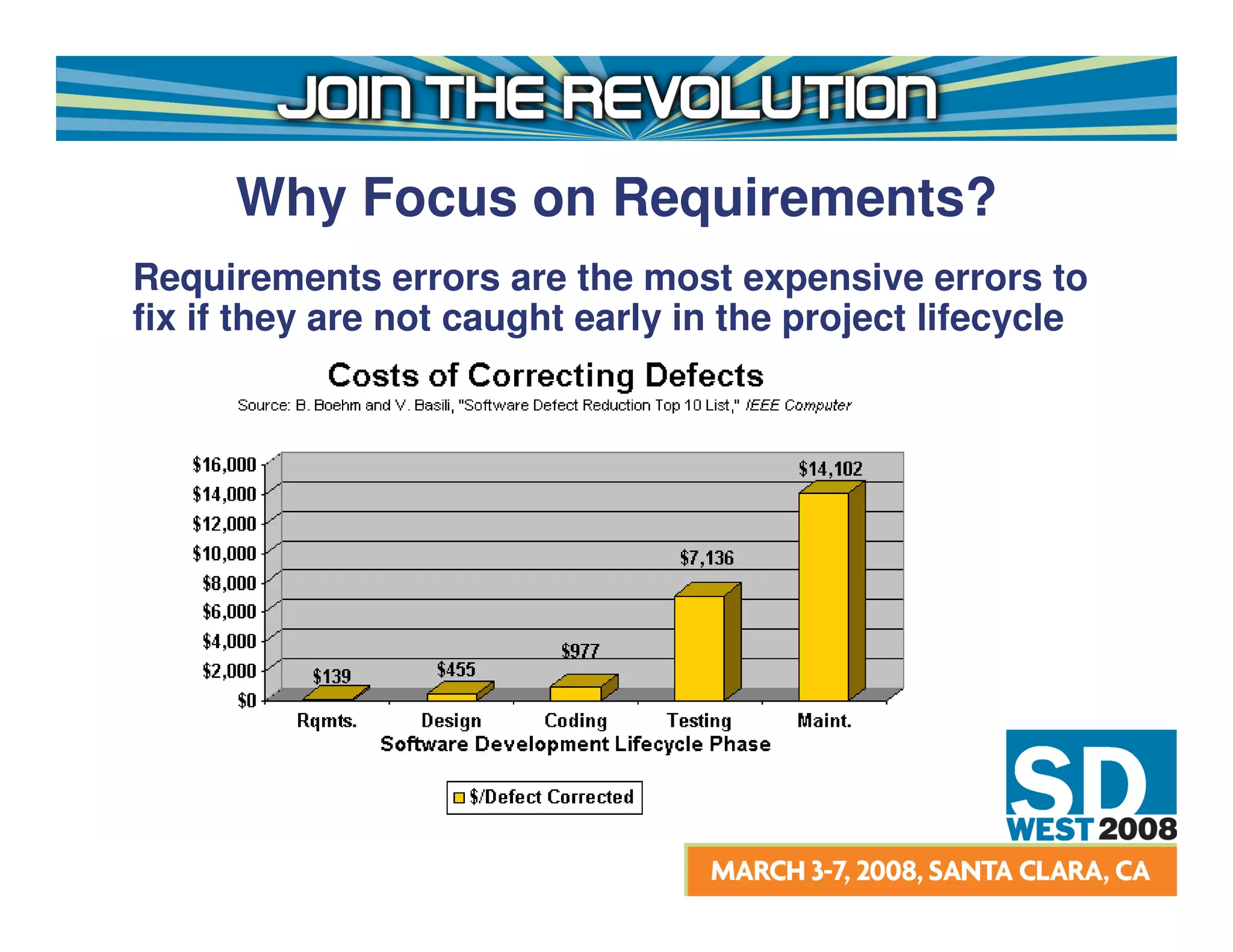

3. Why Focus on Requirements?
Requirements errors are the most expensive errors to
fix if they are not caught early in the project lifecycle

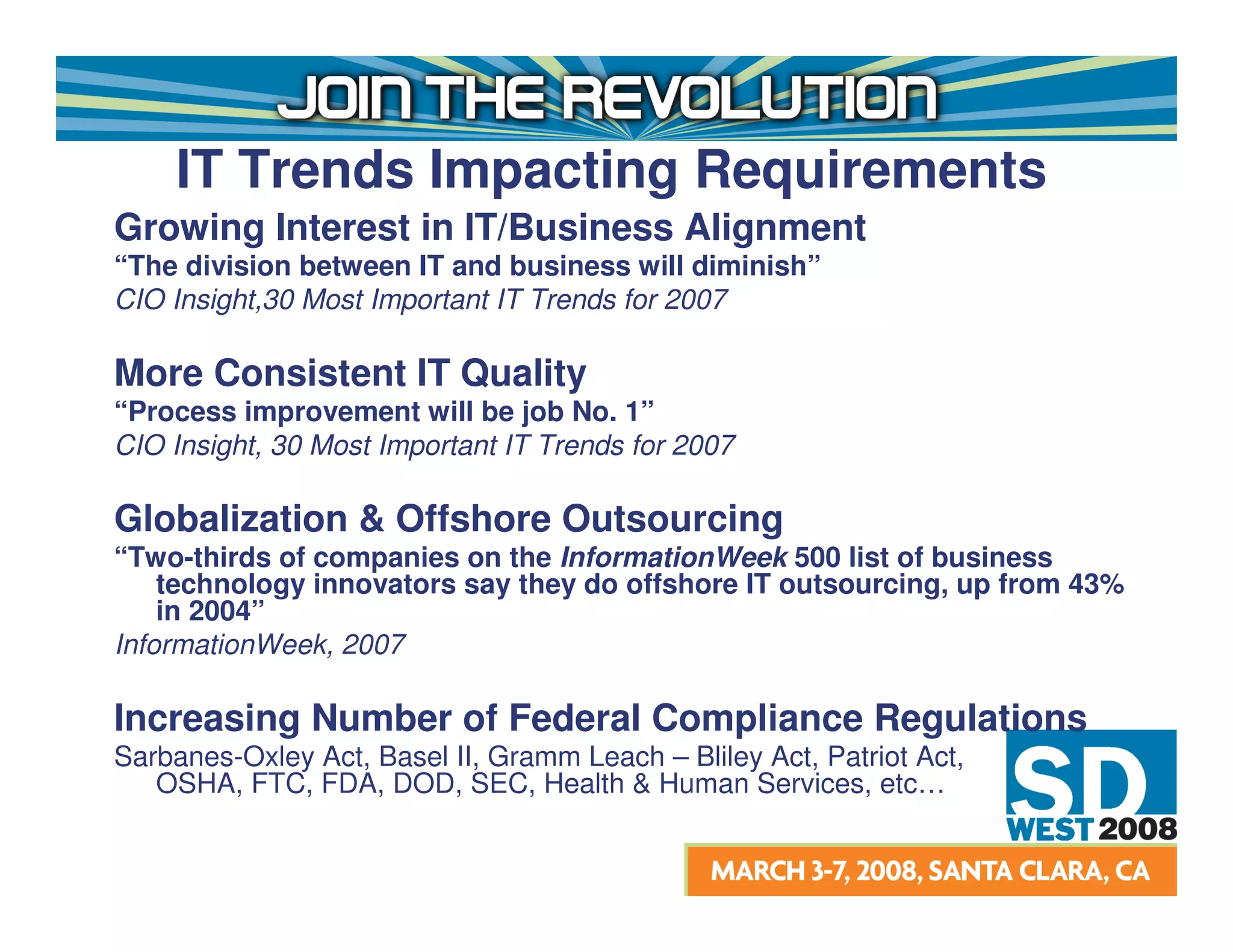

4. IT Trends Impacting Requirements
Growing Interest in IT/Business Alignment
“The division between IT and business will diminish”
CIO Insight,30 Most Important IT Trends for 2007
More Consistent IT Quality
“Process improvement will be job No. 1”
CIO Insight, 30 Most Important IT Trends for 2007
Globalization & Offshore Outsourcing
“Two-thirds of companies on the InformationWeek 500 list of business
technology innovators say they do offshore IT outsourcing, up from 43%
in 2004”
InformationWeek, 2007
Increasing Number of Federal Compliance Regulations
Sarbanes-Oxley Act, Basel II, Gramm Leach – Bliley Act, Patriot Act,
OSHA, FTC, FDA, DOD, SEC, Health & Human Services, etc…

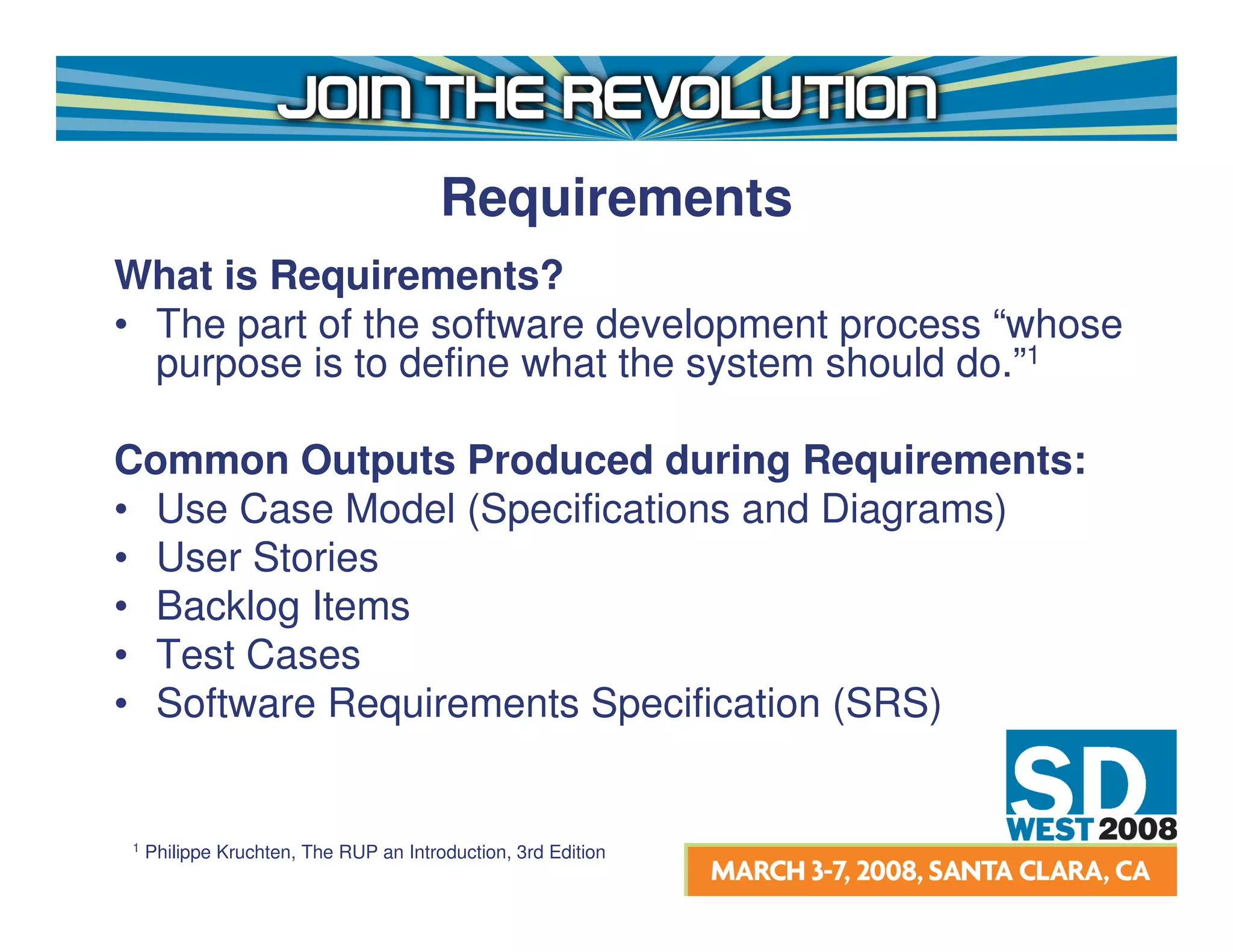

5. Requirements
What is Requirements?
• The part of the software development process “whose
purpose is to define what the system should do.”1
Common Outputs Produced during Requirements:
• Use Case Model (Specifications and Diagrams)
• User Stories
• Backlog Items
• Test Cases
• Software Requirements Specification (SRS)
1 Philippe Kruchten, The RUP an Introduction, 3rd Edition

6. Design
What is Design?
• “The part of the software development process
whose primary purpose is to decide how the
system will be implemented.”1
Common Outputs Produced during Design:
• Design Model
• Data Model
• Software Architecture Document (SAD)
• UI Prototypes
• Builds and Releases for emerging architectures
(i.e. Agile methods)
1 1 Philippe Kruchten, The RUP an Introduction, 3rd Edition

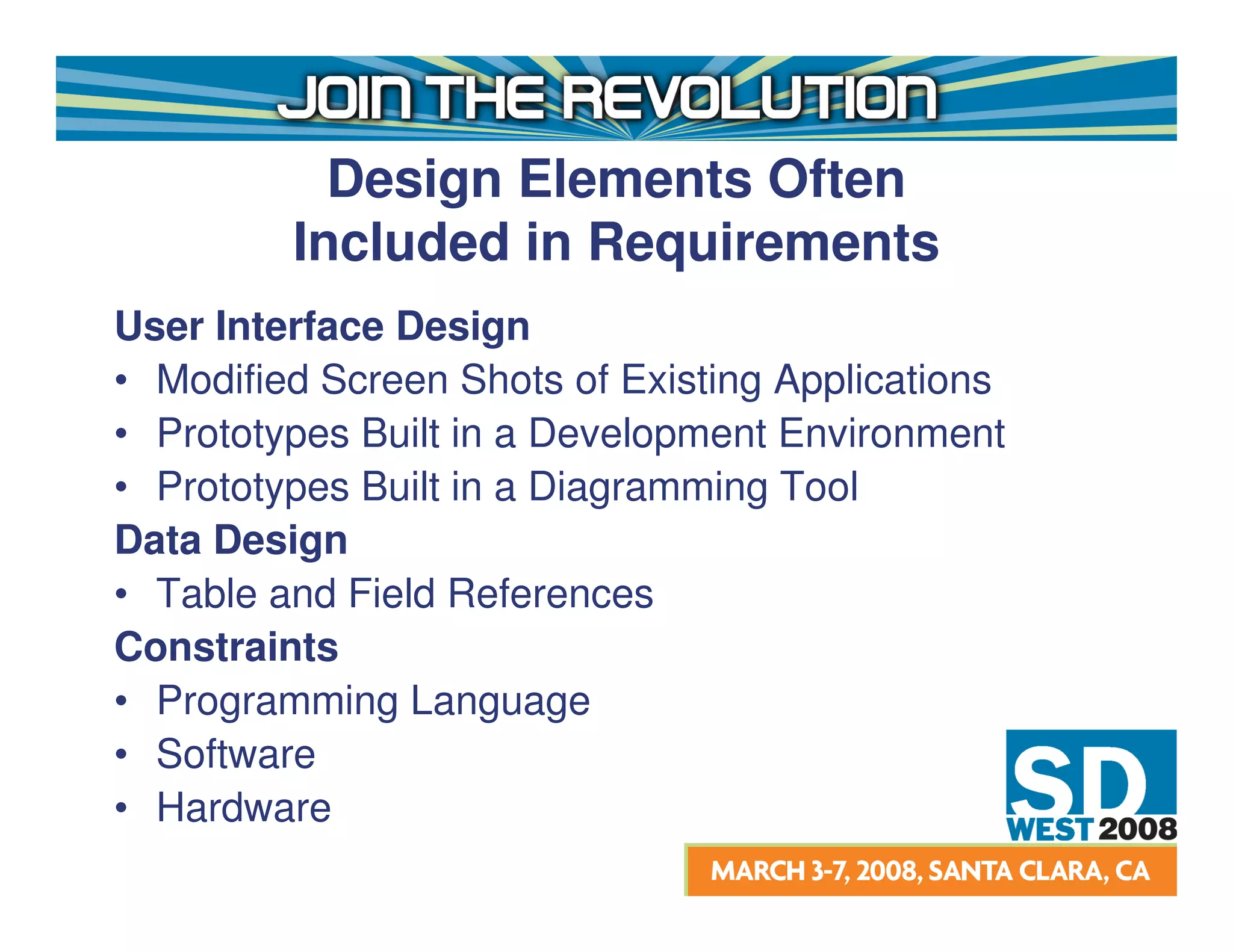

7. Design Elements Often
Included in Requirements
User Interface Design
• Modified Screen Shots of Existing Applications
• Prototypes Built in a Development Environment
• Prototypes Built in a Diagramming Tool
Data Design
• Table and Field References
Constraints
• Programming Language
• Software
• Hardware

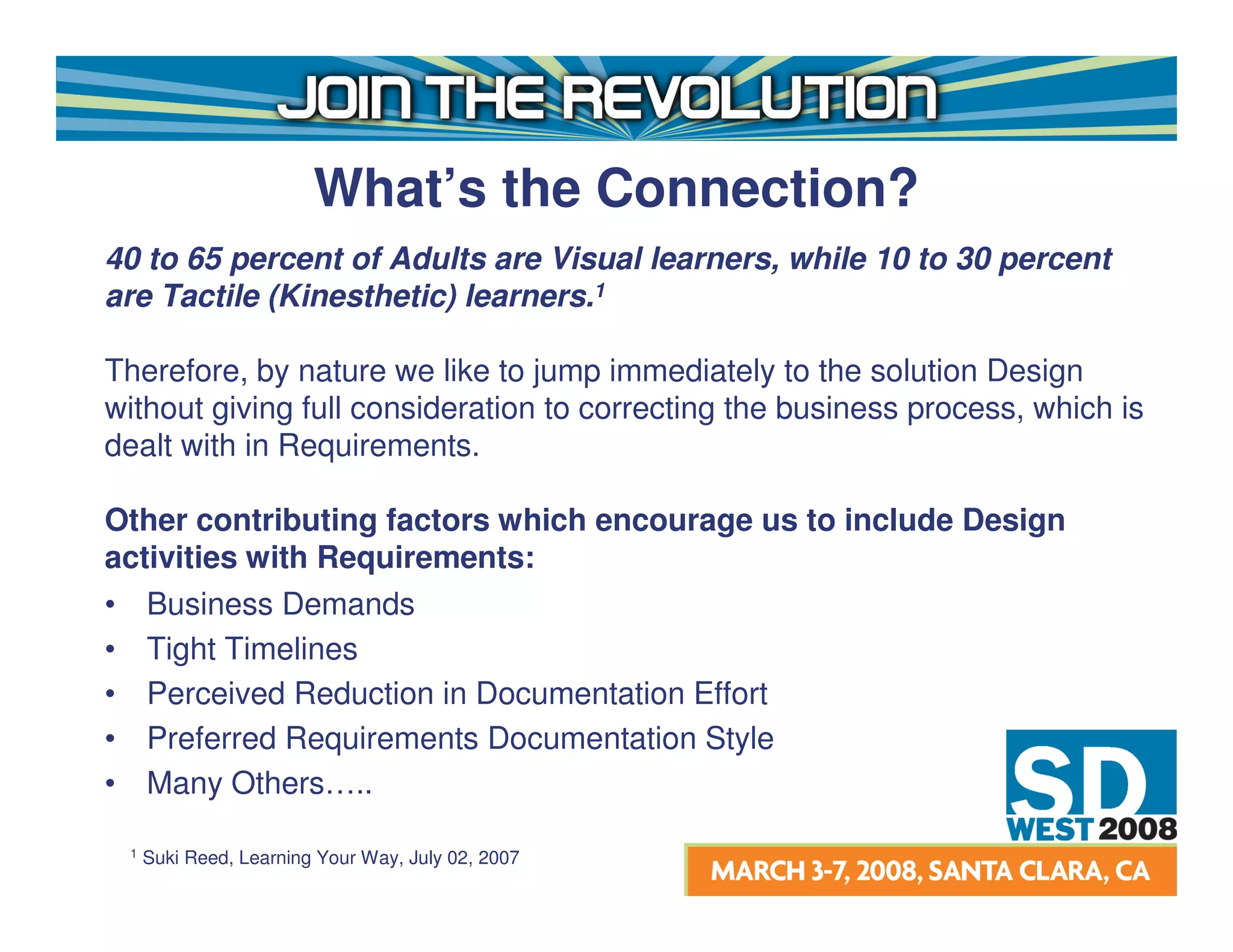

8. What’s the Connection?
40 to 65 percent of Adults are Visual learners, while 10 to 30 percent
are Tactile (Kinesthetic) learners.1
Therefore, by nature we like to jump immediately to the solution Design
without giving full consideration to correcting the business process, which is
dealt with in Requirements.
Other contributing factors which encourage us to include Design
activities with Requirements:
• Business Demands
• Tight Timelines
• Perceived Reduction in Documentation Effort
• Preferred Requirements Documentation Style
• Many Others…..
1 Suki Reed, Learning Your Way, July 02, 2007

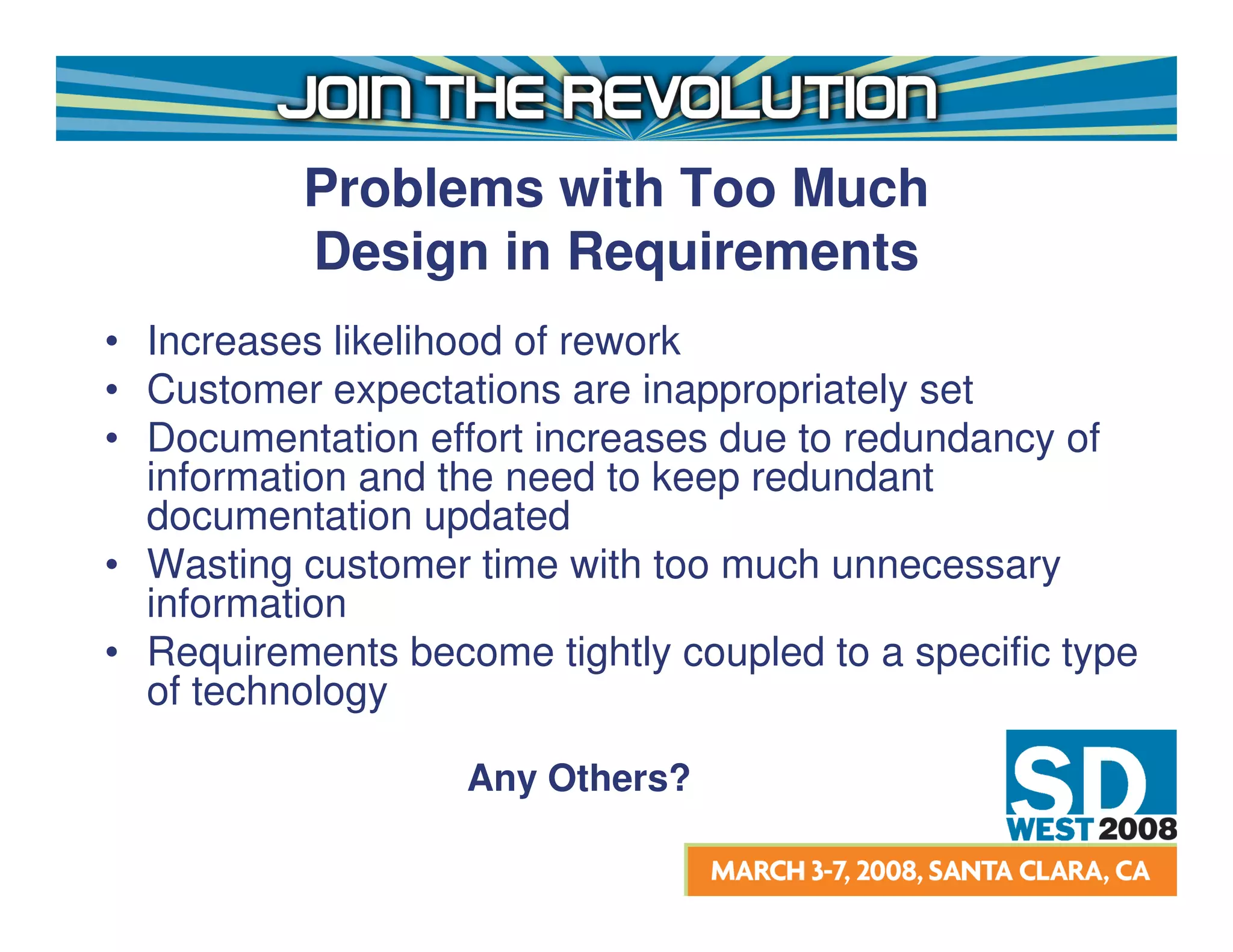

9. Problems with Too Much
Design in Requirements
• Increases likelihood of rework
• Customer expectations are inappropriately set
• Documentation effort increases due to redundancy of
information and the need to keep redundant
documentation updated
• Wasting customer time with too much unnecessary
information
• Requirements become tightly coupled to a specific type
of technology
Any Others?

10. Case Study

11. Romania– Project Description
Industry: Public Sector
End Users: Entire Country of Romania
SW Dev Team: ~ 50 people, globally dispersed
Application Complexity: Highly Complex
Problem: Land Management records (Deeds, Maps, etc) not
stored in a digital repository
Primary Goal: Digitize and store land records for citizen and
government retrieval
Solution: VB .NET integration with ESRI GIS ArcObjects,
Oracle 9i Database, Windows XP Clients and AIX
Unix Servers

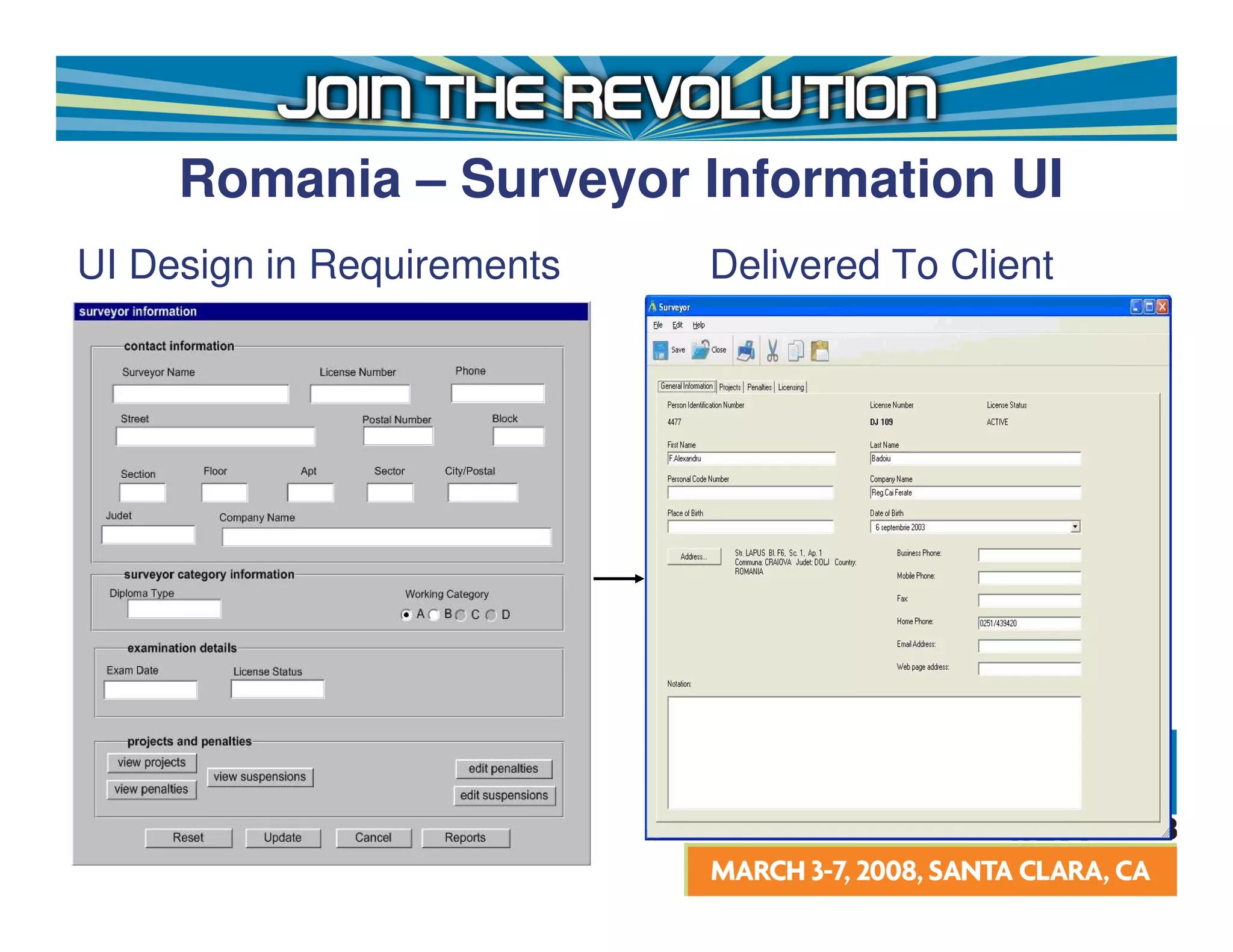

12. Romania – Surveyor Information UI
UI Design in Requirements Delivered To Client

13. Romania – Add Control Point UI

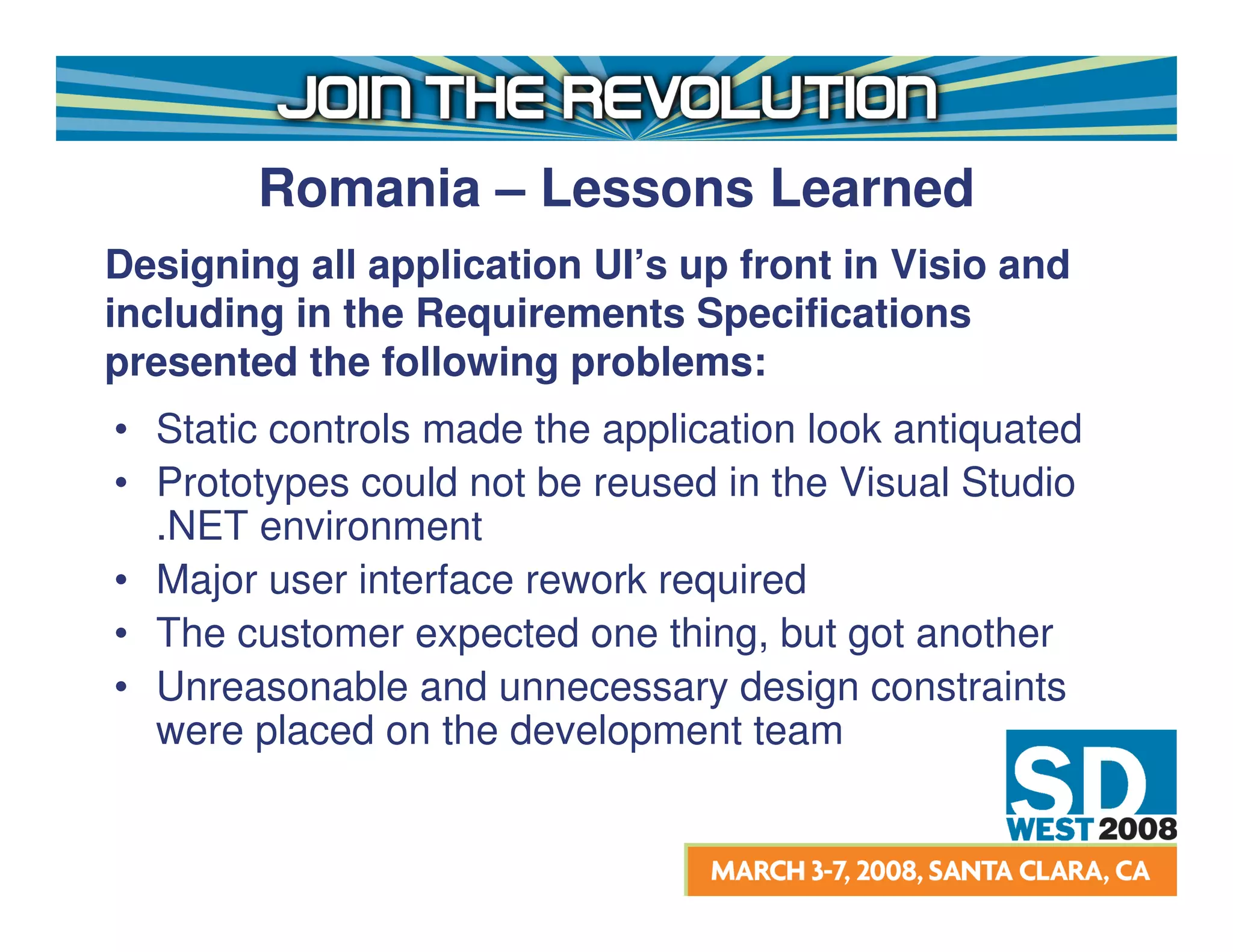

14. Romania – Lessons Learned
Designing all application UI’s up front in Visio and
including in the Requirements Specifications
presented the following problems:
• Static controls made the application look antiquated
• Prototypes could not be reused in the Visual Studio
.NET environment
• Major user interface rework required
• The customer expected one thing, but got another
• Unreasonable and unnecessary design constraints
were placed on the development team

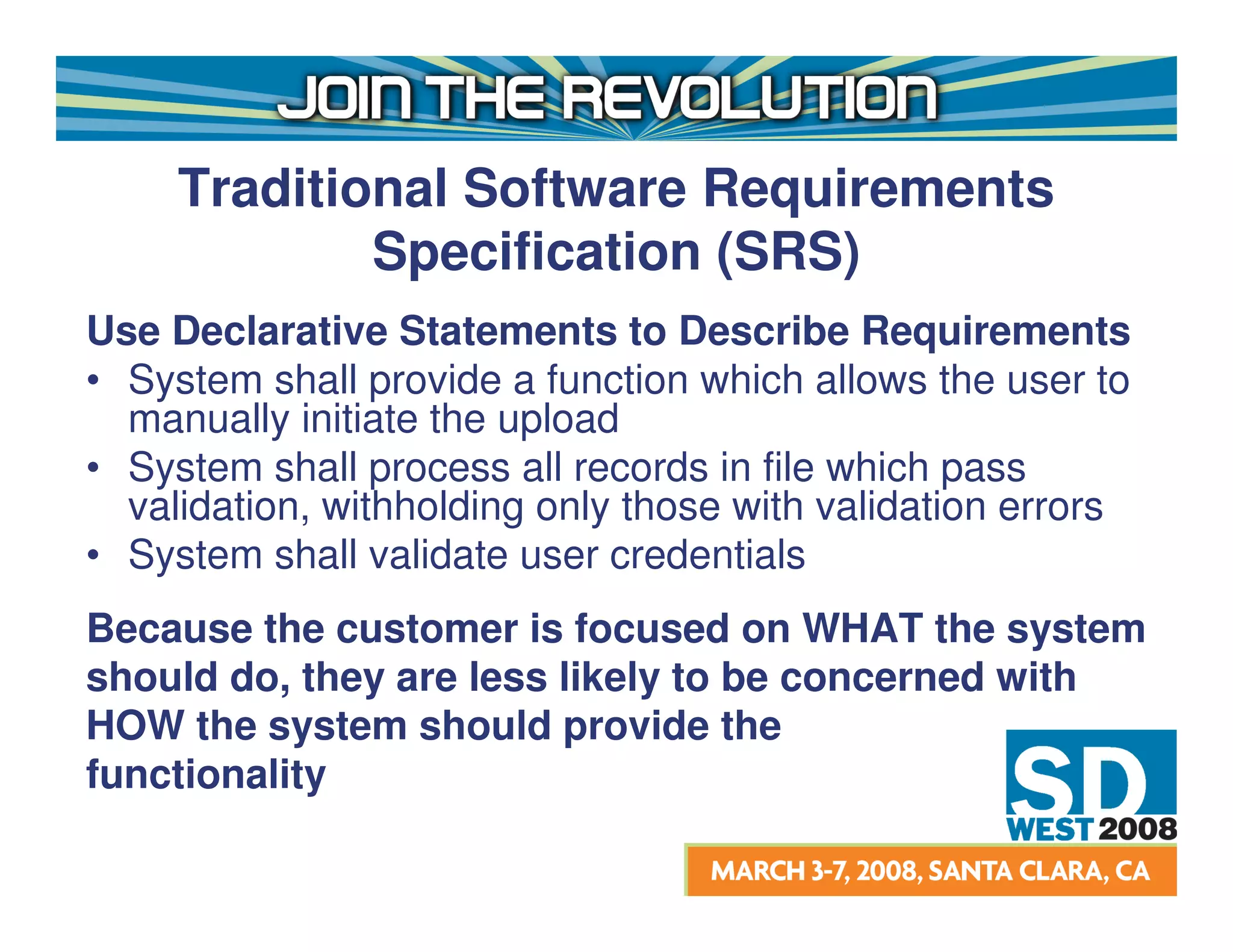

15. Traditional Software Requirements
Specification (SRS)
Use Declarative Statements to Describe Requirements
• System shall provide a function which allows the user to
manually initiate the upload
• System shall process all records in file which pass
validation, withholding only those with validation errors
• System shall validate user credentials
Because the customer is focused on WHAT the system
should do, they are less likely to be concerned with
HOW the system should provide the
functionality

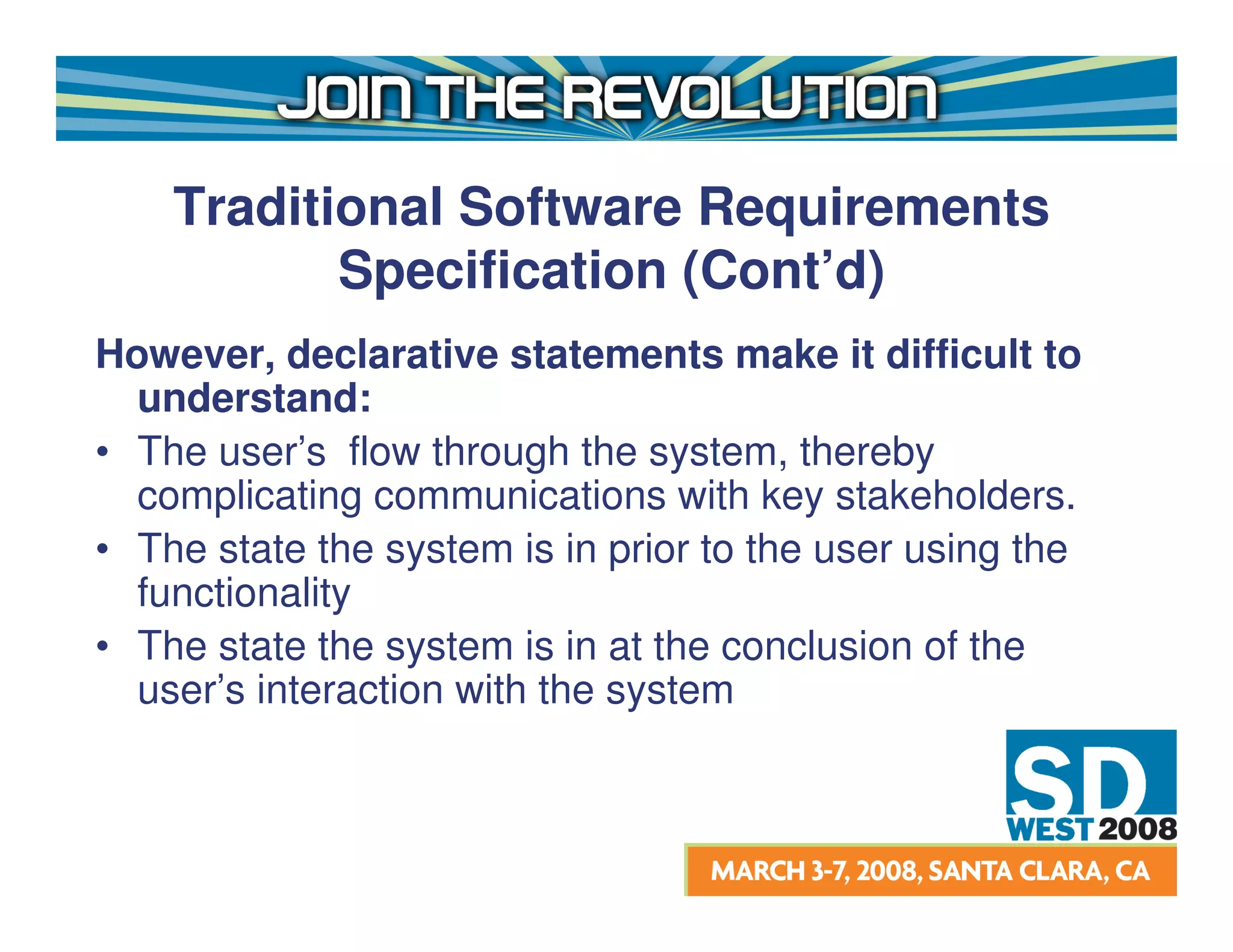

16. Traditional Software Requirements
Specification (Cont’d)
However, declarative statements make it difficult to
understand:
• The user’s flow through the system, thereby
complicating communications with key stakeholders.
• The state the system is in prior to the user using the
functionality
• The state the system is in at the conclusion of the
user’s interaction with the system

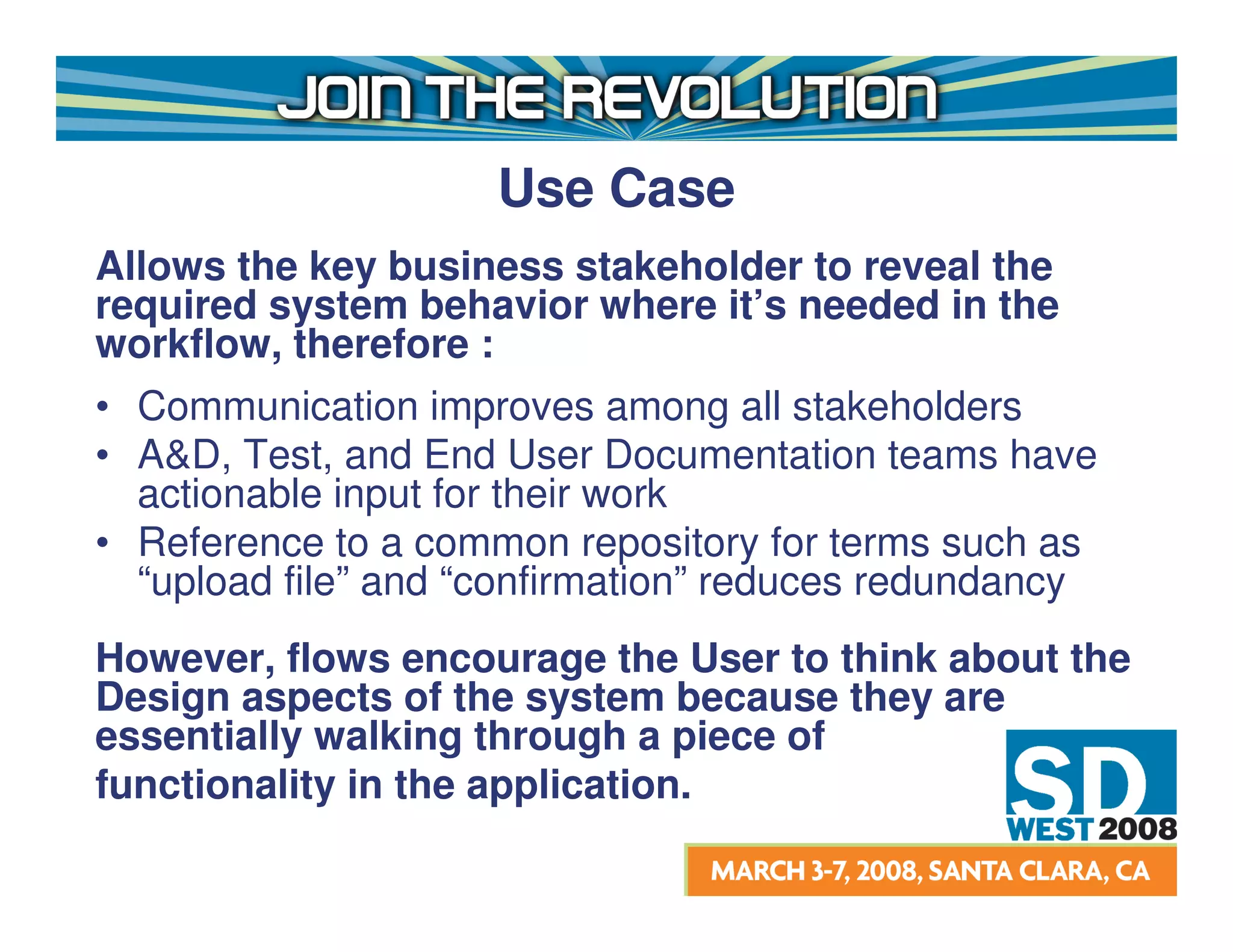

17. Use Case
Allows the key business stakeholder to reveal the
required system behavior where it’s needed in the
workflow, therefore :
• Communication improves among all stakeholders
• A&D, Test, and End User Documentation teams have
actionable input for their work
• Reference to a common repository for terms such as
“upload file” and “confirmation” reduces redundancy
However, flows encourage the User to think about the
Design aspects of the system because they are
essentially walking through a piece of
functionality in the application.

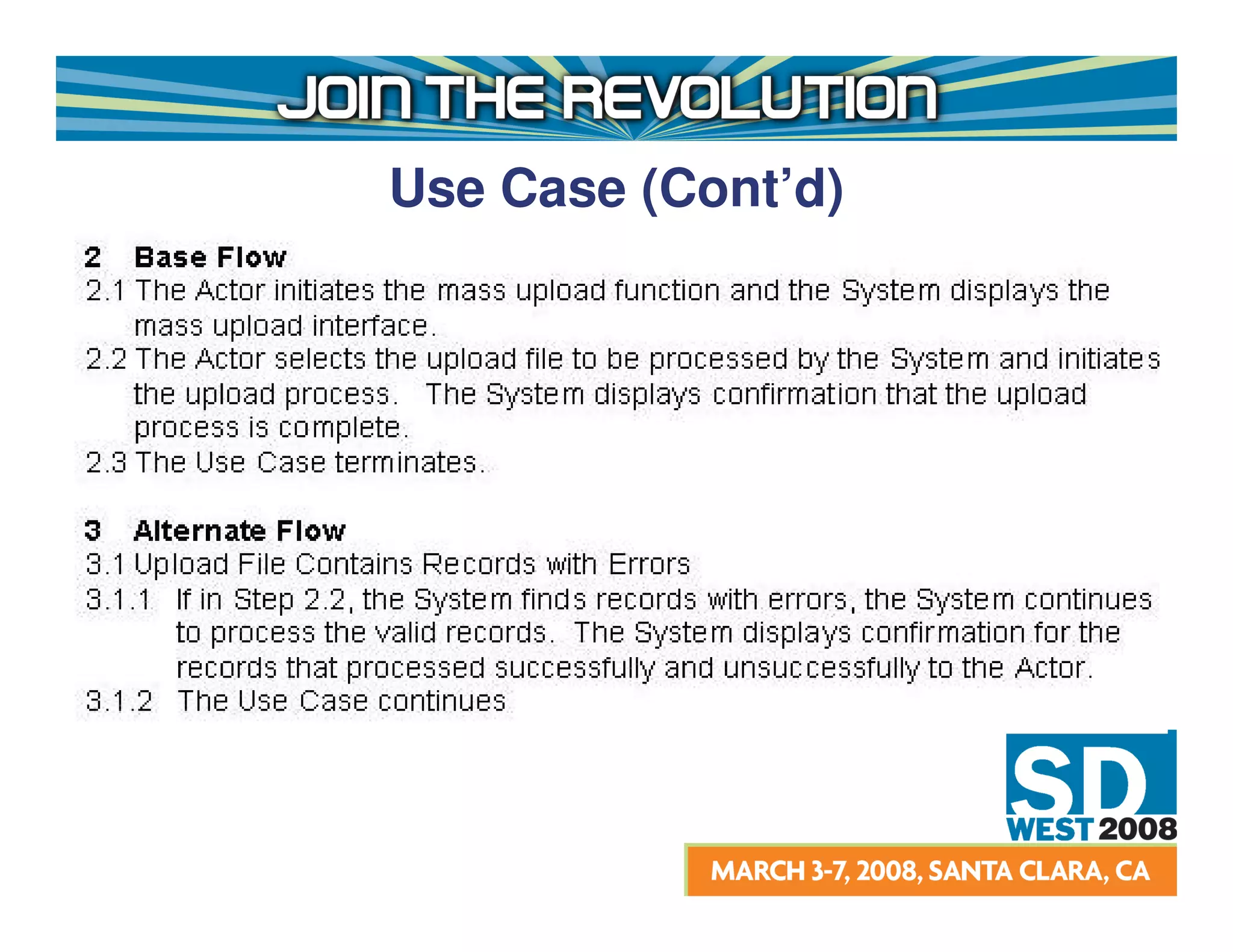

18. Use Case (Cont’d)

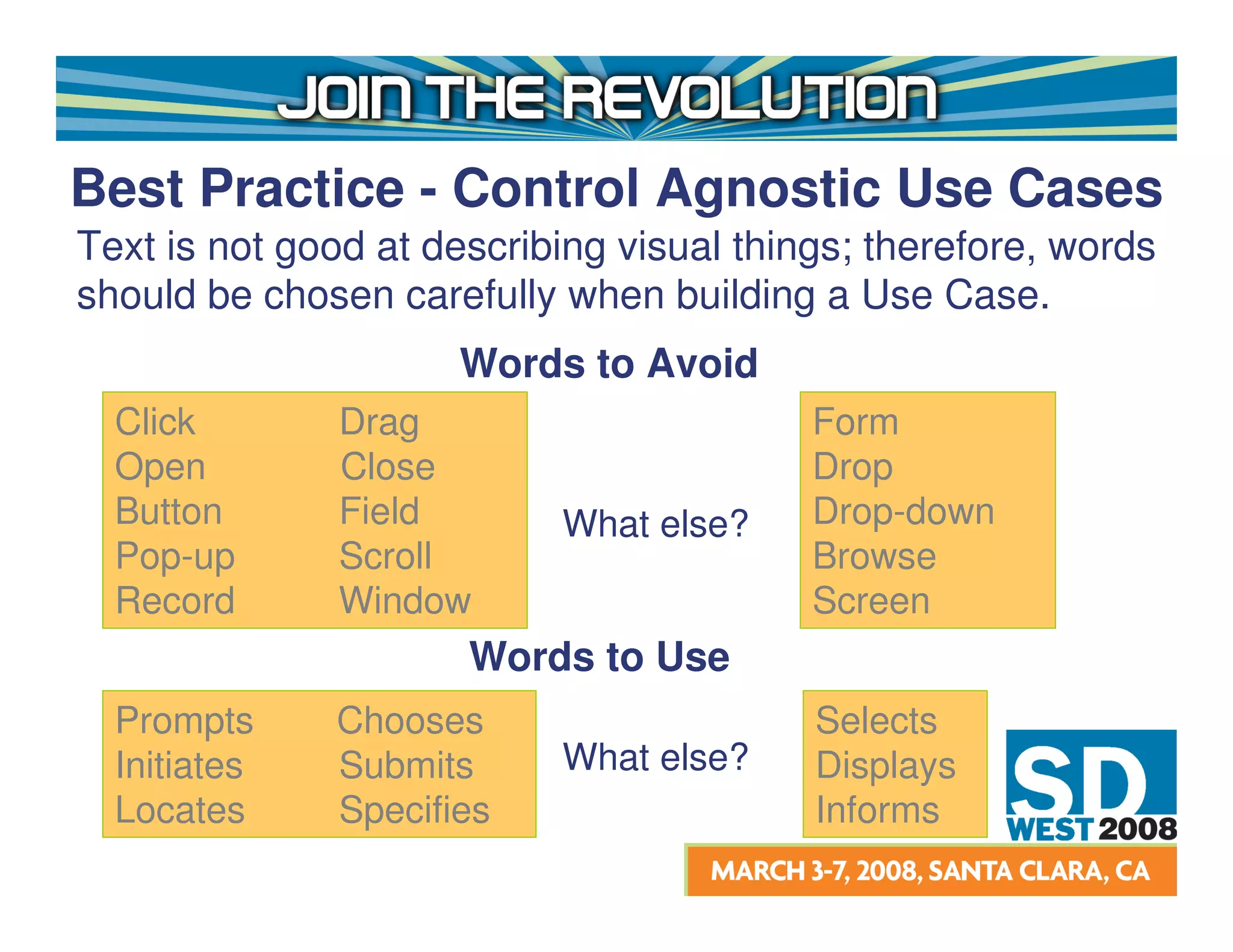

19. Best Practice - Control Agnostic Use Cases
Text is not good at describing visual things; therefore, words
should be chosen carefully when building a Use Case.
Words to Avoid
Click Drag Form
Open Close Drop
Button Field What else? Drop-down
Pop-up Scroll Browse
Record Window Screen
Words to Use
Prompts Chooses Selects
Initiates Submits What else? Displays
Locates Specifies Informs

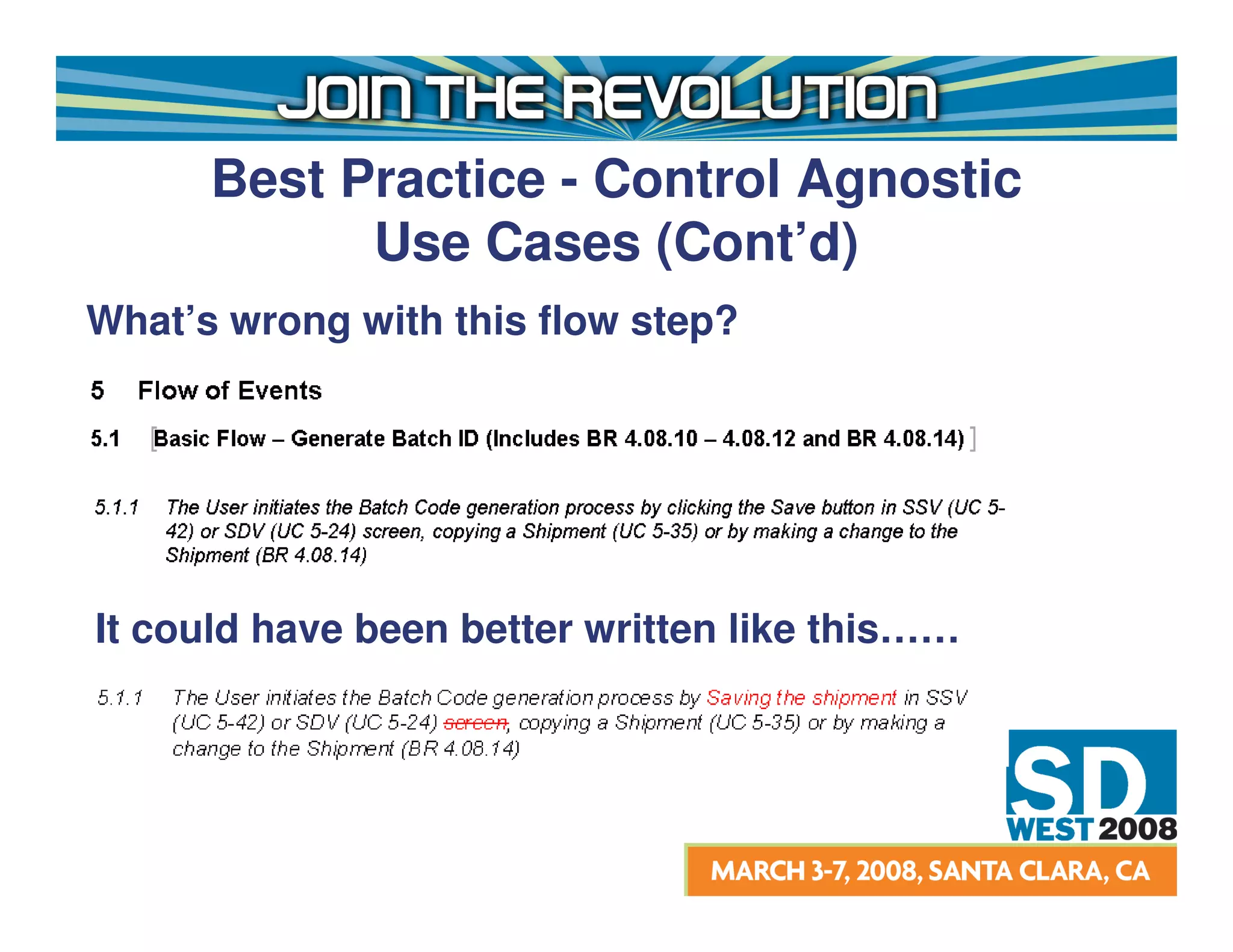

20. Best Practice - Control Agnostic
Use Cases (Cont’d)
What’s wrong with this flow step?
It could have been better written like this……

21. Case Study
Note: Names have been changed to protect the
innocent!

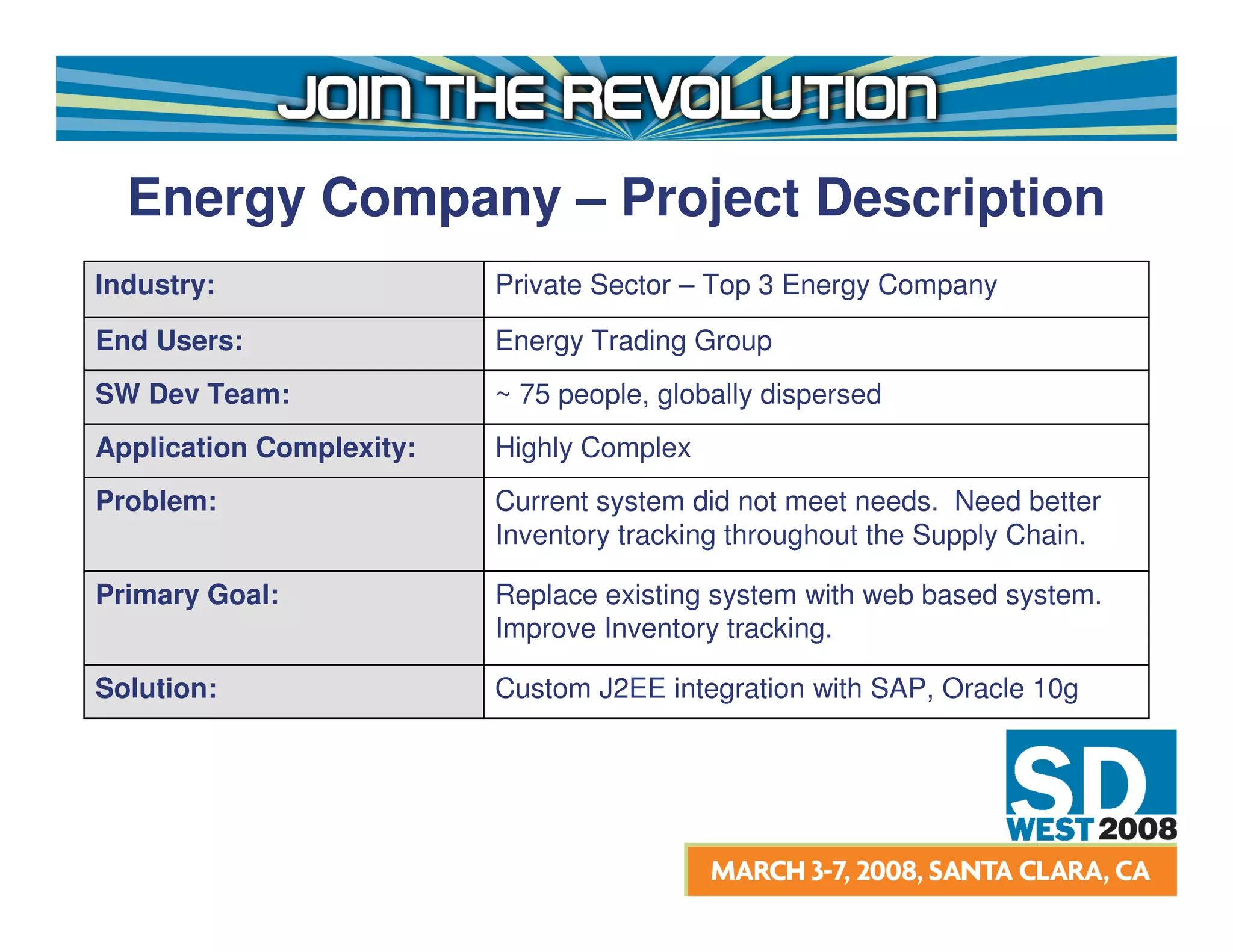

22. Energy Company – Project Description
Industry: Private Sector – Top 3 Energy Company
End Users: Energy Trading Group
SW Dev Team: ~ 75 people, globally dispersed
Application Complexity: Highly Complex
Problem: Current system did not meet needs. Need better
Inventory tracking throughout the Supply Chain.
Primary Goal: Replace existing system with web based system.
Improve Inventory tracking.
Solution: Custom J2EE integration with SAP, Oracle 10g

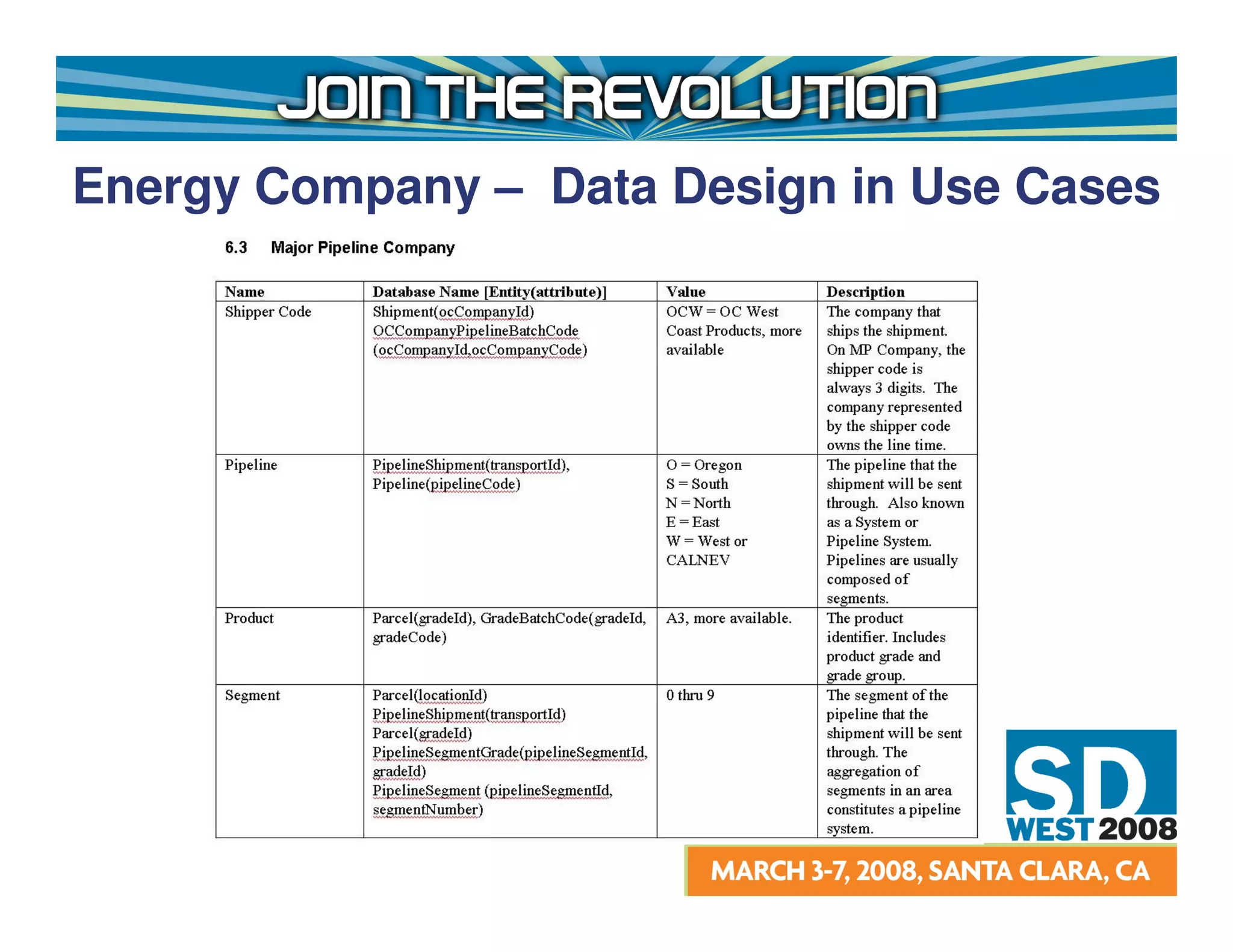

23. Energy Company – Data Design in Use Cases

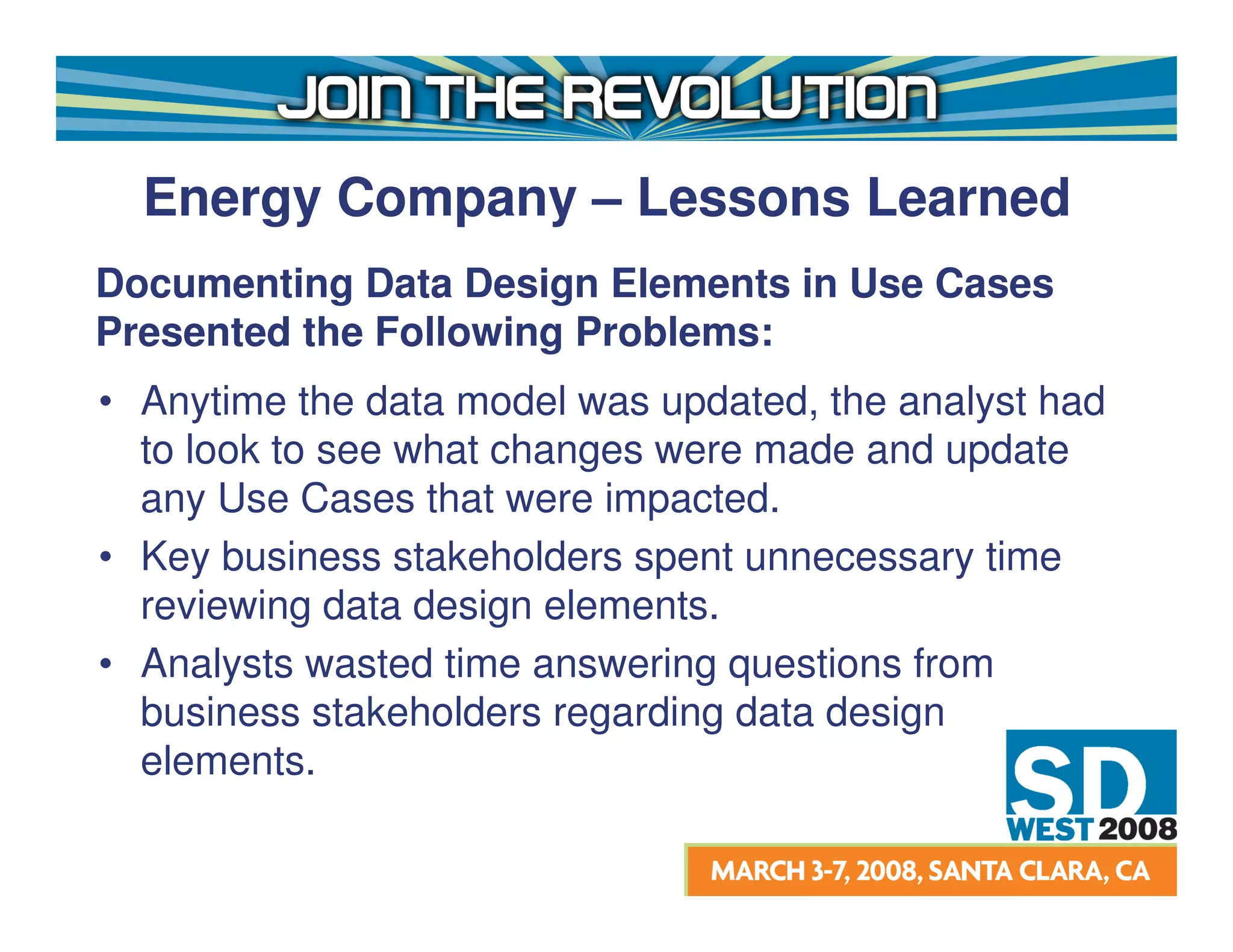

24. Energy Company – Lessons Learned
Documenting Data Design Elements in Use Cases
Presented the Following Problems:
• Anytime the data model was updated, the analyst had
to look to see what changes were made and update
any Use Cases that were impacted.
• Key business stakeholders spent unnecessary time
reviewing data design elements.
• Analysts wasted time answering questions from
business stakeholders regarding data design
elements.

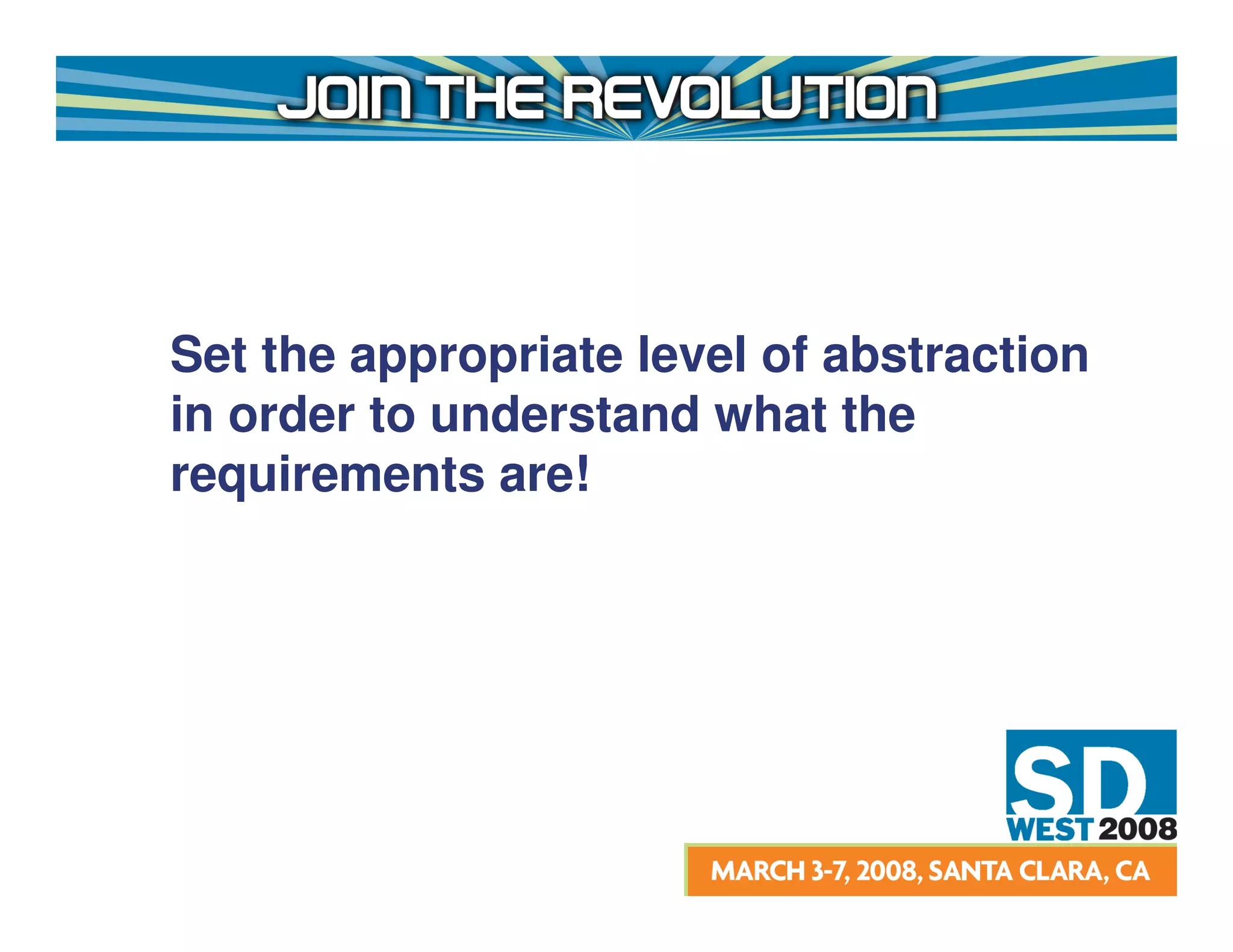

25. Set the appropriate level of abstraction
in order to understand what the
requirements are!

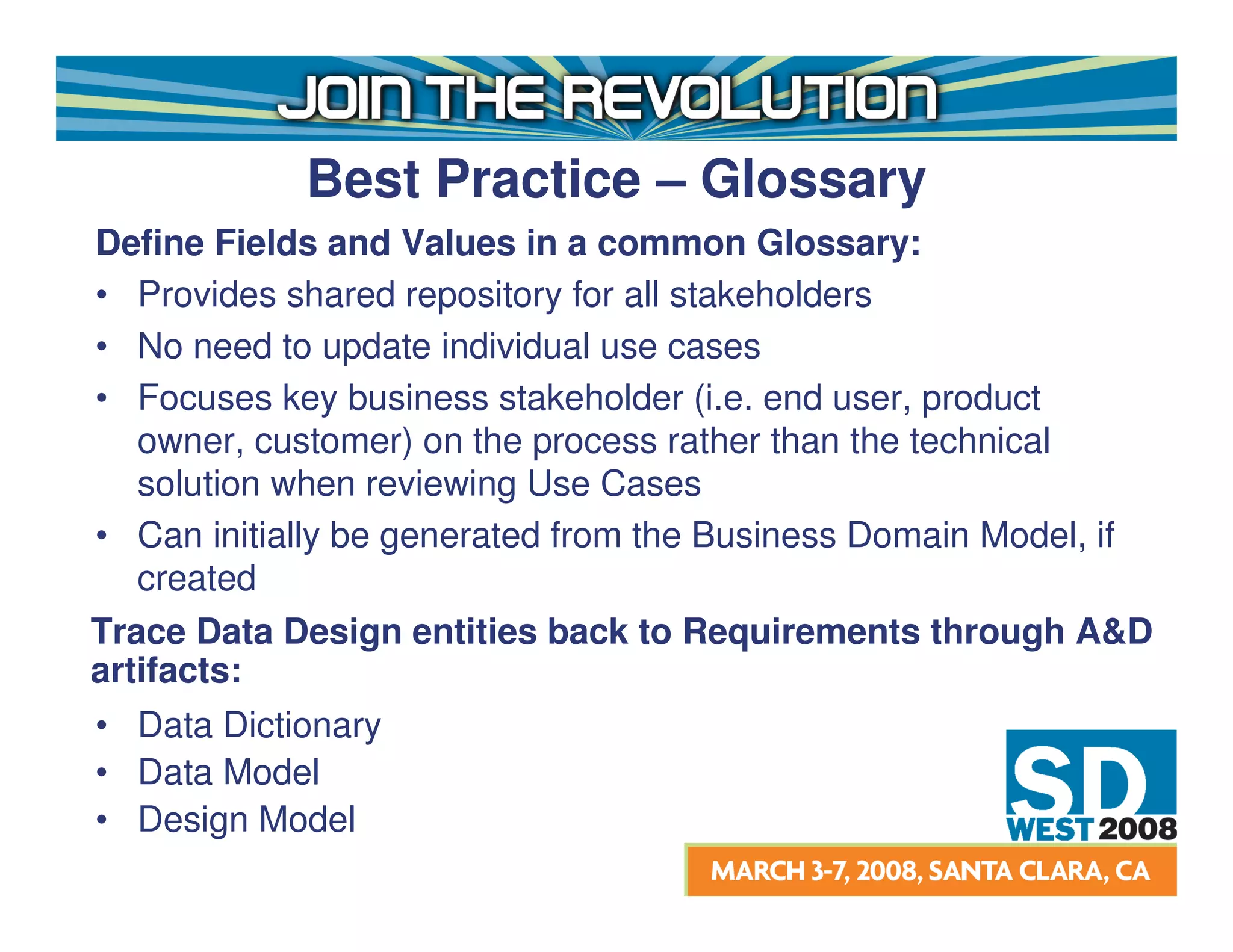

26. Best Practice – Glossary
Define Fields and Values in a common Glossary:
• Provides shared repository for all stakeholders
• No need to update individual use cases
• Focuses key business stakeholder (i.e. end user, product
owner, customer) on the process rather than the technical
solution when reviewing Use Cases
• Can initially be generated from the Business Domain Model, if
created
Trace Data Design entities back to Requirements through A&D
artifacts:
• Data Dictionary
• Data Model
• Design Model

27. Best Practice – Glossary (Cont’d)

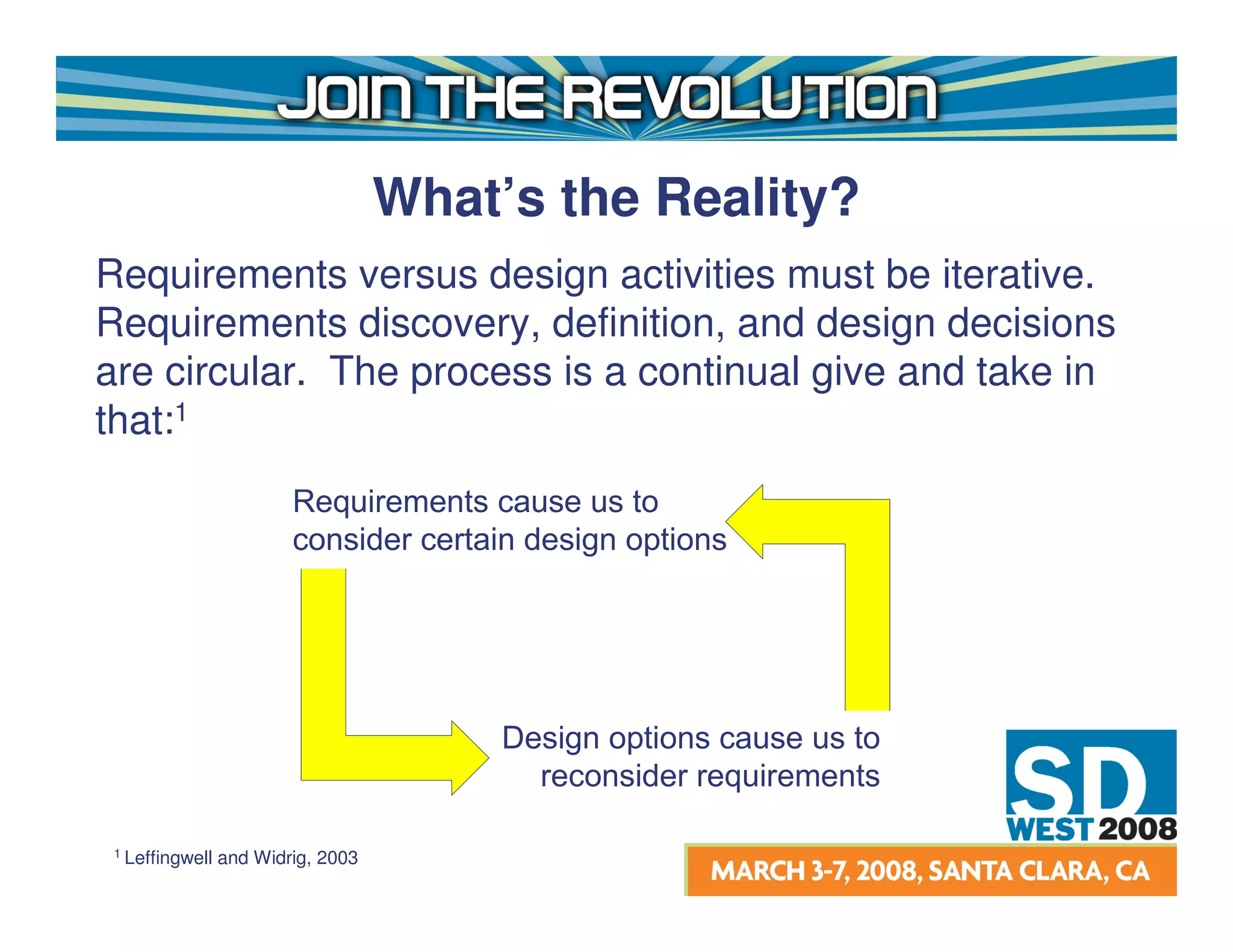

28. What’s the Reality?
Requirements versus design activities must be iterative.
Requirements discovery, definition, and design decisions
are circular. The process is a continual give and take in
that:1
Requirements cause us to
consider certain design options
Design options cause us to
reconsider requirements
1 Leffingwell and Widrig, 2003

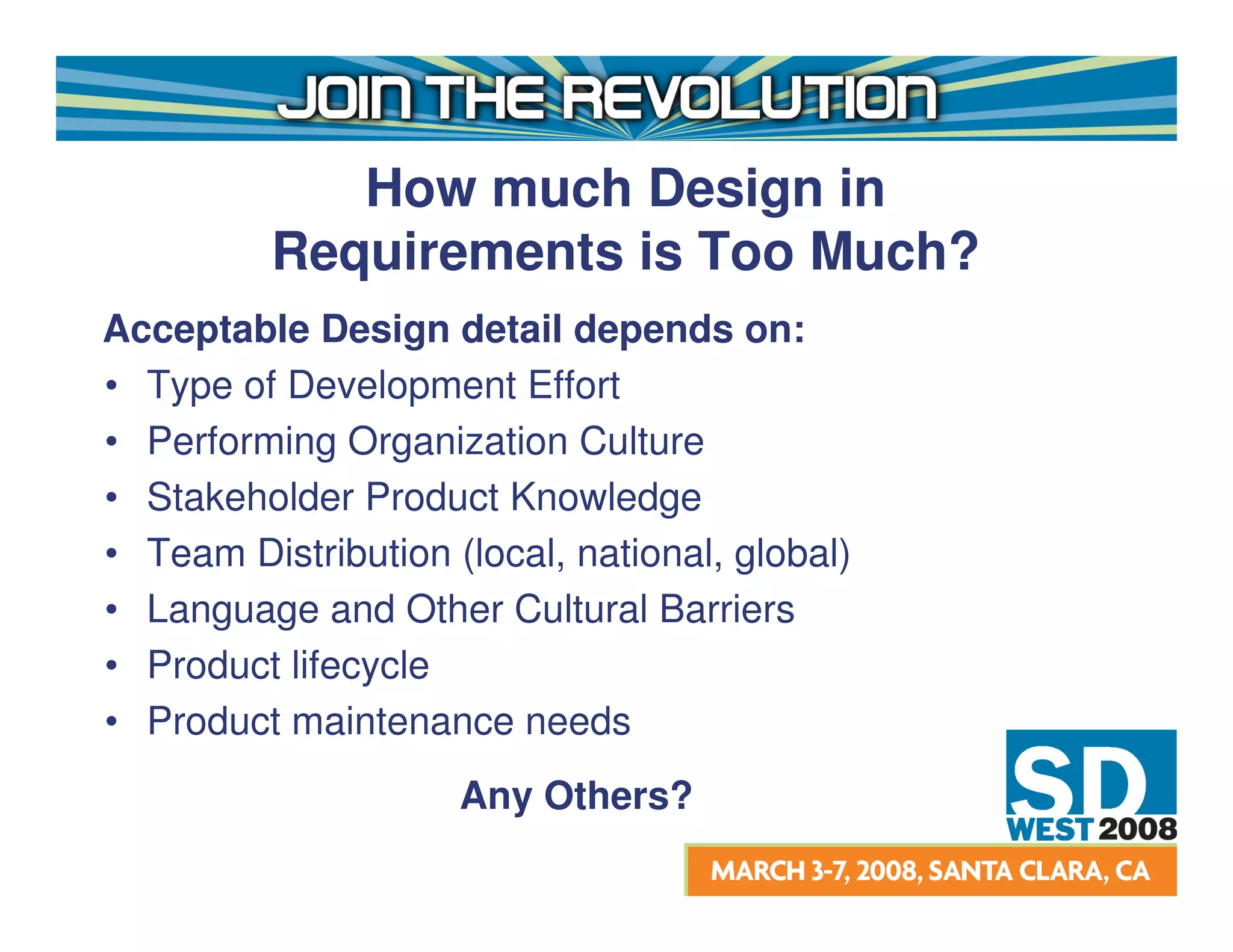

29. How much Design in
Requirements is Too Much?
Acceptable Design detail depends on:
• Type of Development Effort
• Performing Organization Culture
• Stakeholder Product Knowledge
• Team Distribution (local, national, global)
• Language and Other Cultural Barriers
• Product lifecycle
• Product maintenance needs
Any Others?

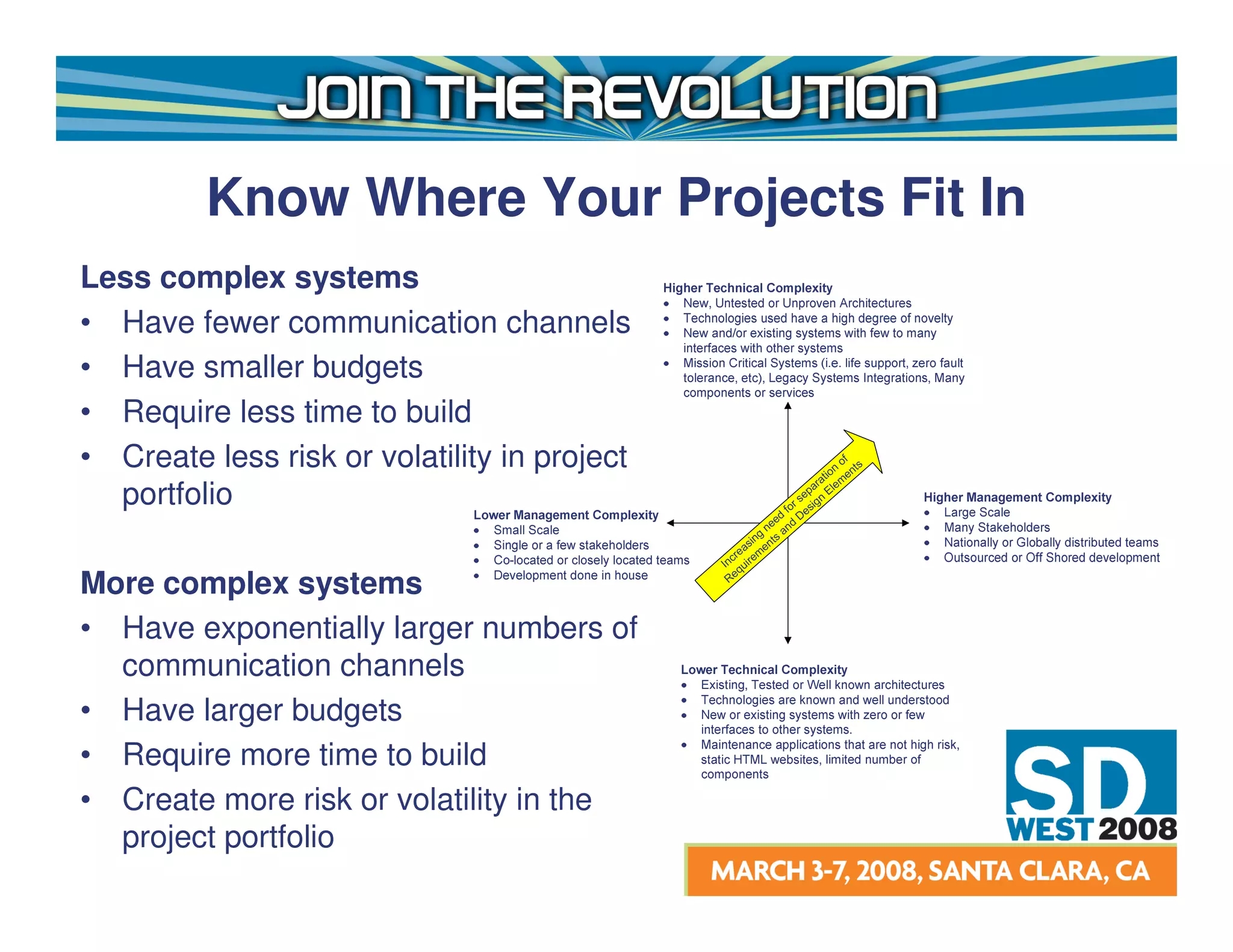

30. Know Where Your Projects Fit In
Less complex systems
• Have fewer communication channels
• Have smaller budgets
• Require less time to build
• Create less risk or volatility in project io
of
n nts
at eme
ar l
portfolio ep E
r s sign
fo e
ed D
ne and
g
in ts
as en
cre em
In uir
q
Re
More complex systems
• Have exponentially larger numbers of
communication channels
• Have larger budgets
• Require more time to build
• Create more risk or volatility in the
project portfolio

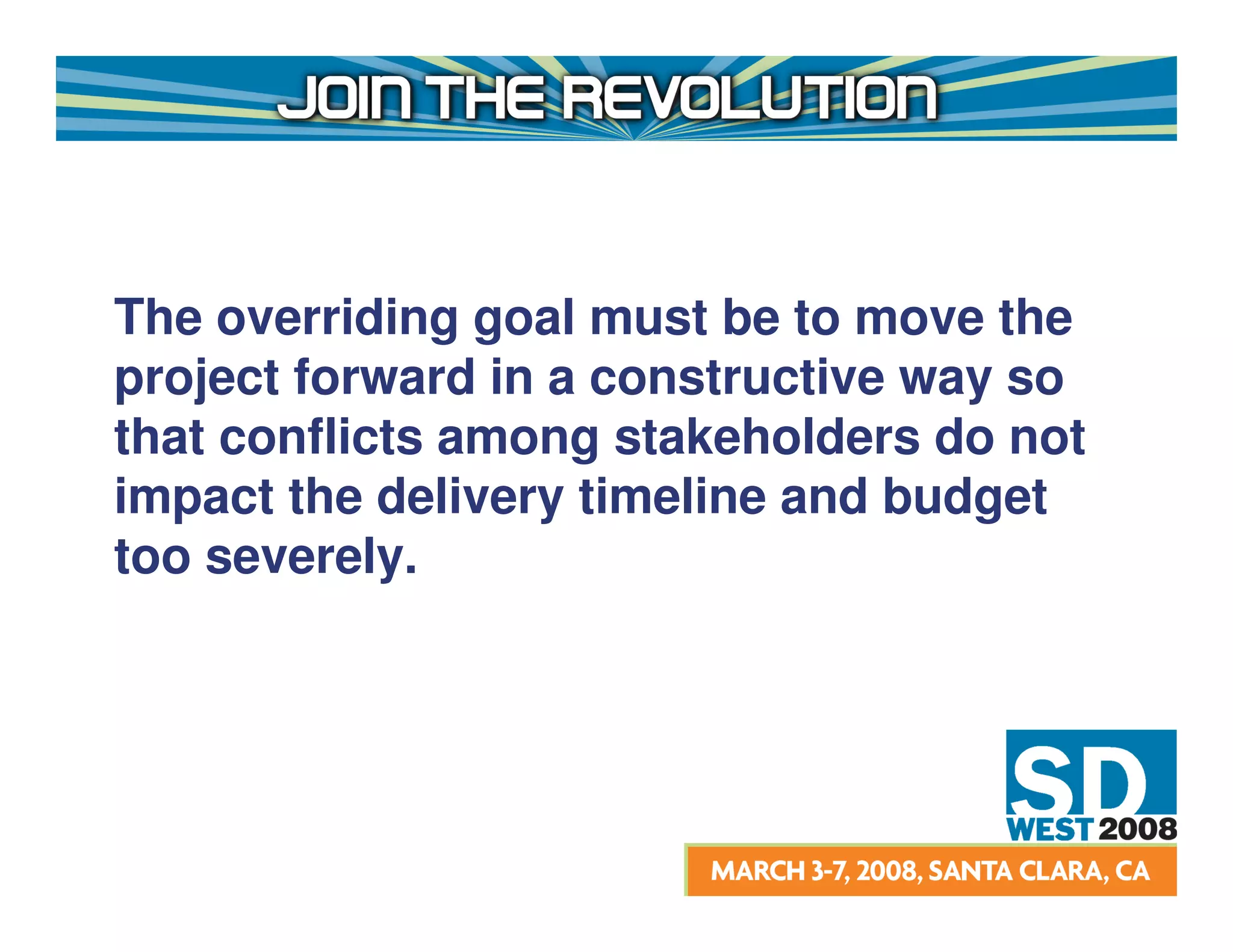

31. The overriding goal must be to move the
project forward in a constructive way so
that conflicts among stakeholders do not
impact the delivery timeline and budget
too severely.

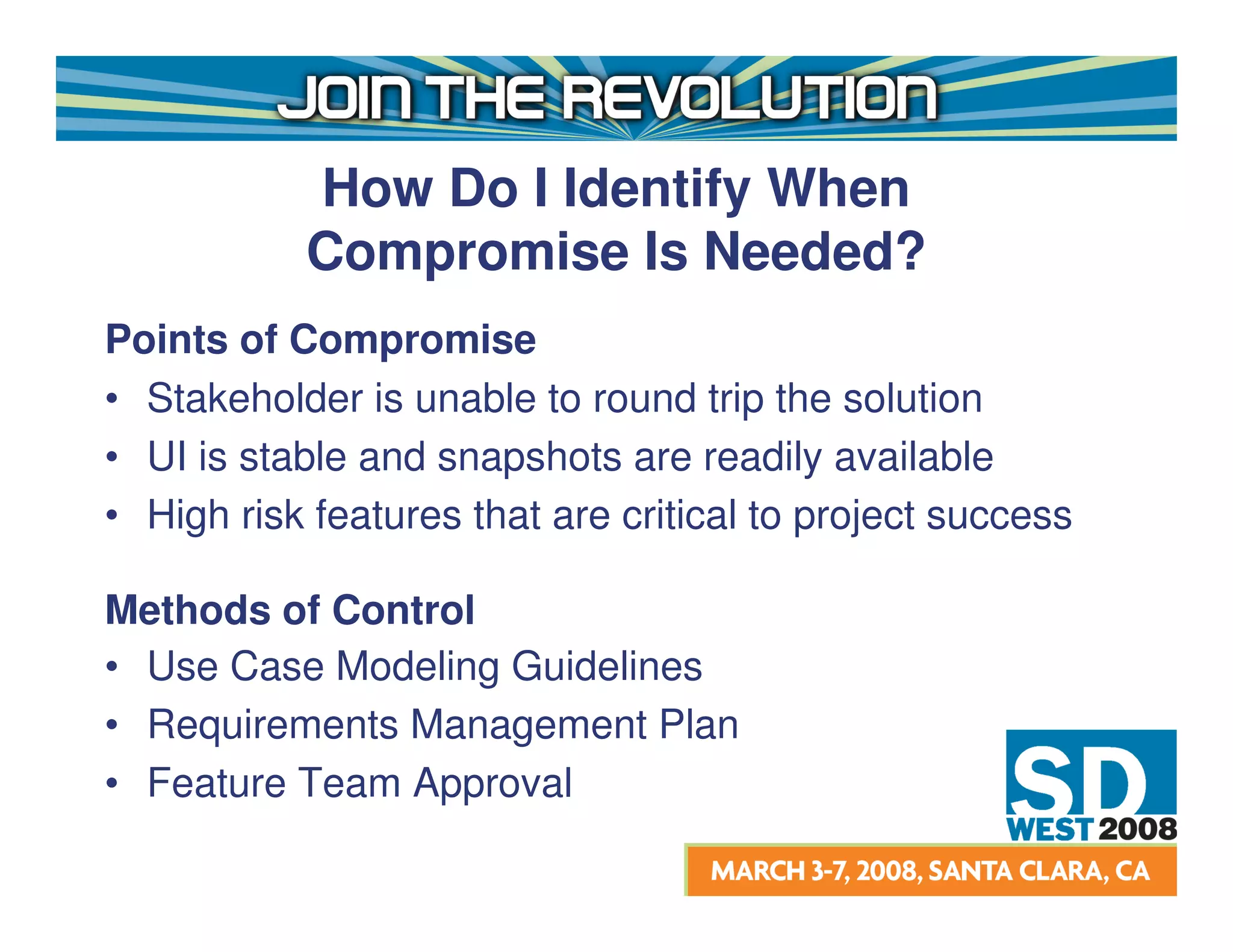

32. How Do I Identify When
Compromise Is Needed?
Points of Compromise
• Stakeholder is unable to round trip the solution
• UI is stable and snapshots are readily available
• High risk features that are critical to project success
Methods of Control
• Use Case Modeling Guidelines
• Requirements Management Plan
• Feature Team Approval

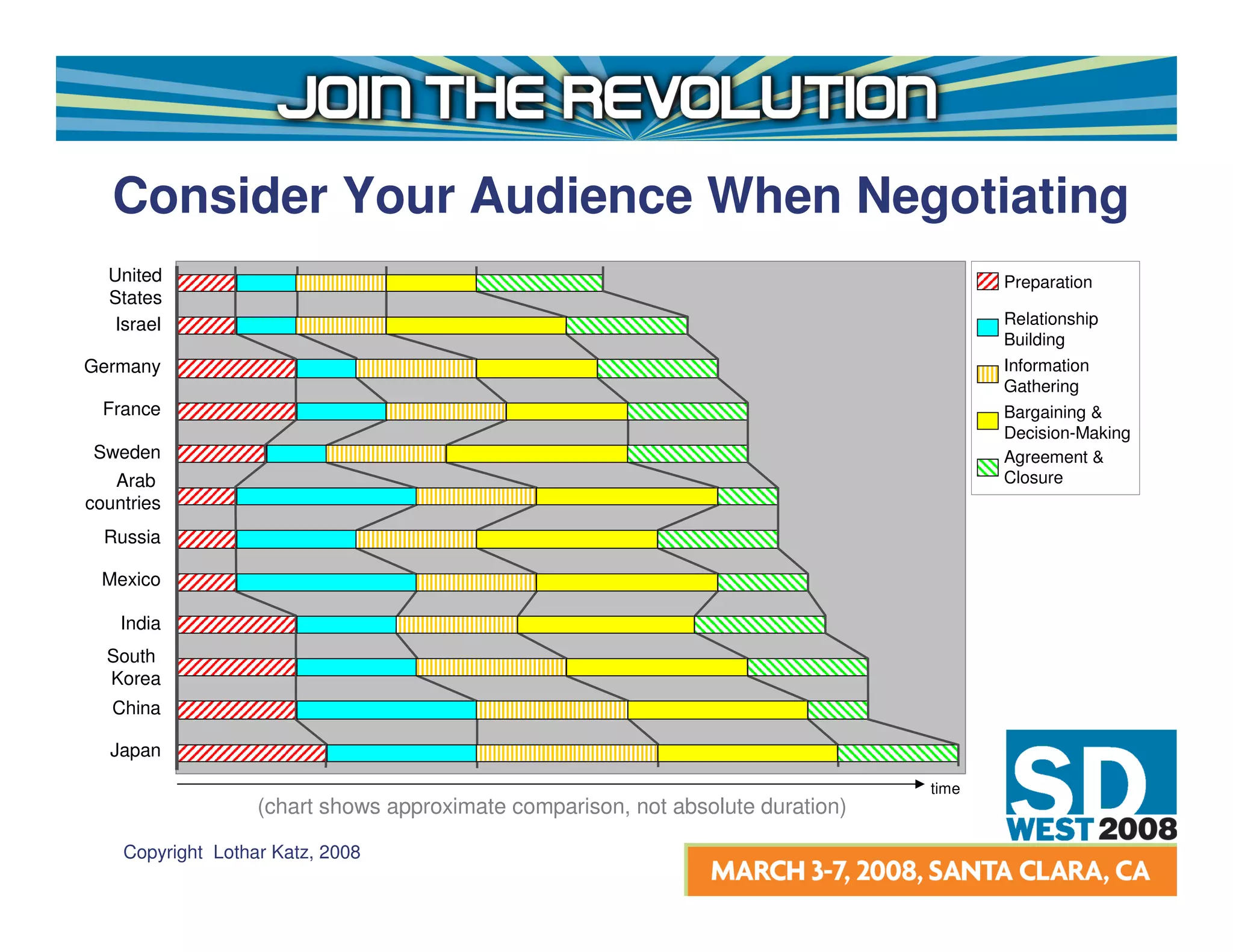

33. Consider Your Audience When Negotiating
United Preparation
States
Israel Relationship
Building
Germany Information
Gathering
France Bargaining &
Decision-Making
Sweden Agreement &
Arab Closure
countries
Russia
Mexico
India
South
Korea
China
Japan
time
(chart shows approximate comparison, not absolute duration)
Copyright Lothar Katz, 2008

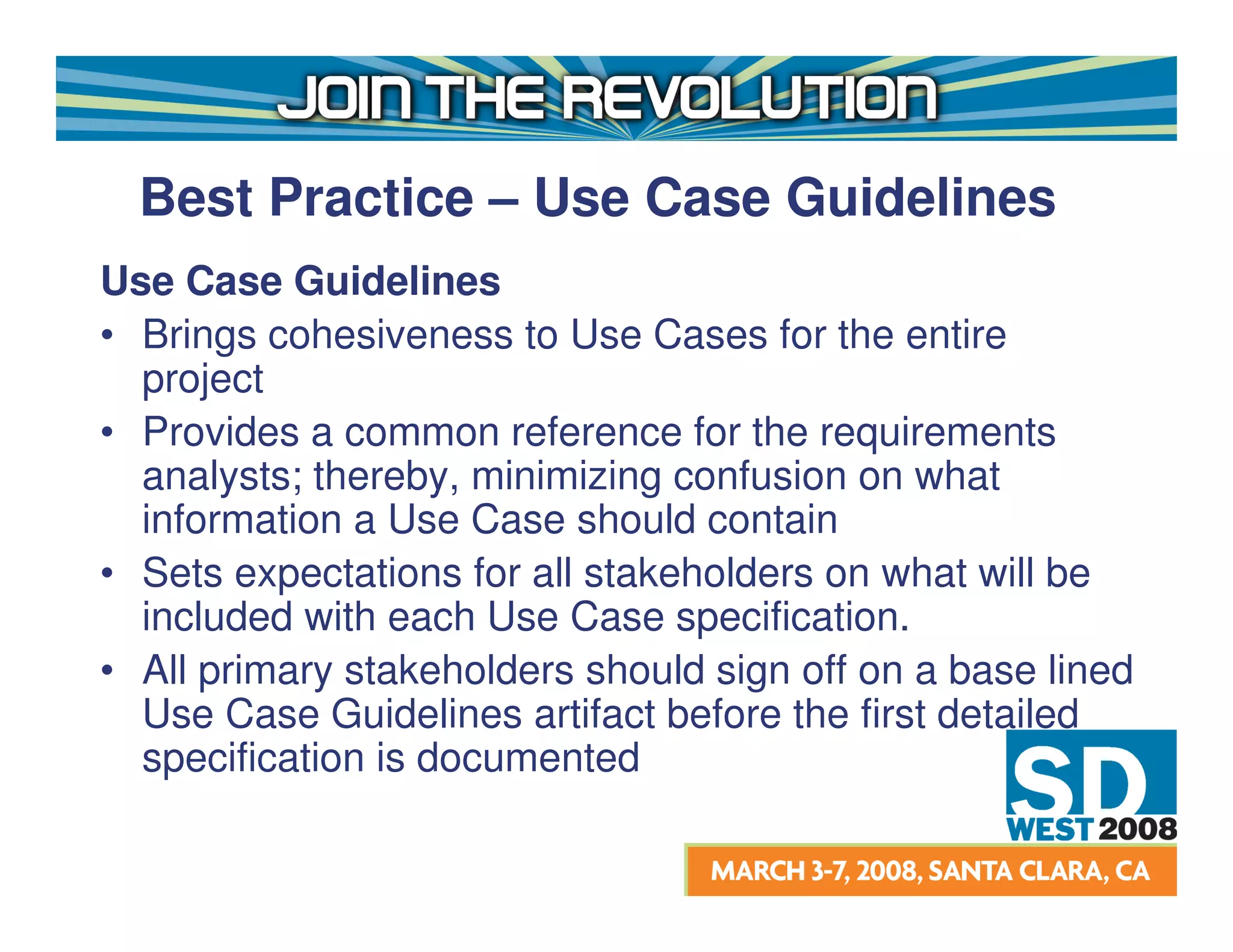

34. Best Practice – Use Case Guidelines
Use Case Guidelines
• Brings cohesiveness to Use Cases for the entire
project
• Provides a common reference for the requirements
analysts; thereby, minimizing confusion on what
information a Use Case should contain
• Sets expectations for all stakeholders on what will be
included with each Use Case specification.
• All primary stakeholders should sign off on a base lined
Use Case Guidelines artifact before the first detailed
specification is documented

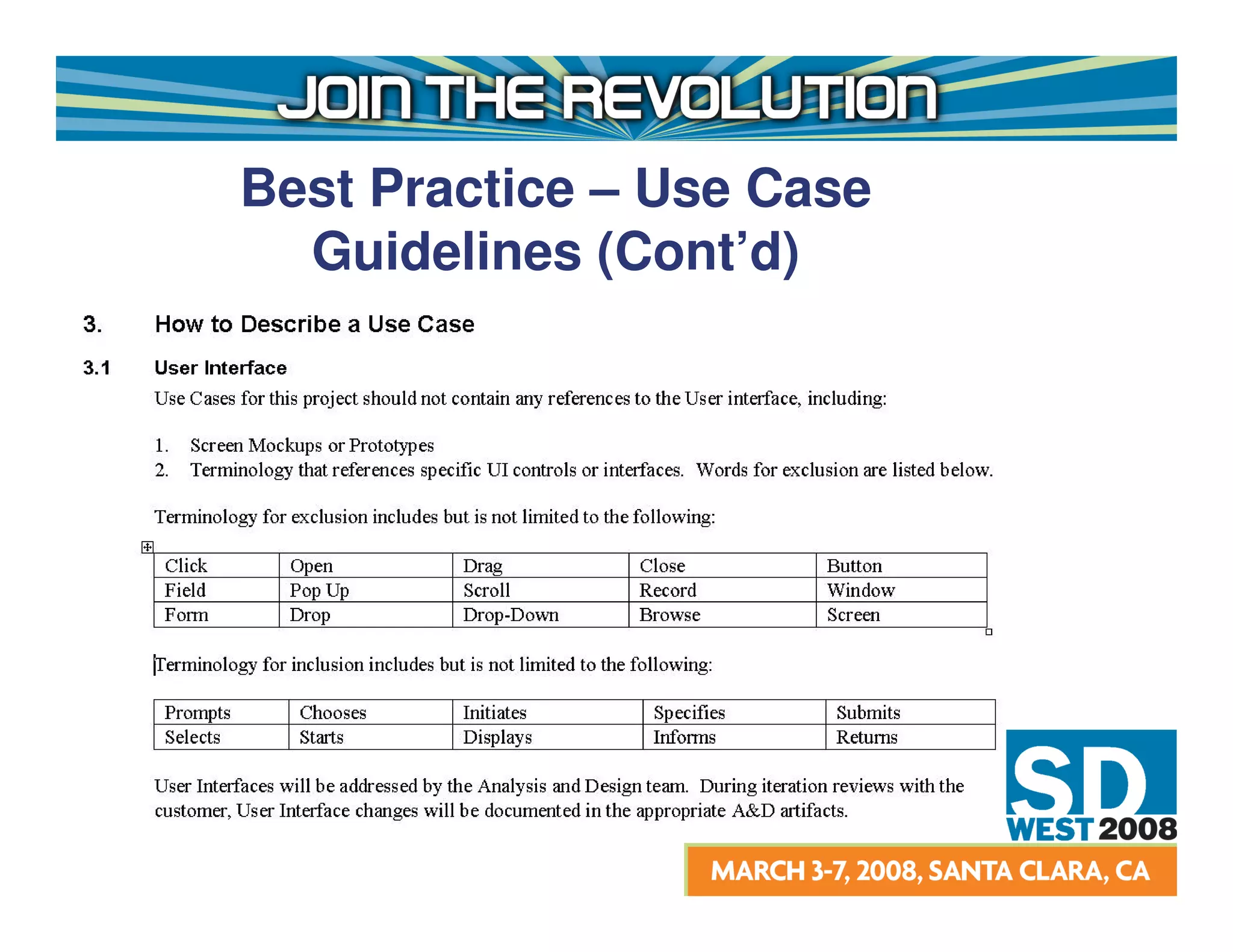

35. Best Practice – Use Case
Guidelines (Cont’d)

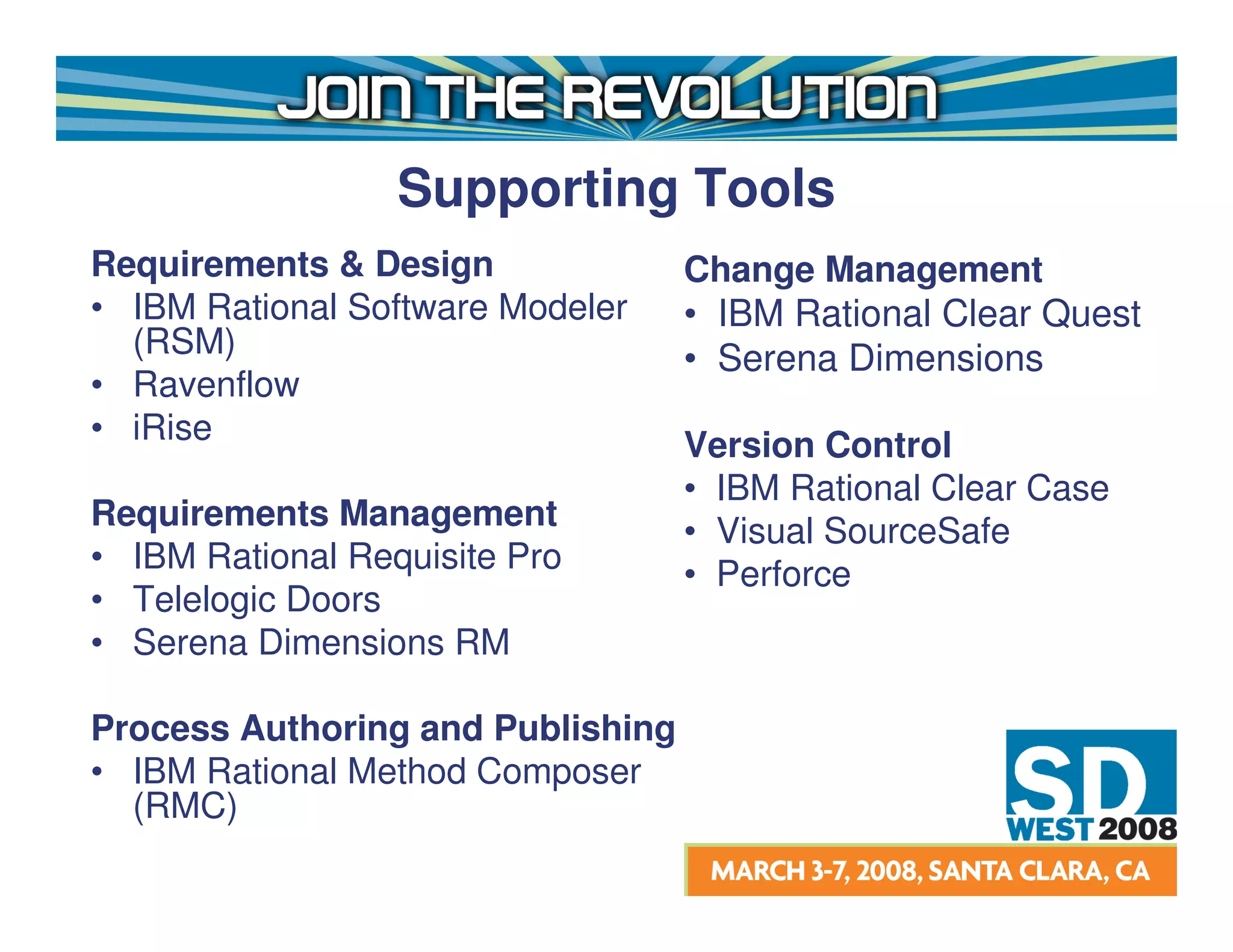

36. Supporting Tools
Requirements & Design Change Management
• IBM Rational Software Modeler • IBM Rational Clear Quest
(RSM) • Serena Dimensions
• Ravenflow
• iRise Version Control
• IBM Rational Clear Case
Requirements Management • Visual SourceSafe
• IBM Rational Requisite Pro • Perforce
• Telelogic Doors
• Serena Dimensions RM
Process Authoring and Publishing
• IBM Rational Method Composer
(RMC)

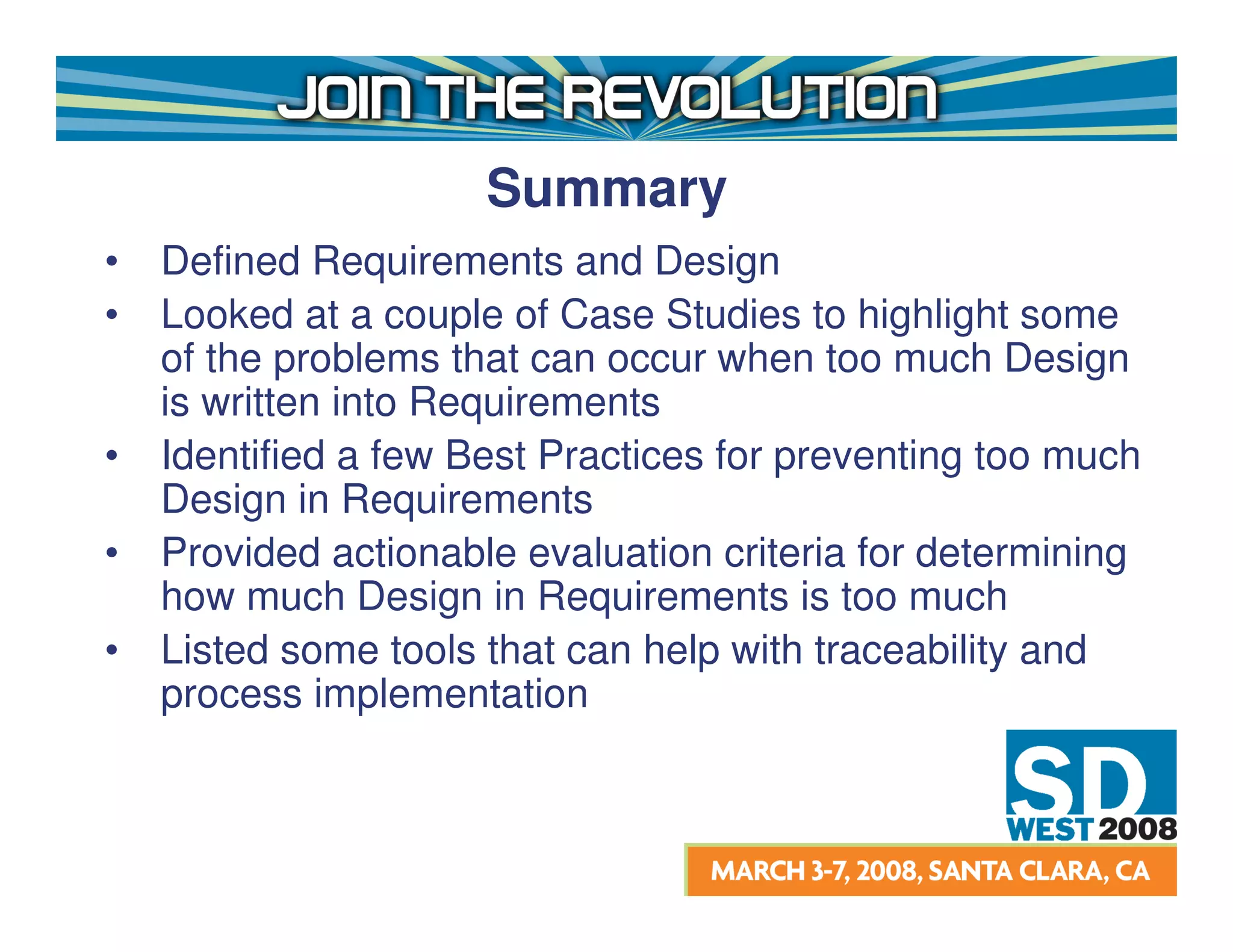

37. Summary
• Defined Requirements and Design
• Looked at a couple of Case Studies to highlight some
of the problems that can occur when too much Design
is written into Requirements
• Identified a few Best Practices for preventing too much
Design in Requirements
• Provided actionable evaluation criteria for determining
how much Design in Requirements is too much
• Listed some tools that can help with traceability and
process implementation

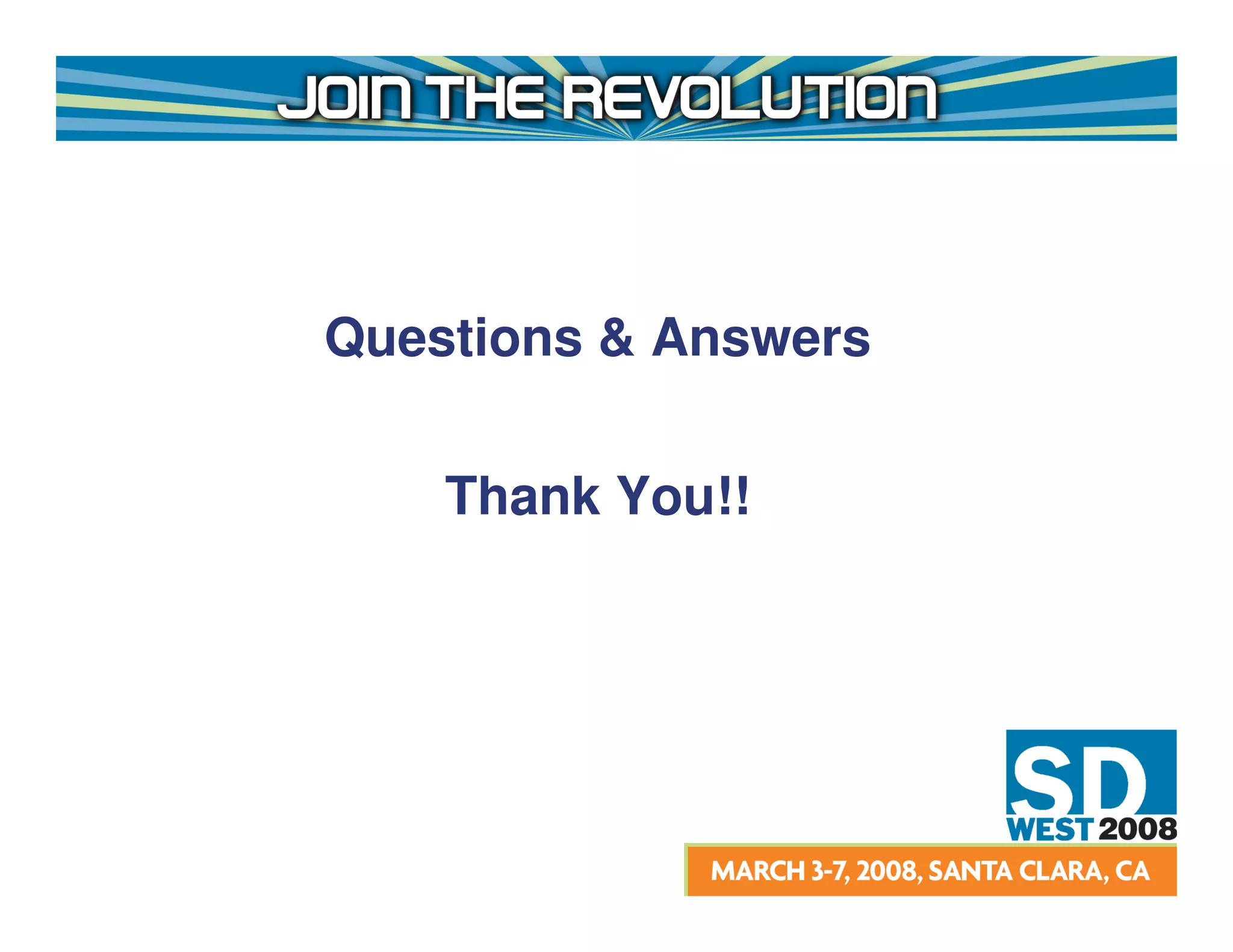

38. Questions & Answers
Thank You!!
