SDEC2011 NoSQL concepts and models
- 1. What Exactly isNoSQL? Document databases, Column-family stores, Key-value pairs, more Shashank Tiwari blog: shanky.org | twitter: @tshanky st@treasuryofideas.com
- 2.
- 3. NoSQL : VariousShapes and Sizes • Document Databases • Column-family Oriented Stores • Key/value Data stores • XML Databases • Object Databases • Graph Databases
- 4. Document Databases • mostlyMongoDB, little CouchDB

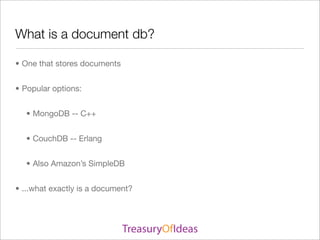

- 5. What is adocument db? • One that stores documents • Popular options: • MongoDB -- C++ • CouchDB -- Erlang • Also Amazon’s SimpleDB • ...what exactly is a document?
- 6. In the realworld • (Source: http://guide.couchdb.org/draft/why.html)
- 7. In terms ofJSON • {name: “John Doe”, • zip: 10001}

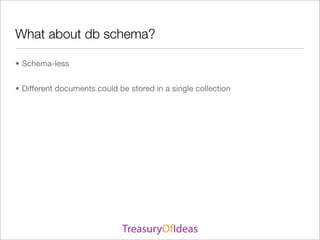

- 8. What about dbschema? • Schema-less • Different documents could be stored in a single collection
- 9. Data types: MongoDB •Essential JSON types: • string • integer • boolean • double

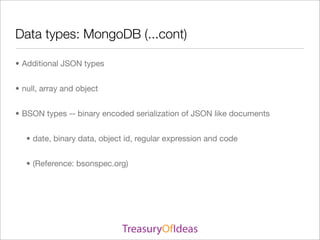

- 10. Data types: MongoDB(...cont) • Additional JSON types • null, array and object • BSON types -- binary encoded serialization of JSON like documents • date, binary data, object id, regular expression and code • (Reference: bsonspec.org)
- 11. A BSON example:object id
- 12. Data types: CouchDB •Everything JSON • Large objects: attachments
- 13. CRUD operations fordocuments • Create • Read • Update • Delete
- 14. MongoDB: Create Document •use mydb • w = {name: “John Doe”, zip: 10001}; • db.location.save(w);
- 15. Create db andcollection • Lazily created • Implicitly created • use mydb • db.collection.save(w)
- 16. MongoDB: Read Document •db.location.find({zip: 10001}); • { "_id" : ObjectId("4c97053abe67000000003857"), "name" : "John Doe", "zip" : 10001 }
- 17. MongoDB: Read Document(...cont) • db.location.find({name: "John Doe"}); • { "_id" : ObjectId("4c97053abe67000000003857"), "name" : "John Doe", "zip" : 10001 }
- 18. MongoDB: Update Document •Atomic operations on single documents • db.location.update( { name:"John Doe" }, { $set: { name: "Jane Doe" } } );

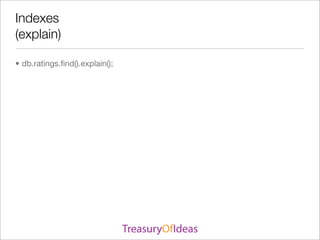

- 19.
- 20. Indexes (explain output) •{ • "cursor" : "BasicCursor", • "nscanned" : 1000209, • "nscannedObjects" : 1000209, • "n" : 1000209, • "millis" : 1549, • "indexBounds" : {
- 21. Indexes (ensure index) • db.ratings.ensureIndex({movie_id:1 }); • db.ratings.ensureIndex({ movie_id:-1 });
- 22. Indexes (explain when indexused) •{ • "cursor" : "BtreeCursor movie_id_1", • "nscanned" : 2077, • "nscannedObjects" : 2077, • "n" : 2077, • "millis" : 2, • "indexBounds" : {
- 23.
- 24. Sorted Ordered Column-familyDatastores • Sorted • Ordered • Distributed • Map
- 25.
- 26.
- 27. A Map/Hash View •{ •"row_key_1" : { "name" : { • "first_name" : "Jolly", "last_name" : "Goodfellow" • } } }, • "location" : { "zip": "94301" },
- 28.
- 29.
- 30. The underlying fileformat
- 31. Model Wrappers (TheGAE Way) • Python • Model, Expando, PolyModel • Java • JDO, JPA
- 32. HBase Data Access •Thrift + Avro • Java API -- HTable, HBaseAdmin • Hive (SQL like) • MapReduce -- sink and/or source
- 33. Transactions • Atomic rowlevel • GAE Entity Groups
- 34. Indexes • Row ordered •Secondary indexes • GAE style multiple indexes • thinking from output to query
- 35. Use cases • ManyGoogle’s Products • Facebook Messaging • StumbleUpon • Open TSDB • Mahalo, Ning, Meetup, Twitter, Yahoo! • Lily -- open source CMS built on HBase & Solr
- 36. Brewer’s CAP Theorem •http://www.cs.berkeley.edu/~brewer/cs262b-2004/PODC-keynote.pdf • http://theory.lcs.mit.edu/tds/papers/Gilbert/Brewer6.ps

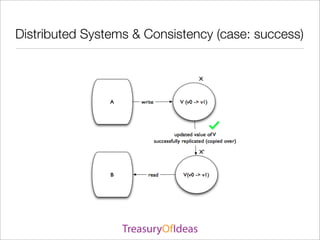

- 37. Distributed Systems &Consistency (case: success)
- 38. Distributed Systems &Consistency (case: failure)
- 39.
- 40.
- 41.
- 42. RWN Math • R– Number of nodes that are read from. • W – Number of nodes that are written to. • N – Total number of nodes in the cluster. • In general: R < N and W < N for higher availability
- 43. R+W>N • Easy todetermine consistent state • R + W = 2N • absolutely consistent, can provide ACID gaurantee • In all cases when R + W > N there is some overlap between read and write nodes.
- 44. R = 1,W = N • more reads than writes •W=N • 1 node failure = entire system unavailable
- 45. R = N,W =1 •W=N • Chance of data inconsistency quite high •R=N • Read only possible when all nodes in the cluster are available
- 46. R = W= ceiling ((N + 1)/2) Effective quorum for eventual consistency
- 47. Eventual consistency variants •Causal consistency -- A writes and informs B then B always sees updated value • Read-your-writes-consistency -- A writes a new value and never see the old one • Session consistency -- read-your-writes-consistency within a client session • Monotonic read consistency -- once seen a new value, never return previous value • Monotonic write consistency -- serialize writes by the same process
- 48. Dynamo Techniques • ConsistentHashing (Incremental scalability) • Vector clocks (high availability for writes) • Sloppy quorum and hinted handoff (recover from temporary failure) • Gossip based membership protocol (periodic, pair wise, inter-process interactions, low reliability, random peer selection) • Anti-entropy using Merkle trees • (source: http://s3.amazonaws.com/AllThingsDistributed/sosp/amazon- dynamo-sosp2007.pdf)
- 49.
- 50. Vector clocks (atrivial example) • 4 hackers: Joe, Hillary, Eric and Ajay decide to meetup • Joe -- suggests Palo Alto (t0) • Hillary and Eric -- decide to meet in Mountain View (t1) • Eric and Ajay -- decide to meet in Los Altos (t2) • Joe mails: PA, Hillary responds: Mtn View, Ajay responds: Los Altos (t3) • both Hillary and Ajay say: Eric knows
- 51. Vector clocks (howit works) • Venue : Palo Alto • Vector Clock: Joe (ver 1) • Venue: Mountain View • Vector Clock: Joe (ver 1), Hillary (ver 1), Eric (ver 1) • Venue: Los Altos • Vector Clock: Joe (ver 1), Ajay (ver 1), Eric (ver 1)
- 52. Vector clock (resolution) •Venue : Palo Alto • Vector Clock: Joe (ver 1) • Venue: Mountain View • Vector Clock: Joe (ver 1), Hillary (ver 1), Ajay (ver 0), Eric (ver 2) • Venue: Los Altos • Vector Clock: Joe (ver 1), Hillary (ver 0), Ajay (ver 1), Eric (ver 1)

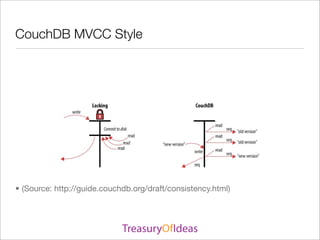

- 53. CouchDB MVCC Style •(Source: http://guide.couchdb.org/draft/consistency.html)

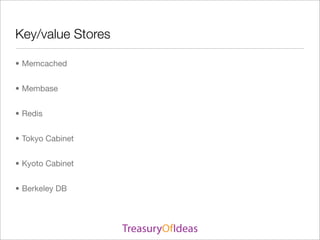

- 54. Key/value Stores • Memcached •Membase • Redis • Tokyo Cabinet • Kyoto Cabinet • Berkeley DB
- 55. Redis -- akey-value data structure server • open source key-value store • a data structure server • values in key-value pairs can be strings, hashes, lists, sets, sorted sets
- 56. Where to findit? • redis.io • download a copy from http://redis.io/download
- 57. Who is buildingit? • Core developers • Salvatore Sanfilippo, twitter: @antirez • Pieter Noordhuis, twitter: @pnoordhuis • Main sponsor • VMware

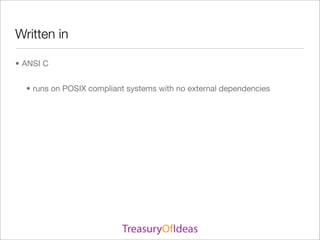

- 58. Written in • ANSIC • runs on POSIX compliant systems with no external dependencies
- 59. How can itbe used? • as an in memory data store • with option to persist to disk • in standalone mode or as a master-slave replicated set • Redis cluster -- coming soon! (June 2011) • as cache
- 60.
- 61. Download and install •curl -O http://redis.googlecode.com/files/redis-2.2.0-rc4.tar.gz • (just a 436kb download) • tar zxvf redis-2.2.0-rc4.tar.gz • cd redis-2.2.0-rc4 • make & make install (installs in /usr/local/bin) • make test (to be sure you install it correctly)

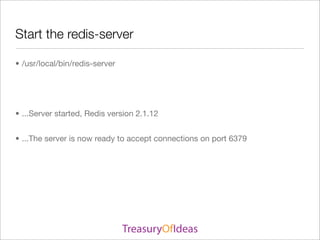

- 62. Start the redis-server •/usr/local/bin/redis-server • ...Server started, Redis version 2.1.12 • ...The server is now ready to accept connections on port 6379
- 63. Connect with redis-cli •/usr/local/bin/redis-cli • redis> set key1 val1 • OK • redis> get key1 • "val1"
- 64. String key-value pairs •like memcached • with persistence • key and value -- binary-safe strings
- 65. Binary-safe? • redis> set"a key _" "another value" • OK • redis> get "a key _" • "another value"

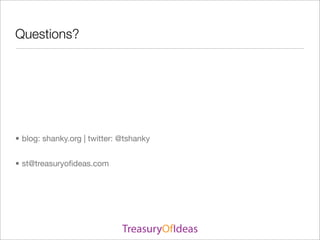

- 66. Questions? • blog: shanky.org| twitter: @tshanky • st@treasuryofideas.com
