This document discusses using System Center Operations Manager (SCOM) to provide monitoring services to multiple customers. It describes several scenarios for separating monitoring data and views by customer while also allowing combined views. The solutions involve adding a "Customer" enum property to monitored objects, filtering and grouping objects by customer, and creating roles and permissions to restrict views and access to only relevant customer data. A deployed architecture is shown with SCOM components like agents and management servers separated by a gateway to isolate customer compartments and provide monitoring as a service.

1. SCOM 2012 as Service
offering

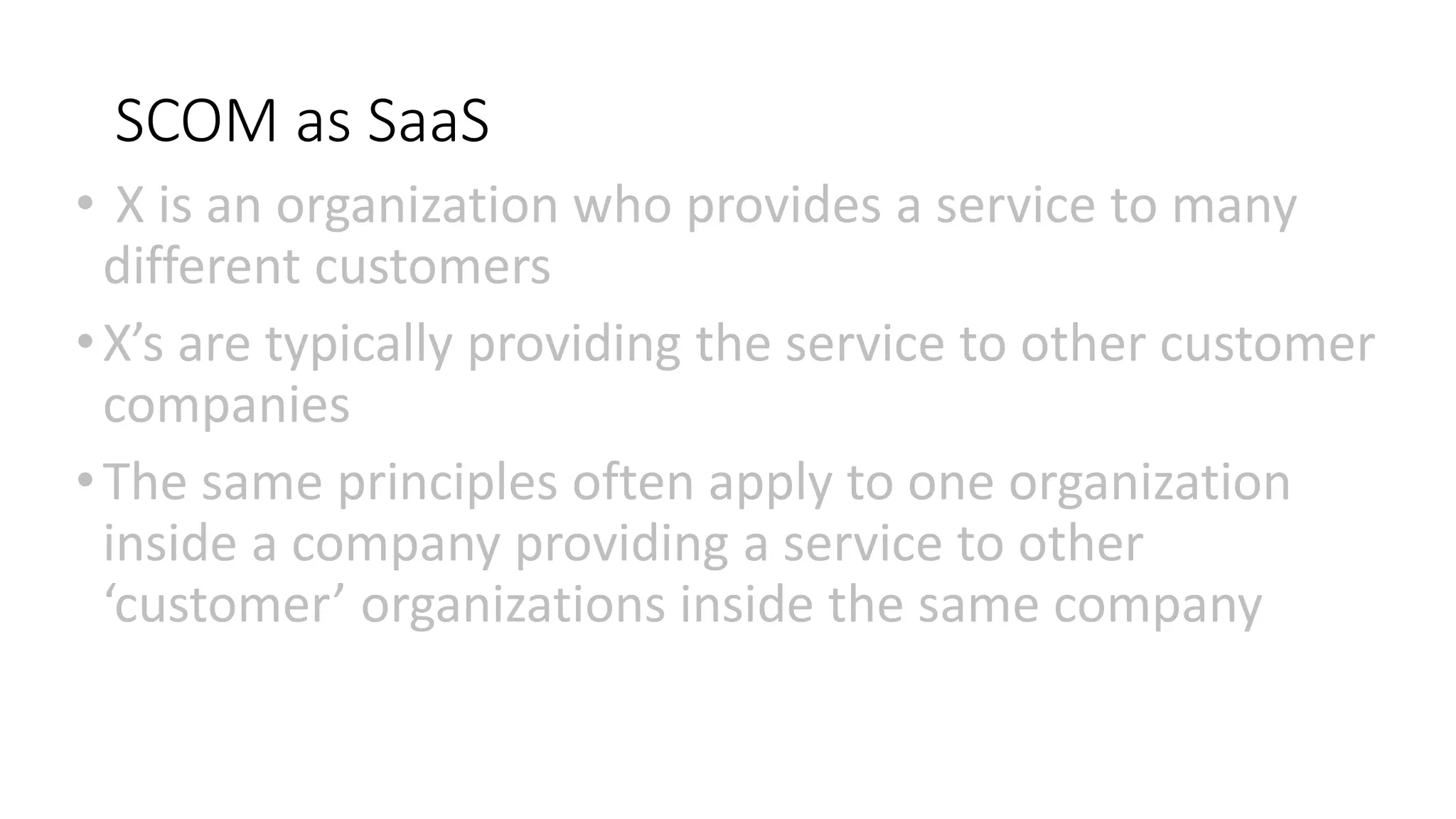

2. SCOM as SaaS
• X is an organization who provides a service to many
different customers
•X’s are typically providing the service to other customer
companies
•The same principles often apply to one organization
inside a company providing a service to other
‘customer’ organizations inside the same company

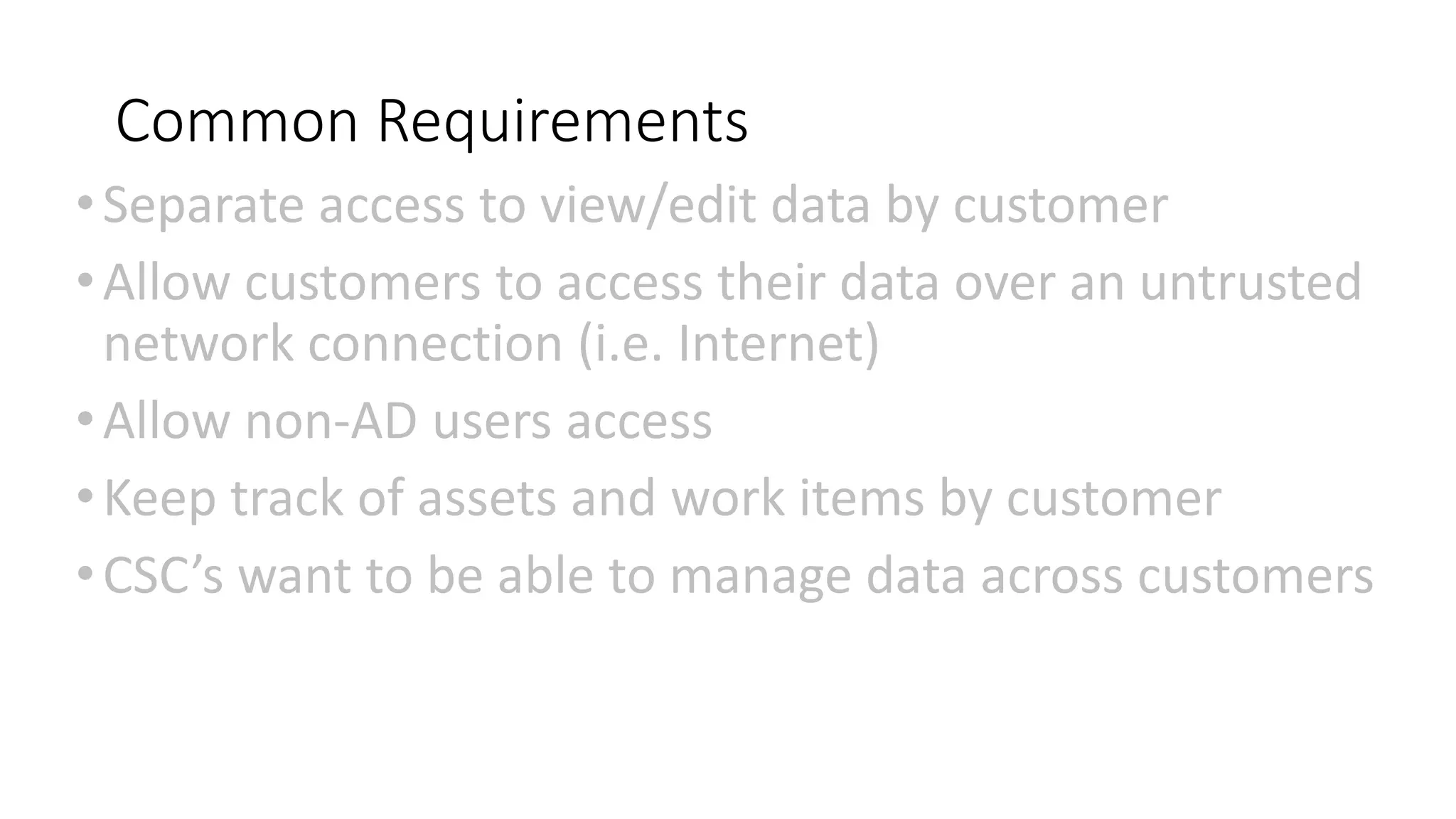

3. Common Requirements
•Separate access to view/edit data by customer
•Allow customers to access their data over an untrusted
network connection (i.e. Internet)
•Allow non-AD users access
•Keep track of assets and work items by customer
•CSC’s want to be able to manage data across customers

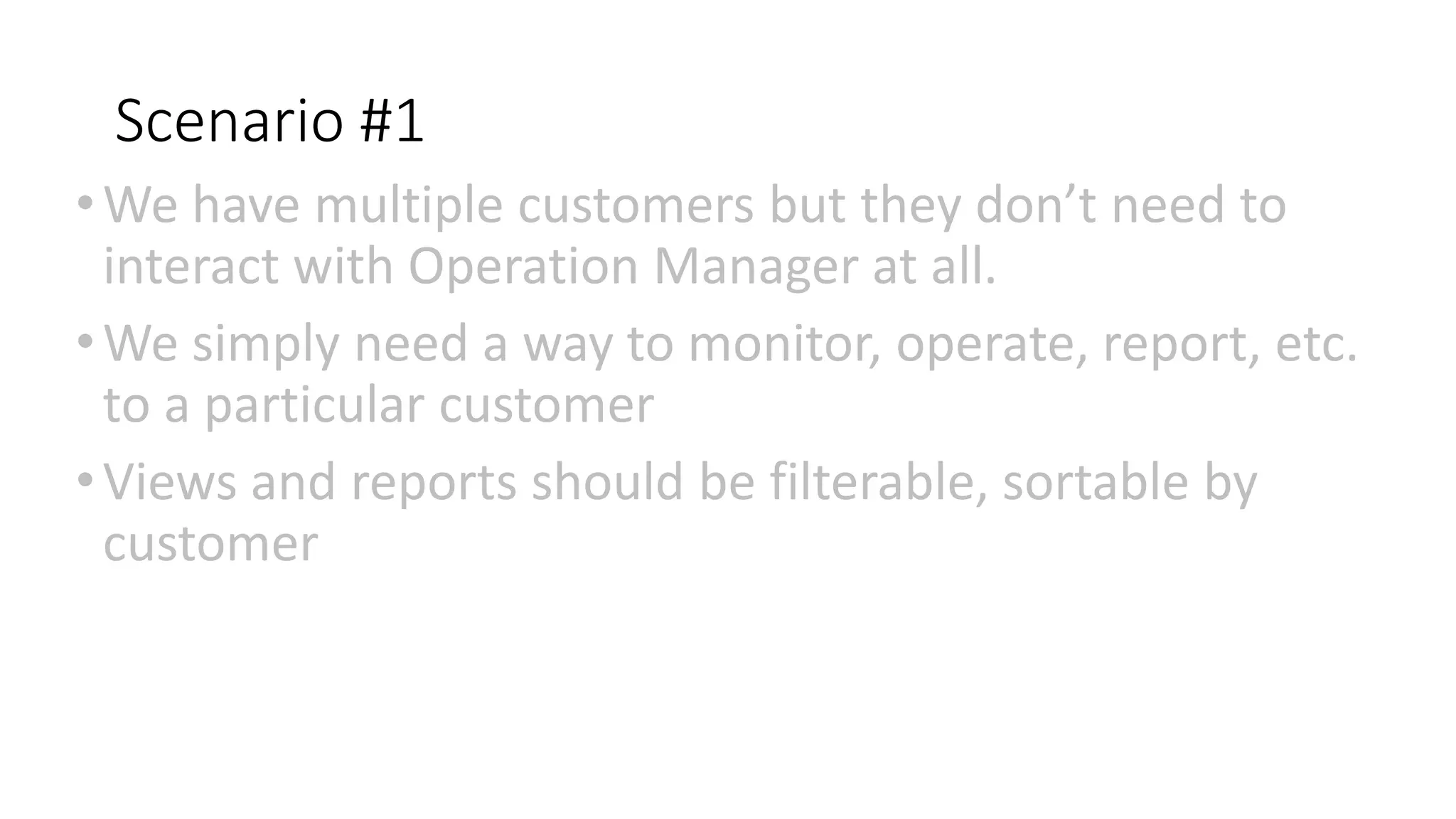

4. Scenario #1
•We have multiple customers but they don’t need to
interact with Operation Manager at all.
•We simply need a way to monitor, operate, report, etc.
to a particular customer
•Views and reports should be filterable, sortable by
customer

5. Scenario #1 Solution
• Create a new List for ‘Customers’
• Add a new enum data type ‘Customer’ property to classes like
Servers, Services and endpoints etc. and bind it to the
‘Customers’ list
• Use this new ‘Customer’ property to filter and sort in views and
reports
• Optionally create queues and groups based on the ‘Customer’
property

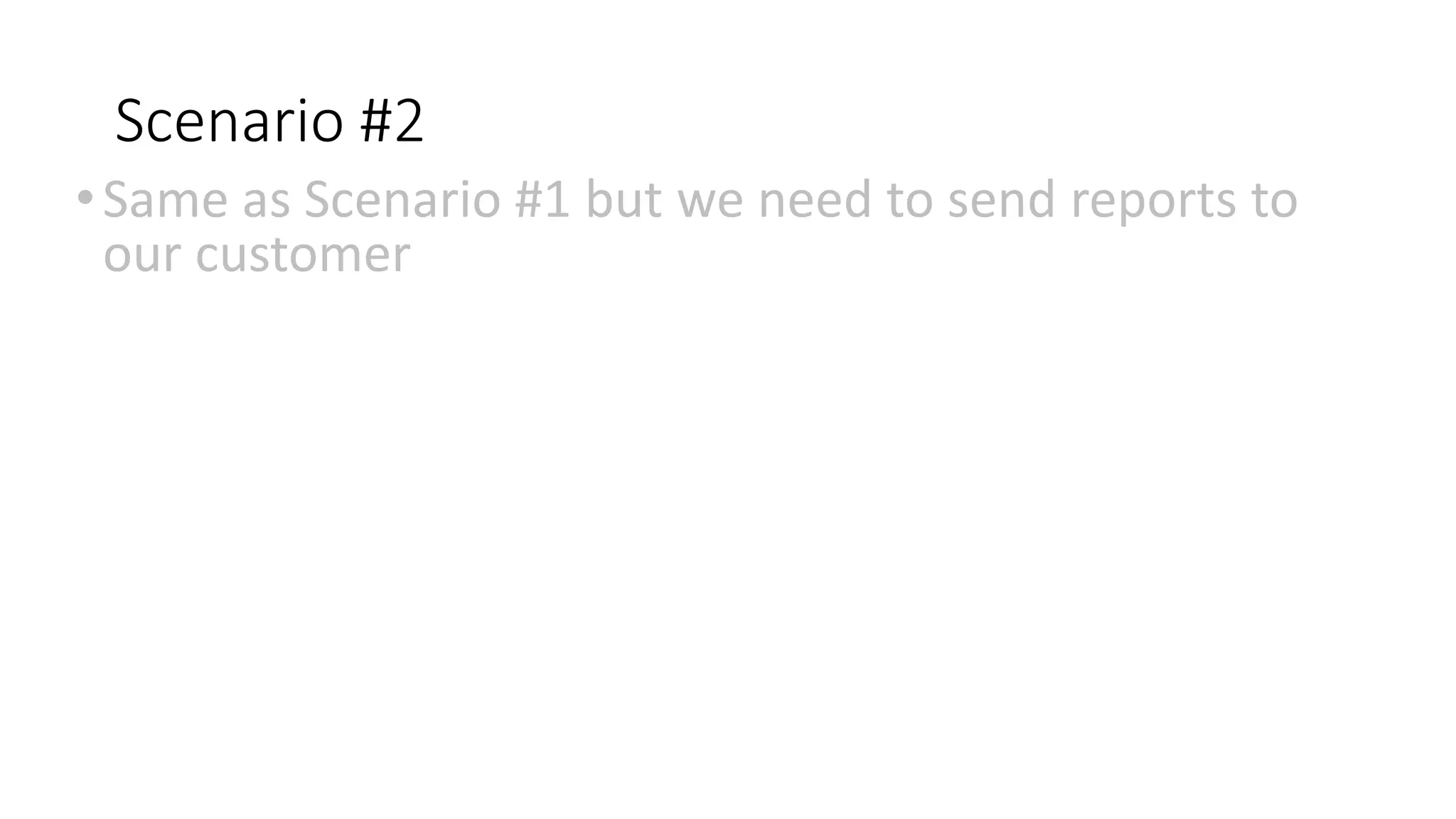

6. Scenario #2
•Same as Scenario #1 but we need to send reports to
our customer

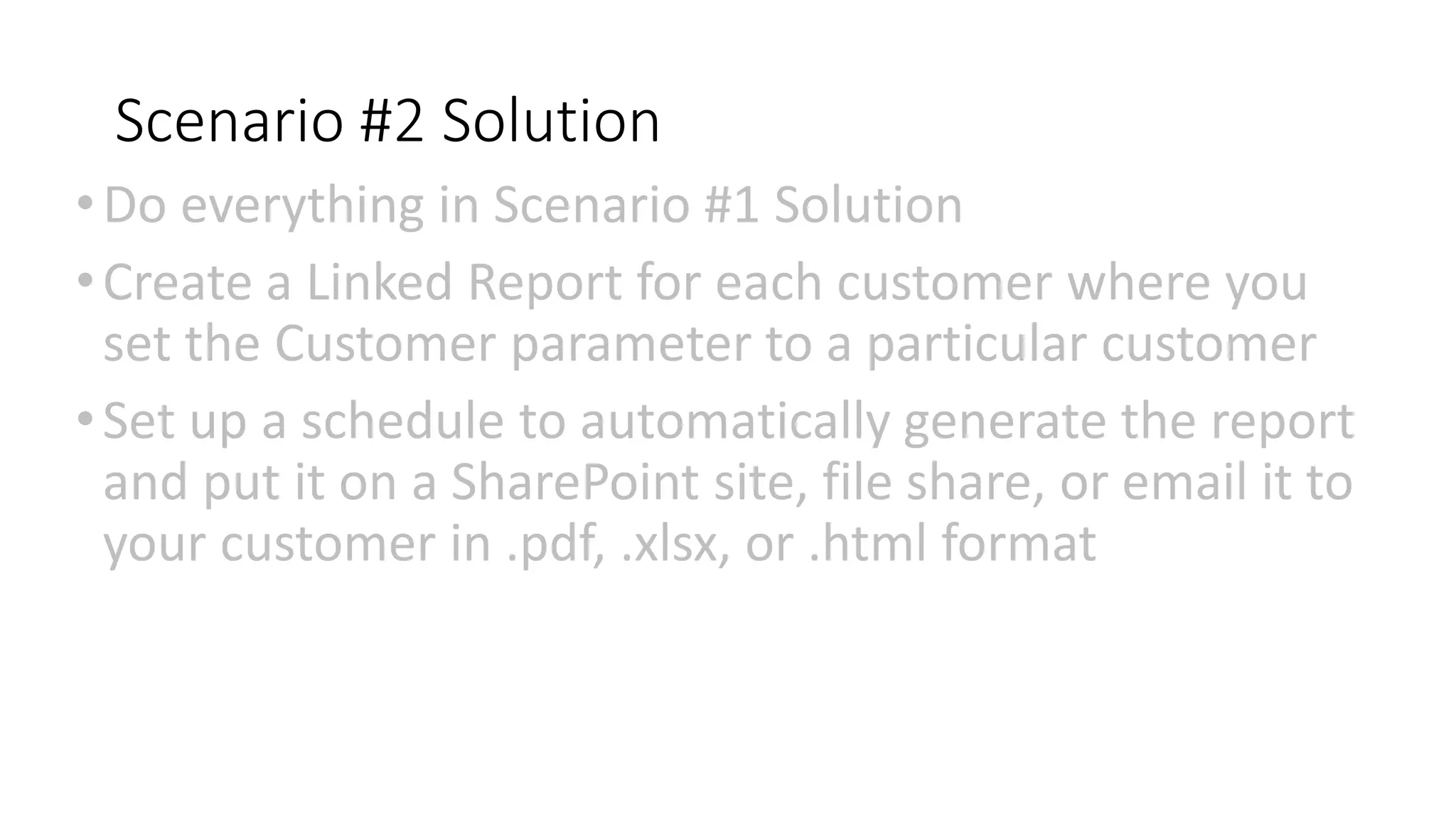

7. Scenario #2 Solution
•Do everything in Scenario #1 Solution
•Create a Linked Report for each customer where you
set the Customer parameter to a particular customer
•Set up a schedule to automatically generate the report
and put it on a SharePoint site, file share, or email it to
your customer in .pdf, .xlsx, or .html format

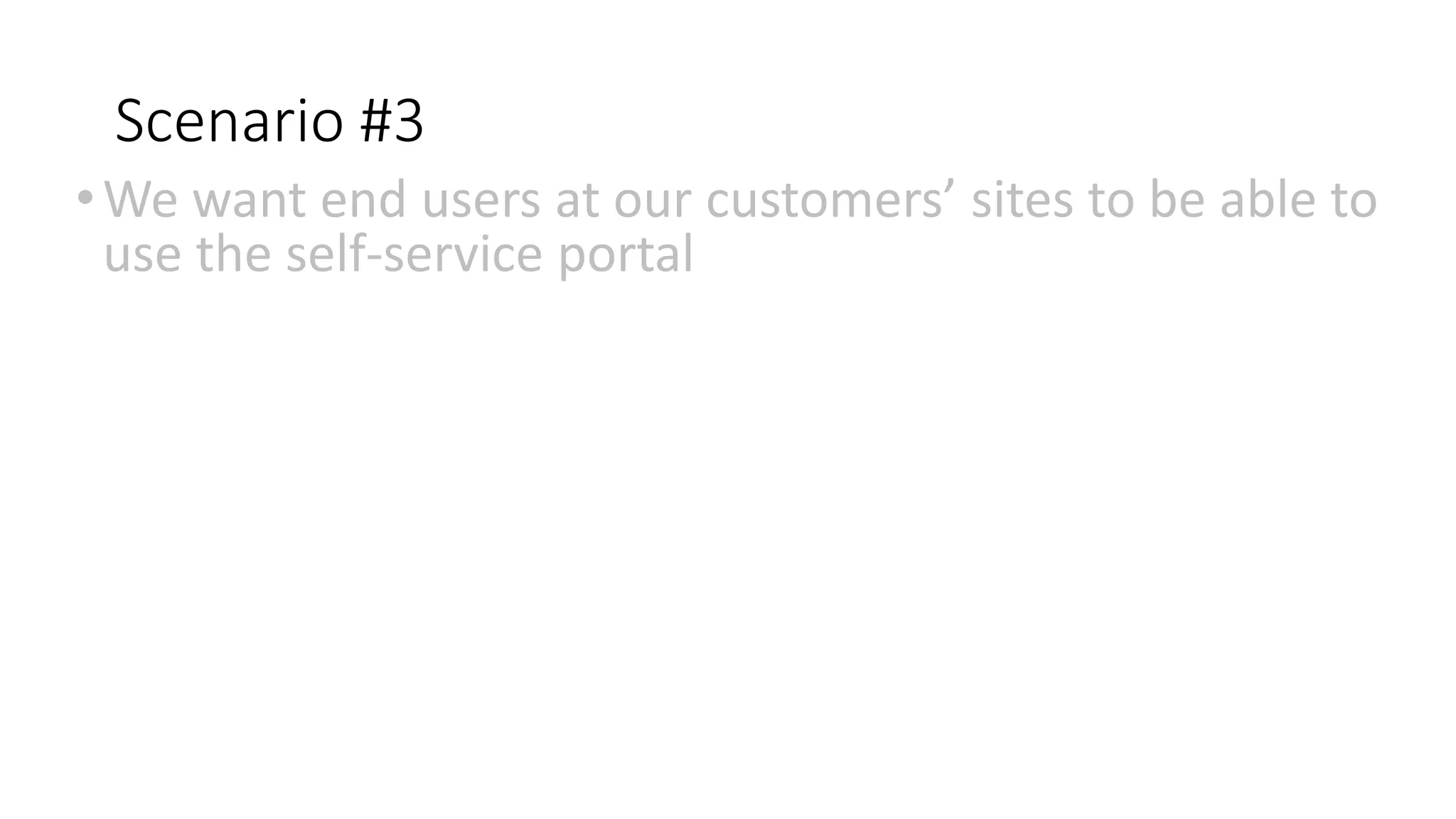

8. Scenario #3
•We want end users at our customers’ sites to be able to
use the self-service portal

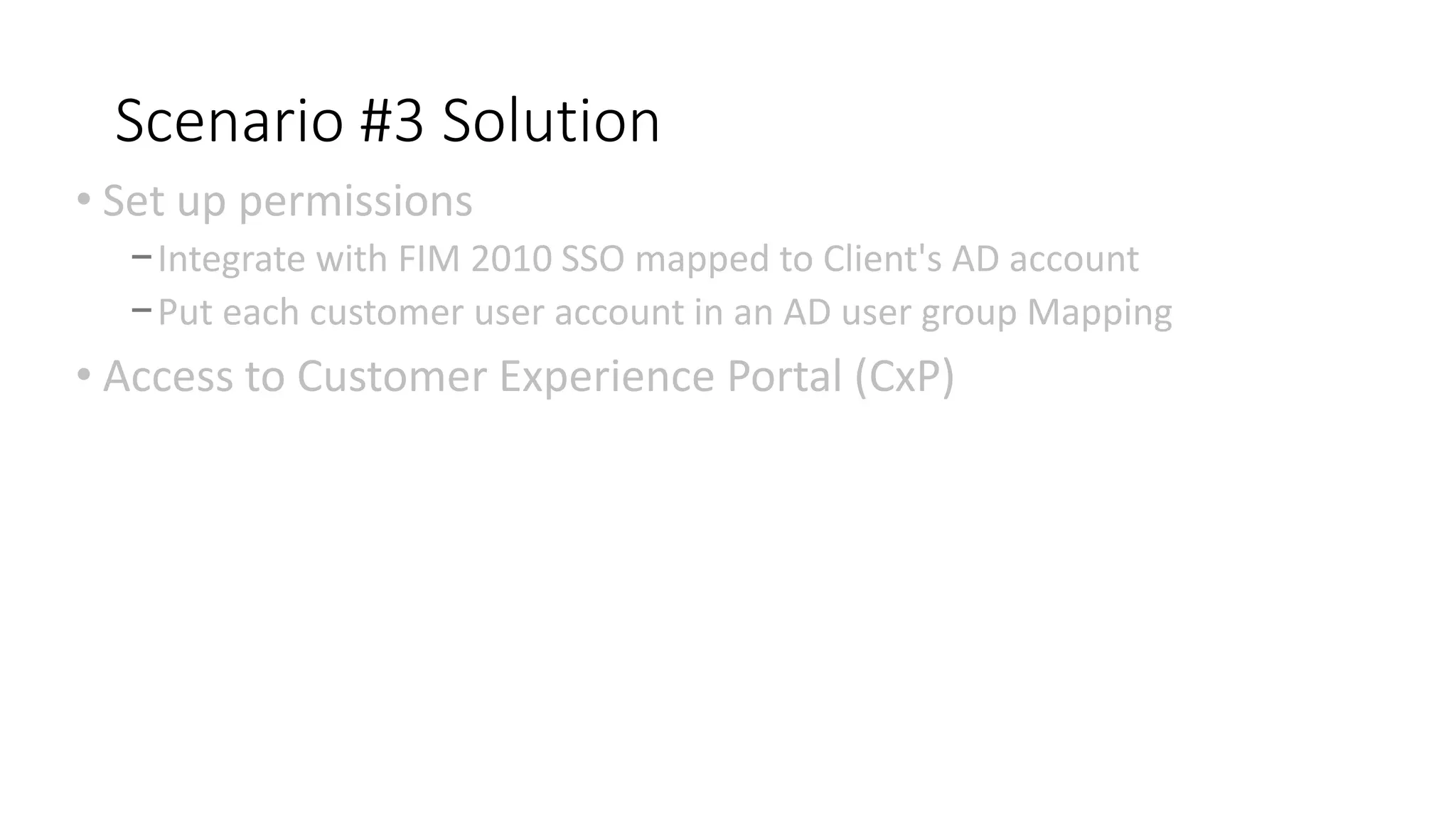

9. Scenario #3 Solution
• Set up permissions
−Integrate with FIM 2010 SSO mapped to Client's AD account
−Put each customer user account in an AD user group Mapping
• Access to Customer Experience Portal (CxP)

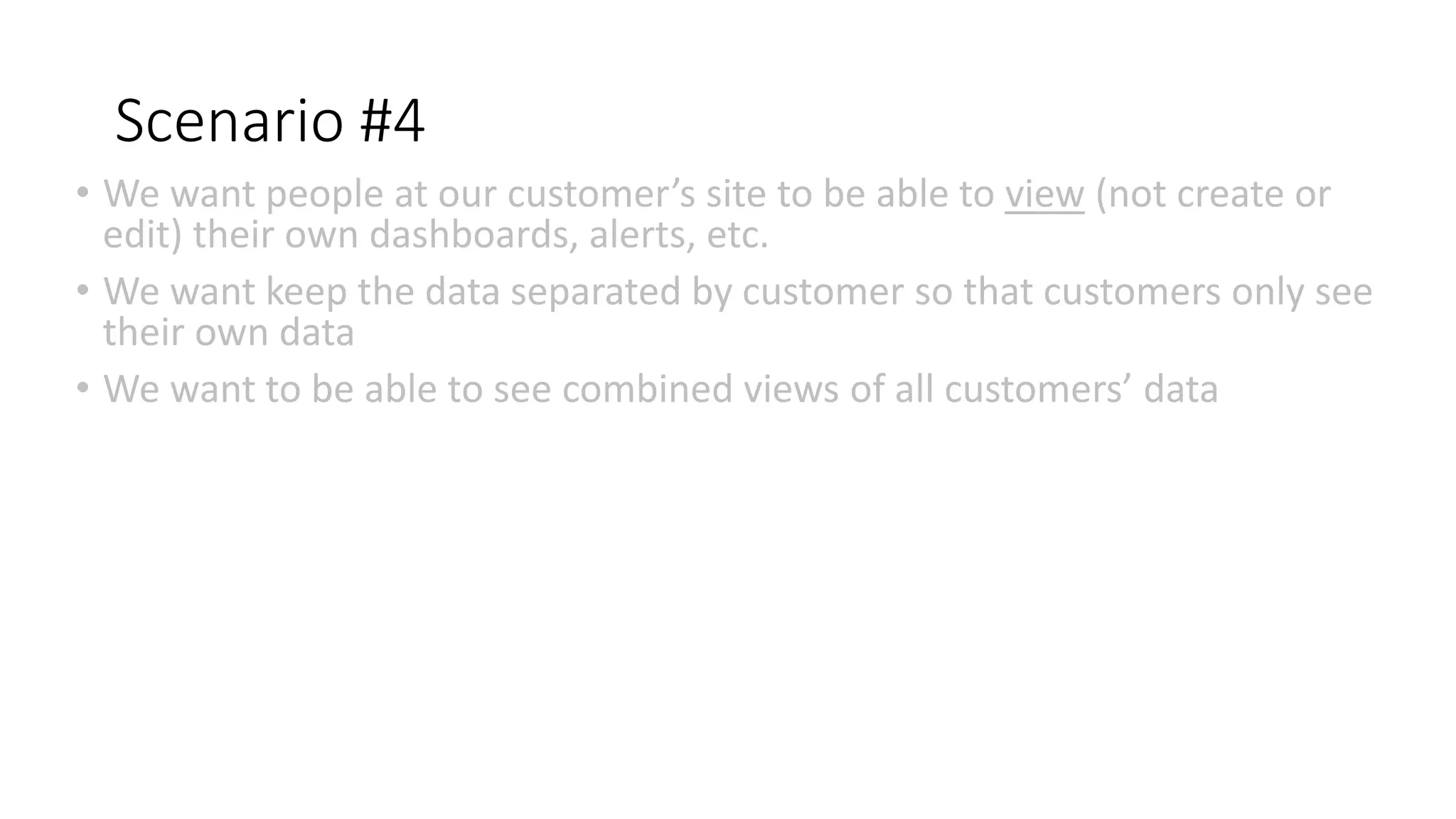

10. Scenario #4
• We want people at our customer’s site to be able to view (not create or
edit) their own dashboards, alerts, etc.
• We want keep the data separated by customer so that customers only see
their own data
• We want to be able to see combined views of all customers’ data

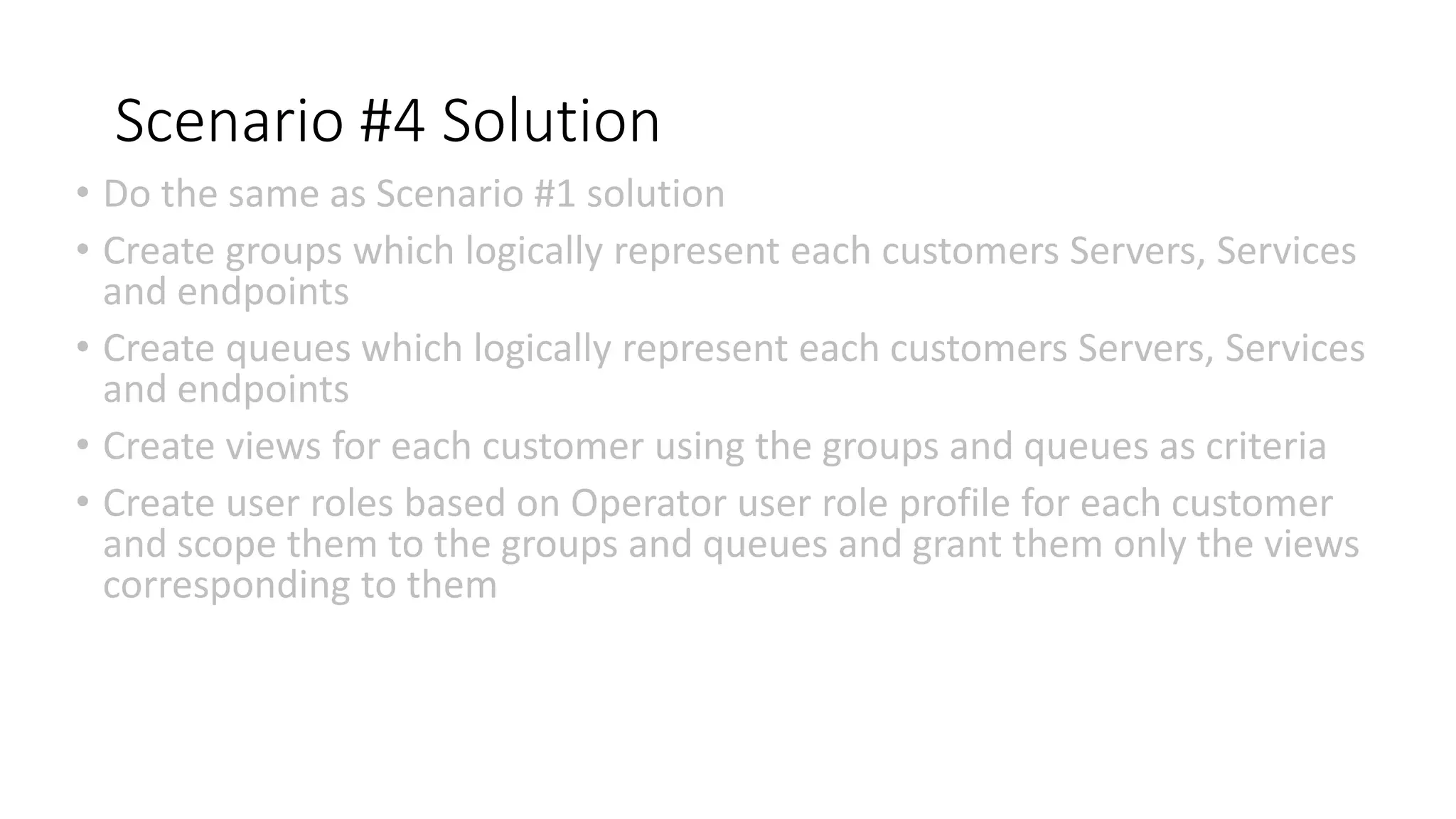

11. Scenario #4 Solution
• Do the same as Scenario #1 solution
• Create groups which logically represent each customers Servers, Services
and endpoints
• Create queues which logically represent each customers Servers, Services
and endpoints
• Create views for each customer using the groups and queues as criteria
• Create user roles based on Operator user role profile for each customer
and scope them to the groups and queues and grant them only the views
corresponding to them

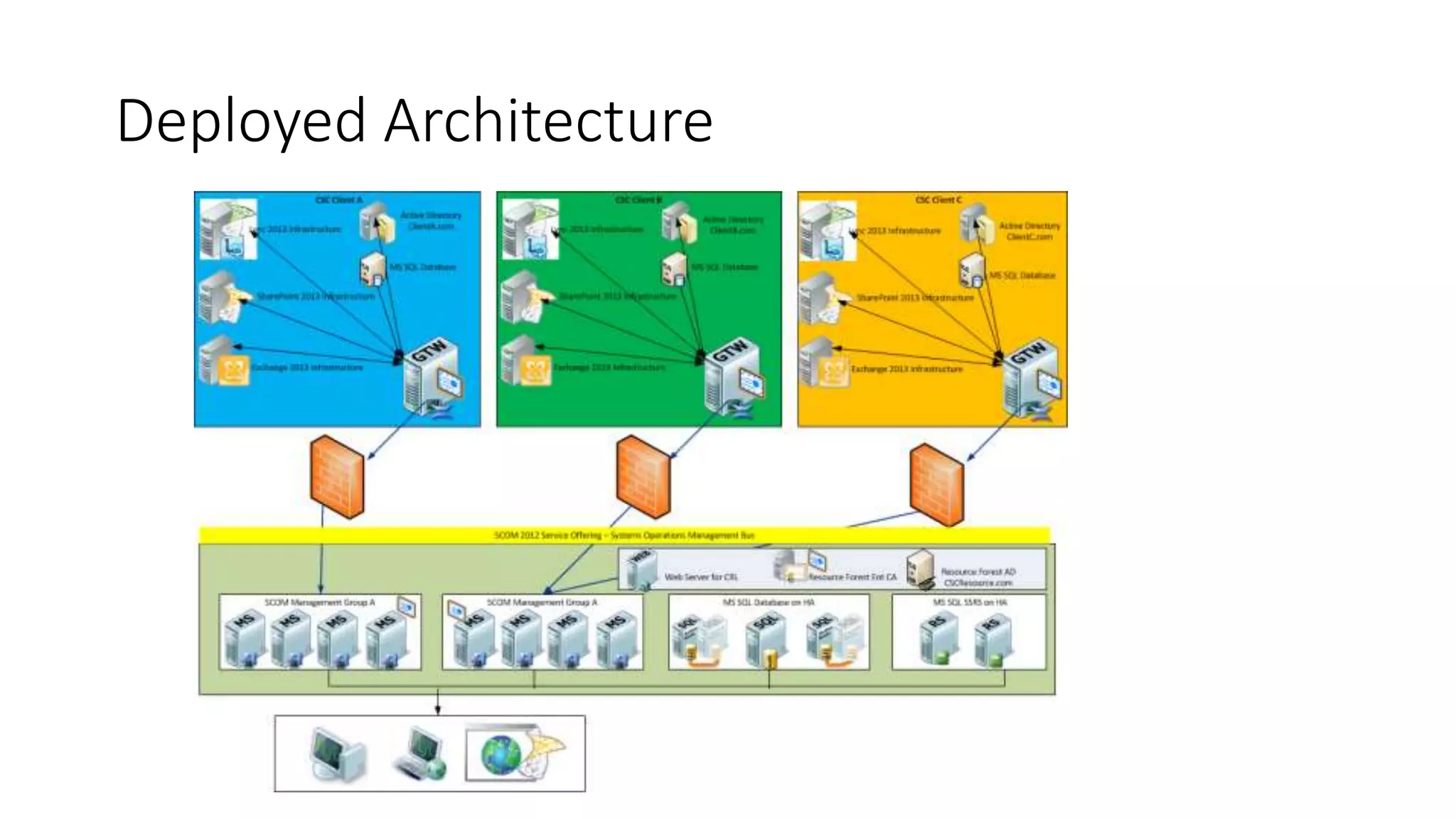

12. Deployed Architecture

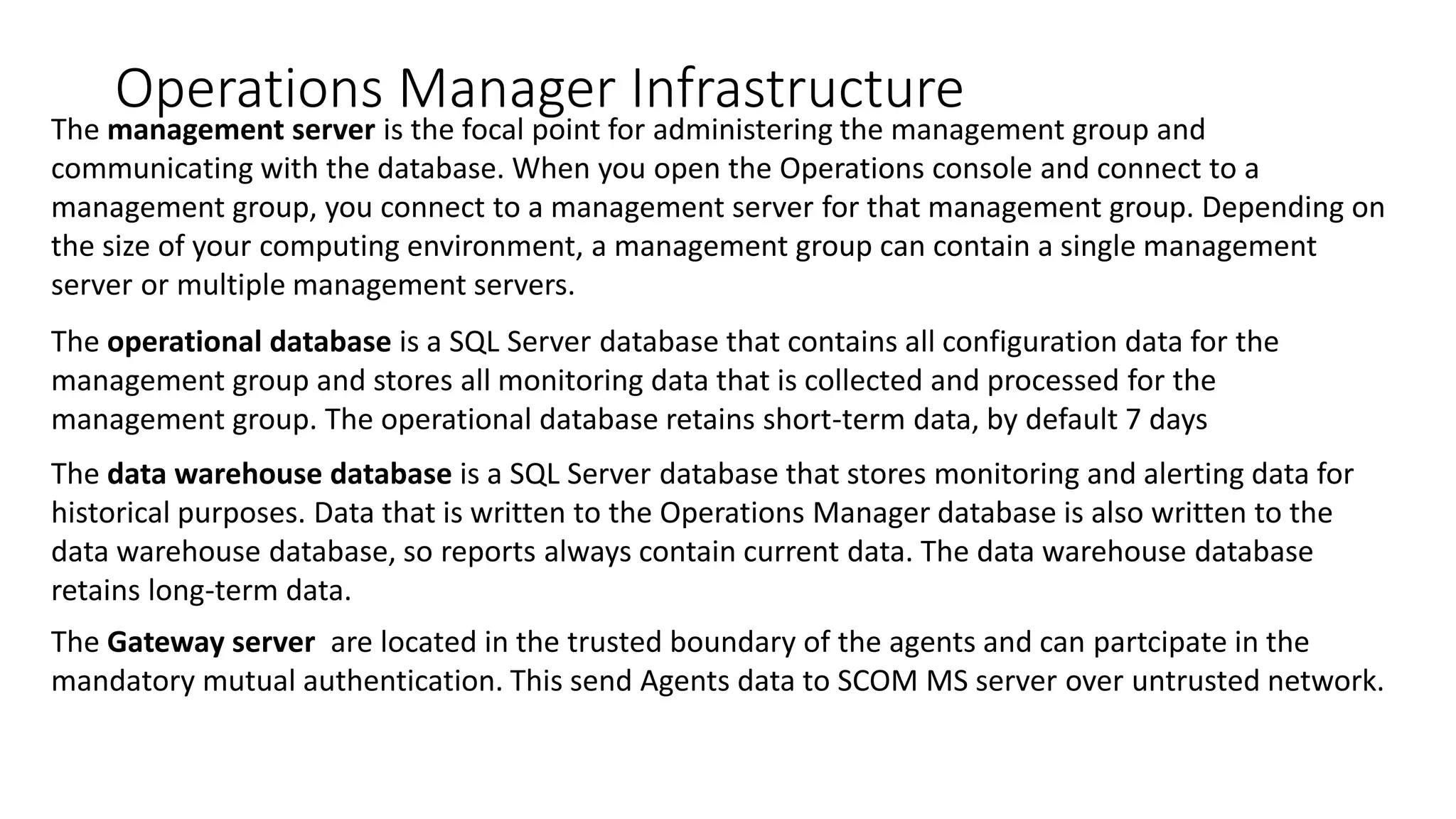

13. Operations Manager Infrastructure
The management server is the focal point for administering the management group and
communicating with the database. When you open the Operations console and connect to a
management group, you connect to a management server for that management group. Depending on
the size of your computing environment, a management group can contain a single management
server or multiple management servers.
The operational database is a SQL Server database that contains all configuration data for the
management group and stores all monitoring data that is collected and processed for the
management group. The operational database retains short-term data, by default 7 days
The data warehouse database is a SQL Server database that stores monitoring and alerting data for
historical purposes. Data that is written to the Operations Manager database is also written to the
data warehouse database, so reports always contain current data. The data warehouse database
retains long-term data.
The Gateway server are located in the trusted boundary of the agents and can partcipate in the
mandatory mutual authentication. This send Agents data to SCOM MS server over untrusted network.

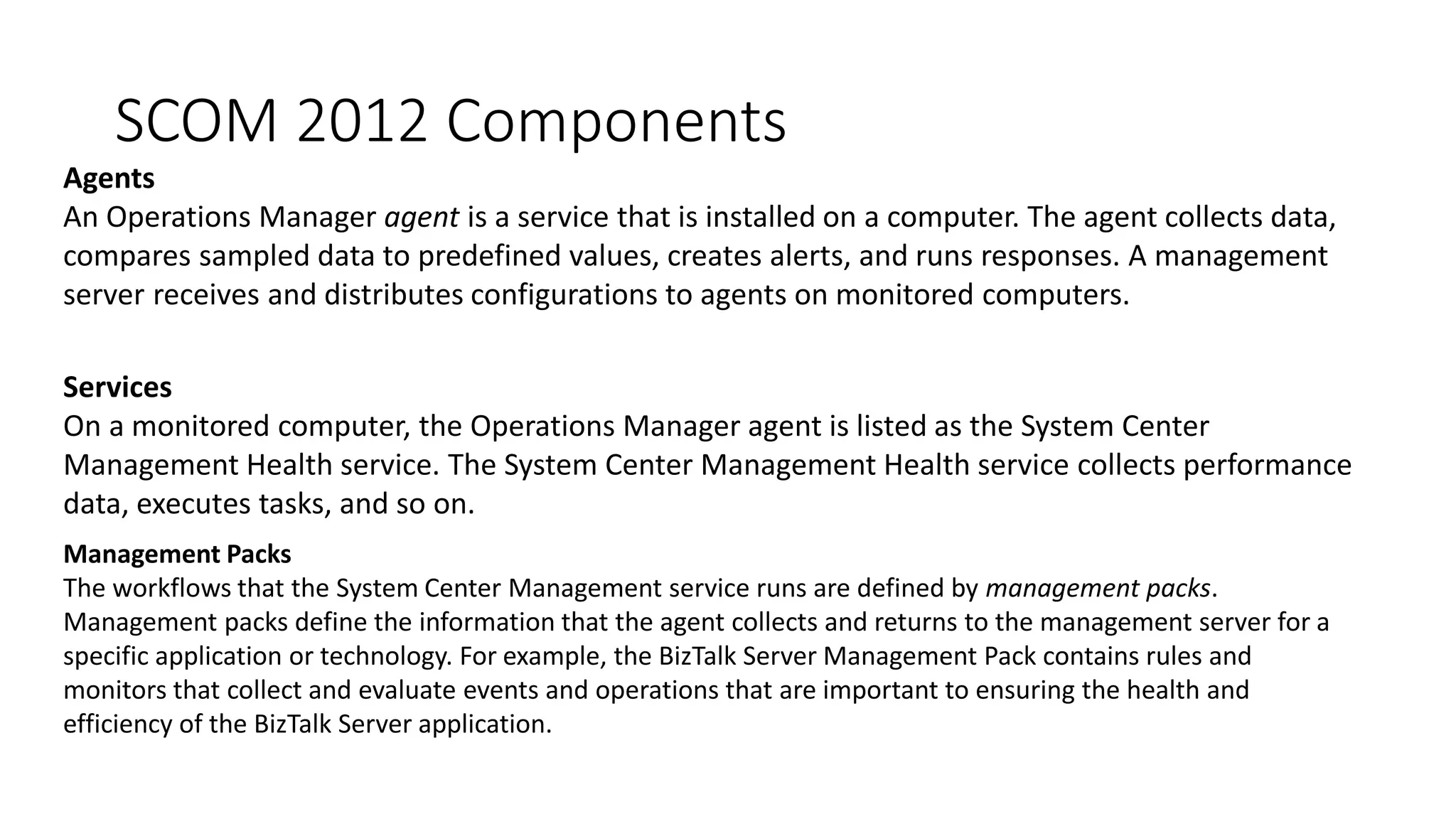

14. SCOM 2012 Components
Agents
An Operations Manager agent is a service that is installed on a computer. The agent collects data,
compares sampled data to predefined values, creates alerts, and runs responses. A management
server receives and distributes configurations to agents on monitored computers.
Services
On a monitored computer, the Operations Manager agent is listed as the System Center
Management Health service. The System Center Management Health service collects performance
data, executes tasks, and so on.
Management Packs
The workflows that the System Center Management service runs are defined by management packs.
Management packs define the information that the agent collects and returns to the management server for a
specific application or technology. For example, the BizTalk Server Management Pack contains rules and
monitors that collect and evaluate events and operations that are important to ensuring the health and
efficiency of the BizTalk Server application.

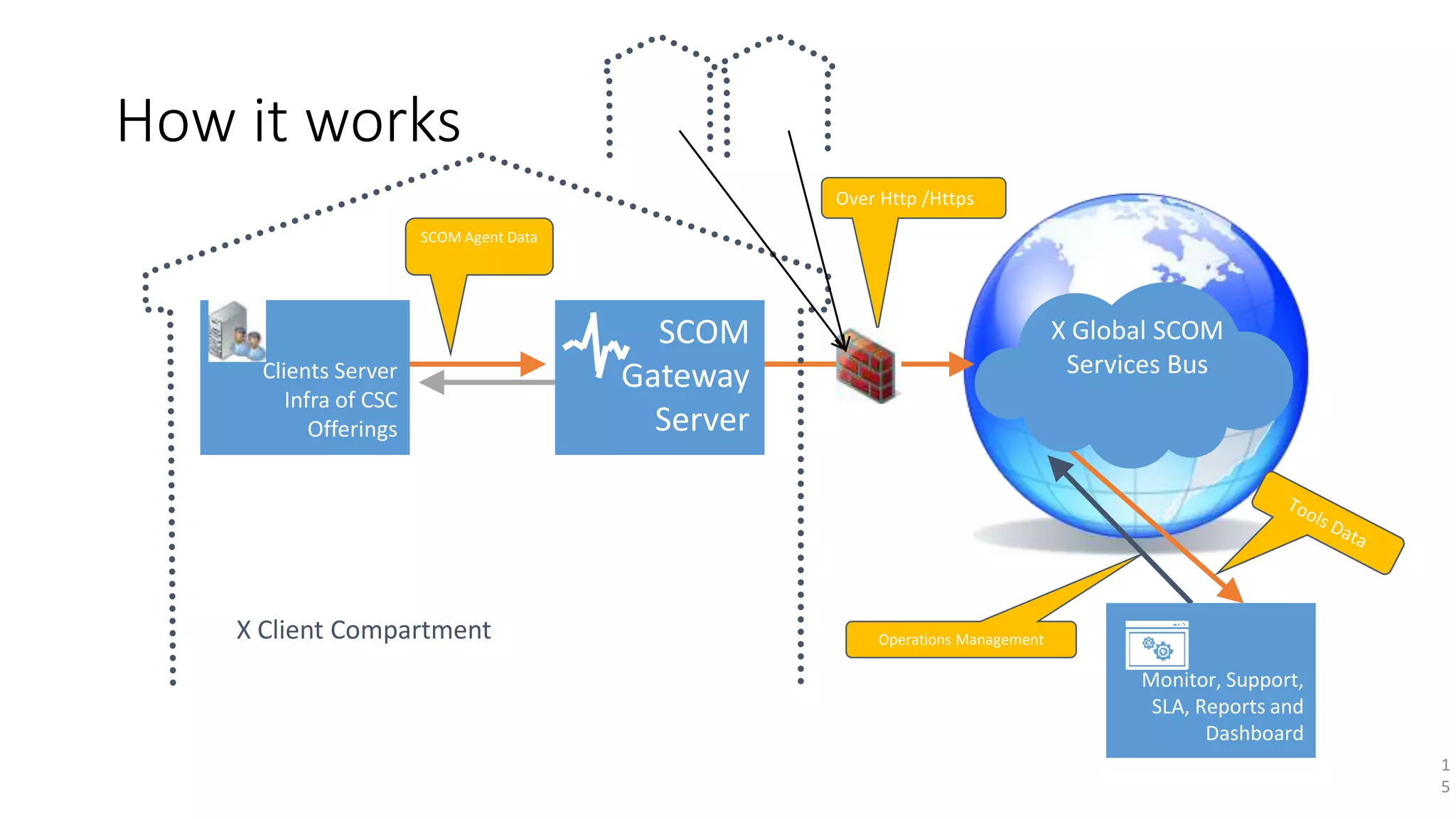

15. SCOM
Gateway
Server
SCOM Agent Data
How it works
1
5
Monitor, Support,
SLA, Reports and
Dashboard
Clients Server
Infra of CSC
Offerings
Operations Management
Over Http /Https
X Global SCOM
Services Bus
X Client Compartment

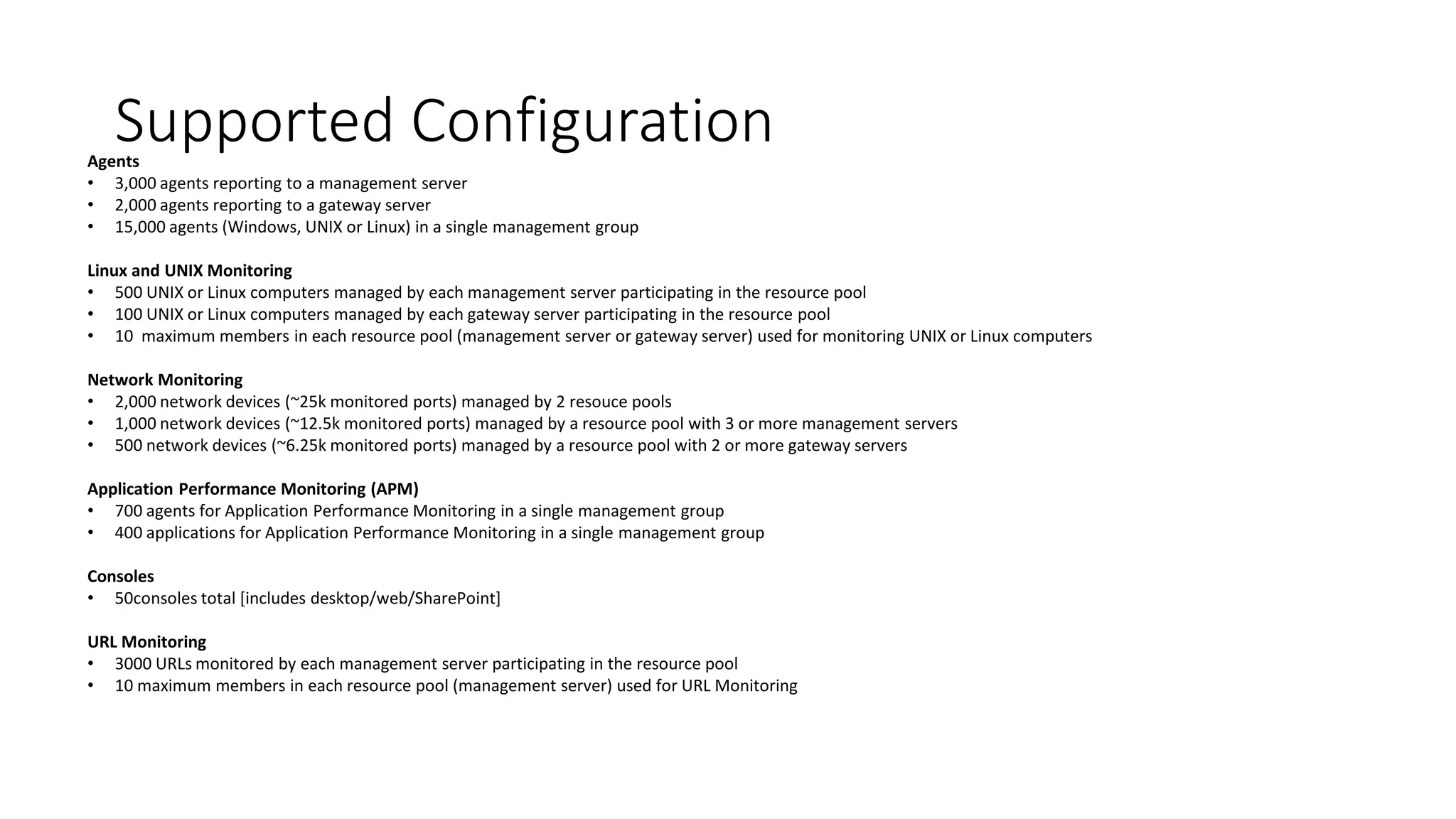

16. Supported ConfigurationAgents
• 3,000 agents reporting to a management server
• 2,000 agents reporting to a gateway server
• 15,000 agents (Windows, UNIX or Linux) in a single management group
Linux and UNIX Monitoring
• 500 UNIX or Linux computers managed by each management server participating in the resource pool
• 100 UNIX or Linux computers managed by each gateway server participating in the resource pool
• 10 maximum members in each resource pool (management server or gateway server) used for monitoring UNIX or Linux computers
Network Monitoring
• 2,000 network devices (~25k monitored ports) managed by 2 resouce pools
• 1,000 network devices (~12.5k monitored ports) managed by a resource pool with 3 or more management servers
• 500 network devices (~6.25k monitored ports) managed by a resource pool with 2 or more gateway servers
Application Performance Monitoring (APM)
• 700 agents for Application Performance Monitoring in a single management group
• 400 applications for Application Performance Monitoring in a single management group
Consoles
• 50consoles total [includes desktop/web/SharePoint]
URL Monitoring
• 3000 URLs monitored by each management server participating in the resource pool
• 10 maximum members in each resource pool (management server) used for URL Monitoring

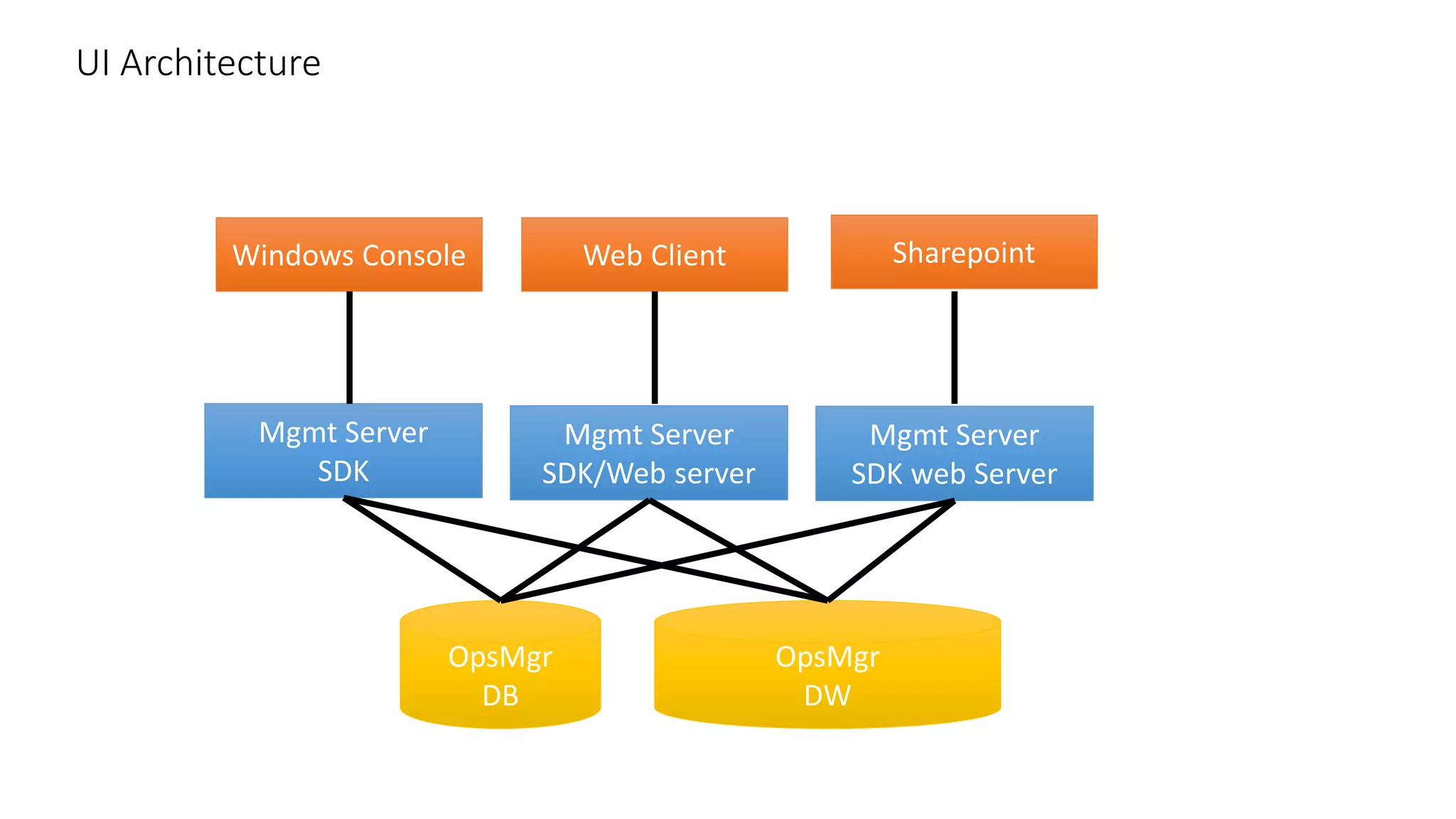

17. UI Architecture

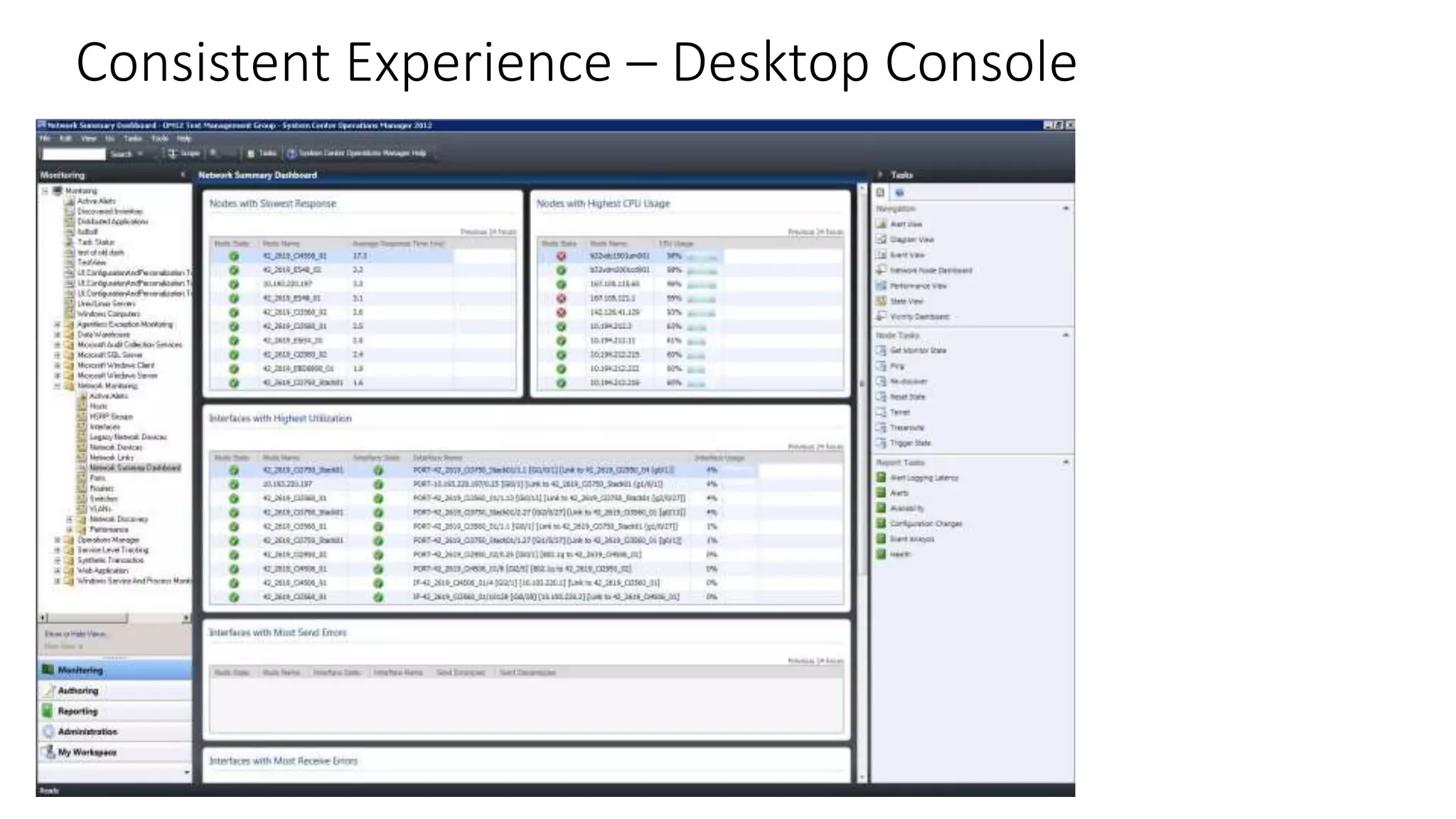

18. Consistent Experience – Desktop Console

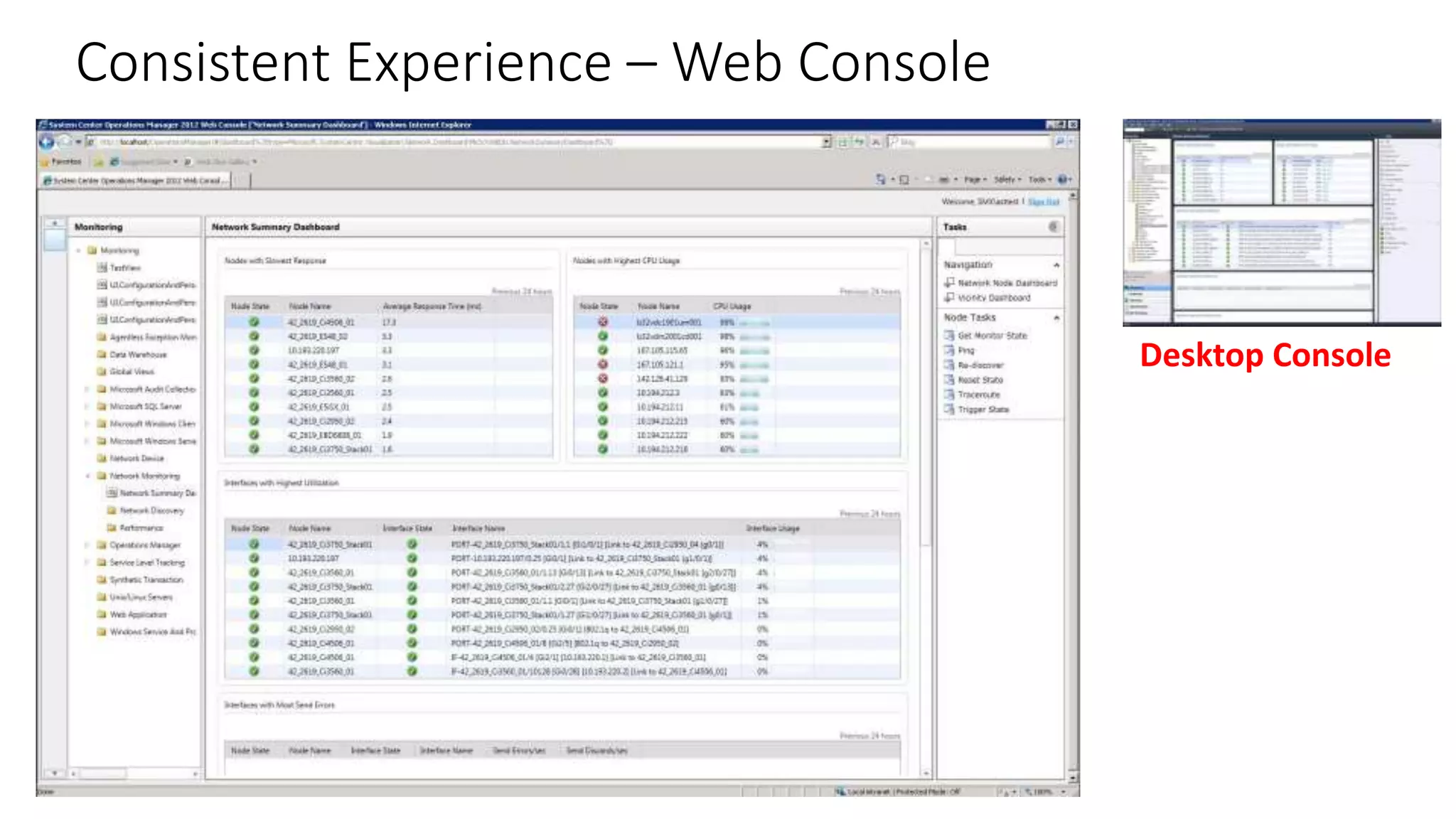

19. Consistent Experience – Web Console
Desktop Console

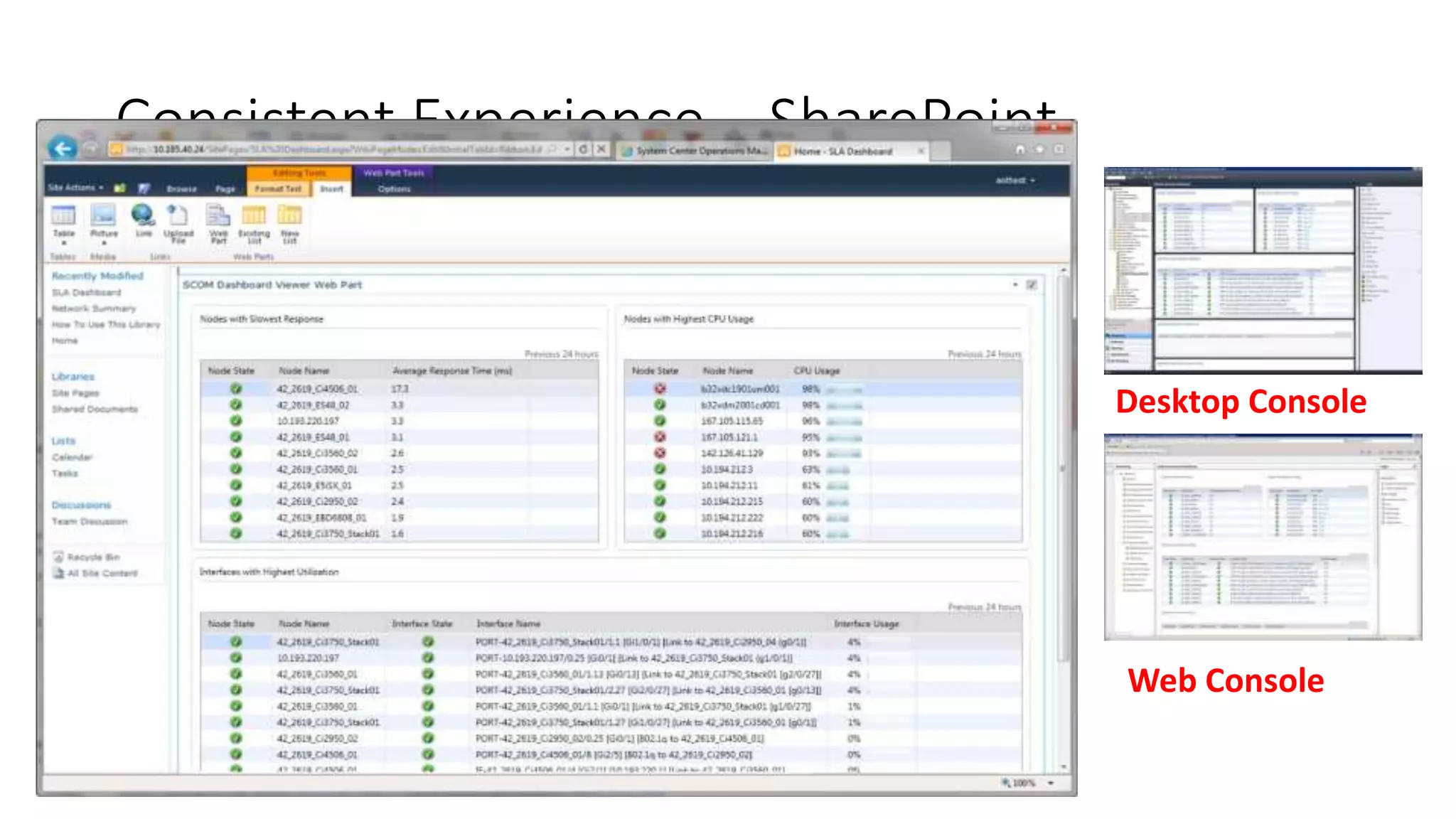

20. Consistent Experience – SharePoint
Desktop Console
Web Console

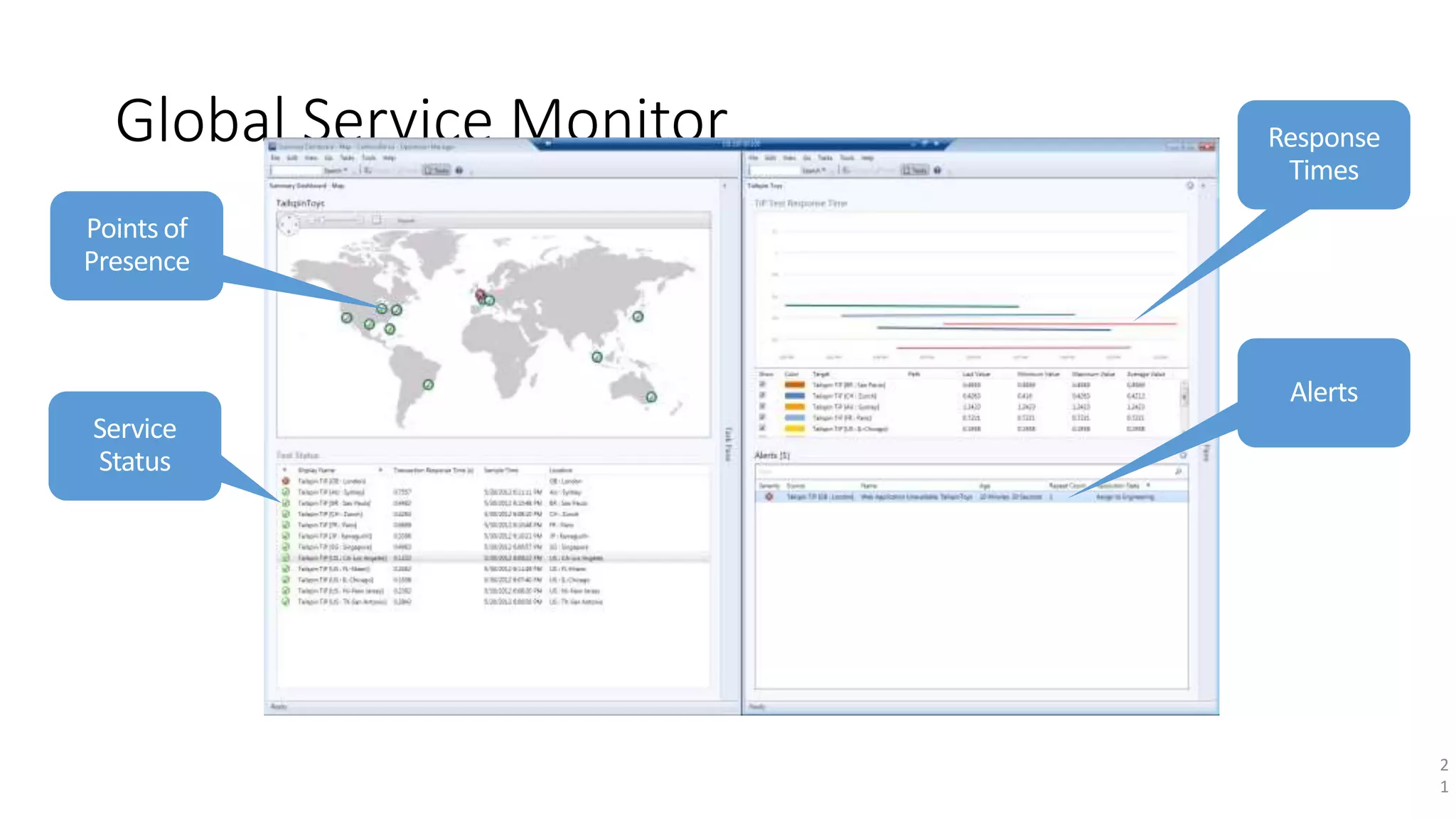

21. Global Service Monitor
2
1

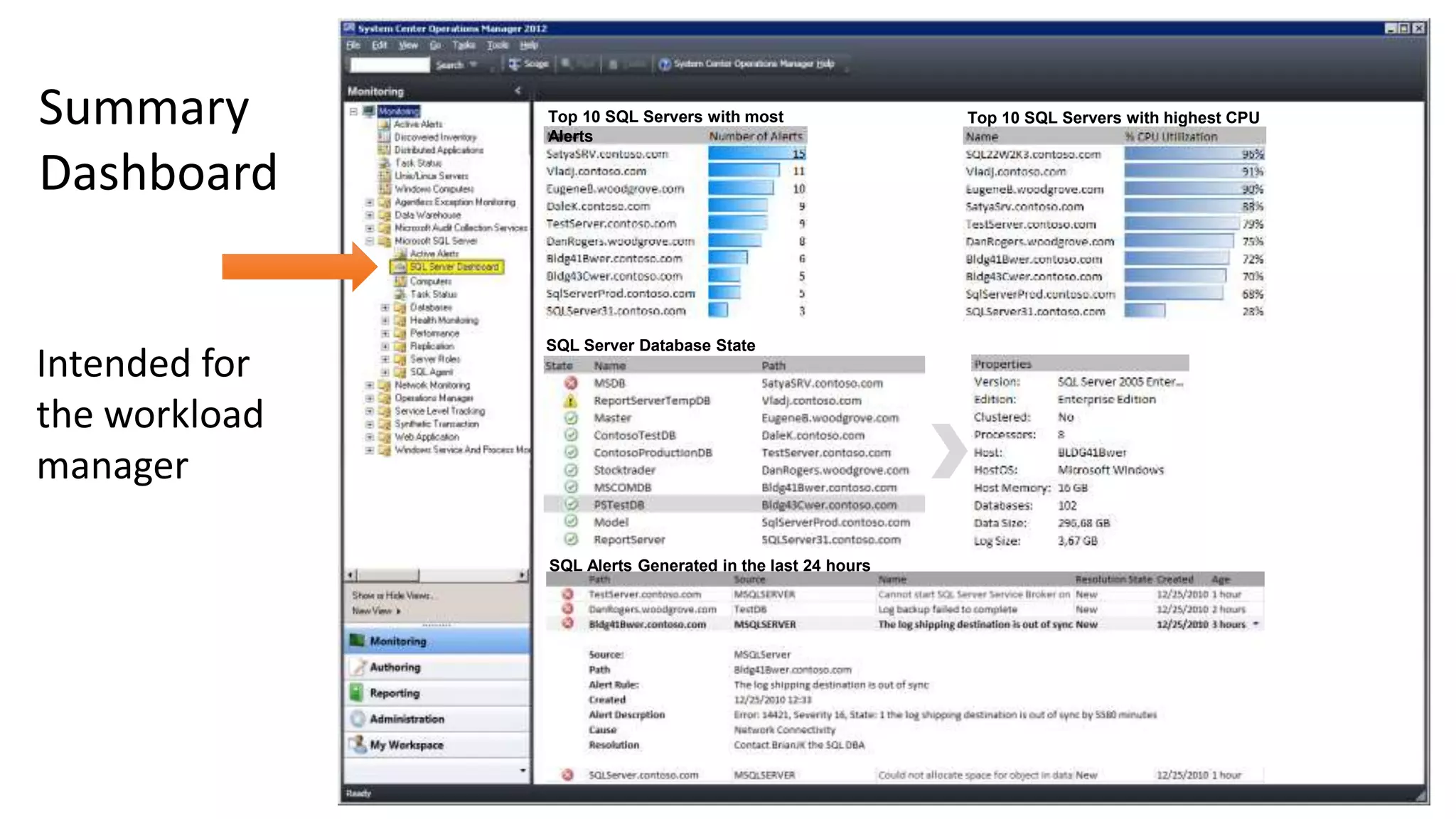

22. Active Alerts Top 10 SQL Servers with most
Alerts
SQL Alerts Generated in the last 24 hours
SQL Server Database State
Top 10 SQL Servers with highest CPU
Utilization

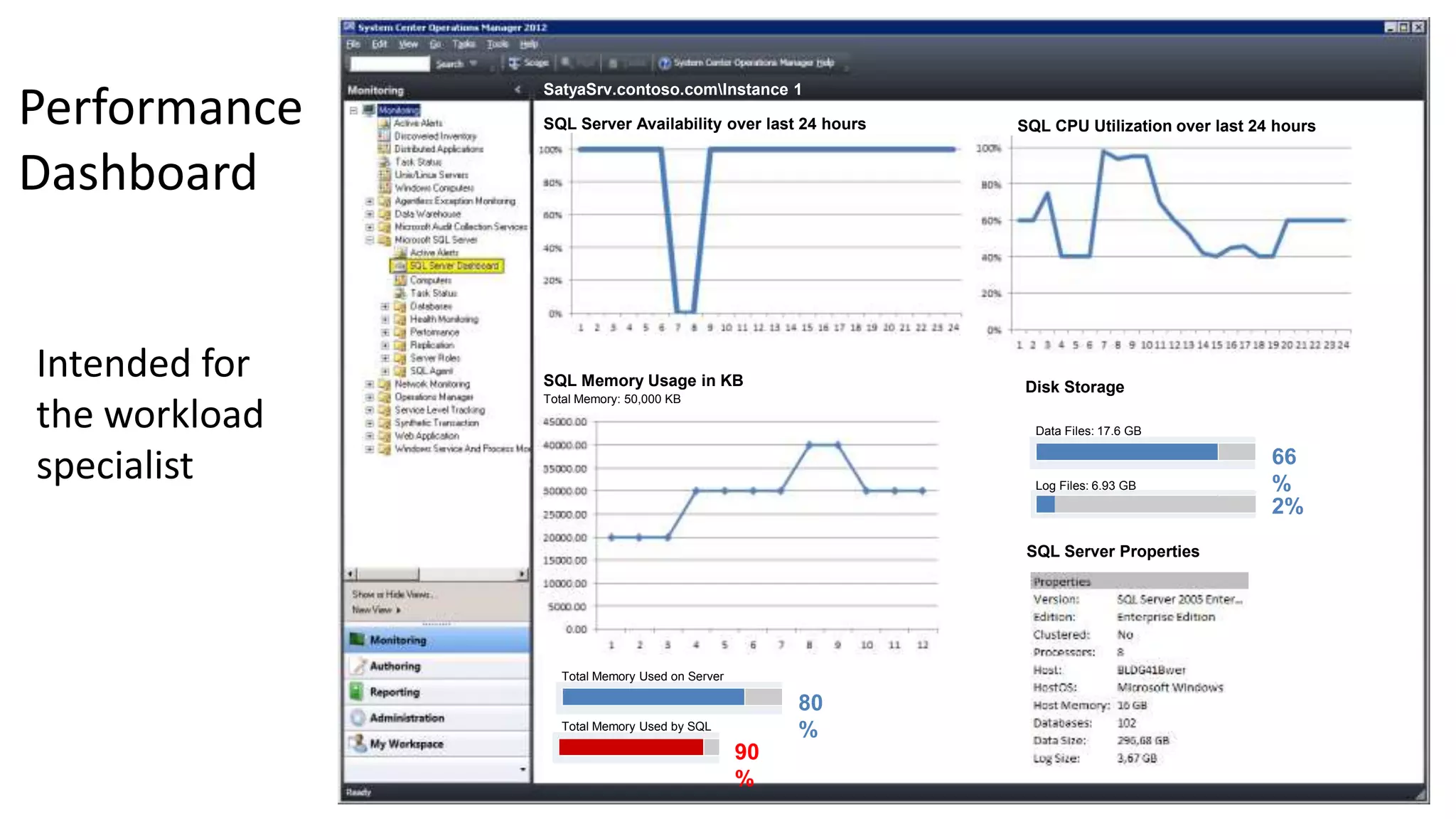

23. SatyaSrv.contoso.comInstance 1
SQL Server Availability over last 24 hours SQL CPU Utilization over last 24 hours
SQL Memory Usage in KB
Total Memory Used on Server
Total Memory Used by SQL
80
%
90
%
Total Memory: 50,000 KB
Disk Storage
Data Files: 17.6 GB
66
%
2%
Log Files: 6.93 GB
SQL Server Properties

24. Q & A

25. 25April 9, 2015
Thank You
M Senthil Kumar
www.msenthilkumar.net
