Getting SharePoint 2010 Deployment Right final
- 1. Getting SharePoint 2010 Deployment Right Veenus Maximiuk SharePoint Managing Architect ICC
- 2. *Agenda Common Deployment Mistakes Installationand Configuration Approaches New Services Architecture Virtualization Deployment Considerations Avoid the Common Pitfalls Questions

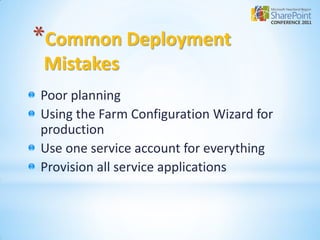

- 3. *Common Deployment Mistakes Poorplanning Using the Farm Configuration Wizard for production Use one service account for everything Provision all service applications

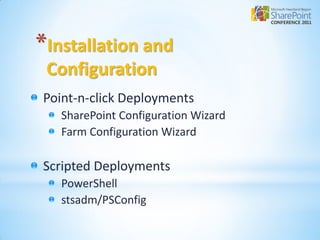

- 4. *Installation and Configuration Point-n-clickDeployments SharePoint Configuration Wizard Farm Configuration Wizard Scripted Deployments PowerShell stsadm/PSConfig
- 5. * SharePoint ConfigurationWizard Automatically launches the UI for PSConfig
- 6. * SharePoint ConfigurationWizard Automatically creates Central Administration Database Name

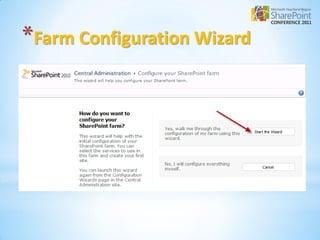

- 7.
- 8.
- 9. * Service ApplicationsDBs Using Configuration Wizard

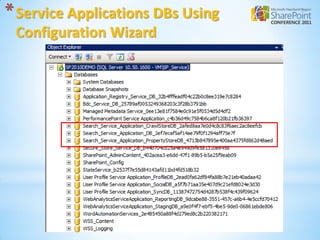

- 10. * Service ApplicationsDBs Using Configuration Wizard
- 11. *Configuration Wizard Recommendations Recommend for Development Proof of Concept Not best for production Too many services Automatically creates database names for service applications

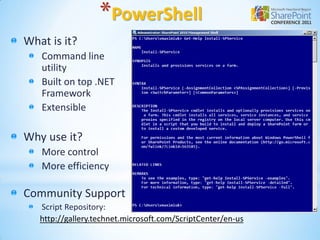

- 12. *PowerShell What is it? Command line utility Built on top .NET Framework Extensible Why use it? More control More efficiency Community Support Script Repository: http://gallery.technet.microsoft.com/ScriptCenter/en-us
- 13. *STSADM Marked as “deprecated” Occasionally required Compared to PowerShell Less complex Less granular A lot of community support Stsadm to PowerShell Mapping http://technet.microsoft.com/en-us/library/ff621081.aspx

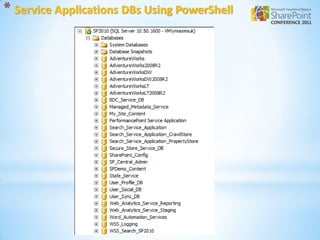

- 14. * Service ApplicationsDBs Using PowerShell
- 15. *Using PowerShell DEMO

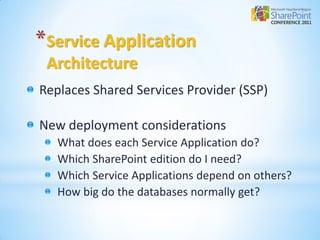

- 16. *Service Application Architecture ReplacesShared Services Provider (SSP) New deployment considerations What does each Service Application do? Which SharePoint edition do I need? Which Service Applications depend on others? How big do the databases normally get?

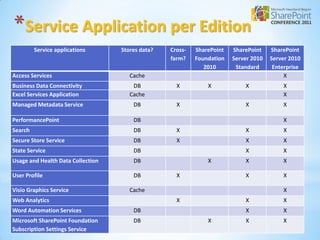

- 17. *Service Application perEdition Service applications Stores data? Cross- SharePoint SharePoint SharePoint farm? Foundation Server 2010 Server 2010 2010 Standard Enterprise Access Services Cache X Business Data Connectivity DB X X X X Excel Services Application Cache X Managed Metadata Service DB X X X PerformancePoint DB X Search DB X X X Secure Store Service DB X X X State Service DB X X Usage and Health Data Collection DB X X X User Profile DB X X X Visio Graphics Service Cache X Web Analytics X X X Word Automation Services DB X X Microsoft SharePoint Foundation DB X X X Subscription Settings Service
- 18. * Service ApplicationDependencies Service Applications Business Managed Secure State Usage and Data Metadata Store Health Data Connectivity Business Data Connectivity X* Excel Services X* PerformancePoint X* Enterprise Search X* X User Profile X* X* Visio Graphics X* X Web Analytics X X* indicates conditional dependency based on usage scenarios

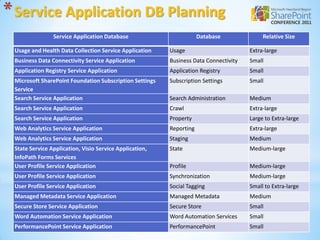

- 19. * Service ApplicationDB Planning Service Application Database Database Relative Size Usage and Health Data Collection Service Application Usage Extra-large Business Data Connectivity Service Application Business Data Connectivity Small Application Registry Service Application Application Registry Small Microsoft SharePoint Foundation Subscription Settings Subscription Settings Small Service Search Service Application Search Administration Medium Search Service Application Crawl Extra-large Search Service Application Property Large to Extra-large Web Analytics Service Application Reporting Extra-large Web Analytics Service Application Staging Medium State Service Application, Visio Service Application, State Medium-large InfoPath Forms Services User Profile Service Application Profile Medium-large User Profile Service Application Synchronization Medium-large User Profile Service Application Social Tagging Small to Extra-large Managed Metadata Service Application Managed Metadata Medium Secure Store Service Application Secure Store Small Word Automation Service Application Word Automation Services Small PerformancePoint Service Application PerformancePoint Small

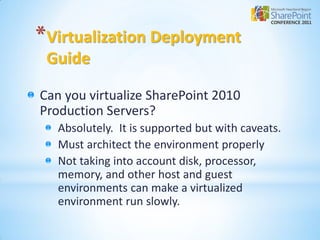

- 20. *Virtualization Deployment Guide Canyou virtualize SharePoint 2010 Production Servers? Absolutely. It is supported but with caveats. Must architect the environment properly Not taking into account disk, processor, memory, and other host and guest environments can make a virtualized environment run slowly.

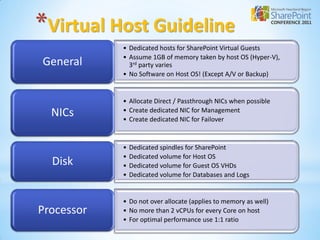

- 21. *Virtual Host Guideline • Dedicated hosts for SharePoint Virtual Guests • Assume 1GB of memory taken by host OS (Hyper-V), General 3rd party varies • No Software on Host OS! (Except A/V or Backup) • Allocate Direct / Passthrough NICs when possible NICs • Create dedicated NIC for Management • Create dedicated NIC for Failover • Dedicated spindles for SharePoint • Dedicated volume for Host OS Disk • Dedicated volume for Guest OS VHDs • Dedicated volume for Databases and Logs • Do not over allocate (applies to memory as well) Processor • No more than 2 vCPUs for every Core on host • For optimal performance use 1:1 ratio
- 22. *Virtualization Role • Excellent Virtualization Candidate Web • Can be easily provisioned via templates Query/ • Higher proc/mem requirements, but still good candidate • Often paired with SP2010 Web Role Crawl • Higher proc/mem requirements, but still good candidate App • Low disk requirements compared to other roles • Requires the most memory, proc, and disk IO DB • Be cautious when virtualizing, make sure host is scaled • If virtual, be sure to use pass-through or fixed size disks

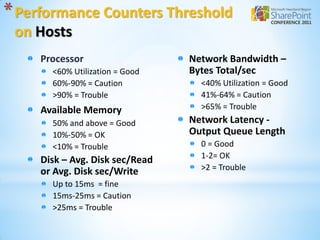

- 23. * Performance CountersThreshold on Hosts Processor Network Bandwidth – <60% Utilization = Good Bytes Total/sec 60%-90% = Caution <40% Utilization = Good >90% = Trouble 41%-64% = Caution Available Memory >65% = Trouble 50% and above = Good Network Latency - 10%-50% = OK Output Queue Length <10% = Trouble 0 = Good 1-2= OK Disk – Avg. Disk sec/Read or Avg. Disk sec/Write >2 = Trouble Up to 15ms = fine 15ms-25ms = Caution >25ms = Trouble

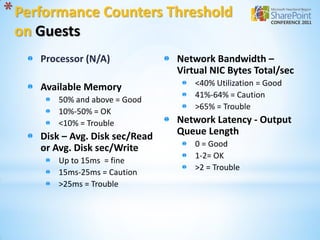

- 24. * Performance CountersThreshold on Guests Processor (N/A) Network Bandwidth – Virtual NIC Bytes Total/sec Available Memory <40% Utilization = Good 41%-64% = Caution 50% and above = Good >65% = Trouble 10%-50% = OK <10% = Trouble Network Latency - Output Disk – Avg. Disk sec/Read Queue Length or Avg. Disk sec/Write 0 = Good 1-2= OK Up to 15ms = fine >2 = Trouble 15ms-25ms = Caution >25ms = Trouble
- 25. *Virtualization Deployment Guide SQL Server connection aliases enable efficient transition and migration between physical and virtual servers Configure Index server to crawl itself to reduce network traffic and minimize propagation Perform regular disk maintenance on host and guest machines Keep databases maintained and optimized Restoring snapshot is not supported Beware of over subscribing host servers Host is a single point of failure Use host clustering to enhance VM availability

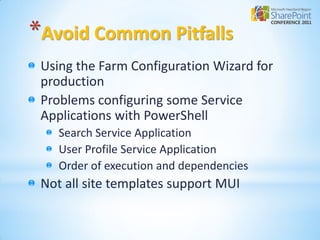

- 26. *Avoid Common Pitfalls Using the Farm Configuration Wizard for production Problems configuring some Service Applications with PowerShell Search Service Application User Profile Service Application Order of execution and dependencies Not all site templates support MUI

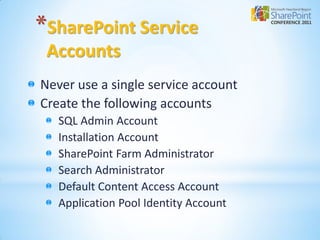

- 27. *SharePoint Service Accounts Neveruse a single service account Create the following accounts SQL Admin Account Installation Account SharePoint Farm Administrator Search Administrator Default Content Access Account Application Pool Identity Account

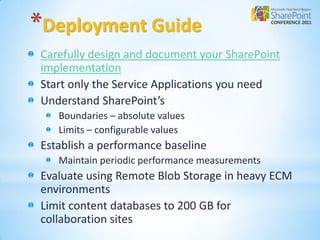

- 28. *Deployment Guide Carefullydesign and document your SharePoint implementation Start only the Service Applications you need Understand SharePoint’s Boundaries – absolute values Limits – configurable values Establish a performance baseline Maintain periodic performance measurements Evaluate using Remote Blob Storage in heavy ECM environments Limit content databases to 200 GB for collaboration sites

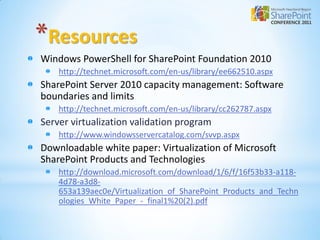

- 29. *Resources Windows PowerShell forSharePoint Foundation 2010 http://technet.microsoft.com/en-us/library/ee662510.aspx SharePoint Server 2010 capacity management: Software boundaries and limits http://technet.microsoft.com/en-us/library/cc262787.aspx Server virtualization validation program http://www.windowsservercatalog.com/svvp.aspx Downloadable white paper: Virtualization of Microsoft SharePoint Products and Technologies http://download.microsoft.com/download/1/6/f/16f53b33-a118- 4d78-a3d8- 653a139aec0e/Virtualization_of_SharePoint_Products_and_Techn ologies_White_Paper_-_final1%20(2).pdf
- 30.

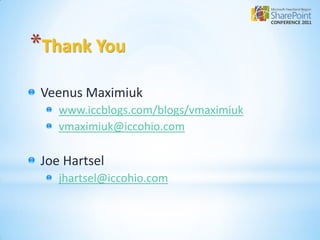

- 31. *Thank You VeenusMaximiuk www.iccblogs.com/blogs/vmaximiuk vmaximiuk@iccohio.com Joe Hartsel jhartsel@iccohio.com
