This document provides specifications for the SCATI AR/VR product line. It describes features such as built-in operating systems, processors, cameras, sensors, connectivity options, and display details. The document also provides technical specifications for various SCATI models including the D1, S1, ONE, ONE Lite, and ONE Neo.

1. SCATI
AR/VR Series
23F, Block B, Wisdom Plaza, Qiaoxiang Road 4068, Nanshan District, Shenzhen, China www.focalmax.netWeChat
+86 (0755) 8653 5858 - 2502 info@focalmax.net

2. Features:
SCATI D1
More Virtual, More Real
Built-in Android Operating System
3D Image Effects
Wi-Fi
Bluetooth
Qualcomm’s Sapdragon 820 Processor
Panoramic View
Real Time Upload to Cloud
Dual 8 Megapixel 3D Cameras
Nine Shaft Sensors
4G Data Connection
Direct HDMI Connection
Large Panoramic View:
Independent optical design presents a broad panoramic view, creating a large
screen effect so you can enjoy the stunning images
Self-developed Dual Screen Sync Technique:
Ensure dual 720P display screens will not cause dizziness while demon-
strating 3D effects
Mixed Reality Display Effects:
The HD camera which simulates the human eyes, enables integration of the captured images with virtual information to display VR images that are consistent with human
eyesight in the binocular optical imager of the glasses. The mixed reality effect is created via the app which calculates the required virtual information to be displayed
Direct HDMI Connection with Many Smart Terminals:
HDMI data transmission is implemented through Type-C or Lightning
to enable connection from the intelligent terminal to the smart
glasses imager.
HD
Equipped with Dual 8 Megapixel 3D Cameras at the Front:
Autofocusing
Depth of Field Capturing:
Collect 3D image effects most similar to human eyes, AR
application
Dual Adjustment Wheels:
Flexible lens interpupillary distance adjustment
1 2

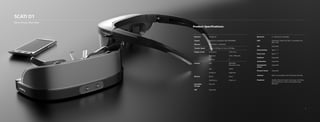

3. SCATI D1
More Virtual, More Real
Network Full Netcom
Chipset Qualcomm Snapdragon 820 (MSM8996)
Memory 64 GB ROM + 4 GB RAM
Transfer Speed UL Up to 50 Mbps, DL Up to 100 Mbps
Display Screen Dimensions 0.39 inches
Resolution 1024 x 768 pixels
Quantity 2
Camera Pixel 8MP+8MP
(Panoramic View)
Type CMOS
Autofocus Supported
Buttons Button Power
Side Buttons Volume +/-
Extensible
Storage
Micro SD
SIM Supported
Product Specifications:
3 4
Geomagnetic
Sensor
Supported
Pressure Sensor Supported
Antenna Built-in (Compatible with the Receiver Diversity)
Peripheral Handles, Remote Control, Voice Input, And Other
External Devices Can Be Connected By Using
Bluetooth
Bluetooth 4.1, Backward Compatible
WIFI Dual-band 2.4GHz and 5GHz, Compatible with
802.11a/d
GPS Supported
Data Interface Type-C *1
Power Port Type-C *1
Earphone Supported
Acceleration Supported

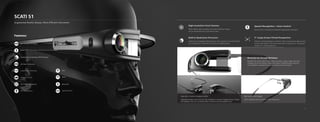

4. SCATI S1
Augmented Reality Glasses, More Efficient Instrument
Features:
High Definition
See-Through AR Display
Wi-Fi
Real Time Photography
Direct HDMI Connection with Many Smart Terminals
Support Live Streaming
Bluetooth
GPS
Hi-Fi Microphone
WeChat Control
Qualcomm's Snapdragon 820 Processor
4G Data Connection
Built-in Qualcomm Processor:
Qualcomm’s Snapdragon 820 processor, 4G connection, 6 mode Full Net-
com, Android 6.0, and all the functions in a flagship phone
5” Large-Screen Virtual Perspective:
250mm is the least distance of distinct vision, meaning that objects need
to be at least 250mm from the human eyes for sharp focus. The product
creates a 5” virtual perspective .
High-resolution Front Camera:
Photo taking, video recording, live travel streaming. Images
can be viewed directly on the virtual screen
Monocular See-Through AR Display:
Not affect the natural field of vision while information, videos, images and other
messages can be seen directly. Augmented reality is implemented by using soft-
ware algorithms combined with a micro camera and motion sensors
5”
Clear and Smooth Display:
1024 x 768 pixel screen resolution, 120Hz refresh rate
Used with a Variety of Eyeglass Frames:
Lightweight design comes with lens clips, suitable for a variety of eyeglass frames. Myopic
and hyperopic users can use directly attach the device onto the eyeglass frame
Speech Recognition + Voice Control:
Natural voice commands to implement appropriate operations
5 6

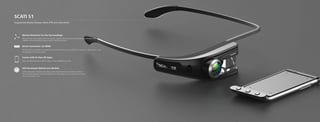

5. SCATI S1
Augmented Reality Glasses, More Efficient Instrument
Comes with Its Own AR Apps:
Users can download and install the apps on their smartphone for free
Direct Connection via HDMI:
All the functions available on smartphones and similar devices, such as WeChat, navigation, video, call, etc., can
be displayed on the virtual screen
Motion Detection for the Surroundings:
Designed with many reserved ports for sensors. Support sensors such as accelerometers, gyroscopes, geo-
magnetic sensor and optical sensors, hybrid trackers, and others
Self-developed Optical Lens Module:
Utilizes polarization modulation technology, virtual image brightness is adjusted according to
the surrounding lighting; ultra-wide viewing area so that eyesight is not constrained to a narrow
range. Comfortable to use
7 8

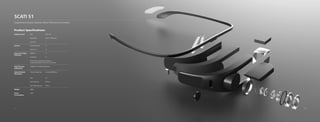

6. SCATI S1
Augmented Reality Glasses, More Efficient Instrument
Display Screen Size 0.39 inch
Resolution 1024 x 768 pixels
Quantity 1
Buttons Power(On/Off) *1
Volume +/- *2
Input and Output
Interfaces
HDMI-in *1
Earphone *1
Four-section-earphone Interface,
Enabling Earphone and Line-in Function
Pupil Distance
Adjustment
Adaptive to Pupillary Distances
Optical Module
Parameters
Virtual Image Size 5 inches @250mm
FOV 31°
Exit Pupil Size 4*9mm
Exit Pupil Distance 14mm
Weight ≤80g
Power
Consumption
≤2W
Product Specifications:
9 10

7. Features:
SCATI (ONE/ONE Lite/ONE Neo)
Foldable and Portable, Bringing VR Immersive Experience
Panoramic View
Wi-Fi
Direct HDMI Connection with Many Smart Terminals
Support Live Streaming
Bluetooth
Global Positioning
Qualcomm's Snapdragon 820 Processor
Dual 3D Cameras
4G Data Connection
Nine Shaft Sensors
Environmentally Friendly:
Composed of 80% environmentally friendly, non-plastic biodegradable materials.
Comfort:
Can be worn comfortably for 3~5 hours, made with skin-friendly nanomaterials
Accordion Structured Light VR:
The only collapsible all-in-one VR device in the current
market, weights less than 360g (Scati One), or 340g (Scati
ONE Lite & Scati ONE Neo)
Heat Dissipating Design:
The core components are evenly distributed, and microfiber materials have
high breathability which increases heat dissipation effect
11 12

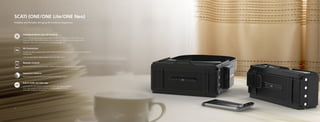

8. SCATI (ONE/ONE Lite/ONE Neo)
Foldable and Portable, Bringing VR Immersive Experience
4G Connection:
Support 4G data communication, multi-mode, facilitate all functions and applications available on
smartphones.
4G
Intelligent Bionic Eye 3D Imaging:
Dual full HD imaging lenses, with a single lens FOV of 145° (normal FOV of human eyes
is around 120°), wide viewing angle with low distortion. Self-developed image synthesis
algorithm maximizes compatibility with the human eyes.
Remote Control:
Bluetooth touchpad remote control, uniquely shaped to enable operation without looking
Built-in Audio and Video App:
Come with the open platform Android 6.0, with an abundance of applica-
tions, huge volume of online resources, rich video and audio contents,
and support DayDream VR platform
Qualcomm’s Platform:
Powered by the powerful Qualcomm’s flagship Snapdragon chipset
*The two descriptions above support only Scati ONE version
13 14

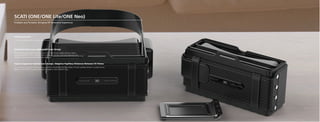

9. SCATI (ONE/ONE Lite/ONE Neo)
Foldable and Portable, Bringing VR Immersive Experience
Patented Frame-Less Lightweight Lens Group:
The monocular dual lenses which are poured once into its form, utilizes extra-low disper-
sion optical materials and is combined with multiple lens group to eliminate dispersion and
red/cyan fringing to achieve ultra-low view distortion.
Square Aspherical Optical Lens Design, Adaptive Pupillary Distances Between 55-75mm:
The monocular dual square aspherical lenses perfectly complement the large display. Human’s pupillary distance is usually around
65mm, so the 55-75mm range allows great flexibility to match different users
Fully Immersive:
110° FOV for a fully immersive sensory experience
15 16

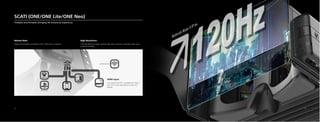

10. HDMI Input:
Can connect with PCs or smartphones; Type-C
port; Wi-Fi. Enjoy high-definition video and
gaming
SCATI (ONE/ONE Lite/ONE Neo)
Foldable and Portable, Bringing VR Immersive Experience
Refresh Rate:
Surpass the standards for DayDream VR at 120Hz with no dizziness
High Resolution:
2.5K high-definition display, relatively high screen resolution, integrated single-screen
synchronized display
17 18

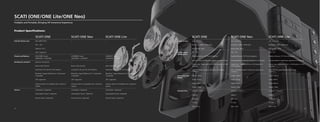

11. Dual 3D Camera Lens Pixel: 8MP*2(OV) / /
FOV : 145°
Aperture: F/2.2
Flash: Supported
Chipset and Memory MSM 8996 Chipset:
64GB ROM + 4 GB RAM
MSM8996 Chipset:
32GB ROM + 3 GB RAM
MSM8937 Chipset:
16GB ROM + 2 GB RAM
4G Network and Wi-Fi Network: Full Netcom / /
Built-in SIM Card Slot Built-in SIM Card Slot Built-in SIM Card Slot
Dual-band 2.4G and 5G, Wi-Fi b/g/n/ac Dual-band 2.4G and 5G, Wi-Fi b/g/n/ac Dual-band 2.4G and 5G, Wi-Fi b/g/n/ac
Bluetooth: Support Bluetooth 4.1, Downward
Compatible
Bluetooth: Support Bluetooth 4.1, Downward
Compatible
Bluetooth: Support Bluetooth 4.1, Downward
Compatible
GPS: Supported GPS: Supported GPS: Supported
Antenna: Built-in (Compatible with a Variety of
Signals)
Antenna: Built-in (Compatible with a Variety of
Signals)
Antenna: Built-in (Compatible with a Variety of
signals)
Sensors Acceleration: Supported Acceleration: Supported Acceleration: Supported
Geomagnetic Sensor: Supported Geomagnetic Sensor: Supported Geomagnetic Sensor: Supported
Pressure Sensor: Supported Pressure Sensor: Supported Pressure Sensor: Supported
Display Screen Size: 5.5 inches Size: 5.5 inches Size: 5.5 inches
Resolution: 2560 x 1440 pixels Resolution: 2560 x 1440 pixels Resolution: 1920 x 1080 pixel
Refresh Rate: 60Hz Refresh Rate: 60Hz Refresh Rate: 60Hz
Optical Engine
Specifications
FOV: 110° FOV: 110° FOV: 110°
Pupillary Distance: 55-75mm (Adaptive) Pupillary Distance: 55-75mm (Adaptive) Pupillary Distance: 55-75mm (Adaptive)
Focusing Method: Independent Adjustment for Each Eye Focusing Method: Independent Adjustment for Each Eye Focusing Method: Independent Adjustment for Each Eye
Glasses-free : Supported (From +2.00 diopters to -6.00
diopters)
Glasses-free : Supported (From +2.00 diopters to
-6.00 diopters)
Glasses-free : Supported (From +2.00 diopters to -6.00
diopters)
Lens: Self-design Aspheric Monocular Dual-lenses,
(ф50mm)
Lens: Self-design Aspheric Monocular Dual-lenses,
(ф50mm)
Lens: Self-developed Aspheric Lens Design
(ф50mm)
Dimensions and
Weight
Length:180mm Length:180mm Length:180mm
Width: 87mm Width: 87mm Width: 87mm
Height: 80mm Height: 80mm Height: 80mm
Weight: 360g Weight: 340g Weight: 340g
External Ports Earphone: 3.5mm*1 Earphone: 3.5mm*1 Earphone: 3.5mm*1
HDMI in HDMI in HDMI in
SIM Card SIM Card SIM Card
TF Card TF Card TF Card
Type-C Port Type-C Port Type-C Port
SCATI (ONE/ONE Lite/ONE Neo)
Foldable and Portable, Bringing VR Immersive Experience
Product Specifications:
SCATI ONE SCATI ONESCATI ONE Neo SCATI ONE NeoSCATI ONE Lite SCATI ONE Lite
19 20

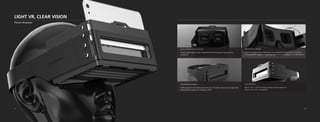

12. LIGHT VR, CLEAR VISION
Pocket VR-glasses
Square Aspherical Lens Structure:
Unique square optical design completely covers rectangular shaped phones,
no halation
Adjustment for Myopia:
Usable for eyeglass free, independent focus adjustment for each eye, compatible
with glasses-free usage for myopic/hyperopic users (+2.00 diopters to -6.00 diopters)
Heat Dissipating Design:
Hollow design for the phone placement area. Microfiber materials have high breath-
ability which increases heat dissipation effect
Fully Immersive:
FOV of 110° - 120° for a fully immersive sensory experience,
FOV of 120° for 6” smartphones
21 22

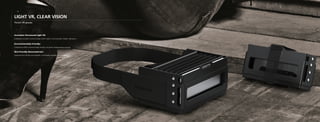

13. LIGHT VR, CLEAR VISION
Pocket VR-glasses
Skin-friendly Nanomaterials:
Advanced skin-friendly nanomaterials, comfortably wearable for 4~6 hours
Environmentally Friendly:
Composed of 90% environmentally friendly, non-plastic biodegradable materials
Accordion Structured Light VR:
Collapsible accordion structure design which makes it more portable. Weighs 180 grams
23 24

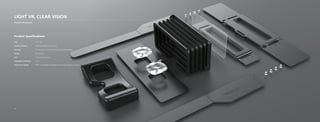

14. FOV 110°-120°
Pupillary Distance Adaptive Between 55 and 75mm
Focusing Can be Adjusted According to Each Eye’s Level of Myopia
Glasses Not Required
Lens Square Aspherical Lens
Compatible Cell Phones 4.5-6“
Glasses-free Display Within +2.00 Diopters for Hyperopia and -6.00 Diopters for Myopia
LIGHT VR, CLEAR VISION
Pocket VR-glasses
Product Specifications:
25
