The document provides specifications for various dedicated hardware components including CPUs, memory, storage, networking capabilities, and various sensors for applications like asset and people tracking. Key features include Bluetooth connectivity, real-time monitoring, and compatibility with Raspberry Pi for extensibility. It also outlines specific devices such as Bluetooth Low Energy scanners, beacons, and environmental monitoring sensors with detailed dimensions, battery specifications, and additional functionalities.

2. Dedicated
Hardware

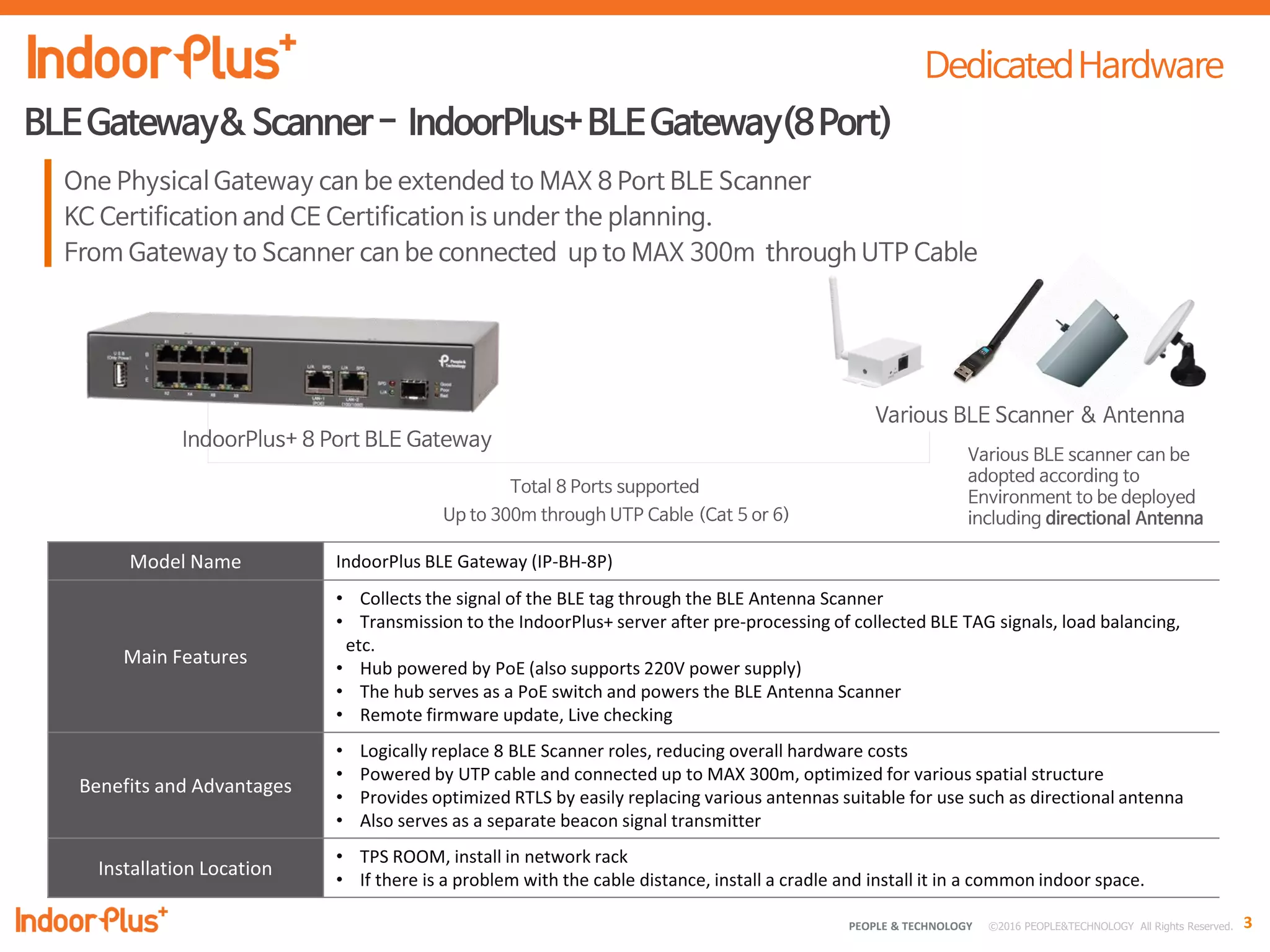

3. 3PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

4. 4PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

5. 5PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

6. 6PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

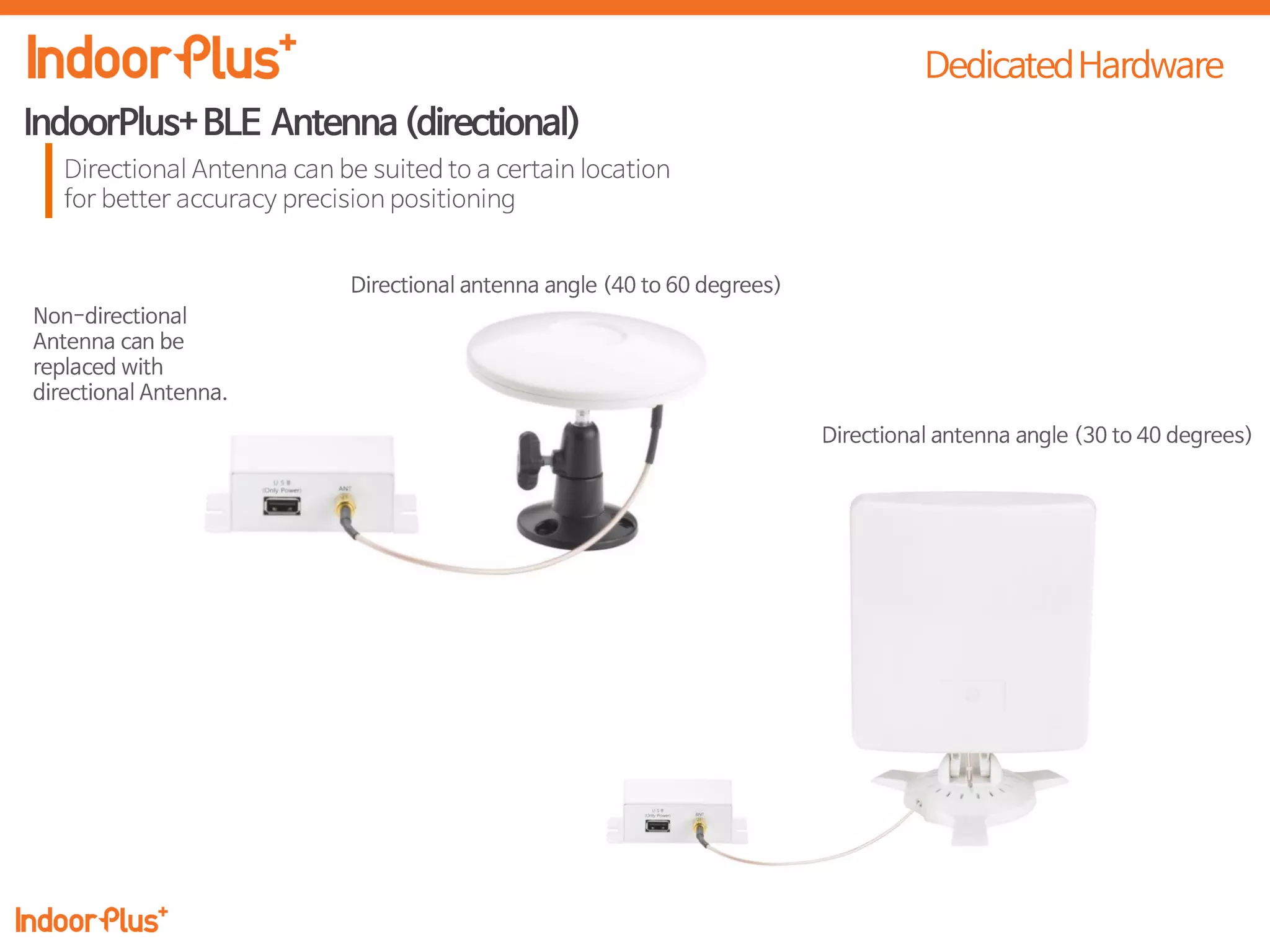

7. 7PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

8. 8PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

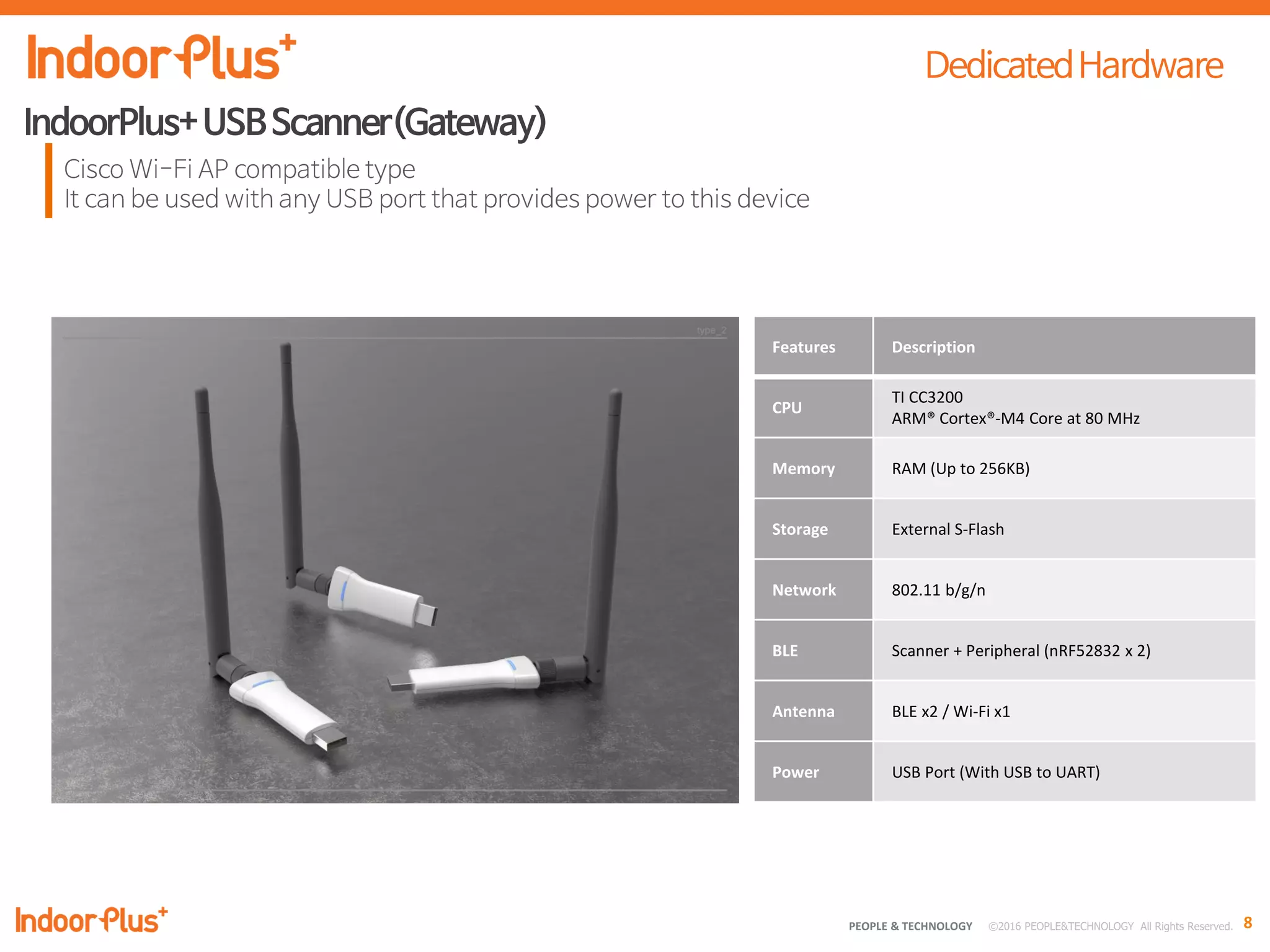

Features Description
CPU
TI CC3200
ARM® Cortex®-M4 Core at 80 MHz
Memory RAM (Up to 256KB)
Storage External S-Flash
Network 802.11 b/g/n
BLE Scanner + Peripheral (nRF52832 x 2)
Antenna BLE x2 / Wi-Fi x1
Power USB Port (With USB to UART)

9. 9PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

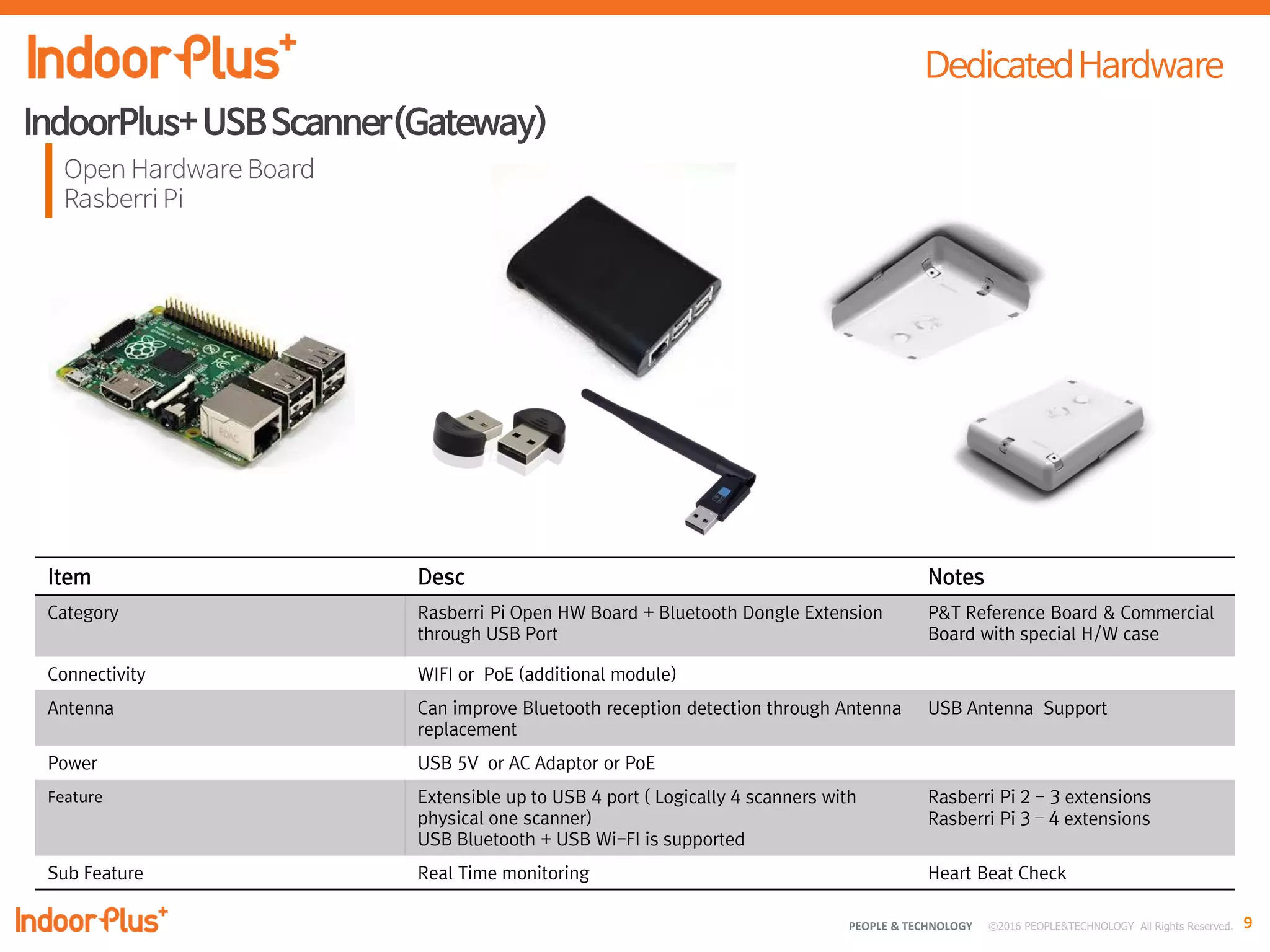

Item Desc Notes
Category Rasberri Pi Open HW Board + Bluetooth Dongle Extension
through USB Port
P&T Reference Board & Commercial
Board with special H/W case
Connectivity WIFI or PoE (additional module)
Antenna Can improve Bluetooth reception detection through Antenna
replacement
USB Antenna Support
Power USB 5V or AC Adaptor or PoE
Feature Extensible up to USB 4 port ( Logically 4 scanners with
physical one scanner)
USB Bluetooth + USB Wi-FI is supported
Rasberri Pi 2 - 3 extensions
Rasberri Pi 3 – 4 extensions
Sub Feature Real Time monitoring Heart Beat Check

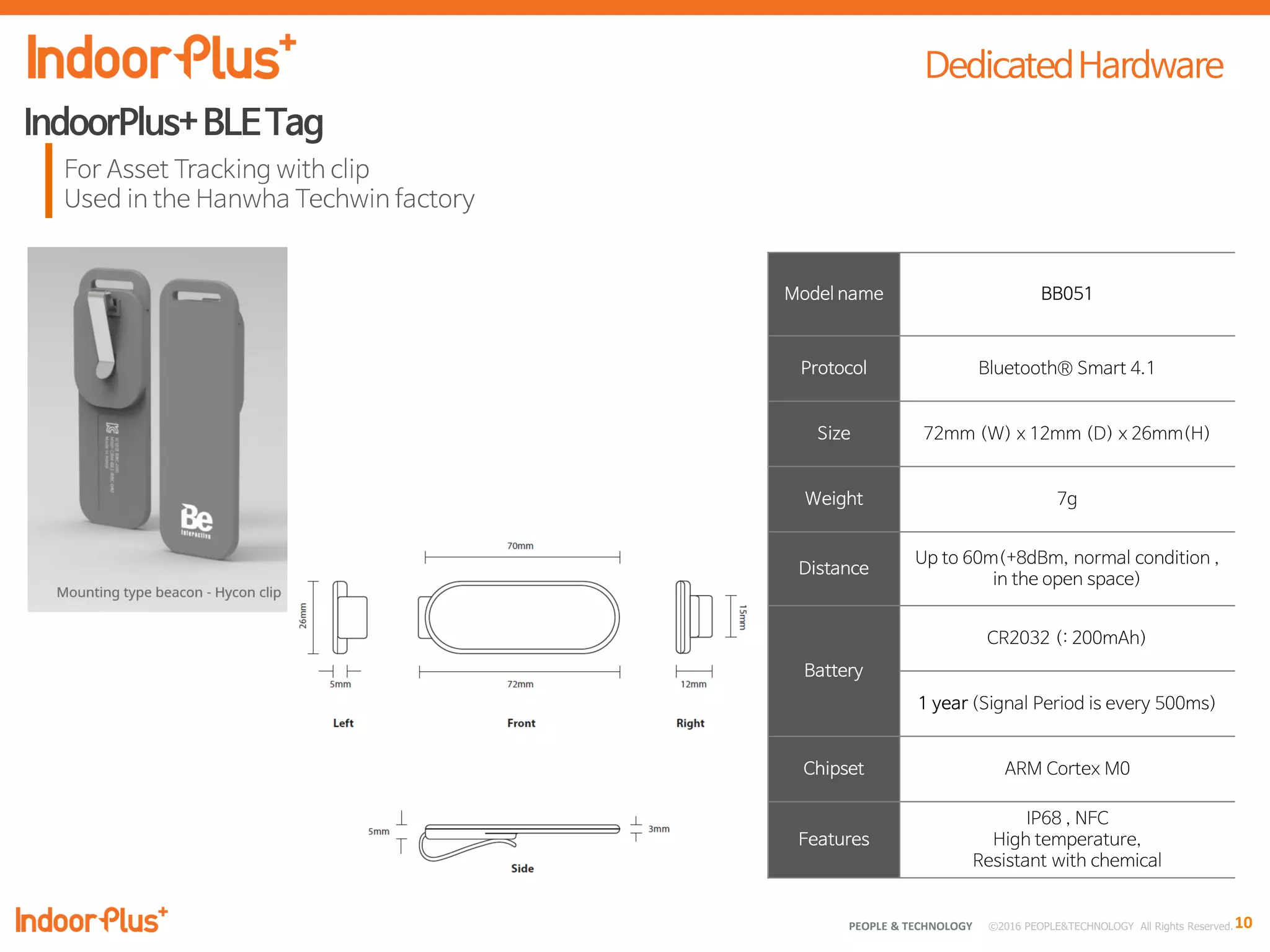

10. 10PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

11. 11PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

12. 12PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

13. 13PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

14. 14PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

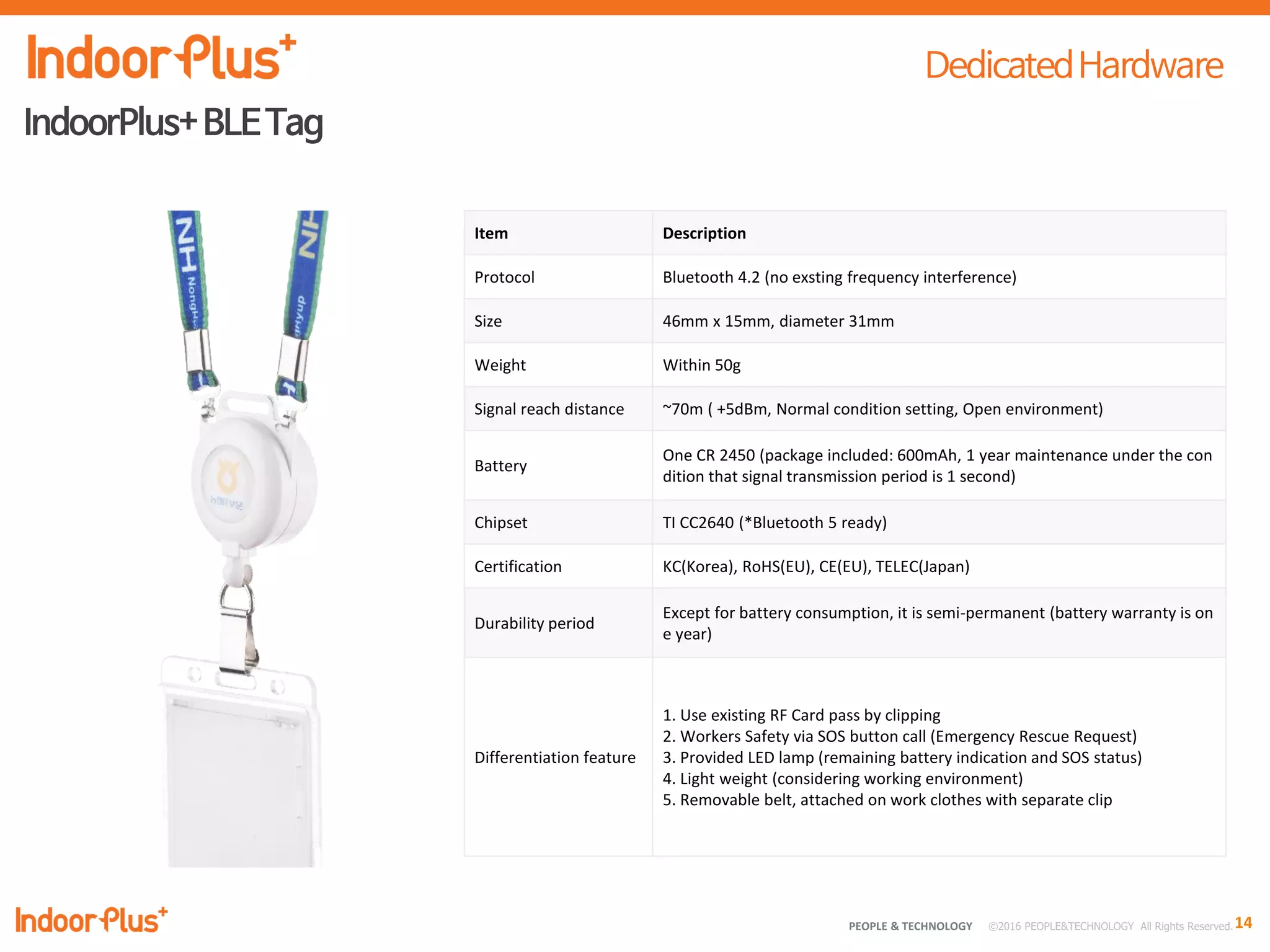

Item Description
Protocol Bluetooth 4.2 (no exsting frequency interference)
Size 46mm x 15mm, diameter 31mm
Weight Within 50g
Signal reach distance ~70m ( +5dBm, Normal condition setting, Open environment)
Battery
One CR 2450 (package included: 600mAh, 1 year maintenance under the con
dition that signal transmission period is 1 second)
Chipset TI CC2640 (*Bluetooth 5 ready)
Certification KC(Korea), RoHS(EU), CE(EU), TELEC(Japan)
Durability period
Except for battery consumption, it is semi-permanent (battery warranty is on
e year)
Differentiation feature
1. Use existing RF Card pass by clipping
2. Workers Safety via SOS button call (Emergency Rescue Request)
3. Provided LED lamp (remaining battery indication and SOS status)
4. Light weight (considering working environment)
5. Removable belt, attached on work clothes with separate clip

15. Compatible
Hardware

16. 16PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

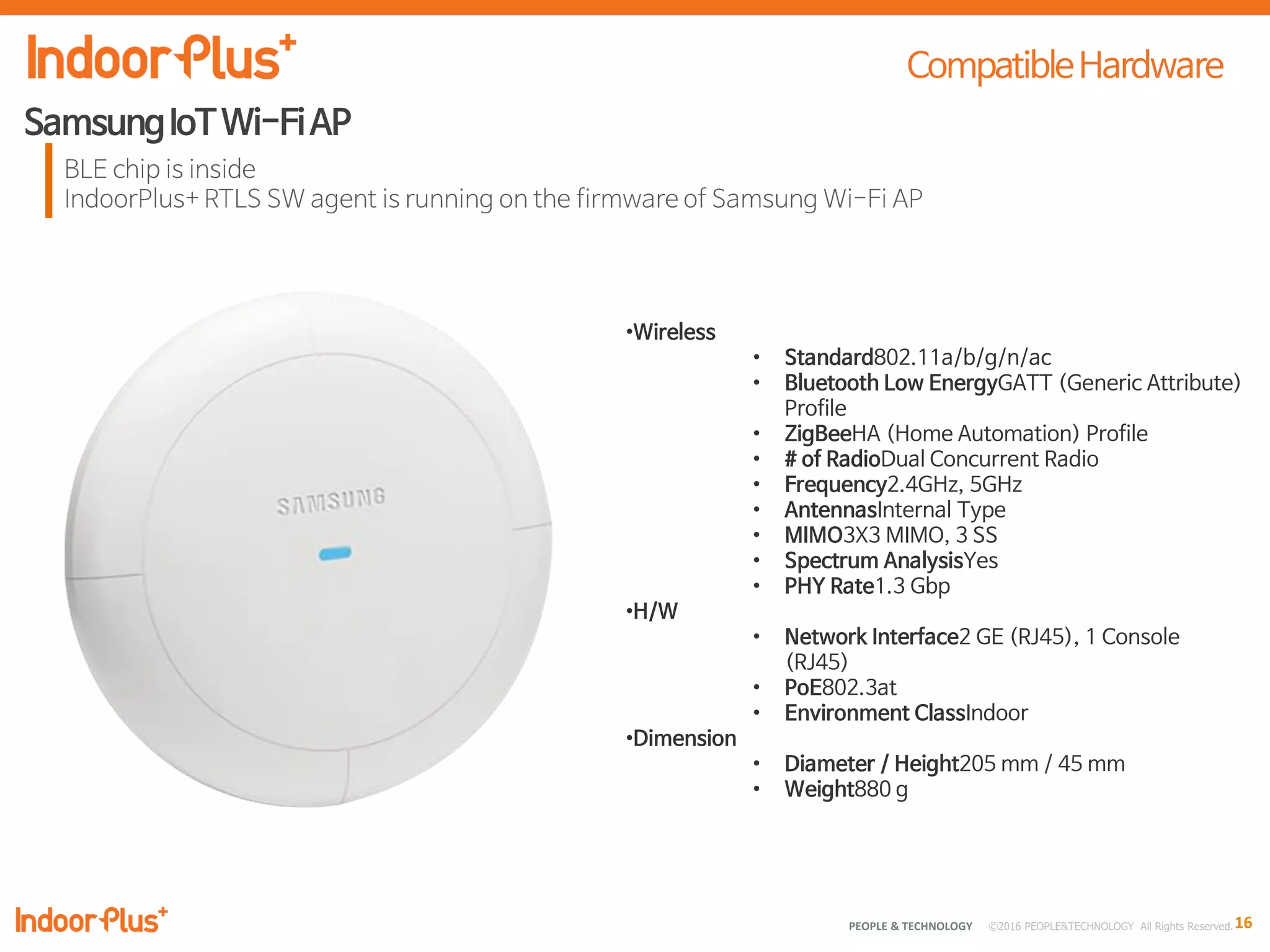

•Wireless
• Standard802.11a/b/g/n/ac
• Bluetooth Low EnergyGATT (Generic Attribute)
Profile
• ZigBeeHA (Home Automation) Profile
• # of RadioDual Concurrent Radio
• Frequency2.4GHz, 5GHz
• AntennasInternal Type
• MIMO3X3 MIMO, 3 SS
• Spectrum AnalysisYes
• PHY Rate1.3 Gbp
•H/W
• Network Interface2 GE (RJ45), 1 Console
(RJ45)
• PoE802.3at
• Environment ClassIndoor
•Dimension
• Diameter / Height205 mm / 45 mm
• Weight880 g

17. 17PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

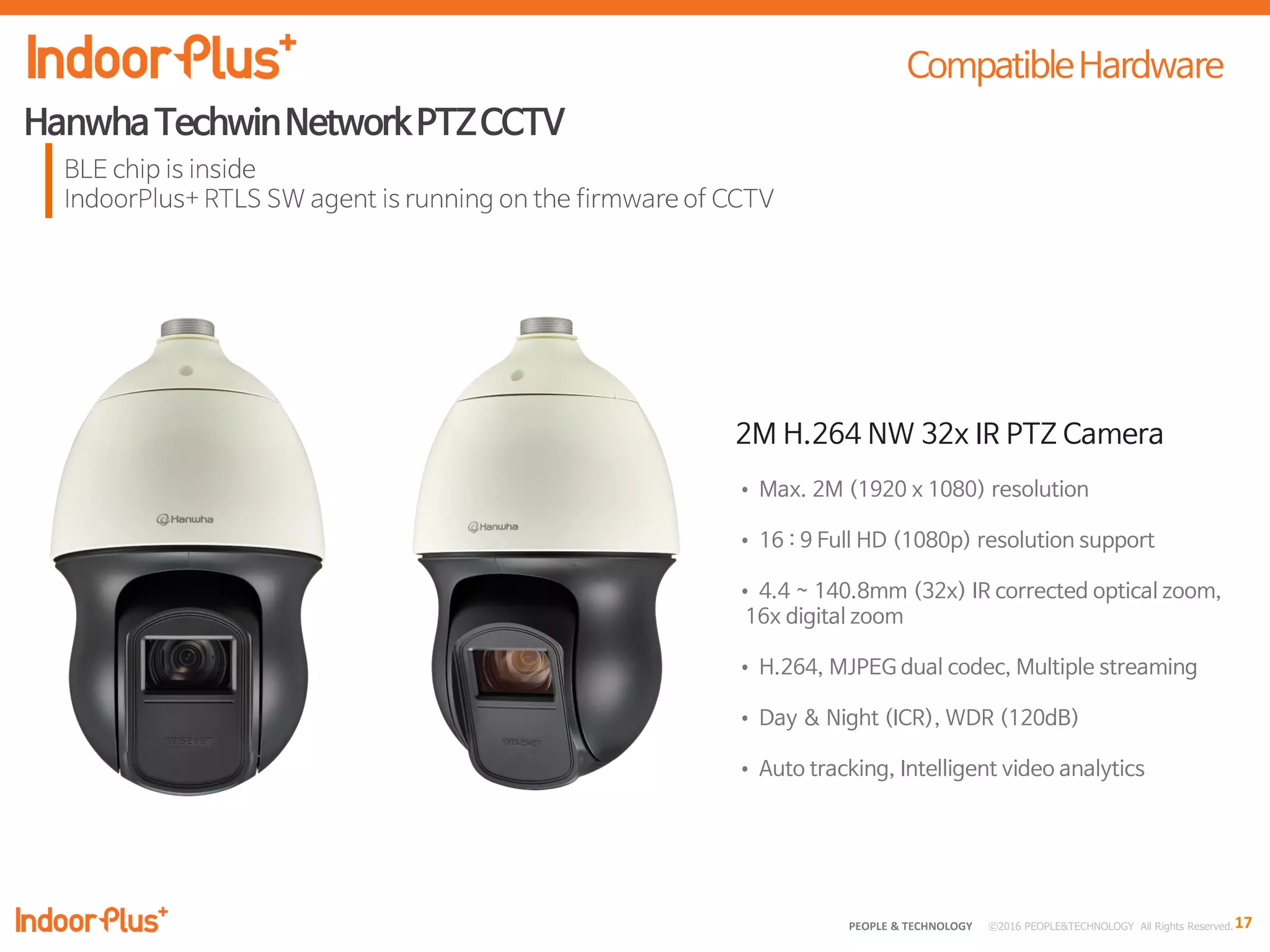

2M H.264 NW 32x IR PTZ Camera
• Max. 2M (1920 x 1080) resolution
• 16 : 9 Full HD (1080p) resolution support
• 4.4 ~ 140.8mm (32x) IR corrected optical zoom,
16x digital zoom
• H.264, MJPEG dual codec, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Auto tracking, Intelligent video analytics

18. 18PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

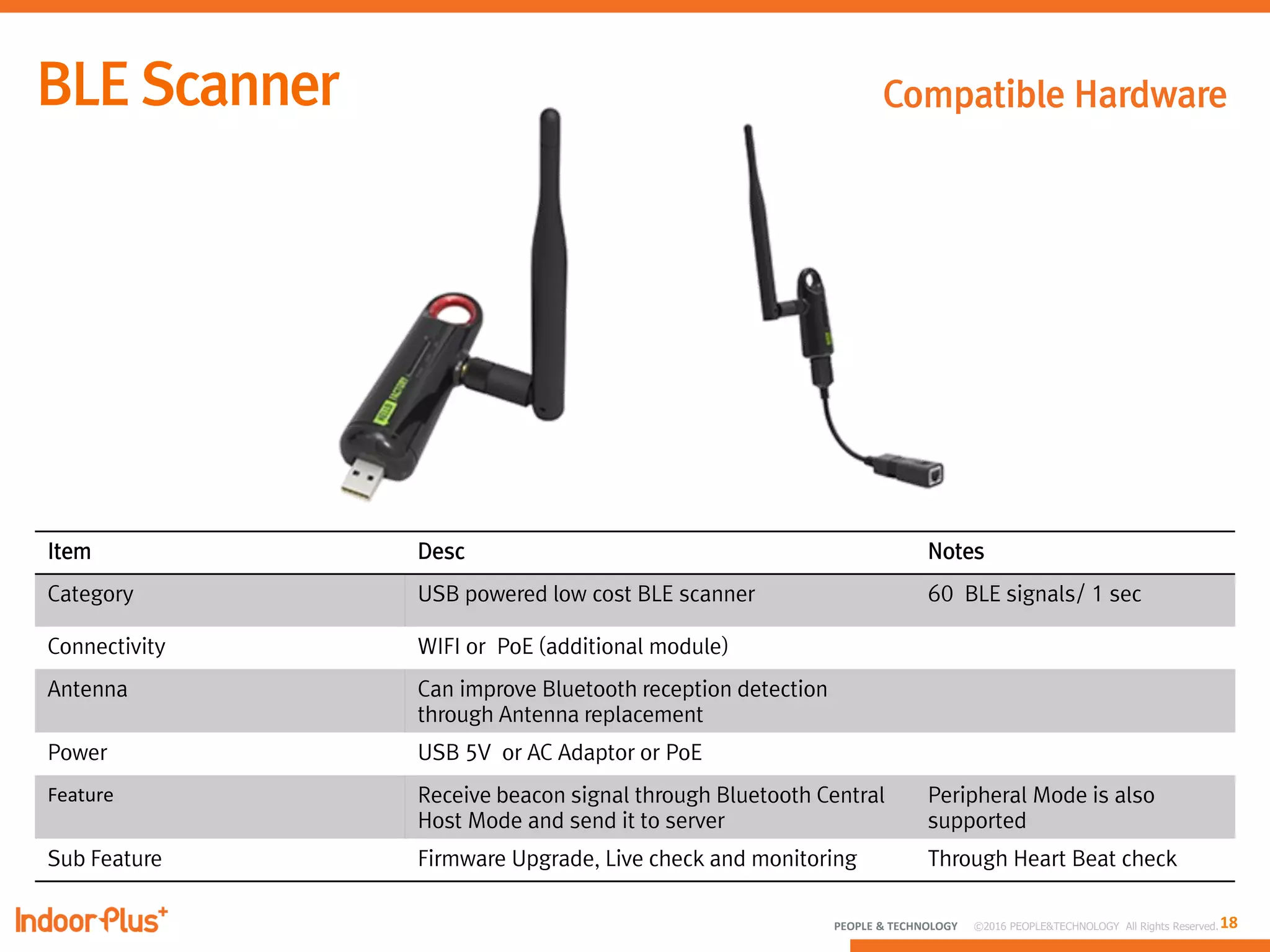

Item Desc Notes
Category USB powered low cost BLE scanner 60 BLE signals/ 1 sec
Connectivity WIFI or PoE (additional module)
Antenna Can improve Bluetooth reception detection
through Antenna replacement
Power USB 5V or AC Adaptor or PoE
Feature Receive beacon signal through Bluetooth Central
Host Mode and send it to server
Peripheral Mode is also
supported
Sub Feature Firmware Upgrade, Live check and monitoring Through Heart Beat check
Compatible Hardware

19. 19PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

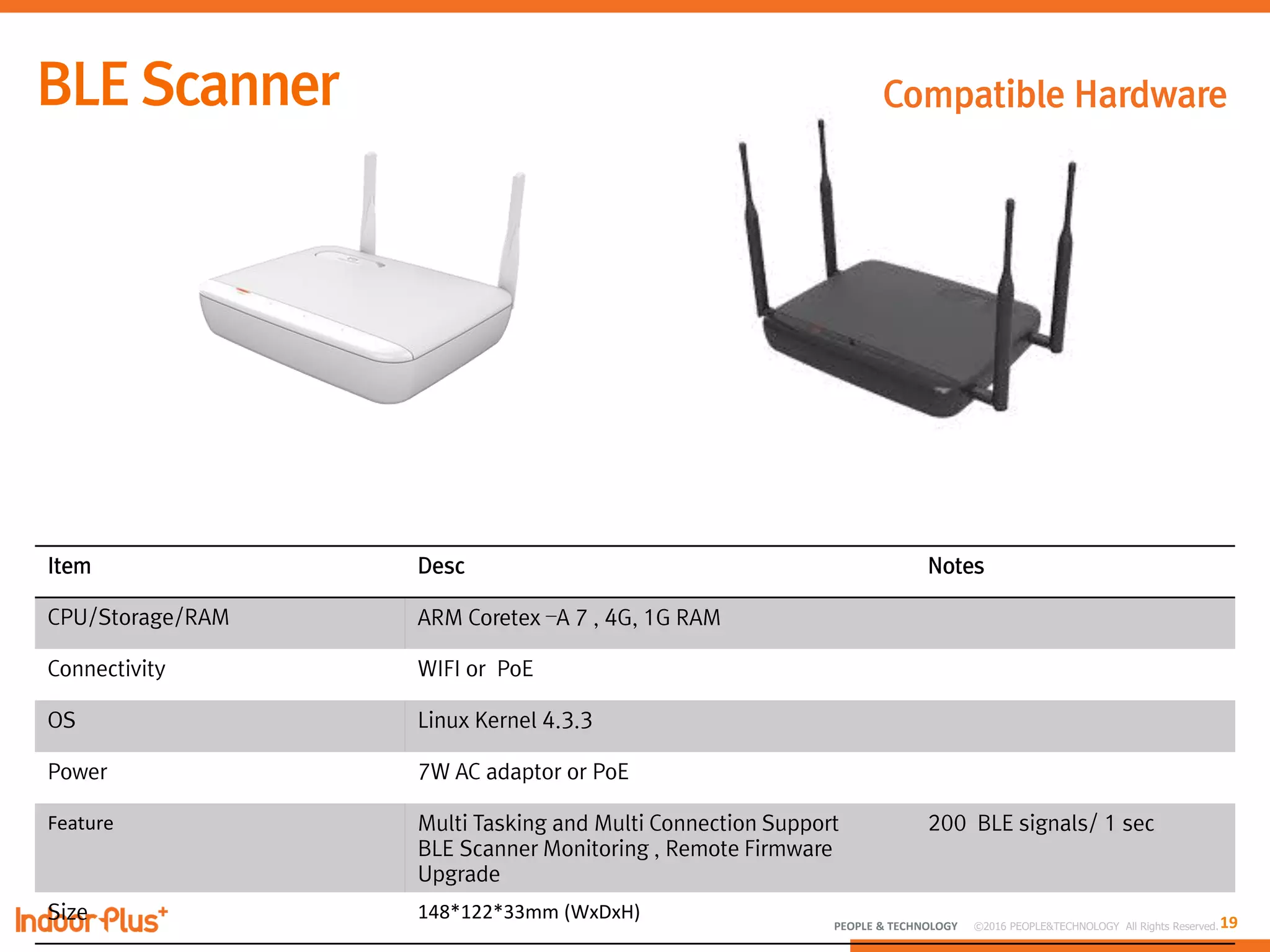

Item Desc Notes
CPU/Storage/RAM ARM Coretex –A 7 , 4G, 1G RAM
Connectivity WIFI or PoE
OS Linux Kernel 4.3.3
Power 7W AC adaptor or PoE
Feature Multi Tasking and Multi Connection Support
BLE Scanner Monitoring , Remote Firmware
Upgrade
200 BLE signals/ 1 sec
Size 148*122*33mm (WxDxH)
Compatible Hardware

20. 20PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

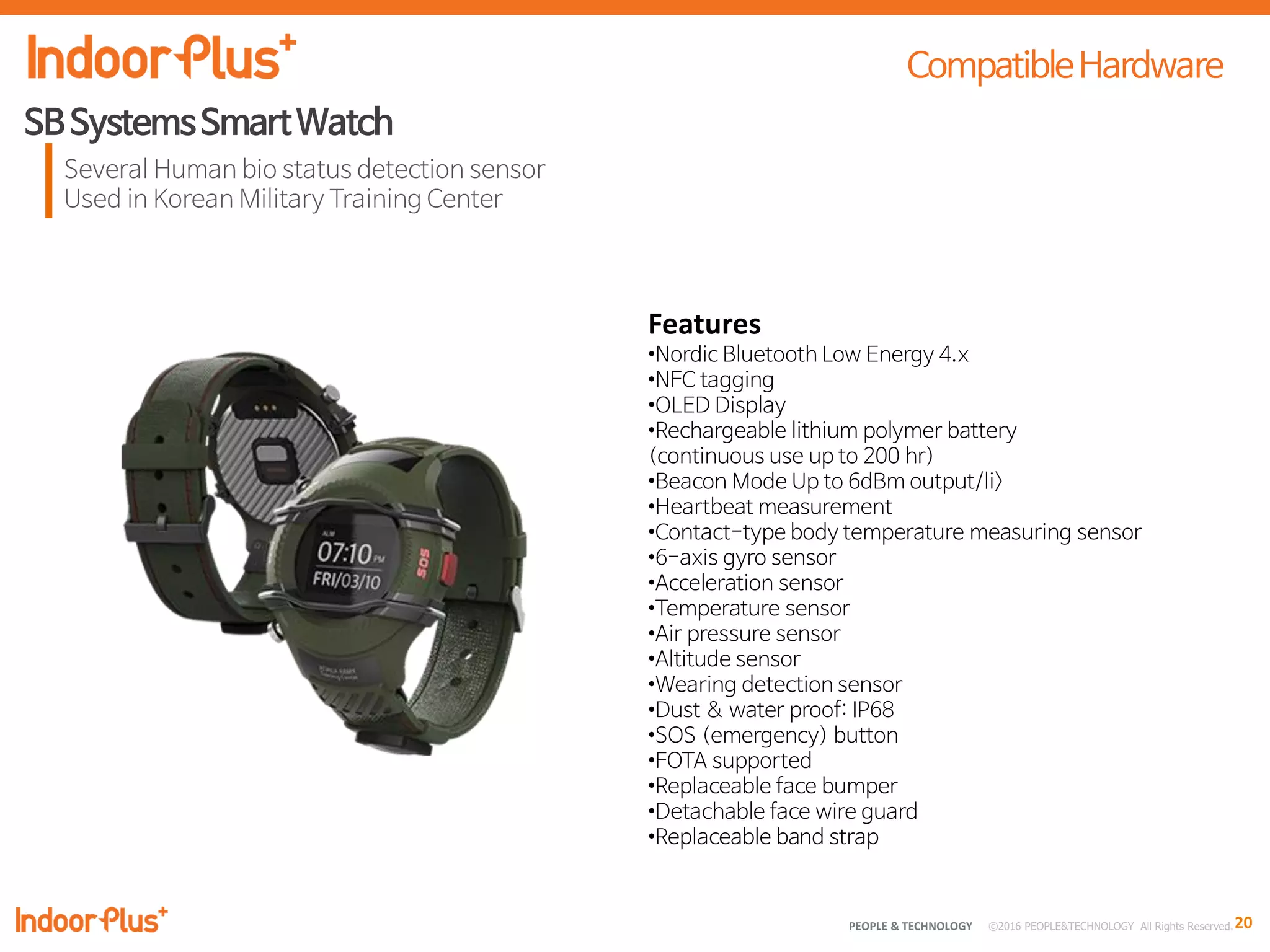

Features
•Nordic Bluetooth Low Energy 4.x
•NFC tagging
•OLED Display
•Rechargeable lithium polymer battery
(continuous use up to 200 hr)
•Beacon Mode Up to 6dBm output/li>
•Heartbeat measurement
•Contact-type body temperature measuring sensor
•6-axis gyro sensor
•Acceleration sensor
•Temperature sensor
•Air pressure sensor
•Altitude sensor
•Wearing detection sensor
•Dust & water proof: IP68
•SOS (emergency) button
•FOTA supported
•Replaceable face bumper
•Detachable face wire guard
•Replaceable band strap

21. 21PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

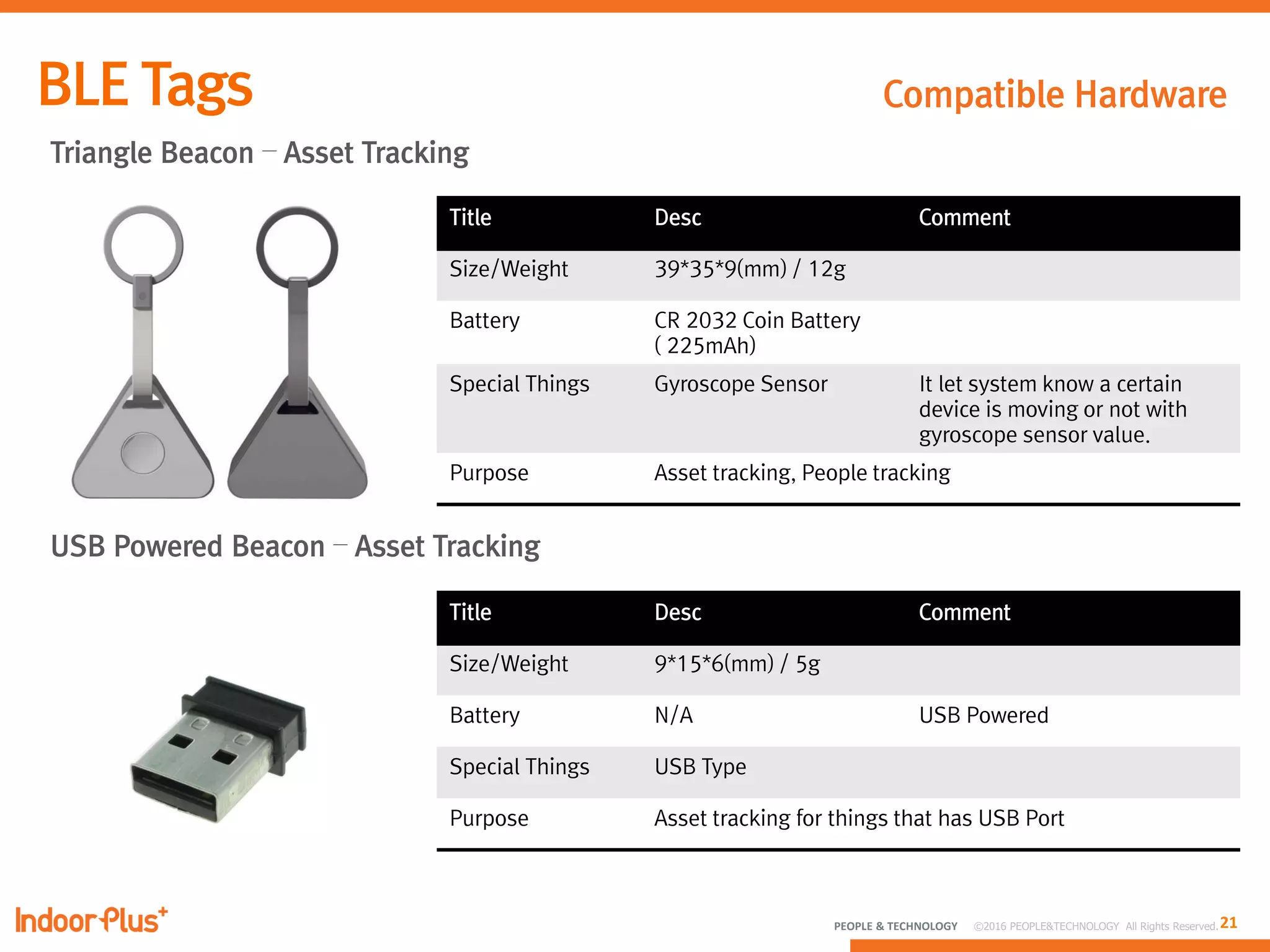

Triangle Beacon – Asset Tracking
Title Desc Comment
Size/Weight 39*35*9(mm) / 12g
Battery CR 2032 Coin Battery
( 225mAh)
Special Things Gyroscope Sensor It let system know a certain
device is moving or not with
gyroscope sensor value.
Purpose Asset tracking, People tracking
USB Powered Beacon – Asset Tracking
Title Desc Comment
Size/Weight 9*15*6(mm) / 5g
Battery N/A USB Powered
Special Things USB Type
Purpose Asset tracking for things that has USB Port
Compatible Hardware

22. 22PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

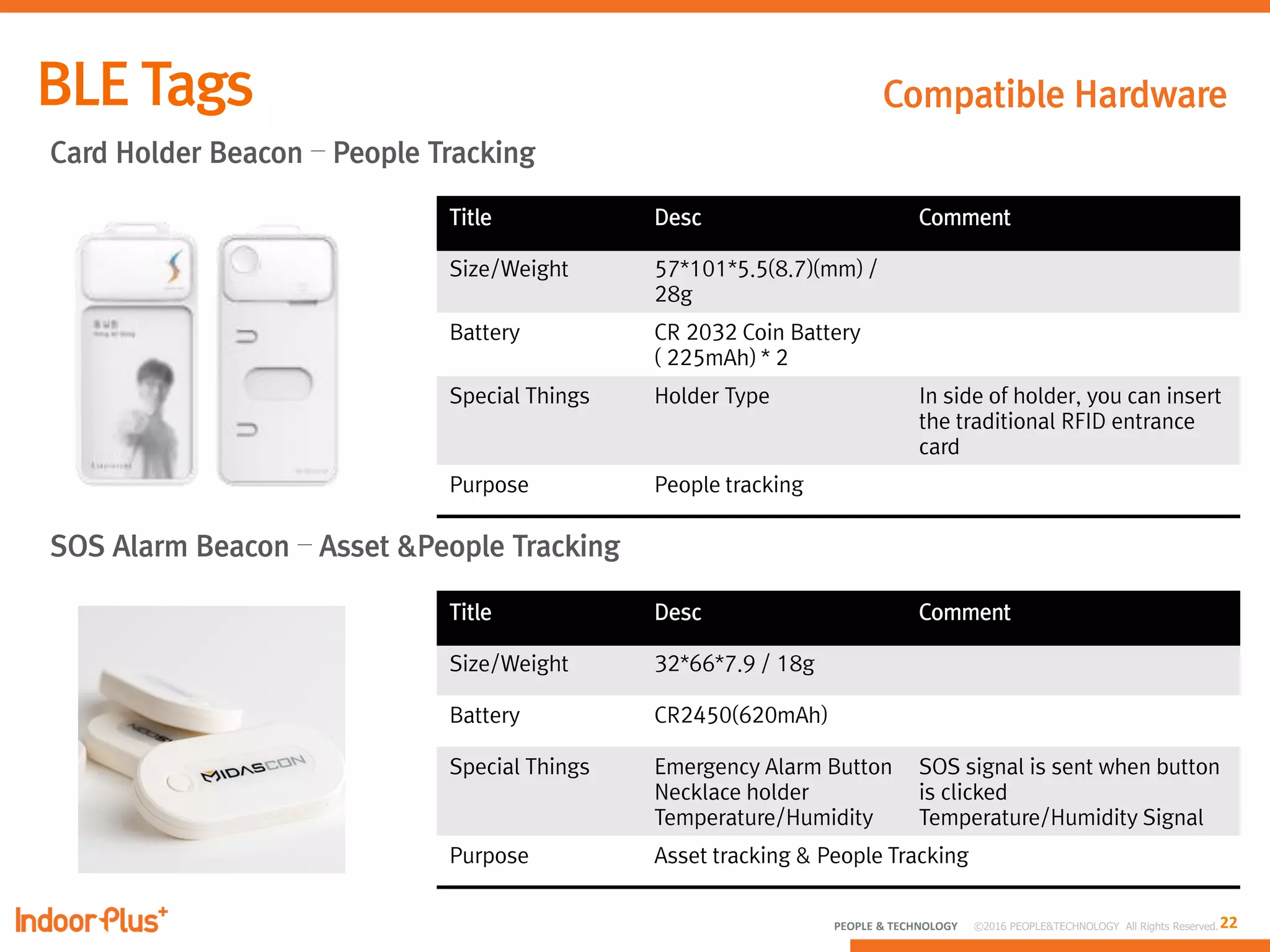

Card Holder Beacon – People Tracking
Title Desc Comment
Size/Weight 57*101*5.5(8.7)(mm) /
28g
Battery CR 2032 Coin Battery
( 225mAh) * 2
Special Things Holder Type In side of holder, you can insert
the traditional RFID entrance
card
Purpose People tracking
SOS Alarm Beacon – Asset &People Tracking
Title Desc Comment
Size/Weight 32*66*7.9 / 18g
Battery CR2450(620mAh)
Special Things Emergency Alarm Button
Necklace holder
Temperature/Humidity
SOS signal is sent when button
is clicked
Temperature/Humidity Signal
Purpose Asset tracking & People Tracking
Compatible Hardware

23. 23PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

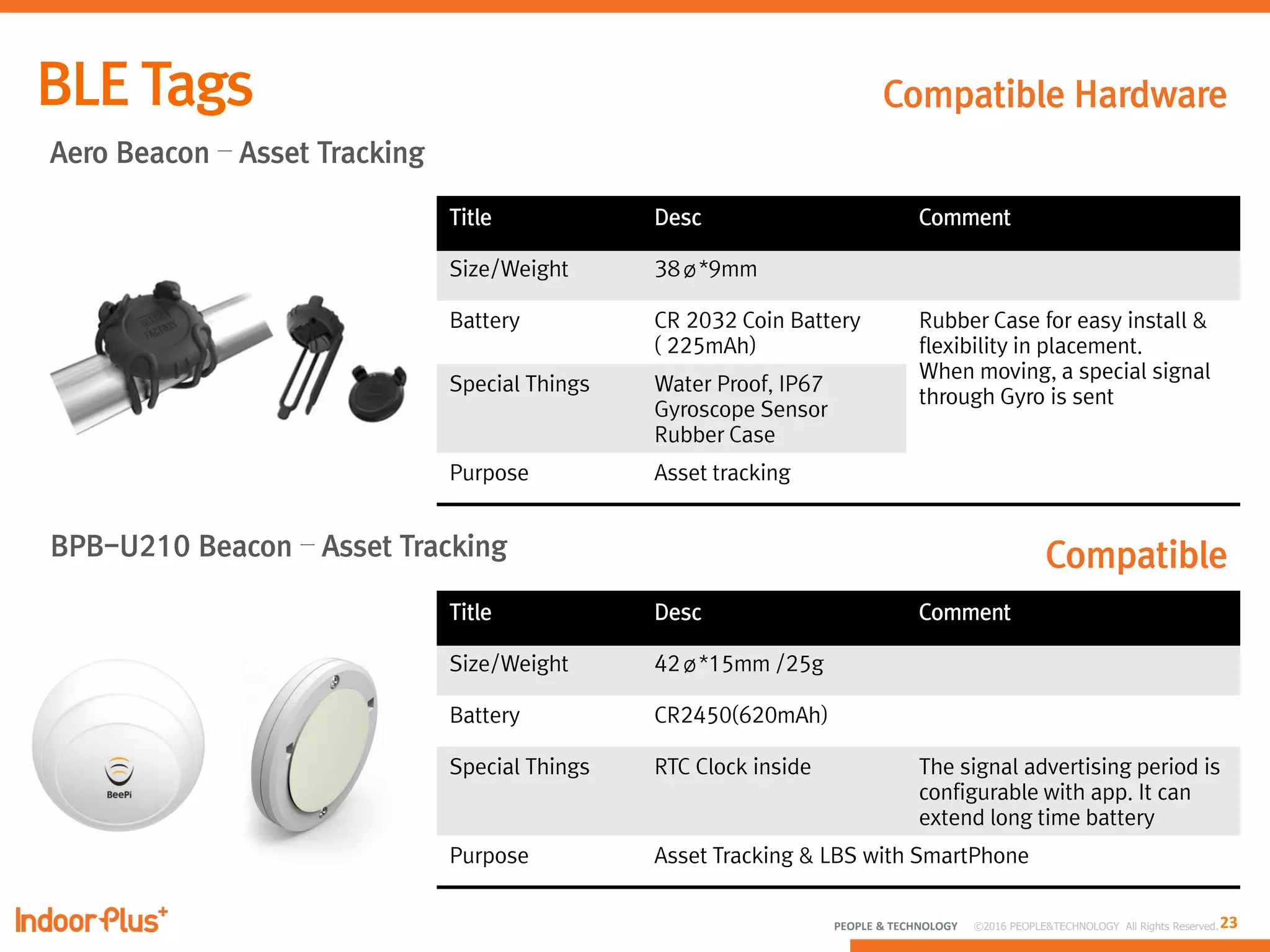

Aero Beacon – Asset Tracking
Title Desc Comment
Size/Weight 38ø*9mm
Battery CR 2032 Coin Battery
( 225mAh)
Rubber Case for easy install &
flexibility in placement.
When moving, a special signal
through Gyro is sent
Special Things Water Proof, IP67
Gyroscope Sensor
Rubber Case
Purpose Asset tracking
BPB-U210 Beacon – Asset Tracking
Title Desc Comment
Size/Weight 42ø*15mm /25g
Battery CR2450(620mAh)
Special Things RTC Clock inside The signal advertising period is
configurable with app. It can
extend long time battery
Purpose Asset Tracking & LBS with SmartPhone
Compatible Hardware
Compatible

24. 24PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

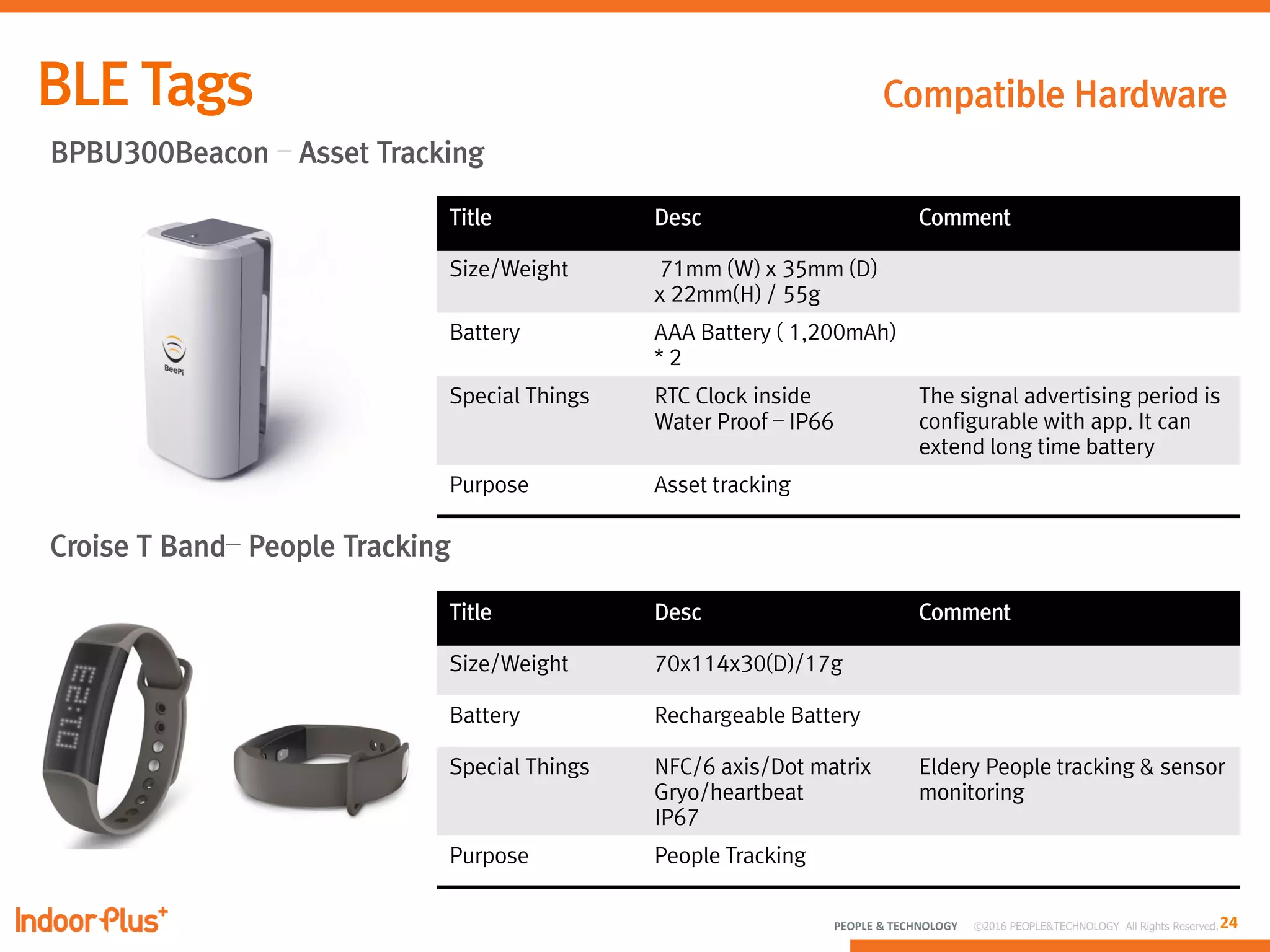

BPBU300Beacon – Asset Tracking
Title Desc Comment
Size/Weight 71mm (W) x 35mm (D)
x 22mm(H) / 55g
Battery AAA Battery ( 1,200mAh)
* 2
Special Things RTC Clock inside
Water Proof – IP66
The signal advertising period is
configurable with app. It can
extend long time battery
Purpose Asset tracking
Croise T Band– People Tracking
Title Desc Comment
Size/Weight 70x114x30(D)/17g
Battery Rechargeable Battery
Special Things NFC/6 axis/Dot matrix
Gryo/heartbeat
IP67
Eldery People tracking & sensor
monitoring
Purpose People Tracking
Compatible Hardware

25. 25PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.

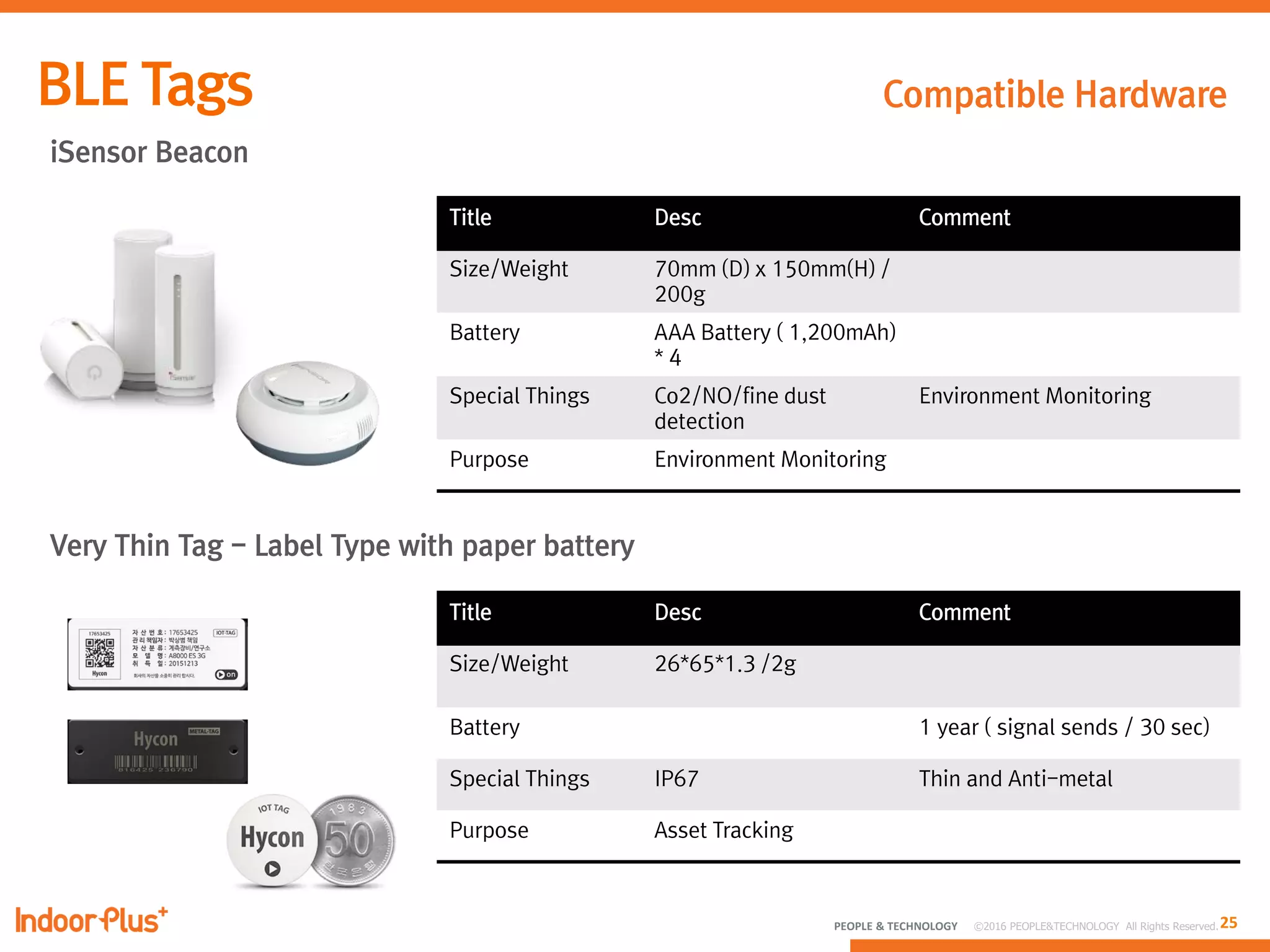

iSensor Beacon
Title Desc Comment
Size/Weight 70mm (D) x 150mm(H) /
200g
Battery AAA Battery ( 1,200mAh)
* 4
Special Things Co2/NO/fine dust
detection
Environment Monitoring
Purpose Environment Monitoring
Very Thin Tag - Label Type with paper battery
Title Desc Comment
Size/Weight 26*65*1.3 /2g
Battery 1 year ( signal sends / 30 sec)
Special Things IP67 Thin and Anti-metal
Purpose Asset Tracking
Compatible Hardware

26. 26PEOPLE & TECHNOLOGY © 2016 PEOPLE&TECHNOLOGY All Rights Reserved.
