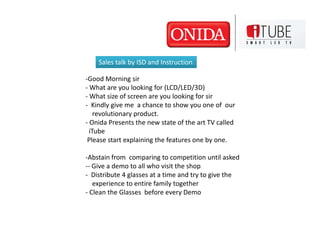

2. Sales talk by ISD and Instruction
-Good Morning sir
- What are you looking for (LCD/LED/3D)
- What size of screen are you looking for sir
- Kindly give me a chance to show you one of our
revolutionary product.
- Onida Presents the new state of the art TV called
iTube
Please start explaining the features one by one.
-Abstain from comparing to competition until asked
-- Give a demo to all who visit the shop
- Distribute 4 glasses at a time and try to give the
experience to entire family together
- Clean the Glasses before every Demo

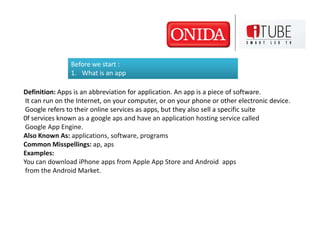

3. Before we start :
1. What is an app
Definition: Apps is an abbreviation for application. An app is a piece of software.
It can run on the Internet, on your computer, or on your phone or other electronic device.
Google refers to their online services as apps, but they also sell a specific suite
0f services known as a google aps and have an application hosting service called
Google App Engine.
Also Known As: applications, software, programs
Common Misspellings: ap, aps
Examples:
You can download iPhone apps from Apple App Store and Android apps
from the Android Market.

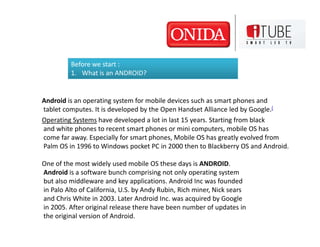

4. Before we start :
1. What is an ANDROID?
Android is an operating system for mobile devices such as smart phones and
tablet computes. It is developed by the Open Handset Alliance led by Google.[
Operating Systems have developed a lot in last 15 years. Starting from black
and white phones to recent smart phones or mini computers, mobile OS has
come far away. Especially for smart phones, Mobile OS has greatly evolved from
Palm OS in 1996 to Windows pocket PC in 2000 then to Blackberry OS and Android.
One of the most widely used mobile OS these days is ANDROID.
Android is a software bunch comprising not only operating system
but also middleware and key applications. Android Inc was founded
in Palo Alto of California, U.S. by Andy Rubin, Rich miner, Nick sears
and Chris White in 2003. Later Android Inc. was acquired by Google
in 2005. After original release there have been number of updates in
the original version of Android.
5. Before we start :
1. What is an Android Market and its applications
Android comes with an Android market which is an online software store. It was developed
by Google. It allows Android users to select, and download applications developed by third
party developers and use them. There are around 2.0 lack+ games, application and widget
s available on the market for users.
Android applications are written in java programming language. Android is available as open
source for developers to develop applications which can be further used for selling
in android market. There are around 200000 applications developed for android with
over 3 billion+ downloads. Android relies o
n Linux version 2.6 for core system services such as security, memory management,
process management, network stack, and driver model. For software development,
Android provides Android SDK (Software development kit).
9. 1
Only ONIDA iTube is powered by ANDROID
2.2 which unleashes the world of Apps
available in the Android market . It has
internal memory of 70 MB to nearly store
100 apps in your personal library.
You can simply choose from a wide selection
of categories such as videos, games ,sports
,Information ,Lifestyle and others.
In short this unique TV gives you access to
the widest selection of apps through the
popular Android operating system.
Benefit: Working with the latest Operating system keeps you updated always.

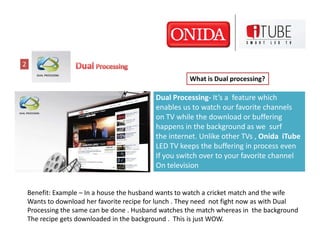

10. 2
What is Dual processing?
Dual Processing- It’s a feature which
enables us to watch our favorite channels
on TV while the download or buffering
happens in the background as we surf
the internet. Unlike other TVs , Onida iTube
LED TV keeps the buffering in process even
If you switch over to your favorite channel
On television
Benefit: Example – In a house the husband wants to watch a cricket match and the wife
Wants to download her favorite recipe for lunch . They need not fight now as with Dual
Processing the same can be done . Husband watches the match whereas in the background
The recipe gets downloaded in the background . This is just WOW.

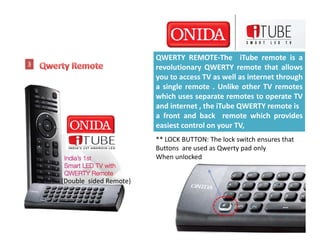

11. QWERTY REMOTE-The iTube remote is a
3 revolutionary QWERTY remote that allows
you to access TV as well as internet through
a single remote . Unlike other TV remotes
which uses separate remotes to operate TV
and internet , the iTube QWERTY remote is
a front and back remote which provides
easiest control on your TV,
** LOCK BUTTON: The lock switch ensures that
Buttons are used as Qwerty pad only
When unlocked
(Double sided Remote)
12. 4
Only ONIDA iTube has Stylish Slim Diamond
edge bezel (frame) which gives you
seamless and awesome 3D viewing in
addition to supporting various 3D formats.
13. 5
The advanced and unique 3D technology
brings alive whatever content you are
watching , allowing you to a real life
experience . Get Ready to enjoy the
realistic 3D experience.
14. 6
This feature can convert 2D content to high
quality 3D pictures through Onida’s own
algorithm . The 3D converter enhances your
3D viewing experience through a detailed
analysis of the picture to create a totally life
like image.
***This feature is amazing given the fact that there is constraints of 3 D contents
In the market

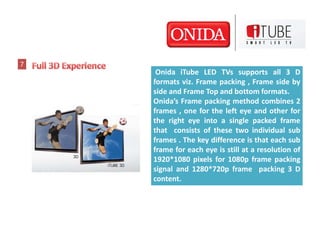

15. 7
Onida iTube LED TVs supports all 3 D
formats viz. Frame packing , Frame side by
side and Frame Top and bottom formats.
Onida’s Frame packing method combines 2
frames , one for the left eye and other for
the right eye into a single packed frame
that consists of these two individual sub
frames . The key difference is that each sub
frame for each eye is still at a resolution of
1920*1080 pixels for 1080p frame packing
signal and 1280*720p frame packing 3 D
content.
16. 8
Onida iTube 3D LED TV glasses are light
(32) and are specially designed to give you
a true to life 3D experience. The 3D glasses
not only make your 3d experience and
exciting one but also makes you feel as if
you are part of the action
17. 8
The Onida iTube comes with wireless
Fidelity(Wi-Fi) that connects your TV
wirelessly to the local area network in your
home through a dongle . All it takes is a one
time set up to ensure you stay connected
for life.
18. 9
The Ethernet connectivity in Onida iTube
LED TV allows you to connect your TV by
using a physical data link layer technology
which helps you gain access to the local
area network
19. Definition: Ethernet is a physical and data link layer technology for
local area networks (LANs)). Ethernet was invented by engineer Robert Metcalfe
. When first widely deployed in the 1980s, Ethernet supported a maximum
theoretical data rate of 10 megabits per second (Mbps). Later, so-called
"Fast Ethernet" standards increased this maximum data rate to 100 Mbps.
Today, Gigabit Ethernet technology further extends peak performance up
to 1000 Mbps.
Ethernet- Cables and switches
20. 10
With all sync feature you can now easily
connect your mobile ,laptop and other
compatible devices to your TV and also
enjoying media streaming on your TV for
photos , videos & songs.
21. 11
Onida LED TVs have TRI USB playability wherein you can watch movies
Listen to songs and view pictures the USB port
12a
This feature enables your Onida LED TV to automatically interpret image
Signals and intelligently control the brightness of the screen . Just so that
The black is blacker in dark scene(feature in 40 iTube only)
22. 12b
• Browse the internet on your TV
• Share More and stay connected
• Information at touch of your button
• Watch Videos & your favorite movies
• Live entertainment
30. PICTURE
Display Resolution Full HD 1080 (1920 x 1080)
Dual Processing YES
Video Processing SRVe
Contrast Ratio 30,00,000 : 1
Screen Format 16:9, 4:3, Zoom 1, Zoom 2, Auto
Picture Mode Vivid, Cinema, Sport, News, Normal
Flesh Tone Adjust Off, Low, Medium, High
Noise Reduction Off, Low, Medium, High
Display Color 16.7 Million
DNR
AUDIO
Audio Output Power ( RMS ) 300 W PMPO
Sound Modes Movie, Music, Flat, Normal
Surround Yes
Equalizer Yes
Woofer -
CONNECTIVITY
HDMI™ 2
Series I Tube USB 2.0 3
Model LEO32AFIN Composite Video 1
Screen Size 32 ( 81 cm ) Component Video (Y/Pb/Pr) 1
RF Connection 1
Backlight Module SMART LED HD15 PC Input 1
NTSC 3.58, NTSC 4.43, Audio Out 1
Colour System PC AUDIO IN 1
PAL, SECAM
BLUETOOTH/CONNECTIVITY ALLSYNC
31. EASE OF OPERATION
INTERNET MODE Yes
SURF ( Easy Channel Access ) Yes
iPLAYON ( USB Quick View ) Yes
USB Play Movie ( All Formats ), Music, Jpeg
Picture Freeze Yes
OSD Languages English/Arabic/Russian
Skip / Swap Yes
Fav Channel Sort Yes
Hotel Mode Optional
Wake Up Timer Yes
ASTHETICS
Design Metallic Finish with Diamond Cut
Color Scheme Black/Brown
Power Requirements 100-260 V AC, 50/60 Hz
Power Consumption 70 W
Dimensions ( L x W x D mm ) 748 x 152 x 510
Weight ( Kg ) 11
Series I Tube
SUPPLIED ACCESSORIES
Model LEO32AFIN
INSTRUCTION MANUAL Yes
Screen Size 32 ( 81 cm ) REMOTE HANDSET Qwerty Dual Sided remote
Backlight Module SMART LED BATTERY CELL Yes
NTSC 3.58, NTSC 4.43, WIFI DONGLE NO
Colour System 3D GLASSES NO
PAL, SECAM
32. PICTURE
Display Resolution Full HD 1080 (1920 x 1080)
Dual Processing
Video Processing SRVe
Contrast Ratio 30,00,000 : 1
Screen Format 16:9, 4:3, Zoom 1, Zoom 2, Auto
Picture Mode Vivid, Cinema, Sport, News, Normal
Flesh Tone Adjust Off, Low, Medium, High
Noise Reduction Off, Low, Medium, High
Display Color 16.7 Million
DNR
AUDIO
Audio Output Power ( RMS ) 300 W PMPO
Sound Modes Movie, Music, Flat, Normal
Surround Yes
Equalizer Yes
Woofer -
CONNECTIVITY
HDMI™ 2
USB 2.0 3
Series I Tube Composite Video 1
Component Video (Y/Pb/Pr) 1
Model LEO32AFWIN RF Connection 1
Screen Size 32 ( 81 cm ) HD15 PC Input 1
Audio Out 1
Backlight Module SMART LED PC AUDIO IN 1
NTSC 3.58, NTSC BLUETOOTH/CONNECTIVITY ALLSYNC
Colour System
4.43, PAL, SECAM
33. EASE OF OPERATION
INTERNET MODE Yes
SURF ( Easy Channel Access ) Yes
iPLAYON ( USB Quick View ) Yes
USB Play Movie ( All Formats ), Music, Jpeg
Picture Freeze Yes
OSD Languages English/Arabic/Russian
Skip / Swap Yes
Fav Channel Sort Yes
Hotel Mode Optional
Wake Up Timer Yes
ASTHETICS
Design Metallic Finish with Diamond Cut
Color Scheme Black
Power Requirements 100-260 V AC, 50/60 Hz
Power Consumption 70 W
Dimensions ( L x W x D mm ) 748 x 152 x 510
Weight ( Kg ) 11
Series I Tube SUPPLIED ACCESSORIES
INSTRUCTION MANUAL Yes
Model LEO32AFWIN REMOTE HANDSET Qwerty Dual Sided remote
Screen Size 32 ( 81 cm ) BATTERY CELL Yes
Backlight Module SMART LED WIFI DONGLE YES
3D GLASSES NO
NTSC 3.58, NTSC
Colour System
4.43, PAL, SECAM
34. PICTURE
Display Resolution Full HD 1080 (1920 x 1080)
Dual Processing
Video Processing SRVe
Contrast Ratio 30,00,000 : 1
Screen Format 16:9, 4:3, Zoom 1, Zoom 2, Auto
Vivid, Cinema, Sport, News,
Picture Mode
Normal
Flesh Tone Adjust Off, Low, Medium, High
Noise Reduction Off, Low, Medium, High
Display Color 16.7 Million
DNR
AUDIO
Audio Output Power ( RMS )
300 W PMPO
Sound Modes Movie, Music, Flat, Normal
Surround Yes
Equalizer Yes
Woofer -
CONNECTIVITY
Series I Tube HDMI™ 2
Model LEO32AFIN3D USB 2.0 3
Composite Video 1
Screen Size 32 ( 81 cm ) Component Video (Y/Pb/Pr) 1
Backlight Module 3D SMART LED RF Connection 1
NTSC 3.58, NTSC 4.43, HD15 PC Input 1
Colour System Audio Out 1
PAL, SECAM PC AUDIO IN 1
BLUETOOTH/CONNECTIVI
TY ALLSYNC
35. EASE OF OPERATION
INTERNET MODE Yes
SURF ( Easy Channel Access ) Yes
iPLAYON ( USB Quick View ) Yes
USB Play Movie ( All Formats ), Music, Jpeg
Picture Freeze Yes
OSD Languages English/Arabic/Russian
Skip / Swap Yes
Fav Channel Sort Yes
Hotel Mode Optional
Wake Up Timer Yes
ASTHETICS
Design Metallic Finish with Diamond Cut
Color Scheme Black
Power Requirements 100-260 V AC, 50/60 Hz
Power Consumption 70 W
Dimensions ( L x W x D mm ) 748 x 152 x 510
Weight ( Kg ) 11
Series I Tube
SUPPLIED ACCESSORIES
Model LEO32AFIN3D
INSTRUCTION MANUAL Yes
Screen Size 32 ( 81 cm )
REMOTE HANDSET Qwerty Dual Sided remote
Backlight Module 3D SMART LED
BATTERY CELL Yes
NTSC 3.58, NTSC 4.43, PAL,
Colour System WIFI DONGLE YES
SECAM
3D GLASSES YES (4)
36. PICTURE
Display Resolution Full HD 1080 (1920 x 1080)
Dual Processing
Video Processing SRVe
Contrast Ratio 40,00,000 : 1
Screen Format 16:9, 4:3, Zoom 1, Zoom 2, Auto
Vivid, Cinema, Sport, News,
Picture Mode
Normal
Flesh Tone Adjust Off, Low, Medium, High
Noise Reduction Off, Low, Medium, High
Display Color 16.7 Million
DNR
AUDIO
Audio Output Power ( RMS
) 300 W PMPO
Sound Modes Movie, Music, Flat, Normal
Surround Yes
Equalizer Yes
Woofer -
CONNECTIVITY
HDMI™ 2
USB 2.0 3
Series I Tube Composite Video 1
Component Video (Y/Pb/Pr) 1
Model LEO40AFWIN RF Connection 1
HD15 PC Input 1
Screen Size 40" Audio Out 1
Backlight Module SMART LED PC AUDIO IN 1
BLUETOOTH/CONNECTI
NTSC 3.58, NTSC 4.43,
Colour System VITY ALLSYNC
PAL, SECAM
37. EASE OF OPERATION
INTERNET MODE Yes
SURF ( Easy Channel Access
) Yes
iPLAYON ( USB Quick
View ) Yes
Movie ( All Formats ), Music,
USB Play
Jpeg
Picture Freeze Yes
OSD Languages English/Arabic/Russian
Skip / Swap Yes
Fav Channel Sort Yes
Hotel Mode Optional
Wake Up Timer Yes
ASTHETICS
Metallic Finish with Diamond
Design
Cut
Color Scheme Black
Power Requirements 100-260 V AC, 50/60 Hz
Power Consumption 105 W
Dimensions ( L x W x D mm
Series I Tube ) 935 x 53 x 562
Weight ( Kg ) 16
Model LEO40AFWIN
Screen Size 40" SUPPLIED ACCESSORIES
INSTRUCTION MANUAL Yes
Backlight Module SMART LED REMOTE HANDSET Qwerty Dual Sided remote
NTSC 3.58, NTSC 4.43, BATTERY CELL Yes
Colour System WIFI DONGLE YES
PAL, SECAM 3D GLASSES NO
38. PICTURE
Display Resolution Full HD 1080 (1920 x 1080)
Dual Processing
Video Processing SRVe
Contrast Ratio 40,00,000 : 1
Screen Format 16:9, 4:3, Zoom 1, Zoom 2, Auto
Picture Mode Vivid, Cinema, Sport, News, Normal
Flesh Tone Adjust Off, Low, Medium, High
Noise Reduction Off, Low, Medium, High
Display Color 16.7 Million
DNR
AUDIO
Audio Output Power ( RMS ) 300 W PMPO
Sound Modes Movie, Music, Flat, Normal
Surround Yes
Equalizer Yes
Woofer -
CONNECTIVITY
HDMI™ 2
USB 2.0 3
Series I Tube Composite Video 1
Model LEO40AFIN3D Component Video (Y/Pb/Pr) 1
RF Connection 1
Screen Size 40"
HD15 PC Input 1
Backlight Module 3D SMART LED Audio Out 1
NTSC 3.58, NTSC 4.43, PAL, PC AUDIO IN 1
Colour System
SECAM BLUETOOTH/CONNECTIVIT
Y ALLSYNC
39. EASE OF OPERATION
INTERNET MODE Yes
SURF ( Easy Channel Access ) Yes
iPLAYON ( USB Quick View ) Yes
USB Play Movie ( All Formats ), Music, Jpeg
Picture Freeze Yes
OSD Languages English/Arabic/Russian
Skip / Swap Yes
Fav Channel Sort Yes
Hotel Mode Optional
Wake Up Timer Yes
ASTHETICS
Design Metallic Finish with Diamond Cut
Color Scheme Black
Power Requirements 100-260 V AC, 50/60 Hz
Power Consumption 105 W
Dimensions ( L x W x D mm ) 935 x 53 x 562
Weight ( Kg ) 16
Series I Tube SUPPLIED ACCESSORIES
Model LEO40AFIN3D INSTRUCTION MANUAL Yes
REMOTE HANDSET Qwerty Dual Sided remote
Screen Size 40"
BATTERY CELL Yes
Backlight Module 3D SMART LED WIFI DONGLE YES
NTSC 3.58, NTSC 4.43, PAL, 3D GLASSES YES (2)
Colour System
SECAM
41. Step 1- Press the Power button
On doing step 1 & 2
You get the below
on screen
Step 2- Press the Source Button
42. Step 3- Press the down button till you get internet on source page (see pic).
Press an ok
On TV display after doing step1,2& 3
43. Step 4-When Ok button is pressed , you get the interface page . Go to setting
On TV display after pressing OK
44. Step 5 – In setting go to welcome set up and press ok on remote(see Image below)
45. Step 6 – When the ok is entered in step 5..you get the below image on screen.Again
Press ok.
46. Step 7 – When the ok is entered in step 6..you get the below image on screen . Again
Press ok.
47. Step 8 – When the ok is entered in step 7..you get the below image on screen . Again
Press ok a nd select English as your preferred language.
48. Step 9 – When the ok is entered in step 8 ..you get the below image on screen . Again
Press ok and select Ethernet Network(LAN) as your preferred network connection.
If the connection is DHCP(Dynamic Host configuration protocol you get a message
On screen that its connected . If the connection is not DHCP one has to set manually
Which is going to the next step .Press an ok and go to next step
49. Step 10 – When the ok is entered in step 9..you get the below image on screen. Enter
The IP address, sub net mask, DNS server & default gateway and then press Done.
50. Step 11 – When the ok is entered in step 10..you get the below image on screen.(A). Select
Time Zone and enter OK. You get as complete status as shown in screen B
A B
51. Step 12 – The Ethernet is connected. On the interface page you get the below symbol
As shown below….You can start surfing now
53. Insert The Dongle in the top 2 slots(either of them).Please do not insert it in
The bottom slot and follow the steps explained after these slides
54. Step 1- Press the Power button
On doing step 1 & 2
You get the below
on screen
Step 2- Press the Source Button
55. Step 3- Press the down button till you get internet on source page (see pic).
Press an ok
On TV display after doing step1,2& 3
56. Step 4-When Ok button is pressed , you get the interface page . Go to setting
On TV display after pressing OK
57. Step 5 – In setting go to welcome set up and press ok on remote(see Image below)
58. Step 6 – When the ok is entered in step 5..you get the below image on screen.Again
Press ok.
59. Step 7 – When the ok is entered in step 6..you get the below image on screen . Again
Press ok.
60. Step 8 – When the ok is entered in step 7..you get the below image on screen . Again
Press ok a nd select English as your preferred language.
61. Step 9 – When the ok is entered in step 8 ..you get the below image on screen . Again
Press ok and select Wi Fias your preferred network connection.
62. Step 10 – When the ok is entered in step 9 ..you get the below image on screen . Again
Press ok and select Add Wi Fi as your preferred network connection.
When you do that you get the various network names. Select your network and start.
63. Step 12 – The Wi FI is connected. On the interface page you get the below symbol
As shown below….You can start surfing now
