1. Scale-Out ccNUMA:
Exploiting Skew with Strongly Consistent Caching
Antonios Katsarakis*, Vasilis Gavrielatos*,
A. Joshi, N. Oswald, B. Grot, V. Nagarajan
The University of Edinburgh
This work was supported by EPSRC, ARM and Microsoft through their PhD Fellowship Programs
*The first two authors equally contribute to this work

2. Large-scale online services
2

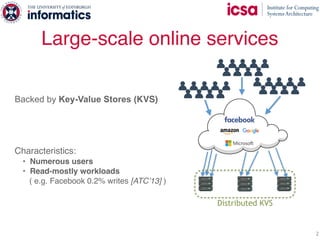

Backed by Key-Value Stores (KVS)
Characteristics:
• Numerous users
• Read-mostly workloads
( e.g. Facebook 0.2% writes [ATC’13] )
Distributed KVS

3. KVS Performance 101
3

4. …
KVS Performance 101
4

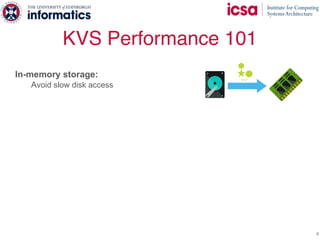

In-memory storage:
Avoid slow disk access

5. … … …
…
KVS Performance 101
5
In-memory storage:
Avoid slow disk access
Partitioning:
• Shard the dataset across multiple nodes
• Enables high capacity in-memory storage

6. … … …
…
KVS Performance 101
6
In-memory storage:
Avoid slow disk access
Partitioning:
• Shard the dataset across multiple nodes
• Enables high capacity in-memory storage
Remote Direct Memory Access (RDMA):
Avoid costly TCP/IP processing via
• Kernel bypass
• H/w network stack processing

7. … … …
…

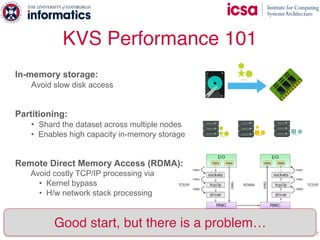

KVS Performance 101
7
In-memory storage:
Avoid slow disk access
Partitioning:
• Shard the dataset across multiple nodes
• Enables high capacity in-memory storage
Remote Direct Memory Access (RDMA):
Avoid costly TCP/IP processing via
• Kernel bypass
• H/w network stack processing
Good start, but there is a problem…

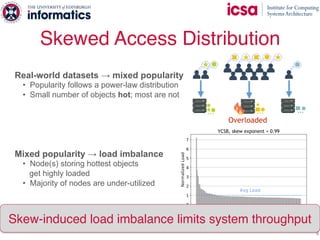

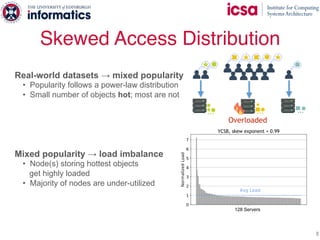

8. Skewed Access Distribution
8
Real-world datasets → mixed popularity
• Popularity follows a power-law distribution
• Small number of objects hot; most are not
Mixed popularity → load imbalance
• Node(s) storing hottest objects
get highly loaded
• Majority of nodes are under-utilized
128 Servers
… … …
Overloaded
YCSB, skew exponent = 0.99

9. Skewed Access Distribution
9
Real-world datasets → mixed popularity
• Popularity follows a power-law distribution
• Small number of objects hot; most are not
Mixed popularity → load imbalance
• Node(s) storing hottest objects
get highly loaded
• Majority of nodes are under-utilized
128 Servers
… … …
Overloaded
YCSB, skew exponent = 0.99
Skew-induced load imbalance limits system throughput

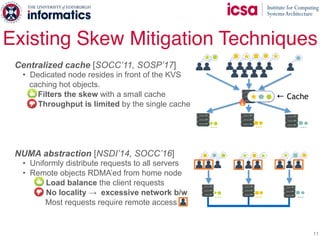

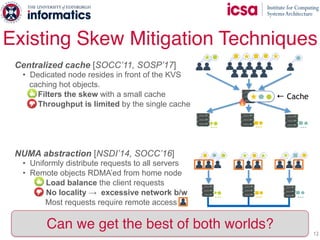

10. Centralized cache [SOCC’11, SOSP’17]
• Dedicated node resides in front of the KVS
caching hot objects.
◦ Filters the skew with a small cache
◦ Throughput is limited by the single cache
Existing Skew Mitigation Techniques
10
… … …
← Cache

11. Centralized cache [SOCC’11, SOSP’17]
• Dedicated node resides in front of the KVS
caching hot objects.
◦ Filters the skew with a small cache
◦ Throughput is limited by the single cache
NUMA abstraction [NSDI’14, SOCC’16]
• Uniformly distribute requests to all servers
• Remote objects RDMA’ed from home node
◦ Load balance the client requests
◦ No locality → excessive network b/w
Most requests require remote access
Existing Skew Mitigation Techniques
11
… … …
… … …
← Cache

12. Centralized cache [SOCC’11, SOSP’17]
• Dedicated node resides in front of the KVS
caching hot objects.
◦ Filters the skew with a small cache
◦ Throughput is limited by the single cache
NUMA abstraction [NSDI’14, SOCC’16]
• Uniformly distribute requests to all servers
• Remote objects RDMA’ed from home node
◦ Load balance the client requests
◦ No locality → excessive network b/w
Most requests require remote access
Existing Skew Mitigation Techniques
12
… … …
… … …
Can we get the best of both worlds?
← Cache

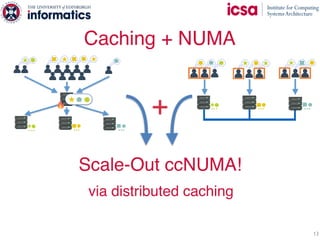

13. 13
Caching + NUMA
… … …
+
Scale-Out ccNUMA!
… … …
via distributed caching

14. 14

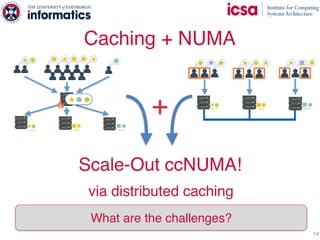

Caching + NUMA
… … …
+
Scale-Out ccNUMA!
What are the challenges?
… … …
via distributed caching

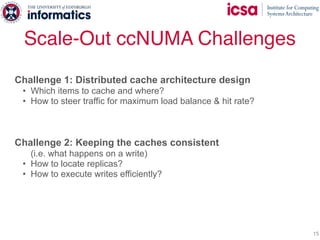

15. Scale-Out ccNUMA Challenges
15
Challenge 1: Distributed cache architecture design
• Which items to cache and where?
• How to steer traffic for maximum load balance & hit rate?
Challenge 2: Keeping the caches consistent
(i.e. what happens on a write)
• How to locate replicas?
• How to execute writes efficiently?

16. Scale-Out ccNUMA Challenges
16
Challenge 1: Distributed cache architecture design
• Which items to cache and where?
• How to steer traffic for maximum load balance & hit rate?
Challenge 2: Keeping the caches consistent
(i.e. what happens on a write)
• How to locate replicas?
• How to execute writes efficiently?
Solving Challenge 1 with Symmetric Caching

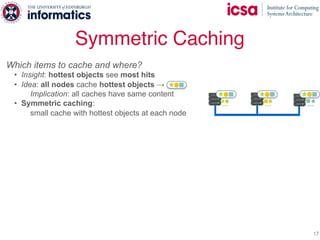

17. 17
Which items to cache and where?
• Insight: hottest objects see most hits
• Idea: all nodes cache hottest objects →
Implication: all caches have same content
• Symmetric caching:
small cache with hottest objects at each node
How to steer traffic for maximum load balance and hit rate?
• Insight: symmetric caching → all caches equal (highest) hit rate
• Idea: uniformly spread requests
• Requests for hottest objects → served locally on any node
• Cache misses served as in NUMA Abstraction
Benefits:
• Load balances and filters the skew
• Throughput scales with number of servers
• Less network b/w: most requests are served locally
Symmetric Caching
… … …

18. 18
Which items to cache and where?
• Insight: hottest objects see most hits
• Idea: all nodes cache hottest objects →
Implication: all caches have same content
• Symmetric caching:
small cache with hottest objects at each node
How to steer traffic for maximum load balance and hit rate?
• Insight: symmetric caching → all caches equal (highest) hit rate
• Idea: uniformly spread requests
• Requests for hottest objects → served locally on any node
• Cache misses served as in NUMA abstraction
Benefits:
• Load balances and filters the skew
• Throughput scales with number of servers
• Less network b/w: most requests are served locally
Symmetric Caching
… … …

19. 19
Which items to cache and where?
• Insight: hottest objects see most hits
• Idea: all nodes cache hottest objects →
Implication: all caches have same content
• Symmetric caching:
small cache with hottest objects at each node
How to steer traffic for maximum load balance and hit rate?
• Insight: symmetric caching → all caches equal (highest) hit rate
• Idea: uniformly spread requests
• Requests for hottest objects → served locally on any node
• Cache misses served as in NUMA abstraction
Benefits:
• Load balances and filters the skew
• Throughput scales with number of servers
• Less network b/w: most requests are served locally
Symmetric Caching
… … …

20. 20
Which items to cache and where?
• Insight: hottest objects see most hits
• Idea: all nodes cache hottest objects →
Implication: all caches have same content
• Symmetric caching:
small cache with hottest objects at each node
How to steer traffic for maximum load balance and hit rate?
• Insight: symmetric caching → all caches equal (highest) hit rate
• Idea: uniformly spread requests
• Requests for hottest objects → served locally on any node
• Cache misses served as in NUMA abstraction
Benefits:
• Load balances and filters the skew
• Throughput scales with number of servers
• Less network b/w: most requests are served locally
Symmetric Caching
… … …
Challenge 2: How to keep the caches consistent?

21. Keeping the caches consistent
21
Requirement:
On a write, inform all replicas of the new value
How to locate replicas?
- Easy with Symmetric Caching!
If object in local cache → all nodes cache it

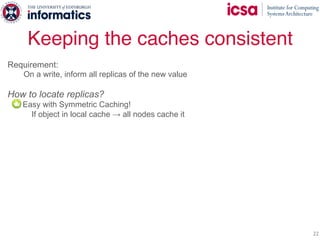

22. Keeping the caches consistent
22
Requirement:
On a write, inform all replicas of the new value
How to locate replicas?
- Easy with Symmetric Caching!
If object in local cache → all nodes cache it

23. Keeping the caches consistent
23
Requirement:
On a write, inform all replicas of the new value
How to locate replicas?
- Easy with Symmetric Caching!
If object in local cache → all nodes cache it
How to execute writes efficiently?
• Typical protocols:
◦ Ensure global write ordering via a primary
◦ Primary executes all writes → hot-spot Primary executes all writes
Write( )Write( )
Primary

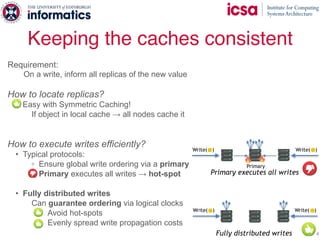

24. Keeping the caches consistent
24
Requirement:
On a write, inform all replicas of the new value
How to locate replicas?
- Easy with Symmetric Caching!
If object in local cache → all nodes cache it
How to execute writes efficiently?
• Typical protocols:
◦ Ensure global write ordering via a primary
◦ Primary executes all writes → hot-spot
• Fully distributed writes
Can guarantee ordering via logical clocks
Avoid hot-spots
Evenly spread write propagation costs
Primary executes all writes
Write( )Write( )
Primary
Fully distributed writes
Write( ) Write( )

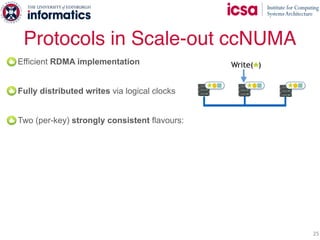

25. Protocols in Scale-out ccNUMA
25
Efficient RDMA implementation
Fully distributed writes via logical clocks
Two (per-key) strongly consistent flavours:
Write( )

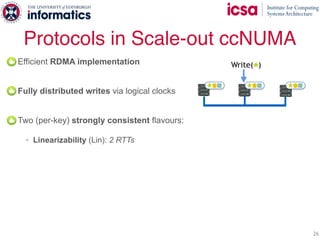

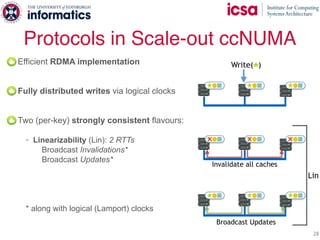

26. Protocols in Scale-out ccNUMA
26
Efficient RDMA implementation
Fully distributed writes via logical clocks
Two (per-key) strongly consistent flavours:
◦ Linearizability (Lin): 2 RTTs
Write( )

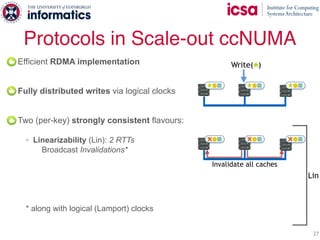

27. Protocols in Scale-out ccNUMA
27
Efficient RDMA implementation
Fully distributed writes via logical clocks
Two (per-key) strongly consistent flavours:
◦ Linearizability (Lin): 2 RTTs
Broadcast Invalidations*
* along with logical (Lamport) clocks
Lin
Invalidate all caches
Write( )

28. Protocols in Scale-out ccNUMA
28
Efficient RDMA implementation
Fully distributed writes via logical clocks
Two (per-key) strongly consistent flavours:
◦ Linearizability (Lin): 2 RTTs
Broadcast Invalidations*
Broadcast Updates*
* along with logical (Lamport) clocks
Lin
Invalidate all caches
Write( )
Broadcast Updates

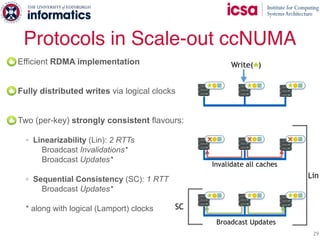

29. Protocols in Scale-out ccNUMA
29
Efficient RDMA implementation
Fully distributed writes via logical clocks
Two (per-key) strongly consistent flavours:
◦ Linearizability (Lin): 2 RTTs
Broadcast Invalidations*
Broadcast Updates*
◦ Sequential Consistency (SC): 1 RTT
Broadcast Updates*
* along with logical (Lamport) clocks
Lin
SC
Invalidate all caches
Write( )
Broadcast Updates

30. Evaluation
30
Hardware setup: 9 nodes
• 56Gb/s FDR InfiniBand NIC
• 64GB DRAM
• 2x 10 core CPUs - 25MB L3
KVS Workload:
• Skew exponent: α = 0.99 (YCSB)
• 250 M key-value pairs - (Key = 8B, Value = 40B)
Evaluated systems:
• Baseline: NUMA abstraction (state-of-the-art)
• Scale-out ccNUMA
• Per-node symmetric cache size: 0.1% of dataset

31. Performance
31

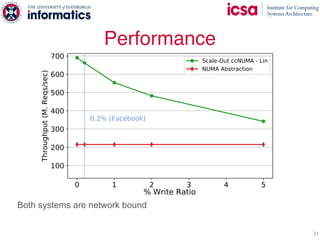

Both systems are network bound

32. Performance
32
>3χ
Both systems are network bound
Lin: >3x throughput at low write ratio

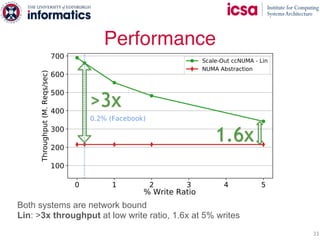

33. Performance
33
>3χ
1.6χ
Both systems are network bound
Lin: >3x throughput at low write ratio, 1.6x at 5% writes

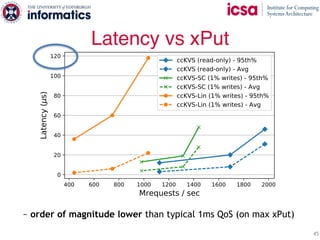

34. 2.2χ
Performance
34
Both systems are network bound
Lin: >3x throughput at low write ratio, 1.6x at 5% writes
SC: higher throughput at higher write ratios: 2.2x at 5% writes
>3χ
1.6χ

35. Conclusion
35

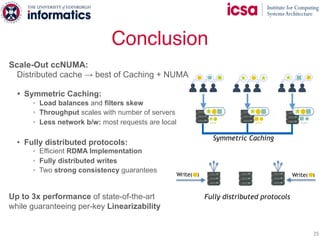

Scale-Out ccNUMA:
Distributed cache → best of Caching + NUMA
• Symmetric Caching:
◦ Load balances and filters skew
◦ Throughput scales with number of servers
◦ Less network b/w: most requests are local
• Fully distributed protocols:
◦ Efficient RDMA Implementation
◦ Fully distributed writes
◦ Two strong consistency guarantees
Up to 3x performance of state-of-the-art
while guaranteeing per-key Linearizability
Symmetric Caching
Fully distributed protocols
Write( ) Write( )
… … …

36. Questions?
36

37. Backup Slides
37

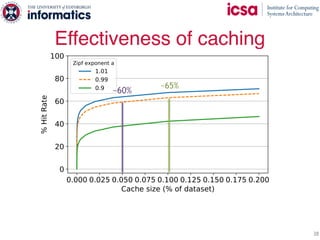

38. Effectiveness of caching
38
~65%
~60%

39. Read-only (varying skew)
39

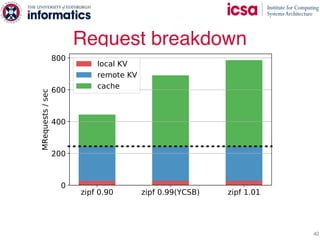

40. Request breakdown
40

41. Network traffic
41

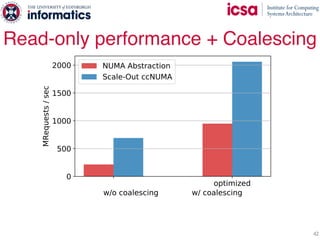

42. Read-only performance + Coalescing
42

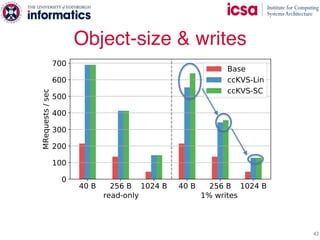

43. Object-size & writes
43

44. Object-size & coalescing
44

45. Latency vs xPut
45
~ order of magnitude lower than typical 1ms QoS (on max xPut)

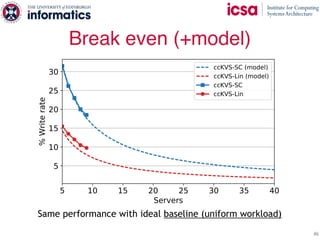

46. Break even (+model)
46
Same performance with ideal baseline (uniform workload)

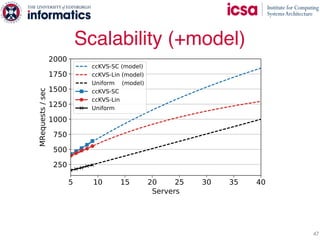

47. Scalability (+model)
47
