1. Hermes
A Fast, Fault-tolerant and Linearizable
Replication Protocol
Antonios Katsarakis, V. Gavrielatos, S. Katebzadeh,
A. Joshi*, B. Grot, V. Nagarajan, A. Dragojevic†
University of Edinburgh, *Intel, †Microsoft Research
hermes-protocol.com
Thanks to:

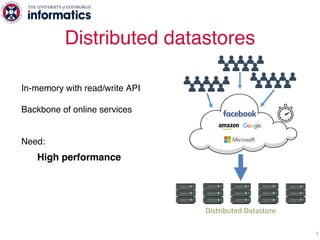

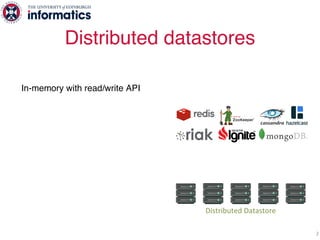

2. In-memory with read/write API
Backbone of online services
Need:
High performance
Fault tolerance
Distributed datastores
2
Distributed Datastore

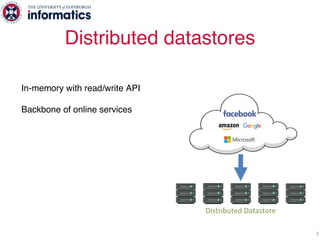

3. In-memory with read/write API
Backbone of online services
Need:
High performance
Fault tolerance
Distributed datastores
3
Distributed Datastore

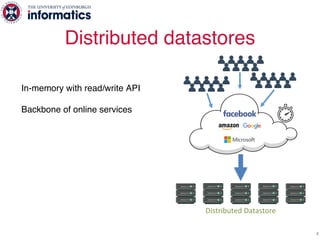

4. In-memory with read/write API
Backbone of online services
Need:
High performance
Fault tolerance
Distributed datastores
4
Distributed Datastore

5. In-memory with read/write API
Backbone of online services
Need:
High performance
Fault tolerance
Distributed datastores
5
Distributed Datastore

6. In-memory with read/write API
Backbone of online services
Need:
High performance
Fault tolerance
Distributed datastores
6
Distributed Datastore

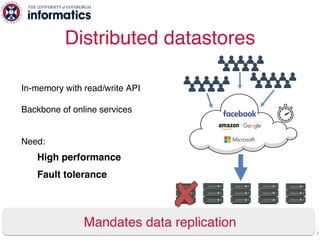

7. In-memory with read/write API
Backbone of online services
Need:
High performance
Fault tolerance
Distributed datastores
7
Distributed Datastore
Mandates data replication

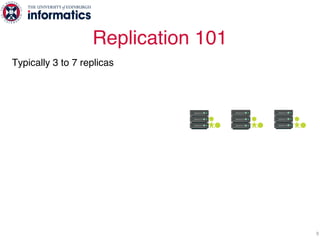

8. Typically 3 to 7 replicas
Consistency
Weak: performance but nasty surprises
Strong: programmable and intuitive
Reliable replication protocols
• Strong consistency even under faults
• Define actions to execute reads & writes
à these determine a datastore’s performance
Replication 101
9
…… … …

9. Typically 3 to 7 replicas
Consistency
Weak: performance but nasty surprises
Strong: programmable and intuitive
Reliable replication protocols
• Strong consistency even under faults
• Define actions to execute reads & writes
à these determine a datastore’s performance
Replication 101
10
…… … …

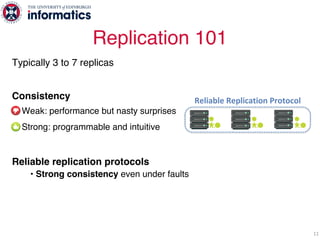

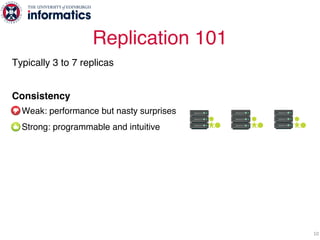

10. Typically 3 to 7 replicas
Consistency
Weak: performance but nasty surprises
Strong: programmable and intuitive
Reliable replication protocols
• Strong consistency even under faults
• Define actions to execute reads & writes
à these determine a datastore’s performance
Replication 101
11
…… … …
Reliable Replication Protocol

11. Typically 3 to 7 replicas
Consistency
Weak: performance but nasty surprises
Strong: programmable and intuitive
Reliable replication protocols
• Strong consistency even under faults
• Define actions to execute reads & writes
à these determine a datastore’s performance
Replication 101
12
…… … …
Reliable Replication Protocol

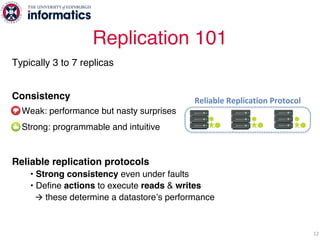

12. Typically 3 to 7 replicas
Consistency
Weak: performance but nasty surprises
Strong: programmable and intuitive
Reliable replication protocols
• Strong consistency even under faults
• Define actions to execute reads & writes
à these determine a datastore’s performance
Replication 101
13
Can reliable protocols provide high performance?
…… … …
Reliable Replication Protocol

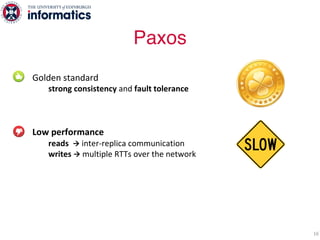

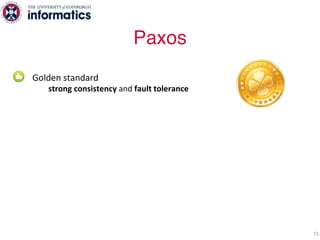

13. Golden standard
strong consistency and fault tolerance
Low performance
reads à inter-replica communication
writes à multiple RTTs over the network
Common-case performance (i.e., no faults)
as bad as worst-case (under faults)
15
Paxos

14. Golden standard
strong consistency and fault tolerance
Low performance
reads à inter-replica communication
writes à multiple RTTs over the network
Common-case performance (i.e., no faults)
as bad as worst-case (under faults)
16
Paxos

15. Golden standard
strong consistency and fault tolerance
Low performance
reads à inter-replica communication
writes à multiple RTTs over the network
Common-case performance (i.e., no faults)
as bad as worst-case (under faults)
17
Paxos

16. Golden standard
strong consistency and fault tolerance
Low performance
reads à inter-replica communication
writes à multiple RTTs over the network
Common-case performance (i.e., no faults)
as bad as worst-case (under faults)
18
Paxos
State-of-the-art reliable protocols exploit
failure-free operation for performance

17. 20
Performance of state-of-the-art protocols
Leader
ZAB
replicas

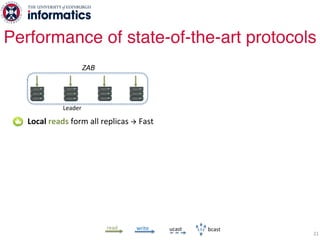

18. 21
Performance of state-of-the-art protocols
Leader
ZAB
writeread bcastucast
Local reads form all replicas à Fast

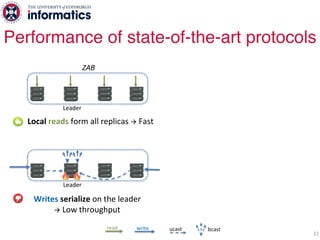

19. 22
Performance of state-of-the-art protocols
Leader
ZAB
Leader
Writes serialize on the leader
à Low throughput
writeread bcastucast
Local reads form all replicas à Fast

20. 23

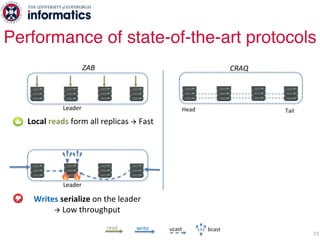

Performance of state-of-the-art protocols
Leader
ZAB
Leader
Writes serialize on the leader
à Low throughput
Head Tail
CRAQ
writeread bcastucast
Local reads form all replicas à Fast

21. 24
Performance of state-of-the-art protocols
Leader
ZAB
Leader
Writes serialize on the leader
à Low throughput
Head Tail
CRAQ
writeread bcastucast
Local reads form all replicas à Fast Local reads form all replicas à Fast

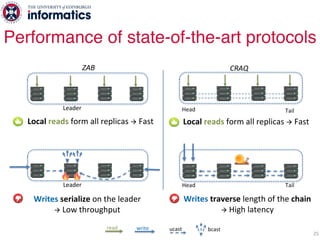

22. 25
Performance of state-of-the-art protocols
Leader
ZAB
Leader
Writes serialize on the leader
à Low throughput
Head Tail
CRAQ
Head Tail
Writes traverse length of the chain
à High latency
writeread bcastucast
Local reads form all replicas à Fast Local reads form all replicas à Fast

23. 26

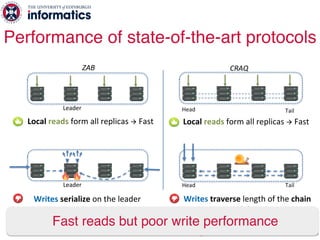

Performance of state-of-the-art protocols
Leader
ZAB
Leader
Writes serialize on the leader
à Low throughput
Head Tail
CRAQ
Head Tail
Writes traverse length of the chain
à High latency
writeread bcastucast
Fast reads but poor write performance
Local reads form all replicas à Fast Local reads form all replicas à Fast

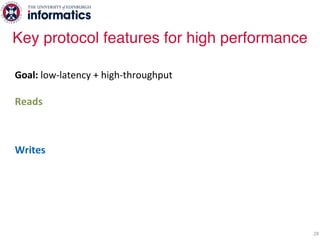

24. 28
Goal: low-latency + high-throughput
Reads
Local from all replicas
Writes
Fast
- Minimize network hops
Decentralized
- No serialization points
Fully concurrent
- Any replica can service a write
Key protocol features for high performance

25. 29

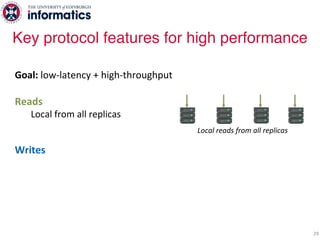

Goal: low-latency + high-throughput
Reads
Local from all replicas
Writes
Fast
- Minimize network hops
Decentralized
- No serialization points
Fully concurrent
- Any replica can service a write
Key protocol features for high performance
Local reads from all replicas

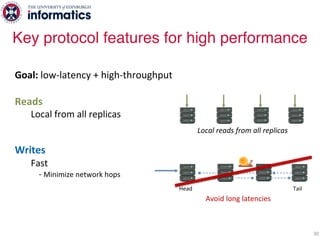

26. 30
Goal: low-latency + high-throughput
Reads
Local from all replicas
Writes
Fast
- Minimize network hops
Decentralized
- No serialization points
Fully concurrent
- Any replica can service a write
Key protocol features for high performance
Local reads from all replicas
Head Tail
Avoid long latencies

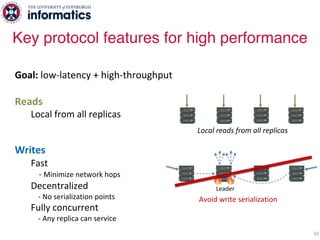

27. 32
Goal: low-latency + high-throughput
Reads
Local from all replicas
Writes
Fast
- Minimize network hops
Decentralized
- No serialization points
Fully concurrent
- Any replica can service a write
Leader
Avoid write serialization
Key protocol features for high performance
Local reads from all replicas

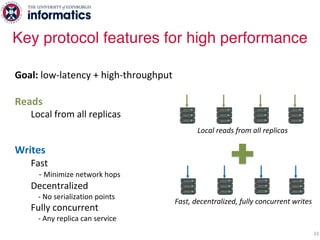

28. 33
Goal: low-latency + high-throughput
Reads
Local from all replicas
Writes
Fast
- Minimize network hops
Decentralized
- No serialization points
Fully concurrent
- Any replica can service a write
Key protocol features for high performance
Local reads from all replicas
Fast, decentralized, fully concurrent writes

29. 34
Goal: low-latency + high-throughput
Reads
Local from all replicas
Writes
Fast
- Minimize network hops
Decentralized
- No serialization points
Fully concurrent
- Any replica can service a write
Key protocol features for high performance
Local reads from all replicas
Fast, decentralized, fully concurrent writes
Existing replication protocols are deficient

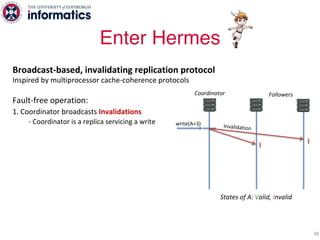

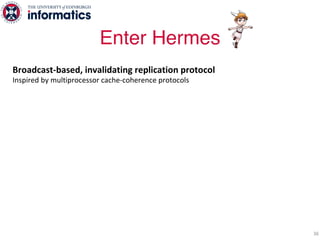

30. Broadcast-based, invalidating replication protocol
Inspired by multiprocessor cache-coherence protocols
Fault-free operation:
1. Coordinator broadcasts Invalidations
- Coordinator is a replica servicing a write
Enter Hermes
36

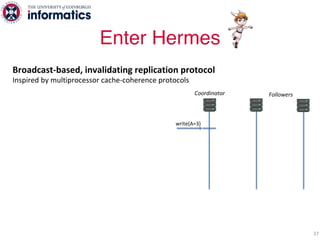

31. Broadcast-based, invalidating replication protocol
Inspired by multiprocessor cache-coherence protocols
Fault-free operation:
1. Coordinator broadcasts Invalidations
- Coordinator is a replica servicing a write
Enter Hermes
37
write(A=3)
Coordinator Followers

32. Broadcast-based, invalidating replication protocol
Inspired by multiprocessor cache-coherence protocols
Fault-free operation:
1. Coordinator broadcasts Invalidations
- Coordinator is a replica servicing a write
Enter Hermes
38
States of A: Valid, Invalid
write(A=3)
Coordinator Followers
I
Invalidation
I

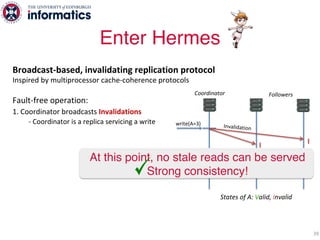

33. Broadcast-based, invalidating replication protocol
Inspired by multiprocessor cache-coherence protocols
Fault-free operation:
1. Coordinator broadcasts Invalidations
- Coordinator is a replica servicing a write
Enter Hermes
39
States of A: Valid, Invalid
write(A=3)
Coordinator Followers
At this point, no stale reads can be served
Strong consistency!
I
Invalidation
I

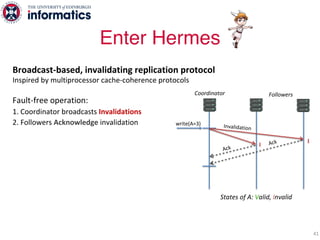

34. Broadcast-based, invalidating replication protocol
Inspired by multiprocessor cache-coherence protocols
Fault-free operation:
1. Coordinator broadcasts Invalidations
2. Followers Acknowledge invalidation
3. Coordinator broadcasts Validations
- All replicas can now serve reads for this object
Strongest consistency Linearizability
Local reads from all replicas
à valid objects = latest value
Enter Hermes
41
States of A: Valid, Invalid
write(A=3)
Coordinator Followers
Ack
Ack
I
Invalidation
I

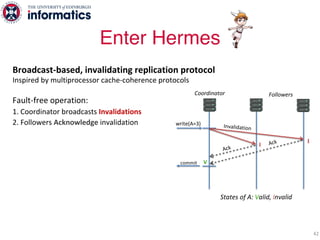

35. Broadcast-based, invalidating replication protocol
Inspired by multiprocessor cache-coherence protocols
Fault-free operation:
1. Coordinator broadcasts Invalidations
2. Followers Acknowledge invalidation
3. Coordinator broadcasts Validations
- All replicas can now serve reads for this object
Strongest consistency Linearizability
Local reads from all replicas
à valid objects = latest value
Enter Hermes
42
States of A: Valid, Invalid
write(A=3)
Coordinator Followers
Ack
Ack
I
Invalidation
I
Vcommit

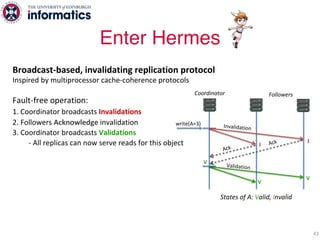

36. Broadcast-based, invalidating replication protocol
Inspired by multiprocessor cache-coherence protocols
Fault-free operation:
1. Coordinator broadcasts Invalidations
2. Followers Acknowledge invalidation
3. Coordinator broadcasts Validations
- All replicas can now serve reads for this object
Strongest consistency Linearizability
Local reads from all replicas
à valid objects = latest value
Enter Hermes
43
States of A: Valid, Invalid
write(A=3)
Coordinator Followers
V
Validation
V
Ack
Ack
I
Invalidation
I
V

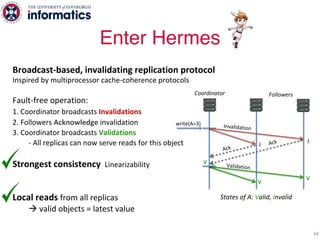

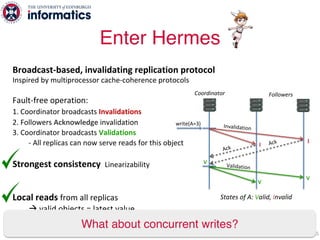

37. Broadcast-based, invalidating replication protocol
Inspired by multiprocessor cache-coherence protocols
Fault-free operation:
1. Coordinator broadcasts Invalidations
2. Followers Acknowledge invalidation
3. Coordinator broadcasts Validations
- All replicas can now serve reads for this object
Strongest consistency Linearizability
Local reads from all replicas
à valid objects = latest value
Enter Hermes
44
States of A: Valid, Invalid
write(A=3)
Coordinator Followers
V
Validation
V
Ack
Ack
I
Invalidation
I
V

38. Broadcast-based, invalidating replication protocol
Inspired by multiprocessor cache-coherence protocols
Fault-free operation:
1. Coordinator broadcasts Invalidations
2. Followers Acknowledge invalidation
3. Coordinator broadcasts Validations
- All replicas can now serve reads for this object
Strongest consistency Linearizability
Local reads from all replicas
à valid objects = latest value
Enter Hermes
45
States of A: Valid, Invalid
write(A=3)
Coordinator Followers
What about concurrent writes?
V
Validation
V
Ack
Ack
I
Invalidation
I
V

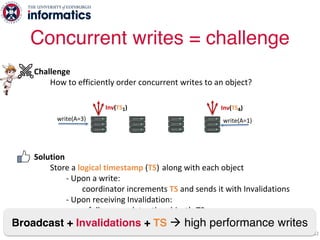

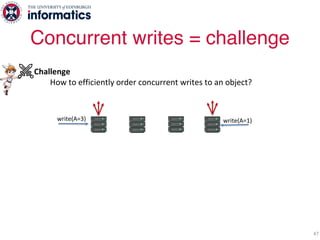

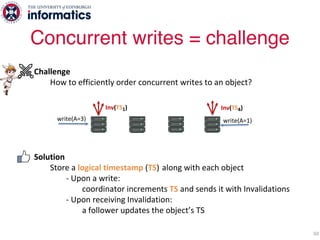

39. Challenge
How to efficiently order concurrent writes to an object?
Solution
Store a logical timestamp (TS) along with each object
- Upon a write:
coordinator increments TS and sends it with Invalidations
- Upon receiving Invalidation:
a follower updates the object’s TS
- When two writes to the same object race:
use node ID to order them
Concurrent writes = challenge
47
write(A=3) write(A=1)

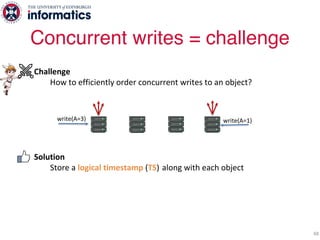

40. Challenge
How to efficiently order concurrent writes to an object?
Solution
Store a logical timestamp (TS) along with each object
- Upon a write:
coordinator increments TS and sends it with Invalidations
- Upon receiving Invalidation:
a follower updates the object’s TS
- When two writes to the same object race:
use node ID to order them
Concurrent writes = challenge
48
write(A=3) write(A=1)

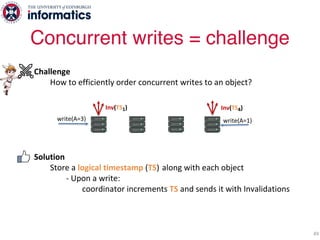

41. Challenge
How to efficiently order concurrent writes to an object?
Solution
Store a logical timestamp (TS) along with each object
- Upon a write:
coordinator increments TS and sends it with Invalidations
- Upon receiving Invalidation:
a follower updates the object’s TS
- When two writes to the same object race:
use node ID to order them
Concurrent writes = challenge
49
write(A=3) write(A=1)
Inv(TS1) Inv(TS4)

42. Challenge
How to efficiently order concurrent writes to an object?
Solution
Store a logical timestamp (TS) along with each object
- Upon a write:
coordinator increments TS and sends it with Invalidations
- Upon receiving Invalidation:
a follower updates the object’s TS
- When two writes to the same object race:
use node ID to order them
Concurrent writes = challenge
50
write(A=3) write(A=1)
Inv(TS1) Inv(TS4)

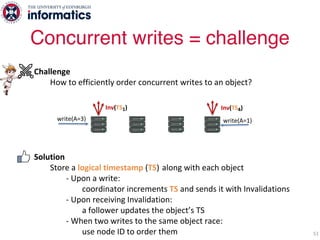

43. Challenge
How to efficiently order concurrent writes to an object?
Solution
Store a logical timestamp (TS) along with each object
- Upon a write:
coordinator increments TS and sends it with Invalidations
- Upon receiving Invalidation:
a follower updates the object’s TS
- When two writes to the same object race:
use node ID to order them
Concurrent writes = challenge
51
write(A=3) write(A=1)
Inv(TS1) Inv(TS4)

44. Challenge
How to efficiently order concurrent writes to an object?
Solution
Store a logical timestamp (TS) along with each object
- Upon a write:
coordinator increments TS and sends it with Invalidations
- Upon receiving Invalidation:
a follower updates the object’s TS
- When two writes to the same object race:
use node ID to order them
Concurrent writes = challenge
52
write(A=3) write(A=1)
Inv(TS1) Inv(TS4)
Broadcast + Invalidations + TS à high performance writes

45. 1. Decentralized
Fully distributed write ordering at endpoints
2. Fully concurrent
Any replica can coordinate a write
Writes to different objects proceed in parallel
3. Fast
Writes commit in 1 RTT
Writes never abort
Writes in Hermes
54
Broadcast + Invalidations + TS

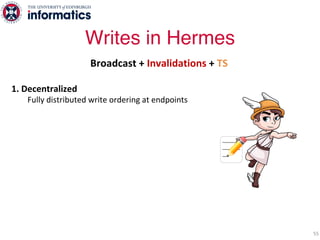

46. 1. Decentralized
Fully distributed write ordering at endpoints
2. Fully concurrent
Any replica can coordinate a write
Writes to different objects proceed in parallel
3. Fast
Writes commit in 1 RTT
Writes never abort
Writes in Hermes
55
Broadcast + Invalidations + TS

47. 1. Decentralized
Fully distributed write ordering at endpoints
2. Fully concurrent
Any replica can coordinate a write
Writes to different objects proceed in parallel
3. Fast
Writes commit in 1 RTT
Writes never abort
Writes in Hermes
56
Broadcast + Invalidations + TS

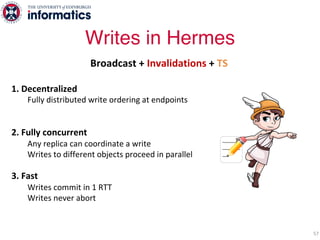

48. 1. Decentralized
Fully distributed write ordering at endpoints
2. Fully concurrent
Any replica can coordinate a write
Writes to different objects proceed in parallel
3. Fast
Writes commit in 1 RTT
Writes never abort
Writes in Hermes
57
Broadcast + Invalidations + TS

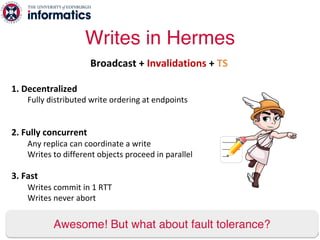

49. 1. Decentralized
Fully distributed write ordering at endpoints
2. Fully concurrent
Any replica can coordinate a write
Writes to different objects proceed in parallel
3. Fast
Writes commit in 1 RTT
Writes never abort
Writes in Hermes
58
Awesome! But what about fault tolerance?
Broadcast + Invalidations + TS

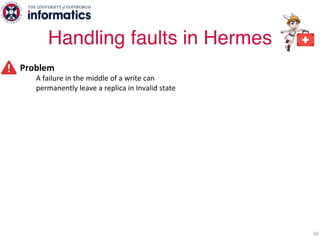

50. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Solution: send write value with Invalidation à Early value propagation
60
Handling faults in Hermes

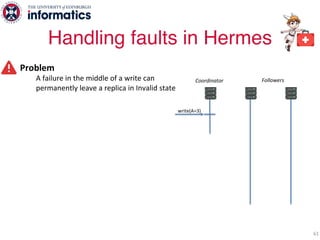

51. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Solution: send write value with Invalidation à Early value propagation
write(A=3)
Coordinator Followers
61
Handling faults in Hermes

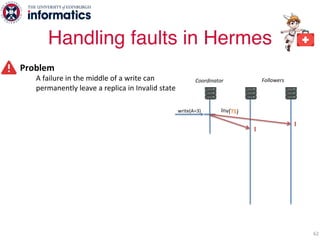

52. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Solution: send write value with Invalidation à Early value propagation
write(A=3)
Coordinator Followers
62
Handling faults in Hermes
Inv(TS)
I
I

53. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Solution: send write value with Invalidation à Early value propagation
write(A=3)
Coordinator Followers
63
Handling faults in Hermes
Inv(TS)
Coordinator
fails
I
I

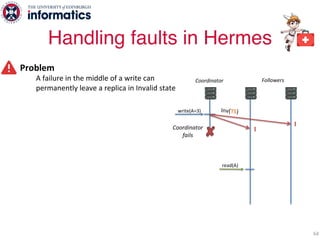

54. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Solution: send write value with Invalidation à Early value propagation
write(A=3)
Coordinator Followers
64
Handling faults in Hermes
read(A)
Inv(TS)
Coordinator
fails
I
I

55. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Solution: send write value with Invalidation à Early value propagation
write(A=3)
Coordinator Followers
65
Handling faults in Hermes
read(A)
Inv(TS)
Coordinator
fails
I
I

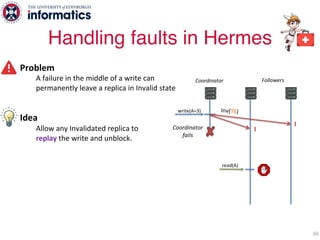

56. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Idea
Allow any Invalidated replica to
replay the write and unblock.
Solution: send write value with Invalidation à Early value propagation
write(A=3)
Coordinator Followers
66
Handling faults in Hermes
read(A)
Inv(TS)
Coordinator
fails
I
I

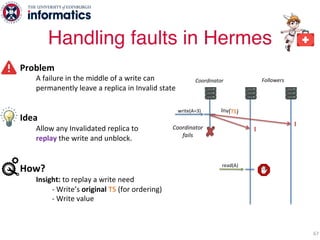

57. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Idea
Allow any Invalidated replica to
replay the write and unblock.
How?
Insight: to replay a write need
- Write’s original TS (for ordering)
- Write value
Solution: send write value with Invalidation à Early value propagation
write(A=3)
Coordinator Followers
67
Handling faults in Hermes
read(A)
Inv(TS)
Coordinator
fails
I
I

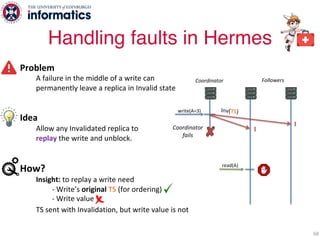

58. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Idea
Allow any Invalidated replica to
replay the write and unblock.
How?
Insight: to replay a write need
- Write’s original TS (for ordering)
- Write value
TS sent with Invalidation, but write value is not
Solution: send write value with Invalidation à Early value propagation
write(A=3)
Coordinator Followers
68
Handling faults in Hermes
read(A)
Inv(TS)
Coordinator
fails
I
I

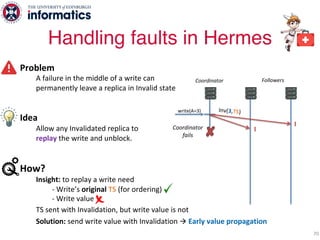

59. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Idea
Allow any Invalidated replica to
replay the write and unblock.
How?
Insight: to replay a write need
- Write’s original TS (for ordering)
- Write value
TS sent with Invalidation, but write value is not
Solution: send write value with Invalidation à Early value propagation
Handling faults in Hermes
70
Inv(3,TS)write(A=3)
Coordinator
fails
I
I
Coordinator Followers

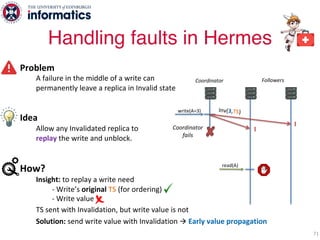

60. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Idea
Allow any Invalidated replica to
replay the write and unblock.
How?
Insight: to replay a write need
- Write’s original TS (for ordering)
- Write value
TS sent with Invalidation, but write value is not
Solution: send write value with Invalidation à Early value propagation
Handling faults in Hermes
71
Inv(3,TS)write(A=3)
read(A)
Coordinator
fails
I
I
Coordinator Followers

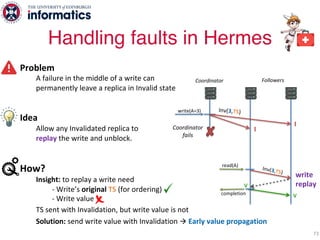

61. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Idea
Allow any Invalidated replica to
replay the write and unblock.
How?
Insight: to replay a write need
- Write’s original TS (for ordering)
- Write value
TS sent with Invalidation, but write value is not
Solution: send write value with Invalidation à Early value propagation
V
V
Inv(3,TS)
completion
write
replay
read(A)
Handling faults in Hermes
73
Inv(3,TS)write(A=3)
Coordinator
fails
I
I
Coordinator Followers

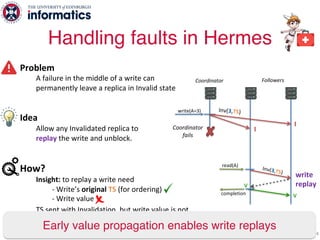

62. Problem
A failure in the middle of a write can
permanently leave a replica in Invalid state
Idea
Allow any Invalidated replica to
replay the write and unblock.
How?
Insight: to replay a write need
- Write’s original TS (for ordering)
- Write value
TS sent with Invalidation, but write value is not
Solution: send write value with Invalidation à Early value propagation
V
V
Inv(3,TS)
completion
write
replay
read(A)
Handling faults in Hermes
74
Inv(3,TS)write(A=3)
Early value propagation enables write replays
Coordinator
fails
I
I
Coordinator Followers

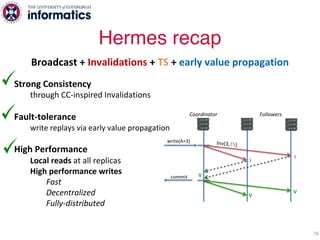

63. Strong Consistency
through CC-inspired Invalidations
Fault-tolerance
write replays via early value propagation
High Performance
Local reads at all replicas
High performance writes
Fast
Decentralized
Fully-distributed
Hermes recap
76
V
I
write(A=3)
commit
Coordinator Followers
Inv(3,TS)
V
I
V
Broadcast + Invalidations + TS + early value propagation

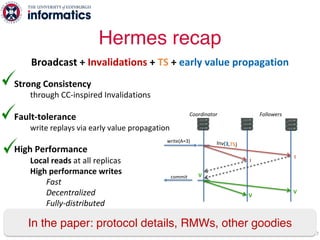

64. Strong Consistency
through CC-inspired Invalidations
Fault-tolerance
write replays via early value propagation
High Performance
Local reads at all replicas
High performance writes
Fast
Decentralized
Fully-distributed
Hermes recap
77
V
I
write(A=3)
commit
Coordinator Followers
Inv(3,TS)
V
I
V
Broadcast + Invalidations + TS + early value propagation
In the paper: protocol details, RMWs, other goodies

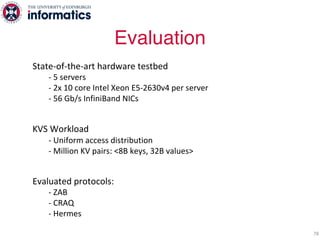

65. Evaluation
78
State-of-the-art hardware testbed
- 5 servers
- 2x 10 core Intel Xeon E5-2630v4 per server
- 56 Gb/s InfiniBand NICs
KVS Workload
- Uniform access distribution
- Million KV pairs: <8B keys, 32B values>
Evaluated protocols:
- ZAB
- CRAQ
- Hermes

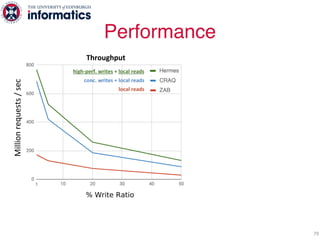

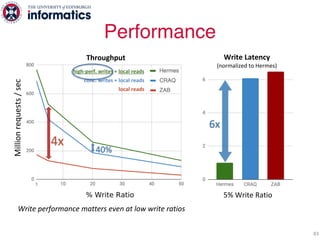

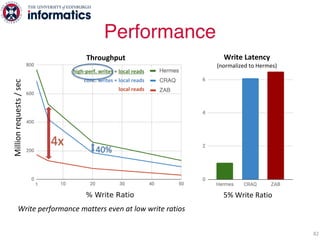

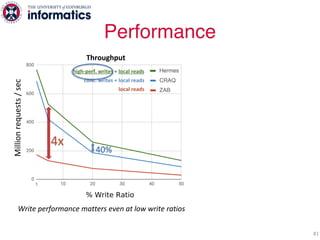

66. Performance
79
Throughput
high-perf. writes + local reads
conc. writes + local reads
local reads
Millionrequests/sec

67. Performance
80
Throughput
high-perf. writes + local reads
conc. writes + local reads
local reads
4x
40%
Millionrequests/sec

68. Performance
81
Throughput
high-perf. writes + local reads
conc. writes + local reads
local reads
4x
40%
Millionrequests/sec
Write performance matters even at low write ratios

69. Performance
82
Throughput
high-perf. writes + local reads
conc. writes + local reads
local reads
4x
40%
5% Write Ratio
Write Latency
(normalized to Hermes)
Millionrequests/sec
Write performance matters even at low write ratios

70. Performance
83
Throughput
high-perf. writes + local reads
conc. writes + local reads
local reads
4x
40%
5% Write Ratio
Write Latency
(normalized to Hermes)
Millionrequests/sec
Write performance matters even at low write ratios
6x

71. Performance
84
Throughput
high-perf. writes + local reads
conc. writes + local reads
local reads
4x
40%
5% Write Ratio
Write Latency
(normalized to Hermes)
Millionrequests/sec
Write performance matters even at low write ratios
6x
Hermes: highest throughput & lowest latency

72. Hermes
Broadcast + Invalidations + TS + early value propagation
Hermes-protocol.com
Code available
TLA+ verification
Q&A
Conclusion
86

73. Hermes
Broadcast + Invalidations + TS + early value propagation
Strong consistency
Fault tolerance via write replays
High performance
Local reads from all replicas
High performance writes
Fast
Decentralized
Fully concurrent
Hermes-protocol.com
Code available
TLA+ verification
Q&A
Conclusion
87

74. Hermes
Broadcast + Invalidations + TS + early value propagation
Strong consistency
Fault tolerance via write replays
High performance
Local reads from all replicas
High performance writes
Fast
Decentralized
Fully concurrent
Hermes-protocol.com
Code available
TLA+ verification
Q&A
Conclusion
88

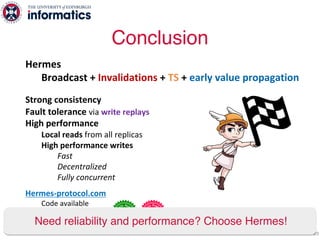

75. Hermes
Broadcast + Invalidations + TS + early value propagation
Strong consistency
Fault tolerance via write replays
High performance
Local reads from all replicas
High performance writes
Fast
Decentralized
Fully concurrent
Hermes-protocol.com
Code available
TLA+ verification
Q&A
Conclusion
89
Need reliability and performance? Choose Hermes!
