Slides from the on-demand webcast (showcasing customer Cirrity). Learn how NetApp® clustered Data ONTAP® 8.2 can help you scale multiple workloads on a single unified storage platform with support for multiple protocols such as SMB 3.0 and pNFS, and scale the performance of all of your applications, whether on SAN or NAS infrastructure.

1. Start Small, Grow Big with
a Unified Scale-out
Infrastructure
Clustered Data
ONTAP 8.2
Webcast
1

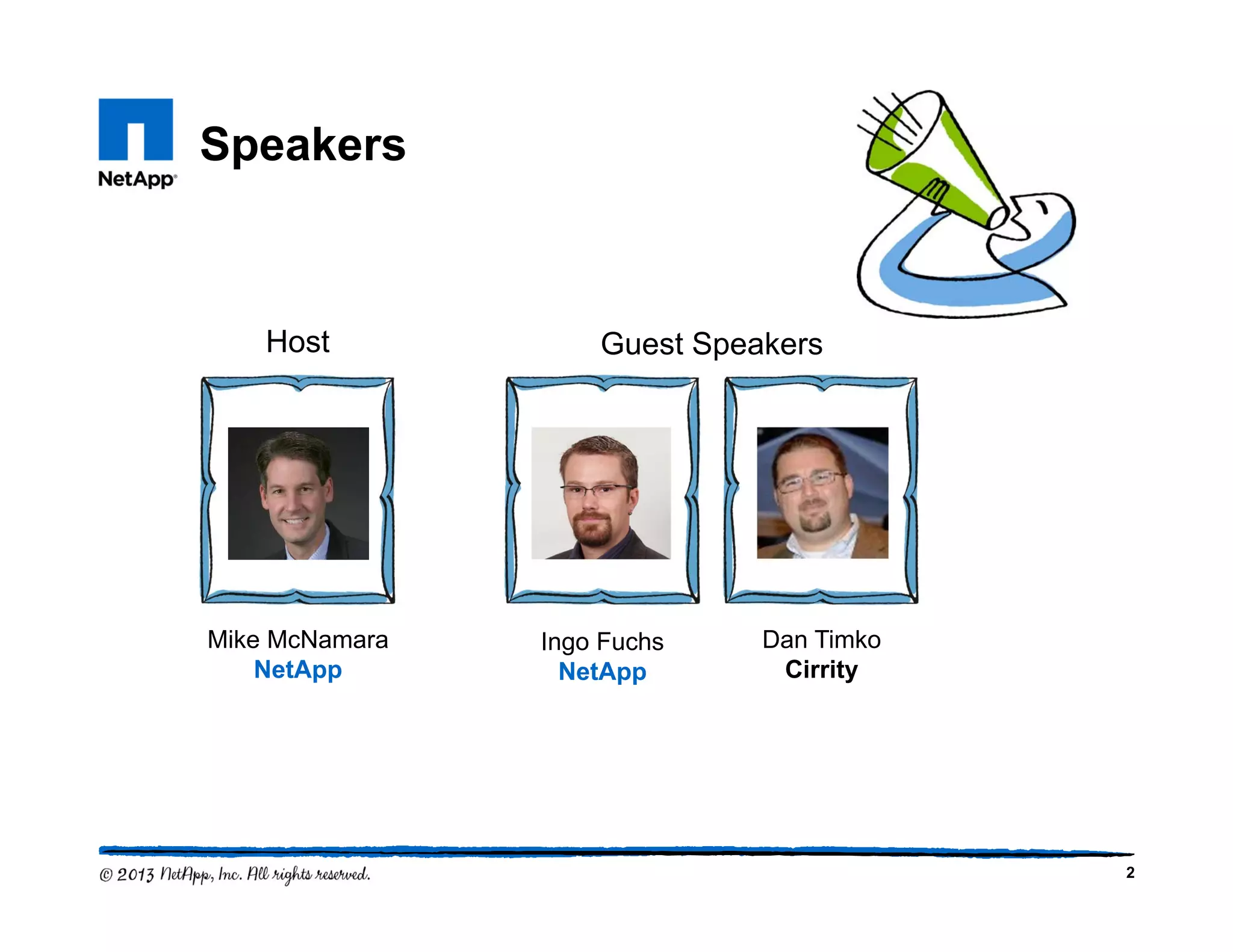

2. Speakers
Host Guest Speakers
Mike McNamara
NetApp
Dan Timko
Cirrity
Ingo Fuchs
NetApp
2

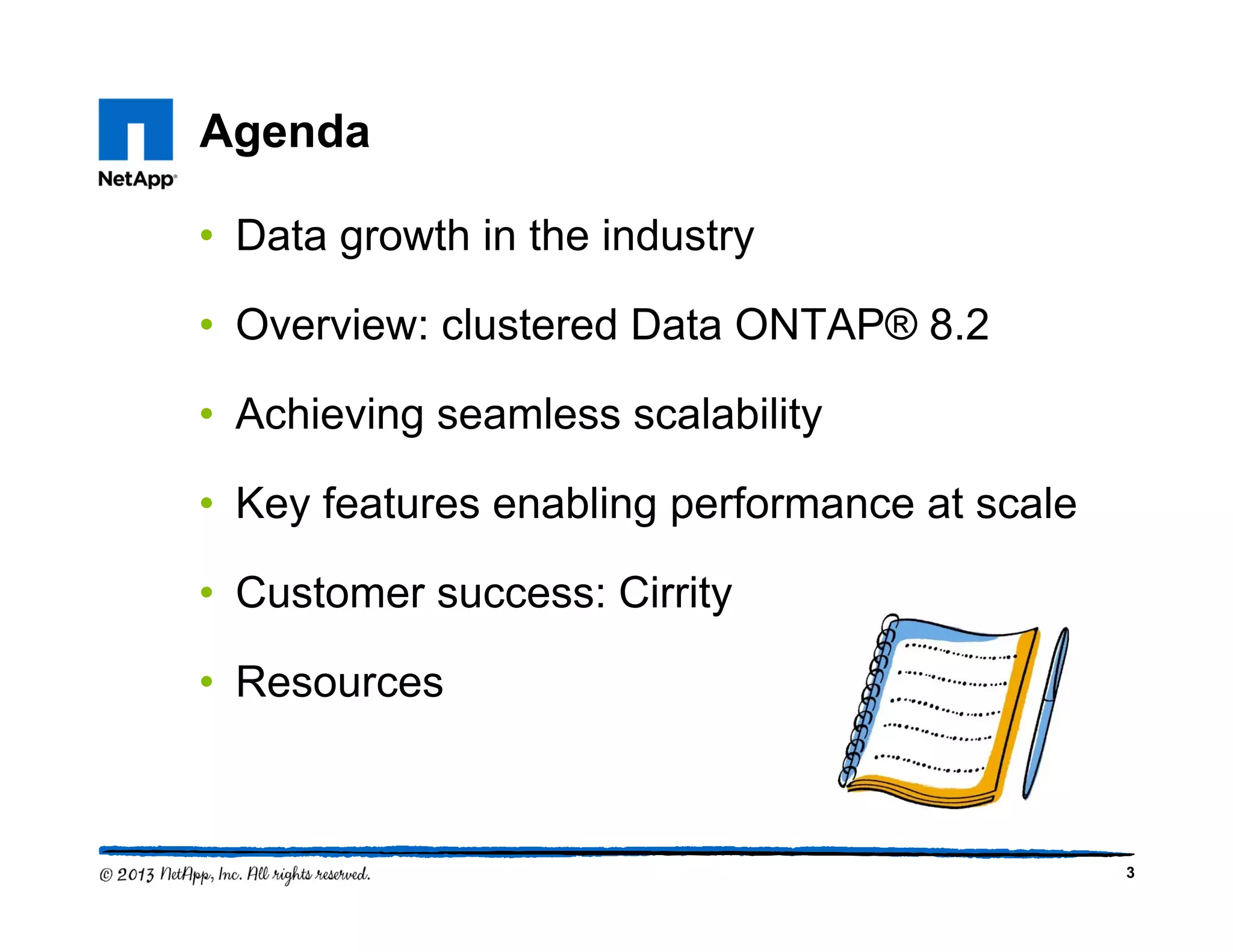

3. Agenda
• Data growth in the industry
• Overview: clustered Data ONTAP® 8.2
• Achieving seamless scalability
• Key features enabling performance at scale
• Customer success: Cirrity
• Resources
3

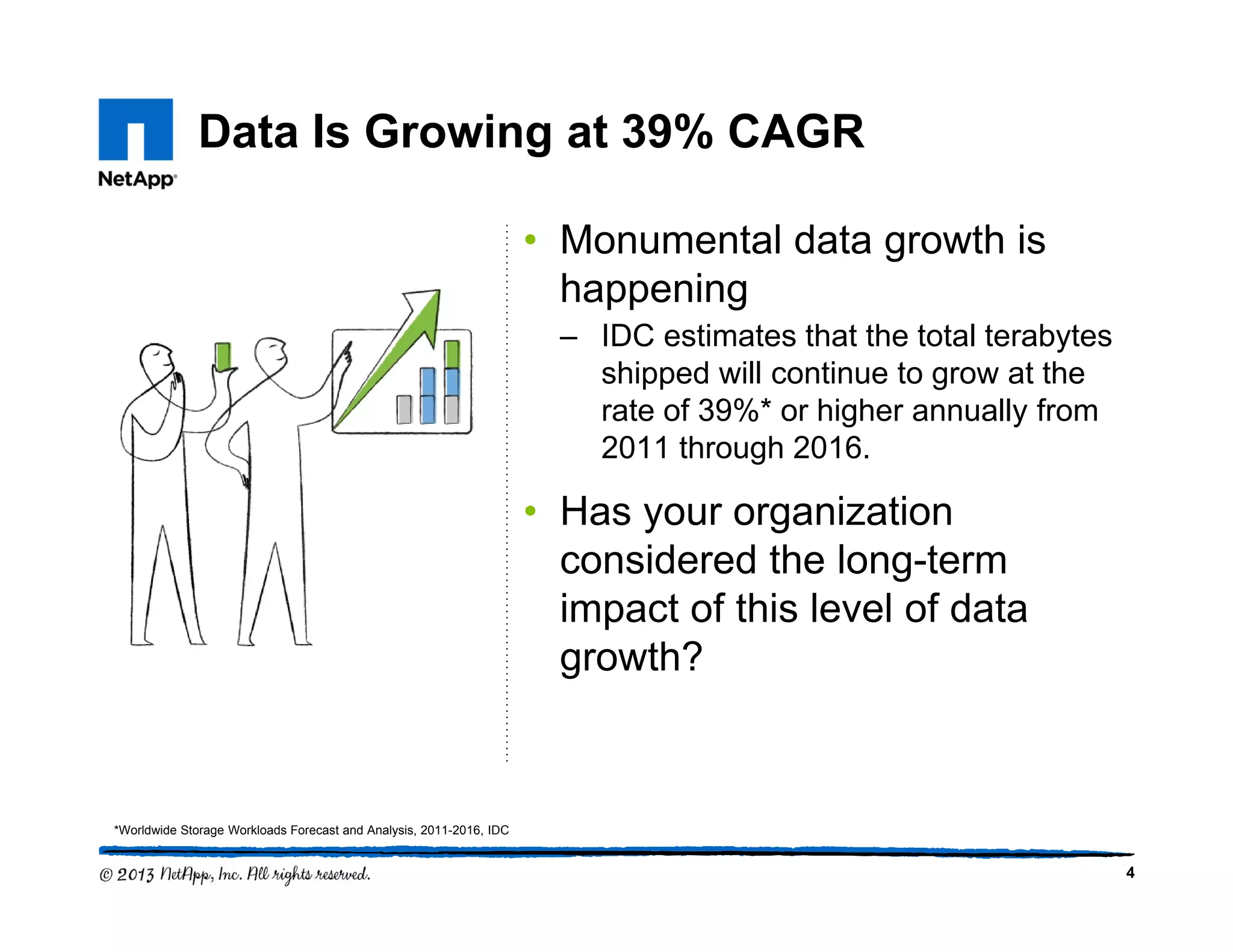

4. Data Is Growing at 39% CAGR
4
• Monumental data growth is
happening
– IDC estimates that the total terabytes
shipped will continue to grow at the
rate of 39%* or higher annually from
2011 through 2016.
• Has your organization
considered the long-term
impact of this level of data
growth?
*Worldwide Storage Workloads Forecast and Analysis, 2011-2016, IDC

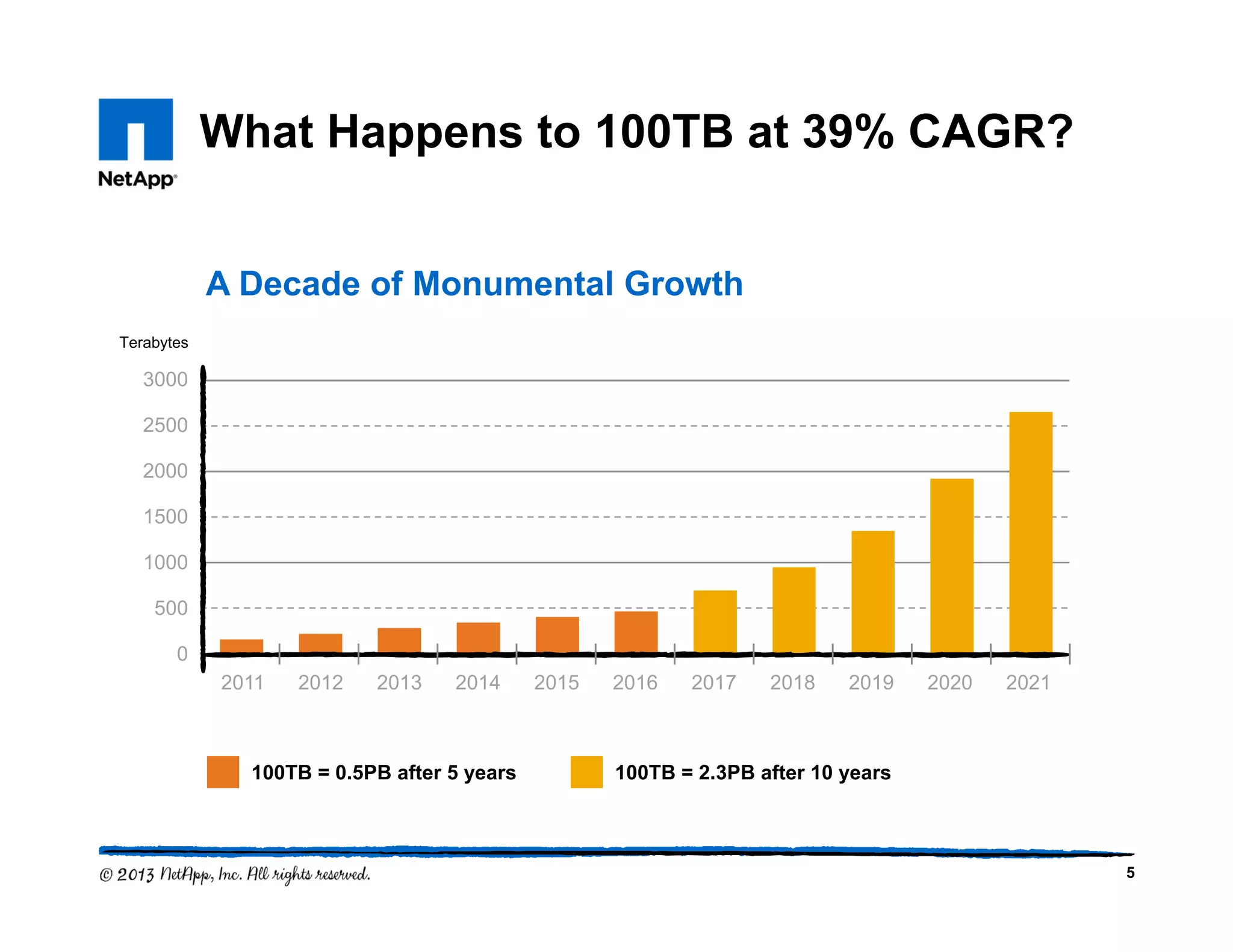

5. What Happens to 100TB at 39% CAGR?
5
100TB = 0.5PB after 5 years 100TB = 2.3PB after 10 years
2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021
3000
2500
2000
1500
1000
500
0
Terabytes
A Decade of Monumental Growth

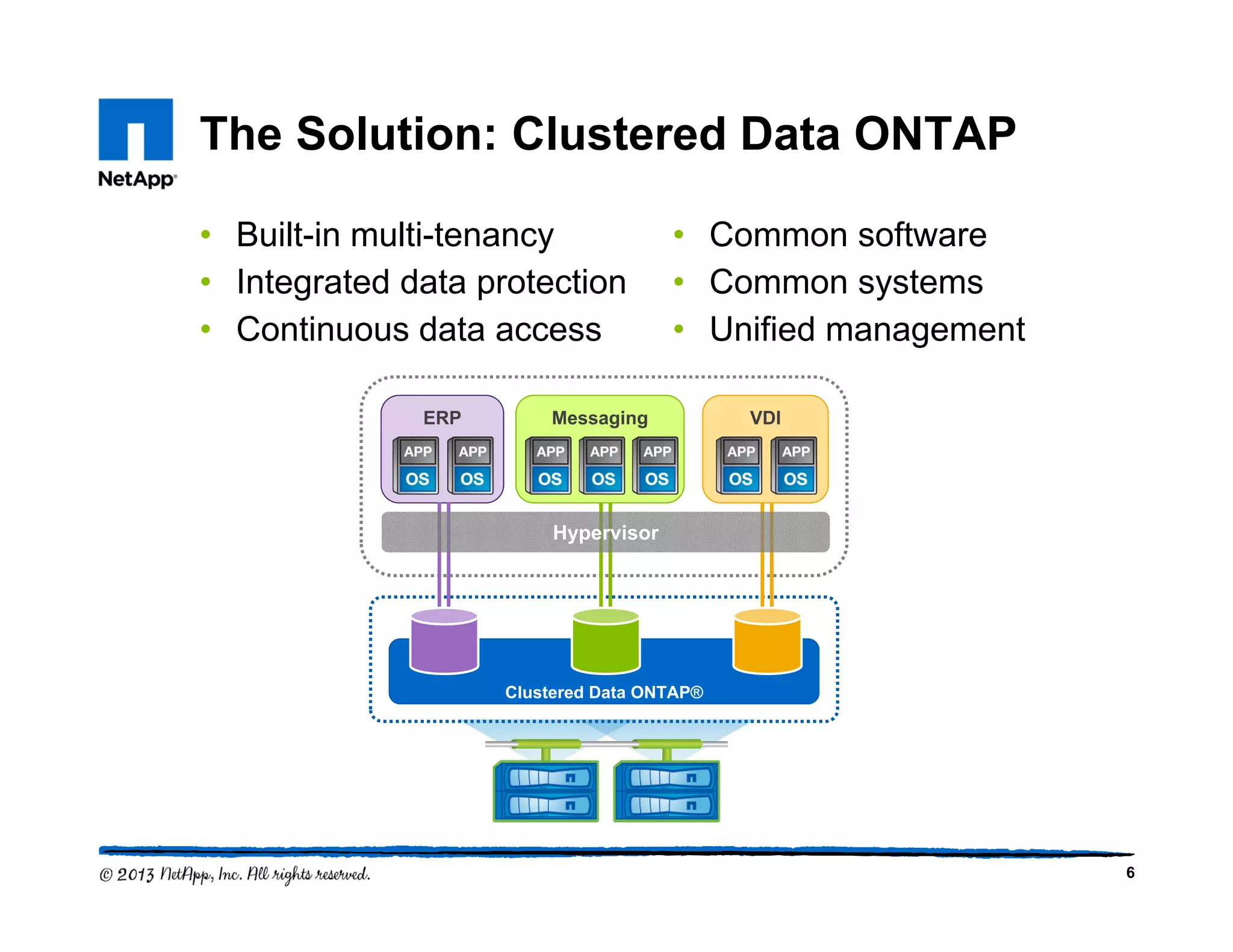

6. The Solution: Clustered Data ONTAP
• Built-in multi-tenancy
• Integrated data protection
• Continuous data access
• Common software
• Common systems
• Unified management
6
ERP
Clustered Data ONTAP®
VDIMessaging
Hypervisor

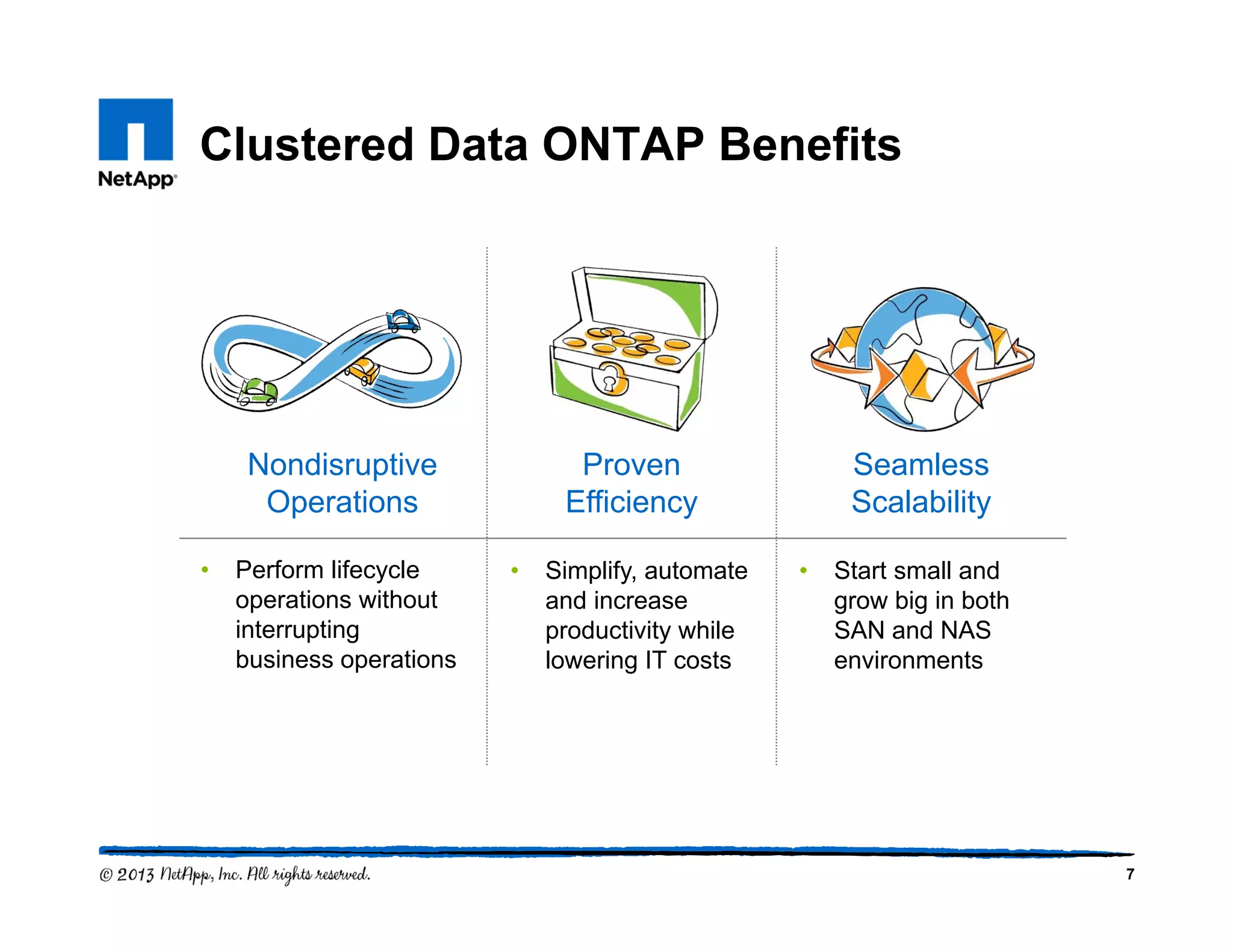

7. Clustered Data ONTAP Benefits
7
• Perform lifecycle
operations without
interrupting
business operations
• Start small and
grow big in both
SAN and NAS
environments
• Simplify, automate
and increase
productivity while
lowering IT costs
Nondisruptive
Operations
Seamless
Scalability
Proven
Efficiency

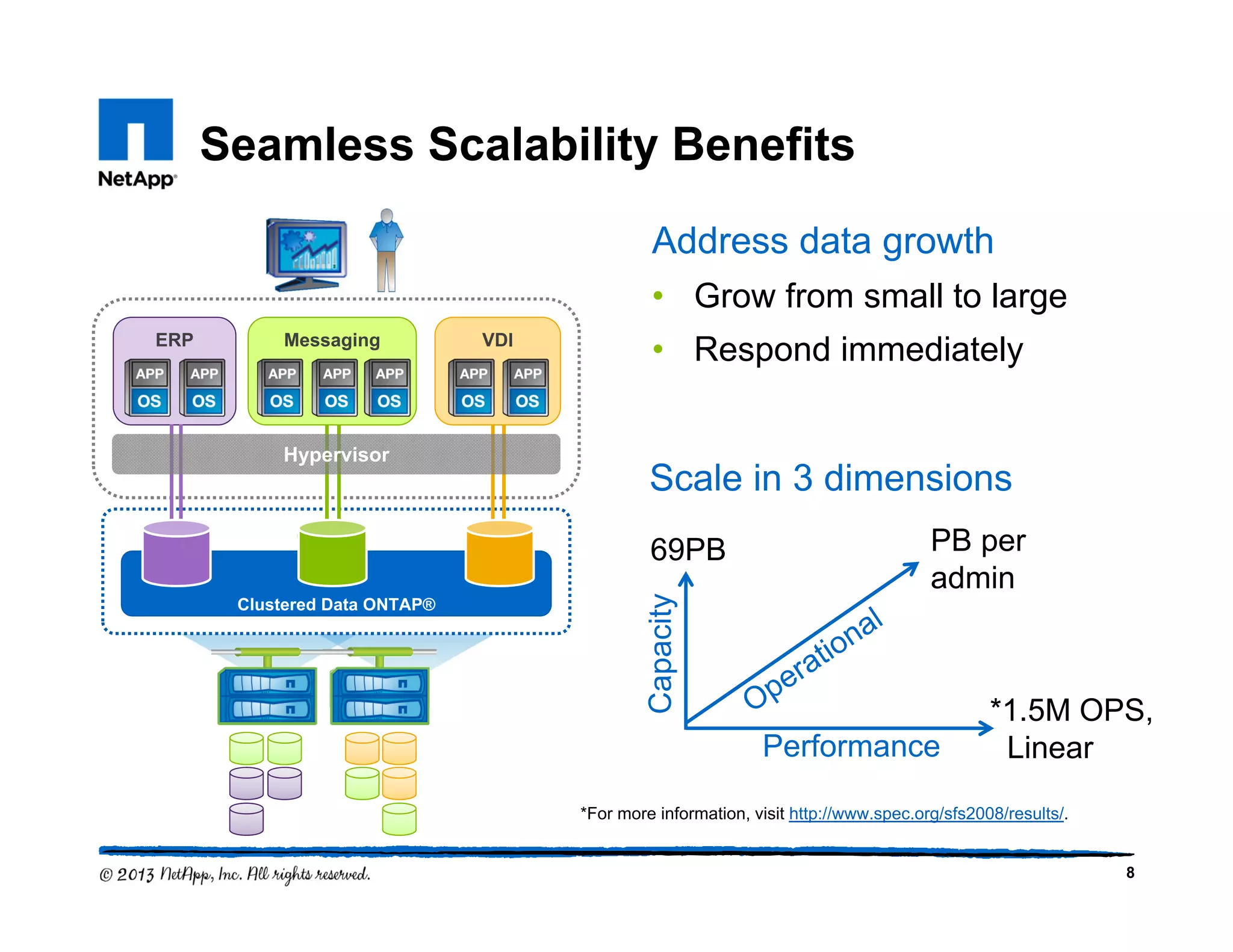

8. Address data growth
• Grow from small to large
• Respond immediately
Capacity
69PB
Performance
PB per
admin
Scale in 3 dimensions
8
ERP
Clustered Data ONTAP®
VDIMessaging
Hypervisor
Seamless Scalability Benefits
*1.5M OPS,
Linear
*For more information, visit http://www.spec.org/sfs2008/results/.

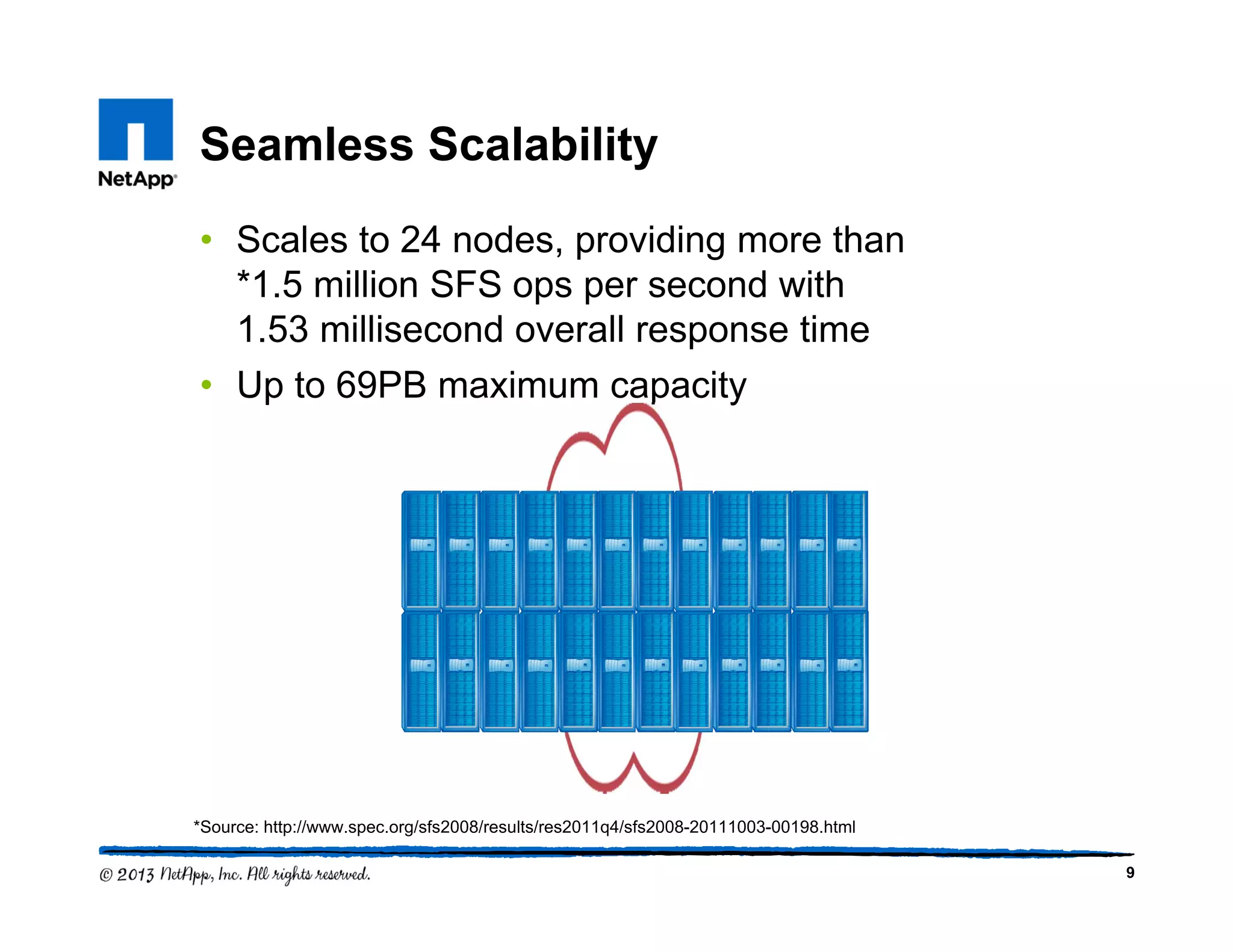

9. Seamless Scalability
• Scales to 24 nodes, providing more than
*1.5 million SFS ops per second with
1.53 millisecond overall response time
• Up to 69PB maximum capacity
9
*Source: http://www.spec.org/sfs2008/results/res2011q4/sfs2008-20111003-00198.html

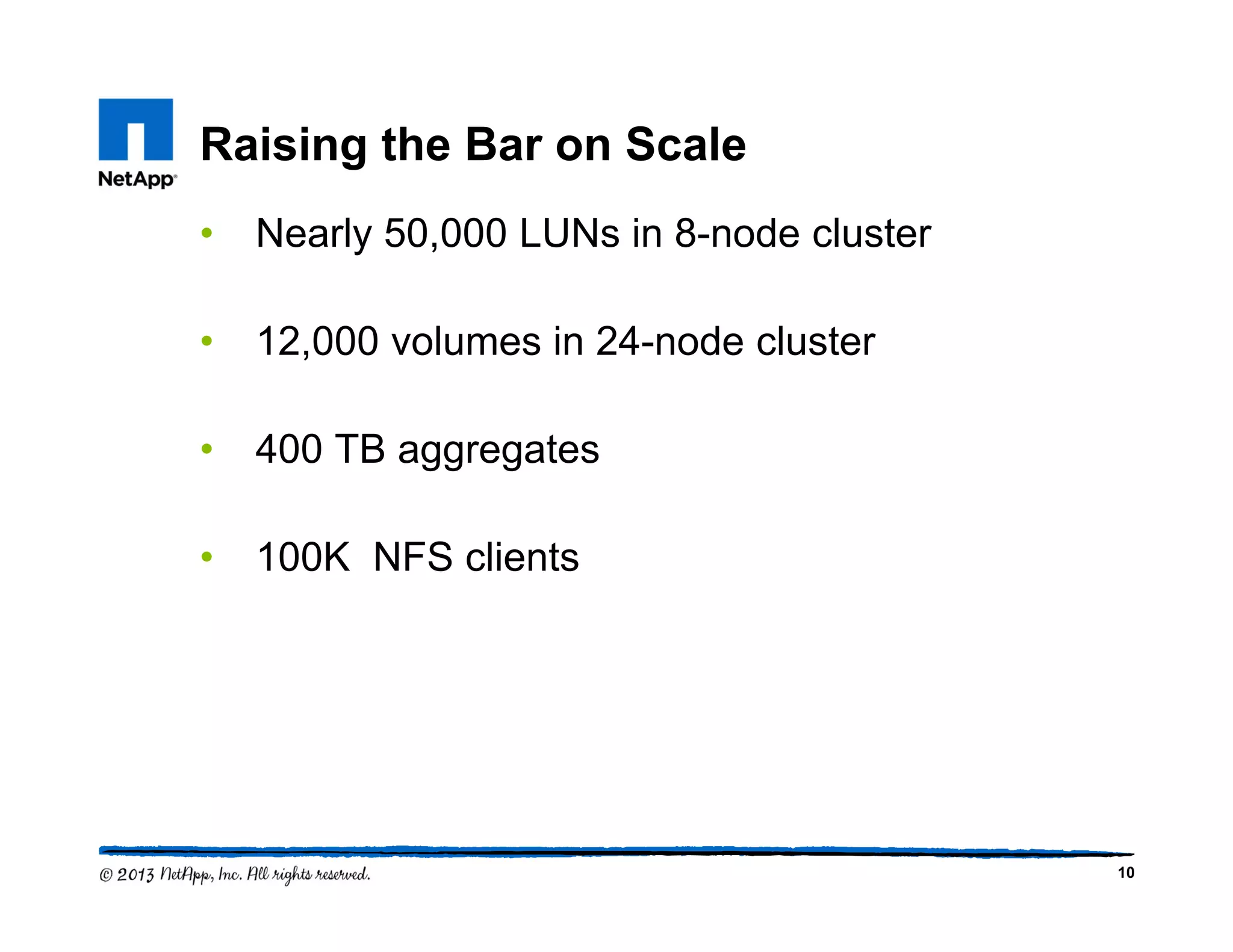

10. Raising the Bar on Scale
• Nearly 50,000 LUNs in 8-node cluster
• 12,000 volumes in 24-node cluster
• 400 TB aggregates
• 100K NFS clients
10

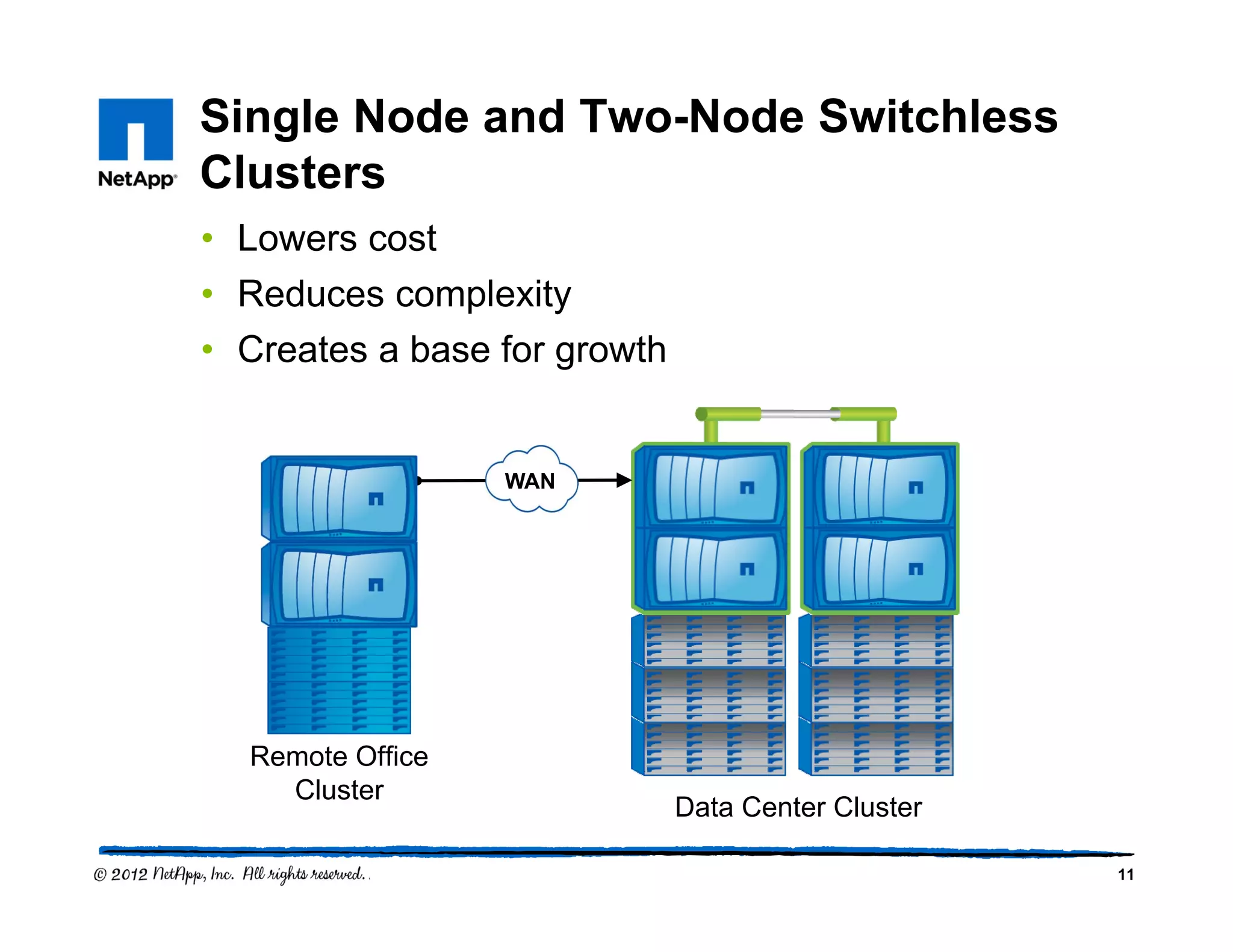

11. Single Node and Two-Node Switchless
Clusters
• Lowers cost
• Reduces complexity
• Creates a base for growth
11
WAN
Remote Office
Cluster
Data Center Cluster

12. Intracluster FlexCache Support
• Lower costs with
improved system
utilization
– Balances reads
– Enables load-
balancing
• Space efficient
– Only data accessed
is cached
• NFS and CIFS
• Built-in
12
A
Node 1 Node 2
Cache
Volumes
Node 3 Node 4
A
Node 2
Cache
Volumes
Node 3 Node 4

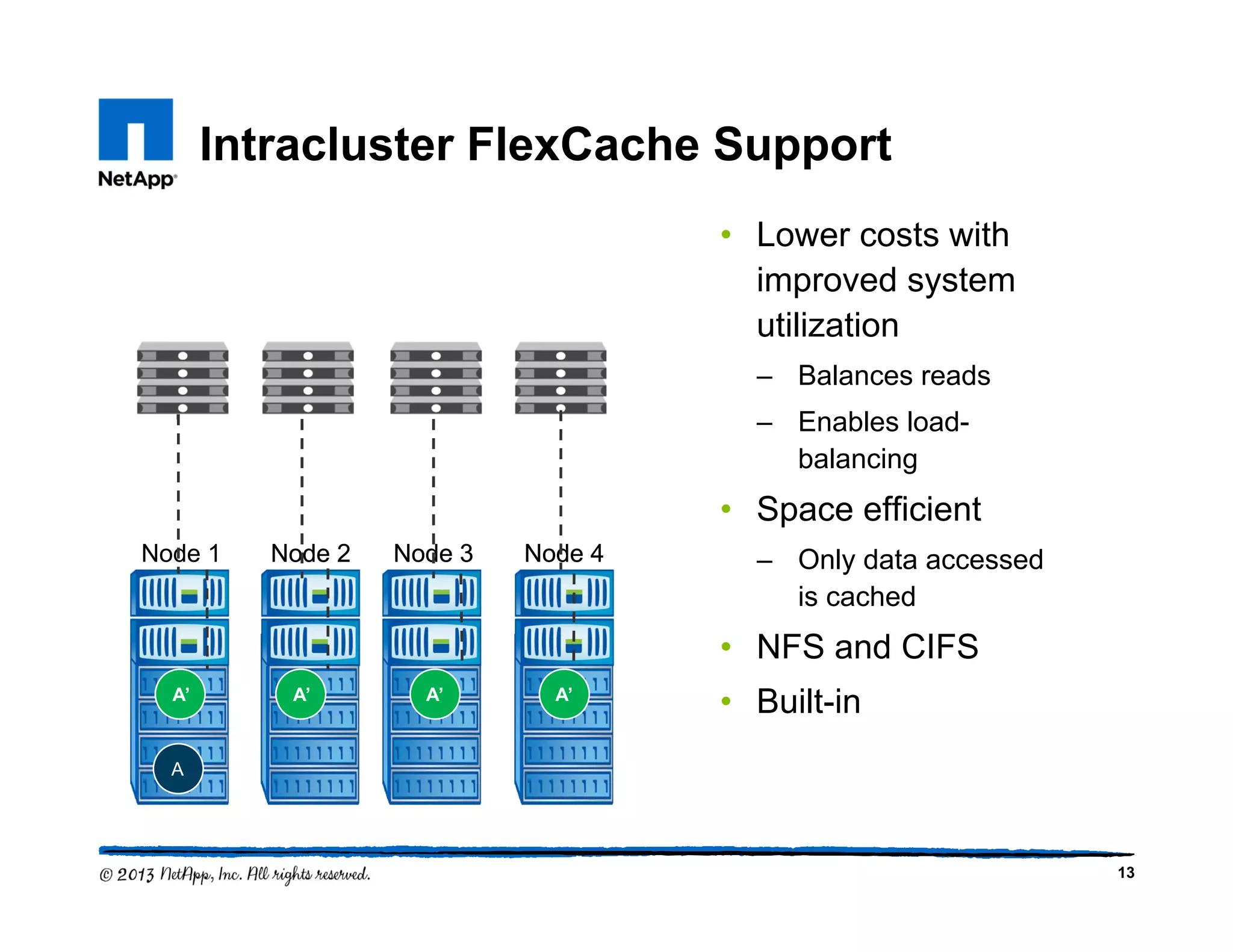

13. Intracluster FlexCache Support
13
Node 1 Node 2
Cache
Volumes
Node 3 Node 4Node 2
Cache
Volumes
Node 3 Node 4
A’ A’ A’A’
A
• Lower costs with
improved system
utilization
– Balances reads
– Enables load-
balancing
• Space efficient
– Only data accessed
is cached
• NFS and CIFS
• Built-in

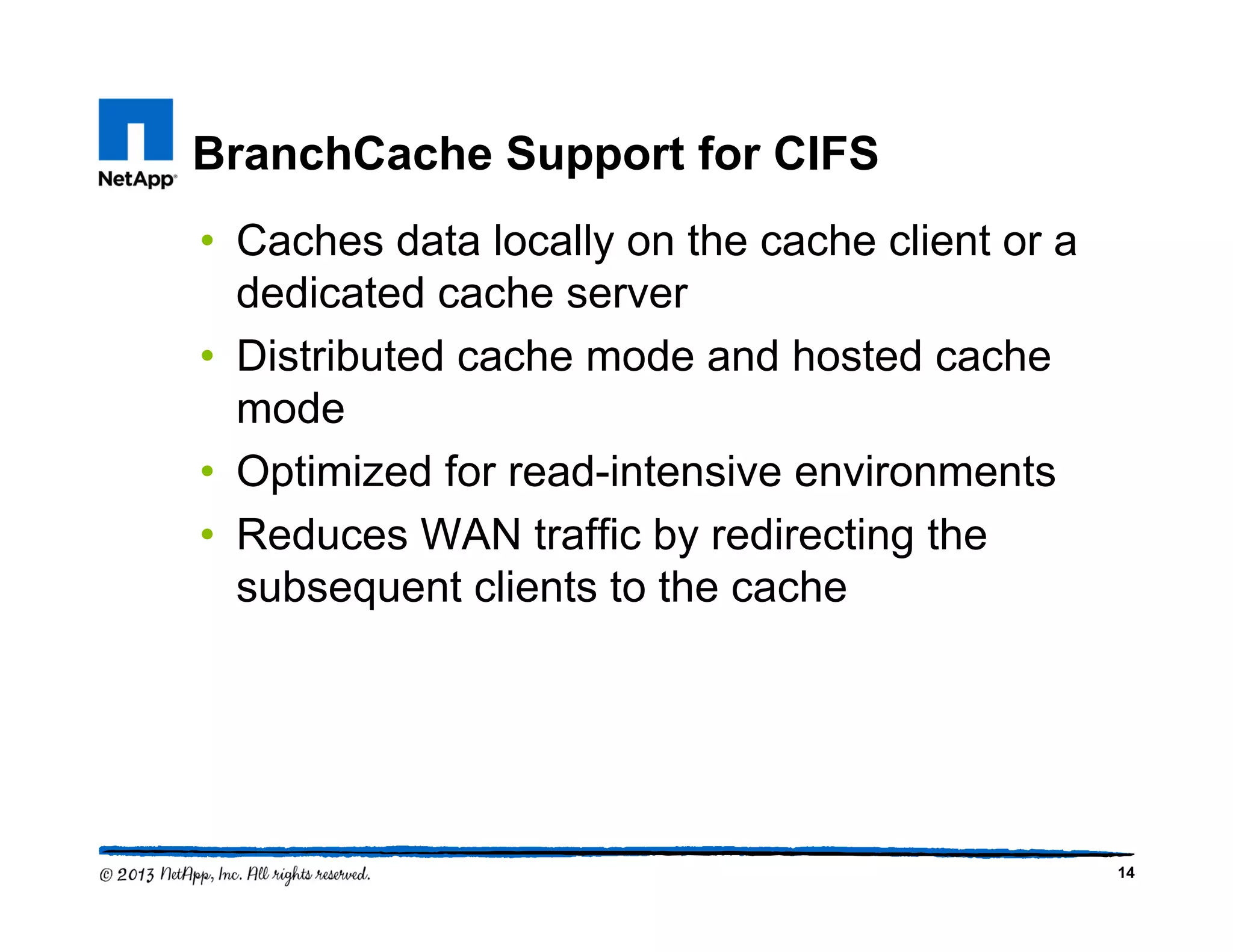

14. • Caches data locally on the cache client or a
dedicated cache server
• Distributed cache mode and hosted cache
mode
• Optimized for read-intensive environments
• Reduces WAN traffic by redirecting the
subsequent clients to the cache
14
BranchCache Support for CIFS

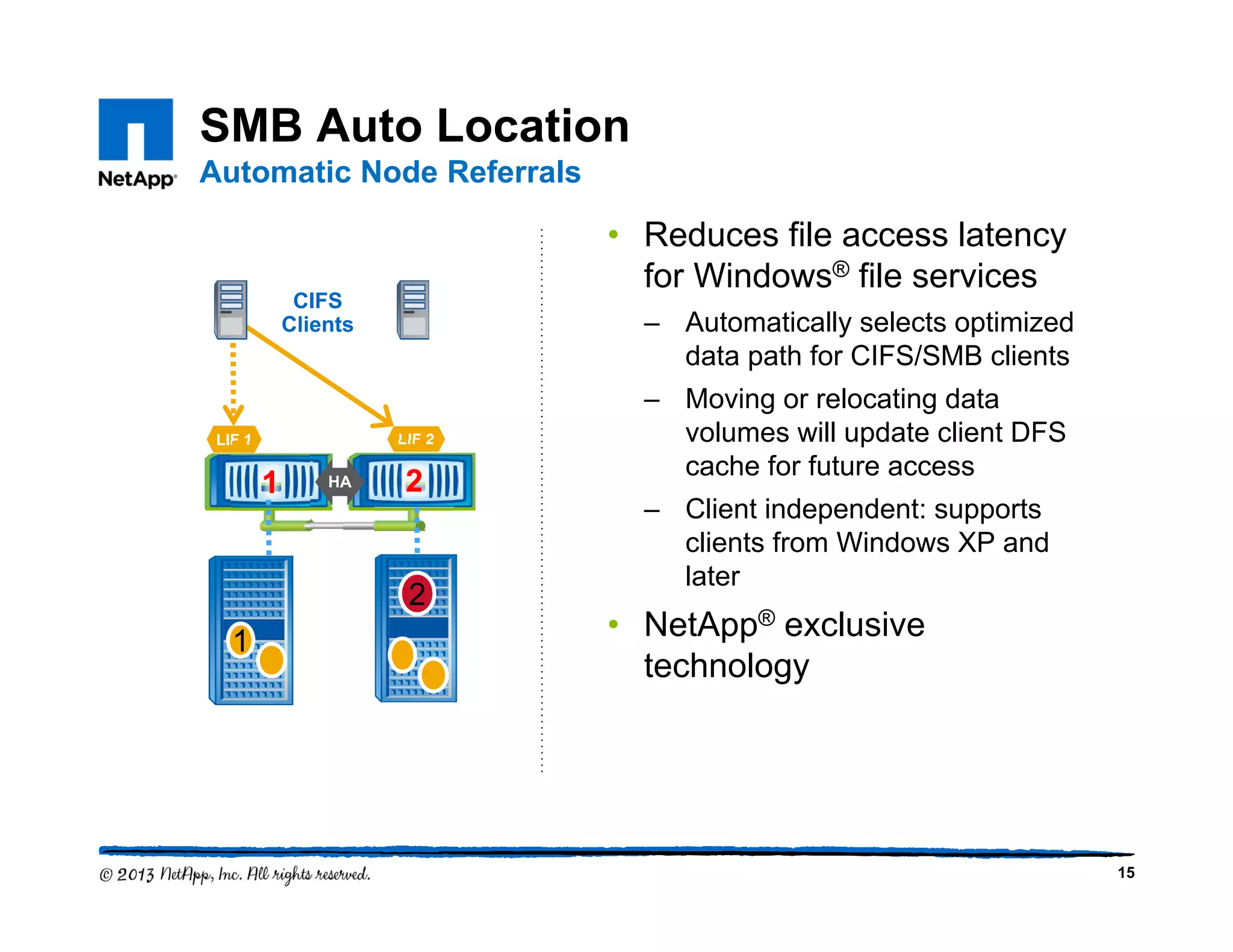

15. SMB Auto Location
Automatic Node Referrals
• Reduces file access latency
for Windows® file services
– Automatically selects optimized
data path for CIFS/SMB clients
– Moving or relocating data
volumes will update client DFS
cache for future access
– Client independent: supports
clients from Windows XP and
later
• NetApp® exclusive
technology
15
LIF 1 LIF 2
CIFS
Clients
HA11 22
2
1

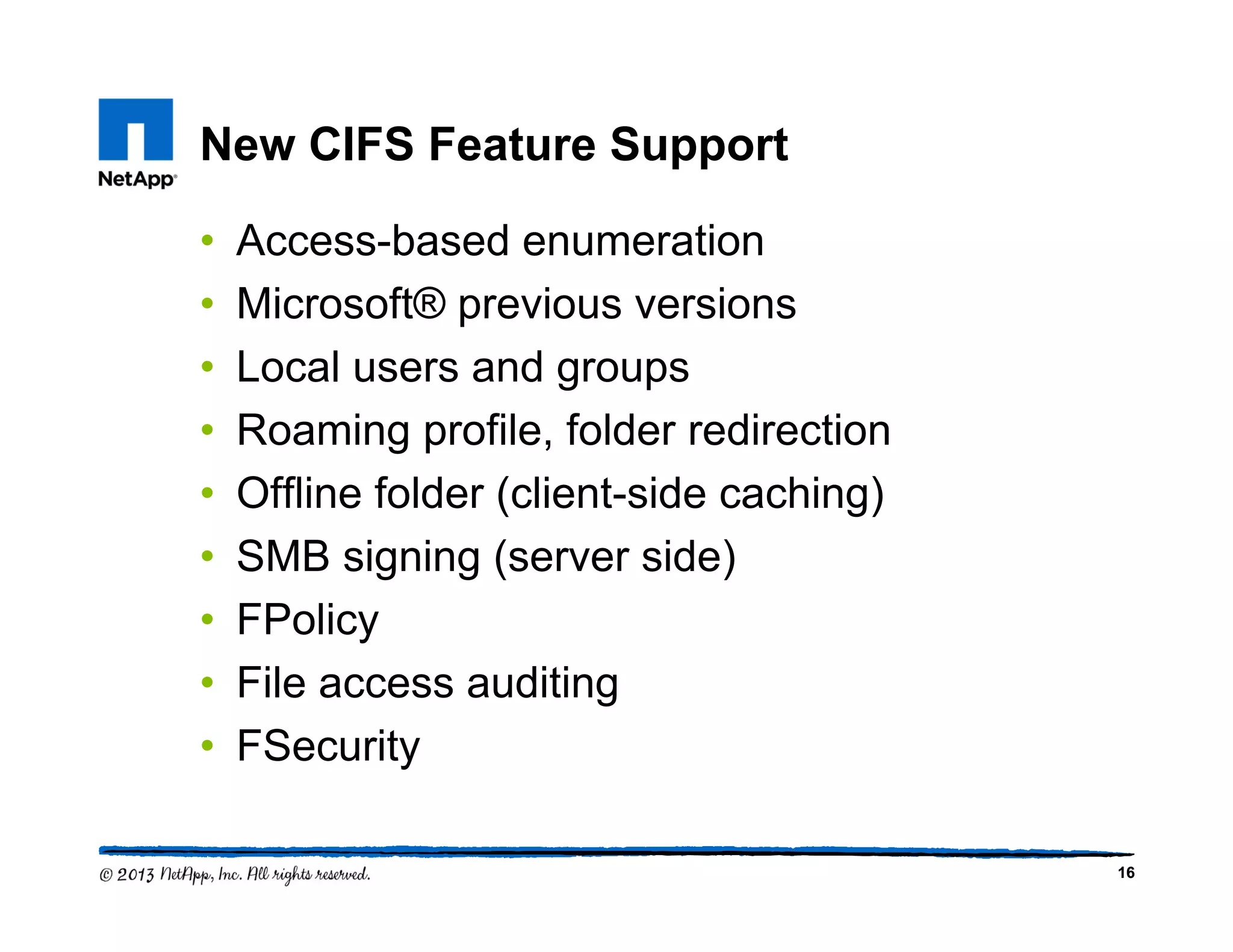

16. New CIFS Feature Support
• Access-based enumeration
• Microsoft® previous versions
• Local users and groups
• Roaming profile, folder redirection
• Offline folder (client-side caching)
• SMB signing (server side)
• FPolicy
• File access auditing
• FSecurity
1616

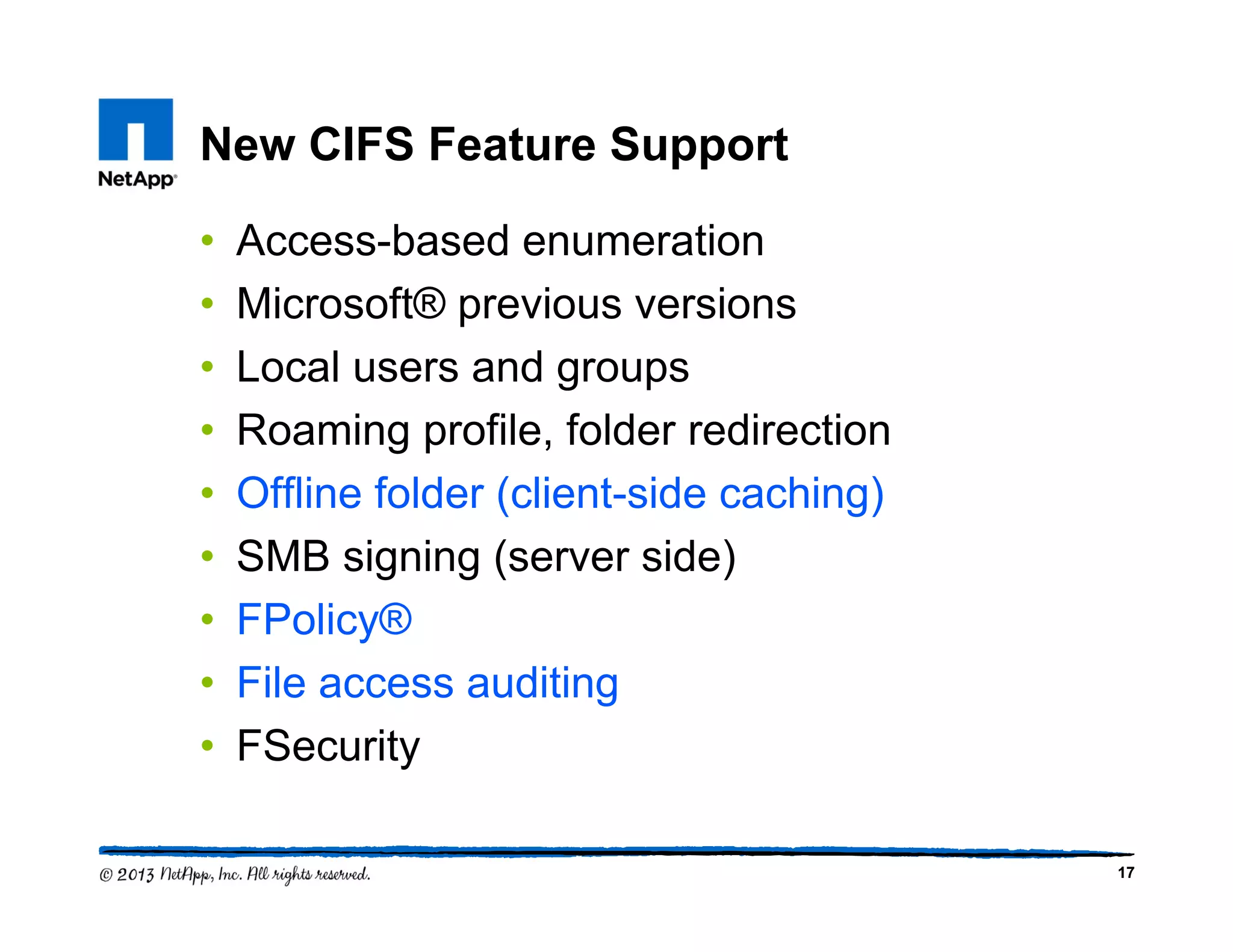

17. New CIFS Feature Support
• Access-based enumeration
• Microsoft® previous versions
• Local users and groups
• Roaming profile, folder redirection
• Offline folder (client-side caching)
• SMB signing (server side)
• FPolicy®
• File access auditing
• FSecurity
1717

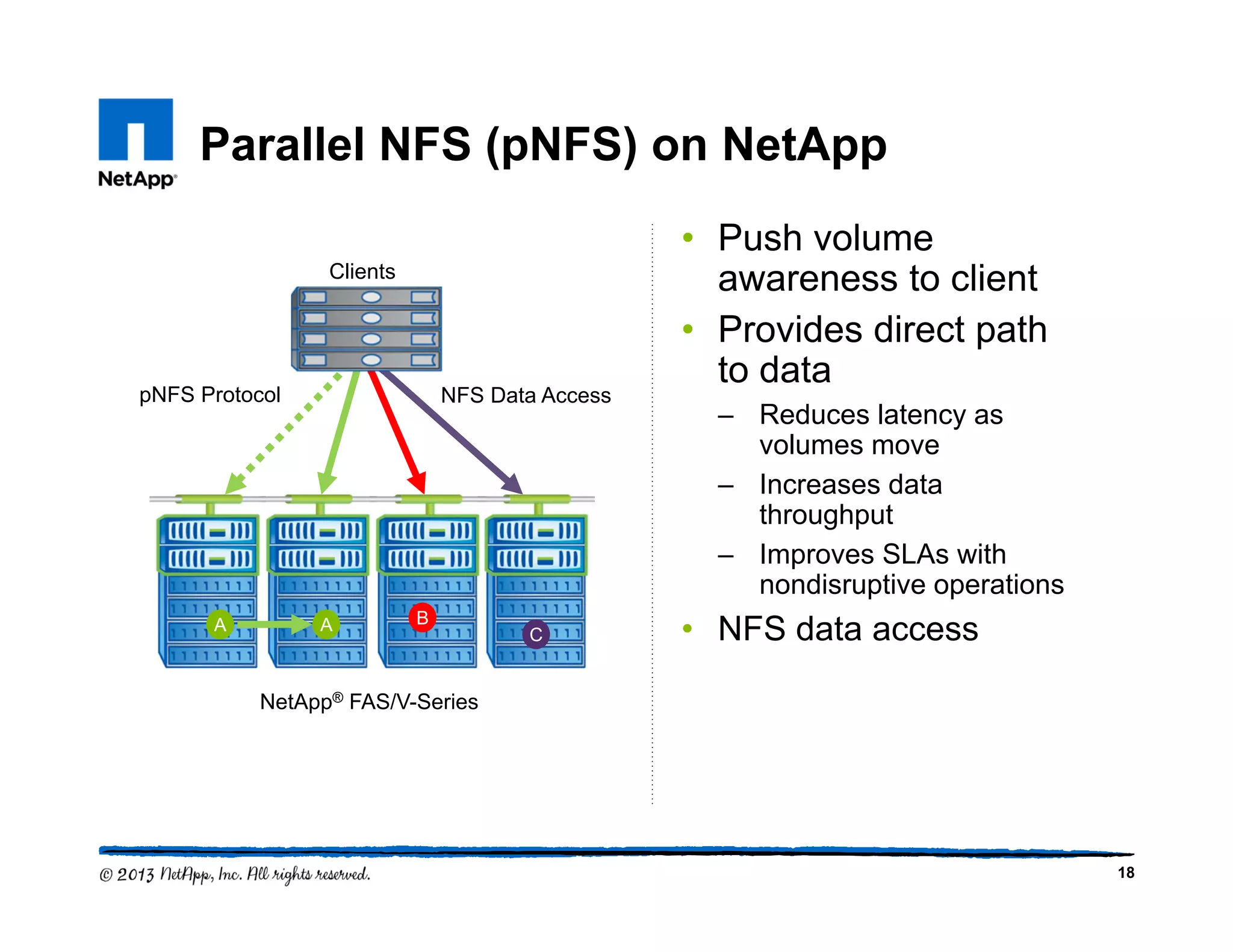

18. Parallel NFS (pNFS) on NetApp
• Push volume
awareness to client
• Provides direct path
to data
– Reduces latency as
volumes move
– Increases data
throughput
– Improves SLAs with
nondisruptive operations
• NFS data access
18
NetApp® FAS/V-Series
Clients
A A B
C
pNFS Protocol NFS Data Access

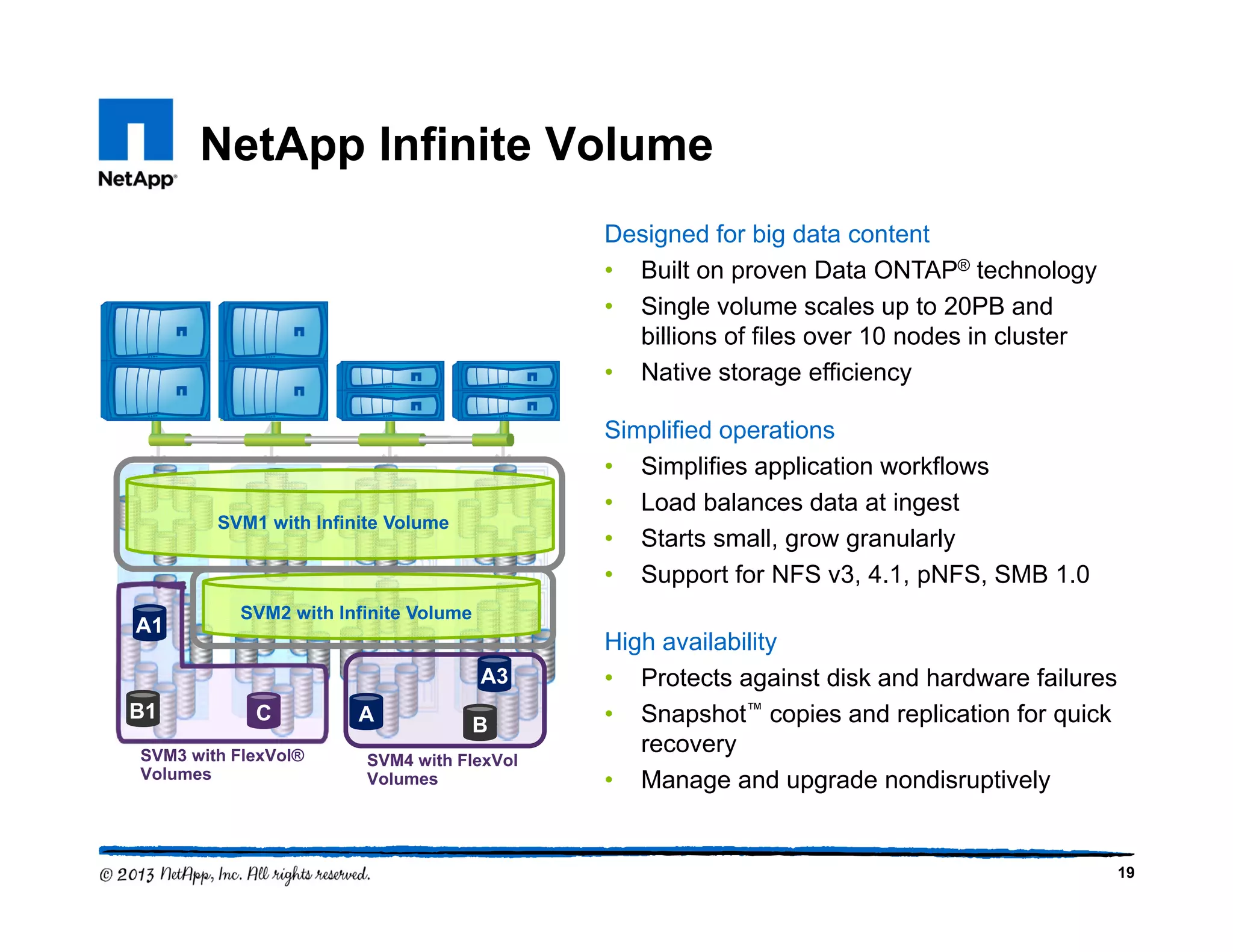

19. NetApp Infinite Volume
19
SVM1 with Infinite Volume
A1
SVM3 with FlexVol®
Volumes
B1 C A
A3
B
SVM2 with Infinite Volume
SVM4 with FlexVol
Volumes
Designed for big data content
• Built on proven Data ONTAP® technology
• Single volume scales up to 20PB and
billions of files over 10 nodes in cluster
• Native storage efficiency
Simplified operations
• Simplifies application workflows
• Load balances data at ingest
• Starts small, grow granularly
• Support for NFS v3, 4.1, pNFS, SMB 1.0
High availability
• Protects against disk and hardware failures
• Snapshot™ copies and replication for quick
recovery
• Manage and upgrade nondisruptively

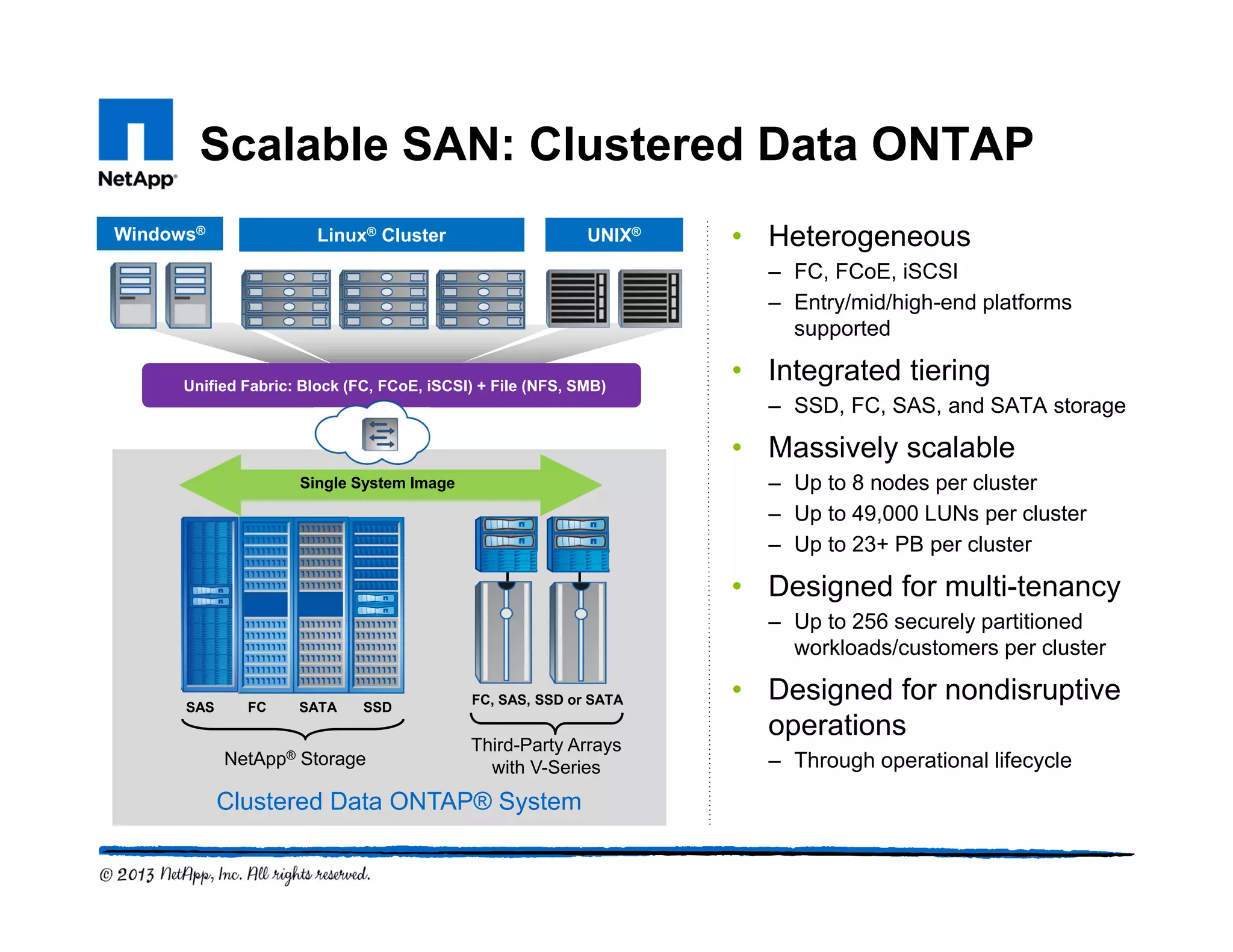

20. Scalable SAN: Clustered Data ONTAP
• Heterogeneous
– FC, FCoE, iSCSI
– Entry/mid/high-end platforms
supported
• Integrated tiering
– SSD, FC, SAS, and SATA storage
• Massively scalable
– Up to 8 nodes per cluster
– Up to 49,000 LUNs per cluster
– Up to 23+ PB per cluster
• Designed for multi-tenancy
– Up to 256 securely partitioned
workloads/customers per cluster
• Designed for nondisruptive
operations
– Through operational lifecycle
Data ONTAP GX System
Windows®
Linux® Cluster UNIX®
Single System Image
Clustered Data ONTAP® System
Unified Fabric: Block (FC, FCoE, iSCSI) + File (NFS, SMB)
FC SATA SSD
Third-Party Arrays
with V-SeriesNetApp® Storage
FC, SAS, SSD or SATA
SAS

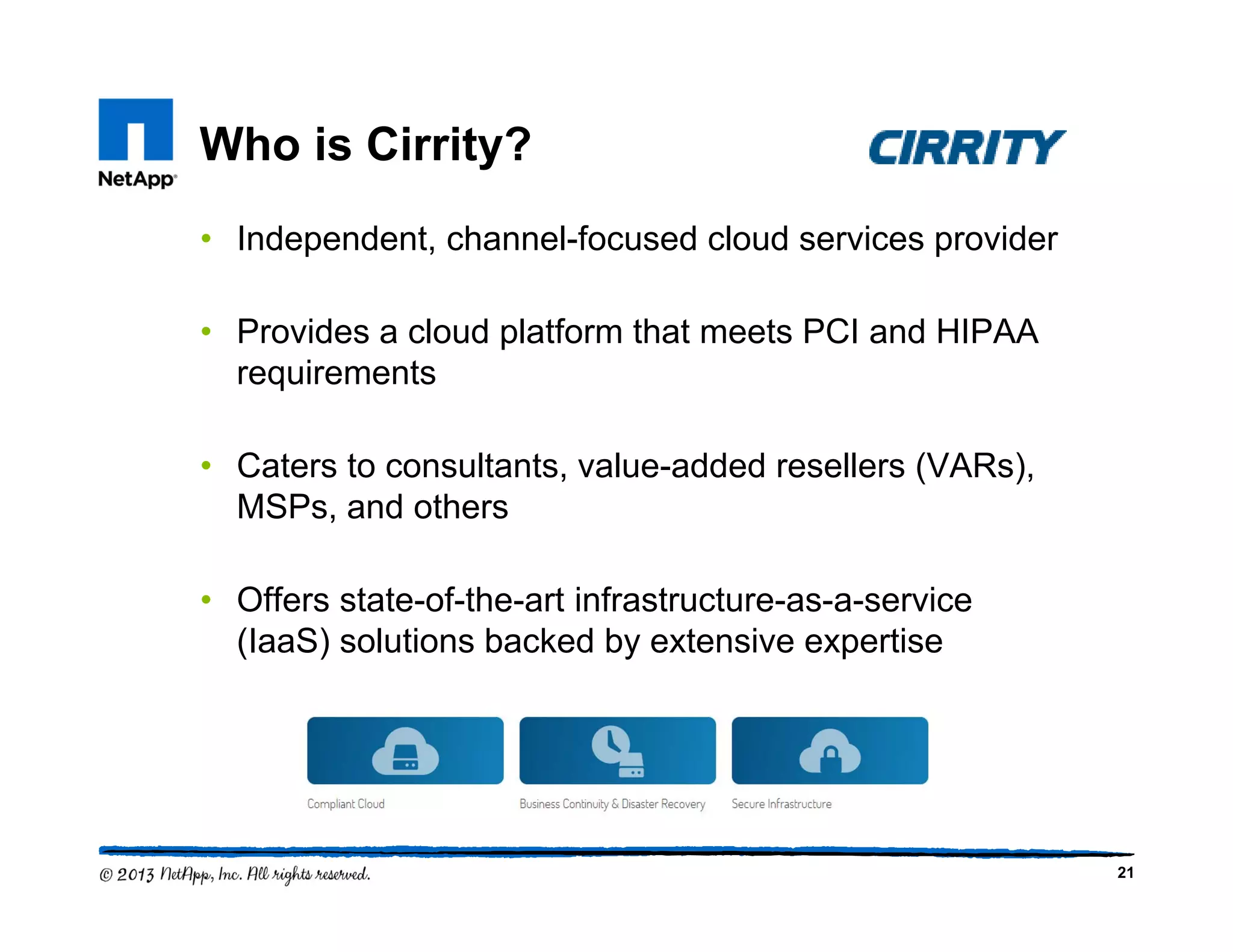

21. Who is Cirrity?
• Independent, channel-focused cloud services provider
• Provides a cloud platform that meets PCI and HIPAA
requirements
• Caters to consultants, value-added resellers (VARs),
MSPs, and others
• Offers state-of-the-art infrastructure-as-a-service
(IaaS) solutions backed by extensive expertise
21

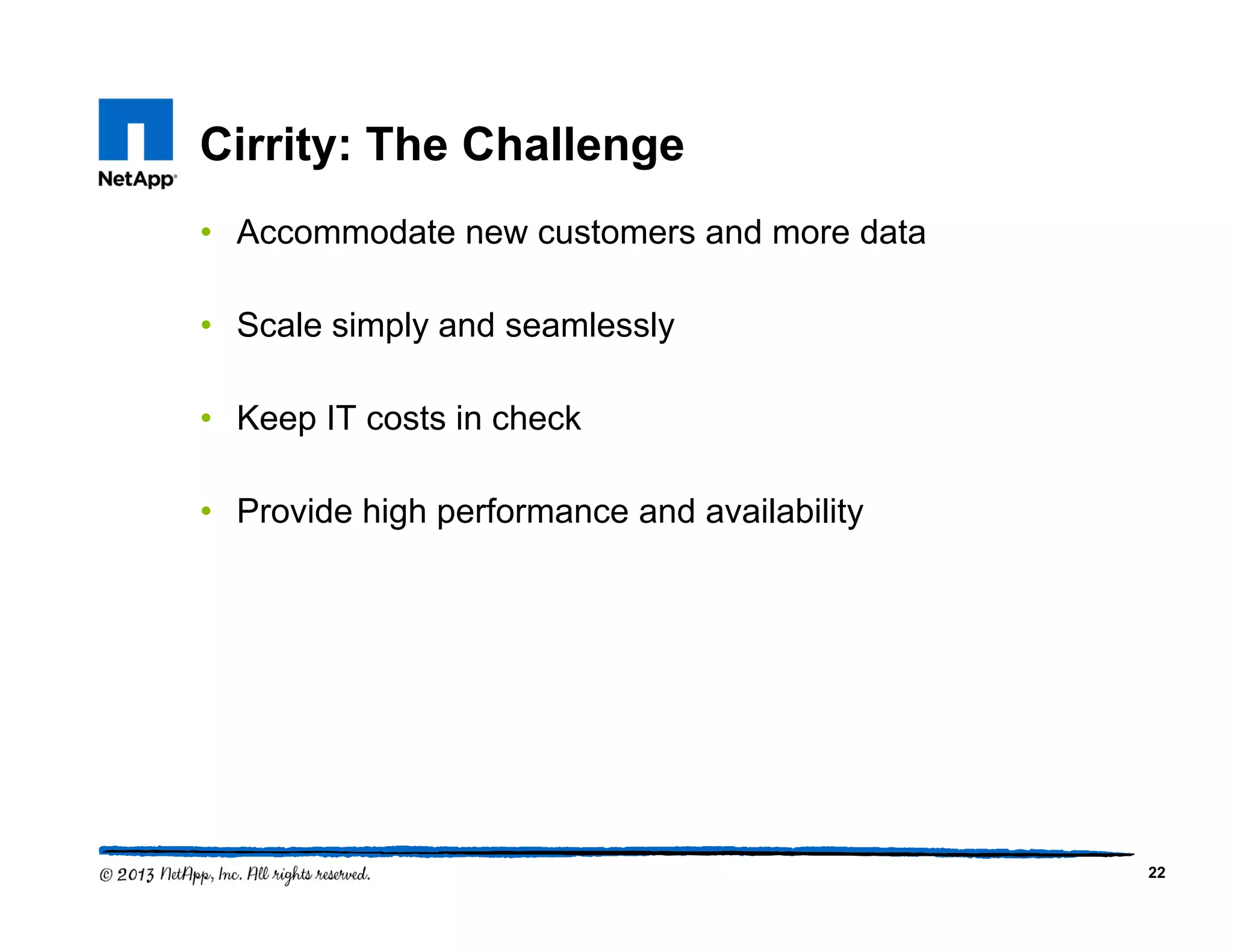

22. Cirrity: The Challenge
• Accommodate new customers and more data
• Scale simply and seamlessly
• Keep IT costs in check
• Provide high performance and availability
22

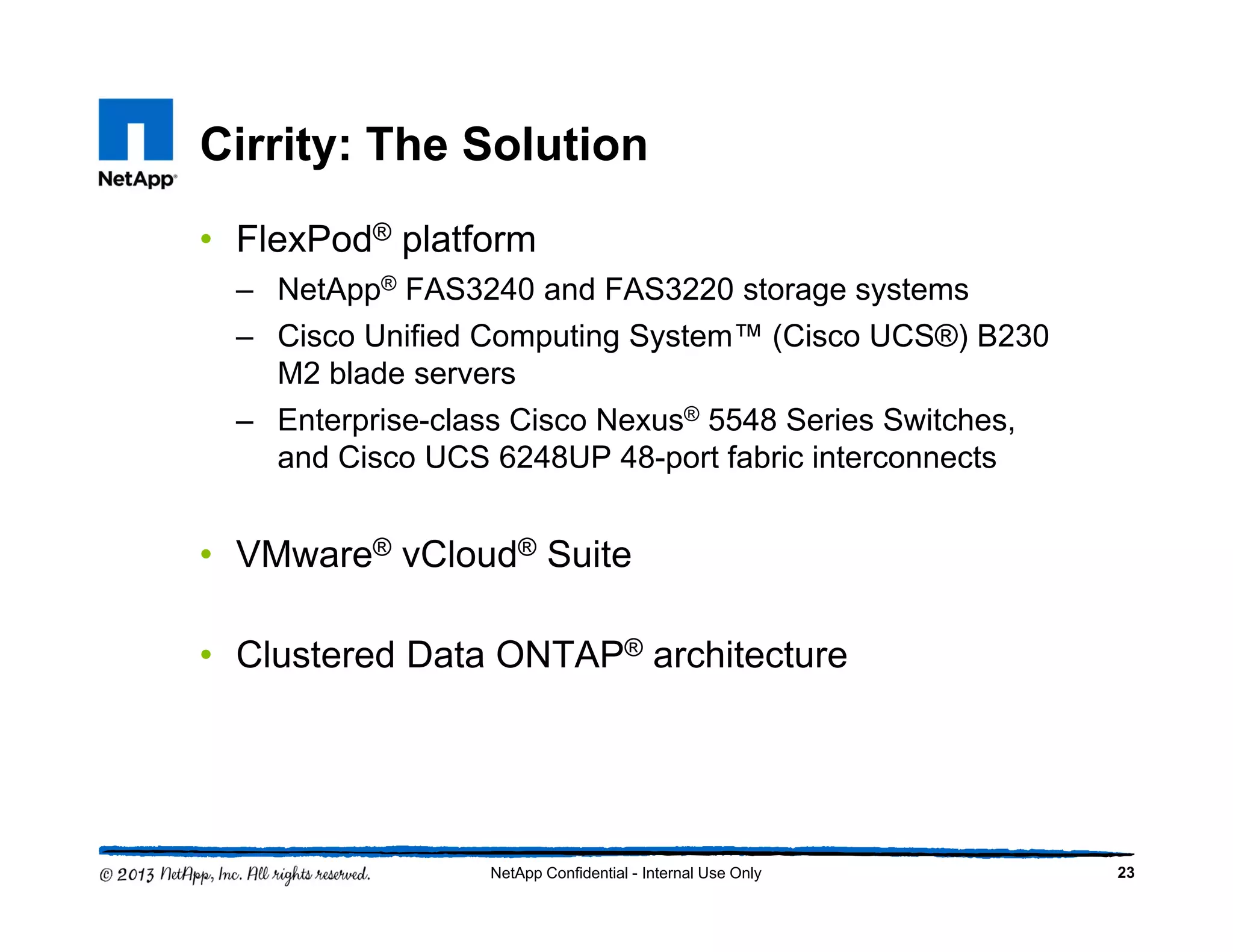

23. Cirrity: The Solution
• FlexPod® platform
– NetApp® FAS3240 and FAS3220 storage systems
– Cisco Unified Computing System™ (Cisco UCS®) B230
M2 blade servers
– Enterprise-class Cisco Nexus® 5548 Series Switches,
and Cisco UCS 6248UP 48-port fabric interconnects
• VMware® vCloud® Suite
• Clustered Data ONTAP® architecture
23NetApp Confidential - Internal Use Only

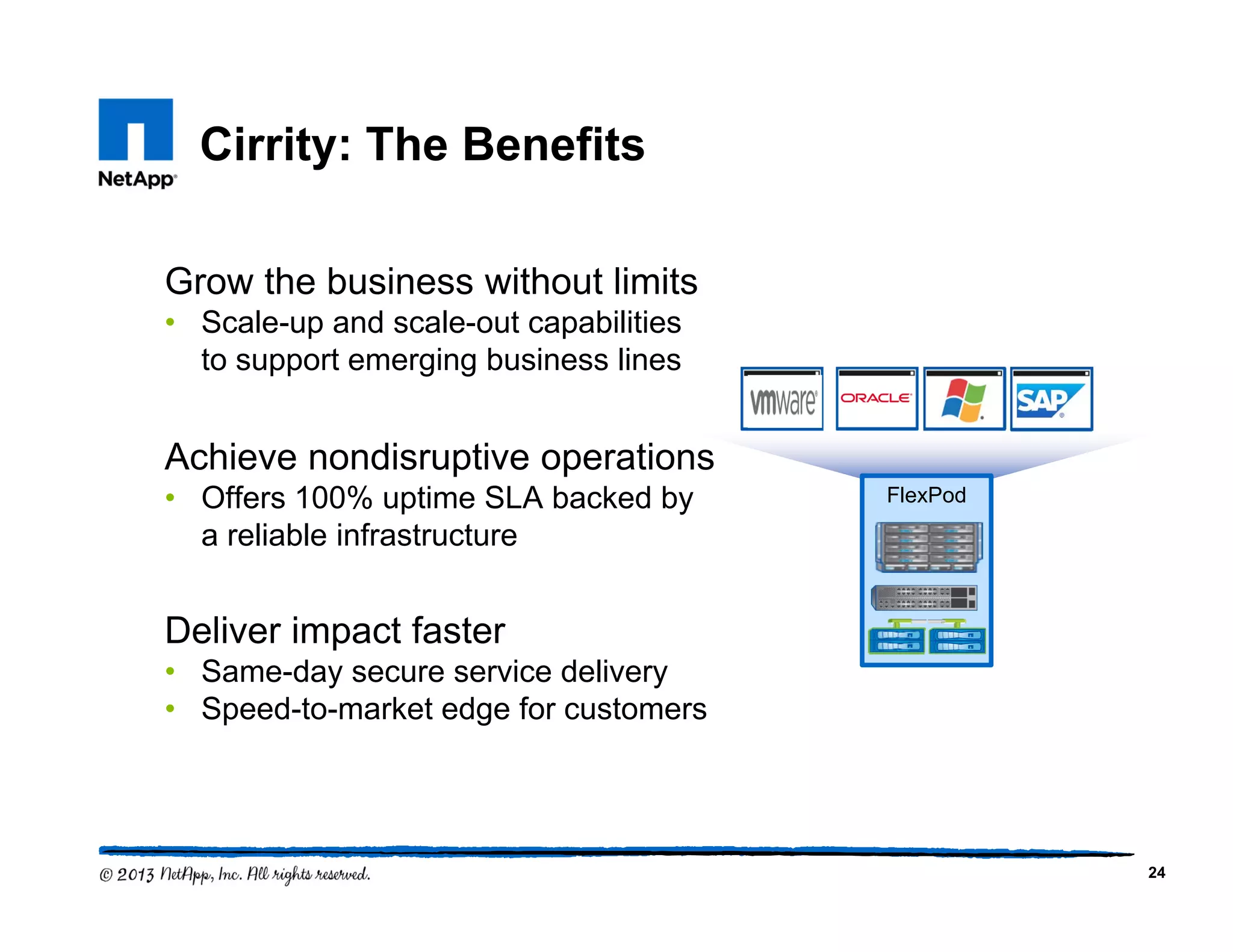

24. Grow the business without limits
• Scale-up and scale-out capabilities
to support emerging business lines
Achieve nondisruptive operations
• Offers 100% uptime SLA backed by
a reliable infrastructure
Deliver impact faster
• Same-day secure service delivery
• Speed-to-market edge for customers
24
FlexPod
Cirrity: The Benefits

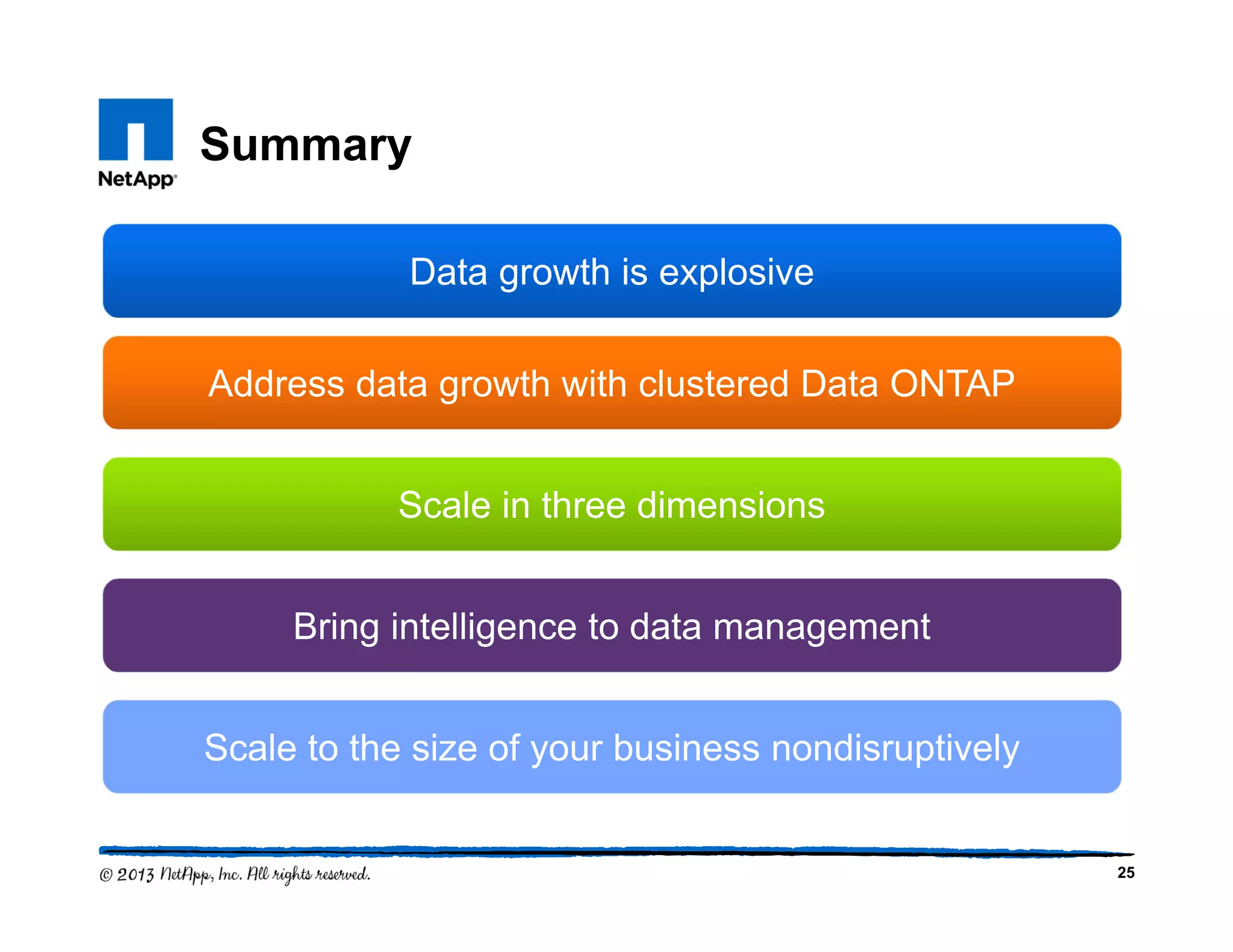

25. Summary
25
Data growth is explosive
Address data growth with clustered Data ONTAP
Scale in three dimensions
Bring intelligence to data management
Scale to the size of your business nondisruptively

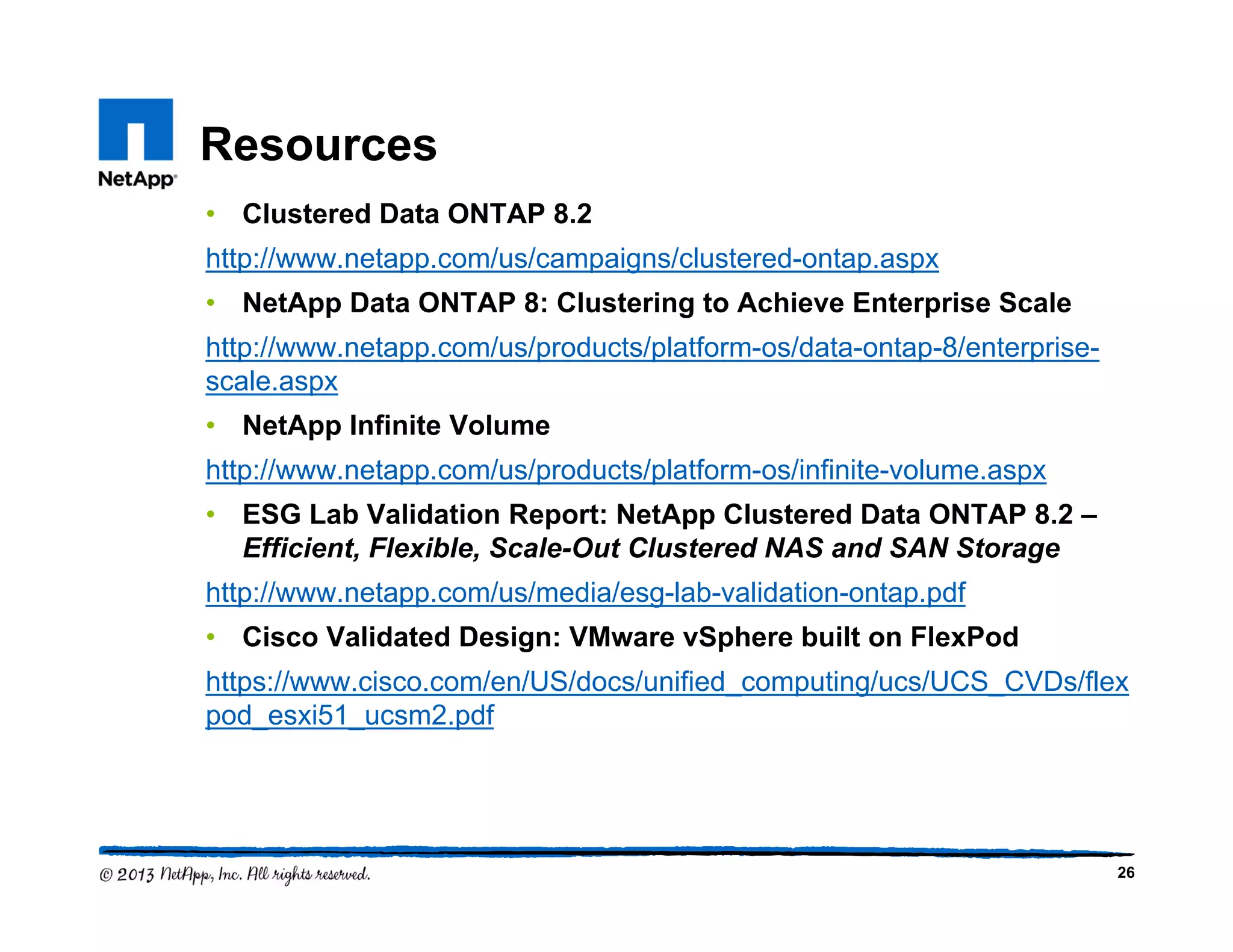

26. Resources
• Clustered Data ONTAP 8.2
http://www.netapp.com/us/campaigns/clustered-ontap.aspx
• NetApp Data ONTAP 8: Clustering to Achieve Enterprise Scale
http://www.netapp.com/us/products/platform-os/data-ontap-8/enterprise-
scale.aspx
• NetApp Infinite Volume
http://www.netapp.com/us/products/platform-os/infinite-volume.aspx
• ESG Lab Validation Report: NetApp Clustered Data ONTAP 8.2 –
Efficient, Flexible, Scale-Out Clustered NAS and SAN Storage
http://www.netapp.com/us/media/esg-lab-validation-ontap.pdf
• Cisco Validated Design: VMware vSphere built on FlexPod
https://www.cisco.com/en/US/docs/unified_computing/ucs/UCS_CVDs/flex
pod_esxi51_ucsm2.pdf
26

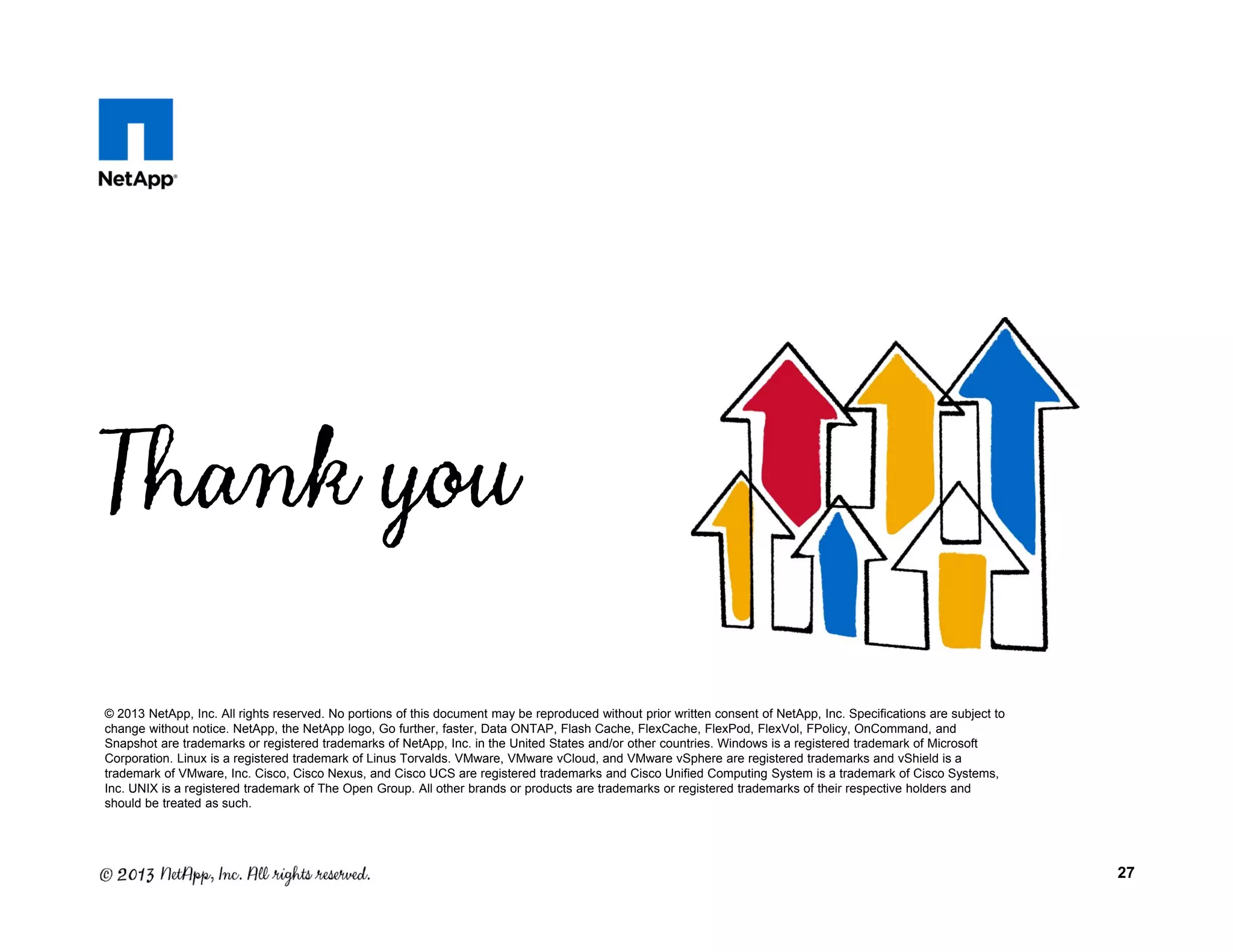

27. 27
