1. SANGATH – ARCHITECT’S STUDIO
AHMEDABAD, INDIA
ARCHITECT – B.V. DOSHI

2. :- THE WORD SANGATH MEANS “MOVING TOGETHER THROUGH PARTICIPATION”
DESIGN CONCEPT
:- DESIGN CONCERNS OF CLIMATE : TEMPERATURE
HUMIDITY
SUNLIGHT
:- EXTENSIVE USE OF VAULT.

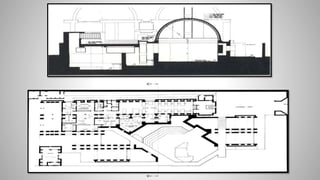

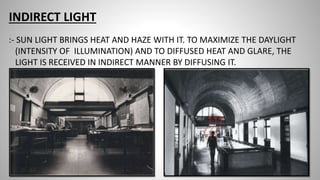

4. INDIRECT LIGHT
:- SUN LIGHT BRINGS HEAT AND HAZE WITH IT. TO MAXIMIZE THE DAYLIGHT
(INTENSITY OF ILLUMINATION) AND TO DIFFUSED HEAT AND GLARE, THE
LIGHT IS RECEIVED IN INDIRECT MANNER BY DIFFUSING IT.

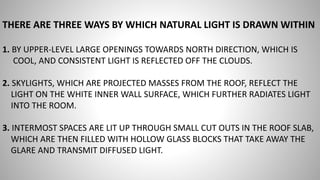

5. THERE ARE THREE WAYS BY WHICH NATURAL LIGHT IS DRAWN WITHIN
1. BY UPPER-LEVEL LARGE OPENINGS TOWARDS NORTH DIRECTION, WHICH IS
COOL, AND CONSISTENT LIGHT IS REFLECTED OFF THE CLOUDS.
2. SKYLIGHTS, WHICH ARE PROJECTED MASSES FROM THE ROOF, REFLECT THE
LIGHT ON THE WHITE INNER WALL SURFACE, WHICH FURTHER RADIATES LIGHT
INTO THE ROOM.
3. INTERMOST SPACES ARE LIT UP THROUGH SMALL CUT OUTS IN THE ROOF SLAB,
WHICH ARE THEN FILLED WITH HOLLOW GLASS BLOCKS THAT TAKE AWAY THE
GLARE AND TRANSMIT DIFFUSED LIGHT.

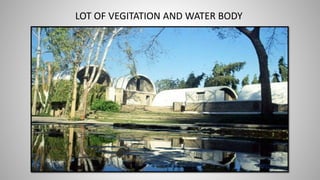

6. LOT OF VEGITATION AND WATER BODY

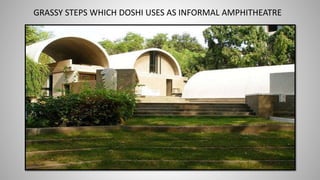

7. GRASSY STEPS WHICH DOSHI USES AS INFORMAL AMPHITHEATRE

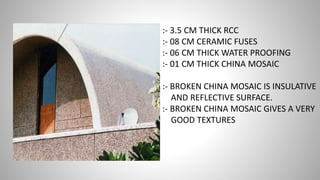

8. :- 3.5 CM THICK RCC
:- 08 CM CERAMIC FUSES
:- 06 CM THICK WATER PROOFING
:- 01 CM THICK CHINA MOSAIC
:- BROKEN CHINA MOSAIC IS INSULATIVE
AND REFLECTIVE SURFACE.
:- BROKEN CHINA MOSAIC GIVES A VERY
GOOD TEXTURES
