The fundamentals of SQL processing
Connor McDonald
Database Advocate
Copyright © 2019 Oracle and/or its affiliates.

Slower and less secure in 45 minutes
Connor McDonald
Database Advocate
Copyright © 2019 Oracle and/or its affiliates.

7
Me
youtube bit.ly/youtube-connor
blog connor-mcdonald.com
twitter @connor_mc_d
400+ posts mainly on database & development
250 technical videos, new uploads every week
rants and raves on tech and the world :-)

8

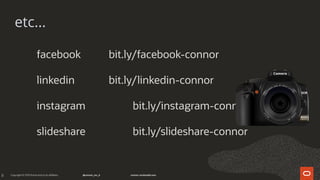

etc...
facebook bit.ly/facebook-connor
linkedin bit.ly/linkedin-connor
instagram bit.ly/instagram-connor
slideshare bit.ly/slideshare-connor

15
for successful applications...

18

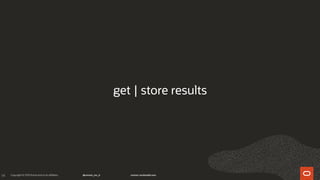

get | store results ... fast

21
compile
execute
store/fetch results

23

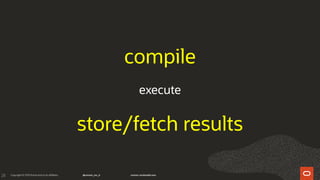

compile
execute
store/fetch results

29

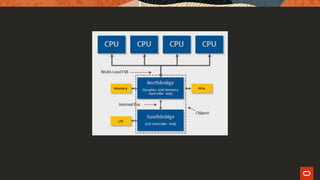

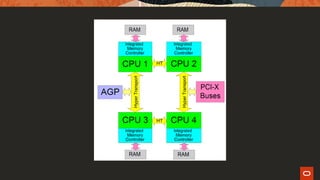

a little bit of history on servers ...

42
you can't blame the server (anymore)

50
so what's holding us back ?

54
... not being able to do work

59

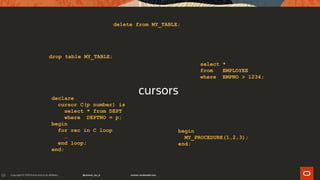

cursorsdeclare
cursor C(p number) is
select * from DEPT
where DEPTNO = p;
begin
for rec in C loop
…
end loop;
end;
select *
from EMPLOYEE
where EMPNO > 1234;
delete from MY_TABLE;
drop table MY_TABLE;
begin
MY_PROCEDURE(1,2,3);
end;

62

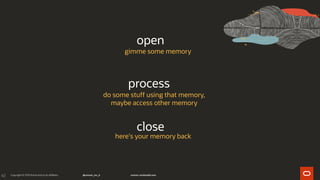

open
process
close
gimme some memory
do some stuff using that memory,
maybe access other memory
here's your memory back

63
memory access = controlled access

64
a quick primer on (database) memory

71
limited resource
lots of people want it
concurrent access causes problems
it's a complex system

76

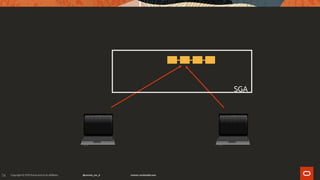

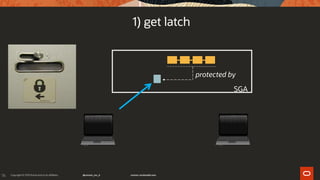

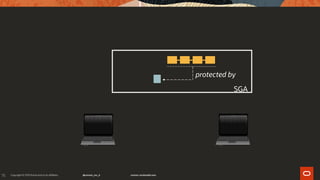

SGA
protected by
1) get latch

77

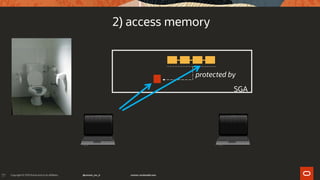

SGA
protected by
2) access memory

78

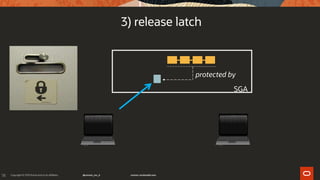

SGA
protected by
3) release latch

80

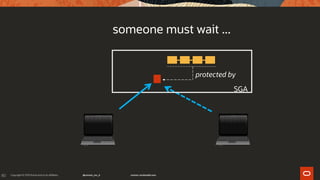

someone must wait ...
SGA
protected by

82

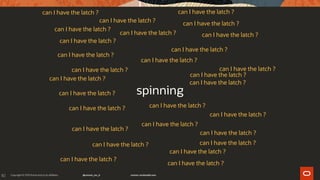

spinning
can I have the latch ?

97
"Errrr.... weren't we talking SQL?"

99

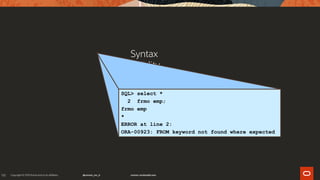

Syntax
Validity
Optimization
Rowsourcing
Execution
(Fetch)
SQL> select *
2 frmo emp;
frmo emp
*
ERROR at line 2:
ORA-00923: FROM keyword not found where expected

100
Syntax
Validity
Optimization
Rowsourcing
Execution
(Fetch)
SQL> select empnoo
2 from emp;
select empnoo
*
ERROR at line 1:
ORA-00904: invalid column name

101

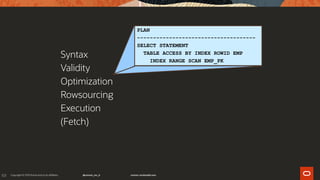

PLAN
-------------------------------------
SELECT STATEMENT
TABLE ACCESS BY INDEX ROWID EMP
INDEX RANGE SCAN EMP_PK
Syntax
Validity
Optimization
Rowsourcing
Execution
(Fetch)

102

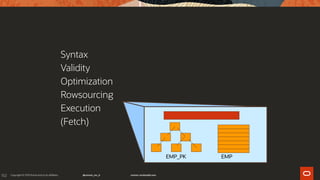

EMP_PK EMP
Syntax
Validity
Optimization
Rowsourcing
Execution
(Fetch)

103

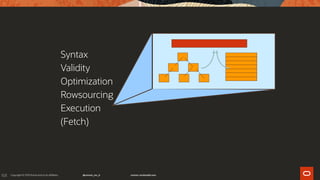

Syntax
Validity
Optimization
Rowsourcing
Execution
(Fetch)

104

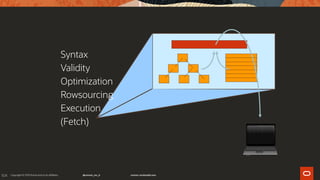

Syntax
Validity
Optimization
Rowsourcing
Execution
(Fetch)

112

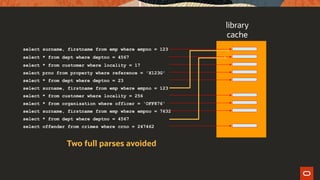

previously executed statements

113

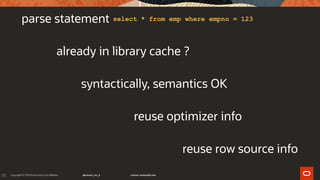

parse statement
already in library cache ?
reuse optimizer info
reuse row source info
select * from emp where empno = 123
syntactically, semantics OK

select surname, firstname from emp where empno = 123
select * from dept where deptno = 4567
select * from customer where locality = 17
select prno from property where reference = 'X123G'
select * from customer where locality = 256
select * from organisation where officer = 'OFF876'
select offender from crimes where crno = 247462
Two full parses avoided
library
cache

115
select * from dept where dname = 'SALES'
probability of reuse low ?

116

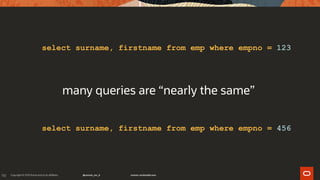

many queries are “nearly the same”

118

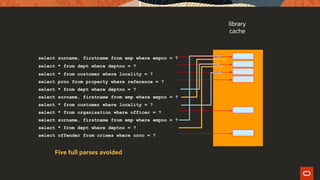

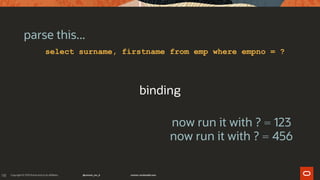

binding
parse this...
now run it with ? = 123
now run it with ? = 456
select surname, firstname from emp where empno = ?

select * from dept where deptno = ?
select * from customer where locality = ?
select prno from property where reference = ?
select * from customer where locality = ?
select * from organisation where officer = ?
select offender from crimes where crno = ?
Five full parses avoided
library
cache

120
demo
ParseDemo
ParseDemoBind

121
"performance still looks ok"

122
let's make it real
ParseDemo2 nn
ParseDemo2Bind nn

125

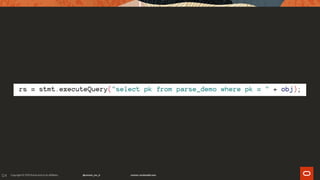

building SQL by concatenation

127
select ename
from emp
where empno = 6543
select ename
from emp
where empno = 6543
and 1=0
union all
select table_name
from all_tables
where table_name like '%SECURITY%'
select ename
from emp
where empno = 6543
and 1=0
union all
select username
from app_security
where ...

129

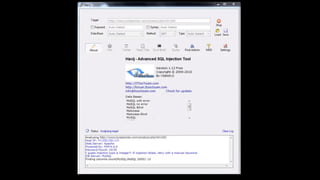

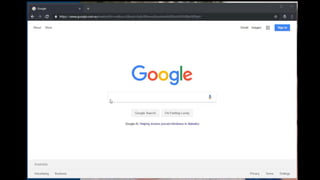

#1 hacking app .... Google

132

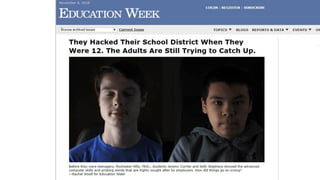

it takes 5 minutes to hack you

138
data is stored in blocks | pages

139
to read data, you read blocks...

SQL> select *
2 from EMP
3 where ...
/u01/my_data1.dat
memory

141

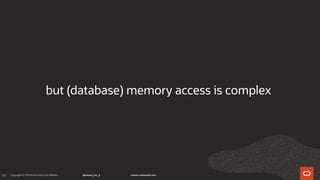

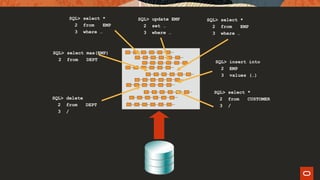

but (database) memory access is complex

SQL> select *
2 from EMP
3 where …
SQL> update EMP
2 set …
3 where …
SQL> select *
2 from EMP
3 where …
SQL> insert into
2 EMP
3 values (…)
SQL> select *
2 from CUSTOMER
3 /
SQL> select max(EMP)
2 from DEPT
SQL> delete
2 from DEPT
3 /

• Get latch
• Search along list of blocks in memory
• Read block
• Extract row of interest
• Release latch
• Give row back to client
"fetch a row"

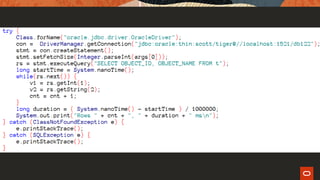

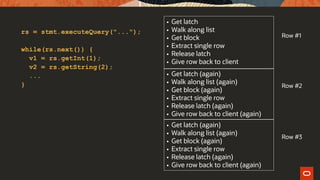

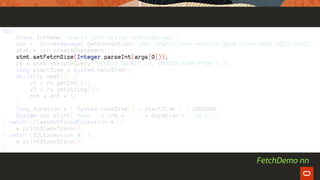

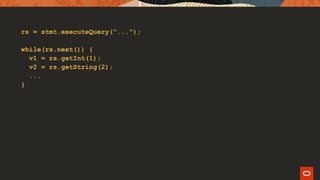

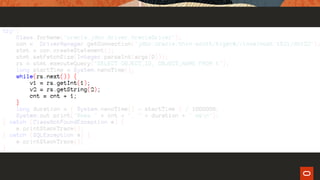

rs = stmt.executeQuery("...");
while(rs.next()) {
v1 = rs.getInt(1);
v2 = rs.getString(2);
...
}

rs = stmt.executeQuery("...");
while(rs.next()) {
v1 = rs.getInt(1);
v2 = rs.getString(2);
...
}
• Get latch
• Walk along list
• Get block
• Extract single row
• Release latch
• Give row back to client
• Get latch (again)
• Walk along list (again)
• Get block (again)
• Release latch (again)
• Give row back to client (again)
Row #1
Row #2
• Get latch (again)
• Walk along list (again)
• Get block (again)
• Release latch (again)
• Give row back to client (again)
Row #3

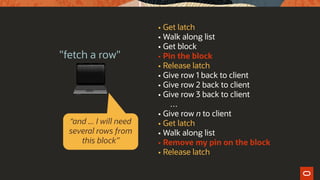

a better strategy.... “pinning”

"fetch a row"
• Get latch
• Walk along list
• Get block
• Pin the block
• Release latch
• Give row 1 back to client
…
• Give row n to client
• Get latch
• Walk along list
• Remove my pin on the block
• Release latch
“and ... I will need
several rows from
this block”

152
how do you say
“I may want many rows” ?

153
responsibility of the client

163
all that data goes somewhere

164

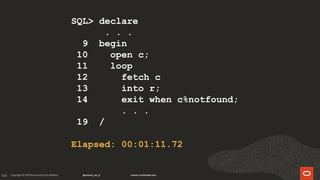

SQL> declare
. . .
9 begin
10 open c;
11 loop
12 fetch c
13 into r;
14 exit when c%notfound;
. . .
19 /
Elapsed: 00:01:11.72

165

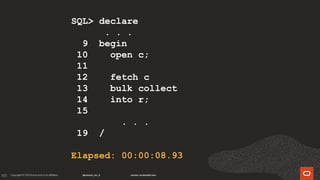

SQL> declare
. . .
9 begin
10 open c;
11
12 fetch c
13 bulk collect
14 into r;
15
. . .
19 /
Elapsed: 00:00:08.93

166

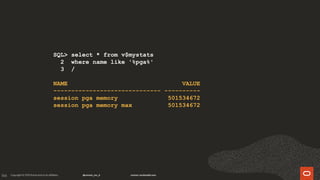

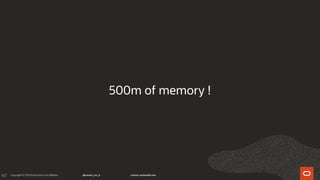

SQL> select * from v$mystats
2 where name like '%pga%'
3 /
NAME VALUE
------------------------------ ----------
session pga memory 501534672
session pga memory max 501534672

168
law of diminishing returns

170

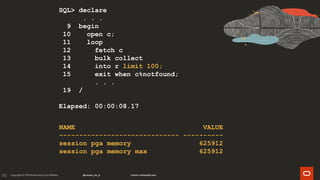

SQL> declare
. . .
9 begin
10 open c;
11 loop
12 fetch c
13 bulk collect
14 into r limit 100;
15 exit when c%notfound;
. . .
19 /
Elapsed: 00:00:08.17
NAME VALUE
------------------------------ ----------
session pga memory 625912
session pga memory max 625912

171

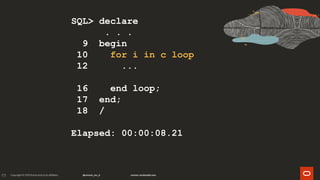

SQL> declare
. . .
9 begin
10 for i in c loop
12 ...
16 end loop;
17 end;
18 /
Elapsed: 00:00:08.21

175
think blocks not rows
when appropriate

177
demo
InsertDemo3
InsertDemo4 nn

179
for slow and insecure applications...

180
no binding, no SQL reuse, no pinning

182

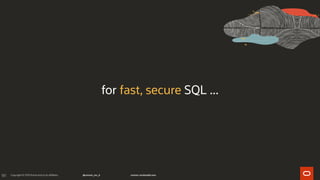

... hence fast, secure applications

183
... always bind user input

184
... use pinning/array processing

186
