1. 9/19/2019
1
Copyright © 2019 Oracle and/or its affiliates.
2
Connor McDonald
1
2

2. 9/19/2019
2
3 3
4 4
3
4

3. 9/19/2019
3
5 5
6

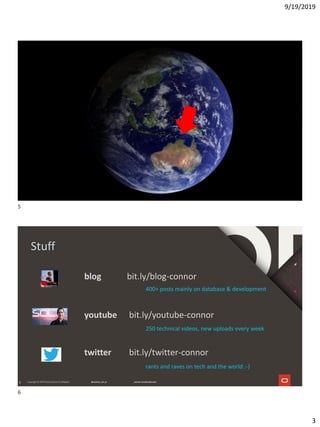

Stuff
youtube bit.ly/youtube-connor
blog bit.ly/blog-connor
twitter bit.ly/twitter-connor
400+ posts mainly on database & development
250 technical videos, new uploads every week
rants and raves on tech and the world :-)
5
6

4. 9/19/2019
4
7

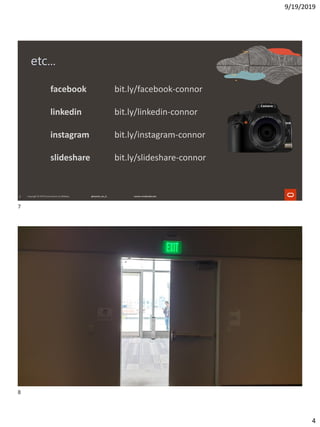

etc...
facebook bit.ly/facebook-connor
linkedin bit.ly/linkedin-connor
instagram bit.ly/instagram-connor
slideshare bit.ly/slideshare-connor
8
7
8

5. 9/19/2019
5

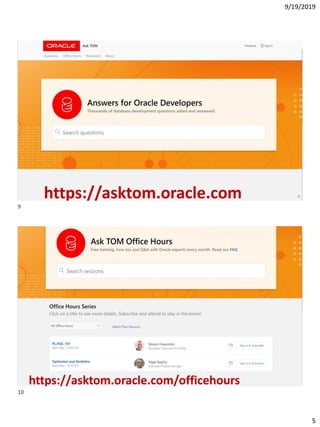

9 9https://asktom.oracle.com
10 10https://asktom.oracle.com/officehours
9
10

6. 9/19/2019
6

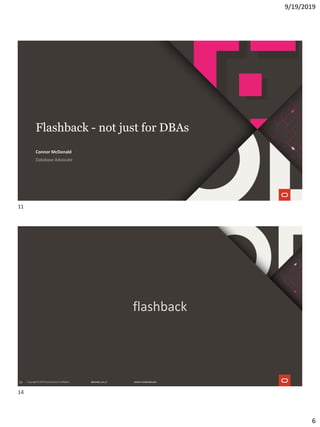

Flashback - not just for DBAs
Database Advocate
Connor McDonald
14
flashback
11
14

7. 9/19/2019
7
15

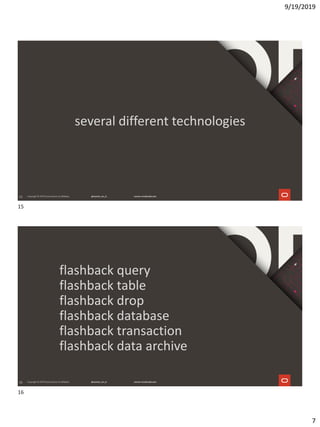

several different technologies
16
flashback query
flashback table
flashback drop
flashback database
flashback transaction
flashback data archive
15
16

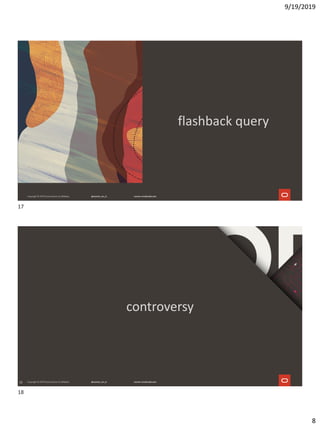

8. 9/19/2019
8
flashback query
18
controversy
17
18

9. 9/19/2019
9
19

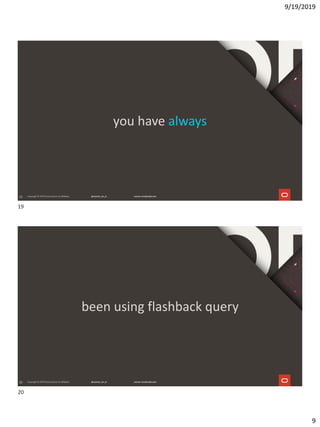

you have always
20
been using flashback query
19
20

10. 9/19/2019
10
21

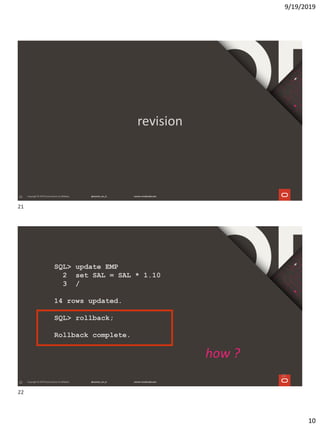

revision
22
SQL> update EMP
2 set SAL = SAL * 1.10
3 /
14 rows updated.
SQL> rollback;
Rollback complete.
how ?
22
21
22

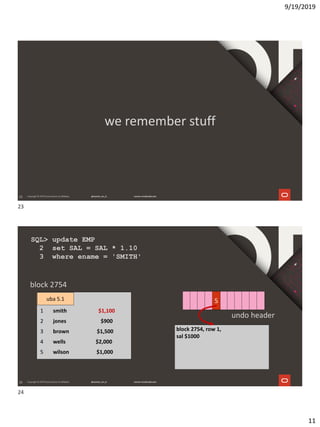

11. 9/19/2019
11
23
we remember stuff
24
SQL> update EMP
2 set SAL = SAL * 1.10
3 where ename = 'SMITH'
undo header
smith $1,0001
block 2754
jones $9002
brown $1,5003
wells $2,0004
wilson $1,0005
block 2754, row 1,
sal $1000
uba 5 5
$1,100
uba 5.1
23
24

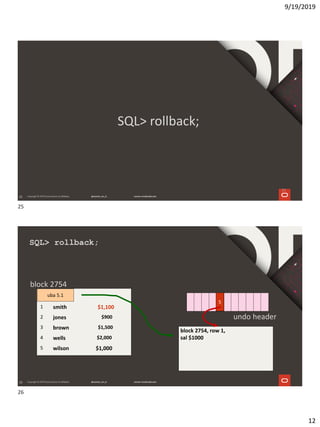

12. 9/19/2019
12
25
SQL> rollback;
25
26
SQL> rollback;
undo header
smith $1,0001
block 2754
jones $9002
brown $1,5003
wells $2,0004
wilson $1,0005
block 2754, row 1,
sal $1000
uba 5
5
$1,100
uba 5.1
25
26

13. 9/19/2019
13
27

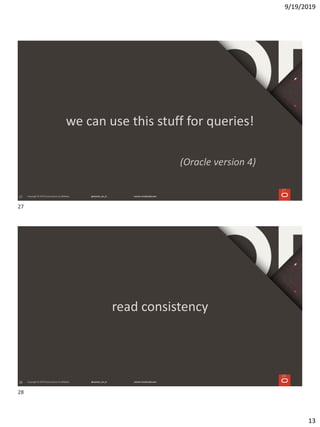

we can use this stuff for queries!
(Oracle version 4)
27
28
read consistency
28
27
28

14. 9/19/2019
14
29

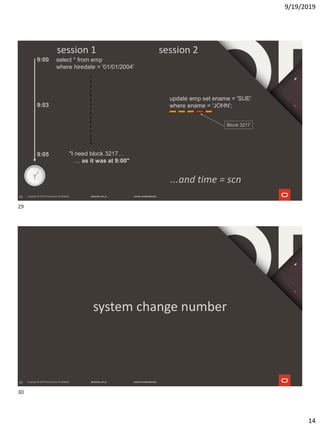

select * from emp
where hiredate > '01/01/2004'
update emp set ename = 'SUE'
where ename = 'JOHN';
Block 3217
"I need block 3217…
… as it was at 9:00"
9:00
9:03
9:05
session 1 session 2
...and time = scn
30
system change number
29
30

15. 9/19/2019
15
31

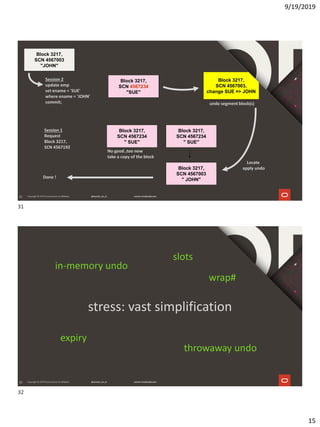

Session 1
Request
Block 3217,
SCN 4567192
Block 3217,
SCN 4567234
"SUE"
Block 3217,
SCN 4567003,
change SUE => JOHN
undo segment block(s)
No good..too new
take a copy of the block
Locate
apply undo
Block 3217,
SCN 4567234
" SUE"
Block 3217,
SCN 4567234
" SUE"
Block 3217,
SCN 4567003
" JOHN"
Block 3217,
SCN 4567003
"JOHN"
Session 2
update emp
set ename = 'SUE'
where ename = 'JOHN'
commit;
Done !
32
stress: vast simplification
in-memory undo
throwaway undo
slots
expiry
wrap#
31
32

16. 9/19/2019
16
33

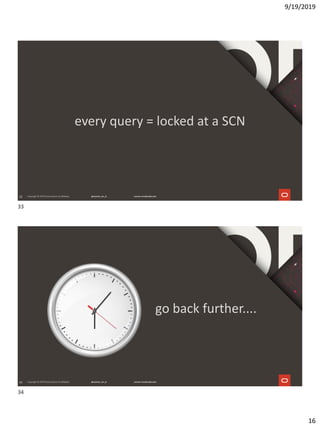

every query = locked at a SCN
34
go back further....
33
34

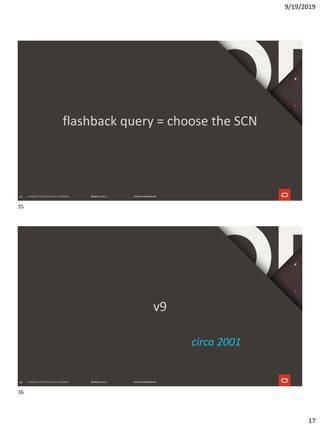

17. 9/19/2019
17
35
flashback query = choose the SCN
36
v9
circa 2001
35
36

18. 9/19/2019
18
37

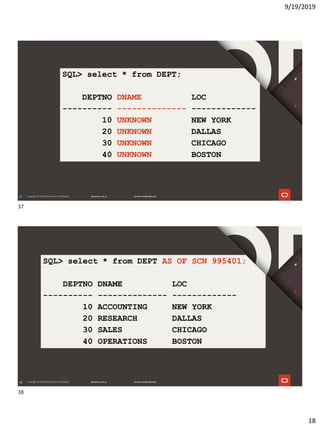

SQL> select * from DEPT;
DEPTNO DNAME LOC
---------- -------------- -------------
10 UNKNOWN NEW YORK
20 UNKNOWN DALLAS
30 UNKNOWN CHICAGO
40 UNKNOWN BOSTON
38
SQL> select * from DEPT AS OF SCN 995401;
DEPTNO DNAME LOC
---------- -------------- -------------
10 ACCOUNTING NEW YORK
20 RESEARCH DALLAS
30 SALES CHICAGO
40 OPERATIONS BOSTON
37
38

19. 9/19/2019
19
39

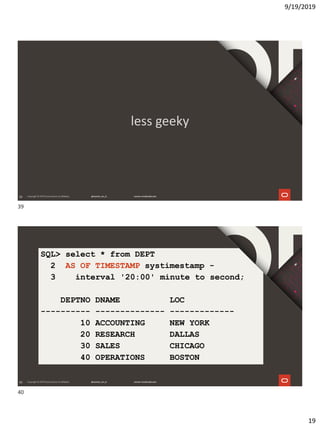

less geeky
40
SQL> select * from DEPT
2 AS OF TIMESTAMP systimestamp -
3 interval '20:00' minute to second;
DEPTNO DNAME LOC
---------- -------------- -------------
10 ACCOUNTING NEW YORK
20 RESEARCH DALLAS
30 SALES CHICAGO
40 OPERATIONS BOSTON
39
40

20. 9/19/2019
20
44

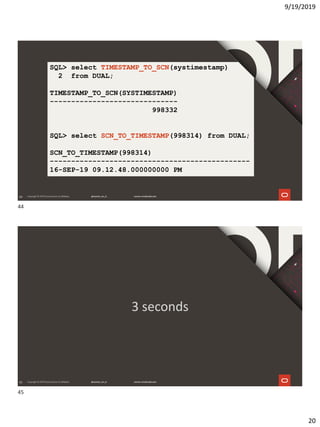

SQL> select TIMESTAMP_TO_SCN(systimestamp)
2 from DUAL;
TIMESTAMP_TO_SCN(SYSTIMESTAMP)
------------------------------
998332
SQL> select SCN_TO_TIMESTAMP(998314) from DUAL;
SCN_TO_TIMESTAMP(998314)
-----------------------------------------------
16-SEP-19 09.12.48.000000000 PM
45
3 seconds
44
45

21. 9/19/2019
21
46

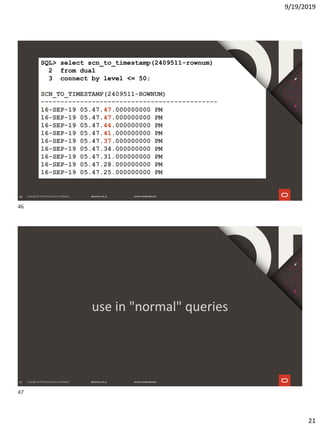

SQL> select scn_to_timestamp(2409511-rownum)
2 from dual
3 connect by level <= 50;
SCN_TO_TIMESTAMP(2409511-ROWNUM)
---------------------------------------------
16-SEP-19 05.47.47.000000000 PM
16-SEP-19 05.47.47.000000000 PM
16-SEP-19 05.47.44.000000000 PM
16-SEP-19 05.47.41.000000000 PM
16-SEP-19 05.47.37.000000000 PM
16-SEP-19 05.47.34.000000000 PM
16-SEP-19 05.47.31.000000000 PM
16-SEP-19 05.47.28.000000000 PM
16-SEP-19 05.47.25.000000000 PM
47
use in "normal" queries
46
47

22. 9/19/2019
22
48

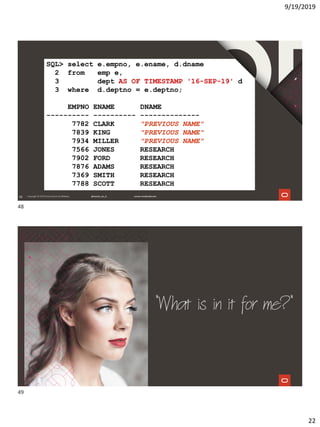

SQL> select e.empno, e.ename, d.dname
2 from emp e,
3 dept AS OF TIMESTAMP '16-SEP-19' d
3 where d.deptno = e.deptno;
EMPNO ENAME DNAME
---------- ---------- --------------
7782 CLARK "PREVIOUS NAME"
7839 KING "PREVIOUS NAME"
7934 MILLER "PREVIOUS NAME"
7566 JONES RESEARCH
7902 FORD RESEARCH
7876 ADAMS RESEARCH
7369 SMITH RESEARCH
7788 SCOTT RESEARCH
"What is in it for me?"
48
49

23. 9/19/2019
23
50

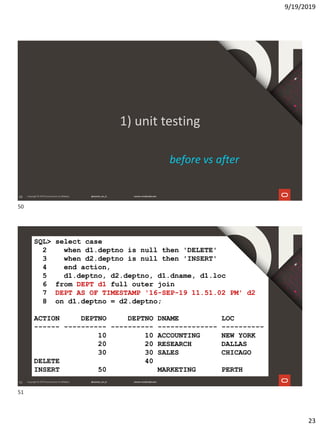

1) unit testing
before vs after
51
SQL> select case
2 when d1.deptno is null then 'DELETE'
3 when d2.deptno is null then 'INSERT'
4 end action,
5 d1.deptno, d2.deptno, d1.dname, d1.loc
6 from DEPT d1 full outer join
7 DEPT AS OF TIMESTAMP '16-SEP-19 11.51.02 PM' d2
8 on d1.deptno = d2.deptno;
ACTION DEPTNO DEPTNO DNAME LOC
------ ---------- ---------- -------------- ----------
10 10 ACCOUNTING NEW YORK
20 20 RESEARCH DALLAS
30 30 SALES CHICAGO
DELETE 40
INSERT 50 MARKETING PERTH
50
51

24. 9/19/2019
24
52

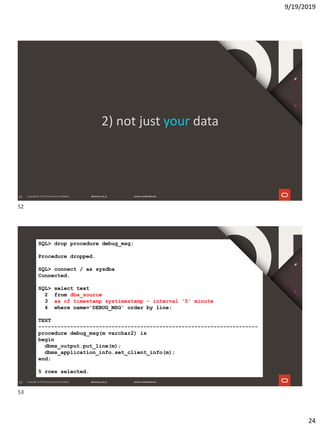

2) not just your data
53
SQL> drop procedure debug_msg;
Procedure dropped.
SQL> connect / as sysdba
Connected.
SQL> select text
2 from dba_source
3 as of timestamp systimestamp - interval '5' minute
4 where name='DEBUG_MSG' order by line;
TEXT
---------------------------------------------------------------------
procedure debug_msg(m varchar2) is
begin
dbms_output.put_line(m);
dbms_application_info.set_client_info(m);
end;
5 rows selected.
52
53

25. 9/19/2019
25
54

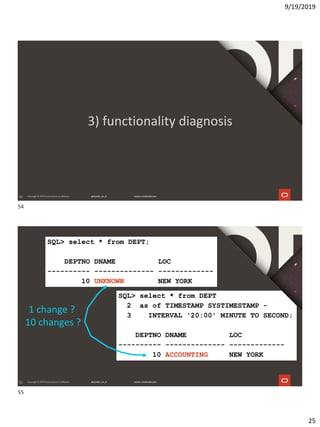

3) functionality diagnosis
55
SQL> select * from DEPT;
DEPTNO DNAME LOC
---------- -------------- -------------
10 UNKNOWN NEW YORK
SQL> select * from DEPT
2 as of TIMESTAMP SYSTIMESTAMP -
3 INTERVAL '20:00' MINUTE TO SECOND;
DEPTNO DNAME LOC
---------- -------------- -------------
10 ACCOUNTING NEW YORK
1 change ?
10 changes ?
54
55

26. 9/19/2019
26
56

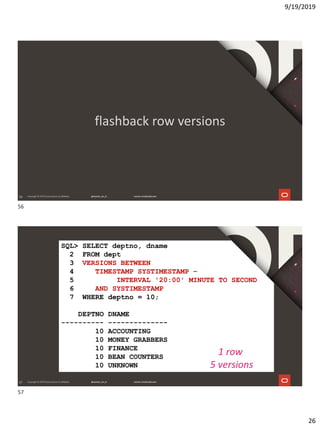

flashback row versions
57
SQL> SELECT deptno, dname
2 FROM dept
3 VERSIONS BETWEEN
4 TIMESTAMP SYSTIMESTAMP –
5 INTERVAL '20:00' MINUTE TO SECOND
6 AND SYSTIMESTAMP
7 WHERE deptno = 10;
DEPTNO DNAME
---------- --------------
10 ACCOUNTING
10 MONEY GRABBERS
10 FINANCE
10 BEAN COUNTERS
10 UNKNOWN
1 row
5 versions
56
57

27. 9/19/2019
27

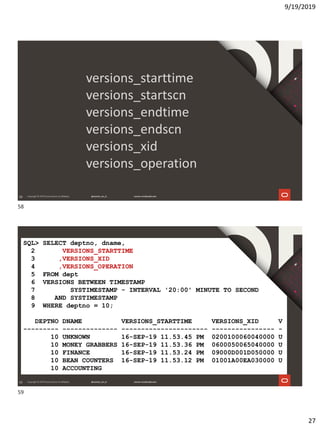

58
versions_starttime
versions_startscn
versions_endtime
versions_endscn
versions_xid
versions_operation
59
SQL> SELECT deptno, dname,
2 VERSIONS_STARTTIME
3 ,VERSIONS_XID
4 ,VERSIONS_OPERATION
5 FROM dept
6 VERSIONS BETWEEN TIMESTAMP
7 SYSTIMESTAMP - INTERVAL '20:00' MINUTE TO SECOND
8 AND SYSTIMESTAMP
9 WHERE deptno = 10;
DEPTNO DNAME VERSIONS_STARTTIME VERSIONS_XID V
--------- -------------- ---------------------- ---------------- -
10 UNKNOWN 16-SEP-19 11.53.45 PM 0200100060040000 U
10 MONEY GRABBERS 16-SEP-19 11.53.36 PM 0600050065040000 U
10 FINANCE 16-SEP-19 11.53.24 PM 09000D001D050000 U
10 BEAN COUNTERS 16-SEP-19 11.53.12 PM 01001A00EA030000 U
10 ACCOUNTING
58
59

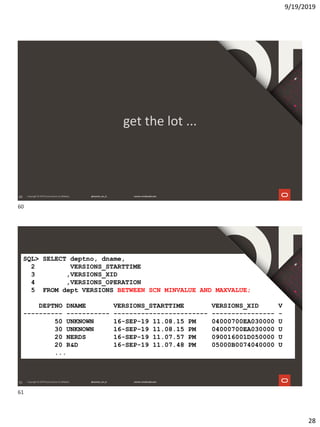

28. 9/19/2019
28
60
get the lot ...
61
SQL> SELECT deptno, dname,
2 VERSIONS_STARTTIME
3 ,VERSIONS_XID
4 ,VERSIONS_OPERATION
5 FROM dept VERSIONS BETWEEN SCN MINVALUE AND MAXVALUE;
DEPTNO DNAME VERSIONS_STARTTIME VERSIONS_XID V
---------- ----------- ------------------------ ---------------- -
50 UNKNOWN 16-SEP-19 11.08.15 PM 04000700EA030000 U
30 UNKNOWN 16-SEP-19 11.08.15 PM 04000700EA030000 U
20 NERDS 16-SEP-19 11.07.57 PM 090016001D050000 U
20 R&D 16-SEP-19 11.07.48 PM 05000B0074040000 U
...
60
61

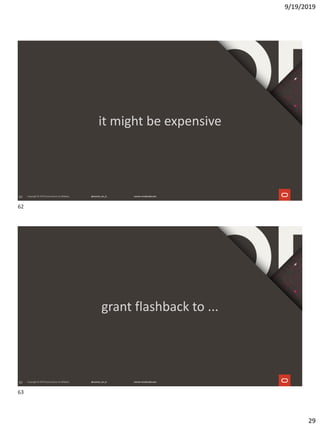

29. 9/19/2019
29
62
it might be expensive
63
grant flashback to ...
62
63

30. 9/19/2019
30
64
session level
65
dbms_flashback.enable_at_time(systimestamp-1/24);
select * from emp;
select * from dept;
etc etc
64
65

31. 9/19/2019
31
68

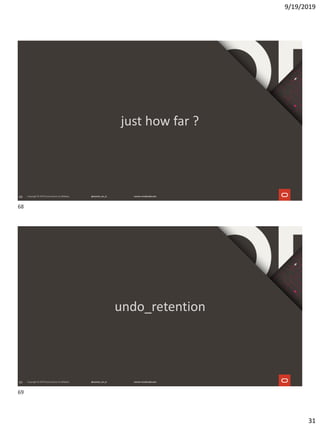

just how far ?
69
undo_retention
68
69

32. 9/19/2019
32
70

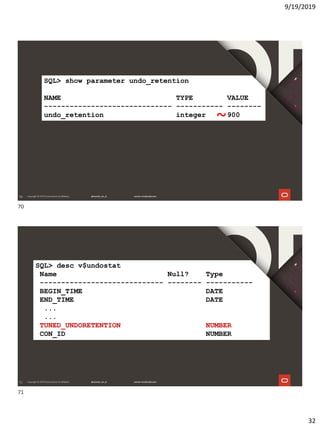

SQL> show parameter undo_retention
NAME TYPE VALUE
------------------------------ ----------- --------
undo_retention integer 900
~
71
SQL> desc v$undostat
Name Null? Type
----------------------------- -------- -----------
BEGIN_TIME DATE
END_TIME DATE
...
...
TUNED_UNDORETENTION NUMBER
CON_ID NUMBER
70
71

33. 9/19/2019
33
73

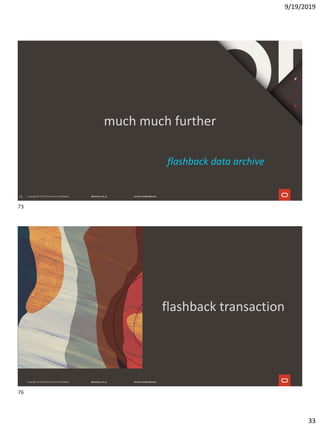

much much further
flashback data archive
flashback transaction
73
76

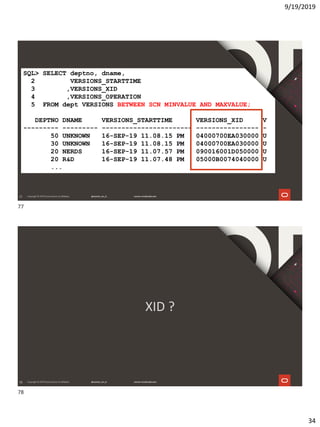

34. 9/19/2019
34
77
SQL> SELECT deptno, dname,
2 VERSIONS_STARTTIME
3 ,VERSIONS_XID
4 ,VERSIONS_OPERATION
5 FROM dept VERSIONS BETWEEN SCN MINVALUE AND MAXVALUE;
DEPTNO DNAME VERSIONS_STARTTIME VERSIONS_XID V
--------- --------- ----------------------- ---------------- -
50 UNKNOWN 16-SEP-19 11.08.15 PM 04000700EA030000 U
30 UNKNOWN 16-SEP-19 11.08.15 PM 04000700EA030000 U
20 NERDS 16-SEP-19 11.07.57 PM 090016001D050000 U
20 R&D 16-SEP-19 11.07.48 PM 05000B0074040000 U
...
78
XID ?
77
78

35. 9/19/2019
35
79

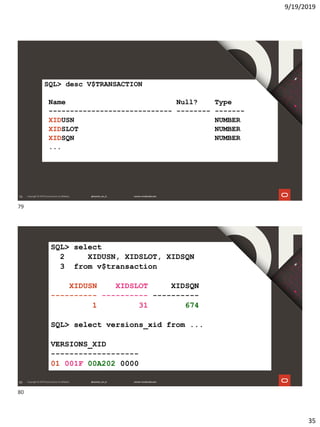

SQL> desc V$TRANSACTION
Name Null? Type
----------------------------- -------- -------
XIDUSN NUMBER
XIDSLOT NUMBER
XIDSQN NUMBER
...
80
SQL> select
2 XIDUSN, XIDSLOT, XIDSQN
3 from v$transaction
XIDUSN XIDSLOT XIDSQN
---------- ---------- ----------
1 31 674
SQL> select versions_xid from ...
VERSIONS_XID
-------------------
01 001F 00A202 0000
79
80

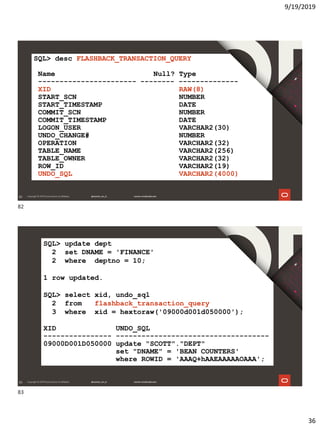

36. 9/19/2019
36
82
SQL> desc FLASHBACK_TRANSACTION_QUERY
Name Null? Type
----------------------- -------- --------------
XID RAW(8)
START_SCN NUMBER
START_TIMESTAMP DATE
COMMIT_SCN NUMBER
COMMIT_TIMESTAMP DATE
LOGON_USER VARCHAR2(30)
UNDO_CHANGE# NUMBER
OPERATION VARCHAR2(32)
TABLE_NAME VARCHAR2(256)
TABLE_OWNER VARCHAR2(32)
ROW_ID VARCHAR2(19)
UNDO_SQL VARCHAR2(4000)
83
SQL> update dept
2 set DNAME = 'FINANCE'
2 where deptno = 10;
1 row updated.
SQL> select xid, undo_sql
2 from flashback_transaction_query
3 where xid = hextoraw('09000d001d050000');
XID UNDO_SQL
---------------- ------------------------------------
09000D001D050000 update "SCOTT"."DEPT"
set "DNAME" = 'BEAN COUNTERS'
where ROWID = 'AAAQ+hAAEAAAAAOAAA';
82
83

37. 9/19/2019
37
84

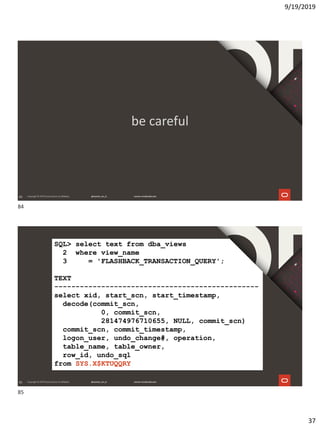

be careful
85
SQL> select text from dba_views
2 where view_name
3 = 'FLASHBACK_TRANSACTION_QUERY';
TEXT
------------------------------------------------
select xid, start_scn, start_timestamp,
decode(commit_scn,
0, commit_scn,
281474976710655, NULL, commit_scn)
commit_scn, commit_timestamp,
logon_user, undo_change#, operation,
table_name, table_owner,
row_id, undo_sql
from SYS.X$KTUQQRY
84
85

38. 9/19/2019
38
86

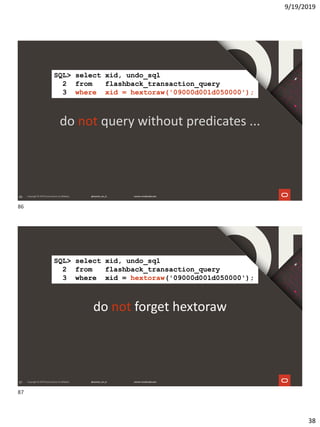

do not query without predicates ...
SQL> select xid, undo_sql
2 from flashback_transaction_query
3 where xid = hextoraw('09000d001d050000');
87
do not forget hextoraw
SQL> select xid, undo_sql
2 from flashback_transaction_query
3 where xid = hextoraw('09000d001d050000');
86
87

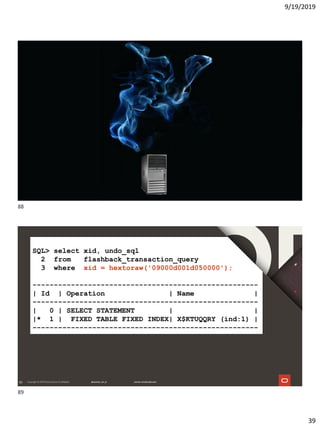

39. 9/19/2019
39
88
89
SQL> select xid, undo_sql
2 from flashback_transaction_query
3 where xid = hextoraw('09000d001d050000');
-----------------------------------------------------
| Id | Operation | Name |
-----------------------------------------------------
| 0 | SELECT STATEMENT | |
|* 1 | FIXED TABLE FIXED INDEX| X$KTUQQRY (ind:1) |
-----------------------------------------------------
88
89

40. 9/19/2019
40
90

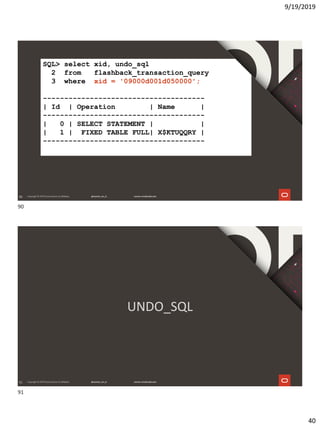

SQL> select xid, undo_sql
2 from flashback_transaction_query
3 where xid = '09000d001d050000';
--------------------------------------
| Id | Operation | Name |
--------------------------------------
| 0 | SELECT STATEMENT | |
| 1 | FIXED TABLE FULL| X$KTUQQRY |
--------------------------------------
91
UNDO_SQL
90
91

41. 9/19/2019
41
92
rollback committed transaction
"What is in it for me?"
92
93

42. 9/19/2019
42
94
1) accidents
95
three words
94
95

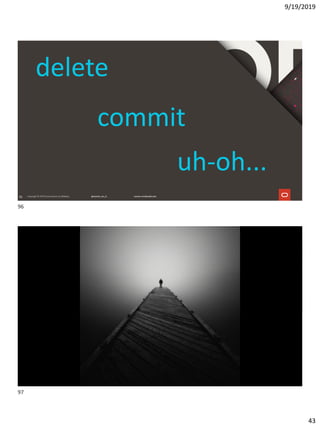

43. 9/19/2019
43
96
delete
uh-oh...
commit
9797
96
97

44. 9/19/2019
44

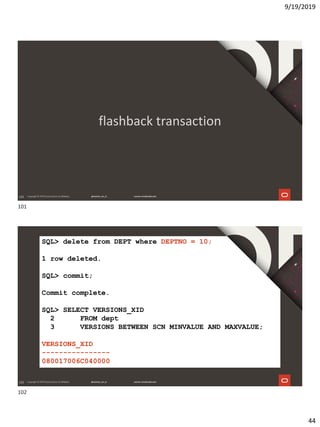

101
flashback transaction
102
SQL> delete from DEPT where DEPTNO = 10;
1 row deleted.
SQL> commit;
Commit complete.
SQL> SELECT VERSIONS_XID
2 FROM dept
3 VERSIONS BETWEEN SCN MINVALUE AND MAXVALUE;
VERSIONS_XID
----------------
080017006C040000
101
102

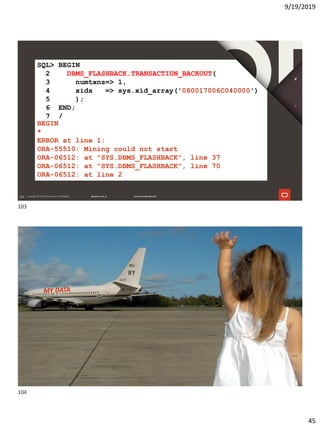

45. 9/19/2019
45
103
SQL> BEGIN
2 DBMS_FLASHBACK.TRANSACTION_BACKOUT(
3 numtxns=> 1,
4 xids => sys.xid_array('080017006C040000')
5 );
6 END;
7 /
BEGIN
*
ERROR at line 1:
ORA-55510: Mining could not start
ORA-06512: at "SYS.DBMS_FLASHBACK", line 37
ORA-06512: at "SYS.DBMS_FLASHBACK", line 70
ORA-06512: at line 2
104
104
103
104

46. 9/19/2019
46
105
SQL> ALTER DATABASE ADD
2 SUPPLEMENTAL LOG DATA
3 (PRIMARY KEY) COLUMNS;
Database altered.
106
SQL> delete from DEPT where DEPTNO = 10;
1 row deleted.
SQL> commit;
Commit complete.
SQL> SELECT VERSIONS_XID
2 FROM dept
3 VERSIONS BETWEEN SCN MINVALUE AND MAXVALUE;
VERSIONS_XID
----------------
080017006C040000
105
106

47. 9/19/2019
47
107

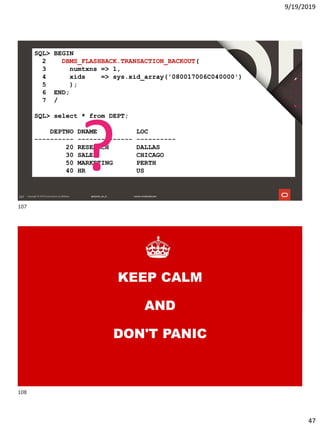

SQL> BEGIN
2 DBMS_FLASHBACK.TRANSACTION_BACKOUT(
3 numtxns => 1,
4 xids => sys.xid_array('080017006C040000')
5 );
6 END;
7 /
SQL> select * from DEPT;
DEPTNO DNAME LOC
---------- -------------- ----------
20 RESEARCH DALLAS
30 SALES CHICAGO
50 MARKETING PERTH
40 HR US?
108
KEEP CALM
AND
DON'T PANIC
107
108

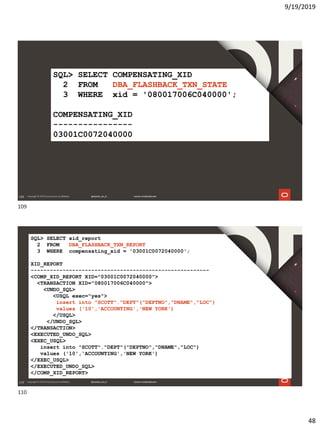

48. 9/19/2019
48
109
SQL> SELECT COMPENSATING_XID
2 FROM DBA_FLASHBACK_TXN_STATE
3 WHERE xid = '080017006C040000';
COMPENSATING_XID
----------------
03001C0072040000
110
SQL> SELECT xid_report
2 FROM DBA_FLASHBACK_TXN_REPORT
3 WHERE compensating_xid = '03001C0072040000';
XID_REPORT
--------------------------------------------------------
<COMP_XID_REPORT XID="03001C0072040000">
<TRANSACTION XID="080017006C040000">
<UNDO_SQL>
<USQL exec="yes">
insert into "SCOTT"."DEPT"("DEPTNO","DNAME","LOC")
values ('10','ACCOUNTING','NEW YORK')
</USQL>
</UNDO_SQL>
</TRANSACTION>
<EXECUTED_UNDO_SQL>
<EXEC_USQL>
insert into "SCOTT"."DEPT"("DEPTNO","DNAME","LOC")
values ('10','ACCOUNTING','NEW YORK')
</EXEC_USQL>
</EXECUTED_UNDO_SQL>
</COMP_XID_REPORT>
109
110

49. 9/19/2019
49
111

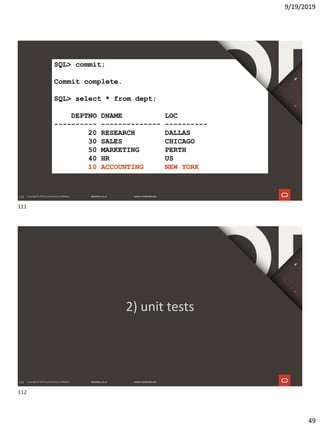

SQL> commit;
Commit complete.
SQL> select * from dept;
DEPTNO DNAME LOC
---------- -------------- ----------
20 RESEARCH DALLAS
30 SALES CHICAGO
50 MARKETING PERTH
40 HR US
10 ACCOUNTING NEW YORK
112
2) unit tests
111
112

50. 9/19/2019
50

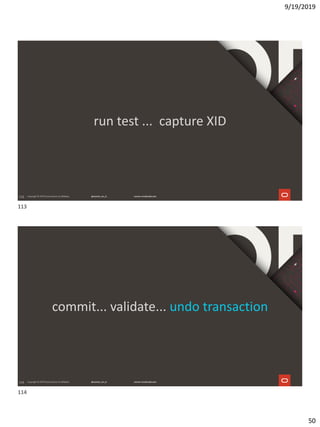

113
run test ... capture XID
114
commit... validate... undo transaction
113
114

51. 9/19/2019
51
flashback drop
116
delete
uh-oh...
commit
115
116

52. 9/19/2019
52
117

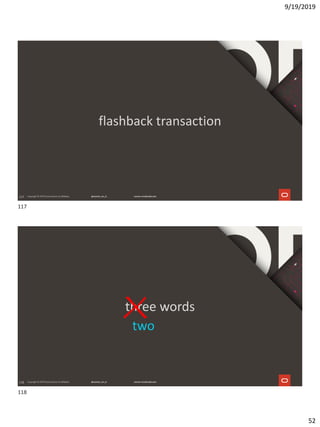

flashback transaction
118
three words
two
117
118

53. 9/19/2019
53

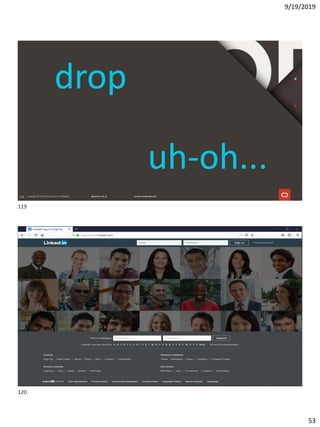

119
drop
uh-oh...
120
120
119
120

54. 9/19/2019
54

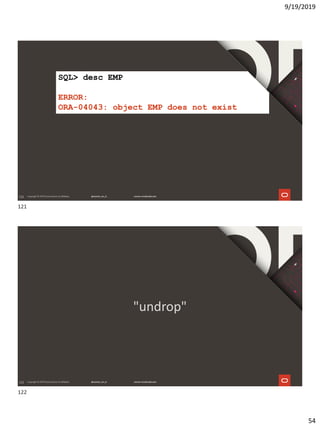

121
SQL> desc EMP
ERROR:
ORA-04043: object EMP does not exist
122
"undrop"
121
122

55. 9/19/2019
55
123
not cool enough
124
flashback table to before drop
123
124

56. 9/19/2019
56
125
126

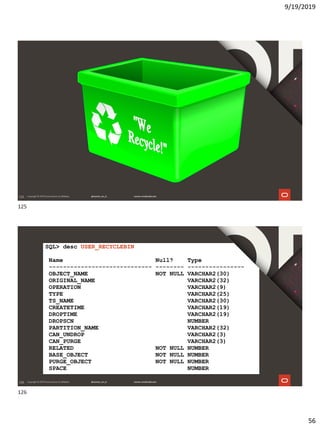

SQL> desc USER_RECYCLEBIN
Name Null? Type
----------------------------- -------- ----------------
OBJECT_NAME NOT NULL VARCHAR2(30)
ORIGINAL_NAME VARCHAR2(32)
OPERATION VARCHAR2(9)
TYPE VARCHAR2(25)
TS_NAME VARCHAR2(30)
CREATETIME VARCHAR2(19)
DROPTIME VARCHAR2(19)
DROPSCN NUMBER
PARTITION_NAME VARCHAR2(32)
CAN_UNDROP VARCHAR2(3)
CAN_PURGE VARCHAR2(3)
RELATED NOT NULL NUMBER
BASE_OBJECT NOT NULL NUMBER
PURGE_OBJECT NOT NULL NUMBER
SPACE NUMBER
125
126

57. 9/19/2019
57
127

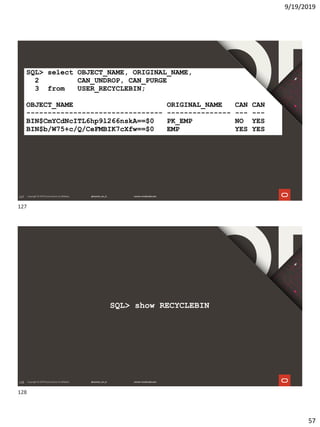

SQL> select OBJECT_NAME, ORIGINAL_NAME,
2 CAN_UNDROP, CAN_PURGE
3 from USER_RECYCLEBIN;
OBJECT_NAME ORIGINAL_NAME CAN CAN
-------------------------------- --------------- --- ---
BIN$CmYCdNcITL6hp9l266nskA==$0 PK_EMP NO YES
BIN$b/W75+c/Q/CeFMBIK7cXfw==$0 EMP YES YES
128
SQL> show RECYCLEBIN
127
128

58. 9/19/2019
58

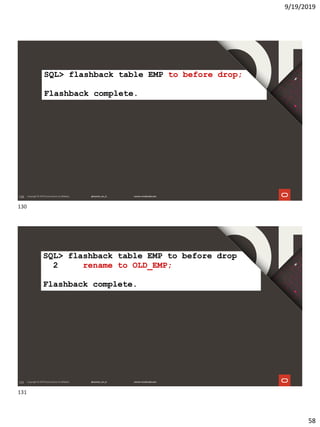

130
SQL> flashback table EMP to before drop;
Flashback complete.
131
SQL> flashback table EMP to before drop
2 rename to OLD_EMP;
Flashback complete.
130
131

59. 9/19/2019
59
133
how long ?
134
133
134

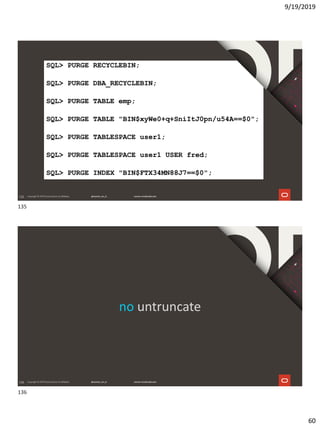

60. 9/19/2019
60
135
SQL> PURGE RECYCLEBIN;
SQL> PURGE DBA_RECYCLEBIN;
SQL> PURGE TABLE emp;
SQL> PURGE TABLE "BIN$xyWe0+q+SniItJ0pn/u54A==$0";
SQL> PURGE TABLESPACE user1;
SQL> PURGE TABLESPACE user1 USER fred;
SQL> PURGE INDEX "BIN$FTX34MN88J7==$0";
136
no untruncate
135
136

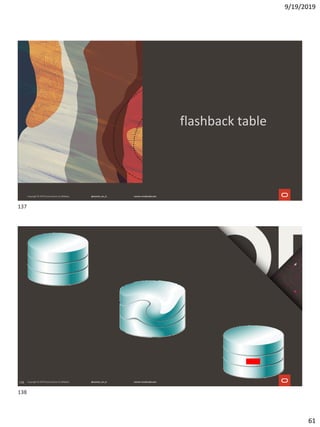

61. 9/19/2019
61
flashback table
138
137
138

62. 9/19/2019
62
139
flashback table
140
SQL> FLASHBACK TABLE DEPT
2 TO TIMESTAMP TIMESTAMP '2019-09-16 12:05:00'
139
140

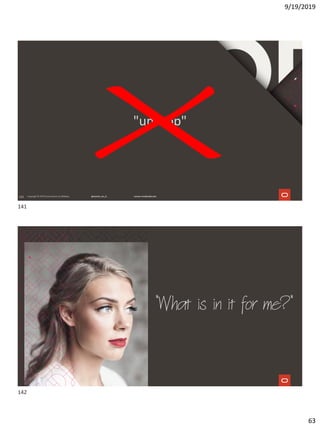

63. 9/19/2019
63
141
"undrop"
"What is in it for me?"
141
142

64. 9/19/2019
64
143

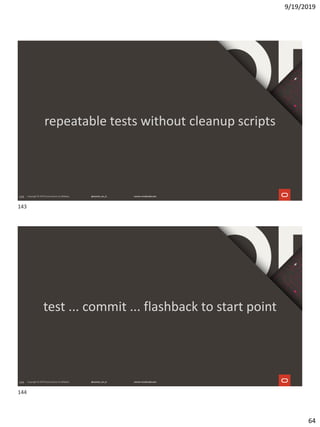

repeatable tests without cleanup scripts
144
test ... commit ... flashback to start point
143
144

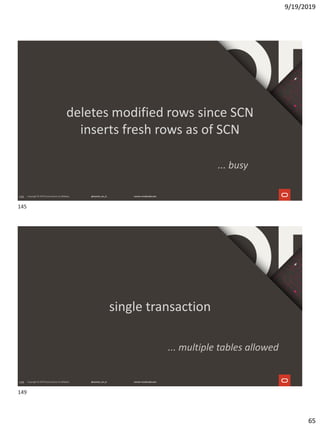

65. 9/19/2019
65
145
deletes modified rows since SCN
inserts fresh rows as of SCN
... busy
149
single transaction
... multiple tables allowed
145
149

66. 9/19/2019
66
150
tables locked
151
R.I must still be valid
150
151

67. 9/19/2019
67
154

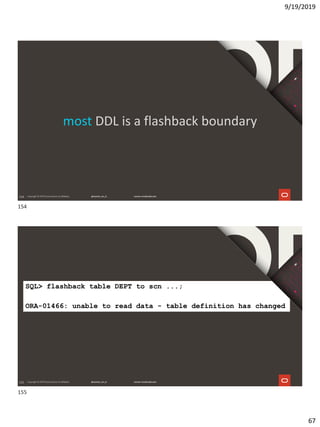

most DDL is a flashback boundary
155
SQL> flashback table DEPT to scn ...;
ORA-01466: unable to read data - table definition has changed
154
155

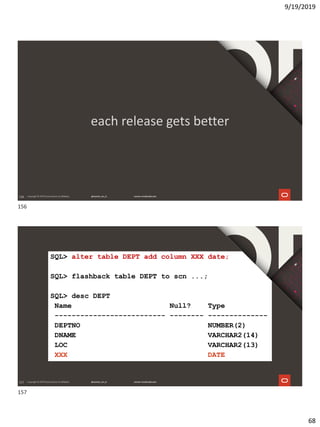

68. 9/19/2019
68
156
each release gets better
157
SQL> alter table DEPT add column XXX date;
SQL> flashback table DEPT to scn ...;
SQL> desc DEPT
Name Null? Type
-------------------------- -------- --------------
DEPTNO NUMBER(2)
DNAME VARCHAR2(14)
LOC VARCHAR2(13)
XXX DATE
156
157

69. 9/19/2019
69

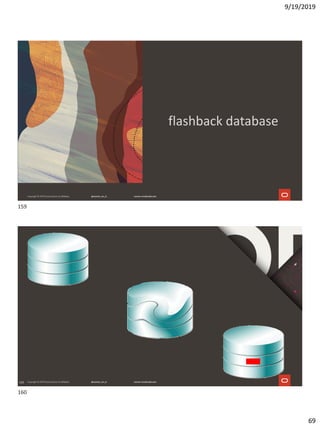

flashback database
160
159
160

70. 9/19/2019
70
161
162
flashback database
161
162

71. 9/19/2019

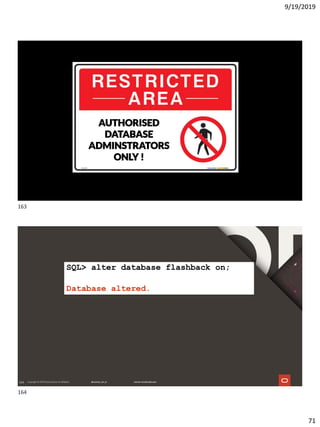

71
Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
AUTHORISED
DATABASE
ADMINSTRATORS
ONLY !
164
SQL> alter database flashback on;
Database altered.
163
164

72. 9/19/2019

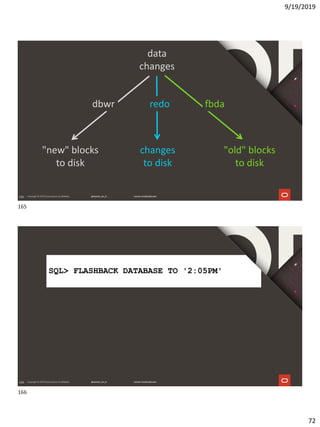

72
165
data
changes
"new" blocks
to disk
changes
to disk
"old" blocks
to disk
redo fbdadbwr
166
SQL> FLASHBACK DATABASE TO '2:05PM'
165
166

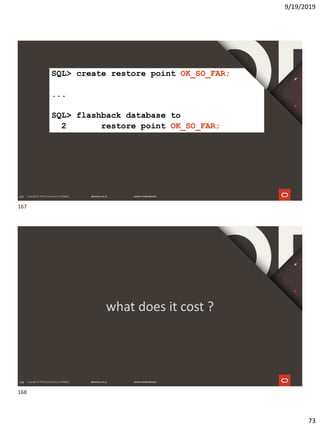

73. 9/19/2019
73
167
SQL> create restore point OK_SO_FAR;
...
SQL> flashback database to
2 restore point OK_SO_FAR;
168
what does it cost ?
167
168

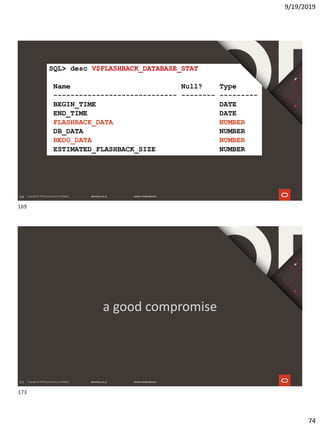

74. 9/19/2019
74
169
SQL> desc V$FLASHBACK_DATABASE_STAT
Name Null? Type
----------------------------- -------- ---------
BEGIN_TIME DATE
END_TIME DATE
FLASHBACK_DATA NUMBER
DB_DATA NUMBER
REDO_DATA NUMBER
ESTIMATED_FLASHBACK_SIZE NUMBER
173
a good compromise
169
173

75. 9/19/2019
75
174

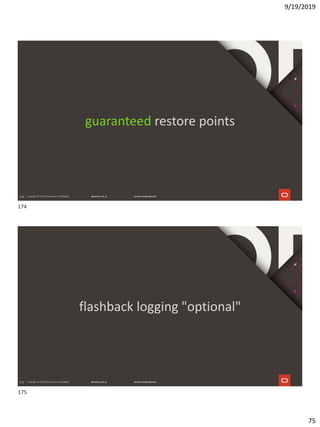

guaranteed restore points
175
flashback logging "optional"
174
175

76. 9/19/2019
76

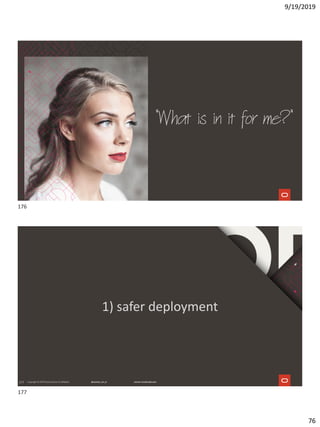

"What is in it for me?"
177
1) safer deployment
176
177

77. 9/19/2019
77

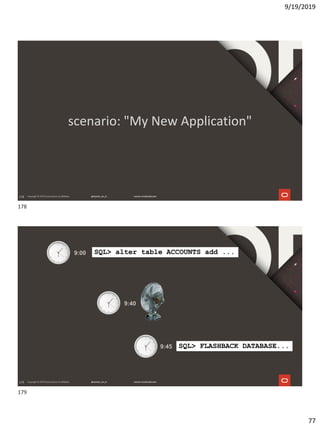

178
scenario: "My New Application"
179
9:00
9:40
9:45 SQL> FLASHBACK DATABASE...
SQL> alter table ACCOUNTS add ...
178
179

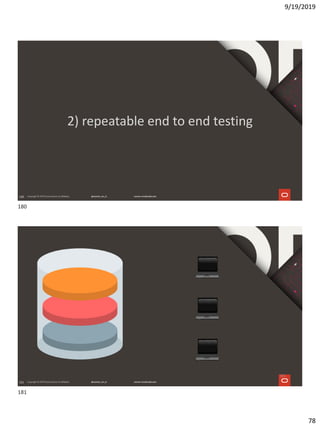

78. 9/19/2019
78
180
2) repeatable end to end testing
181
181
180
181

79. 9/19/2019
79
182
flashback pluggable database
183
3) production data for developers
182
183

80. 9/19/2019
80
184
aka "hidden" flashback database
185
5:00am
11:30pm
standby recovery
convert to snapshot
revert to physical
184
185

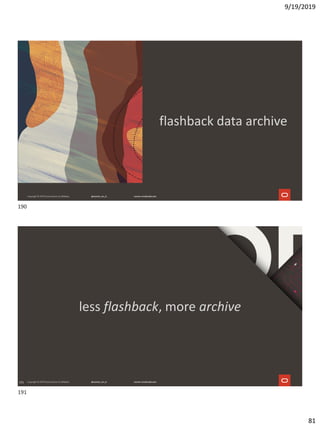

81. 9/19/2019
81
flashback data archive
191
less flashback, more archive
190
191

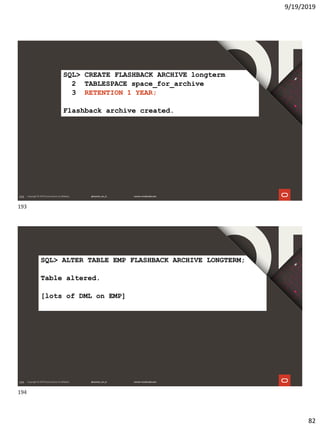

82. 9/19/2019
82
193
SQL> CREATE FLASHBACK ARCHIVE longterm
2 TABLESPACE space_for_archive
3 RETENTION 1 YEAR;
Flashback archive created.
194
SQL> ALTER TABLE EMP FLASHBACK ARCHIVE LONGTERM;
Table altered.
[lots of DML on EMP]
193
194

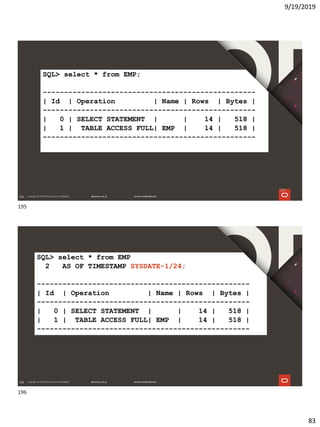

83. 9/19/2019
83
195
195
SQL> select * from EMP;
--------------------------------------------------
| Id | Operation | Name | Rows | Bytes |
--------------------------------------------------
| 0 | SELECT STATEMENT | | 14 | 518 |
| 1 | TABLE ACCESS FULL| EMP | 14 | 518 |
--------------------------------------------------
196
SQL> select * from EMP
2 AS OF TIMESTAMP SYSDATE-1/24;
--------------------------------------------------
| Id | Operation | Name | Rows | Bytes |
--------------------------------------------------
| 0 | SELECT STATEMENT | | 14 | 518 |
| 1 | TABLE ACCESS FULL| EMP | 14 | 518 |
--------------------------------------------------
195
196

84. 9/19/2019
84
197

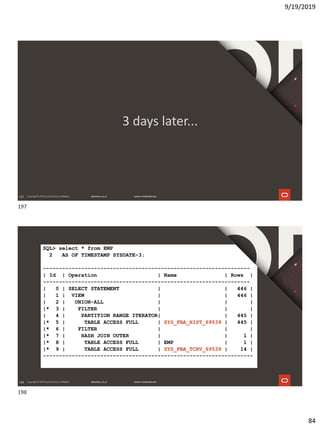

3 days later...
198
SQL> select * from EMP
2 AS OF TIMESTAMP SYSDATE-3;
-----------------------------------------------------------------
| Id | Operation | Name | Rows |
-----------------------------------------------------------------
| 0 | SELECT STATEMENT | | 446 |
| 1 | VIEW | | 446 |
| 2 | UNION-ALL | | |
|* 3 | FILTER | | |
| 4 | PARTITION RANGE ITERATOR| | 445 |
|* 5 | TABLE ACCESS FULL | SYS_FBA_HIST_69539 | 445 |
|* 6 | FILTER | | |
|* 7 | HASH JOIN OUTER | | 1 |
|* 8 | TABLE ACCESS FULL | EMP | 1 |
|* 9 | TABLE ACCESS FULL | SYS_FBA_TCRV_69539 | 14 |
------------------------------------------------------------------
197
198

85. 9/19/2019
85
199

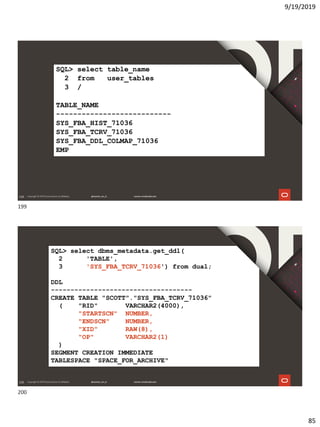

SQL> select table_name
2 from user_tables
3 /
TABLE_NAME
---------------------------
SYS_FBA_HIST_71036
SYS_FBA_TCRV_71036
SYS_FBA_DDL_COLMAP_71036
EMP
200
SQL> select dbms_metadata.get_ddl(
2 'TABLE',
3 'SYS_FBA_TCRV_71036') from dual;
DDL
------------------------------------
CREATE TABLE "SCOTT"."SYS_FBA_TCRV_71036"
( "RID" VARCHAR2(4000),
"STARTSCN" NUMBER,
"ENDSCN" NUMBER,
"XID" RAW(8),
"OP" VARCHAR2(1)
)
SEGMENT CREATION IMMEDIATE
TABLESPACE "SPACE_FOR_ARCHIVE"
199
200

86. 9/19/2019
86
201
SQL> select dbms_metadata.get_ddl(
2 'TABLE',
3 'SYS_FBA_HIST_71036') from dual;
DDL
------------------------------------------
CREATE TABLE "SCOTT"."SYS_FBA_HIST_71036"
( "RID" VARCHAR2(4000),
"STARTSCN" NUMBER,
"ENDSCN" NUMBER,
"XID" RAW(8),
"OPERATION" VARCHAR2(1),
"EMPNO" NUMBER(4,0), "ENAME" VARCHAR2(10),
"JOB" VARCHAR2(9), "MGR" NUMBER(4,0),
"HIREDATE" DATE, "SAL" NUMBER(7,2),
"COMM" NUMBER(7,2), "DEPTNO" NUMBER(2,0)
) COMPRESS FOR OLTP
TABLESPACE "SPACE_FOR_ARCHIVE"
PARTITION BY RANGE ("ENDSCN")
( PARTITION "HIGH_PART" VALUES LESS THAN (MAXVALUE) )
"What is in it for me?"
201
204

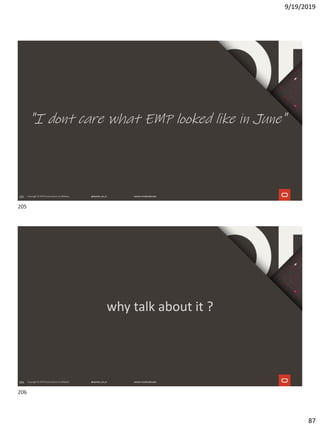

87. 9/19/2019
87
205
"I dont care what EMP looked like in June"
206206
why talk about it ?
205
206

88. 9/19/2019
88
207207

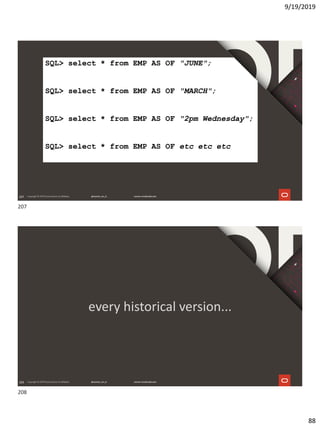

SQL> select * from EMP AS OF "JUNE";
SQL> select * from EMP AS OF "MARCH";
SQL> select * from EMP AS OF "2pm Wednesday";
SQL> select * from EMP AS OF etc etc etc
208208
every historical version...
207
208

89. 9/19/2019
89
209209
... of every row
210210
sound familiar ?
209
210

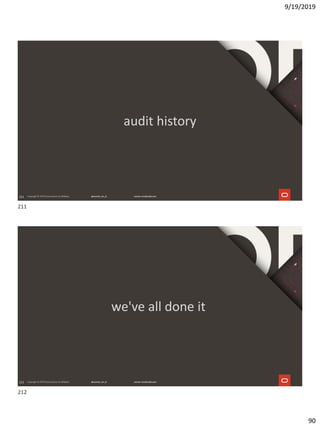

90. 9/19/2019
90
211211
audit history
212212
we've all done it
211
212

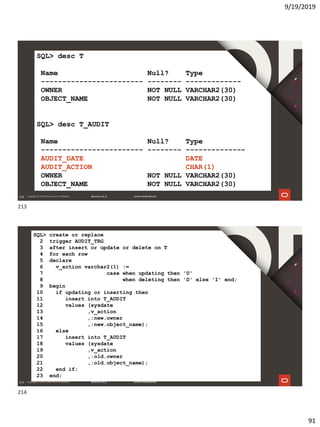

91. 9/19/2019
91
213213
SQL> desc T
Name Null? Type
------------------------ -------- -------------
OWNER NOT NULL VARCHAR2(30)
OBJECT_NAME NOT NULL VARCHAR2(30)
SQL> desc T_AUDIT
Name Null? Type
------------------------ -------- --------------
AUDIT_DATE DATE
AUDIT_ACTION CHAR(1)
OWNER NOT NULL VARCHAR2(30)
OBJECT_NAME NOT NULL VARCHAR2(30)
214214
SQL> create or replace
2 trigger AUDIT_TRG
3 after insert or update or delete on T
4 for each row
5 declare
6 v_action varchar2(1) :=
7 case when updating then 'U'
8 when deleting then 'D' else 'I' end;
9 begin
10 if updating or inserting then
11 insert into T_AUDIT
12 values (sysdate
13 ,v_action
14 ,:new.owner
15 ,:new.object_name);
16 else
17 insert into T_AUDIT
18 values (sysdate
19 ,v_action
20 ,:old.owner
21 ,:old.object_name);
22 end if;
23 end;
213
214

92. 9/19/2019
92
217
a better, faster, robust version ...
218
flashback data archive
217
218

93. 9/19/2019
93
219
SQL> select empno, ename, job, sal, comm,
2 nvl(VERSIONS_STARTTIME,LAST_MOD) TS
3 ,nvl(VERSIONS_OPERATION,'I') op
4 from EMP
5 versions between timestamp
6 timestamp '2019-09-16 20:12:00' and systimestamp
7 order by empno, ts;
EMPNO ENAME JOB SAL COMM TS O
---------- ---------- --------- -------- ---------- ------------ -
7369 SMITH CLERK 806 08.10.51 PM I
7369 SMITH SALES 8060 1000 08.12.10 PM U
7499 ALLEN SALESMAN 1606 300000000 08.10.51 PM I
7521 WARD SALESMAN 1256 500000000 08.10.51 PM I
7566 JONES MANAGER 2981 08.10.51 PM I
...
7900 JAMES CLERK 956 08.10.51 PM I
7902 FORD ANALYST 3006 08.10.51 PM I
7934 MILLER CLERK 1306 08.10.51 PM I
7934 MILLER CLERK 1306 08.12.10 PM D
220
so why didn't we ?
219
220

94. 9/19/2019
94
225
226
separately licensed
225
226

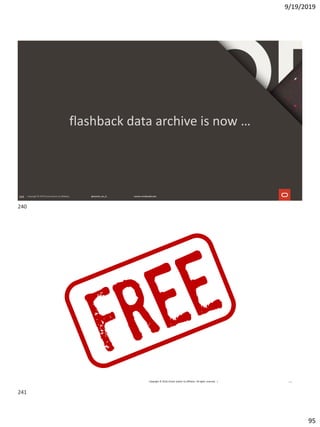

95. 9/19/2019
95
240
flashback data archive is now …
240
Copyright © 2018, Oracle and/or its affiliates. All rights reserved. | 241
240
241

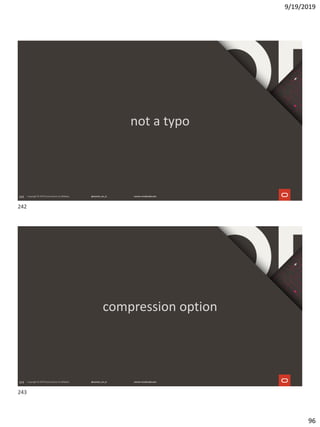

96. 9/19/2019
96
242
not a typo
242
243
compression option
243
242
243

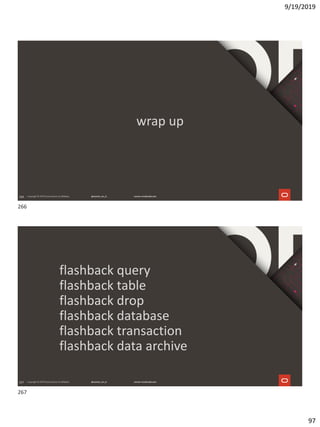

97. 9/19/2019
97
266
wrap up
267
flashback query
flashback table
flashback drop
flashback database
flashback transaction
flashback data archive
266
267

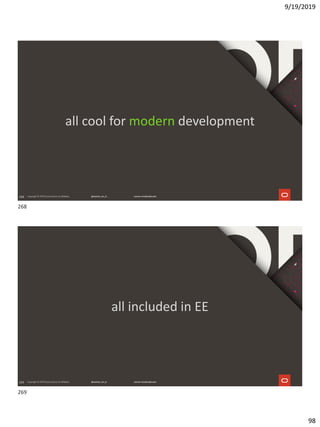

98. 9/19/2019
98
268
all cool for modern development
269
all included in EE
268
269

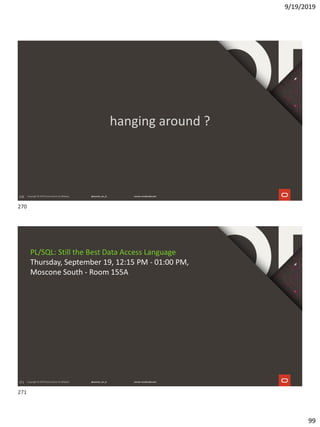

99. 9/19/2019
99
270
hanging around ?
271
PL/SQL: Still the Best Data Access Language
Thursday, September 19, 12:15 PM - 01:00 PM,
Moscone South - Room 155A
270
271

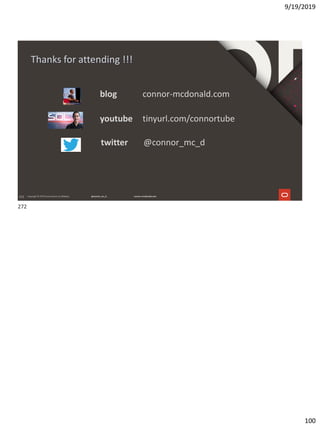

100. 9/19/2019
100
272
Thanks for attending !!!
youtube tinyurl.com/connortube
blog connor-mcdonald.com
twitter @connor_mc_d
272
