Flashback - the forgotten feature
Connor McDonald
Database Advocate
Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
2
1
2

7/22/2019
2
Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
3
Copyright © 2018, Oracle and/or its affiliates. All rights reserved. |
Stuff
youtube bit.ly/youtube-connor
blog bit.ly/blog-connor
twitter bit.ly/twitter-connor
400+ posts mainly on database & development
250 technical videos, new uploads every week
rants and raves on tech and the world :-)
3
4

7/22/2019
3
Copyright © 2018, Oracle and/or its affiliates. All rights reserved.

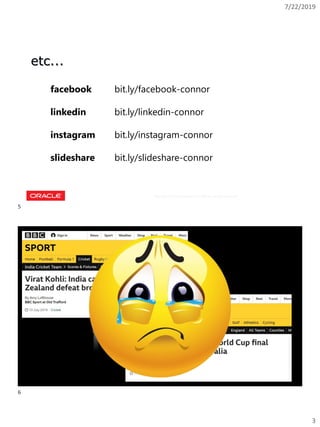

etc...
facebook bit.ly/facebook-connor
linkedin bit.ly/linkedin-connor
instagram bit.ly/instagram-connor
slideshare bit.ly/slideshare-connor
In Memoriam
5
6

7/22/2019
4
Copyright © 2019, Oracle and/or its affiliates. All rights reserved. | @connor_mc_dconnor-mcdonald.com
7
8

7/22/2019
5

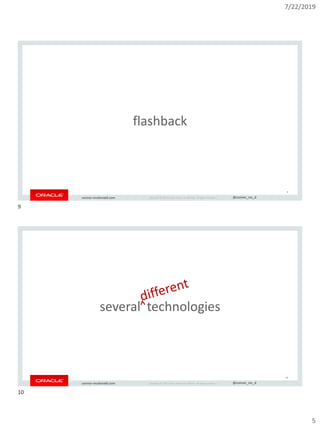

flashback
9
several technologies
10
9
10

7/22/2019
6

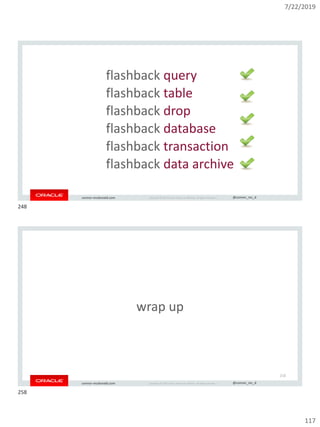

flashback query
flashback table
flashback drop
flashback database
flashback transaction
flashback data archive
flashback
query
12
11
12

7/22/2019
7

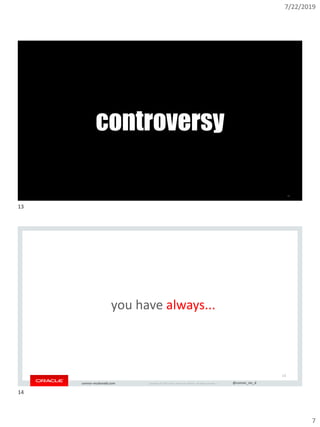

controversy
13
you have always...
14
13
14

7/22/2019
8

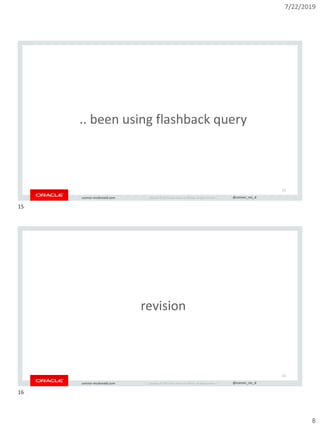

.. been using flashback query
15
revision
16
15
16

7/22/2019
9
SQL> update EMP
2 set SAL = SAL * 1.10
3 /
14 rows updated.
SQL> rollback;
Rollback complete.
how ?
17
we remember stuff
18
17
18

7/22/2019
10
SQL> update EMP
2 set SAL = SAL * 1.10
3 /
undo header
smith $1,0001
block 2754
jones $9002
brown $1,5003
wells $2,0004
wilson $1,0005
block 2754, row 1,
sal $1000
block 2754, row 2,
sal $900
block 2754, row 3,
sal $1500
block 2754, row 4,
sal $2000
uba 5
5
$1,100
$990
$1,650
$2,200
uba 5.1uba 5.2
SQL> rollback;
21
20
21

7/22/2019
11
SQL> rollback;
undo header
smith $1,0001
block 2754
jones $9002
brown $1,5003
wells $2,0004
wilson $1,0005
block 2754, row 1,
sal $1000
block 2754, row 2,
sal $900
block 2754, row 3,
sal $1500
block 2754, row 4,
sal $2000
uba 5
5
$1,100
$990
$1,650
$2,200
uba 5.1uba 5.2
we can use this stuff for queries!
(Oracle version 4)
24
23
24

7/22/2019
12
read consistency
25
select * from emp
where hiredate > '01/01/2004'
update emp set …
where empno = 1234;
Block 3217
"I need block 3217…
… as it was at 9:00"
9:00
9:03
9:05
session 1 session 2
...and time = scn
25
26

7/22/2019
13
system change number
27
Session 1
Request
Block 3217,
SCN 4567192
Block 3217,
SCN 4567234
"ABC" Block 3217,
SCN 4567003,
change ABC => XYZ
undo segment block(s)
No good..too new
take a copy of the block
Locate
apply undo
Block 3217,
SCN 4567234
"ABC"
Block 3217,
SCN 4567234
"ABC"
Block 3217,
SCN 4567003
"XYZ"
Block 3217,
SCN 4567003
"XYZ"
Session 2
update emp
set ename = "ABC"
where empno = 1234;
commit;
Done !
28
27
28

7/22/2019
14
every query = locked at a SCN
29
30
go back even further....
29
30

7/22/2019
15

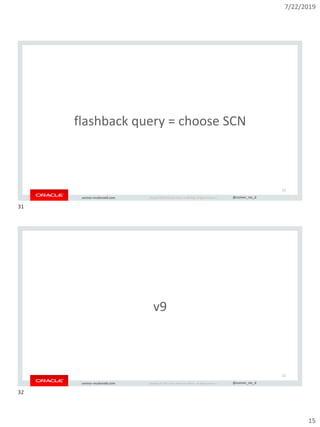

flashback query = choose SCN
31
v9
32
31
32

7/22/2019
16
SQL> select * from DEPT;
DEPTNO DNAME LOC
---------- -------------- -------------
10 UNKNOWN NEW YORK
20 UNKNOWN DALLAS
30 UNKNOWN CHICAGO
40 UNKNOWN BOSTON
33
SQL> select * from DEPT AS OF SCN 995401;
DEPTNO DNAME LOC
---------- -------------- -------------
10 ACCOUNTING NEW YORK
20 RESEARCH DALLAS
30 SALES CHICAGO
40 OPERATIONS BOSTON
34
33
34

7/22/2019
17
a little less geeky
35
SQL> select * from DEPT
2 AS OF TIMESTAMP systimestamp -
3 interval '20:00' minute to second;
DEPTNO DNAME LOC
---------- -------------- -------------
20 RESEARCH DALLAS
30 SALES CHICAGO
40 OPERATIONS BOSTON
36
35
36

7/22/2019
18

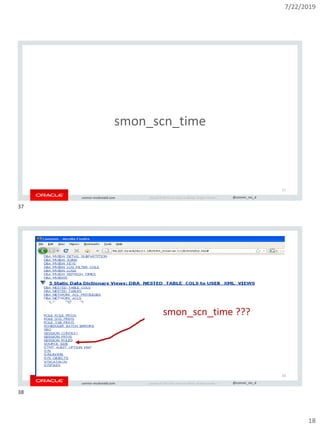

smon_scn_time
37
smon_scn_time ???
38
37
38

7/22/2019
19

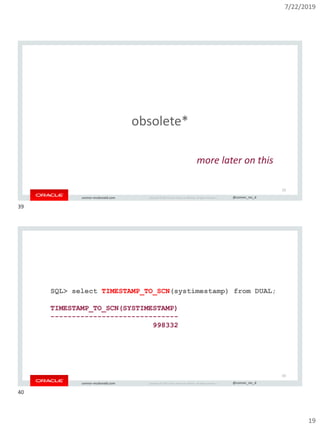

obsolete*
39
more later on this
SQL> select TIMESTAMP_TO_SCN(systimestamp) from DUAL;
TIMESTAMP_TO_SCN(SYSTIMESTAMP)
------------------------------
998332
40
39
40

7/22/2019
20
SQL> select SCN_TO_TIMESTAMP(998314) from DUAL;
SCN_TO_TIMESTAMP(998314)
-----------------------------------------------
25-FEB-19 09.12.48.000000000 PM
41
3 seconds
42
41
42

7/22/2019
21

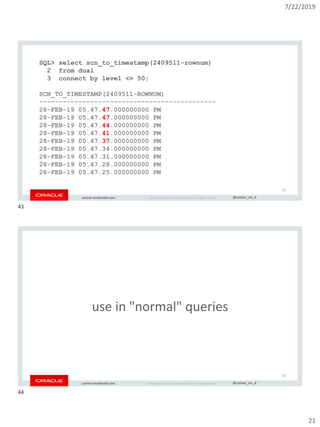

SQL> select scn_to_timestamp(2409511-rownum)
2 from dual
3 connect by level <= 50;
SCN_TO_TIMESTAMP(2409511-ROWNUM)
---------------------------------------------
28-FEB-19 05.47.47.000000000 PM
28-FEB-19 05.47.47.000000000 PM
28-FEB-19 05.47.44.000000000 PM
28-FEB-19 05.47.41.000000000 PM
28-FEB-19 05.47.37.000000000 PM
28-FEB-19 05.47.34.000000000 PM
28-FEB-19 05.47.31.000000000 PM
28-FEB-19 05.47.28.000000000 PM
28-FEB-19 05.47.25.000000000 PM
43
use in "normal" queries
44
43
44

7/22/2019
22
SQL> select e.empno, e.ename, d.dname
2 from emp e,
3 dept AS OF TIMESTAMP '23-FEB-19 11.51.02 PM' d
3 where d.deptno = e.deptno;
EMPNO ENAME DNAME
---------- ---------- --------------
7782 CLARK "PREVIOUS NAME"
7839 KING "PREVIOUS NAME"
7934 MILLER "PREVIOUS NAME"
7566 JONES RESEARCH
7902 FORD RESEARCH
7876 ADAMS RESEARCH
7369 SMITH RESEARCH
7788 SCOTT RESEARCH
45
"What's in it for me?"
46
45
46

7/22/2019
23
1) unit testing
47
SQL> select case
2 when d1.deptno is null then 'DELETE'
3 when d2.deptno is null then 'INSERT'
4 end action,
5 d1.deptno, d2.deptno, d1.dname, d1.loc
6 from DEPT d1 full outer join
7 DEPT AS OF TIMESTAMP '23-FEB-19 11.51.02 PM' d2
8 on d1.deptno = d2.deptno;
ACTION DEPTNO DEPTNO DNAME LOC
------ ---------- ---------- -------------- ----------
10 10 ACCOUNTING NEW YORK
20 20 RESEARCH DALLAS
30 30 SALES CHICAGO
DELETE 40
INSERT 50 MARKETING PERTH
48
47
48

7/22/2019
24
2) not just your data
49
SQL> drop procedure debug_msg;
Procedure dropped.
SQL> connect / as sysdba
Connected.
SQL> select text
2 from dba_source
3 as of timestamp systimestamp - interval '5' minute
4 where name='DEBUG_MSG' order by line;
TEXT
---------------------------------------------------------------------
procedure debug_msg(m varchar2) is
begin
dbms_output.put_line(m);
dbms_application_info.set_client_info(m);
end;
5 rows selected.
50
49
50

7/22/2019
25
3) functional diagnosis
51
DEPTNO DNAME LOC
---------- -------------- -------------
10 UNKNOWN NEW YORK
SQL> select * from DEPT
2 as of TIMESTAMP SYSTIMESTAMP -
3 INTERVAL '20:00' MINUTE TO SECOND;
DEPTNO DNAME LOC
---------- -------------- -------------
1 change ?
10 changes ?
51
52

7/22/2019
26
flashback row versions
53
SQL> SELECT deptno, dname
2 FROM dept
3 VERSIONS BETWEEN
4 TIMESTAMP SYSTIMESTAMP –
5 INTERVAL '20:00' MINUTE TO SECOND
6 AND SYSTIMESTAMP
7 WHERE deptno = 10;
DEPTNO DNAME
---------- --------------
10 ACCOUNTING
10 MONEY GRABBERS
10 FINANCE
10 BEAN COUNTERS
10 UNKNOWN
1 row
5 versions
54
53
54

7/22/2019
27

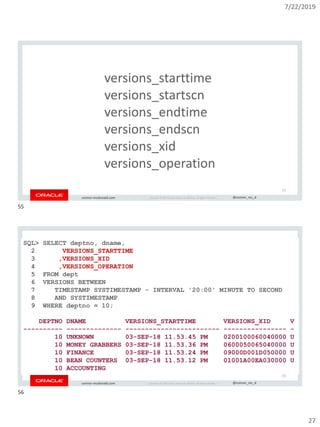

versions_starttime
versions_startscn
versions_endtime
versions_endscn
versions_xid
versions_operation
55
SQL> SELECT deptno, dname,
2 VERSIONS_STARTTIME
3 ,VERSIONS_XID
4 ,VERSIONS_OPERATION
5 FROM dept
6 VERSIONS BETWEEN
7 TIMESTAMP SYSTIMESTAMP - INTERVAL '20:00' MINUTE TO SECOND
8 AND SYSTIMESTAMP
9 WHERE deptno = 10;
DEPTNO DNAME VERSIONS_STARTTIME VERSIONS_XID V
---------- -------------- ------------------------ ---------------- -
10 UNKNOWN 03-SEP-18 11.53.45 PM 0200100060040000 U
10 MONEY GRABBERS 03-SEP-18 11.53.36 PM 0600050065040000 U
10 FINANCE 03-SEP-18 11.53.24 PM 09000D001D050000 U
10 BEAN COUNTERS 03-SEP-18 11.53.12 PM 01001A00EA030000 U
10 ACCOUNTING
56
55
56

7/22/2019
28
get the lot ...
57
3 ,VERSIONS_XID
5 FROM dept VERSIONS BETWEEN SCN MINVALUE AND MAXVALUE;
---------- -------------- ------------------------ ---------------- -
50 UNKNOWN 03-SEP-18 11.08.15 PM 04000700EA030000 U
20 NERDS 03-SEP-18 11.07.57 PM 090016001D050000 U
20 R&D 03-SEP-18 11.07.48 PM 05000B0074040000 U
...
57
58

7/22/2019
29
grant flashback to ...
59
session level
60
59
60

7/22/2019
30
dbms_flashback.enable_at_time(systimestamp-1);
61
SQL> exec dbms_flashback.enable_at_time(
systimestamp-5/86400)
PL/SQL procedure successfully completed.
SQL> insert into T values (1);
ERROR at line 1:
ORA-08182:
operation not supported while in Flashback mode
62
61
62

7/22/2019
31
SQL> exec dbms_flashback.disable;
ERROR at line 1:
ORA-08184: attempting to re-enable Flashback while in Flashback
63
just how far ?
64
63
64

7/22/2019
32

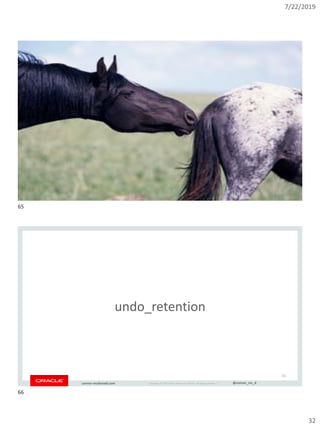

undo_retention
66
65
66

7/22/2019
33

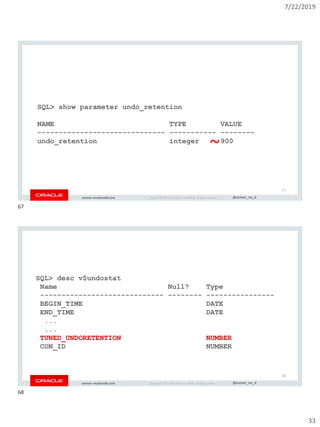

SQL> show parameter undo_retention
NAME TYPE VALUE
------------------------------ ----------- --------
undo_retention integer 900
67
~
SQL> desc v$undostat
Name Null? Type
----------------------------- -------- ----------------
BEGIN_TIME DATE
END_TIME DATE
...
...
TUNED_UNDORETENTION NUMBER
CON_ID NUMBER
68
67
68

7/22/2019
34
much much further
"no" spanning DDL
70
better each version
69
70

7/22/2019
35
rewind the data, not time
71
charactersets,
NLS etc
flashback
transaction
72
71
72

7/22/2019
36

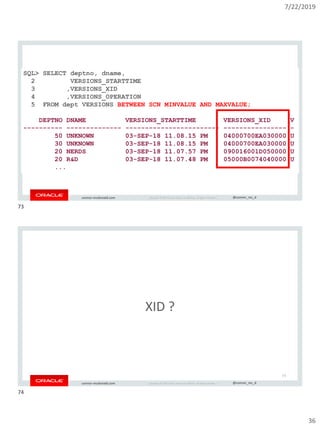

3 ,VERSIONS_XID
5 FROM dept VERSIONS BETWEEN SCN MINVALUE AND MAXVALUE;
---------- -------------- ------------------------ ---------------- -
20 NERDS 03-SEP-18 11.07.57 PM 090016001D050000 U
20 R&D 03-SEP-18 11.07.48 PM 05000B0074040000 U
...
XID ?
74
73
74

7/22/2019
37
SQL> desc V$TRANSACTION
Name Null? Type
----------------------------- -------- -------
XIDUSN NUMBER
XIDSLOT NUMBER
XIDSQN NUMBER
...
75
SQL> select XIDUSN, XIDSLOT, XIDSQN
2 from v$transaction
XIDUSN XIDSLOT XIDSQN
---------- ---------- ----------
1 31 674
SQL> select versions_xid from ...
VERSIONS_XID
-------------------
01 001F 00A202 0000
76
75
76

7/22/2019
38
SQL> desc FLASHBACK_TRANSACTION_QUERY
Name Null? Type
----------------------- -------- --------------
XID RAW(8)
START_SCN NUMBER
START_TIMESTAMP DATE
COMMIT_SCN NUMBER
COMMIT_TIMESTAMP DATE
LOGON_USER VARCHAR2(30)
UNDO_CHANGE# NUMBER
OPERATION VARCHAR2(32)
TABLE_NAME VARCHAR2(256)
TABLE_OWNER VARCHAR2(32)
ROW_ID VARCHAR2(19)
UNDO_SQL VARCHAR2(4000)
77
SQL> select DNAME from dept
2 where deptno = 10;
DNAME
-------
FINANCE
SQL> select xid, undo_sql
2 from flashback_transaction_query
3 where xid = hextoraw('09000d001d050000');
XID UNDO_SQL
---------------- ------------------------------------
09000D001D050000 update "SCOTT"."DEPT"
set "DNAME" = 'BEAN COUNTERS'
where ROWID = 'AAAQ+hAAEAAAAAOAAA';
78
77
78

7/22/2019
39
be careful
79
SQL> select text from dba_views
2 where view_name
3 = 'FLASHBACK_TRANSACTION_QUERY';
TEXT
------------------------------------------------
select
xid, start_scn, start_timestamp,
decode(commit_scn,
0, commit_scn,
281474976710655, NULL, commit_scn)
commit_scn, commit_timestamp,
logon_user, undo_change#, operation,
table_name, table_owner,
row_id, undo_sql
from SYS.X$KTUQQRY
80
79
80

7/22/2019
40

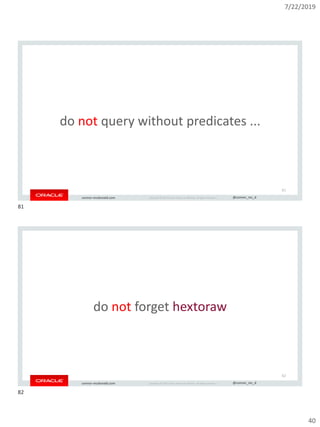

do not query without predicates ...
81
do not forget hextoraw
82
81
82

7/22/2019
41

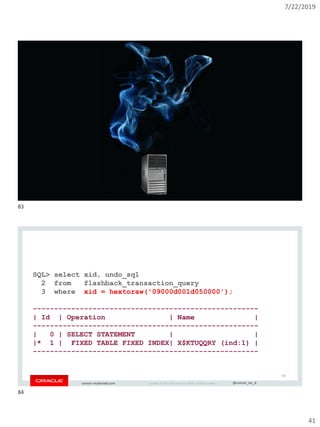

3 where xid = hextoraw('09000d001d050000');
-----------------------------------------------------
| Id | Operation | Name |
-----------------------------------------------------
| 0 | SELECT STATEMENT | |
|* 1 | FIXED TABLE FIXED INDEX| X$KTUQQRY (ind:1) |
-----------------------------------------------------
84
83
84

7/22/2019
43
rollback committed transaction
87
88
87
88

7/22/2019
44
three words
89
delete
uh-oh...
commit
89
90

7/22/2019
45
91

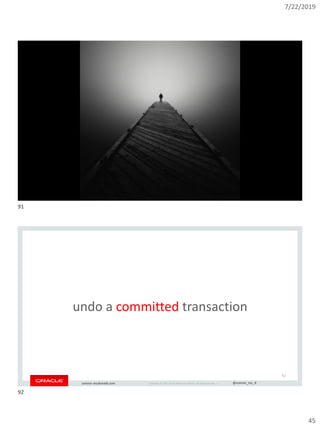

undo a committed transaction
92
91
92

7/22/2019
46
93
SQL> BEGIN
2 DBMS_FLASHBACK.TRANSACTION_BACKOUT(
3 numtxns=>1,
4 xids=>sys.xid_array('09000D001D050000')
5 );
6 END;
7 /
BEGIN
*
ERROR at line 1:
ORA-55510: Mining could not start
ORA-06512: at "SYS.DBMS_FLASHBACK", line 37
ORA-06512: at "SYS.DBMS_FLASHBACK", line 70
ORA-06512: at line 2
'09000D001D050000'
94
93
94

7/22/2019
47
95

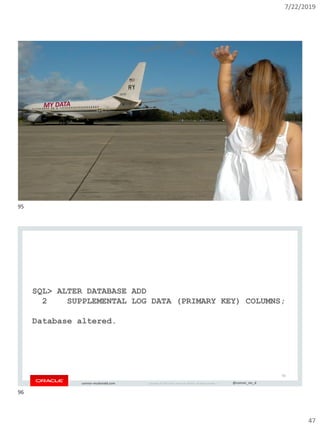

SQL> ALTER DATABASE ADD
2 SUPPLEMENTAL LOG DATA (PRIMARY KEY) COLUMNS;
Database altered.
96
95
96

7/22/2019
48
SQL> delete from DEPT
2 where DEPTNO = 10;
1 row deleted.
SQL> commit;
Commit complete.
SQL> SELECT VERSIONS_XID
2 FROM dept
3 VERSIONS BETWEEN SCN MINVALUE AND MAXVALUE;
VERSIONS_XID
----------------
080017006C040000
97
SQL> BEGIN
2 DBMS_FLASHBACK.TRANSACTION_BACKOUT(
3 numtxns=>1,
4 xids=>sys.xid_array('080017006C040000')
5 );
6 END;
7 /
DEPTNO DNAME LOC
---------- -------------- ----------
20 RESEARCH DALLAS
30 SALES CHICAGO
50 MARKETING PERTH
40 HR US
? 98
97
98

7/22/2019
49

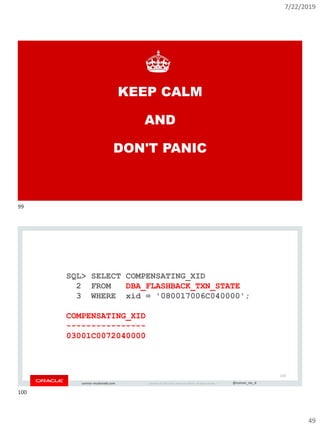

KEEP CALM
AND
DON'T PANIC
SQL> SELECT COMPENSATING_XID
2 FROM DBA_FLASHBACK_TXN_STATE
3 WHERE xid = '080017006C040000';
COMPENSATING_XID
----------------
03001C0072040000
100
99
100

7/22/2019
50
SQL> SELECT xid_report
2 FROM DBA_FLASHBACK_TXN_REPORT
3 WHERE compensating_xid = '03001C0072040000';
XID_REPORT
--------------------------------------------------------
<COMP_XID_REPORT XID="03001C0072040000">
<TRANSACTION XID="080017006C040000">
<UNDO_SQL>
<USQL exec="yes">
insert into "SCOTT"."DEPT"("DEPTNO","DNAME","LOC")
values ('10','ACCOUNTING','NEW YORK')
</USQL>
</UNDO_SQL>
</TRANSACTION>
<EXECUTED_UNDO_SQL>
<EXEC_USQL>
insert into "SCOTT"."DEPT"("DEPTNO","DNAME","LOC")
values ('10','ACCOUNTING','NEW YORK')
</EXEC_USQL>
</EXECUTED_UNDO_SQL>
</COMP_XID_REPORT>
101
SQL> commit;
Commit complete.
SQL> select * from dept;
DEPTNO DNAME LOC
---------- -------------- ----------
20 RESEARCH DALLAS
30 SALES CHICAGO
50 MARKETING PERTH
40 HR US
102
101
102

7/22/2019
51
some typical restrictions
103
ddl, old lobs, xml
flashback
drop
104
103
104

7/22/2019
52
delete
uh-oh...
commit
106
105
106

7/22/2019
53
three words
two
107
drop
uh-oh...
107
108

7/22/2019
54
109
SQL> desc EMP
ERROR:
ORA-04043: object EMP does not exist
110
109
110

7/22/2019
55

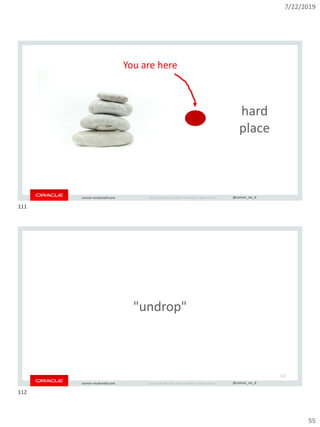

hard
place
You are here
"undrop"
112
111
112

7/22/2019
56
not cool enough
113
flashback table to before drop
114
113
114

7/22/2019
57
SQL> desc USER_RECYCLEBIN
Name Null? Type
----------------------------- -------- --------------------
OBJECT_NAME NOT NULL VARCHAR2(30)
ORIGINAL_NAME VARCHAR2(32)
OPERATION VARCHAR2(9)
TYPE VARCHAR2(25)
TS_NAME VARCHAR2(30)
CREATETIME VARCHAR2(19)
DROPTIME VARCHAR2(19)
DROPSCN NUMBER
PARTITION_NAME VARCHAR2(32)
CAN_UNDROP VARCHAR2(3)
CAN_PURGE VARCHAR2(3)
RELATED NOT NULL NUMBER
BASE_OBJECT NOT NULL NUMBER
PURGE_OBJECT NOT NULL NUMBER
SPACE NUMBER
116
115
116

7/22/2019
58

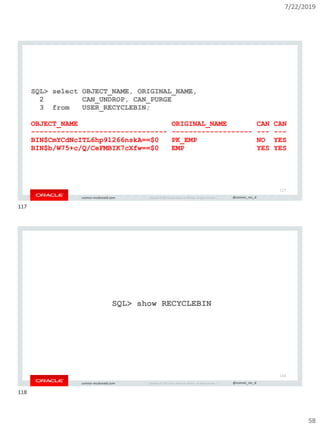

SQL> select OBJECT_NAME, ORIGINAL_NAME,
2 CAN_UNDROP, CAN_PURGE
3 from USER_RECYCLEBIN;
OBJECT_NAME ORIGINAL_NAME CAN CAN
-------------------------------- ------------------- --- ---
BIN$CmYCdNcITL6hp9l266nskA==$0 PK_EMP NO YES
BIN$b/W75+c/Q/CeFMBIK7cXfw==$0 EMP YES YES
117
SQL> show RECYCLEBIN
118
117
118

7/22/2019
59
indexes / constraints / triggers
... all renamed
SQL> flashback table EMP to before drop;
Flashback complete.
120
119
120

7/22/2019
60
SQL> flashback table EMP to before drop
2 rename to OLD_EMP;
Flashback complete.
121
indexes / constraints / triggers
... not renamed back
121
122

7/22/2019
61

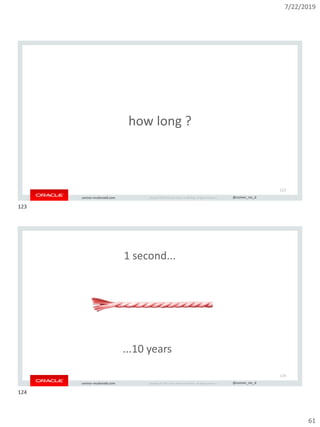

how long ?
123
1 second...
...10 years
124
123
124

7/22/2019
62
SQL> PURGE RECYCLEBIN;
SQL> PURGE TABLE emp;
SQL> PURGE TABLE "BIN$xyWe0+q+SniItJ0pn/u54A==$0";
SQL> PURGE TABLESPACE user1;
SQL> PURGE INDEX "BIN$FTX34MN88J7==$0";
SQL> PURGE TABLESPACE user1 USER fred;
125
no untruncate
126
125
126

7/22/2019
63
flashback
table
127
127
128

7/22/2019
64
flashback table
129
SQL> FLASHBACK TABLE DEPT
2 TO TIMESTAMP TO_TIMESTAMP('2019-06-03 12:05:00')
130
129
130

7/22/2019
65
"undrop"
131
132
131
132

7/22/2019
66
repeatable tests without cleanup scripts
133
deletes modified rows since SCN
inserts fresh rows as of SCN
... busy
133
134

7/22/2019
67

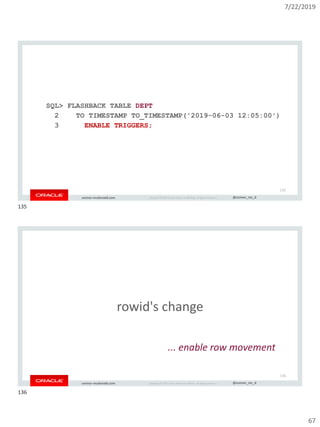

SQL> FLASHBACK TABLE DEPT
2 TO TIMESTAMP TO_TIMESTAMP('2019-06-03 12:05:00')
3 ENABLE TRIGGERS;
135
rowid's change
... enable row movement
136
135
136

7/22/2019
68

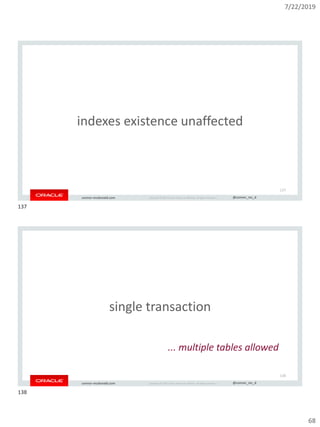

indexes existence unaffected
137
single transaction
138
... multiple tables allowed
137
138

7/22/2019
69

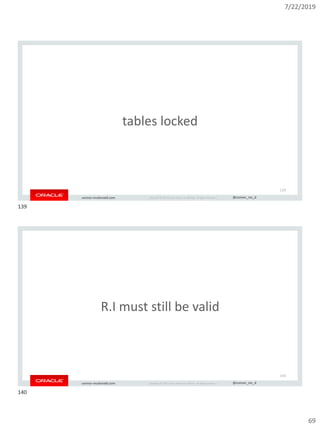

tables locked
139
R.I must still be valid
140
139
140

7/22/2019
70
statistics unchanged
141
most DDL is a flashback boundary
142
141
142

7/22/2019
71

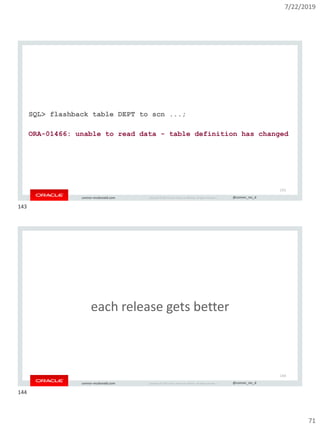

SQL> flashback table DEPT to scn ...;
ORA-01466: unable to read data - table definition has changed
143
each release gets better
144
143
144

7/22/2019
72

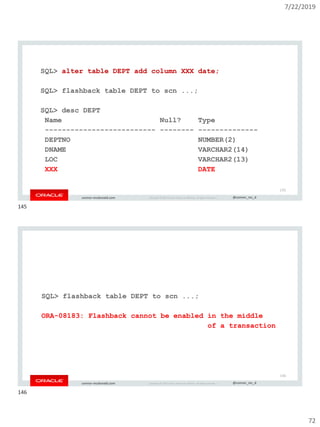

SQL> alter table DEPT add column XXX date;
SQL> desc DEPT
Name Null? Type
-------------------------- -------- --------------
DEPTNO NUMBER(2)
DNAME VARCHAR2(14)
LOC VARCHAR2(13)
XXX DATE
145
ORA-08183: Flashback cannot be enabled in the middle
of a transaction
146
145
146

7/22/2019
73

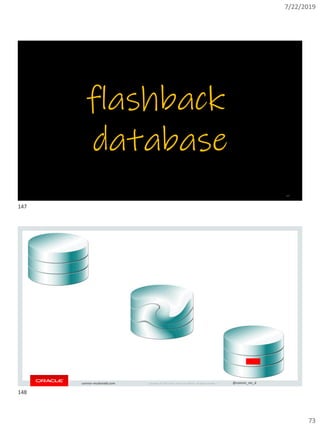

flashback
database
147
147
148

7/22/2019
74

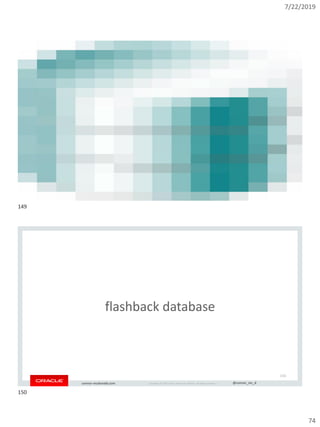

flashback database
150
149
150

7/22/2019
75
AUTHORISED
DATABASE
ADMINSTRATORS
ONLY !
SQL> alter database flashback on;
Database altered.
152
151
152

7/22/2019
76

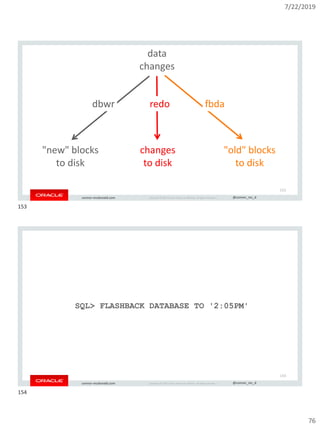

153
data
changes
"new" blocks
to disk
changes
to disk
"old" blocks
to disk
redo fbdadbwr
SQL> FLASHBACK DATABASE TO '2:05PM'
154
153
154

7/22/2019
77
SQL> create restore point OK_SO_FAR;
...
SQL> flashback database to restore point OK_SO_FAR;
155
what does it cost ?
156
155
156

7/22/2019
78
SQL> desc V$FLASHBACK_DATABASE_STAT
Name Null? Type
----------------------------- -------- ---------
BEGIN_TIME DATE
END_TIME DATE
FLASHBACK_DATA NUMBER
DB_DATA NUMBER
REDO_DATA NUMBER
ESTIMATED_FLASHBACK_SIZE NUMBER
157
a good compromise
161
157
161

7/22/2019
79
guaranteed restore points

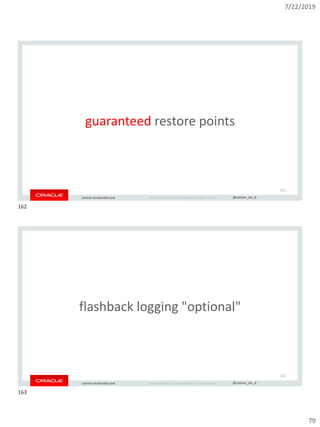

162
flashback logging "optional"
163
162
163

7/22/2019
80
165
1) safer deployment
166
165
166

7/22/2019
81
scenario: "My New Application"
167
9:00
9:40
9:45 SQL> FLASHBACK DATABASE...
168
SQL> alter table ACCOUNTS ...
167
168

7/22/2019
82

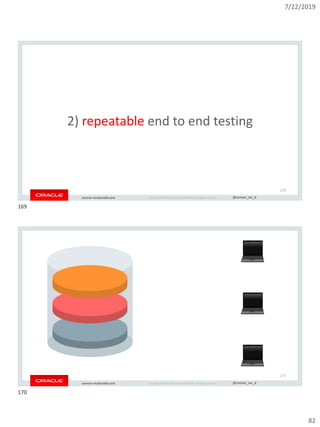

2) repeatable end to end testing
169
170
169
170

7/22/2019
83

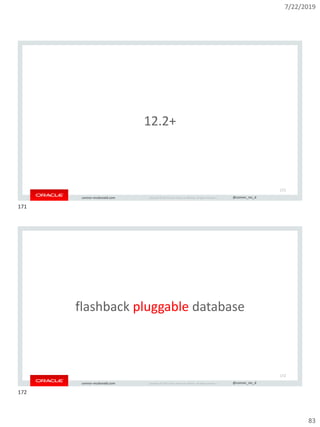

12.2+
171
flashback pluggable database
172
171
172

7/22/2019
84
3) production data for developers
173
"hidden" example
174
173
174

7/22/2019
85
Data Guard
175
176
5:00am
11:30pm
standby recovery
convert to snapshot
revert to physical
175
176

7/22/2019
86
flashback
data archive
181
less flashback, more archive
182
181
182

7/22/2019
87
SQL> CREATE FLASHBACK ARCHIVE longterm
2 TABLESPACE space_for_archive
3 RETENTION 1 YEAR;
Flashback archive created.
184
SQL> ALTER TABLE EMP FLASHBACK ARCHIVE LONGTERM;
Table altered.
[lots of DML on EMP]
185
184
185

7/22/2019
88
SQL> select * from EMP;
--------------------------------------------------
| Id | Operation | Name | Rows | Bytes |
--------------------------------------------------
| 0 | SELECT STATEMENT | | 14 | 518 |
| 1 | TABLE ACCESS FULL| EMP | 14 | 518 |
--------------------------------------------------
186
SQL> select * from EMP
2 AS OF TIMESTAMP SYSDATE-1/24;
--------------------------------------------------
| Id | Operation | Name | Rows | Bytes |
--------------------------------------------------
| 0 | SELECT STATEMENT | | 14 | 518 |
| 1 | TABLE ACCESS FULL| EMP | 14 | 518 |
--------------------------------------------------
187
186
187

7/22/2019
89
3 days later...
188
SQL> select * from EMP
2 AS OF TIMESTAMP SYSDATE-3;
-----------------------------------------------------------------
| Id | Operation | Name | Rows |
-----------------------------------------------------------------
| 0 | SELECT STATEMENT | | 446 |
| 1 | VIEW | | 446 |
| 2 | UNION-ALL | | |
|* 3 | FILTER | | |
| 4 | PARTITION RANGE ITERATOR| | 445 |
|* 5 | TABLE ACCESS FULL | SYS_FBA_HIST_69539 | 445 |
|* 6 | FILTER | | |
|* 7 | HASH JOIN OUTER | | 1 |
|* 8 | TABLE ACCESS FULL | EMP | 1 |
|* 9 | TABLE ACCESS FULL | SYS_FBA_TCRV_69539 | 14 |
------------------------------------------------------------------189
188
189

7/22/2019
90

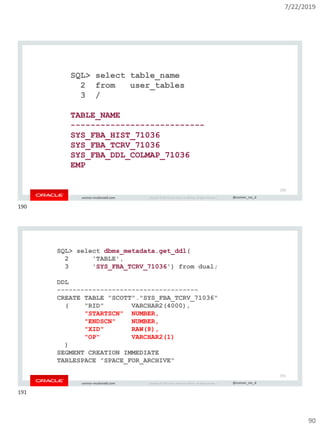

SQL> select table_name
2 from user_tables
3 /
TABLE_NAME
---------------------------
SYS_FBA_HIST_71036
SYS_FBA_TCRV_71036
SYS_FBA_DDL_COLMAP_71036
EMP
190
SQL> select dbms_metadata.get_ddl(
2 'TABLE',
3 'SYS_FBA_TCRV_71036') from dual;
DDL
------------------------------------
CREATE TABLE "SCOTT"."SYS_FBA_TCRV_71036"
( "RID" VARCHAR2(4000),
"STARTSCN" NUMBER,
"ENDSCN" NUMBER,
"XID" RAW(8),
"OP" VARCHAR2(1)
)
SEGMENT CREATION IMMEDIATE
TABLESPACE "SPACE_FOR_ARCHIVE"
191
190
191

7/22/2019
91
SQL> select dbms_metadata.get_ddl(
2 'TABLE',
3 'SYS_FBA_HIST_71036') from dual;
DDL
------------------------------------------
CREATE TABLE "SCOTT"."SYS_FBA_HIST_71036"
( "RID" VARCHAR2(4000),
"STARTSCN" NUMBER,
"ENDSCN" NUMBER,
"XID" RAW(8),
"OPERATION" VARCHAR2(1),
"EMPNO" NUMBER(4,0), "ENAME" VARCHAR2(10),
"JOB" VARCHAR2(9), "MGR" NUMBER(4,0),
"HIREDATE" DATE, "SAL" NUMBER(7,2),
"COMM" NUMBER(7,2), "DEPTNO" NUMBER(2,0)
) COMPRESS FOR OLTP
TABLESPACE "SPACE_FOR_ARCHIVE"
PARTITION BY RANGE ("ENDSCN")
( PARTITION "HIGH_PART" VALUES LESS THAN (MAXVALUE) )
193
note
192
193

7/22/2019
92
194

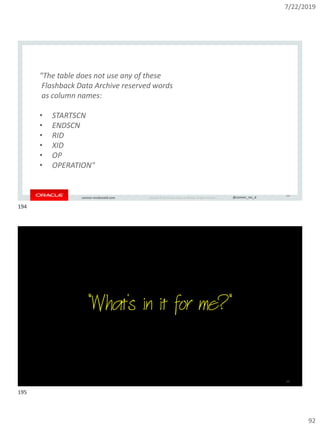

"The table does not use any of these
Flashback Data Archive reserved words
as column names:
• STARTSCN
• ENDSCN
• RID
• XID
• OP
• OPERATION"
195
194
195

7/22/2019
93

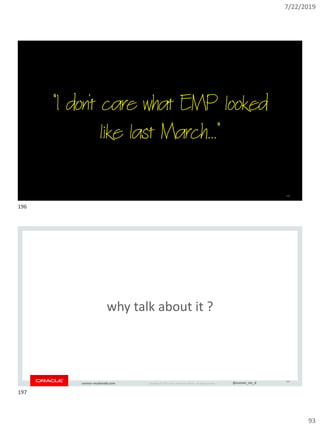

"I don't care what EMP looked
like last March..."
196
197
why talk about it ?
196
197

7/22/2019
94
198
SQL> select * from EMP AS OF "JUNE";
SQL> select * from EMP AS OF "MARCH";
SQL> select * from EMP AS OF "2pm Wednesday";
SQL> select * from EMP AS OF etc etc etc
199
every historical version...
198
199

7/22/2019
95
200
... of every row
201
sound familiar ?
200
201

7/22/2019
96
202
audit history
203
we've all done it
202
203

7/22/2019
97
204
SQL> desc T
Name Null? Type
------------------------ -------- -------------
OWNER NOT NULL VARCHAR2(30)
SQL> desc T_AUDIT
Name Null? Type
------------------------ -------- --------------
AUDIT_DATE DATE
AUDIT_ACTION CHAR(1)
OWNER NOT NULL VARCHAR2(30)
205
SQL> create or replace
2 trigger AUDIT_TRG
3 after insert or update or delete on T
4 for each row
5 declare
6 v_action varchar2(1) := case when updating
7 then 'U' when deleting then 'D' else 'I' end;
8 begin
9 if updating or inserting then
10 insert into T_AUDIT
11 values (sysdate
12 ,v_action
13 ,:new.owner
14 ,:new.object_name);
15 else
16 insert into T_AUDIT
17 values (sysdate
18 ,v_action
19 ,:old.owner
20 ,:old.object_name);
21 end if;
22 end;
204
205

7/22/2019
98
206
works but slow...
207
SQL> insert into T
2 select owner, object_name
3 from all_objects
4 where rownum <= 10000;
10000 rows created.
insert into T select owner, object_name
from all_objects where rownum <= 10000
call count cpu elapsed disk query current rows
------- ------ ------- ---------- -------- --------- ---------- ----------
Parse 1 0.01 0.00 0 0 0 0
Execute 1 3.10 3.05 88 123 10642 10000
Fetch 0 0.00 0.00 0 0 0 0
------- ------ ------- ---------- -------- --------- ---------- ----------
total 2 3.12 3.06 88 123 10642 10000
INSERT INTO T_AUDIT
VALUES (SYSDATE ,:B3 ,:B1 ,:B2 )
call count cpu elapsed disk query current rows
------- ------ ------- ---------- -------- --------- ---------- ----------
Parse 1 0.00 0.00 0 0 0 0
Execute 10000 0.79 0.97 2 109 10845 10000
Fetch 0 0.00 0.00 0 0 0 0
------- ------ ------- ---------- -------- --------- ---------- ----------
total 10001 0.79 0.97 2 109 10845 10000
206
207

7/22/2019
99

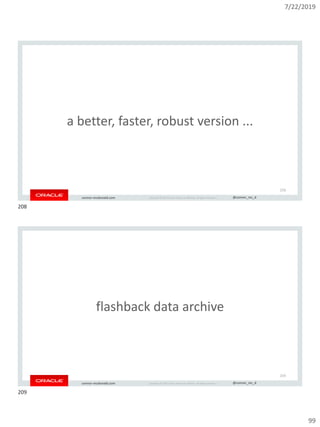

a better, faster, robust version ...
208
209
208
209

7/22/2019
100
SQL> select empno, ename, job, sal, comm,
2 nvl(VERSIONS_STARTTIME,LAST_MOD) TS
3 ,nvl(VERSIONS_OPERATION,'I') op
4 from EMP
5 versions between timestamp
6 timestamp '2019-02-11 20:12:00' and systimestamp
7 order by empno, ts;
EMPNO ENAME JOB SAL COMM TS O
---------- ---------- --------- ---------- ---------- ------------ -
7369 SMITH CLERK 806 08.10.51 PM I
7369 SMITH SALES 8060 1000 08.12.10 PM U
7499 ALLEN SALESMAN 1606 300000000 08.10.51 PM I
7521 WARD SALESMAN 1256 500000000 08.10.51 PM I
7566 JONES MANAGER 2981 08.10.51 PM I
...
7900 JAMES CLERK 956 08.10.51 PM I
7902 FORD ANALYST 3006 08.10.51 PM I
7934 MILLER CLERK 1306 08.10.51 PM I
7934 MILLER CLERK 1306 08.12.10 PM D
210
so why didn't we ?
211
210
211

7/22/2019
101

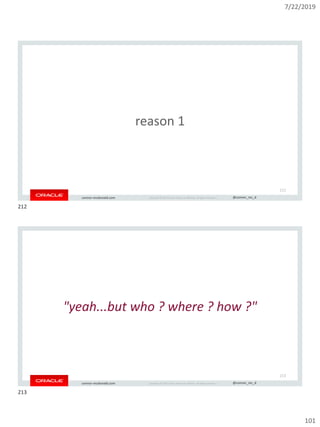

reason 1
212
"yeah...but who ? where ? how ?"
213
212
213

7/22/2019
102
SQL> alter table EMP add UPDATED_BY varchar2(10);
Table altered.
SQL> alter table EMP add UPDATED_PGM varchar2(10);
Table altered.
[etc]
214
reason 2
215
214
215

7/22/2019
103
separately licensed
217
216
217

7/22/2019
104
12c+ ... more options
218
1) context extension
219
218
219

7/22/2019
105

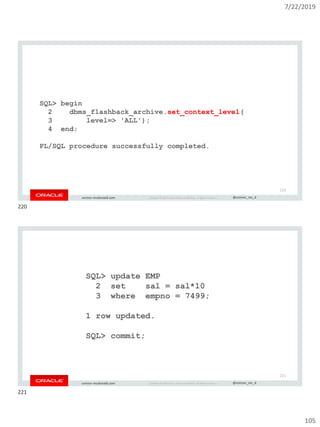

SQL> begin
2 dbms_flashback_archive.set_context_level(
3 level=> 'ALL');
4 end;
220
SQL> update EMP
2 set sal = sal*10
3 where empno = 7499;
1 row updated.
SQL> commit;
221
220
221

7/22/2019
106
SQL> select XID from SYS_FBA_HIST_510592;
XID
----------------
09000B00C7080000
222
SQL> set serverout on
SQL> begin
2 dbms_output.put_line(
3 dbms_flashback_archive.get_sys_context (
4 '09000B00C7080000', 'USERENV', 'SESSION_USER'));
5
8 '09000B00C7080000', 'USERENV', 'HOST'));
9
12 '09000B00C7080000', 'USERENV', 'MODULE'));
13 end;
14 /
SCOTT
WORKGROUPXPS
SQL*Plus
223
222
223

7/22/2019
107
...and a few other things :-)
224
SQL> desc SYS.SYS_FBA_CONTEXT_AUD
Name Null? Type
------------------------- -------- ------------------
XID RAW(8)
ACTION VARCHAR2(256)
AUTHENTICATED_IDENTITY VARCHAR2(256)
CLIENT_IDENTIFIER VARCHAR2(256)
CLIENT_INFO VARCHAR2(256)
CURRENT_EDITION_NAME VARCHAR2(256)
CURRENT_SCHEMA VARCHAR2(256)
CURRENT_USER VARCHAR2(256)
DATABASE_ROLE VARCHAR2(256)
DB_NAME VARCHAR2(256)
GLOBAL_UID VARCHAR2(256)
HOST VARCHAR2(256)
IDENTIFICATION_TYPE VARCHAR2(256)
INSTANCE_NAME VARCHAR2(256)
IP_ADDRESS VARCHAR2(256)
MODULE VARCHAR2(256)
OS_USER VARCHAR2(256)
225
224
225

7/22/2019
108

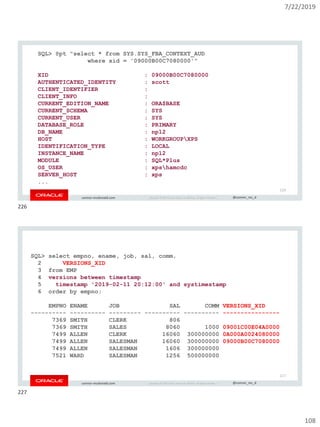

SQL> @pt "select * from SYS.SYS_FBA_CONTEXT_AUD
where xid = '09000B00C7080000'"
XID : 09000B00C7080000
AUTHENTICATED_IDENTITY : scott
CLIENT_IDENTIFIER :
CLIENT_INFO :
CURRENT_EDITION_NAME : ORA$BASE
CURRENT_SCHEMA : SYS
CURRENT_USER : SYS
DATABASE_ROLE : PRIMARY
DB_NAME : np12
HOST : WORKGROUPXPS
IDENTIFICATION_TYPE : LOCAL
INSTANCE_NAME : np12
MODULE : SQL*Plus
OS_USER : xpshamcdc
SERVER_HOST : xps
...
226
SQL> select empno, ename, job, sal, comm,
2 VERSIONS_XID
3 from EMP
5 timestamp '2019-02-11 20:12:00' and systimestamp
6 order by empno;
EMPNO ENAME JOB SAL COMM VERSIONS_XID
---------- ---------- --------- ---------- ---------- ----------------
7369 SMITH CLERK 806
7369 SMITH SALES 8060 1000 09001C00E04A0000
7499 ALLEN CLERK 16060 300000000 0A000A0024080000
7499 ALLEN SALESMAN 16060 300000000 09000B00C7080000
7499 ALLEN SALESMAN 1606 300000000
7521 WARD SALESMAN 1256 500000000
227
226
227

7/22/2019
109

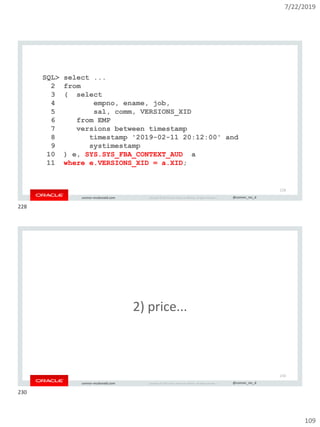

SQL> select ...
2 from
3 ( select
4 empno, ename, job,
5 sal, comm, VERSIONS_XID
6 from EMP
8 timestamp '2019-02-11 20:12:00' and
9 systimestamp
10 ) e, SYS.SYS_FBA_CONTEXT_AUD a
11 where e.VERSIONS_XID = a.XID;
228
2) price...
230
228
230

7/22/2019
110
flashback data archive is now …
231
232
231
232

7/22/2019
111
not a typo
233
basic versus advanced
234
233
234

7/22/2019
112
choose your cost
compression
235
so think about FDA
236
235
236

7/22/2019
113
secure
read only
237
efficient
fdba
238
237
238

7/22/2019
114
all of your history...
239
... all of your audit
240
239
240

7/22/2019
115
"Where were you in 2004 ?!?!?"
241
dbms_flashback_archive.import_history
242
241
242

7/22/2019
116

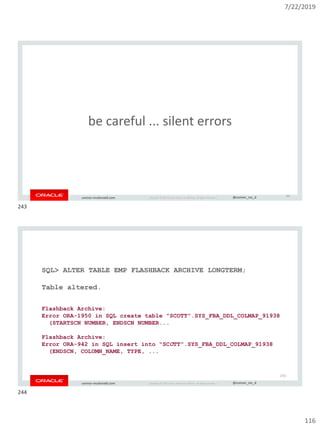

be careful ... silent errors
243
SQL> ALTER TABLE EMP FLASHBACK ARCHIVE LONGTERM;
Table altered.
Flashback Archive:
Error ORA-1950 in SQL create table "SCOTT".SYS_FBA_DDL_COLMAP_91938
(STARTSCN NUMBER, ENDSCN NUMBER...
Flashback Archive:
Error ORA-942 in SQL insert into "SCOTT".SYS_FBA_DDL_COLMAP_91938
(ENDSCN, COLUMN_NAME, TYPE, ...
244
243
244

7/22/2019
117
flashback query
flashback table
flashback drop
flashback database
wrap up
258
248
258

7/22/2019
118
flashback query
flashback table
flashback drop
flashback database
all included in EE
260
259
260

7/22/2019
119

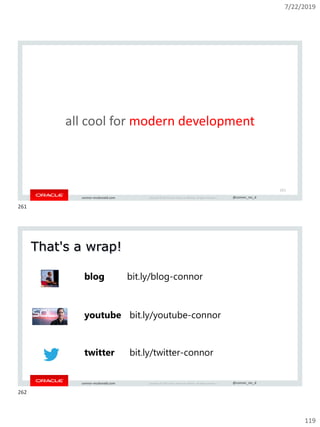

all cool for modern development
261
That's a wrap!
youtube bit.ly/youtube-connor
blog bit.ly/blog-connor
twitter bit.ly/twitter-connor
261
262

OG Yatra - Flashback, not just for developers

Recommended

Recommended

More Related Content

Similar to OG Yatra - Flashback, not just for developers

Similar to OG Yatra - Flashback, not just for developers (20)

More from Connor McDonald

More from Connor McDonald (16)

Recently uploaded

Recently uploaded (20)

OG Yatra - Flashback, not just for developers
