Prepared by iCOT Samsung’s Authorized distributor In the territory of EGYPT

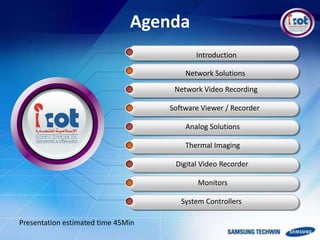

Agenda Introduction Network Solutions Network Video Recording Software Viewer / Recorder Analog Solutions Thermal Imaging Digital Video Recorder Monitors System Controllers Presentation estimated time 45Min
Introduction

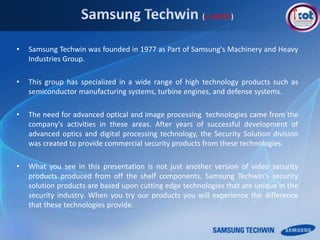

• Samsung Techwin was founded in 1977 as Part of Samsung's Machinery and Heavy Industries Group. • This group has specialized in a wide range of high technology products such as semiconductor manufacturing systems, turbine engines, and defense systems. • The need for advanced optical and image processing technologies came from the company's activities in these areas. After years of successful development of advanced optics and digital processing technology, the Security Solution division was created to provide commercial security products from these technologies. • What you see in this presentation is not just another version of video security products produced from off the shelf components. Samsung Techwin's security solution products are based upon cutting edge technologies that are unique in the security industry. When you try our products you will experience the difference that these technologies provide. in BRIEF
Samsung Techwin Samsung Aerospace Industries Semiconductor Parts Aircraft Engine Camera Semiconductor Equipment History Defense Video Surveillance Samsung Electronics CCTV Biz Integration (Security Solution Division) Samsung Thales Acquisition

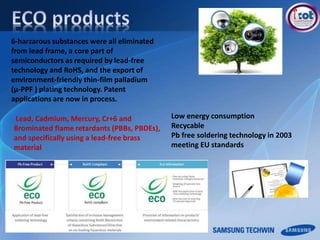

Lead, Cadmium, Mercury, Cr+6 and Brominated flame retardants (PBBs, PBDEs), and specifically using a lead-free brass material Low energy consumption Recycable Pb free soldering technology in 2003 meeting EU standards 6-harzarous substances were all eliminated from lead frame, a core part of semiconductors as required by lead-free technology and RoHS, and the export of environment-friendly thin-film palladium (μ-PPF ) plating technology. Patent applications are now in process.
With the worldwide threat of crime and terrorism increasing daily, the demand for high quality video surveillance systems is also growing rapidly. Users are demanding new capabilities and greater efficiency from their security systems. Samsung Techwin is dedicated to the goal of producing high performance products that introduce features and capabilities that push the boundaries of what can be done with those products. We are redefining what you should expect from total security solution.

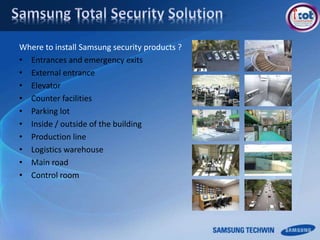

Where to install Samsung security products ? • Entrances and emergency exits • External entrance • Elevator • Counter facilities • Parking lot • Inside / outside of the building • Production line • Logistics warehouse • Main road • Control room
ALT (Accelerated Life Test) / HALT (Highly Accelerated Life Test) : We ensure product reliability by eliminating potential quality defects in advance, through the use of a variety of high-level stress tests relating to temperature, vibration and power. Image Quality Evaluation : To guarantee the image quality of our products, we conduct tests in a dedicated image quality evaluation lab. The resolutions /chrominance /phase under various light/environment conditions for various objects, color reproducibility and other operational functions are tested here, to ensure reliable image quality.

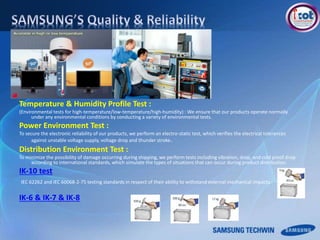

Temperature & Humidity Profile Test : (Environmental tests for high-temperature/low-temperature/high-humidity) : We ensure that our products operate normally under any environmental conditions by conducting a variety of environmental tests. Power Environment Test : To secure the electronic reliability of our products, we perform an electro-static test, which verifies the electrical tolerances against unstable voltage supply, voltage drop and thunder stroke. Distribution Environment Test : To minimize the possibility of damage occurring during shipping, we perform tests including vibration, drop, and cold proof drop according to international standards, which simulate the types of situations that can occur during product distribution. IK-10 test IEC 62262 and IEC 60068-2-75 testing standards in respect of their ability to withstand external mechanical impacts. IK-6 & IK-7 & IK-8

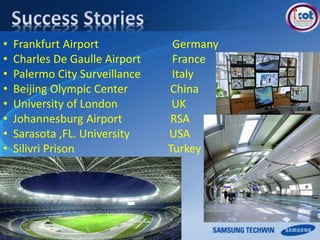

• Frankfurt Airport Germany • Charles De Gaulle Airport France • Palermo City Surveillance Italy • Beijing Olympic Center China • University of London UK • Johannesburg Airport RSA • Sarasota ,FL. University USA • Silivri Prison Turkey

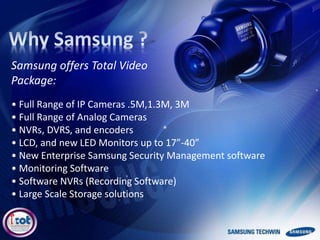

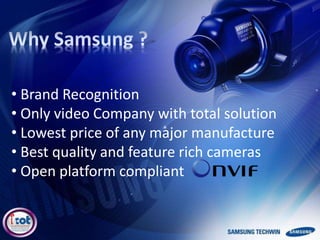

• Brand Recognition • Only video Company with total solution • Lowest price of any major manufacture • Best quality and feature rich cameras • Open platform compliant
• Full Range of IP Cameras .5M,1.3M, 3M • Full Range of Analog Cameras • NVRs, DVRS, and encoders • LCD, and new LED Monitors up to 17”-40” • New Enterprise Samsung Security Management software • Monitoring Software • Software NVRs (Recording Software) • Large Scale Storage solutions Samsung offers Total Video Package:

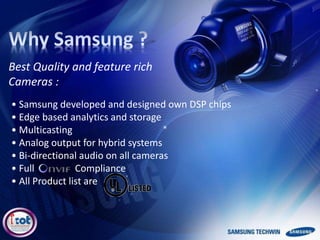

• Samsung developed and designed own DSP chips • Edge based analytics and storage • Multicasting • Analog output for hybrid systems • Bi-directional audio on all cameras • Full Compliance • All Product list are Best Quality and feature rich Cameras :

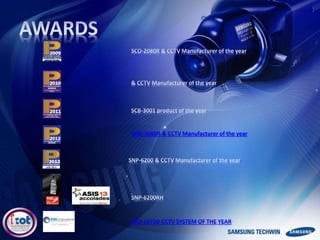

SNO-5080R & CCTV Manufacturer of the year SRD-1673D CCTV SYSTEM OF THE YEAR
Network Solutions
Remote Accessibility Network based IP surveillance systems are extremely easy to view, control and administer from anywhere in the world. What is more, multiple video streams are transmitted at various network bandwidths to enable effective viewing over a range of equipment from PCs to Smart Phones. Easy Integration iPOLiS network based IP solutions contain dual outputs (BNC and Ethernet) to make the step up from analogue to IP cost effective and simple. Users are able to run IP equipment on an analogue network until the cabling is upgraded . Easy Expansion Upgrading an analogue system can be extremely costly and time consuming because all cables need to be run from the camera equipment directly back into the control room. A network based IP solution does not have such issues and it is extremely easy to add additional cameras or recording/storage devices to the network. Intelligent Monitoring Network video surveillance products have built in intelligent video analytic functions including Motion Detection, and Object Tracking. These functions help users to manage the videos in more convenient and effective ways. Users can quickly search recorded footage by specific events, such as optical trip-wire activation, without having to review hours of video.

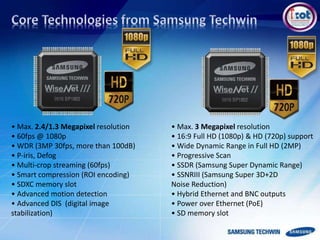

• Max. 2.4/1.3 Megapixel resolution • 60fps @ 1080p • WDR (3MP 30fps, more than 100dB) • P-iris, Defog • Multi-crop streaming (60fps) • Smart compression (ROI encoding) • SDXC memory slot • Advanced motion detection • Advanced DIS (digital image stabilization) • Max. 3 Megapixel resolution • 16:9 Full HD (1080p) & HD (720p) support • Wide Dynamic Range in Full HD (2MP) • Progressive Scan • SSDR (Samsung Super Dynamic Range) • SSNRIII (Samsung Super 3D+2D Noise Reduction) • Hybrid Ethernet and BNC outputs • Power over Ethernet (PoE) • SD memory slot

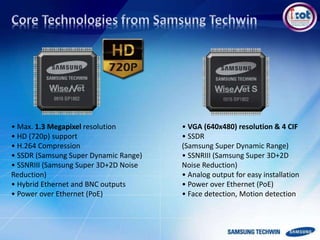

• Max. 1.3 Megapixel resolution • HD (720p) support • H.264 Compression • SSDR (Samsung Super Dynamic Range) • SSNRIII (Samsung Super 3D+2D Noise Reduction) • Hybrid Ethernet and BNC outputs • Power over Ethernet (PoE) • VGA (640x480) resolution & 4 CIF • SSDR (Samsung Super Dynamic Range) • SSNRIII (Samsung Super 3D+2D Noise Reduction) • Analog output for easy installation • Power over Ethernet (PoE) • Face detection, Motion detection

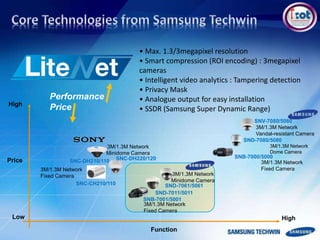

• Max. 1.3/3megapixel resolution • Smart compression (ROI encoding) : 3megapixel cameras • Intelligent video analytics : Tampering detection • Privacy Mask • Analogue output for easy installation • SSDR (Samsung Super Dynamic Range) Price Low High High Function SNB-7001/5001 SND-7011/5011 SND-7061/5061 3M/1.3M Network Fixed Camera 3M/1.3M Network Minidome Camera SNB-7000/5000 SND-7080/5080 SNV-7080/5080 3M/1.3M Network Fixed Camera 3M/1.3M Network Dome Camera 3M/1.3M Network Vandal-resistant Camera SNC-CH210/110 SNC-DH220/120SNC-DH210/110 3M/1.3M Network Minidome Camera 3M/1.3M Network Fixed Camera Performance Price

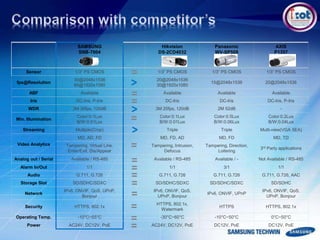

SAMSUNG SNB-7004 Hikvision DS-2CD4032 Panasonic WV-SP509 AXIS P1357 Sensor 1/3” PS CMOS 1/3” PS CMOS 1/3” PS CMOS 1/3” PS CMOS fps@Resolution 30@2048x1536 60@1920x1080 20@2048x1536 30@1920x1080 15@2048x1536 20@2048x1536 ABF Available Available Available Available Iris DC-Iris, P-Iris DC-Iris DC-Iris DC-Iris, P-Iris WDR 3M 30fps, 120dB 3M 20fps, 120dB 2M 52dB - Min. Illumination Color:0.1Lux B/W:0.01Lux Color:0.1Lux B/W:0.01Lux Color:0.5Lux B/W:0.06Lux Color:0.2Lux B/W:0.04Lux Streaming Multiple(Crop) Triple Triple Multi-view(VGA 5EA) Video Analytics MD, AD, FD MD, FD, AD MD, FD MD, TD Tampering, Virtual Line, Enter/Exit, Dis/Appear Tampering, Intrusion, Defocus Tampering, Direction, Loitering 3rd Party applications Analog out / Serial Available / RS-485 Available / RS-485 Available / - Not Available / RS-485 Alarm In/Out 1/1 1/1 3/1 1/1 Audio G.711, G.726 G.711, G.726 G.711, G.726 G.711, G.726, AAC Storage Slot SD/SDHC/SDXC SD/SDHC/SDXC SD/SDHC/SDXC SD/SDHC Network IPv6, ONVIF, QoS, UPnP, Bonjour IPv6, ONVIF, QoS, UPnP, Bonjour IPv6, ONVIF, UPnP IPv6, ONVIF, QoS, UPnP, Bonjour Security HTTPS, 802.1x HTTPS, 802.1x, Watermark HTTPS HTTPS, 802.1x Operating Temp. -10°C~55°C -30°C~60°C -10°C~50°C 0°C~50°C Power AC24V, DC12V, PoE AC24V, DC12V, PoE DC12V, PoE DC12V, PoE = > > = = = = = = = = = = = = >

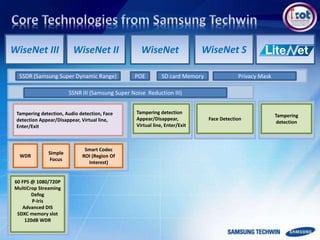

Tampering detection, Audio detection, Face detection Appear/Disappear, Virtual line, Enter/Exit Tampering detection Appear/Disappear, Virtual line, Enter/Exit WiseNet III WiseNet WiseNet S SSDR (Samsung Super Dynamic Range) Privacy Mask WiseNet II SSNR III (Samsung Super Noise Reduction III) 60 FPS @ 1080/720P MultiCrop Streaming Defog P-Iris Advanced DIS SDXC memory slot 120dB WDR Face Detection Tampering detection WDR Simple Focus Smart Codec ROI (Region Of Interest) POE SD card Memory
1920x1080 1280x720 640x480 Full HD Full Cover line up(VGA ~ 3.1M Pixel)

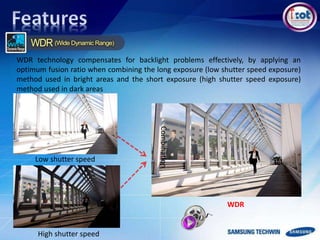

WDR technology compensates for backlight problems effectively, by applying an optimum fusion ratio when combining the long exposure (low shutter speed exposure) method used in bright areas and the short exposure (high shutter speed exposure) method used in dark areas Low shutter speed High shutter speed WDR Model dB Sony SNC-VB630 90dB Panasonic WV-SP509 52dB Dahua IPC-HF3301 100dB Samsung SNB-7004 120dB ※Competitors’ WDR Specification

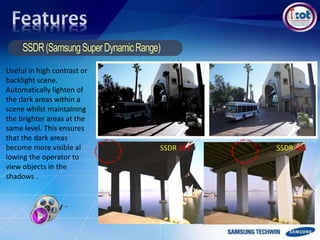

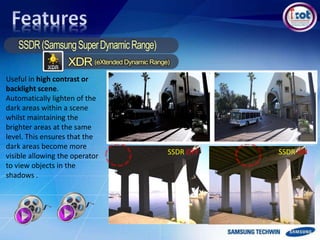

SSDR OFF SSDR ON Useful in high contrast or backlight scene. Automatically lighten of the dark areas within a scene whilst maintaining the brighter areas at the same level. This ensures that the dark areas become more visible al lowing the operator to view objects in the shadows .

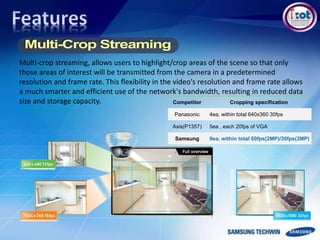

Multi-crop streaming, allows users to highlight/crop areas of the scene so that only those areas of interest will be transmitted from the camera in a predetermined resolution and frame rate. This flexibility in the video's resolution and frame rate allows a much smarter and efficient use of the network's bandwidth, resulting in reduced data size and storage capacity. Competitor Cropping specification Panasonic 4ea, within total 640x360 30fps Axis(P1357) 5ea , each 20fps of VGA Samsung 9ea, within total 60fps(2MP)/30fps(3MP)

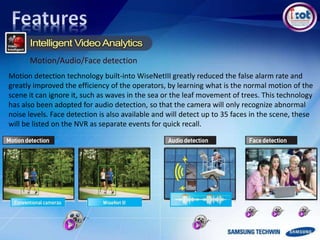

Motion/Audio/Face detection Motion detection technology built-into WiseNetIII greatly reduced the false alarm rate and greatly improved the efficiency of the operators, by learning what is the normal motion of the scene it can ignore it, such as waves in the sea or the leaf movement of trees. This technology has also been adopted for audio detection, so that the camera will only recognize abnormal noise levels. Face detection is also available and will detect up to 35 faces in the scene, these will be listed on the NVR as separate events for quick recall.
Spray paint on Lens Alarm ! Manual change of camera angle Alarm ! Sends an alarm signal when the camera’s operation has been hampered with, such as a manual change in the camera’s angle, removal of the camera lens, defocus, or blockage of the camera lens. Tampering Detection
Virtual Line & Enter / Exit zones Appear / Disappear

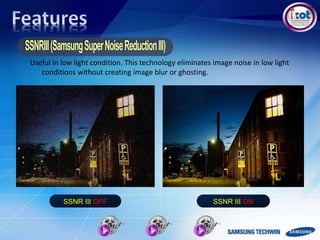

Useful in low light condition. This technology eliminates image noise in low light conditions without creating image blur or ghosting. SSNR III ONSSNR III OFF

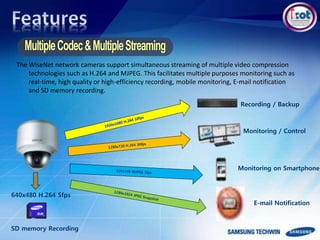

The WiseNet network cameras support simultaneous streaming of multiple video compression technologies such as H.264 and MJPEG. This facilitates multiple purposes monitoring such as real-time, high quality or high-efficiency recording, mobile monitoring, E-mail notification and SD memory recording. Recording / Backup Monitoring / Control SD memory Recording E-mail Notification 640x480 H.264 5fps Monitoring on Smartphone

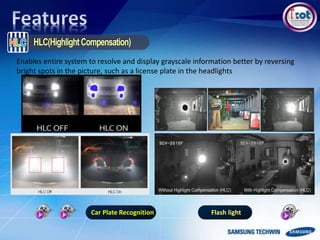

Enables entire system to resolve and display grayscale information better by reversing bright spots in the picture, such as a license plate in the headlights Car Plate Recognition Flash light

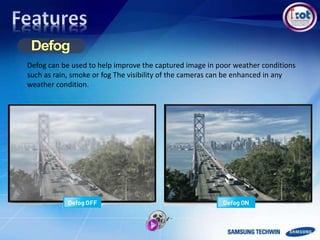

Defog can be used to help improve the captured image in poor weather conditions such as rain, smoke or fog The visibility of the cameras can be enhanced in any weather condition.

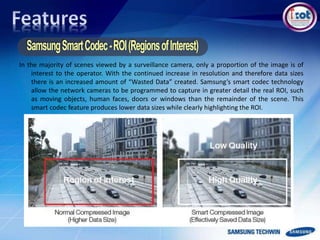

In the majority of scenes viewed by a surveillance camera, only a proportion of the image is of interest to the operator. With the continued increase in resolution and therefore data sizes there is an increased amount of “Wasted Data” created. Samsung’s smart codec technology allow the network cameras to be programmed to capture in greater detail the real ROI, such as moving objects, human faces, doors or windows than the remainder of the scene. This smart codec feature produces lower data sizes while clearly highlighting the ROI.

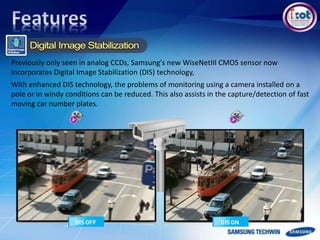

Previously only seen in analog CCDs, Samsung's new WiseNetIII CMOS sensor now incorporates Digital Image Stabilization (DIS) technology, With enhanced DIS technology, the problems of monitoring using a camera installed on a pole or in windy conditions can be reduced. This also assists in the capture/detection of fast moving car number plates.

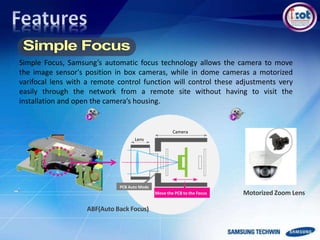

Simple Focus, Samsung’s automatic focus technology allows the camera to move the image sensor's position in box cameras, while in dome cameras a motorized varifocal lens with a remote control function will control these adjustments very easily through the network from a remote site without having to visit the installation and open the camera’s housing. Camera Lens PCB Auto Mode Move the PCB to the Focus ABF(Auto Back Focus) Motorized Zoom Lens

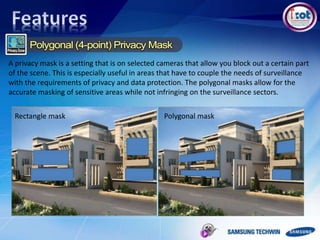

Rectangle mask Polygonal mask A privacy mask is a setting that is on selected cameras that allow you block out a certain part of the scene. This is especially useful in areas that have to couple the needs of surveillance with the requirements of privacy and data protection. The polygonal masks allow for the accurate masking of sensitive areas while not infringing on the surveillance sectors.
The WiseNetIII box cameras supports the P-Iris system, which optimizes the iris function when multiple lighting conditions exist in a single scene, this results in images with better contrast, clarity, resolution and depth of field. The optimization of the resolution at both the center and corner of the image, as well as the depth of field and shutter speed, provide increased image sharpness especially effective in megapixel cameras such as the WiseNetIII series.

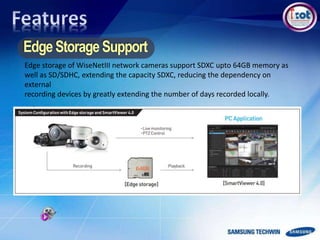

Edge storage of WiseNetIII network cameras support SDXC upto 64GB memory as well as SD/SDHC, extending the capacity SDXC, reducing the dependency on external recording devices by greatly extending the number of days recorded locally.

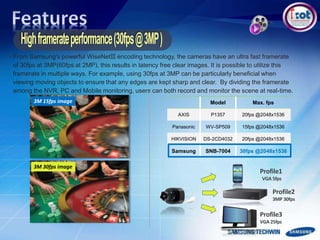

- From Samsung's powerful WiseNetIII encoding technology, the cameras have an ultra fast framerate of 30fps at 3MP(60fps at 2MP), this results in latency free clear images. It is possible to utilize this framerate in multiple ways. For example, using 30fps at 3MP can be particularly beneficial when viewing moving objects to ensure that any edges are kept sharp and clear. By dividing the framerate among the NVR, PC and Mobile monitoring, users can both record and monitor the scene at real-time. 3M 15fps image 3M 30fps image Profile3 VGA 25fps Profile2 3MP 30fps Profile1 VGA 5fps Model Max. fps AXIS P1357 20fps @2048x1536 Panasonic WV-SP509 15fps @2048x1536 HIKVISION DS-2CD4032 20fps @2048x1536 Samsung SNB-7004 30fps @2048x1536
UPnP and Bonjour are the protocols supported in Windows and Mac operating system. It enables automatic port forwarding so that the operating system can automatically find each network camera, making it easier to integrate a device into a network. Multi-Browser support WiseNetIII cameras utilized NPAPI(Netscape Plugin Application Programming Interface) this plug-in architecture removes the limitation on supporting resolution and web-browser types Google Chrome, Safari, Firefox, and IE can be used to monitor the WiseNetIII cameras.

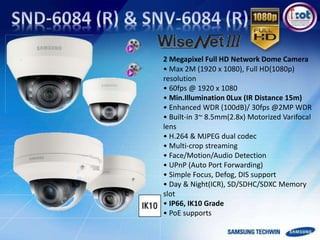

2 Megapixel Full HD Network Dome Camera • Max 2M (1920 x 1080), Full HD(1080p) resolution • 60fps @ 1920 x 1080 • Min.Illumination 0Lux (IR Distance 15m) • Enhanced WDR (100dB)/ 30fps @2MP WDR • Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • IP66, IK10 Grade • PoE supports

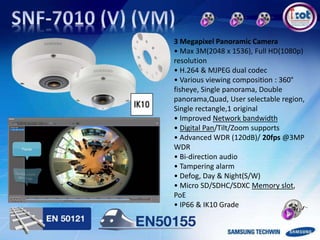

3 Megapixel Panoramic Camera • Max 3M(2048 x 1536), Full HD(1080p) resolution • H.264 & MJPEG dual codec • Various viewing composition : 360° fisheye, Single panorama, Double panorama,Quad, User selectable region, Single rectangle,1 original • Improved Network bandwidth • Digital Pan/Tilt/Zoom supports • Advanced WDR (120dB)/ 20fps @3MP WDR • Bi-direction audio • Tampering alarm • Defog, Day & Night(S/W) • Micro SD/SDHC/SDXC Memory slot, PoE • IP66 & IK10 Grade

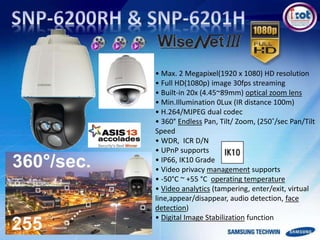

• Max. 2 Megapixel(1920 x 1080) HD resolution • Full HD(1080p) image 30fps streaming • Built-in 20x (4.45~89mm) optical zoom lens • Min.Illumination 0Lux (IR distance 100m) • H.264/MJPEG dual codec • 360° Endless Pan, Tilt/ Zoom, (250˚/sec Pan/Tilt Speed • WDR, ICR D/N • UPnP supports • IP66, IK10 Grade • Video privacy management supports • -50°C ~ +55 °C operating temperature • Video analytics (tampering, enter/exit, virtual line,appear/disappear, audio detection, face detection) • Digital Image Stabilization function

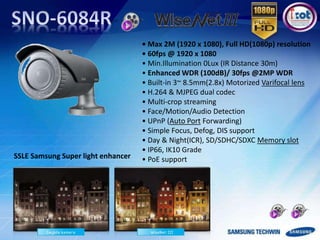

• Max 2M (1920 x 1080), Full HD(1080p) resolution • 60fps @ 1920 x 1080 • Min.Illumination 0Lux (IR Distance 30m) • Enhanced WDR (100dB)/ 30fps @2MP WDR • Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • IP66, IK10 Grade • PoE supportSSLE Samsung Super light enhancer

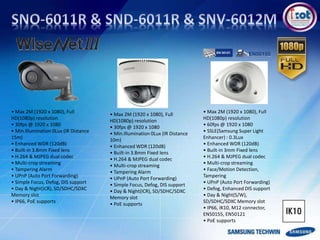

• Max 2M (1920 x 1080), Full HD(1080p) resolution • 30fps @ 1920 x 1080 • Min.Illumination 0Lux (IR Distance 15m) • Enhanced WDR (120dB) • Built-in 3.8mm Fixed lens • H.264 & MJPEG dual codec • Multi-crop streaming • Tampering Alarm • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • IP66, PoE supports • Max 2M (1920 x 1080), Full HD(1080p) resolution • 30fps @ 1920 x 1080 • Min.Illumination 0Lux (IR Distance 10m) • Enhanced WDR (120dB) • Built-in 3.8mm Fixed lens • H.264 & MJPEG dual codec • Multi-crop streaming • Tampering Alarm • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • PoE supports • Max 2M (1920 x 1080), Full HD(1080p) resolution • 60fps @ 1920 x 1080 • SSLE(Samsung Super Light Enhancer) : 0.3Lux • Enhanced WDR (120dB) • Built-in 3mm Fixed lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion Detection, Tampering • UPnP (Auto Port Forwarding) • Defog, Enhanced DIS support • Day & Night(S/W), SD/SDHC/SDXC Memory slot • IP66, IK10, M12 connector, EN50155, EN50121 • PoE supports

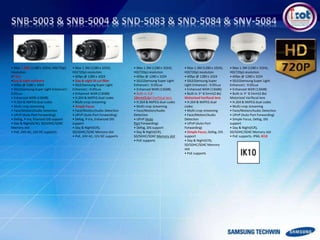

• Max 1.28M (1280 x 1024), HD(720p) resolution •P-Iris •Day & night software • 60fps @ 1280 x 1024 • SSLE(Samsung Super Light Enhancer) : 0.05Lux • Enhanced WDR (130dB) • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Defog, P-Iris, Ehanced DIS support • Day & Night(S/W), SD/SDHC/SDXC Memory slot • PoE, 24V AC, 12V DC supports • Max 1.3M (1280 x 1024), HD(720p) resolution • 60fps @ 1280 x 1024 • Day & night IR cut filter • SSLE(Samsung Super Light Enhancer) : 0.05Lux • Enhanced WDR (130dB) • H.264 & MJPEG dual codec • Multi-crop streaming • Simple Focus • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Defog, P-Iris, Enhanced DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • PoE, 24V AC, 12V DC supports • Max 1.3M (1280 x 1024), HD(720p) resolution • 60fps @ 1280 x 1024 • SSLE(Samsung Super Light Enhancer) : 0.05Lux • Enhanced WDR (130dB) • Built-in 2.8~ 10mm(3.6x) Varifocal lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • PoE supports • Max 1.3M (1280 x 1024), HD(720p) resolution • 60fps @ 1280 x 1024 • SSLE(Samsung Super Light Enhancer) : 0.05Lux • Enhanced WDR (130dB) • Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • PoE supports • Max 1.3M (1280 x 1024), HD(720p) resolution • 60fps @ 1280 x 1024 • SSLE(Samsung Super Light Enhancer) : 0.05Lux • Enhanced WDR (130dB) • Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • PoE supports, IP66, IK10

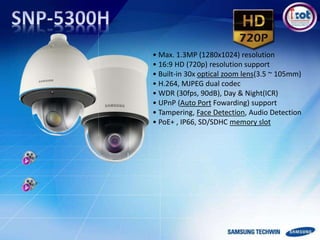

• Max. 1.3MP (1280x1024) resolution • 16:9 HD (720p) resolution support • Built-in 30x optical zoom lens(3.5 ~ 105mm) • H.264, MJPEG dual codec • WDR (30fps, 90dB), Day & Night(ICR) • UPnP (Auto Port Fowarding) support • Tampering, Face Detection, Audio Detection • PoE+ , IP66, SD/SDHC memory slot

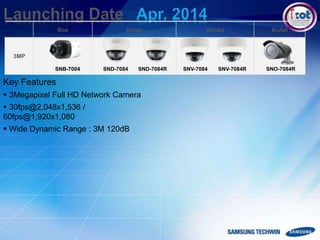

Box Dome Vandal Bullet 3MP SNB-7004 SND-7084 SND-7084R SNO-7084RSNV-7084 SNV-7084R Key Features  3Megapixel Full HD Network Camera  30fps@2,048x1,536 / 60fps@1,920x1,080  Wide Dynamic Range : 3M 120dB

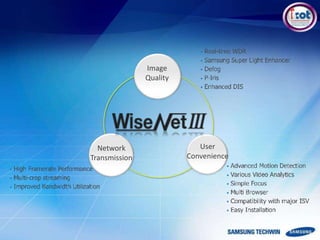

Image Quality User Convenience Network Transmission
The Profile Specifications in this section describe the interoperable features between client and device guaranteed by a profile and the requirements for claiming conformance to a profile. •Profiles allow users to easily identify specific interoperable features by profile •Concept of profiles will simplify interoperability and management of conformant products •Profile S addresses common functionalities of IP video systems LIST OF SAMSUNG PRODUCTS THAT IS PROFILE S COMPLIANT http://www.onvif.org/default.aspx?TabID=157&CompanyID=14333&Type=1 IP cameras Encoders NVR Configure Send Request Control Media Data ( video , Audio ) Relay output Pan , tilt , zoom Access Control

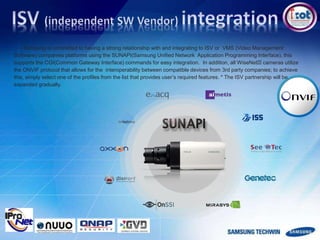

- Samsung is committed to having a strong relationship with and integrating to ISV or VMS (Video Management Software) companies platforms using the SUNAPI(Samsung Unified Network Application Programming Interface), this supports the CGI(Common Gateway Interface) commands for easy integration. In addition, all WiseNetIII cameras utilize the ONVIF protocol that allows for the interoperability between compatible devices from 3rd party companies; to achieve this, simply select one of the profiles from the list that provides user’s required features. * The ISV partnership will be expanded gradually.

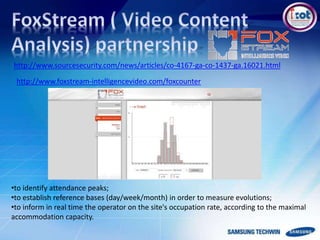

http://www.sourcesecurity.com/news/articles/co-4167-ga-co-1437-ga.16021.html http://www.foxstream-intelligencevideo.com/foxcounter •to identify attendance peaks; •to establish reference bases (day/week/month) in order to measure evolutions; •to inform in real time the operator on the site's occupation rate, according to the maximal accommodation capacity.

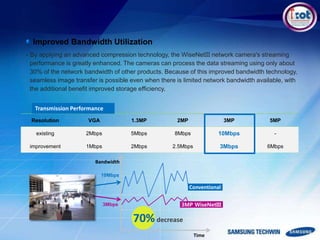

- By applying an advanced compression technology, the WiseNetIII network camera's streaming performance is greatly enhanced. The cameras can process the data streaming using only about 30% of the network bandwidth of other products. Because of this improved bandwidth technology, seamless image transfer is possible even when there is limited network bandwidth available, with the additional benefit improved storage efficiency. Resolution VGA 1.3MP 2MP 3MP 5MP existing 2Mbps 5Mbps 8Mbps 10Mbps - improvement 1Mbps 2Mbps 2.5Mbps 3Mbps 6Mbps Transmission Performance Time Bandwidth Conventional 3MP WiseNetIII3Mbps 10Mbps 70% decrease Improved Bandwidth Utilization
Accessories

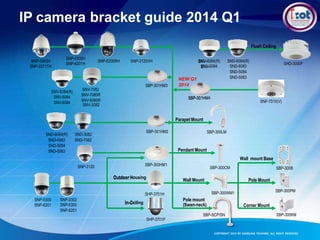

IP camera bracket guide 2014 Q1 Flush Ceiling SNP-5300H SNP-6201H SNP-3302H SNP-6200RH SNP-3120VH SNV-6084(R) SNV-5084 SND-6084(R) SND-6083 SND-5084 SND-5083 SHD-3000F SNP-3371TH SBP-301HM4 SNF-7010(V) SNV-3082 SBP-300LM Wall mount Base SBP-300CM SBP-300B Outdoor Housing SBP-300PMSBP-300WM1 SNP-5300 SNP-3302 SNP-5300 SNP-6201 In-CeilingSNP-6201 SBP-SCP/SN SBP-300KM SHP-3701F COPYRIGHT 2013 BY SAMSUNG TECHWIN. ALL RIGHT RESERVED Pole Mount Corner Mount SNV-6084(R) SNV-7082 SNV-5084 SNV-7080R SNV-6084 SNV-5080R SND-6084(R) SND-3082 SND-6083 SND-7082 SND-5084 SND-5083 SBP-301HM3 SBP-301HM2 SBP-300HM1 SNV- SNV- NEW Q1 2014 SBP-301HM Parapet Mount Pendant Mount Wall Mount SNP-3120 Outdoor H In-C SHP-3701H Pole mount (Swan-neck)
System Controllers
SPC-2000 • Superior system compatibility • 3D joystick control • Quick and easy installation • NET-i viewer support
NVR Systems
• Flexible and wide choice Samsung newly launch NVR supporting up to 100Mbps recording. This NVR features wide range of resolution from VGA to 5megapixel and H.264, MPEG4 and MJPEG multi format compression. It also supports Samsung, (AXIS, Panasonic, SONY) cameras compatibility.

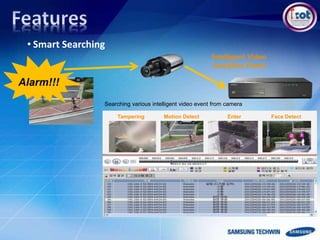

• Smart Searching Intelligent Video Analytics Event Alarm!!! Searching various intelligent video event from camera Tampering Motion Detect Enter Face Detect
• Large Capacity Storage  Large Capacity of internal/external storage up to 144TB  Support both iSCSI NAS(IPSAN) or 2x e-SATA direct storages External IPSAN 128TB (16TB x 8EA) External e-SATA Storage Bay 2EA X 32TB = 64TB Network Switch (GbE) Internal HDD 16TB (2TB x 8EA) SVS-5E ( HDD extension unit) OR SVS-5R ( RAID 5 unit) 8HDDX4TB=32TB

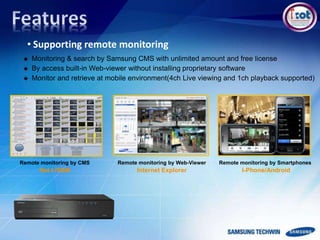

• Supporting remote monitoring  Monitoring & search by Samsung CMS with unlimited amount and free license  By access built-in Web-viewer without installing proprietary software  Monitor and retrieve at mobile environment(4ch Live viewing and 1ch playback supported) Remote monitoring by CMS Net-I /SSM Remote monitoring by Web-Viewer Internet Explorer Remote monitoring by Smartphones I-Phone/Android

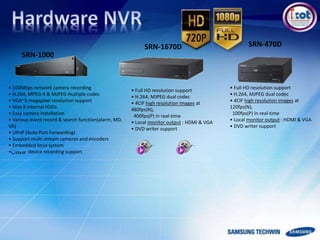

SRN-1000 SRN-1670D SRN-470D • 100Mbps network camera recording • H.264, MPEG-4 & MJPEG multiple codec • VGA~5 megapixel resolution support • Max 8 internal HDDs • Easy camera installation • Various event record & search function(alarm, MD, VA) • UPnP (Auto Port Forwarding) • Support multi-stream cameras and encoders • Embedded linux system • device recording support • Full HD resolution support • H.264, MJPEG dual codec • 4CIF high resolution images at 480fps(N), 400fps(P) in real-time • Local monitor output : HDMI & VGA • DVD writer support • Full HD resolution support • H.264, MJPEG dual codec • 4CIF high resolution images at 120fps(N), 100fps(P) in real-time • Local monitor output : HDMI & VGA • DVD writer support

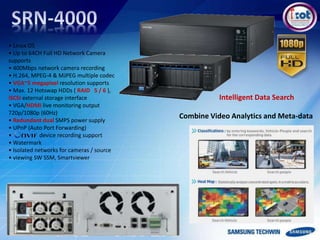

• Linux OS • Up to 64CH Full HD Network Camera supports • 400Mbps network camera recording • H.264, MPEG-4 & MJPEG multiple codec • VGA~5 megapixel resolution supports • Max. 12 Hotswap HDDs ( RAID 5 / 6 ), iSCSI external storage interface • VGA/HDMI live monitoring output 720p/1080p (60Hz) • Redundant dual SMPS power supply • UPnP (Auto Port Forwarding) • device recording support • Watermark • Isolated networks for cameras / source • viewing SW SSM, Smartviewer Intelligent Data Search Combine Video Analytics and Meta-data
Software Viewer / Recorder

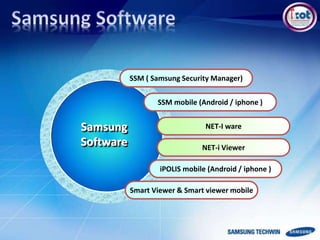

SSM ( Samsung Security Manager) NET-i Viewer iPOLIS mobile (Android / iphone ) NET-I ware Smart Viewer & Smart viewer mobile Samsung Software SSM mobile (Android / iphone )

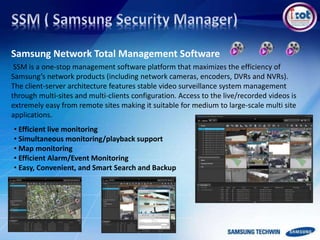

Samsung Network Total Management Software SSM is a one-stop management software platform that maximizes the efficiency of Samsung’s network products (including network cameras, encoders, DVRs and NVRs). The client-server architecture features stable video surveillance system management through multi-sites and multi-clients configuration. Access to the live/recorded videos is extremely easy from remote sites making it suitable for medium to large-scale multi site applications. • Efficient live monitoring • Simultaneous monitoring/playback support • Map monitoring • Efficient Alarm/Event Monitoring • Easy, Convenient, and Smart Search and Backup

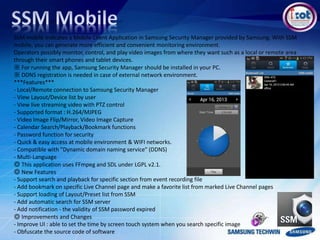

SSM mobile indicates a Mobile Client Application in Samsung Security Manager provided by Samsung. With SSM mobile, you can generate more efficient and convenient monitoring environment. Operators possibly monitor, control, and play video images from where they want such as a local or remote area through their smart phones and tablet devices. ※ For running the app, Samsung Security Manager should be installed in your PC. ※ DDNS registration is needed in case of external network environment. ***Features*** - Local/Remote connection to Samsung Security Manager - View Layout/Device list by user - View live streaming video with PTZ control - Supported format : H.264/MJPEG - Video Image Flip/Mirror, Video Image Capture - Calendar Search/Playback/Bookmark functions - Password function for security - Quick & easy access at mobile environment & WIFI networks. - Compatible with "Dynamic domain naming service" (DDNS) - Multi-Language ◎ This application uses FFmpeg and SDL under LGPL v2.1. ◎ New Features - Support search and playback for specific section from event recording file - Add bookmark on specific Live Channel page and make a favorite list from marked Live Channel pages - Support loading of Layout/Preset list from SSM - Add automatic search for SSM server - Add notification - the validity of SSM password expired ◎ Improvements and Changes - Improve UI : able to set the time by screen touch system when you search specific image - Obfuscate the source code of software

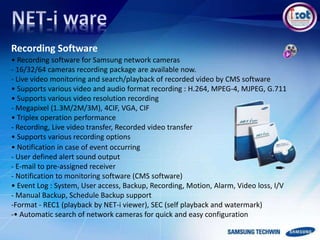

Recording Software • Recording software for Samsung network cameras - 16/32/64 cameras recording package are available now. - Live video monitoring and search/playback of recorded video by CMS software • Supports various video and audio format recording : H.264, MPEG-4, MJPEG, G.711 • Supports various video resolution recording - Megapixel (1.3M/2M/3M), 4CIF, VGA, CIF • Triplex operation performance - Recording, Live video transfer, Recorded video transfer • Supports various recording options • Notification in case of event occurring - User defined alert sound output - E-mail to pre-assigned receiver - Notification to monitoring software (CMS software) • Event Log : System, User access, Backup, Recording, Motion, Alarm, Video loss, I/V - Manual Backup, Schedule Backup support -Format - REC1 (playback by NET-i viewer), SEC (self playback and watermark) -• Automatic search of network cameras for quick and easy configuration

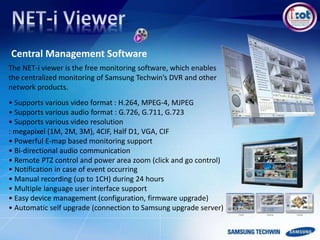

• Supports various video format : H.264, MPEG-4, MJPEG • Supports various audio format : G.726, G.711, G.723 • Supports various video resolution : megapixel (1M, 2M, 3M), 4CIF, Half D1, VGA, CIF • Powerful E-map based monitoring support • Bi-directional audio communication • Remote PTZ control and power area zoom (click and go control) • Notification in case of event occurring • Manual recording (up to 1CH) during 24 hours • Multiple language user interface support • Easy device management (configuration, firmware upgrade) • Automatic self upgrade (connection to Samsung upgrade server) Central Management Software The NET-i viewer is the free monitoring software, which enables the centralized monitoring of Samsung Techwin’s DVR and other network products.

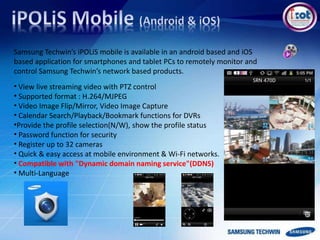

Samsung Techwin’s iPOLiS mobile is available in an android based and iOS based application for smartphones and tablet PCs to remotely monitor and control Samsung Techwin’s network based products. • View live streaming video with PTZ control • Supported format : H.264/MJPEG • Video Image Flip/Mirror, Video Image Capture • Calendar Search/Playback/Bookmark functions for DVRs •Provide the profile selection(N/W), show the profile status • Password function for security • Register up to 32 cameras • Quick & easy access at mobile environment & Wi-Fi networks. • Compatible with "Dynamic domain naming service"(DDNS) • Multi-Language

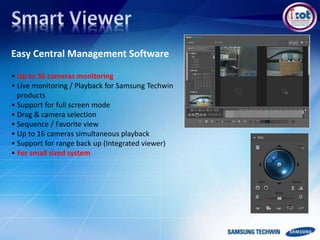

Easy Central Management Software • Up to 36 cameras monitoring • Live monitoring / Playback for Samsung Techwin products • Support for full screen mode • Drag & camera selection • Sequence / Favorite view • Up to 16 cameras simultaneous playback • Support for range back up (Integrated viewer) • For small sized system

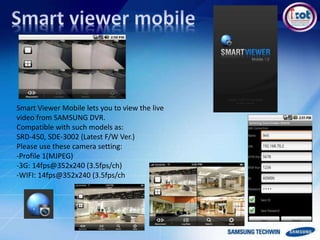

Smart Viewer Mobile lets you to view the live video from SAMSUNG DVR. Compatible with such models as: SRD-450, SDE-3002 (Latest F/W Ver.) Please use these camera setting: -Profile 1(MJPEG) -3G: 14fps@352x240 (3.5fps/ch) -WIFI: 14fps@352x240 (3.5fps/ch
New IP products in 2015

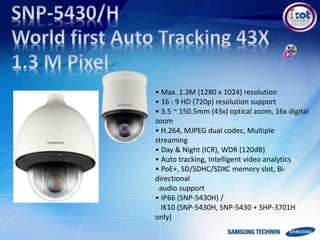

• Max. 1.3M (1280 x 1024) resolution • 16 : 9 HD (720p) resolution support • 3.5 ~ 150.5mm (43x) optical zoom, 16x digital zoom • H.264, MJPEG dual codec, Multiple streaming • Day & Night (ICR), WDR (120dB) • Auto tracking, Intelligent video analytics • PoE+, SD/SDHC/SDXC memory slot, Bi- directional audio support • IP66 (SNP-5430H) / IK10 (SNP-5430H, SNP-5430 + SHP-3701H only)

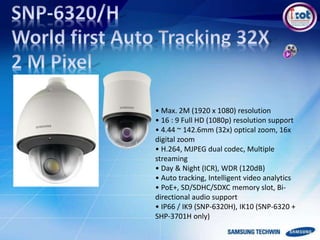

• Max. 2M (1920 x 1080) resolution • 16 : 9 Full HD (1080p) resolution support • 4.44 ~ 142.6mm (32x) optical zoom, 16x digital zoom • H.264, MJPEG dual codec, Multiple streaming • Day & Night (ICR), WDR (120dB) • Auto tracking, Intelligent video analytics • PoE+, SD/SDHC/SDXC memory slot, Bi- directional audio support • IP66 / IK9 (SNP-6320H), IK10 (SNP-6320 + SHP-3701H only)
• Max. 5M (2560 x 2048) resolution • Various viewing composition, 6 dewarping view mode • On board dewarping, Digital PTZ / Bi- directional audio • WDR (Contrast Enhanced), MD, AD • M12 connector (SNF-8010VM) • IP66, IK10, EN50155, EN61373 certifications (SNF-8010VM) • micro SD/SDHC/SDXC memory slot, PoE

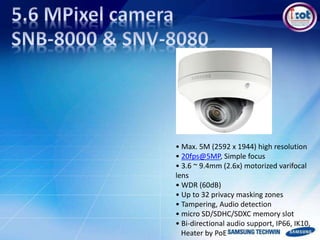

• Max. 5M (2592 x 1944) high resolution • 20fps@5MP, Simple focus • 3.6 ~ 9.4mm (2.6x) motorized varifocal lens • WDR (60dB) • Up to 32 privacy masking zones • Tampering, Audio detection • micro SD/SDHC/SDXC memory slot • Bi-directional audio support, IP66, IK10, Heater by PoE
Analog Solutions

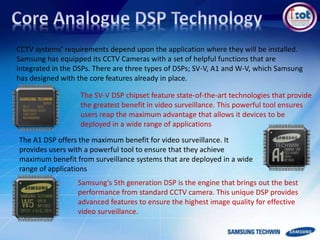

CCTV systems’ requirements depend upon the application where they will be installed. Samsung has equipped its CCTV Cameras with a set of helpful functions that are integrated in the DSPs. There are three types of DSPs; SV-V, A1 and W-V, which Samsung has designed with the core features already in place. The SV-V DSP chipset feature state-of-the-art technologies that provide the greatest benefit in video surveillance. This powerful tool ensures users reap the maximum advantage that allows it devices to be deployed in a wide range of applications The A1 DSP offers the maximum benefit for video surveillance. It provides users with a powerful tool to ensure that they achieve maximum benefit from surveillance systems that are deployed in a wide range of applications Samsung's 5th generation DSP is the engine that brings out the best performance from standard CCTV camera. This unique DSP provides advanced features to ensure the highest image quality for effective video surveillance.

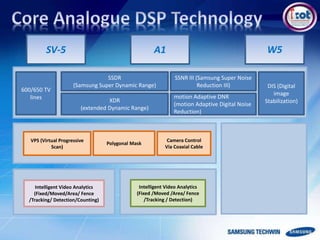

600/650 TV lines VPS (Virtual Progressive Scan) Polygonal Mask Camera Control Via Coaxial Cable Intelligent Video Analytics (Fixed/Moved/Area/ Fence /Tracking/ Detection/Counting) Intelligent Video Analytics (Fixed /Moved /Area/ Fence /Tracking / Detection) SV-5 A1 W5 SSDR (Samsung Super Dynamic Range) XDR (extended Dynamic Range) SSNR III (Samsung Super Noise Reduction III) DIS (Digital image Stabilization) motion Adaptive DNR (motion Adaptive Digital Noise Reduction)

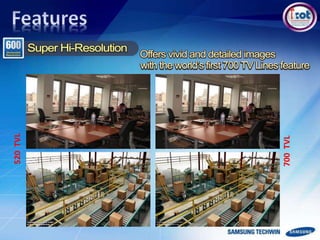

520TVL 700TVL
WDR technology compensates for backlight problems effectively, by applying an optimum fusion ratio when combining the long exposure (low shutter speed exposure) method used in bright areas and the short exposure (high shutter speed exposure) method used in dark areas Low shutter speed High shutter speed WDR Combination
SSDR OFF SSDR ON Useful in high contrast or backlight scene. Automatically lighten of the dark areas within a scene whilst maintaining the brighter areas at the same level. This ensures that the dark areas become more visible allowing the operator to view objects in the shadows .

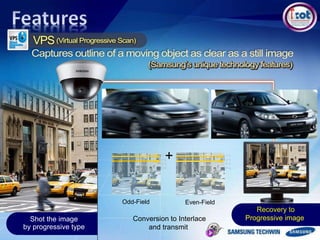

Conversion to Interlace and transmit + Shot the image by progressive type Recovery to Progressive image Odd-Field 1+2 3+4 5+6 7+8 . . . . . 2+3 4+5 6+7 8+9 Even-Field . . . . .
The 3rd generation of SSNR can be used in low light condition to enhance the image quality. This technology eliminates image noise in low light conditions without creating image blur or ghosting. Conventional Camera Samsung camera with Noise Filter

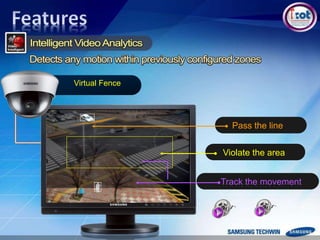

Virtual Fence Violate the area Pass the line Track the movement
Appear / Disappear Generates automatic alarm if specific objects disappear and Notifies when new objects appear for a certain period of time

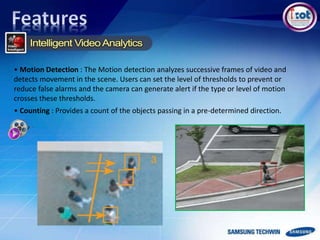

• Motion Detection : The Motion detection analyzes successive frames of video and detects movement in the scene. Users can set the level of thresholds to prevent or reduce false alarms and the camera can generate alert if the type or level of motion crosses these thresholds. • Counting : Provides a count of the objects passing in a pre-determined direction.
This function enables access to the camera menu settings without connecting any other control cables to the camera. This technology allows for camera set up (with the exception of lens focus) to be performed remotely, thus simplifying the installation process. It also allow for the control of Samsung PTZ domes from a coaxial control enabled DVR. SPC-200 / SPC 300

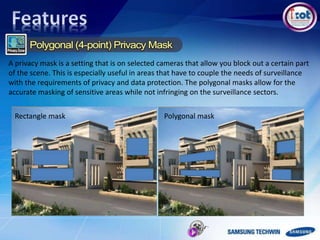

Rectangle mask Polygonal mask A privacy mask is a setting that is on selected cameras that allow you block out a certain part of the scene. This is especially useful in areas that have to couple the needs of surveillance with the requirements of privacy and data protection. The polygonal masks allow for the accurate masking of sensitive areas while not infringing on the surveillance sectors.
DIS offDIS on Automatic Image Stabilization : Perfect Shots in Any Situation With DIS technology, the problems of monitoring using a camera installed on a pole or in windy conditions can be reduced. This also assists in the capture/detection of fast moving car number plates.
Enables entire system to resolve and display grayscale information better by reversing bright spots in the picture, such as a license plate in the headlights Car Plate Recognition Flash light

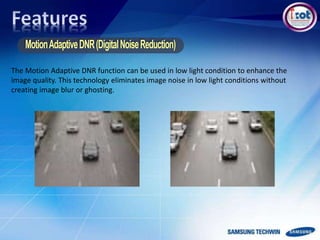

The Motion Adaptive DNR function can be used in low light condition to enhance the image quality. This technology eliminates image noise in low light conditions without creating image blur or ghosting.
960H SYSTEMS

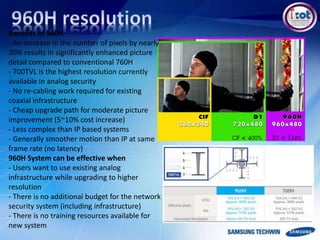

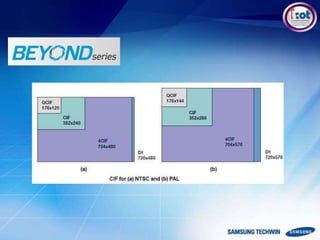

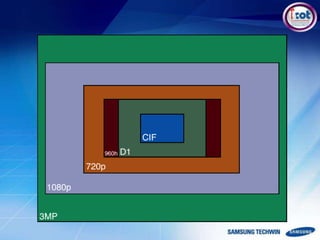

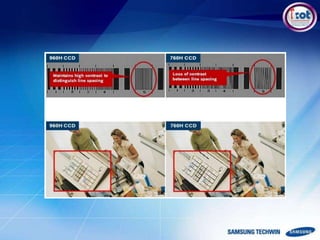

Benefits of 960H - An increase in the number of pixels by nearly 30% results in significantly enhanced picture detail compared to conventional 760H - 700TVL is the highest resolution currently available in analog security - No re-cabling work required for existing coaxial infrastructure - Cheap upgrade path for moderate picture improvement (5~10% cost increase) - Less complex than IP based systems - Generally smoother motion than IP at same frame rate (no latency) 960H System can be effective when - Users want to use existing analog infrastructure while upgrading to higher resolution - There is no additional budget for the network security system (including infrastructure) - There is no training resources available for new system

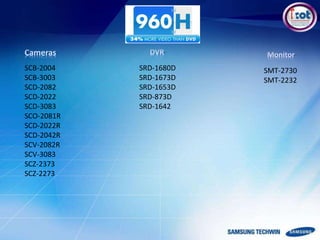

SCB-2004 SCB-3003 SCD-2082 SCD-2022 SCD-3083 SCO-2081R SCD-2022R SCD-2042R SCV-2082R SCV-3083 SCZ-2373 SCZ-2273 SRD-1680D SRD-1673D SRD-1653D SRD-873D SRD-1642 SMT-2730 SMT-2232
• Support up to 1,920 x 1,080 / 600TV lines resolution • High contrast ratio 1000:1 • Fast response time 8ms • HDMI, VGA, and Composite video output • Built-in Audio Speaker • Ethernet/RS-232C remote control • 250cd/m2 Brightness • Response time 8 ms SMT-2730 27" LED Monitor SMT-2232 21.5" Wide Full HD LED Monitor • Supports up to 1920 x 1080 resolution • 16:9 display • High contrast ratio 1000 :1 • Fast response time 5ms • HDMI/VGA/BNC input connection • 250cd/m2 Brightness • Durable tempered glass screen • Built-in Audio Speaker Display Power management

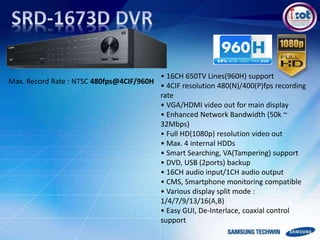

Max. Record Rate : NTSC 480fps@4CIF/960H • 16CH 650TV Lines(960H) support • 4CIF resolution 480(N)/400(P)fps recording rate • VGA/HDMI video out for main display • Enhanced Network Bandwidth (50k ~ 32Mbps) • Full HD(1080p) resolution video out • Max. 4 internal HDDs • Smart Searching, VA(Tampering) support • DVD, USB (2ports) backup • 16CH audio input/1CH audio output • CMS, Smartphone monitoring compatible • Various display split mode : 1/4/7/9/13/16(A,B) • Easy GUI, De-Interlace, coaxial control support

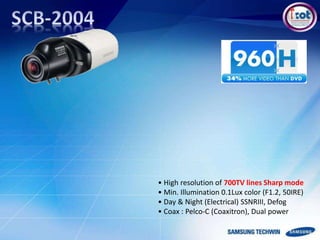

• High resolution of 700TV lines Sharp mode • Min. Illumination 0.1Lux color (F1.2, 50IRE) • Day & Night (Electrical) SSNRIII, Defog • Coax : Pelco-C (Coaxitron), Dual power
• High Resolution of 700TV lines (ER mode) • Min. illumination 0.1Lux@F1.2 (Color) • True Day & Night (ICR), MD, Defog, 3D DNR • Coax : Pelco-C (Coaxitron), Dual power, 12V DC

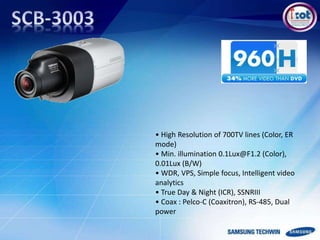

• High Resolution of 700TV lines (Color, ER mode) • Min. illumination 0.1Lux@F1.2 (Color), 0.01Lux (B/W) • WDR, VPS, Simple focus, Intelligent video analytics • True Day & Night (ICR), SSNRIII • Coax : Pelco-C (Coaxitron), RS-485, Dual power
HD-SDI system

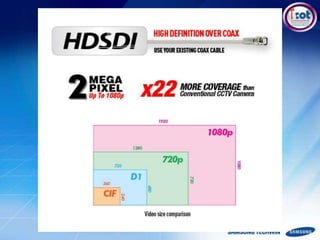

SMPTE292M HD-SDI digital video transmission standard bit rate 1.485 Gbit/s allowing transmitting HD video over coaxial
• Full HD (1920 × 1080, 30fps) mega resolution, HD (1280 × 720, 60fps) • Min. Illumination 0Lux (IR LED on) • 2.8x (3 ~ 8.5mm) motorized V/F lens • Samsung Simple Focus (Motorized varifocal lens with one touch focus) • 100dB Wide Dynamic Range (WDR) • True Day & Night (ICR), MD • SSNRIII (3D+2D), RS-485, Coax, Dual power

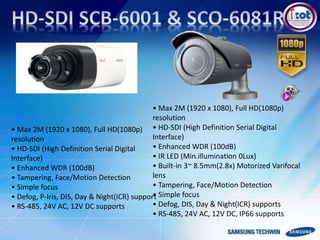

• Max 2M (1920 x 1080), Full HD(1080p) resolution • HD-SDI (High Definition Serial Digital Interface) • Enhanced WDR (100dB) • Tampering, Face/Motion Detection • Simple focus • Defog, P-Iris, DIS, Day & Night(ICR) support • RS-485, 24V AC, 12V DC supports • Max 2M (1920 x 1080), Full HD(1080p) resolution • HD-SDI (High Definition Serial Digital Interface) • Enhanced WDR (100dB) • IR LED (Min.illumination 0Lux) • Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens • Tampering, Face/Motion Detection • Simple focus • Defog, DIS, Day & Night(ICR) supports • RS-485, 24V AC, 12V DC, IP66 supports
• 16CH 700TV lines/8CH Full HD 1080p real-time recording • Full HD video out, VGA/HDMI video output for main display • Max. 4 internal HDDs • HDD removable (Easy install) • Smart searching, Tampering support • DVD-RW, Smart phone support • PTZ Control via Coaxial Cable [Samsung CCVC, Pelco-C (Coaxitron)] • Up to 64Mbps network bandwidth Max. Record Rate: NTSC 480fps@960H & 240fps@1080p
1280H System 1000 Tv Line
Thermal Imaging

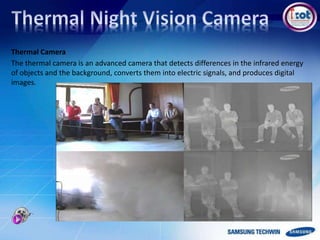

Thermal Camera The thermal camera is an advanced camera that detects differences in the infrared energy of objects and the background, converts them into electric signals, and produces digital images.

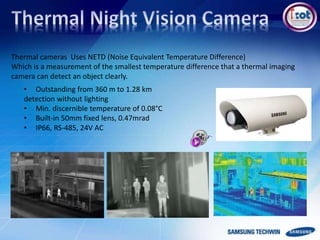

Thermal cameras Uses NETD (Noise Equivalent Temperature Difference) Which is a measurement of the smallest temperature difference that a thermal imaging camera can detect an object clearly. • Outstanding from 360 m to 1.28 km detection without lighting • Min. discernible temperature of 0.08°C • Built-in 50mm fixed lens, 0.47mrad • IP66, RS-485, 24V AC

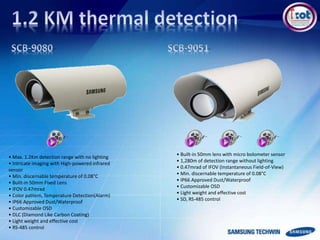

• Max. 1.2Km detection range with no lighting • Intricate imaging with High-powered infrared sensor • Min. discernable temperature of 0.08°C • Bulit-in 50mm Fixed Lens • IFOV 0.47mrad • Color pattern, Temperature Detection(Alarm) • IP66 Approved Dust/Waterproof • Customizable OSD • DLC (Diamond Like Carbon Coating) • Light weight and effective cost • RS-485 control • Built-in 50mm lens with micro bolometer sensor • 1,280m of detection range without lighting • 0.47mrad of IFOV (Instantaneous Field-of-View) • Min. discernable temperature of 0.08°C • IP66 Approved Dust/Waterproof • Customizable OSD • Light weight and effective cost • SD, RS-485 control
System Controllers

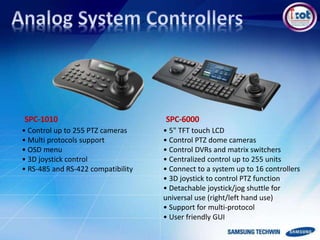

• 5" TFT touch LCD • Control PTZ dome cameras • Control DVRs and matrix switchers • Centralized control up to 255 units • Connect to a system up to 16 controllers • 3D joystick to control PTZ function • Detachable joystick/jog shuttle for universal use (right/left hand use) • Support for multi-protocol • User friendly GUI • Control up to 255 PTZ cameras • Multi protocols support • OSD menu • 3D joystick control • RS-485 and RS-422 compatibility SPC-1010 SPC-6000
Digital Video Recorder - DVR

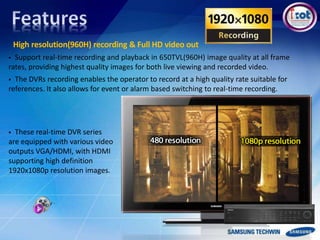

High resolution(960H) recording & Full HD video out  Support real-time recording and playback in 650TVL(960H) image quality at all frame rates, providing highest quality images for both live viewing and recorded video.  The DVRs recording enables the operator to record at a high quality rate suitable for references. It also allows for event or alarm based switching to real-time recording.  These real-time DVR series are equipped with various video outputs VGA/HDMI, with HDMI supporting high definition 1920x1080p resolution images.

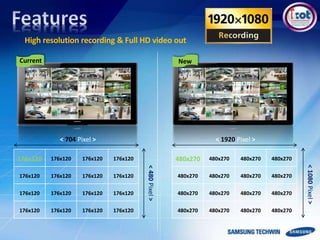

High resolution recording & Full HD video out 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 < 704 Pixel > <480Pixel> < 1920 Pixel > <1080Pixel> Current New
Various split mode 1920x1080 960x540 960x540 960x540 960x540 640x360 640x360 640x360 640x360 640x360 640x360 640x360 640x360 640x360 1 split mode 1080x720(4:3) 360x360 360x360 480x360 480x360 480x360 480x360 480x270 480x270 480x270 480x270 480x270 960x540 (4:3) 480x270 480x270 480x270 480x270 480x270 480x270 480x270 640x480 640x480 640x480 640x480 640x480 640x480 192x120 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 4 splits mode 7 splits mode 9 splits mode 13 splits mode 16 splits mode A 16 splits mode B

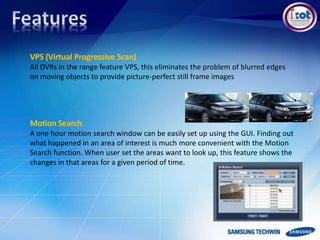

VPS (Virtual Progressive Scan) All DVRs in the range feature VPS, this eliminates the problem of blurred edges on moving objects to provide picture-perfect still frame images Motion Search A one hour motion search window can be easily set up using the GUI. Finding out what happened in an area of interest is much more convenient with the Motion Search function. When user set the areas want to look up, this feature shows the changes in that areas for a given period of time.

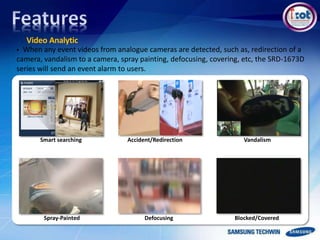

Video Analytic Accident/Redirection Vandalism Defocusing Blocked/CoveredSpray-Painted Smart searching  When any event videos from analogue cameras are detected, such as, redirection of a camera, vandalism to a camera, spray painting, defocusing, covering, etc, the SRD-1673D series will send an event alarm to users.
Easy user Interface & firmware update Easy Searching(preview) Easy Backup during Playback De-interlace support Privacy MaskRecording Setting by each Channel Easy User Interface  The Graphic User Interface remains the same. The consistent look & design between all Samsung SRD DVRs makes it intuitive for existing customers to set-up and use this new DVR. New users are able to easily navigate the menu and operate functions with this popular, easy to use menu structure.

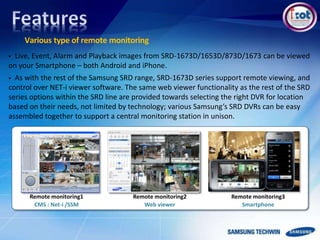

Various type of remote monitoring Remote monitoring1 CMS : Net-i /SSM Remote monitoring2 Web viewer Remote monitoring3 Smartphone  Live, Event, Alarm and Playback images from SRD-1673D/1653D/873D/1673 can be viewed on your Smartphone – both Android and iPhone.  As with the rest of the Samsung SRD range, SRD-1673D series support remote viewing, and control over NET-i viewer software. The same web viewer functionality as the rest of the SRD series options within the SRD line are provided towards selecting the right DVR for location based on their needs, not limited by technology; various Samsung’s SRD DVRs can be easy assembled together to support a central monitoring station in unison.
New Analog Products in 2015
Monitors

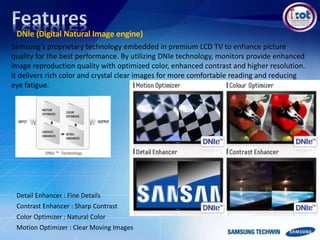

DNIe (Digital Natural Image engine) Samsung’s proprietary technology embedded in premium LCD TV to enhance picture quality for the best performance. By utilizing DNIe technology, monitors provide enhanced image reproduction quality with optimized color, enhanced contrast and higher resolution. It delivers rich color and crystal clear images for more comfortable reading and reducing eye fatigue. Motion Optimizer : Clear Moving Images Detail Enhancer : Fine Details Contrast Enhancer : Sharp Contrast Color Optimizer : Natural Color

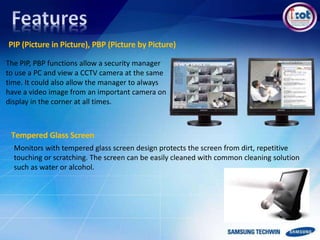

PIP (Picture in Picture), PBP (Picture by Picture) The PIP, PBP functions allow a security manager to use a PC and view a CCTV camera at the same time. It could also allow the manager to always have a video image from an important camera on display in the corner at all times. Monitors with tempered glass screen design protects the screen from dirt, repetitive touching or scratching. The screen can be easily cleaned with common cleaning solution such as water or alcohol. Tempered Glass Screen

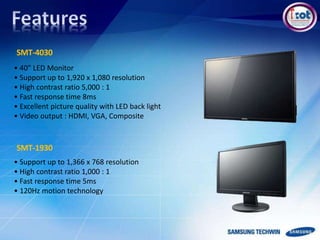

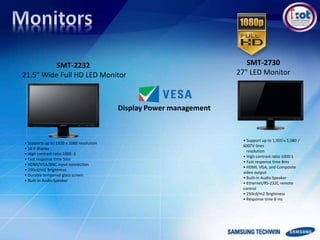

• 40” LED Monitor • Support up to 1,920 x 1,080 resolution • High contrast ratio 5,000 : 1 • Fast response time 8ms • Excellent picture quality with LED back light • Video output : HDMI, VGA, Composite SMT-4030 SMT-1930 • Support up to 1,366 x 768 resolution • High contrast ratio 1,000 : 1 • Fast response time 5ms • 120Hz motion technology

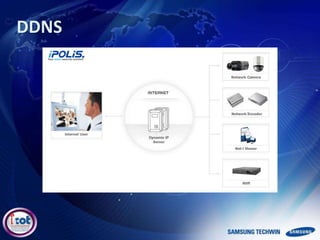

DDNS
Free & online Tools
Samsung Techwin Developers network open SDK & API platforms
Thank You

More Related Content

PDF
Samsung Techwin Hanwha
byHaitham Youssef

PDF
Audio Visual proposal
byHaitham Youssef

PDF
Air vision ds
byLamarck Sousa

PPTX
Samsung cctv presentation
bySopon Tumchota

PDF
Samsung Techwin | SSM professional v1.4
byAndriy Dudko

PDF
Computer architecture for vision system
byAkashPatil334

PPTX
Ip Based distributed surveillance system
byKamal Lamichhane

PDF
KEDACOM - Recognitive IP video solutions
byKEDACOM

Samsung Techwin Hanwha
byHaitham Youssef

Audio Visual proposal
byHaitham Youssef

Air vision ds
byLamarck Sousa

Samsung cctv presentation
bySopon Tumchota

Samsung Techwin | SSM professional v1.4
byAndriy Dudko

Computer architecture for vision system
byAkashPatil334

Ip Based distributed surveillance system
byKamal Lamichhane

KEDACOM - Recognitive IP video solutions
byKEDACOM


What's hot

PPTX
Cctv components
byJunrey Eguna

PPTX
Ip cctv surveillance
byTechera Consultants

PPSX
Mdvr H264
byguestfc4ea95

PPTX
Surveilance ppt
byAKSHIT KOHLI

PPT
Circuitos de Video Vigilancia IP
byguest022763

PPTX
Why ip060810
bystevekeech

PPT
UNSPresentation
byJohn Tellis

PPT
Updated Nu Surveillance Power Point
bych1ris

PDF
Kedacom - video surveillance product catalog 2016 6.2 bf
byKEDACOM

PPT
Linovsion IP Suveillance Solution
bylinovision

PPT
3.5 switcher , multiplexer , recorder and storage
byNader Elmansi

PPT
4.0 cctv transmission
byNader Elmansi

PDF
EXFO Brochure MAX-FIP
byPT. Siwali Swantika

PDF
KEDACOM - Recognitive Tracking System (v4.2) BF
byKEDACOM

PDF
Brochure - Intelligent Tracking System
byKEDACOM

PPT
01 ip cctv suervilence overview
byNader Elmansi

PDF
Surveon Camera Introduction
bySurveon Technology Inc.

PDF
Brosur IDEAL Networks SecuriTEST IP - CCTV Camera Tester
byPT. Siwali Swantika

PDF
sony cctv video surveillance
byJinesh Joseph

PPTX
Surveon Megapxiel Camera Product Introduction
bySurveon Technology Inc.

Cctv components
byJunrey Eguna

Ip cctv surveillance
byTechera Consultants

Mdvr H264
byguestfc4ea95

Surveilance ppt
byAKSHIT KOHLI

Circuitos de Video Vigilancia IP
byguest022763

Why ip060810
bystevekeech

UNSPresentation
byJohn Tellis

Updated Nu Surveillance Power Point
bych1ris

Kedacom - video surveillance product catalog 2016 6.2 bf
byKEDACOM

Linovsion IP Suveillance Solution
bylinovision

3.5 switcher , multiplexer , recorder and storage
byNader Elmansi

4.0 cctv transmission
byNader Elmansi

EXFO Brochure MAX-FIP
byPT. Siwali Swantika

KEDACOM - Recognitive Tracking System (v4.2) BF
byKEDACOM

Brochure - Intelligent Tracking System
byKEDACOM

01 ip cctv suervilence overview
byNader Elmansi

Surveon Camera Introduction
bySurveon Technology Inc.

Brosur IDEAL Networks SecuriTEST IP - CCTV Camera Tester
byPT. Siwali Swantika

sony cctv video surveillance
byJinesh Joseph

Surveon Megapxiel Camera Product Introduction
bySurveon Technology Inc.


Viewers also liked

PPTX
3Com 69-004213-00
bysavomir

PPTX
Samsung Company Presentation
bySanthosh Madheswaran

PPTX
London HUG 14/3
byLondon HashiCorp User Group

PDF
2esoquincena6
bySantiago Campos zurano

PDF
Резюме Содержание дикиж животных в общественных местах
byCrowdOPENGOV

PDF
Quaderns matematiques equacions_primer_grau
bySantiago Campos zurano

PPTX
Hug #9 who's keeping your secrets
byCameron More

PPTX
Elementos soldaduras
bydaibelysCvillasmil

PPTX
Isiachi moro informatica 3
byIsiachi

PDF
Stadium surveillance solution fiber only
byHaitham Youssef

PPTX
Understanding Visible Signals
byDimitar Kalendzhiev

PDF
Samsung Techwin | Business sales vertical solution railway
byAndriy Dudko

PDF
How to Become a Thought Leader in Your Niche
byLeslie Samuel

PPTX
Apnec10 electronics kong jeong_ok
byInternational Campaign for Responsible Technology

PPTX
ATMS ATIS Presentation to IBI Nightengale Cape Town - 19 September 2012
byK M

PDF
Video Analytics for Perimeter Surveillance
byPureTech Systems

PPT
Marketing ppt
byrockysaha

PPTX
Under the Hood with Cognos Analytics R5: Say Hello to Portal Tabs Replacement
bySenturus

PDF
E book-(español).cómo-invertir-en-programas-de-alta-rentabilidad-ppp
byvicente piqueras

PPTX
Using Cognos as a Data Source for Tableau: Demo & Live Case Study with Ixia
bySenturus

3Com 69-004213-00
bysavomir

Samsung Company Presentation
bySanthosh Madheswaran

London HUG 14/3
byLondon HashiCorp User Group

2esoquincena6
bySantiago Campos zurano

Резюме Содержание дикиж животных в общественных местах
byCrowdOPENGOV

Quaderns matematiques equacions_primer_grau
bySantiago Campos zurano

Hug #9 who's keeping your secrets
byCameron More

Elementos soldaduras
bydaibelysCvillasmil

Isiachi moro informatica 3
byIsiachi

Stadium surveillance solution fiber only
byHaitham Youssef

Understanding Visible Signals
byDimitar Kalendzhiev

Samsung Techwin | Business sales vertical solution railway
byAndriy Dudko

How to Become a Thought Leader in Your Niche
byLeslie Samuel

Apnec10 electronics kong jeong_ok
byInternational Campaign for Responsible Technology

ATMS ATIS Presentation to IBI Nightengale Cape Town - 19 September 2012
byK M

Video Analytics for Perimeter Surveillance
byPureTech Systems

Marketing ppt
byrockysaha

Under the Hood with Cognos Analytics R5: Say Hello to Portal Tabs Replacement
bySenturus

E book-(español).cómo-invertir-en-programas-de-alta-rentabilidad-ppp
byvicente piqueras

Using Cognos as a Data Source for Tableau: Demo & Live Case Study with Ixia
bySenturus


Similar to Samsung Security cameras

PPTX
FS Presentation CCTV solution.pptx
byPawachMetharattanara

PDF
0609 products
byIlias Varsamis

PPTX
FS Presentation CCTV solution rev1.pptx
byPawachMetharattanara

PPTX
FS Presentation CCTV solution rev1 (2).pptx
byPawachMetharattanara

PPTX
FS Presentation CCTV solution rev1 (1).pptx
byPawachMetharattanara

PPTX
FS Presentation CCTV solution rev1 (1).pptx
byPawachMetharattanara

PPTX
Vivotek Apresentação
byArtsensor, Soluções de Segurança

PPT
Hasco serices
byKamil Izzeldin

PPTX
FS Presentation CCTV solution.pptx
byPawachMetharattanara

PDF
SECHEIM_TRADING
byNuwan Gamage

PPTX
Sly presentation ver 2.0
byankushkaushish

PDF
Techfinder Electronics Private Limited, Surat, Industrial Security Solutions
byIndiaMART InterMESH Limited

PPT
Advantage of IP system & Panasonic Security_Ver1.ppt
byPawachMetharattanara

PDF
ZKTeco CCTV products Catalogue
by中控生物识别技术有限公司

PPTX
Cctv presentation
byJimuth Dutta Chowdhury

PDF
Anviz surveillance catalogue
byRammel Larrobis

PDF
Product Quick Guide_Project-Oriented Premium Products_2024.pdf
byChapoGuevarra

PPTX
Cctv presentation by MNJ Consultants.
byMNJ Consultants

PPTX
Smart Solution_Mobile-20160803 hikvision.pptx
bybliks1

PDF
Secure and safe monitor ur hazard plant with Link-vue System
byMahesh Chandra Manav

FS Presentation CCTV solution.pptx
byPawachMetharattanara

0609 products
byIlias Varsamis

FS Presentation CCTV solution rev1.pptx
byPawachMetharattanara

FS Presentation CCTV solution rev1 (2).pptx
byPawachMetharattanara

FS Presentation CCTV solution rev1 (1).pptx
byPawachMetharattanara

FS Presentation CCTV solution rev1 (1).pptx
byPawachMetharattanara

Vivotek Apresentação
byArtsensor, Soluções de Segurança

Hasco serices
byKamil Izzeldin

FS Presentation CCTV solution.pptx
byPawachMetharattanara

SECHEIM_TRADING
byNuwan Gamage

Sly presentation ver 2.0
byankushkaushish

Techfinder Electronics Private Limited, Surat, Industrial Security Solutions
byIndiaMART InterMESH Limited

Advantage of IP system & Panasonic Security_Ver1.ppt
byPawachMetharattanara

ZKTeco CCTV products Catalogue
by中控生物识别技术有限公司

Cctv presentation
byJimuth Dutta Chowdhury

Anviz surveillance catalogue
byRammel Larrobis

Product Quick Guide_Project-Oriented Premium Products_2024.pdf
byChapoGuevarra

Cctv presentation by MNJ Consultants.
byMNJ Consultants

Smart Solution_Mobile-20160803 hikvision.pptx
bybliks1

Secure and safe monitor ur hazard plant with Link-vue System
byMahesh Chandra Manav


Recently uploaded

PDF
Retrieval Augmented Generation (RAG) Turning Data into Smart Answers
byYasir Ali

PPTX
Embedded_Linux_ARM_Cross_Compilation_Exp.no.3.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

PPTX
Ion exchange or demineralization to soften water.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India

PDF
Introduction to Software , Product and Process
byGunjalSanjay

PDF
Python Frameworks for Machine Learning Labmanuel
bygomathisankariv2

PPTX
Diagram of Control Valves used in Industrial Fluid Power.pptx
bySBM Polytechnic

PPTX
22PEOIT4C Unit 3 Session 18 First Order Logic.pptx
byGuru Nanak Technical Institutions

PDF
Seminar topic on scaffolding and its types.pdf
byMOTOSIFSHAIKH

PPTX
PEMET 413 KTU 2024 SCHEME MODULE 2 LECTURE 4.pptx
byVINAY B

PPTX
Calculation of hardness of Water on Ion Exchange.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India

PPTX
1.2-Structure of Ceramics_ Materials Science.pptx
byDr. Sandip Thorat

PDF
Lathe Machine: Definition, Parts, Types, Working and Operations
byAatif Razi

PDF
22PEOIT4C Artificial Intelligence Unit II notes Final.pdf
byGuru Nanak Technical Institutions

PDF
Software Engineering : Process Model
byGunjalSanjay

PPTX
Operational Amplifier (op - amp), types of op amp
byVaishaliVaishali14

PDF
algothon event ppt from gdg on campus nsec
byasutoshkumar560

PPTX
An Early Production Facility (EPF) is a modular, temporary system for rapidly...
byDrAdelSalem1

PPTX
PEMET 413 KTU 2024 MODULE 2 LECTURE 3.pptx
byVINAY B

PPTX
uCOS_II_LED_Multitasking_Exp.no.2.pptx uCOS_II_LED_Multitasking_Exp.no.2.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

PDF
22PEOIT4C_Artificial_Intelligence_UNIT_III_Notes_Final
byGuru Nanak Technical Institutions

Retrieval Augmented Generation (RAG) Turning Data into Smart Answers
byYasir Ali

Embedded_Linux_ARM_Cross_Compilation_Exp.no.3.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

Ion exchange or demineralization to soften water.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India

Introduction to Software , Product and Process
byGunjalSanjay

Python Frameworks for Machine Learning Labmanuel
bygomathisankariv2

Diagram of Control Valves used in Industrial Fluid Power.pptx
bySBM Polytechnic

22PEOIT4C Unit 3 Session 18 First Order Logic.pptx
byGuru Nanak Technical Institutions

Seminar topic on scaffolding and its types.pdf
byMOTOSIFSHAIKH

PEMET 413 KTU 2024 SCHEME MODULE 2 LECTURE 4.pptx
byVINAY B

Calculation of hardness of Water on Ion Exchange.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India

1.2-Structure of Ceramics_ Materials Science.pptx
byDr. Sandip Thorat

Lathe Machine: Definition, Parts, Types, Working and Operations
byAatif Razi

22PEOIT4C Artificial Intelligence Unit II notes Final.pdf
byGuru Nanak Technical Institutions

Software Engineering : Process Model
byGunjalSanjay

Operational Amplifier (op - amp), types of op amp
byVaishaliVaishali14

algothon event ppt from gdg on campus nsec
byasutoshkumar560

An Early Production Facility (EPF) is a modular, temporary system for rapidly...
byDrAdelSalem1

PEMET 413 KTU 2024 MODULE 2 LECTURE 3.pptx
byVINAY B

uCOS_II_LED_Multitasking_Exp.no.2.pptx uCOS_II_LED_Multitasking_Exp.no.2.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

22PEOIT4C_Artificial_Intelligence_UNIT_III_Notes_Final
byGuru Nanak Technical Institutions


Samsung Security cameras

  • 1.
    Prepared by iCOT Samsung’sAuthorized distributor In the territory of EGYPT
  • 2.
    Agenda Introduction Network Solutions Network VideoRecording Software Viewer / Recorder Analog Solutions Thermal Imaging Digital Video Recorder Monitors System Controllers Presentation estimated time 45Min
  • 3.
  • 4.
    • Samsung Techwinwas founded in 1977 as Part of Samsung's Machinery and Heavy Industries Group. • This group has specialized in a wide range of high technology products such as semiconductor manufacturing systems, turbine engines, and defense systems. • The need for advanced optical and image processing technologies came from the company's activities in these areas. After years of successful development of advanced optics and digital processing technology, the Security Solution division was created to provide commercial security products from these technologies. • What you see in this presentation is not just another version of video security products produced from off the shelf components. Samsung Techwin's security solution products are based upon cutting edge technologies that are unique in the security industry. When you try our products you will experience the difference that these technologies provide. in BRIEF
  • 5.
    Samsung Techwin Samsung AerospaceIndustries Semiconductor Parts Aircraft Engine Camera Semiconductor Equipment History Defense Video Surveillance Samsung Electronics CCTV Biz Integration (Security Solution Division) Samsung Thales Acquisition
  • 7.
    Lead, Cadmium, Mercury,Cr+6 and Brominated flame retardants (PBBs, PBDEs), and specifically using a lead-free brass material Low energy consumption Recycable Pb free soldering technology in 2003 meeting EU standards 6-harzarous substances were all eliminated from lead frame, a core part of semiconductors as required by lead-free technology and RoHS, and the export of environment-friendly thin-film palladium (μ-PPF ) plating technology. Patent applications are now in process.
  • 8.
    With the worldwidethreat of crime and terrorism increasing daily, the demand for high quality video surveillance systems is also growing rapidly. Users are demanding new capabilities and greater efficiency from their security systems. Samsung Techwin is dedicated to the goal of producing high performance products that introduce features and capabilities that push the boundaries of what can be done with those products. We are redefining what you should expect from total security solution.
  • 9.
    Where to installSamsung security products ? • Entrances and emergency exits • External entrance • Elevator • Counter facilities • Parking lot • Inside / outside of the building • Production line • Logistics warehouse • Main road • Control room
  • 10.
    ALT (Accelerated LifeTest) / HALT (Highly Accelerated Life Test) : We ensure product reliability by eliminating potential quality defects in advance, through the use of a variety of high-level stress tests relating to temperature, vibration and power. Image Quality Evaluation : To guarantee the image quality of our products, we conduct tests in a dedicated image quality evaluation lab. The resolutions /chrominance /phase under various light/environment conditions for various objects, color reproducibility and other operational functions are tested here, to ensure reliable image quality.
  • 11.
    Temperature & HumidityProfile Test : (Environmental tests for high-temperature/low-temperature/high-humidity) : We ensure that our products operate normally under any environmental conditions by conducting a variety of environmental tests. Power Environment Test : To secure the electronic reliability of our products, we perform an electro-static test, which verifies the electrical tolerances against unstable voltage supply, voltage drop and thunder stroke. Distribution Environment Test : To minimize the possibility of damage occurring during shipping, we perform tests including vibration, drop, and cold proof drop according to international standards, which simulate the types of situations that can occur during product distribution. IK-10 test IEC 62262 and IEC 60068-2-75 testing standards in respect of their ability to withstand external mechanical impacts. IK-6 & IK-7 & IK-8
  • 12.
    • Frankfurt AirportGermany • Charles De Gaulle Airport France • Palermo City Surveillance Italy • Beijing Olympic Center China • University of London UK • Johannesburg Airport RSA • Sarasota ,FL. University USA • Silivri Prison Turkey
  • 13.
    • Brand Recognition •Only video Company with total solution • Lowest price of any major manufacture • Best quality and feature rich cameras • Open platform compliant
  • 14.
    • Full Rangeof IP Cameras .5M,1.3M, 3M • Full Range of Analog Cameras • NVRs, DVRS, and encoders • LCD, and new LED Monitors up to 17”-40” • New Enterprise Samsung Security Management software • Monitoring Software • Software NVRs (Recording Software) • Large Scale Storage solutions Samsung offers Total Video Package:
  • 15.
    • Samsung developedand designed own DSP chips • Edge based analytics and storage • Multicasting • Analog output for hybrid systems • Bi-directional audio on all cameras • Full Compliance • All Product list are Best Quality and feature rich Cameras :
  • 16.
    SNO-5080R & CCTVManufacturer of the year SRD-1673D CCTV SYSTEM OF THE YEAR
  • 17.
  • 18.
    Remote Accessibility Network basedIP surveillance systems are extremely easy to view, control and administer from anywhere in the world. What is more, multiple video streams are transmitted at various network bandwidths to enable effective viewing over a range of equipment from PCs to Smart Phones. Easy Integration iPOLiS network based IP solutions contain dual outputs (BNC and Ethernet) to make the step up from analogue to IP cost effective and simple. Users are able to run IP equipment on an analogue network until the cabling is upgraded . Easy Expansion Upgrading an analogue system can be extremely costly and time consuming because all cables need to be run from the camera equipment directly back into the control room. A network based IP solution does not have such issues and it is extremely easy to add additional cameras or recording/storage devices to the network. Intelligent Monitoring Network video surveillance products have built in intelligent video analytic functions including Motion Detection, and Object Tracking. These functions help users to manage the videos in more convenient and effective ways. Users can quickly search recorded footage by specific events, such as optical trip-wire activation, without having to review hours of video.
  • 19.
    • Max. 2.4/1.3Megapixel resolution • 60fps @ 1080p • WDR (3MP 30fps, more than 100dB) • P-iris, Defog • Multi-crop streaming (60fps) • Smart compression (ROI encoding) • SDXC memory slot • Advanced motion detection • Advanced DIS (digital image stabilization) • Max. 3 Megapixel resolution • 16:9 Full HD (1080p) & HD (720p) support • Wide Dynamic Range in Full HD (2MP) • Progressive Scan • SSDR (Samsung Super Dynamic Range) • SSNRIII (Samsung Super 3D+2D Noise Reduction) • Hybrid Ethernet and BNC outputs • Power over Ethernet (PoE) • SD memory slot
  • 20.
    • Max. 1.3Megapixel resolution • HD (720p) support • H.264 Compression • SSDR (Samsung Super Dynamic Range) • SSNRIII (Samsung Super 3D+2D Noise Reduction) • Hybrid Ethernet and BNC outputs • Power over Ethernet (PoE) • VGA (640x480) resolution & 4 CIF • SSDR (Samsung Super Dynamic Range) • SSNRIII (Samsung Super 3D+2D Noise Reduction) • Analog output for easy installation • Power over Ethernet (PoE) • Face detection, Motion detection
  • 21.
    • Max. 1.3/3megapixelresolution • Smart compression (ROI encoding) : 3megapixel cameras • Intelligent video analytics : Tampering detection • Privacy Mask • Analogue output for easy installation • SSDR (Samsung Super Dynamic Range) Price Low High High Function SNB-7001/5001 SND-7011/5011 SND-7061/5061 3M/1.3M Network Fixed Camera 3M/1.3M Network Minidome Camera SNB-7000/5000 SND-7080/5080 SNV-7080/5080 3M/1.3M Network Fixed Camera 3M/1.3M Network Dome Camera 3M/1.3M Network Vandal-resistant Camera SNC-CH210/110 SNC-DH220/120SNC-DH210/110 3M/1.3M Network Minidome Camera 3M/1.3M Network Fixed Camera Performance Price
  • 22.
    SAMSUNG SNB-7004 Hikvision DS-2CD4032 Panasonic WV-SP509 AXIS P1357 Sensor 1/3” PSCMOS 1/3” PS CMOS 1/3” PS CMOS 1/3” PS CMOS fps@Resolution 30@2048x1536 60@1920x1080 20@2048x1536 30@1920x1080 15@2048x1536 20@2048x1536 ABF Available Available Available Available Iris DC-Iris, P-Iris DC-Iris DC-Iris DC-Iris, P-Iris WDR 3M 30fps, 120dB 3M 20fps, 120dB 2M 52dB - Min. Illumination Color:0.1Lux B/W:0.01Lux Color:0.1Lux B/W:0.01Lux Color:0.5Lux B/W:0.06Lux Color:0.2Lux B/W:0.04Lux Streaming Multiple(Crop) Triple Triple Multi-view(VGA 5EA) Video Analytics MD, AD, FD MD, FD, AD MD, FD MD, TD Tampering, Virtual Line, Enter/Exit, Dis/Appear Tampering, Intrusion, Defocus Tampering, Direction, Loitering 3rd Party applications Analog out / Serial Available / RS-485 Available / RS-485 Available / - Not Available / RS-485 Alarm In/Out 1/1 1/1 3/1 1/1 Audio G.711, G.726 G.711, G.726 G.711, G.726 G.711, G.726, AAC Storage Slot SD/SDHC/SDXC SD/SDHC/SDXC SD/SDHC/SDXC SD/SDHC Network IPv6, ONVIF, QoS, UPnP, Bonjour IPv6, ONVIF, QoS, UPnP, Bonjour IPv6, ONVIF, UPnP IPv6, ONVIF, QoS, UPnP, Bonjour Security HTTPS, 802.1x HTTPS, 802.1x, Watermark HTTPS HTTPS, 802.1x Operating Temp. -10°C~55°C -30°C~60°C -10°C~50°C 0°C~50°C Power AC24V, DC12V, PoE AC24V, DC12V, PoE DC12V, PoE DC12V, PoE = > > = = = = = = = = = = = = >
  • 23.
    Tampering detection, Audiodetection, Face detection Appear/Disappear, Virtual line, Enter/Exit Tampering detection Appear/Disappear, Virtual line, Enter/Exit WiseNet III WiseNet WiseNet S SSDR (Samsung Super Dynamic Range) Privacy Mask WiseNet II SSNR III (Samsung Super Noise Reduction III) 60 FPS @ 1080/720P MultiCrop Streaming Defog P-Iris Advanced DIS SDXC memory slot 120dB WDR Face Detection Tampering detection WDR Simple Focus Smart Codec ROI (Region Of Interest) POE SD card Memory
  • 24.
  • 25.
    WDR technology compensatesfor backlight problems effectively, by applying an optimum fusion ratio when combining the long exposure (low shutter speed exposure) method used in bright areas and the short exposure (high shutter speed exposure) method used in dark areas Low shutter speed High shutter speed WDR Model dB Sony SNC-VB630 90dB Panasonic WV-SP509 52dB Dahua IPC-HF3301 100dB Samsung SNB-7004 120dB ※Competitors’ WDR Specification
  • 26.
    SSDR OFF SSDRON Useful in high contrast or backlight scene. Automatically lighten of the dark areas within a scene whilst maintaining the brighter areas at the same level. This ensures that the dark areas become more visible al lowing the operator to view objects in the shadows .
  • 27.
    Multi-crop streaming, allowsusers to highlight/crop areas of the scene so that only those areas of interest will be transmitted from the camera in a predetermined resolution and frame rate. This flexibility in the video's resolution and frame rate allows a much smarter and efficient use of the network's bandwidth, resulting in reduced data size and storage capacity. Competitor Cropping specification Panasonic 4ea, within total 640x360 30fps Axis(P1357) 5ea , each 20fps of VGA Samsung 9ea, within total 60fps(2MP)/30fps(3MP)
  • 28.
    Motion/Audio/Face detection Motion detectiontechnology built-into WiseNetIII greatly reduced the false alarm rate and greatly improved the efficiency of the operators, by learning what is the normal motion of the scene it can ignore it, such as waves in the sea or the leaf movement of trees. This technology has also been adopted for audio detection, so that the camera will only recognize abnormal noise levels. Face detection is also available and will detect up to 35 faces in the scene, these will be listed on the NVR as separate events for quick recall.
  • 29.
    Spray paint onLens Alarm ! Manual change of camera angle Alarm ! Sends an alarm signal when the camera’s operation has been hampered with, such as a manual change in the camera’s angle, removal of the camera lens, defocus, or blockage of the camera lens. Tampering Detection
  • 30.
    Virtual Line &Enter / Exit zones Appear / Disappear
  • 31.
    Useful in lowlight condition. This technology eliminates image noise in low light conditions without creating image blur or ghosting. SSNR III ONSSNR III OFF
  • 32.
    The WiseNet networkcameras support simultaneous streaming of multiple video compression technologies such as H.264 and MJPEG. This facilitates multiple purposes monitoring such as real-time, high quality or high-efficiency recording, mobile monitoring, E-mail notification and SD memory recording. Recording / Backup Monitoring / Control SD memory Recording E-mail Notification 640x480 H.264 5fps Monitoring on Smartphone
  • 33.
    Enables entire systemto resolve and display grayscale information better by reversing bright spots in the picture, such as a license plate in the headlights Car Plate Recognition Flash light
  • 34.
    Defog can beused to help improve the captured image in poor weather conditions such as rain, smoke or fog The visibility of the cameras can be enhanced in any weather condition.
  • 35.
    In the majorityof scenes viewed by a surveillance camera, only a proportion of the image is of interest to the operator. With the continued increase in resolution and therefore data sizes there is an increased amount of “Wasted Data” created. Samsung’s smart codec technology allow the network cameras to be programmed to capture in greater detail the real ROI, such as moving objects, human faces, doors or windows than the remainder of the scene. This smart codec feature produces lower data sizes while clearly highlighting the ROI.
  • 36.
    Previously only seenin analog CCDs, Samsung's new WiseNetIII CMOS sensor now incorporates Digital Image Stabilization (DIS) technology, With enhanced DIS technology, the problems of monitoring using a camera installed on a pole or in windy conditions can be reduced. This also assists in the capture/detection of fast moving car number plates.
  • 37.
    Simple Focus, Samsung’sautomatic focus technology allows the camera to move the image sensor's position in box cameras, while in dome cameras a motorized varifocal lens with a remote control function will control these adjustments very easily through the network from a remote site without having to visit the installation and open the camera’s housing. Camera Lens PCB Auto Mode Move the PCB to the Focus ABF(Auto Back Focus) Motorized Zoom Lens
  • 38.
    Rectangle mask Polygonalmask A privacy mask is a setting that is on selected cameras that allow you block out a certain part of the scene. This is especially useful in areas that have to couple the needs of surveillance with the requirements of privacy and data protection. The polygonal masks allow for the accurate masking of sensitive areas while not infringing on the surveillance sectors.
  • 39.
    The WiseNetIII boxcameras supports the P-Iris system, which optimizes the iris function when multiple lighting conditions exist in a single scene, this results in images with better contrast, clarity, resolution and depth of field. The optimization of the resolution at both the center and corner of the image, as well as the depth of field and shutter speed, provide increased image sharpness especially effective in megapixel cameras such as the WiseNetIII series.
  • 40.
    Edge storage ofWiseNetIII network cameras support SDXC upto 64GB memory as well as SD/SDHC, extending the capacity SDXC, reducing the dependency on external recording devices by greatly extending the number of days recorded locally.
  • 41.
    - From Samsung'spowerful WiseNetIII encoding technology, the cameras have an ultra fast framerate of 30fps at 3MP(60fps at 2MP), this results in latency free clear images. It is possible to utilize this framerate in multiple ways. For example, using 30fps at 3MP can be particularly beneficial when viewing moving objects to ensure that any edges are kept sharp and clear. By dividing the framerate among the NVR, PC and Mobile monitoring, users can both record and monitor the scene at real-time. 3M 15fps image 3M 30fps image Profile3 VGA 25fps Profile2 3MP 30fps Profile1 VGA 5fps Model Max. fps AXIS P1357 20fps @2048x1536 Panasonic WV-SP509 15fps @2048x1536 HIKVISION DS-2CD4032 20fps @2048x1536 Samsung SNB-7004 30fps @2048x1536
  • 42.
    UPnP and Bonjourare the protocols supported in Windows and Mac operating system. It enables automatic port forwarding so that the operating system can automatically find each network camera, making it easier to integrate a device into a network. Multi-Browser support WiseNetIII cameras utilized NPAPI(Netscape Plugin Application Programming Interface) this plug-in architecture removes the limitation on supporting resolution and web-browser types Google Chrome, Safari, Firefox, and IE can be used to monitor the WiseNetIII cameras.
  • 43.
    2 Megapixel FullHD Network Dome Camera • Max 2M (1920 x 1080), Full HD(1080p) resolution • 60fps @ 1920 x 1080 • Min.Illumination 0Lux (IR Distance 15m) • Enhanced WDR (100dB)/ 30fps @2MP WDR • Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • IP66, IK10 Grade • PoE supports
  • 44.
    3 Megapixel PanoramicCamera • Max 3M(2048 x 1536), Full HD(1080p) resolution • H.264 & MJPEG dual codec • Various viewing composition : 360° fisheye, Single panorama, Double panorama,Quad, User selectable region, Single rectangle,1 original • Improved Network bandwidth • Digital Pan/Tilt/Zoom supports • Advanced WDR (120dB)/ 20fps @3MP WDR • Bi-direction audio • Tampering alarm • Defog, Day & Night(S/W) • Micro SD/SDHC/SDXC Memory slot, PoE • IP66 & IK10 Grade
  • 45.
    • Max. 2Megapixel(1920 x 1080) HD resolution • Full HD(1080p) image 30fps streaming • Built-in 20x (4.45~89mm) optical zoom lens • Min.Illumination 0Lux (IR distance 100m) • H.264/MJPEG dual codec • 360° Endless Pan, Tilt/ Zoom, (250˚/sec Pan/Tilt Speed • WDR, ICR D/N • UPnP supports • IP66, IK10 Grade • Video privacy management supports • -50°C ~ +55 °C operating temperature • Video analytics (tampering, enter/exit, virtual line,appear/disappear, audio detection, face detection) • Digital Image Stabilization function
  • 46.
    • Max 2M(1920 x 1080), Full HD(1080p) resolution • 60fps @ 1920 x 1080 • Min.Illumination 0Lux (IR Distance 30m) • Enhanced WDR (100dB)/ 30fps @2MP WDR • Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • IP66, IK10 Grade • PoE supportSSLE Samsung Super light enhancer
  • 47.
    • Max 2M(1920 x 1080), Full HD(1080p) resolution • 30fps @ 1920 x 1080 • Min.Illumination 0Lux (IR Distance 15m) • Enhanced WDR (120dB) • Built-in 3.8mm Fixed lens • H.264 & MJPEG dual codec • Multi-crop streaming • Tampering Alarm • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • IP66, PoE supports • Max 2M (1920 x 1080), Full HD(1080p) resolution • 30fps @ 1920 x 1080 • Min.Illumination 0Lux (IR Distance 10m) • Enhanced WDR (120dB) • Built-in 3.8mm Fixed lens • H.264 & MJPEG dual codec • Multi-crop streaming • Tampering Alarm • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • PoE supports • Max 2M (1920 x 1080), Full HD(1080p) resolution • 60fps @ 1920 x 1080 • SSLE(Samsung Super Light Enhancer) : 0.3Lux • Enhanced WDR (120dB) • Built-in 3mm Fixed lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion Detection, Tampering • UPnP (Auto Port Forwarding) • Defog, Enhanced DIS support • Day & Night(S/W), SD/SDHC/SDXC Memory slot • IP66, IK10, M12 connector, EN50155, EN50121 • PoE supports
  • 48.
    • Max 1.28M(1280 x 1024), HD(720p) resolution •P-Iris •Day & night software • 60fps @ 1280 x 1024 • SSLE(Samsung Super Light Enhancer) : 0.05Lux • Enhanced WDR (130dB) • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Defog, P-Iris, Ehanced DIS support • Day & Night(S/W), SD/SDHC/SDXC Memory slot • PoE, 24V AC, 12V DC supports • Max 1.3M (1280 x 1024), HD(720p) resolution • 60fps @ 1280 x 1024 • Day & night IR cut filter • SSLE(Samsung Super Light Enhancer) : 0.05Lux • Enhanced WDR (130dB) • H.264 & MJPEG dual codec • Multi-crop streaming • Simple Focus • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Defog, P-Iris, Enhanced DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • PoE, 24V AC, 12V DC supports • Max 1.3M (1280 x 1024), HD(720p) resolution • 60fps @ 1280 x 1024 • SSLE(Samsung Super Light Enhancer) : 0.05Lux • Enhanced WDR (130dB) • Built-in 2.8~ 10mm(3.6x) Varifocal lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • PoE supports • Max 1.3M (1280 x 1024), HD(720p) resolution • 60fps @ 1280 x 1024 • SSLE(Samsung Super Light Enhancer) : 0.05Lux • Enhanced WDR (130dB) • Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • PoE supports • Max 1.3M (1280 x 1024), HD(720p) resolution • 60fps @ 1280 x 1024 • SSLE(Samsung Super Light Enhancer) : 0.05Lux • Enhanced WDR (130dB) • Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens • H.264 & MJPEG dual codec • Multi-crop streaming • Face/Motion/Audio Detection • UPnP (Auto Port Forwarding) • Simple Focus, Defog, DIS support • Day & Night(ICR), SD/SDHC/SDXC Memory slot • PoE supports, IP66, IK10
  • 49.
    • Max. 1.3MP(1280x1024) resolution • 16:9 HD (720p) resolution support • Built-in 30x optical zoom lens(3.5 ~ 105mm) • H.264, MJPEG dual codec • WDR (30fps, 90dB), Day & Night(ICR) • UPnP (Auto Port Fowarding) support • Tampering, Face Detection, Audio Detection • PoE+ , IP66, SD/SDHC memory slot
  • 50.
    Box Dome VandalBullet 3MP SNB-7004 SND-7084 SND-7084R SNO-7084RSNV-7084 SNV-7084R Key Features  3Megapixel Full HD Network Camera  30fps@2,048x1,536 / 60fps@1,920x1,080  Wide Dynamic Range : 3M 120dB
  • 51.
  • 52.
    The Profile Specificationsin this section describe the interoperable features between client and device guaranteed by a profile and the requirements for claiming conformance to a profile. •Profiles allow users to easily identify specific interoperable features by profile •Concept of profiles will simplify interoperability and management of conformant products •Profile S addresses common functionalities of IP video systems LIST OF SAMSUNG PRODUCTS THAT IS PROFILE S COMPLIANT http://www.onvif.org/default.aspx?TabID=157&CompanyID=14333&Type=1 IP cameras Encoders NVR Configure Send Request Control Media Data ( video , Audio ) Relay output Pan , tilt , zoom Access Control
  • 53.
    - Samsung iscommitted to having a strong relationship with and integrating to ISV or VMS (Video Management Software) companies platforms using the SUNAPI(Samsung Unified Network Application Programming Interface), this supports the CGI(Common Gateway Interface) commands for easy integration. In addition, all WiseNetIII cameras utilize the ONVIF protocol that allows for the interoperability between compatible devices from 3rd party companies; to achieve this, simply select one of the profiles from the list that provides user’s required features. * The ISV partnership will be expanded gradually.
  • 54.
    http://www.sourcesecurity.com/news/articles/co-4167-ga-co-1437-ga.16021.html http://www.foxstream-intelligencevideo.com/foxcounter •to identify attendancepeaks; •to establish reference bases (day/week/month) in order to measure evolutions; •to inform in real time the operator on the site's occupation rate, according to the maximal accommodation capacity.
  • 56.
    - By applyingan advanced compression technology, the WiseNetIII network camera's streaming performance is greatly enhanced. The cameras can process the data streaming using only about 30% of the network bandwidth of other products. Because of this improved bandwidth technology, seamless image transfer is possible even when there is limited network bandwidth available, with the additional benefit improved storage efficiency. Resolution VGA 1.3MP 2MP 3MP 5MP existing 2Mbps 5Mbps 8Mbps 10Mbps - improvement 1Mbps 2Mbps 2.5Mbps 3Mbps 6Mbps Transmission Performance Time Bandwidth Conventional 3MP WiseNetIII3Mbps 10Mbps 70% decrease Improved Bandwidth Utilization
  • 57.
  • 58.
    IP camera bracketguide 2014 Q1 Flush Ceiling SNP-5300H SNP-6201H SNP-3302H SNP-6200RH SNP-3120VH SNV-6084(R) SNV-5084 SND-6084(R) SND-6083 SND-5084 SND-5083 SHD-3000F SNP-3371TH SBP-301HM4 SNF-7010(V) SNV-3082 SBP-300LM Wall mount Base SBP-300CM SBP-300B Outdoor Housing SBP-300PMSBP-300WM1 SNP-5300 SNP-3302 SNP-5300 SNP-6201 In-CeilingSNP-6201 SBP-SCP/SN SBP-300KM SHP-3701F COPYRIGHT 2013 BY SAMSUNG TECHWIN. ALL RIGHT RESERVED Pole Mount Corner Mount SNV-6084(R) SNV-7082 SNV-5084 SNV-7080R SNV-6084 SNV-5080R SND-6084(R) SND-3082 SND-6083 SND-7082 SND-5084 SND-5083 SBP-301HM3 SBP-301HM2 SBP-300HM1 SNV- SNV- NEW Q1 2014 SBP-301HM Parapet Mount Pendant Mount Wall Mount SNP-3120 Outdoor H In-C SHP-3701H Pole mount (Swan-neck)
  • 59.
  • 60.
    SPC-2000 • Superior systemcompatibility • 3D joystick control • Quick and easy installation • NET-i viewer support
  • 61.
  • 62.

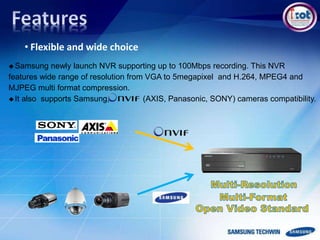

    • Flexible andwide choice Samsung newly launch NVR supporting up to 100Mbps recording. This NVR features wide range of resolution from VGA to 5megapixel and H.264, MPEG4 and MJPEG multi format compression. It also supports Samsung, (AXIS, Panasonic, SONY) cameras compatibility.
  • 63.
    • Smart Searching IntelligentVideo Analytics Event Alarm!!! Searching various intelligent video event from camera Tampering Motion Detect Enter Face Detect
  • 64.
    • Large CapacityStorage  Large Capacity of internal/external storage up to 144TB  Support both iSCSI NAS(IPSAN) or 2x e-SATA direct storages External IPSAN 128TB (16TB x 8EA) External e-SATA Storage Bay 2EA X 32TB = 64TB Network Switch (GbE) Internal HDD 16TB (2TB x 8EA) SVS-5E ( HDD extension unit) OR SVS-5R ( RAID 5 unit) 8HDDX4TB=32TB
  • 65.
    • Supporting remotemonitoring  Monitoring & search by Samsung CMS with unlimited amount and free license  By access built-in Web-viewer without installing proprietary software  Monitor and retrieve at mobile environment(4ch Live viewing and 1ch playback supported) Remote monitoring by CMS Net-I /SSM Remote monitoring by Web-Viewer Internet Explorer Remote monitoring by Smartphones I-Phone/Android
  • 66.
    SRN-1000 SRN-1670D SRN-470D • 100Mbpsnetwork camera recording • H.264, MPEG-4 & MJPEG multiple codec • VGA~5 megapixel resolution support • Max 8 internal HDDs • Easy camera installation • Various event record & search function(alarm, MD, VA) • UPnP (Auto Port Forwarding) • Support multi-stream cameras and encoders • Embedded linux system • device recording support • Full HD resolution support • H.264, MJPEG dual codec • 4CIF high resolution images at 480fps(N), 400fps(P) in real-time • Local monitor output : HDMI & VGA • DVD writer support • Full HD resolution support • H.264, MJPEG dual codec • 4CIF high resolution images at 120fps(N), 100fps(P) in real-time • Local monitor output : HDMI & VGA • DVD writer support
  • 67.
    • Linux OS •Up to 64CH Full HD Network Camera supports • 400Mbps network camera recording • H.264, MPEG-4 & MJPEG multiple codec • VGA~5 megapixel resolution supports • Max. 12 Hotswap HDDs ( RAID 5 / 6 ), iSCSI external storage interface • VGA/HDMI live monitoring output 720p/1080p (60Hz) • Redundant dual SMPS power supply • UPnP (Auto Port Forwarding) • device recording support • Watermark • Isolated networks for cameras / source • viewing SW SSM, Smartviewer Intelligent Data Search Combine Video Analytics and Meta-data
  • 70.
  • 71.
    SSM ( SamsungSecurity Manager) NET-i Viewer iPOLIS mobile (Android / iphone ) NET-I ware Smart Viewer & Smart viewer mobile Samsung Software SSM mobile (Android / iphone )
  • 72.
    Samsung Network TotalManagement Software SSM is a one-stop management software platform that maximizes the efficiency of Samsung’s network products (including network cameras, encoders, DVRs and NVRs). The client-server architecture features stable video surveillance system management through multi-sites and multi-clients configuration. Access to the live/recorded videos is extremely easy from remote sites making it suitable for medium to large-scale multi site applications. • Efficient live monitoring • Simultaneous monitoring/playback support • Map monitoring • Efficient Alarm/Event Monitoring • Easy, Convenient, and Smart Search and Backup
  • 73.
    SSM mobile indicatesa Mobile Client Application in Samsung Security Manager provided by Samsung. With SSM mobile, you can generate more efficient and convenient monitoring environment. Operators possibly monitor, control, and play video images from where they want such as a local or remote area through their smart phones and tablet devices. ※ For running the app, Samsung Security Manager should be installed in your PC. ※ DDNS registration is needed in case of external network environment. ***Features*** - Local/Remote connection to Samsung Security Manager - View Layout/Device list by user - View live streaming video with PTZ control - Supported format : H.264/MJPEG - Video Image Flip/Mirror, Video Image Capture - Calendar Search/Playback/Bookmark functions - Password function for security - Quick & easy access at mobile environment & WIFI networks. - Compatible with "Dynamic domain naming service" (DDNS) - Multi-Language ◎ This application uses FFmpeg and SDL under LGPL v2.1. ◎ New Features - Support search and playback for specific section from event recording file - Add bookmark on specific Live Channel page and make a favorite list from marked Live Channel pages - Support loading of Layout/Preset list from SSM - Add automatic search for SSM server - Add notification - the validity of SSM password expired ◎ Improvements and Changes - Improve UI : able to set the time by screen touch system when you search specific image - Obfuscate the source code of software
  • 74.
    Recording Software • Recordingsoftware for Samsung network cameras - 16/32/64 cameras recording package are available now. - Live video monitoring and search/playback of recorded video by CMS software • Supports various video and audio format recording : H.264, MPEG-4, MJPEG, G.711 • Supports various video resolution recording - Megapixel (1.3M/2M/3M), 4CIF, VGA, CIF • Triplex operation performance - Recording, Live video transfer, Recorded video transfer • Supports various recording options • Notification in case of event occurring - User defined alert sound output - E-mail to pre-assigned receiver - Notification to monitoring software (CMS software) • Event Log : System, User access, Backup, Recording, Motion, Alarm, Video loss, I/V - Manual Backup, Schedule Backup support -Format - REC1 (playback by NET-i viewer), SEC (self playback and watermark) -• Automatic search of network cameras for quick and easy configuration
  • 75.
    • Supports variousvideo format : H.264, MPEG-4, MJPEG • Supports various audio format : G.726, G.711, G.723 • Supports various video resolution : megapixel (1M, 2M, 3M), 4CIF, Half D1, VGA, CIF • Powerful E-map based monitoring support • Bi-directional audio communication • Remote PTZ control and power area zoom (click and go control) • Notification in case of event occurring • Manual recording (up to 1CH) during 24 hours • Multiple language user interface support • Easy device management (configuration, firmware upgrade) • Automatic self upgrade (connection to Samsung upgrade server) Central Management Software The NET-i viewer is the free monitoring software, which enables the centralized monitoring of Samsung Techwin’s DVR and other network products.
  • 76.
    Samsung Techwin’s iPOLiSmobile is available in an android based and iOS based application for smartphones and tablet PCs to remotely monitor and control Samsung Techwin’s network based products. • View live streaming video with PTZ control • Supported format : H.264/MJPEG • Video Image Flip/Mirror, Video Image Capture • Calendar Search/Playback/Bookmark functions for DVRs •Provide the profile selection(N/W), show the profile status • Password function for security • Register up to 32 cameras • Quick & easy access at mobile environment & Wi-Fi networks. • Compatible with "Dynamic domain naming service"(DDNS) • Multi-Language
  • 77.
    Easy Central ManagementSoftware • Up to 36 cameras monitoring • Live monitoring / Playback for Samsung Techwin products • Support for full screen mode • Drag & camera selection • Sequence / Favorite view • Up to 16 cameras simultaneous playback • Support for range back up (Integrated viewer) • For small sized system
  • 78.
    Smart Viewer Mobilelets you to view the live video from SAMSUNG DVR. Compatible with such models as: SRD-450, SDE-3002 (Latest F/W Ver.) Please use these camera setting: -Profile 1(MJPEG) -3G: 14fps@352x240 (3.5fps/ch) -WIFI: 14fps@352x240 (3.5fps/ch
  • 79.
  • 80.
    • Max. 1.3M(1280 x 1024) resolution • 16 : 9 HD (720p) resolution support • 3.5 ~ 150.5mm (43x) optical zoom, 16x digital zoom • H.264, MJPEG dual codec, Multiple streaming • Day & Night (ICR), WDR (120dB) • Auto tracking, Intelligent video analytics • PoE+, SD/SDHC/SDXC memory slot, Bi- directional audio support • IP66 (SNP-5430H) / IK10 (SNP-5430H, SNP-5430 + SHP-3701H only)
  • 81.
    • Max. 2M(1920 x 1080) resolution • 16 : 9 Full HD (1080p) resolution support • 4.44 ~ 142.6mm (32x) optical zoom, 16x digital zoom • H.264, MJPEG dual codec, Multiple streaming • Day & Night (ICR), WDR (120dB) • Auto tracking, Intelligent video analytics • PoE+, SD/SDHC/SDXC memory slot, Bi- directional audio support • IP66 / IK9 (SNP-6320H), IK10 (SNP-6320 + SHP-3701H only)
  • 82.
    • Max. 5M(2560 x 2048) resolution • Various viewing composition, 6 dewarping view mode • On board dewarping, Digital PTZ / Bi- directional audio • WDR (Contrast Enhanced), MD, AD • M12 connector (SNF-8010VM) • IP66, IK10, EN50155, EN61373 certifications (SNF-8010VM) • micro SD/SDHC/SDXC memory slot, PoE
  • 83.
    • Max. 5M(2592 x 1944) high resolution • 20fps@5MP, Simple focus • 3.6 ~ 9.4mm (2.6x) motorized varifocal lens • WDR (60dB) • Up to 32 privacy masking zones • Tampering, Audio detection • micro SD/SDHC/SDXC memory slot • Bi-directional audio support, IP66, IK10, Heater by PoE
  • 84.
  • 85.
    CCTV systems’ requirementsdepend upon the application where they will be installed. Samsung has equipped its CCTV Cameras with a set of helpful functions that are integrated in the DSPs. There are three types of DSPs; SV-V, A1 and W-V, which Samsung has designed with the core features already in place. The SV-V DSP chipset feature state-of-the-art technologies that provide the greatest benefit in video surveillance. This powerful tool ensures users reap the maximum advantage that allows it devices to be deployed in a wide range of applications The A1 DSP offers the maximum benefit for video surveillance. It provides users with a powerful tool to ensure that they achieve maximum benefit from surveillance systems that are deployed in a wide range of applications Samsung's 5th generation DSP is the engine that brings out the best performance from standard CCTV camera. This unique DSP provides advanced features to ensure the highest image quality for effective video surveillance.
  • 86.
    600/650 TV lines VPS (VirtualProgressive Scan) Polygonal Mask Camera Control Via Coaxial Cable Intelligent Video Analytics (Fixed/Moved/Area/ Fence /Tracking/ Detection/Counting) Intelligent Video Analytics (Fixed /Moved /Area/ Fence /Tracking / Detection) SV-5 A1 W5 SSDR (Samsung Super Dynamic Range) XDR (extended Dynamic Range) SSNR III (Samsung Super Noise Reduction III) DIS (Digital image Stabilization) motion Adaptive DNR (motion Adaptive Digital Noise Reduction)
  • 87.
  • 88.
    WDR technology compensatesfor backlight problems effectively, by applying an optimum fusion ratio when combining the long exposure (low shutter speed exposure) method used in bright areas and the short exposure (high shutter speed exposure) method used in dark areas Low shutter speed High shutter speed WDR Combination
  • 89.
    SSDR OFF SSDRON Useful in high contrast or backlight scene. Automatically lighten of the dark areas within a scene whilst maintaining the brighter areas at the same level. This ensures that the dark areas become more visible allowing the operator to view objects in the shadows .
  • 90.
    Conversion to Interlace andtransmit + Shot the image by progressive type Recovery to Progressive image Odd-Field 1+2 3+4 5+6 7+8 . . . . . 2+3 4+5 6+7 8+9 Even-Field . . . . .
  • 91.
    The 3rd generationof SSNR can be used in low light condition to enhance the image quality. This technology eliminates image noise in low light conditions without creating image blur or ghosting. Conventional Camera Samsung camera with Noise Filter
  • 92.
    Virtual Fence Violate thearea Pass the line Track the movement
  • 93.
    Appear / Disappear Generatesautomatic alarm if specific objects disappear and Notifies when new objects appear for a certain period of time
  • 94.
    • Motion Detection: The Motion detection analyzes successive frames of video and detects movement in the scene. Users can set the level of thresholds to prevent or reduce false alarms and the camera can generate alert if the type or level of motion crosses these thresholds. • Counting : Provides a count of the objects passing in a pre-determined direction.
  • 95.
    This function enablesaccess to the camera menu settings without connecting any other control cables to the camera. This technology allows for camera set up (with the exception of lens focus) to be performed remotely, thus simplifying the installation process. It also allow for the control of Samsung PTZ domes from a coaxial control enabled DVR. SPC-200 / SPC 300
  • 96.
    Rectangle mask Polygonalmask A privacy mask is a setting that is on selected cameras that allow you block out a certain part of the scene. This is especially useful in areas that have to couple the needs of surveillance with the requirements of privacy and data protection. The polygonal masks allow for the accurate masking of sensitive areas while not infringing on the surveillance sectors.
  • 97.
    DIS offDIS on AutomaticImage Stabilization : Perfect Shots in Any Situation With DIS technology, the problems of monitoring using a camera installed on a pole or in windy conditions can be reduced. This also assists in the capture/detection of fast moving car number plates.
  • 98.
    Enables entire systemto resolve and display grayscale information better by reversing bright spots in the picture, such as a license plate in the headlights Car Plate Recognition Flash light
  • 99.
    The Motion AdaptiveDNR function can be used in low light condition to enhance the image quality. This technology eliminates image noise in low light conditions without creating image blur or ghosting.
  • 100.
  • 101.
    Benefits of 960H -An increase in the number of pixels by nearly 30% results in significantly enhanced picture detail compared to conventional 760H - 700TVL is the highest resolution currently available in analog security - No re-cabling work required for existing coaxial infrastructure - Cheap upgrade path for moderate picture improvement (5~10% cost increase) - Less complex than IP based systems - Generally smoother motion than IP at same frame rate (no latency) 960H System can be effective when - Users want to use existing analog infrastructure while upgrading to higher resolution - There is no additional budget for the network security system (including infrastructure) - There is no training resources available for new system
  • 104.
  • 105.
    • Support upto 1,920 x 1,080 / 600TV lines resolution • High contrast ratio 1000:1 • Fast response time 8ms • HDMI, VGA, and Composite video output • Built-in Audio Speaker • Ethernet/RS-232C remote control • 250cd/m2 Brightness • Response time 8 ms SMT-2730 27" LED Monitor SMT-2232 21.5" Wide Full HD LED Monitor • Supports up to 1920 x 1080 resolution • 16:9 display • High contrast ratio 1000 :1 • Fast response time 5ms • HDMI/VGA/BNC input connection • 250cd/m2 Brightness • Durable tempered glass screen • Built-in Audio Speaker Display Power management
  • 106.
    Max. Record Rate: NTSC 480fps@4CIF/960H • 16CH 650TV Lines(960H) support • 4CIF resolution 480(N)/400(P)fps recording rate • VGA/HDMI video out for main display • Enhanced Network Bandwidth (50k ~ 32Mbps) • Full HD(1080p) resolution video out • Max. 4 internal HDDs • Smart Searching, VA(Tampering) support • DVD, USB (2ports) backup • 16CH audio input/1CH audio output • CMS, Smartphone monitoring compatible • Various display split mode : 1/4/7/9/13/16(A,B) • Easy GUI, De-Interlace, coaxial control support
  • 107.
    • High resolutionof 700TV lines Sharp mode • Min. Illumination 0.1Lux color (F1.2, 50IRE) • Day & Night (Electrical) SSNRIII, Defog • Coax : Pelco-C (Coaxitron), Dual power
  • 108.
    • High Resolutionof 700TV lines (ER mode) • Min. illumination 0.1Lux@F1.2 (Color) • True Day & Night (ICR), MD, Defog, 3D DNR • Coax : Pelco-C (Coaxitron), Dual power, 12V DC
  • 109.
    • High Resolutionof 700TV lines (Color, ER mode) • Min. illumination 0.1Lux@F1.2 (Color), 0.01Lux (B/W) • WDR, VPS, Simple focus, Intelligent video analytics • True Day & Night (ICR), SSNRIII • Coax : Pelco-C (Coaxitron), RS-485, Dual power
  • 110.
  • 111.
    SMPTE292M HD-SDI digitalvideo transmission standard bit rate 1.485 Gbit/s allowing transmitting HD video over coaxial

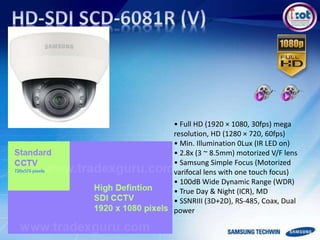

  • 112.
    • Full HD(1920 × 1080, 30fps) mega resolution, HD (1280 × 720, 60fps) • Min. Illumination 0Lux (IR LED on) • 2.8x (3 ~ 8.5mm) motorized V/F lens • Samsung Simple Focus (Motorized varifocal lens with one touch focus) • 100dB Wide Dynamic Range (WDR) • True Day & Night (ICR), MD • SSNRIII (3D+2D), RS-485, Coax, Dual power
  • 113.
    • Max 2M(1920 x 1080), Full HD(1080p) resolution • HD-SDI (High Definition Serial Digital Interface) • Enhanced WDR (100dB) • Tampering, Face/Motion Detection • Simple focus • Defog, P-Iris, DIS, Day & Night(ICR) support • RS-485, 24V AC, 12V DC supports • Max 2M (1920 x 1080), Full HD(1080p) resolution • HD-SDI (High Definition Serial Digital Interface) • Enhanced WDR (100dB) • IR LED (Min.illumination 0Lux) • Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens • Tampering, Face/Motion Detection • Simple focus • Defog, DIS, Day & Night(ICR) supports • RS-485, 24V AC, 12V DC, IP66 supports
  • 114.
    • 16CH 700TVlines/8CH Full HD 1080p real-time recording • Full HD video out, VGA/HDMI video output for main display • Max. 4 internal HDDs • HDD removable (Easy install) • Smart searching, Tampering support • DVD-RW, Smart phone support • PTZ Control via Coaxial Cable [Samsung CCVC, Pelco-C (Coaxitron)] • Up to 64Mbps network bandwidth Max. Record Rate: NTSC 480fps@960H & 240fps@1080p
  • 115.
  • 119.
  • 120.
    Thermal Camera The thermalcamera is an advanced camera that detects differences in the infrared energy of objects and the background, converts them into electric signals, and produces digital images.
  • 121.
    Thermal cameras UsesNETD (Noise Equivalent Temperature Difference) Which is a measurement of the smallest temperature difference that a thermal imaging camera can detect an object clearly. • Outstanding from 360 m to 1.28 km detection without lighting • Min. discernible temperature of 0.08°C • Built-in 50mm fixed lens, 0.47mrad • IP66, RS-485, 24V AC
  • 122.
    • Max. 1.2Kmdetection range with no lighting • Intricate imaging with High-powered infrared sensor • Min. discernable temperature of 0.08°C • Bulit-in 50mm Fixed Lens • IFOV 0.47mrad • Color pattern, Temperature Detection(Alarm) • IP66 Approved Dust/Waterproof • Customizable OSD • DLC (Diamond Like Carbon Coating) • Light weight and effective cost • RS-485 control • Built-in 50mm lens with micro bolometer sensor • 1,280m of detection range without lighting • 0.47mrad of IFOV (Instantaneous Field-of-View) • Min. discernable temperature of 0.08°C • IP66 Approved Dust/Waterproof • Customizable OSD • Light weight and effective cost • SD, RS-485 control
  • 123.
  • 124.
    • 5" TFTtouch LCD • Control PTZ dome cameras • Control DVRs and matrix switchers • Centralized control up to 255 units • Connect to a system up to 16 controllers • 3D joystick to control PTZ function • Detachable joystick/jog shuttle for universal use (right/left hand use) • Support for multi-protocol • User friendly GUI • Control up to 255 PTZ cameras • Multi protocols support • OSD menu • 3D joystick control • RS-485 and RS-422 compatibility SPC-1010 SPC-6000
  • 125.
  • 126.
    High resolution(960H) recording& Full HD video out  Support real-time recording and playback in 650TVL(960H) image quality at all frame rates, providing highest quality images for both live viewing and recorded video.  The DVRs recording enables the operator to record at a high quality rate suitable for references. It also allows for event or alarm based switching to real-time recording.  These real-time DVR series are equipped with various video outputs VGA/HDMI, with HDMI supporting high definition 1920x1080p resolution images.
  • 127.
    High resolution recording& Full HD video out 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 176x120 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 < 704 Pixel > <480Pixel> < 1920 Pixel > <1080Pixel> Current New
  • 128.

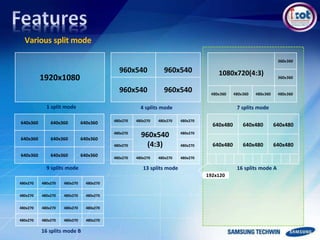

    Various split mode 1920x1080 960x540960x540 960x540 960x540 640x360 640x360 640x360 640x360 640x360 640x360 640x360 640x360 640x360 1 split mode 1080x720(4:3) 360x360 360x360 480x360 480x360 480x360 480x360 480x270 480x270 480x270 480x270 480x270 960x540 (4:3) 480x270 480x270 480x270 480x270 480x270 480x270 480x270 640x480 640x480 640x480 640x480 640x480 640x480 192x120 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 480x270 4 splits mode 7 splits mode 9 splits mode 13 splits mode 16 splits mode A 16 splits mode B
  • 129.
    VPS (Virtual ProgressiveScan) All DVRs in the range feature VPS, this eliminates the problem of blurred edges on moving objects to provide picture-perfect still frame images Motion Search A one hour motion search window can be easily set up using the GUI. Finding out what happened in an area of interest is much more convenient with the Motion Search function. When user set the areas want to look up, this feature shows the changes in that areas for a given period of time.
  • 130.
    Video Analytic Accident/Redirection Vandalism DefocusingBlocked/CoveredSpray-Painted Smart searching  When any event videos from analogue cameras are detected, such as, redirection of a camera, vandalism to a camera, spray painting, defocusing, covering, etc, the SRD-1673D series will send an event alarm to users.
  • 131.

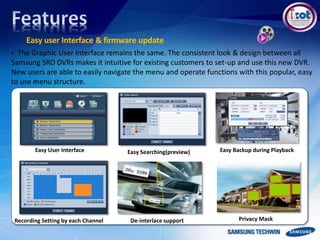

    Easy user Interface& firmware update Easy Searching(preview) Easy Backup during Playback De-interlace support Privacy MaskRecording Setting by each Channel Easy User Interface  The Graphic User Interface remains the same. The consistent look & design between all Samsung SRD DVRs makes it intuitive for existing customers to set-up and use this new DVR. New users are able to easily navigate the menu and operate functions with this popular, easy to use menu structure.
  • 132.
    Various type ofremote monitoring Remote monitoring1 CMS : Net-i /SSM Remote monitoring2 Web viewer Remote monitoring3 Smartphone  Live, Event, Alarm and Playback images from SRD-1673D/1653D/873D/1673 can be viewed on your Smartphone – both Android and iPhone.  As with the rest of the Samsung SRD range, SRD-1673D series support remote viewing, and control over NET-i viewer software. The same web viewer functionality as the rest of the SRD series options within the SRD line are provided towards selecting the right DVR for location based on their needs, not limited by technology; various Samsung’s SRD DVRs can be easy assembled together to support a central monitoring station in unison.
  • 133.
  • 134.
  • 135.
    DNIe (Digital NaturalImage engine) Samsung’s proprietary technology embedded in premium LCD TV to enhance picture quality for the best performance. By utilizing DNIe technology, monitors provide enhanced image reproduction quality with optimized color, enhanced contrast and higher resolution. It delivers rich color and crystal clear images for more comfortable reading and reducing eye fatigue. Motion Optimizer : Clear Moving Images Detail Enhancer : Fine Details Contrast Enhancer : Sharp Contrast Color Optimizer : Natural Color
  • 136.
    PIP (Picture inPicture), PBP (Picture by Picture) The PIP, PBP functions allow a security manager to use a PC and view a CCTV camera at the same time. It could also allow the manager to always have a video image from an important camera on display in the corner at all times. Monitors with tempered glass screen design protects the screen from dirt, repetitive touching or scratching. The screen can be easily cleaned with common cleaning solution such as water or alcohol. Tempered Glass Screen
  • 137.
    • 40” LEDMonitor • Support up to 1,920 x 1,080 resolution • High contrast ratio 5,000 : 1 • Fast response time 8ms • Excellent picture quality with LED back light • Video output : HDMI, VGA, Composite SMT-4030 SMT-1930 • Support up to 1,366 x 768 resolution • High contrast ratio 1,000 : 1 • Fast response time 5ms • 120Hz motion technology
  • 139.
  • 140.
  • 141.
    Samsung Techwin Developers networkopen SDK & API platforms
  • 142.
