This document provides information about an audio visual system installation for the SACO head office by Blaather telecom. It discusses Blaather's experience in providing low current systems and intelligent building solutions. It then highlights some of the key products involved in the proposed AV system installation, including a mixer/scaler, touch panels, power supplies, cables, screens, projectors, microphones and wireless tuners.

1. SACO HEAD OFFICE A/V SYSTEM
Presented by blaather telecom

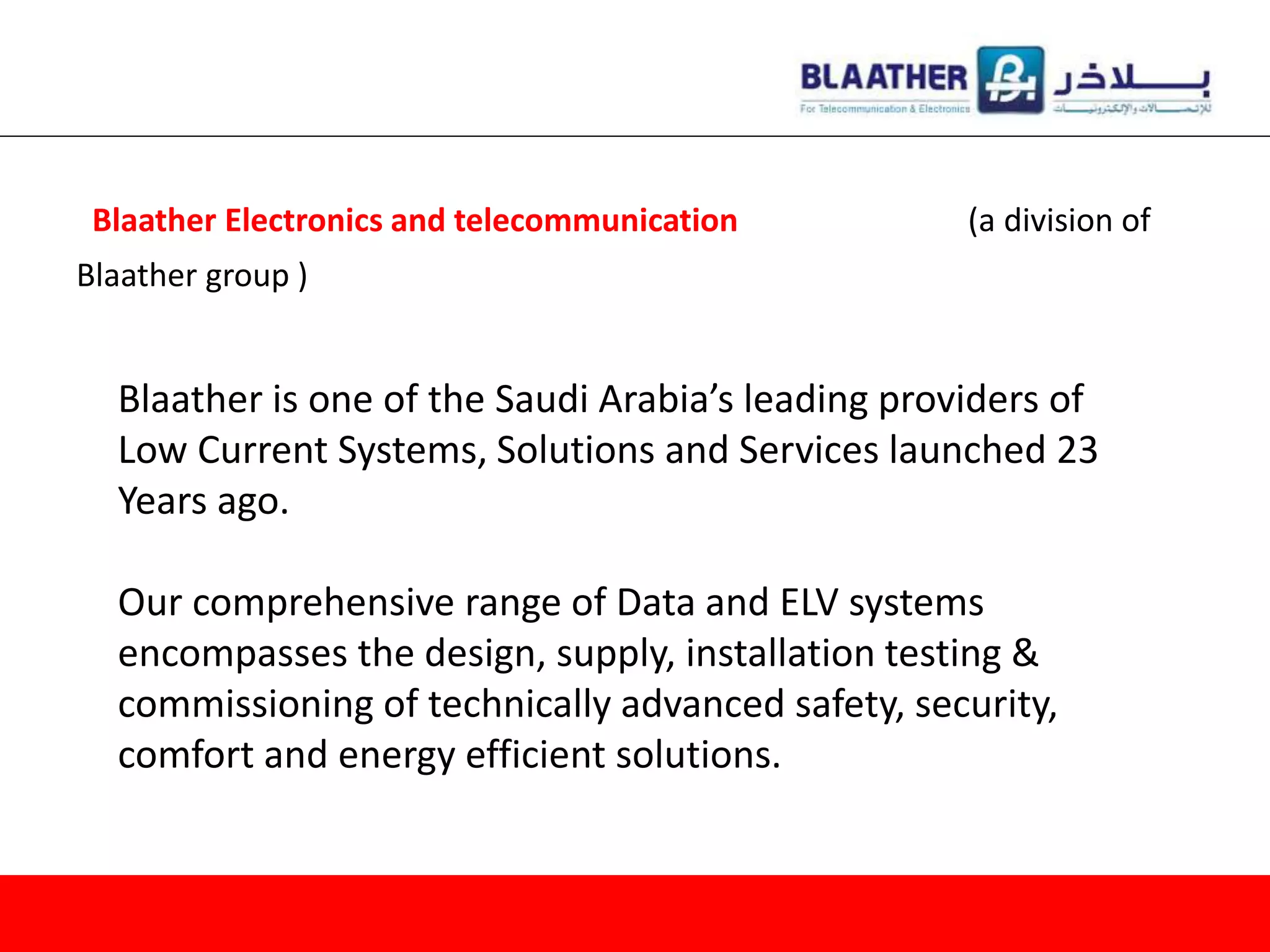

2. Blaather Electronics and telecommunication (a division of
Blaather group )
Blaather is one of the Saudi Arabia’s leading providers of
Low Current Systems, Solutions and Services launched 23
Years ago.
Our comprehensive range of Data and ELV systems
encompasses the design, supply, installation testing &
commissioning of technically advanced safety, security,
comfort and energy efficient solutions.

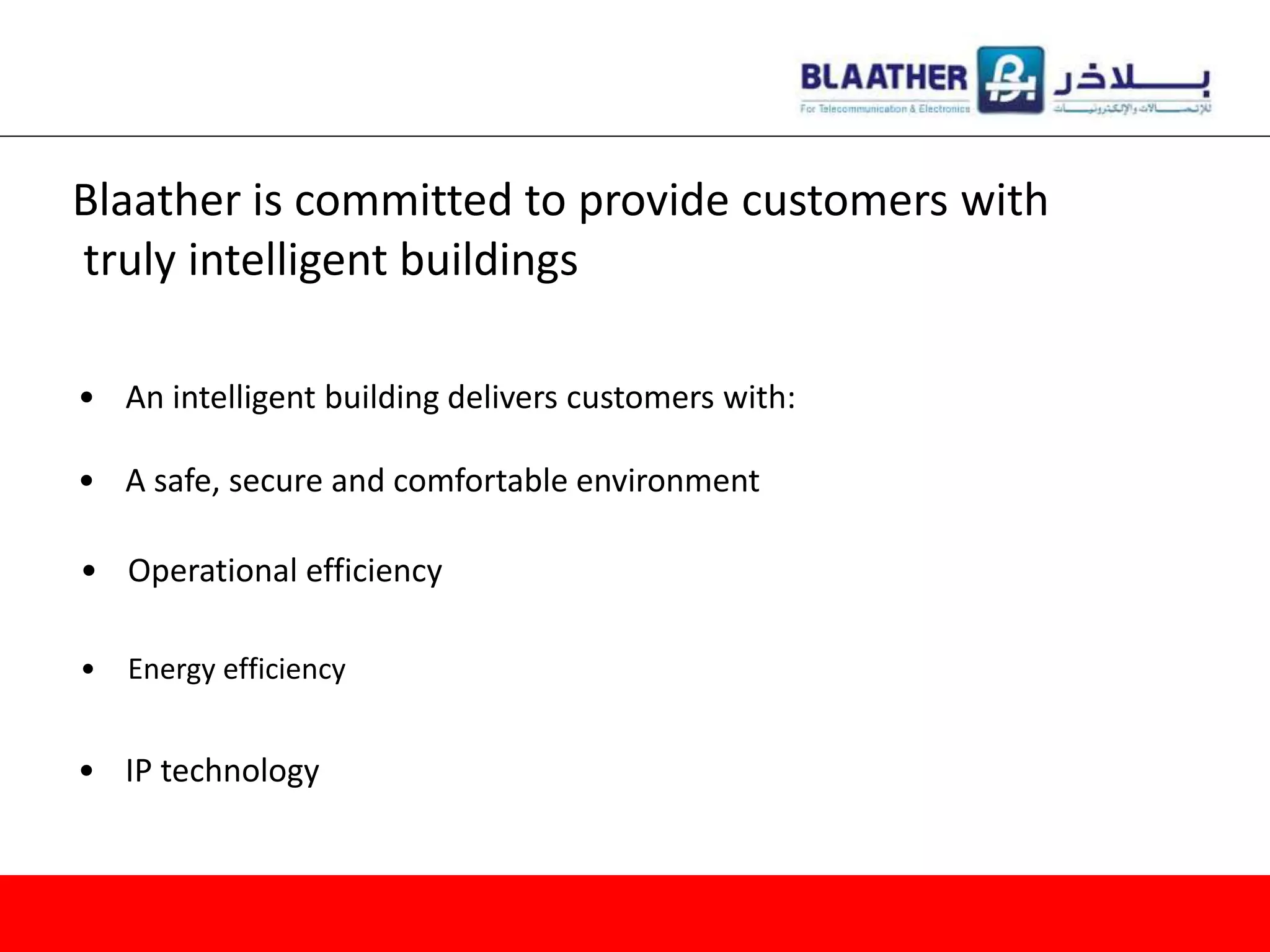

3. Blaather is committed to provide customers with
truly intelligent buildings
• An intelligent building delivers customers with:
• A safe, secure and comfortable environment
• Operational efficiency
• IP technology
• Energy efficiency

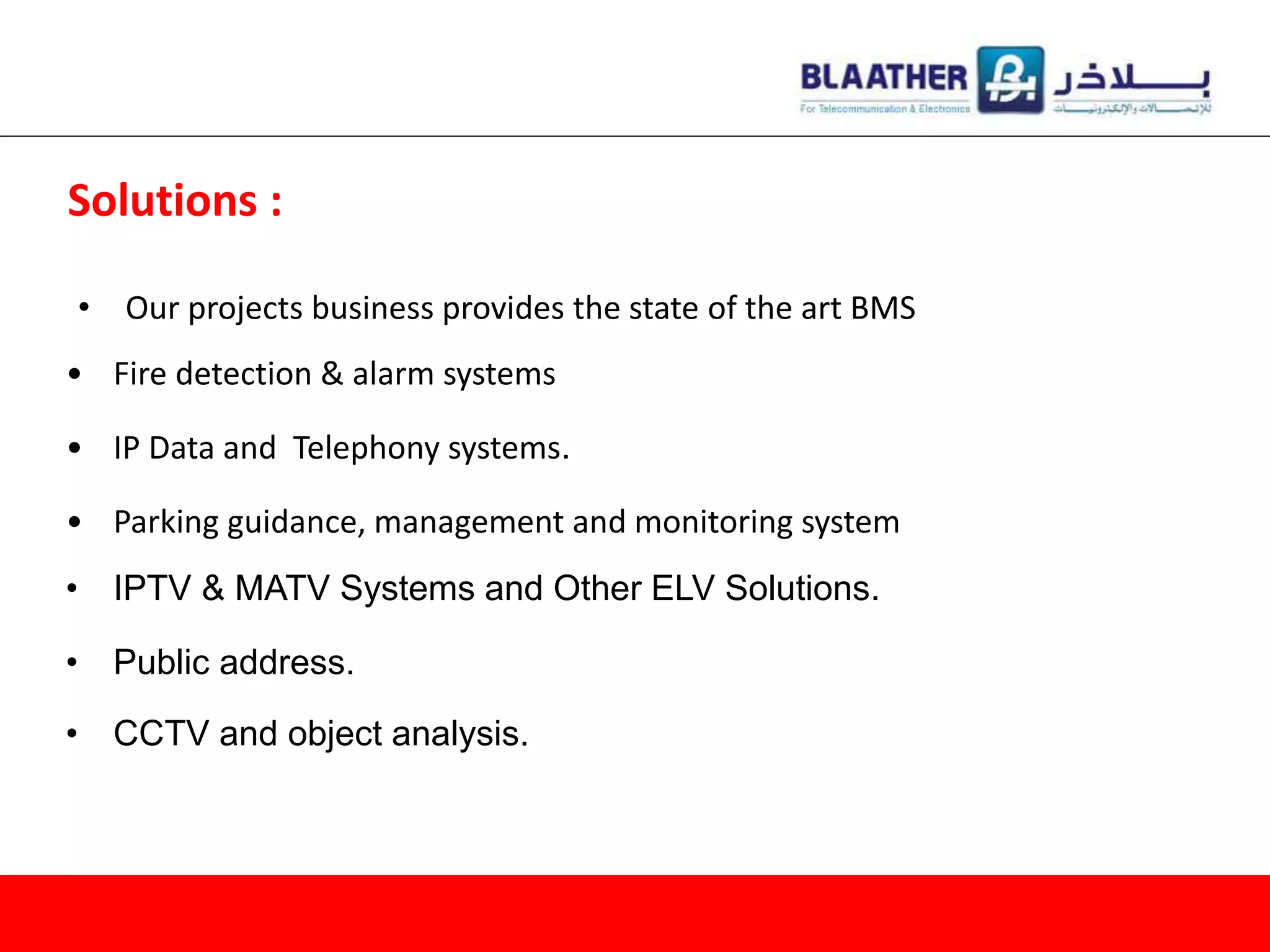

4. • Our projects business provides the state of the art BMS
Solutions :
• Fire detection & alarm systems
• IP Data and Telephony systems.
• Parking guidance, management and monitoring system
• IPTV & MATV Systems and Other ELV Solutions.
• Public address.
• CCTV and object analysis.

5. • Live demonstrations, education and design support to customers across the products spectrum of Low current
systems
We also offer :
• Our 5 outlets, state of art showrooms provides a comprehensive suite of
products and stocks

6. L I G H T I N G T E C H N O L O G Y
OUR CUSTOMERS:

7. OUR PARTNERS:

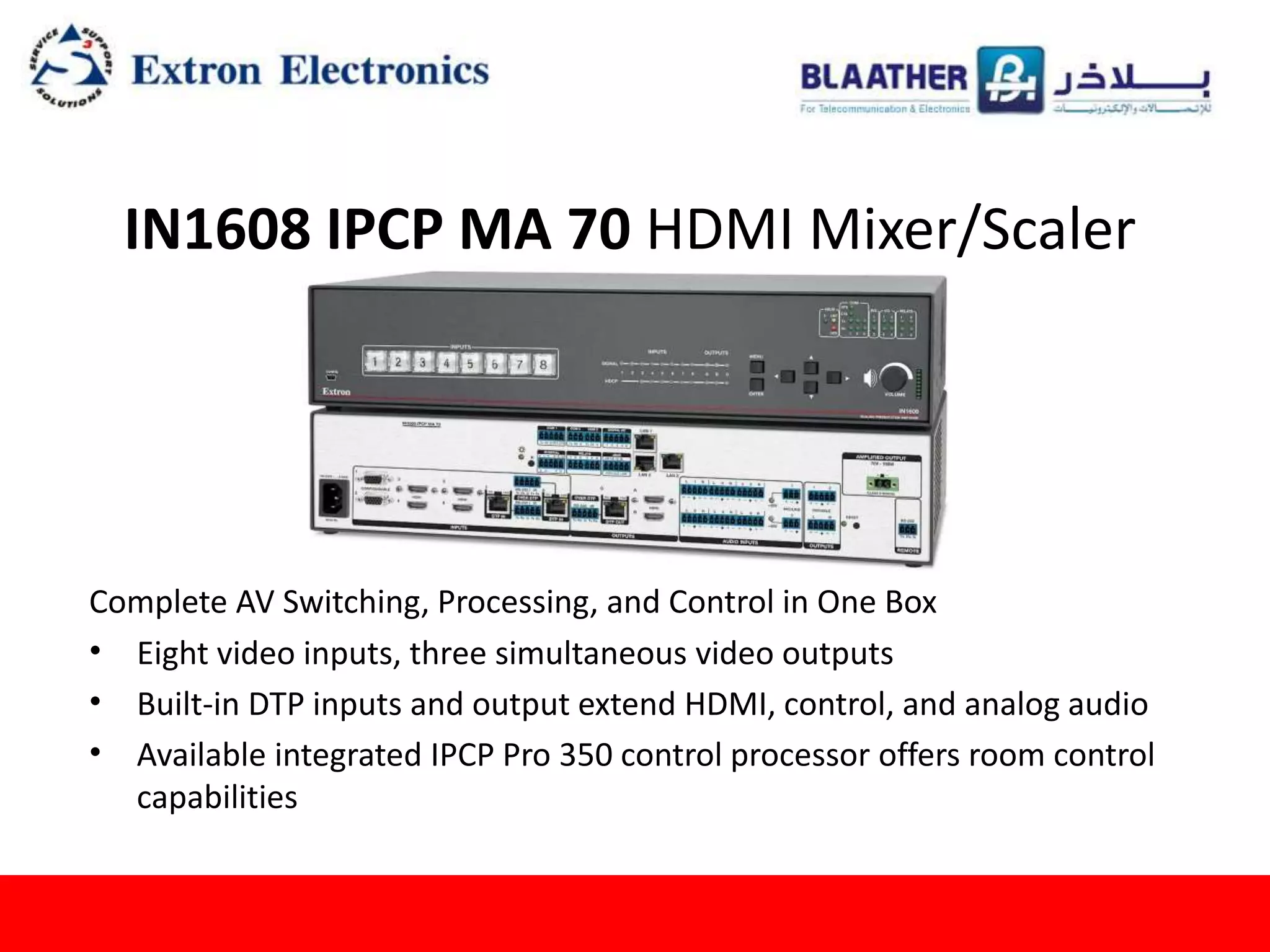

9. IN1608 IPCP MA 70 HDMI Mixer/Scaler
Complete AV Switching, Processing, and Control in One Box
• Eight video inputs, three simultaneous video outputs
• Built-in DTP inputs and output extend HDMI, control, and analog audio
• Available integrated IPCP Pro 350 control processor offers room control
capabilities

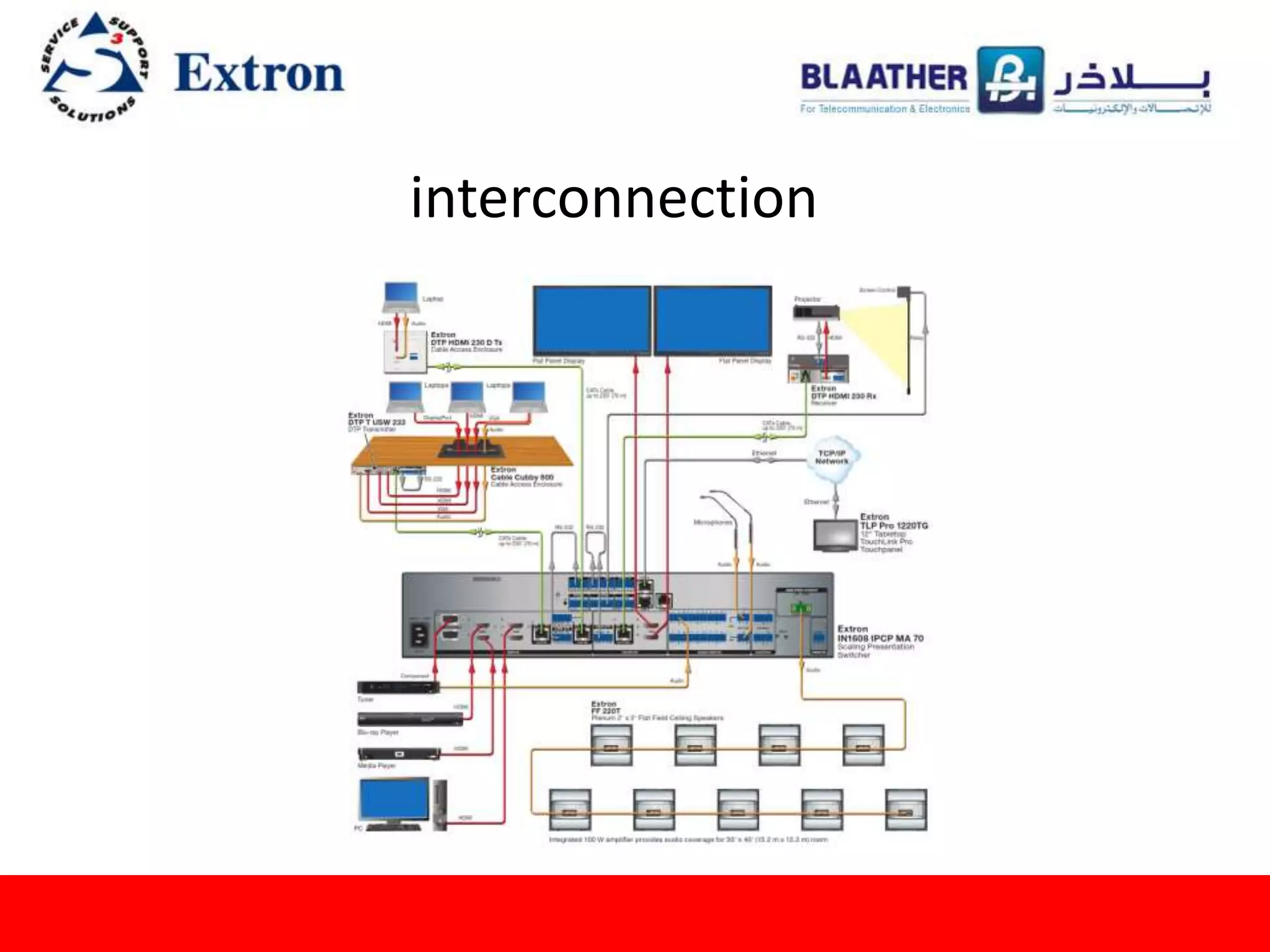

10. interconnection

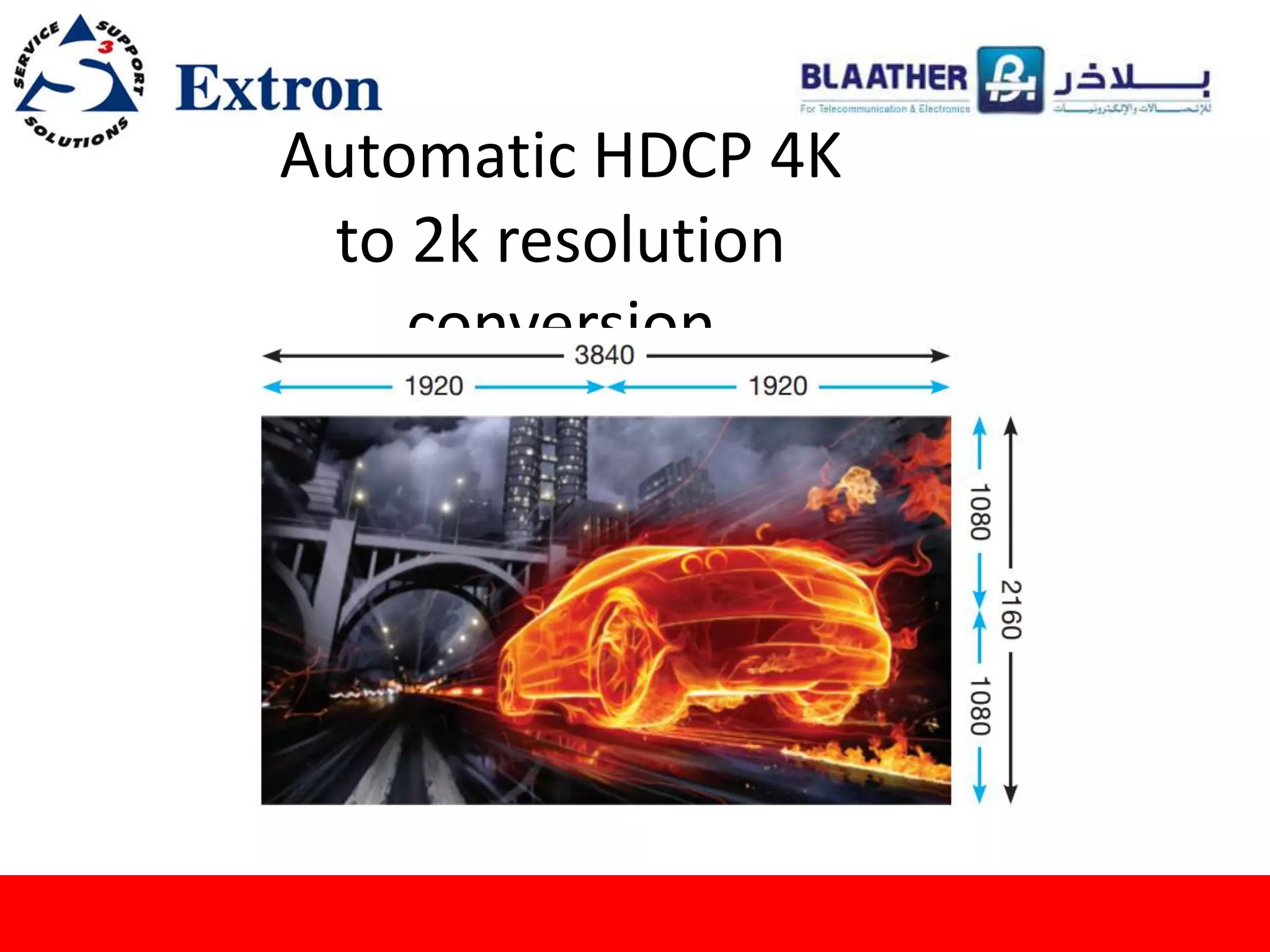

11. Automatic HDCP 4K
to 2k resolution
conversion

12. installation

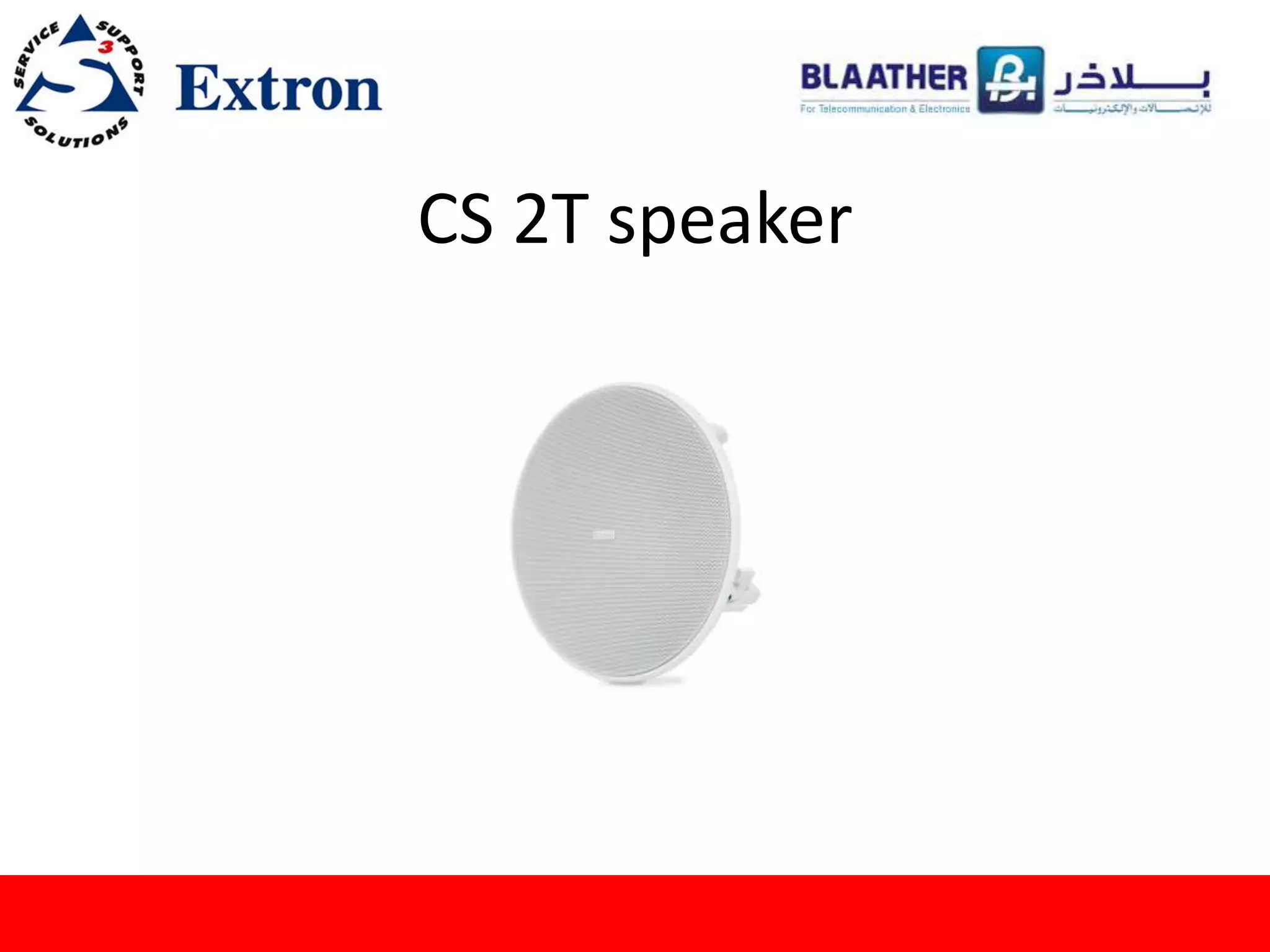

13. CS 2T speaker

14. installation

15. Example for 16 m X 8 m 36 person

16. TLP PRO 720T
• 7" LCD touchscreen with 800x480 resolution and 18-bit color depth
• Faster processing and more memory
• Compatible with all IP Link Pro control processors
• Power over Ethernet allows the touchpanel to receive power and communication over a single Ethernet
cable, eliminating the need for a local power supply - PoE injector sold separately
• Built-in speaker with improved audio performance
• Light sensor adjusts screen brightness as the ambient room lighting changes
It can convert to room scheduling system easily :
• Room Agent™ software used for quick and easy setup
• Supports TLP Pro 520M, TLP Pro 720M, and TLP Pro 720T
TouchLink Pro touchpanels
• Create custom templates using two color themes and user-
provided backgrounds

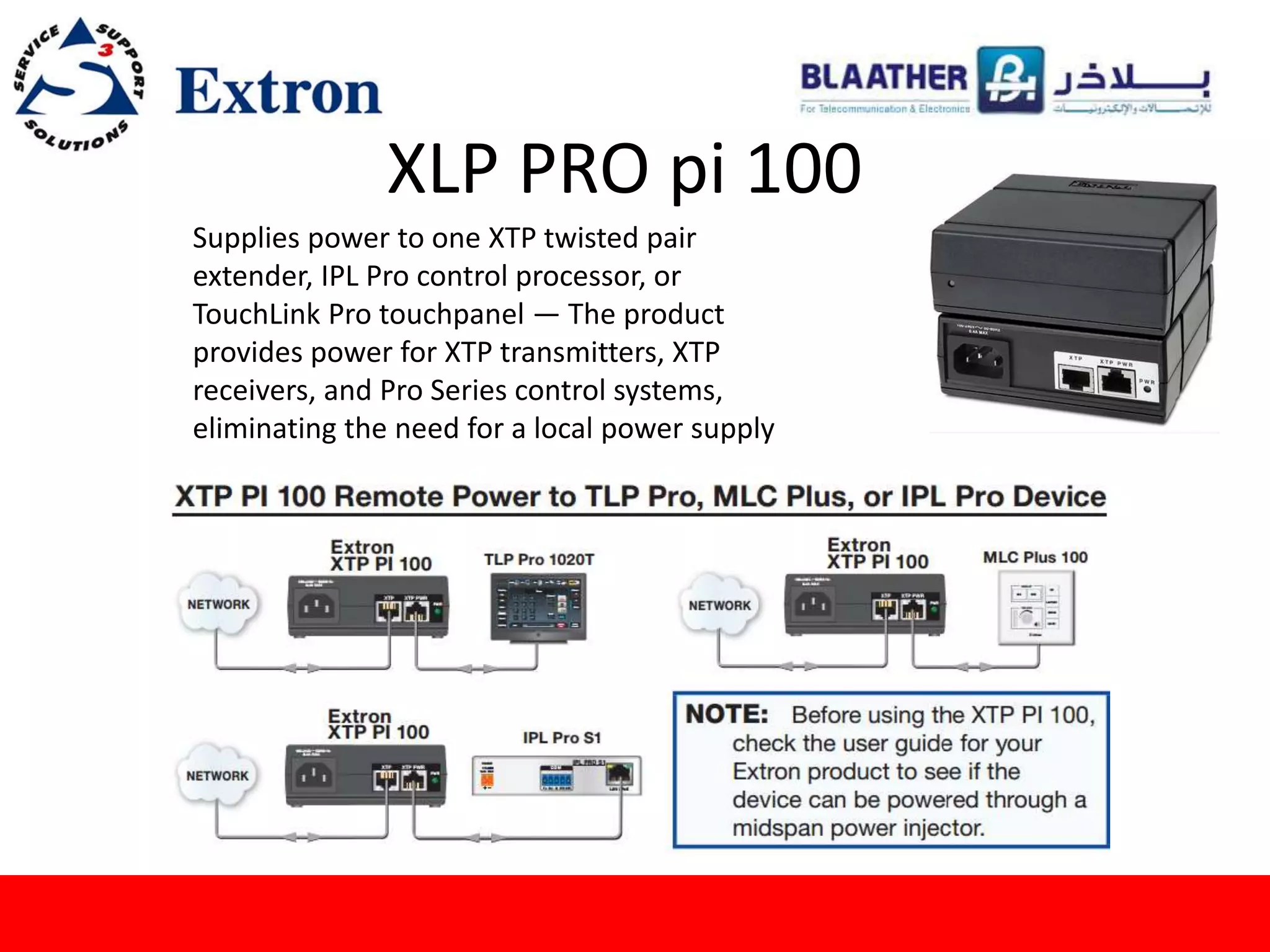

19. XLP PRO pi 100
Supplies power to one XTP twisted pair
extender, IPL Pro control processor, or
TouchLink Pro touchpanel — The product
provides power for XTP transmitters, XTP
receivers, and Pro Series control systems,
eliminating the need for a local power supply

20. HAS 300 black, multi-region ac
Provides convenient access to HDMI, VGA,
Stereo Audio, and Network connectivity

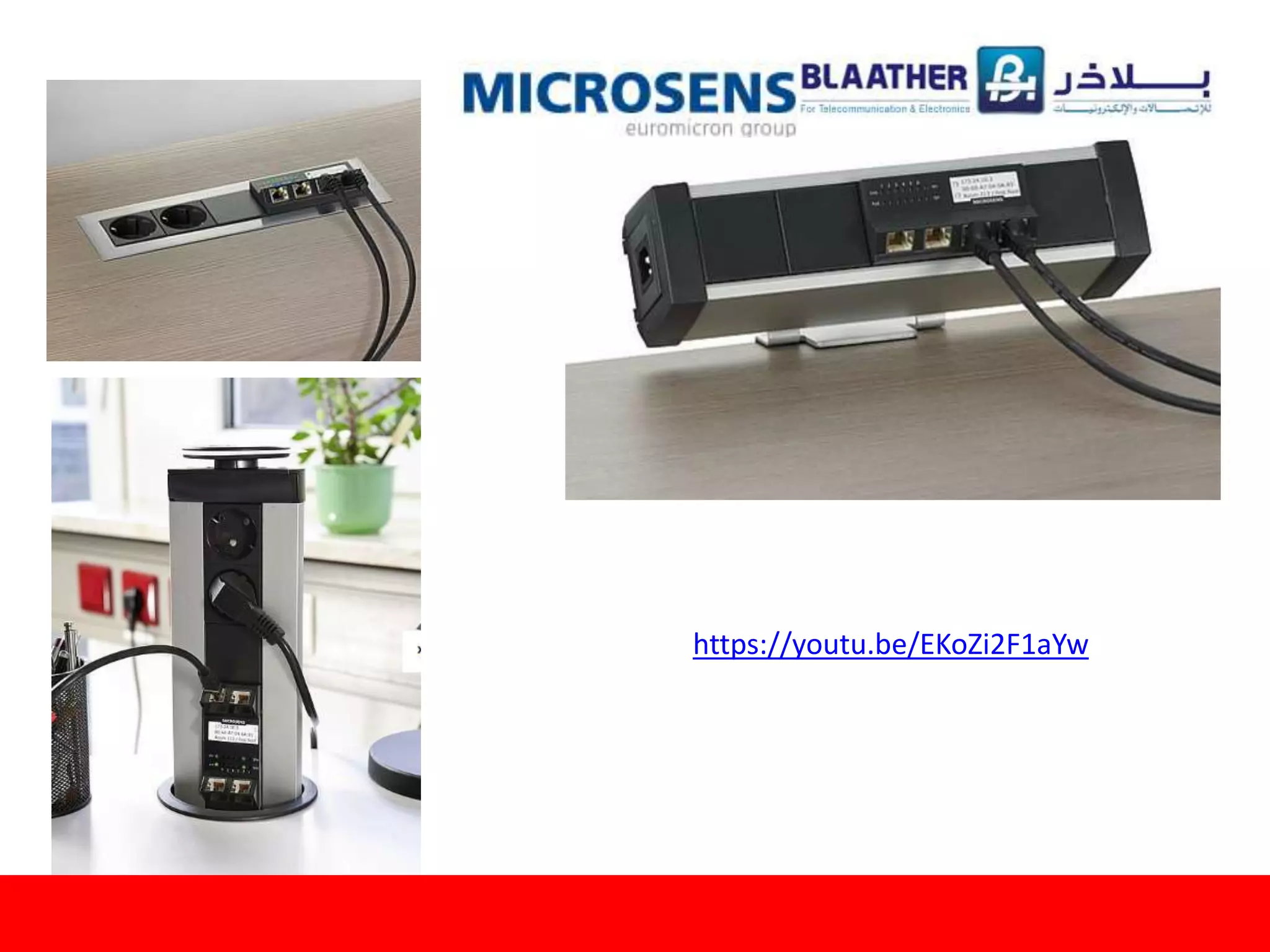

21. https://youtu.be/EKoZi2F1aYw

22. WPD 110 A
• HDMI, stereo audio, and control о HDMI female to HDMI female connector on a pigtail
• 3.5 mm stereo audio jack with 3-pole captive screw connector о
• 3-pole captive screw connector (for pass-through signals such as IR and RS-232)

23. Flush mount Racks

24. • Superb value for tight budgets
• 4200 lumens of brightness, high contrast, six-segment color wheel and BrilliantColor technology produces incredible images
in high ambient light
• Extensive 1.5x zoom and throw ratio for great installation flexibility and portability
• Full 3D support for Blu-ray, 3D broadcasting, video games and more
• 3D Triple Flash for the most comfortable 3D viewing experience
• HDMI with MHL for easy support of mobile devices
• Manage and control the projector remotely, like a network printer
• Easily connect and control via your IT network with Crestron Roomview and AMX Device Discovery
Professional 3d video projector 4200 lumens

25. 87 x 116" projection screen
PRODUCT HIGHLIGHTS
Wall or Ceiling Mount
Non-Tensioned
150" Diagonal
Video Format
4:3 Aspect Ratio
Matte White Finish
Front Projection
With Low Voltage Controller
220V, 50Hz

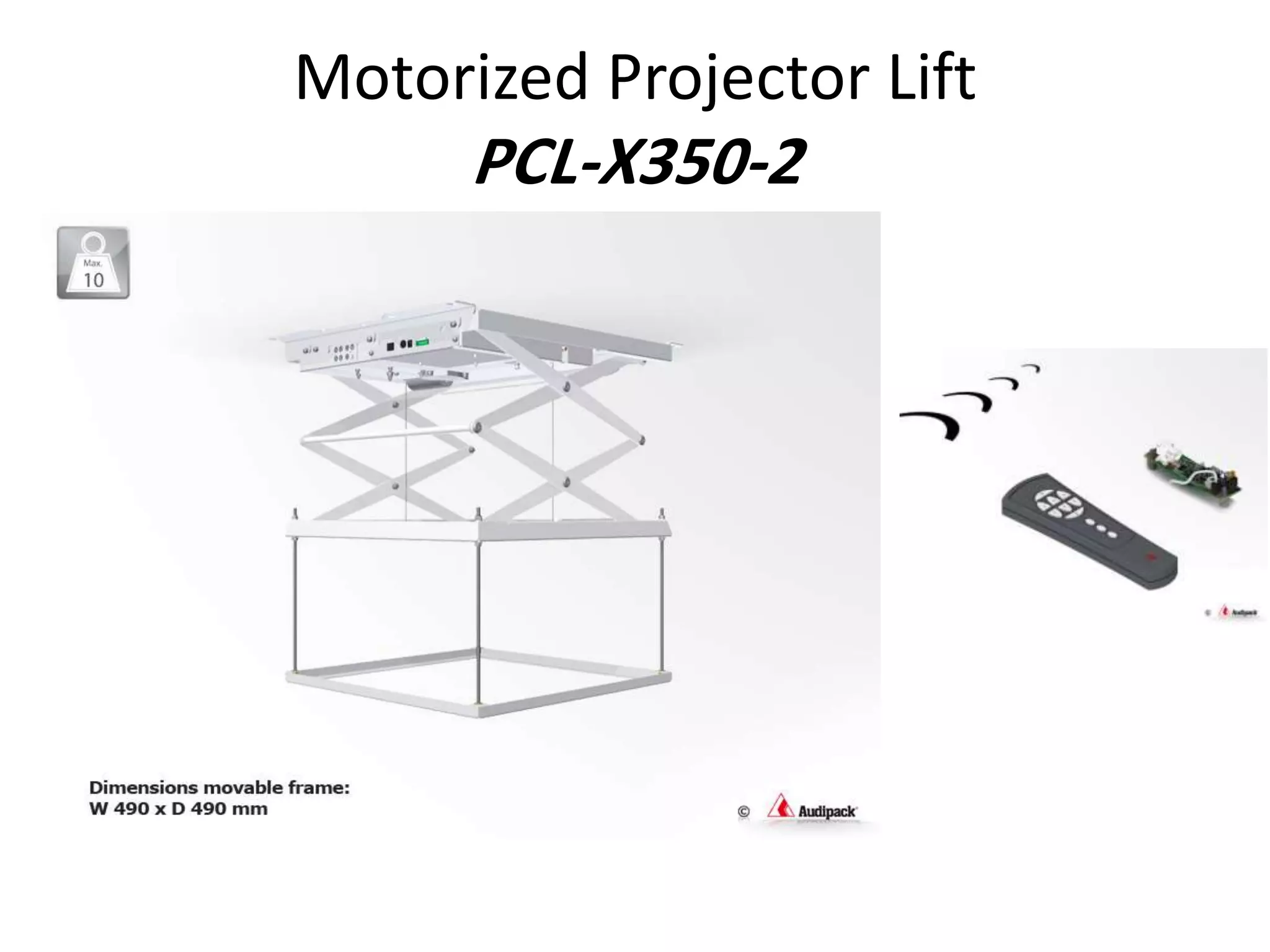

26. Motorized Projector Lift
PCL-X350-2

27. Wireless mic range up to 100m
• WM-4200 Wireless Microphone
• The WM-4200 Wireless Microphone employs a dynamic microphone element with high input handing
capacity and is suitable for vocal applications and other professional uses.
• One frequency can be selected from 64 operating frequencies (4 banks x 16 channels) of 690 - 865 MHz.
• An optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient
temperature or voltage fluctuation.
• Dynamic range of over 110 dB can be obtained when the unit is used in combination with the WT-4800.
• Audio level control adjusts the microphone sensitivity.
• Power switch features a lock mechanism to protect accidental power-off.
• Battery lamp indicates battery consumption to prevent the unit from malfunctioning when the battery
level remarkably decreases.

28. WT-5800 UHF Wireless Tuner
The wireless tuner WT-5800 is a PLL-
synthesizer controlled double
superheterodyne true diversity tuner to be
used in UHF wireless systems. It employs a
compander noise reduction circuit to minimize
the influence of the ambient RF noise
