FS Presentation CCTV solution.pptx
- 1.

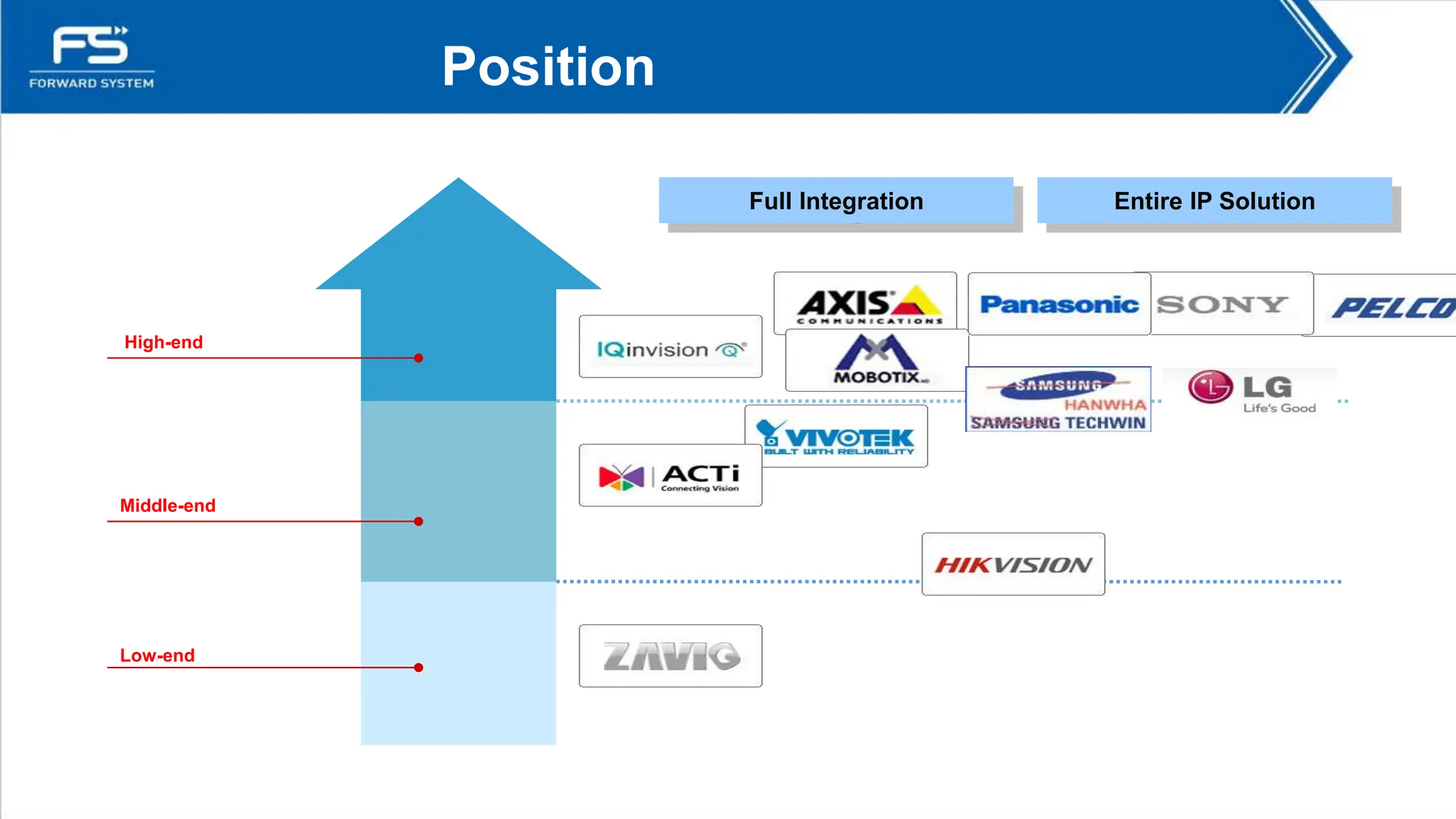

- 2. Entire IP Solution FullIntegration Middle-end High-end Low-end Position
- 3. Better for view Betterfor analyze Better for use Better for choose │ Easy IP 3.0 H.265+ The latest codec technology in video surveillance Better for save
- 4. │ Easy IP3.0 17.9 9.5 3.3 4.8 2.3 0.56 0 5 10 15 20 25 H.264 H.265 Hikvision H.265+ 24-hour File Size (GB) Daytime Night Up to 67 % gap!! Up to 83 % gap!! Better for save Better for view Better for analyze Better for use Better for choose

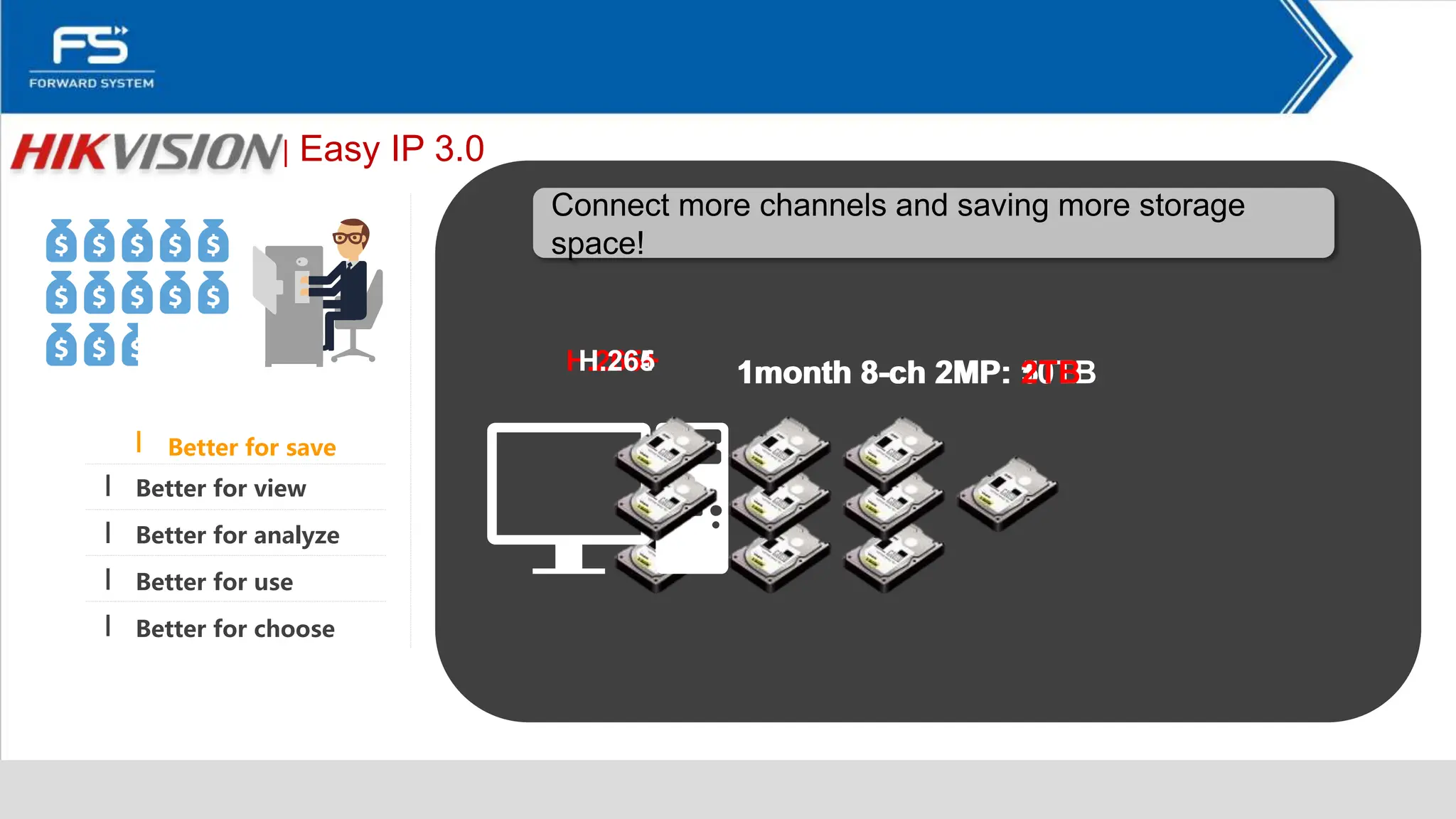

- 5. │ Easy IP3.0 Connect more channels and saving more storage space! Better for save Better for view Better for analyze Better for use Better for choose H.264 H.265+ H.265 1month 8-ch 2MP: 10TB 1month 8-ch 2MP: 5TB 1month 8-ch 2MP: 2TB

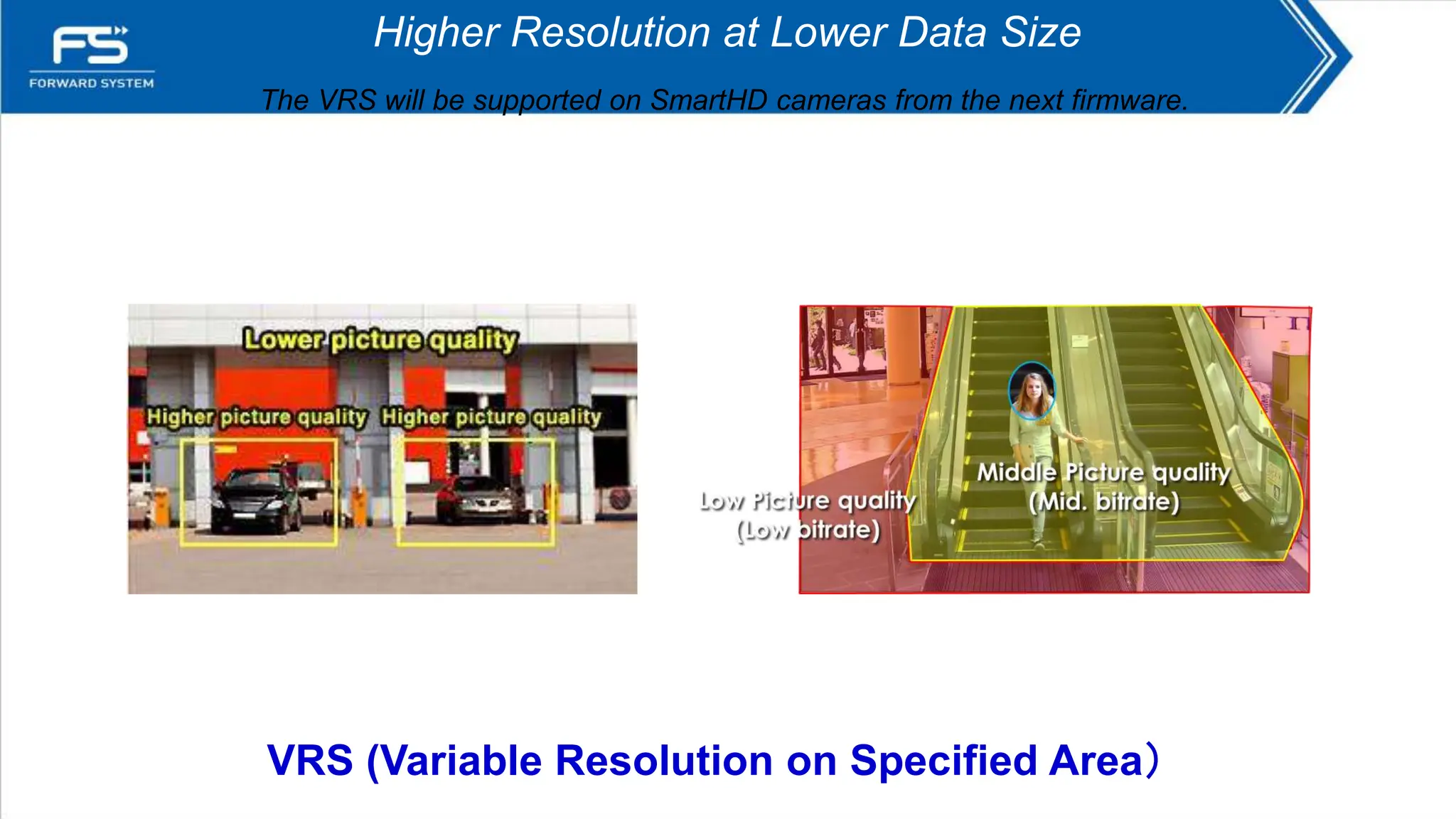

- 6. Higher Resolution atLower Data Size VRS (Variable Resolution on Specified Area） The VRS will be supported on SmartHD cameras from the next firmware.
- 7. Original VRS 25% Less Save onBandwidth and Recording Space The VRS will be supported on SmartHD cameras from the next firmware.

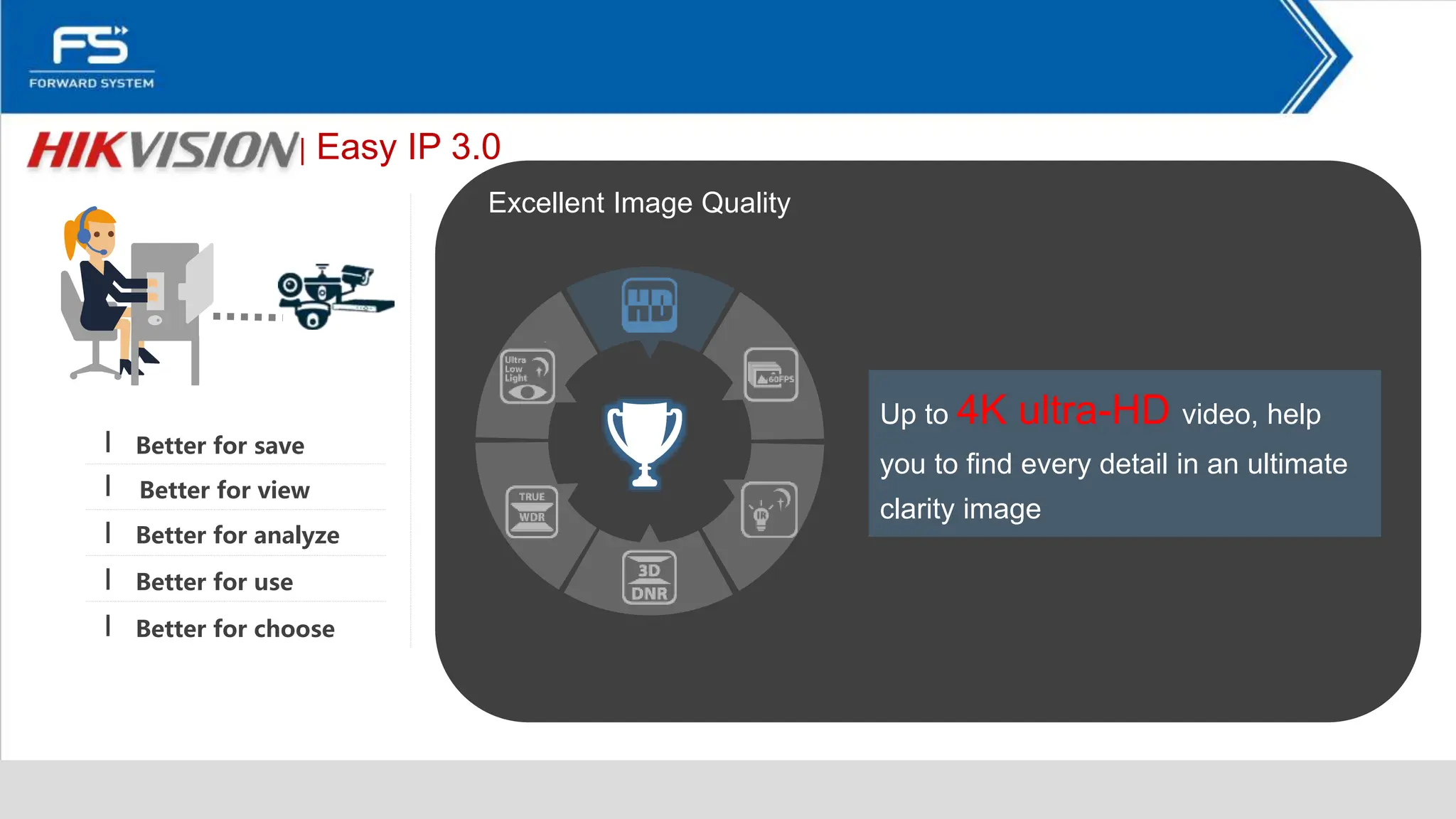

- 8. │ Easy IP3.0 Up to 4K ultra-HD video, help you to find every detail in an ultimate clarity image Excellent Image Quality Better for save Better for view Better for analyze Better for use Better for choose
- 9. │ Easy IP3.0 Excellent Image Quality 2MP 3MP 5MP 8MP Details in 2MP – 3MP – 5MP – 8MP Better for save Better for analyze Better for use Better for choose Better for view

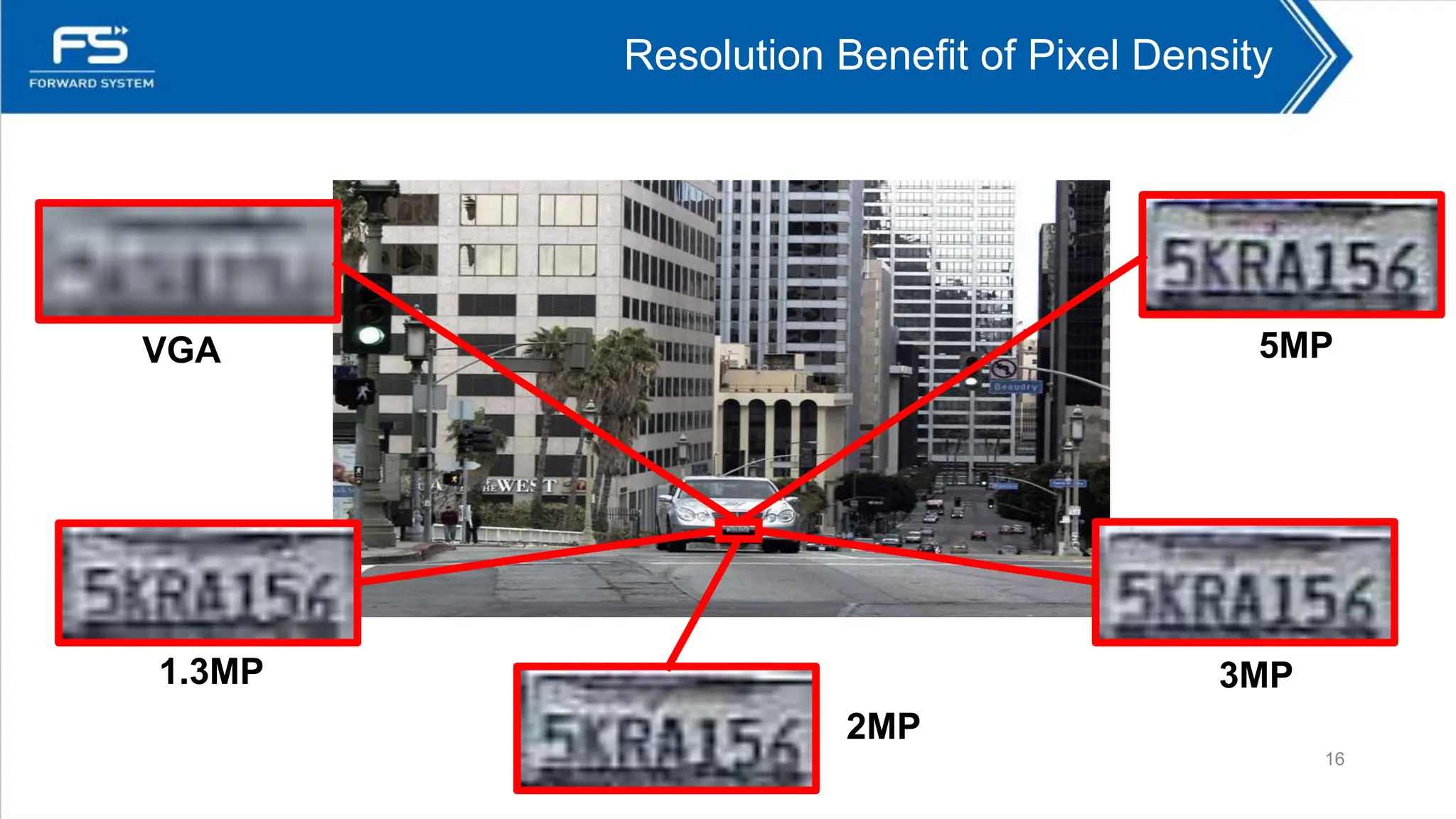

- 10. Resolution Benefit ofPixel Density VGA 5MP 3MP 2MP 1.3MP 16

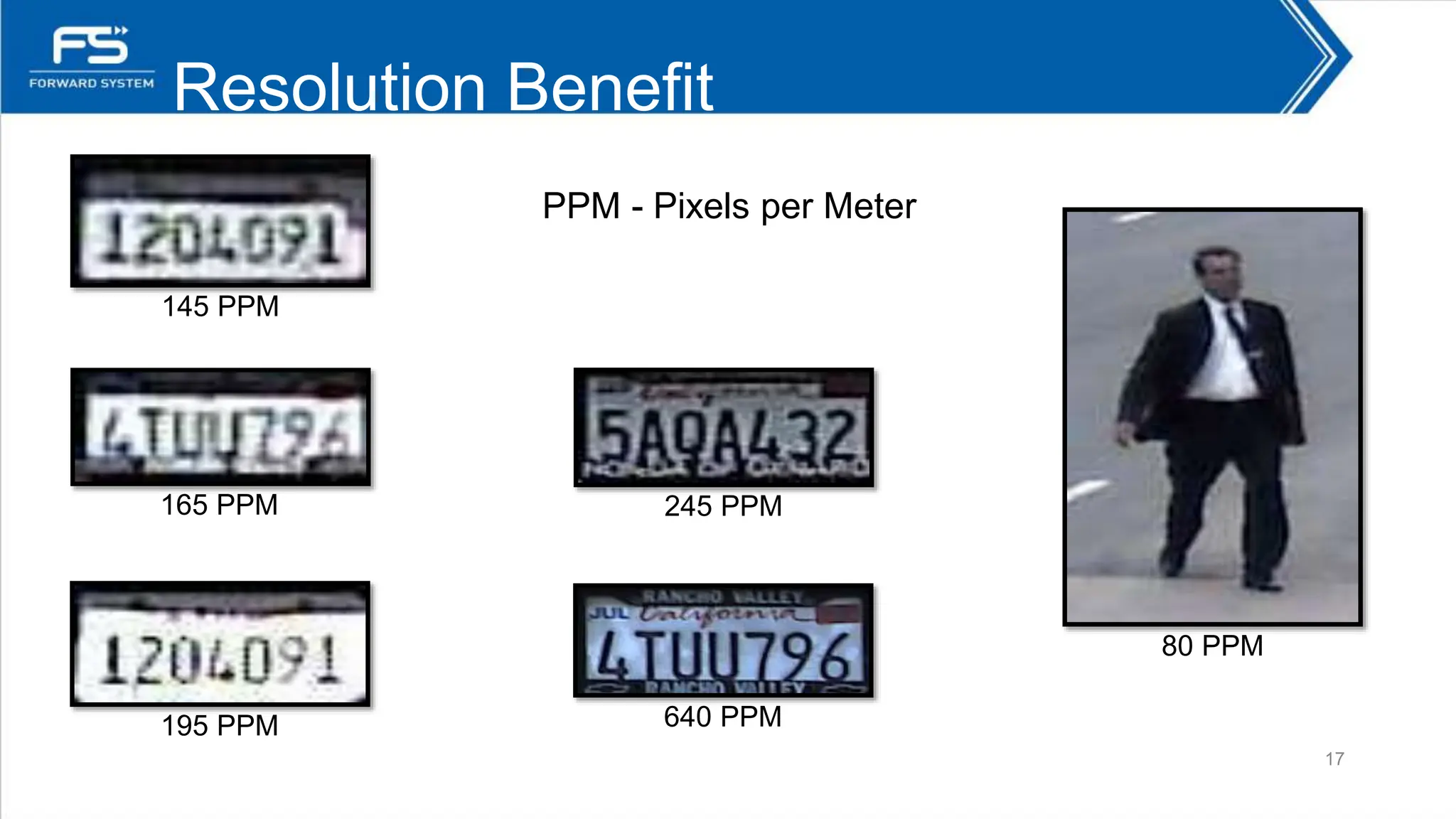

- 11. Resolution Benefit 17 145 PPM 165PPM 640 PPM 195 PPM 245 PPM 80 PPM PPM - Pixels per Meter

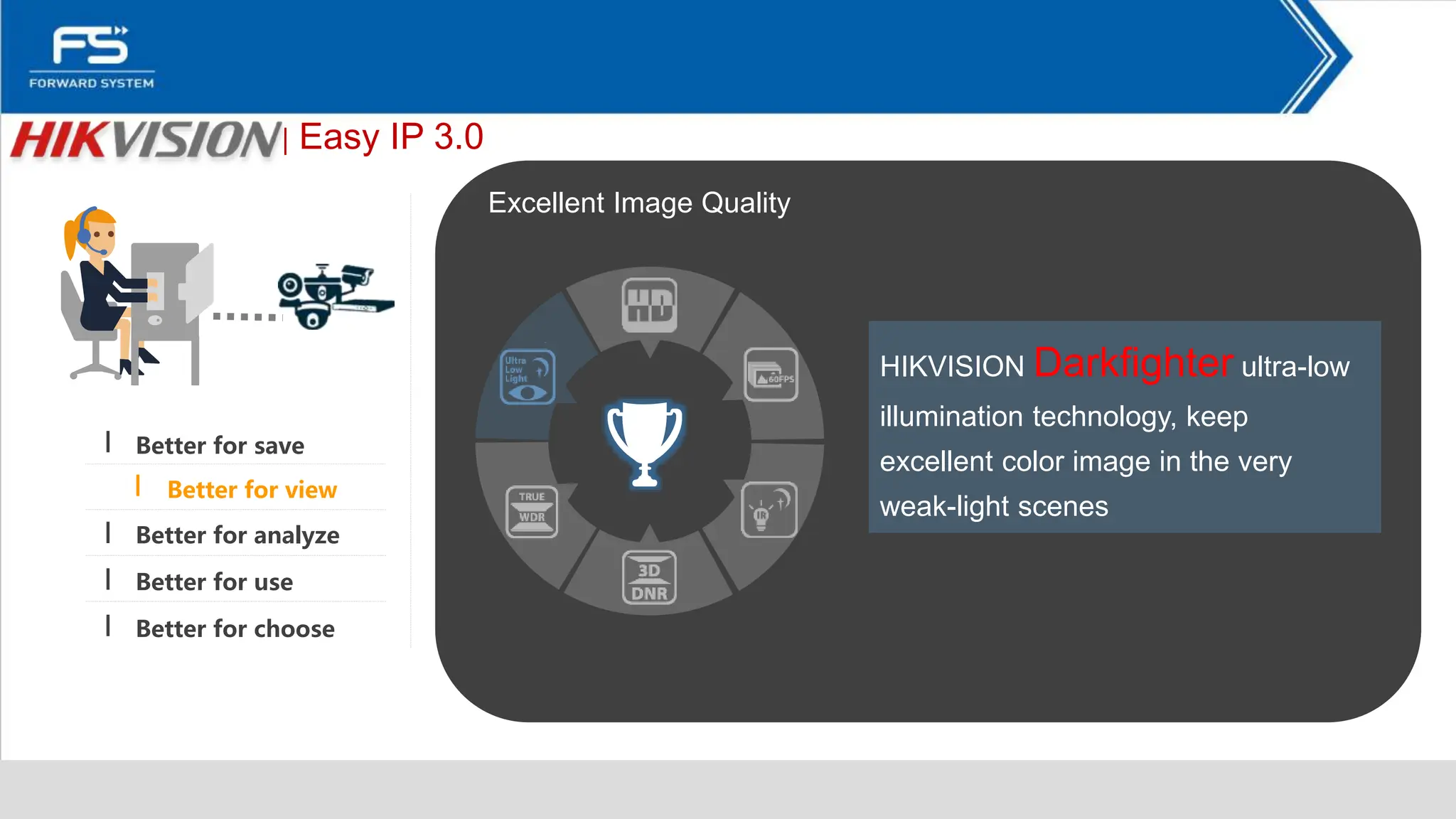

- 12. │ Easy IP3.0 HIKVISION Darkfighter ultra-low illumination technology, keep excellent color image in the very weak-light scenes Excellent Image Quality Better for save Better for analyze Better for use Better for choose Better for view

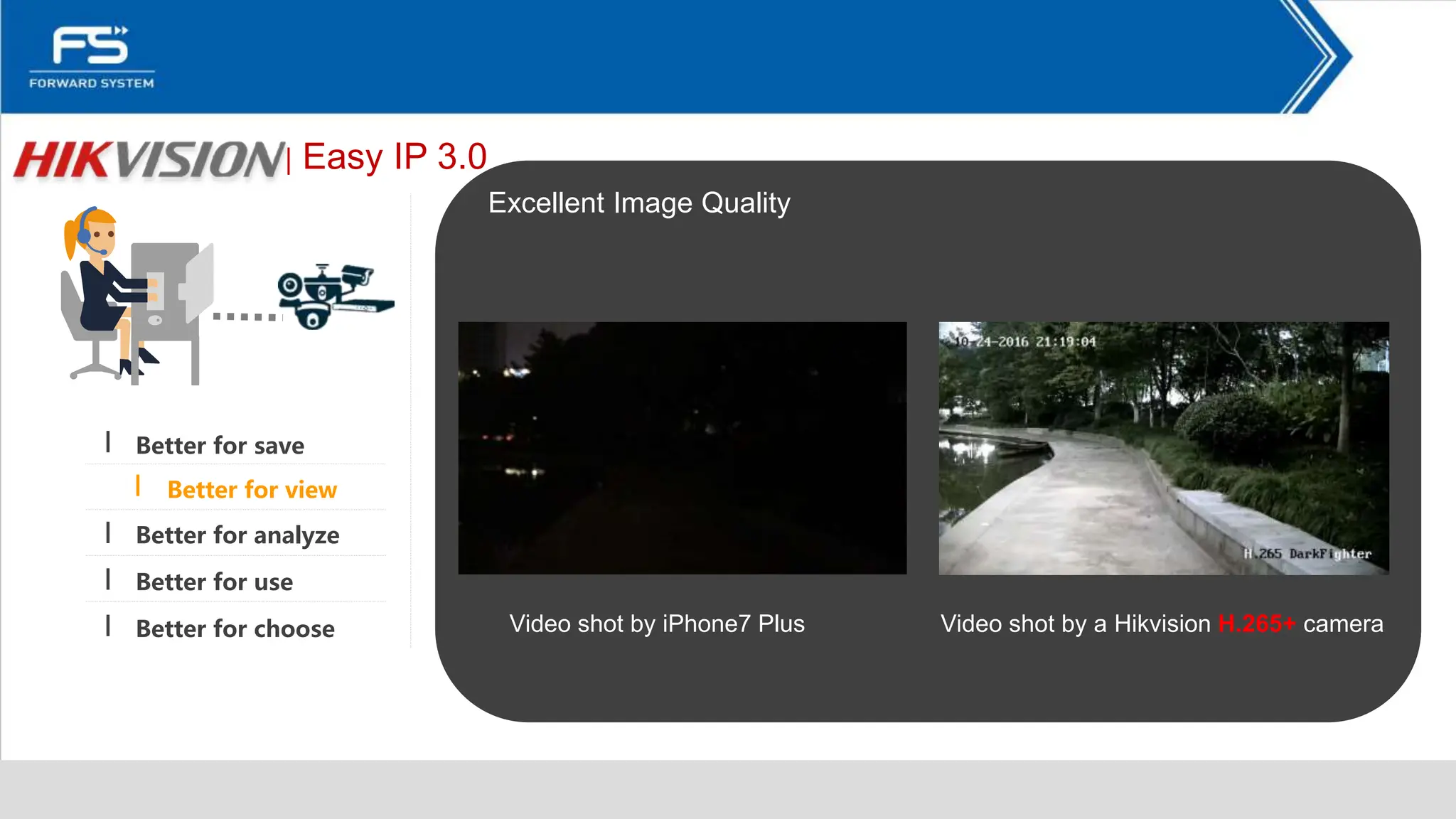

- 13. │ Easy IP3.0 Excellent Image Quality Video shot by iPhone7 Plus Video shot by a Hikvision H.265+ camera Better for save Better for analyze Better for use Better for choose Better for view

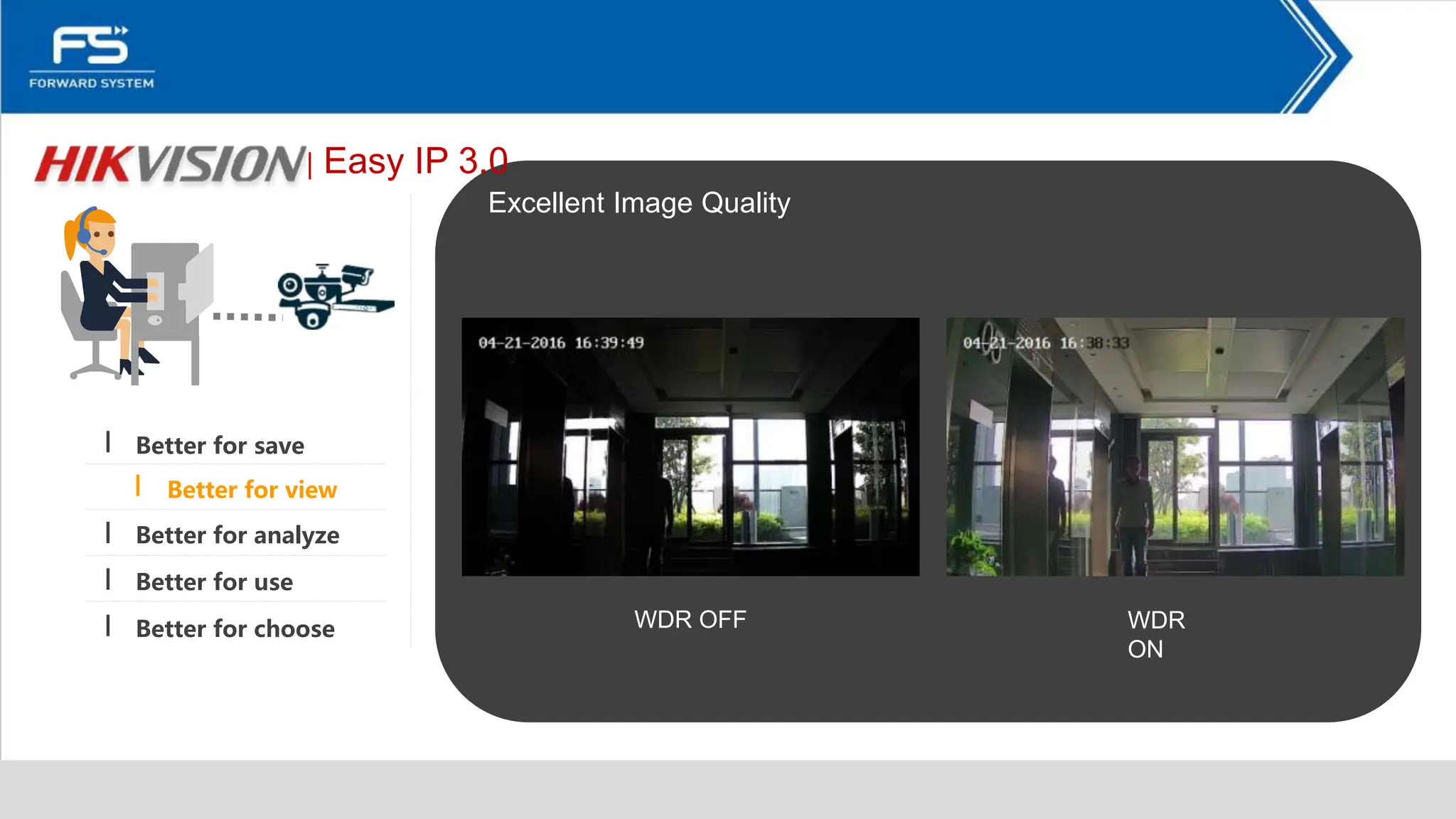

- 14. │ Easy IP3.0 Excellent Image Quality WDR OFF WDR ON Better for save Better for analyze Better for use Better for choose Better for view
- 15. │ Easy IP3.0 Full series EXIR 2.0 with Smart IR technology , get better visibility image in completely dark environment Excellent Image Quality Better for save Better for analyze Better for use Better for choose Better for view

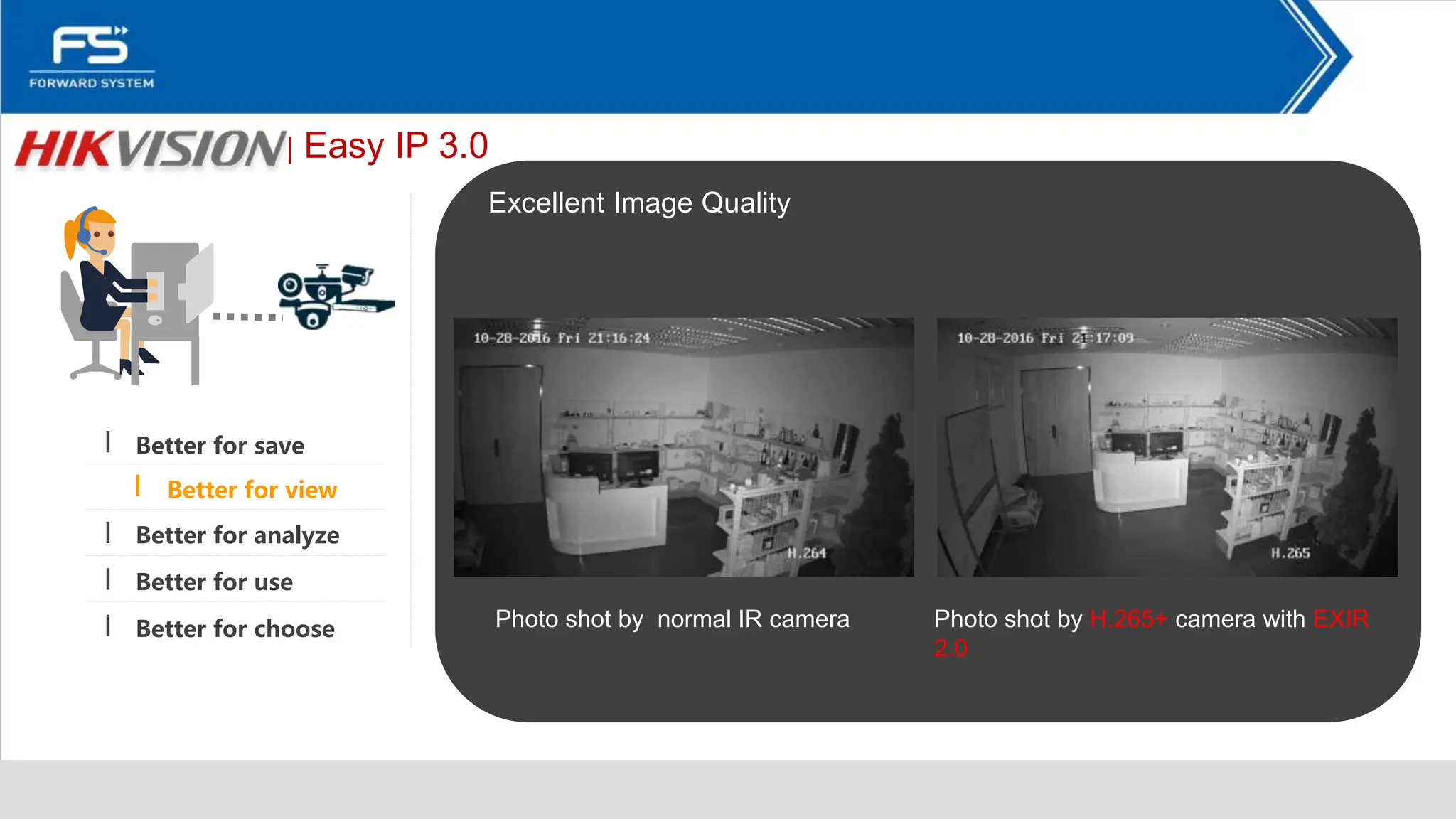

- 16. │ Easy IP3.0 Excellent Image Quality Photo shot by normal IR camera Photo shot by H.265+ camera with EXIR 2.0 Better for save Better for analyze Better for use Better for choose Better for view
- 17. │ Easy IP3.0 Up to 60fps@2MP, increase video smoothness, avoid any detail loss *Based on DS-2CD2X25FHWD models Excellent Image Quality Better for save Better for analyze Better for use Better for choose Better for view
- 18. High Frame Rate:Traffic Monitoring Application 60 frame per sec 30 frame per sec frame 1 frame 3 missing frame at 30fps catch the missing frame frame 1 frame 2 60fps frame 2

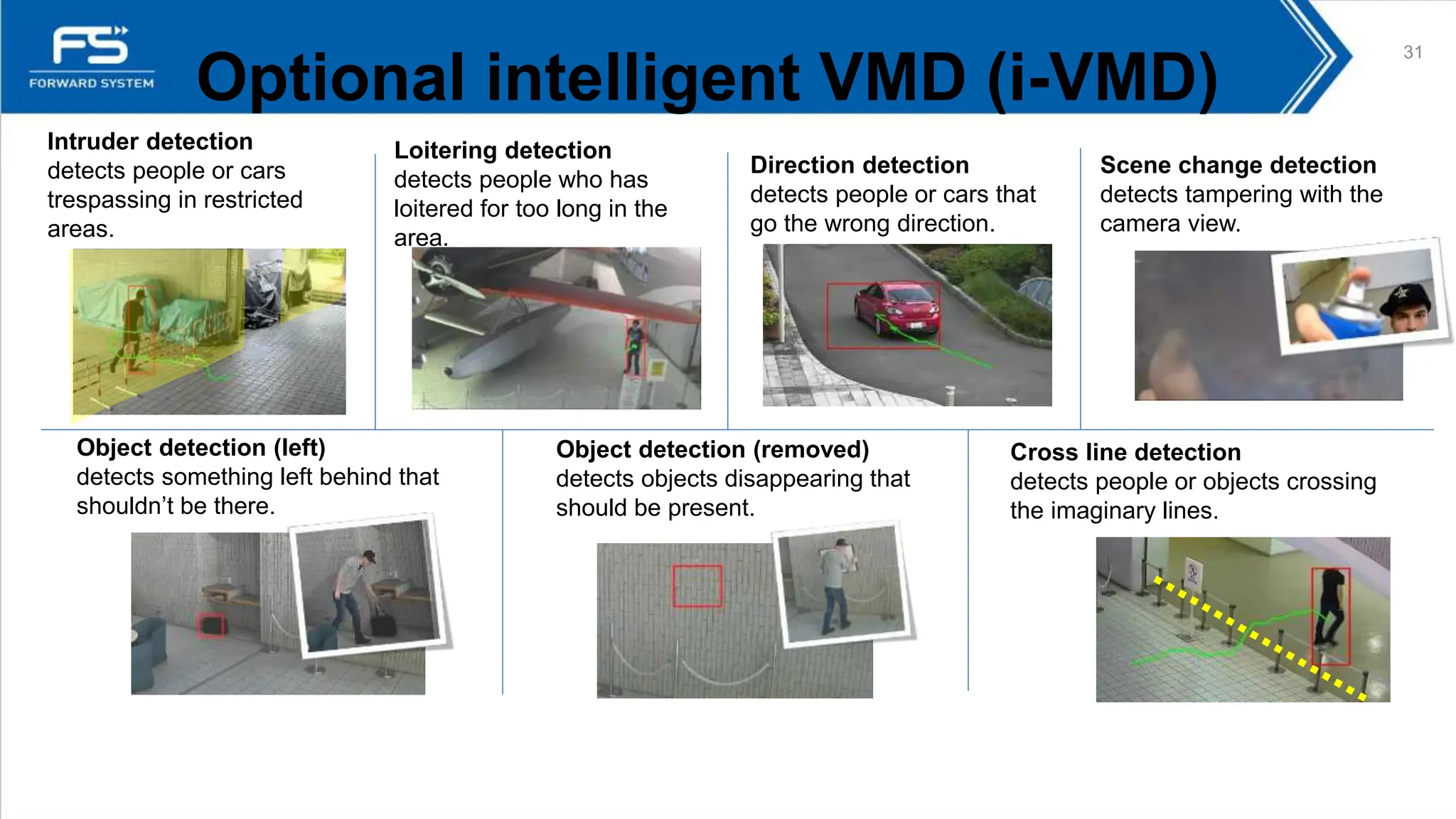

- 20. Optional intelligent VMD(i-VMD) 31 Intruder detection detects people or cars trespassing in restricted areas. Loitering detection detects people who has loitered for too long in the area. Direction detection detects people or cars that go the wrong direction. Scene change detection detects tampering with the camera view. Object detection (removed) detects objects disappearing that should be present. Cross line detection detects people or objects crossing the imaginary lines. Object detection (left) detects something left behind that shouldn’t be there.

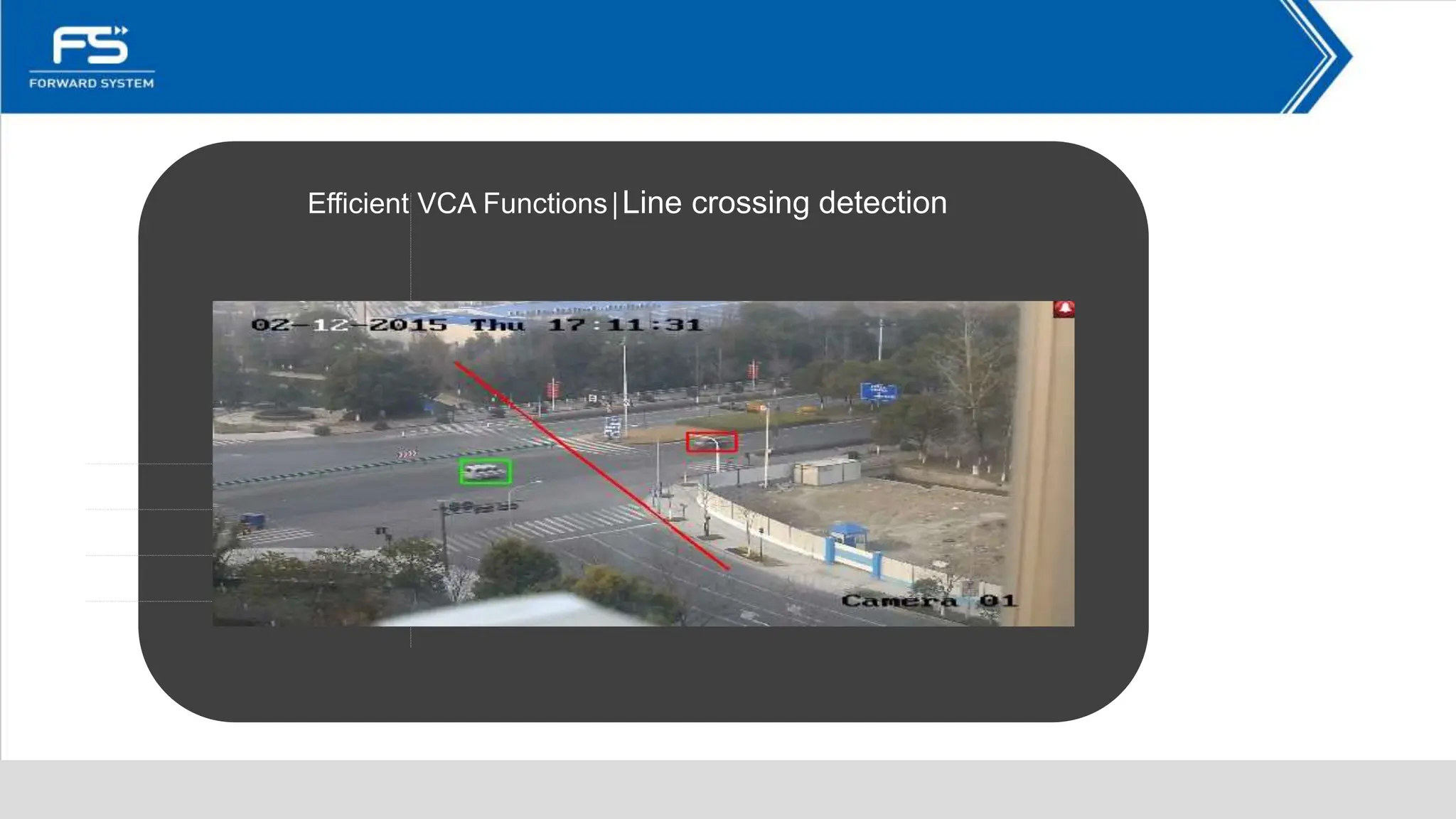

- 21. Efficient VCA Functions│Linecrossing detection
- 22. Efficient VCA Functions│Intrusiondetection

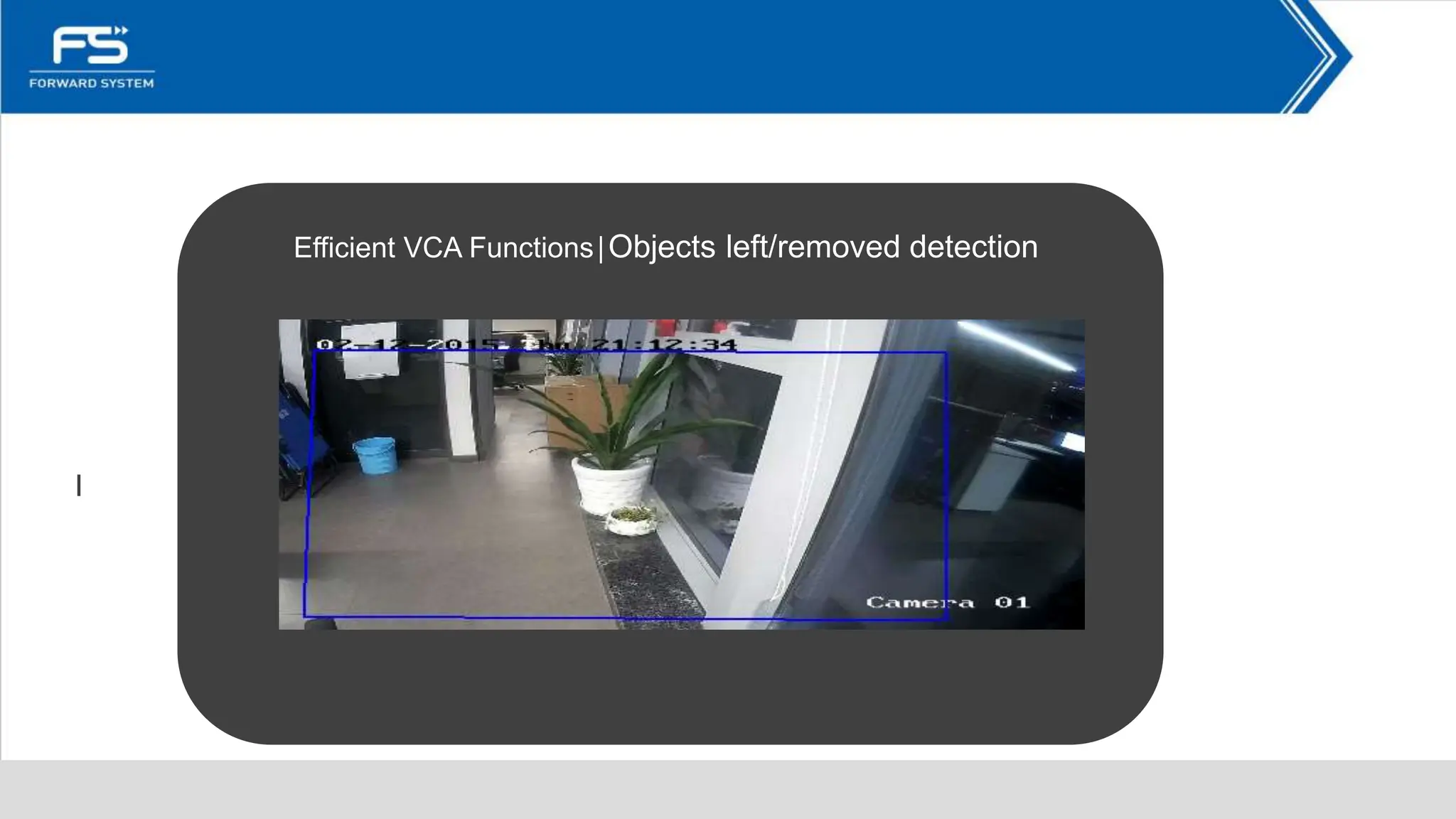

- 23. Efficient VCA Functions│Objectsleft/removed detection

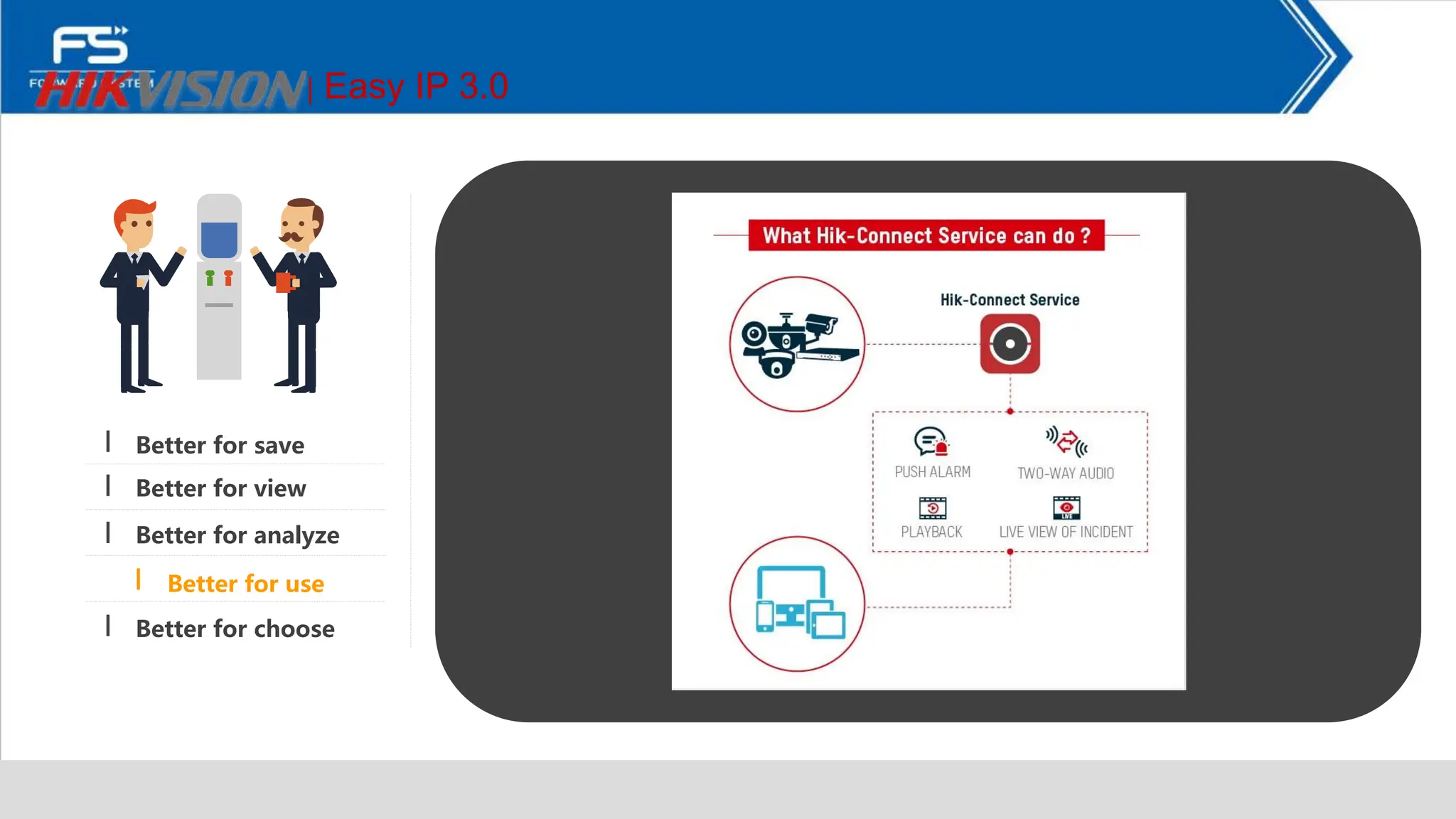

- 24. │ Easy IP3.0 Better for save Better for view Better for analyze Better for use Better for choose

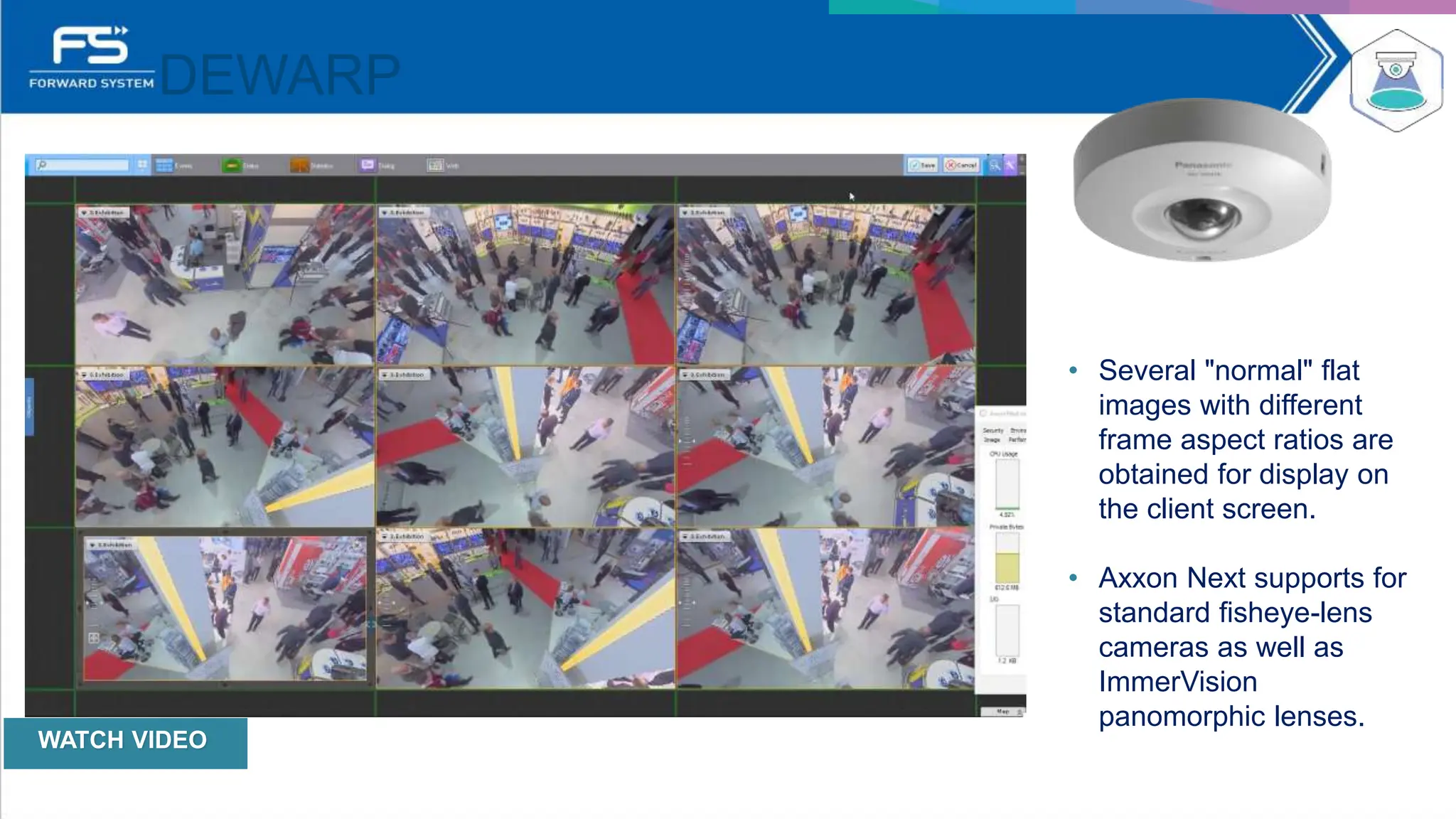

- 25. DEWARP • Several "normal"flat images with different frame aspect ratios are obtained for display on the client screen. • Axxon Next supports for standard fisheye-lens cameras as well as ImmerVision panomorphic lenses. WATCH VIDEO
- 26. Next-Generation Network Microphone Pinpoint Audio Monitoring Clear sound monitoring in noisy environment 360-degree, 6-meter Wide Coverage Easy Operation Flexible and Quick installation Network Microphones 39 Network Microphone WV-SMR10 Network Microphone Kit WV-SMR10N3 Note: The WV-SMR10N3 is not available in U.S.
- 27. Trial Sample Omni-directional Stop Trythe demonstration sample (Not actual software) a.Start slide show mode. b.Hear sounds from all directions: Click the Omni-directional button. c.Hear a voice of each person: Click each red circle. d.Finish the playback: Click the Stop button.

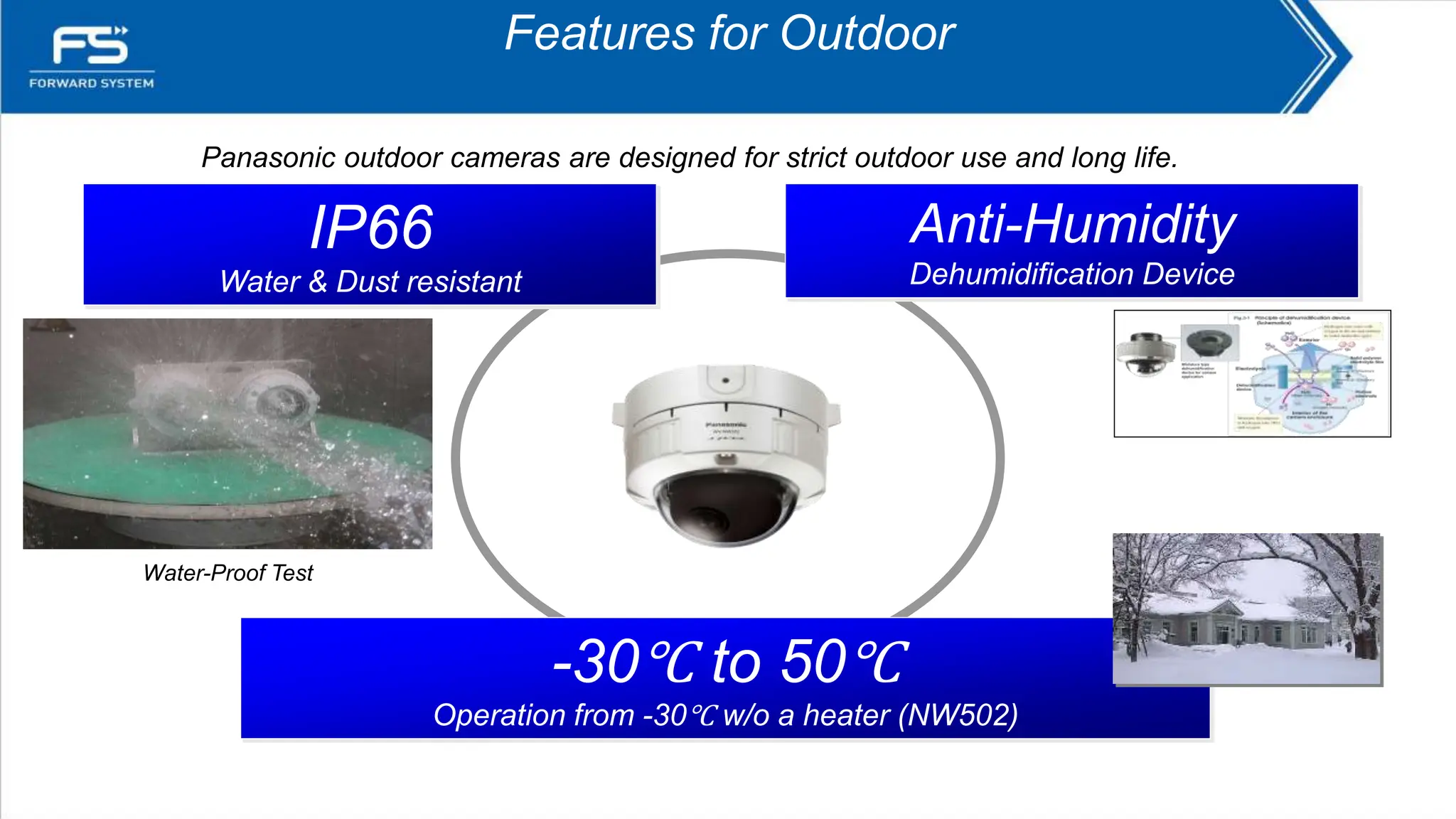

- 28. Features for Outdoor IP66 Water& Dust resistant -30℃ to 50℃ Operation from -30℃ w/o a heater (NW502) Anti-Humidity Dehumidification Device Panasonic outdoor cameras are designed for strict outdoor use and long life. Water-Proof Test

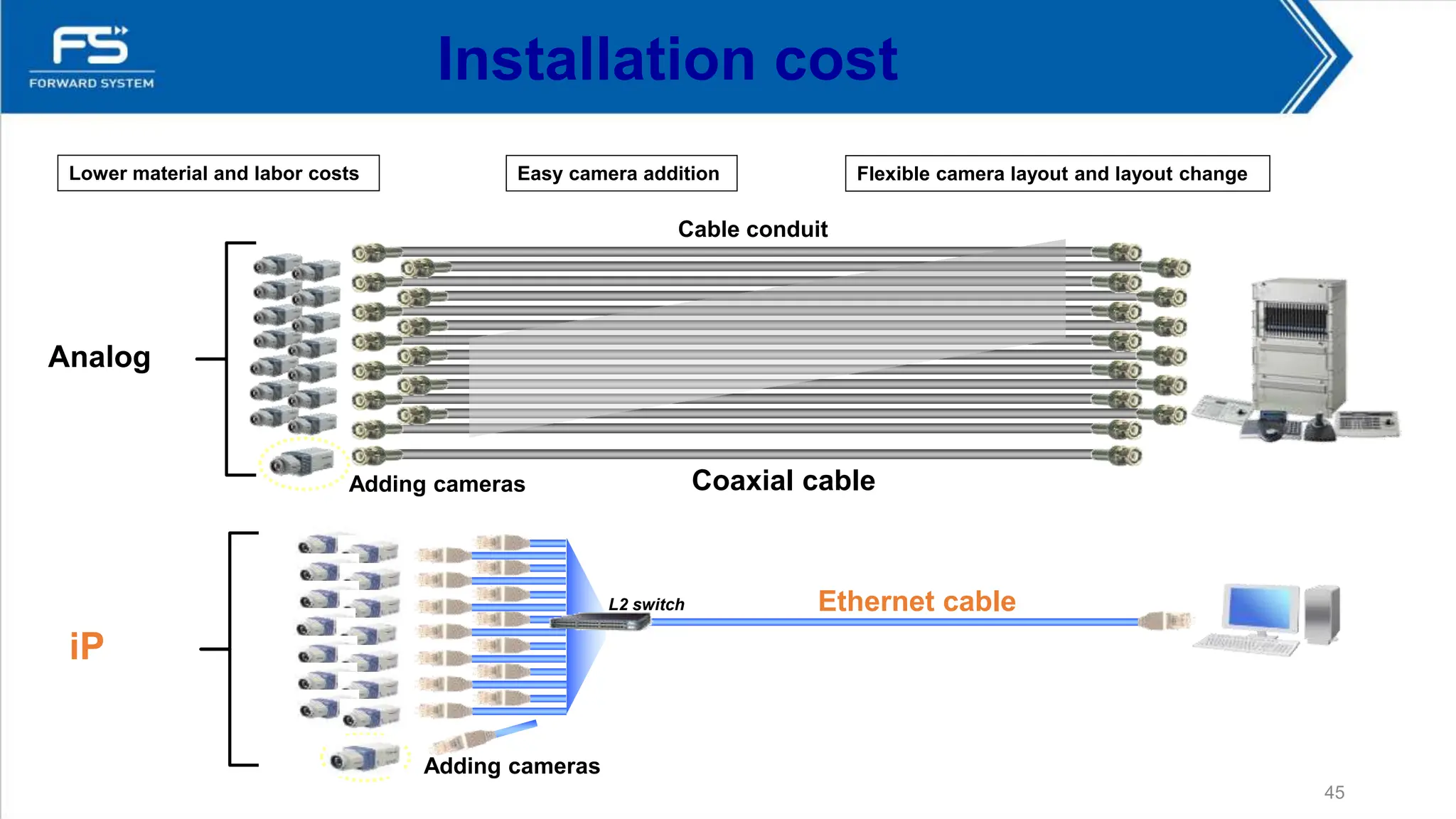

- 29. 45 Adding cameras Cable conduit Ethernetcable L2 switch Coaxial cable Adding cameras iP Analog Lower material and labor costs Easy camera addition Flexible camera layout and layout change Installation cost

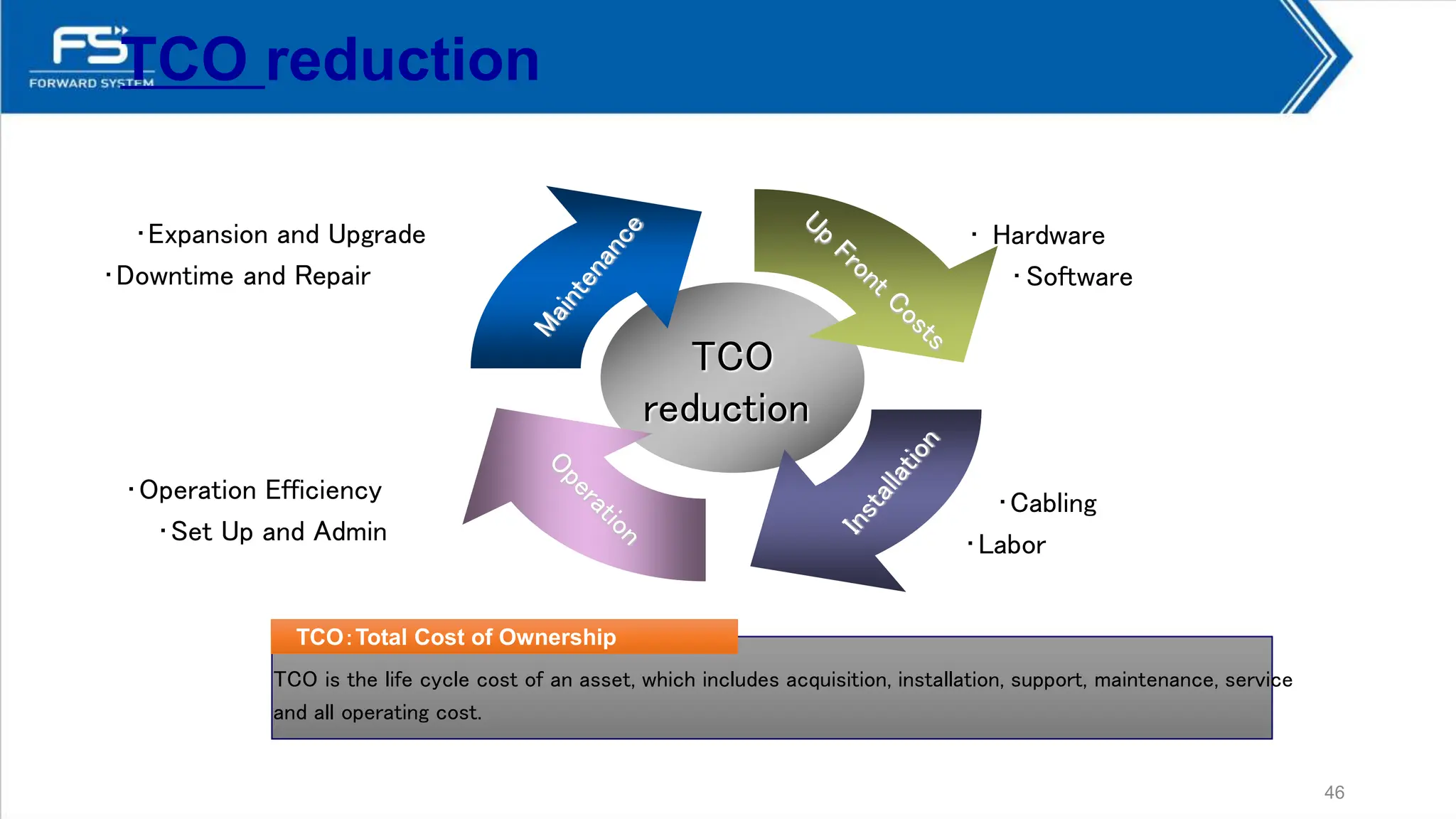

- 30. 46 TCO reduction TCO reduction • Hardware •Software • Cabling • Labor • Operation Efficiency • Set Up and Admin • Expansion and Upgrade • Downtime and Repair TCO：Total Cost of Ownership TCO is the life cycle cost of an asset, which includes acquisition, installation, support, maintenance, service and all operating cost.

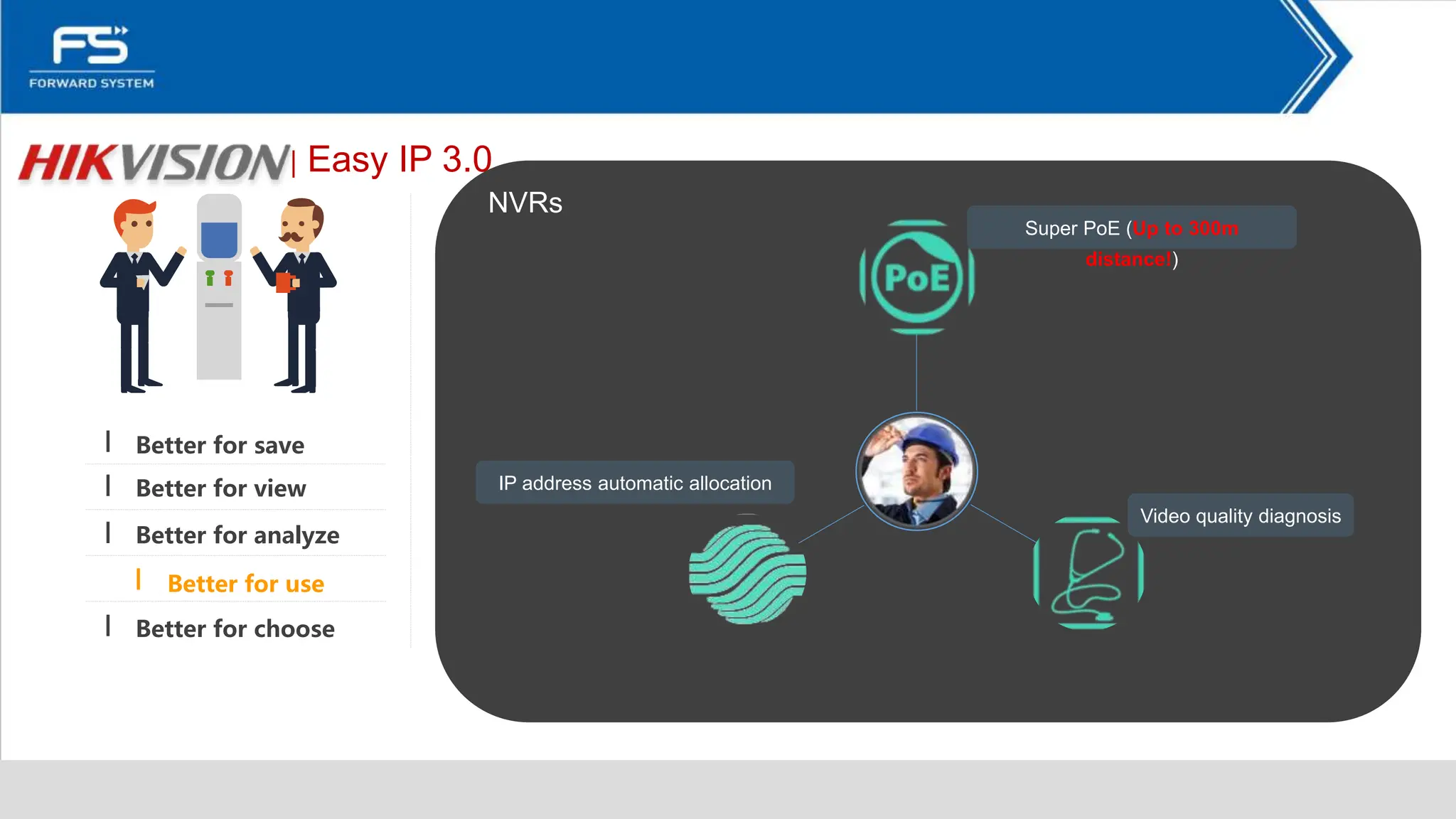

- 31. Better for save Betterfor view Better for analyze Better for use Better for choose │ Easy IP 3.0 NVRs Super PoE (Up to 300m distance!) IP address automatic allocation Video quality diagnosis

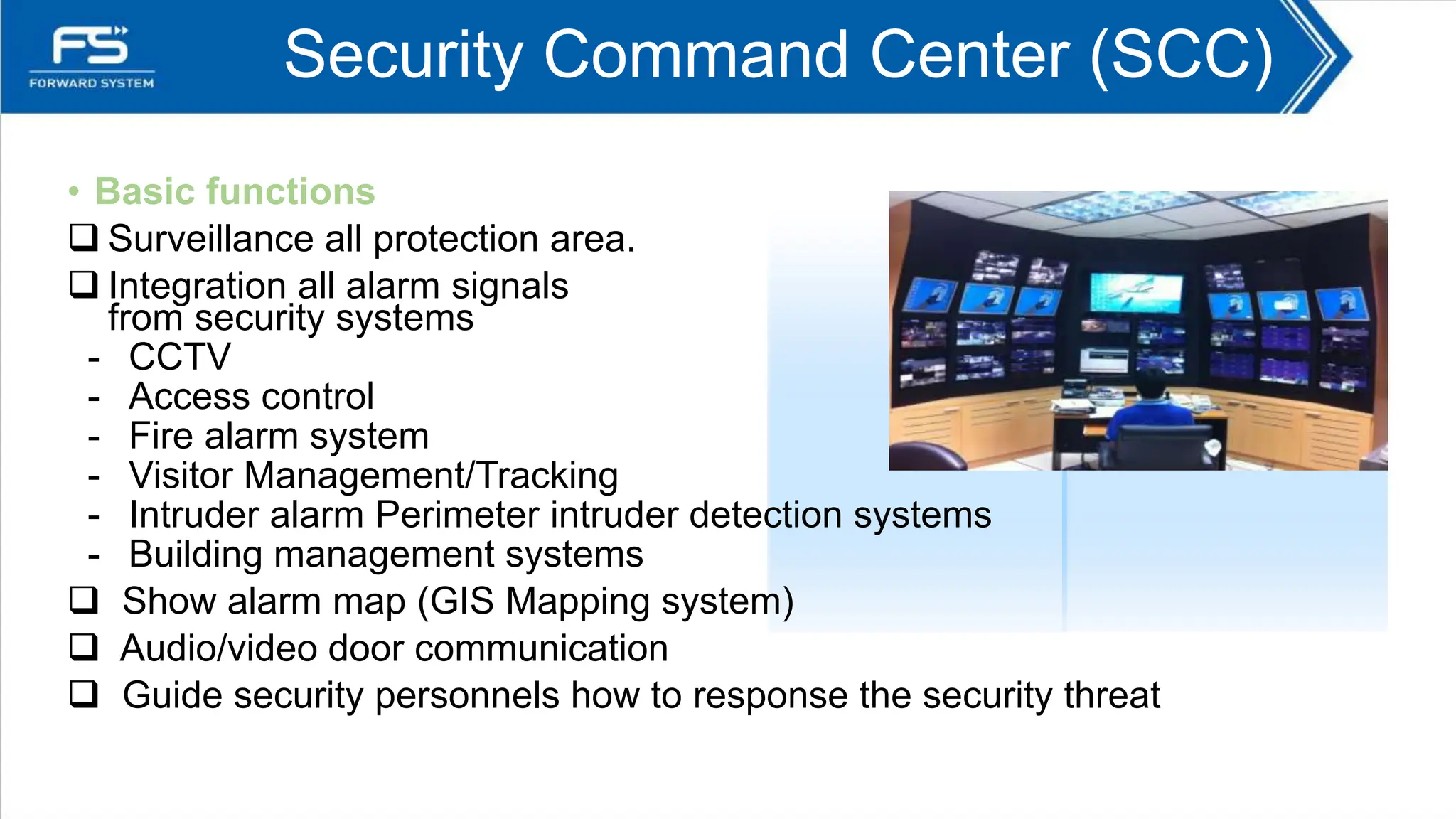

- 32. Security Command Center(SCC) • Basic functions Surveillance all protection area. Integration all alarm signals from security systems - CCTV - Access control - Fire alarm system - Visitor Management/Tracking - Intruder alarm Perimeter intruder detection systems - Building management systems Show alarm map (GIS Mapping system) Audio/video door communication Guide security personnels how to response the security threat

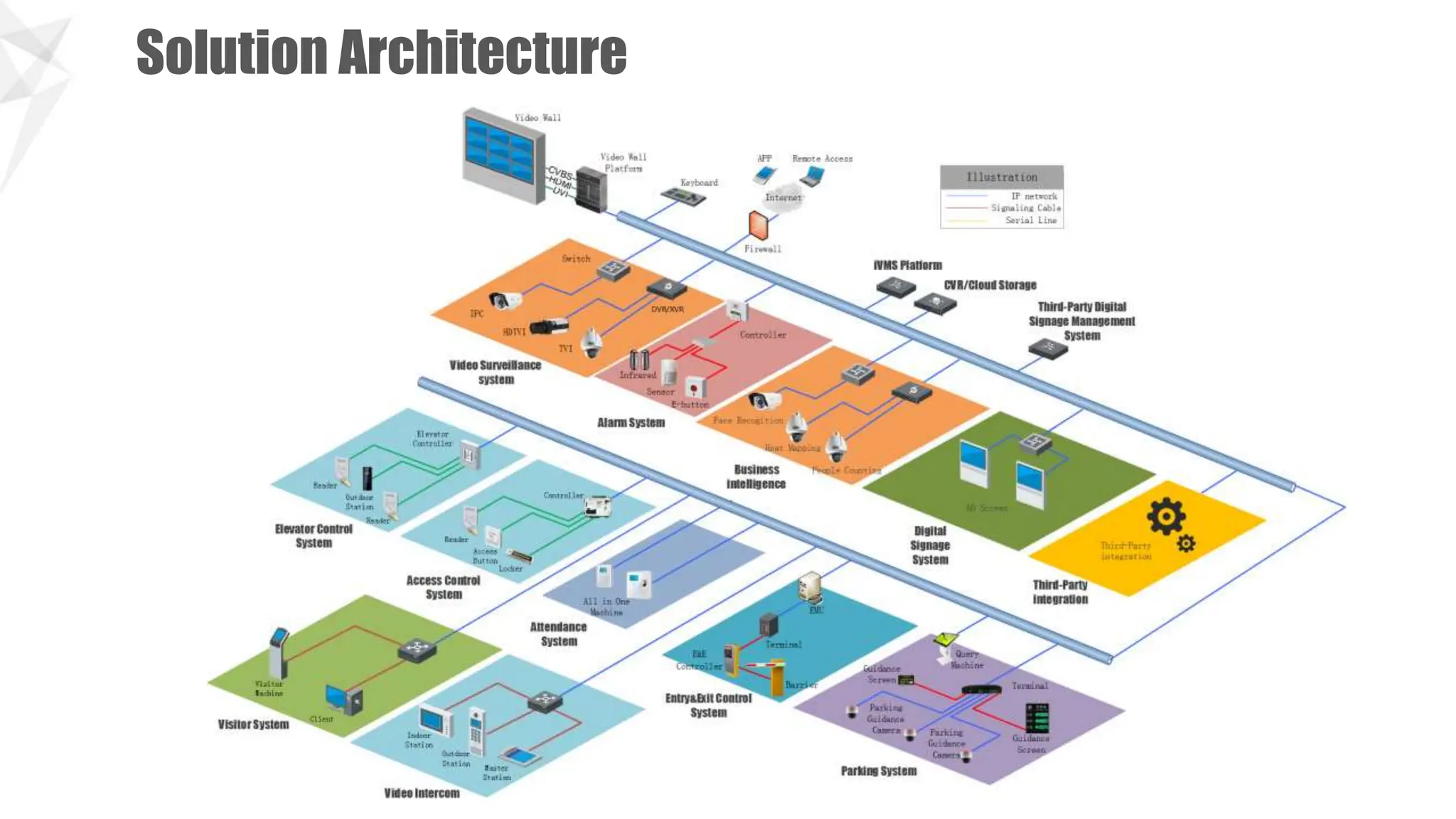

- 33.
- 34. ANPR Camera TPE BluetoothCard Reader Barrier Gate Pole Coil trigger LED screen Traffic Management Entrance & Exit Note: IC Card Issuer、Bluetooth Card Issuer will be issued to regular vehicles by administrators at center operation room. The Scene of Shopping Mall Entrance & Exit Passed Car Info & video record Vehicle E&E management based on ANPR Whitelist and Blacklist Parking Charge Management

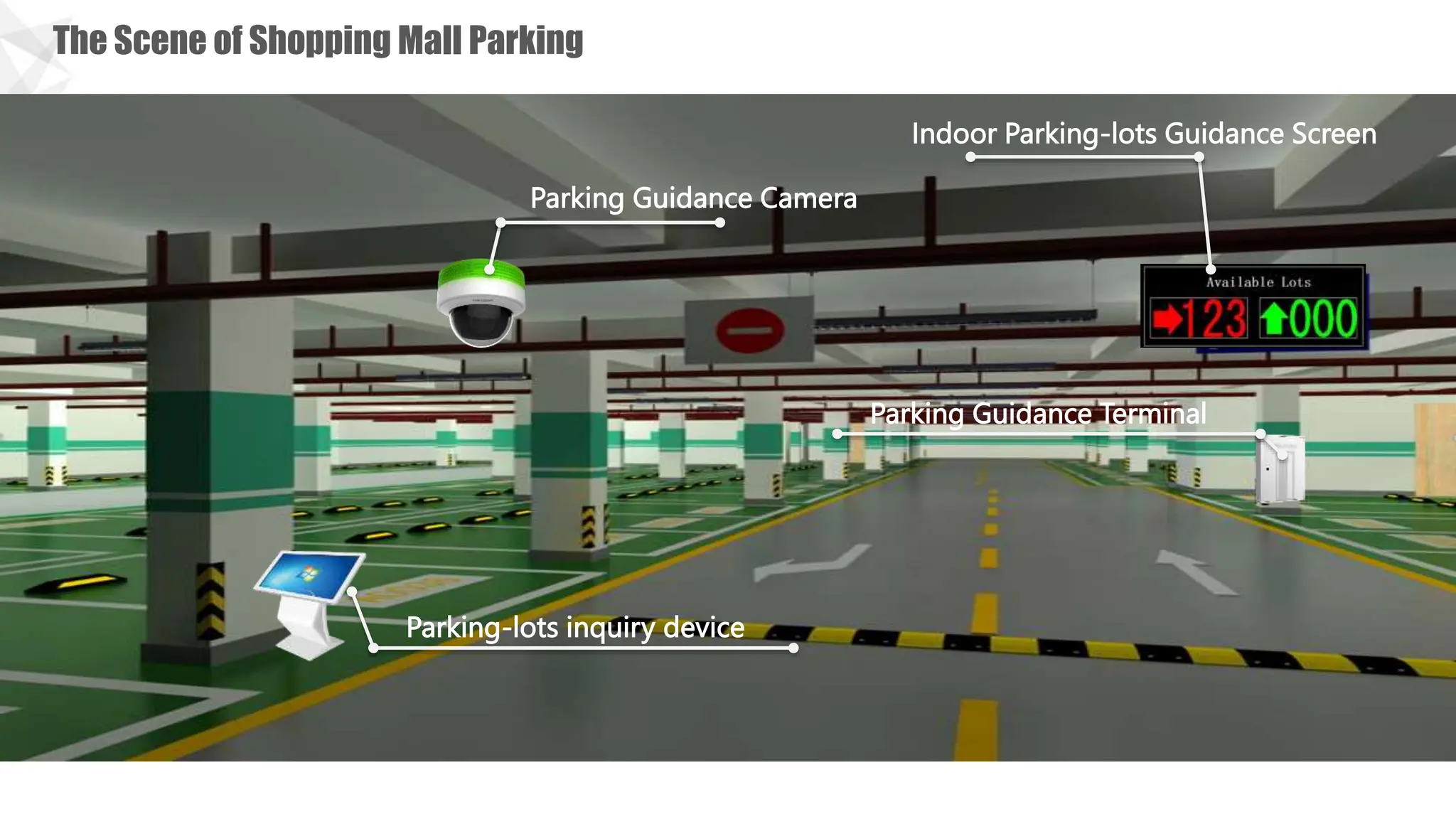

- 35. Parking-lots inquiry device IndoorParking-lots Guidance Screen Parking Guidance Camera Parking Guidance Terminal The Scene of Shopping Mall Parking

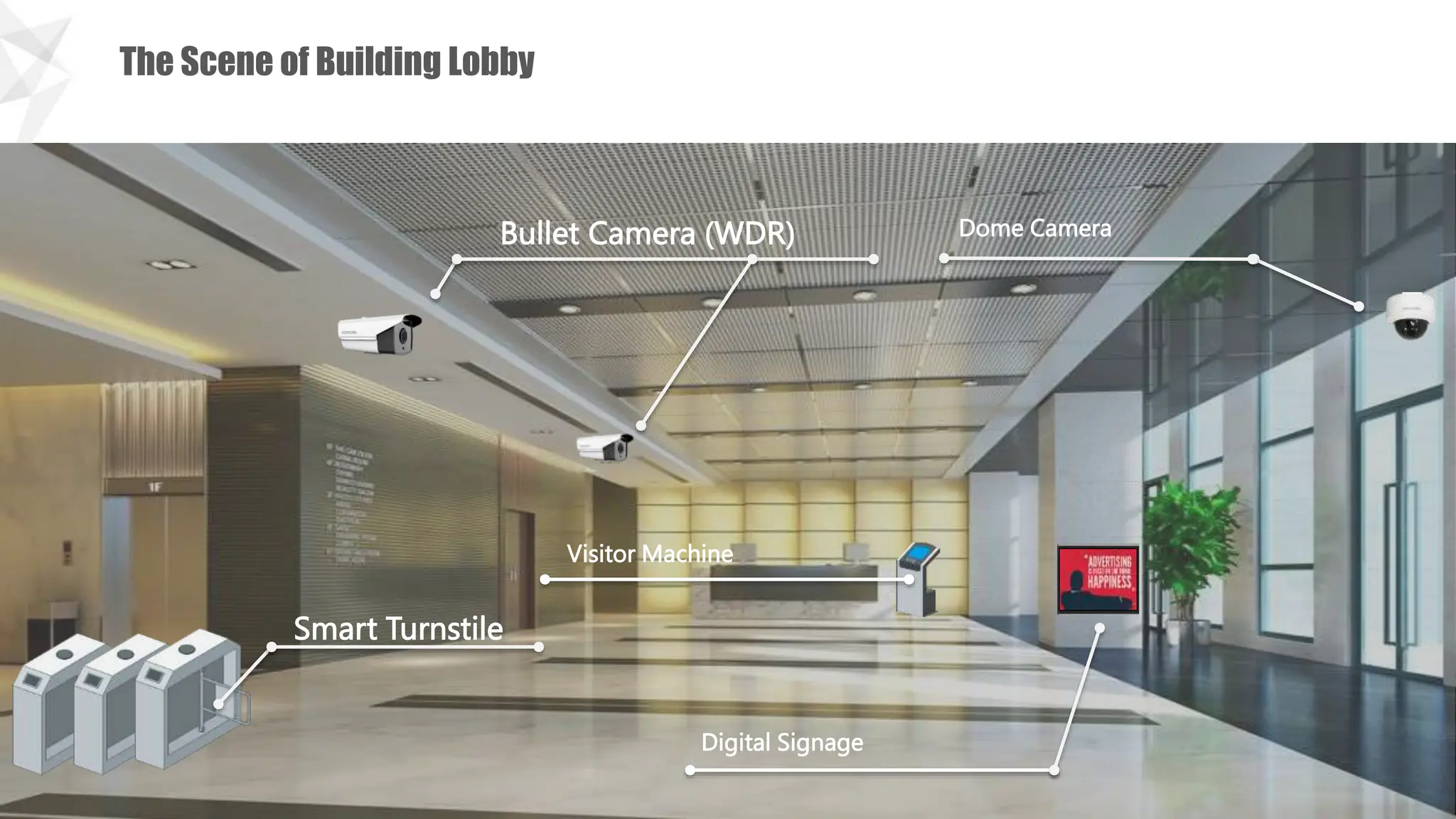

- 36. The Scene ofBuilding Lobby Smart Turnstile Dome Camera Bullet Camera (WDR) Visitor Machine Digital Signage

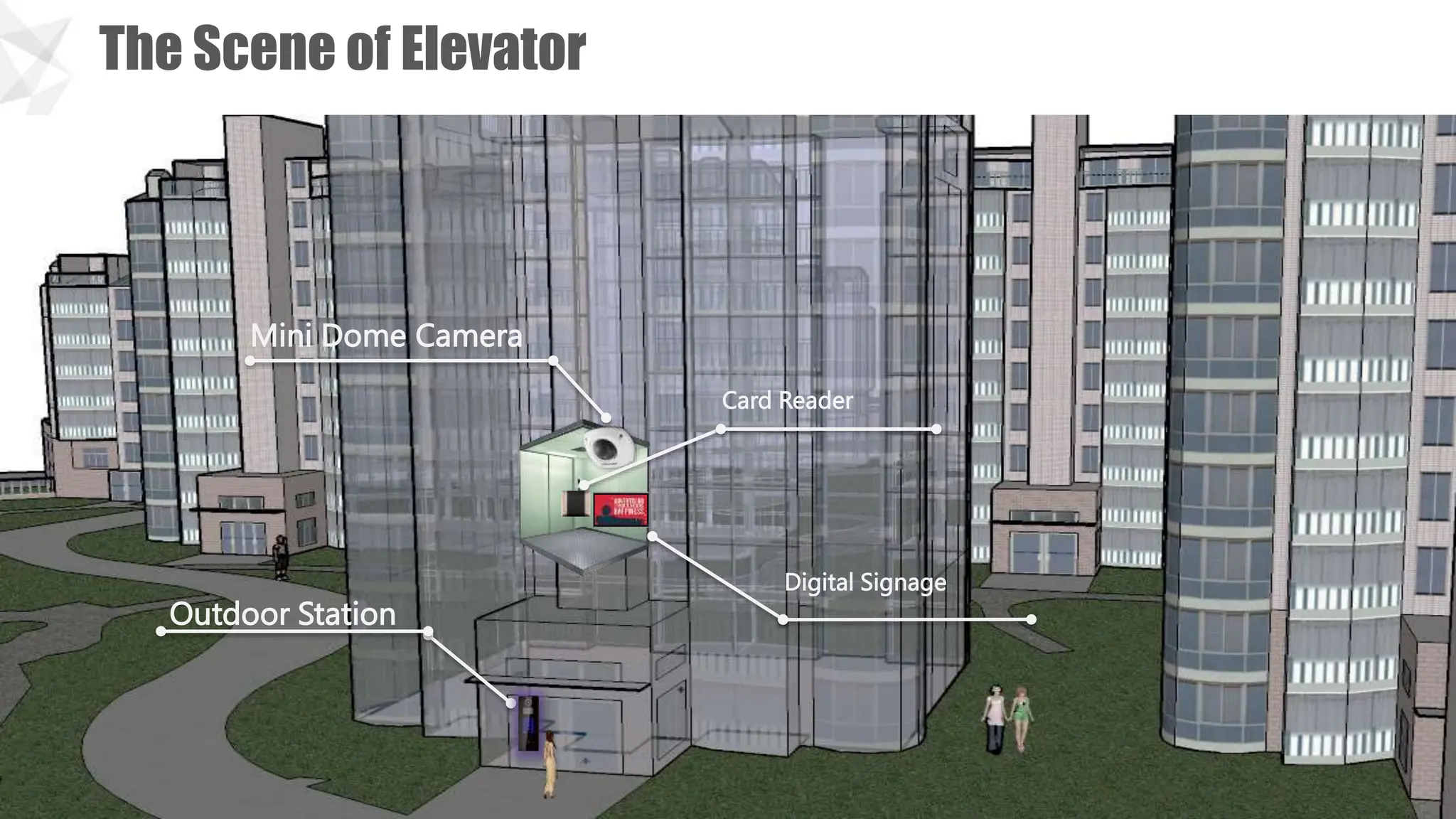

- 37. The Scene ofElevator Outdoor Station Card Reader Mini Dome Camera Digital Signage

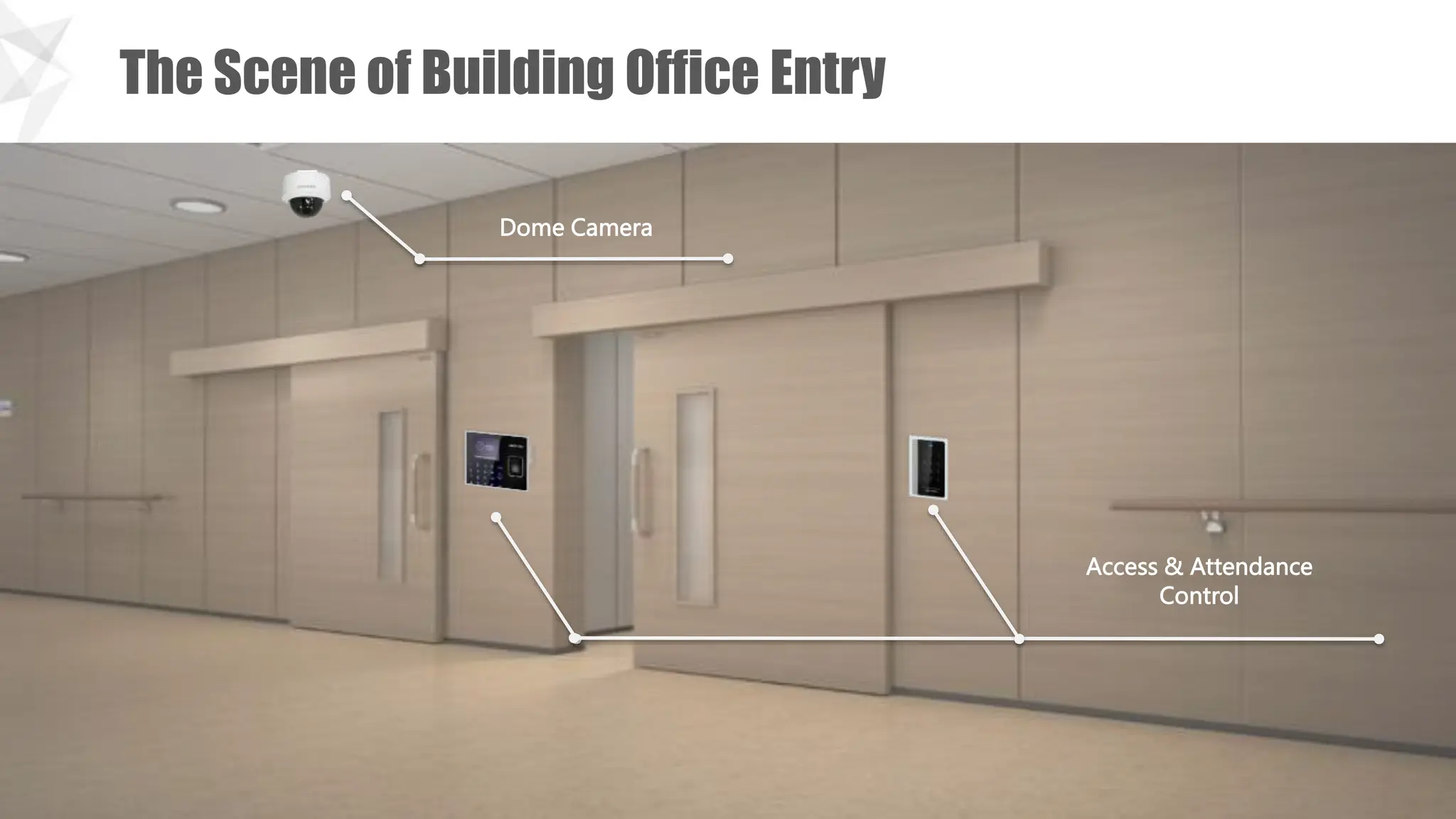

- 38. The Scene ofBuilding Office Entry Dome Camera Access & Attendance Control

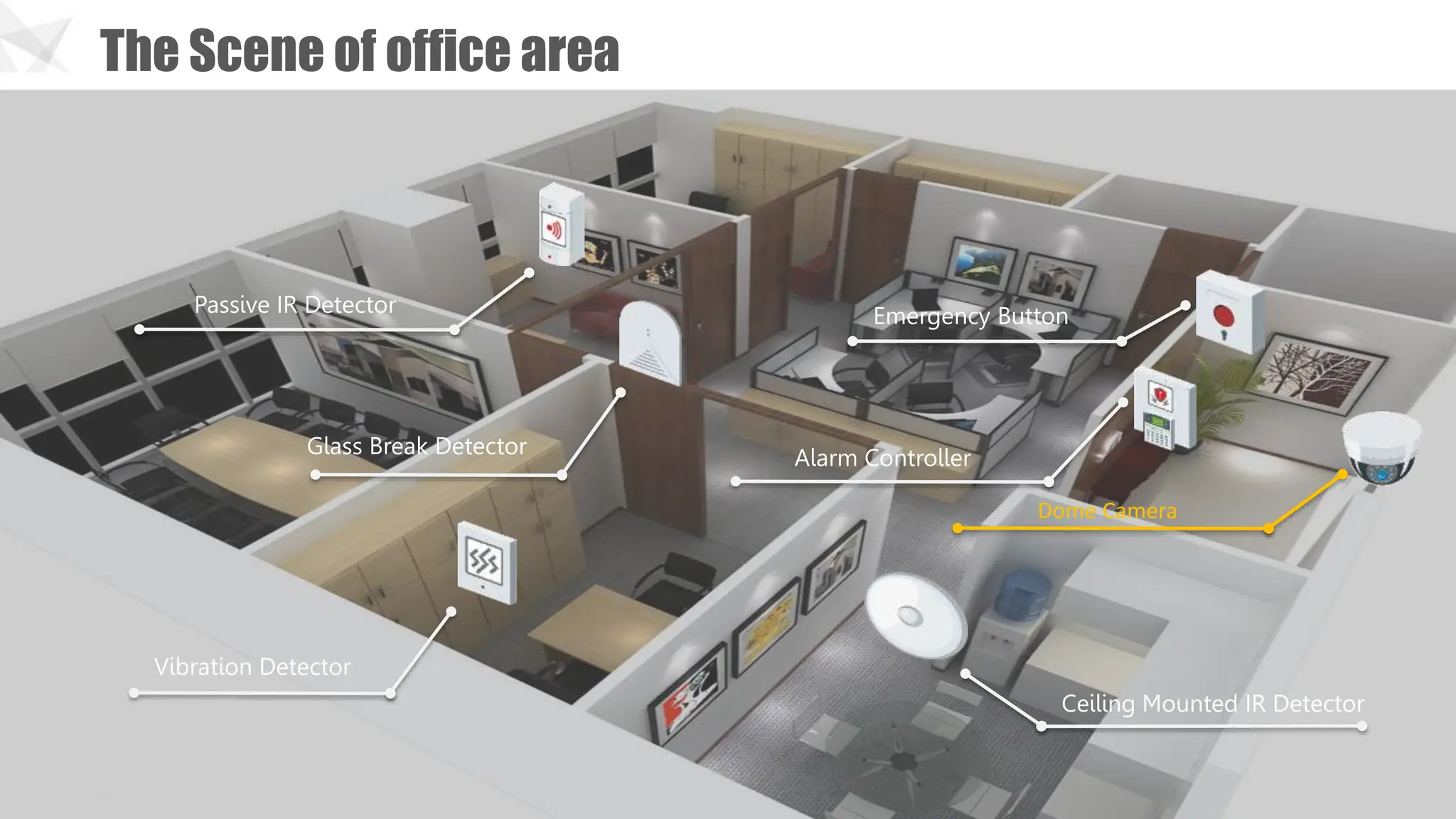

- 39. The Scene ofoffice area Passive IR Detector Glass Break Detector Vibration Detector Emergency Button Alarm Controller Ceiling Mounted IR Detector Dome Camera

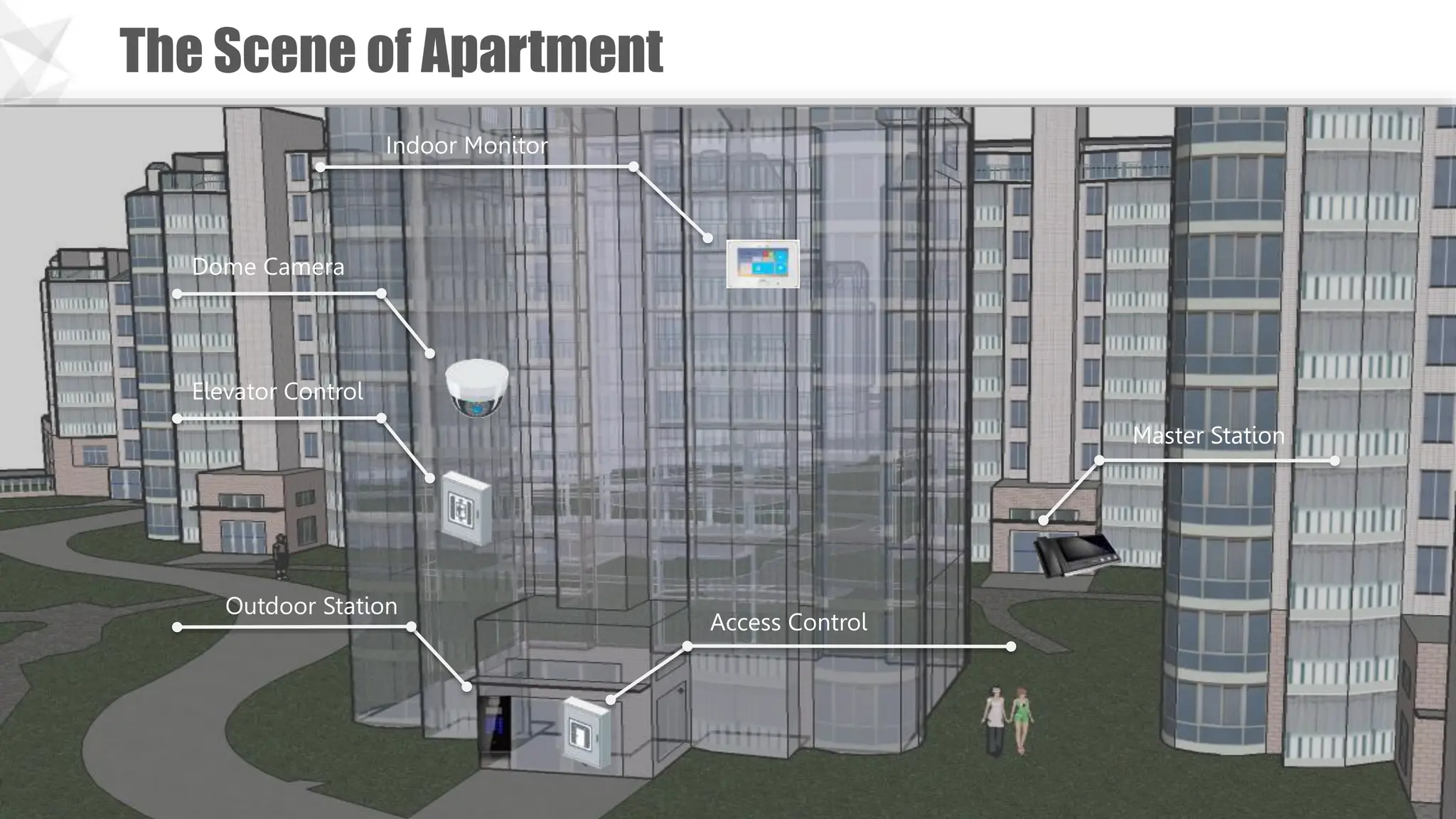

- 40. The Scene ofApartment Access Control Indoor Monitor Outdoor Station Elevator Control Master Station Dome Camera

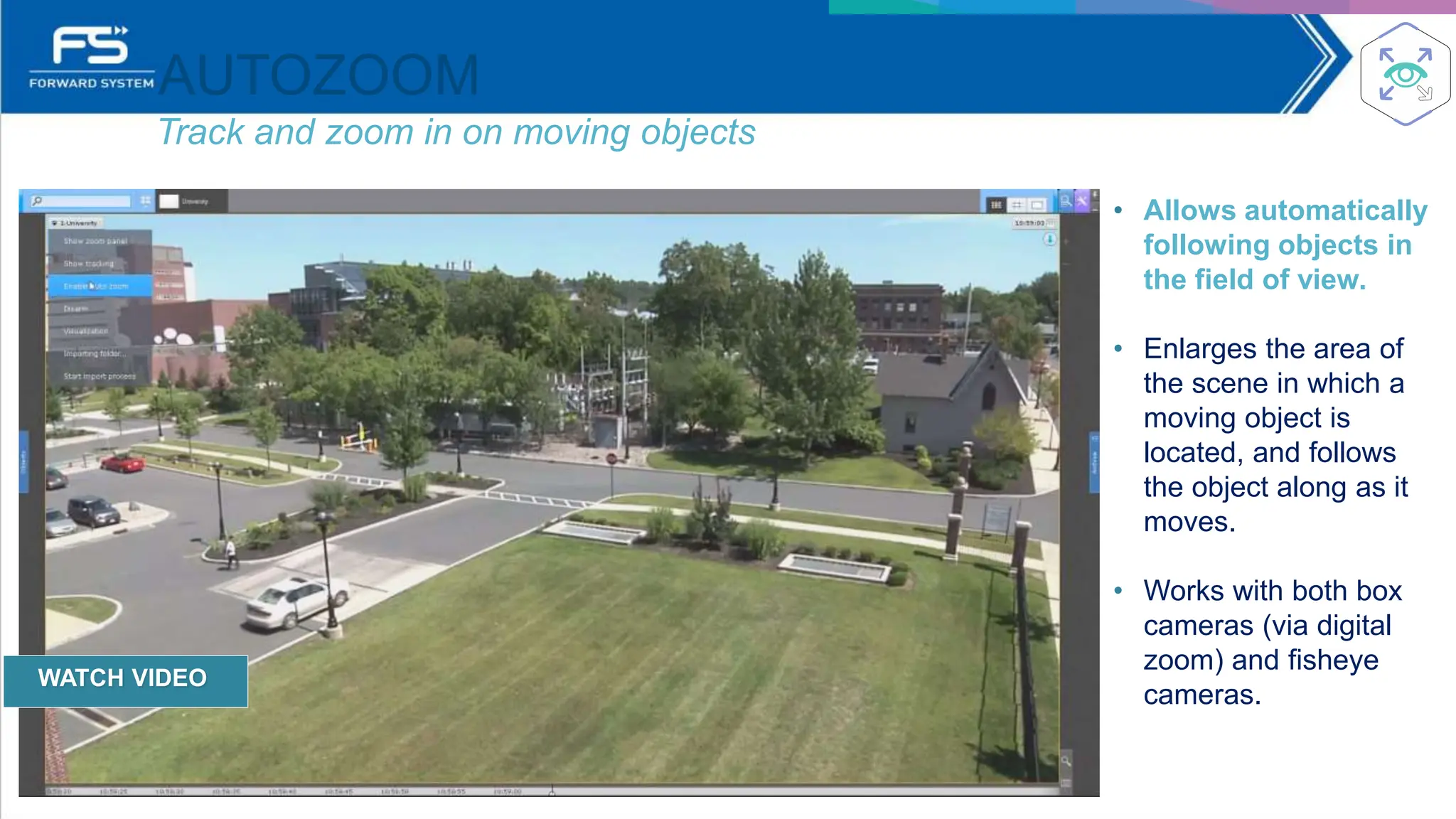

- 41. AUTOZOOM Track and zoomin on moving objects • Allows automatically following objects in the field of view. • Enlarges the area of the scene in which a moving object is located, and follows the object along as it moves. • Works with both box cameras (via digital zoom) and fisheye cameras. WATCH VIDEO

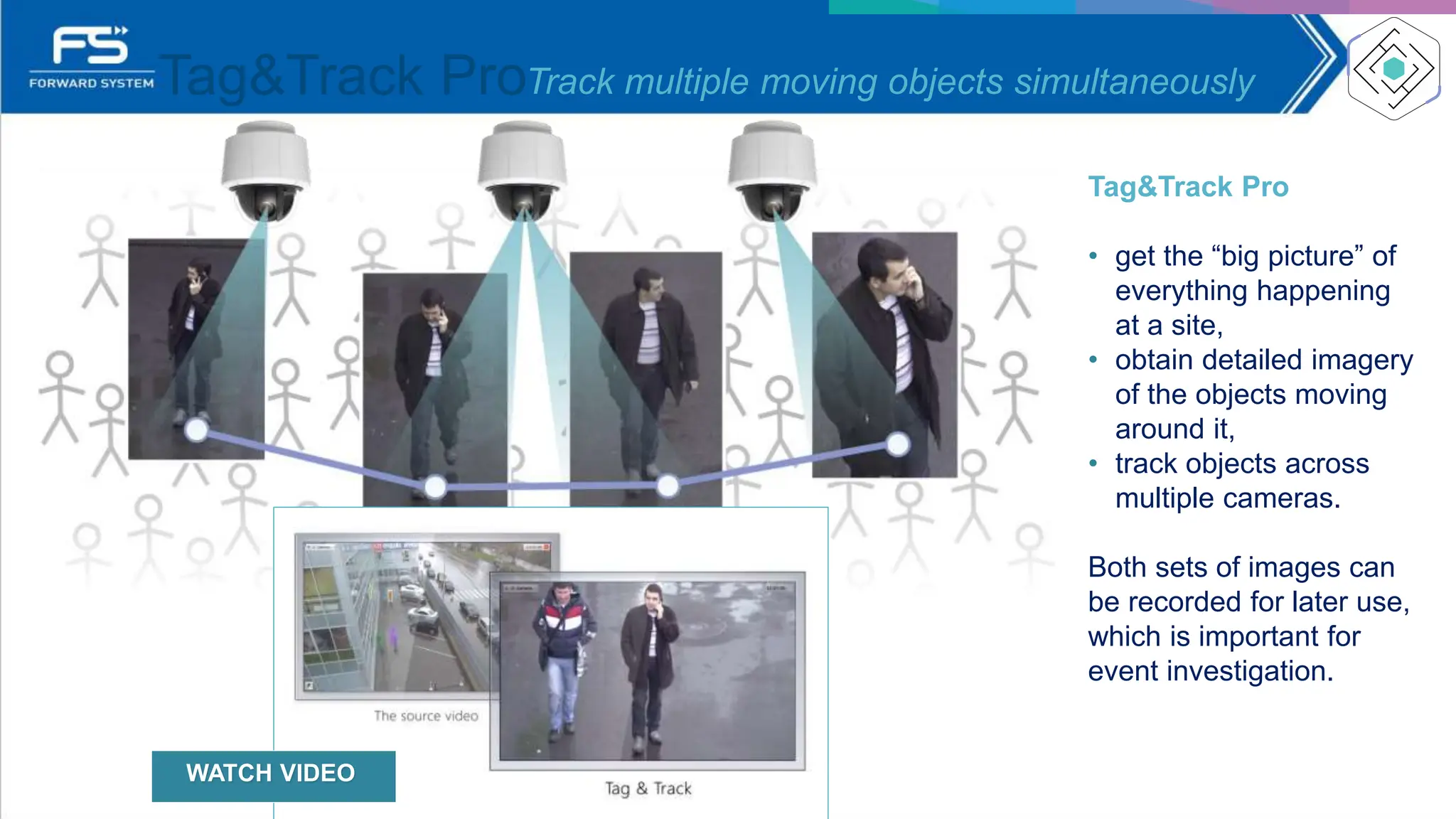

- 42. Tag&Track ProTrack multiplemoving objects simultaneously Tag&Track Pro • get the “big picture” of everything happening at a site, • obtain detailed imagery of the objects moving around it, • track objects across multiple cameras. Both sets of images can be recorded for later use, which is important for event investigation. WATCH VIDEO

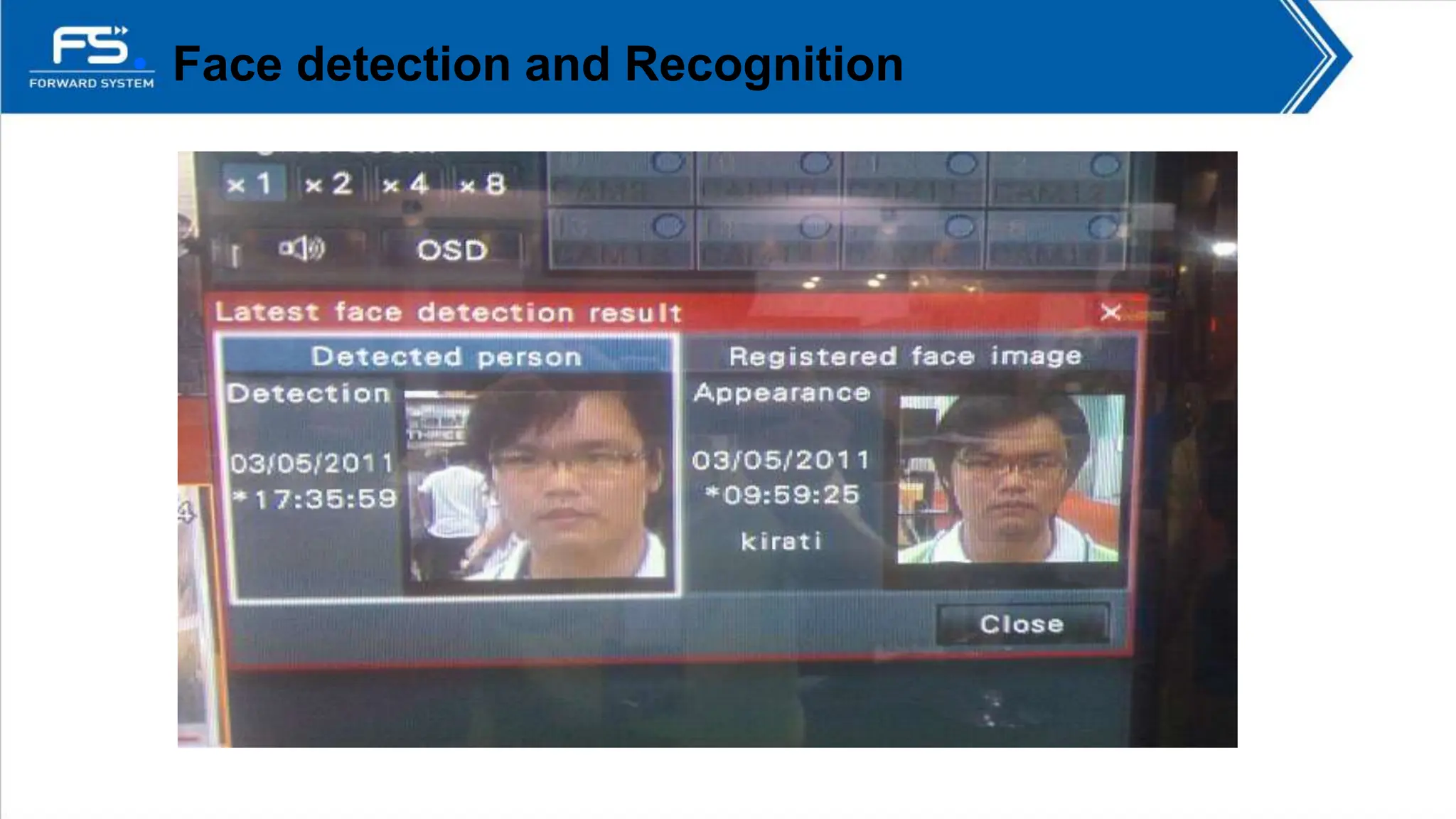

- 43. • Face detectionand Recognition

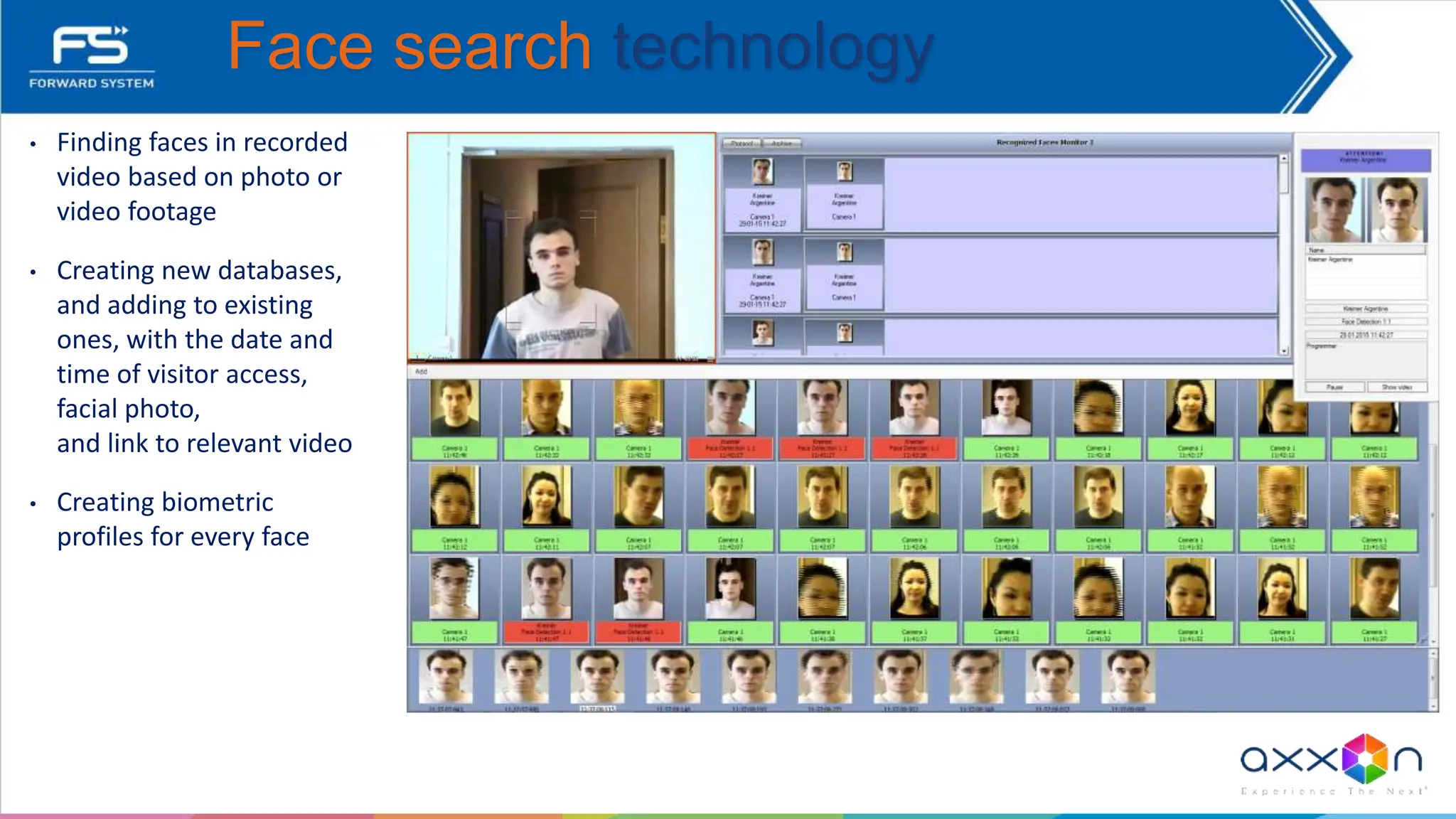

- 44. • Finding facesin recorded video based on photo or video footage • Creating new databases, and adding to existing ones, with the date and time of visitor access, facial photo, and link to relevant video • Creating biometric profiles for every face Face search technology
- 45.
- 46. 72 - The detectedface images are evaluated for age / gender judgment and counted - The results are displayed on screen as statistical chart - The statistical chart can be saved in CSV format The chart can be displayed in every 15minutes/30minutes/1 hour/1 day/1 month basis Screen image

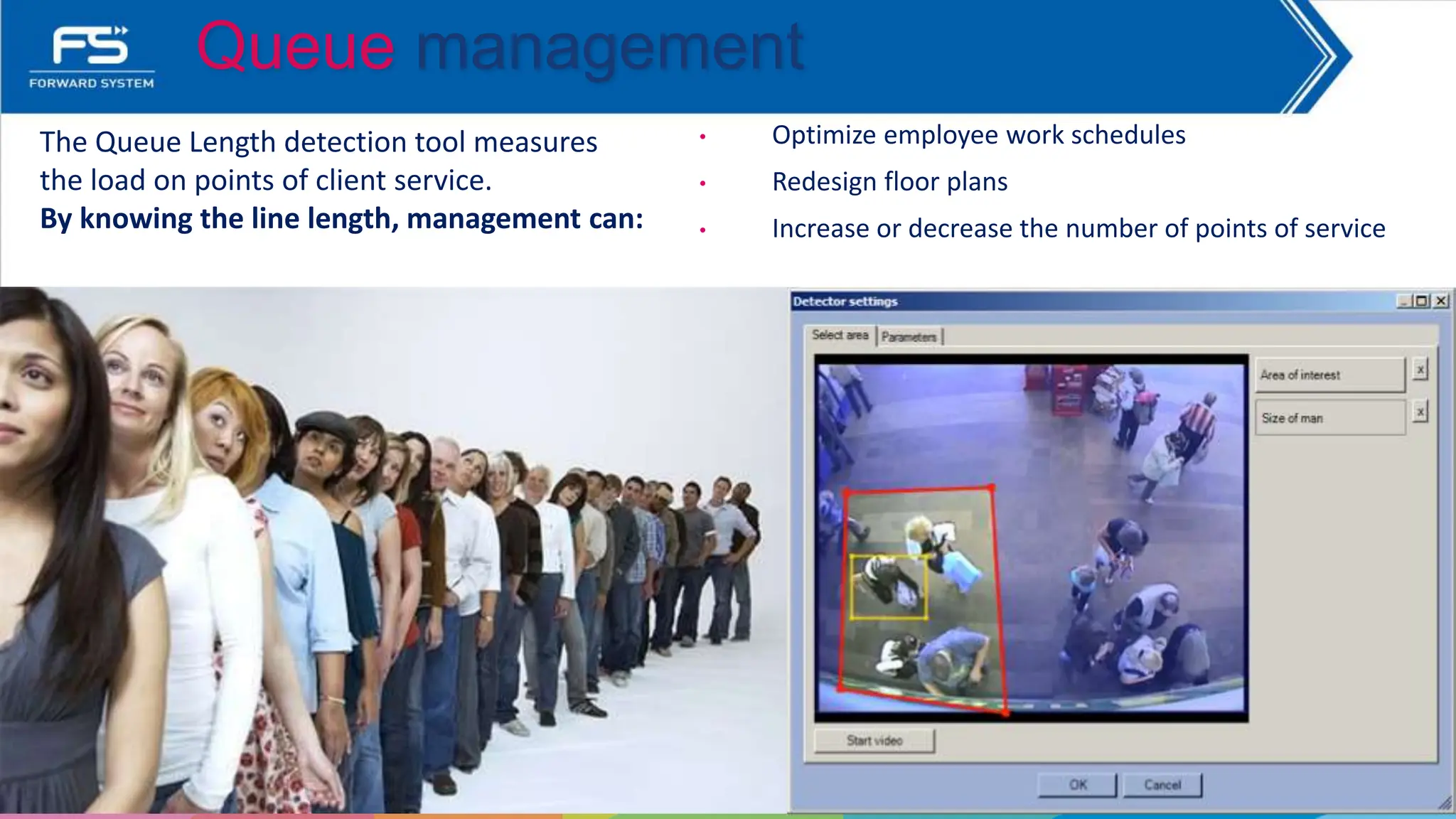

- 47. The Queue Lengthdetection tool measures the load on points of client service. By knowing the line length, management can: • Optimize employee work schedules • Redesign floor plans • Increase or decrease the number of points of service Queue management

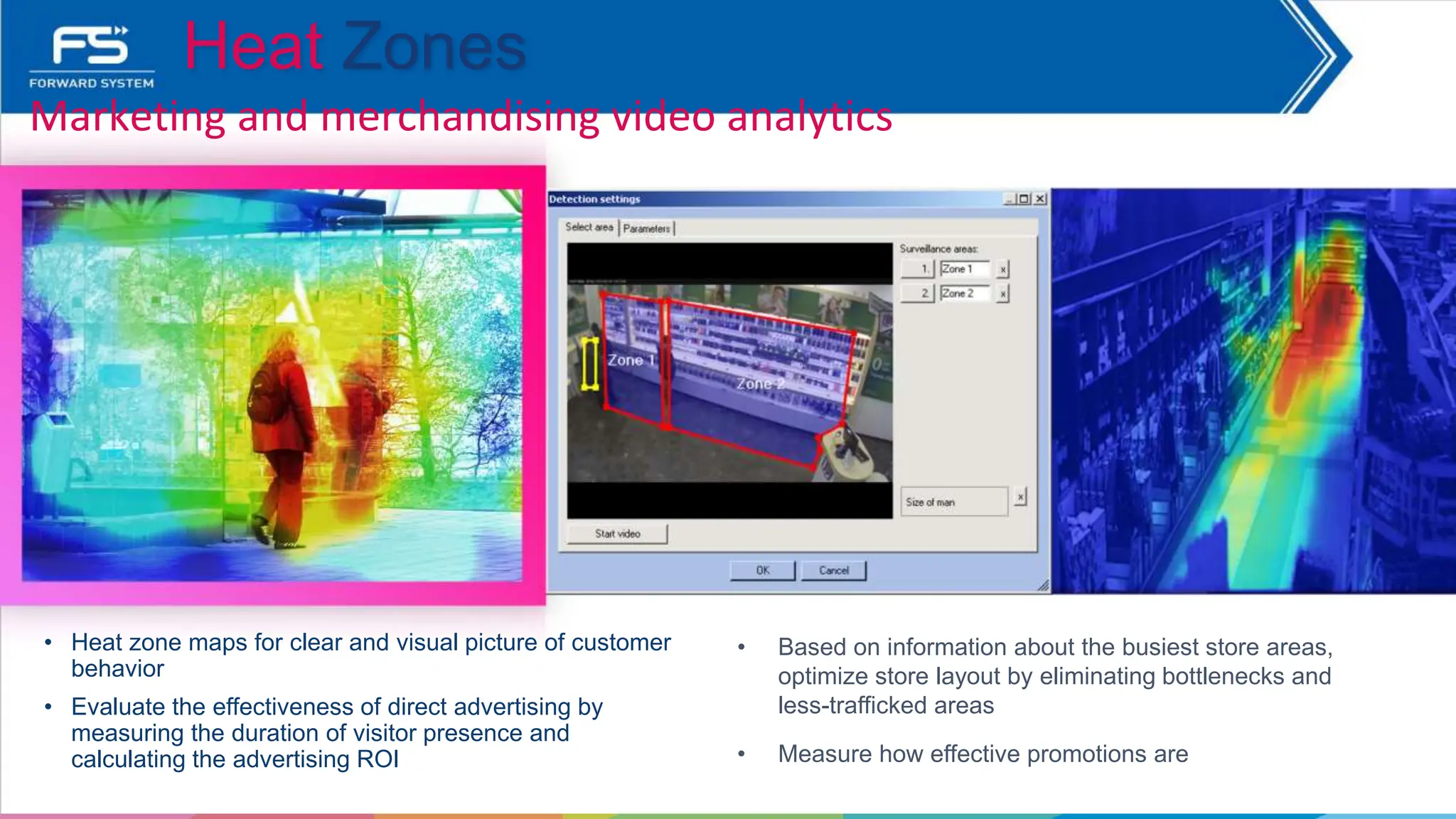

- 48. • Heat zonemaps for clear and visual picture of customer behavior • Evaluate the effectiveness of direct advertising by measuring the duration of visitor presence and calculating the advertising ROI Marketing and merchandising video analytics Heat Zones • Based on information about the busiest store areas, optimize store layout by eliminating bottlenecks and less-trafficked areas • Measure how effective promotions are

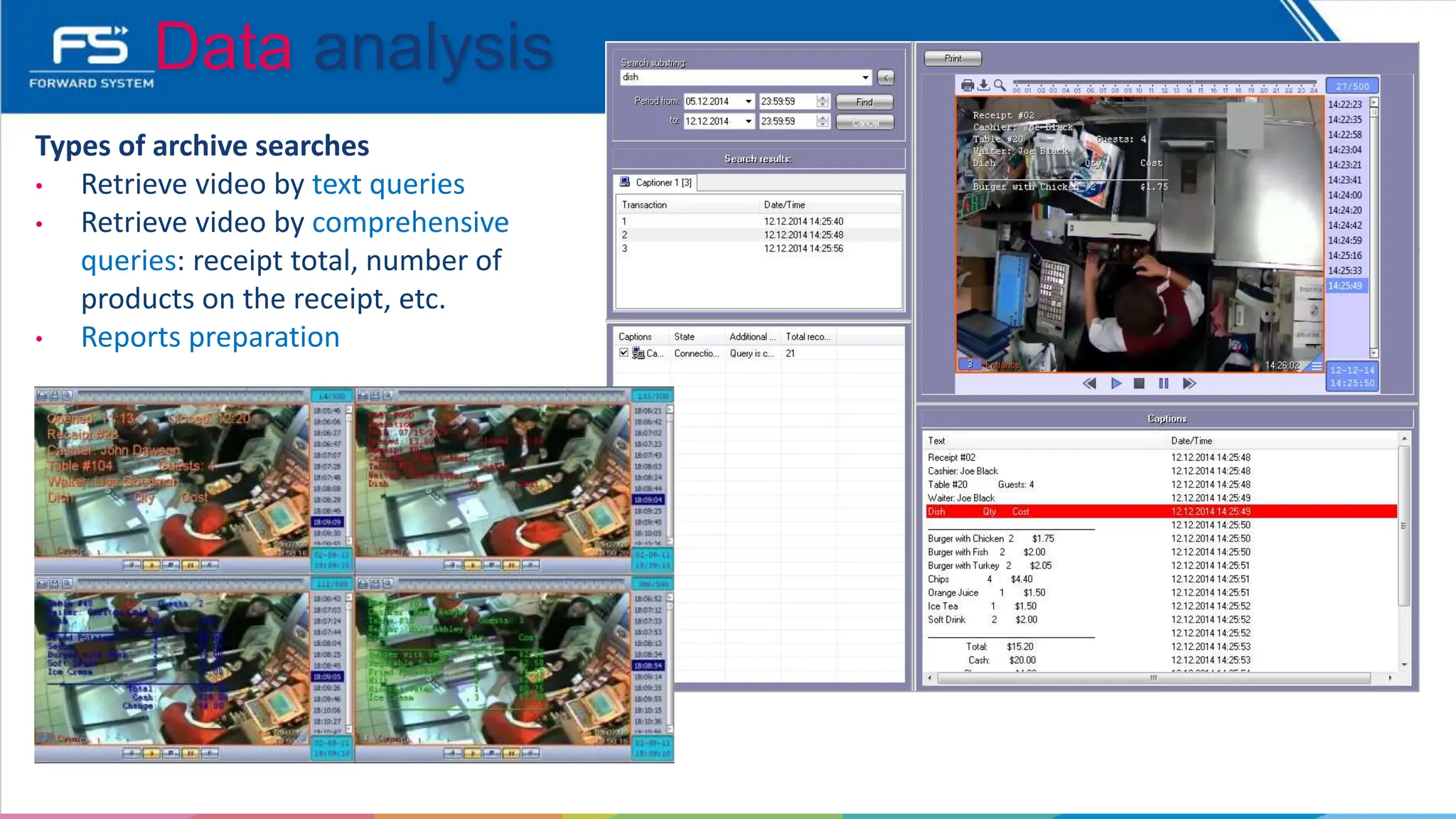

- 49. Types of archivesearches • Retrieve video by text queries • Retrieve video by comprehensive queries: receipt total, number of products on the receipt, etc. • Reports preparation Data analysis

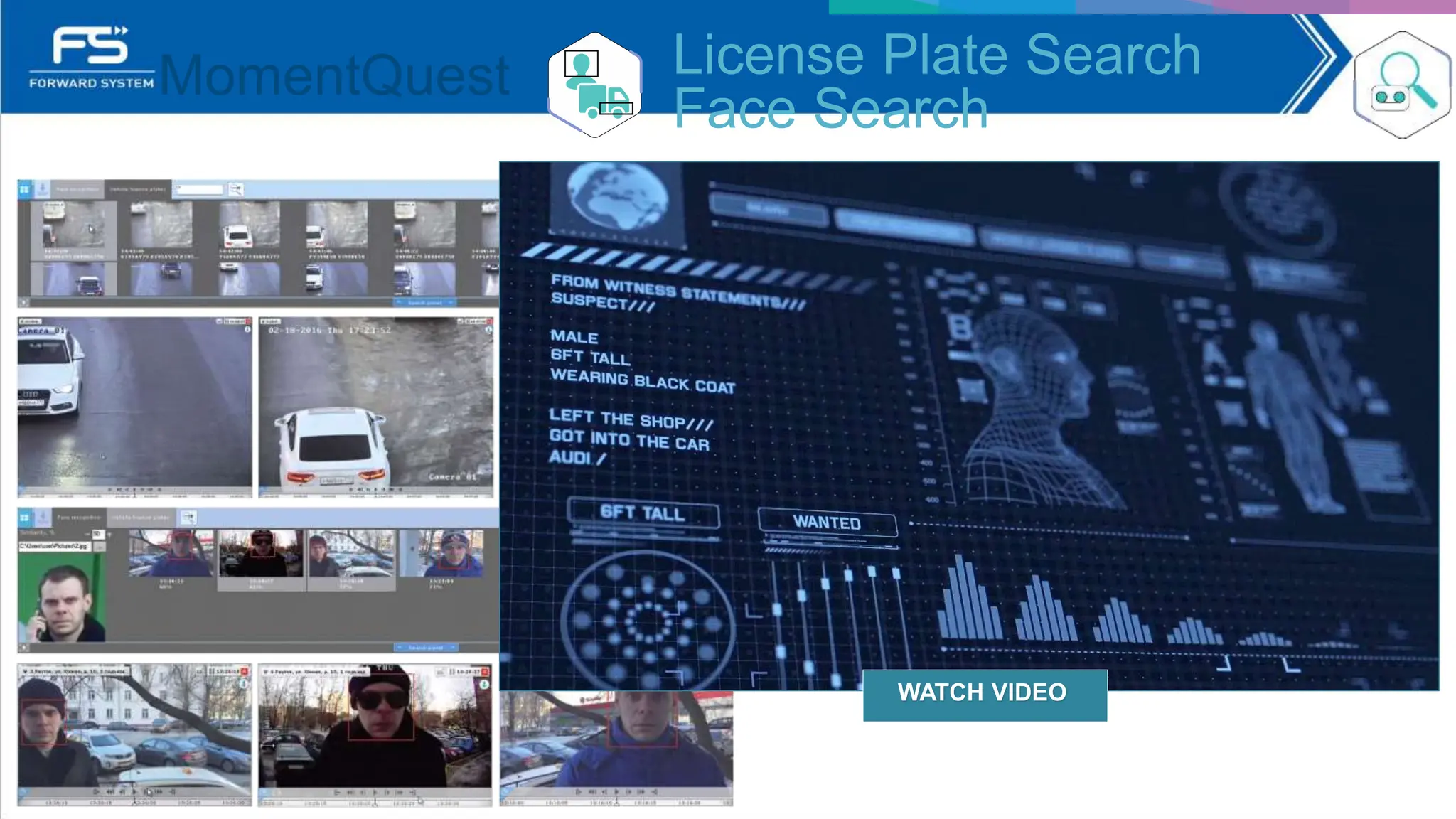

- 50. MomentQuest License PlateSearch Face Search WATCH VIDEO

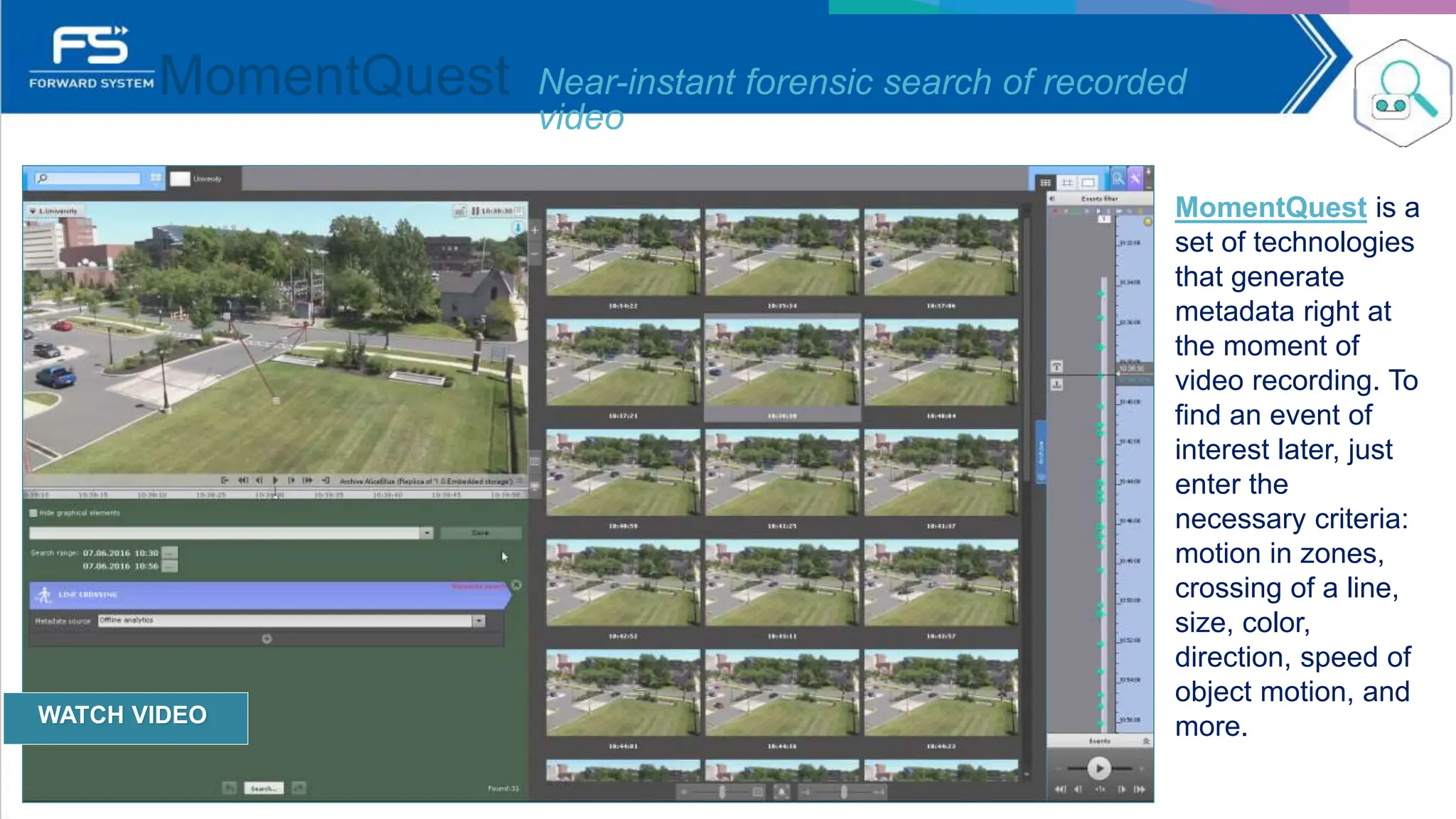

- 51. MomentQuest Near-instant forensicsearch of recorded video MomentQuest is a set of technologies that generate metadata right at the moment of video recording. To find an event of interest later, just enter the necessary criteria: motion in zones, crossing of a line, size, color, direction, speed of object motion, and more. WATCH VIDEO
- 52. Time CompressorVisual scenesynopses Efficiency in video surveillance will never be the same. Time Compressor allows the user to get a short video clip of all moving objects in the scene. Objects and events captured at different times are displayed simultaneously in a condensed “video synopsis”. WATCH VIDEO

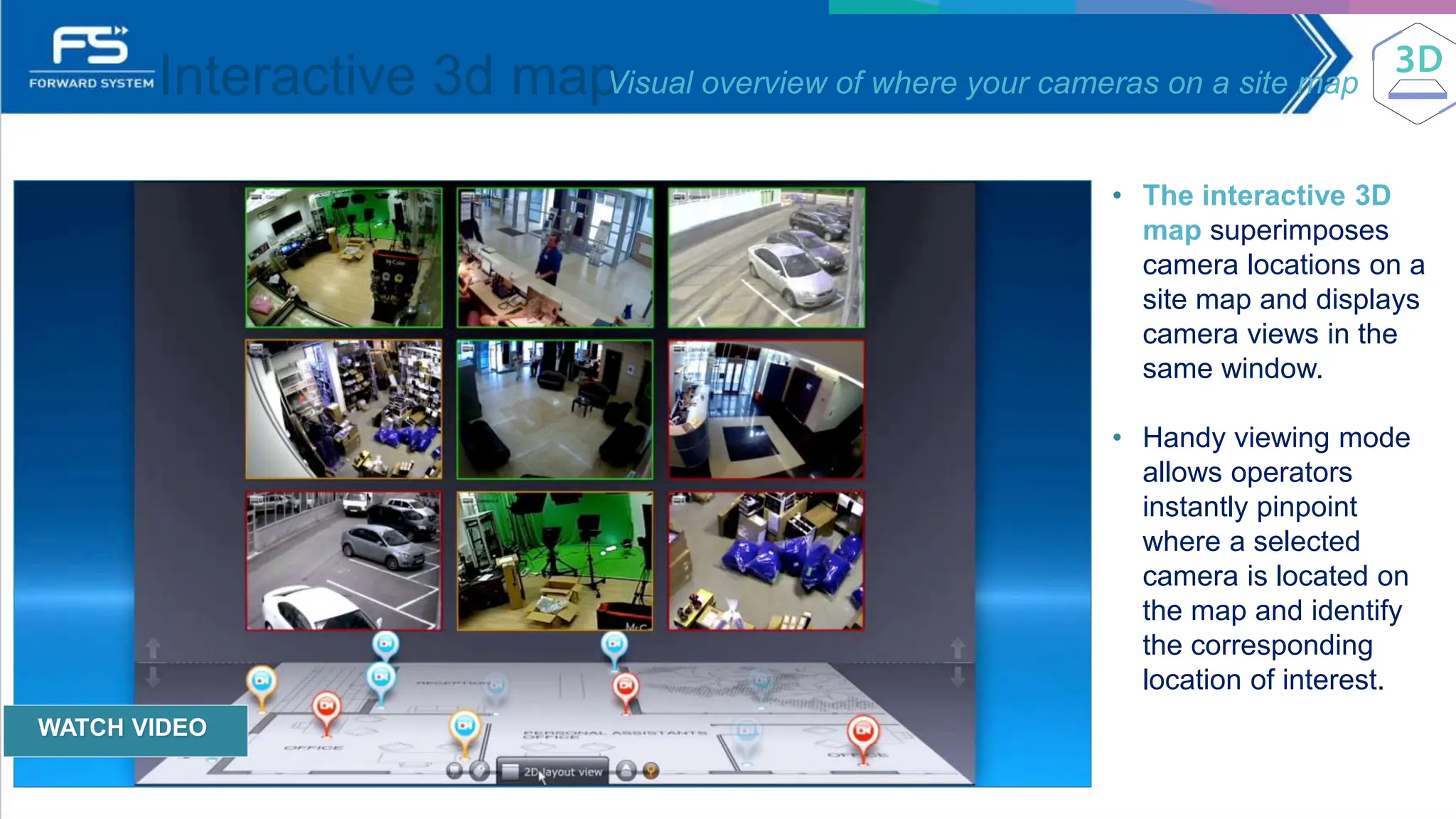

- 53. Interactive 3d map Visualoverview of where your cameras on a site map • The interactive 3D map superimposes camera locations on a site map and displays camera views in the same window. • Handy viewing mode allows operators instantly pinpoint where a selected camera is located on the map and identify the corresponding location of interest. WATCH VIDEO

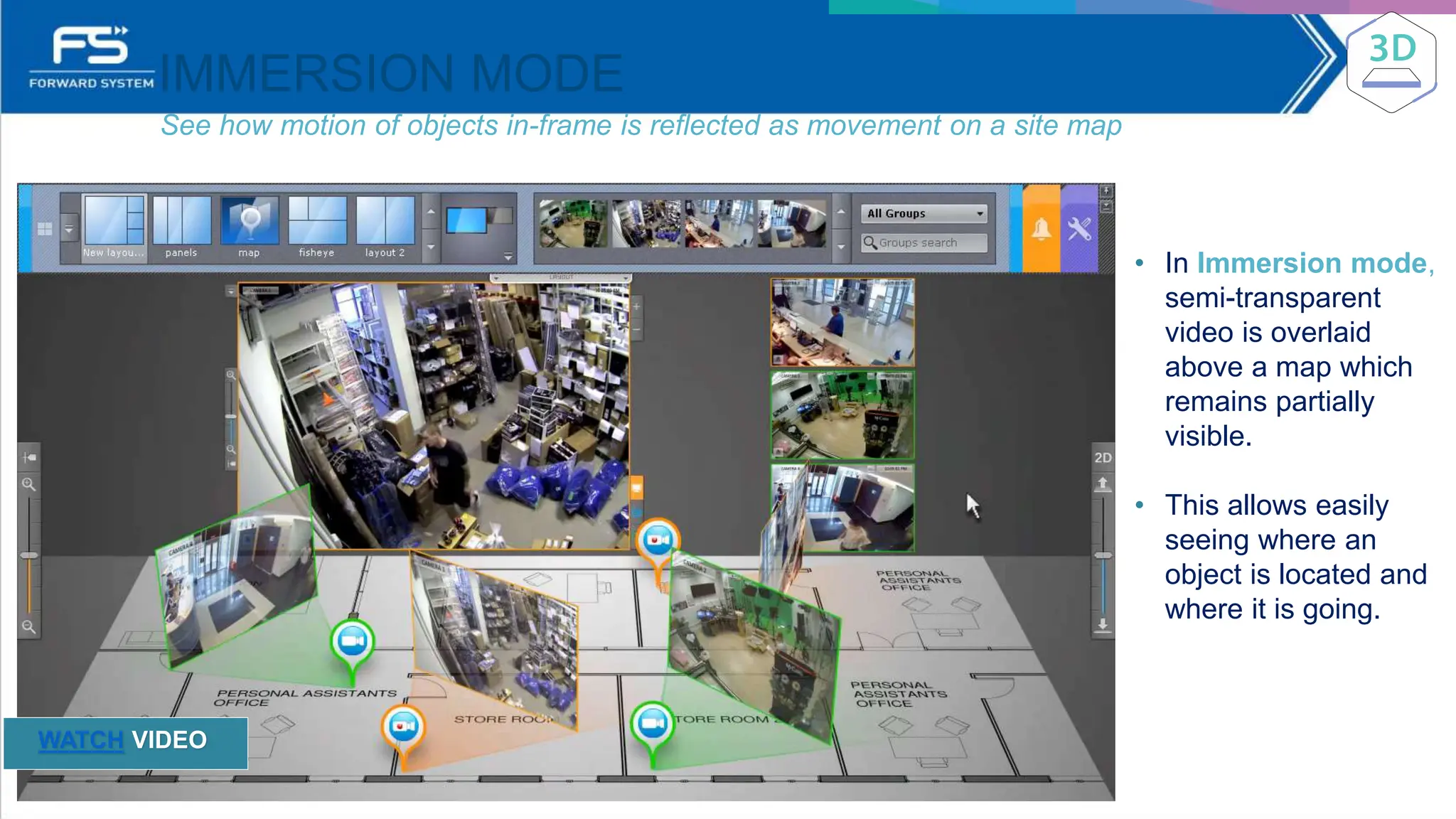

- 54. IMMERSION MODE See howmotion of objects in-frame is reflected as movement on a site map • In Immersion mode, semi-transparent video is overlaid above a map which remains partially visible. • This allows easily seeing where an object is located and where it is going. WATCH VIDEO
- 55. Matrix Display Control Dragand Drop / Any Devices to Any Monitors

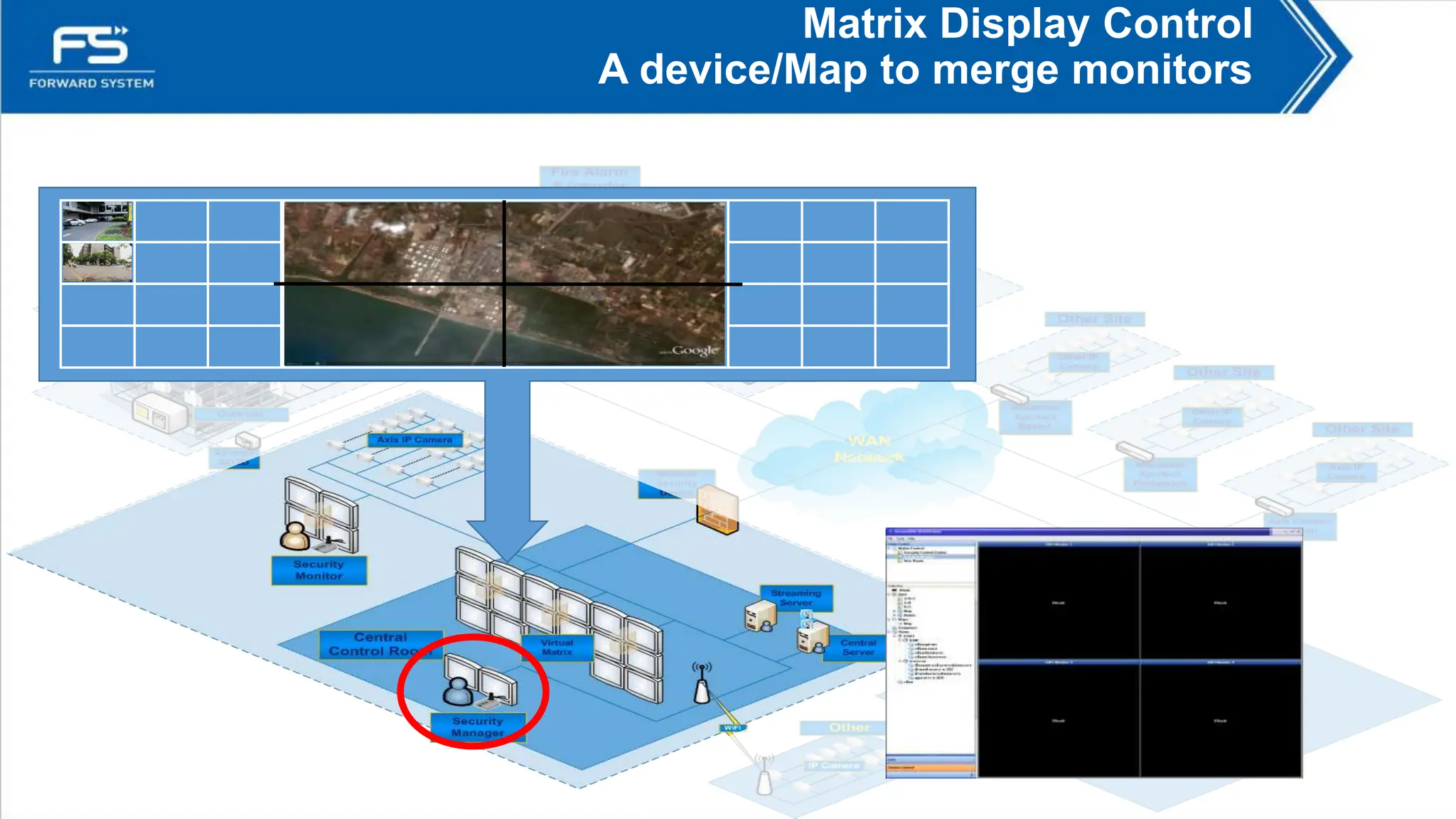

- 56. Matrix Display Control Adevice/Map to merge monitors

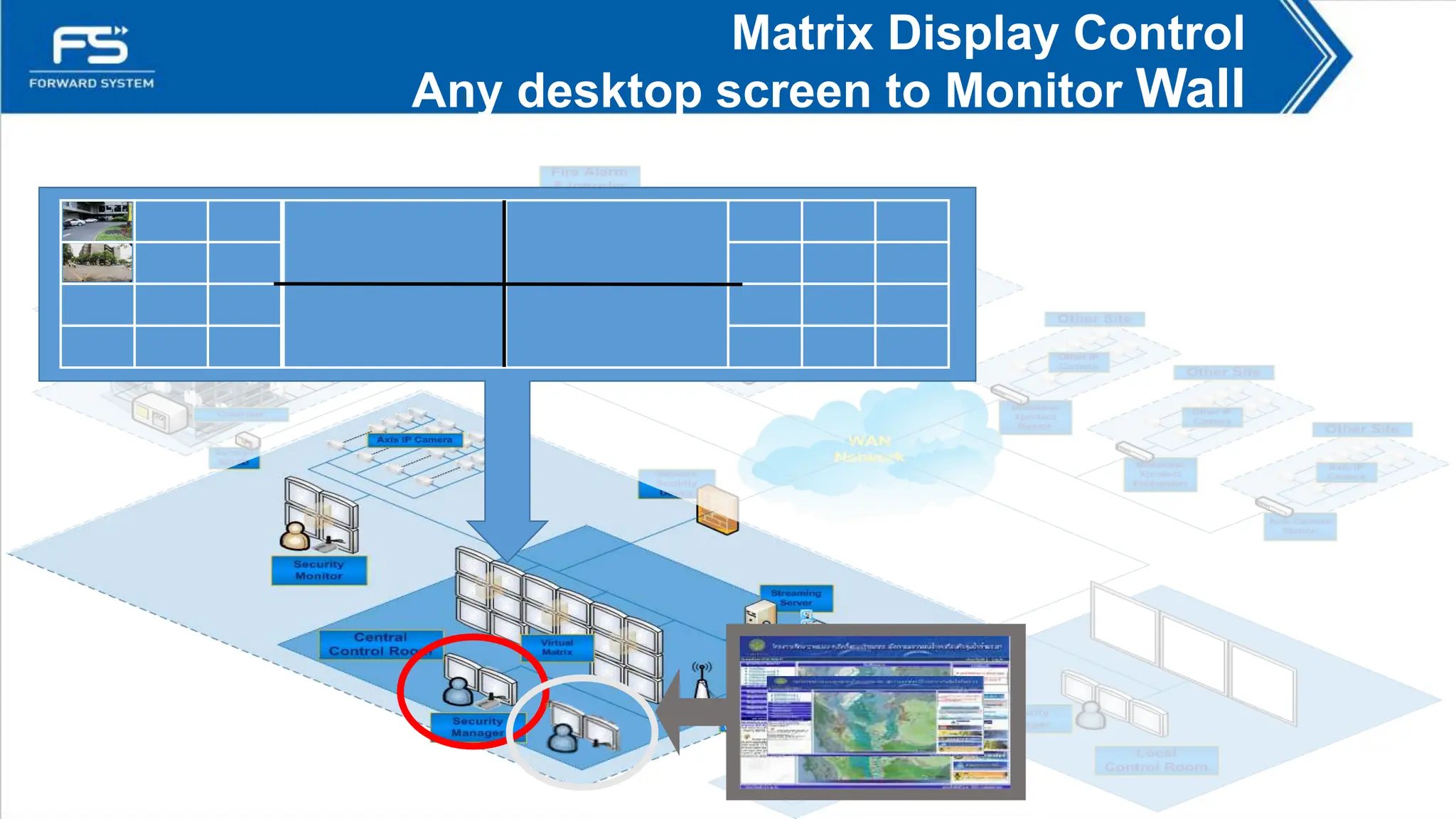

- 57. Matrix Display Control Anydesktop screen to Monitor Wall

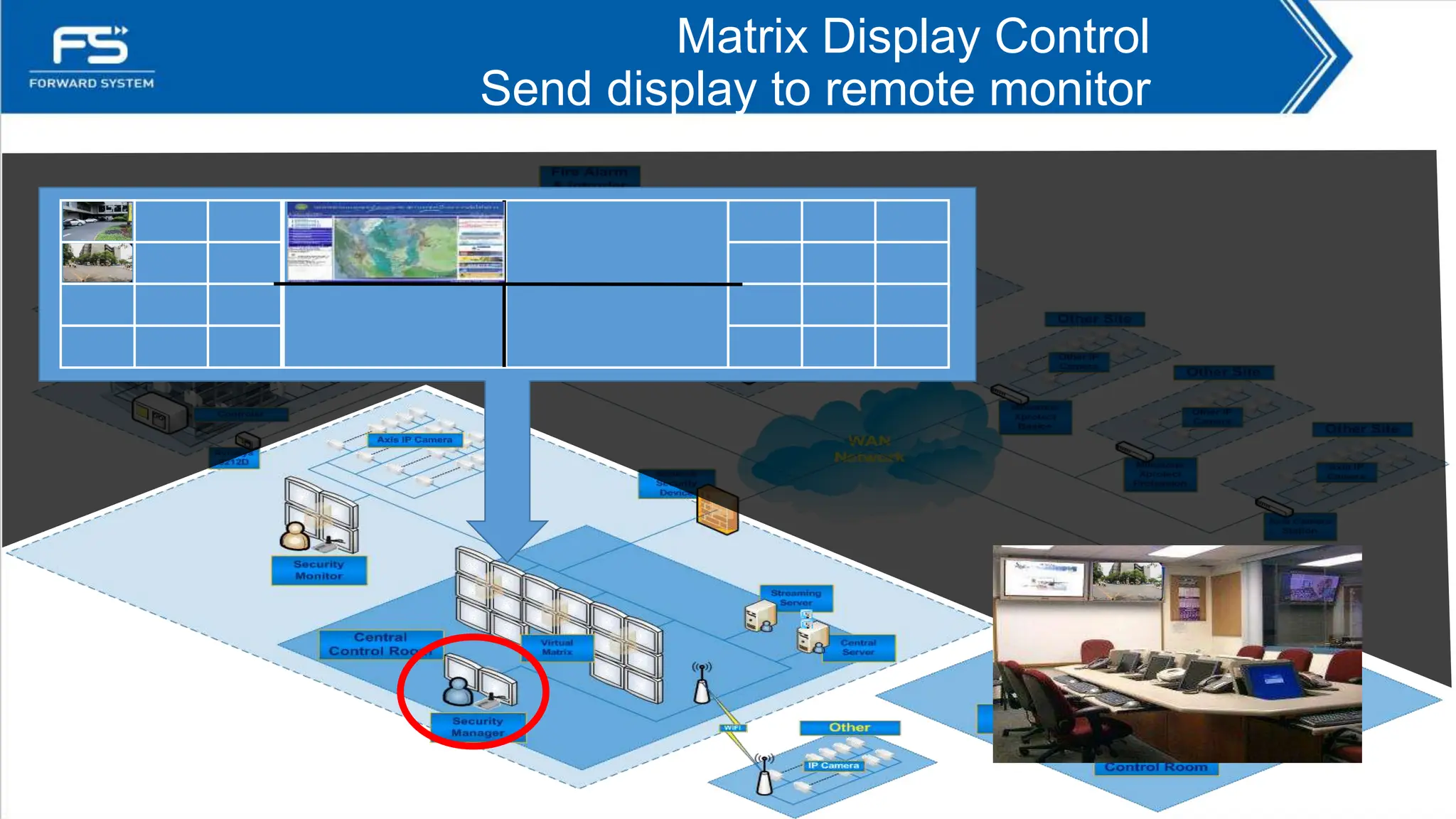

- 58. Matrix Display Control Senddisplay to remote monitor

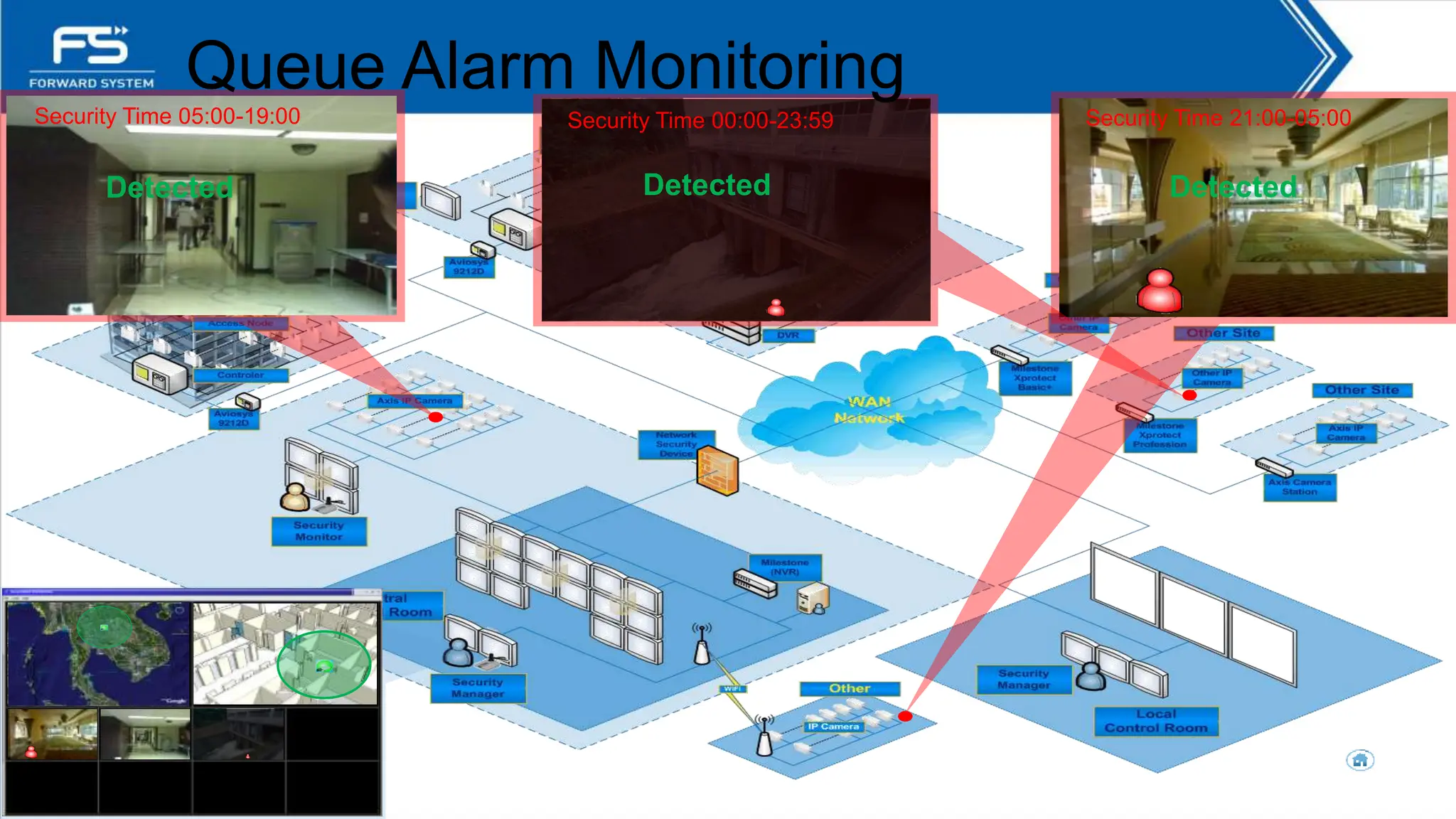

- 59. Security Time 21:00-05:00 Detected SecurityTime 05:00-19:00 Detected Security Time 00:00-23:59 Detected Queue Alarm Monitoring

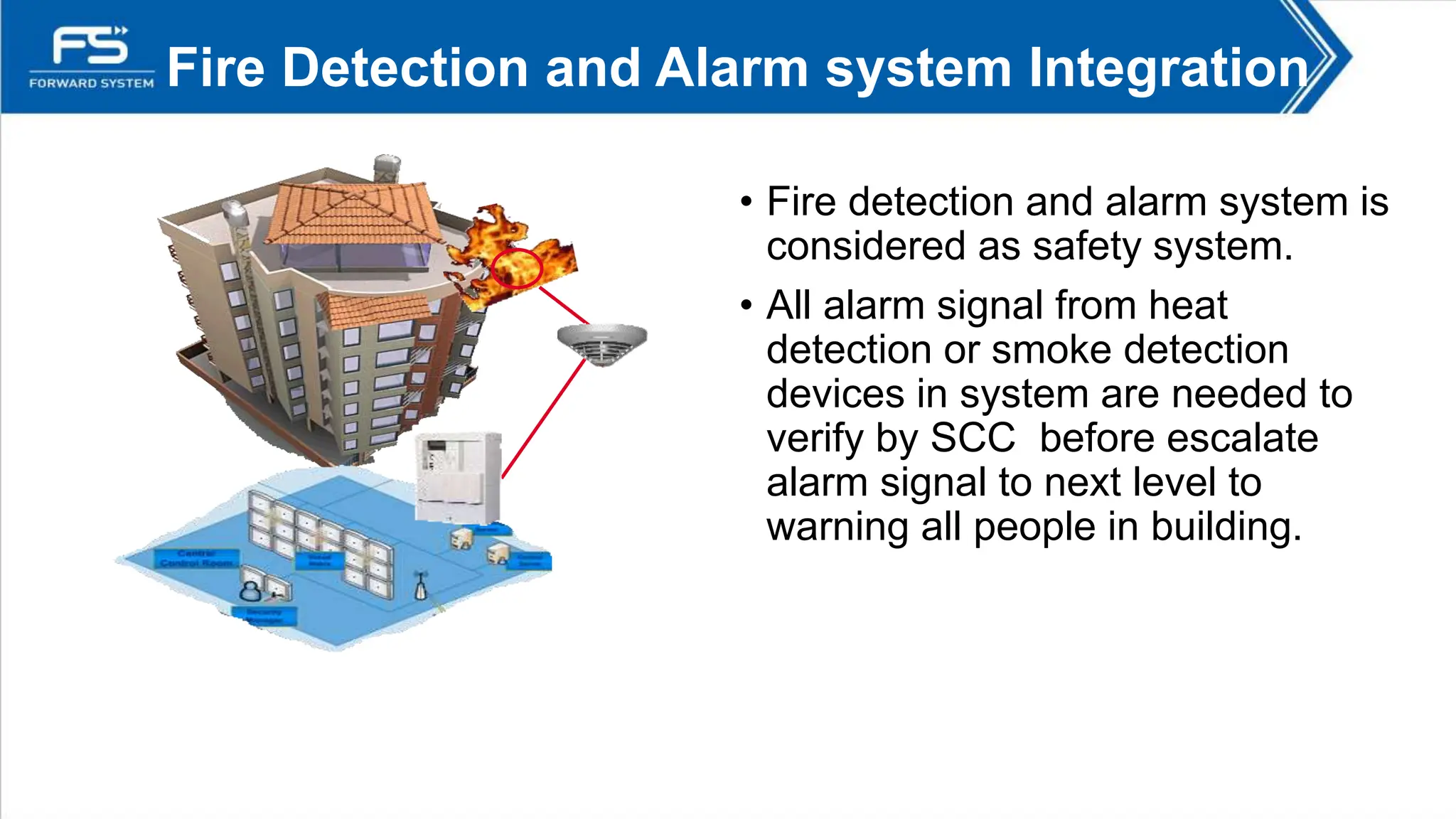

- 60. • Fire detectionand alarm system is considered as safety system. • All alarm signal from heat detection or smoke detection devices in system are needed to verify by SCC before escalate alarm signal to next level to warning all people in building. Fire Detection and Alarm system Integration

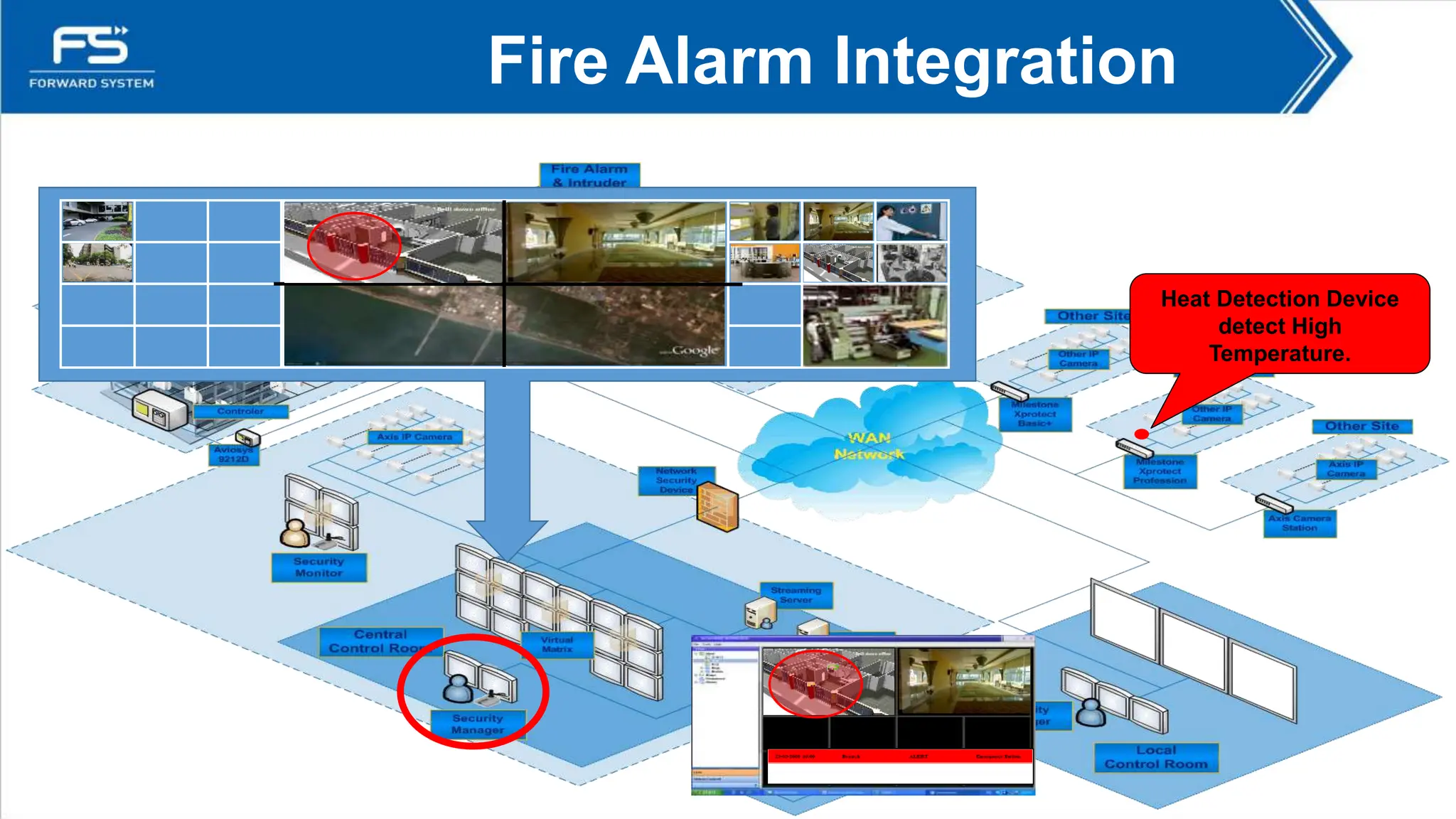

- 61. Heat Detection Device detectHigh Temperature. Fire Alarm Integration
- 62. Visual monitoring ofentry / exit areas and access points • ID of users by comparing real-time camera picture with stored database versions • Single operator can monitor multiple access points simultaneously • More effective access control Photo ID

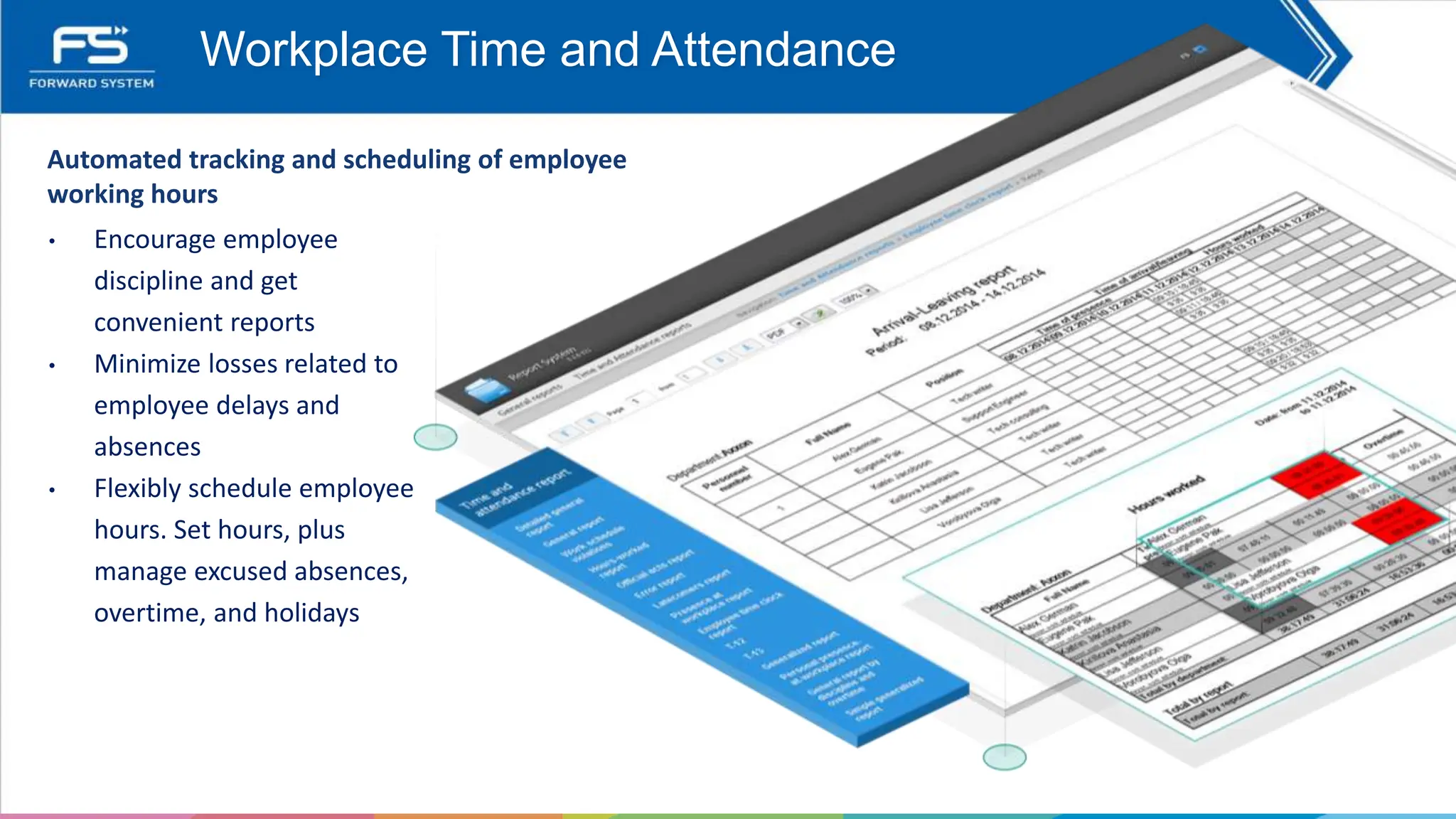

- 63. Automated tracking andscheduling of employee working hours Workplace Time and Attendance • Encourage employee discipline and get convenient reports • Minimize losses related to employee delays and absences • Flexibly schedule employee hours. Set hours, plus manage excused absences, overtime, and holidays

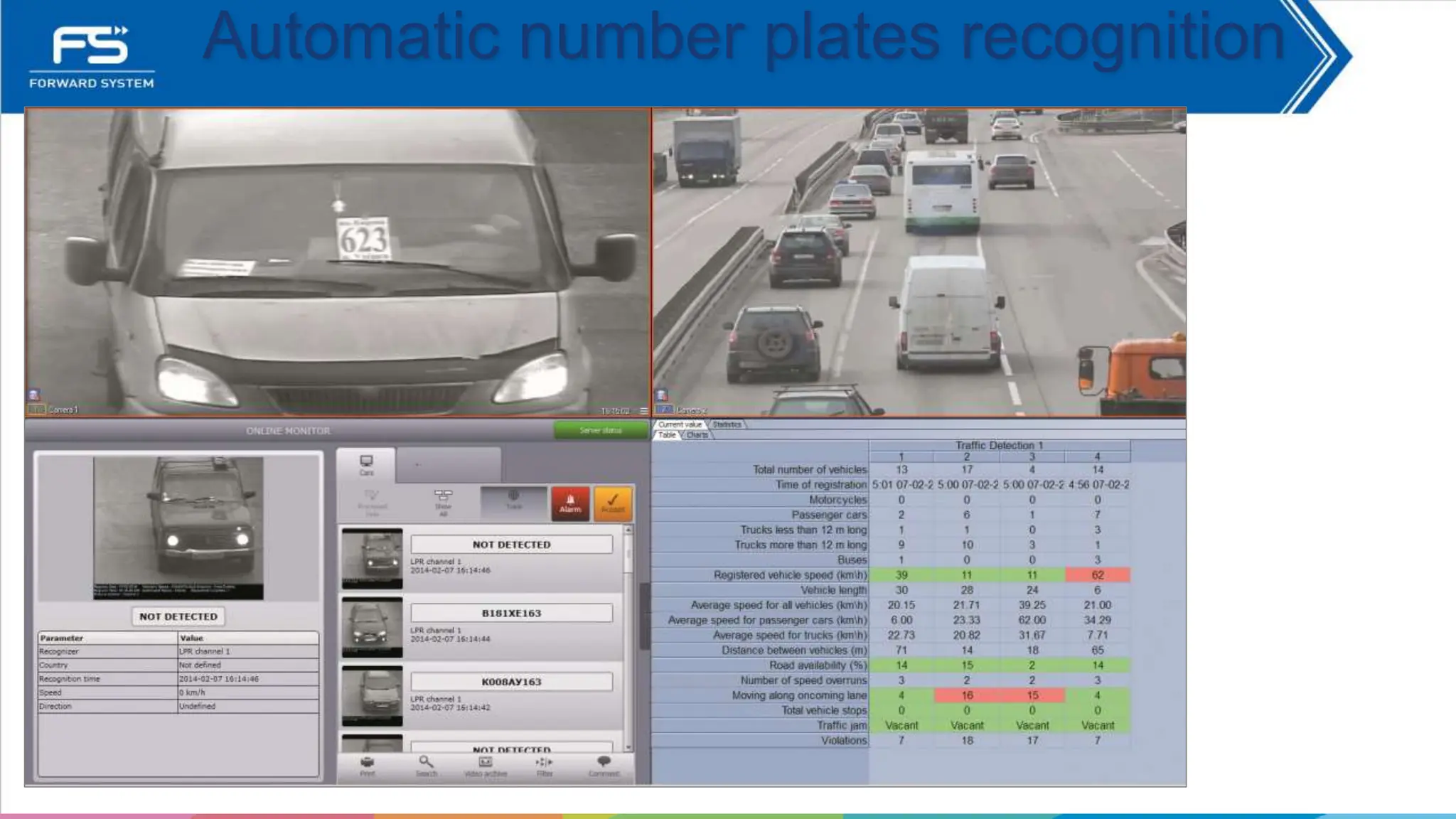

- 64. Network Automatic number platesrecognition
- 65. WATCH VIDEO Monitoring railroads •Automatically recognize, recording and storing railcar number and direction • Counting railcars within a train • Automatically measuring liquid levels in tank-cars (thermal sensor required) • Matching train schedules to consignor lists

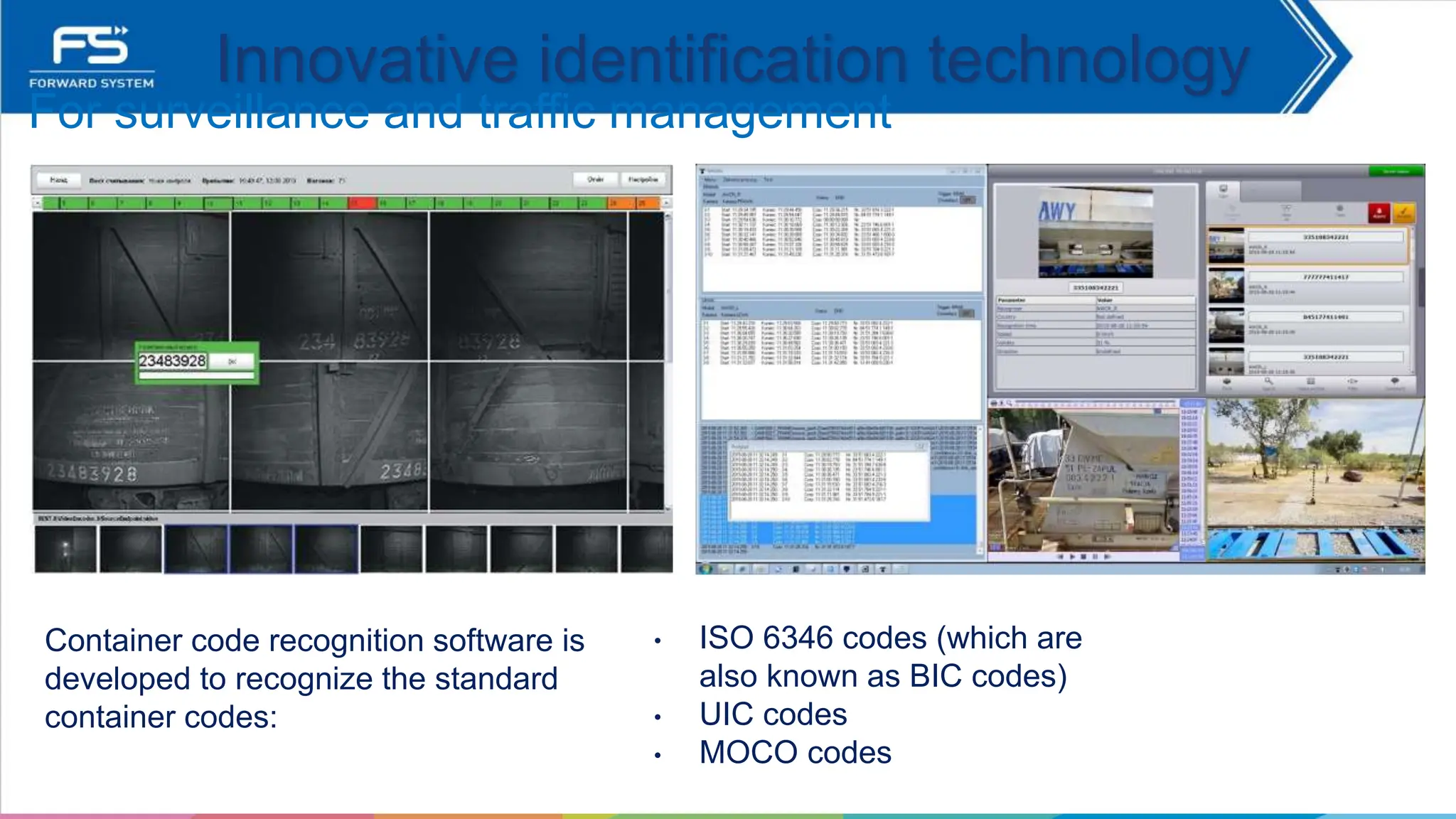

- 66. Container code recognitionsoftware is developed to recognize the standard container codes: For surveillance and traffic management Innovative identification technology • ISO 6346 codes (which are also known as BIC codes) • UIC codes • MOCO codes

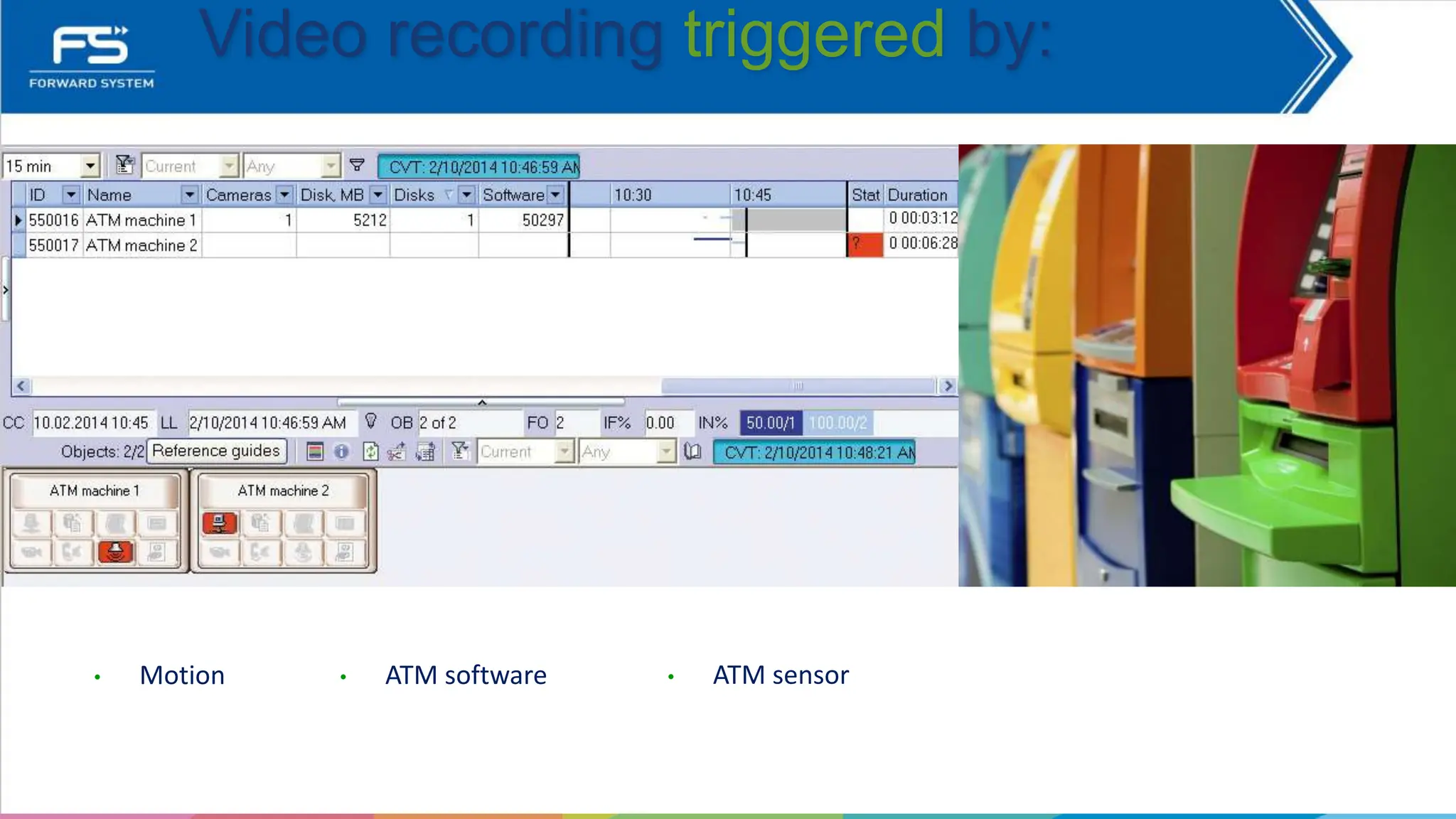

- 67. • Motion •ATM software Video recording triggered by: • ATM sensor

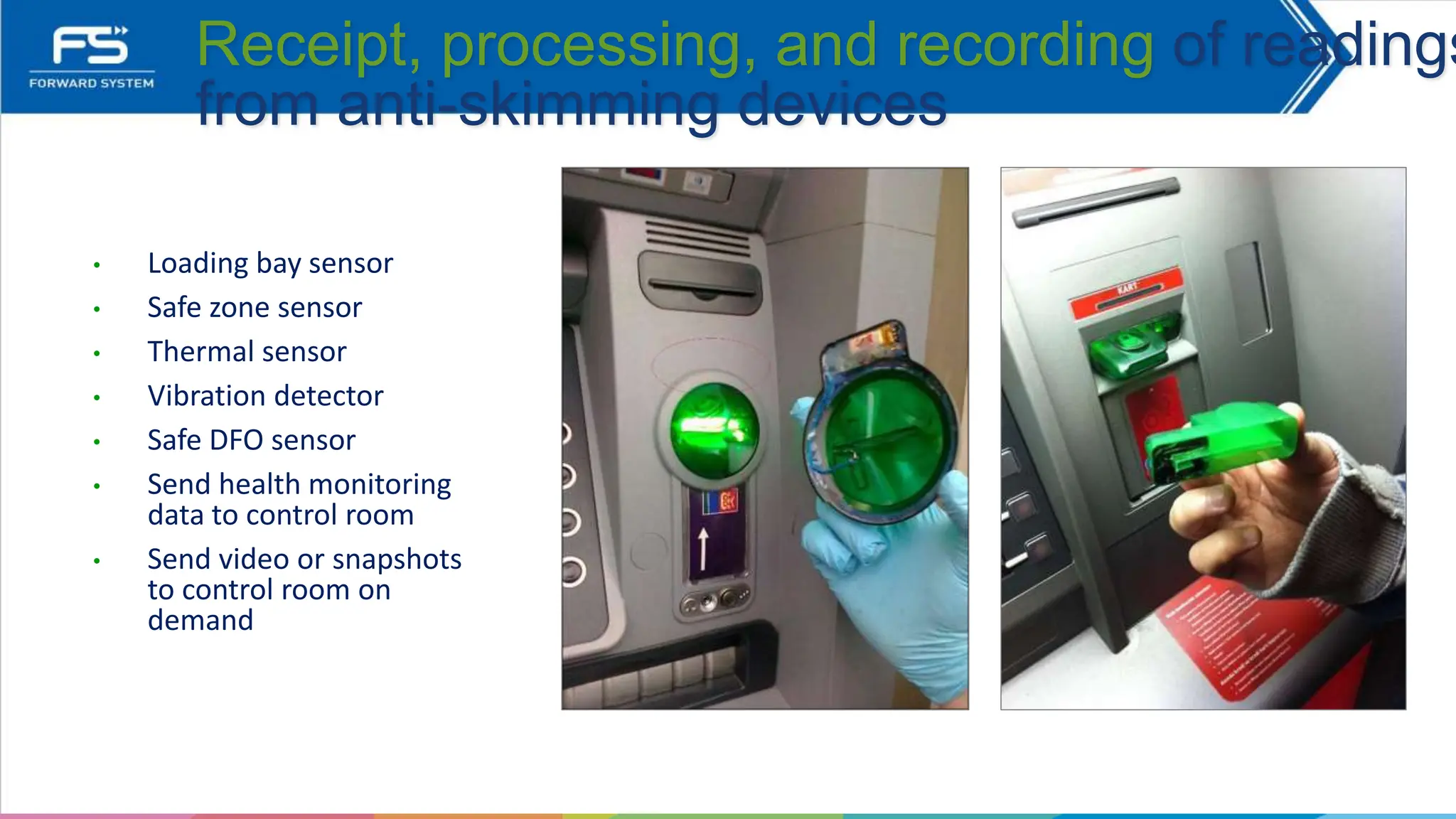

- 68. • Loading baysensor • Safe zone sensor • Thermal sensor • Vibration detector • Safe DFO sensor • Send health monitoring data to control room • Send video or snapshots to control room on demand Receipt, processing, and recording of readings from anti-skimming devices

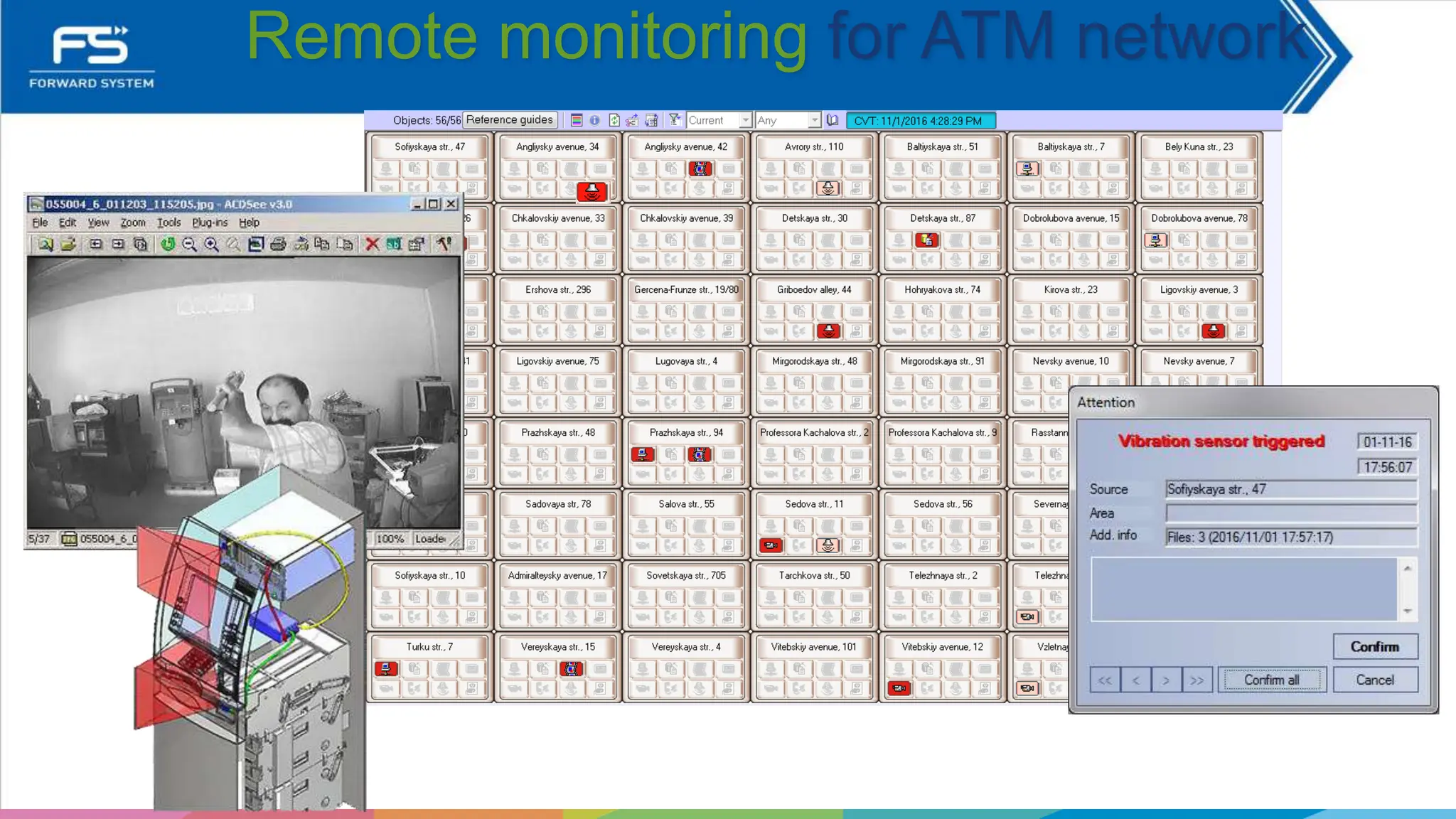

- 69. Remote monitoring forATM network

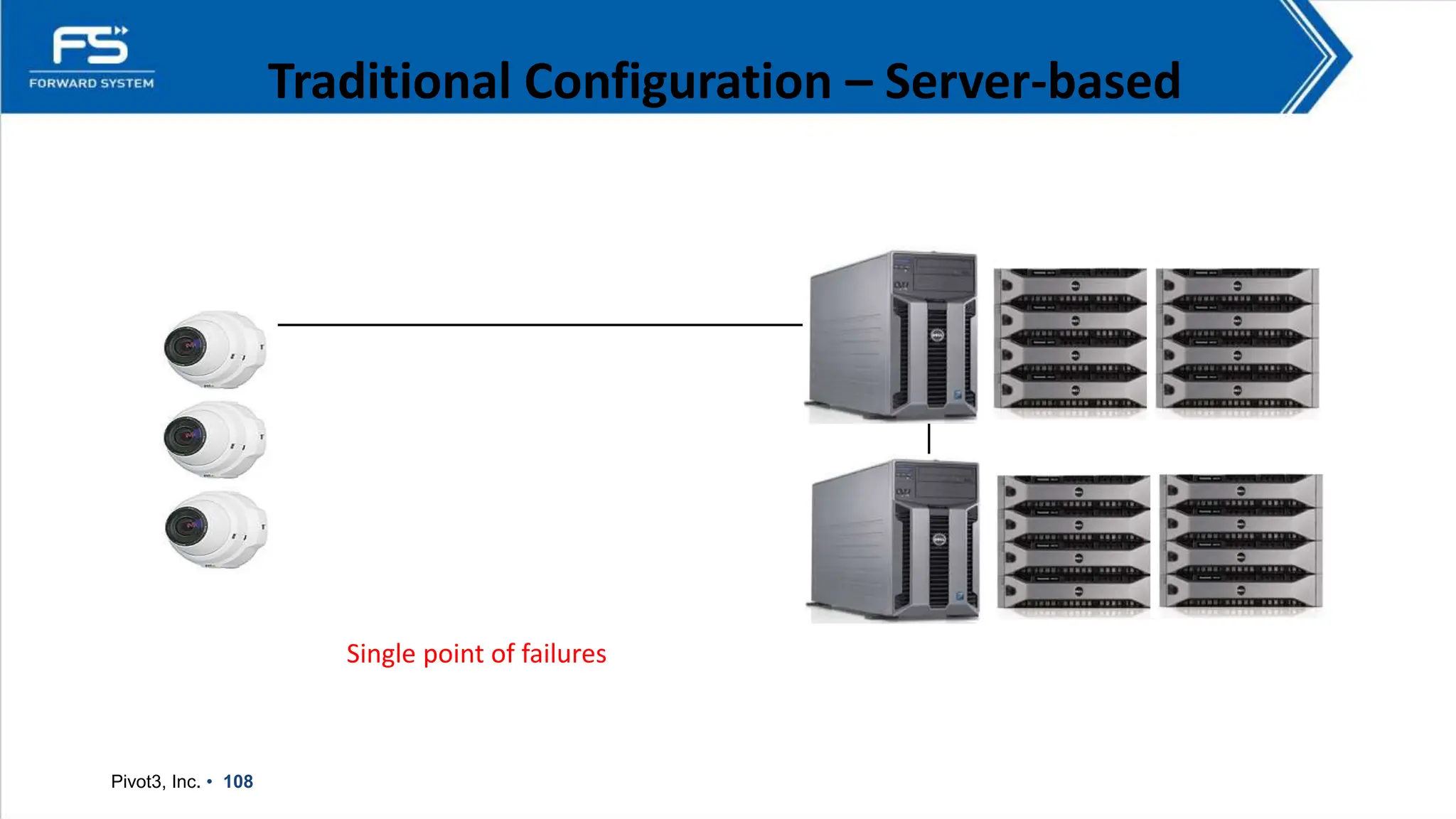

- 70. Traditional Configuration –Server-based Pivot3, Inc. • 108 Single point of failures

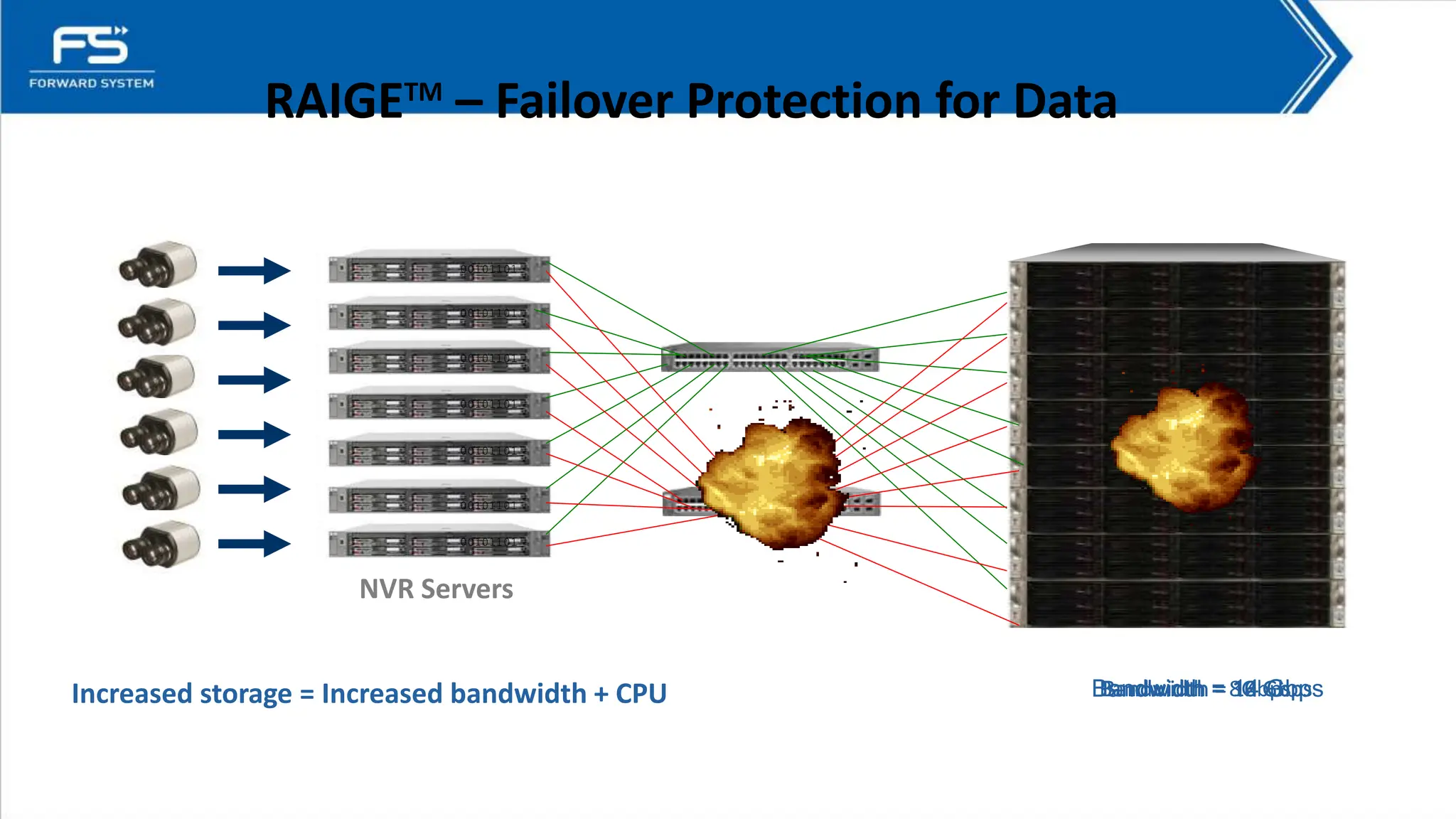

- 71. RAIGETM – Failover Protectionfor Data NVR Servers Bandwidth = 8Gbps Bandwidth = 10 Gbps Bandwidth = 12 Gbps Bandwidth = 14 Gbps Bandwidth = 16 Gbps 00101101 00101101 00101101 00101101 00101101 00101101 00101101 Increased storage = Increased bandwidth + CPU

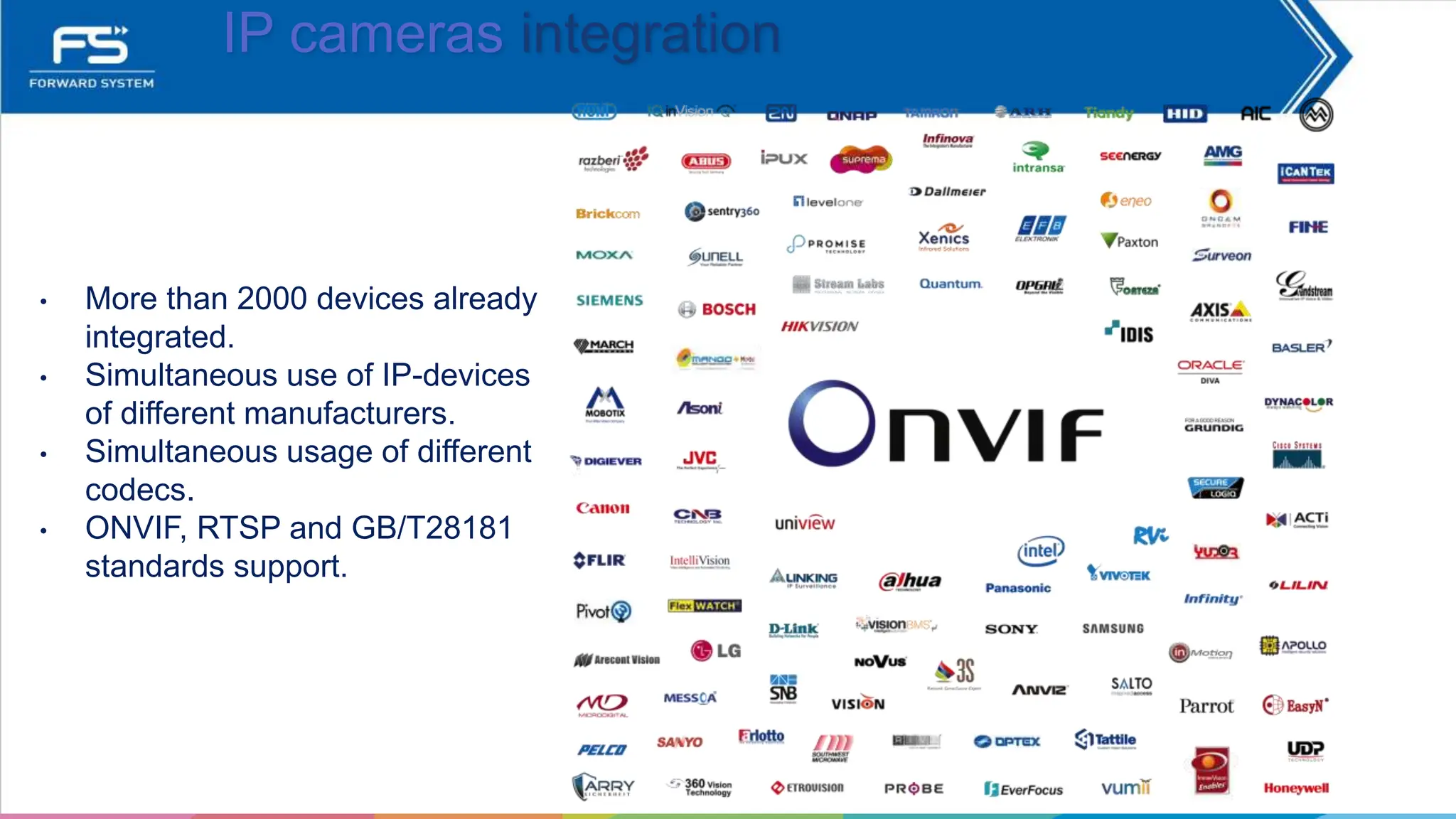

- 72. • More than2000 devices already integrated. • Simultaneous use of IP-devices of different manufacturers. • Simultaneous usage of different codecs. • ONVIF, RTSP and GB/T28181 standards support. IP cameras integration
