- 4K cameras can cover a wider viewing angle than 1080p or 720p cameras, reducing the number of cameras needed and the load on monitoring operations. They also provide more detailed images than lower resolution cameras. - Intelligent video analytics tools like i-VMD can help further reduce monitoring loads by automatically detecting events like loitering, wrong-way traffic, and tampering. These tools allow operators to focus only on real alarms. - Integrating different security systems from video surveillance to access control to fire detection into a single security command center allows for unified monitoring and faster emergency response.

1. CCTV Solution
May 31, 2017

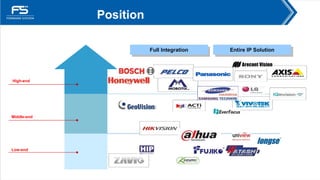

2. Entire IP Solution
Full Integration
Middle-end
High-end
Low-end
Position

4. 4

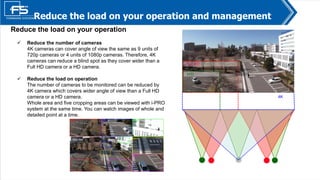

Reduce the load on your operation
 Reduce the number of cameras
4K cameras can cover angle of view the same as 9 units of
720p cameras or 4 units of 1080p cameras. Therefore, 4K
cameras can reduce a blind spot as they cover wider than a
Full HD camera or a HD camera.
 Reduce the load on operation
The number of cameras to be monitored can be reduced by
4K camera which covers wider angle of view than a Full HD
camera or a HD camera.
Whole area and five cropping areas can be viewed with i-PRO
system at the same time. You can watch images of whole and
detailed point at a time.
Reduce the load on your operation and management
4K
Full HD
ＨD

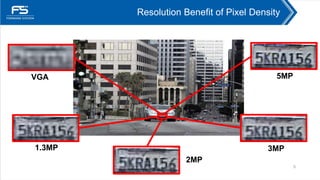

5. Resolution Benefit of Pixel Density
VGA 5MP
3MP
2MP
1.3MP
5

6. Excellent Image Quality
Video shot by iPhone7 Plus Video shot by a Hikvision H.265+ camera
Better for save
Better for analyze
Better for use
Better for choose
Better for view
Darkfighter

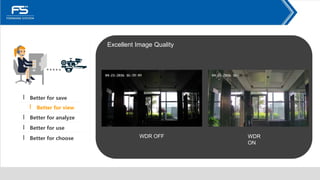

7. Excellent Image Quality
WDR OFF WDR
ON
Better for save
Better for analyze
Better for use
Better for choose
Better for view

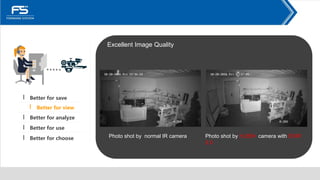

8. Excellent Image Quality
Photo shot by normal IR camera Photo shot by H.265+ camera with EXIR
2.0
Better for save
Better for analyze
Better for use
Better for choose
Better for view

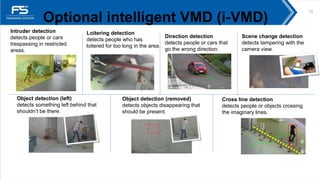

9. Optional intelligent VMD (i-VMD)
10
Intruder detection
detects people or cars
trespassing in restricted
areas.
Loitering detection
detects people who has
loitered for too long in the area.
Direction detection
detects people or cars that
go the wrong direction.
Scene change detection
detects tampering with the
camera view.
Object detection (removed)
detects objects disappearing that
should be present.
Cross line detection
detects people or objects crossing
the imaginary lines.
Object detection (left)
detects something left behind that
shouldn’t be there.

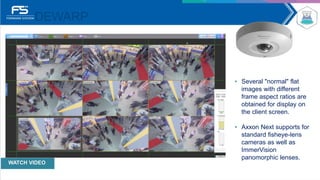

10. DEWARP
• Several "normal" flat
images with different
frame aspect ratios are
obtained for display on
the client screen.
• Axxon Next supports for
standard fisheye-lens
cameras as well as
ImmerVision
panomorphic lenses.
WATCH VIDEO

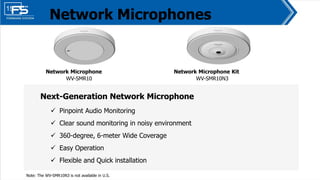

11. Next-Generation Network Microphone
 Pinpoint Audio Monitoring
 Clear sound monitoring in noisy environment
 360-degree, 6-meter Wide Coverage
 Easy Operation
 Flexible and Quick installation
Network Microphones
15
Network Microphone
WV-SMR10
Network Microphone Kit
WV-SMR10N3
Note: The WV-SMR10N3 is not available in U.S.

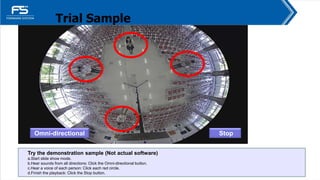

12. Trial Sample
Omni-directional Stop
Try the demonstration sample (Not actual software)
a.Start slide show mode.
b.Hear sounds from all directions: Click the Omni-directional button.
c.Hear a voice of each person: Click each red circle.
d.Finish the playback: Click the Stop button.

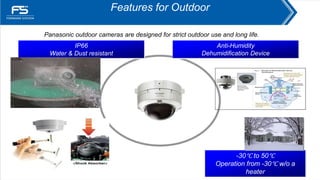

13. Features for Outdoor
IP66
Water & Dust resistant
-30℃ to 50℃
Operation from -30℃ w/o a
heater
Anti-Humidity
Dehumidification Device
Panasonic outdoor cameras are designed for strict outdoor use and long life.
Water-Proof Test

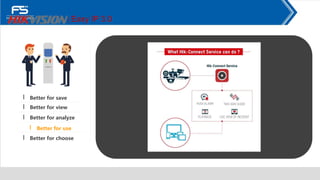

14. │ Easy IP 3.0
Better for save
Better for view
Better for analyze
Better for use
Better for choose

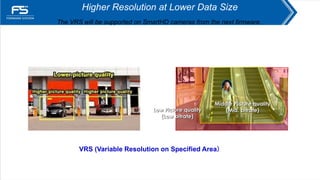

15. Higher Resolution at Lower Data Size
The VRS will be supported on SmartHD cameras from the next firmware.
VRS (Variable Resolution on Specified Area）

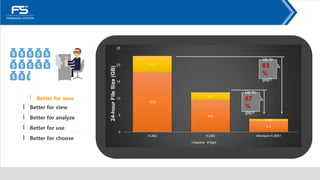

16. 17.9
9.5
3.3
4.8
2.3
0.56
0
5
10
15
20
25
H.264 H.265 Hikvision H.265+
24-hour
File
Size
(GB)
Daytime Night
Up to
67
%
gap!!
Up to
83
%
gap!!
Better for save
Better for view
Better for analyze
Better for use
Better for choose

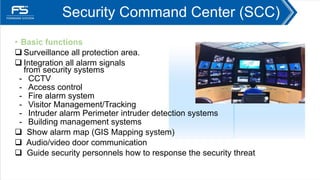

17. Security Command Center (SCC)
• Basic functions
 Surveillance all protection area.
 Integration all alarm signals
from security systems
- CCTV
- Access control
- Fire alarm system
- Visitor Management/Tracking
- Intruder alarm Perimeter intruder detection systems
- Building management systems
 Show alarm map (GIS Mapping system)
 Audio/video door communication
 Guide security personnels how to response the security threat

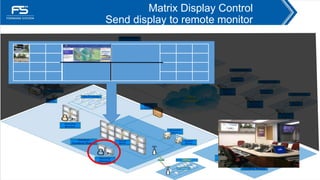

18. Matrix Display Control
Send display to remote monitor

19. Security Time 21:00-05:00
Detected
Security Time 05:00-19:00
Detected
Security Time 00:00-23:59
Detected

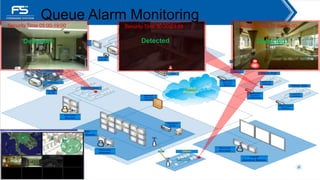

Queue Alarm Monitoring

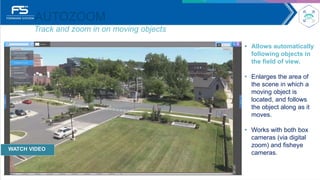

20. AUTOZOOM
Track and zoom in on moving objects
• Allows automatically
following objects in
the field of view.
• Enlarges the area of
the scene in which a
moving object is
located, and follows
the object along as it
moves.
• Works with both box
cameras (via digital
zoom) and fisheye
cameras.
WATCH VIDEO

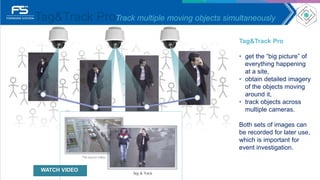

21. Tag&Track ProTrack multiple moving objects simultaneously
Tag&Track Pro
• get the “big picture” of
everything happening
at a site,
• obtain detailed imagery
of the objects moving
around it,
• track objects across
multiple cameras.
Both sets of images can
be recorded for later use,
which is important for
event investigation.
WATCH VIDEO

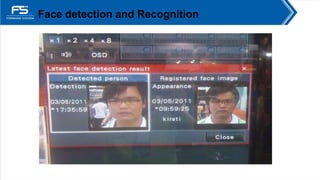

22. • Face detection and Recognition

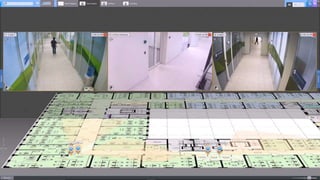

23. • Finding faces in recorded
video based on photo or
video footage
• Creating new databases,
and adding to existing
ones, with the date and
time of visitor access,
facial photo,
and link to relevant video
• Creating biometric
profiles for every face
Face search technology

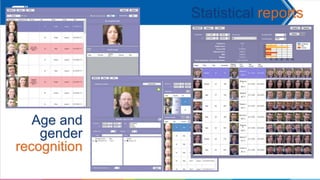

24. Age and
gender
recognition
Statistical reports

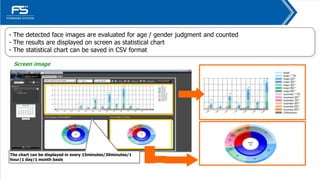

25. 34
- The detected face images are evaluated for age / gender judgment and counted
- The results are displayed on screen as statistical chart
- The statistical chart can be saved in CSV format
The chart can be displayed in every 15minutes/30minutes/1
hour/1 day/1 month basis
Screen image

26. The Queue Length detection tool measures
the load on points of client service.
By knowing the line length, management can:
• Optimize employee work schedules
• Redesign floor plans
• Increase or decrease the number of points of service
Queue management

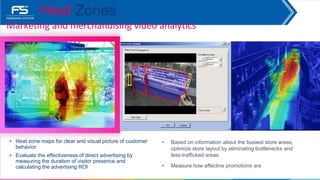

27. • Heat zone maps for clear and visual picture of customer
behavior
• Evaluate the effectiveness of direct advertising by
measuring the duration of visitor presence and
calculating the advertising ROI
Marketing and merchandising video analytics
Heat Zones
• Based on information about the busiest store areas,
optimize store layout by eliminating bottlenecks and
less-trafficked areas
• Measure how effective promotions are

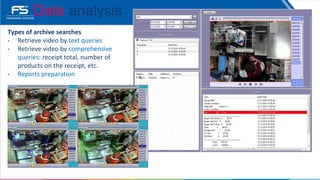

28. Types of archive searches
• Retrieve video by text queries
• Retrieve video by comprehensive
queries: receipt total, number of
products on the receipt, etc.
• Reports preparation
Data analysis

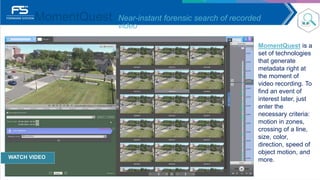

29. MomentQuest Near-instant forensic search of recorded
video
MomentQuest is a
set of technologies
that generate
metadata right at
the moment of
video recording. To
find an event of
interest later, just
enter the
necessary criteria:
motion in zones,
crossing of a line,
size, color,
direction, speed of
object motion, and
more.
WATCH VIDEO

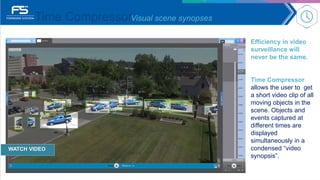

30. Time CompressorVisual scene synopses
Efficiency in video
surveillance will
never be the same.
Time Compressor
allows the user to get
a short video clip of all
moving objects in the
scene. Objects and
events captured at
different times are
displayed
simultaneously in a
condensed “video
synopsis”.
WATCH VIDEO

31. MomentQuest License Plate Search
Face Search
WATCH VIDEO

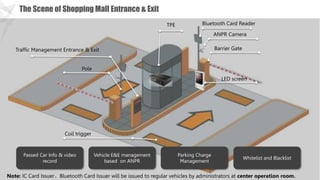

32. ANPR Camera
TPE Bluetooth Card Reader
Barrier Gate
Pole
Coil trigger
LED screen
Traffic Management Entrance & Exit
Note: IC Card Issuer、Bluetooth Card Issuer will be issued to regular vehicles by administrators at center operation room.
The Scene of Shopping Mall Entrance & Exit
Passed Car Info & video
record
Vehicle E&E management
based on ANPR
Whitelist and Blacklist
Parking Charge
Management

33. Parking-lots inquiry device
Indoor Parking-lots Guidance Screen
Parking Guidance Camera
Parking Guidance Terminal
The Scene of Shopping Mall Parking

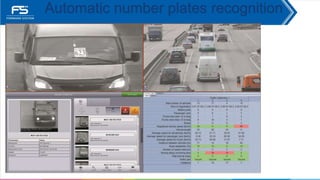

34. Network
Automatic number plates recognition

35. The Scene of Building Lobby
Smart Turnstile
Dome Camera
Bullet Camera (WDR)
Visitor Machine
Digital Signage

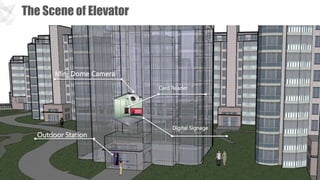

36. The Scene of Elevator
Outdoor Station
Card Reader
Mini Dome Camera
Digital Signage

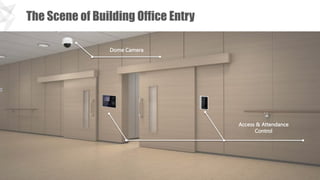

37. The Scene of Building Office Entry
Dome Camera
Access & Attendance
Control

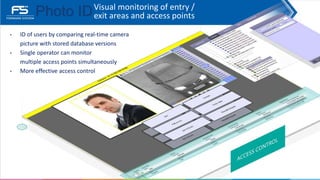

38. Visual monitoring of entry /
exit areas and access points
• ID of users by comparing real-time camera
picture with stored database versions
• Single operator can monitor
multiple access points simultaneously
• More effective access control
Photo ID

39. The Scene of Apartment
Access Control
Indoor Monitor
Outdoor Station
Elevator Control
Master Station
Dome Camera

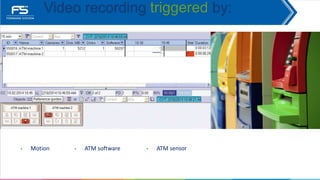

40. • Motion • ATM software
Video recording triggered by:
• ATM sensor

41. Remote monitoring for ATM network

42. WATCH VIDEO

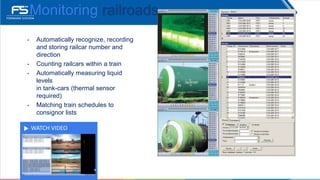

Monitoring railroads
• Automatically recognize, recording
and storing railcar number and
direction
• Counting railcars within a train
• Automatically measuring liquid
levels
in tank-cars (thermal sensor
required)
• Matching train schedules to
consignor lists

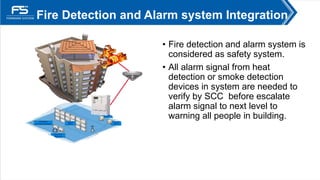

43. • Fire detection and alarm system is
considered as safety system.
• All alarm signal from heat
detection or smoke detection
devices in system are needed to
verify by SCC before escalate
alarm signal to next level to
warning all people in building.
Fire Detection and Alarm system Integration

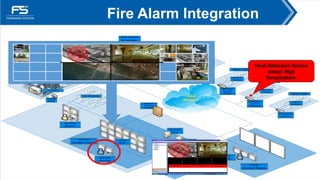

44. Heat Detection Device
detect High
Temperature.
Fire Alarm Integration

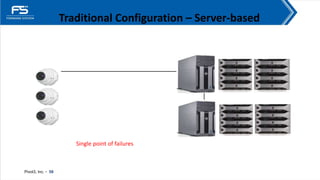

45. Traditional Configuration – Server-based
Pivot3, Inc. • 58
Single point of failures

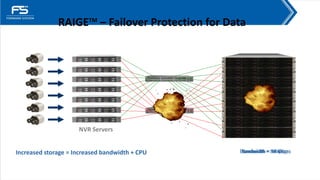

46. RAIGETM
– Failover Protection for Data
NVR Servers
Bandwidth = 8Gbps
Bandwidth = 10 Gbps
Bandwidth = 12 Gbps
Bandwidth = 14 Gbps
Bandwidth = 16 Gbps
00101101
00101101
00101101
00101101
00101101
00101101
00101101
Increased storage = Increased bandwidth + CPU

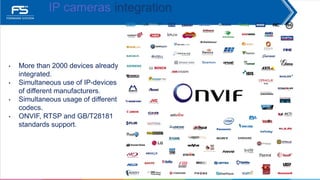

47. • More than 2000 devices already
integrated.
• Simultaneous use of IP-devices
of different manufacturers.
• Simultaneous usage of different
codecs.
• ONVIF, RTSP and GB/T28181
standards support.
IP cameras integration
