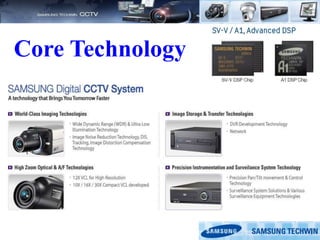

2. Core Technology

3. Core Technology
• Super High Resolution
SV-V/A1 camera technology eliminates false colour artifacts (Moire) by
utilising a special optical low pass filter and is able to resolve a horizontal
resolution of 600TV lines, by means of 12 Bit A/D serial signal processing
coupled with image element enhancement technology. Additionally, the
implementation of a 3 line processing algorithm to prevent noise under
low illumination applications, directional adaptive filtering and adjustment
of aperture gain by luminance level combine to provide a more vivid and
clearer image.

4. Core Technology

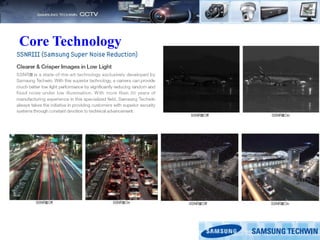

• SSNR (Samsung Super Noise Reduction) / Motion Adaptive DNR

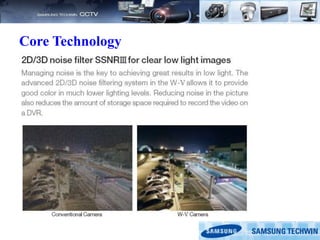

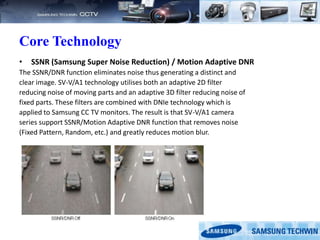

The SSNR/DNR function eliminates noise thus generating a distinct and
clear image. SV-V/A1 technology utilises both an adaptive 2D filter
reducing noise of moving parts and an adaptive 3D filter reducing noise of
fixed parts. These filters are combined with DNIe technology which is
applied to Samsung CC TV monitors. The result is that SV-V/A1 camera
series support SSNR/Motion Adaptive DNR function that removes noise
(Fixed Pattern, Random, etc.) and greatly reduces motion blur.

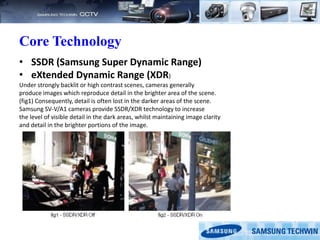

5. Core Technology
• SSDR (Samsung Super Dynamic Range)
• eXtended Dynamic Range (XDR)
Under strongly backlit or high contrast scenes, cameras generally
produce images which reproduce detail in the brighter area of the scene.
(fig1) Consequently, detail is often lost in the darker areas of the scene.

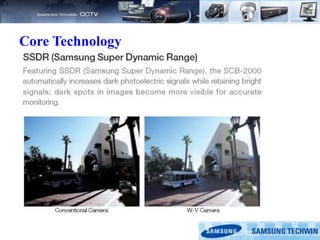

Samsung SV-V/A1 cameras provide SSDR/XDR technology to increase
the level of visible detail in the dark areas, whilst maintaining image clarity
and detail in the brighter portions of the image.

6. Core Technology

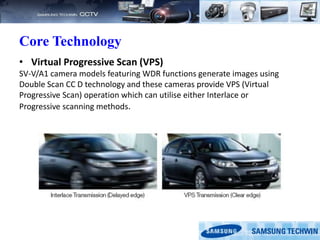

• Virtual Progressive Scan (VPS)
SV-V/A1 camera models featuring WDR functions generate images using
Double Scan CC D technology and these cameras provide VPS (Virtual
Progressive Scan) operation which can utilise either Interlace or
Progressive scanning methods.

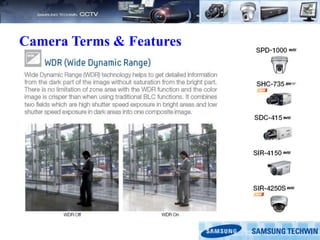

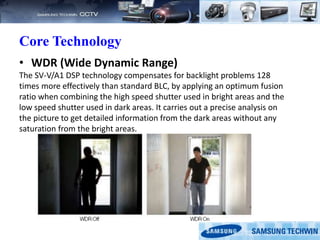

7. Core Technology
• WDR (Wide Dynamic Range)
The SV-V/A1 DSP technology compensates for backlight problems 128
times more effectively than standard BLC, by applying an optimum fusion
ratio when combining the high speed shutter used in bright areas and the
low speed shutter used in dark areas. It carries out a precise analysis on
the picture to get detailed information from the dark areas without any
saturation from the bright areas.

8. Core Technology
• DIS (Digital Image Stabilization)
SV-V/A1 cameras have the capability of digitally compensating
shake commonly caused by wind or air handling equipment. Removing
even minor vibration in the picture results in significant savings in DVR
storage space.

9. Core Technology

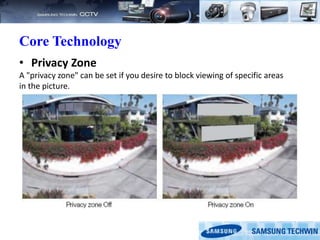

• Privacy Zone
A "privacy zone" can be set if you desire to block viewing of specific areas
in the picture.

10. Core Technology

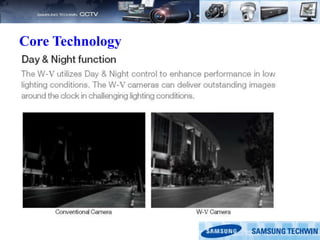

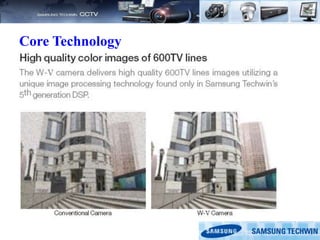

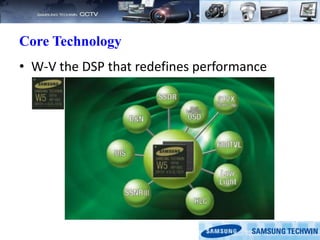

• W-V the DSP that redefines performance

11. Core Technology

12. Core Technology

13. Core Technology

14. Core Technology

15. Core Technology

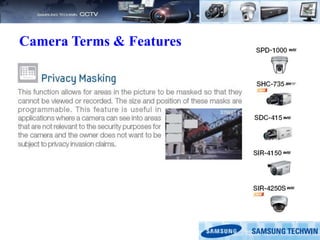

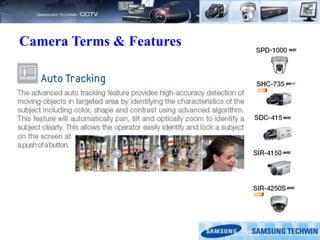

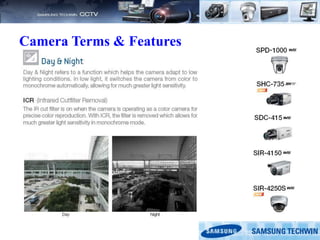

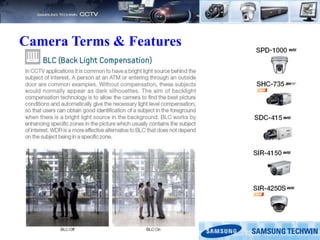

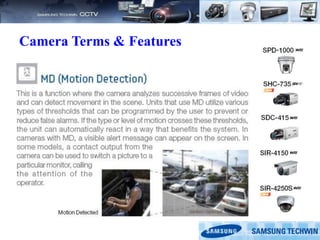

17. Camera Terms & Features

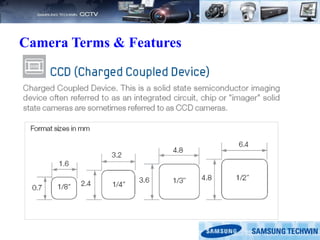

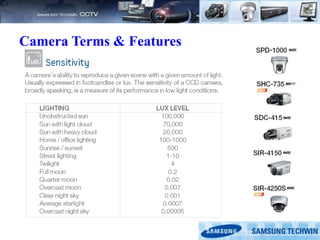

18. Camera Terms & Features

19. Camera Terms & Features

20. Camera Terms & Features

21. Camera Terms & Features

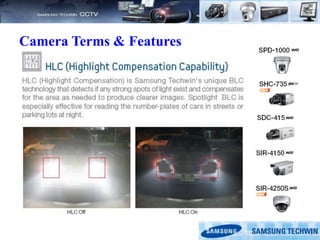

22. Camera Terms & Features

23. Camera Terms & Features

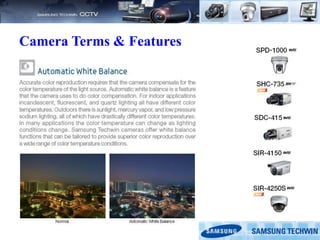

24. Camera Terms & Features

25. Camera Terms & Features

26. Camera Terms & Features

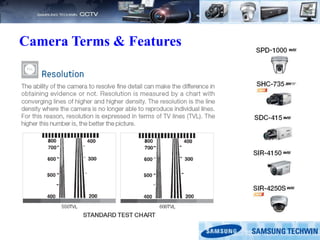

27. Camera Terms & Features

28. Digital Video Recorder (DVR)

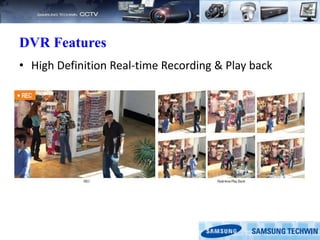

29. DVR Features
• High Definition Real-time Recording & Play back

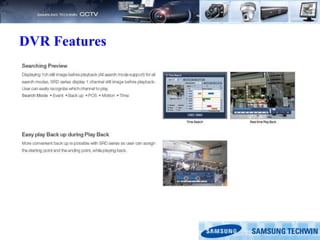

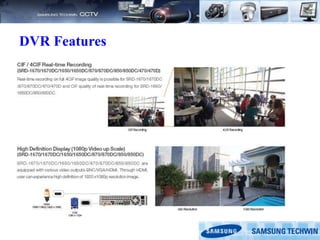

30. DVR Features

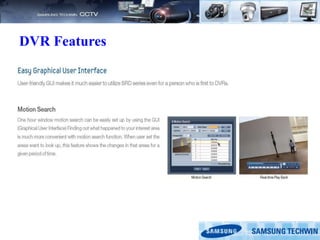

31. DVR Features

32. DVR Features

33. SAMSUNG Network Camera Solution

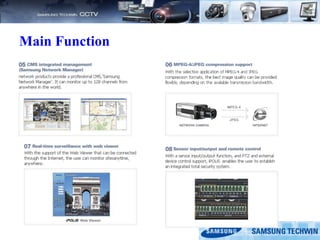

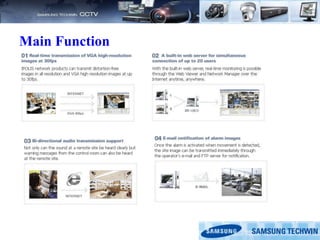

35. Main Function

36. Main Function

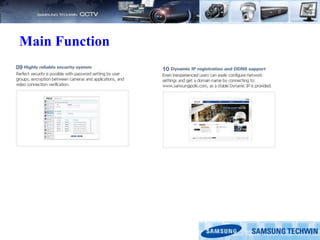

37. Main Function

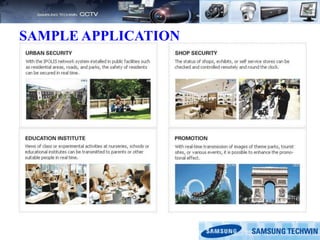

38. SAMPLE APPLICATION

39. Application GUIDE Mixed System

40. Product Line

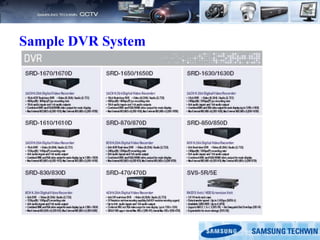

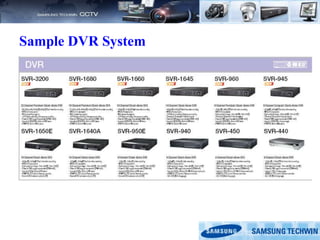

41. Sample DVR System

42. Sample DVR System

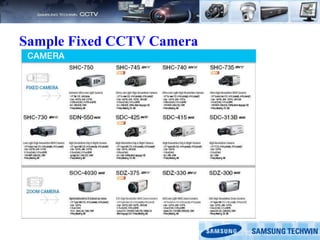

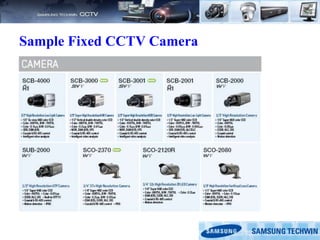

43. Sample Fixed CCTV Camera

44. Sample Fixed CCTV Camera

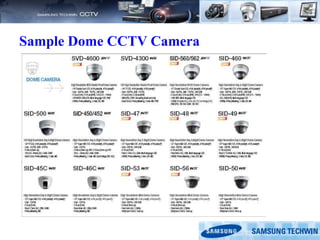

45. Sample Dome CCTV Camera

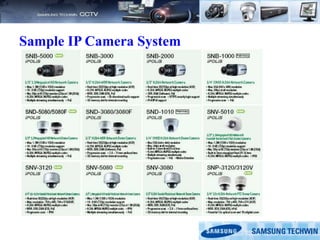

46. Sample IP Camera System

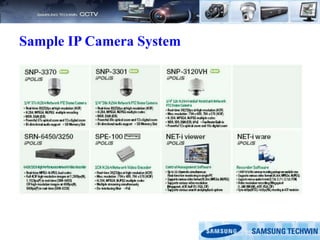

47. Sample IP Camera System

48. Sample IP Camera System

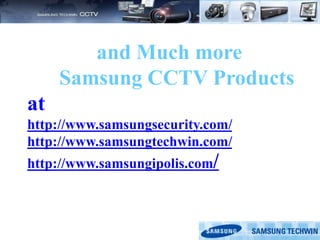

49. and Much more
Samsung CCTV Products
at
http://www.samsungsecurity.com/
http://www.samsungtechwin.com/
http://www.samsungipolis.com/

50. Demonstration
Products
Analog System

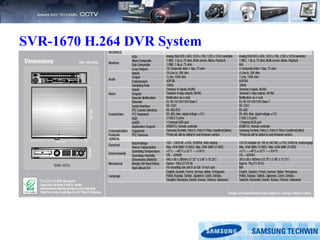

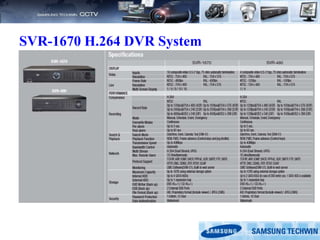

51. SVR-1670 H.264 DVR System

52. SVR-1670 H.264 DVR System

53. SVR-1670 H.264 DVR System

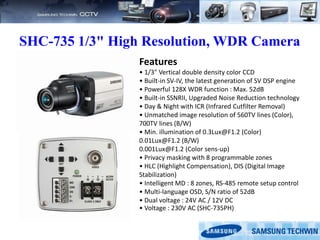

54. SHC-735 1/3" High Resolution, WDR Camera
Features
• 1/3" Vertical double density color CCD
• Built-in SV-IV, the latest generation of SV DSP engine
• Powerful 128X WDR function : Max. 52dB
• Built-in SSNRII, Upgraded Noise Reduction technology
• Day & Night with ICR (Infrared Cutfilter Removal)
• Unmatched image resolution of 560TV lines (Color),
700TV lines (B/W)
• Min. illumination of 0.3Lux@F1.2 (Color)
0.01Lux@F1.2 (B/W)
0.001Lux@F1.2 (Color sens-up)
• Privacy masking with 8 programmable zones
• HLC (Highlight Compensation), DIS (Digital Image
Stabilization)
• Intelligent MD : 8 zones, RS-485 remote setup control
• Multi-language OSD, S/N ratio of 52dB
• Dual voltage : 24V AC / 12V DC
• Voltage : 230V AC (SHC-735PH)

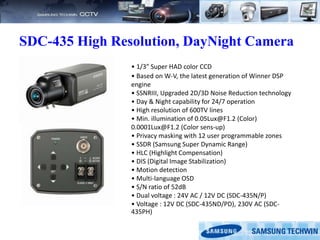

55. SDC-435 High Resolution, DayNight Camera
• 1/3” Super HAD color CCD
• Based on W-V, the latest generation of Winner DSP
engine
• SSNRIII, Upgraded 2D/3D Noise Reduction technology
• Day & Night capability for 24/7 operation
• High resolution of 600TV lines
• Min. illumination of 0.05Lux@F1.2 (Color)
0.0001Lux@F1.2 (Color sens-up)
• Privacy masking with 12 user programmable zones
• SSDR (Samsung Super Dynamic Range)
• HLC (Highlight Compensation)
• DIS (Digital Image Stabilization)
• Motion detection
• Multi-language OSD
• S/N ratio of 52dB
• Dual voltage : 24V AC / 12V DC (SDC-435N/P)
• Voltage : 12V DC (SDC-435ND/PD), 230V AC (SDC-
435PH)

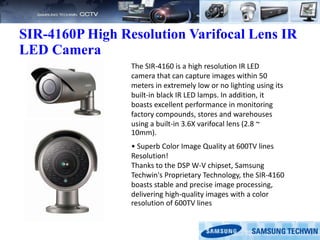

56. SIR-4160P High Resolution Varifocal Lens IR
LED Camera
The SIR-4160 is a high resolution IR LED
camera that can capture images within 50
meters in extremely low or no lighting using its
built-in black IR LED lamps. In addition, it
boasts excellent performance in monitoring
factory compounds, stores and warehouses
using a built-in 3.6X varifocal lens (2.8 ~
10mm).
• Superb Color Image Quality at 600TV lines
Resolution!
Thanks to the DSP W-V chipset, Samsung
Techwin's Proprietary Technology, the SIR-4160
boasts stable and precise image processing,
delivering high-quality images with a color
resolution of 600TV lines

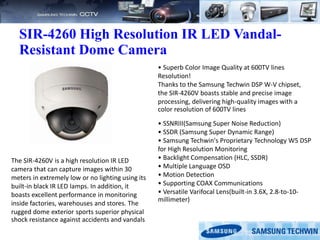

57. SIR-4260 High Resolution IR LED Vandal-
Resistant Dome Camera
The SIR-4260V is a high resolution IR LED
camera that can capture images within 30
meters in extremely low or no lighting using its
built-in black IR LED lamps. In addition, it
boasts excellent performance in monitoring
inside factories, warehouses and stores. The
rugged dome exterior sports superior physical
shock resistance against accidents and vandals
• Superb Color Image Quality at 600TV lines
Resolution!
Thanks to the Samsung Techwin DSP W-V chipset,
the SIR-4260V boasts stable and precise image
processing, delivering high-quality images with a
color resolution of 600TV lines
• SSNRIII(Samsung Super Noise Reduction)
• SSDR (Samsung Super Dynamic Range)
• Samsung Techwin's Proprietary Technology W5 DSP
for High Resolution Monitoring
• Backlight Compensation (HLC, SSDR)
• Multiple Language OSD
• Motion Detection
• Supporting COAX Communications
• Versatile Varifocal Lens(built-in 3.6X, 2.8-to-10-
millimeter)

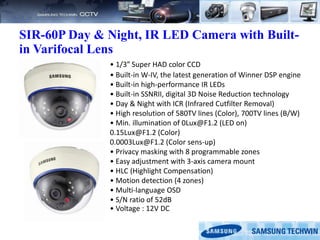

58. SIR-60P Day & Night, IR LED Camera with Built-
in Varifocal Lens
• 1/3” Super HAD color CCD
• Built-in W-IV, the latest generation of Winner DSP engine
• Built-in high-performance IR LEDs
• Built-in SSNRII, digital 3D Noise Reduction technology
• Day & Night with ICR (Infrared Cutfilter Removal)
• High resolution of 580TV lines (Color), 700TV lines (B/W)
• Min. illumination of 0Lux@F1.2 (LED on)
0.15Lux@F1.2 (Color)
0.0003Lux@F1.2 (Color sens-up)
• Privacy masking with 8 programmable zones
• Easy adjustment with 3-axis camera mount
• HLC (Highlight Compensation)
• Motion detection (4 zones)
• Multi-language OSD
• S/N ratio of 52dB
• Voltage : 12V DC

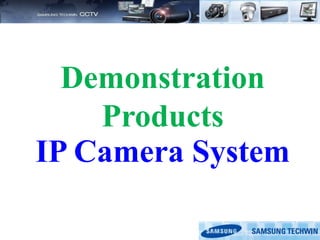

59. Demonstration
Products
IP Camera System

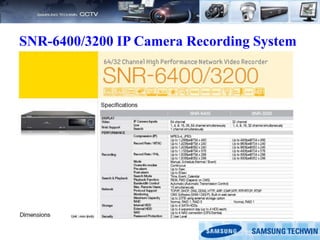

60. SNR-6400/3200 IP Camera Recording System

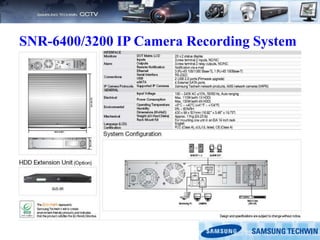

61. SNR-6400/3200 IP Camera Recording System

62. SNR-6400/3200 IP Camera Recording System

63. SNR-6400/3200 IP Camera Recording System

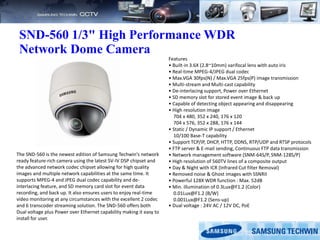

64. SND-560 1/3" High Performance WDR
Network Dome Camera
Features
• Built-in 3.6X (2.8~10mm) varifocal lens with auto iris
• Real-time MPEG-4/JPEG dual codec
• Max.VGA 30fps(N) / Max.VGA 25fps(P) image transmission
• Multi-stream and Multi-cast capability
• De-interlacing support, Power over Ethernet
• SD memory slot for stored event image & back up
• Capable of detecting object appearing and disappearing
• High resolution image
704 x 480, 352 x 240, 176 x 120
704 x 576, 352 x 288, 176 x 144
• Static / Dynamic IP support / Ethernet
10/100 Base-T capability
• Support TCP/IP, DHCP, HTTP, DDNS, RTP/UDP and RTSP protocols
• FTP server & E-mail sending, Continuous FTP data transmission
• Network management software (SNM-64S/P, SNM-128S/P)
• High resolution of 560TV lines of a composite output
• Day & Night with ICR (Infrared Cut filter Removal)
• Removed noise & Ghost images with SSNRII
• Powerful 128X WDR function : Max. 52dB
• Min. illumination of 0.3Lux@F1.2 (Color)
0.01Lux@F1.2 (B/W)
0.001Lux@F1.2 (Sens-up)
• Dual voltage : 24V AC / 12V DC, PoE
The SND-560 is the newest edition of Samsung Techwin's network
ready feature-rich camera using the latest SV-IV DSP chipset and
the advanced network codec chipset allowing for high quality
images and multiple network capabilities at the same time. It
supports MPEG-4 and JPEG dual codec capability and de-
interlacing feature, and SD memory card slot for event data
recording, and back up. It also ensures users to enjoy real-time
video monitoring at any circumstances with the excellent 2 codec
and 6 transcoder streaming solution. The SND-560 offers both
Dual voltage plus Power over Ethernet capability making it easy to
install for user.

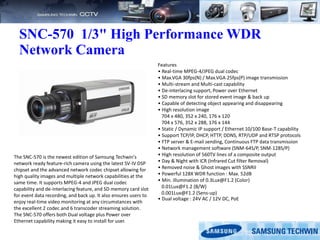

65. SNC-570 1/3" High Performance WDR
Network Camera
Features
• Real-time MPEG-4/JPEG dual codec
• Max.VGA 30fps(N) / Max.VGA 25fps(P) image transmission
• Multi-stream and Multi-cast capability
• De-interlacing support, Power over Ethernet
• SD memory slot for stored event image & back up
• Capable of detecting object appearing and disappearing
• High resolution image
704 x 480, 352 x 240, 176 x 120
704 x 576, 352 x 288, 176 x 144
• Static / Dynamic IP support / Ethernet 10/100 Base-T capability
• Support TCP/IP, DHCP, HTTP, DDNS, RTP/UDP and RTSP protocols
• FTP server & E-mail sending, Continuous FTP data transmission
• Network management software (SNM-64S/P, SNM-128S/P)
• High resolution of 560TV lines of a composite output
• Day & Night with ICR (Infrared Cut filter Removal)
• Removed noise & Ghost images with SSNRII
• Powerful 128X WDR function : Max. 52dB
• Min. illumination of 0.3Lux@F1.2 (Color)
0.01Lux@F1.2 (B/W)
0.001Lux@F1.2 (Sens-up)
• Dual voltage : 24V AC / 12V DC, PoE
The SNC-570 is the newest edition of Samsung Techwin's
network ready feature-rich camera using the latest SV-IV DSP
chipset and the advanced network codec chipset allowing for
high quality images and multiple network capabilities at the
same time. It supports MPEG-4 and JPEG dual codec
capability and de-interlacing feature, and SD memory card slot
for event data recording, and back up. It also ensures users to
enjoy real-time video monitoring at any circumstances with
the excellent 2 codec and 6 transcoder streaming solution.
The SNC-570 offers both Dual voltage plus Power over
Ethernet capability making it easy to install for user.

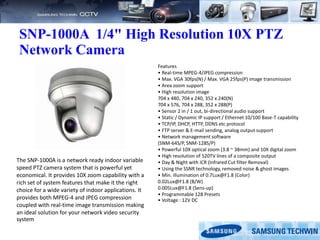

66. SNP-1000A 1/4" High Resolution 10X PTZ
Network Camera
Features
• Real-time MPEG-4/JPEG compression
• Max. VGA 30fps(N) / Max. VGA 25fps(P) image transmission
• Area zoom support
• High resolution image
704 x 480, 704 x 240, 352 x 240(N)
704 x 576, 704 x 288, 352 x 288(P)
• Sensor 2 in / 1 out, bi-directional audio support
• Static / Dynamic IP support / Ethernet 10/100 Base-T capability
• TCP/IP, DHCP, HTTP, DDNS etc protocol
• FTP server & E-mail sending, analog output support
• Network management software
(SNM-64S/P, SNM-128S/P)
• Powerful 10X optical zoom (3.8 ~ 38mm) and 10X digital zoom
• High resolution of 520TV lines of a composite output
• Day & Night with ICR (Infrared Cut filter Removal)
• Using the SSNR technology, removed noise & ghost images
• Min. illumination of 0.7Lux@F1.8 (Color)
0.02Lux@F1.8 (B/W)
0.005Lux@F1.8 (Sens-up)
• Programmable 128 Presets
• Voltage : 12V DC
The SNP-1000A is a network ready indoor variable
speed PTZ camera system that is powerful yet
economical. It provides 10X zoom capability with a
rich set of system features that make it the right
choice for a wide variety of indoor applications. It
provides both MPEG-4 and JPEG compression
coupled with real-time image transmission making
an ideal solution for your network video security
system

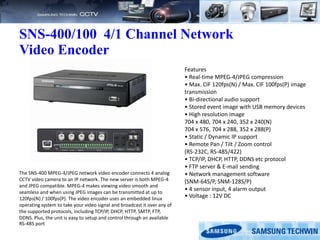

67. SNS-400/100 4/1 Channel Network
Video Encoder
Features
• Real-time MPEG-4/JPEG compression
• Max. CIF 120fps(N) / Max. CIF 100fps(P) image
transmission
• Bi-directional audio support
• Stored event image with USB memory devices
• High resolution image
704 x 480, 704 x 240, 352 x 240(N)
704 x 576, 704 x 288, 352 x 288(P)
• Static / Dynamic IP support
• Remote Pan / Tilt / Zoom control
(RS-232C, RS-485/422)
• TCP/IP, DHCP, HTTP, DDNS etc protocol
• FTP server & E-mail sending
• Network management software
(SNM-64S/P, SNM-128S/P)
• 4 sensor input, 4 alarm output
• Voltage : 12V DC
The SNS-400 MPEG-4/JPEG network video encoder connects 4 analog
CCTV video camera to an IP network. The new server is both MPEG-4
and JPEG compatible. MPEG-4 makes viewing video smooth and
seamless and when using JPEG images can be transmitted at up to
120fps(N) / 100fps(P). The video encoder uses an embedded linux
operating system to take your video signal and broadcast it over any of
the supported protocols, including TCP/IP, DHCP, HTTP, SMTP, FTP,
DDNS. Plus, the unit is easy to setup and control through an available
RS-485 port

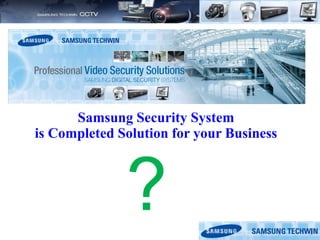

68. Samsung Security System
is Completed Solution for your Business
?
