ZKTeco CCTV products Catalogue

CompanyIntroductionBiocam300ProductsSoftwareOverview

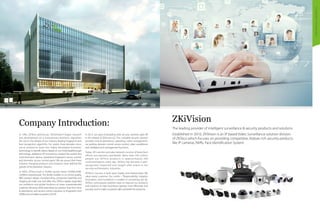

CompanyIntroduction
The leading provider of intelligent surveillance & security products and solutions
Established in 2010, ZKiVision is an IP based Video Surveillance solution division
of ZKTeco which focuses on providing competitive, feature rich security products
like IP cameras, NVRs, Face Identification System.
ZKiVisionCompany Introduction:
In 1985, ZKTeco (previously 'ZKSoftware') began research
and development on a revolutionary biometric algorithm;
this led to the release of our industry-leading fingerprint and
face recognition algorithm. For nearly three decades since,
we've worked to share this highly developed biometric
technology to benefit others. Based on our initial breakthrough
technology, additional ZK innovations created the world’s first
multi-biometric device, standalone fingerprint access control,
and biometric access control panel. We are proud that these
industry-changing products and solutions have defined the
growth of the biometric industry.
In 2009, ZKTeco built a 50,000-square-meter ISO900:2008-
certified industrial park. The facility enables us to control quality,
R&D, product design, manufacturing, component assembly and
shipping all under one roof. After this, ZKTeco rapidly expanded
our workforce and global locations to meet unprecedented
customer demand, while extending our product lines from time
& attendance, and access control solutions to fingerprint lock
(2008) and surveillance systems (2010).
In 2013, our goal of providing total security solutions paid off
in the release of ZKAccess 6.0. This complete security solution
provides time & attendance, patrolling, visitor management,
car parking, elevator control, access control, video surveillance
and intelligent lock management functions.
Today, ZK's service and sales network consists of branches/
offices and partners worldwide. More than 220 million
people use ZKTeco products in approximately 200
countries/regions every day. ZKTeco has become a well-
recognized, respected and sought after brand in the
security and biometric industries.
ZKTeco's success is built upon loyalty and relationships. We
value every customer. Our motto – “Responsibility, Integrity,
Innovation, and Excellence” is evident in everything we do.
ZKTeco continuously explores ways to improve our products
and solutions to help businesses operate more efficiently and
securely, and to make our planet safer and better for everyone.

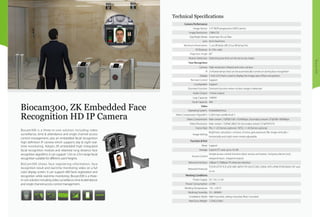

Biocam300
Biocam300 is a three-in-one solution including video
surveillance, time & attendance and single channel access
control management, also an embedded facial recognition
high definition IP camera which supports day & night real-
time monitoring. Adopts ZK embedded high integrated
facial recognition module and relatively long distance face
recognition algorithm, it can support 1.5m to 2.5m range facial
recognition suitable for different users’heights.
BioCam300 shows face registering information, face
recognition result and real-time monitoring video on a full
color display screen. It can support 400 faces registration and
recognition while real-time monitoring. Biocam300 is a three-
in-one solution including video surveillance, time & attendance
and single channel access control management.
Biocam300, ZK Embedded Face
Recognition HD IP Camera
ONVIF
Camera Performance
Image Sensor 1/3" WDR progressive CMOS sensor
Image Resolution 1280x720
Day/Night Mode Automatic IR-cut filter
Lens 6mm fixed lens
Minimum Illumination 1 Lux (IR lamp off); 0 Lux (IR lamp On)
IR Distance 8~10m valid
Projection Angle 60°
Motion Detection Detecting area that can be set to any shape
Face Recognition
Camera High-resolution infrared and color camera
IR 2 infrared lamps that can be automatically turned on during face recognition
Display 7-inch LCD that is used to display the image area of face recognition
Remote Control Support
Loudspeaker Support
Dormant Function Dormant function when no face image is detected
Audio Output 1 linear output
Logs Capacity 100000
Facial Capacity 400
Video
Operating System. Embedded linux
Video Compression Algorithm H.264 main profile level 3
Video Compression Main stream: 720P@1536~10240kbps; Secondary stream: D1@768~4096kbps
Video Resolution Main stream: 720P@1280x720; Secondary stream: D1@704*576
Frame Rate PAL: 1~25 frames optional / NTSC: 1~30 frames optional
Image Setting
Brightness, saturation, contrast, chroma, gain,exposure, flip image vertically /
horizontally and night vision mode adjustable
Function & Port
Reset Support
Storage Suports TF card, up to 32 GB.
Access Control
Simple access control function (door sensor, exit button, 3rd party electric lock,
wiegand input , wiegand output)
Network Interface 10Base-T/100Base-TX ethernet interface
Network Protocols
TCP/IP, HTTP, TCP, UDP, ARP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,ONVIF, P2P and
so on.
Working Conditions
Power Supply DC 12V, ≥1.5A
Power Consumption ≤15W
Working Temperature -10~ +50 ºC
Working Humidity 10 ~ 80%RH
Installation Mode Wall-mounted, ceiling mounted, floor mounted
Net/Gross Weight 1.55KG/2.6KG
Technical Specifications

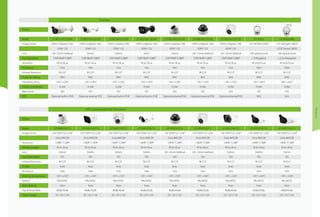

Products
IP camera
Model GT-BC510/513/520 GT-BD510/513/520 GT-BF510/513/520 GT-BG510/513/520 GT-DA510/513/520 GT-DB510/513/520 GT-DD510/513/520 GT-SD552 GT-SD652/682
Image Sensor OV9712/Aptina 130/ OV9712/Aptina 130/ OV9712/Aptina 130/ OV9712/Aptina 130/ OV9712/Aptina 130/ OV9712/Aptina 130/ OV9712/Aptina 130/ 1/3" APTINA CMOS 1/3" low-light CMOS
SONY 122 SONY 122 SONY 122 SONY 122 SONY 122 SONY 122 SONY 122 1/2.8" Exmor CMOS
Lens 2.8--12mm Varifocal 3.6mm 3.6mm 6mm 3.6mm 2.8--12mm Varifocal 2.8--12mm Varifocal 10X optical zoom 18X optical zoom
Max Resolution 720P/960P/1080P 720P/960P/1080P 720P/960P/1080P 720P/960P/1080P 720P/960P/1080P 720P/960P/1080P 720P/960P/1080P 1.3 Megapixel 1.3/2.0 Megapixel
Sensitivity IR on: 0Lux IR on: 0Lux IR on: 0Lux IR on: 0Lux IR on: 0Lux IR on: 0Lux IR on: 0Lux IR on:0.01Lux IR on:0.01Lux
IR Distance 25m 10m 15m 10m 10m 15m 15m 50m 100m
Infrared Resection IR-CUT IR-CUT IR-CUT IR-CUT IR-CUT IR-CUT IR-CUT IR-CUT IR-CUT
Protection Rating IP65 IP65 IP65 IP65 IP65 N/A N/A IP65 IP65
Operating Temp -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+65°C -30°C~+65°C
Image Compression H.264 H.264 H.264 H.264 H.264 H.264 H.264 H.264 H.264
Web Server YES YES YES YES YES YES YES YES YES
POE Optional built-in POE Optional external POE Optional built-in POE Optional built-in POE Optional external POE Optional external POE Optional external POE N/A N/A

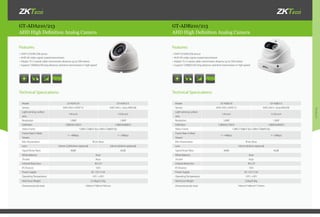

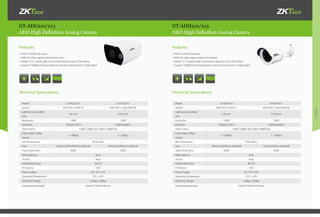

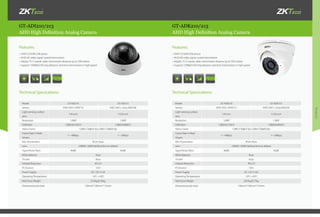

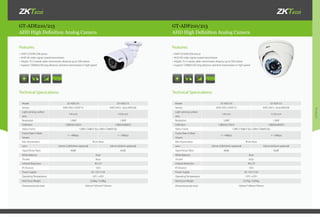

AHD camera(Analog High Denication)
Model GT-ADB210/213 GT-ADG210/213 GT-ADF210/213 GT-ADH210/213 GT-ADI210/213 GT-ADK210/213 GT-ADL210/213 GT-ADO210/213 GT-ADP210/213
Image Sensor 1/4" OV9712/ 1/2.8" 1/4" OV9712/ 1/2.8" 1/4" OV9712/ 1/2.8" 1/4" OV9712/ 1/2.8" 1/4" OV9712/ 1/2.8" 1/4" OV9712/ 1/2.8" 1/4" OV9712/ 1/2.8" 1/4" OV9712/ 1/2.8" 1/4" OV9712/ 1/2.8"
Sony IMX238 Sony IMX238 Sony IMX238 Sony IMX238 Sony IMX238 Sony IMX238 Sony IMX238 Sony IMX238 Sony IMX238
Resolution 1.0MP /1.3MP 1.0MP /1.3MP 1.0MP /1.3MP 1.0MP /1.3MP 1.0MP /1.3MP 1.0MP /1.3MP 1.0MP /1.3MP 1.0MP /1.3MP 1.0MP /1.3MP
Min.illumination IR on: 0Lux IR on: 0Lux IR on: 0Lux IR on: 0Lux IR on: 0Lux IR on: 0Lux IR on: 0Lux IR on: 0Lux IR on: 0Lux
Lens 3.6mm 3.6mm 3.6mm 3.6mm 2.8--12mm Varifocal 2.8--12mm Varifocal 3.6mm 3.6mm 3.6mm
Day/Night Mode YES YES YES YES YES YES YES YES YES
Infrared Resection IR-CUT IR-CUT IR-CUT IR-CUT IR-CUT IR-CUT IR-CUT IR-CUT IR-CUT
Shutter Auto Auto Auto Auto Auto Auto Auto Auto Auto
IR distance 10m 10m 15m 10m 15m 15m 25m 25m 15m
Working Temperature -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+50°C -10°C~+50°C
System PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC
White Balance Auto Auto Auto Auto Auto Auto Auto Auto Auto
Signal Noise Ratio 40db/45db 40db/45db 40db/45db 40db/45db 40db/45db 40db/45db 40db/45db 40db/45db 40db/45db
Power Supply DC 12V /1.5A DC 12V /1.5A DC 12V /1.5A DC 12V /1.5A DC 12V /1.5A DC 12V /1.5A DC 12V /1.5A DC 12V /1.5A DC 12V /1.5A

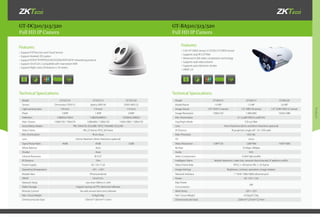

Products
GT-DC510/513/520 GT-BA510/513/520
Full HD IP Camera Full HD IP Camera
• Support P2P function and Cloud Service
• Support Android, IOS system
• Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP networking protocol
• Support Onvif 2.0+, Compatible with mainstream NVR
• Support Night vision, IR distance is 10 meters
• 510:1/4”CMOS sensor; 513/520:1/3”CMOS sensor
• Supports dual IR-CUT filter
• Advanced H.264 video compression technology
• Supports dual video streams
• Supports auto electronic shutter
• ONVIF 2.0
R G B R G B
Technical Specications: Technical Specications:
Features: Features:
Model GT-DC510 GT-DC513 GT-DC520
Sensor Omnivision OV9712 Aptina AR0130 SONY IMX122
Light-sensing Area 1/4-inch 1/3-inch 1/3-inch
Pixels 1.0MP 1.3MP 2.0MP
Definition 1280(H)x720(V) 1280(H)x960(V) 1920(H)x1080(V)
Main Stream 1280x720 / 704x576 1280x960 / 1280x720 1920x1080 / 1280x720
Seconddary Stream PAL:704x576; 352x288 / NTSC:704x480; 352x240
Video Frame PAL:25 frame; NTSC:30 frame
Min. Illumination IR on: 0Lux
Lens 3.6mm fixed lens (6mm fixed lens optional)
Signal Noise Ratio 40dB 45dB 52dB
White Balance Auto
Shutter Auto
Infrared Resection IR-CUT
IR Distance 10m
Power Supply DC 12V /1.5A
Operating Temperature -10°C - +50°C
Mobile View IPhone,Android
ONVIF Onvif 2.0+
Network Delay Less than 300ms in LAN
Video Storage Support saving via FTP, client end software
Remote Control Via web server/client end software
Net / Gross Weight 0.2kg/0.4kg
Dimension(color box) 130mm*130mm*115mm
Model GT-BA510 GT-BA513 GT-BA520
Model Name 1.0 MP 1.3 MP 2.0 MP
Image Sensor 1/4" OV9712 sensor 1/3" AR0130 sensor 1/3" SONY IMX122 sensor
Image Resolution 1280×720 1280×960 1920×1080
Min. Illumination 0.1 Lux(IR Off),0 Lux(IR On)
Day/Night Mode ICR cut filter
Lens 4mm fixed lens (6mm and 8mm fixed lens optional)
IR Distance IR projection angle: 60°, 10~15M valid
Main Processor Hi3518c
OS Linux
Video Resolution 1280*720 1280*960 1920*1080
Bit Rate 32 Kbps~6Mbps
Audio N/A
Video Compression H.264 high profile
Intelligent Alarm Motion detection, video lost, network disconnected, IP address conflict
Video Frame Rate NTSC:1~30 frame; PAL:1~25 frame
Image Settings Brightness, contrast, saturation, image rotation
Network Interface 1 * RJ45 10M/100M ethernet port
Power DC 12V / 1.5A
Max Power
Consumption
6W
Work Temp. -20°C~ 55°C

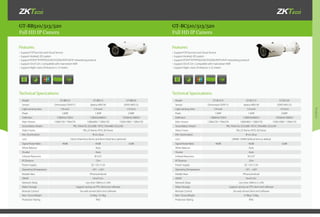

Products
GT-BB510/513/520 GT-BC510/513/520
R G B R G B
Features: Features:
Model GT-BB510 GT-BB513 GT-BB520
Lens 3.6mm fixed lens (6mm and 8mm fixed lens optional)
White Balance Auto
Shutter Auto
IR Distance 15m
ONVIF Onvif 2.0+
Net / Gross Weight 0.54kg / 0.74kg
Protection Rating IP65
Model GT-BC510 GT-BC513 GT-BC520
Lens 2.8MM-12MM Varifocal lens as default
White Balance Auto
Shutter Auto
IR Distance 25m
ONVIF Onvif 2.0+

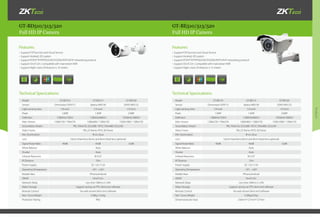

Products
GT-BD510/513/520 GT-BE510/513/520
R G B R G B
Features: Features:
Model GT-BD510 GT-BD513 GT-BD520
White Balance Auto
Shutter Auto
IR Distance 10m
ONVIF Onvif 2.0+
Model GT-BE510 GT-BE513 GT-BE520
White Balance Auto
Shutter Auto
IR Distance 15m
ONVIF Onvif 2.0+

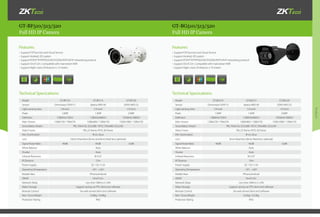

Products
GT-BF510/513/520 GT-BG510/513/520
R G B R G B
Features: Features:
Model GT-BF510 GT-BF513 GT-BF520
White Balance Auto
Shutter Auto
IR Distance 15m
ONVIF Onvif 2.0+
Model GT-BG510 GT-BG513 GT-BG520
Lens 6mm fixed lens (8mm fixed lens optional)
White Balance Auto
Shutter Auto
IR Distance 10m
ONVIF Onvif 2.0+

Products

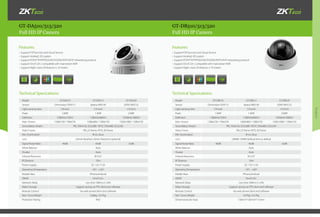

GT-DA510/513/520 GT-DB510/513/520
R G B R G B
Features: Features:
Model GT-DA510 GT-DA513 GT-DA520
Lens 3.6mm fixed lens (6mm fixed lens optional)
White Balance Auto
Shutter Auto
IR Distance 10m
ONVIF Onvif 2.0+
Model GT-DB510 GT-DB513 GT-DB520
White Balance Auto
Shutter Auto
IR Distance 10m
ONVIF Onvif 2.0+

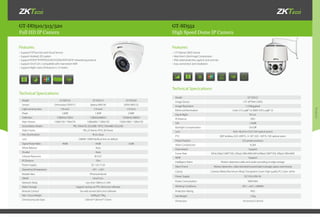

Products
GT-DD510/513/520 GT-SD552
Full HD IP Camera High Speed Dome IP Camera
• 1/3”Aptina CMOS Sensor
• Real-time H.264 Image Compression
• IP65-rated protection against dust and rain
• Easy connection and installation
R G B
Technical Specications:
Technical Specications:
Features: Features:
Model GT-DD510 GT-DD513 GT-DD520
White Balance Auto
Shutter Auto
IR Distance 10m
ONVIF Onvif 2.0+
R G B
-30℃
10×
Model GT-SD552
Image Sensor 1/3" APTINA CMOS
Image Resolution 1.3 Megapixel
MinimumIllumination Color: 0.1Lux@F1.6, B&W: 0.01Lux@F1.6
Day & Night IR-Cut
IR distance 50m
S/N >50dB
Backlight Compensation On/Off
Lens 4.63~46.3mm F2.0 (10X optical zoom)
PTZ 360° endless, 0.01-200°/S; -5~92°, 0.01-120°/S; 10X optical zoom
Preset Position 255 preset positions
Video Compression H.264
Dual-stream Support
Frame Rate 50Hz:25fps(1280*720) ,25fps(1280×960) 60Hz:30fps(1280*720) ,30fps(1280×960)
WDR Support
Intelligent Alarm Motion detection,video and audio recording to edge storage
Alarm Event Motion detection, video blocked/covered alarm,storage space over/wrong
Casing Camera: Metal (Aluminum Alloy); Transparent cover: High quality PC; Color: white
Power Supply DC12V±10% 3A
Power Consumption 30W MAX
Working Conditions -30°C~+65°C,<90%RH
Net Weight 1.5kg
Dimension 141(mm)×215(mm)

Products
GT-SD682GT-SD652
High Speed Dome IP CameraHigh Speed Dome IP Camera
• 2.0 Megapixels
• 18X optional Zoom
• 1.3 Megapixels
• 18X optional Zoom
Technical Specications:Technical Specications:
Features:Features:
Model GT-SD682
Image Sensor 1/2.8" Exmor CMOS
Image Resolution 2.0 Megapixels
Day & Night IR-Cut
IR distance 100m
S/N >50dB
Lens 4.7-84.6mm, 18X optional zoom
Horizontal View Angle 55.2-3.2°(Wide angle - Tele); 55.2-2.9°(Wide angle - Tele)
Frame Rate 50Hz:15f (1280×960P), 25f (1280×720P); 60Hz:20f (1280×960P),30f (1280×720P)
WDR Support
Alarm event Motion detection, video blocked/covered alarm,storage space over/wrong
Alarm I/O 4-ch Input; 2-ch Output
Power Supply DC12V±10% 4A (AC24V available)
Working Conditions -30°C~+65°C,<90%RH non-condensing
Net Weight 4kg
Model GT-SD652
Image Sensor 1/3" low-light CMOS
Image Resolution 1.3 Megapixels
Day & Night IR-Cut
IR distance 100m
S/N >50dB
Lens 4.7-84.6mm, 18X optional zoom
Horizontal View Angle 55.2-3.2°(Wide angle - Tele); 55.2-2.9°(Wide angle - Tele)
Frame Rate 50Hz:15f (1280×960P), 25f (1280×720P); 60Hz:20f (1280×960P),30f (1280×720P)
WDR Support
Alarm event Motion detection, video blocked/covered alarm,storage space over/wrong
Alarm I/O 4-ch Input; 2-ch Output
Power Supply DC12V±10% 4A (AC24V available)
Working Conditions -30°C~+65°C,<90%RH non-condensing
Net Weight 4kg
R G B
-30℃
18×R G B
-30℃
18×

Products

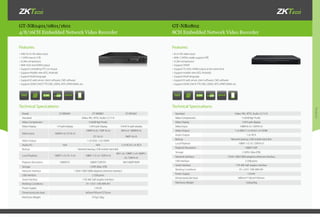

GT-NR0401/0801/1601 GT-NR0802
4/8/16CH Embedded Network Video Recorder 8CH Embedded Network Video Recorder
• 4/8/16-ch HD video input
• 1 SATA max to 3 TB
• H.264 compression
• With VGA and HDMI output
• Support controlling PTZ via mouse
• Support Mobile view (IOS, Android)
• Support Multi-language
• Support IE web server, client software, CMS software
• Support DDNS DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL etc.
• 8-ch HD video input
• With 2 SATAS, totally support 6TB
• Support ONVIF
• Support TV, VGA, HDMI output at the same time
• Support mobile view (IOS, Android)
• Support DDNS DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL etc.
Features: Features:
Model GT-NR0401 GT-NR0801 GT-NR1601
Standard Video: PAL; NTSC Audio: G.711A
Video Compression H.264(High Prole)
Video Display 1/4 split display 1/4/9 split display 1/4/9/16 split display
Video Input 1080P:4-ch; D1:8-ch
1080P: 8-ch; 720P: 8-ch;
D1:16-ch
3M:4-ch 1080P:8-ch
960P:16-ch
Video Output 1-ch VGA, 1-ch HDMI
Audio I/O N/A N/A 1-ch RCA/1-ch RCA
Backup Network backup, USB mobile hard disk
Local Playback 1080P:1-ch: D1: 4-ch 1080P: 1/2-ch: 720P:4-ch
3M:1-ch; 1080P: 2-ch; 960P:2-
ch; 720P:4-ch
Playback Resolution 1080P/D1 1080P/720P/D1 3M/1080P/960P
Storage 1 SATA (Max 3TB)
Network Interface 1 RJ45 10M/100M adaptive ethernet interface
USB Interface 2 USB ports
Serial Interface 1 RS-485 half-duplex interface
Working Conditions 0°C-+55°C 10%-90% RH
Power Supply 12V/2A
Net/Gross Weight 975g/1.8kg
Video Display 1/4/9 split display
Video Input 1080P:8-ch; 720P:8-ch
Video Output 1-ch BNC/1-ch VGA/1-ch HDMI
Audio Output 1-ch RCA
Local Playback 1080P: 1/2-ch; 720P:8-ch
Playback Resolution 1080P/720P
Storage 2 SATA ( Max 6TB)
Power Supply 12V/4A
Net/Gross Weight 1.62kg/3kg
H.264 ONVIF H.264 ONVIF

Products

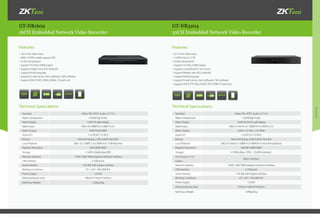

GT-NR3204GT-NR1602
32CH Embedded Network Video Recorder16CH Embedded Network Video Recorder
• Support TV, VGA, HDMI output
• Support DHCP, FTP, DNS, DDNS, NTP, UPNP, IP searching
• With 2 SATAS, totally support 6TB
• Support mobile view (IOS, Android)
• Support DHCP, DNS, DDNS, EMAIL, IP search etc.
Features:Features:
Video Display 1/4/9/16 split display
Video Input 3M:4-ch;1080P:8-ch; 960P:16-ch
Video Output RJ45/VGA/HDMI
Audio I/O 1-ch RCA/1-ch RCA
Local Playback 3M:1-ch; 1080P: 2-ch; 960P:4-ch 720P:real time
Playback Resolution 3M/1080P/960P
Storage 2 SATA (Totally Max 6TB)
Power Supply 12V/4A
Video Display 1/4/8/16/24/32 split display
Video Input 5M:8-ch 3M:16-ch 1080P:24-ch 960P:32-ch
Video Output RJ45/1-ch VGA, 1ch HDMI
Local Playback 5M:2-ch 3M:4-ch 1080P:4-ch 960P:8-ch real-time playback
Playback Resolution 5M/3M/1080P/960P
Storage 4 SATAs (Max 12TB) , 1 ESATA interface)
16-ch input / 4-ch
output
Alarm Interface
Power Supply 12V/6A
H.264 ONVIFH.264 ONVIF

Products
GT-NR3208 GT-ADR401M
32CH Embedded Network Video Recorder 4-CH HD Hybrid Digital Video Recorder
• Support DHCP, FTP, DNS, DDNS, NTP, UPNP, IP searching etc.
• 4-ch video input
• Supports hybrid video input – AHD, Analog and IP camera
• With VGA, HDMI HD output
• Supports phone monitoring(iPhone, Android)
• With 1 SATA, max to 3 TB
• Supports web browser access
• Support IE web server, client software
Features: Features:
Video Display 1/4/8/16/24/32 split display
Video Input 5M:8-ch 3M:16-ch 1080P:24-ch 960P:32-ch
Video Output RJ45/1-ch VGA, 1ch HDMI
Local Playback 5M:2-ch 3M:4-ch 1080P:4-ch 960P:8-ch real-time playback
Playback Resolution 5M/3M/1080P/960P
Storage 8 SATAs (Max 24TB) , 1 ESATA interface)
16-ch input / 4-ch
output
Alarm Interface
Power Supply 220V
Product Model GT-ADR401M
Video Compression H.264 (High Profile)
Video Input Analog: 4*AHD-M ;Mixed: 2* AHD-M (analog)+2*720P (network);Network: 8*720P; 8*1080P;
Audio Compression G.711A
Audio Input 4-ch RCA
Playback 4 channels (1-ch real time)
Hard Disk Interface 1 SATA (Max to 3TB)
Space Occupied 720P 20G / day; 960H 12~20G / day*channel; Audio: 691.2M / day*channel
Input 4-ch BNC
Network Interface RJ45 10M/100M adaptive ethernet interface
USB Interface 2 USB 2.0 ports
Serial Interface 1 RS-485 Support multi kinds of PTZ protocol
Power 12V/2A
Dimensions(color box) 345mm*95mm*275mm
Net/Gross Weight 1.0kg/1.8kg
H.264 ONVIF H.264
Chro
Firef
Safa
IE

Products

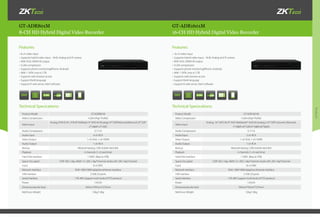

GT-ADR1601MGT-ADR801M
16-CH HD Hybrid Digital Video Recorder8-CH HD Hybrid Digital Video Recorder
Features:Features:
Video Input
Analog: 16* AHD-M; 8* AHD-M;Mixed:4* AHD-M (analog )+4*720P( network );Network:
1*1080P+8*720P;4*1080P;20*960H;
Input 16-ch BNC
Power 12V/2A
Video Input
Analog: 8*AHD-M ; 4*AHD-M;Mixed: 4* AHD-M (Analog)+4*720P(Network);Network: 8*720P;
2*1080P+2*720P;
Input 8-ch BNC
Power 12V/2A
H.264
Chro
Firef
Safa
IE
H.264
Chro
Firef
Safa
IE

Products
GT-ADA210/213 GT-ADB210/213
AHD High Definition Analog Camera AHD High Definition Analog Camera
• OV9712/SONY238 sensor
• AHD HD video signal coaxial transmission
• Adopts 75-5 coaxial cable, transmission distance up to 500 meters
• Support 720P@25/30 long distance, real-time transmission in high speed
Features: Features:
Model GT-ADA210 GT-ADA213
Sensor AHD 2431+OV9712 AHD 2431+ Sony IMX238
Light-sensing surface
area
1/4-inch 1/2.8-inch
Resolution 1.0MP 1.3MP
Definition 1280(H)x720(V) 1280(H)x960(V)
Video Frame 1280×720@25 fps;1280×720@30 fps
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
Min. illumination IR on: 0Lux
Lens 3.6mm (2.8/6.0mm optional) 3.6mm (6.0mm optional)
Signal Noise Ratio 40dB 45dB
White Balance Auto
Shutter Auto
IR Distance 10m
Operating Temperature -10°C~+50°C
Model GT-ADB210 GT-ADB213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
Lens 3.6mm (6.0mm optional)
White Balance Auto
Shutter Auto
IR Distance 10m
IR IR

Products

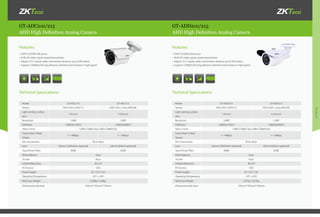

GT-ADC210/213 GT-ADD210/213
Features: Features:
Model GT-ADC210 GT-ADC213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
White Balance Auto
Shutter Auto
IR Distance 10m
Net/Gross Weight 0.28kg / 0.38kg
Model GT-ADD210 GT-ADD213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
White Balance Auto
Shutter Auto
IR Distance 10m
IR IR

Products
GT-ADE210/213 GT-ADF210/213
Features: Features:
Model GT-ADE210 GT-ADE213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
White Balance Auto
Shutter Auto
IR Distance 10m
Model GT-ADF210 GT-ADF213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
White Balance Auto
Shutter Auto
IR Distance 10m
IR IR

Products
GT-ADG210/213 GT-ADH210/213
Features: Features:
Model GT-ADG210 GT-ADG213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
Lens 3.6mm (2.8/6.0/8.0mm optional) 3.6mm (6.0/8.0mm optional)
White Balance Auto
Shutter Auto
IR Distance 10m
Model GT-ADH210 GT-ADH213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
White Balance Auto
Shutter Auto
IR Distance 10m
IR IR

Products
GT-ADI210/213 GT-ADK210/213
Features: Features:
Model GT-ADI210 GT-ADI213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
White Balance Auto
Shutter Auto
IR Distance 10m
Model GT-ADK210 GT-ADK213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
White Balance Auto
Shutter Auto
IR Distance 10m
IR IR

Products
GT-ADL210/213 GT-ADQ210/213
Features: Features:
Model GT-ADL210 GT-ADL213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
Lens 3.6mm (6.0/8.0/12mm optional)
White Balance Auto
Shutter Auto
IR Distance 25m
Model GT-ADQ210 GT-ADQ213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
White Balance Auto
Shutter Auto
IR Distance 15m
IR IR

Products

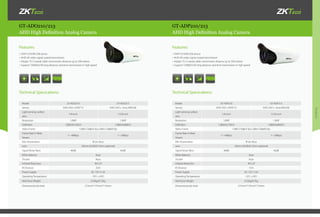

GT-ADO210/213 GT-ADP210/213
Features: Features:
Model GT-ADO210 GT-ADO213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
White Balance Auto
Shutter Auto
IR Distance 25m
Model GT-ADP210 GT-ADP213
area
1/4-inch 1/2.8-inch
Frame Rate In Main
Stream
1—4Mbps 1—5Mbps
White Balance Auto
Shutter Auto
IR Distance 15m
IR IR

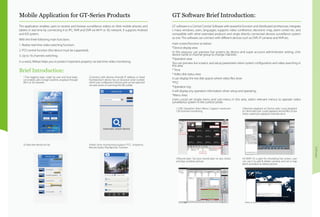

Software
Mobile Application for GT-Series Products
Brief Introduction:
1.Two logging ways--Login by user and local login,
can enable users to login anytime, anyplace through
Wi-Fi or 3G network.
3.Check the device on list. 4.Real time monitoring:support PTZ, Snapshot,
Record, Audio, Play Back etc. function
2.Connect with devices through IP address or Serial
Number.(Each device has an exclusive serial number
which was configured in factory and can be searched
via web server or scanning the QR codde)
GT Software Brief Introduction:
The application enables users to receive and browse surveillance videos on their mobile phones and
tablets in real time by connecting it to IPC, NVR and DVR via WI-FI or 3G network. It supports Android
and IOS system.
With the three following main functions:
1. Realize real-time video watching function;
2. PTZ control function (the device must be supported);
3. Up to 16 channels switching.
In a word, XMeye helps you to protect important property via real-time video monitoring.
GT software is a Central Control Software with powerful function and distributed architecture, integrate
s many windows, users, languages; supports video conference, electronic map, alarm center etc. and
compatible with other extended products and single directly connected devices surveillance system
as one. This software can connect with different devices such as DVR, IP cameras and NVR etc.
main screen/function as below:
*Device display area
In this area,you can preview live screens by device and super account administrator setting, click
device name or channel group to change channels.
*Operation area
You can preview live screens, and setup parameters when system configuration and video searching in
this area.
* Time
* Video disk status area
It can display the rest disk spaces where video files store
*PTZ
*Operation log
It will display any operation information when setup and operating.
*Menu Area
Users could set single menu and sub-menu in this area, select relevant menus to operate video
surveillance system in the control center.
1.CMS Operation Main Menu: Support maximum
128 channels monitoring.
3.Record plan: Set your record plan on any clocks
and days as below picture:
2.Remote playback at Device-side; Local playback
at Client-side.User could playback record files of any
times, maximum playback channels are 4.
4.E-MAP: It’s a plan for simulating live screen, user
can use it to add & delete cameras and set e-map
alarm activation as below picture:

Software

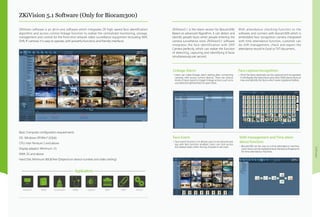

ZKiVision 5.1 Software (Only for Biocam300)
ZKiVision5.1 is the latest version for Biocam300.
Based on advanced Algorithm, it can detect and
identify people faces when people entering the
camera surveillance zone. ZKiVision5.1 software
integrates the face identification with ZKIP
Camera perfectly, which can realize the function
of detecting, capturing and identifying 8 faces
simultaneously per second.
With attendance checking function to the
software, and connect with biocam300 which is
embedded face recognition camera integrated
with time attendance function, customer can
do shift management, check and export the
attendance record in Excel or TXT document..
Linkage Alarm:
• Users can make linkage alarm setting after connecting
cameras with access control devices. There are various
kinds of input signal to trigger linkage actions such as to
use detected general face to open door..
Face Event:
• Face event function is to allowe users to record and save
log with face function enabled. Users can click access
the related video when the log showed in red color.
Shift management and Time atten-
dance function:
• Biocam300 can be uses as a time attendance machine.
User’s faces can be registered and checked as fingerprint
for time attendance machine.
Face capture/recognition:
• All of the faces detected can be captured and recognized.
It will display the latest faces and store 5000 pieces faces at
max and identify the faces which were registered before.
ZKiVision software is an all-in-one software which integrates ZK high speed face identification
algorithm and access control linkage function to realize the centralized monitoring, storage,
management and control for the front-end network video surveillance equipment (including NVR,
DVR, IP camera). It is easy to operate, with powerful functions and friendly interfaces.
Basic Computer configuration requirements
OS: Windows XP/Win7 (32bit)
CPU: Inter Pentium 5 and above
Display adaptor: Minimum 1G
RAM: 2G and above
Hard Disk: Minimum 80GB free (Depend on device number and video setting)

Overview

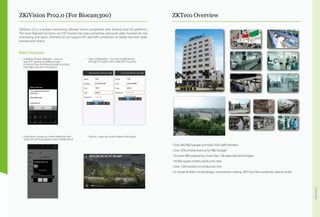

ZKiVision Pro2.0 (For Biocam300) ZKTeco Overview
ZKiVision 2.0 is a mobile monitoring software which compatible with Android and IOS platforms.
The most featured functions are P2P function for easy connection and push video function for real
monitoring and alarm. ZKiVision2.0 can support IPC and NVR connection to realize real time video
preview and control.
Main Features
• 3 Adding Devices Methods -- you can
search IP cameras by different ways,
including (Two-dimensional code scanning,
manually enter and LAN Search)
• Easy Configuration --it is easy to add devices
through IP mode or UID mode (P2P Function)
• Record --users can record video in the phone.• Event alarm caused by motion detection and
video loss will be pushed to your mobile phone
• Over 400 R&D people and total 2500 staff members
• Over 25% of total revenue for R&D budget
• 26 years R&D experience, more than 100 patented technologies
• 50,000 square meters production area
• Over 1200 workers on production line
• In-house facilities: mould design, compression casting, SMT, dust-free workshop, optical center

ZK Building, Wuhe Road, Gangtou, Bantian, Buji Town, Longgang District,
Shenzhen China 518129
Tel: +86 755-89602345
Fax: +86 755-89602394
www.zkteco.com
© Copyright 2014. ZKTeco Inc. ZKTeco Logo is a registered trademark of ZKTeco or a related company. All other product and
company names mentioned are used for identification purposes only and may be the trademarks of their respective owners.
All specifications are subject to change without notice. All rights reserved.

ZKTeco CCTV products Catalogue

More Related Content

What's hot

Similar to ZKTeco CCTV products Catalogue

More from 中控生物识别技术有限公司

Recently uploaded

ZKTeco CCTV products Catalogue
