This document provides an overview of sailing, including why people enjoy sailing, typical sailing lessons, common sailing terms, parts of sailboats, and basic sailing maneuvers. Sailing can be relaxing or competitive, is accessible for all experience and skill levels, and can be enjoyed alone or with others. A typical sailing lesson covers boat rigging, points of sail, maneuvers like tacking and jibing, and safety procedures. The document also includes specifications for two sailboat models - the Flying Scot and Gulfstar 39 sailboat.

1. Sailing 101
Peter M. Goodstein
Sailor of the Ocean Sea

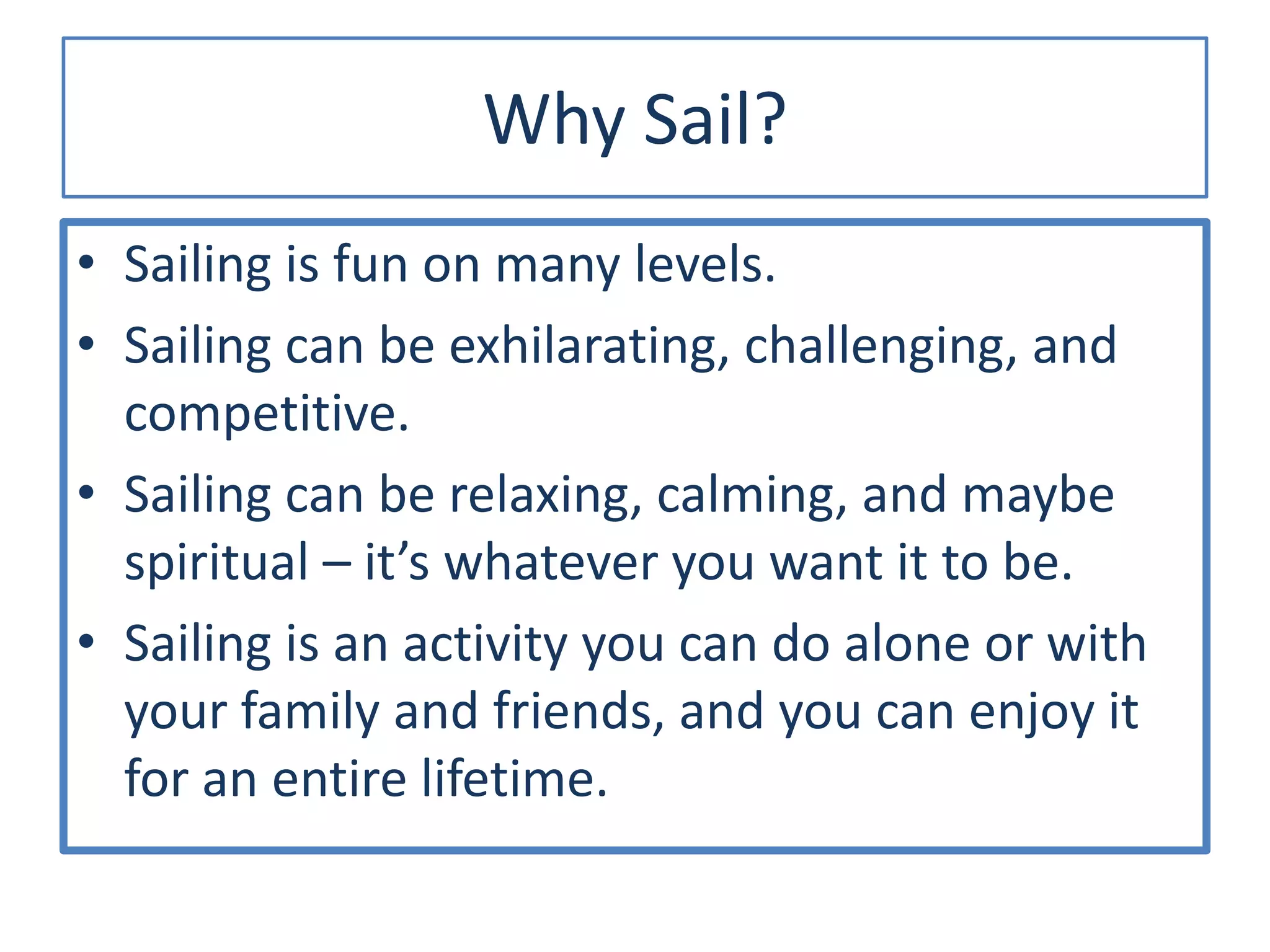

2. Why Sail?
• Sailing is fun on many levels.
• Sailing can be exhilarating, challenging, and
competitive.
• Sailing can be relaxing, calming, and maybe
spiritual – it’s whatever you want it to be.
• Sailing is an activity you can do alone or with
your family and friends, and you can enjoy it
for an entire lifetime.

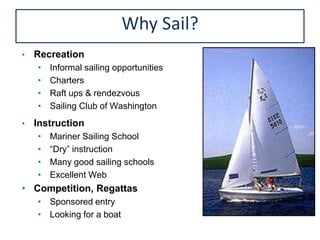

3. • Recreation
• Informal sailing opportunities
• Charters
• Raft ups & rendezvous
• Sailing Club of Washington
• Instruction
• Mariner Sailing School
• “Dry” instruction
• Many good sailing schools
• Excellent Web
• Competition, Regattas
• Sponsored entry
• Looking for a boat
Why Sail?

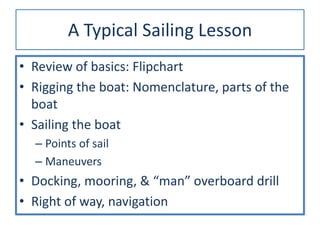

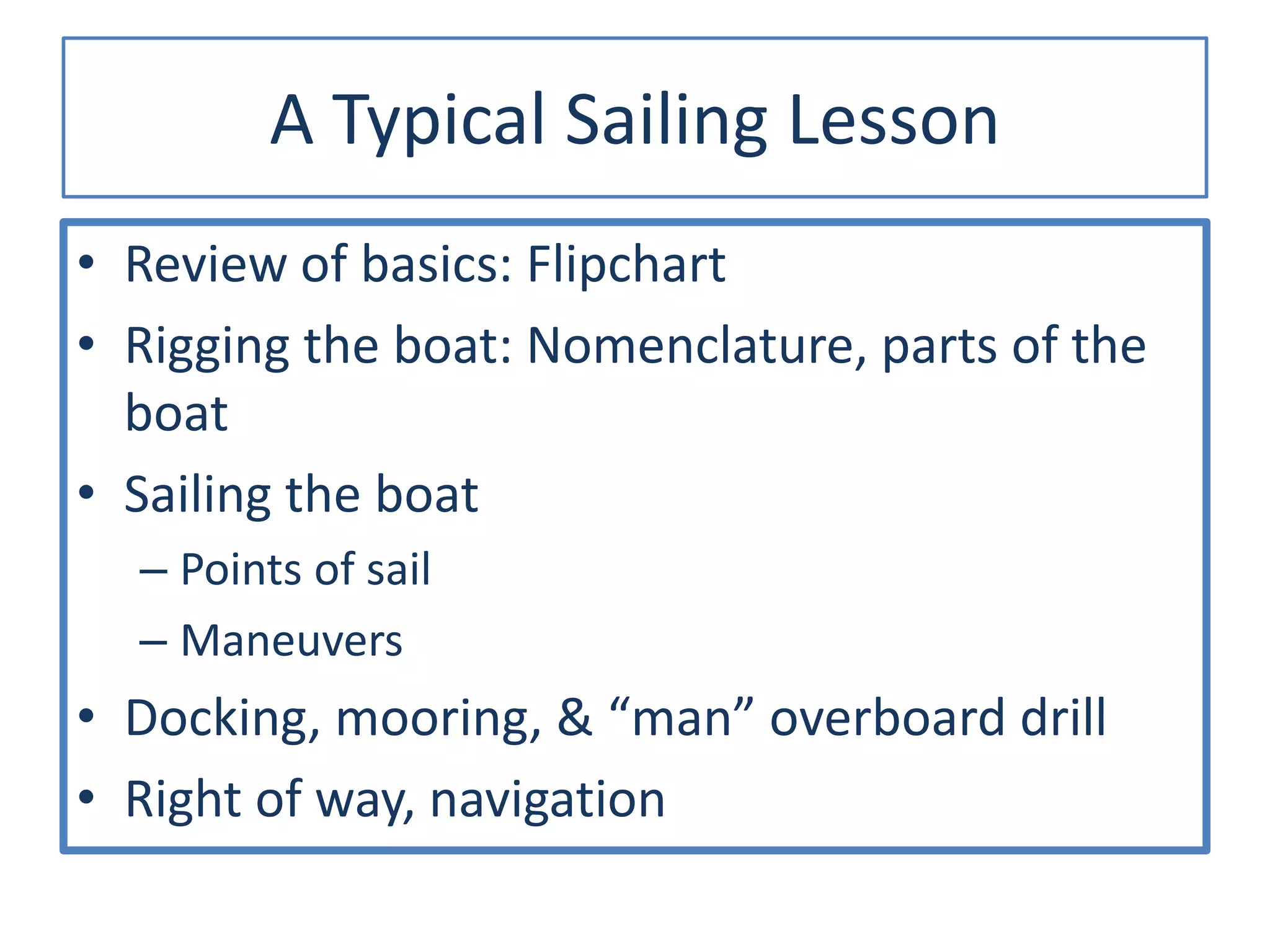

4. A Typical Sailing Lesson
• Review of basics: Flipchart
• Rigging the boat: Nomenclature, parts of the
boat
• Sailing the boat
– Points of sail
– Maneuvers
• Docking, mooring, & “man” overboard drill
• Right of way, navigation

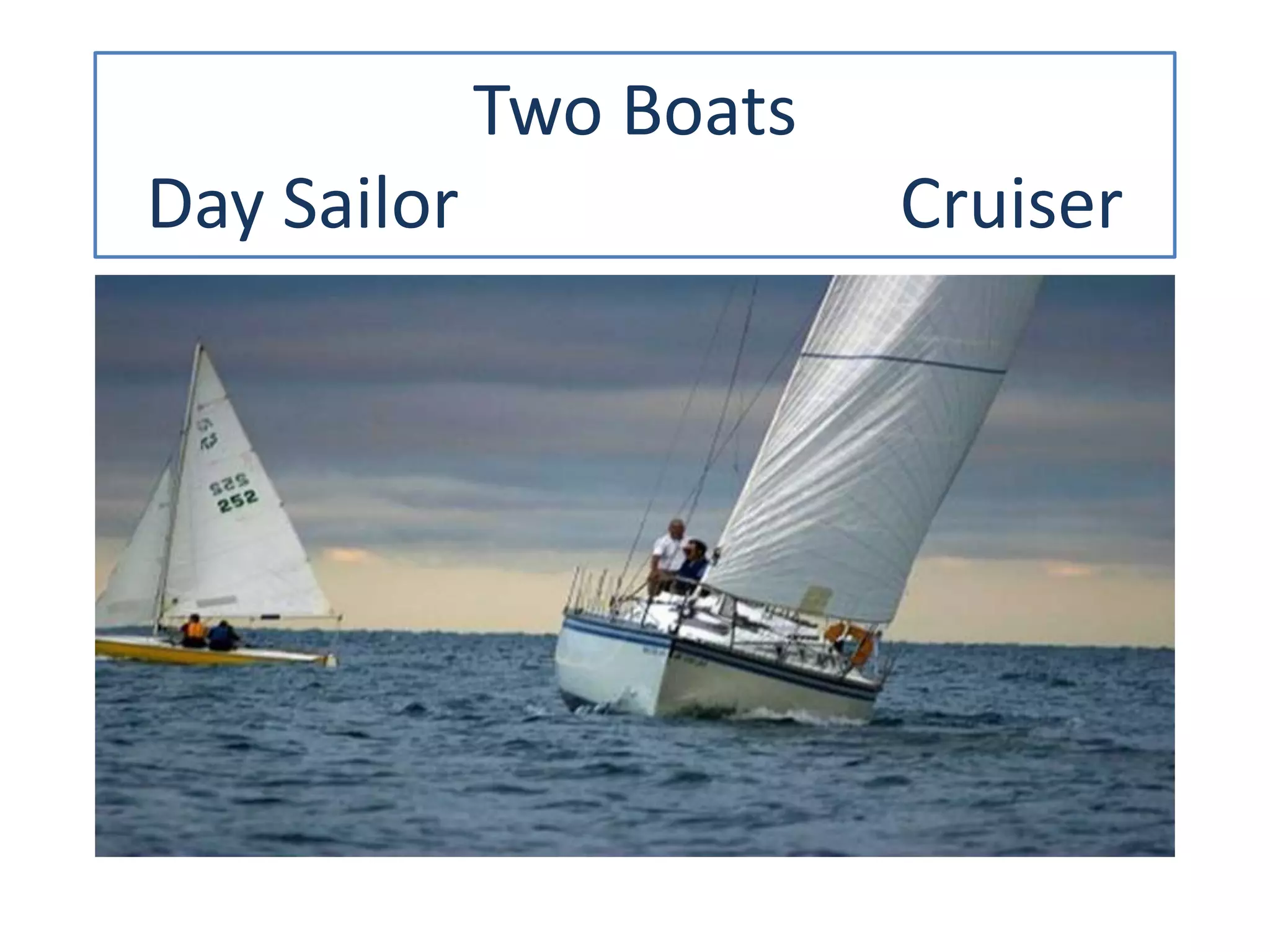

5. Two Boats
Day Sailor Cruiser

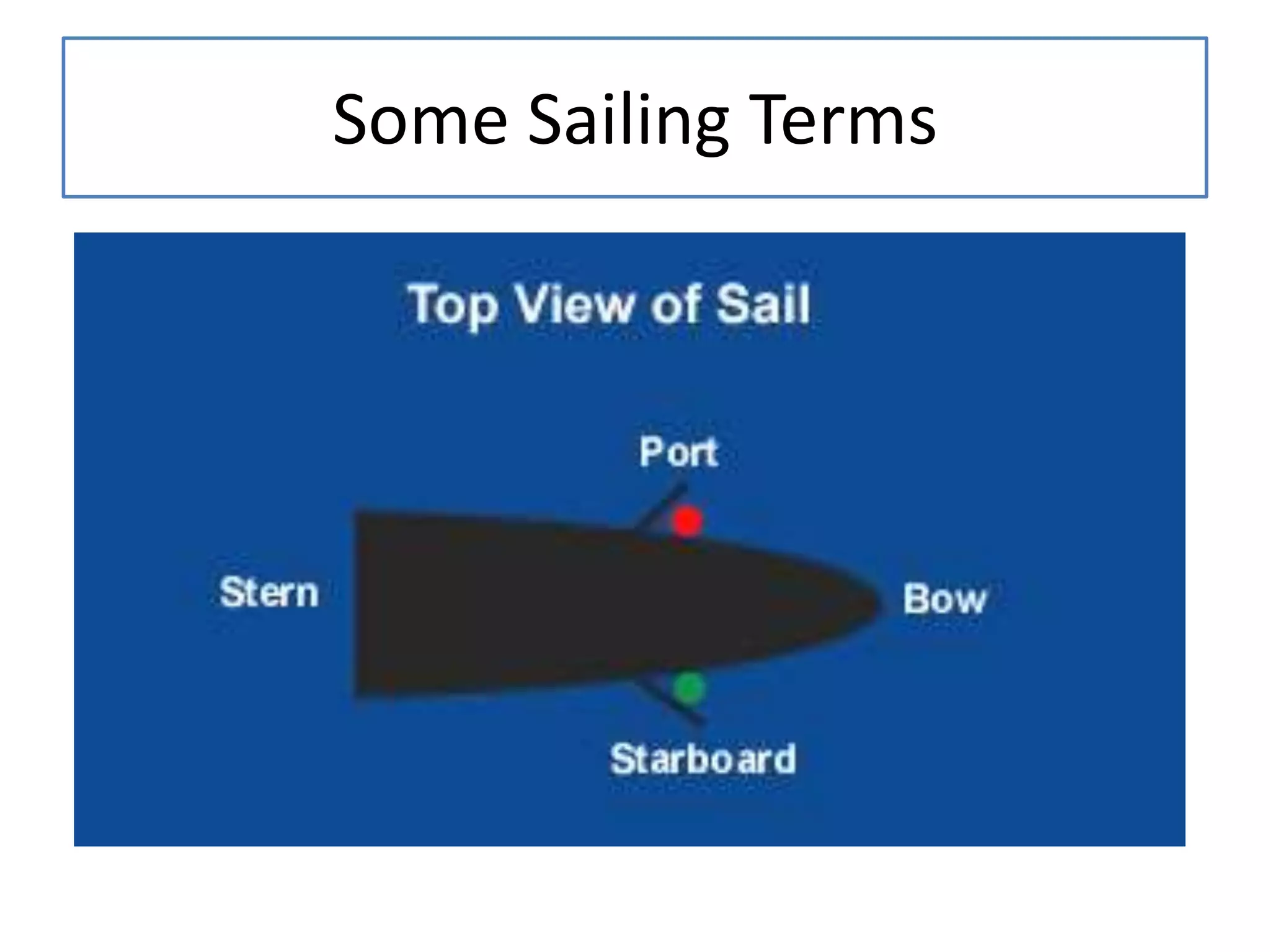

6. Some Sailing Terms

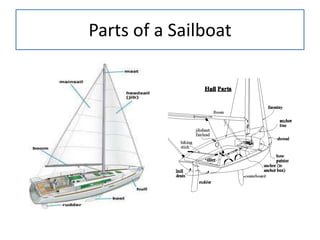

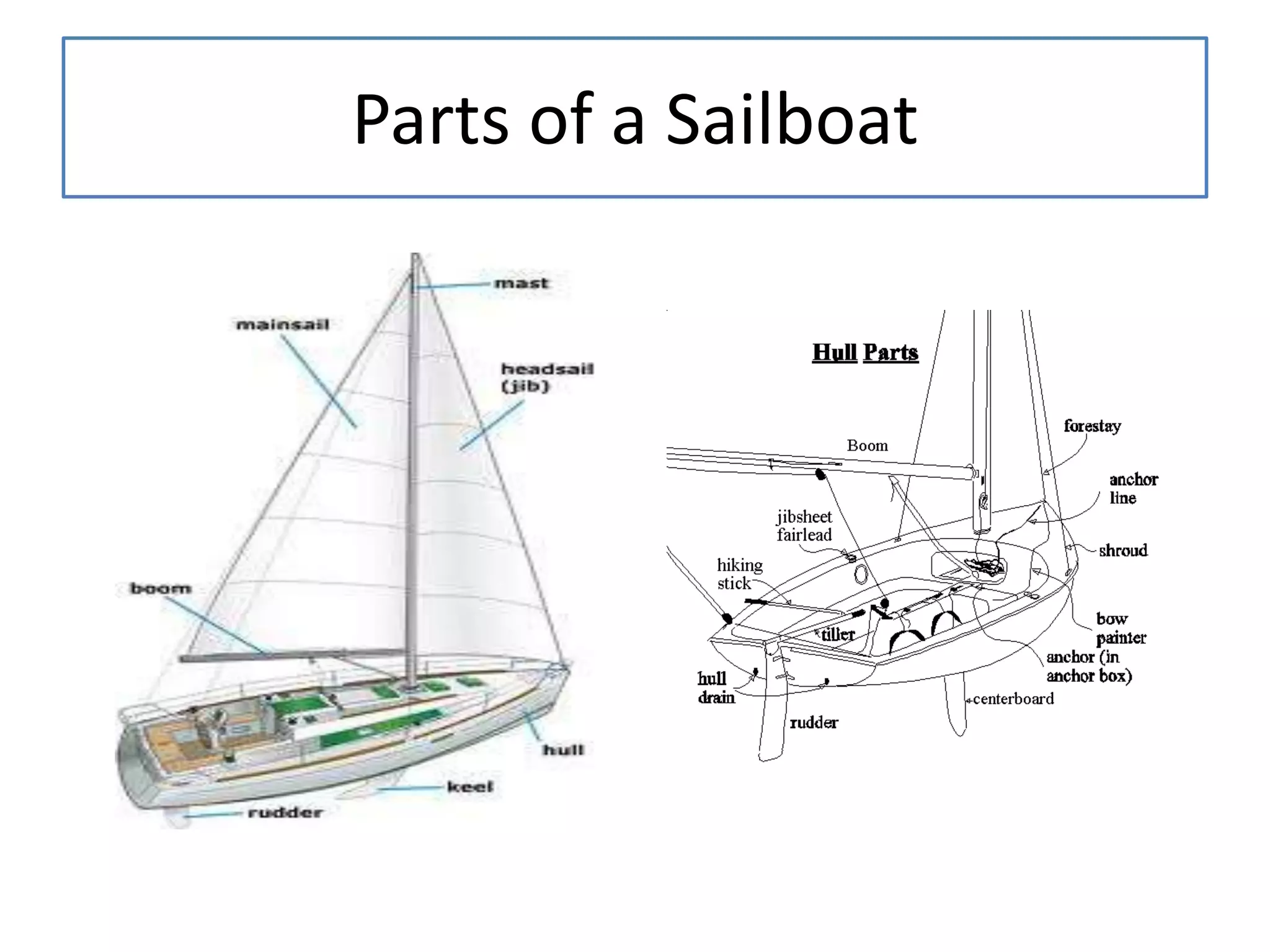

7. Parts of a Sailboat

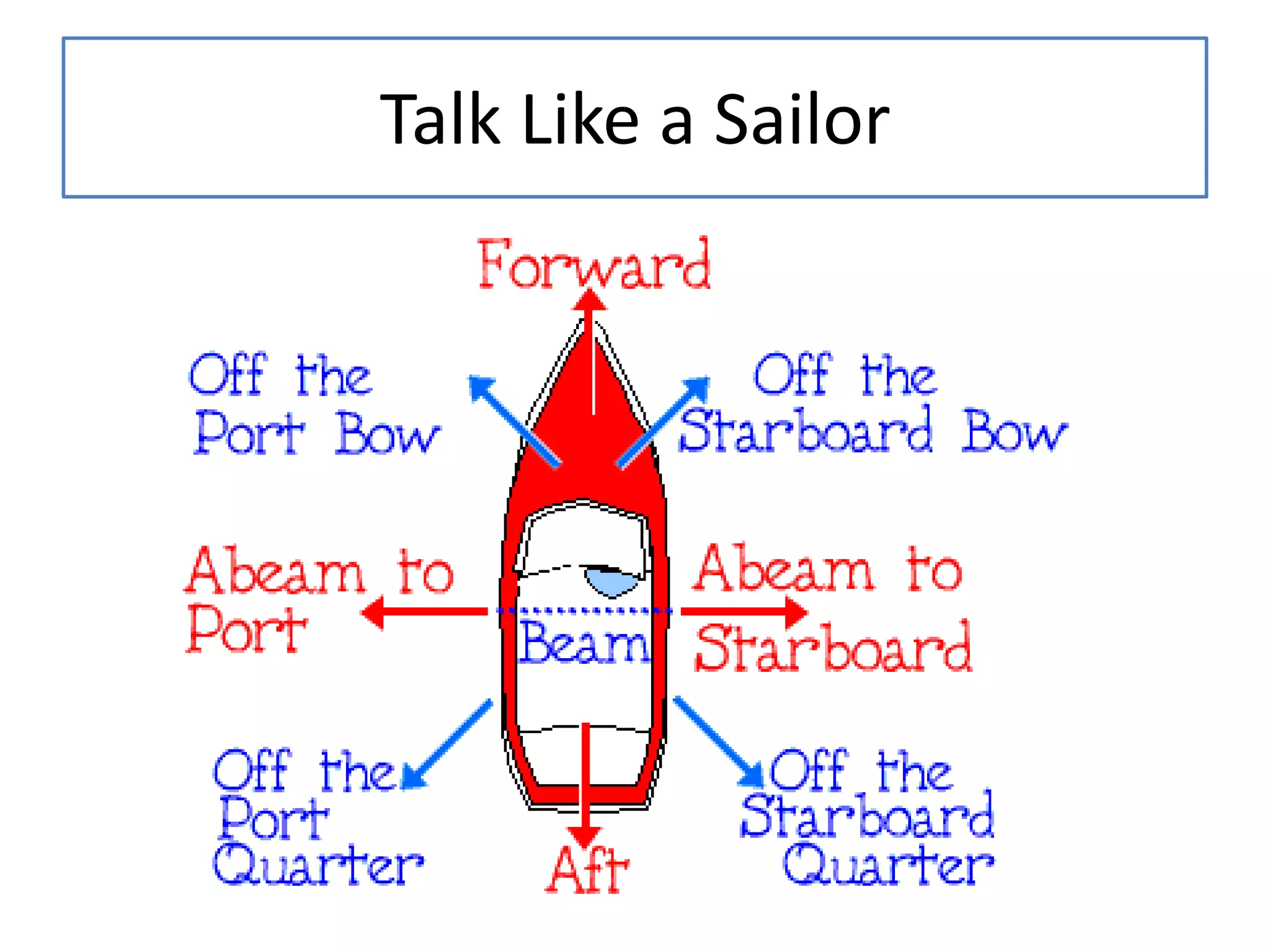

8. Talk Like a Sailor

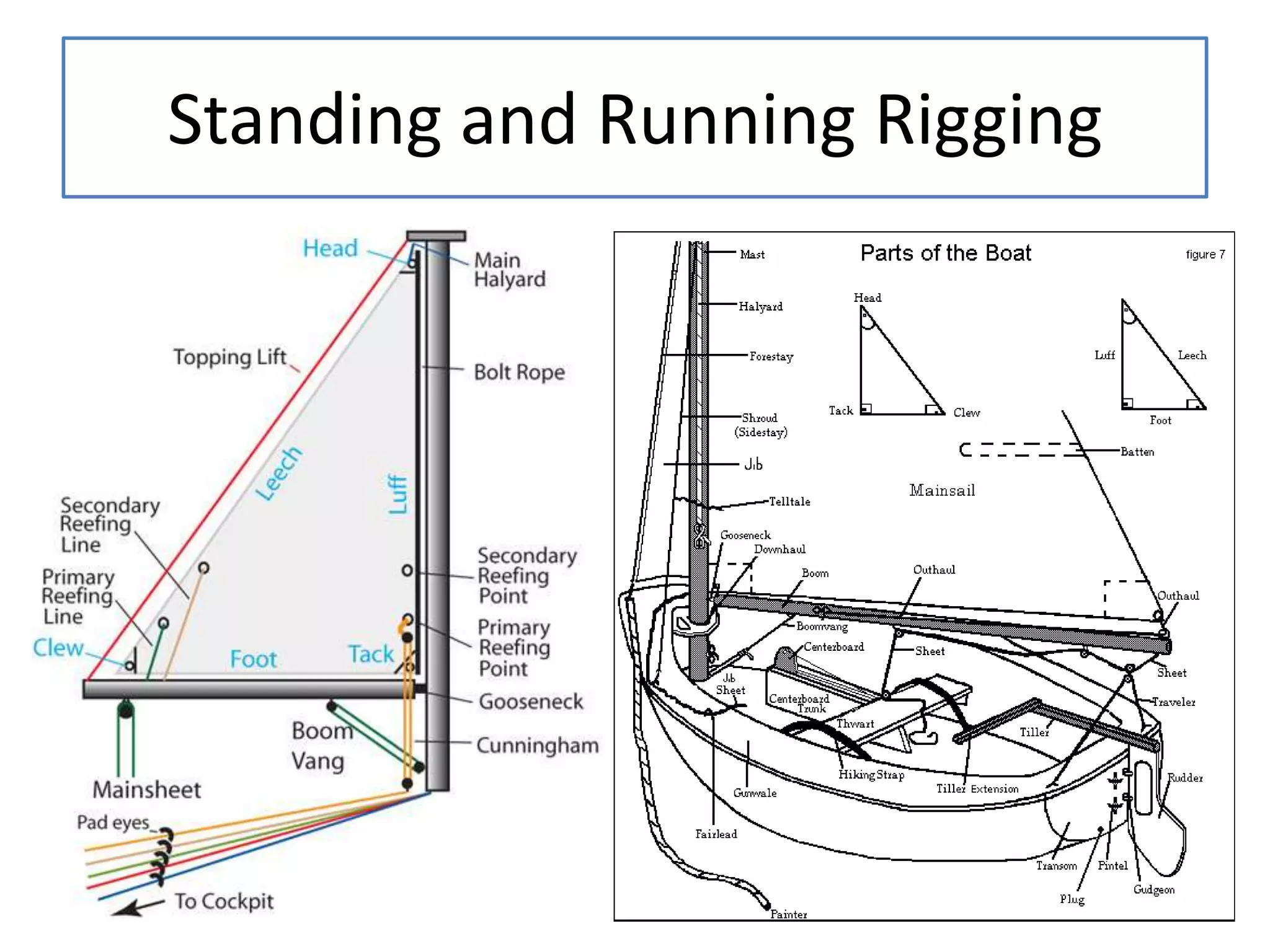

9. Standing and Running Rigging

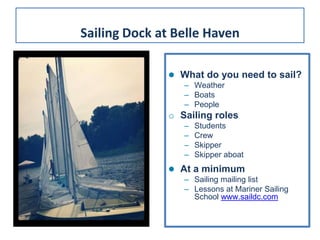

10.  What do you need to sail?
– Weather
– Boats
– People
o Sailing roles
– Students
– Crew
– Skipper
– Skipper aboat
 At a minimum
– Sailing mailing list
– Lessons at Mariner Sailing
School www.saildc.com
Sailing Dock at Belle Haven

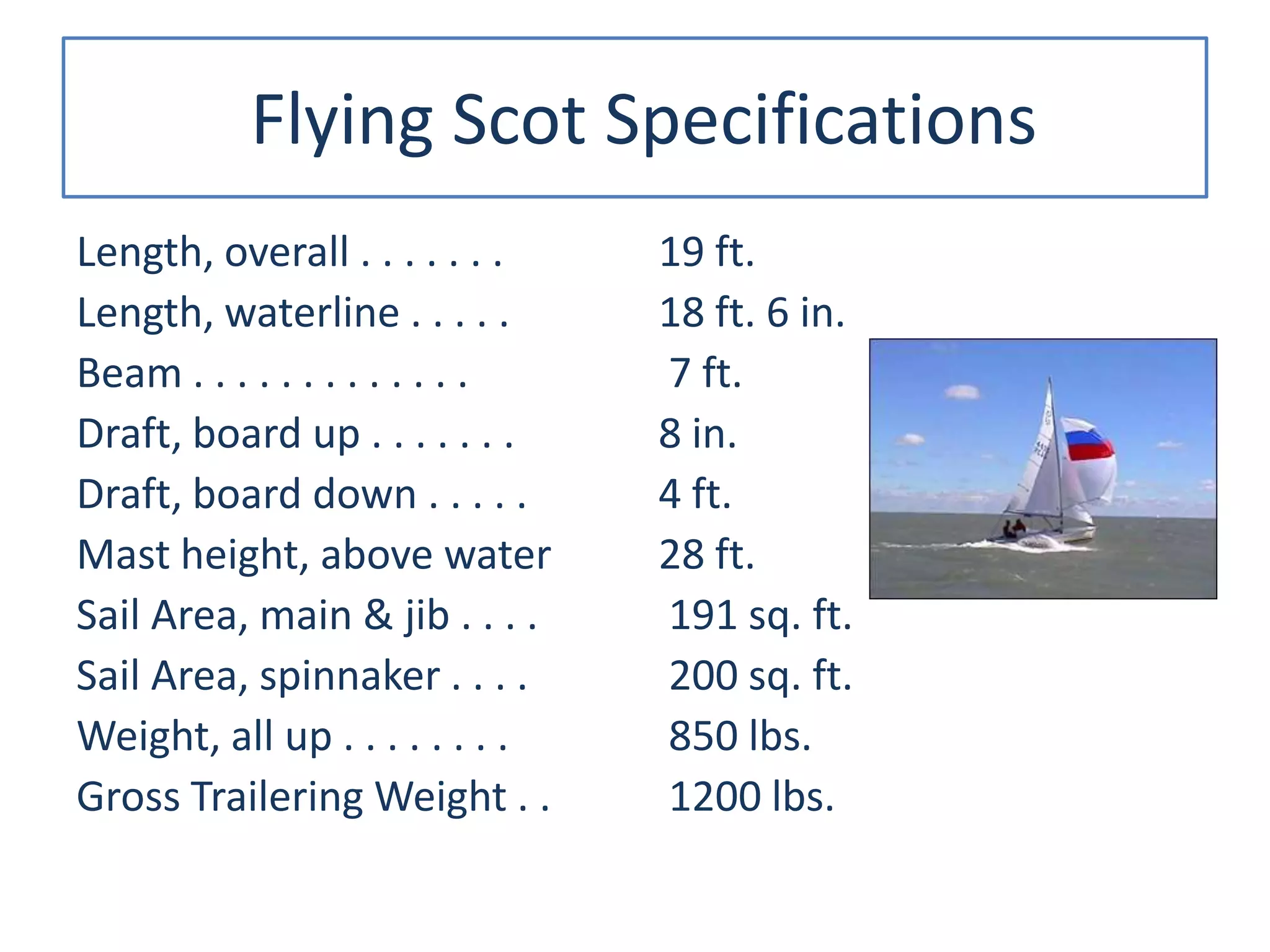

11. Flying Scot Specifications
Length, overall . . . . . . .
Length, waterline . . . . .
Beam . . . . . . . . . . . . .
Draft, board up . . . . . . .
Draft, board down . . . . .
Mast height, above water
Sail Area, main & jib . . . .
Sail Area, spinnaker . . . .
Weight, all up . . . . . . . .
Gross Trailering Weight . .
19 ft.
18 ft. 6 in.
7 ft.
8 in.
4 ft.
28 ft.
191 sq. ft.
200 sq. ft.
850 lbs.
1200 lbs.

12. Gulfstar - 39 Sailmaster

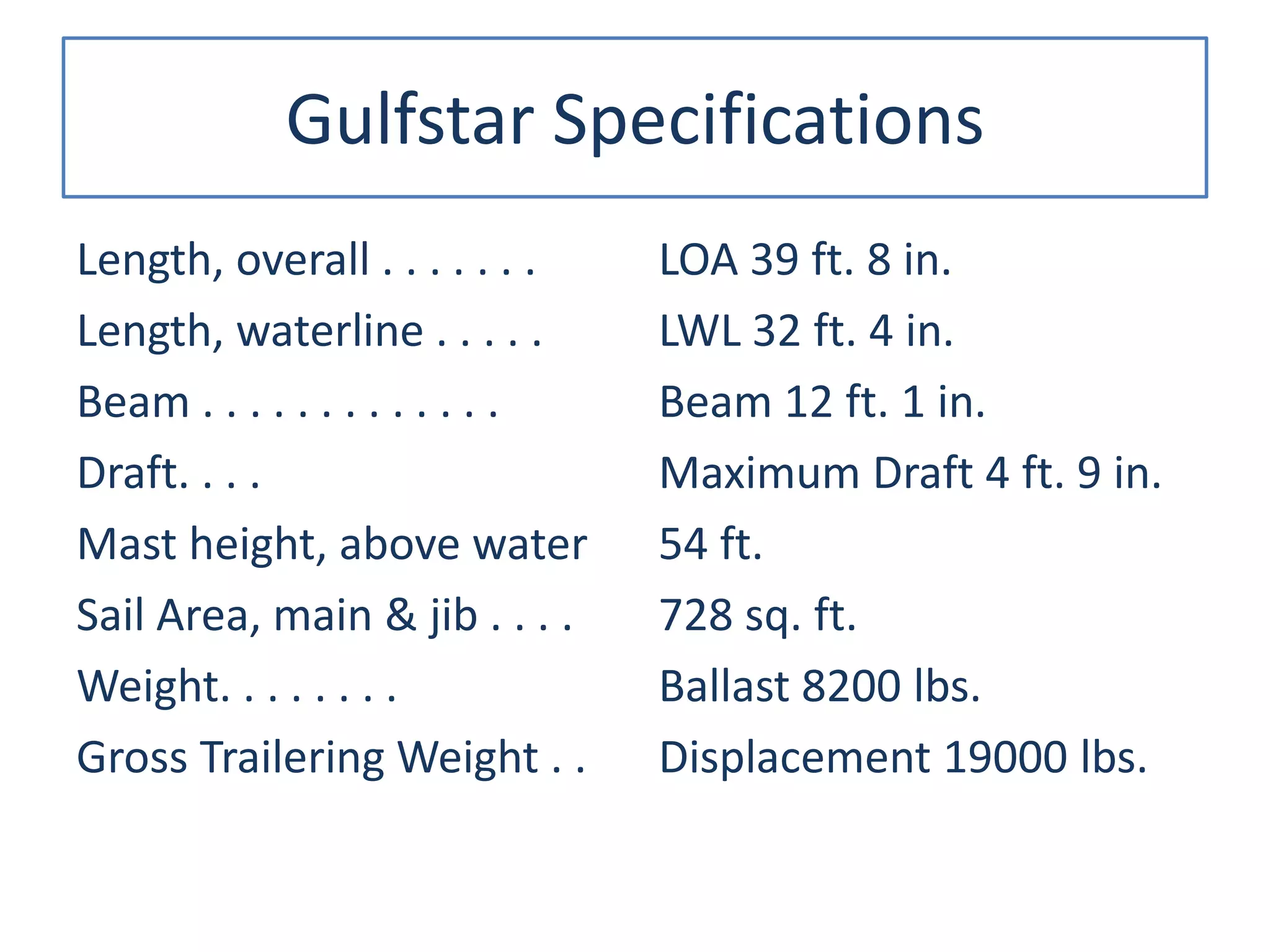

13. Gulfstar Specifications
Length, overall . . . . . . .
Length, waterline . . . . .
Beam . . . . . . . . . . . . .
Draft. . . .
Mast height, above water
Sail Area, main & jib . . . .
Weight. . . . . . . .
Gross Trailering Weight . .
LOA 39 ft. 8 in.
LWL 32 ft. 4 in.
Beam 12 ft. 1 in.
Maximum Draft 4 ft. 9 in.
54 ft.
728 sq. ft.
Ballast 8200 lbs.
Displacement 19000 lbs.

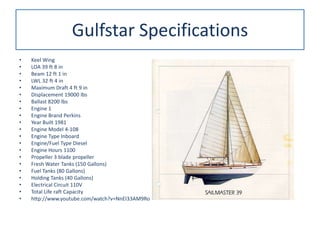

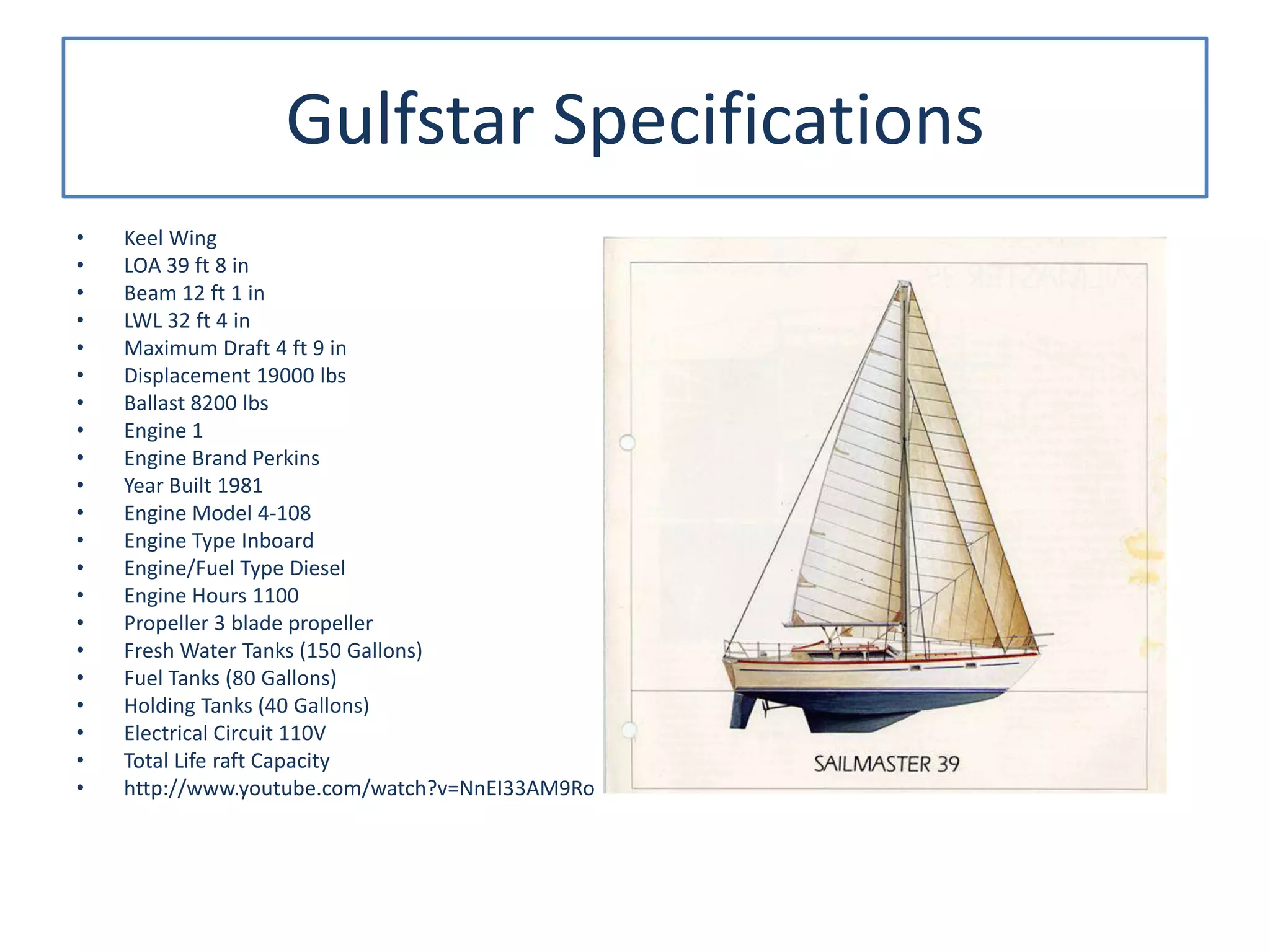

14. Gulfstar Specifications
• Keel Wing
• LOA 39 ft 8 in
• Beam 12 ft 1 in
• LWL 32 ft 4 in
• Maximum Draft 4 ft 9 in
• Displacement 19000 lbs
• Ballast 8200 lbs
• Engine 1
• Engine Brand Perkins
• Year Built 1981
• Engine Model 4-108
• Engine Type Inboard
• Engine/Fuel Type Diesel
• Engine Hours 1100
• Propeller 3 blade propeller
• Fresh Water Tanks (150 Gallons)
• Fuel Tanks (80 Gallons)
• Holding Tanks (40 Gallons)
• Electrical Circuit 110V
• Total Life raft Capacity
• http://www.youtube.com/watch?v=NnEI33AM9Ro

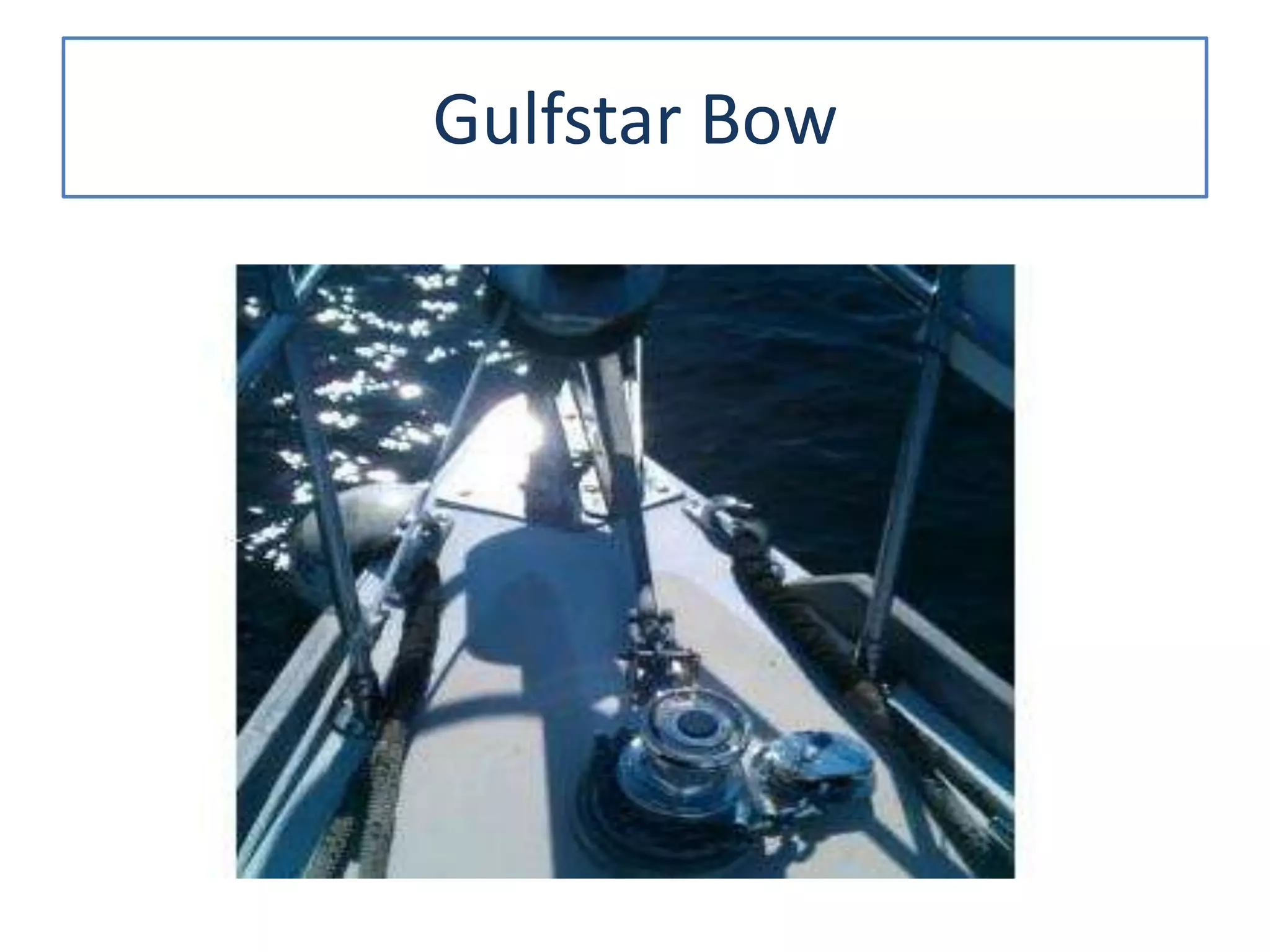

15. Gulfstar Bow

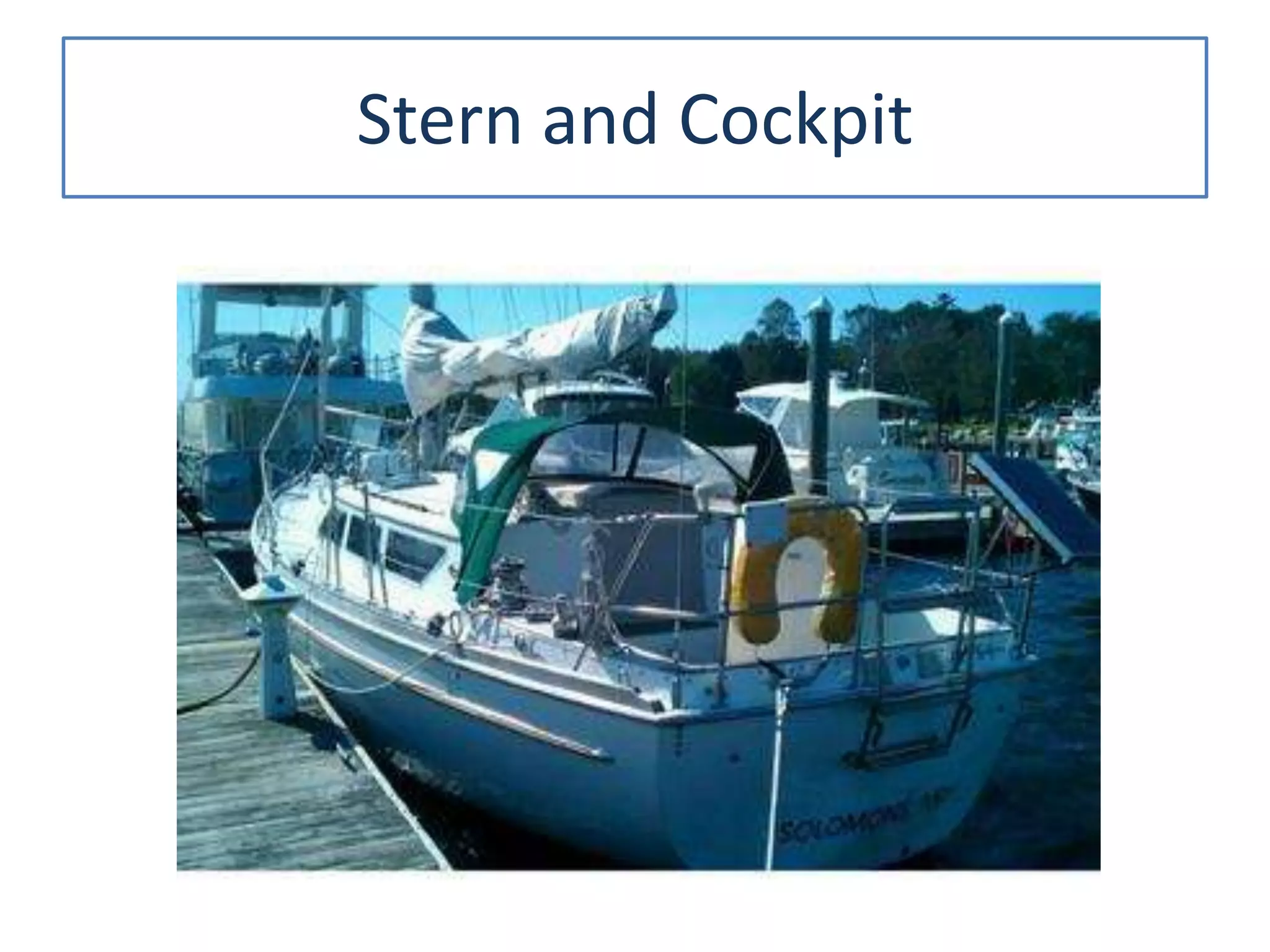

16. Stern and Cockpit

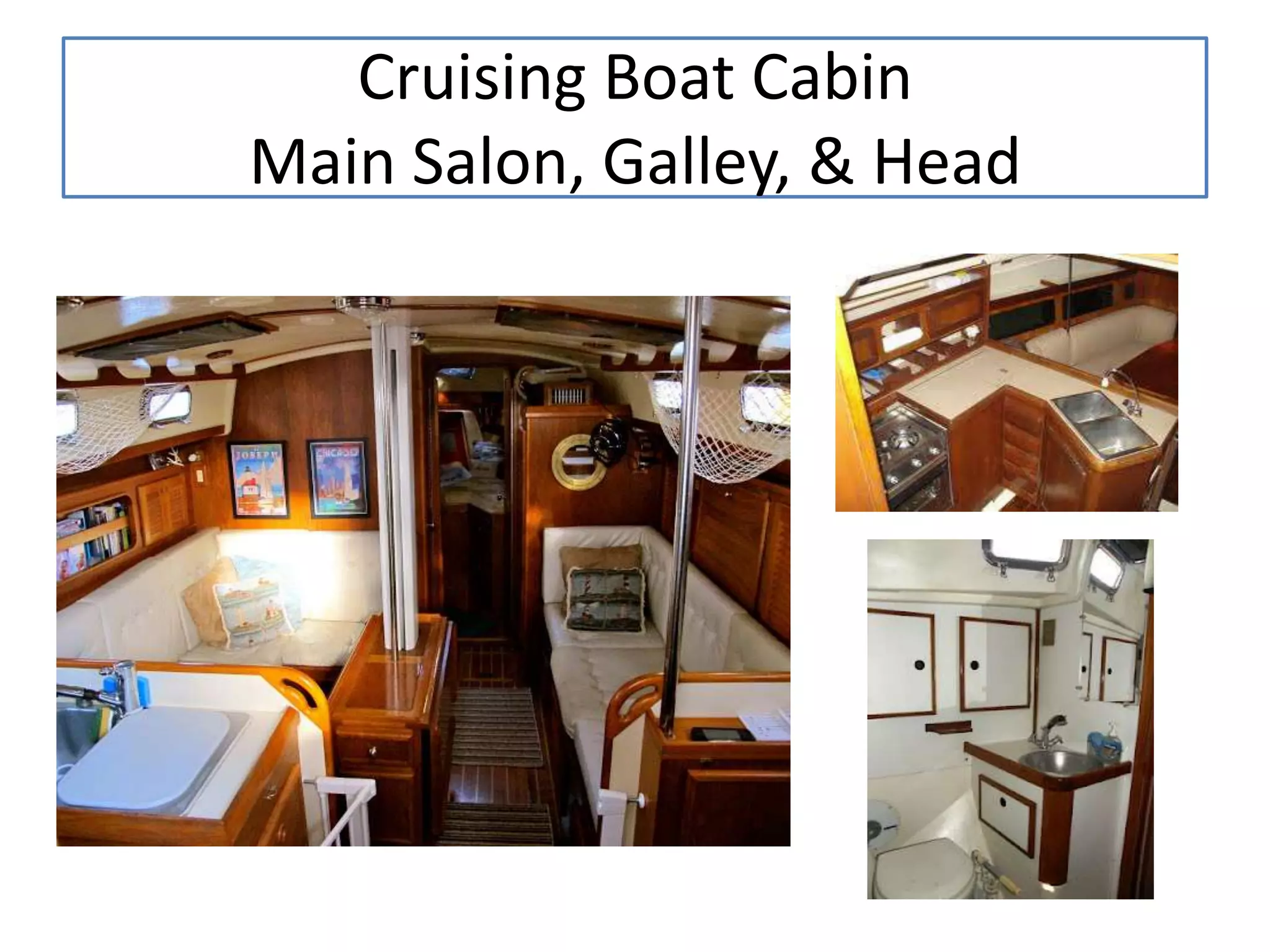

17. Cruising Boat Cabin
Main Salon, Galley, & Head

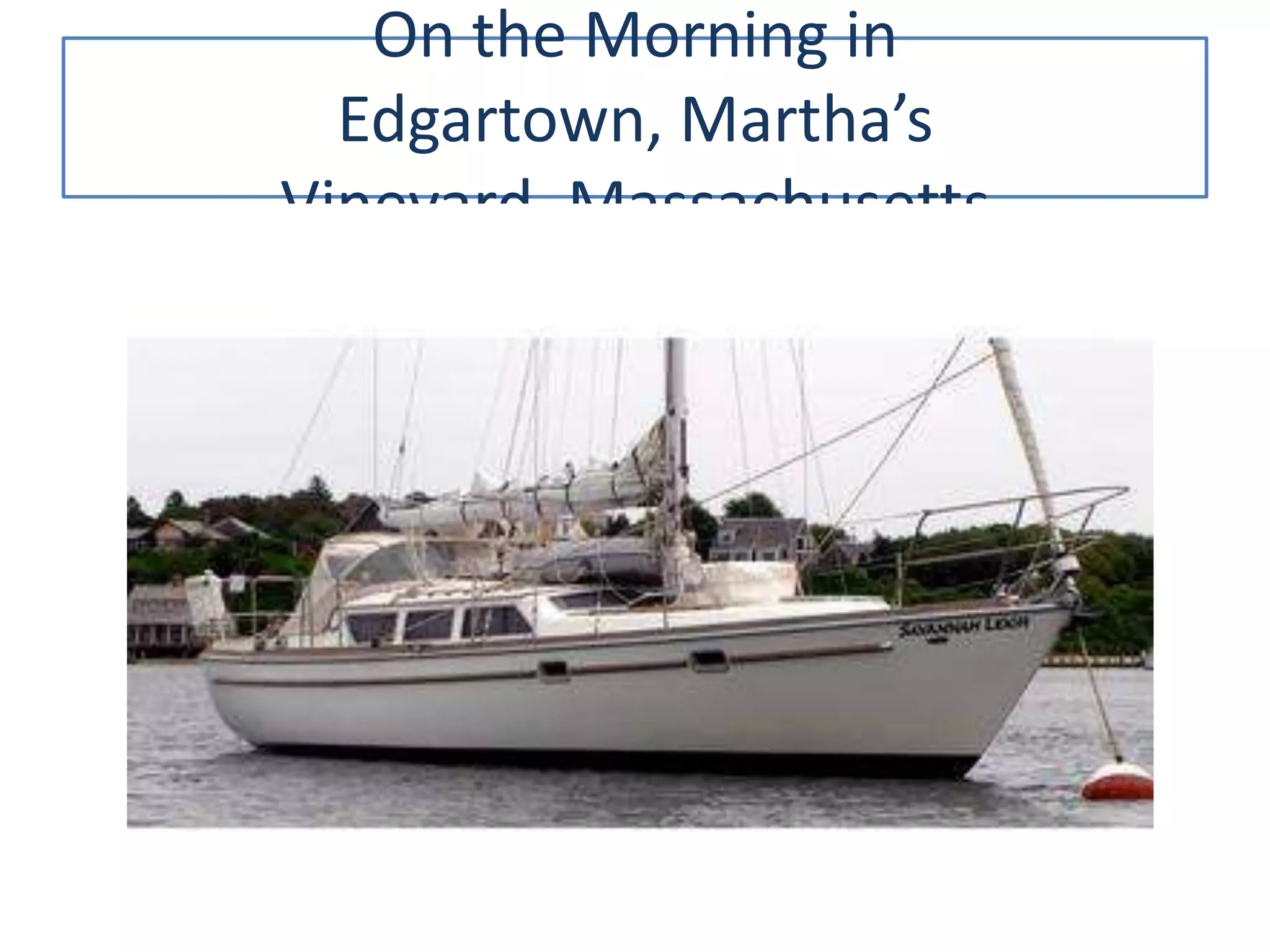

18. On the Morning in
Edgartown, Martha’s
Vineyard, Massachusetts

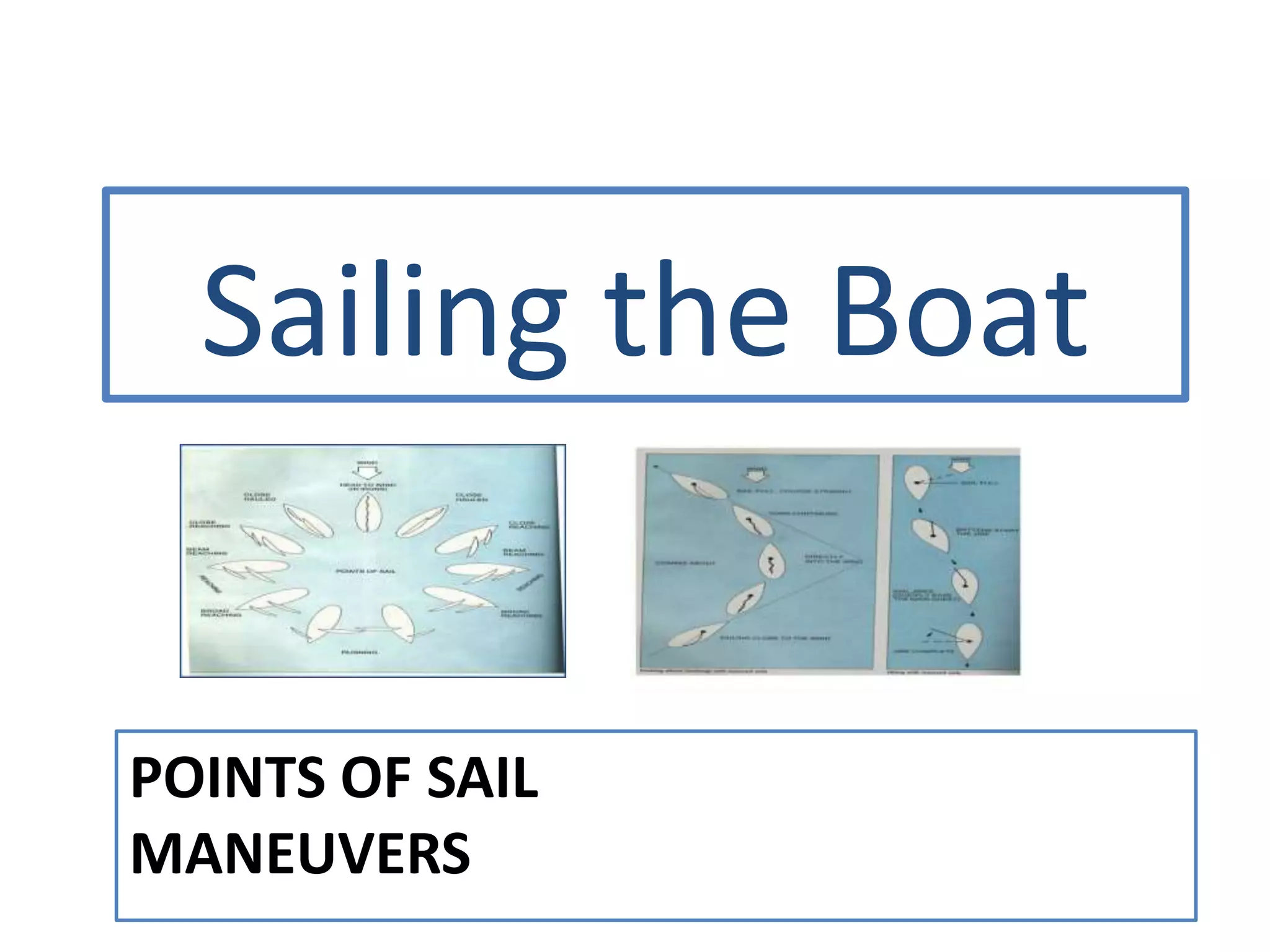

19. POINTS OF SAIL
MANEUVERS
Sailing the Boat

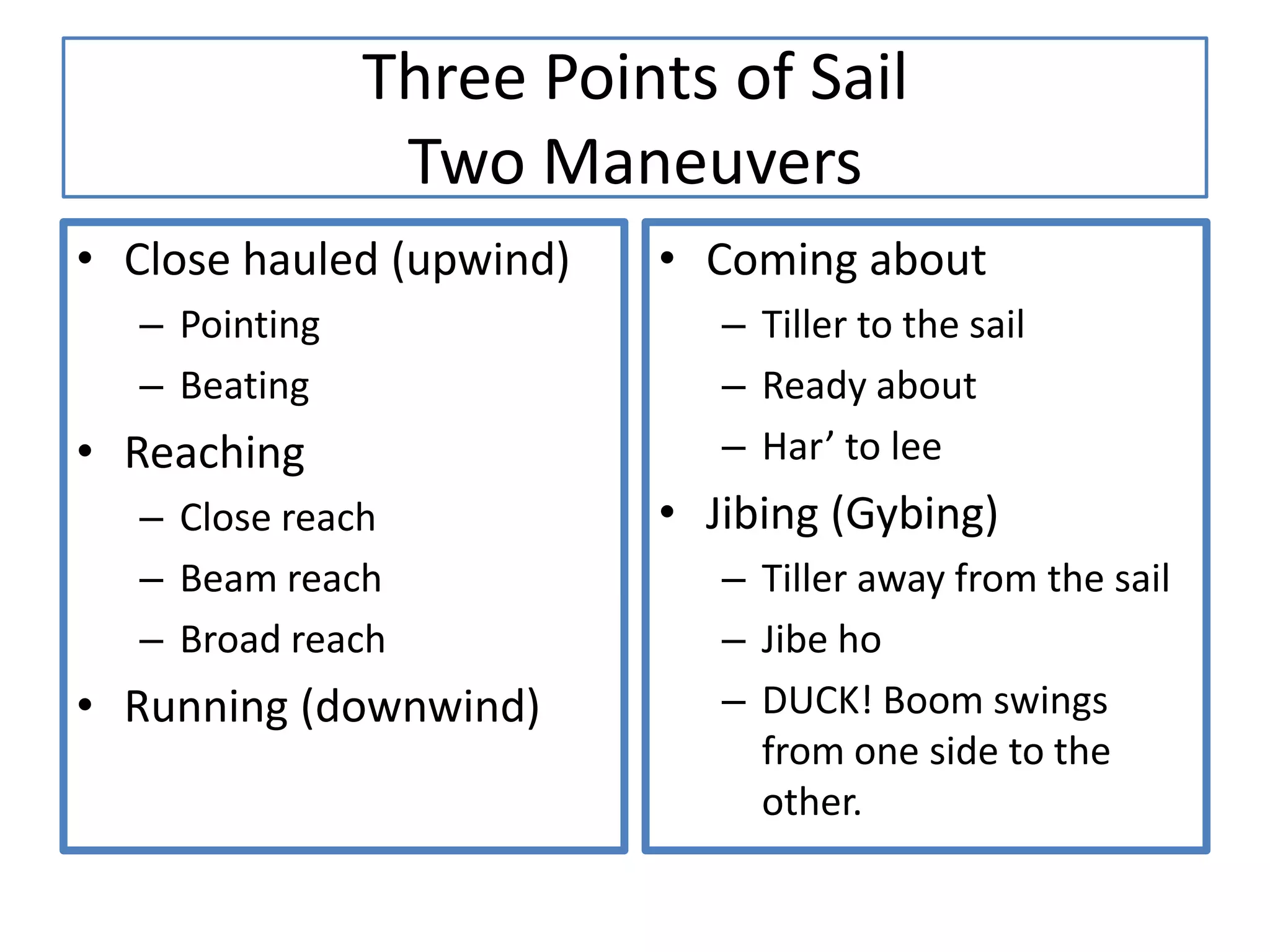

21. Three Points of Sail
Two Maneuvers
• Close hauled (upwind)
– Pointing
– Beating
• Reaching
– Close reach
– Beam reach
– Broad reach
• Running (downwind)
• Coming about
– Tiller to the sail
– Ready about
– Har’ to lee
• Jibing (Gybing)
– Tiller away from the sail
– Jibe ho
– DUCK! Boom swings
from one side to the
other.

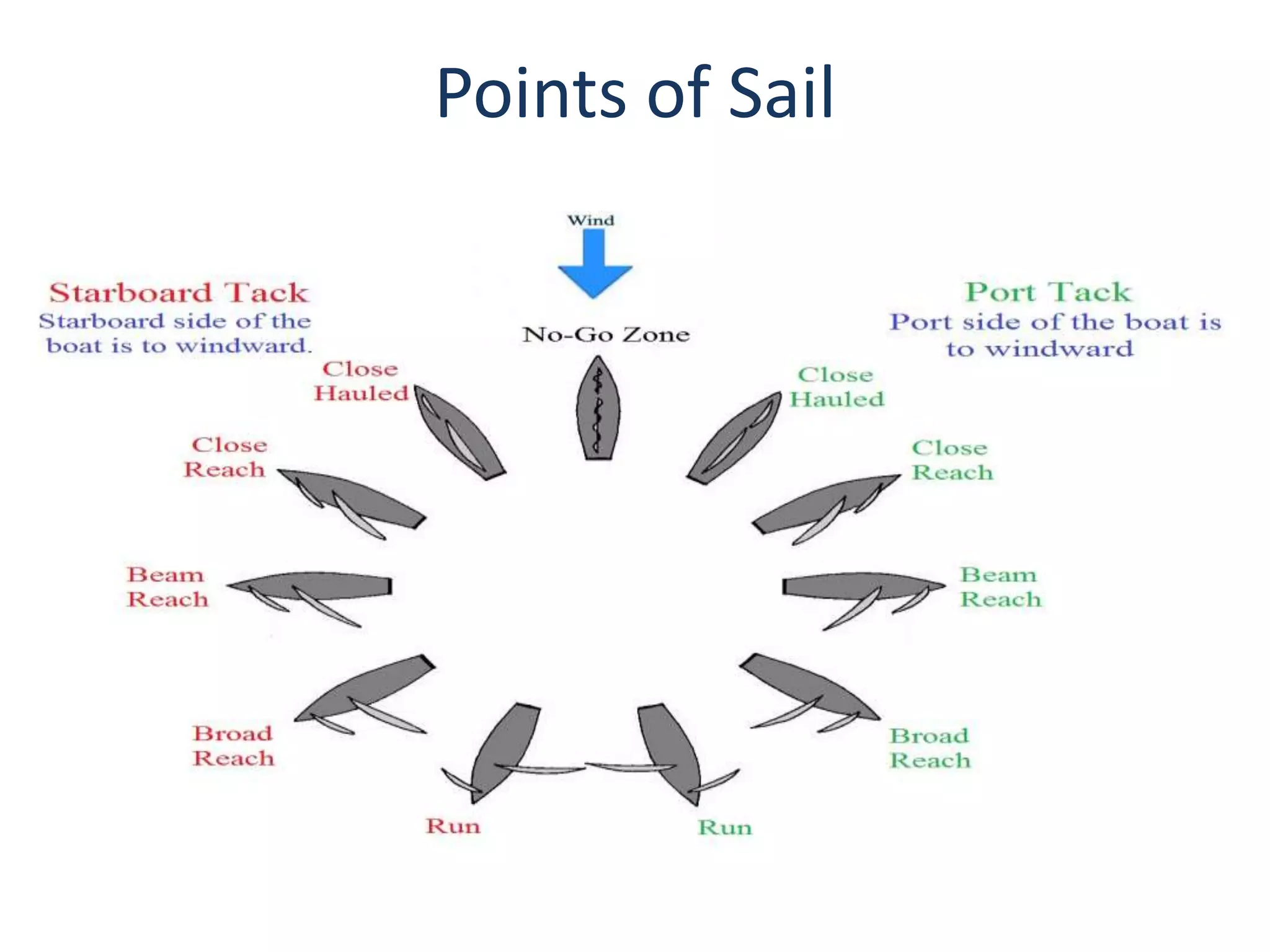

22. Points of Sail

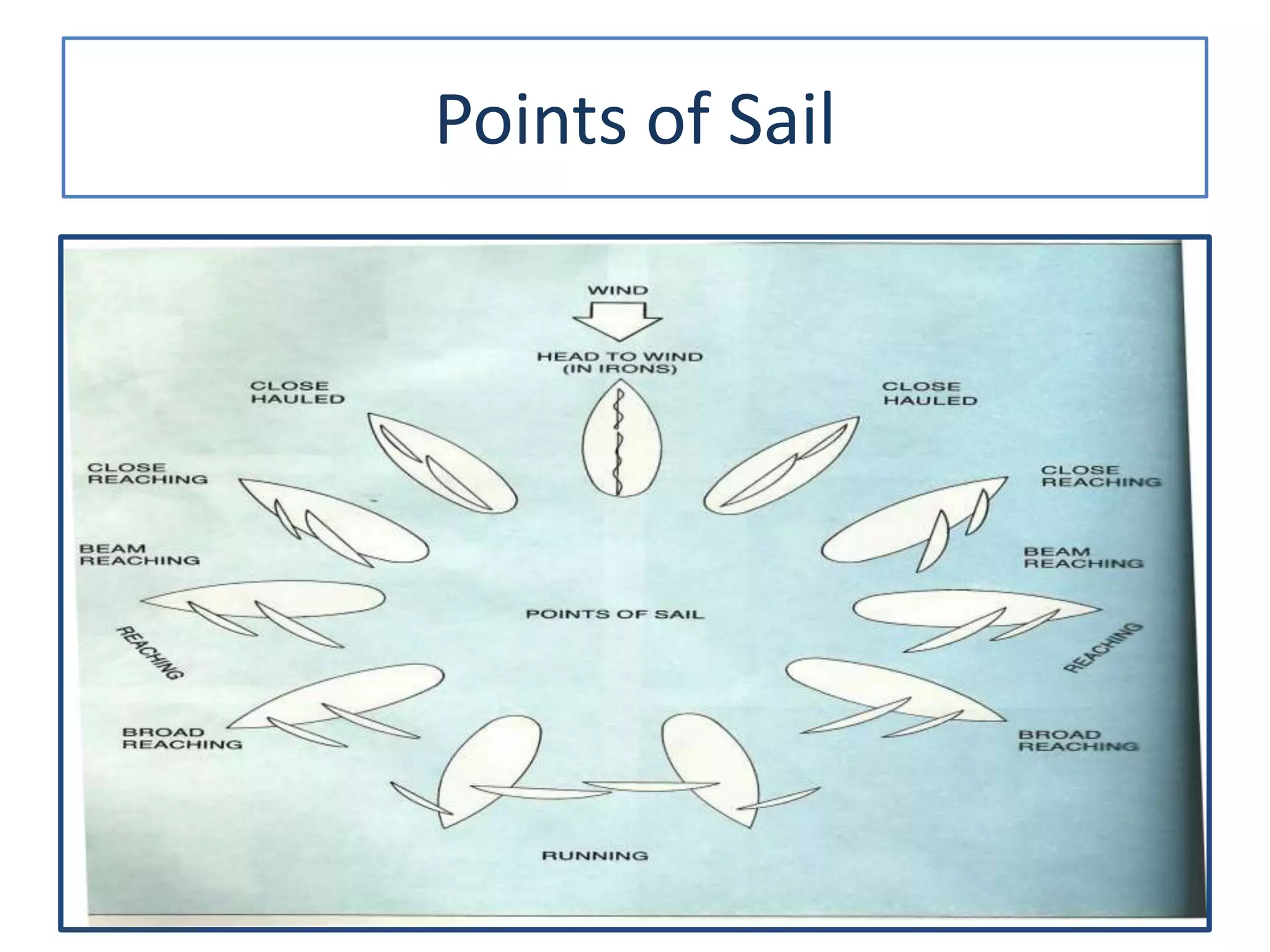

23. Points of Sail

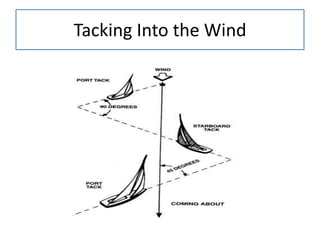

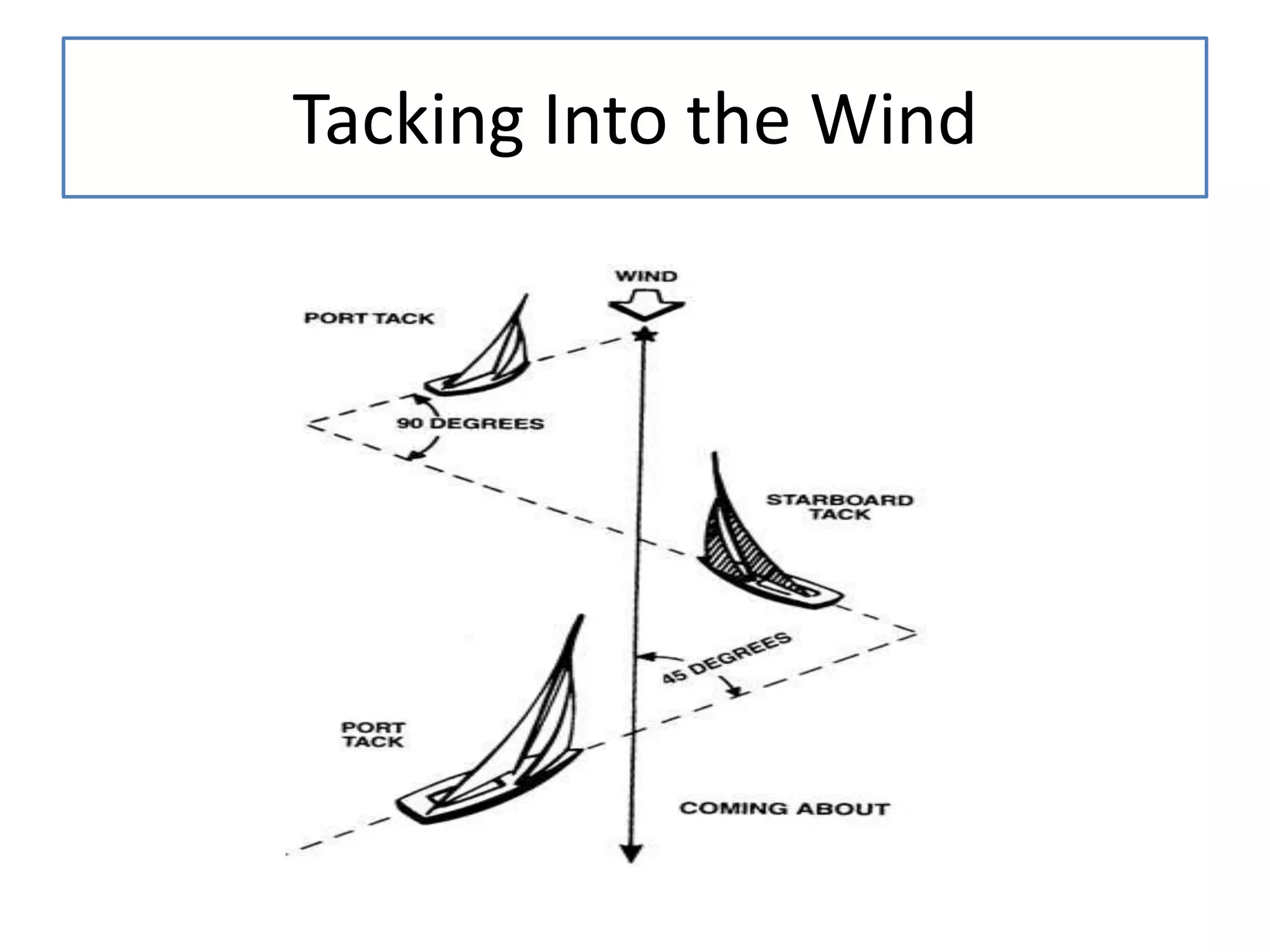

24. Tacking Into the Wind

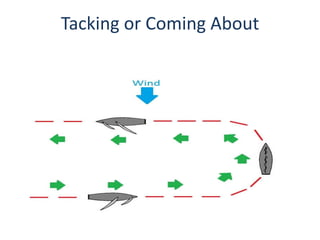

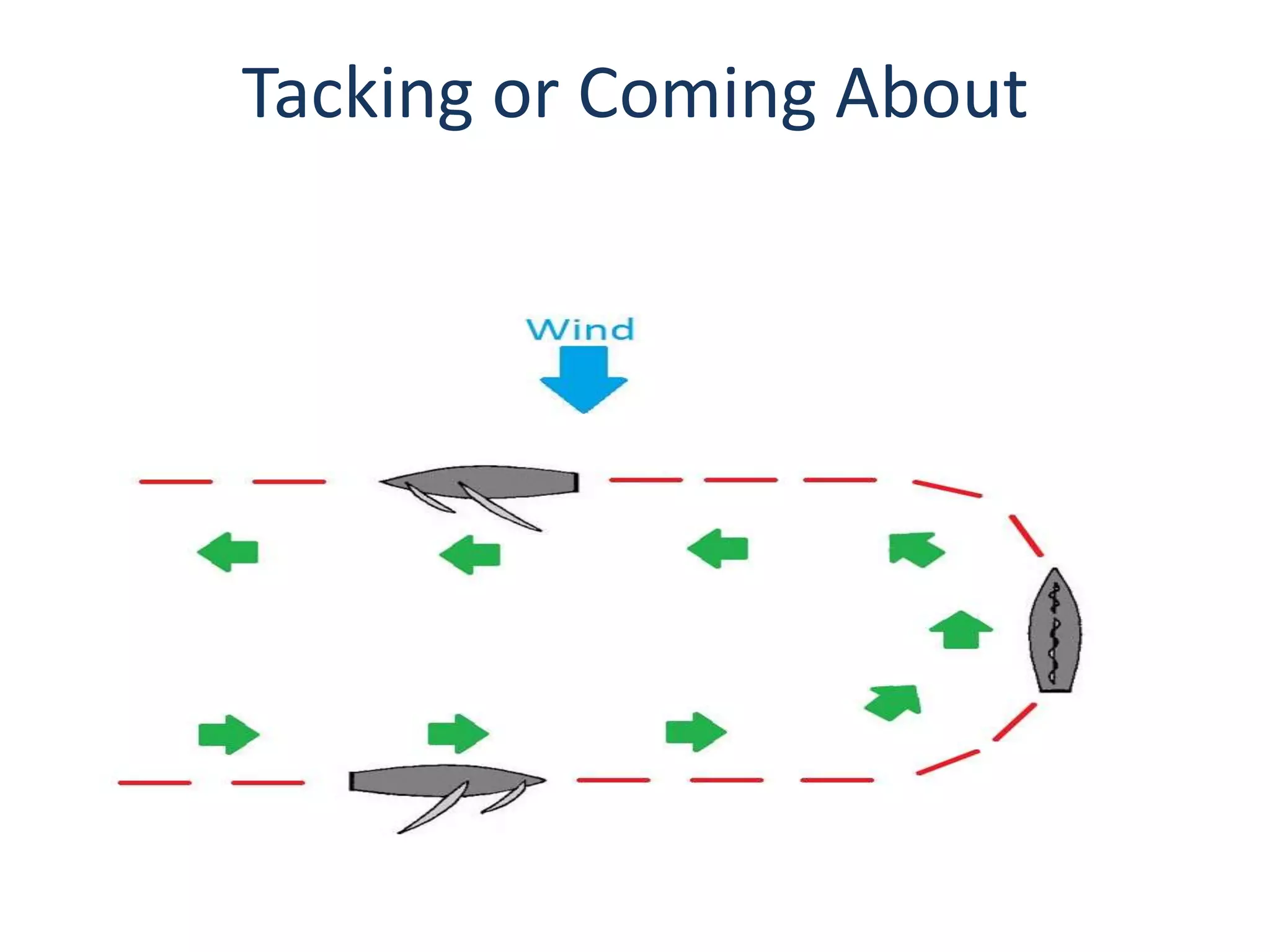

25. Tacking or Coming About

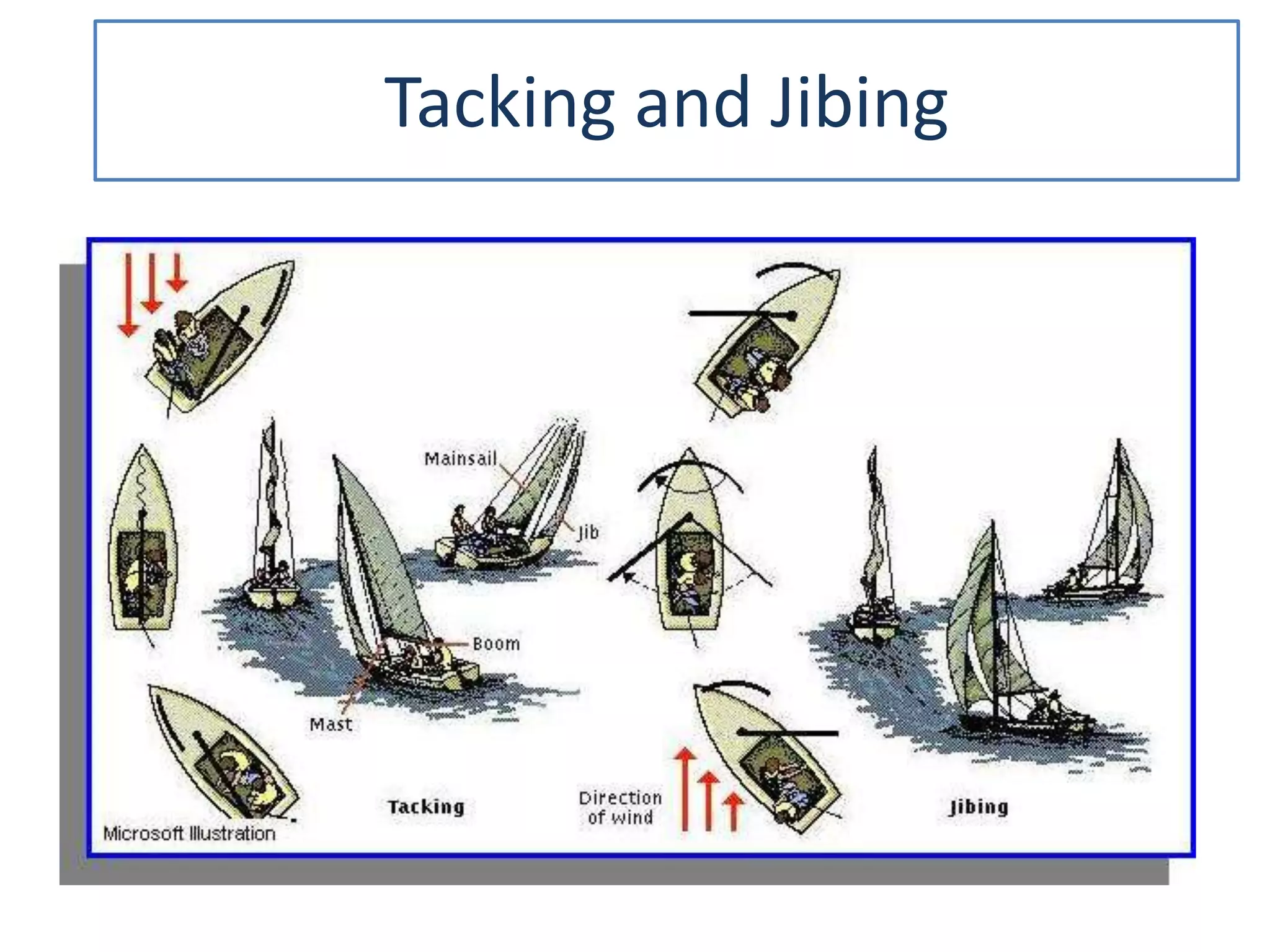

26. Tacking and Jibing

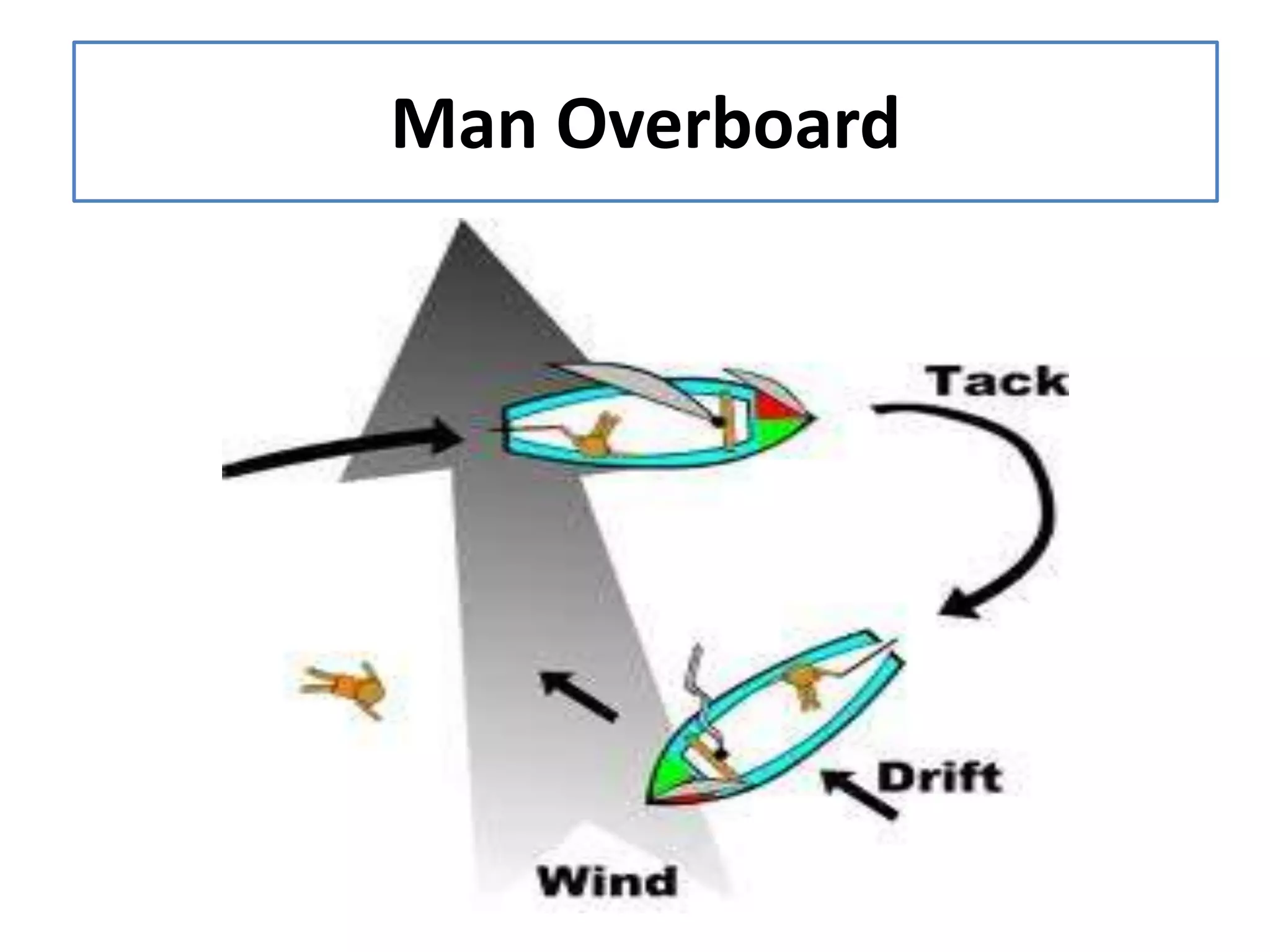

27. Man Overboard

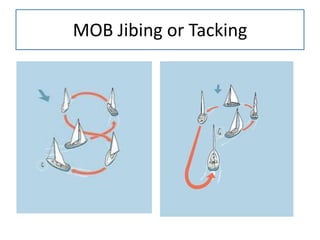

28. MOB Jibing or Tacking

29. Man Overboard (MOB)

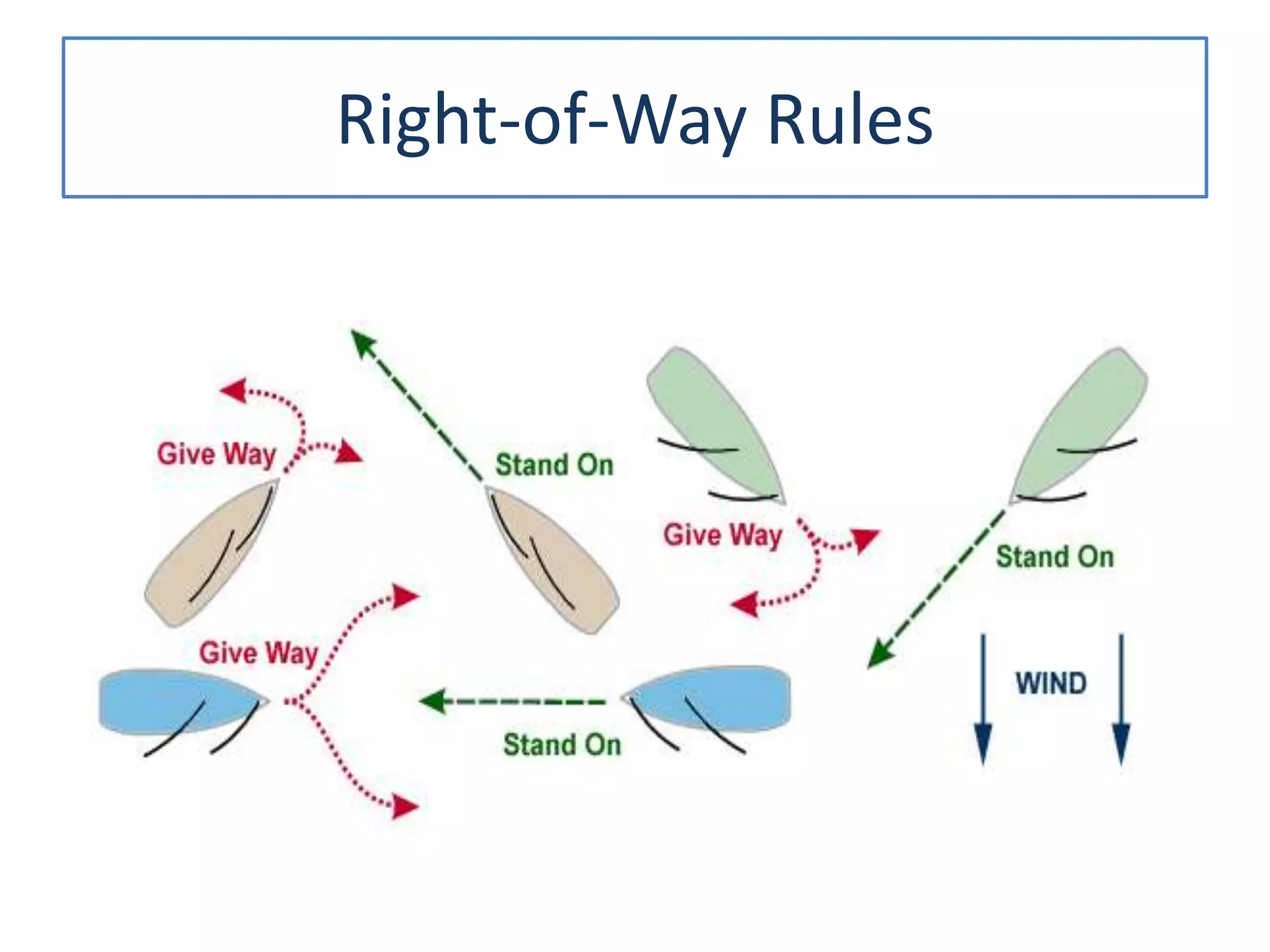

30. Right-of-Way Rules

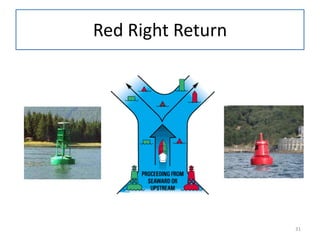

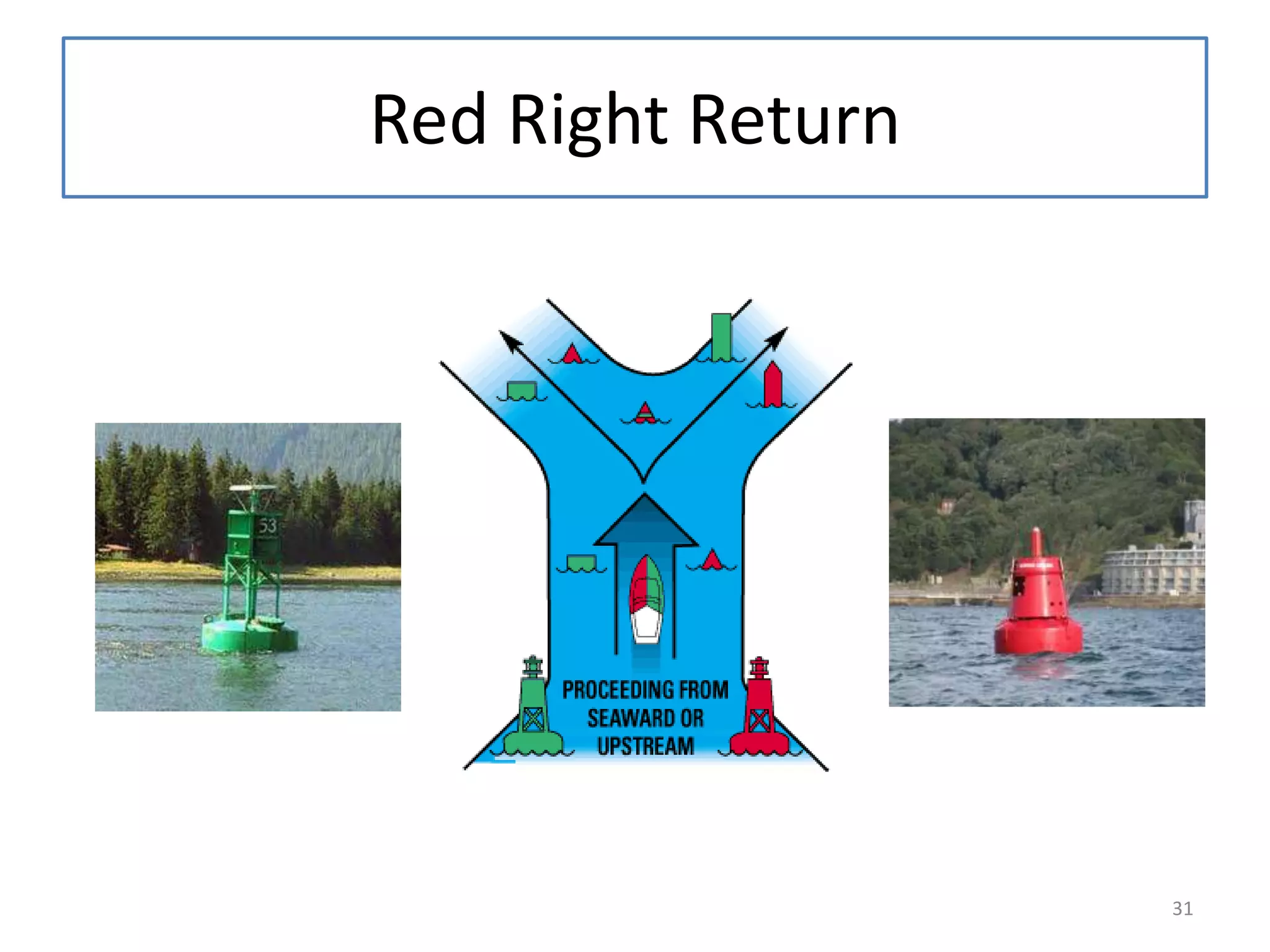

31. Red Right Return
31

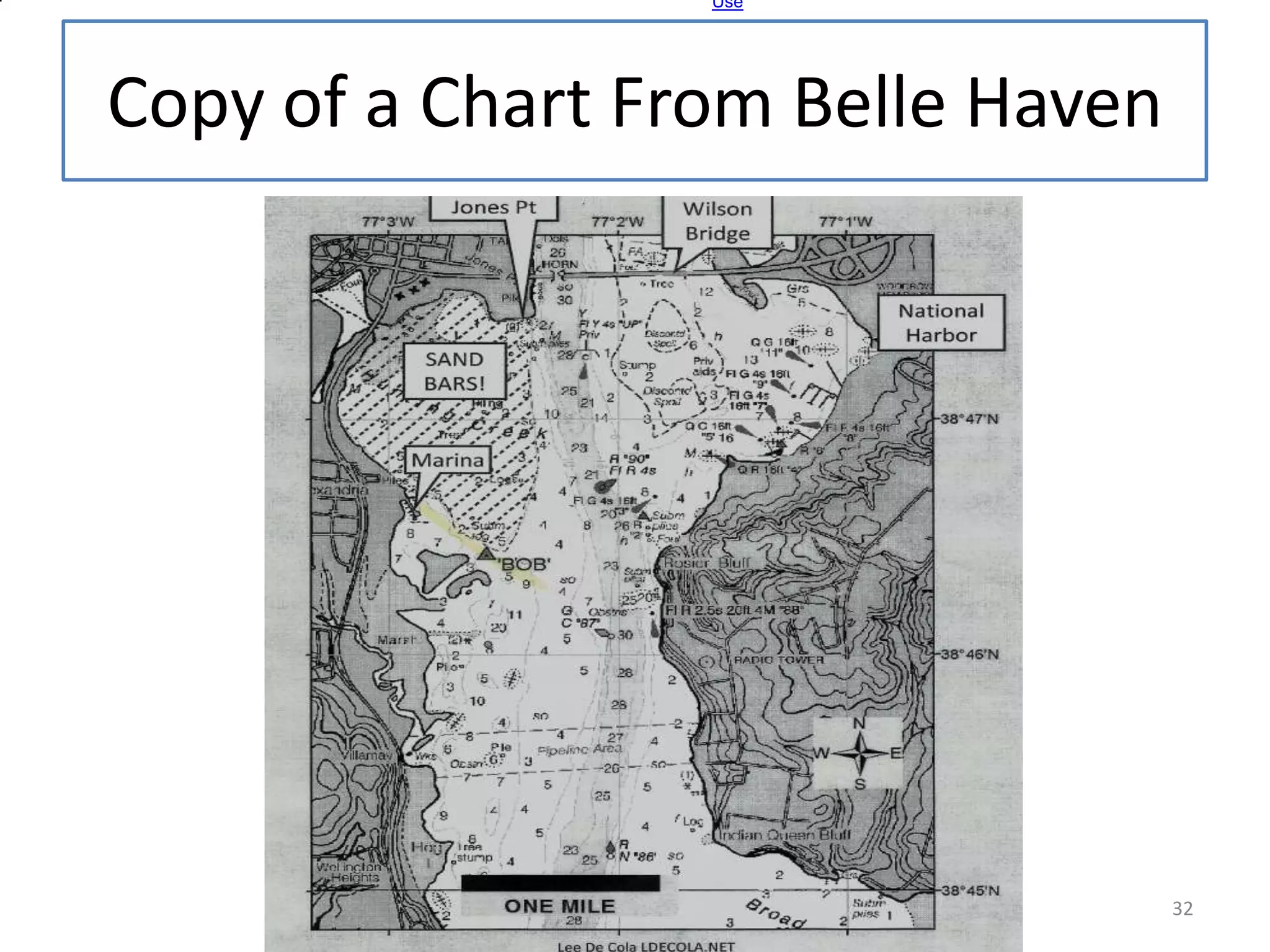

32. Copy of a Chart From Belle Haven
Use
32

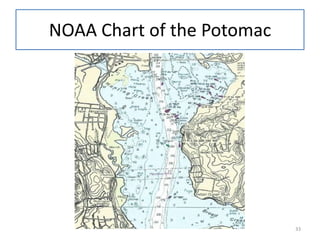

33. NOAA Chart of the Potomac
33

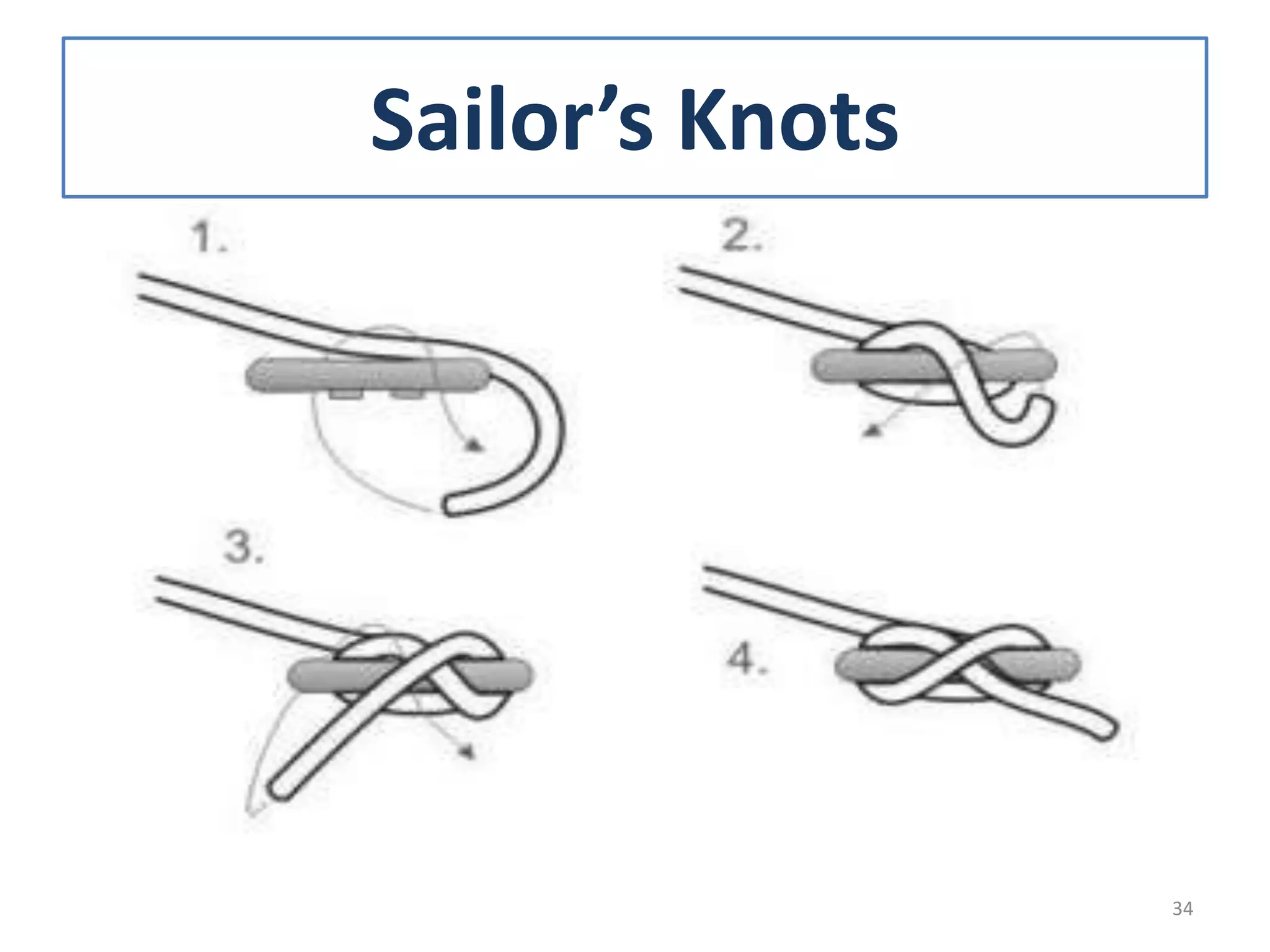

34. Sailor’s Knots
34

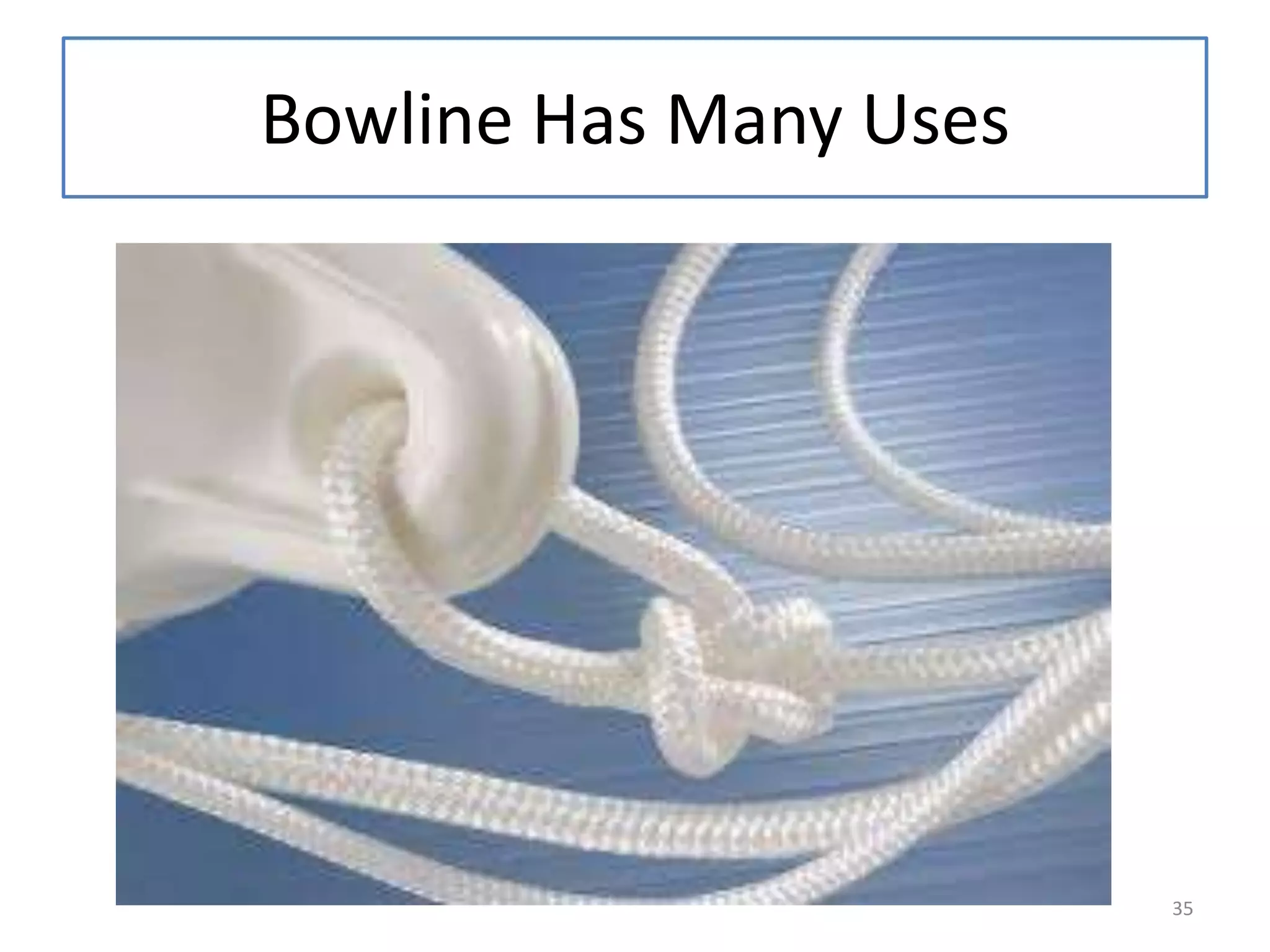

35. Bowline Has Many Uses
35

36. •Step 1: Make a counter-clockwise loop in the standing end. Pass the working end up through
the loop.
•Step 2: Pass the working end behind the standing end, and back down through the counter-
clockwise loop.
•Step 3: Snug the knot together by grabbing the working
end in one hand and the standing end in the other and pulling them apart.
36

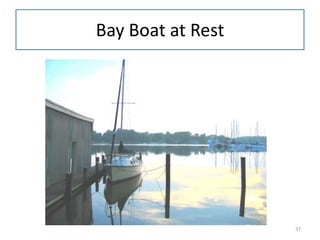

37. Bay Boat at Rest
37

38. Dry Tortuga Sunset
38

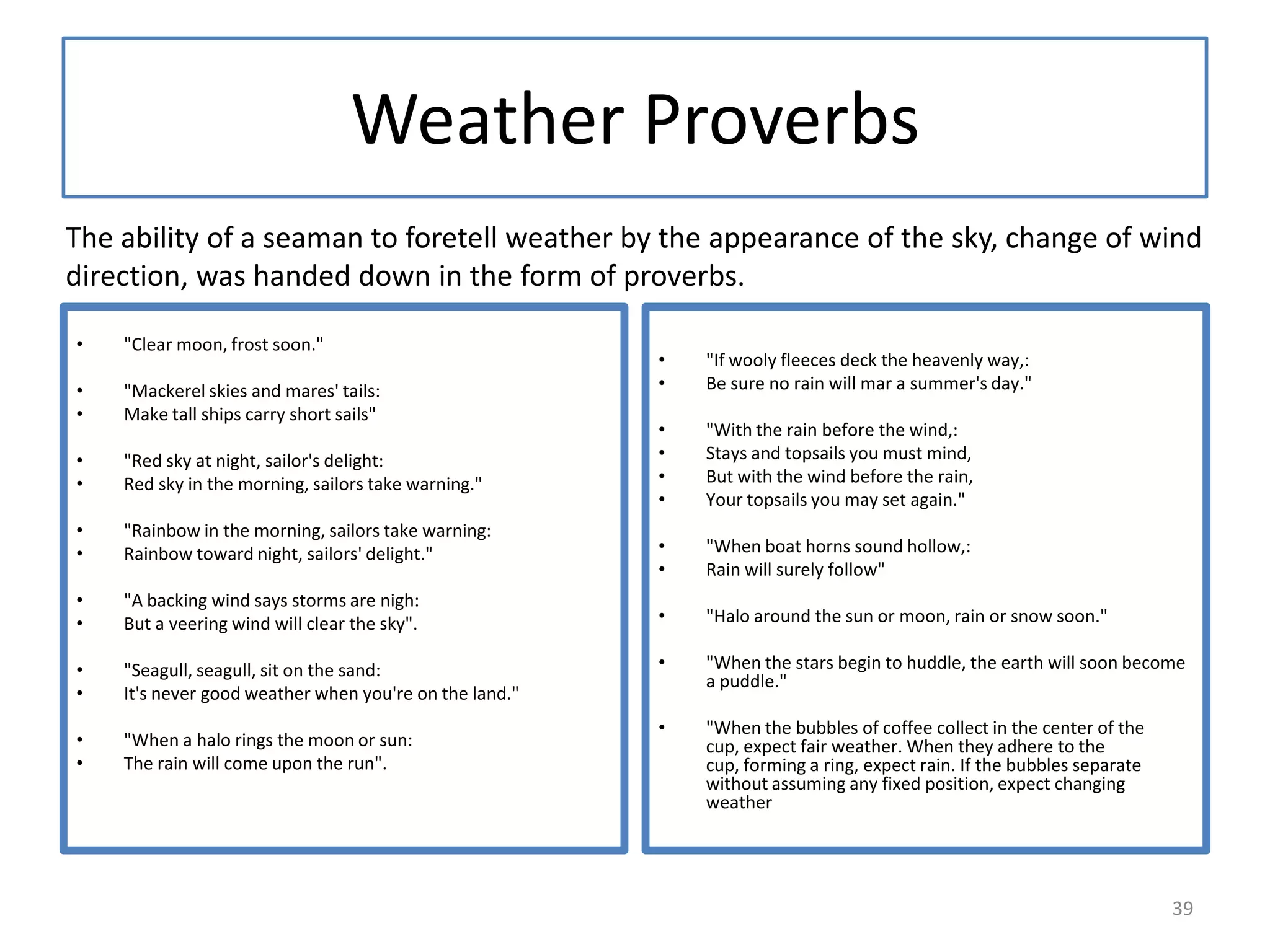

39. Weather Proverbs
• "Clear moon, frost soon."
• "Mackerel skies and mares' tails:
• Make tall ships carry short sails"
• "Red sky at night, sailor's delight:
• Red sky in the morning, sailors take warning."
• "Rainbow in the morning, sailors take warning:
• Rainbow toward night, sailors' delight."
• "A backing wind says storms are nigh:
• But a veering wind will clear the sky".
• "Seagull, seagull, sit on the sand:
• It's never good weather when you're on the land."
• "When a halo rings the moon or sun:
• The rain will come upon the run".
• "If wooly fleeces deck the heavenly way,:
• Be sure no rain will mar a summer's day."
• "With the rain before the wind,:
• Stays and topsails you must mind,
• But with the wind before the rain,
• Your topsails you may set again."
• "When boat horns sound hollow,:
• Rain will surely follow"
• "Halo around the sun or moon, rain or snow soon."
• "When the stars begin to huddle, the earth will soon become
a puddle."
• "When the bubbles of coffee collect in the center of the
cup, expect fair weather. When they adhere to the
cup, forming a ring, expect rain. If the bubbles separate
without assuming any fixed position, expect changing
weather
The ability of a seaman to foretell weather by the appearance of the sky, change of wind
direction, was handed down in the form of proverbs.
39
