Safety signals
Safety signals provide essential information to ensure worker safety. There are four main types: signboards using shapes, colors and symbols; light signals that use different colored lights; audible signals that use sound-based codes; and hand signals for controlling machinery. Signboards are classified by their meaning into prohibition, mandatory, cautionary, directional, and first aid signs. Colors and shapes correlate to specific instructions, like red symbols indicating prohibition or danger, while blue, green and yellow represent mandatory actions, emergency exits, and warnings. Together, these standardized safety signals clearly communicate important safety guidelines and instructions across languages.
More Related Content
Safety signals
- 1.
- 2. Classification:Classification: Signboards:Signboards: They aremade up geometrical shapes, colours and symbols or pictograms. Each combination conveys a specific meaning to the signal Light signalsLight signals: they are made of transparent or translucent material, which emit white, red or green light from inside or from a back device Audible signals:Audible signals: these are part of a code and emitted by means of audible or acoustic devices Hand signals:Hand signals: this is a standard code of hand and arms movements used to guide workers to control hoisting operations and warn of hazards 2
- 3. SIGNBOARDSSIGNBOARDS According toits meaning they areAccording to its meaning they are classified into:classified into: Prohibition signsProhibition signs: They prohibit certain types of behaviour which could lead to dangerous situations. Mandatory sings;Mandatory sings; These signs remind employees and visitors of the rules they must follow when entering, or working in specific environments. Cautionary signsCautionary signs: Clearly display areas where caution is required. Directional signsDirectional signs: They provide information about a wide range of situations as for instance fire fighting. First aid signsFirst aid signs: Clearly show the location of first aid facilities. 3
- 4. 4 Colour Meaning or Purpose ShapeInstruction and Information Red Prohibition Square or oblong Dangerous behaviour Danger Alarm stop; shutdown; emergency cut-out devices; evacuate Fire-fighting equipment Identification and location Yellow or Amber Warning triangular Be careful; take precautions; examine Blue Mandatory Square or oblong Specific behaviour or action, e.g. wear personal protective equipment Green Emergency escape; first aid Square or oblong Doors; exits; escape routes equipment No danger Return to normal
- 5. 5 Meaning Safety sign Colour Pictogramcolour Background colour Prohibition Red Black White Mandatory Blue White White Warning Yellow or amber Black Black Emergency escape and first aid Green White White Information Red White White
- 6. 6 Prohibition signsProhibition signs Nosmoking Smoking and naked flames prohibited No admittance sign No unauthorised persons Not drinking water Fork lift truck prohibited Do not extinguish with water Do not touch

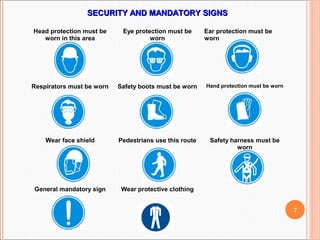

- 7. 7 SECURITY AND MANDATORYSIGNSSECURITY AND MANDATORY SIGNS Head protection must be worn in this area Eye protection must be worn Ear protection must be worn Respirators must be worn Safety boots must be worn Hand protection must be worn Wear face shield Pedestrians use this route Safety harness must be worn General mandatory sign Wear protective clothing
- 8. WARNING SIGNBOARDSWARNING SIGNBOARDS 8 Flammablematerials Explosive materials Hazardous substance Radiation area Caution biological hazard High voltage Caution overhead load Danger Harmful chemicals Non Ionising radiation Watch out forklift operating area Caution magnetic field Extreme cold Mind the step Caution laser hazard Trip hazard
- 9. 9 FIRST AID ANDEMERGENCY SIGNS Emergency exit sign First aid shower Emergency eye wash Exit sign First aid sign Emergency telephone Emergency stretcher sign Emergency exit sign Direction to be followed Emergency exit sign Direction to be followed Emergency exit sign Direction to be followed Emergency exit sign Direction to be followed Emergency exit
- 10. 10 FIRE AND EMERGENCYSIGNS Fire extinguisher Fire phone Fire extinguisher with trolley Fire ladder Fire alarm call point Fire horse reel Fire escape Direction to be followed Fire escape Direction to be followed Fire escape Direction to be followed Fire escape Direction to be followed Fire escape Direction to be followed Fire escape Direction to be followed
