1. @fernando_cejas
http://www.fernandocejas.com
The Mayans Lost Guide
To RxJava on Android

2. @fernando_cejas
Curious learner
Meet...
Android lover
Software engineer
Geek

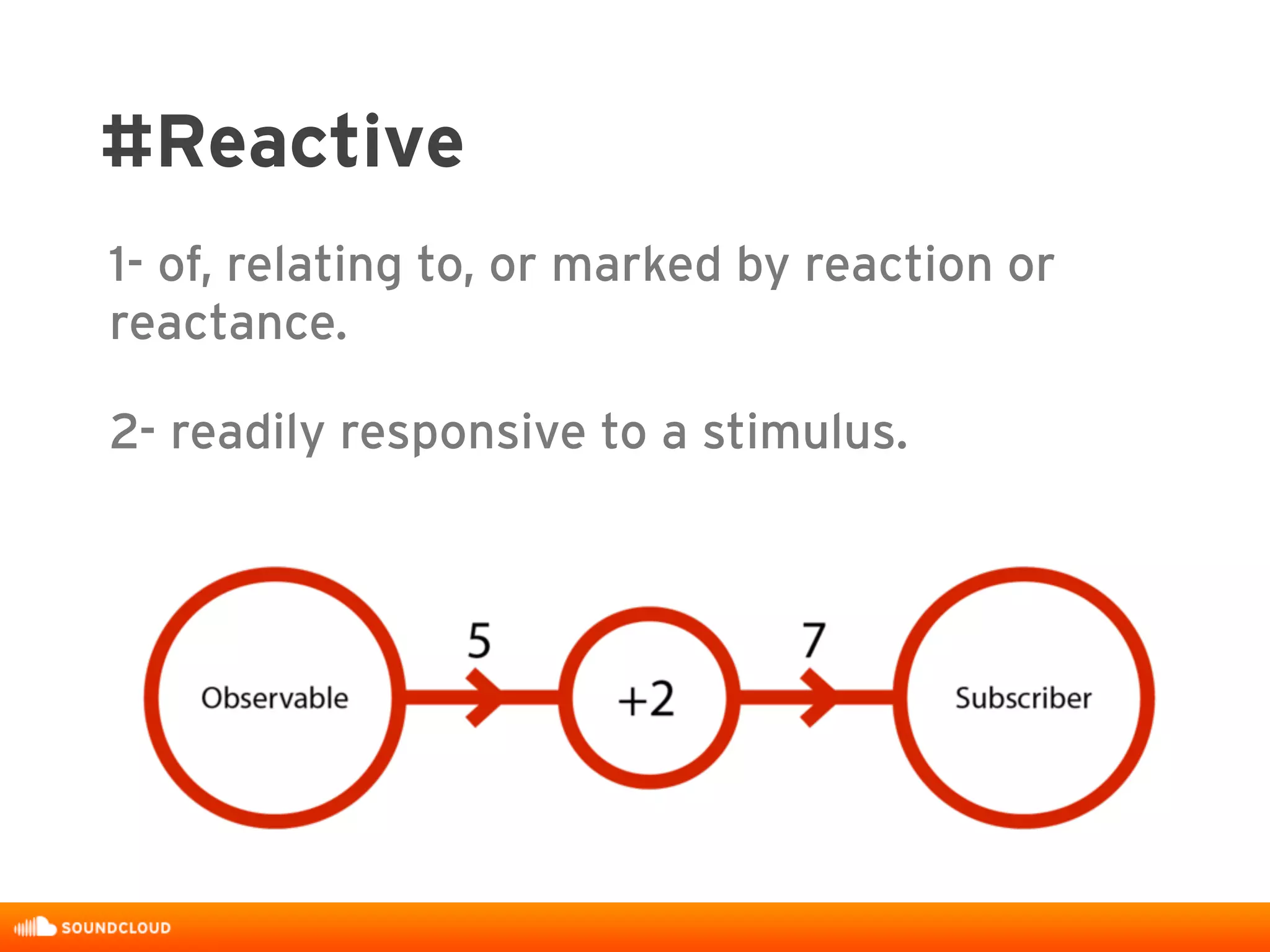

4. #Reactive
1- of, relating to, or marked by reaction or
reactance.
2- readily responsive to a stimulus.

5. RxJava is a Java VM implementation
of Reactive X (Reactive Extensions): ˝
a library for composing asynchronous
and event-based programs by using
observable sequences.
What is RxJava?

6. Why should
we go
reactive?

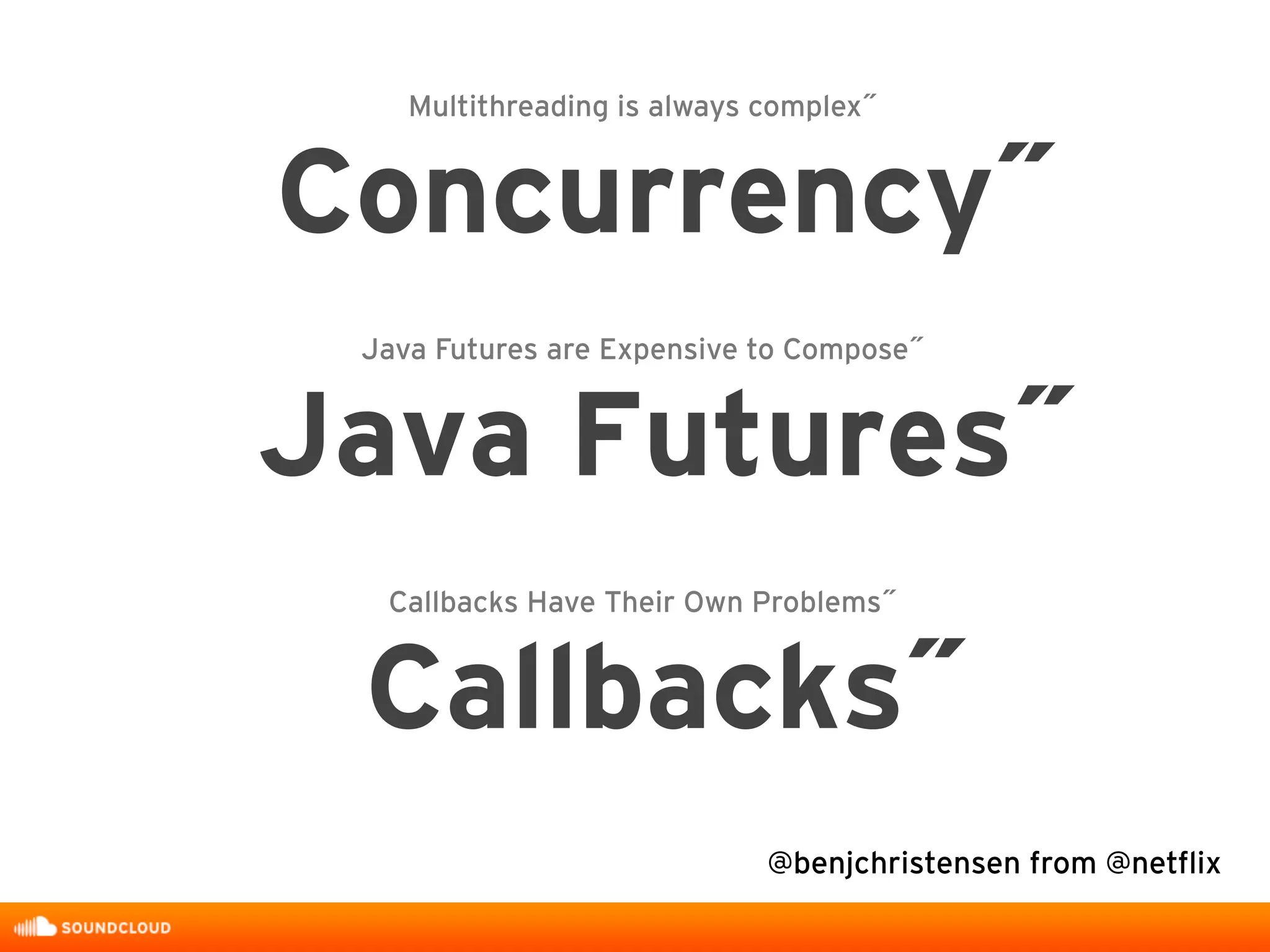

7. Multithreading is always complex˝
Concurrency˝
Java Futures are Expensive to Compose˝
Java Futures˝
Callbacks Have Their Own Problems˝
Callbacks˝
@benjchristensen from @netflix

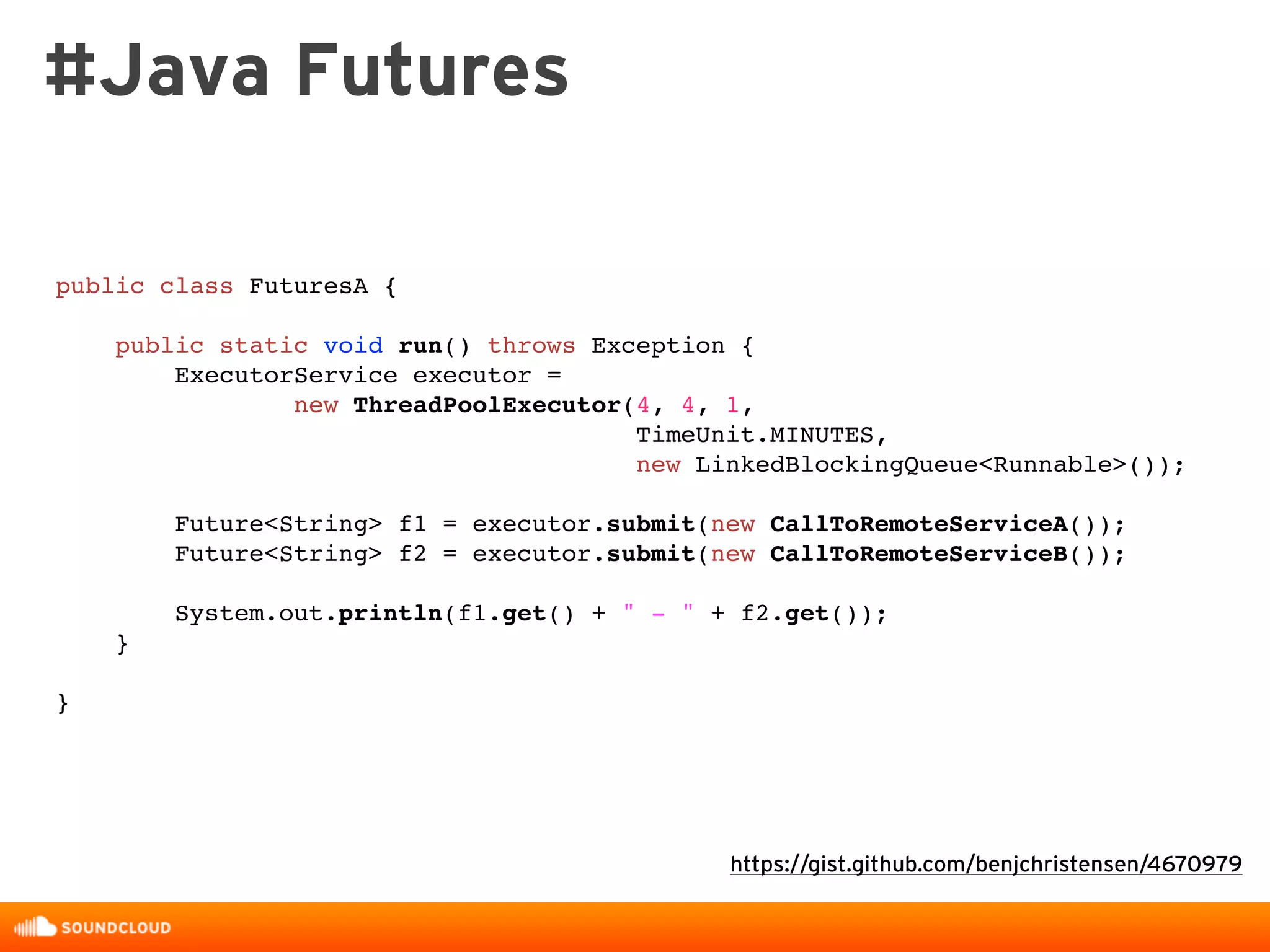

8. public class FuturesA {
public static void run() throws Exception {
ExecutorService executor =
new ThreadPoolExecutor(4, 4, 1,
TimeUnit.MINUTES,
new LinkedBlockingQueue<Runnable>());
Future<String> f1 = executor.submit(new CallToRemoteServiceA());
Future<String> f2 = executor.submit(new CallToRemoteServiceB());
System.out.println(f1.get() + " - " + f2.get());
}
}
https://gist.github.com/benjchristensen/4670979
#Java Futures

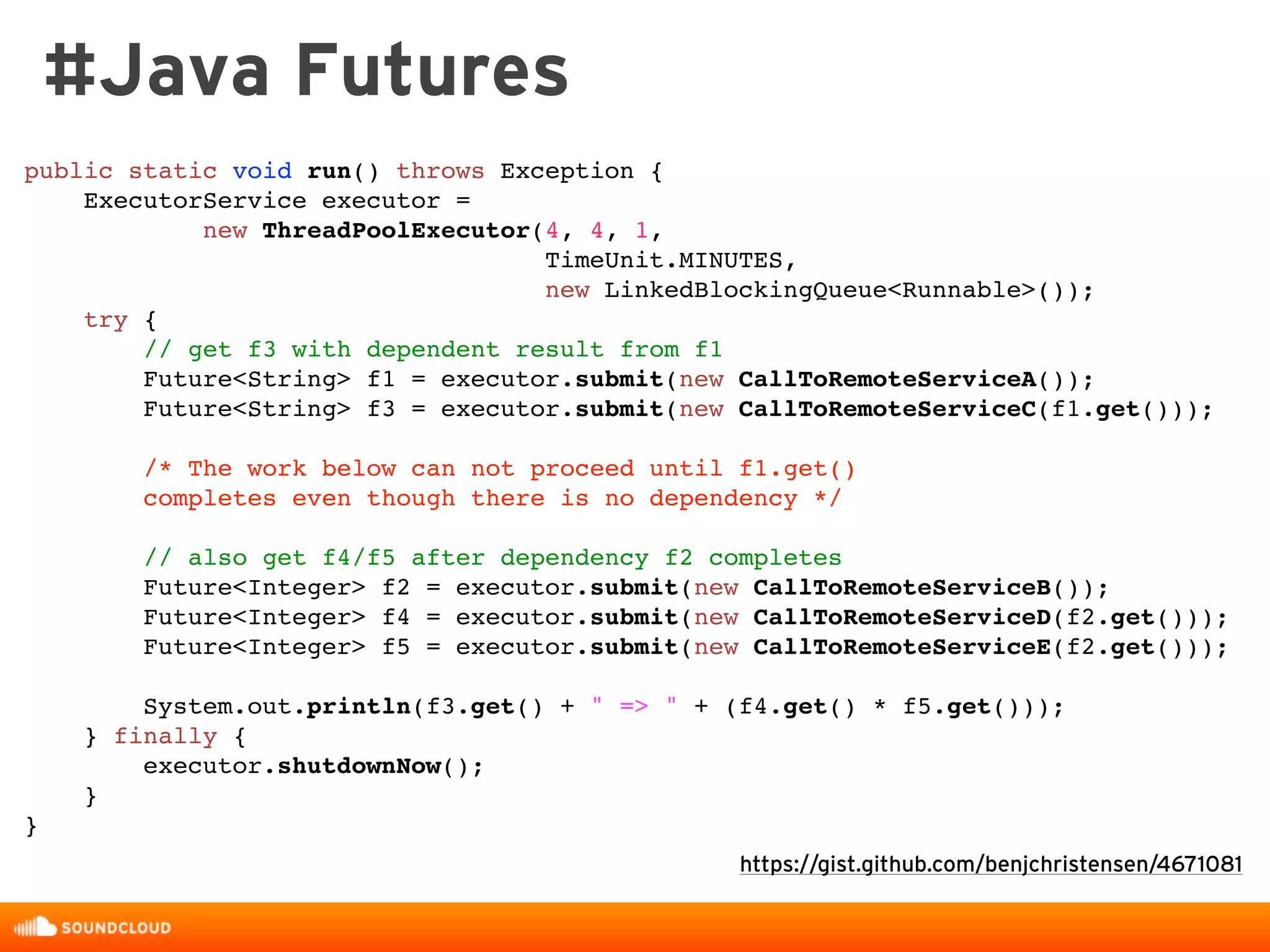

9. #Java Futures
https://gist.github.com/benjchristensen/4671081
public static void run() throws Exception {
ExecutorService executor =
new ThreadPoolExecutor(4, 4, 1,
TimeUnit.MINUTES,
new LinkedBlockingQueue<Runnable>());
try {
// get f3 with dependent result from f1
Future<String> f1 = executor.submit(new CallToRemoteServiceA());
Future<String> f3 = executor.submit(new CallToRemoteServiceC(f1.get()));
/* The work below can not proceed until f1.get()
completes even though there is no dependency */
// also get f4/f5 after dependency f2 completes
Future<Integer> f2 = executor.submit(new CallToRemoteServiceB());
Future<Integer> f4 = executor.submit(new CallToRemoteServiceD(f2.get()));
Future<Integer> f5 = executor.submit(new CallToRemoteServiceE(f2.get()));
System.out.println(f3.get() + " => " + (f4.get() * f5.get()));
} finally {
executor.shutdownNow();
}
}

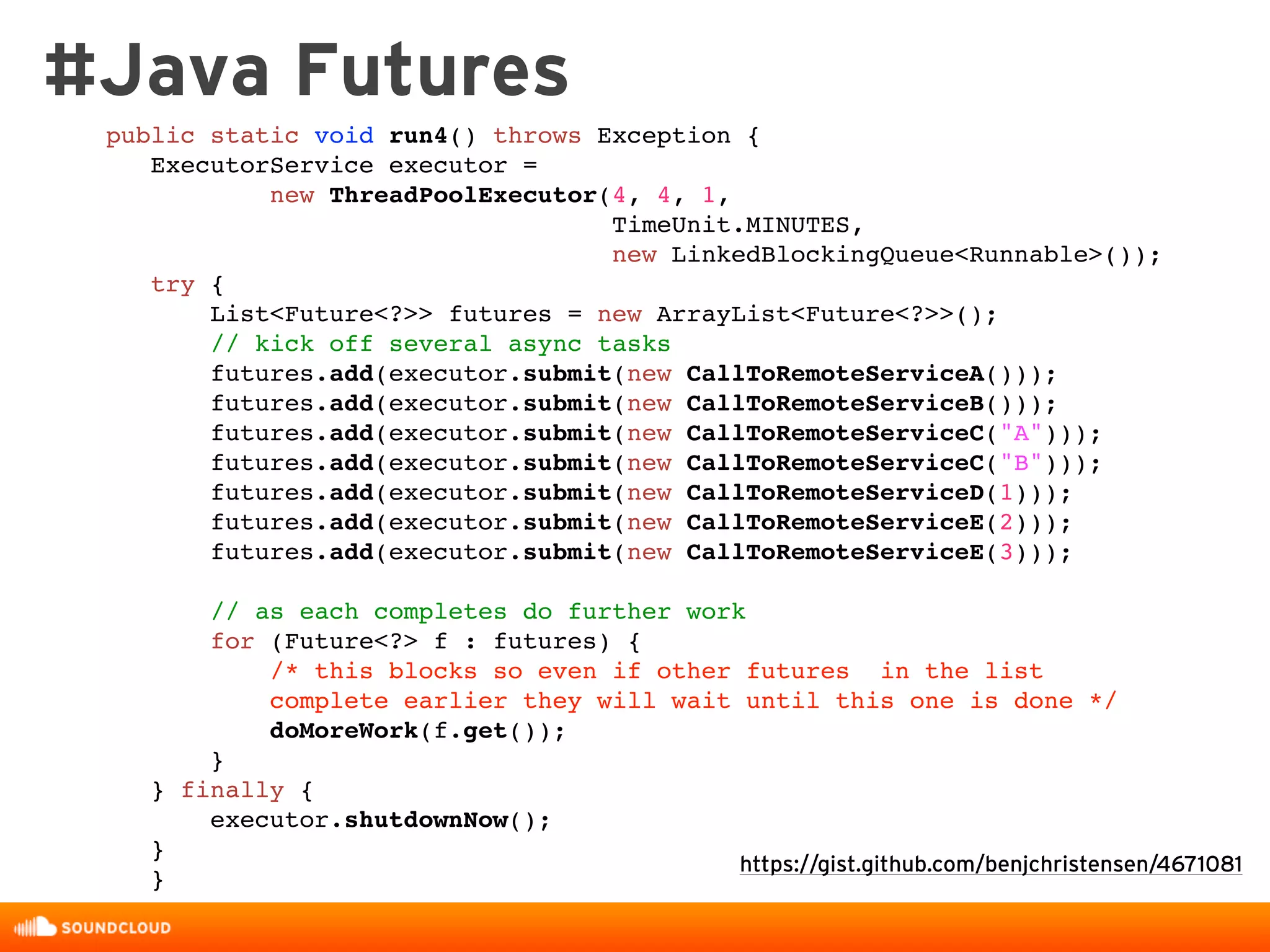

10. #Java Futures
https://gist.github.com/benjchristensen/4671081
public static void run4() throws Exception {
ExecutorService executor =
new ThreadPoolExecutor(4, 4, 1,
TimeUnit.MINUTES,
new LinkedBlockingQueue<Runnable>());
try {
List<Future<?>> futures = new ArrayList<Future<?>>();
// kick off several async tasks
futures.add(executor.submit(new CallToRemoteServiceA()));
futures.add(executor.submit(new CallToRemoteServiceB()));
futures.add(executor.submit(new CallToRemoteServiceC("A")));
futures.add(executor.submit(new CallToRemoteServiceC("B")));
futures.add(executor.submit(new CallToRemoteServiceD(1)));
futures.add(executor.submit(new CallToRemoteServiceE(2)));
futures.add(executor.submit(new CallToRemoteServiceE(3)));
// as each completes do further work
for (Future<?> f : futures) {
/* this blocks so even if other futures in the list
complete earlier they will wait until this one is done */
doMoreWork(f.get());
}
} finally {
executor.shutdownNow();
}
}

11. Multithreading is always complex˝
Concurrency˝
Java Futures are Expensive to Compose˝
Java Futures˝
Callbacks Have Their Own Problems˝
Callbacks˝
@benjchristensen from @netflix

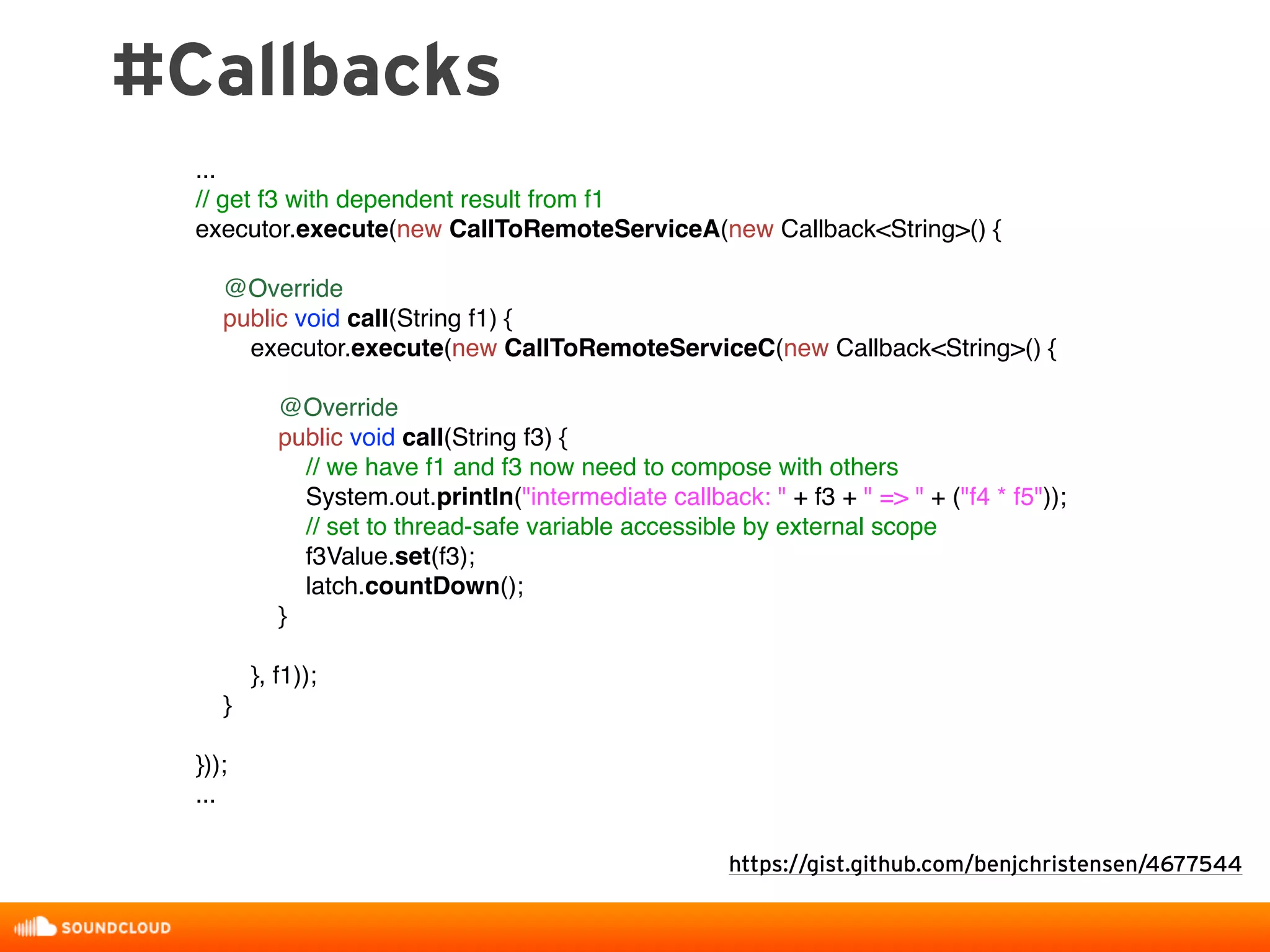

12. #Callbacks
https://gist.github.com/benjchristensen/4677544
...
// get f3 with dependent result from f1
executor.execute(new CallToRemoteServiceA(new Callback<String>() {
@Override
public void call(String f1) {
executor.execute(new CallToRemoteServiceC(new Callback<String>() {
@Override
public void call(String f3) {
// we have f1 and f3 now need to compose with others
System.out.println("intermediate callback: " + f3 + " => " + ("f4 * f5"));
// set to thread-safe variable accessible by external scope
f3Value.set(f3);
latch.countDown();
}
}, f1));
}
}));
...

13. Observables
Subscribers
Subscriptions
Schedulers
Operators
#RxJava Guys:

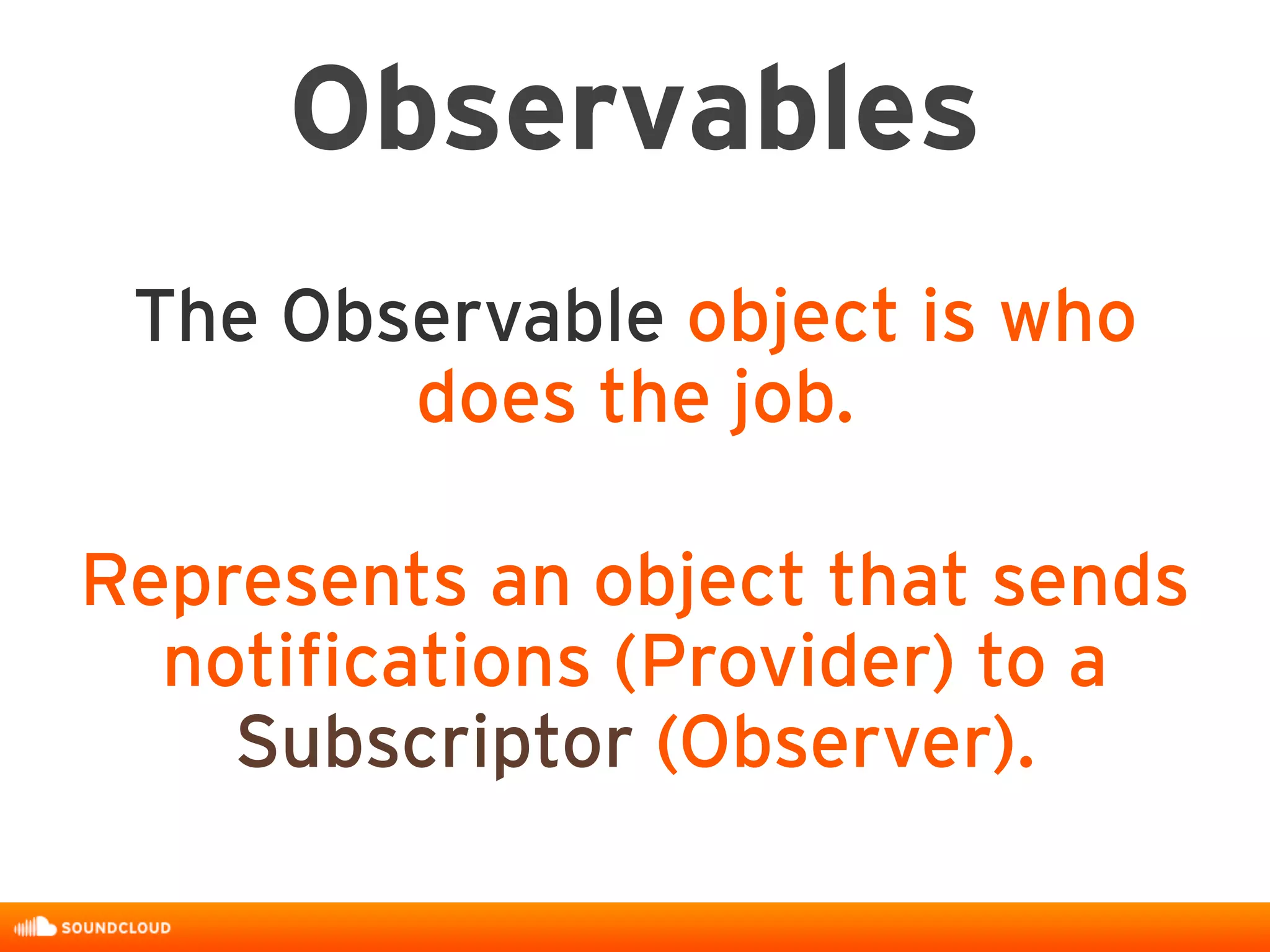

14. Observables
The Observable object is who
does the job.
Represents an object that sends
notifications (Provider) to a
Subscriptor (Observer).

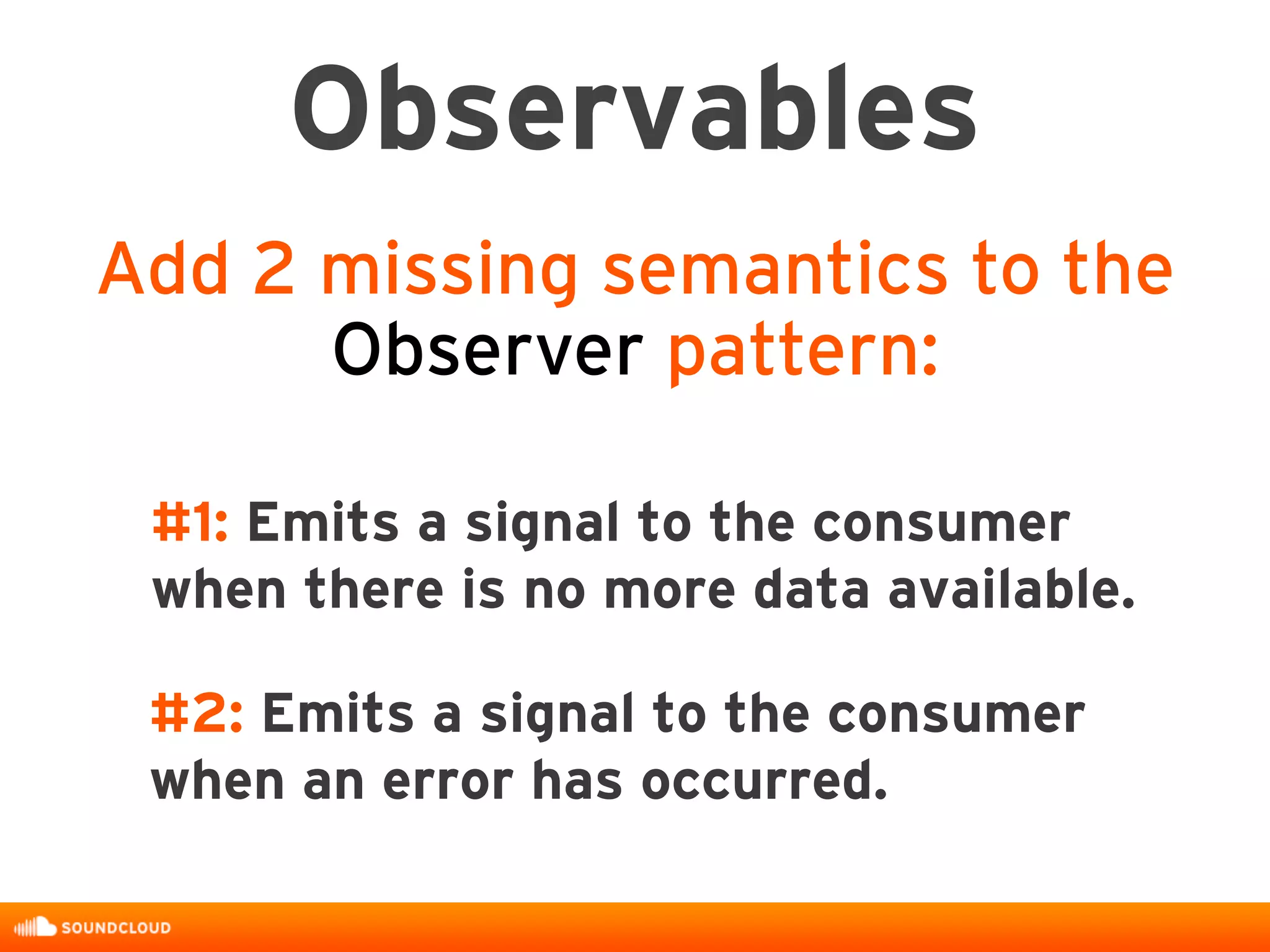

15. Observables
Add 2 missing semantics to the
Observer pattern:
#1: Emits a signal to the consumer
when there is no more data available.
#2: Emits a signal to the consumer
when an error has occurred.

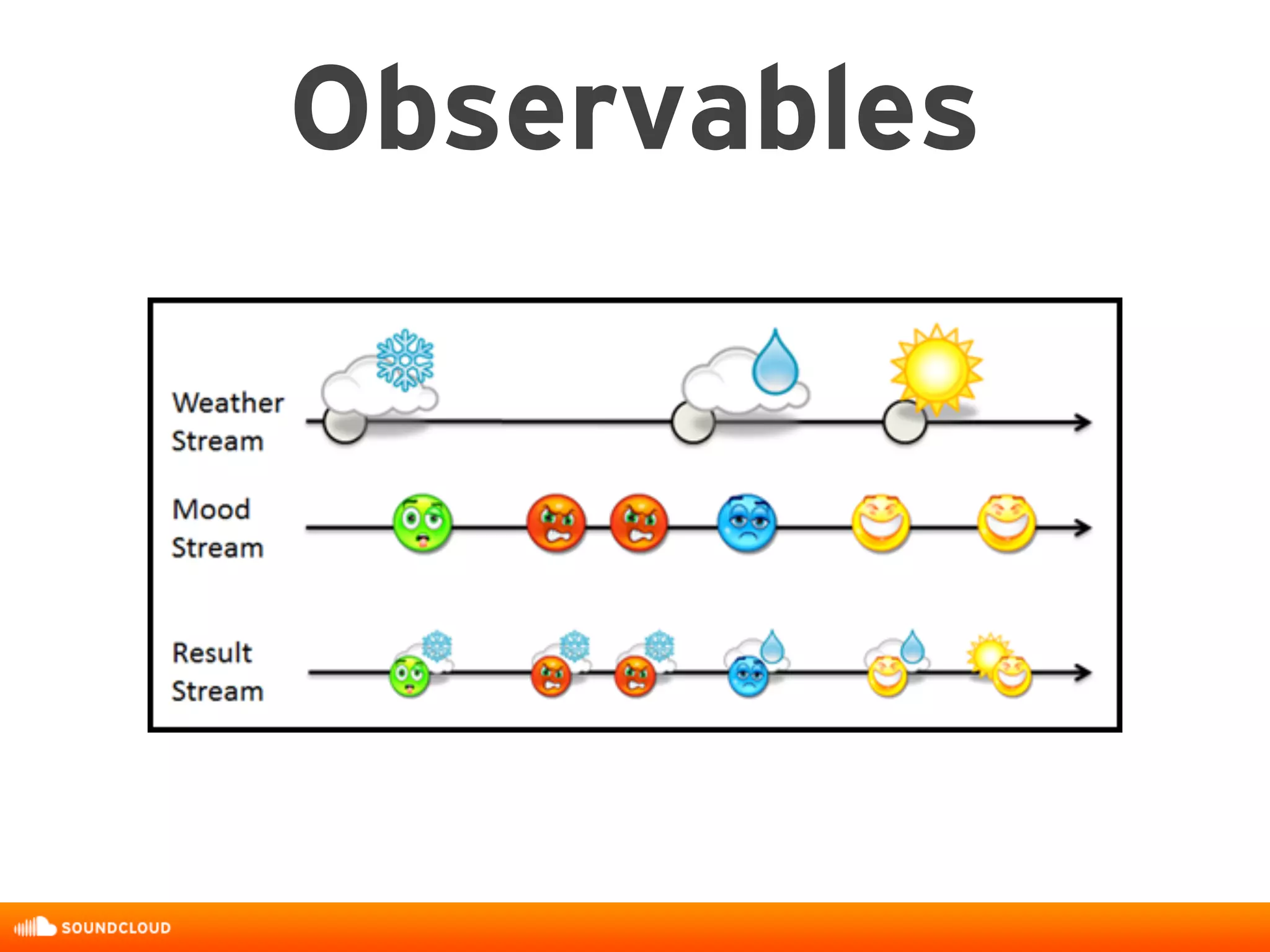

16. Observables

17. Observables

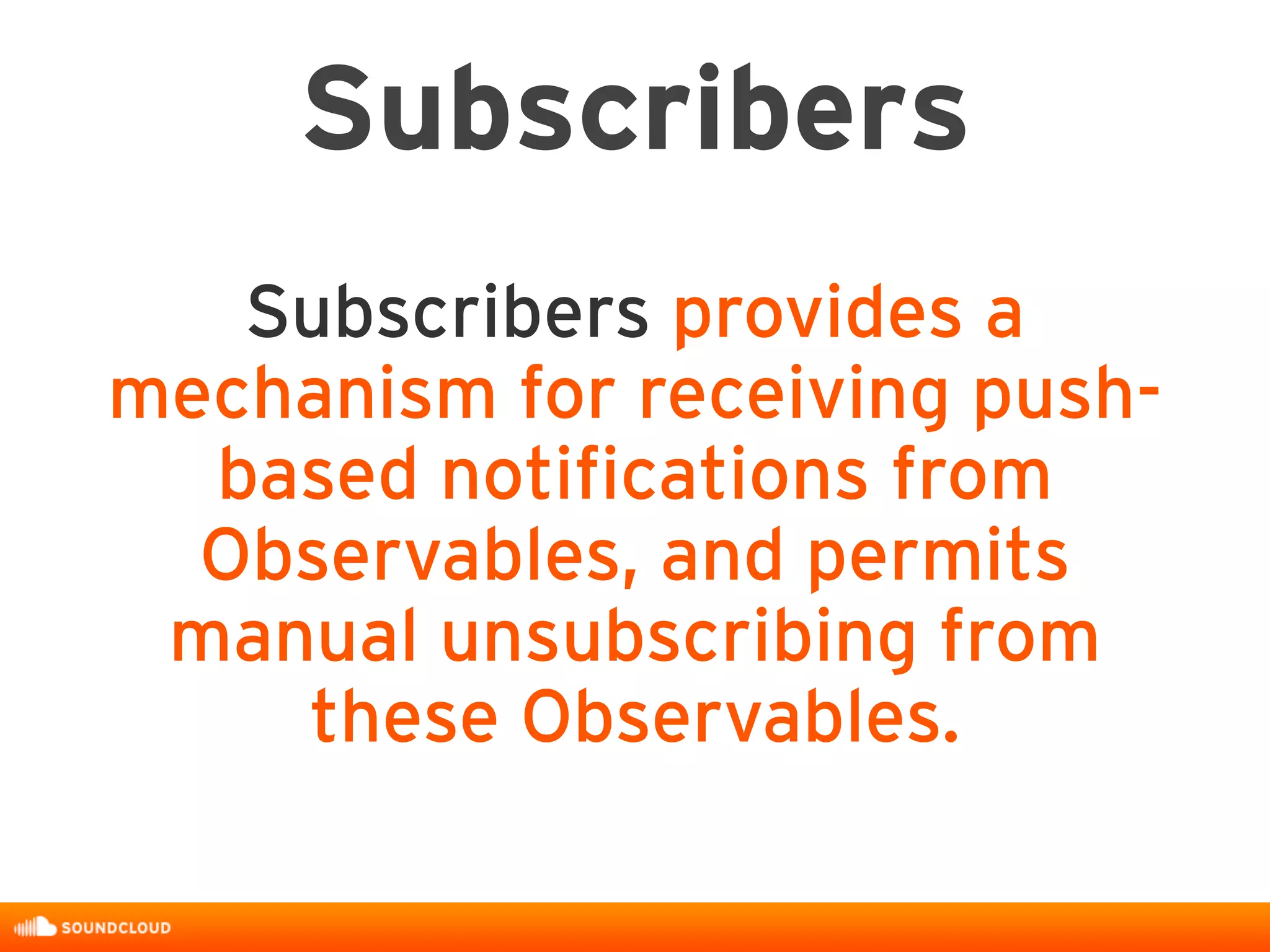

18. Subscribers
Subscribers provides a
mechanism for receiving push-
based notifications from
Observables, and permits
manual unsubscribing from
these Observables.

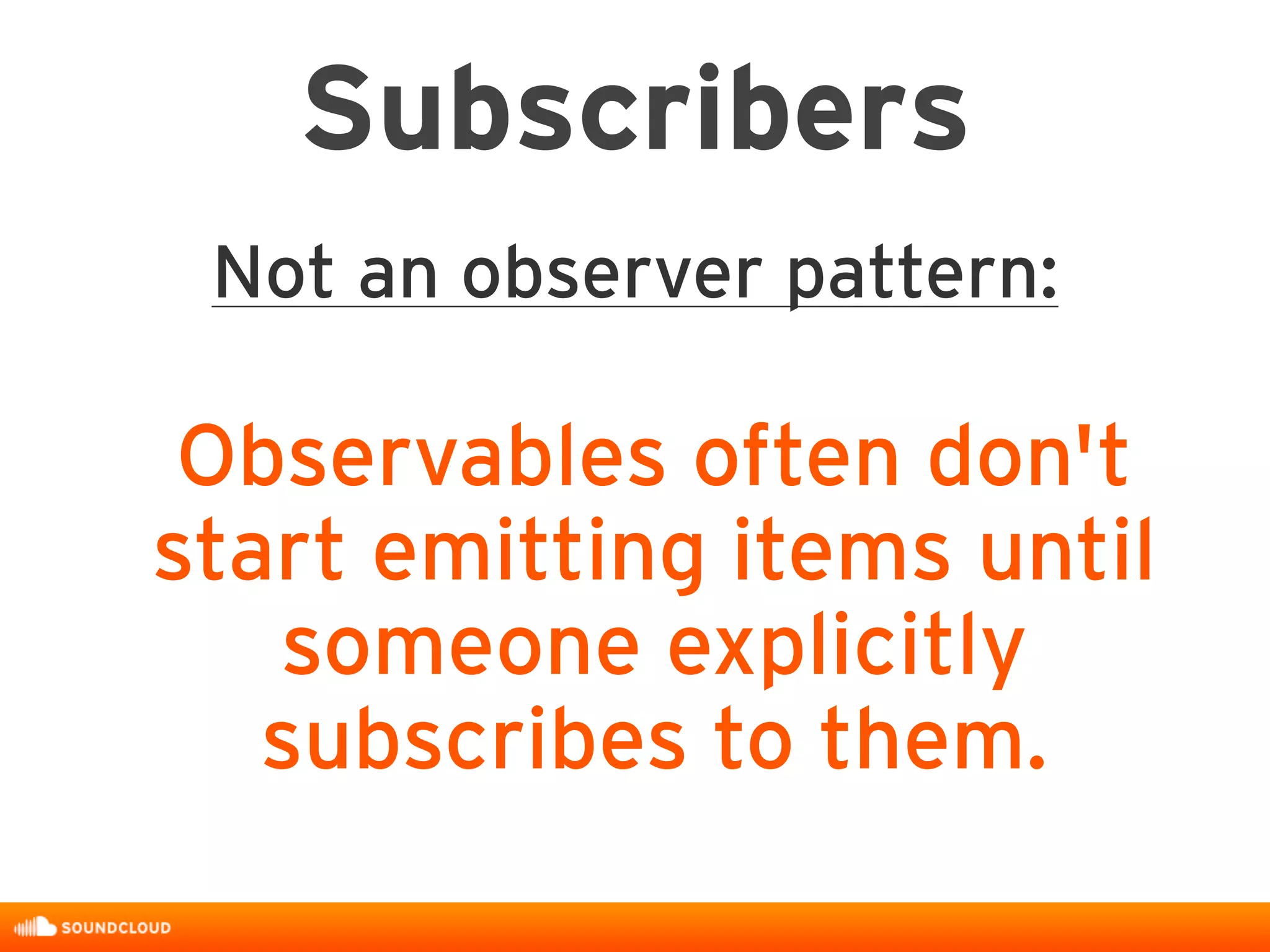

19. Subscribers
Not an observer pattern:
Observables often don't
start emitting items until
someone explicitly
subscribes to them.

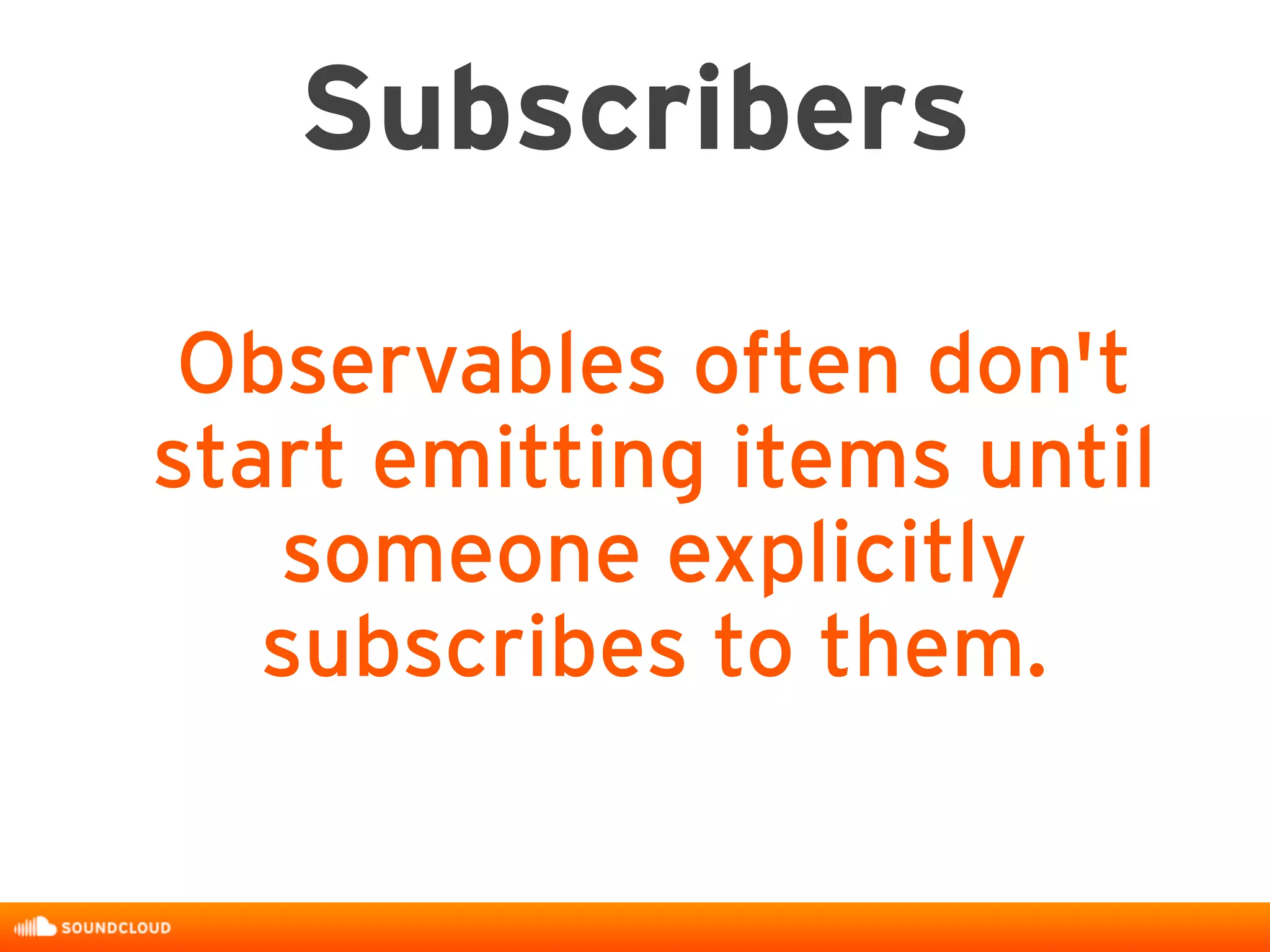

20. Subscribers
Observables often don't
start emitting items until
someone explicitly
subscribes to them.

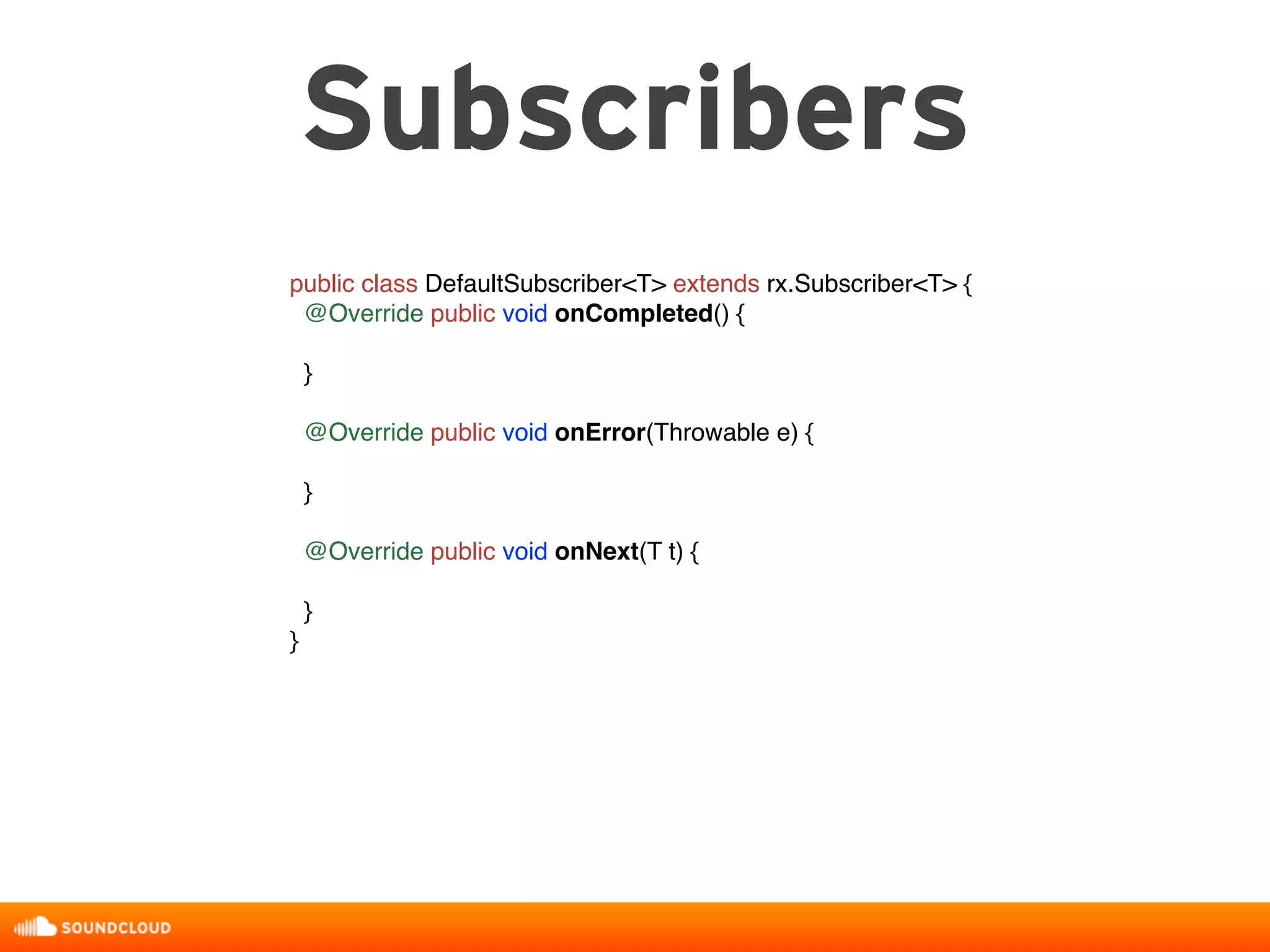

21. Subscribers
public class DefaultSubscriber<T> extends rx.Subscriber<T> {
@Override public void onCompleted() {
}
@Override public void onError(Throwable e) {
}
@Override public void onNext(T t) {
}
}

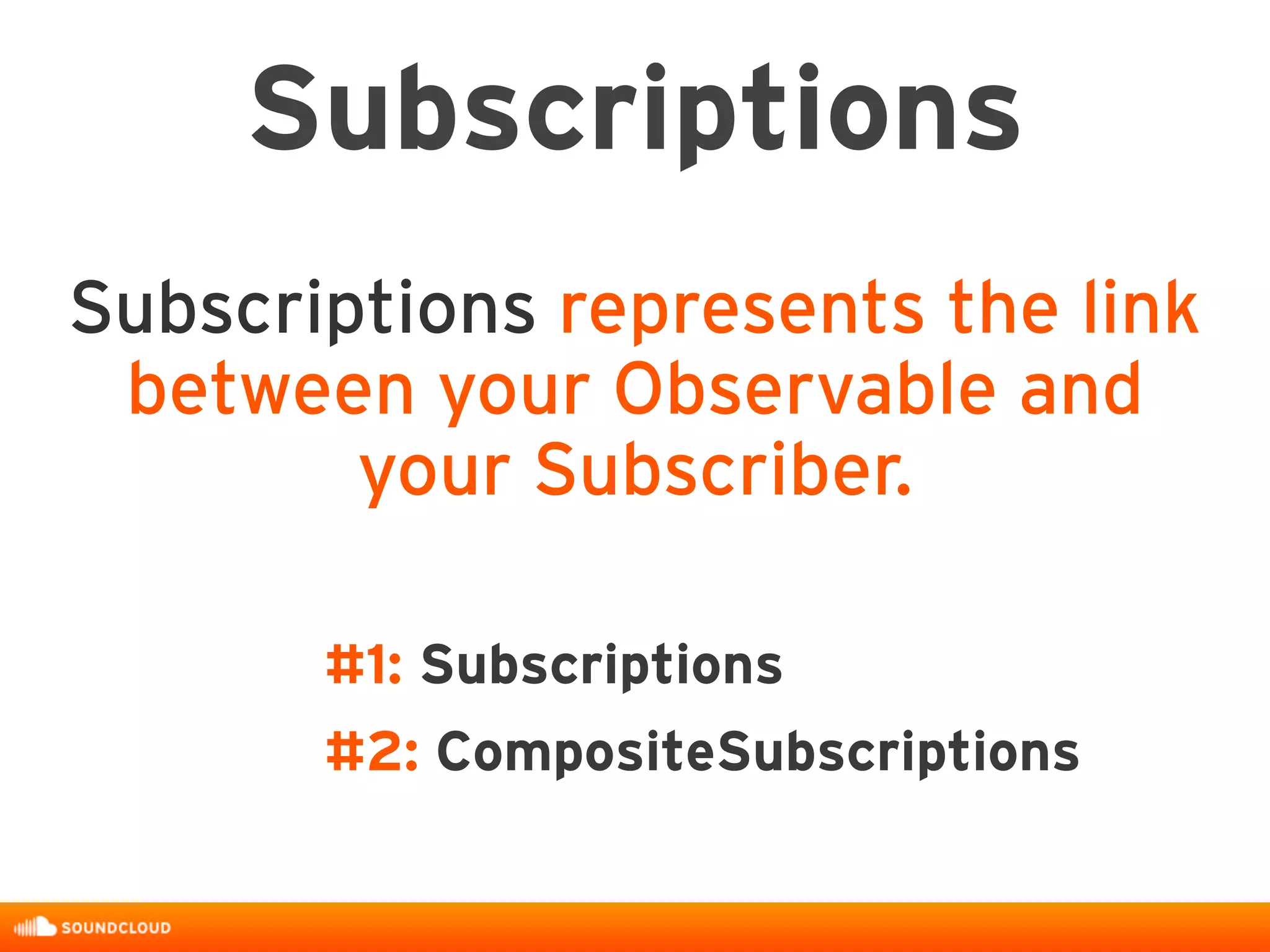

22. Subscriptions
Subscriptions represents the link
between your Observable and
your Subscriber.
#1: Subscriptions
#2: CompositeSubscriptions

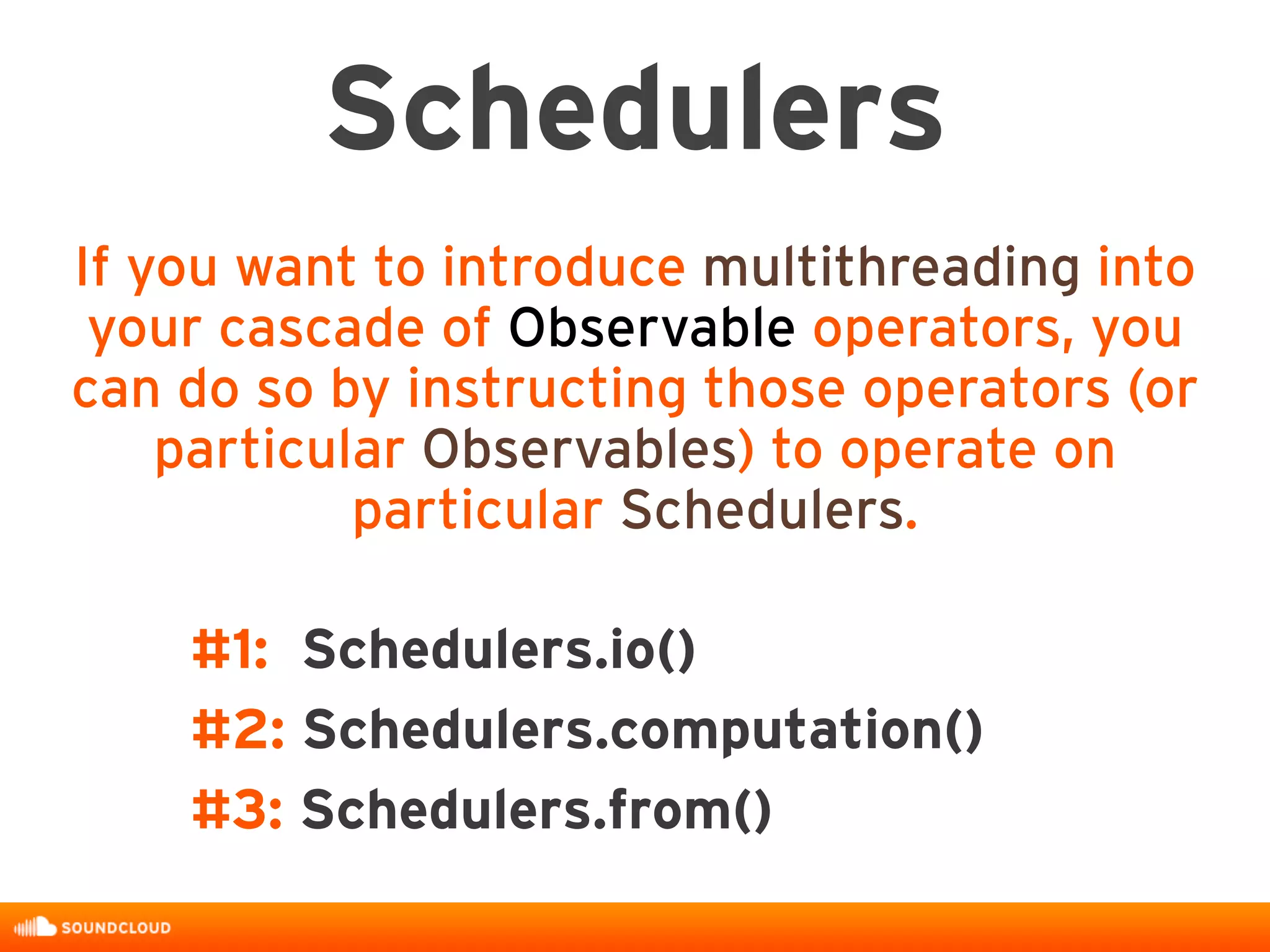

23. #1: Schedulers.io()
#2: Schedulers.computation()
#3: Schedulers.from()
Schedulers
If you want to introduce multithreading into
your cascade of Observable operators, you
can do so by instructing those operators (or
particular Observables) to operate on
particular Schedulers.

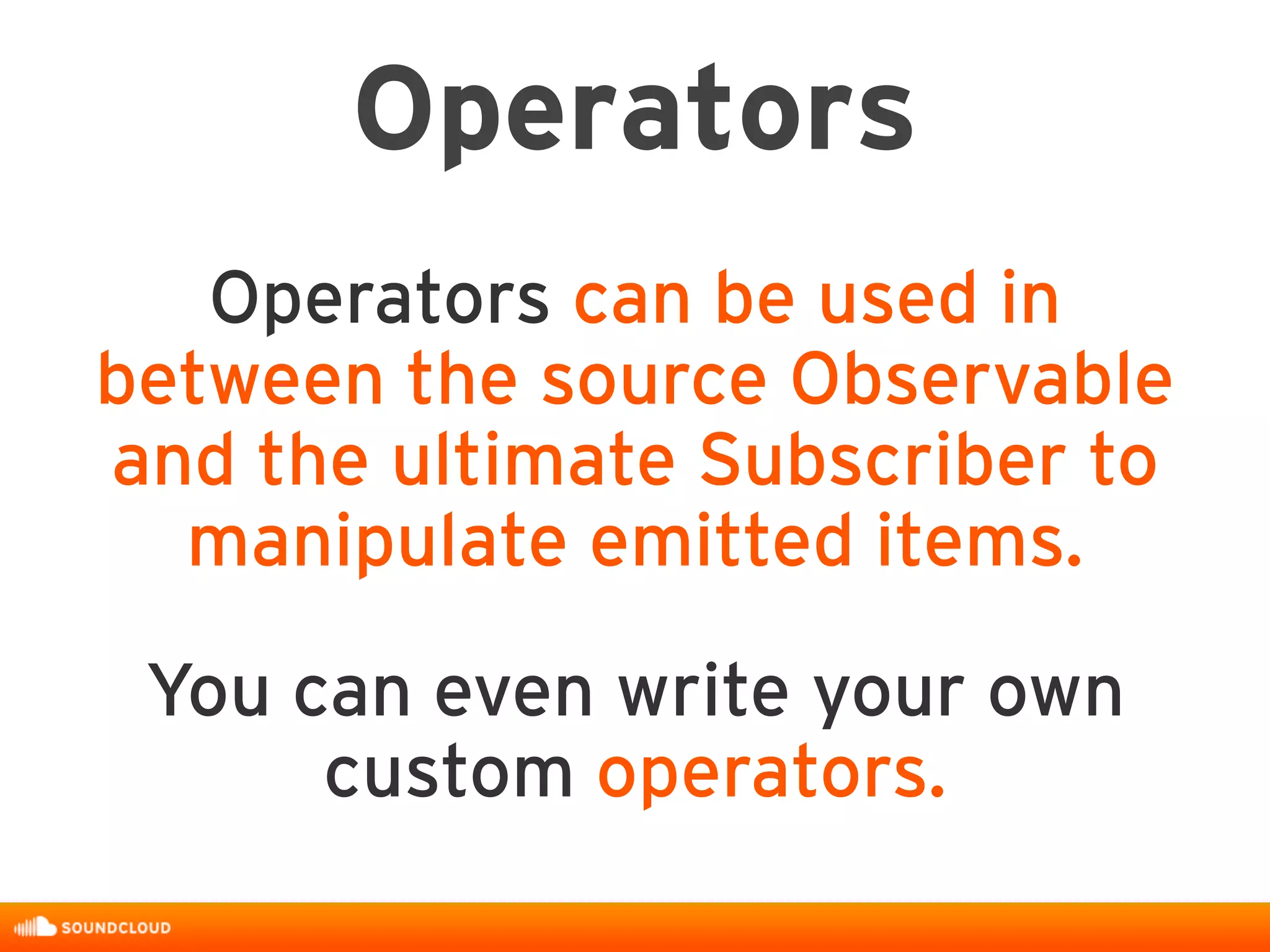

24. Operators
Operators can be used in
between the source Observable
and the ultimate Subscriber to
manipulate emitted items.
You can even write your own
custom operators.

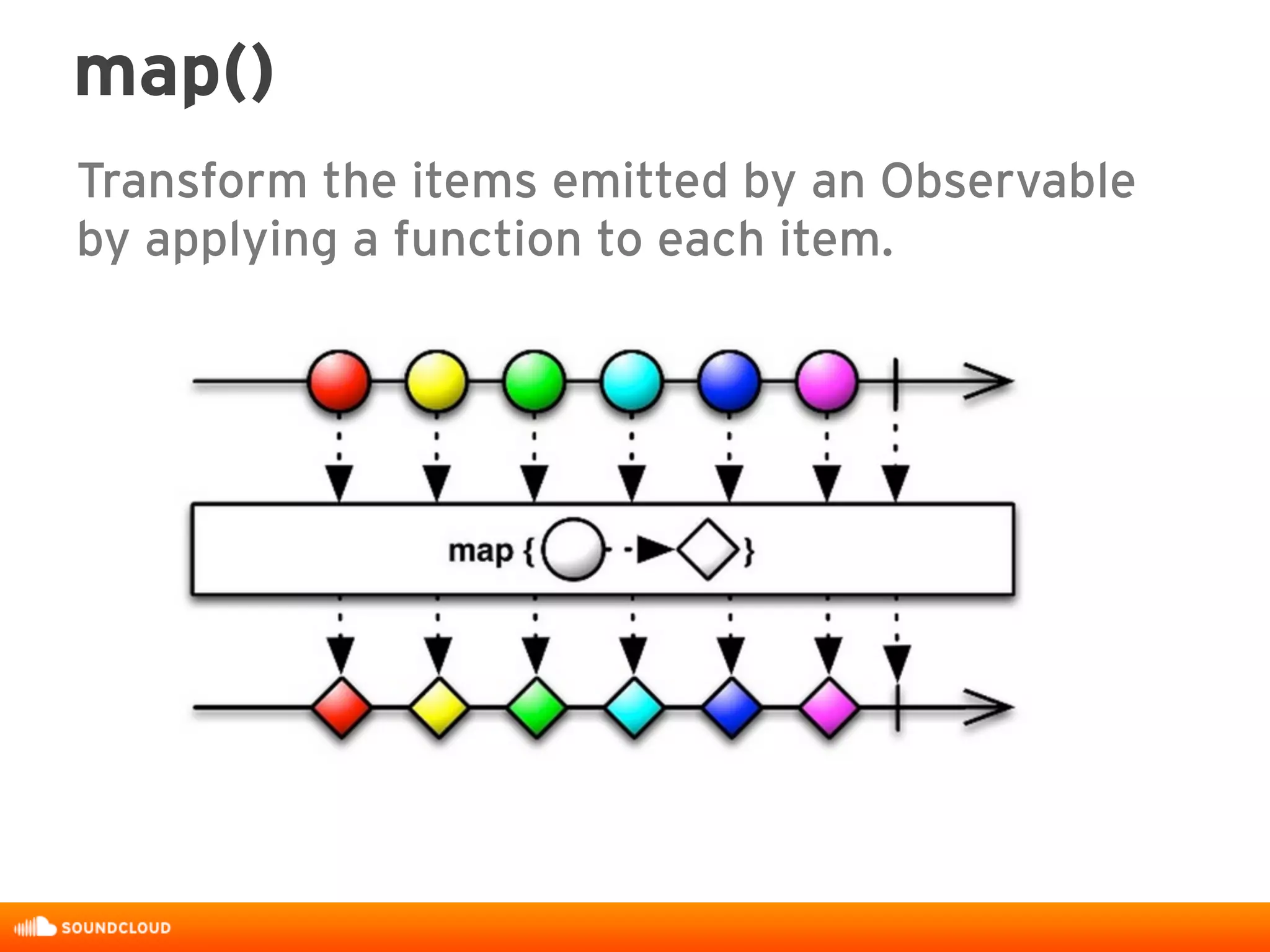

25. map()
Transform the items emitted by an Observable
by applying a function to each item.

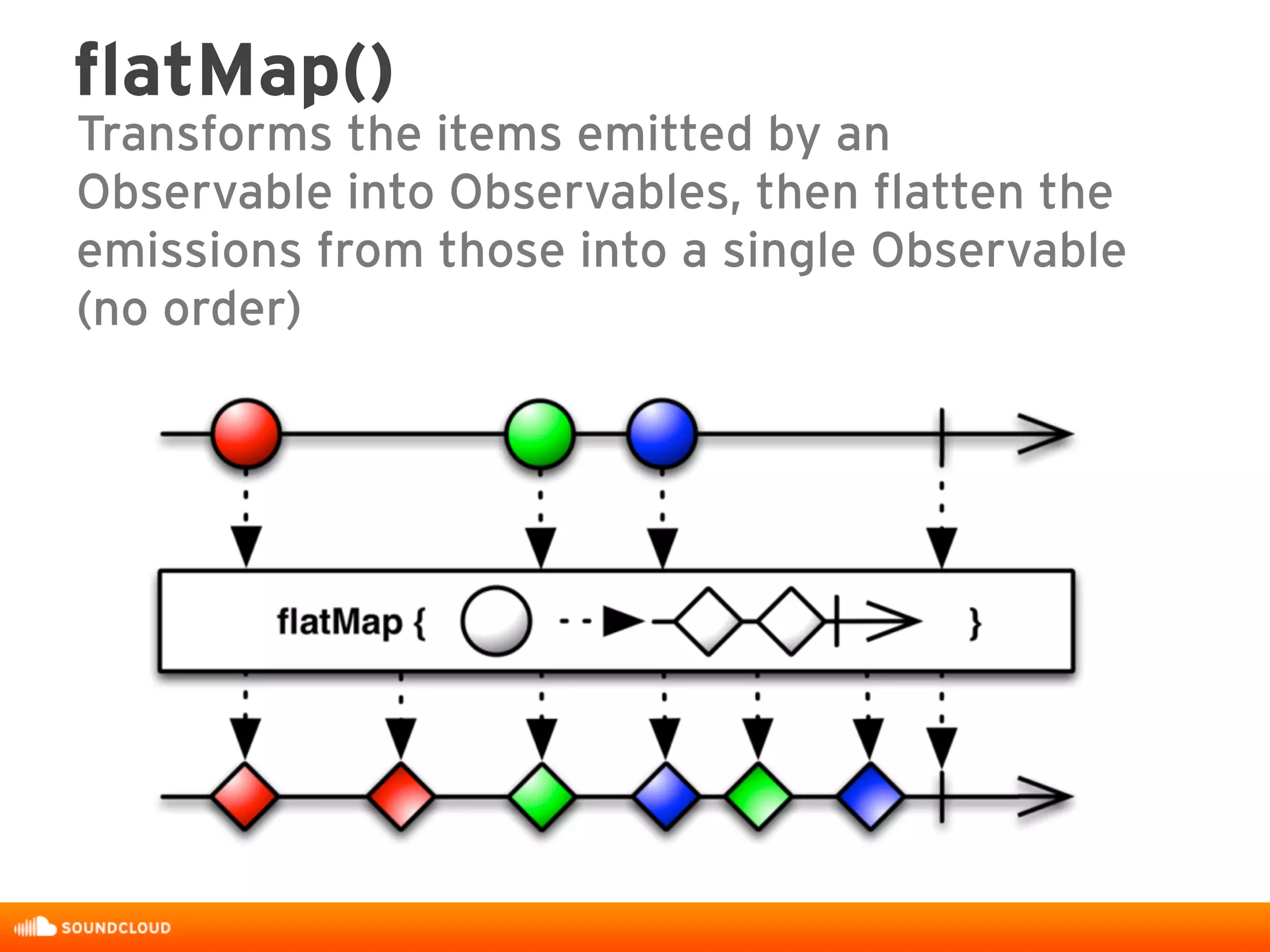

26. flatMap()
Transforms the items emitted by an
Observable into Observables, then flatten the
emissions from those into a single Observable
(no order)

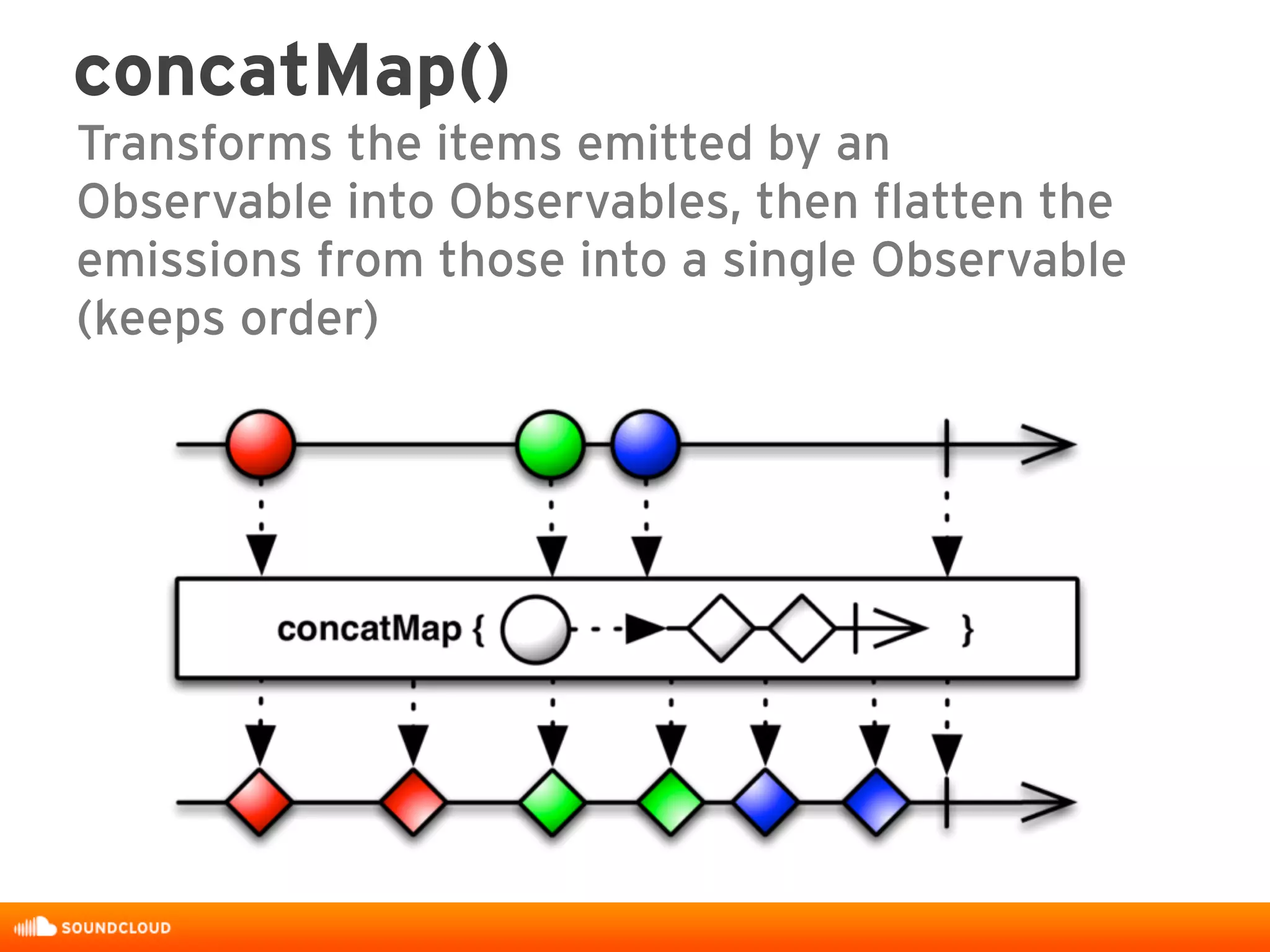

27. concatMap()
Transforms the items emitted by an
Observable into Observables, then flatten the
emissions from those into a single Observable
(keeps order)

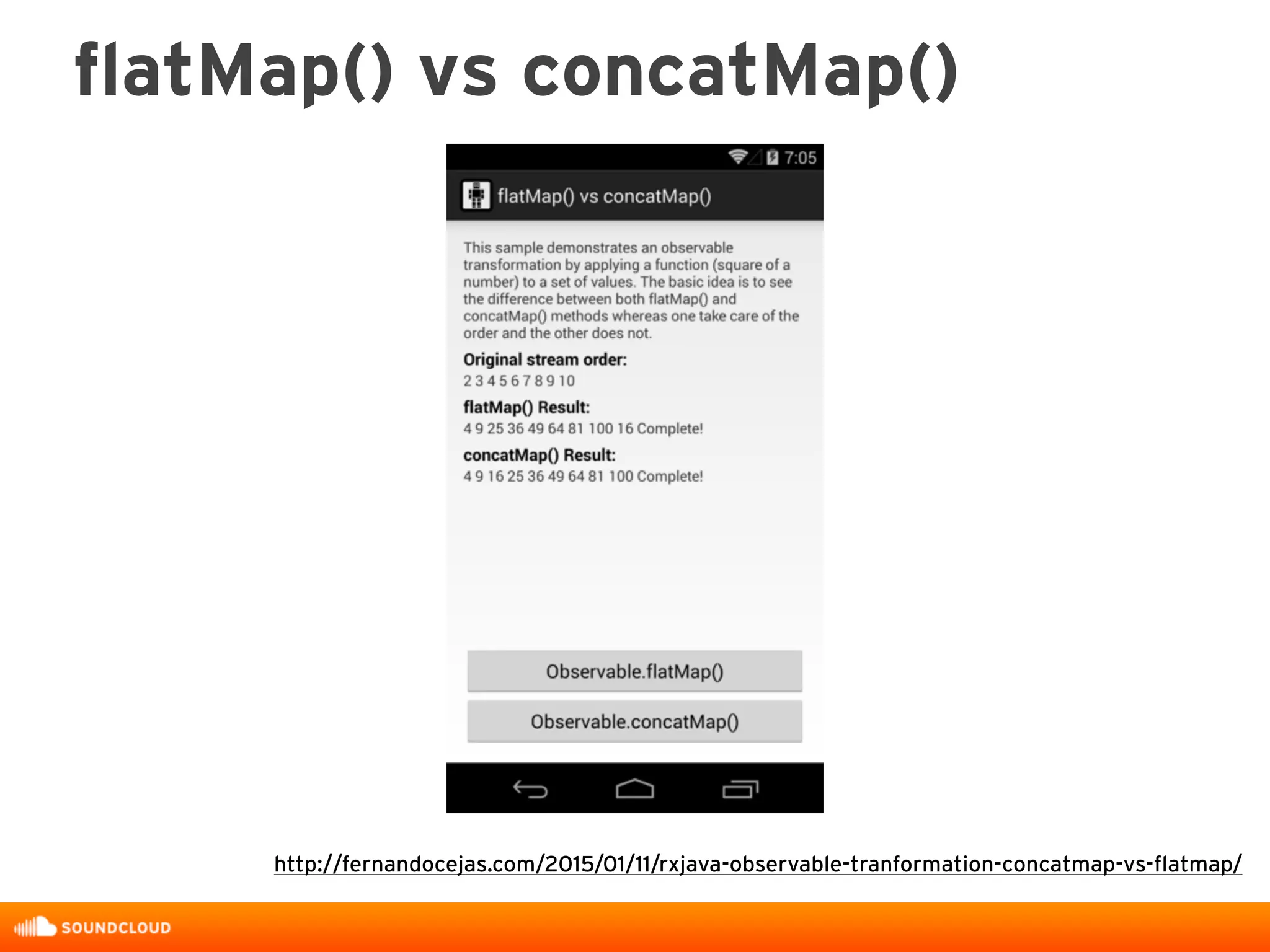

28. flatMap() vs concatMap()
http://fernandocejas.com/2015/01/11/rxjava-observable-tranformation-concatmap-vs-flatmap/

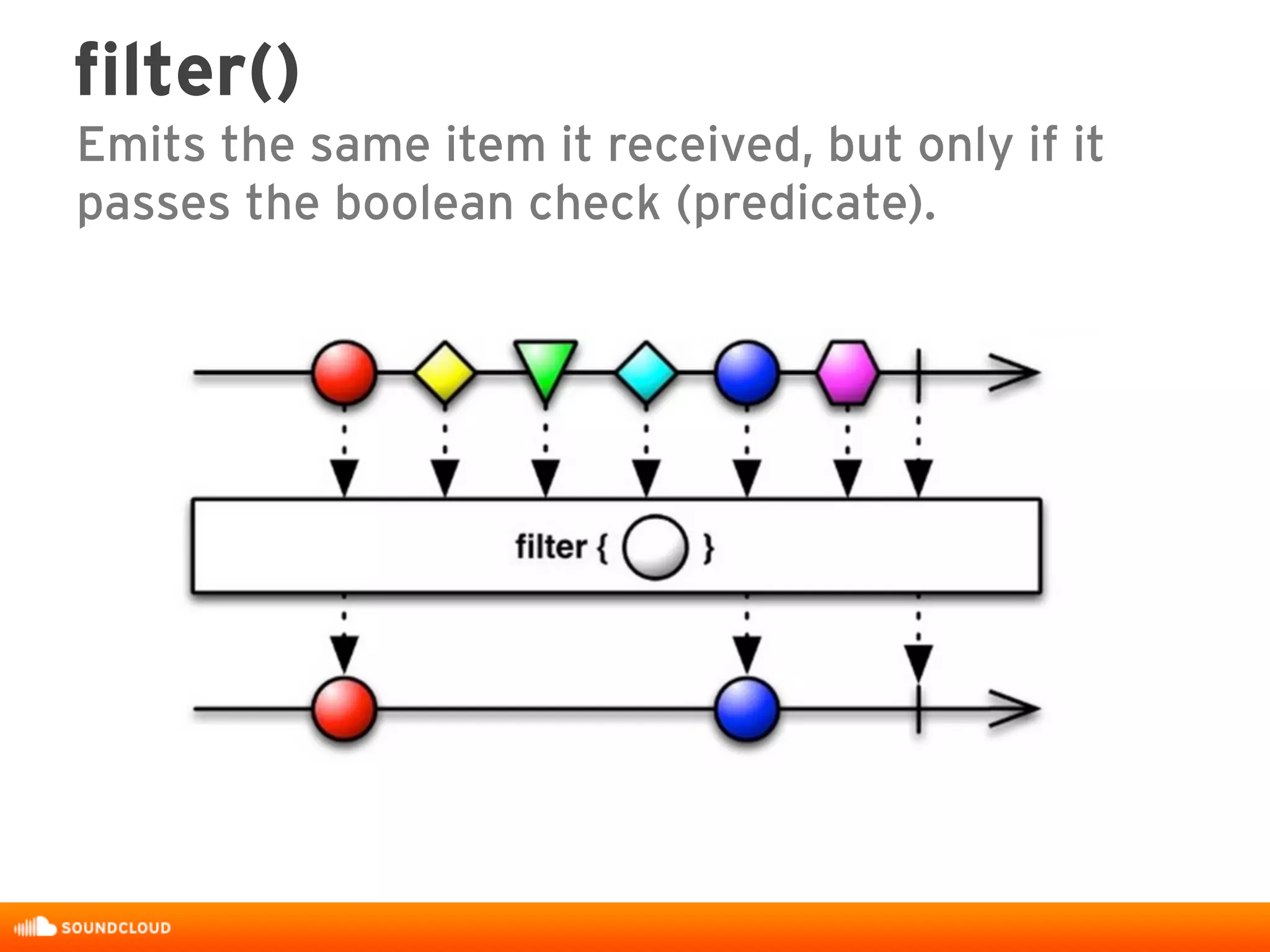

29. filter()
Emits the same item it received, but only if it
passes the boolean check (predicate).

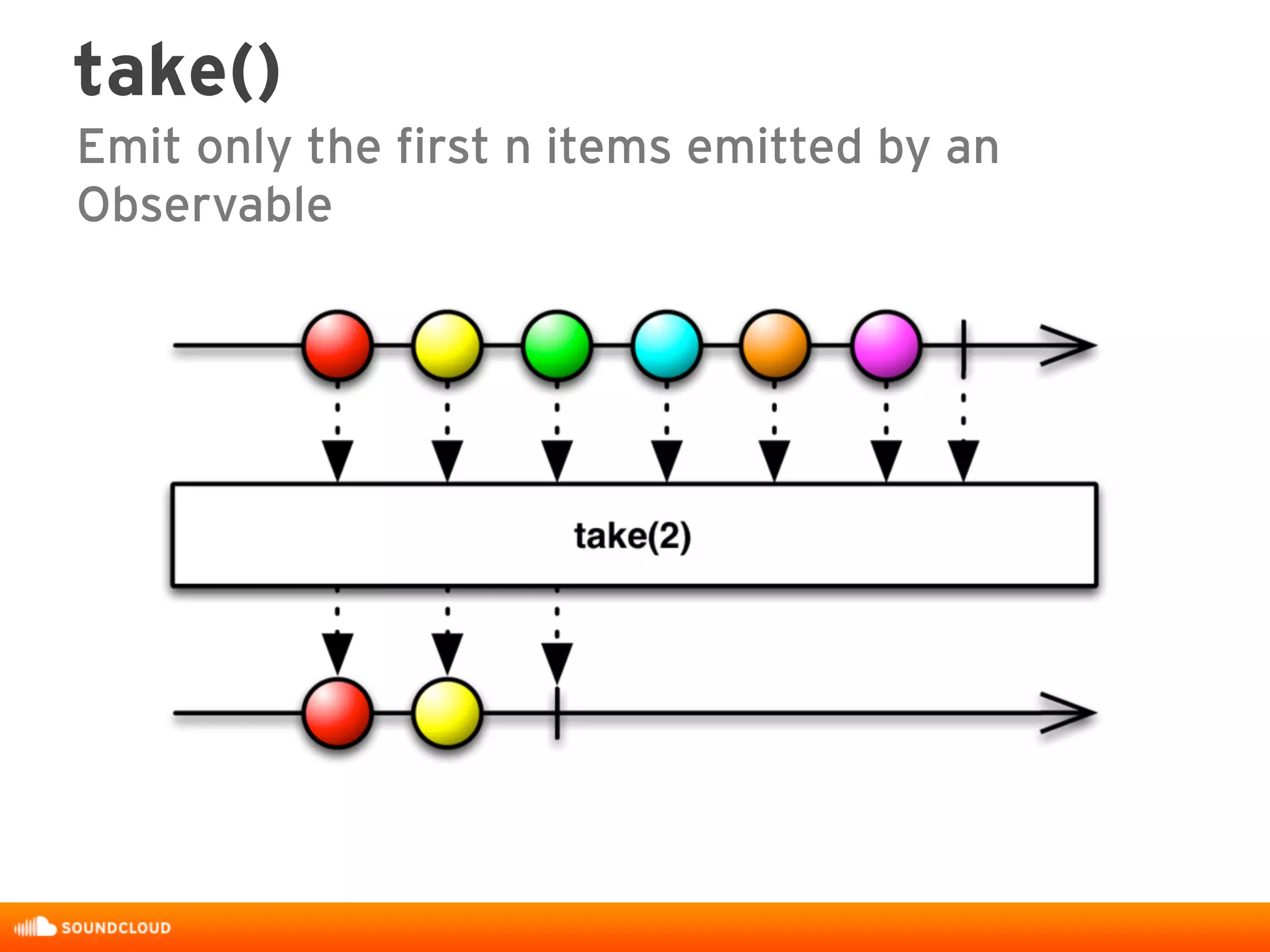

30. take()
Emit only the first n items emitted by an
Observable

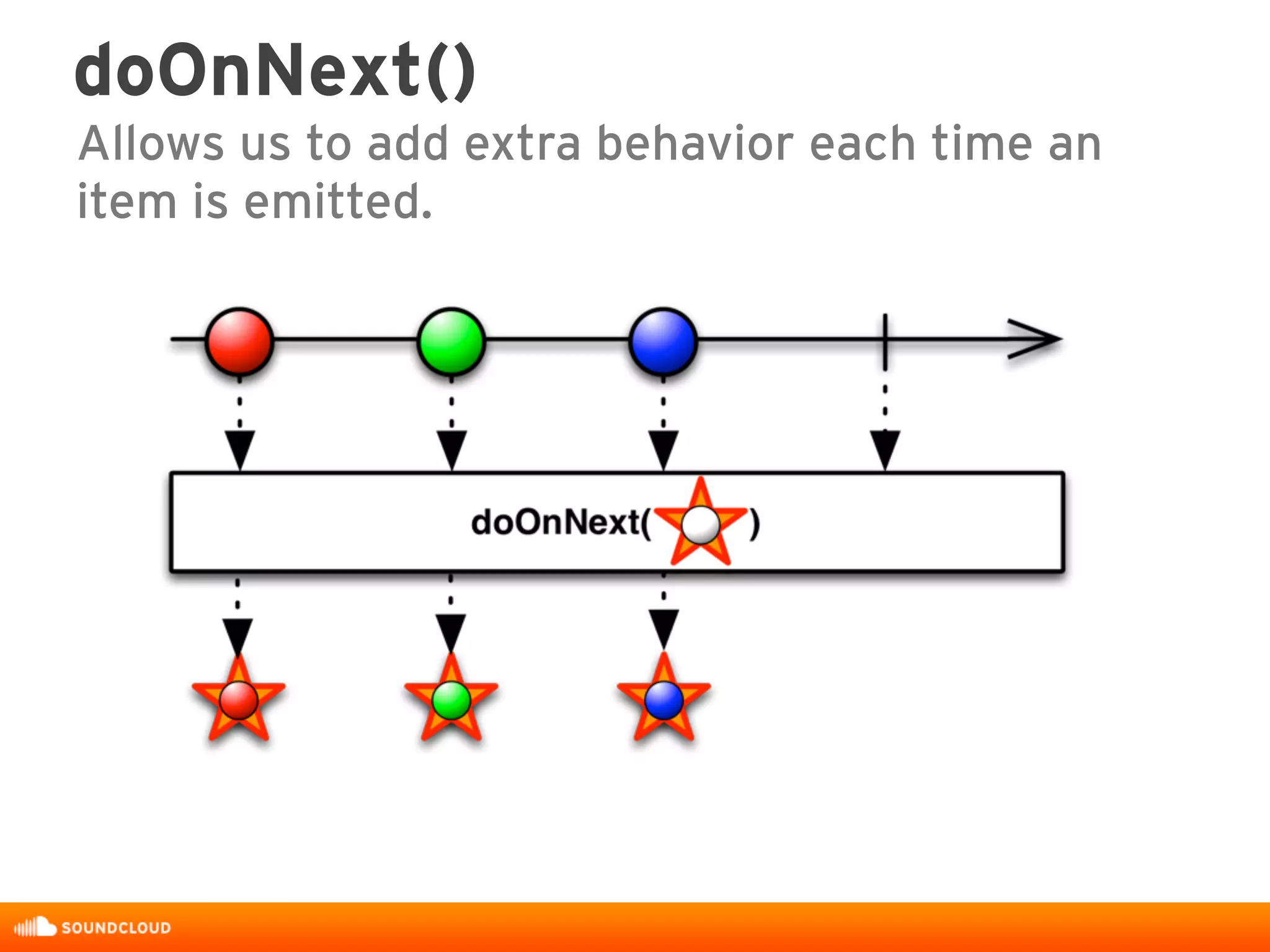

31. doOnNext()
Allows us to add extra behavior each time an
item is emitted.

32. onError() is called if an
exception is thrown at any time.
Error handling
The operators do not have to
handle the exception.

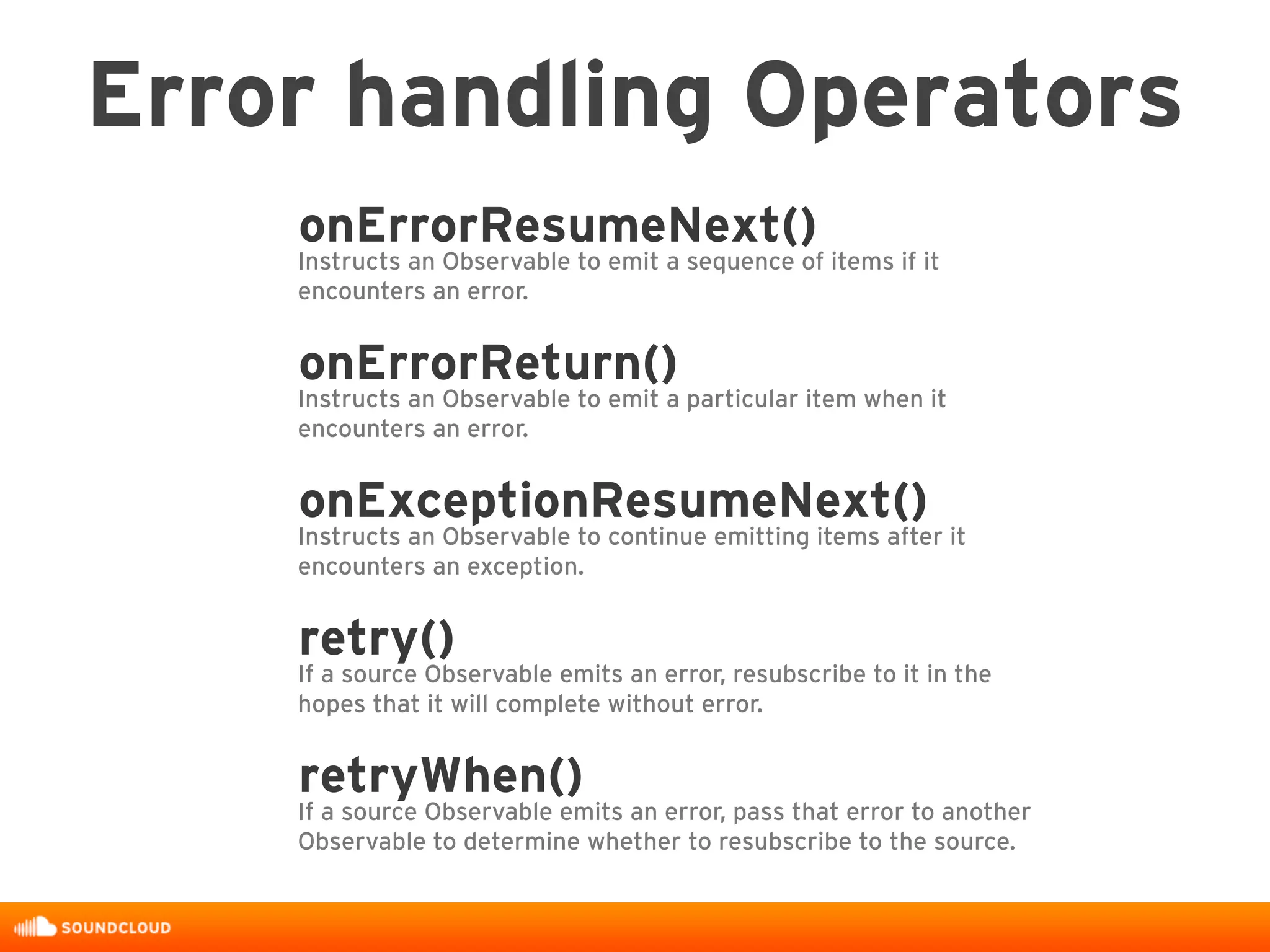

33. onErrorResumeNext()
Instructs an Observable to emit a sequence of items if it
encounters an error.
onErrorReturn()
Instructs an Observable to emit a particular item when it
encounters an error.
onExceptionResumeNext()
Instructs an Observable to continue emitting items after it
encounters an exception.
retry()
If a source Observable emits an error, resubscribe to it in the
hopes that it will complete without error.
retryWhen()
If a source Observable emits an error, pass that error to another
Observable to determine whether to resubscribe to the source.
Error handling Operators

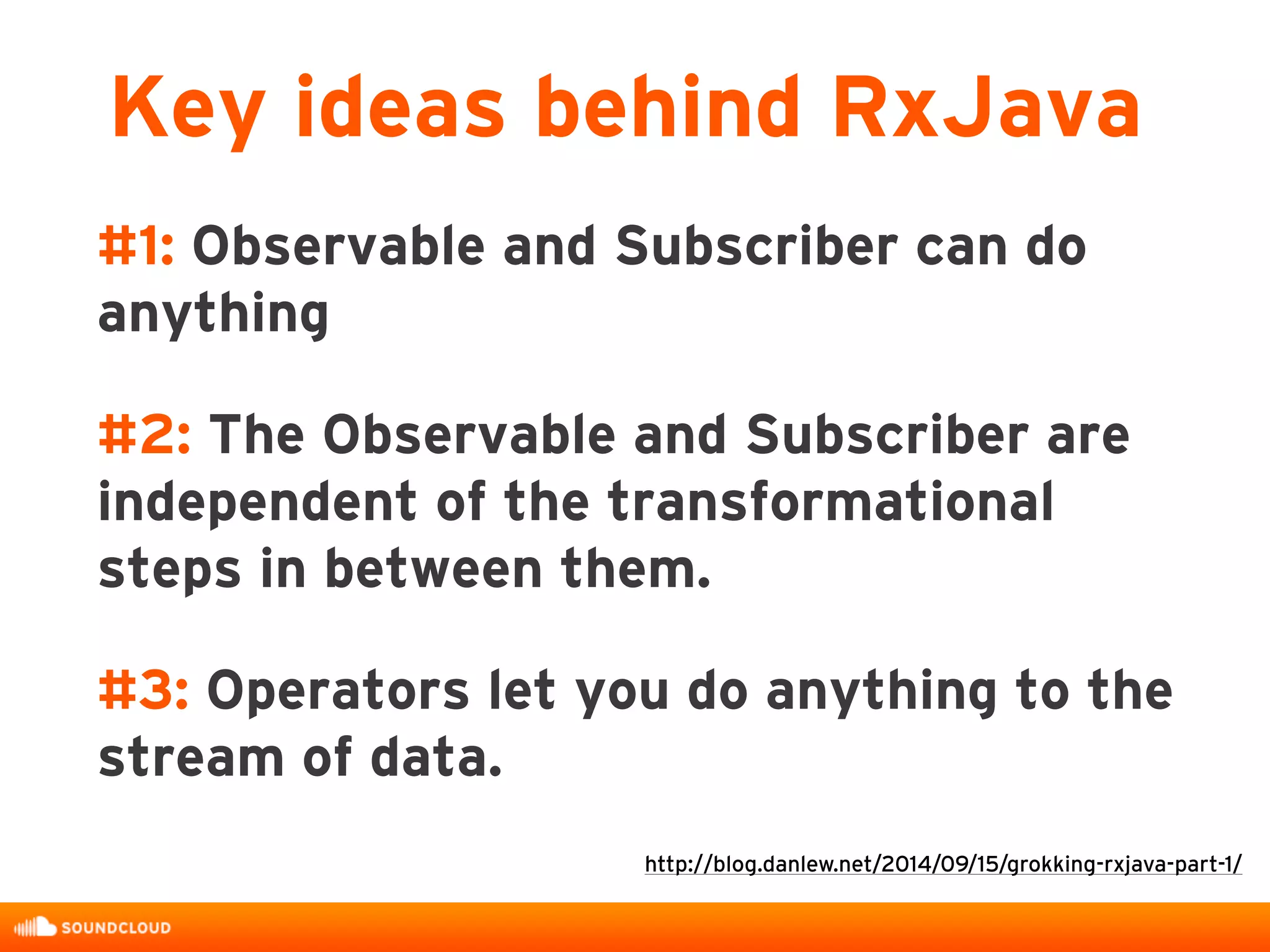

34. #1: Observable and Subscriber can do
anything
#2: The Observable and Subscriber are
independent of the transformational
steps in between them.
#3: Operators let you do anything to the
stream of data.
Key ideas behind RxJava
http://blog.danlew.net/2014/09/15/grokking-rxjava-part-1/

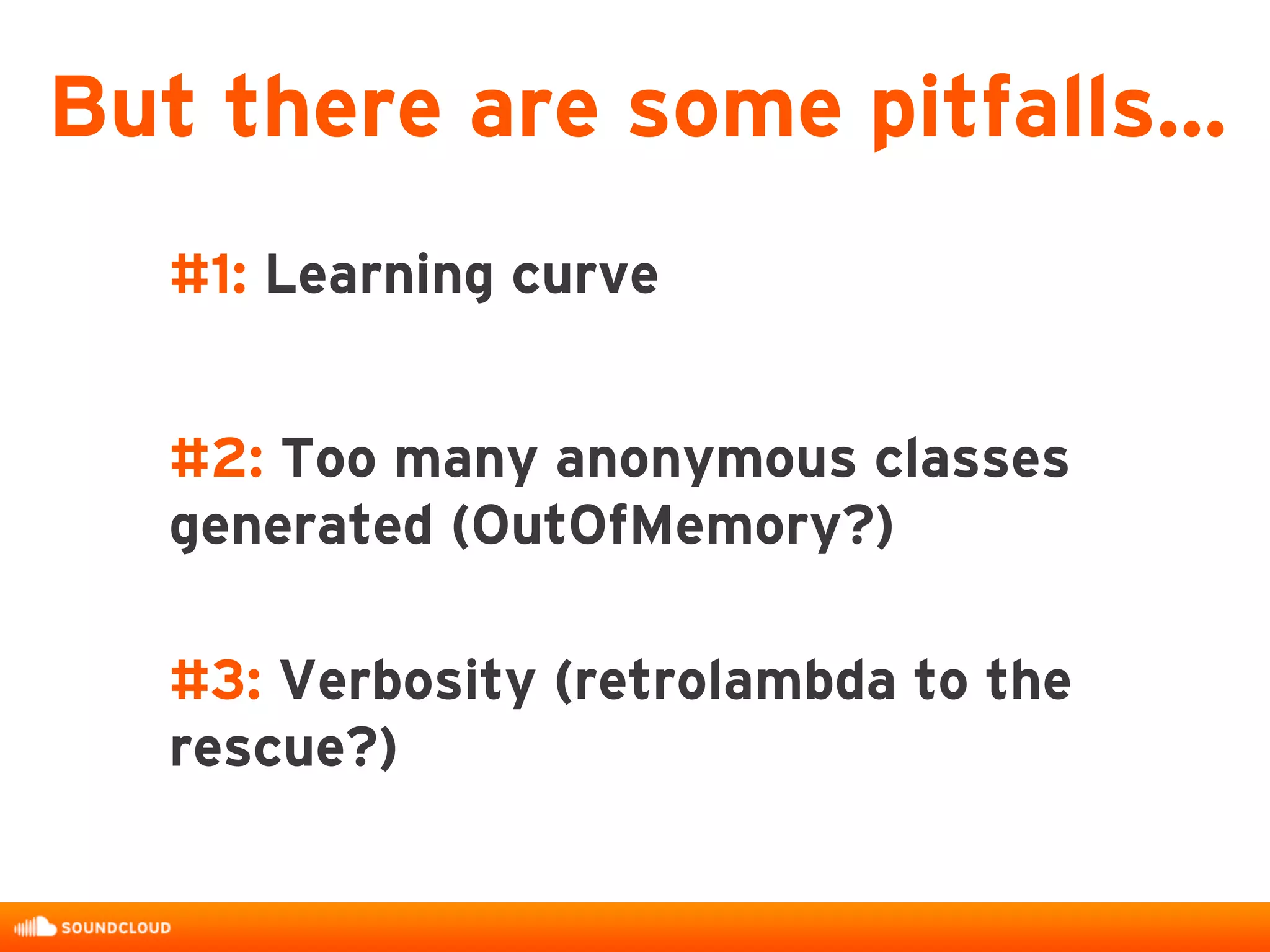

35. #1: Learning curve
#2: Too many anonymous classes
generated (OutOfMemory?)
#3: Verbosity (retrolambda to the
rescue?)
But there are some pitfalls…

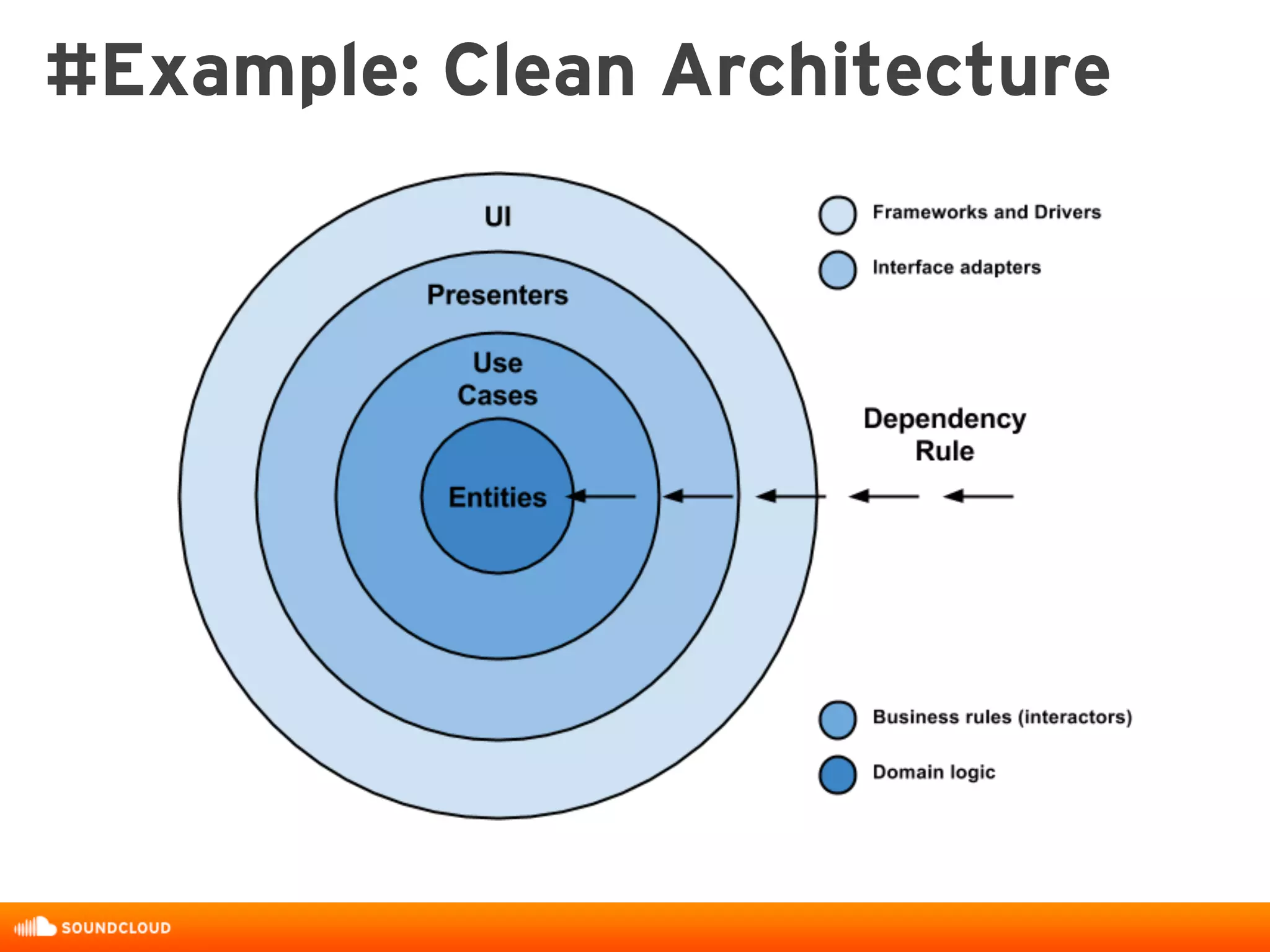

36. #Example: Clean Architecture

37. #Example: Clean Architecture

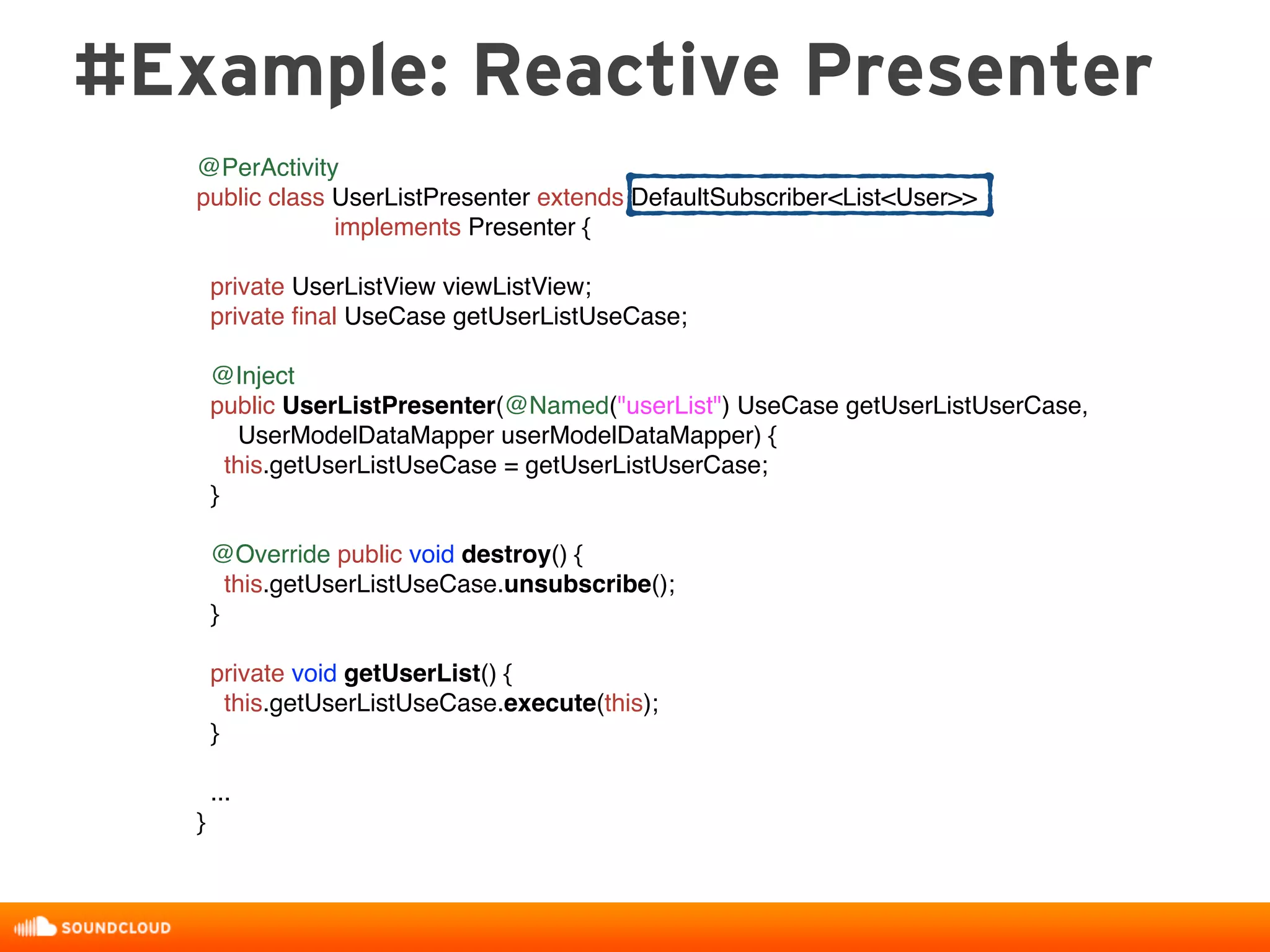

38. @PerActivity
public class UserListPresenter extends DefaultSubscriber<List<User>>
implements Presenter {
private UserListView viewListView;
private final UseCase getUserListUseCase;
@Inject
public UserListPresenter(@Named("userList") UseCase getUserListUserCase,
UserModelDataMapper userModelDataMapper) {
this.getUserListUseCase = getUserListUserCase;
}
@Override public void destroy() {
this.getUserListUseCase.unsubscribe();
}
private void getUserList() {
this.getUserListUseCase.execute(this);
}
...
}
#Example: Reactive Presenter

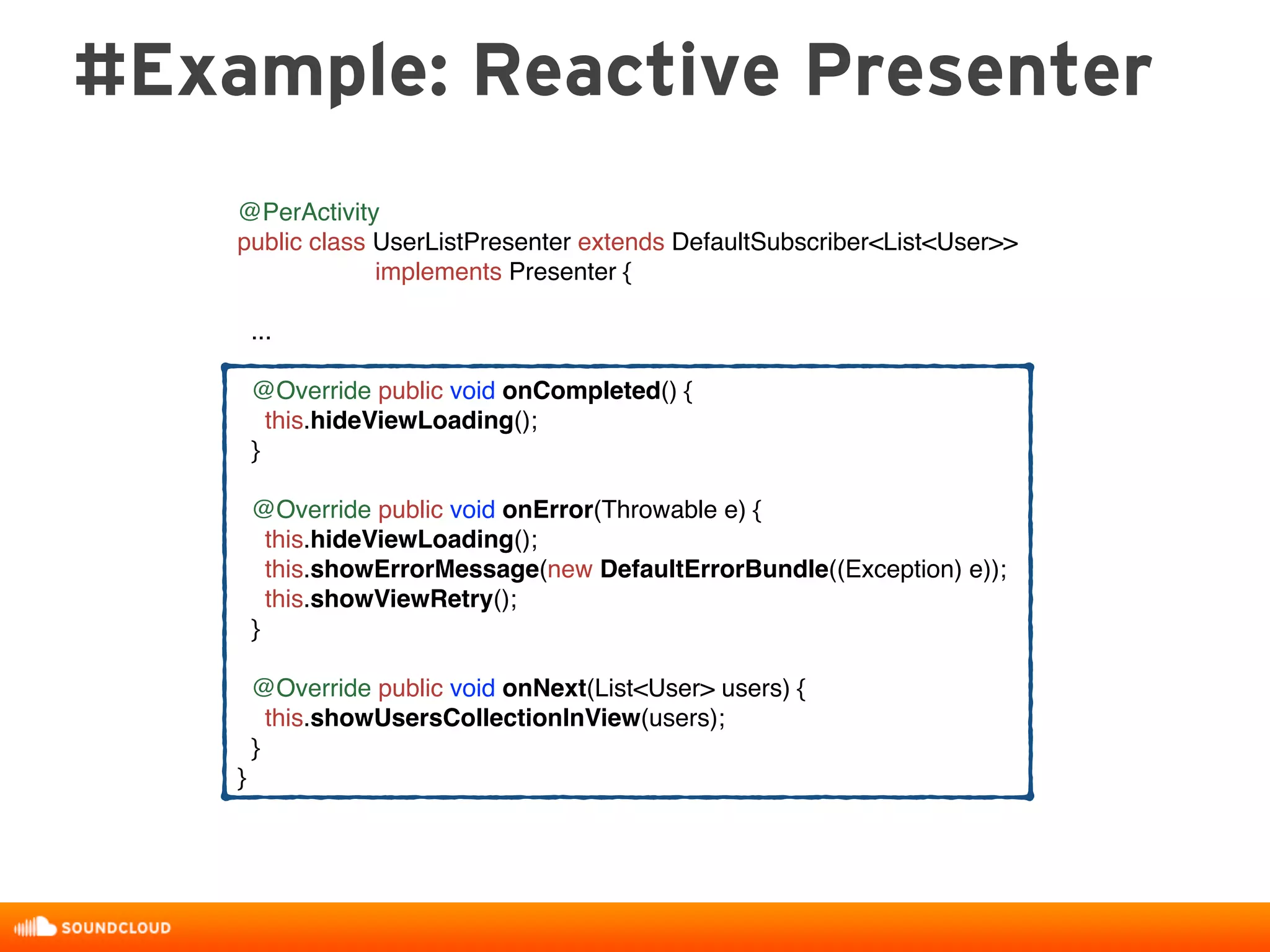

39. #Example: Reactive Presenter
@PerActivity
public class UserListPresenter extends DefaultSubscriber<List<User>>
implements Presenter {
...
@Override public void onCompleted() {
this.hideViewLoading();
}
@Override public void onError(Throwable e) {
this.hideViewLoading();
this.showErrorMessage(new DefaultErrorBundle((Exception) e));
this.showViewRetry();
}
@Override public void onNext(List<User> users) {
this.showUsersCollectionInView(users);
}
}

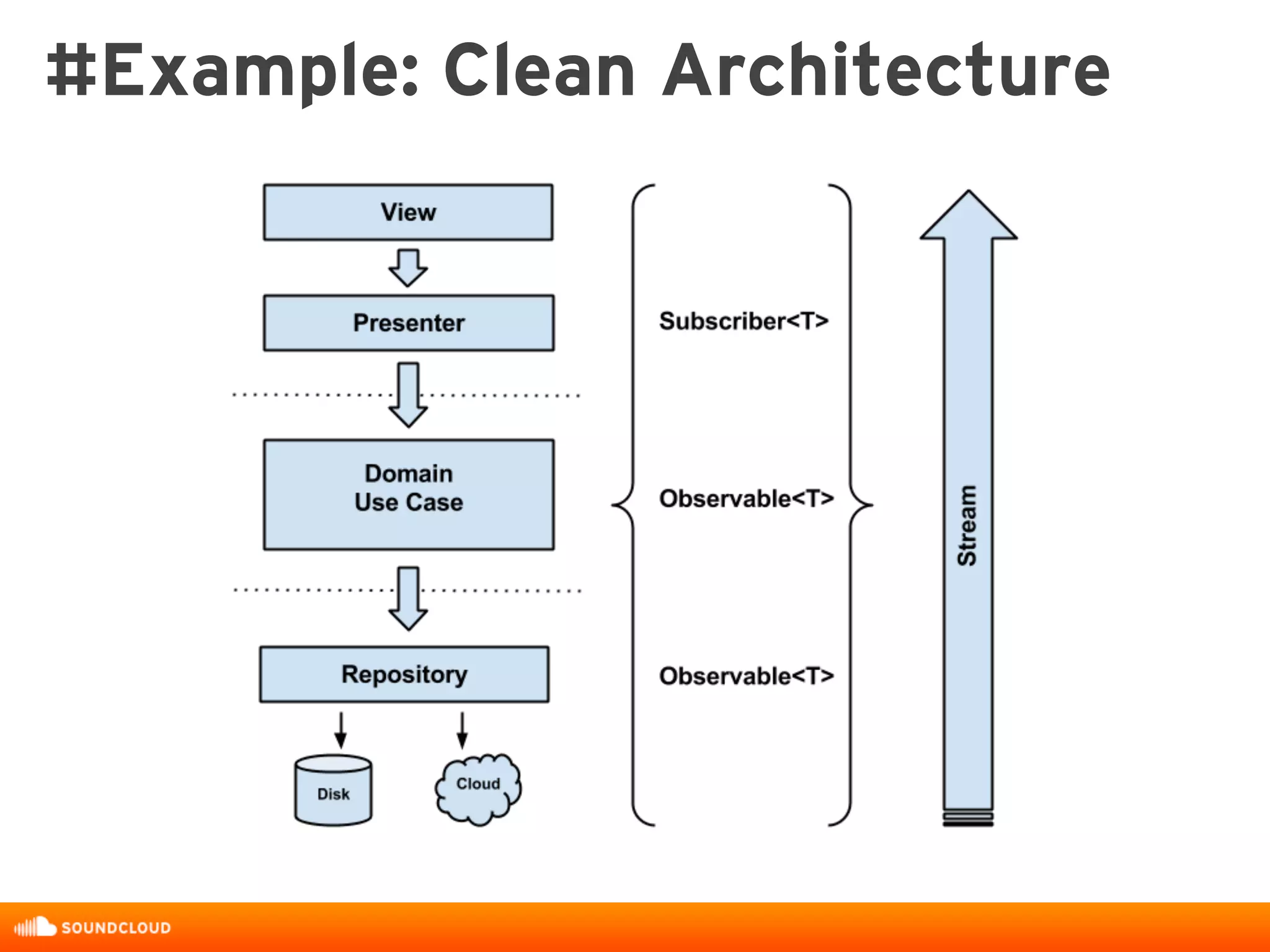

40. #Example: Clean Architecture

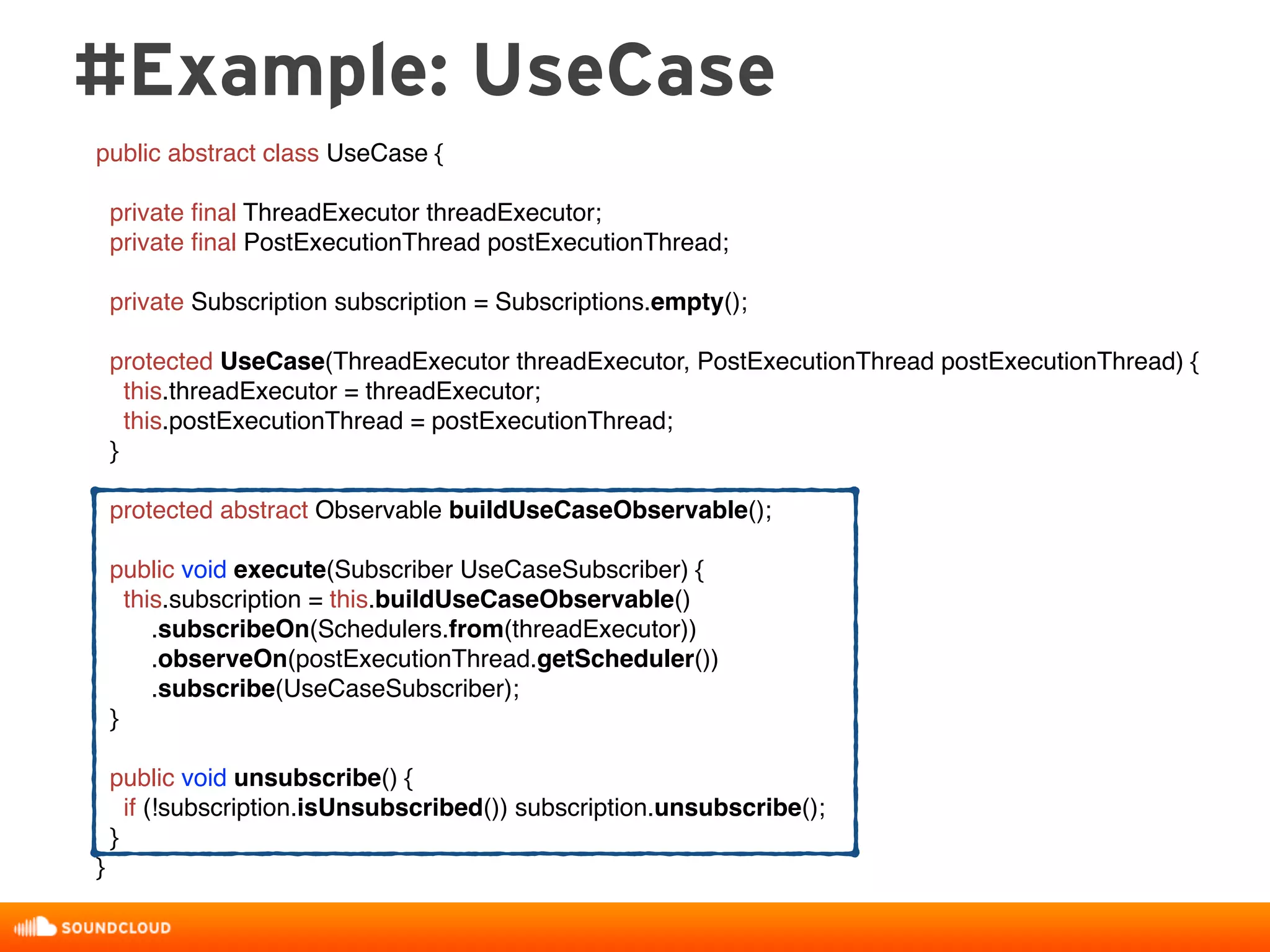

41. #Example: UseCase
public abstract class UseCase {
private final ThreadExecutor threadExecutor;
private final PostExecutionThread postExecutionThread;
private Subscription subscription = Subscriptions.empty();
protected UseCase(ThreadExecutor threadExecutor, PostExecutionThread postExecutionThread) {
this.threadExecutor = threadExecutor;
this.postExecutionThread = postExecutionThread;
}
protected abstract Observable buildUseCaseObservable();
public void execute(Subscriber UseCaseSubscriber) {
this.subscription = this.buildUseCaseObservable()
.subscribeOn(Schedulers.from(threadExecutor))
.observeOn(postExecutionThread.getScheduler())
.subscribe(UseCaseSubscriber);
}
public void unsubscribe() {
if (!subscription.isUnsubscribed()) subscription.unsubscribe();
}
}

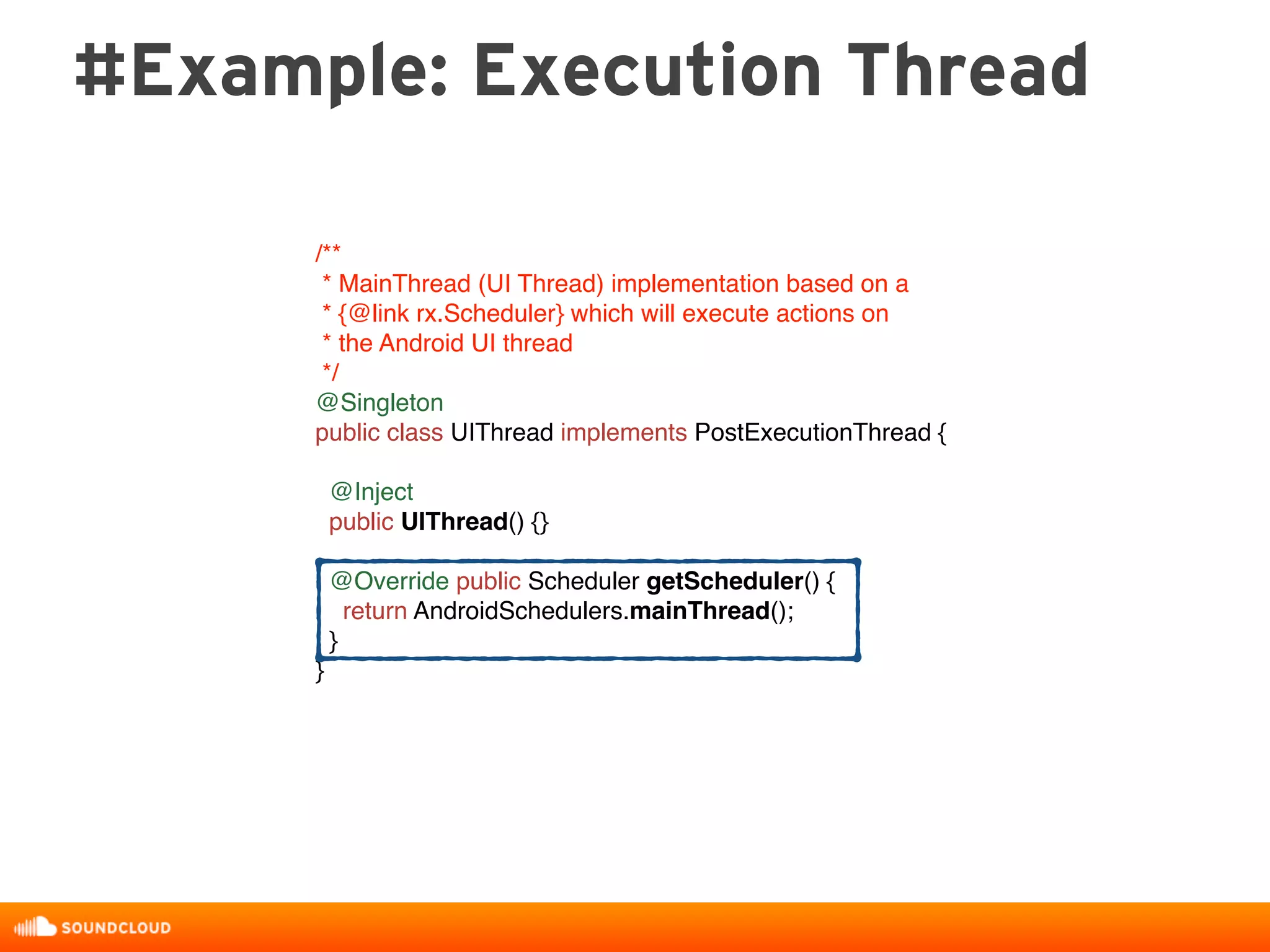

42. #Example: Execution Thread
/**
* MainThread (UI Thread) implementation based on a
* {@link rx.Scheduler} which will execute actions on
* the Android UI thread
*/
@Singleton
public class UIThread implements PostExecutionThread {
@Inject
public UIThread() {}
@Override public Scheduler getScheduler() {
return AndroidSchedulers.mainThread();
}
}

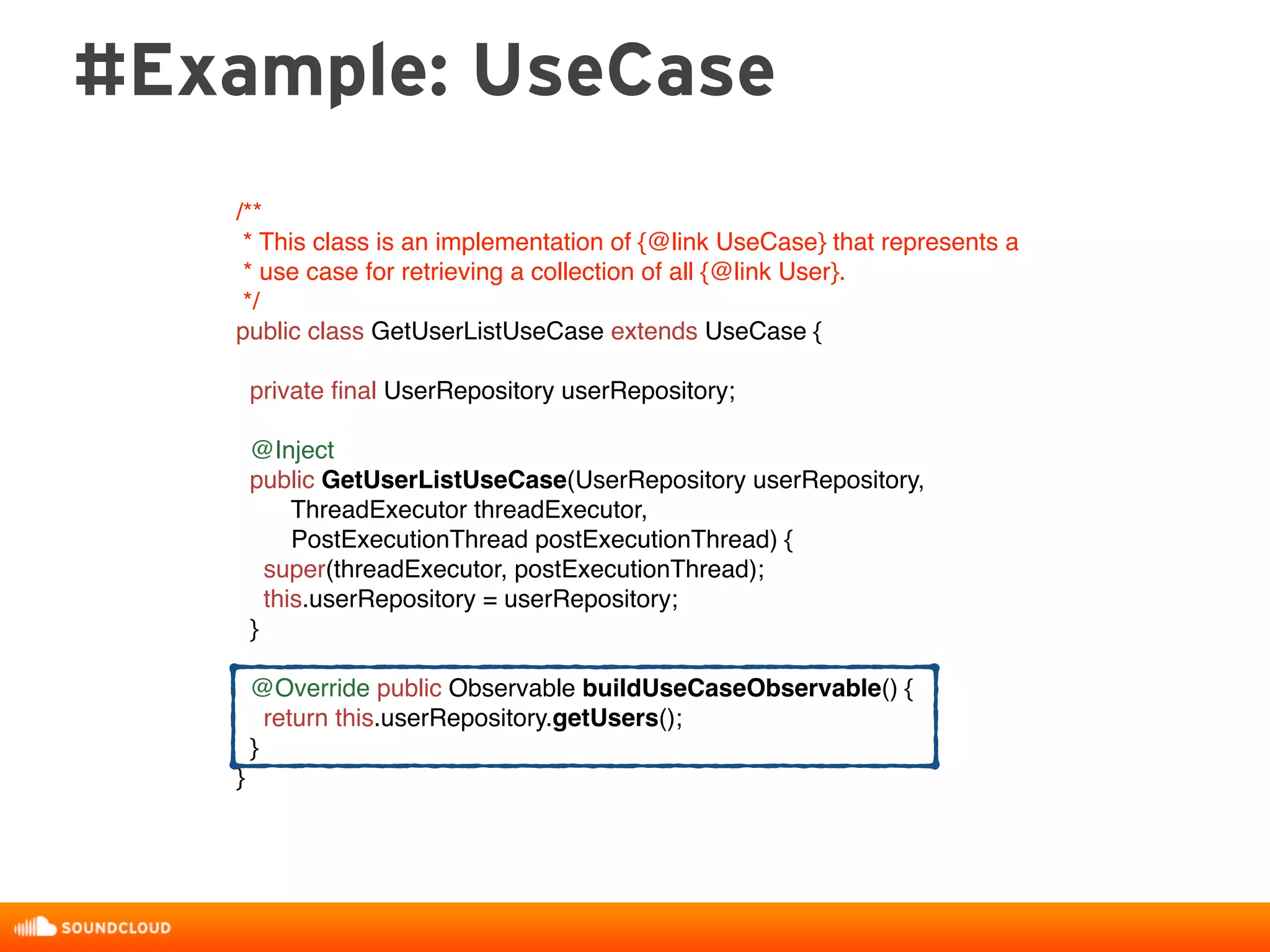

43. #Example: UseCase
/**
* This class is an implementation of {@link UseCase} that represents a
* use case for retrieving a collection of all {@link User}.
*/
public class GetUserListUseCase extends UseCase {
private final UserRepository userRepository;
@Inject
public GetUserListUseCase(UserRepository userRepository,
ThreadExecutor threadExecutor,
PostExecutionThread postExecutionThread) {
super(threadExecutor, postExecutionThread);
this.userRepository = userRepository;
}
@Override public Observable buildUseCaseObservable() {
return this.userRepository.getUsers();
}
}

44. #Example: Clean Architecture

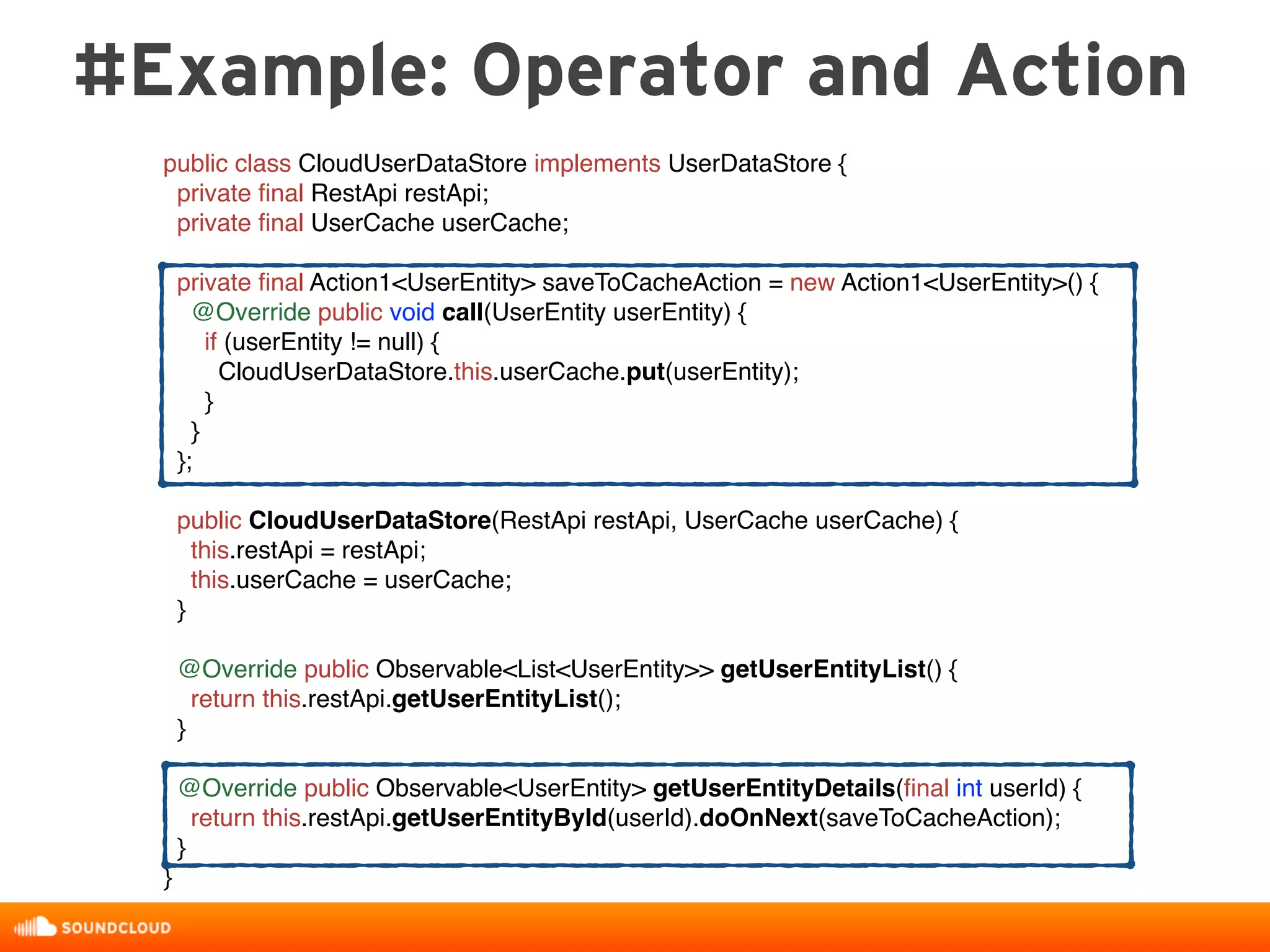

45. #Example: Operator and Action
public class CloudUserDataStore implements UserDataStore {
private final RestApi restApi;
private final UserCache userCache;
private final Action1<UserEntity> saveToCacheAction = new Action1<UserEntity>() {
@Override public void call(UserEntity userEntity) {
if (userEntity != null) {
CloudUserDataStore.this.userCache.put(userEntity);
}
}
};
public CloudUserDataStore(RestApi restApi, UserCache userCache) {
this.restApi = restApi;
this.userCache = userCache;
}
@Override public Observable<List<UserEntity>> getUserEntityList() {
return this.restApi.getUserEntityList();
}
@Override public Observable<UserEntity> getUserEntityDetails(final int userId) {
return this.restApi.getUserEntityById(userId).doOnNext(saveToCacheAction);
}
}

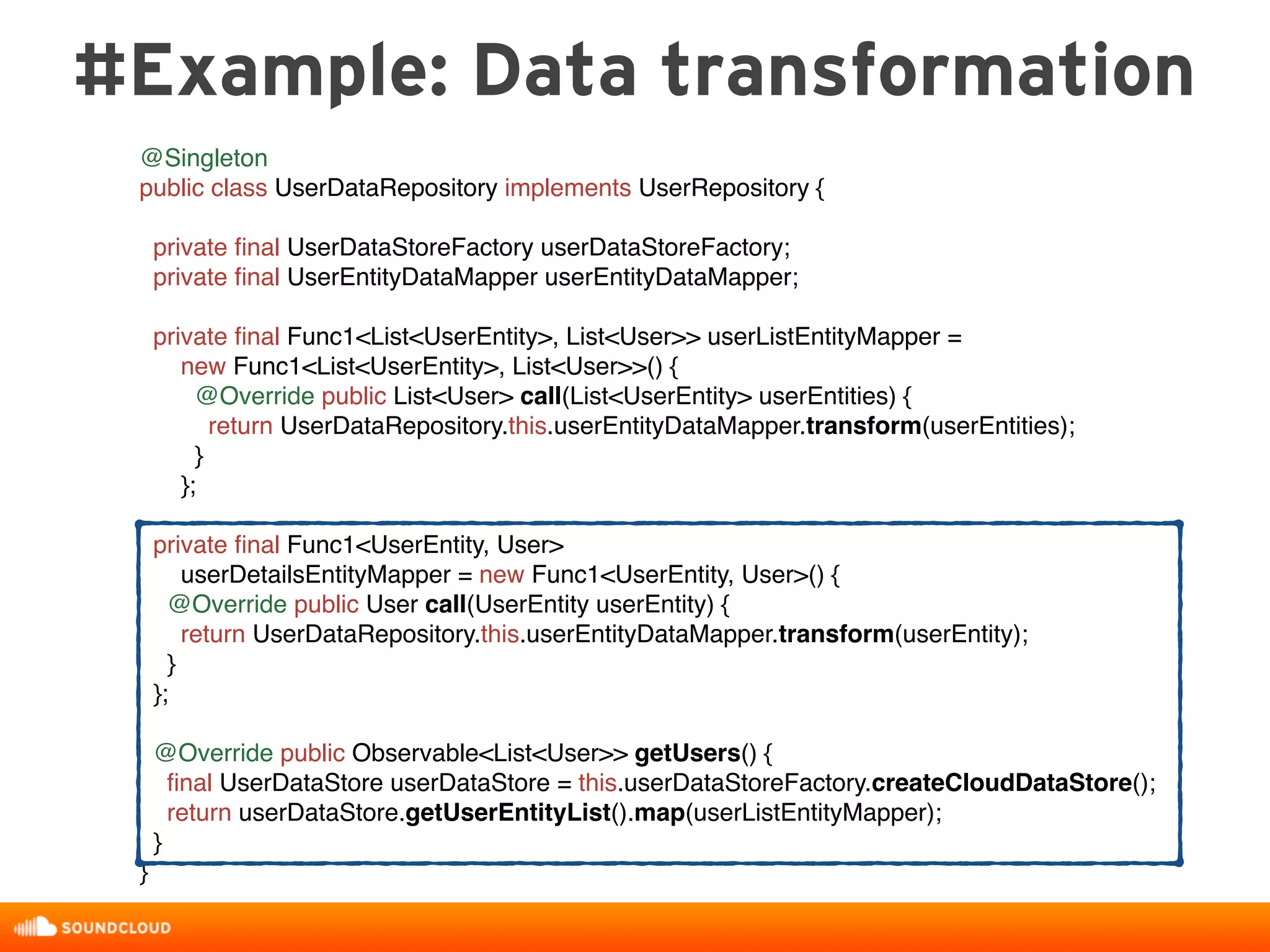

46. #Example: Data transformation
@Singleton
public class UserDataRepository implements UserRepository {
private final UserDataStoreFactory userDataStoreFactory;
private final UserEntityDataMapper userEntityDataMapper;
private final Func1<List<UserEntity>, List<User>> userListEntityMapper =
new Func1<List<UserEntity>, List<User>>() {
@Override public List<User> call(List<UserEntity> userEntities) {
return UserDataRepository.this.userEntityDataMapper.transform(userEntities);
}
};
private final Func1<UserEntity, User>
userDetailsEntityMapper = new Func1<UserEntity, User>() {
@Override public User call(UserEntity userEntity) {
return UserDataRepository.this.userEntityDataMapper.transform(userEntity);
}
};
@Override public Observable<List<User>> getUsers() {
final UserDataStore userDataStore = this.userDataStoreFactory.createCloudDataStore();
return userDataStore.getUserEntityList().map(userListEntityMapper);
}
}

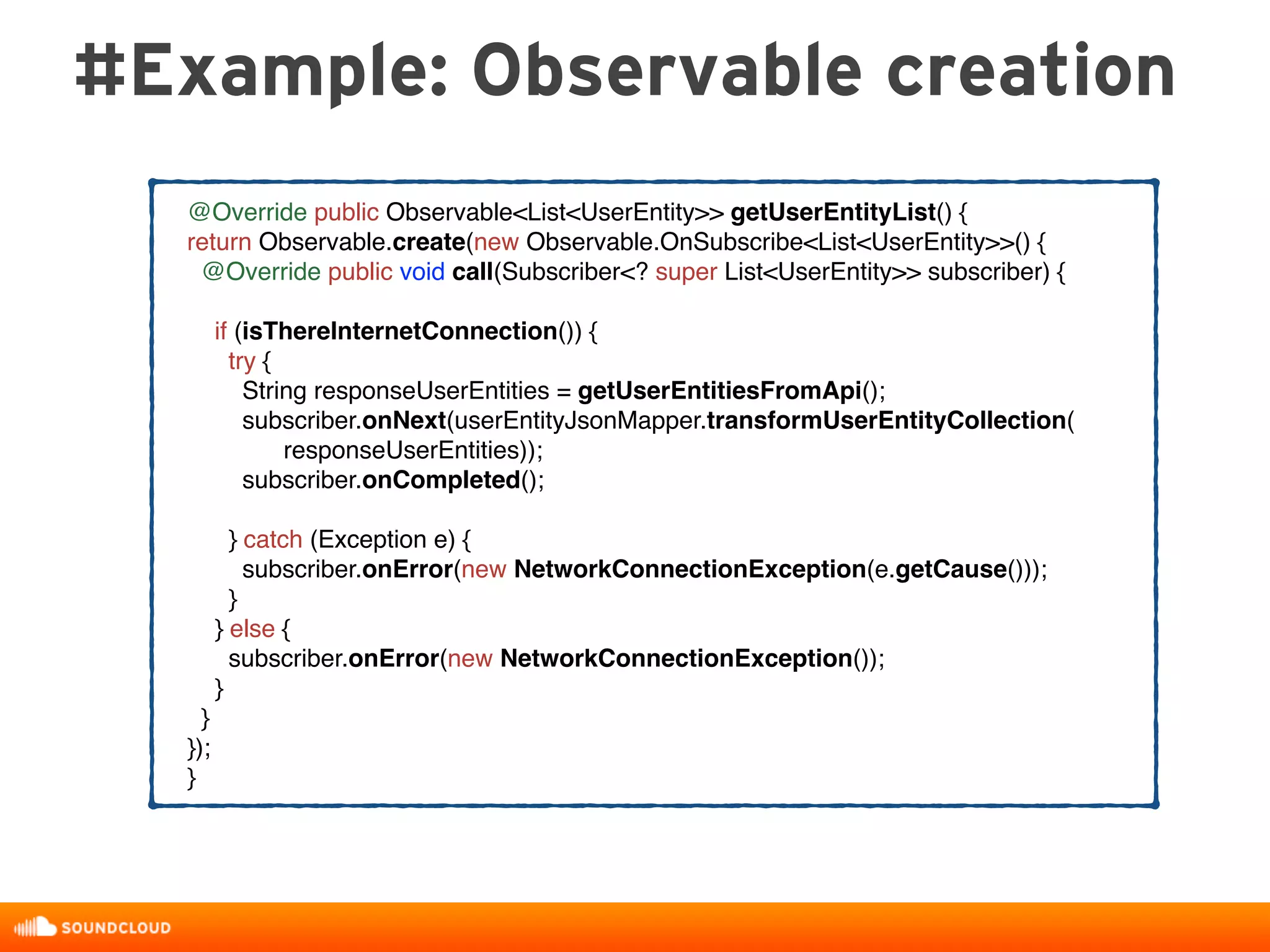

47. #Example: Observable creation
@Override public Observable<List<UserEntity>> getUserEntityList() {
return Observable.create(new Observable.OnSubscribe<List<UserEntity>>() {
@Override public void call(Subscriber<? super List<UserEntity>> subscriber) {
if (isThereInternetConnection()) {
try {
String responseUserEntities = getUserEntitiesFromApi();
subscriber.onNext(userEntityJsonMapper.transformUserEntityCollection(
responseUserEntities));
subscriber.onCompleted();
} catch (Exception e) {
subscriber.onError(new NetworkConnectionException(e.getCause()));
}
} else {
subscriber.onError(new NetworkConnectionException());
}
}
});
}

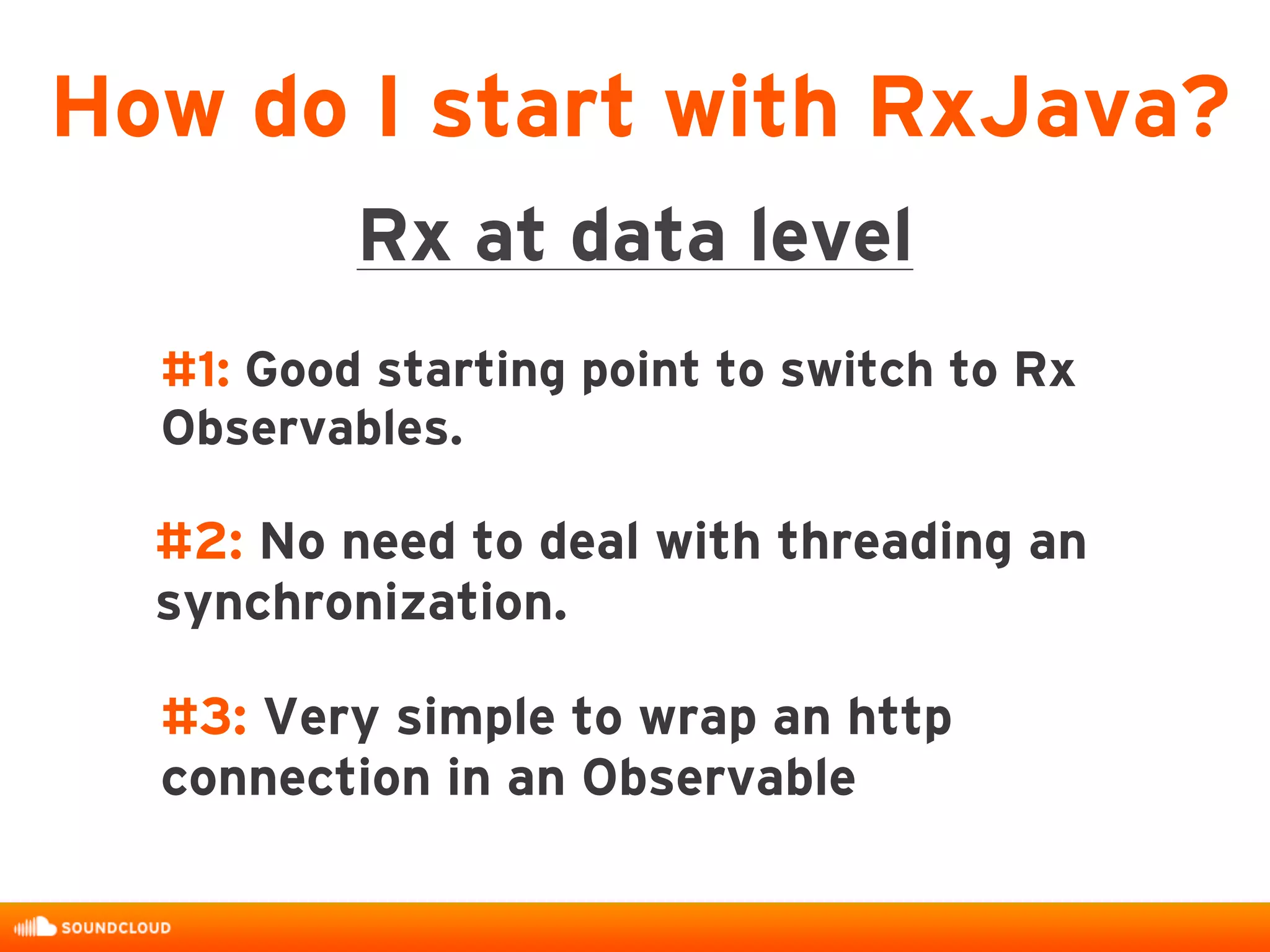

48. #1: Good starting point to switch to Rx
Observables.
#2: No need to deal with threading an
synchronization.
#3: Very simple to wrap an http
connection in an Observable
How do I start with RxJava?
Rx at data level

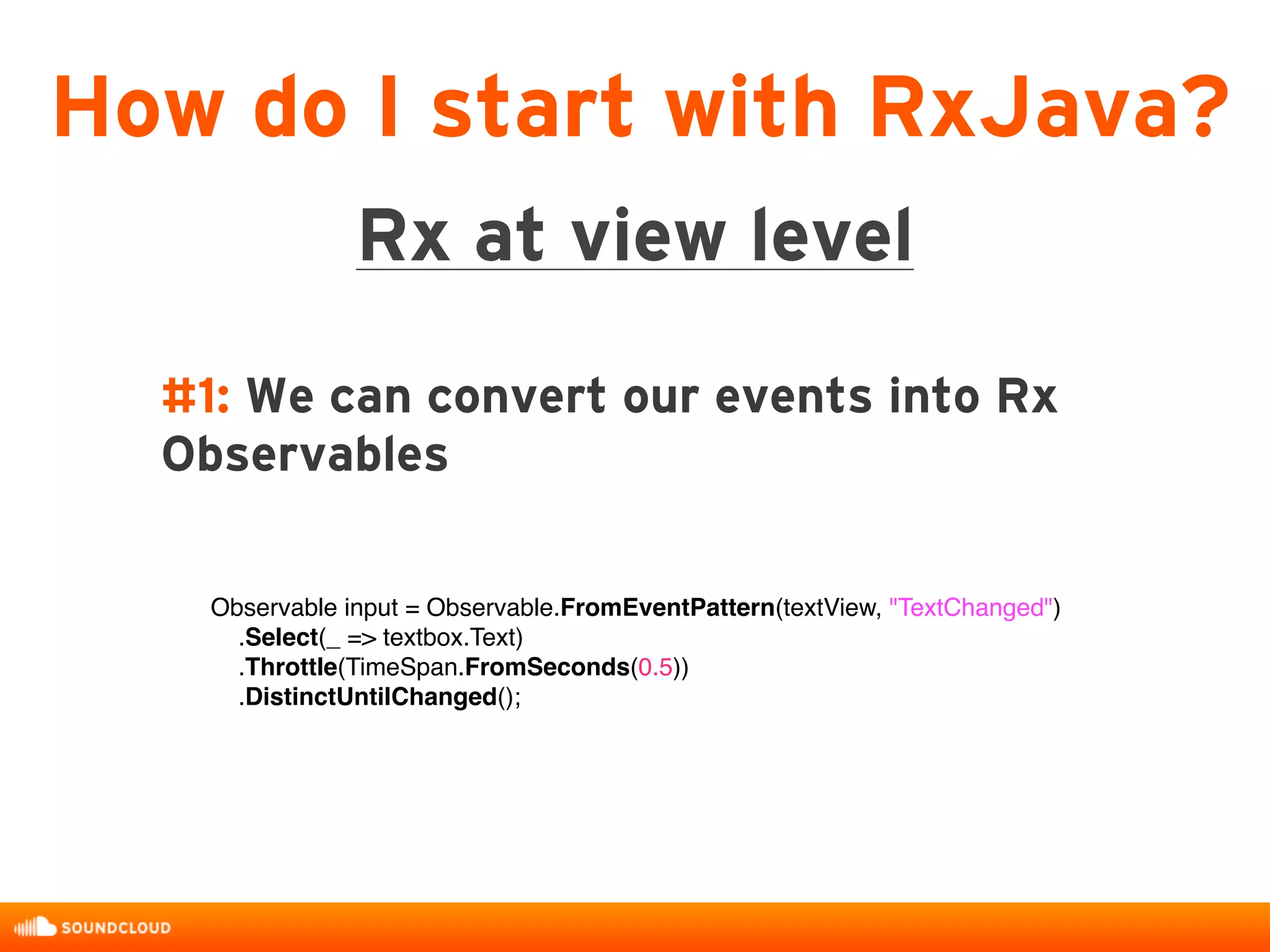

49. #1: We can convert our events into Rx
Observables
How do I start with RxJava?
Rx at view level
Observable input = Observable.FromEventPattern(textView, "TextChanged")
.Select(_ => textbox.Text)
.Throttle(TimeSpan.FromSeconds(0.5))
.DistinctUntilChanged();

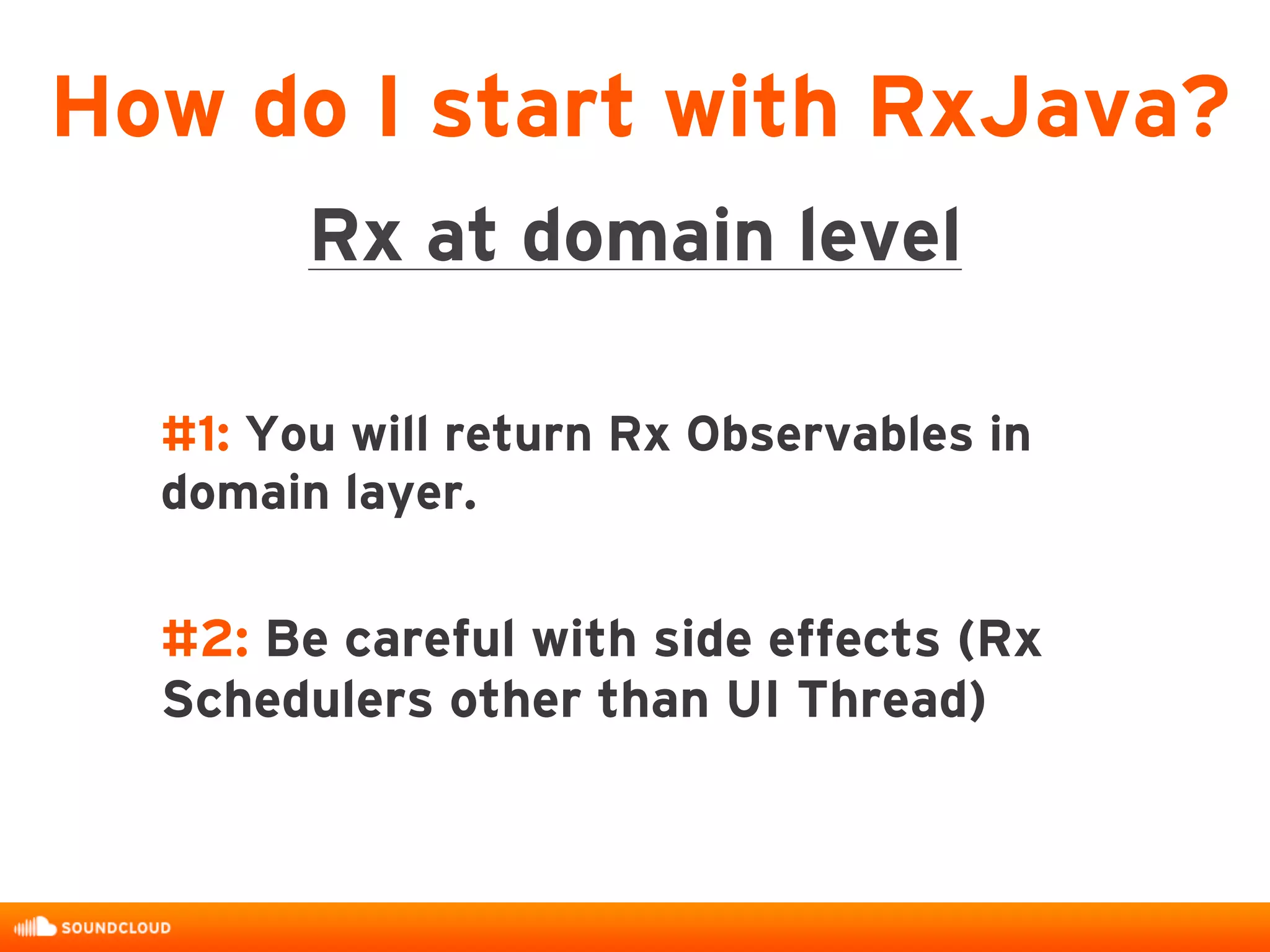

50. #1: You will return Rx Observables in
domain layer.
#2: Be careful with side effects (Rx
Schedulers other than UI Thread)
How do I start with RxJava?
Rx at domain level

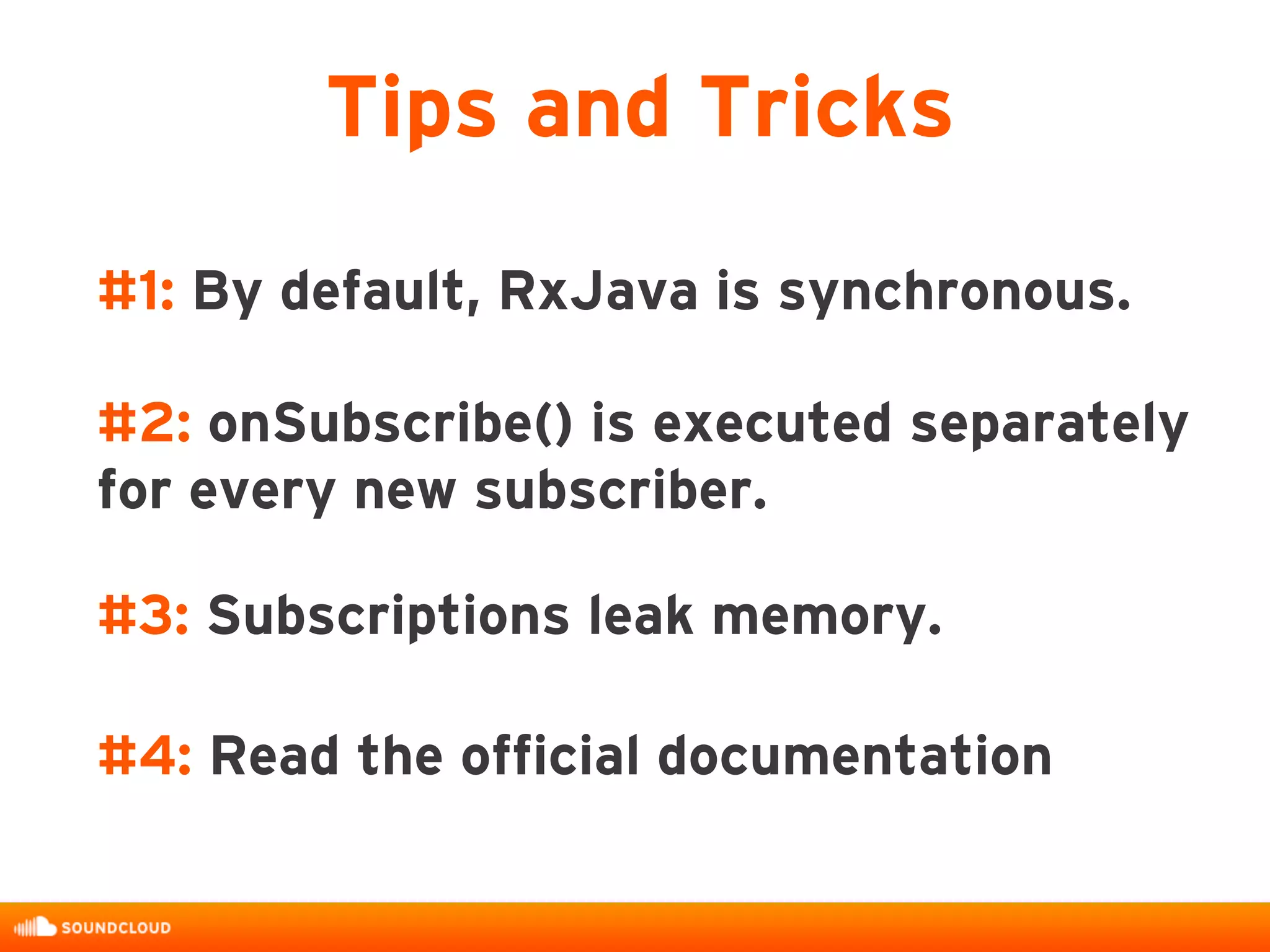

51. #1: By default, RxJava is synchronous.
#2: onSubscribe() is executed separately
for every new subscriber.
#3: Subscriptions leak memory.
Tips and Tricks
#4: Read the official documentation

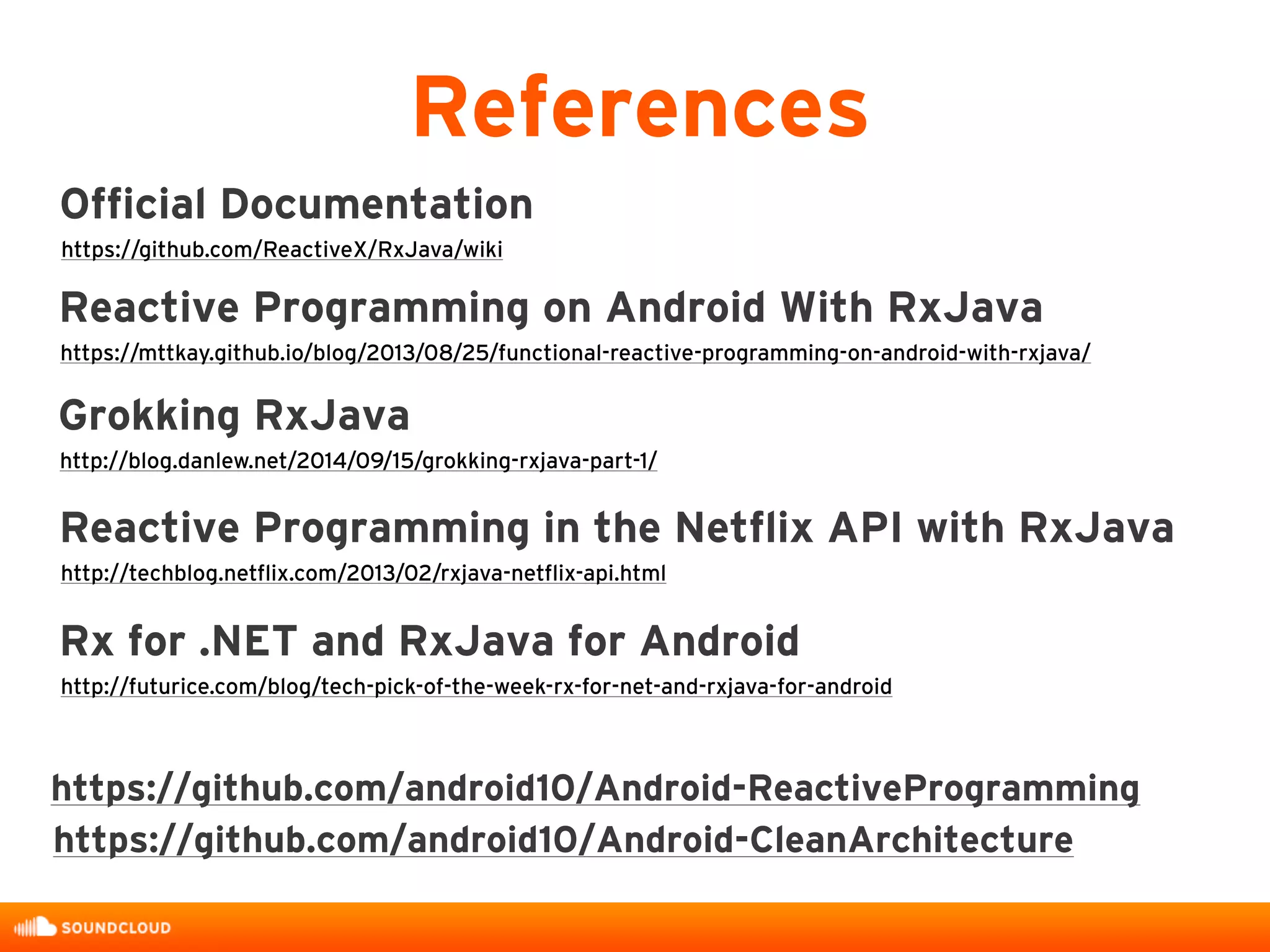

52. References
Reactive Programming on Android With RxJava
https://mttkay.github.io/blog/2013/08/25/functional-reactive-programming-on-android-with-rxjava/
Grokking RxJava
http://blog.danlew.net/2014/09/15/grokking-rxjava-part-1/
Reactive Programming in the Netflix API with RxJava
http://techblog.netflix.com/2013/02/rxjava-netflix-api.html
Rx for .NET and RxJava for Android
http://futurice.com/blog/tech-pick-of-the-week-rx-for-net-and-rxjava-for-android
https://github.com/android10/Android-CleanArchitecture
Official Documentation
https://github.com/ReactiveX/RxJava/wiki
https://github.com/android10/Android-ReactiveProgramming

53. ?˝
Source: US Census Bureau
Questions

54. @fernando_cejas
http://soundcloud.com/jobs
Thanks!
