A new world is coming…




      @fernando_cejas
    www.fernandocejas.com
Who am I?

• Barcelona GDG Organizer
• NFC, Android and Agile Geek

• Android10.org
• NFC Actions App
• Flojack (@flomio)

• @fernando_cejas
• http://www.fernandocejas.com/
Agenda

•   What is NFC?
•   NFC Features and components
•   Common (and not) use cases
•   Android and NFC
•   Android NFC Development
•   Demo code
•   Faq

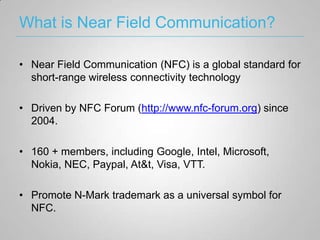

What is Near Field Communication?

• Near Field Communication (NFC) is a global standard for
  short-range wireless connectivity technology

• Driven by NFC Forum (http://www.nfc-forum.org) since
  2004.

• 160 + members, including Google, Intel, Microsoft,
  Nokia, NEC, Paypal, At&t, Visa, VTT.

• Promote N-Mark trademark as a universal symbol for
  NFC.

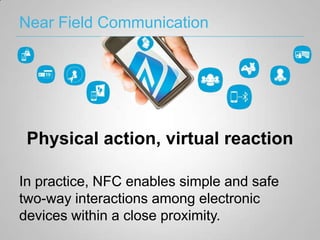

Near Field Communication




 Physical action, virtual reaction

In practice, NFC enables simple and safe
two-way interactions among electronic
devices within a close proximity.

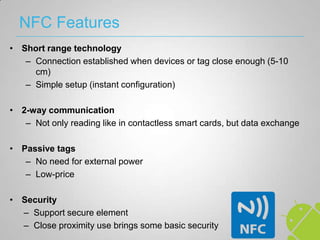

NFC Features
• Short range technology
   – Connection established when devices or tag close enough (5-10
     cm)
   – Simple setup (instant configuration)

• 2-way communication
   – Not only reading like in contactless smart cards, but data exchange

• Passive tags
   – No need for external power
   – Low-price

• Security
  – Support secure element
  – Close proximity use brings some basic security

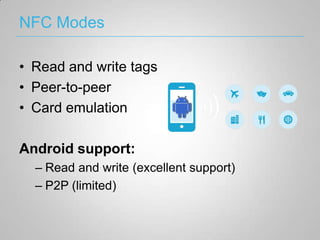

NFC Modes

• Read and write tags
• Peer-to-peer
• Card emulation

Android support:
  – Read and write (excellent support)
  – P2P (limited)

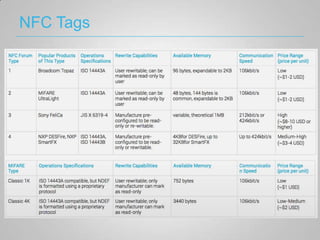

NFC Tags

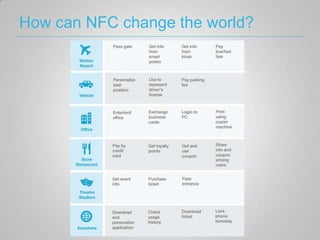

How can NFC change the world?

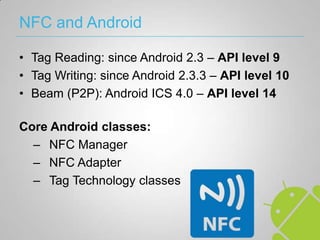

NFC and Android

• Tag Reading: since Android 2.3 – API level 9
• Tag Writing: since Android 2.3.3 – API level 10
• Beam (P2P): Android ICS 4.0 – API level 14

Core Android classes:
  – NFC Manager
  – NFC Adapter
  – Tag Technology classes
NFC Manager




• NFCManager used to get the NFCAdapter
• Boring
• Shortcut for
  getSystemService(NFC_SERVICE)
NFC Adapter

• The real thing

• Control Foreground Dispatch and P2P
  (Android Beam)

• Check if NFC is turned on

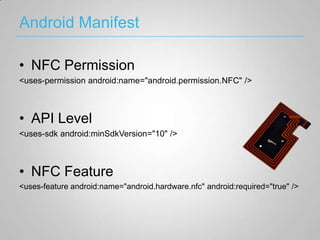

Android Manifest

• NFC Permission
<uses-permission android:name="android.permission.NFC" />



• API Level
<uses-sdk android:minSdkVersion="10" />



• NFC Feature
<uses-feature android:name="android.hardware.nfc" android:required="true" />

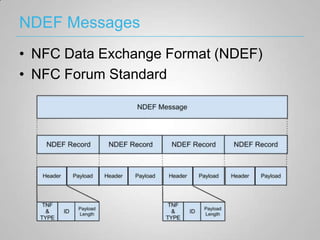

NDEF Messages
• NFC Data Exchange Format (NDEF)
• NFC Forum Standard
NFC Android Dyspatch System

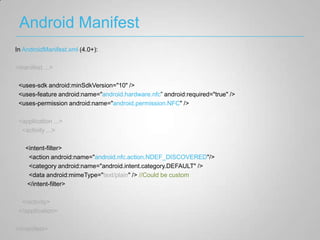

Android Manifest
In AndroidManifest.xml (4.0+):

<manifest ...>

 <uses-sdk android:minSdkVersion="10" />
 <uses-feature android:name="android.hardware.nfc” android:required="true" />
 <uses-permission android:name="android.permission.NFC" />

 <application ...>
  <activity ...>

   <intent-filter>
    <action android:name="android.nfc.action.NDEF_DISCOVERED"/>
    <category android:name="android.intent.category.DEFAULT" />
    <data android:mimeType="text/plain" /> //Could be custom
   </intent-filter>

  </activity>
 </application>

</manifest>

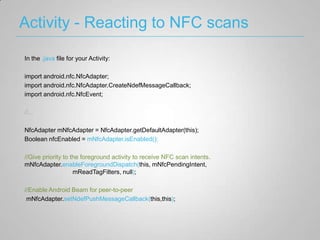

Activity - Reacting to NFC scans

In the .java file for your Activity:

import android.nfc.NfcAdapter;
import android.nfc.NfcAdapter.CreateNdefMessageCallback;
import android.nfc.NfcEvent;

//...

NfcAdapter mNfcAdapter = NfcAdapter.getDefaultAdapter(this);
Boolean nfcEnabled = mNfcAdapter.isEnabled();

//Give priority to the foreground activity to receive NFC scan intents.
mNfcAdapter.enableForegroundDispatch(this, mNfcPendingIntent,
                    mReadTagFilters, null);

//Enable Android Beam for peer-to-peer
 mNfcAdapter.setNdefPushMessageCallback(this,this);
Activity - Formatting to NDEF Format
In the .java file for your Activity:

import android.nfc.NdefMessage;
import android.nfc.NdefRecord;
import android.nfc.tech.Ndef;
import android.nfc.tech.NdefFormatable;
//...

String data = “Hello NFC”;

// create a new NDEF record w/ NDEF message using the app's custom MIME type:
String mimeType = "application/root.gast.playground.nfc"; //unique to your app
byte[] mimeBytes = mimeType.getBytes(Charset.forName("UTF-8"));
byte[] dataBytes = data.getBytes(Charset.forName("UTF-8"));
byte[] id = new byte[0];

NdefRecord record = new NdefRecord(NdefRecord.TNF_MIME_MEDIA,
                                    mimeBytes, id, dataBytes);
NdefMessage m = new NdefMessage(new NdefRecord[] { record });

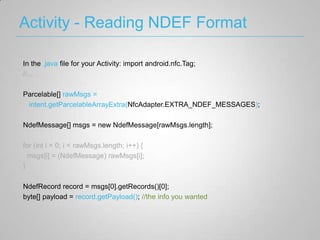

Activity - Reading NDEF Format

In the .java file for your Activity: import android.nfc.Tag;
//...

Parcelable[] rawMsgs =
 intent.getParcelableArrayExtra(NfcAdapter.EXTRA_NDEF_MESSAGES);

NdefMessage[] msgs = new NdefMessage[rawMsgs.length];

for (int i = 0; i < rawMsgs.length; i++) {
  msgs[i] = (NdefMessage) rawMsgs[i];
}

NdefRecord record = msgs[0].getRecords()[0];
byte[] payload = record.getPayload(); //the info you wanted

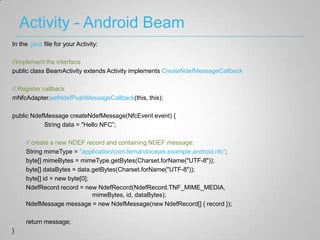

Activity - Android Beam
In the .java file for your Activity:

//Implement the interface
public class BeamActivity extends Activity implements CreateNdefMessageCallback

// Register callback
mNfcAdapter.setNdefPushMessageCallback(this, this);

public NdefMessage createNdefMessage(NfcEvent event) {
           String data = "Hello NFC”;

     // create a new NDEF record and containing NDEF message:
     String mimeType = "application/com.fernandocejas.example.android.nfc”;
     byte[] mimeBytes = mimeType.getBytes(Charset.forName("UTF-8"));
     byte[] dataBytes = data.getBytes(Charset.forName("UTF-8"));
     byte[] id = new byte[0];
     NdefRecord record = new NdefRecord(NdefRecord.TNF_MIME_MEDIA,
                              mimeBytes, id, dataBytes);
     NdefMessage message = new NdefMessage(new NdefRecord[] { record });

     return message;
}

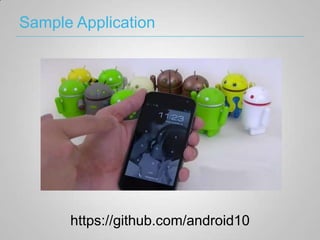

Sample Application




      https://github.com/android10

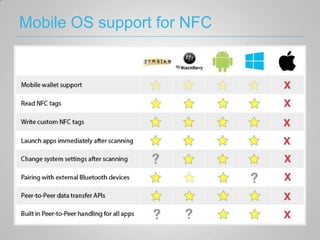

Mobile OS support for NFC
Any questions?
Thanks!




When you look at the dark side, careful you
 must be ... for the dark side looks back.

             @fernando_cejas
           www.fernandocejas.com
