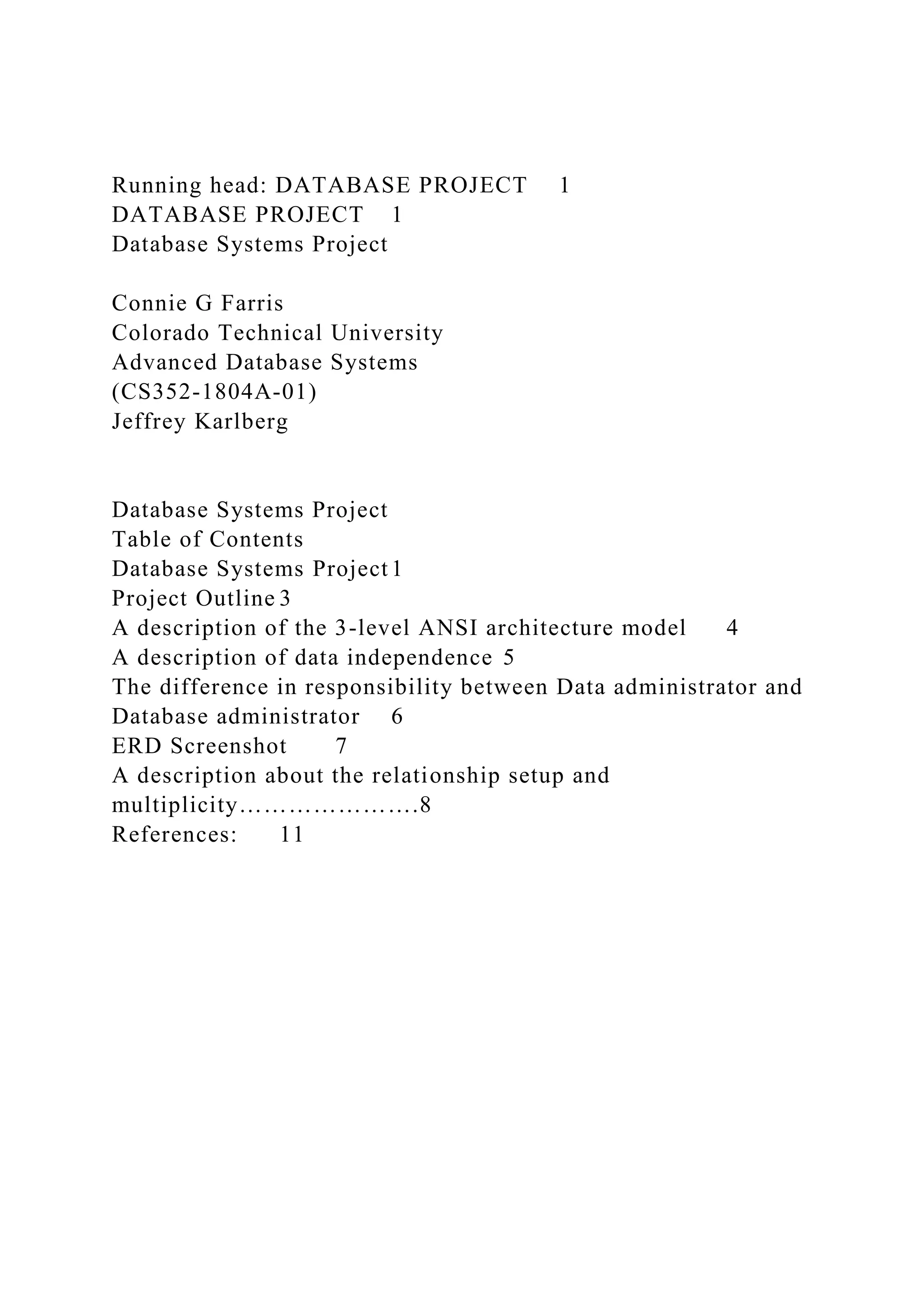

Table of Contents
Database Systems Project 1
Project Outline 3
A description of the 3-level ANSI architecture model 4
A description of data independence 5
The difference in responsibility between Data administrator and
Database administrator 6
ERD Screenshot 7
A description about the relationship setup and
multiplicity………………….8
References: 11

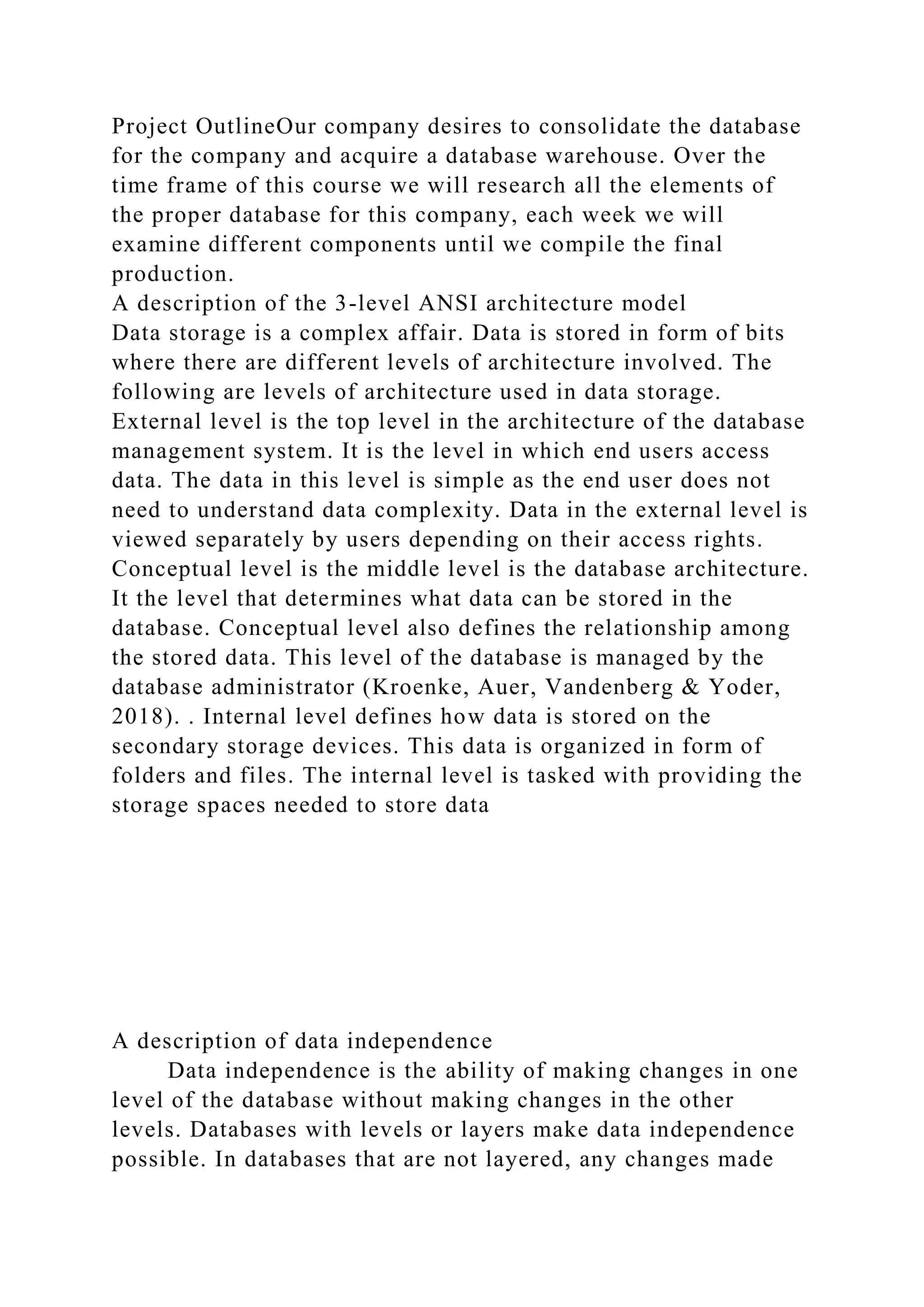

2. Project OutlineOur company desires to consolidate the database
for the company and acquire a database warehouse. Over the
time frame of this course we will research all the elements of
the proper database for this company, each week we will
examine different components until we compile the final
production.
A description of the 3-level ANSI architecture model
Data storage is a complex affair. Data is stored in form of bits
where there are different levels of architecture involved. The
following are levels of architecture used in data storage.
External level is the top level in the architecture of the database
management system. It is the level in which end users access
data. The data in this level is simple as the end user does not
need to understand data complexity. Data in the external level is
viewed separately by users depending on their access rights.
Conceptual level is the middle level is the database architecture.
It the level that determines what data can be stored in the
database. Conceptual level also defines the relationship among
the stored data. This level of the database is managed by the
database administrator (Kroenke, Auer, Vandenberg & Yoder,
2018). . Internal level defines how data is stored on the
secondary storage devices. This data is organized in form of
folders and files. The internal level is tasked with providing the
storage spaces needed to store data
A description of data independence
Data independence is the ability of making changes in one
level of the database without making changes in the other
levels. Databases with levels or layers make data independence
possible. In databases that are not layered, any changes made

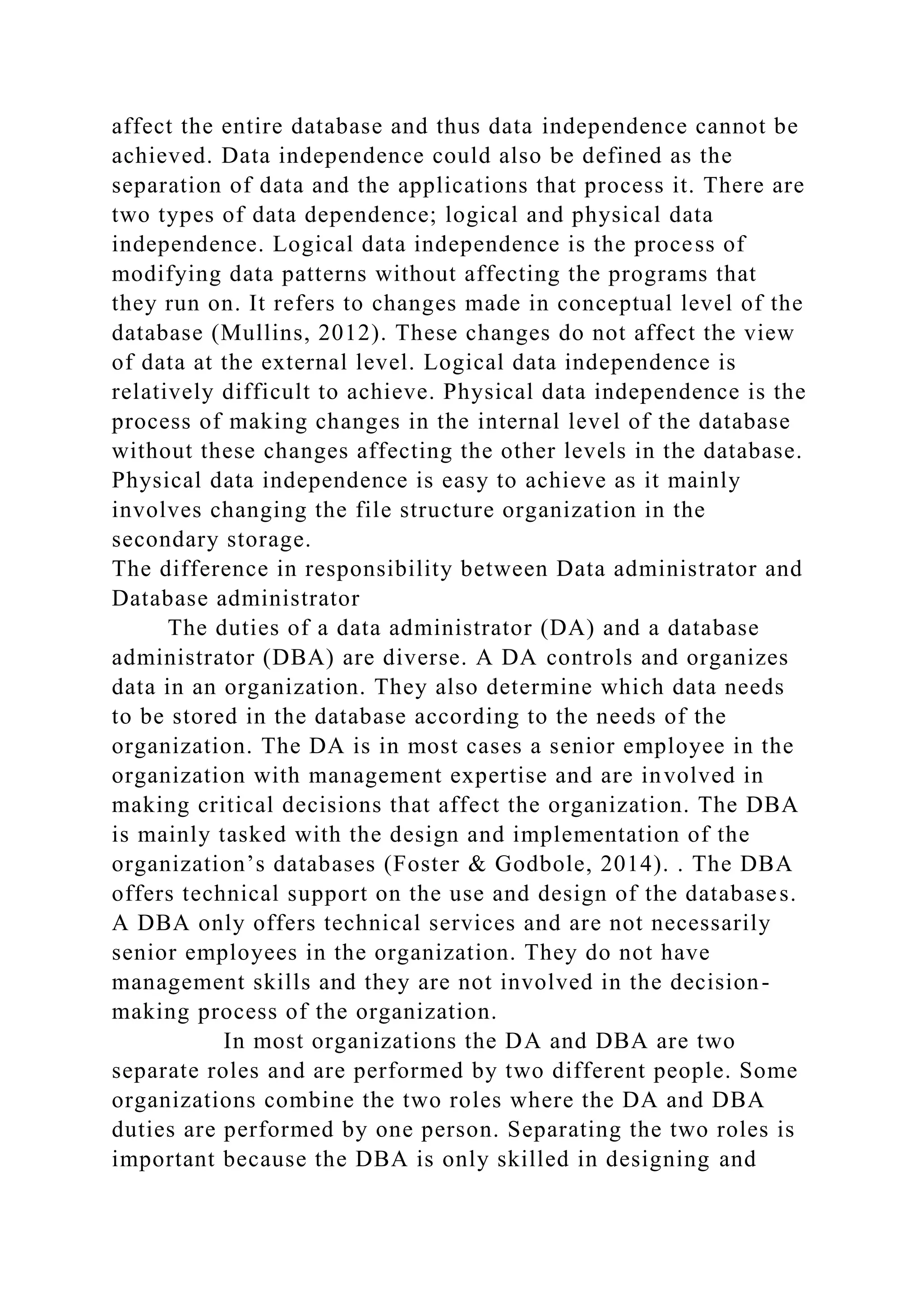

3. affect the entire database and thus data independence cannot be
achieved. Data independence could also be defined as the
separation of data and the applications that process it. There are
two types of data dependence; logical and physical data
independence. Logical data independence is the process of
modifying data patterns without affecting the programs that
they run on. It refers to changes made in conceptual level of the
database (Mullins, 2012). These changes do not affect the view
of data at the external level. Logical data independence is
relatively difficult to achieve. Physical data independence is the
process of making changes in the internal level of the database
without these changes affecting the other levels in the database.
Physical data independence is easy to achieve as it mainly
involves changing the file structure organization in the
secondary storage.
The difference in responsibility between Data administrator and
Database administrator
The duties of a data administrator (DA) and a database
administrator (DBA) are diverse. A DA controls and organizes
data in an organization. They also determine which data needs
to be stored in the database according to the needs of the
organization. The DA is in most cases a senior employee in the
organization with management expertise and are involved in
making critical decisions that affect the organization. The DBA
is mainly tasked with the design and implementation of the
organization’s databases (Foster & Godbole, 2014). . The DBA
offers technical support on the use and design of the databases.
A DBA only offers technical services and are not necessarily
senior employees in the organization. They do not have
management skills and they are not involved in the decision-
making process of the organization.
In most organizations the DA and DBA are two
separate roles and are performed by two different people. Some
organizations combine the two roles where the DA and DBA
duties are performed by one person. Separating the two roles is
important because the DBA is only skilled in designing and

4. managing databases and they may find it difficult data
organization. Data organization is crucial as it defines which
data will be stored in databases and who has the permission to
access it (Brathwaite, 2007). Some of the data in an
organization is too sensitive to be stored in a database and so it
is the duty of the DA to implement other storage methods. In
cases where the DA and the DBA is one person, there is an
advantage of cost reduction as only one salary package is paid
instead of two.

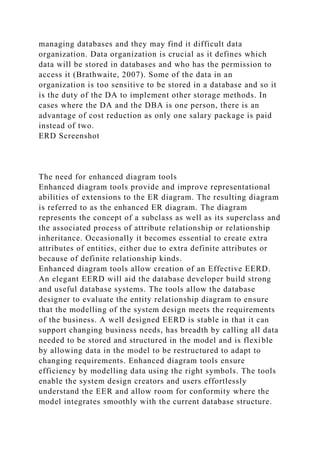

ERD Screenshot
The need for enhanced diagram tools
Enhanced diagram tools provide and improve representational
abilities of extensions to the ER diagram. The resulting diagram
is referred to as the enhanced ER diagram. The diagram
represents the concept of a subclass as well as its superclass and
the associated process of attribute relationship or relationship
inheritance. Occasionally it becomes essential to create extra
attributes of entities, either due to extra definite attributes or
because of definite relationship kinds.
Enhanced diagram tools allow creation of an Effective EERD.
An elegant EERD will aid the database developer build strong
and useful database systems. The tools allow the database
designer to evaluate the entity relationship diagram to ensure
that the modelling of the system design meets the requirements
of the business. A well designed EERD is stable in that it can
support changing business needs, has breadth by calling all data
needed to be stored and structured in the model and is flexible
by allowing data in the model to be restructured to adapt to
changing requirements. Enhanced diagram tools ensure
efficiency by modelling data using the right symbols. The tools
enable the system design creators and users effortlessly
understand the EER and allow room for conformity where the
model integrates smoothly with the current database structure.

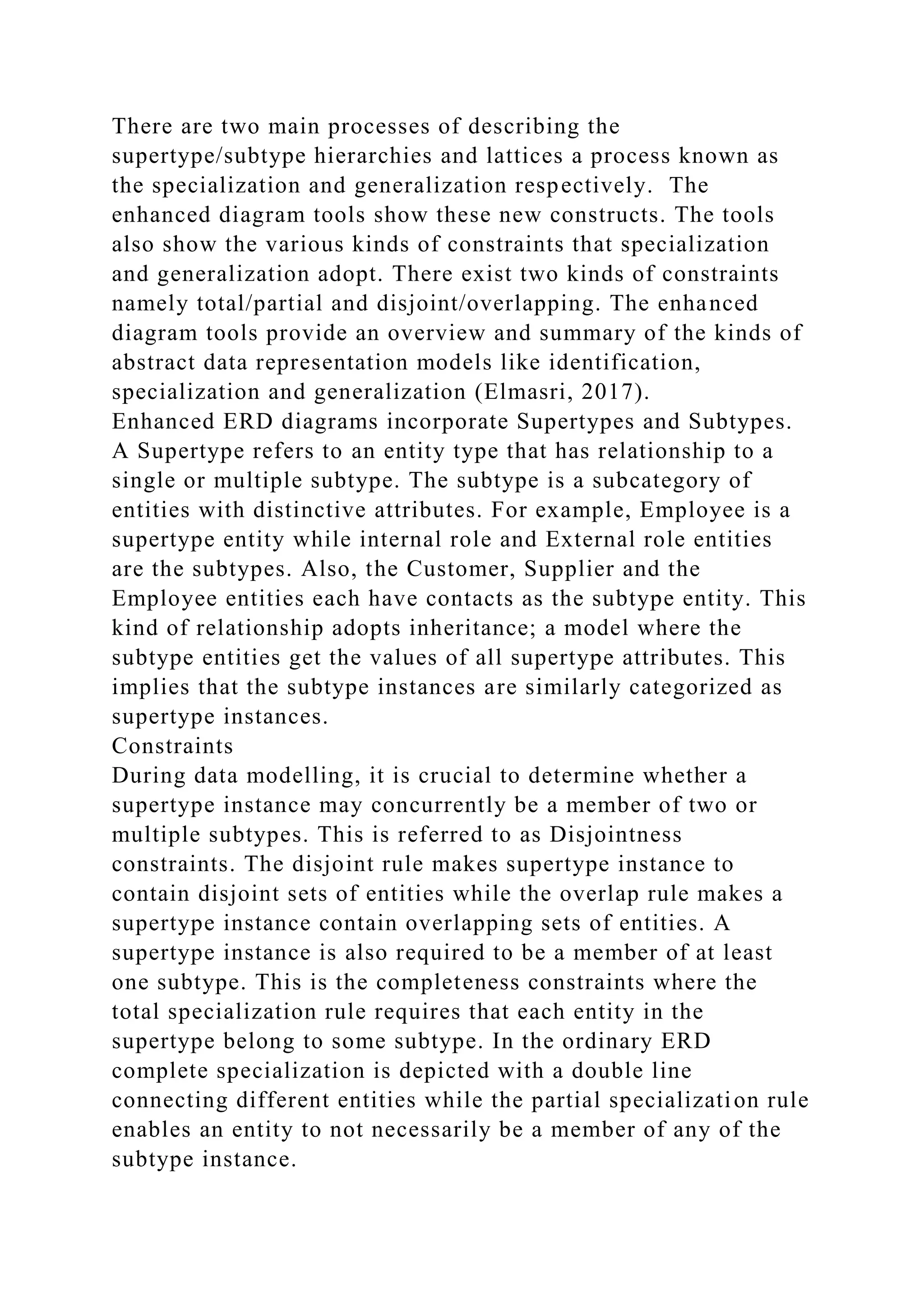

5. There are two main processes of describing the
supertype/subtype hierarchies and lattices a process known as
the specialization and generalization respectively. The
enhanced diagram tools show these new constructs. The tools
also show the various kinds of constraints that specialization
and generalization adopt. There exist two kinds of constraints
namely total/partial and disjoint/overlapping. The enhanced
diagram tools provide an overview and summary of the kinds of
abstract data representation models like identification,
specialization and generalization (Elmasri, 2017).
Enhanced ERD diagrams incorporate Supertypes and Subtypes.
A Supertype refers to an entity type that has relationship to a
single or multiple subtype. The subtype is a subcategory of
entities with distinctive attributes. For example, Employee is a
supertype entity while internal role and External role entities
are the subtypes. Also, the Customer, Supplier and the
Employee entities each have contacts as the subtype entity. This
kind of relationship adopts inheritance; a model where the
subtype entities get the values of all supertype attributes. This
implies that the subtype instances are similarly categorized as
supertype instances.
Constraints
During data modelling, it is crucial to determine whether a
supertype instance may concurrently be a member of two or
multiple subtypes. This is referred to as Disjointness
constraints. The disjoint rule makes supertype instance to
contain disjoint sets of entities while the overlap rule makes a
supertype instance contain overlapping sets of entities. A
supertype instance is also required to be a member of at least
one subtype. This is the completeness constraints where the
total specialization rule requires that each entity in the
supertype belong to some subtype. In the ordinary ERD
complete specialization is depicted with a double line
connecting different entities while the partial specialization rule
enables an entity to not necessarily be a member of any of the
subtype instance.

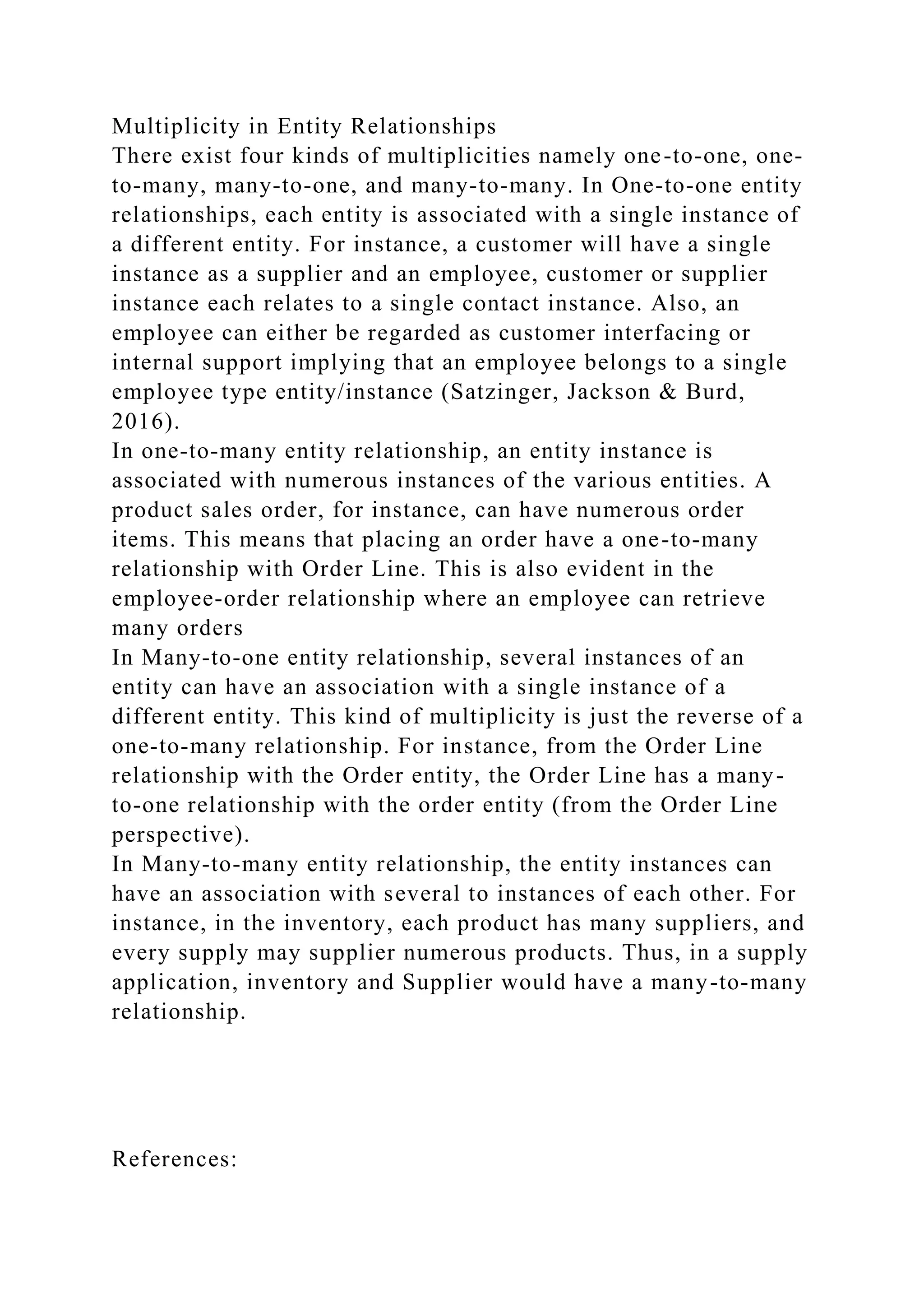

6. Multiplicity in Entity Relationships
There exist four kinds of multiplicities namely one-to-one, one-
to-many, many-to-one, and many-to-many. In One-to-one entity
relationships, each entity is associated with a single instance of
a different entity. For instance, a customer will have a single
instance as a supplier and an employee, customer or supplier
instance each relates to a single contact instance. Also, an
employee can either be regarded as customer interfacing or
internal support implying that an employee belongs to a single
employee type entity/instance (Satzinger, Jackson & Burd,
2016).
In one-to-many entity relationship, an entity instance is
associated with numerous instances of the various entities. A
product sales order, for instance, can have numerous order
items. This means that placing an order have a one-to-many
relationship with Order Line. This is also evident in the
employee-order relationship where an employee can retrieve
many orders
In Many-to-one entity relationship, several instances of an
entity can have an association with a single instance of a
different entity. This kind of multiplicity is just the reverse of a
one-to-many relationship. For instance, from the Order Line
relationship with the Order entity, the Order Line has a many-
to-one relationship with the order entity (from the Order Line
perspective).
In Many-to-many entity relationship, the entity instances can
have an association with several to instances of each other. For
instance, in the inventory, each product has many suppliers, and
every supply may supplier numerous products. Thus, in a supply
application, inventory and Supplier would have a many-to-many
relationship.

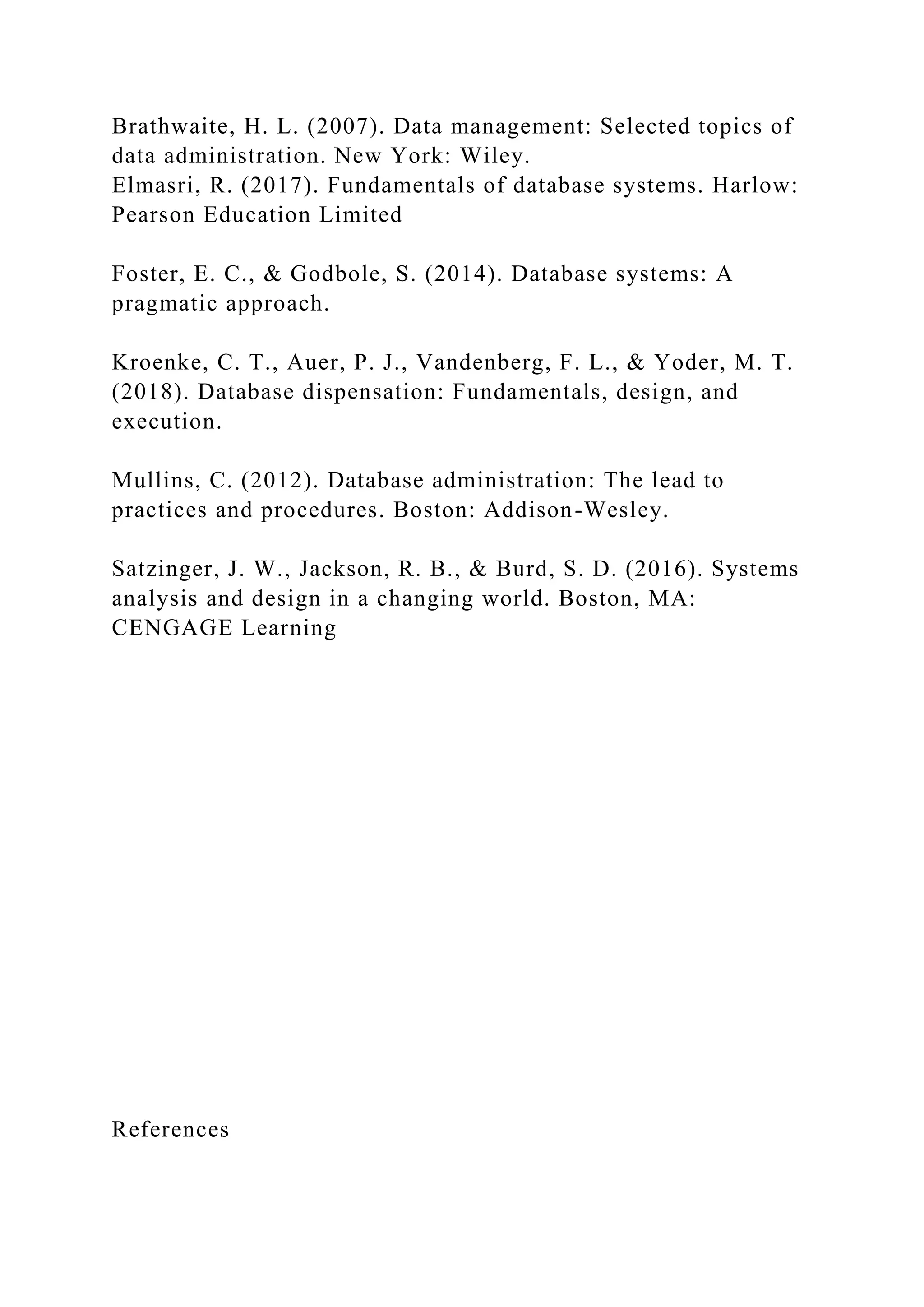

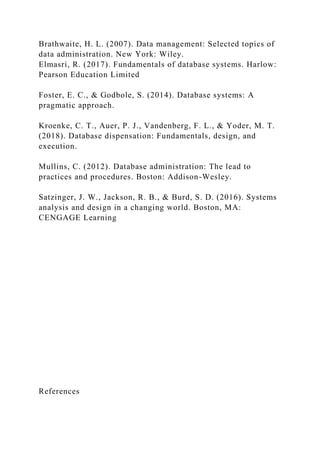

References:

7. Brathwaite, H. L. (2007). Data management: Selected topics of
data administration. New York: Wiley.
Elmasri, R. (2017). Fundamentals of database systems. Harlow:
Pearson Education Limited
Foster, E. C., & Godbole, S. (2014). Database systems: A
pragmatic approach.
Kroenke, C. T., Auer, P. J., Vandenberg, F. L., & Yoder, M. T.
(2018). Database dispensation: Fundamentals, design, and
execution.
Mullins, C. (2012). Database administration: The lead to
practices and procedures. Boston: Addison-Wesley.
Satzinger, J. W., Jackson, R. B., & Burd, S. D. (2016). Systems
analysis and design in a changing world. Boston, MA:
CENGAGE Learning
References

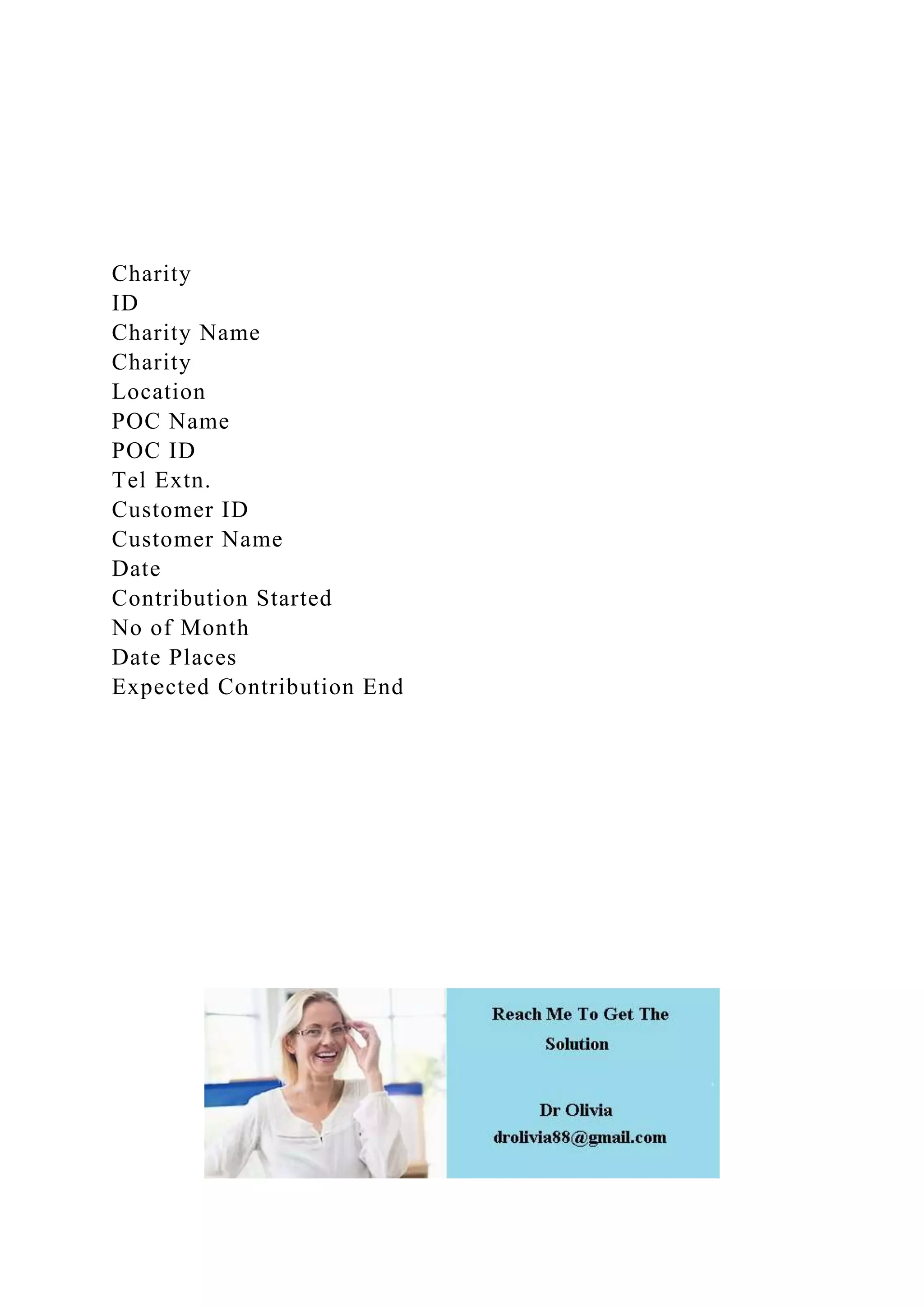

8. Charity
