1. This document provides instructions for configuring a Raspberry Pi-based music player using Volumio software. 2. It covers installing Volumio, setting the display resolution and enabling touchscreen controls, adding external infrared remote control support, and preventing settings from being overwritten on reboot. 3. Additional optional steps show integrating Kodi media software and disabling boot log messages to optimize the system for kiosk usage.

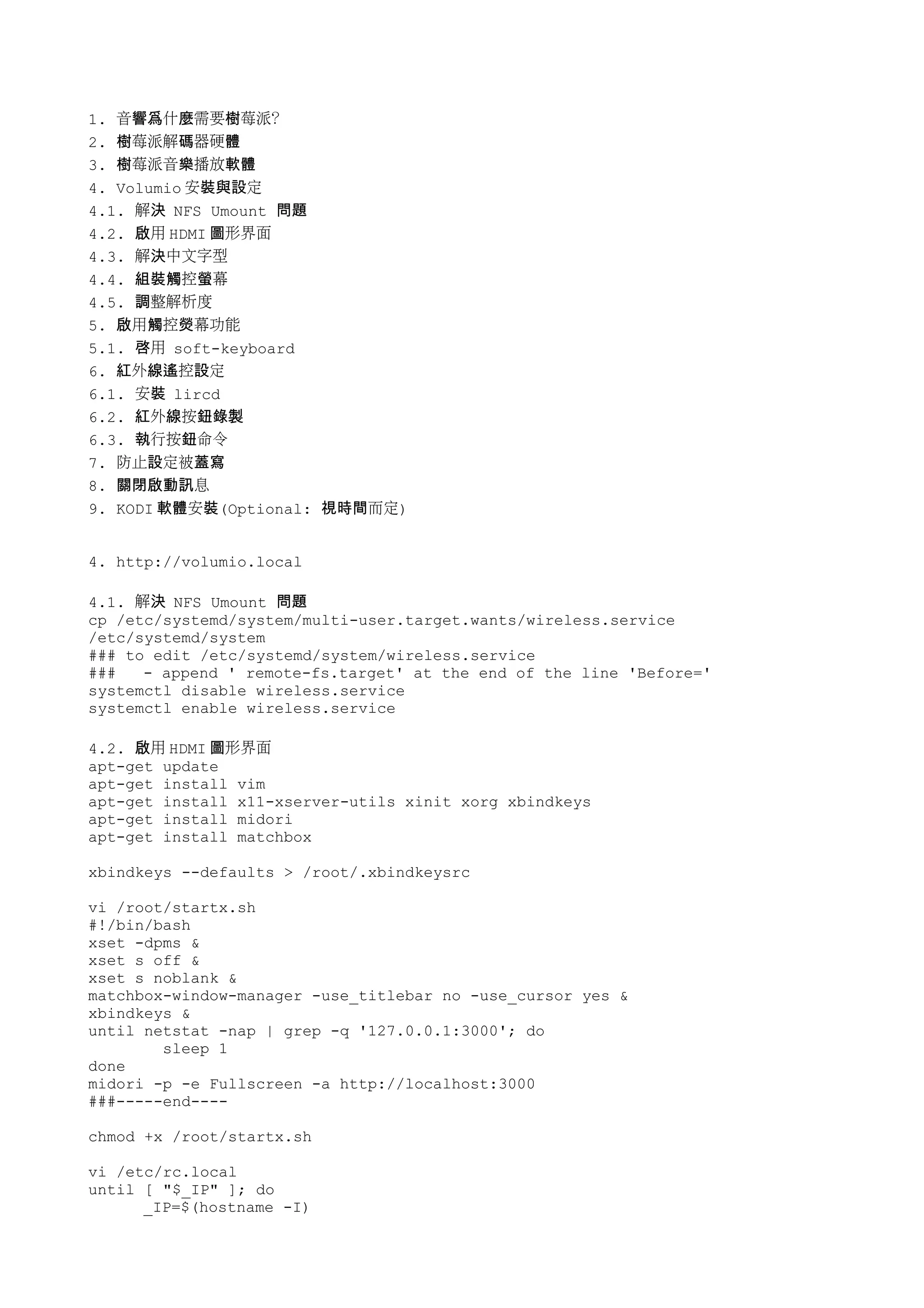

1. 1. 音 什 需要 莓派？響爲 麼 樹
2. 莓派解 器硬樹 碼 體
3. 莓派音 播放樹 樂 軟體
4. Volumio 安 定裝與設
4.1. 解決 NFS Umount 問題
4.2. 用啟 HDMI 形界面圖
4.3. 解 中文字型決
4.4. 控 幕組裝觸 螢
4.5. 整解析度調
5. 用 控 幕功能啟 觸 熒
5.1. 用啓 soft-keyboard
6. 外 控 定紅 線遙 設
6.1. 安裝 lircd
6.2. 外 按紅 線 鈕錄製
6.3. 行按 命令執 鈕
7. 防止 定被設 蓋寫
8. 息關閉啟動訊
9. KODI 安軟體 裝(Optional: 而定視時間 )
4. http://volumio.local
4.1. 解決 NFS Umount 問題
cp /etc/systemd/system/multi-user.target.wants/wireless.service
/etc/systemd/system
### to edit /etc/systemd/system/wireless.service
### - append ' remote-fs.target' at the end of the line 'Before='
systemctl disable wireless.service
systemctl enable wireless.service
4.2. 用啟 HDMI 形界面圖
apt-get update
apt-get install vim
apt-get install x11-xserver-utils xinit xorg xbindkeys
apt-get install midori
apt-get install matchbox
xbindkeys --defaults > /root/.xbindkeysrc
vi /root/startx.sh
#!/bin/bash
xset -dpms &
xset s off &
xset s noblank &
matchbox-window-manager -use_titlebar no -use_cursor yes &
xbindkeys &
until netstat -nap | grep -q '127.0.0.1:3000'; do
sleep 1
done
midori -p -e Fullscreen -a http://localhost:3000
###-----end----
chmod +x /root/startx.sh
vi /etc/rc.local
until [ "$_IP" ]; do
_IP=$(hostname -I)

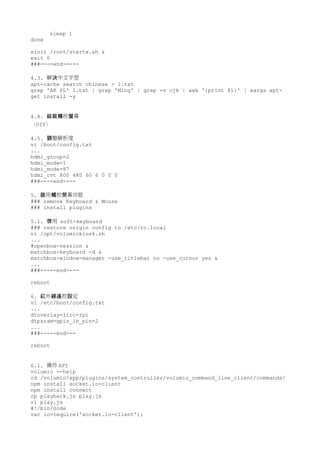

2. sleep 1
done
xinit /root/startx.sh &
exit 0
###----end-----
4.3. 解 中文字型決
apt-cache search chinese > 1.txt
grep 'AR PL' 1.txt | grep 'Ming' | grep -v cjk | awk '{print $1}' | xargs apt-
get install -y
4.4. 控 幕組裝觸 螢
（DIY）
4.5. 整解析度調
vi /boot/config.txt
...
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 800 480 60 6 0 0 0
###----end----
5. 用 控 幕功能啟 觸 熒
### remove Keyboard & Mouse
### install plugins
5.1. 用啓 soft-keyboard
### restore origin config to /etc/rc.local
vi /opt/volumiokiosk.sh
...
#openbox-session &
matchbox-keyboard -d &
matchbox-window-manager -use_titlebar no -use_cursor yes &
...
###-----end----
reboot
6. 外 控 定紅 線遙 設
vi /etc/boot/config.txt
...
dtoverlay=lirc-rpi
dtparam=gpio_in_pin=2
...
###-----end---
reboot
6.1. 操作 API
volumio --help
cd /volumio/app/plugins/system_controller/volumio_command_line_client/commands/
npm install socket.io-client
npm install connect
cp playback.js play.js
vi play.js
#!/bin/node
var io=require('socket.io-client');

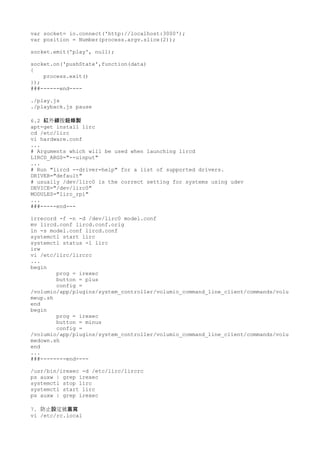

3. var socket= io.connect('http://localhost:3000');
var position = Number(process.argv.slice(2));
socket.emit('play', null);
socket.on('pushState',function(data)
{
process.exit()
});
###------end----
./play.js
./playback.js pause
6.2 外 按紅 線 鈕錄製
apt-get install lirc
cd /etc/lirc
vi hardware.conf
...
# Arguments which will be used when launching lircd
LIRCD_ARGS="--uinput"
...
# Run "lircd --driver=help" for a list of supported drivers.
DRIVER="default"
# usually /dev/lirc0 is the correct setting for systems using udev
DEVICE="/dev/lirc0"
MODULES="lirc_rpi"
...
###-----end---
irrecord -f -n -d /dev/lirc0 model.conf
mv lircd.conf lircd.conf.orig
ln -s model.conf lircd.conf
systemctl start lirc
systemctl status -l lirc
irw
vi /etc/lirc/lircrc
...
begin
prog = irexec
button = plus
config =
/volumio/app/plugins/system_controller/volumio_command_line_client/commands/volu
meup.sh
end
begin
prog = irexec
button = minus
config =
/volumio/app/plugins/system_controller/volumio_command_line_client/commands/volu
medown.sh
end
...
###--------end----
/usr/bin/irexec -d /etc/lirc/lircrc
ps auxw | grep irexec
systemctl stop lirc
systemctl start lirc
ps auxw | grep irexec
7. 防止 定被設 蓋寫
vi /etc/rc.local

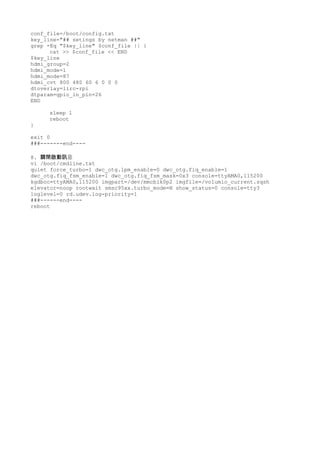

4. conf_file=/boot/config.txt
key_line="## setings by netman ##"
grep -Eq "$key_line" $conf_file || {
cat >> $conf_file << END
$key_line
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 800 480 60 6 0 0 0
dtoverlay=lirc-rpi
dtparam=gpio_in_pin=26
END
sleep 1
reboot
}
exit 0
###-------end----
8. 息關閉啟動訊
vi /boot/cmdline.txt
quiet force_turbo=1 dwc_otg.lpm_enable=0 dwc_otg.fiq_enable=1
dwc_otg.fiq_fsm_enable=1 dwc_otg.fiq_fsm_mask=0x3 console=ttyAMA0,115200
kgdboc=ttyAMA0,115200 imgpart=/dev/mmcblk0p2 imgfile=/volumio_current.sqsh
elevator=noop rootwait smsc95xx.turbo_mode=N show_status=0 console=tty3
loglevel=0 rd.udev.log-priority=1
###------end----
reboot
