This document provides information on QNAP's network attached storage (NAS) product portfolio for 2015. It outlines several tower and rackmount NAS models for enterprise, SMB/workgroup, and home/SOHO use ranging from 2 to 24 drive bays. Key specifications like CPU, memory, network connectivity, and available models are provided for each NAS series. An upcoming NAS roadmap for 2015 Q2 is also shown, outlining new models to be released for SMB desktop, rackmount, and entry-level NAS lines.

1. Network Attached Storage
Portafolio 2015
May, 2015

2. NAS Torre

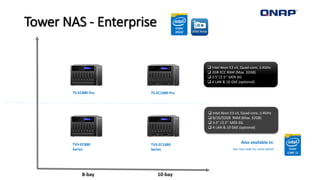

3. Tower NAS - Enterprise
10-bay
TS-EC880 Pro TS-EC1080 Pro
8-bay
 Intel Xeon E3 v3, Quad-core, 3.4GHz
 2GB ECC RAM (Max. 32GB)
 3.5”/2.5’’ SATA 6G
 4 LAN & 10 GbE (optional)
 Intel Xeon E3 v3, Quad-core, 3.4GHz
 8/16/32GB RAM (Max. 32GB)
 3.5” /2.5’’ SATA 6G
 4 LAN & 10 GbE (optional)
TVS-EC880
Series
TVS-EC1080
Series
Also available in:
See next slide for more details

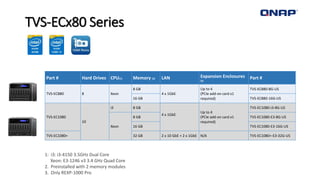

4. TVS-ECx80 Series
Part # Hard Drives CPU(1) Memory (2) LAN Expansion Enclosures
(3)
Part #
TVS-EC880 8 Xeon
8 GB
4 x 1GbE
Up to 4
(PCIe add-on card x1
required)
TVS-EC880-8G-US
16 GB TVS-EC880-16G-US
TVS-EC1080
10
i3 8 GB
4 x 1GbE
Up to 4
(PCIe add-on card x1
required)
TVS-EC1080-i3-8G-US
Xeon
8 GB TVS-EC1080-E3-8G-US
16 GB TVS-EC1080-E3-16G-US
TVS-EC1080+ 32 GB 2 x 10 GbE + 2 x 1GbE N/A TVS-EC1080+-E3-32G-US
1: i3: i3-4150 3.5GHz Dual Core
Xeon: E3-1246 v3 3.4 GHz Quad Core
2. Preinstalled with 2 memory modules
3. Only REXP-1000 Pro

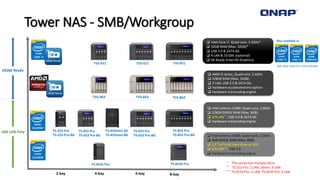

5. Tower NAS - SMB/Workgroup
6-bay 8-bay
TVS-471 TVS-871
4-bay
 Intel Core i7, Quad-core, 3.2GHz*
 32GB RAM (Max. 32GB)*
 USB 3.0 & SATA 6G
 4 LAN & 10 GbE (optional)
 4K Ready (Intel HD Graphics)
 AMD G-series, Quad-core, 2.4GHz
 4/8GB RAM (Max. 16GB)
 2 LAN, USB 3.0 & SATA 6G
 Hardware-accelerated encryption
 Hardware transcoding engine
 Intel Celeron J1900, Quad-core, 2.0GHz
 4GB DDR3L RAM (Max. 8GB)
 2.5” SATA 6G hard drive or SSD
 2/4 LAN***, USB 3.0
 Hardware transcoding engine
 Intel Celeron J1900, Quad-core, 2.0GHz
 2/8GB DDR3L RAM (Max. 8GB)
 2/4 LAN**, USB 3.0 & SATA 6G
 Hardware transcoding engine
* This series has multiple SKUs
** TS-253 Pro: 2 LAN, others: 4 LAN
*** TS-453S Pro: 2 LAN, TS-853S Pro: 4 LAN
Also available in:
10GbE Ready
GbE LAN Only
See next slide for more details
2-bay
TVS-671
TVS-463 TVS-863TVS-663
TS-453 Pro TS-853 ProTS-653 ProTS-253 Pro
TS-453S Pro TS-853S Pro
TS-453 Pro-8G TS-853 Pro-8GTS-653 Pro-8GTS-253 Pro-8G
TS-453mini-2G
TS-453mini-8G

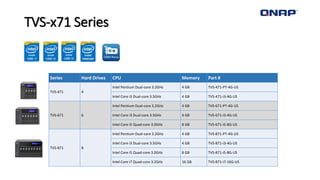

6. TVS-x71 Series
Series Hard Drives CPU Memory Part #
TVS-471 4
Intel Pentium Dual-core 3.2GHz 4 GB TVS-471-PT-4G-US
Intel Core i3 Dual-core 3.5GHz 4 GB TVS-471-i3-4G-US
TVS-671 6
Intel Pentium Dual-core 3.2GHz 4 GB TVS-671-PT-4G-US
Intel Core i3 Dual-core 3.5GHz 4 GB TVS-671-i3-4G-US
Intel Core i5 Quad-core 3.0GHz 8 GB TVS-671-i5-8G-US
TVS-871 8
Intel Pentium Dual-core 3.2GHz 4 GB TVS-871-PT-4G-US
Intel Core i3 Dual-core 3.5GHz 4 GB TVS-871-i3-4G-US
Intel Core i5 Quad-core 3.0GHz 8 GB TVS-871-i5-8G-US
Intel Core i7 Quad-core 3.2GHz 16 GB TVS-871-i7-16G-US

7. TVS-x63 Series
Part # Hard Drives Memory LAN Part #
TVS-463 4
4 GB
2 x 1GbE
TVS-463-4G-US
8 GB TVS-463-8G-US
TVS-663 6
4 GB
2 x 1GbE
TVS-663-4G-US
8 GB TVS-663-8G-US
TVS-863
8
4 GB
2 x 1GbE
TVS-863-4G-US
8 GB TVS-863-8G-US
TVS-863+
8 GB
2 x 1GbE + 1 x 10GbE
TVS-863+-8G-US
16 GB TVS-863+-16G-US

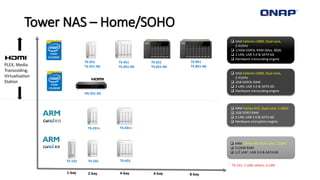

8. Tower NAS – Home/SOHO
6-bay 8-bay4-bay
 Intel Celeron J1800, Dual-core,
2.41GHz
 1/4GB DDR3L RAM (Max. 8GB)
 2 LAN, USB 3.0 & SATA 6G
 Hardware transcoding engine
 Intel Celeron J1800, Dual-core,
2.41GHz
 2GB DDR3L RAM
 2 LAN, USB 3.0 & SATA 6G
 Hardware transcoding engine
 ARM Cortex A9, Dual-core, 1.2GHz
 512MB RAM
 1/2 LAN*, USB 3.0 & SATA 6G
 ARM Cortex A15, Dual-core, 1.4GHz
 1GB DDR3 RAM
 2 LAN, USB 3.0 & SATA 6G
 Hardware encryption engine
* TS-131: 1 LAN, others: 2 LAN
2-bay
TS-451 TS-851TS-651TS-251
TS-131
1-bay
TS-231 TS-431
TS-231+ TS-431+
HS-251-2G
PLEX, Media
Transcoding,
Virtualization
Station
TS-451-4G TS-851-4GTS-651-4GTS-251-4G

9. NAS Rackeable

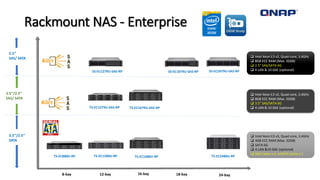

10. Rackmount NAS - Enterprise
12-bay 24-bay16-bay 18-bay
SS-EC1279U-SAS-RP SS-EC1879U-SAS-RP SS-EC2479U-SAS-RP
TS-EC1279U-SAS-RP TS-EC1679U-SAS-RP
8-bay
TS-EC880U-RP TS-EC1280U-RP TS-EC1680U-RP TS-EC2480U-RP
 Intel Xeon E3 v2, Quad-core, 3.4GHz
 8GB ECC RAM (Max. 32GB)
 2.5” SAS/SATA 6G
 4 LAN & 10 GbE (optional)
 Intel Xeon E3 v2, Quad-core, 3.4GHz
 8GB ECC RAM (Max. 32GB)
 3.5” SAS/SATA 6G
 4 LAN & 10 GbE (optional)
 Intel Xeon E3 v3, Quad-core, 3.4GHz
 4GB ECC RAM (Max. 32GB)
 SATA 6G
 4 LAN &10 GbE (optional)
 SSD Cache x 4, mSATA Cache x 2
2.5’’
SAS/ SATA
3.5’’/2.5’’
SAS/ SATA
3.5’’/2.5’’
SATA

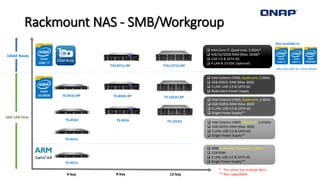

11. Rackmount NAS - SMB/Workgroup
8-bay 12-bay
TVS-871U-RP TVS-1271U-RP
TS-853U-RP TS-1253U-RP
4-bay
TS-451U
 Intel Core i7, Quad-core, 3.2GHz*
 4/8/16/32GB RAM (Max. 32GB)*
 USB 3.0 & SATA 6G
 4 LAN & 10 GbE (optional)
 Intel Celeron J1900, Quad-core, 2.0GHz
 4GB DDR3L RAM (Max. 8GB)
 4 LAN, USB 3.0 & SATA 6G
 Redundant Power Supply
 Intel Celeron J1800, Dual-core, 2.41GHz
 1GB DDR3L RAM (Max. 8GB)
 2 LAN, USB 3.0 & SATA 6G
 Single Power Supply**
TS-453U-RP
TS-853U TS-1253UTS-453U
 Intel Celeron J1900, Quad-core, 2.0GHz
 4GB DDR3L RAM (Max. 8GB)
 4 LAN, USB 3.0 & SATA 6G
 Single Power Supply**
* This series has multiple SKUs
** Non upgradable
Also available in:
10GbE Ready
GbE LAN Only
See next slide for more details
TS-431U
 ARM Cortex A9, Dual-core, 1.2GHz
 1GB RAM
 2 LAN, USB 3.0 & SATA 6G
 Single Power Supply**

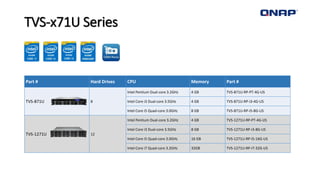

12. Part # Hard Drives CPU Memory Part #
TVS-871U 8
Intel Pentium Dual-core 3.2GHz 4 GB TVS-871U-RP-PT-4G-US
Intel Core i3 Dual-core 3.5GHz 4 GB TVS-871U-RP-i3-4G-US
Intel Core i5 Quad-core 3.0GHz 8 GB TVS-871U-RP-i5-8G-US
TVS-1271U 12
Intel Pentium Dual-core 3.2GHz 4 GB TVS-1271U-RP-PT-4G-US
Intel Core i3 Dual-core 3.5GHz 8 GB TVS-1271U-RP-i3-8G-US
Intel Core i5 Quad-core 3.0GHz 16 GB TVS-1271U-RP-i5-16G-US
Intel Core i7 Quad-core 3.2GHz 32GB TVS-1271U-RP-i7-32G-US
TVS-x71U Series

13. ROADMAP Q3 2015

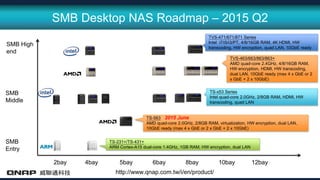

14. SMB Desktop NAS Roadmap – 2015 Q2
2bay 4bay 5bay 6bay 8bay 10bay 12bay
SMB
Entry
SMB
Middle
SMB High
end
TS-231+/TS-431+
ARM Cortex-A15 dual-core 1.4GHz, 1GB RAM, HW encryption, dual LAN
http://www.qnap.com.tw/i/en/product/
TS-563
AMD quad-core 2.0GHz, 2/8GB RAM, virtualization, HW encryption, dual LAN,
10GbE ready (max 4 x GbE or 2 x GbE + 2 x 10GbE)
TVS-463/663/863/863+
AMD quad-core 2.4GHz, 4/8/16GB RAM,
HW encryption, HDMI, HW transcoding,
dual LAN, 10GbE ready (max 4 x GbE or 2
x GbE + 2 x 10GbE)
TS-x53 Series
Intel quad-core 2.0GHz, 2/8GB RAM, HDMI, HW
transcoding, quad LAN
TVS-471/671/871 Series
Intel i7/i5/i3/PT, 4/8/16GB RAM, 4K HDMI, HW
transcoding, HW encryption, quad LAN, 10GbE ready
2015 June

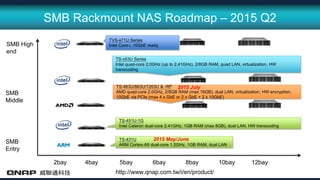

15. SMB Rackmount NAS Roadmap – 2015 Q2
2bay 4bay 5bay 6bay 8bay 10bay 12bay
SMB
Entry
SMB
Middle
SMB High
end
http://www.qnap.com.tw/i/en/product/
TS-463U/863U/1263U & -RP
AMD quad-core 2.0GHz, 2/8GB RAM (max 16GB), dual LAN, virtualization, HW encryption,
10GbE via PCIe (max 4 x GbE or 2 x GbE + 2 x 10GbE)
TS-x53U Series
Intel quad-core 2.0GHz (up to 2.41GHz), 2/8GB RAM, quad LAN, virtualization, HW
transcoding
TVS-x71U Series
Intel Core-i, 10GbE ready
2015 July
TS-431U
ARM Cortex-A9 dual-core 1.2GHz, 1GB RAM, dual LAN
2015 May/June
TS-451U-1G
Intel Celeron dual-core 2.41GHz, 1GB RAM (max 8GB), dual LAN, HW transcoding

16. Thank you
Contact: usasales@qnap.com
Reseller Resource: http://go.qnap.com
QNAP http://www.qnap.com
