E2E Services using Cloud Visitation Platforms

.

.

Pre-Story: The First HomeBox

Marat Zhanikeev -- maratishe@gmail.com

E2E Services using Cloud Visitation Platforms -- http://tinyurl.com/marat140221

2 /23
2/23

.

.

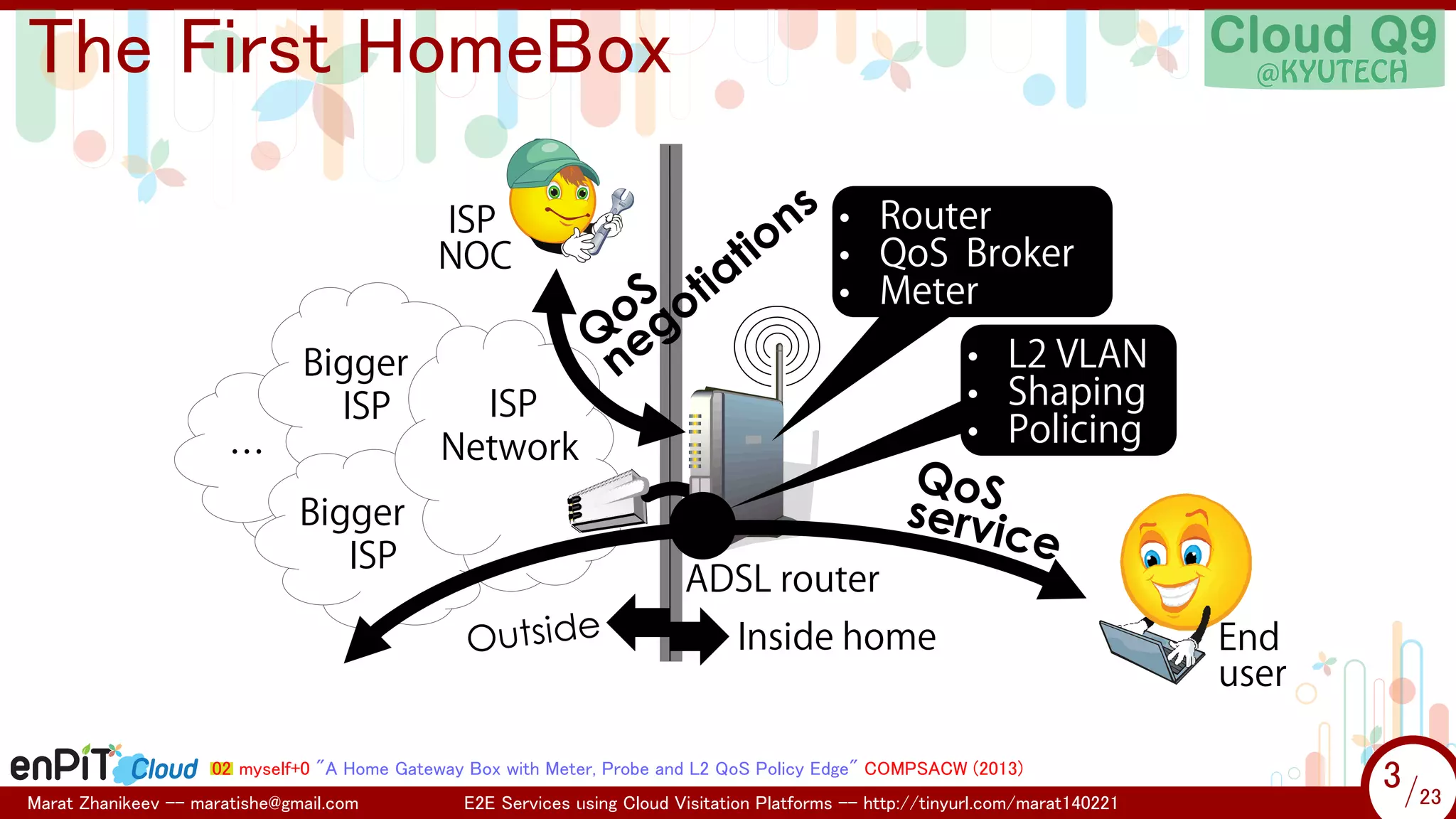

The First HomeBox
ISP
NOC

…

Bigger
ISP

Bigger
ISP

• Router
• QoS Broker
• Meter

• L2 VLAN
• Shaping
• Policing

ISP
Network
ADSL router

Inside home

02 myself+0 "A Home Gateway Box with Meter, Probe and L2 QoS Policy Edge" COMPSACW (2013)


End
user

3 /23
3/23

.

.

HomeBox: Early Usecases
• e2e probing, packet capture, L2/L3 QoS Policy Edge
2 devices
in 1 box

Probing tasks
Data to ISP
(1) Flow
(2) Probing
Mirror
traﬃc

Home Gateway
Box

meter

Probes

switch/mirror


Probing
methods


4 /23
4/23

.

.

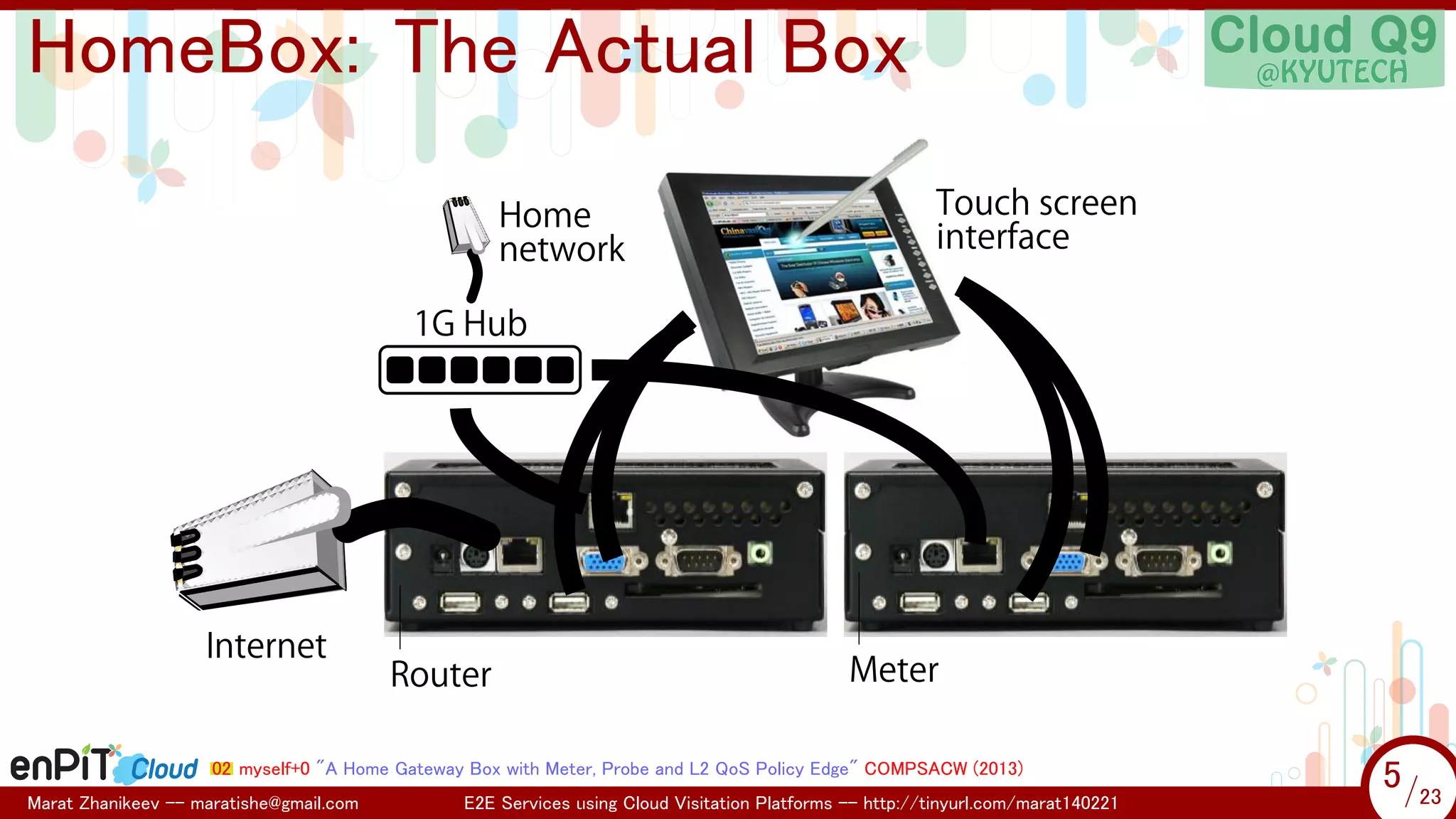

HomeBox: The Actual Box
Home
network

Touch screen
interface

1G Hub

Internet

Router

Meter



5 /23
5/23

.

.

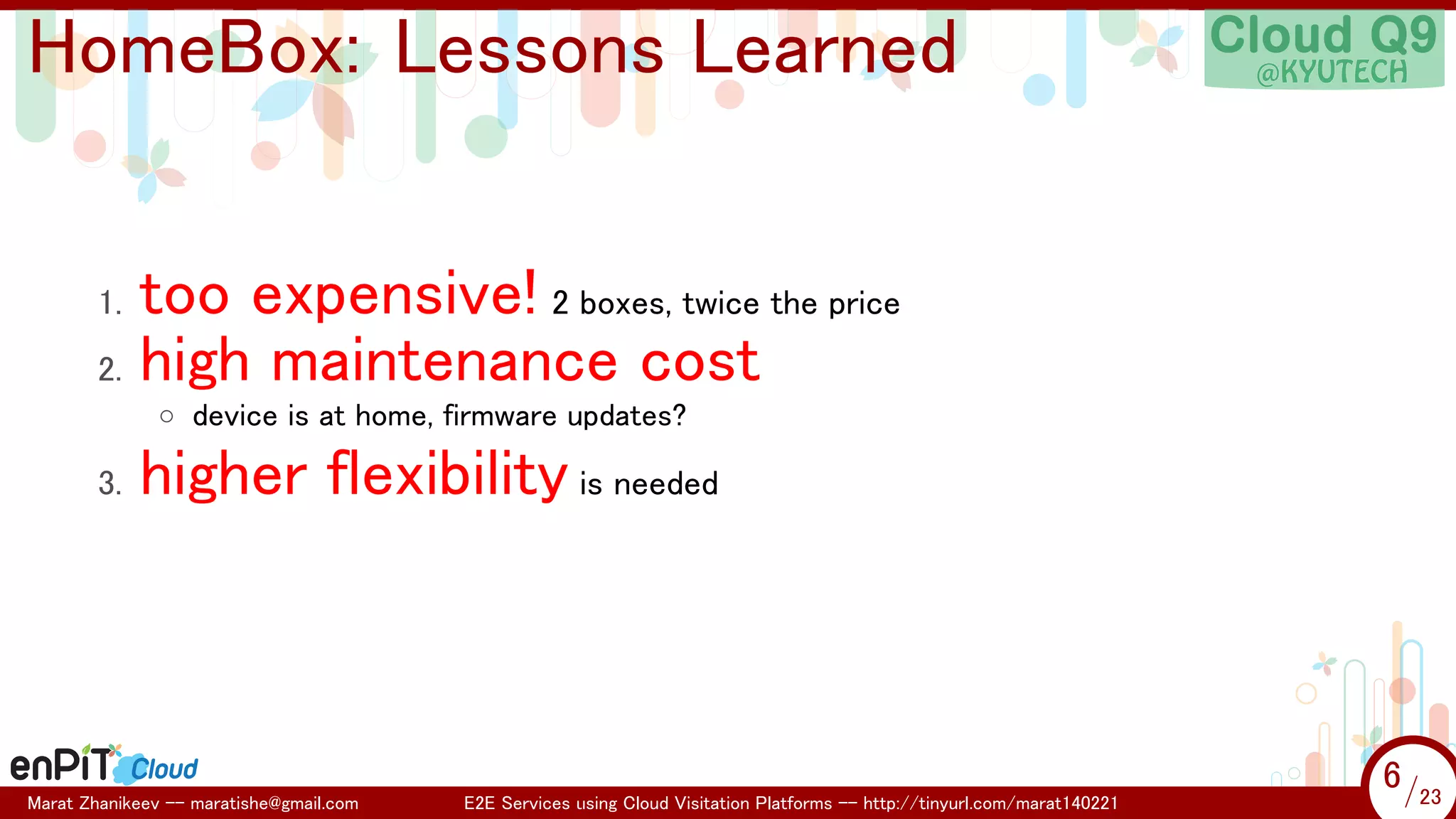

HomeBox: Lessons Learned
too expensive! 2 boxes, twice the price
2. high maintenance cost
1.

◦ device is at home, firmware updates?

3.

higher flexibility is needed



6 /23
6/23

.

.

Briefly on Clouds



7 /23
7/23

.

.

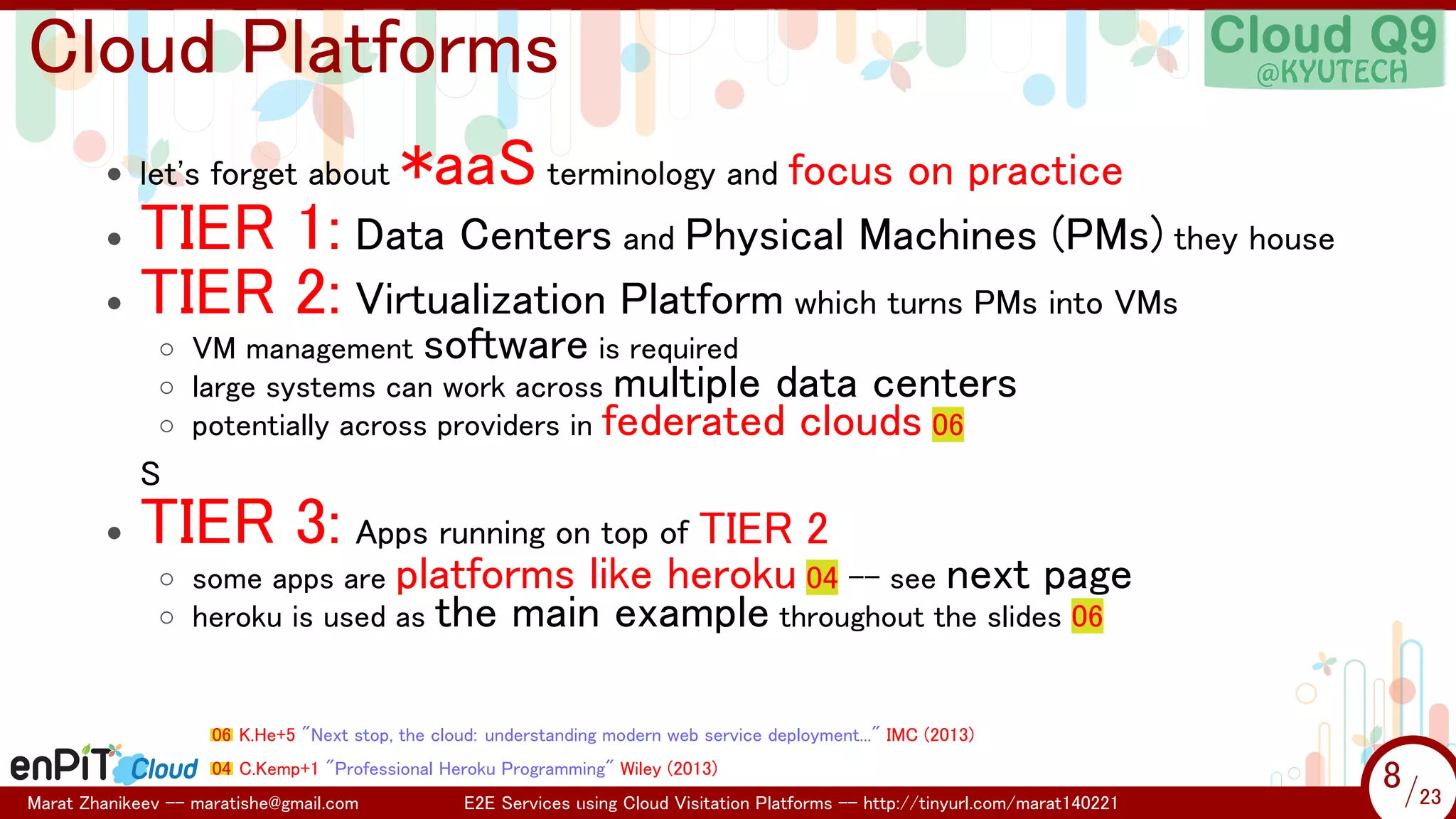

Cloud Platforms
• let's forget about

*aaS terminology and focus on practice

TIER 1: Data Centers and Physical Machines (PMs) they house
• TIER 2: Virtualization Platform which turns PMs into VMs
•

◦ VM management software is required
◦ large systems can work across multiple data centers
◦ potentially across providers in federated clouds 06

S
•

TIER 3: Apps running on top of TIER 2

◦ some apps are platforms like heroku 04 -- see next page
◦ heroku is used as the main example throughout the slides 06

06 K.He+5 "Next stop, the cloud: understanding modern web service deployment..." IMC (2013)
04 C.Kemp+1 "Professional Heroku Programming" Wiley (2013)


8 /23
8/23

.

.

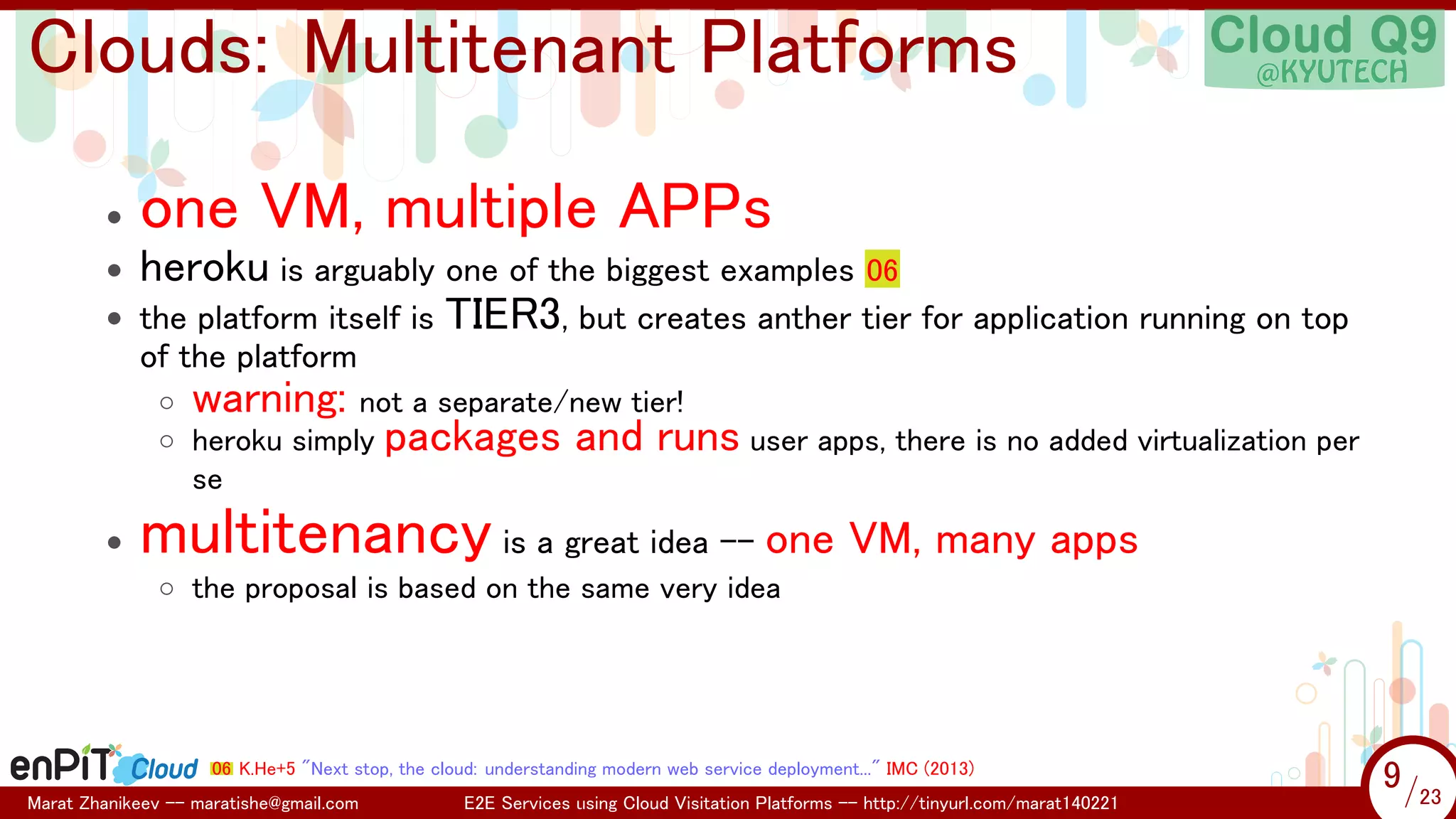

Clouds: Multitenant Platforms
•
•
•

one VM, multiple APPs
heroku is arguably one of the biggest examples 06
the platform itself is TIER3, but creates anther tier for application running on top
of the platform
◦ warning: not a separate/new tier!
◦ heroku simply packages and runs user apps, there is no added virtualization per
se

•

multitenancy is a great idea -- one VM, many apps
◦ the proposal is based on the same very idea

06 K.He+5 "Next stop, the cloud: understanding modern web service deployment..." IMC (2013)


9 /23
9/23

.

.

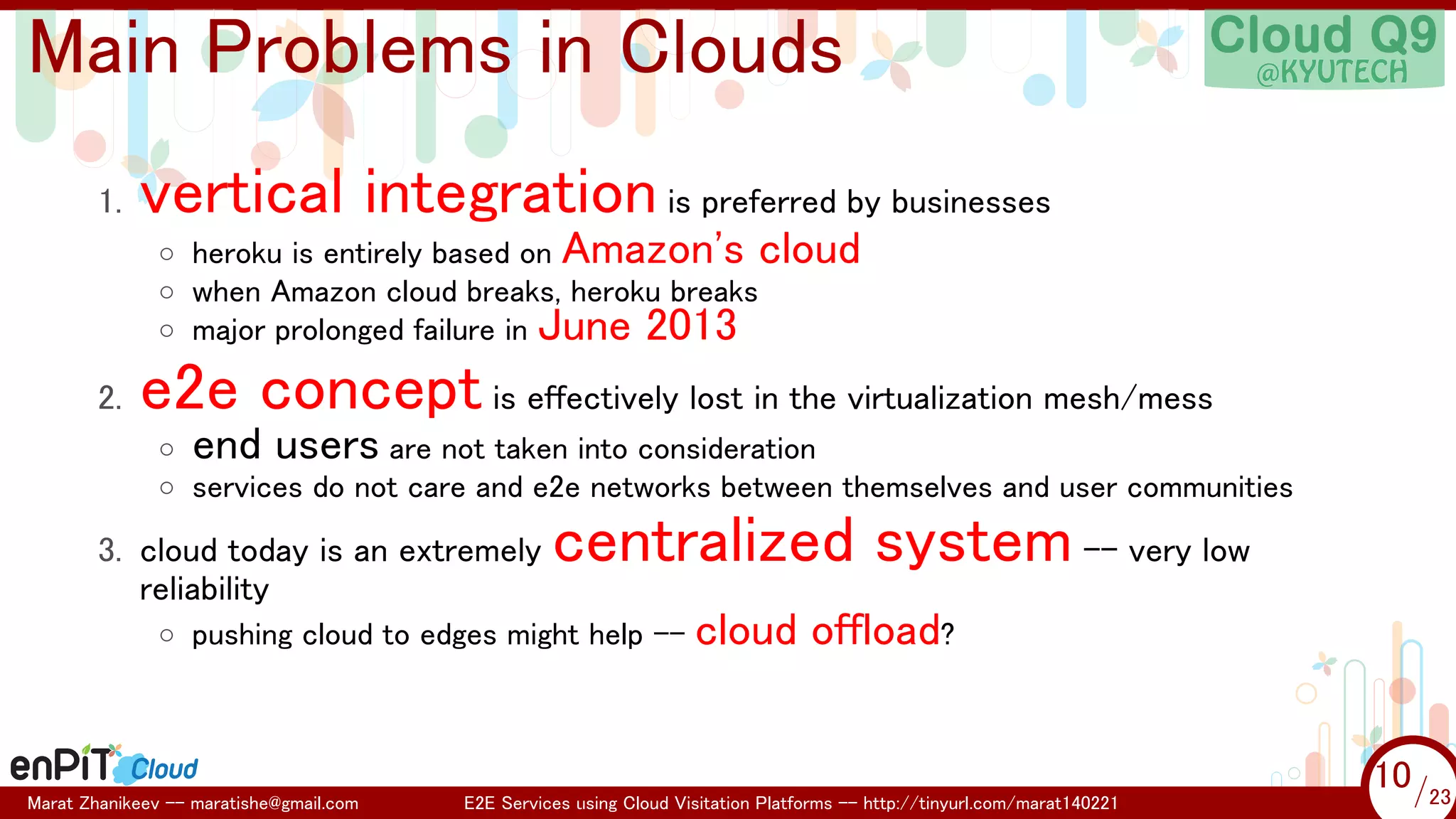

Main Problems in Clouds
1.

vertical integration is preferred by businesses
◦ heroku is entirely based on Amazon's cloud
◦ when Amazon cloud breaks, heroku breaks
◦ major prolonged failure in June 2013

2.

e2e concept is effectively lost in the virtualization mesh/mess
◦ end users are not taken into consideration
◦ services do not care and e2e networks between themselves and user communities

3. cloud today is an extremely
reliability

centralized system -- very low

◦ pushing cloud to edges might help --


cloud offload?


10 /23
10/23

.

.

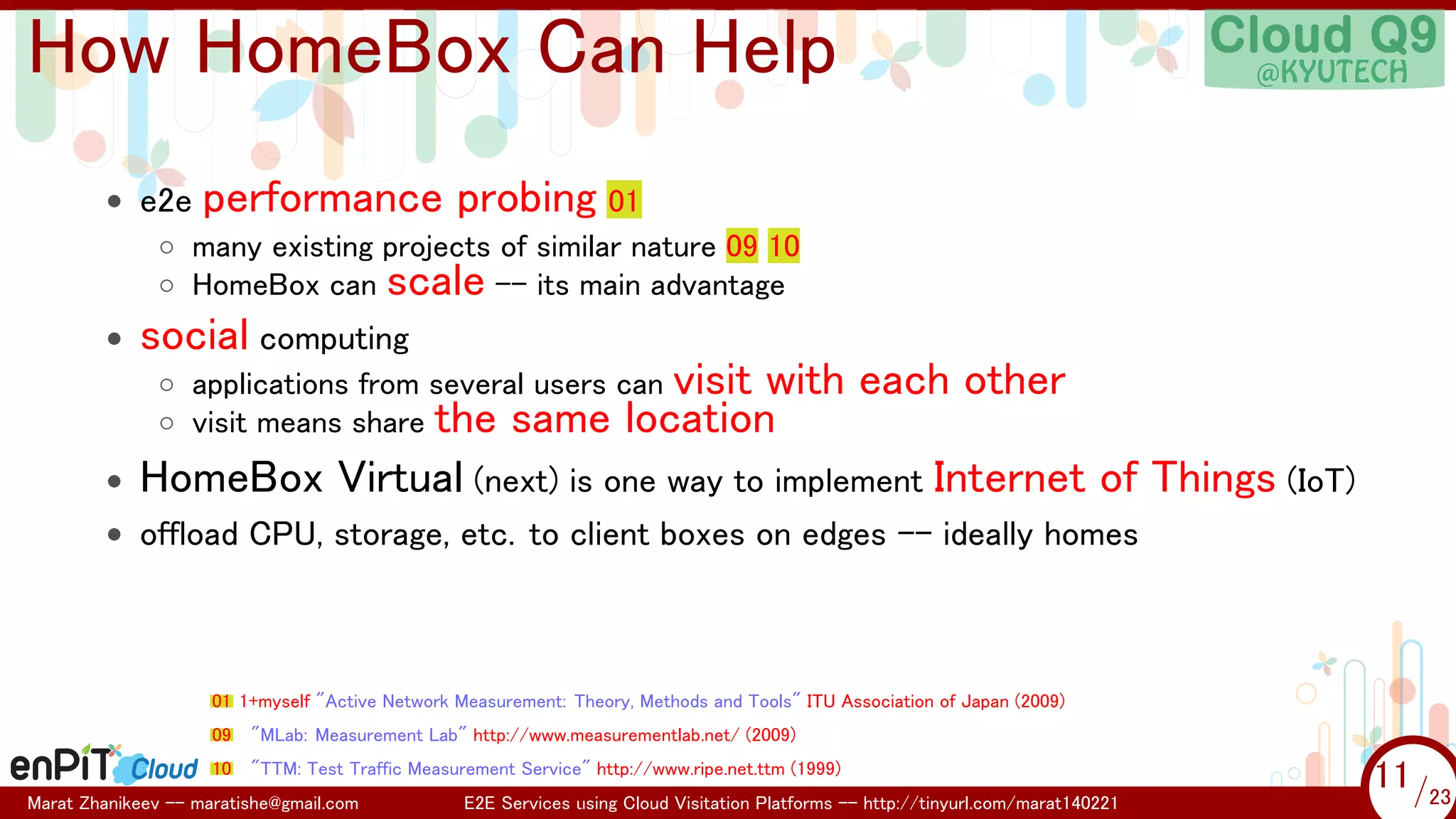

How HomeBox Can Help
• e2e performance probing 01
◦ many existing projects of similar nature 09 10
◦ HomeBox can scale -- its main advantage
•

social computing

•

HomeBox Virtual (next) is one way to implement Internet of Things (IoT)

◦ applications from several users can visit with
◦ visit means share the same location

each other

• offload CPU, storage, etc. to client boxes on edges -- ideally homes

01 1+myself "Active Network Measurement: Theory, Methods and Tools" ITU Association of Japan (2009)
09

"MLab: Measurement Lab" http://www.measurementlab.net/ (2009)

10

"TTM: Test Traffic Measurement Service" http://www.ripe.net.ttm (1999)



11 /23
11/23

.

.

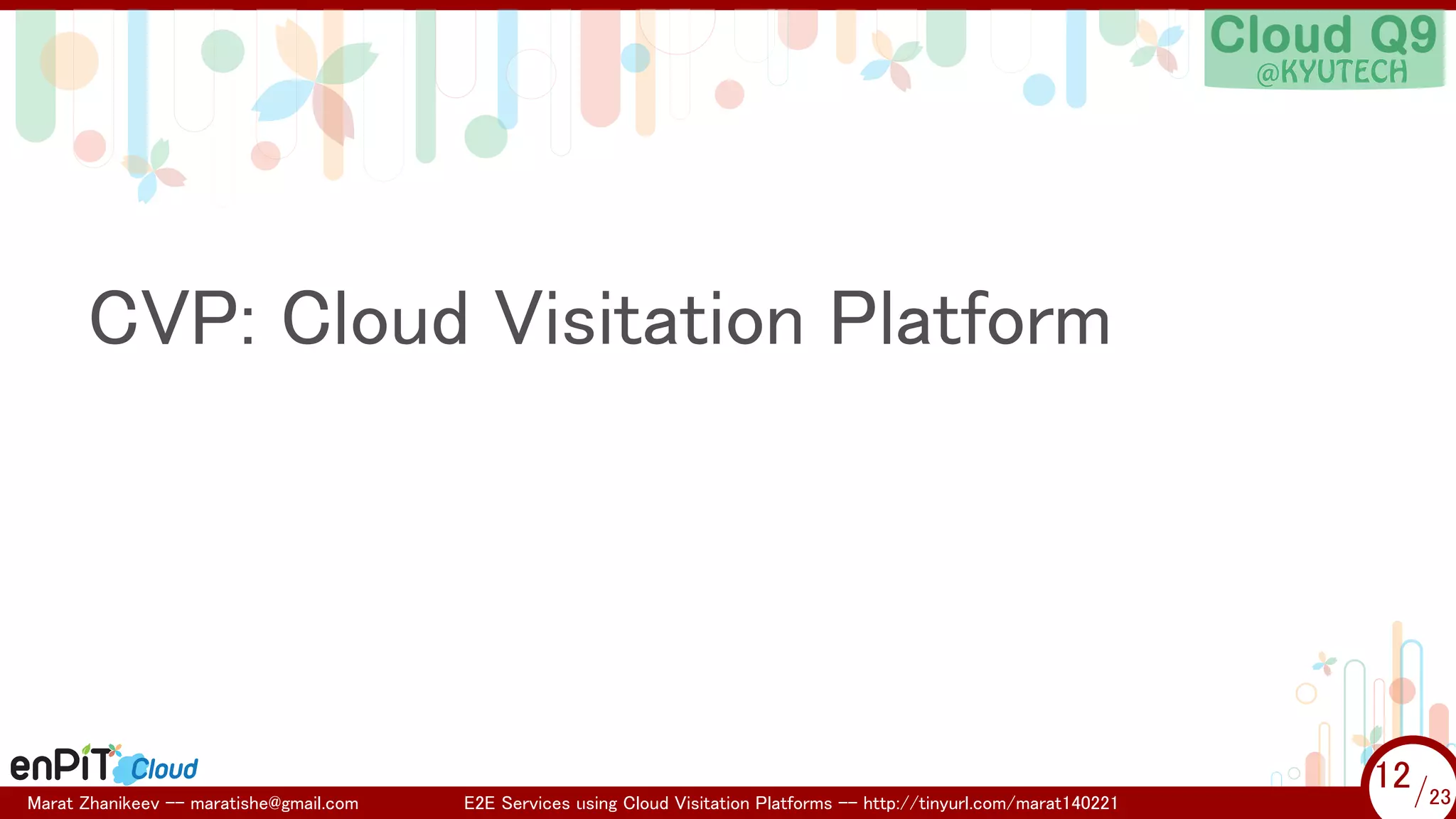

CVP: Cloud Visitation Platform



12 /23
12/23

.

.

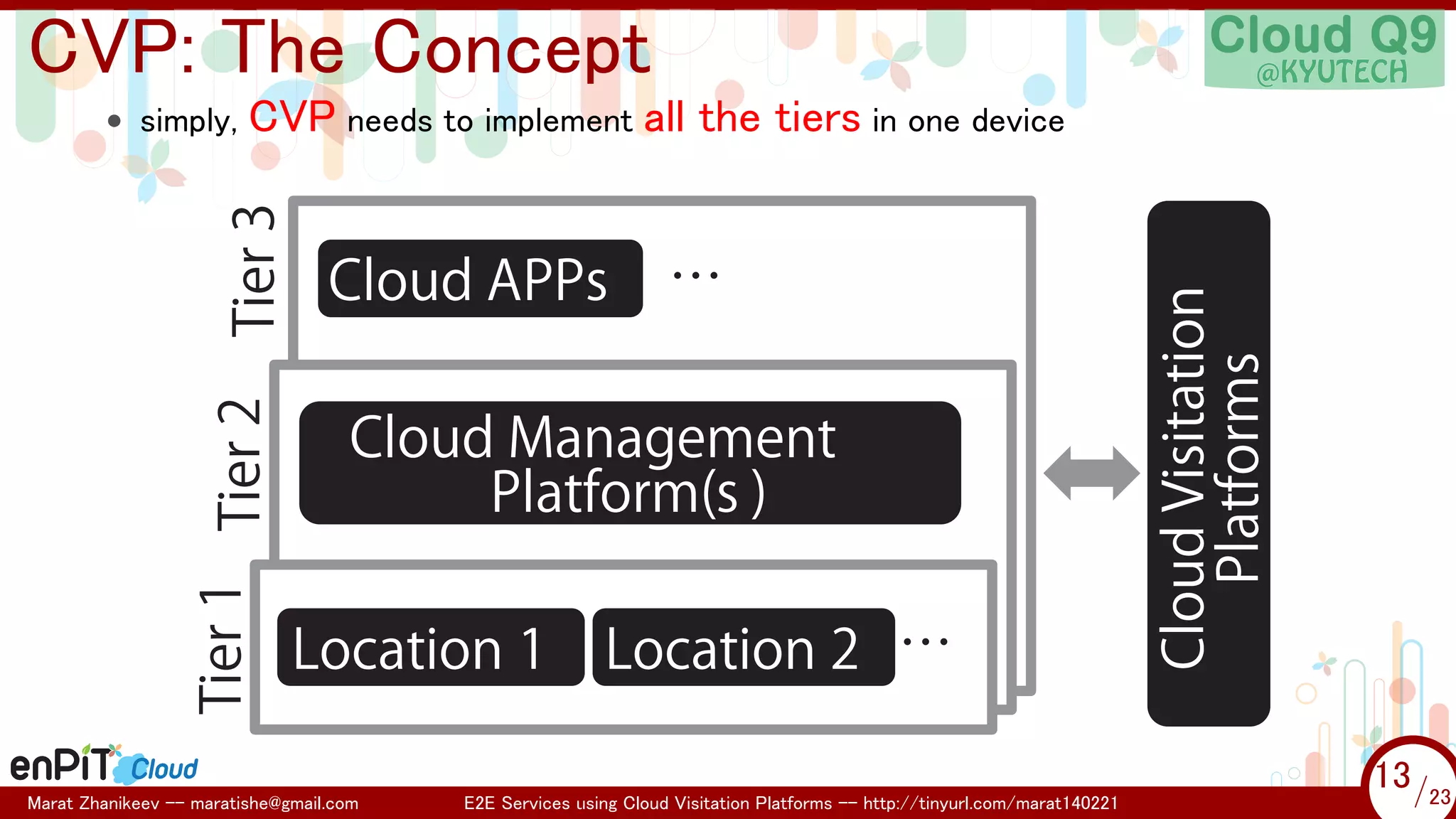

CVP: The Concept

Tier 1 Tier 2

Cloud APPs

…

Cloud Management
Platform(s )
Location 1


Location 2 …


Cloud Visitation
Platforms

CVP needs to implement all the tiers in one device

Tier 3

• simply,

13 /23
13/23

.

.

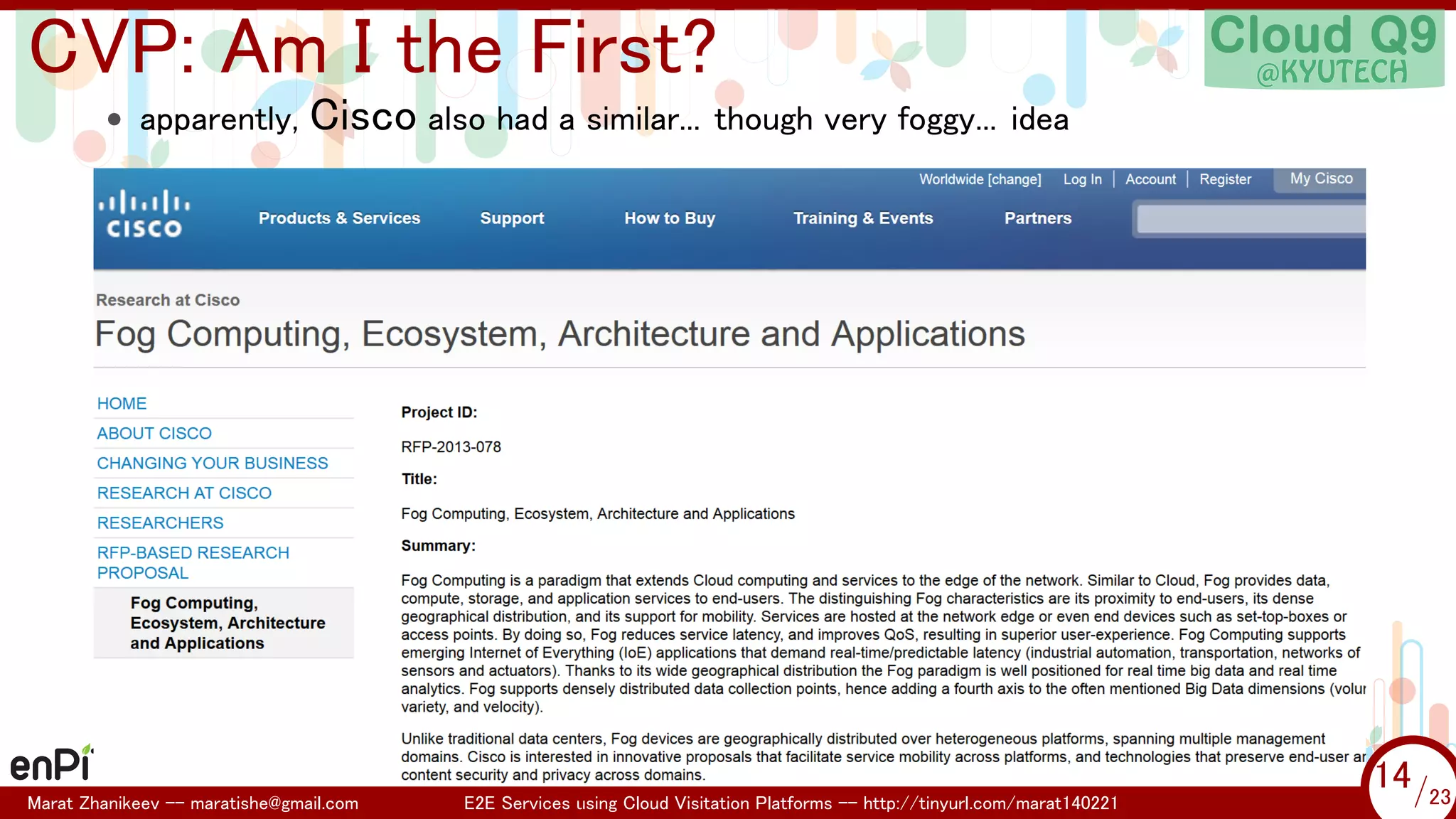

CVP: Am I the First?
• apparently,

Cisco also had a similar...


though very foggy... idea


14 /23
14/23

.

.

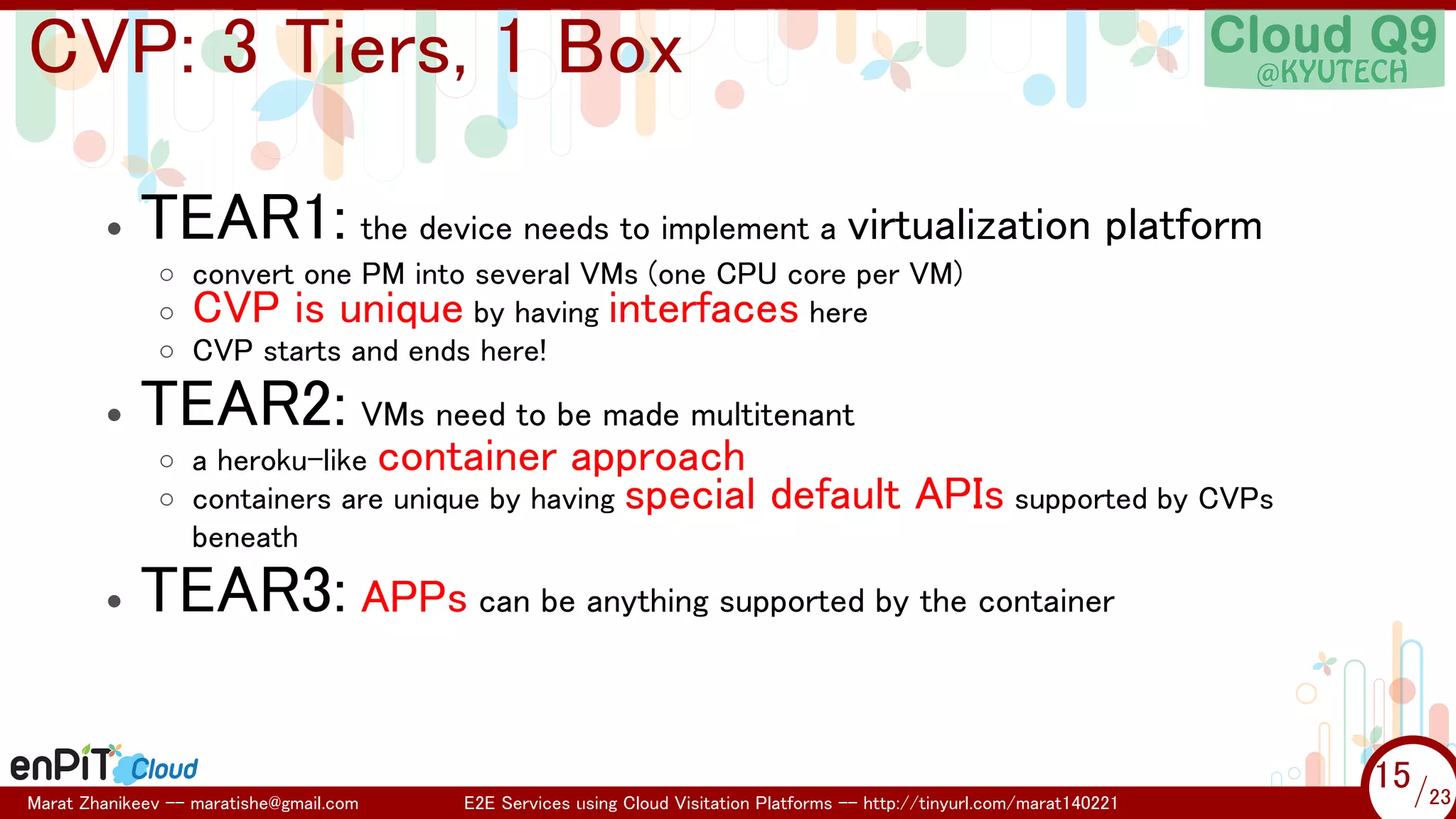

CVP: 3 Tiers, 1 Box
•

TEAR1: the device needs to implement a virtualization platform
◦ convert one PM into several VMs (one CPU core per VM)
◦ CVP is unique by having interfaces here
◦ CVP starts and ends here!

•

•

TEAR2: VMs need to be made multitenant
◦ a heroku-like container approach
◦ containers are unique by having special
beneath

default APIs supported by CVPs

TEAR3: APPs can be anything supported by the container



15 /23
15/23

.

.

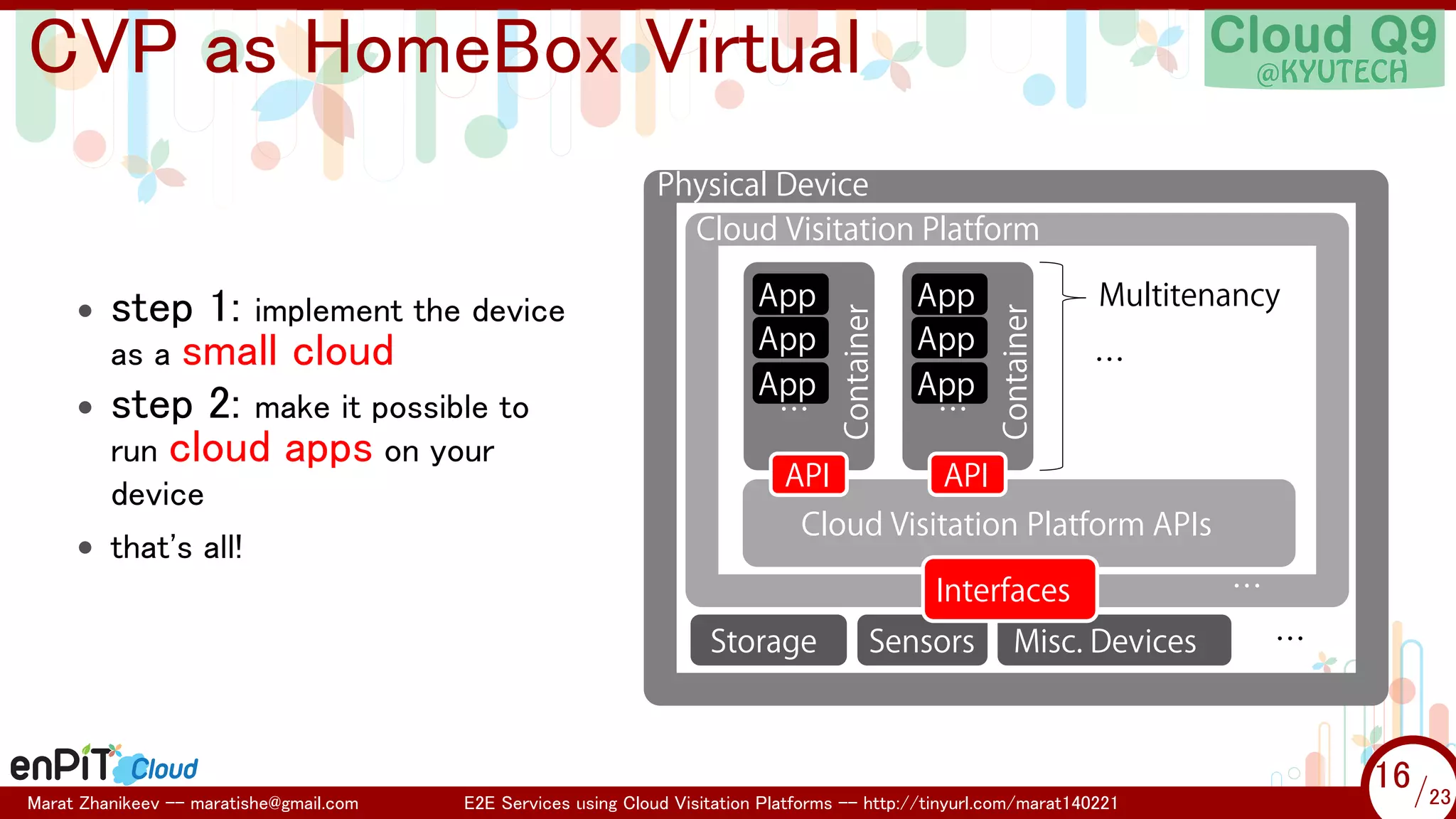

CVP as HomeBox Virtual

•

step 1: implement the device
as a small cloud
step 2: make it possible to
run cloud apps on your
device

• that's all!

App
App
App
…

API

Multitenancy
…

API

Cloud Visitation Platform APIs

Storage


App
App
App
…

Container

•

Container

Physical Device
Cloud Visitation Platform

Interfaces

Sensors

Misc. Devices


…

…

16 /23
16/23

.

.

CVP: Interfaces
• CVP apps would like to use

local resources

• CVP implements them as

Interfaces

• quotas, control, parallel access,

scheduling
• special-purpose devices are

possible -- sensors,
routers, etc.


wifi

Physical Device
App
App
App
…

API

App
App
App
…

Container

warning: a new
part!

Container

•

Multitenancy
…

API


Storage

Interfaces

Sensors

Misc. Devices


…

…

17 /23
17/23

.

.

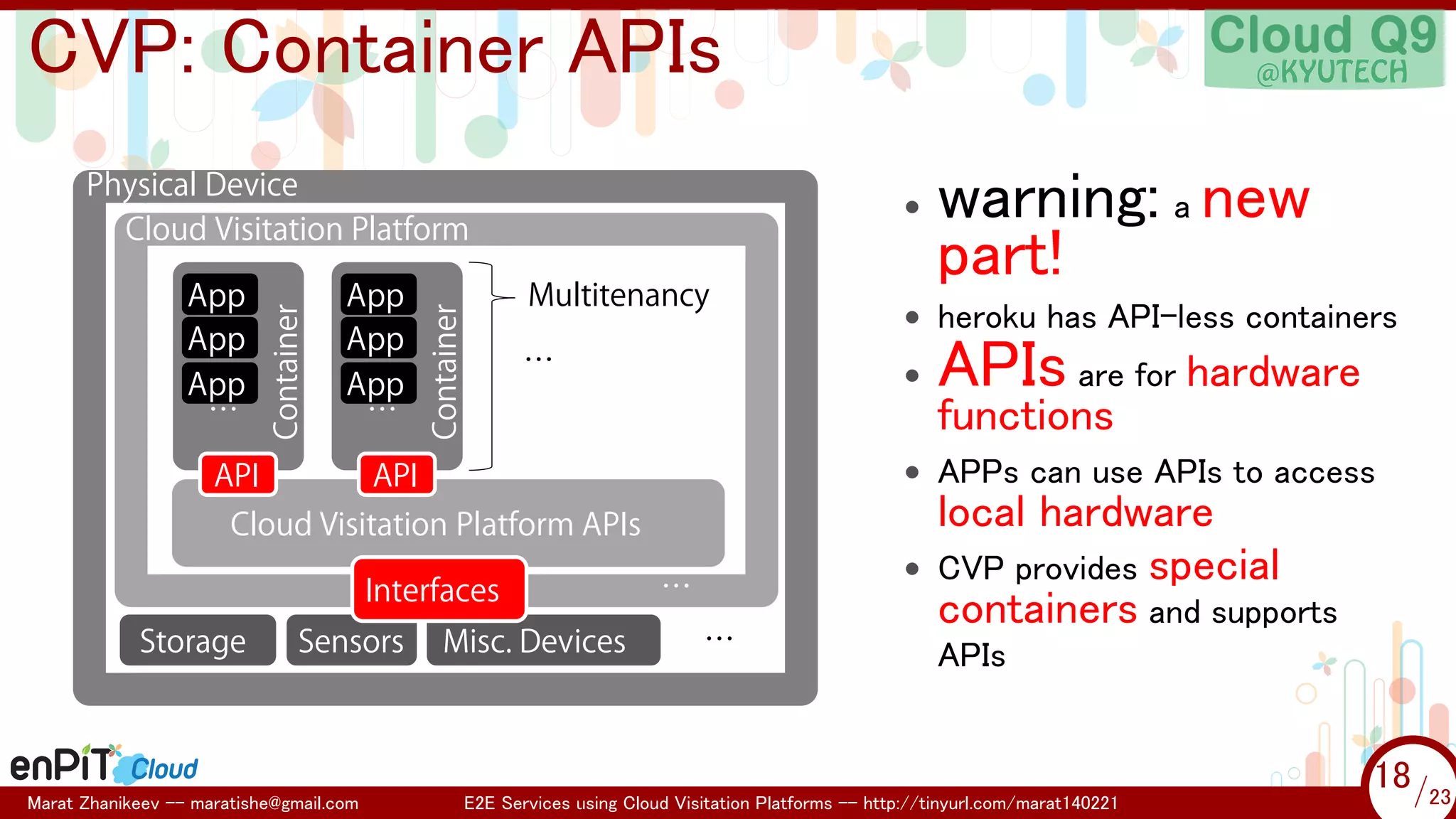

CVP: Container APIs
App
App
App
…

API

Container

App
App
App
…

Container

Physical Device

•
Multitenancy
…

• heroku has API-less containers
•

APIs are for hardware

functions

API

• APPs can use APIs to access

Interfaces

• CVP provides


Storage

warning: a new
part!

Sensors


Misc. Devices

…

…

local hardware
special
containers and supports

APIs


18 /23
18/23

.

.

Example Use: E2E Probing



19 /23
19/23

.

.

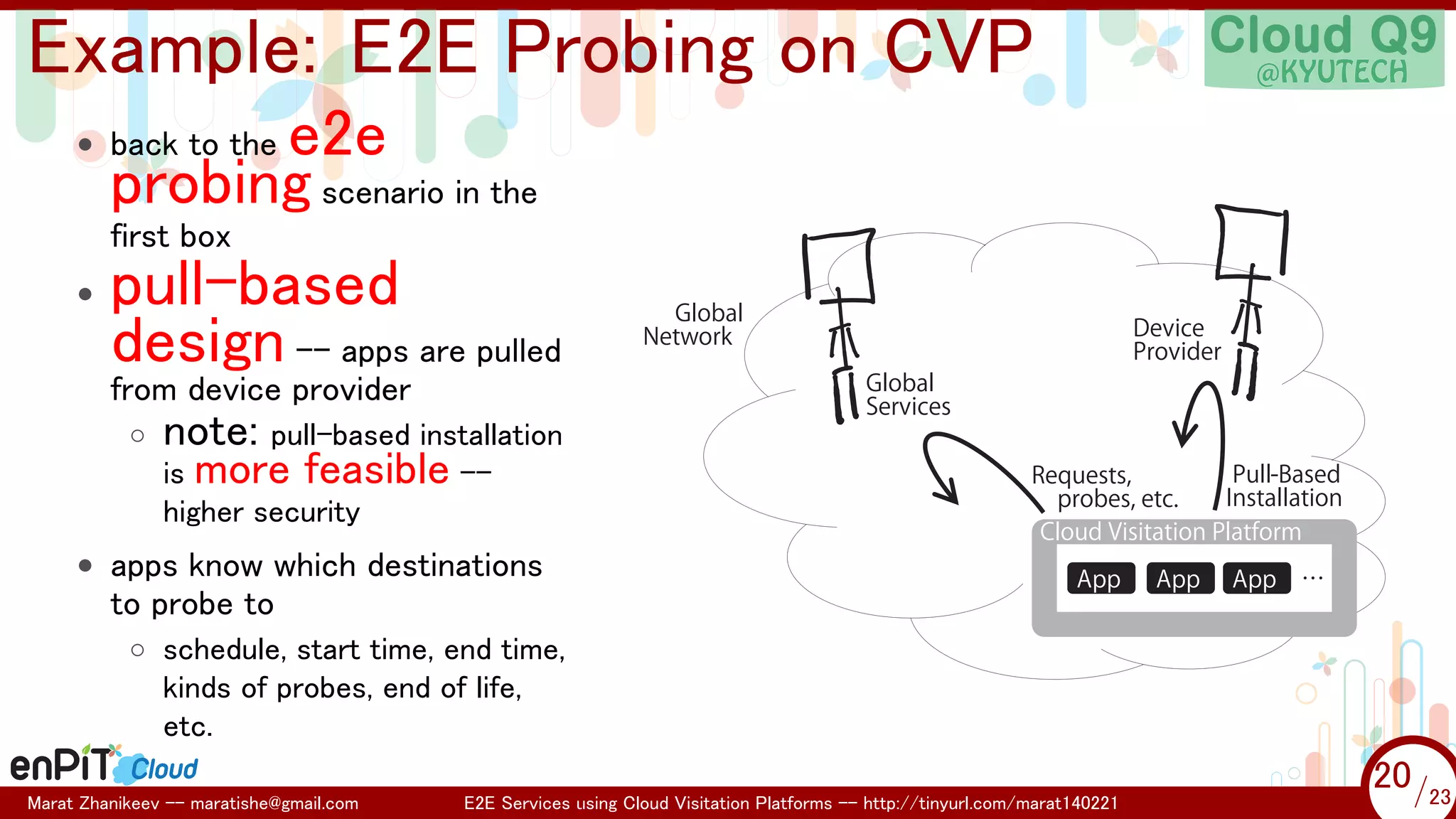

Example: E2E Probing on CVP
e2e
probing scenario in the

• back to the

first box
•

pull-based
design -- apps are pulled
from device provider
◦

note: pull-based installation
is more feasible -higher security

• apps know which destinations

to probe to

Global
Network

Device
Provider

Global
Services

Pull-Based
Requests,
Installation
probes, etc.
App

App

App

…

◦ schedule, start time, end time,
kinds of probes, end of life,
etc.


20 /23
20/23

.

.

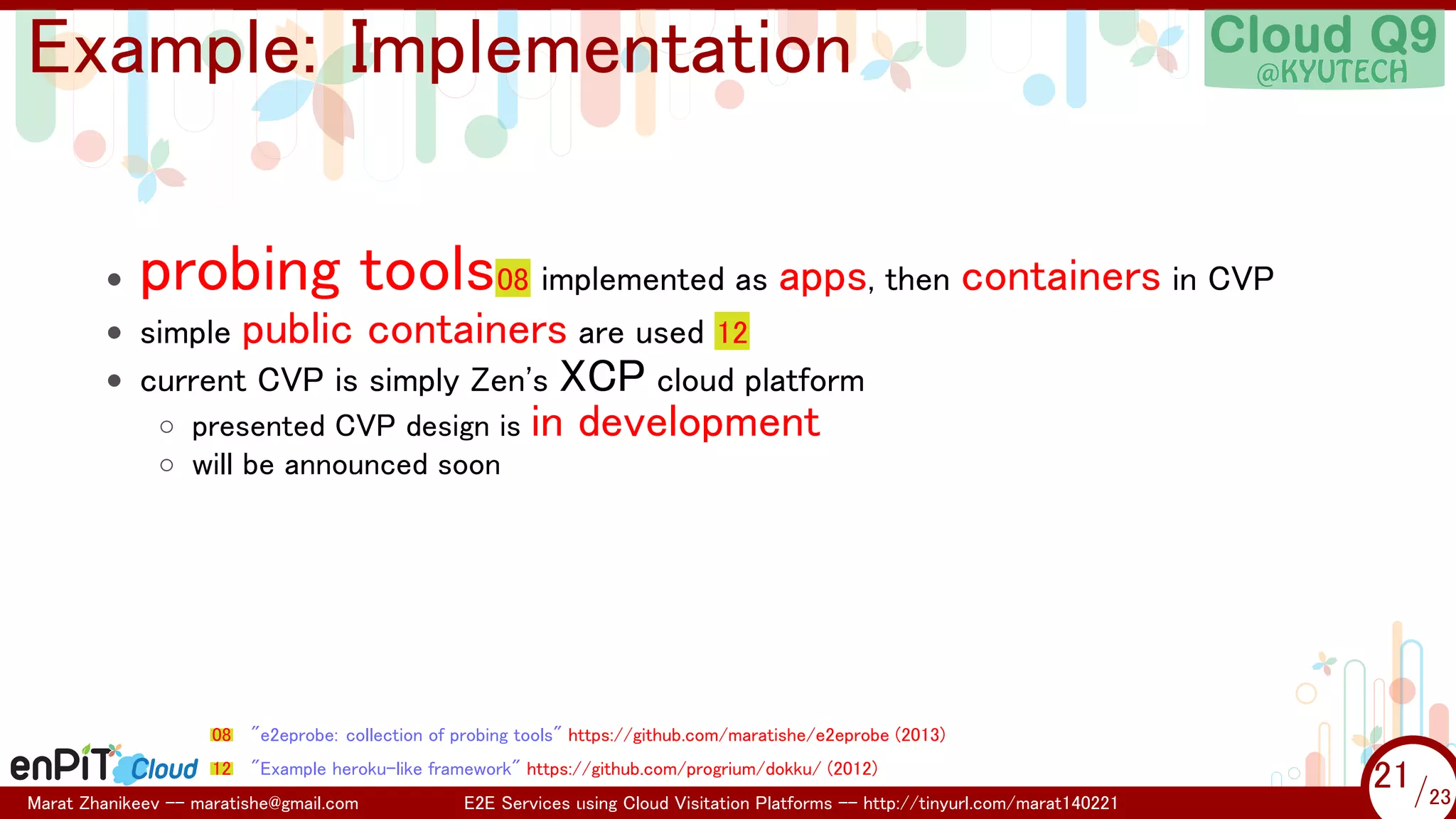

Example: Implementation
•

probing tools08 implemented as apps, then containers in CVP

• simple public containers are used 12
• current CVP is simply Zen's XCP cloud platform
◦ presented CVP design is in development
◦ will be announced soon

08

"e2eprobe: collection of probing tools" https://github.com/maratishe/e2eprobe (2013)

12

"Example heroku-like framework" https://github.com/progrium/dokku/ (2012)



21 /23
21/23

.

.

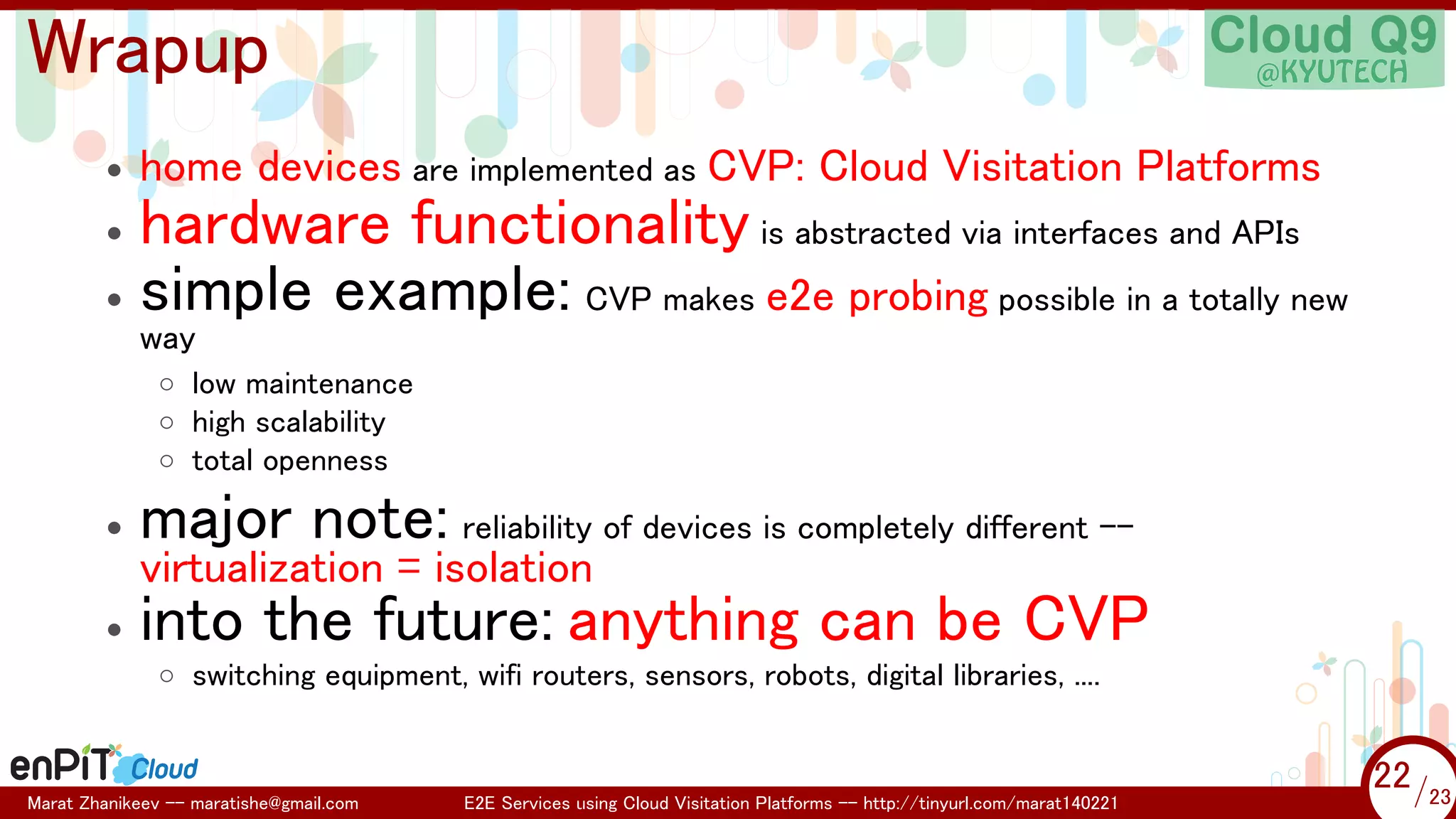

Wrapup
•

home devices are implemented as CVP: Cloud Visitation Platforms

hardware functionality is abstracted via interfaces and APIs
• simple example: CVP makes e2e probing possible in a totally new
•

way

◦ low maintenance
◦ high scalability
◦ total openness
•

major note: reliability of devices is completely different --

•

into the future: anything can be CVP

virtualization = isolation

◦ switching equipment, wifi routers, sensors, robots, digital libraries, ....



22 /23
22/23

.

.

That’s all, thank you ...



23 /23
23/23

.

.

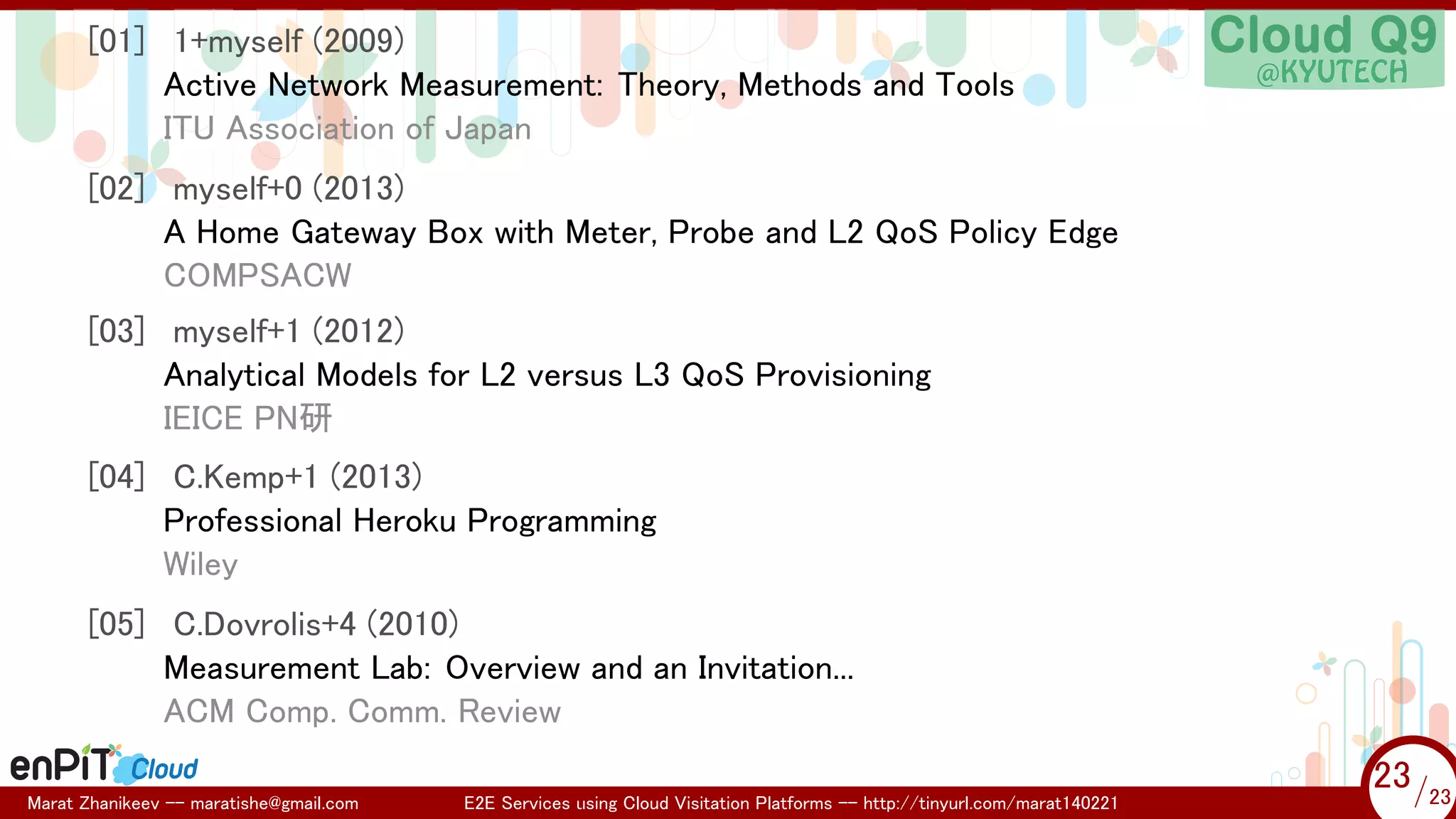

[01] 1+myself (2009)
Active Network Measurement: Theory, Methods and Tools
ITU Association of Japan
[02] myself+0 (2013)
A Home Gateway Box with Meter, Probe and L2 QoS Policy Edge
COMPSACW
[03] myself+1 (2012)
Analytical Models for L2 versus L3 QoS Provisioning
IEICE PN研
[04] C.Kemp+1 (2013)
Professional Heroku Programming
Wiley
[05] C.Dovrolis+4 (2010)
Measurement Lab: Overview and an Invitation...
ACM Comp. Comm. Review


23 /23
23/23

.

.

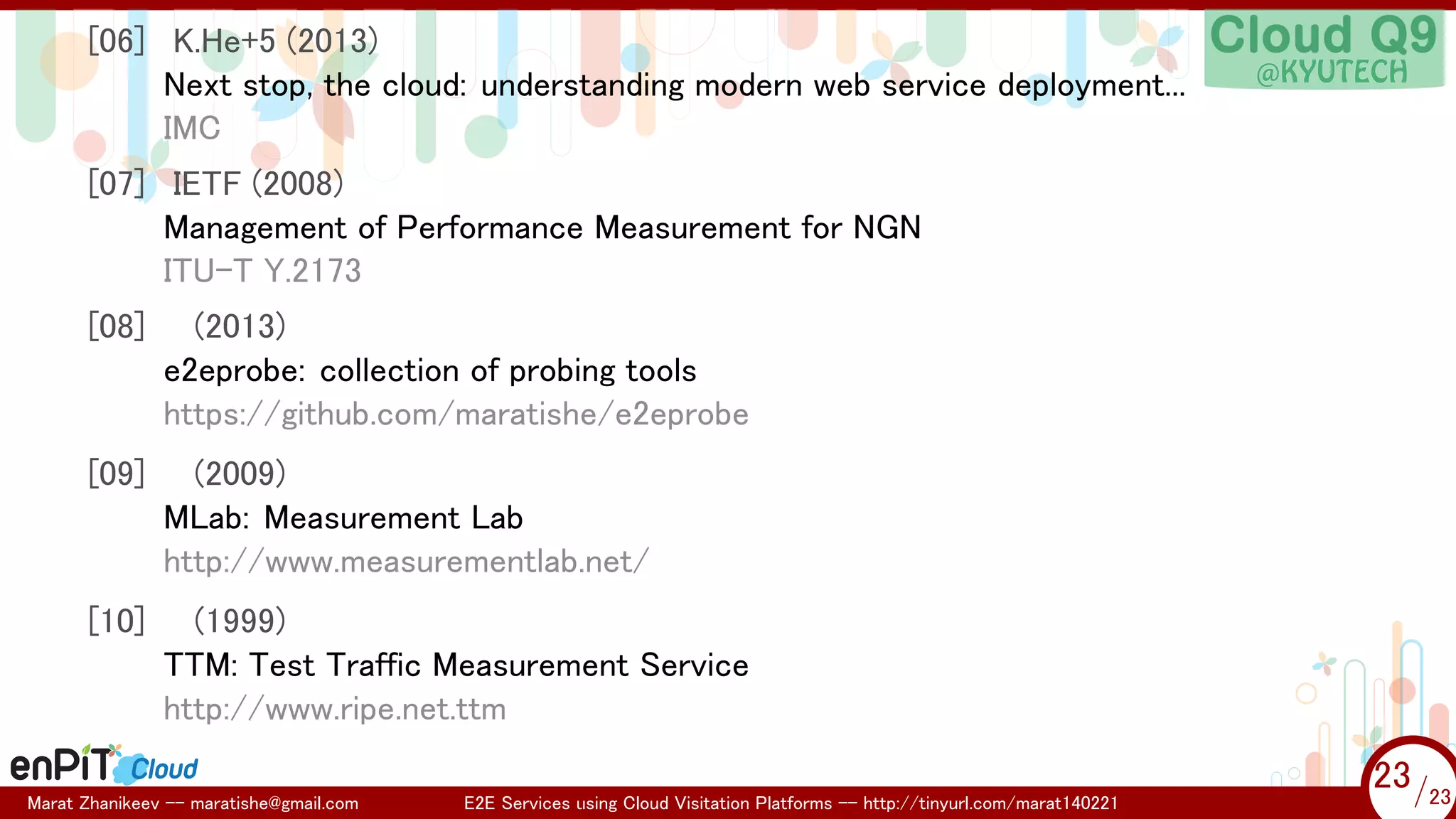

[06] K.He+5 (2013)
Next stop, the cloud: understanding modern web service deployment...
IMC
[07] IETF (2008)
Management of Performance Measurement for NGN
ITU-T Y.2173
[08]

(2013)
e2eprobe: collection of probing tools
https://github.com/maratishe/e2eprobe

[09]

(2009)
MLab: Measurement Lab
http://www.measurementlab.net/

[10]

(1999)
TTM: Test Traffic Measurement Service
http://www.ripe.net.ttm



23 /23
23/23

.

.

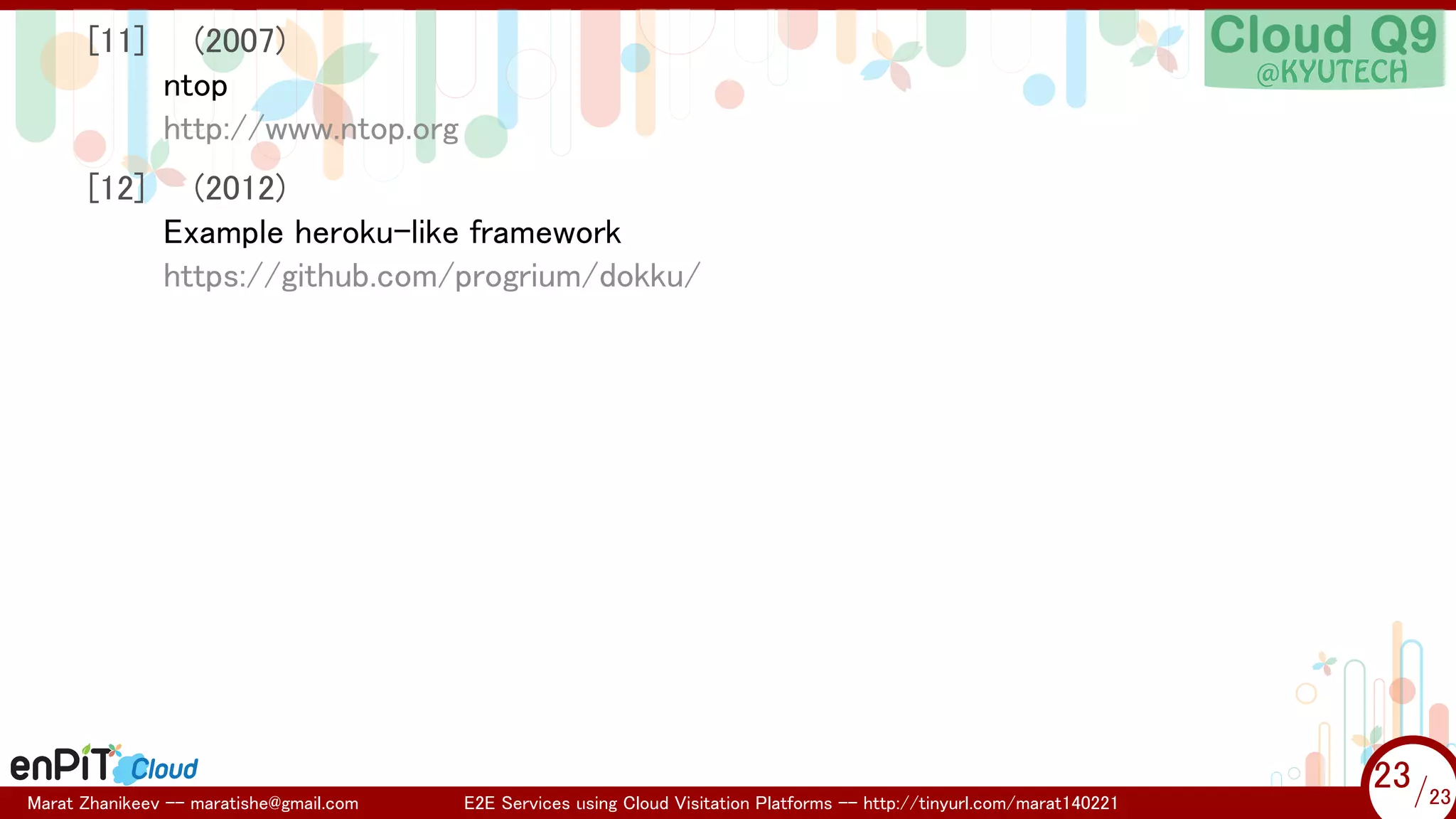

[11]

(2007)
ntop
http://www.ntop.org

[12]

(2012)
Example heroku-like framework
https://github.com/progrium/dokku/



23 /23
23/23
