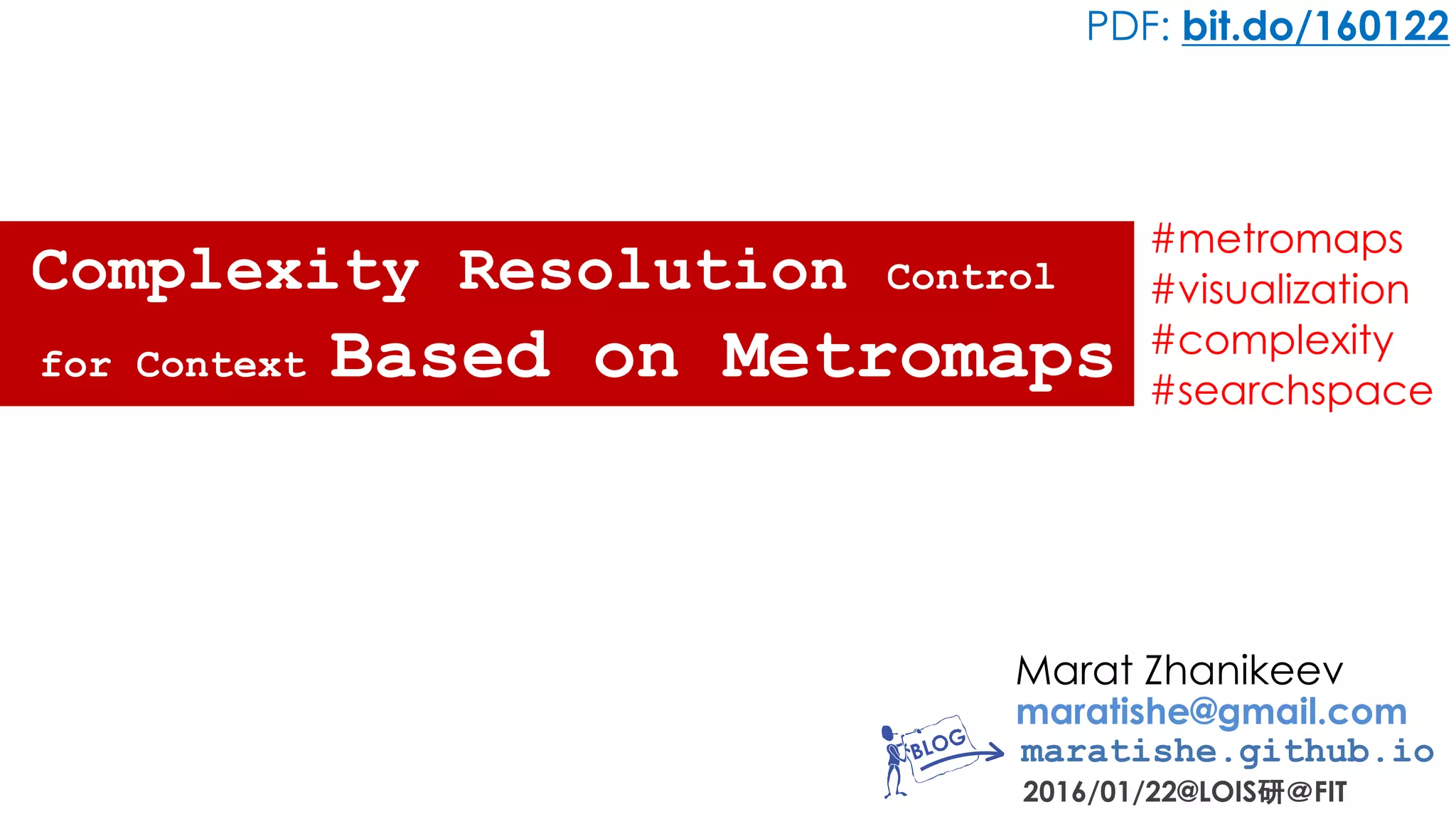

Complexity Resolution Control for Context Based on Metromaps

Marat Zhanikeev
maratishe@gmail.com
maratishe.github.io
2016/01/22@LOIS研＠FIT
Complexity Resolution Control
PDF: bit.do/160122
for Context Based on Metromaps
#metromaps
#visualization
#complexity
#searchspace

.

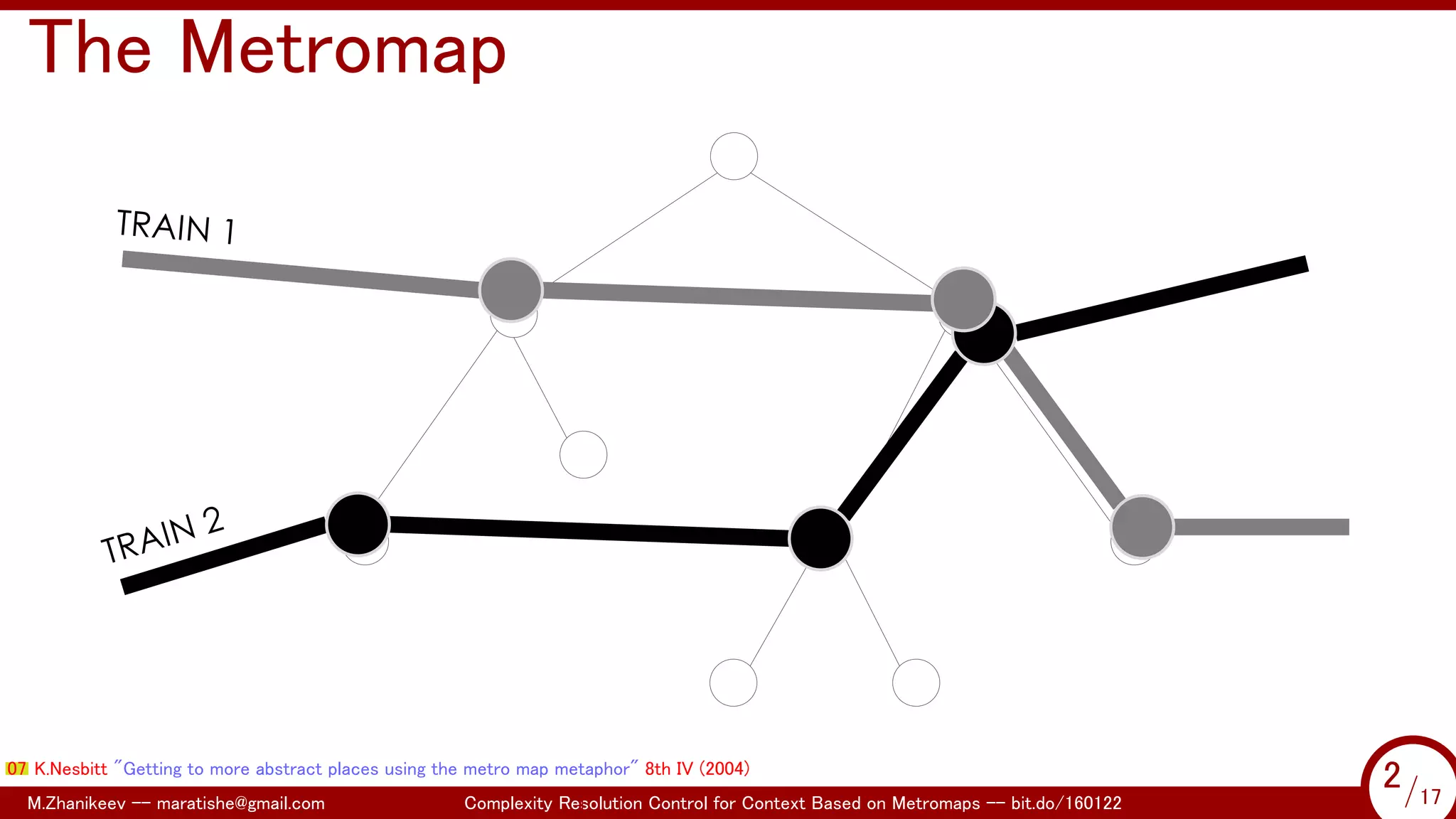

The Metromap
07 K.Nesbitt "Getting to more abstract places using the metro map metaphor" 8th IV (2004)
M.Zhanikeev -- maratishe@gmail.com Complexity Resolution Control for Context Based on Metromaps -- bit.do/160122 2/17
...
2/17

.
Metromaps in Practice
...
3/17

.
In Practice: Context Management + AI
Rebot
(careless)
Input
Human
Human
{structure}
(pinpoint)
Select
Browse
(or use otherwise)
Some
Knowledge
(folksonomies,
knowledge bases,
databases, indexes,
ontologies, etc.)
(metromaps )
...
4/17

.
Metromaps: Lines and Stations
01 M.Zhanikeev "Multidimentional Classification Automation with Human Interface based on Metromaps" 4th AII (2015)
...
5/17

.
Data for this Study (tourism)
• comes from real Big Data -- not supposed to share the source, yet public
• tourism stats: location, category (culture, food, ...), class (local/inbound), age
• blue line connects randomly selected stations on each data line
location
category
age
class
location
category
age
class
add
...
6/17

.
Complexity Resolution
...
7/17

.
Concepts and Connections
• applied to decisions which have to deal with a large search space
◦ big data analysis, robotics, social systems
• traditional ontologies → metromaps
• complexity resolution control = growing/shrinking area around the main
station on the metromap
...
8/17

.
Metromap and Distribution Curves
0 5 10 15 20 25 30 35 40 45
Decreasing order
4.55
4.9
5.25
5.6
5.95
6.3
6.65
7
7.35
7.7
8.05
log(1+v)
• the same tourism big
data
• each curve is distribution
of mass across
values=stations
• distributions are often with
hotspots 02
• metromap is a network
that overlays the curves
02 M.Zhanikeev "The Next Generation of Networks is all about Hotspot Distributions and Cut-Through Circuits" IEICE・CQ研 (2015)
...
9/17

.
SameLine and AnyLine Models
B
Line 1
Line 2 Line 3
A
Same -line,
1 station away (from A)
Any line,
2 stations away
(from B)
• same line : can include
other stations on the same line,
but not transfer to another line
• any line: can transfer to
other lines
• note: the assumption is that
some stations are shared by
two or more lines
...
10/17

.
Results
0 10 20 30 40 50
Increasing sequence
5.6
5.95
6.3
6.65
7
7.35
7.7
log(1+growth)
Cross#2 Hops#1
0 20 40 60
Increasing sequence
6.3
6.65
7
7.35
7.7
8.05
8.4
log(1+growth)
Cross#2 Hops#2
0 10 20 30 40 50
Increasing sequence
7
7.5
8
8.5
log(1+growth)
Cross#2 Hops#3
SamelineAnyline
0 20 40 60
Increasing sequence
5.6
6
6.4
6.8
7.2
7.6
log(1+growth)
Cross#3 Hops#1
0 20 40 60
Increasing sequence
6.3
6.65
7
7.35
7.7
8.05
8.4
log(1+growth)
Cross#3 Hops#2
0 20 40 60
Increasing sequence
6.3
6.65
7
7.35
7.7
8.05
8.4
log(1+growth)
Cross#3 Hops#3
• aggregated data:
number of
tourists
• each column is for
a given number of
hops from a randomly
selected station
• each row is for the
number of intersecting
lines
• beware the log scale
...
11/17

.
On the Other Side...
...
12/17

.
Inverse Problem: Growing Search Space
0 5 10 15 20 25 30 35 40 45
Decreasing order
4.55
4.9
5.25
5.6
5.95
6.3
6.65
7
7.35
7.7
8.05
log(1+v)
• the same input: metromap
overlaying distribution
curves
• different objective: maximize
count increment for a
minimum increase in
station coverage
• translated into tourism: how to
maximize increase in
number of tourists at
minimal cost
...
13/17

.
Inverse Problem Results
• response to unit cost, adding only one station on a randomly selected line
0 2.65 5.3 7.95 10.6 13.25 15.9 18.55 21.2 23.85
Decreasing order
0
200
400
600
800
1000
1200
1400
1600
1800
Addedvalue(x10,000people)
agecategorylocationclass
...
14/17

.
That’s all, thank you ...
...
15/17

.
More on Data and Metromaps
Kind of
tourism
Age
Inbound
(inside)
Japan
未成年若年層中年層老年層
Place
北海道東京都京都府福岡県 ……
Kind of
activity
食べる温泉 …
…
Young people who
come from abroad to
Tokyo on a food tour.
Tourist counts on
similar tours to
Sapporo is much
smaller
What is the cost/benefit
of connecting these?
• if you plot only the raw = base
bigdata, then lines never intersect --
such a metromap is no fun
• the point is to connect all lines by
selecting a specific case = kind of
tourist
• note: this is one of many ways to
generate metromaps in practice
...
16/17

.
You Know This as "Social Media"
• I call it head biting tail model, means: popular items connect to rarely
visited ones
Decreasing order
You can try
to lift the tail
by itself...But it is
much easier
to connect
head with tail.
...
17/17
