1. Switching Logic
Marat Zhanikeev
maratishe@gmail.com
maratishe.github.io
2016/04/22@CS研＠IEICE
On a Hybrid
PDF: bit.do/160422
Packets-and-Circuits
#packets #circuits
#virtualization #cdn
#cutthrough
#bulktransfer #bigdata
#hotspots

2. .

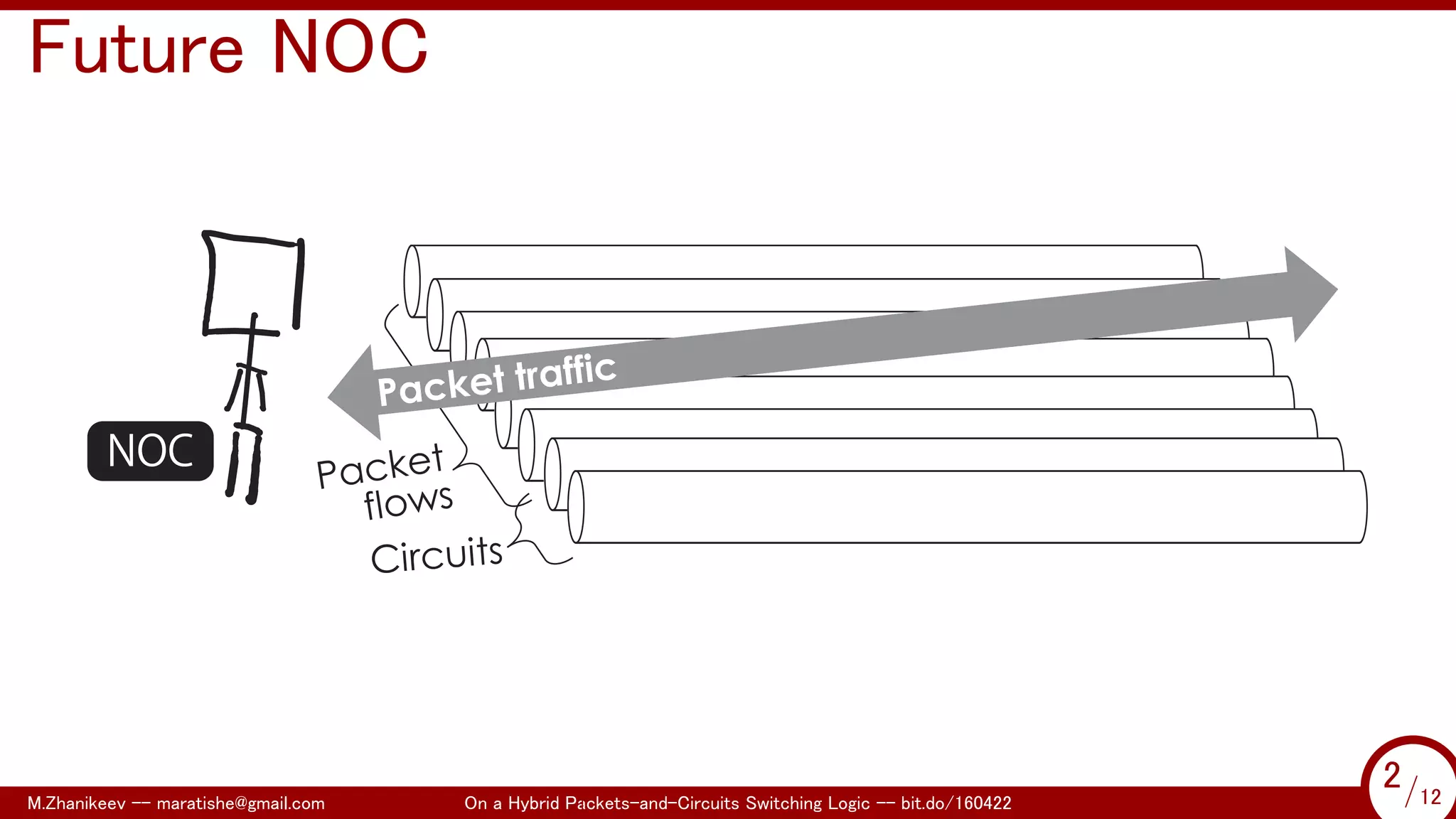

Future NOC
NOC
M.Zhanikeev -- maratishe@gmail.com On a Hybrid Packets-and-Circuits Switching Logic -- bit.do/160422 2/12
...
2/12

3. .

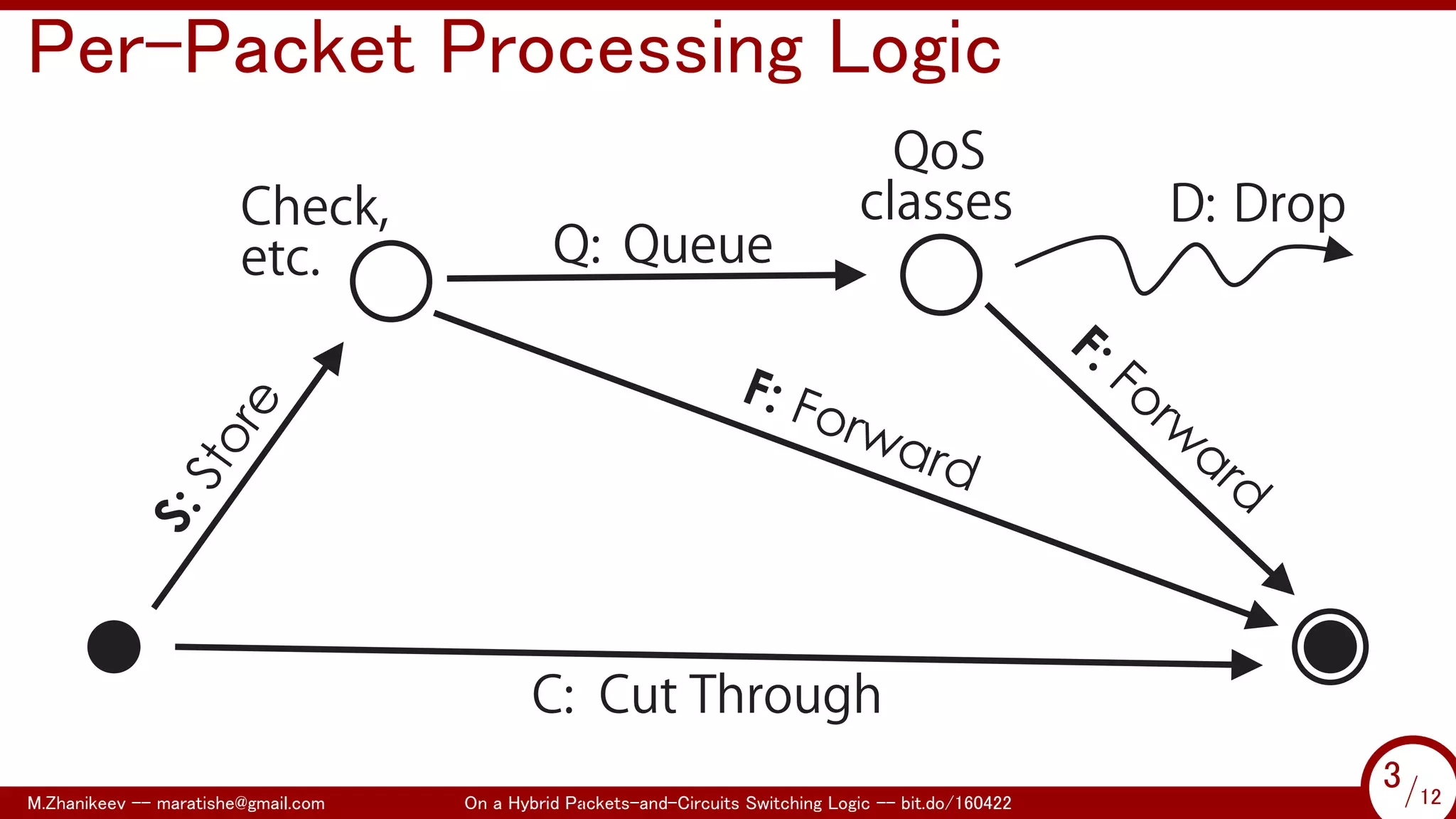

Per-Packet Processing Logic
C: Cut Through
Check,
etc. Q: Queue
D: Drop
QoS
classes
M.Zhanikeev -- maratishe@gmail.com On a Hybrid Packets-and-Circuits Switching Logic -- bit.do/160422 3/12
...
3/12

4. .

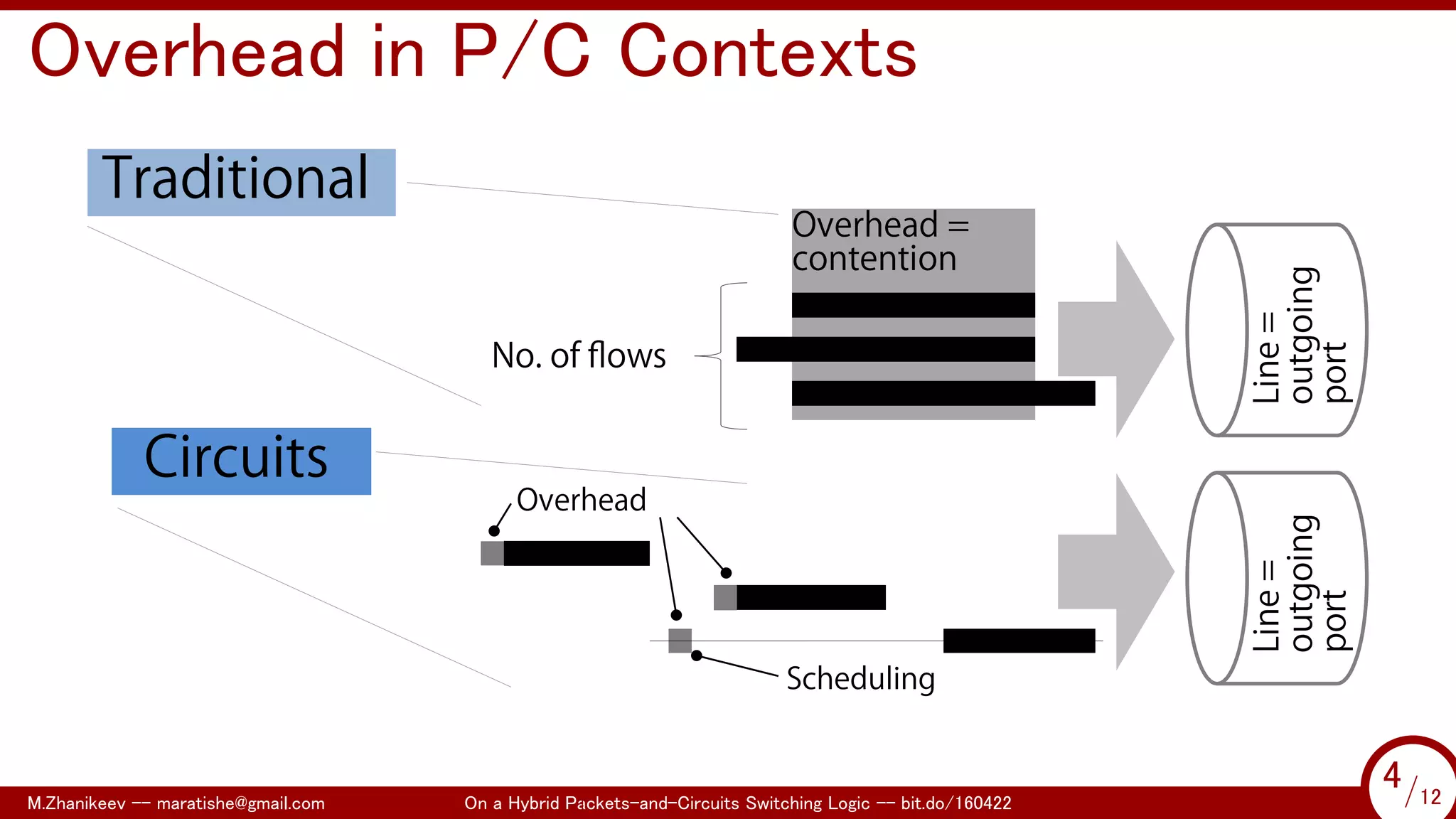

Overhead in P/C Contexts
Line=
outgoing
port
Overhead =
contention
No. of flows
Line=
outgoing
port
Overhead
Scheduling
Traditional
Circuits
M.Zhanikeev -- maratishe@gmail.com On a Hybrid Packets-and-Circuits Switching Logic -- bit.do/160422 4/12
...
4/12

5. .

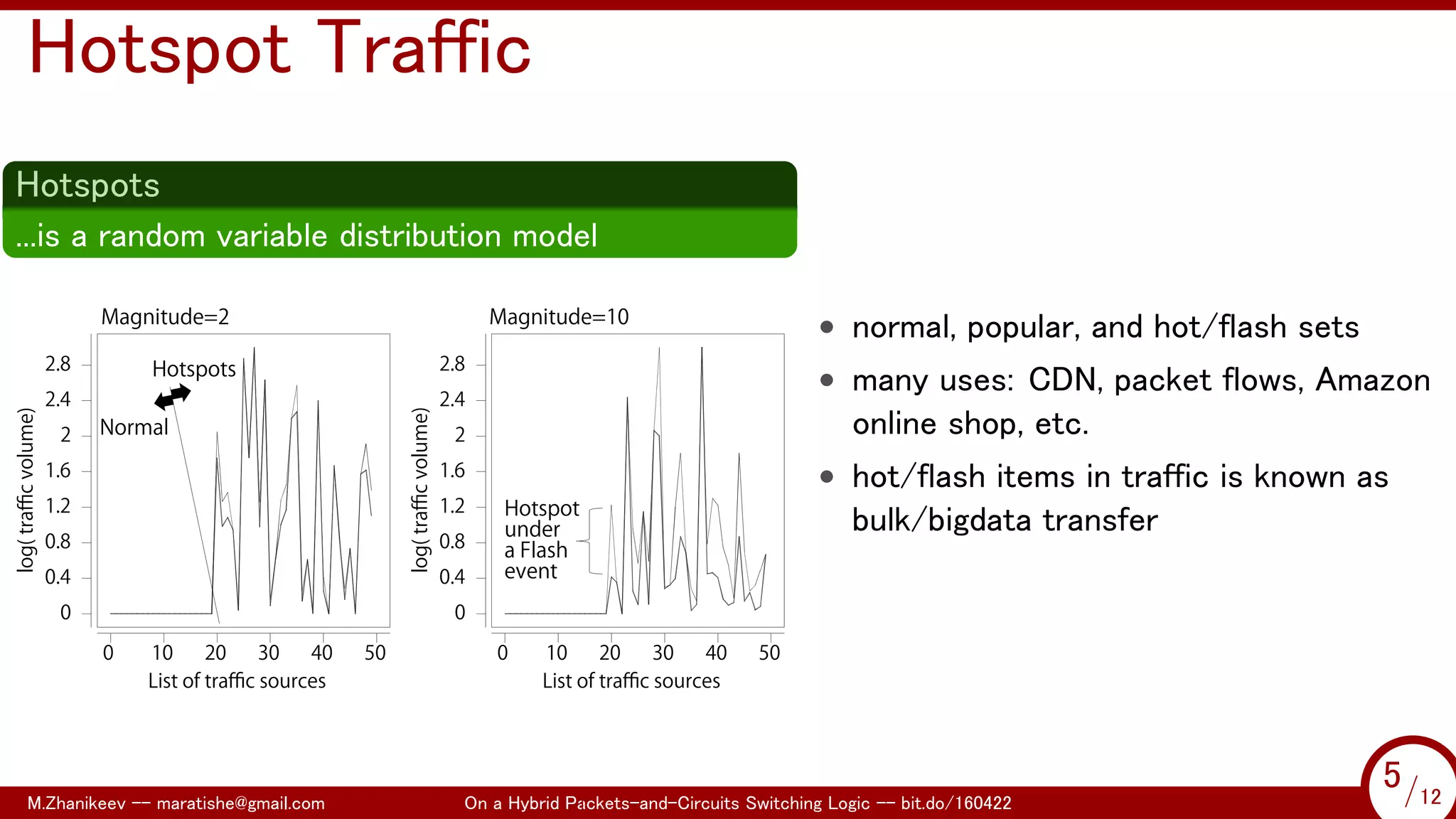

Hotspot Traffic
.
Hotspots
..
....is a random variable distribution model
0 10 20 30 40 50
List of traffic sources
0
0.4
0.8
1.2
1.6
2
2.4
2.8
log(trafficvolume)
0 10 20 30 40 50
List of traffic sources
0
0.4
0.8
1.2
1.6
2
2.4
2.8
log(trafficvolume)
Magnitude=2 Magnitude=10
Hotspots
Normal
Hotspot
under
a Flash
event
• normal, popular, and hot/flash sets
• many uses: CDN, packet flows, Amazon
online shop, etc.
• hot/flash items in traffic is known as
bulk/bigdata transfer
M.Zhanikeev -- maratishe@gmail.com On a Hybrid Packets-and-Circuits Switching Logic -- bit.do/160422 5/12
...
5/12

6. .

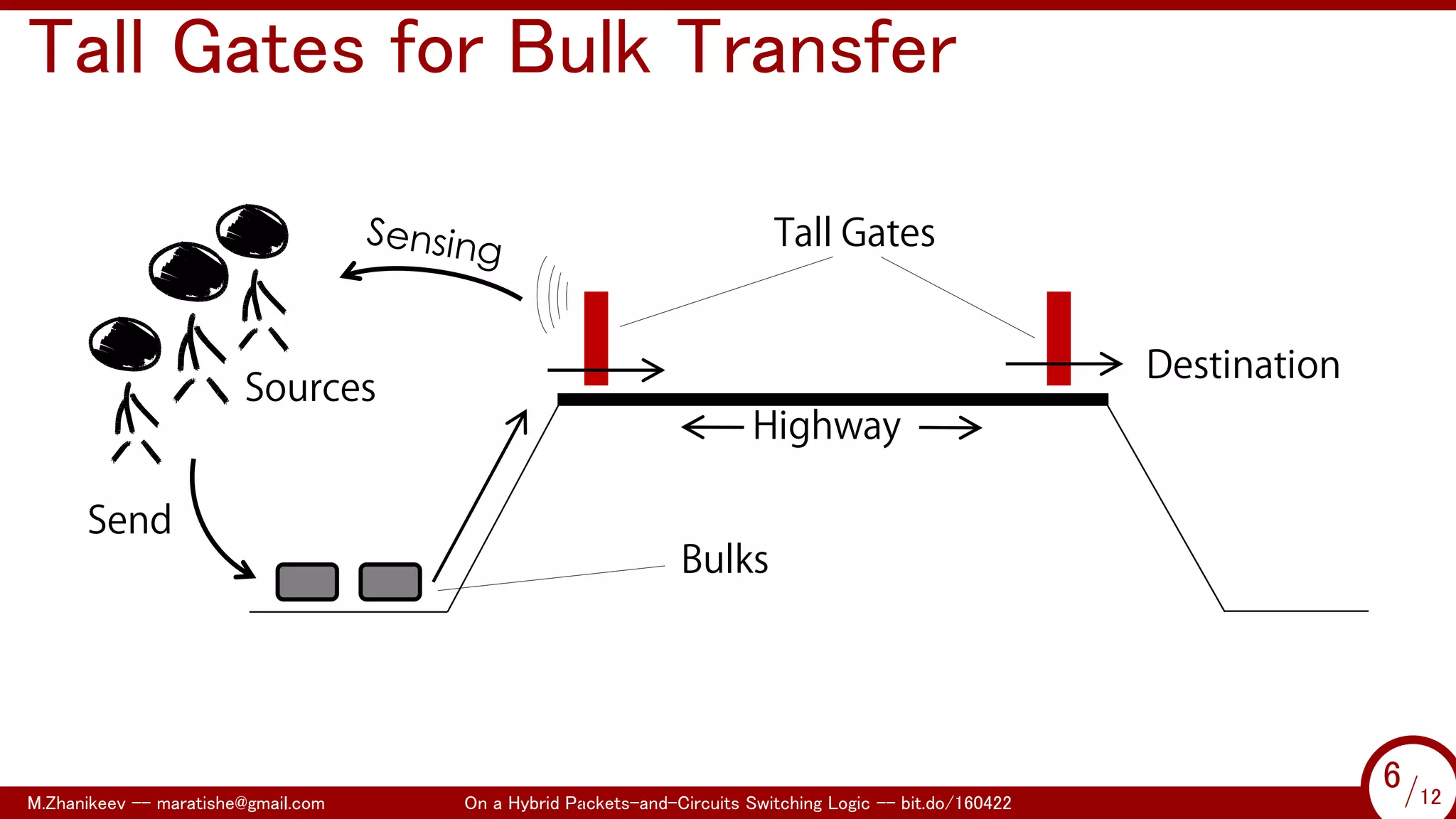

Tall Gates for Bulk Transfer
Tall Gates
Bulks
Send
Highway
Sources
Destination
M.Zhanikeev -- maratishe@gmail.com On a Hybrid Packets-and-Circuits Switching Logic -- bit.do/160422 6/12
...
6/12

7. .
Experiments
M.Zhanikeev -- maratishe@gmail.com On a Hybrid Packets-and-Circuits Switching Logic -- bit.do/160422 7/12
...
7/12

8. .

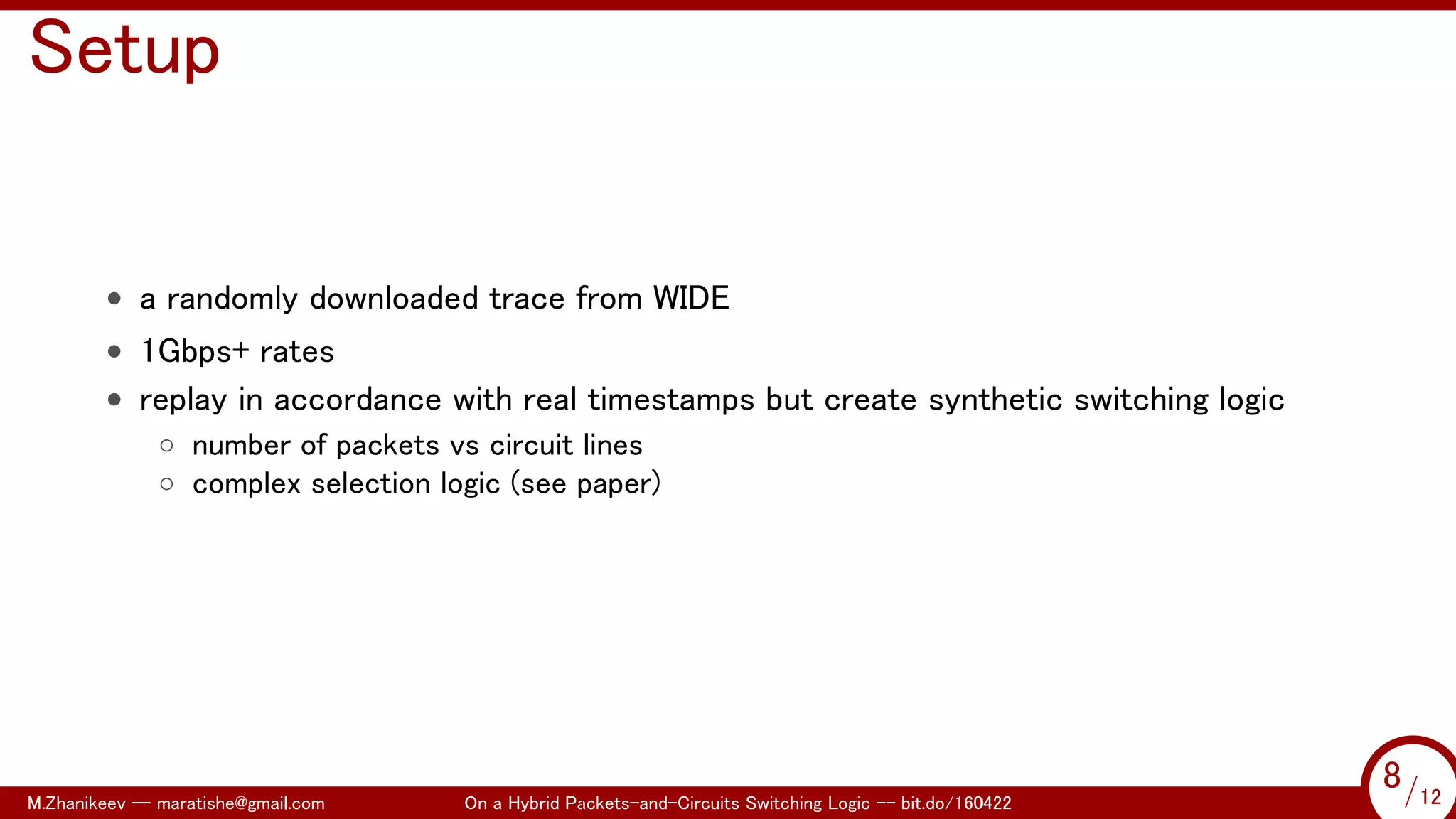

Setup
• a randomly downloaded trace from WIDE
• 1Gbps+ rates
• replay in accordance with real timestamps but create synthetic switching logic
◦ number of packets vs circuit lines
◦ complex selection logic (see paper)
M.Zhanikeev -- maratishe@gmail.com On a Hybrid Packets-and-Circuits Switching Logic -- bit.do/160422 8/12
...
8/12

9. .

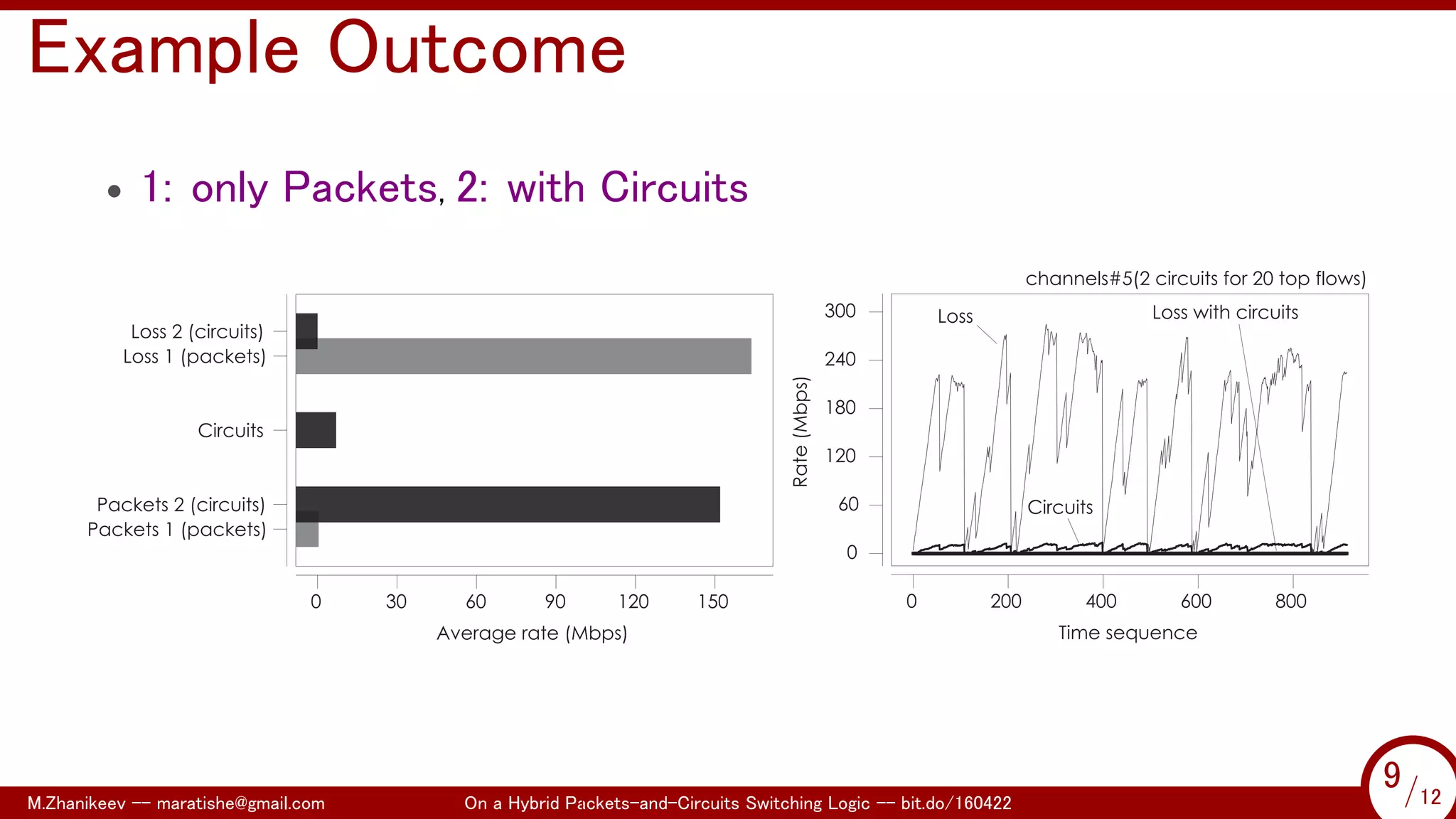

Example Outcome
• 1: only Packets, 2: with Circuits
0 30 60 90 120 150
Average rate (Mbps)
Packets 1 (packets)
Loss 1 (packets)
Packets 2 (circuits)
Circuits
Loss 2 (circuits)
channels#5(2 circuits for 20 top flows)
0 200 400 600 800
Time sequence
0
60
120
180
240
300
Rate(Mbps)
Loss
Circuits
Loss with circuits
M.Zhanikeev -- maratishe@gmail.com On a Hybrid Packets-and-Circuits Switching Logic -- bit.do/160422 9/12
...
9/12

10. .

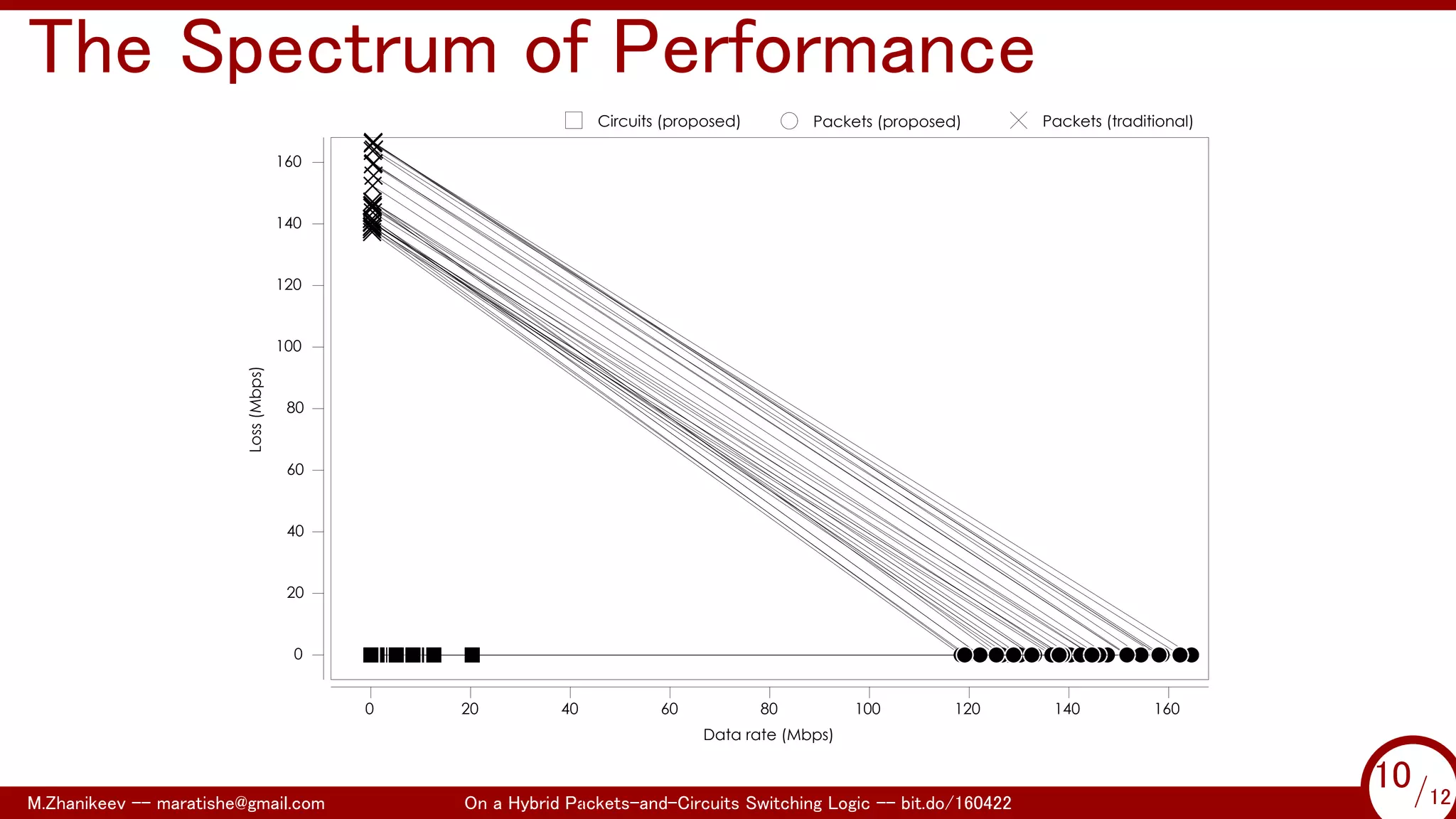

The Spectrum of Performance
0 20 40 60 80 100 120 140 160
Data rate (Mbps)
0
20
40
60
80
100
120
140
160
Loss(Mbps)
Packets (traditional)Packets (proposed)Circuits (proposed)
M.Zhanikeev -- maratishe@gmail.com On a Hybrid Packets-and-Circuits Switching Logic -- bit.do/160422 10/12
...
10/12

11. .
That’s all, thank you ...
M.Zhanikeev -- maratishe@gmail.com On a Hybrid Packets-and-Circuits Switching Logic -- bit.do/160422 11/12
...
11/12

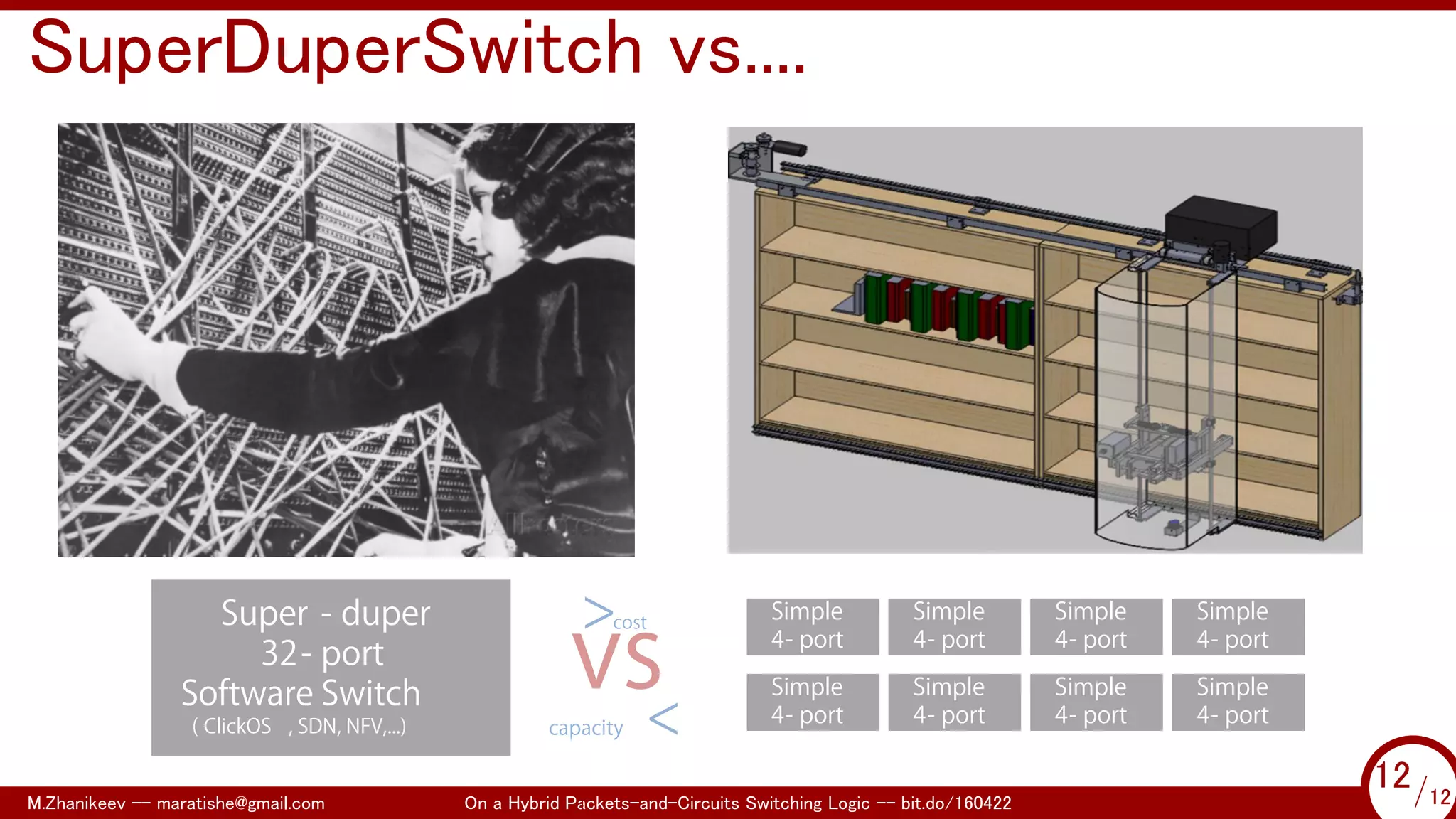

12. .
SuperDuperSwitch vs....
Super - duper
32- port
Software Switch
( ClickOS , SDN, NFV,...)
Simple
4- port
Simple
4- port
Simple
4- port
Simple
4- port
Simple
4- port
Simple
4- port
Simple
4- port
Simple
4- port
vs
>cost
capacity <
