1. HBase Tuning
Performance and Correctness
Lars Hofhansl
Principal Architect, Salesforce (10 years!)
HBase, Phoenix Committer, PMC
Apache Incubator PMC
Apache Foundation Member
http://hadoop-hbase.blogspot.com/
6. HDFS - Background
• Stores HBase WAL and HFiles
• No sync-to-disk by default
• Datanode writes tmp file, moves it into place
• Old data lost on power outage

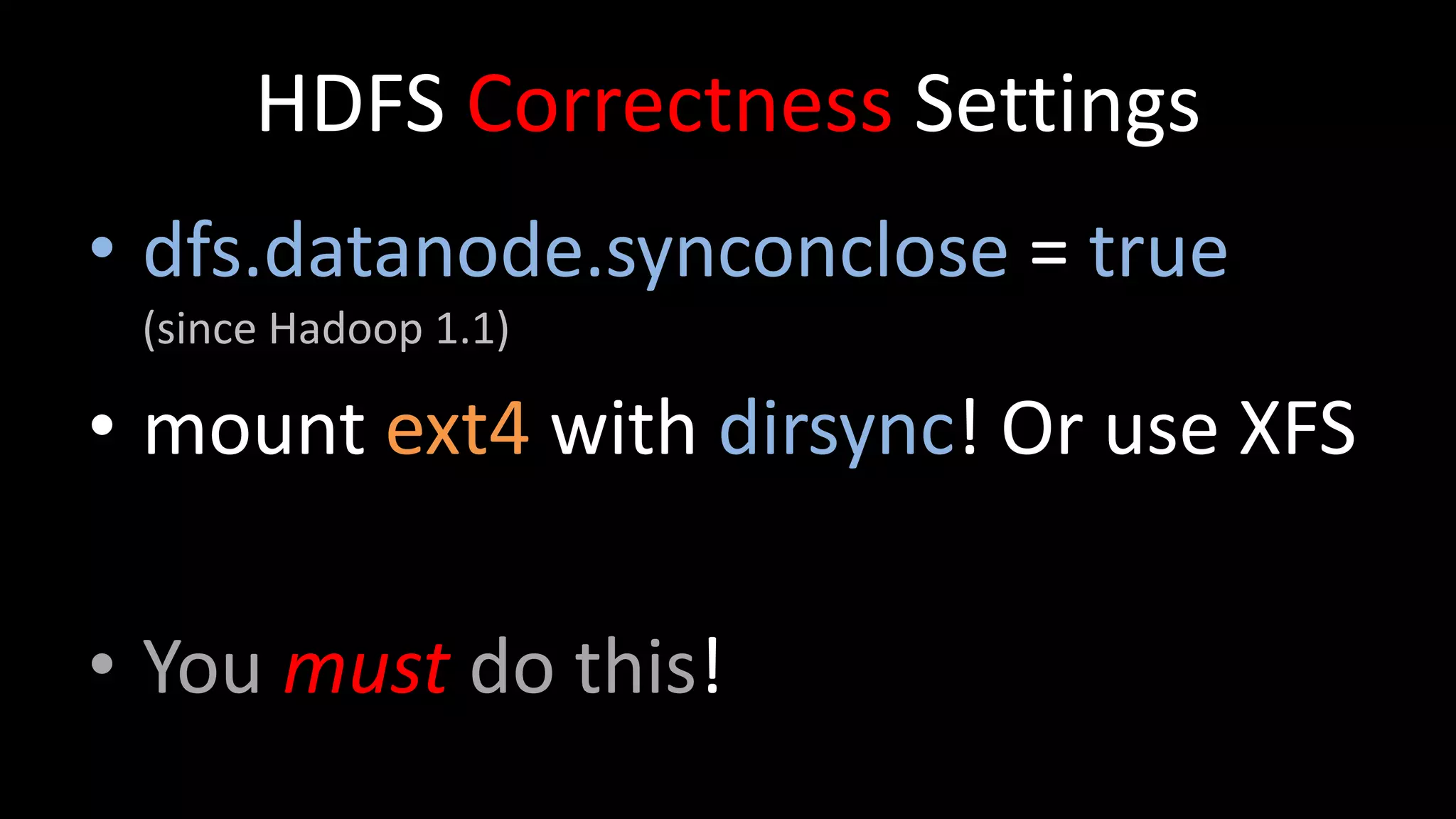

7. HDFS Correctness Settings
• dfs.datanode.synconclose = true
(since Hadoop 1.1)
• mount ext4 with dirsync! Or use XFS
• You must do this!
8. HDFS Performance Settings
1. Sync behind writes
2. Stale Datanode Detection
3. Short Circuit Reads
4. Miscellaneous Settings

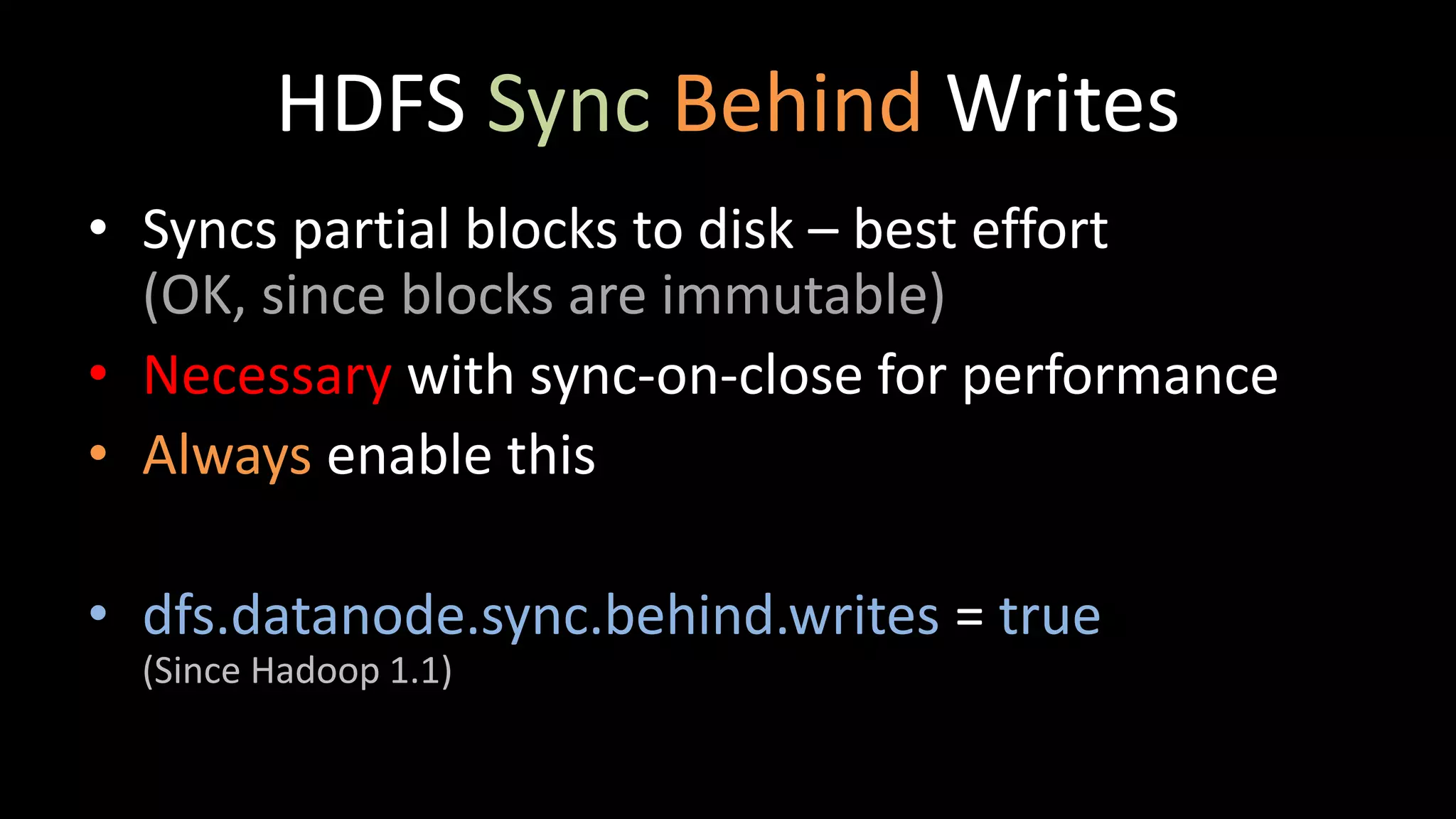

9. HDFS Sync Behind Writes
• Syncs partial blocks to disk – best effort
(OK, since blocks are immutable)
• Necessary with sync-on-close for performance
• Always enable this
• dfs.datanode.sync.behind.writes = true
(Since Hadoop 1.1)

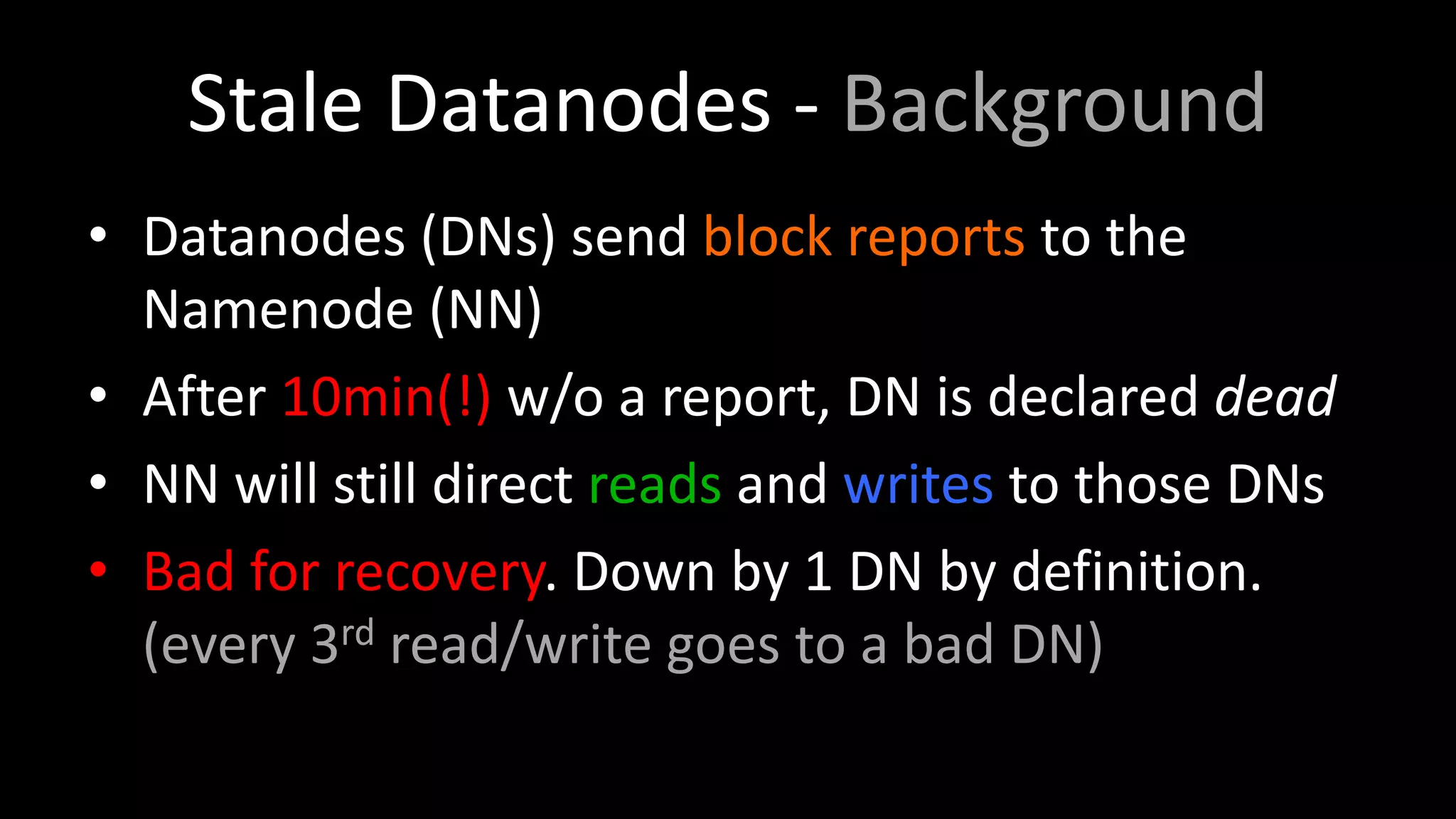

10. Stale Datanodes - Background
• Datanodes (DNs) send block reports to the
Namenode (NN)
• After 10min(!) w/o a report, DN is declared dead
• NN will still direct reads and writes to those DNs
• Bad for recovery. Down by 1 DN by definition.
(every 3rd read/write goes to a bad DN)

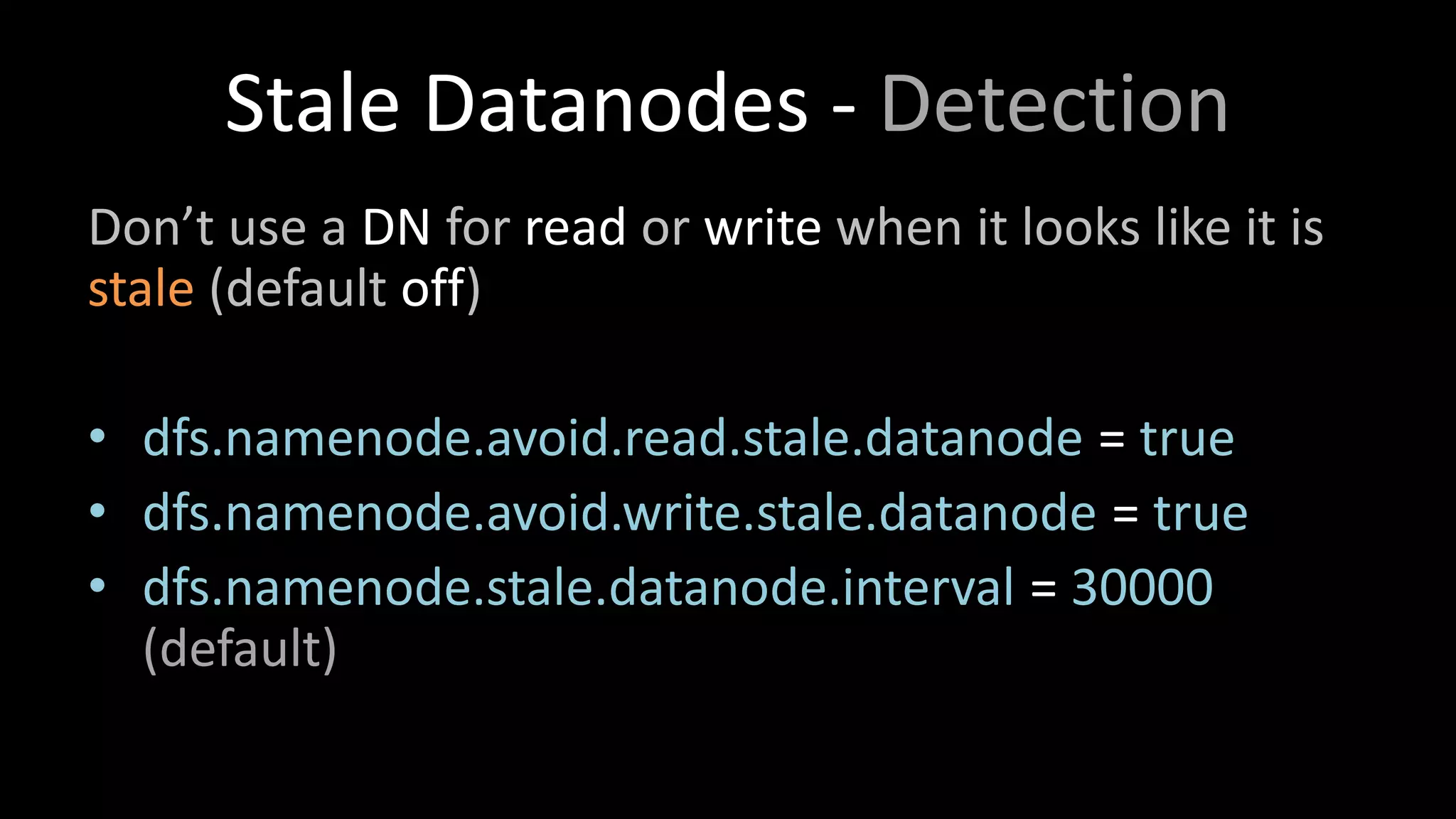

11. Stale Datanodes - Detection
Don’t use a DN for read or write when it looks like it is
stale (default off)
• dfs.namenode.avoid.read.stale.datanode = true
• dfs.namenode.avoid.write.stale.datanode = true
• dfs.namenode.stale.datanode.interval = 30000
(default)

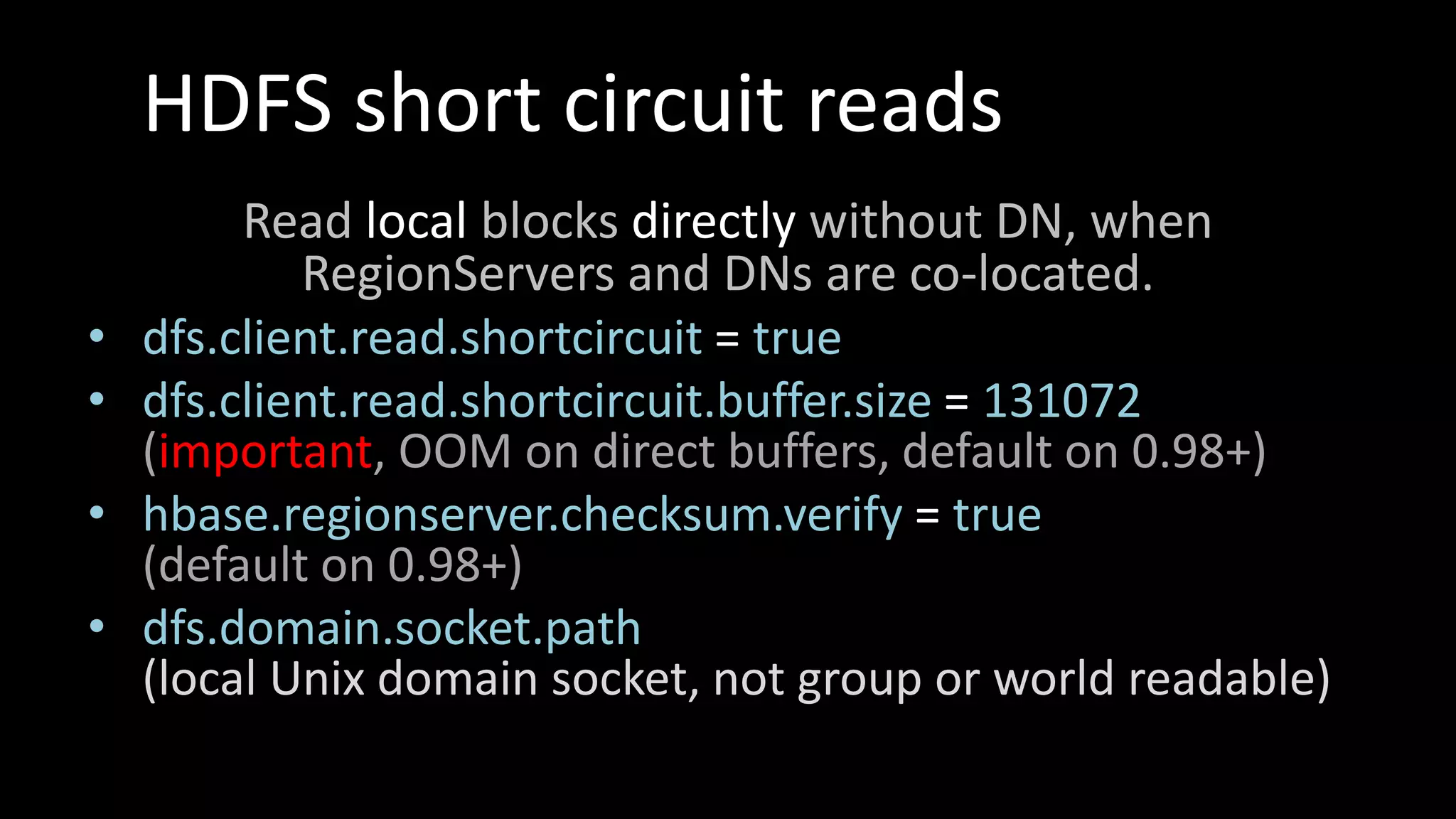

12. HDFS short circuit reads
Read local blocks directly without DN, when
RegionServers and DNs are co-located.
• dfs.client.read.shortcircuit = true
• dfs.client.read.shortcircuit.buffer.size = 131072
(important, OOM on direct buffers, default on 0.98+)
• hbase.regionserver.checksum.verify = true
(default on 0.98+)
• dfs.domain.socket.path
(local Unix domain socket, not group or world readable)

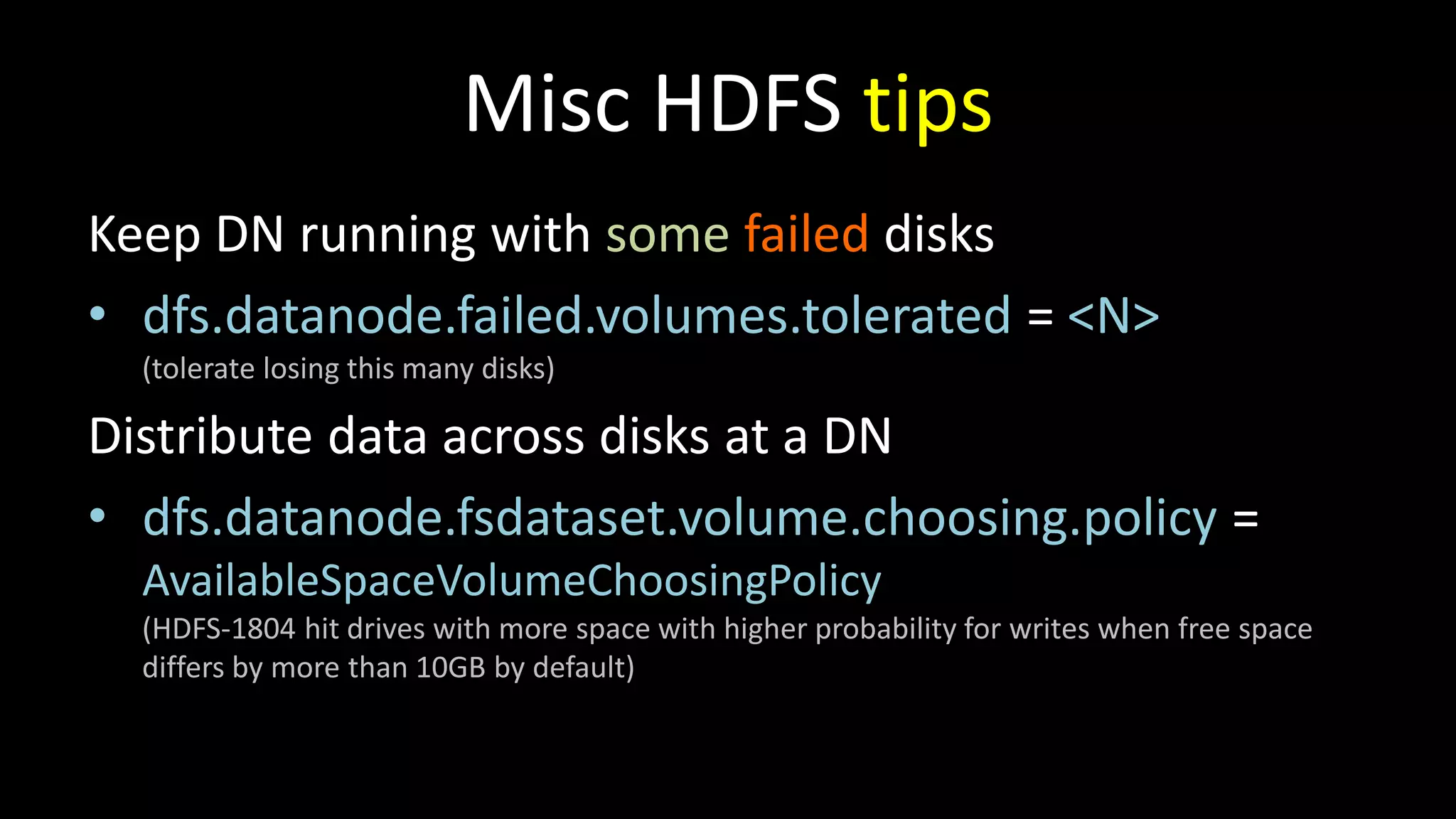

13. Misc HDFS tips
Keep DN running with some failed disks
• dfs.datanode.failed.volumes.tolerated = <N>
(tolerate losing this many disks)
Distribute data across disks at a DN
• dfs.datanode.fsdataset.volume.choosing.policy =
AvailableSpaceVolumeChoosingPolicy
(HDFS-1804 hit drives with more space with higher probability for writes when free space
differs by more than 10GB by default)

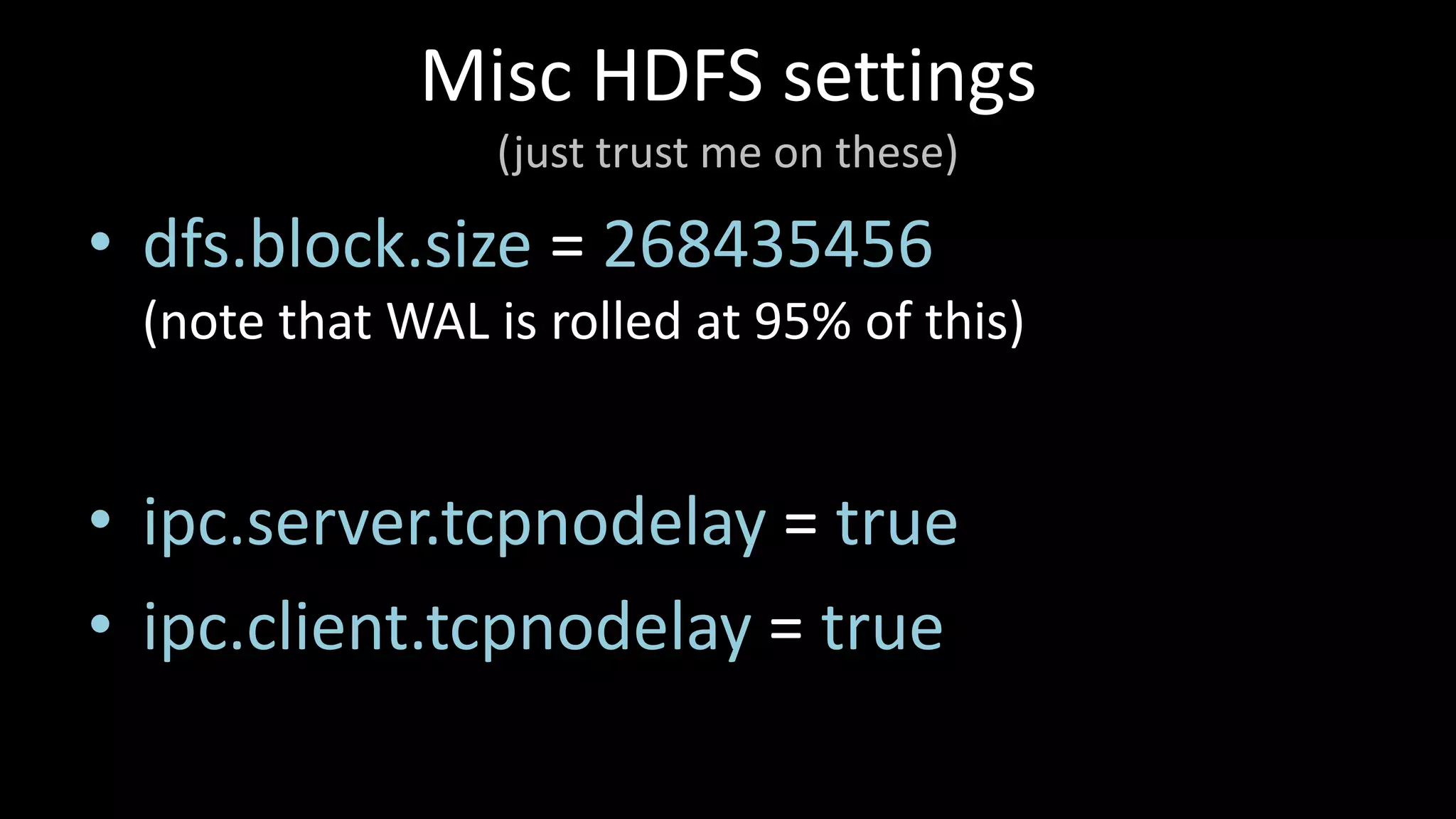

14. Misc HDFS settings
(just trust me on these)
• dfs.block.size = 268435456
(note that WAL is rolled at 95% of this)
• ipc.server.tcpnodelay = true
• ipc.client.tcpnodelay = true
15. Misc HDFS settings
(just trust me on these, really)
• dfs.datanode.max.xcievers = 8192
• dfs.namenode.handler.count = 64
• dfs.datanode.handler.count = 8
(match number of spindles)

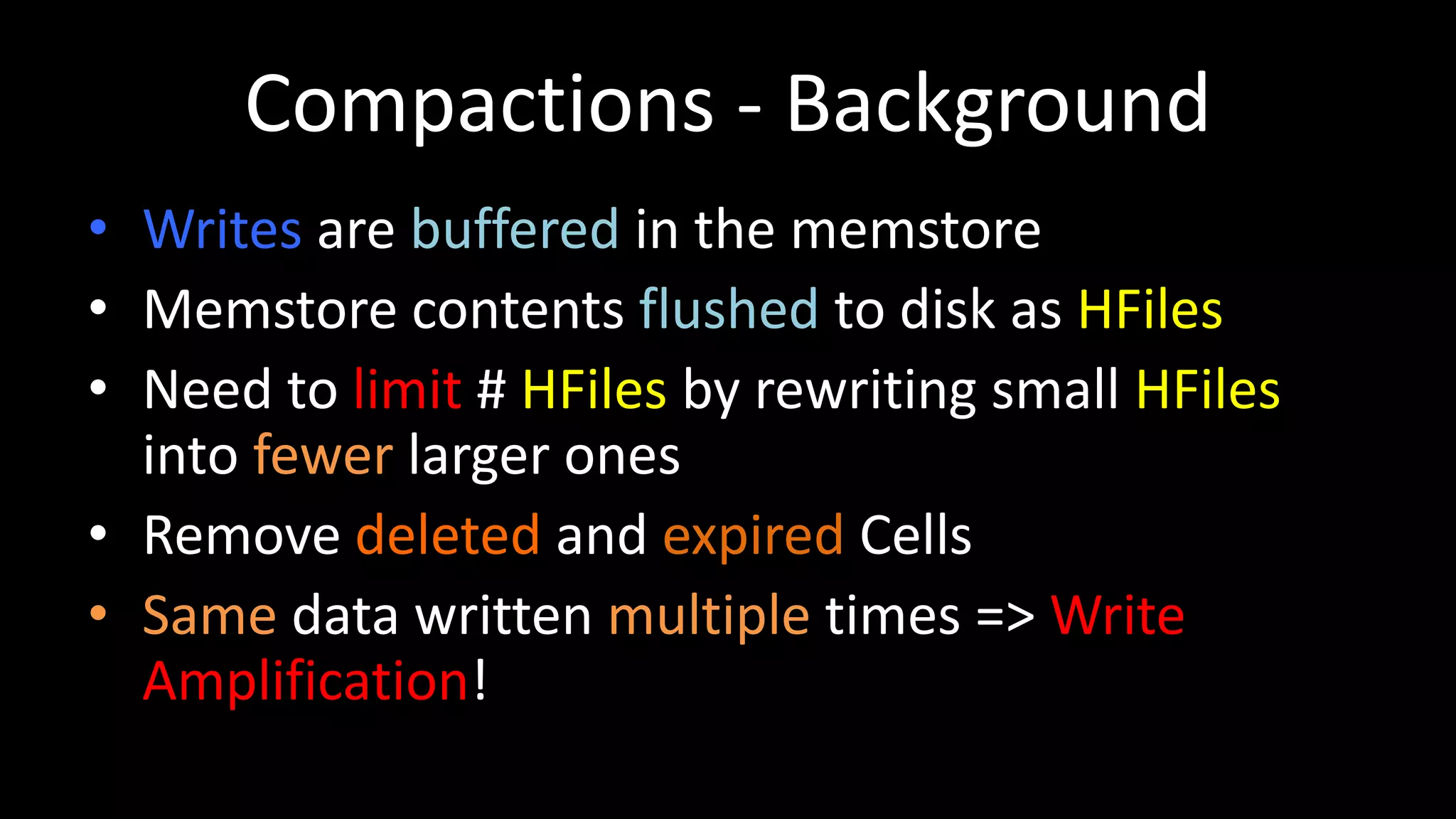

19. Compactions - Background
• Writes are buffered in the memstore
• Memstore contents flushed to disk as HFiles
• Need to limit # HFiles by rewriting small HFiles
into fewer larger ones
• Remove deleted and expired Cells
• Same data written multiple times => Write
Amplification!

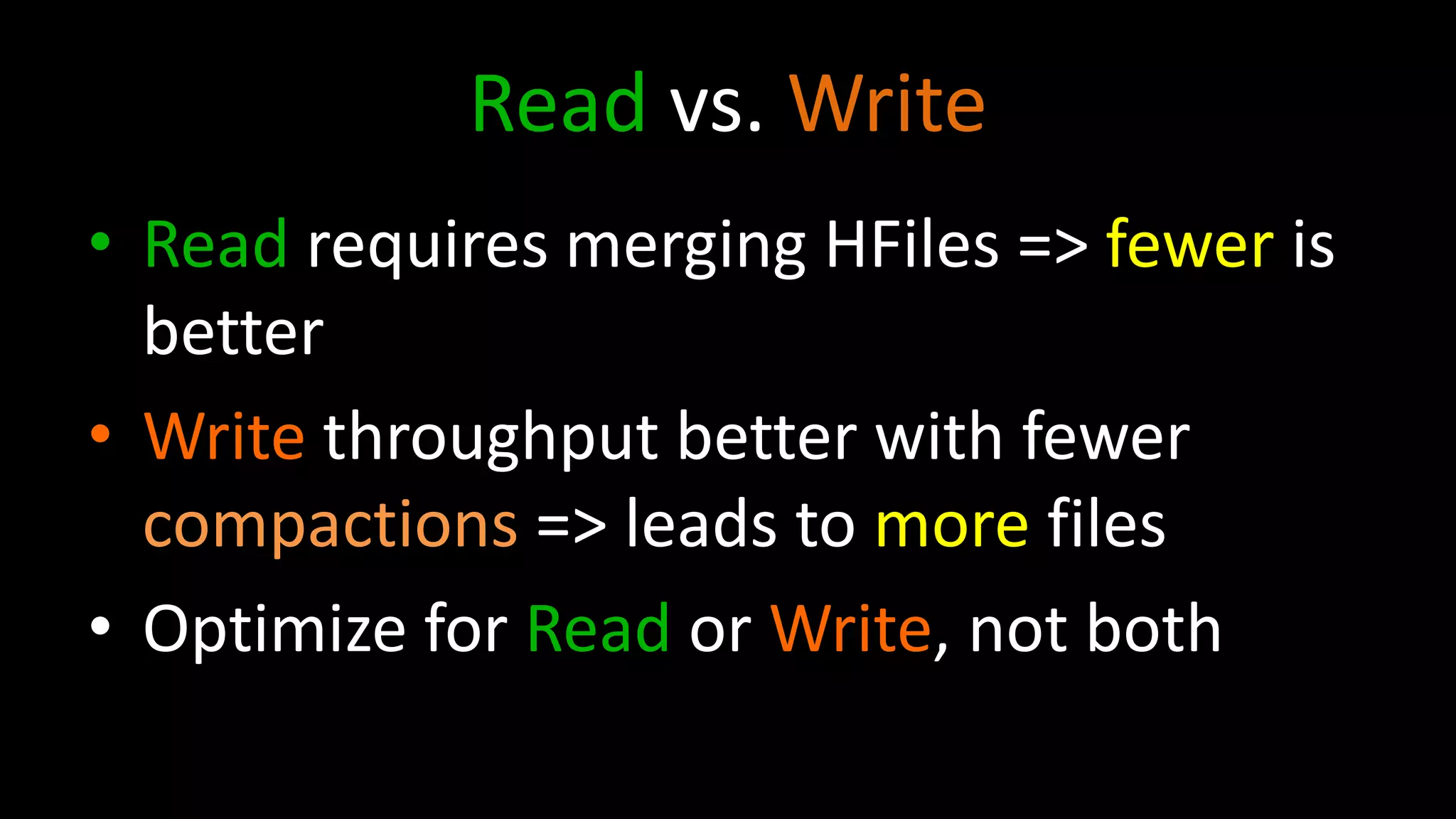

20. Read vs. Write
• Read requires merging HFiles => fewer is
better
• Write throughput better with fewer
compactions => leads to more files
• Optimize for Read or Write, not both

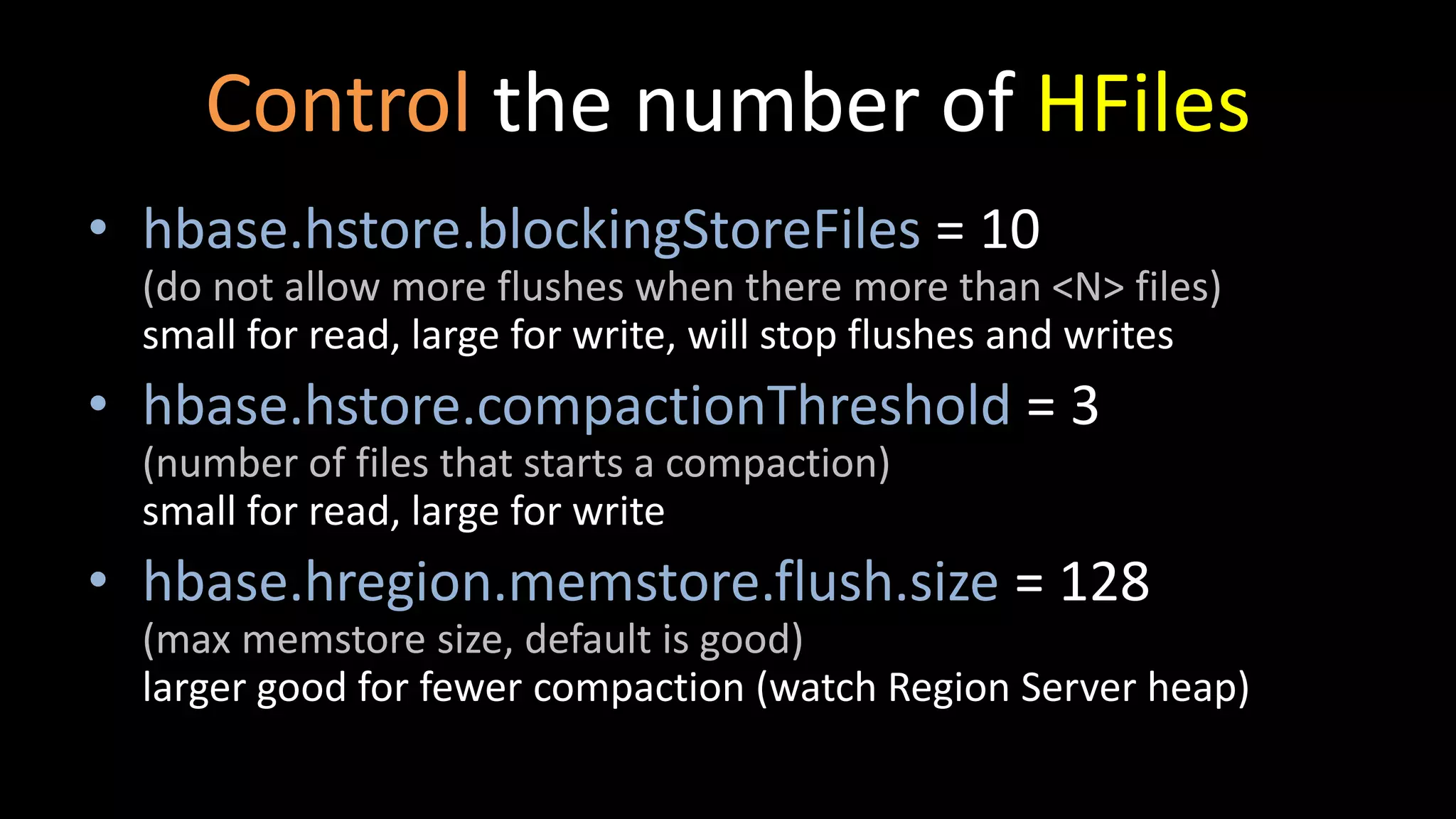

22. Control the number of HFiles
• hbase.hstore.blockingStoreFiles = 10
(do not allow more flushes when there more than <N> files)
small for read, large for write, will stop flushes and writes
• hbase.hstore.compactionThreshold = 3
(number of files that starts a compaction)
small for read, large for write
• hbase.hregion.memstore.flush.size = 128
(max memstore size, default is good)
larger good for fewer compaction (watch Region Server heap)
23. Time Based Compactions
• HBase does time based major compactions
• expensive, always at wrong time
• hbase.hregion.majorcompaction = 604800000
(week, default)
• hbase.hregion.majorcompaction.jitter = 0.5 (½
week, default)

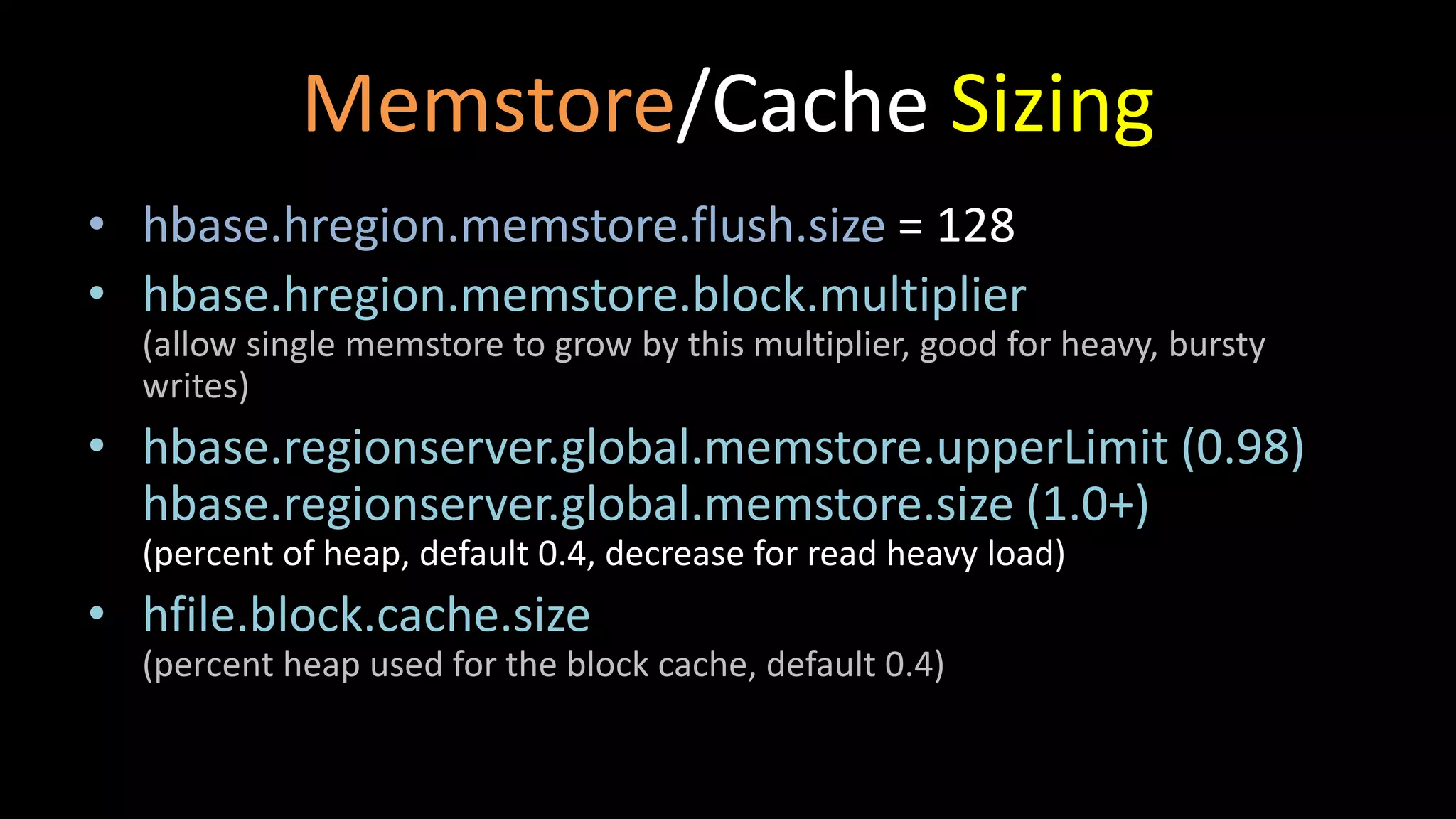

24. Memstore/Cache Sizing
• hbase.hregion.memstore.flush.size = 128
• hbase.hregion.memstore.block.multiplier
(allow single memstore to grow by this multiplier, good for heavy, bursty
writes)
• hbase.regionserver.global.memstore.upperLimit (0.98)
hbase.regionserver.global.memstore.size (1.0+)
(percent of heap, default 0.4, decrease for read heavy load)
• hfile.block.cache.size
(percent heap used for the block cache, default 0.4)

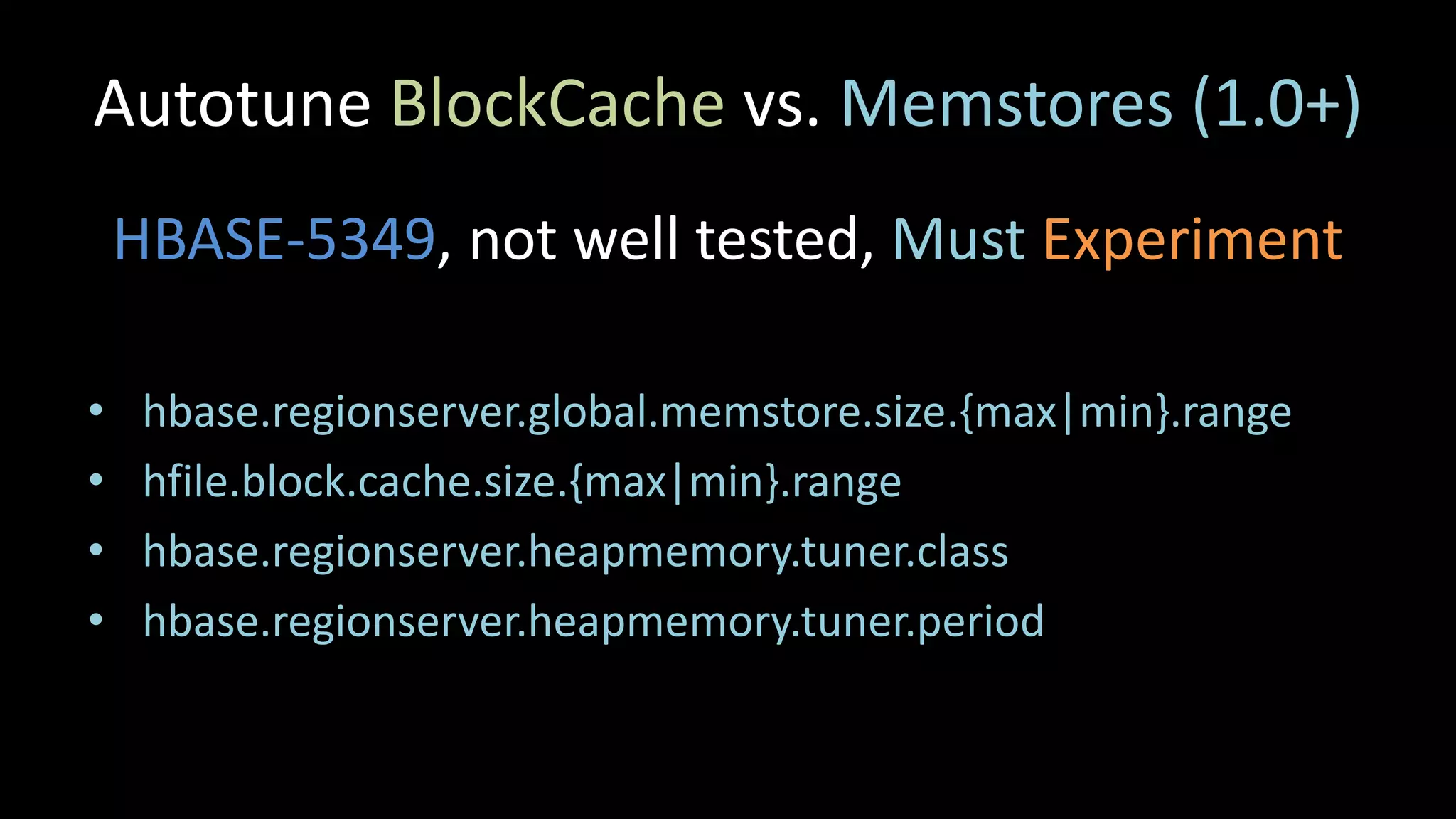

25. Autotune BlockCache vs. Memstores (1.0+)
HBASE-5349, not well tested, Must Experiment
• hbase.regionserver.global.memstore.size.{max|min}.range
• hfile.block.cache.size.{max|min}.range
• hbase.regionserver.heapmemory.tuner.class
• hbase.regionserver.heapmemory.tuner.period

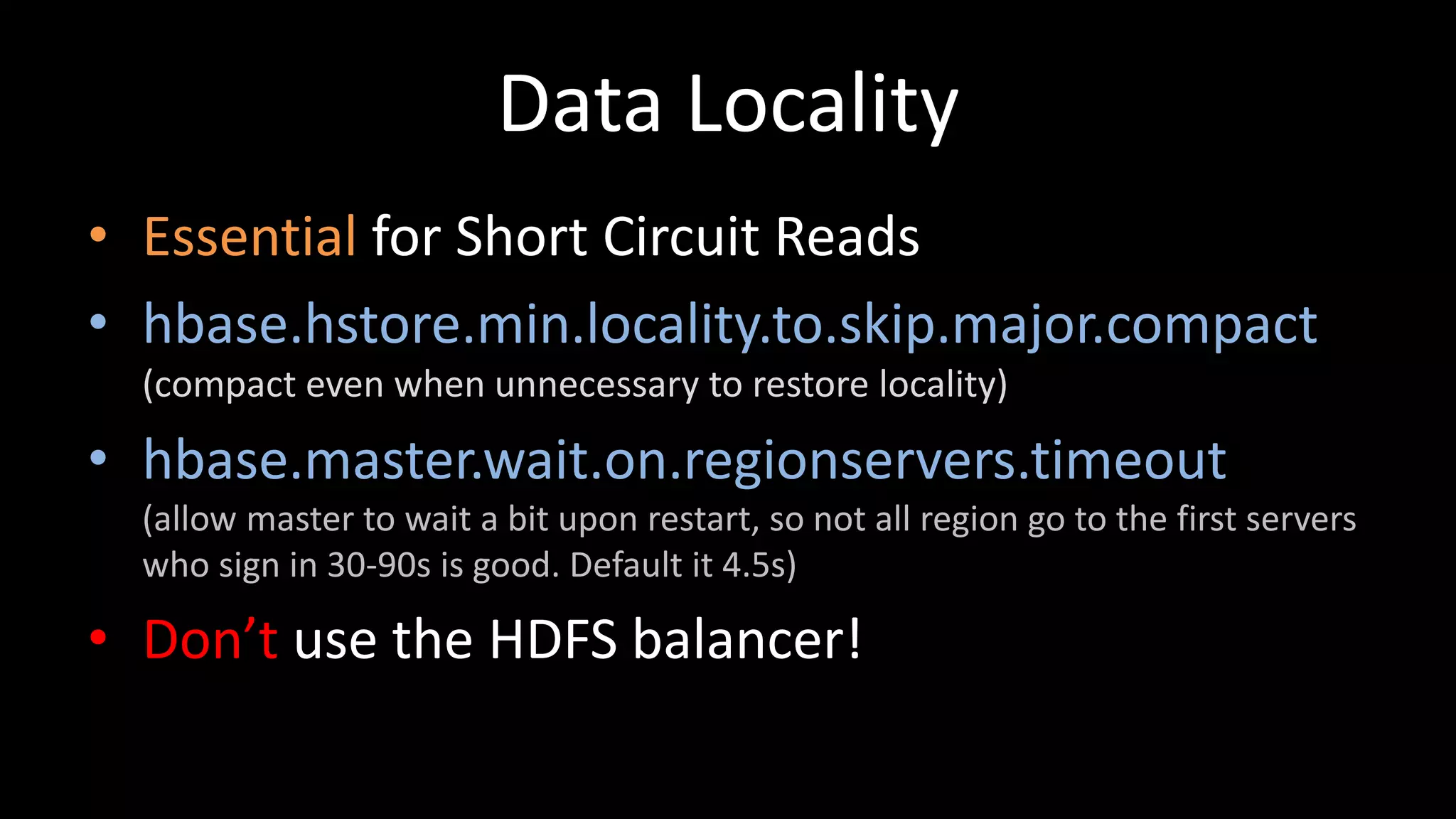

26. Data Locality
• Essential for Short Circuit Reads
• hbase.hstore.min.locality.to.skip.major.compact
(compact even when unnecessary to restore locality)
• hbase.master.wait.on.regionservers.timeout
(allow master to wait a bit upon restart, so not all region go to the first servers
who sign in 30-90s is good. Default it 4.5s)
• Don’t use the HDFS balancer!

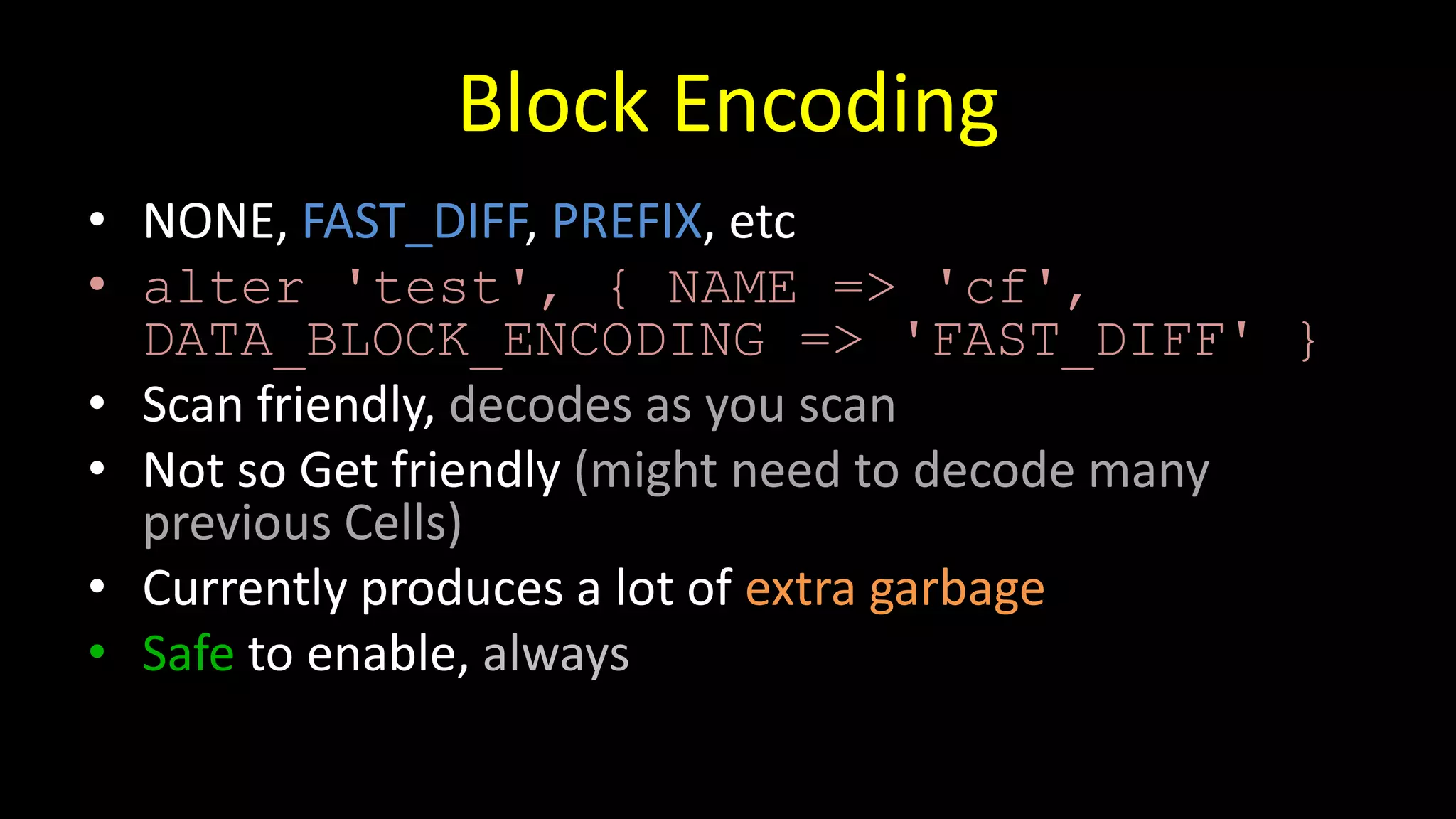

28. Block Encoding
• NONE, FAST_DIFF, PREFIX, etc
• alter 'test', { NAME => 'cf',
DATA_BLOCK_ENCODING => 'FAST_DIFF' }
• Scan friendly, decodes as you scan
• Not so Get friendly (might need to decode many
previous Cells)
• Currently produces a lot of extra garbage
• Safe to enable, always

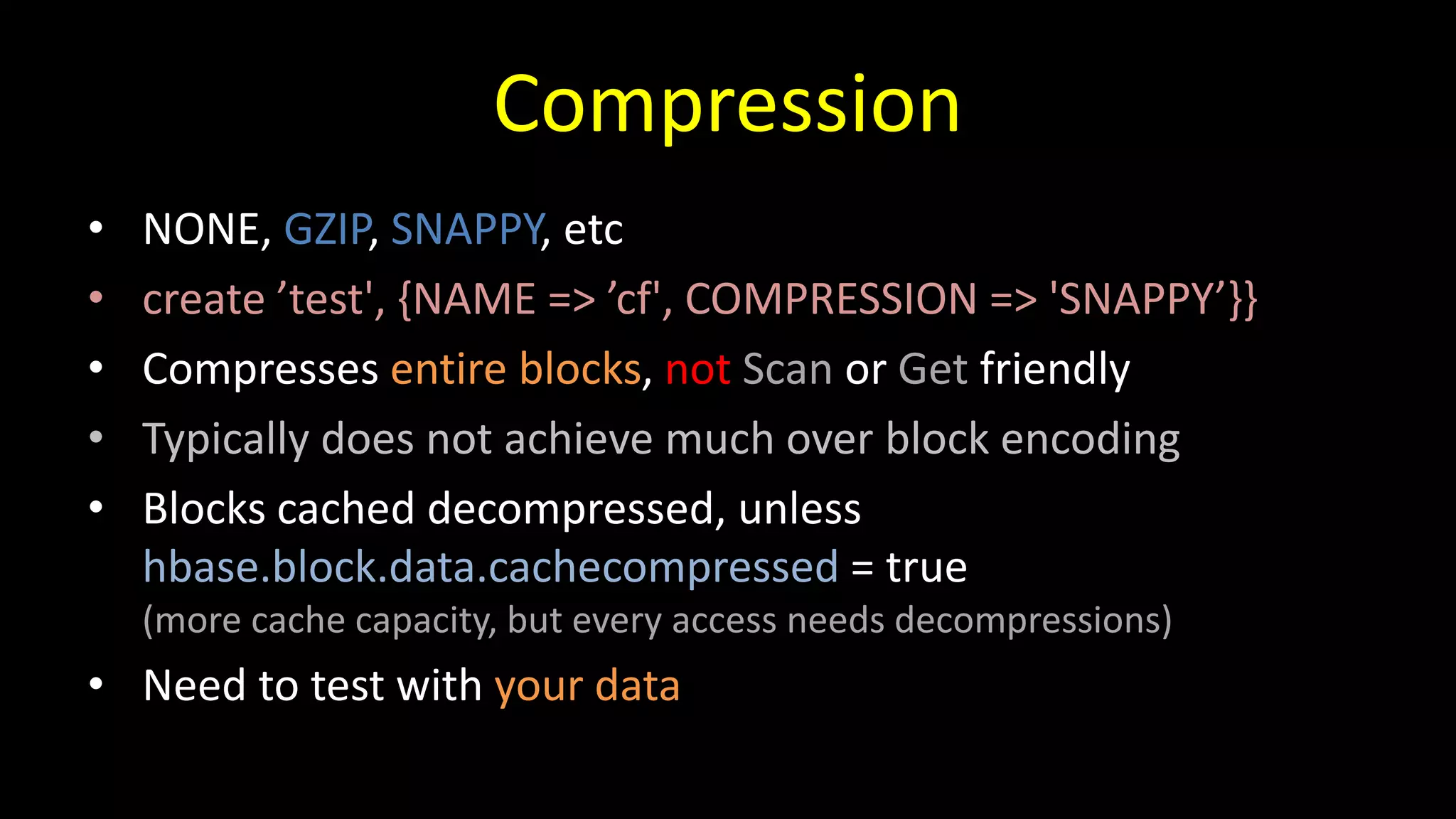

29. Compression
• NONE, GZIP, SNAPPY, etc
• create ’test', {NAME => ’cf', COMPRESSION => 'SNAPPY’}}
• Compresses entire blocks, not Scan or Get friendly
• Typically does not achieve much over block encoding
• Blocks cached decompressed, unless
hbase.block.data.cachecompressed = true
(more cache capacity, but every access needs decompressions)
• Need to test with your data

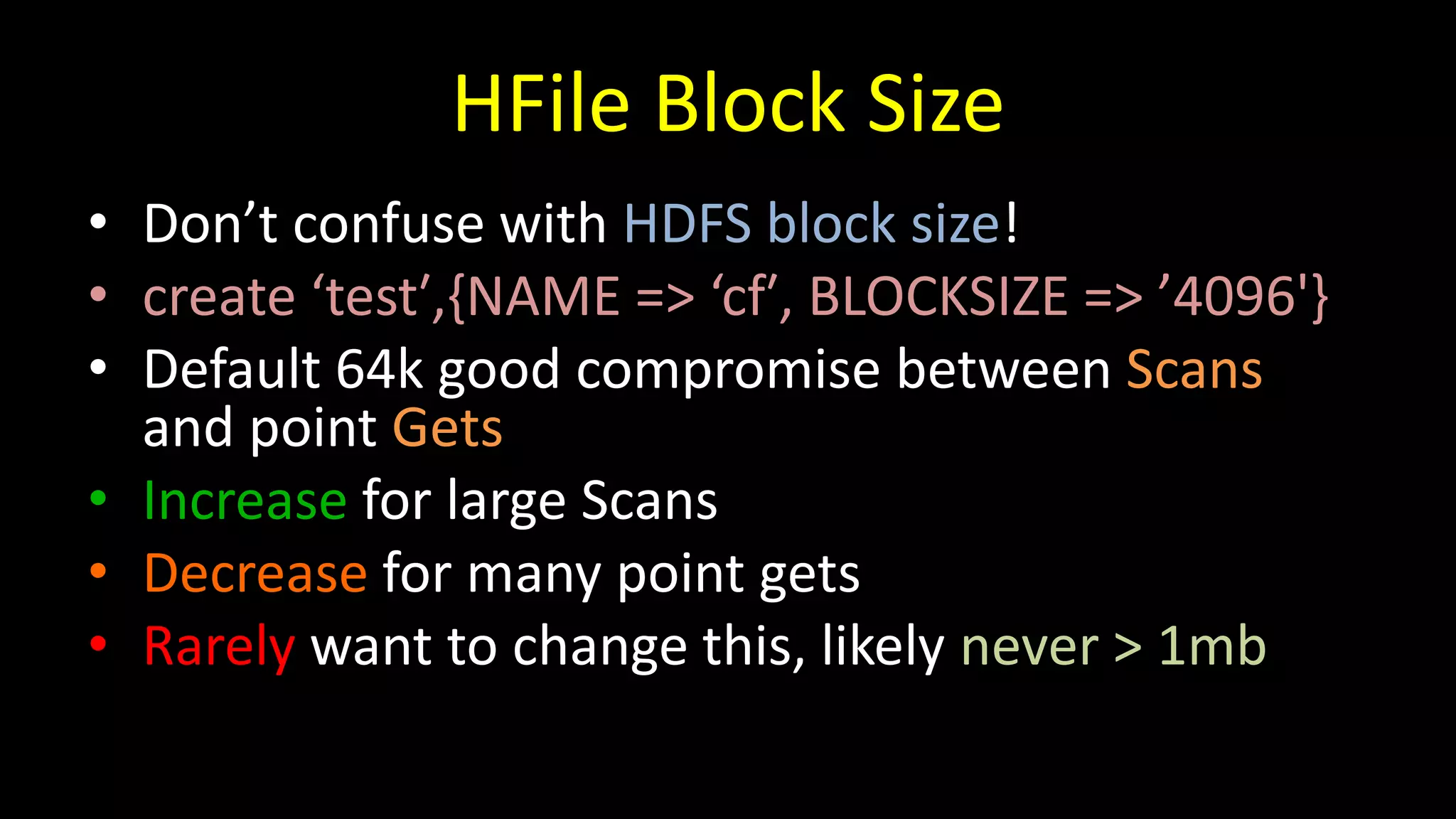

30. HFile Block Size
• Don’t confuse with HDFS block size!
• create ‘test′,{NAME => ‘cf′, BLOCKSIZE => ’4096'}
• Default 64k good compromise between Scans
and point Gets
• Increase for large Scans
• Decrease for many point gets
• Rarely want to change this, likely never > 1mb

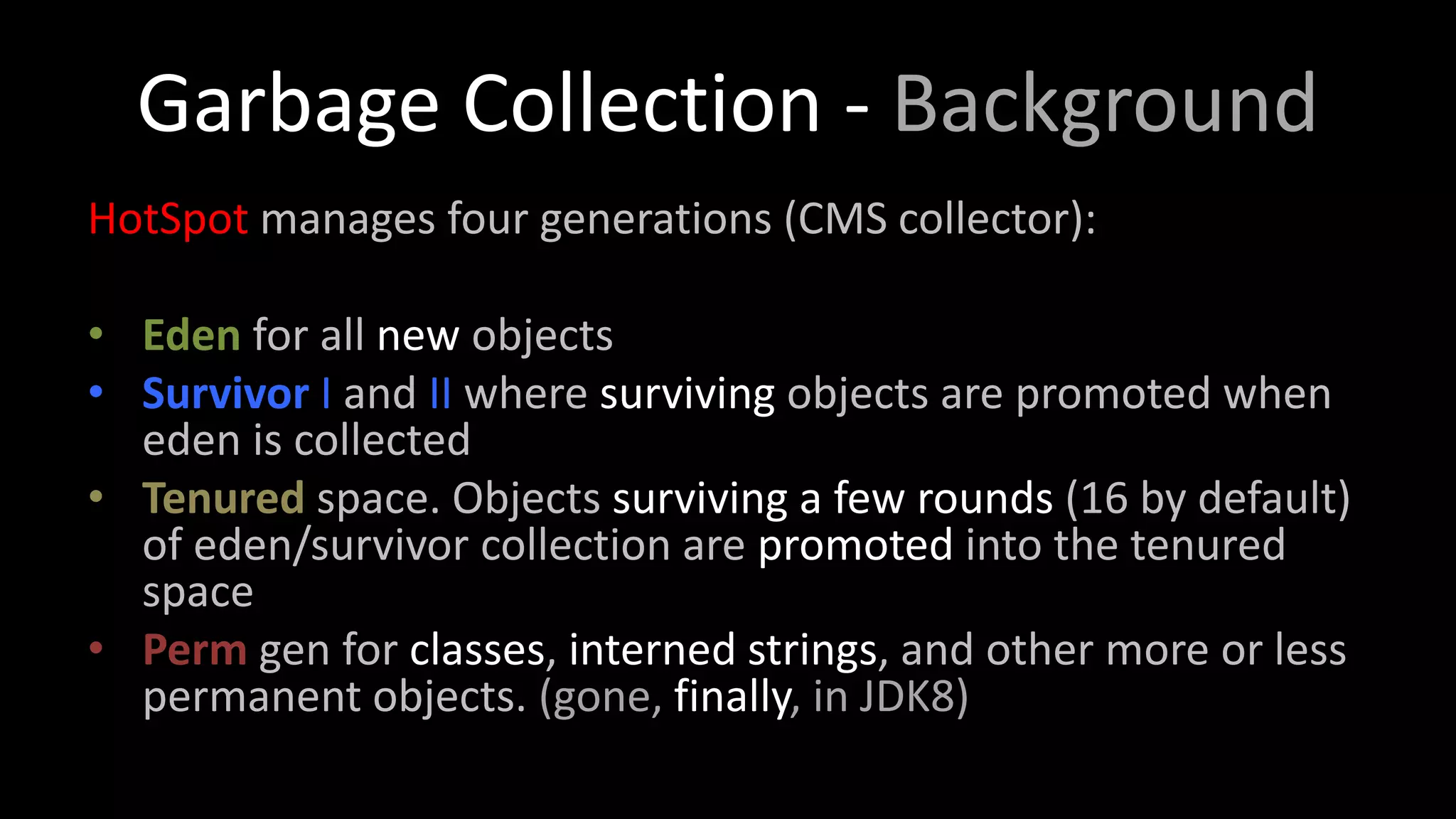

33. Garbage Collection - Background
HotSpot manages four generations (CMS collector):
• Eden for all new objects
• Survivor I and II where surviving objects are promoted when
eden is collected
• Tenured space. Objects surviving a few rounds (16 by default)
of eden/survivor collection are promoted into the tenured
space
• Perm gen for classes, interned strings, and other more or less
permanent objects. (gone, finally, in JDK8)

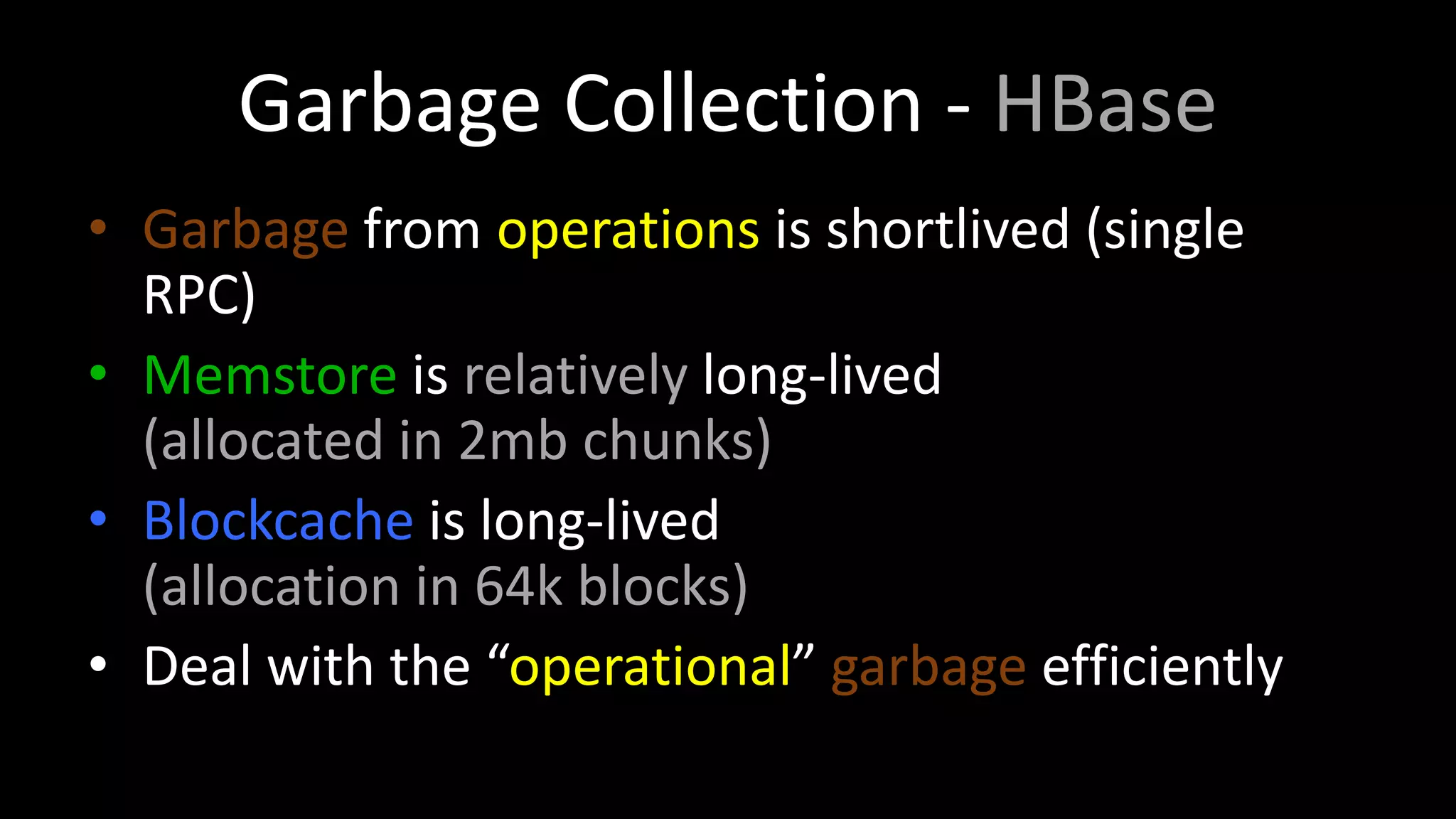

34. Garbage Collection - HBase
• Garbage from operations is shortlived (single
RPC)
• Memstore is relatively long-lived
(allocated in 2mb chunks)
• Blockcache is long-lived
(allocation in 64k blocks)
• Deal with the “operational” garbage efficiently

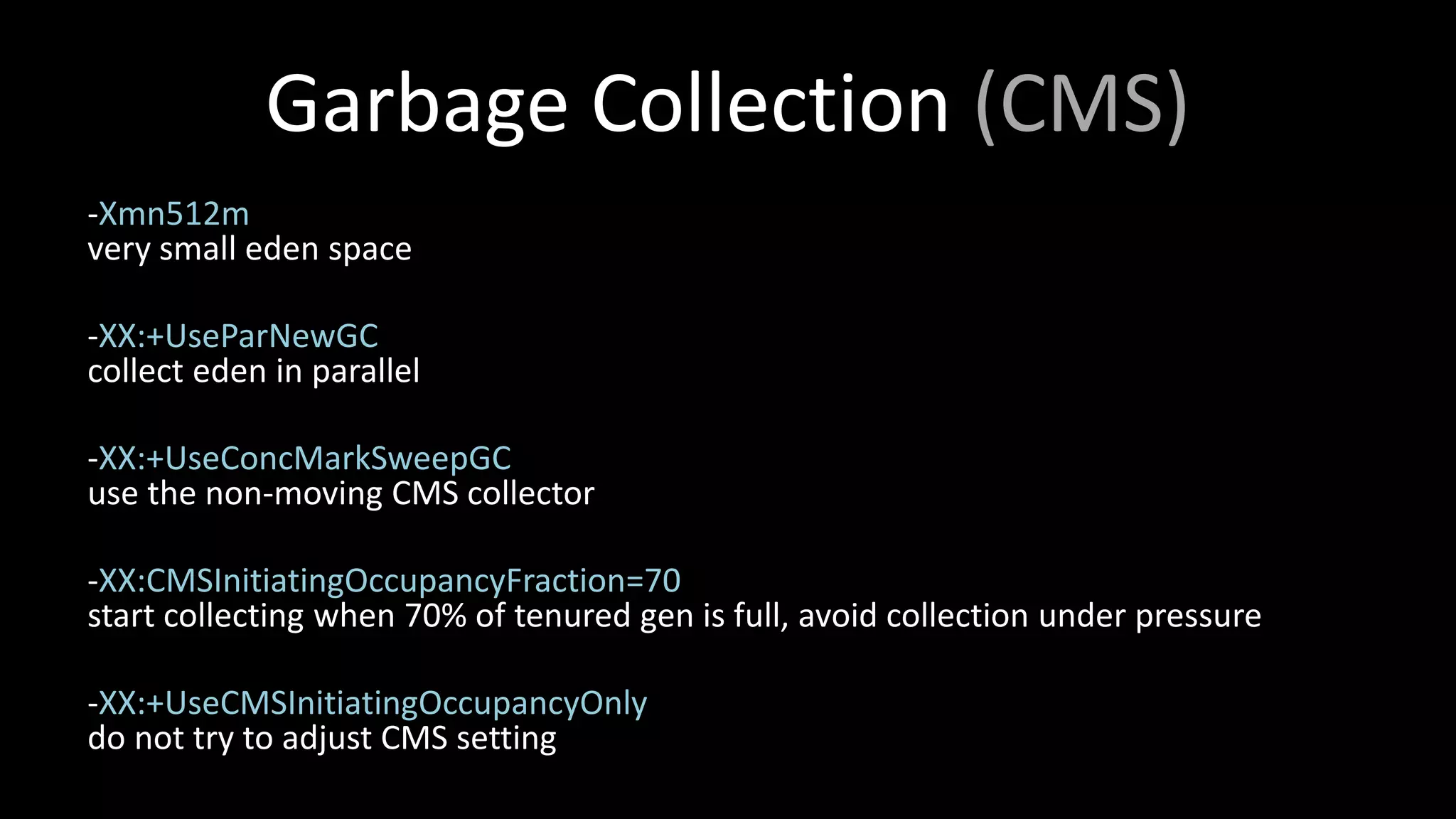

35. Garbage Collection (CMS)
-Xmn512m
very small eden space
-XX:+UseParNewGC
collect eden in parallel
-XX:+UseConcMarkSweepGC
use the non-moving CMS collector
-XX:CMSInitiatingOccupancyFraction=70
start collecting when 70% of tenured gen is full, avoid collection under pressure
-XX:+UseCMSInitiatingOccupancyOnly
do not try to adjust CMS setting

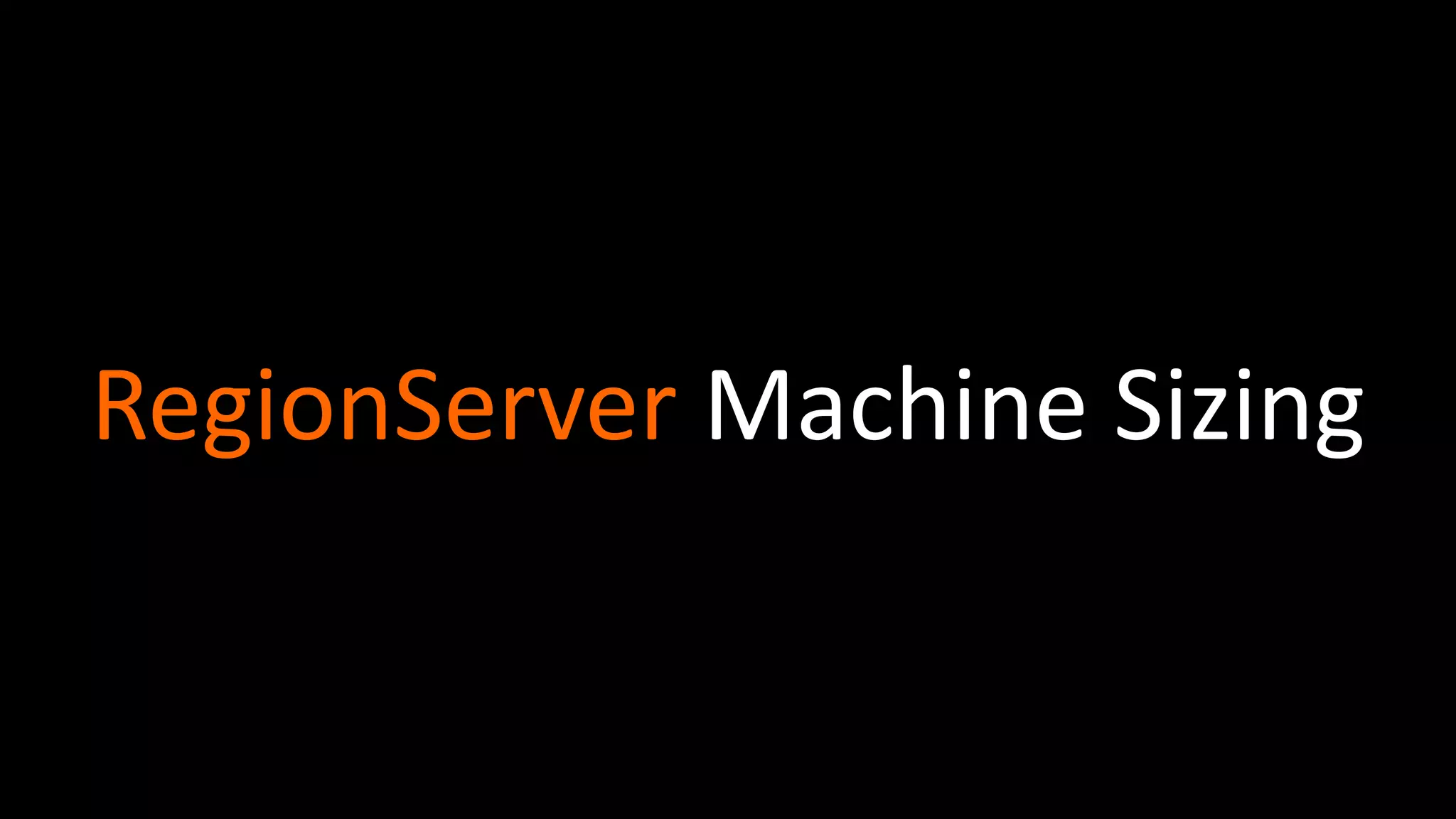

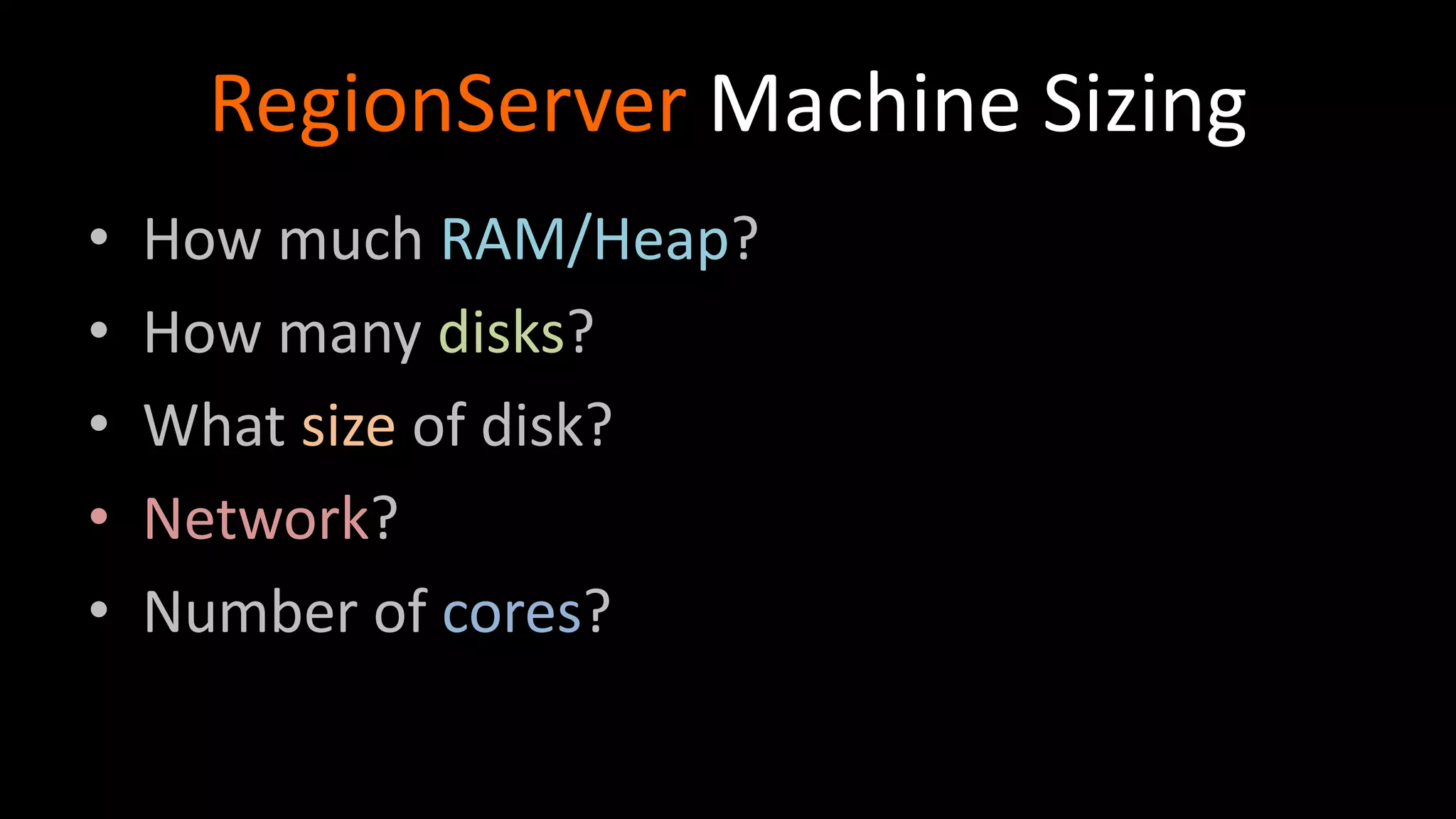

37. RegionServer Machine Sizing
• How much RAM/Heap?
• How many disks?
• What size of disk?
• Network?
• Number of cores?

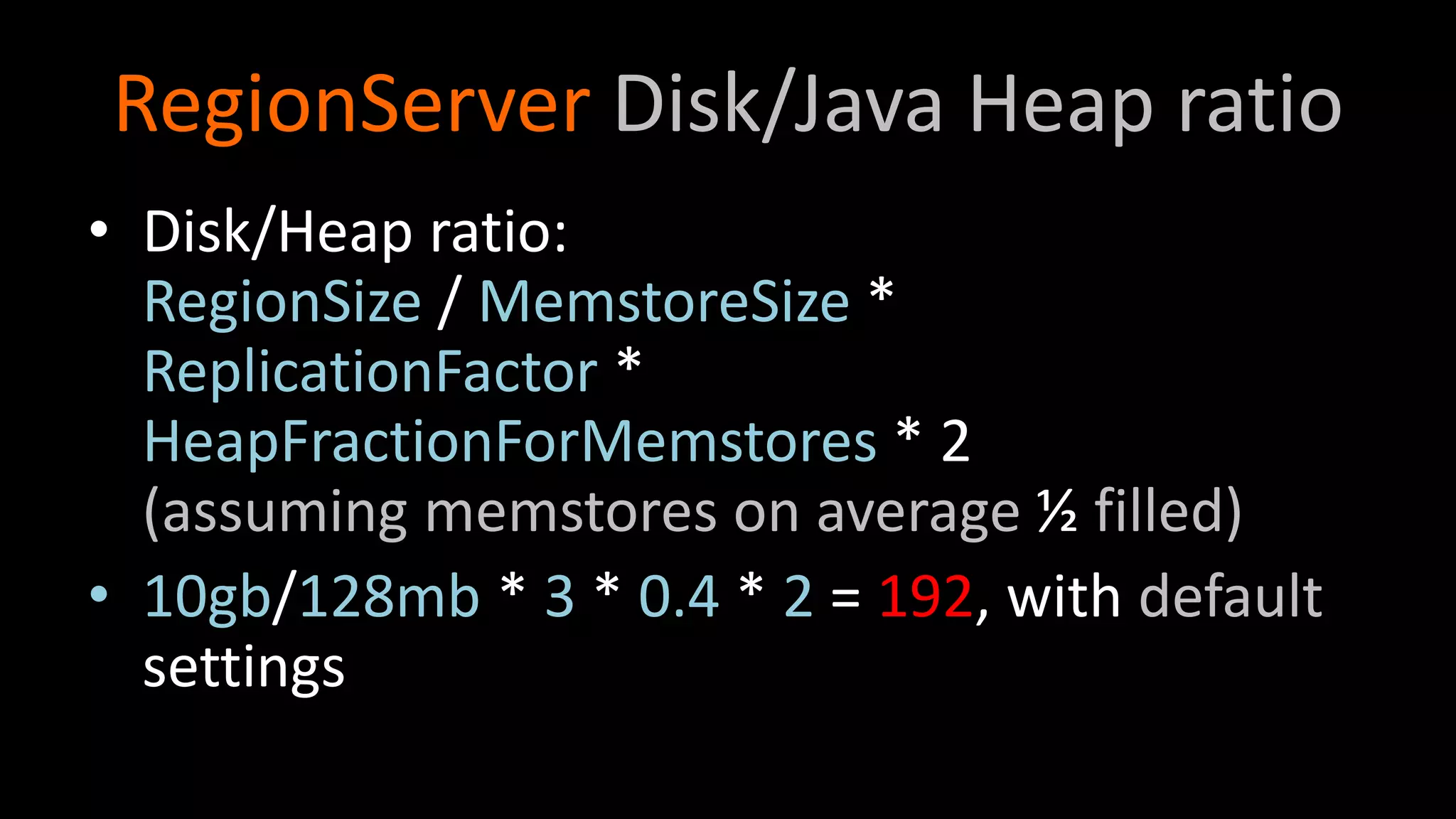

38. RegionServer Disk/Java Heap ratio
• Disk/Heap ratio:
RegionSize / MemstoreSize *
ReplicationFactor *
HeapFractionForMemstores * 2
(assuming memstores on average ½ filled)
• 10gb/128mb * 3 * 0.4 * 2 = 192, with default
settings

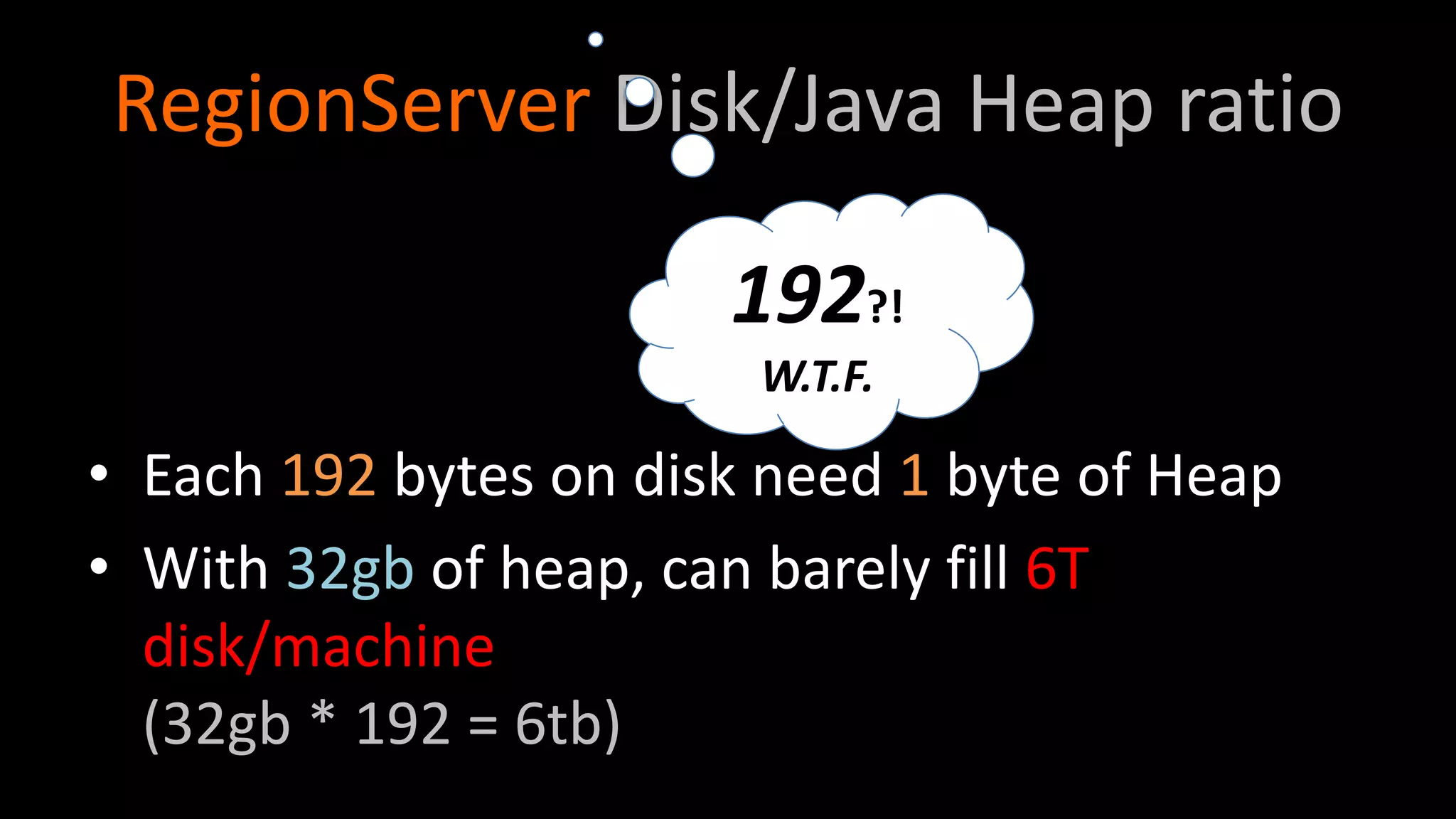

39. RegionServer Disk/Java Heap ratio
• Each 192 bytes on disk need 1 byte of Heap
• With 32gb of heap, can barely fill 6T
disk/machine
(32gb * 192 = 6tb)
192?!
W.T.F.

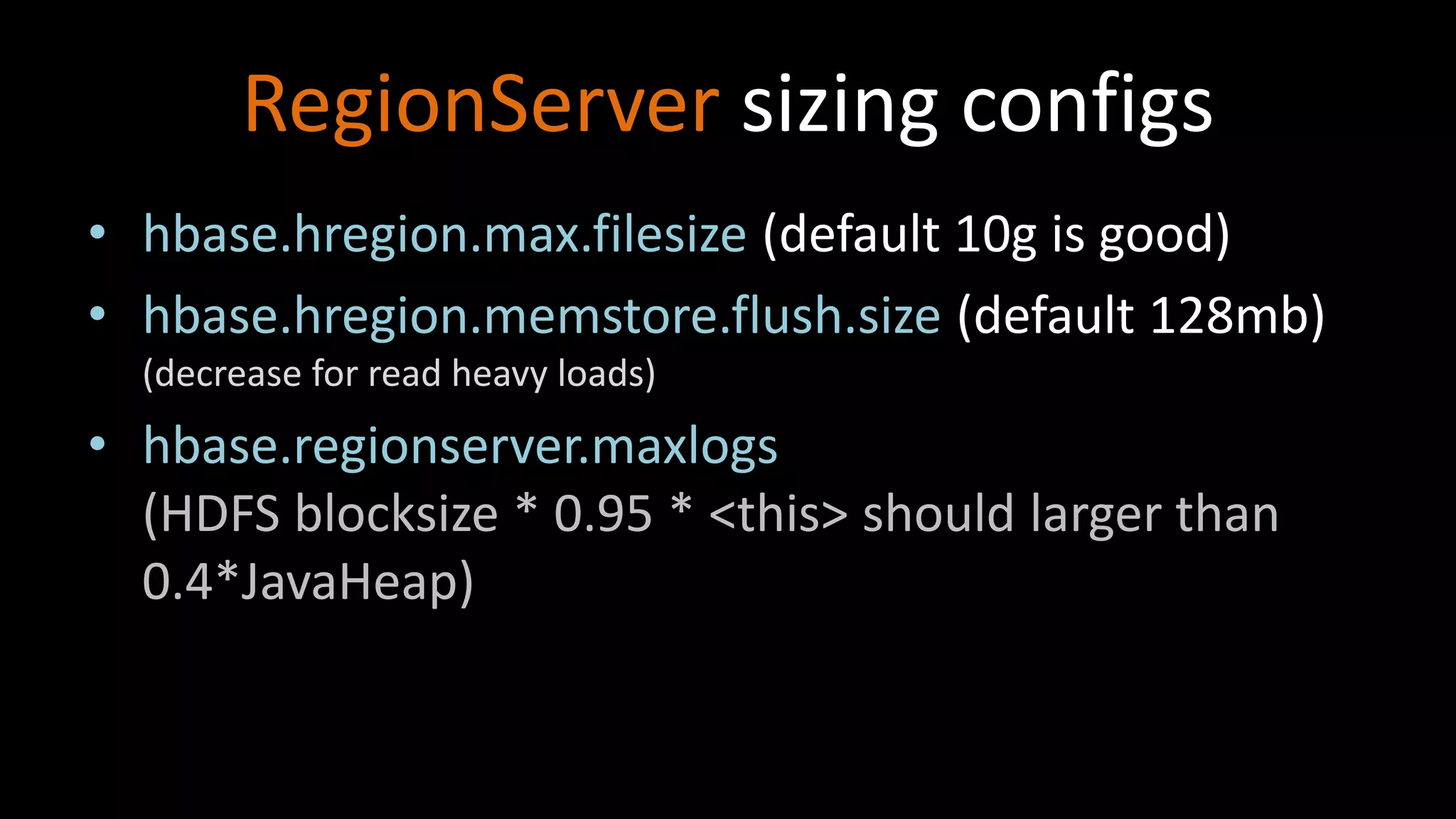

42. RegionServer sizing configs
• hbase.hregion.max.filesize (default 10g is good)
• hbase.hregion.memstore.flush.size (default 128mb)
(decrease for read heavy loads)
• hbase.regionserver.maxlogs
(HDFS blocksize * 0.95 * <this> should larger than
0.4*JavaHeap)

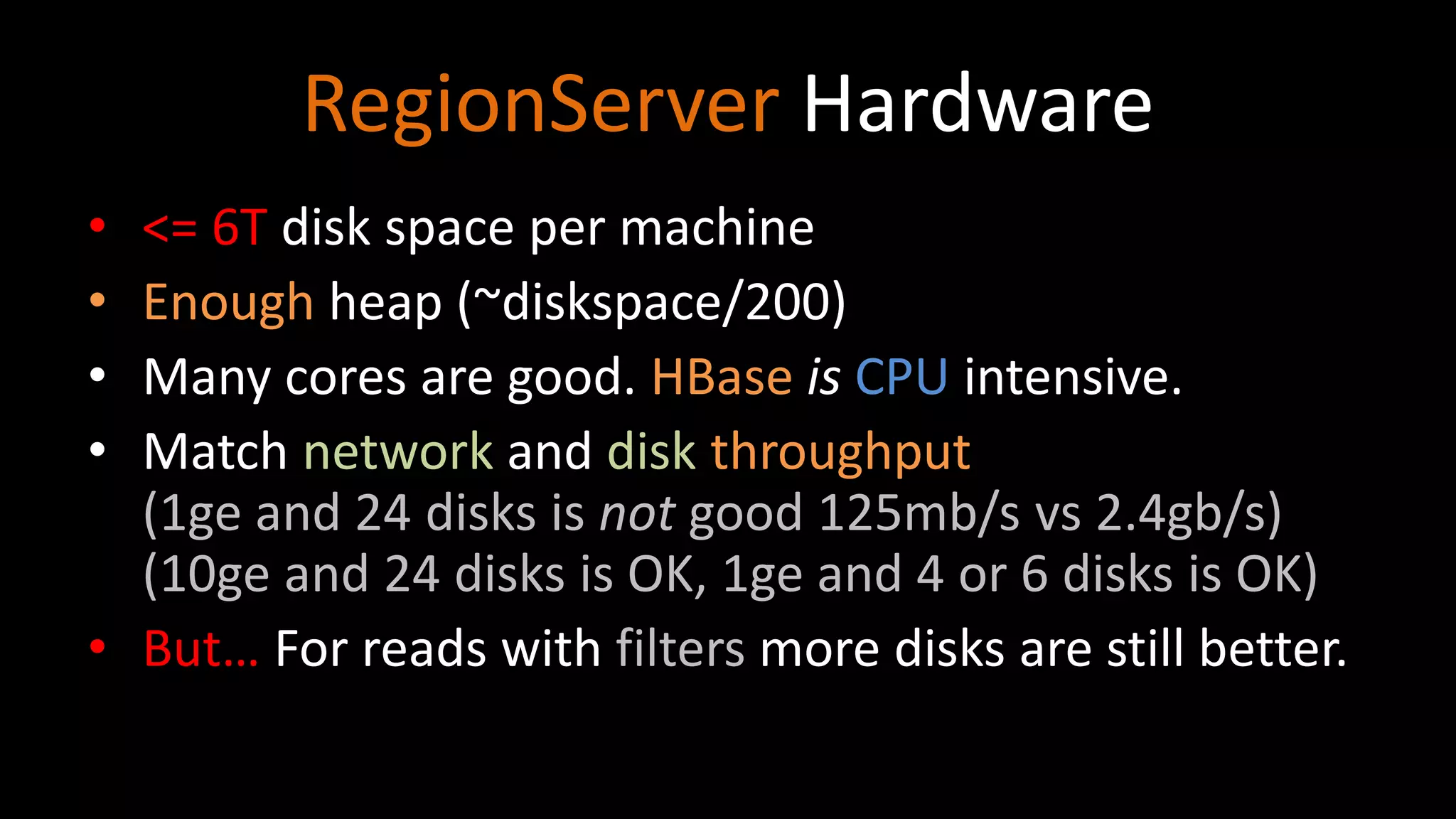

43. RegionServer Hardware
• <= 6T disk space per machine
• Enough heap (~diskspace/200)
• Many cores are good. HBase is CPU intensive.
• Match network and disk throughput
(1ge and 24 disks is not good 125mb/s vs 2.4gb/s)
(10ge and 24 disks is OK, 1ge and 4 or 6 disks is OK)
• But… For reads with filters more disks are still better.

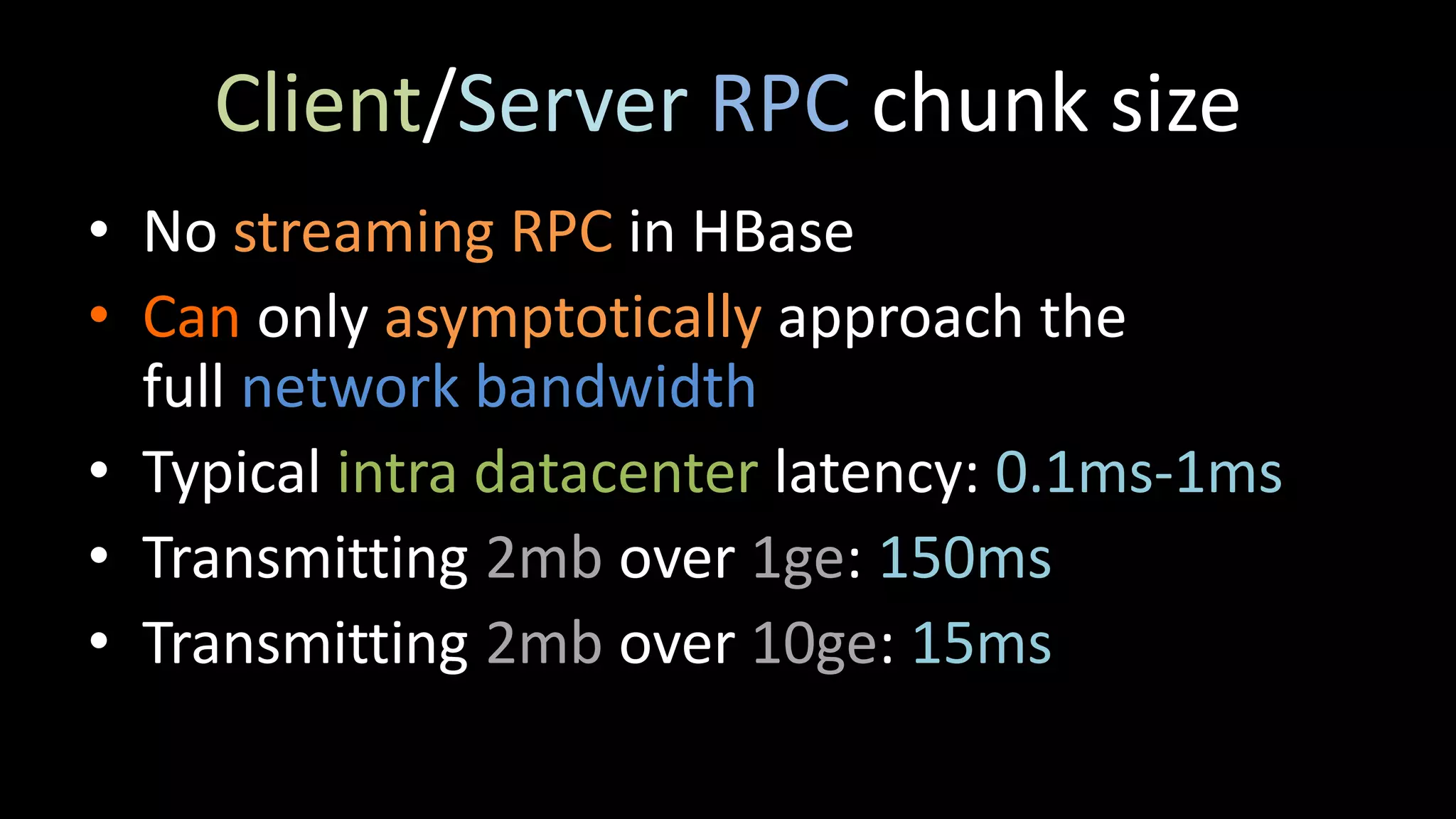

45. Client/Server RPC chunk size
• No streaming RPC in HBase
• Can only asymptotically approach the
full network bandwidth
• Typical intra datacenter latency: 0.1ms-1ms
• Transmitting 2mb over 1ge: 150ms
• Transmitting 2mb over 10ge: 15ms

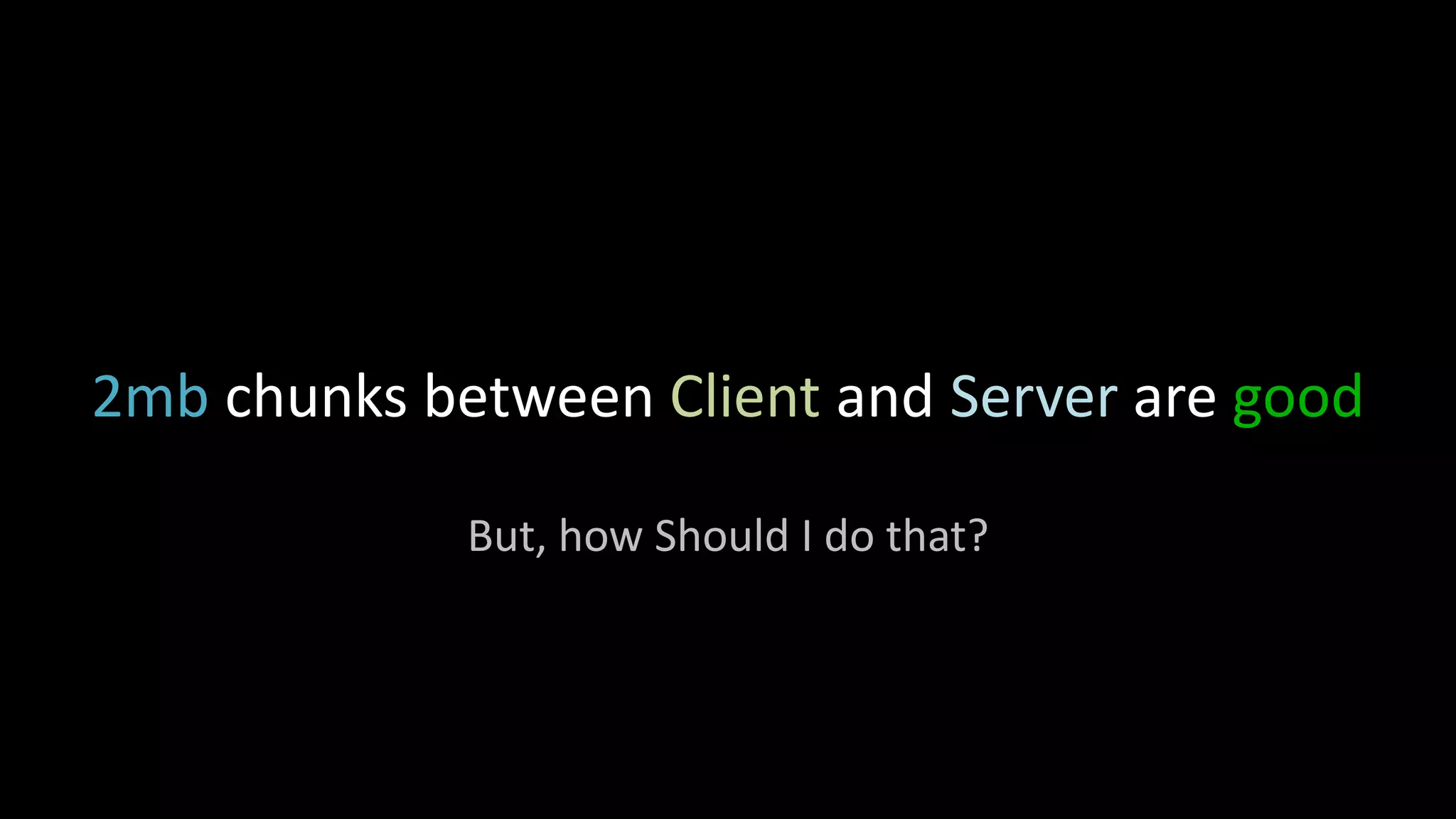

46. 2mb chunks between Client and Server are good
But, how Should I do that?

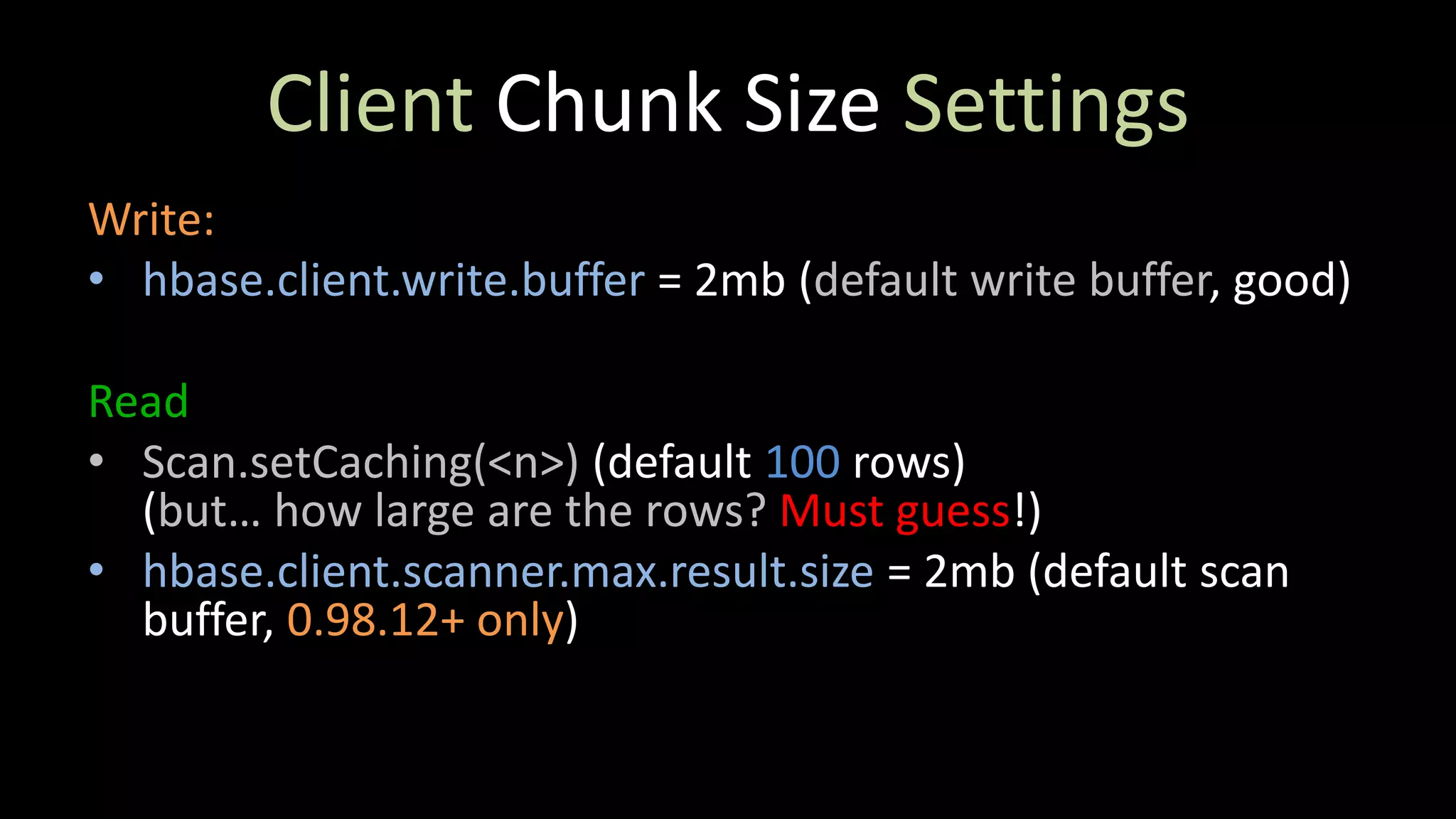

47. Client Chunk Size Settings
Write:
• hbase.client.write.buffer = 2mb (default write buffer, good)
Read
• Scan.setCaching(<n>) (default 100 rows)
(but… how large are the rows? Must guess!)
• hbase.client.scanner.max.result.size = 2mb (default scan
buffer, 0.98.12+ only)

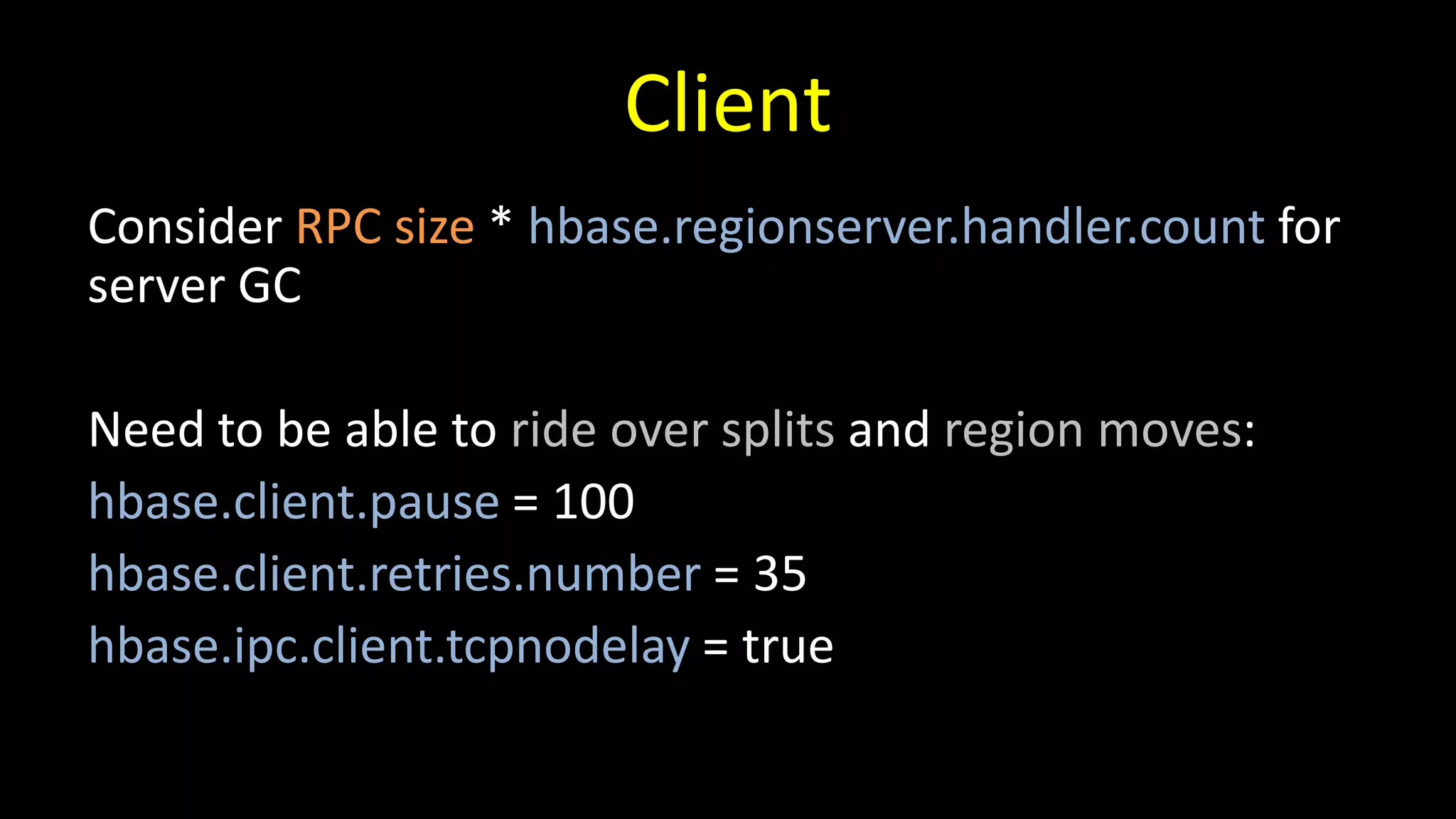

48. Client
Consider RPC size * hbase.regionserver.handler.count for
server GC
Need to be able to ride over splits and region moves:
hbase.client.pause = 100
hbase.client.retries.number = 35
hbase.ipc.client.tcpnodelay = true

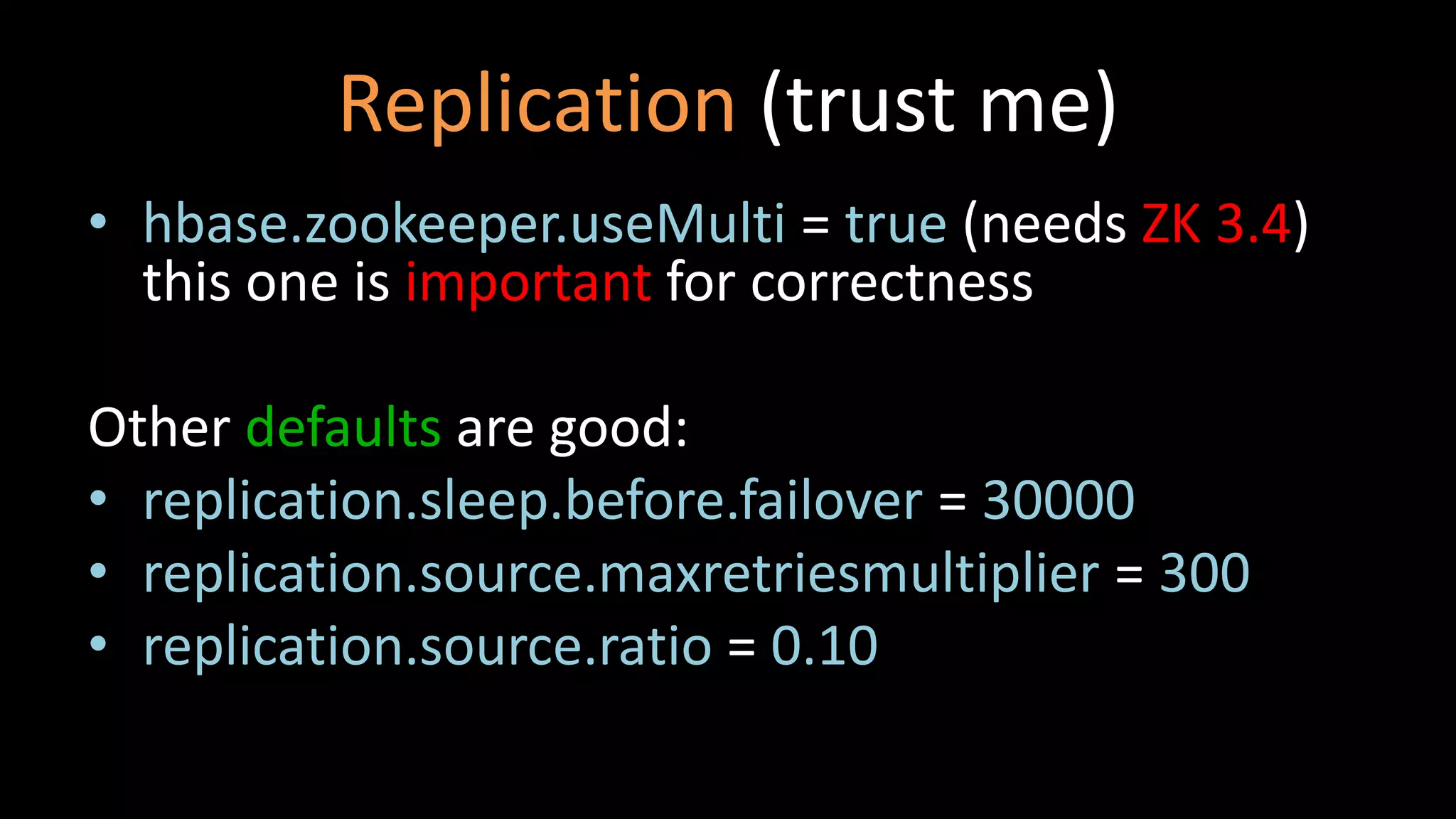

49. Replication (trust me)
• hbase.zookeeper.useMulti = true (needs ZK 3.4)
this one is important for correctness
Other defaults are good:
• replication.sleep.before.failover = 30000
• replication.source.maxretriesmultiplier = 300
• replication.source.ratio = 0.10

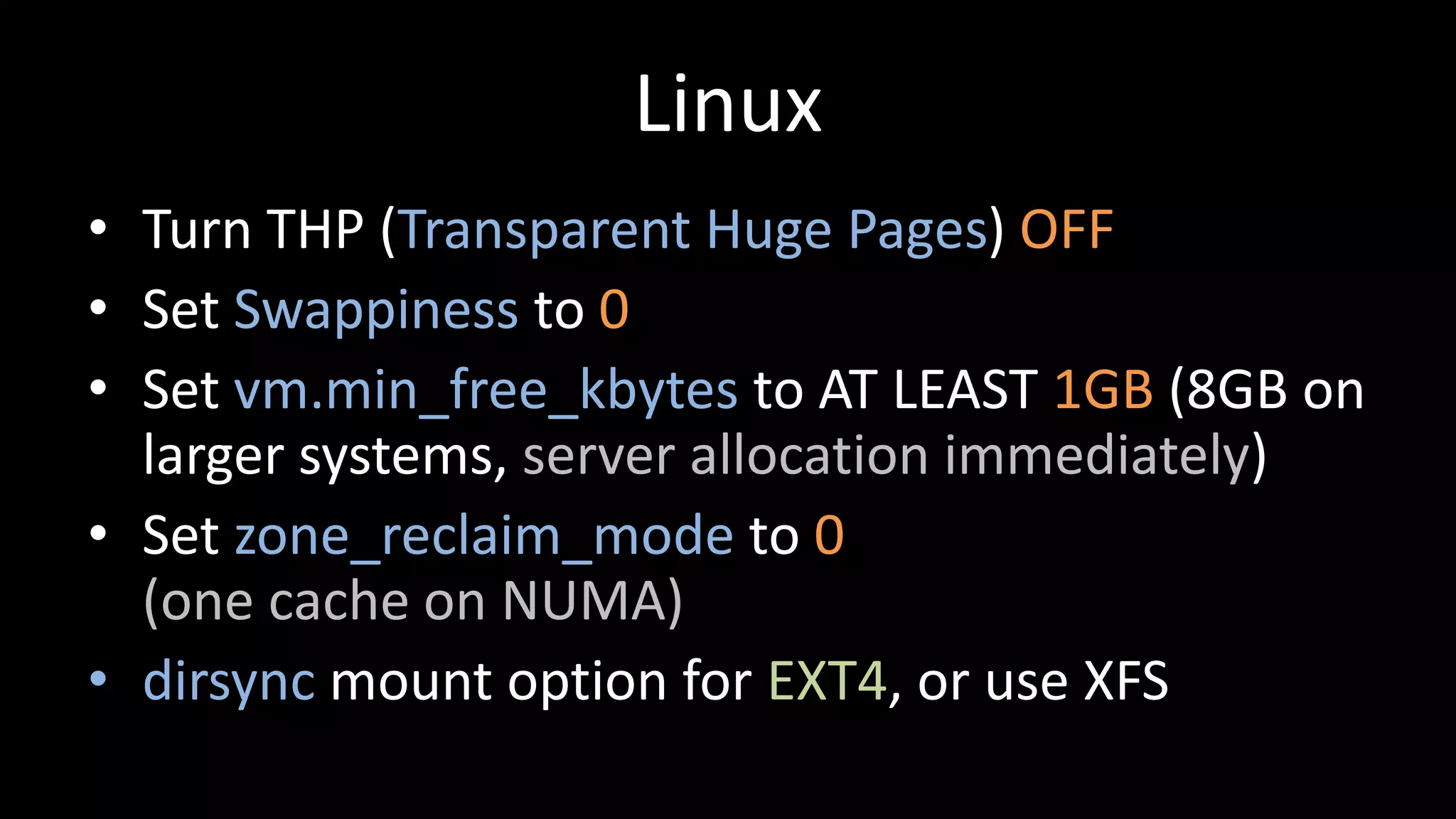

50. Linux
• Turn THP (Transparent Huge Pages) OFF
• Set Swappiness to 0
• Set vm.min_free_kbytes to AT LEAST 1GB (8GB on
larger systems, server allocation immediately)
• Set zone_reclaim_mode to 0
(one cache on NUMA)
• dirsync mount option for EXT4, or use XFS

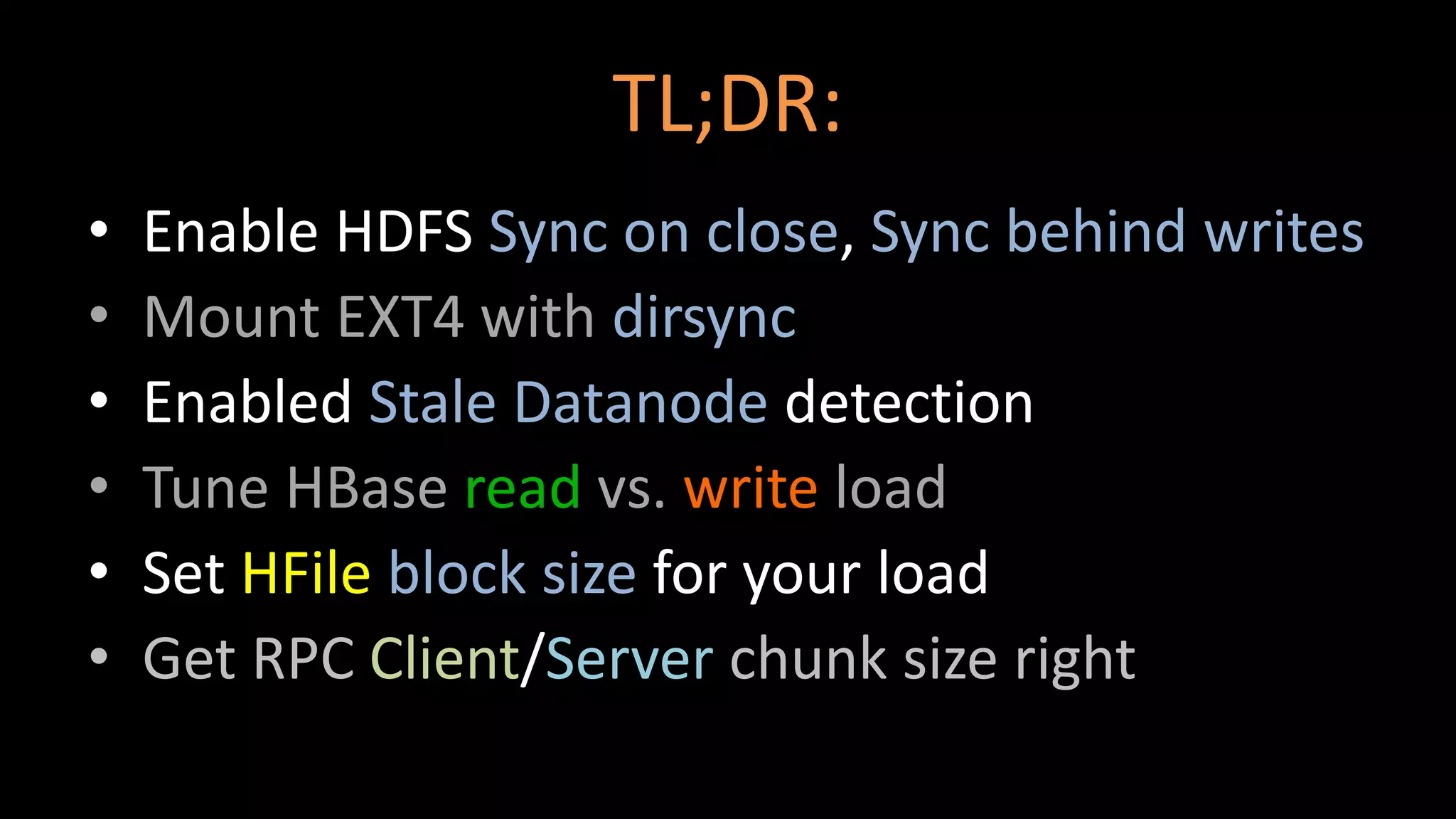

53. TL;DR:
• Enable HDFS Sync on close, Sync behind writes
• Mount EXT4 with dirsync
• Enabled Stale Datanode detection
• Tune HBase read vs. write load
• Set HFile block size for your load
• Get RPC Client/Server chunk size right
