1. The webinar covered JBoss RichFaces skins, including using out-of-the-box skins, creating custom skins, and extending existing skins. 2. Standard controls can be skinned to match RichFaces components using skin parameters or CSS classes. 3. Future plans for RichFaces include full integration with JSF 2.0 in version 4.0, scheduled for release in 2009.

1. JBoss RichFaces
Webinar Series
Skins
Webinar #4
Max Katz
Charley Cowens
© Exadel

2. Webinar Recordings
http://www.exadel.com/web/portal/webinars

3. Who Is This Guy?
Senior Systems Engineer
RIA strategy, development, training
http://mkblog.exadel.com
http://twitter.com/maxkatz
Author of Co-author of
Practical RichFaces
RichFaces Dzone
(Apress) RefCard

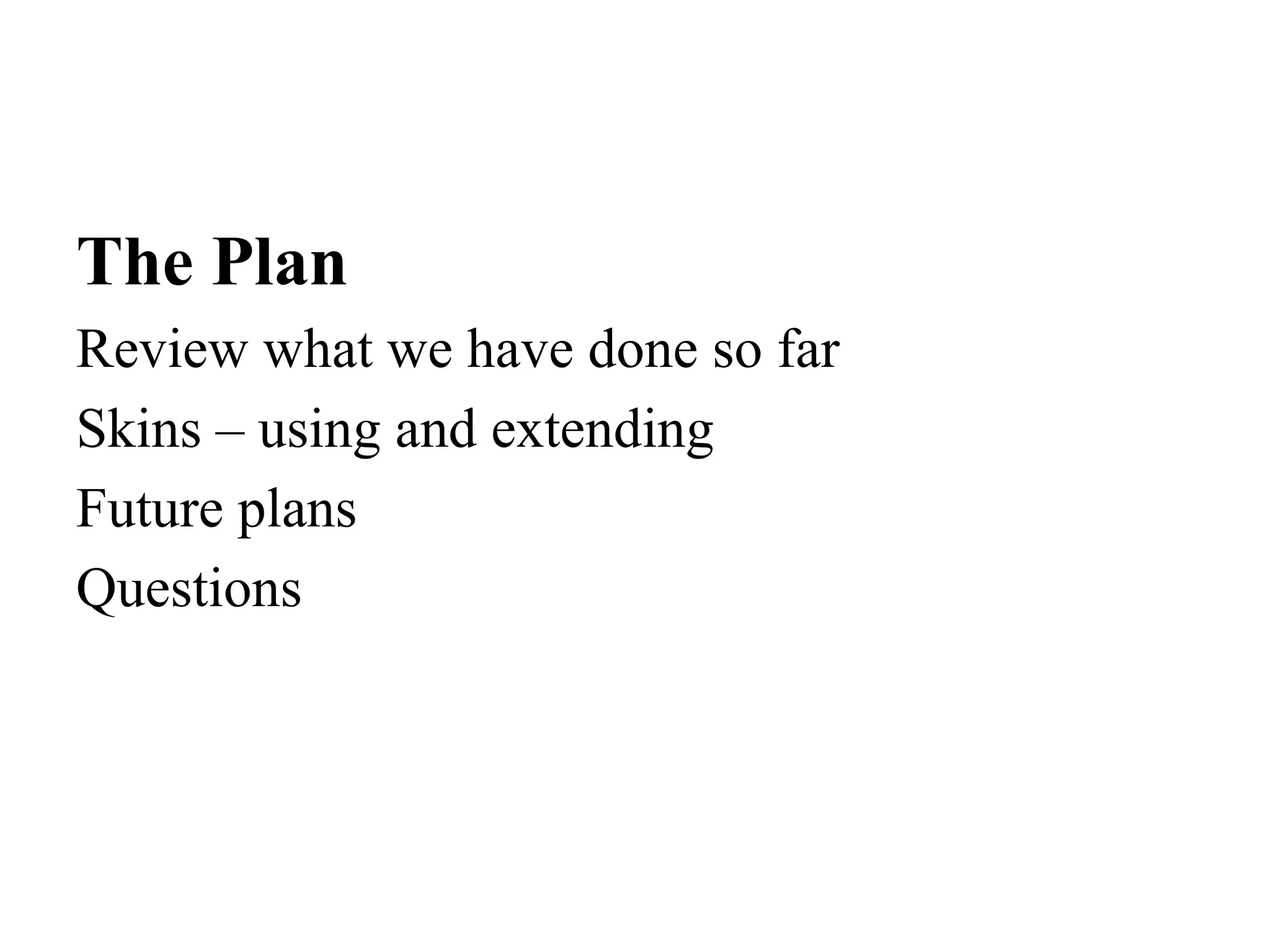

4. The Plan
Review what we have done so far
Skins – using and extending
Future plans
Questions

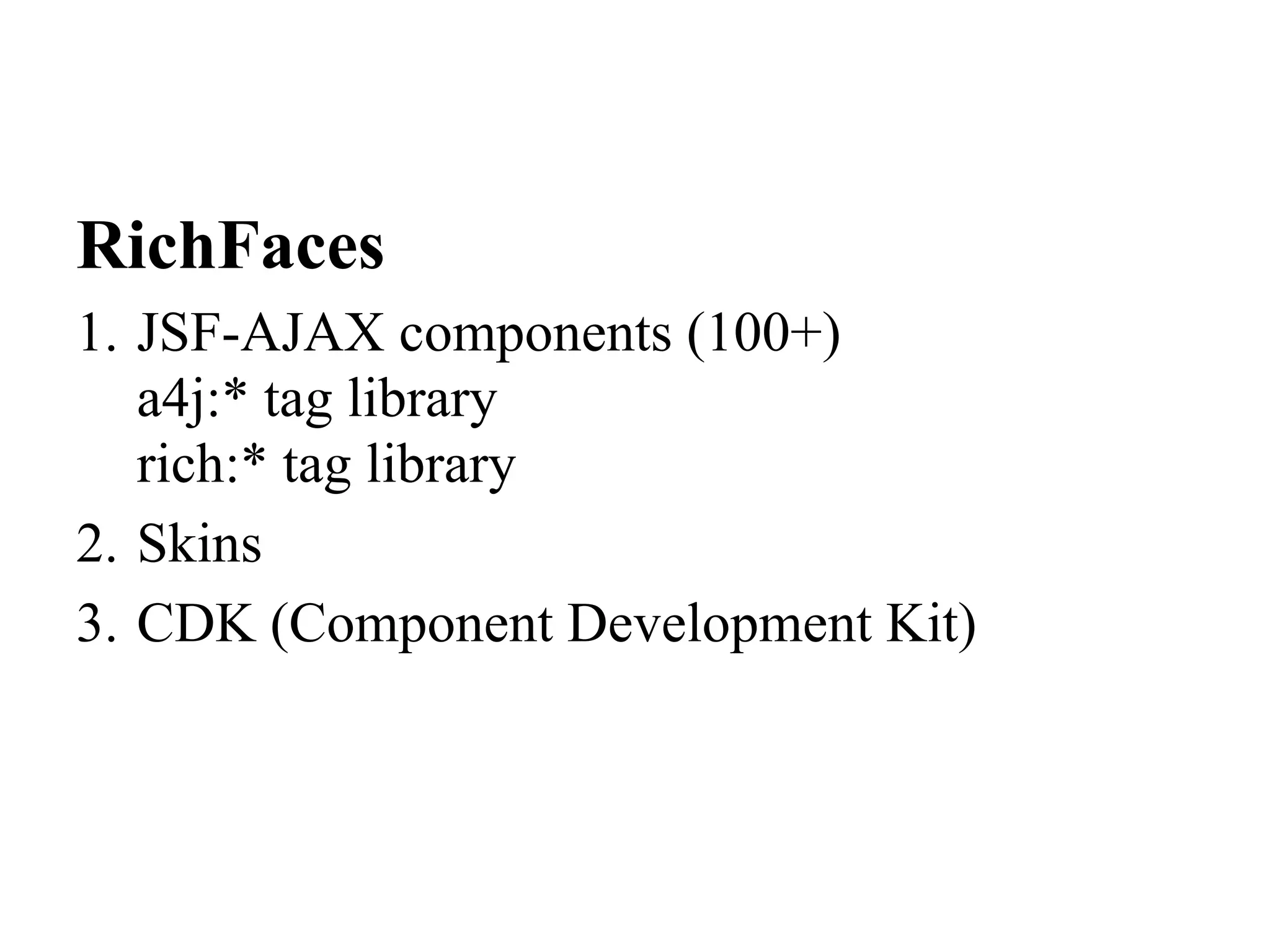

5. RichFaces
1. JSF-AJAX components (100+)
a4j:* tag library
rich:* tag library
2. Skins
3. CDK (Component Development Kit)

6. What You Should Know
Runs in:
Any servlet container, application
server
Portals: JBoss, WebLogic, Liferay
Works with:
JSF (1.1, 1.2, 2.0soon)
Works with:
Seam, Spring
Works with any 3rd party components

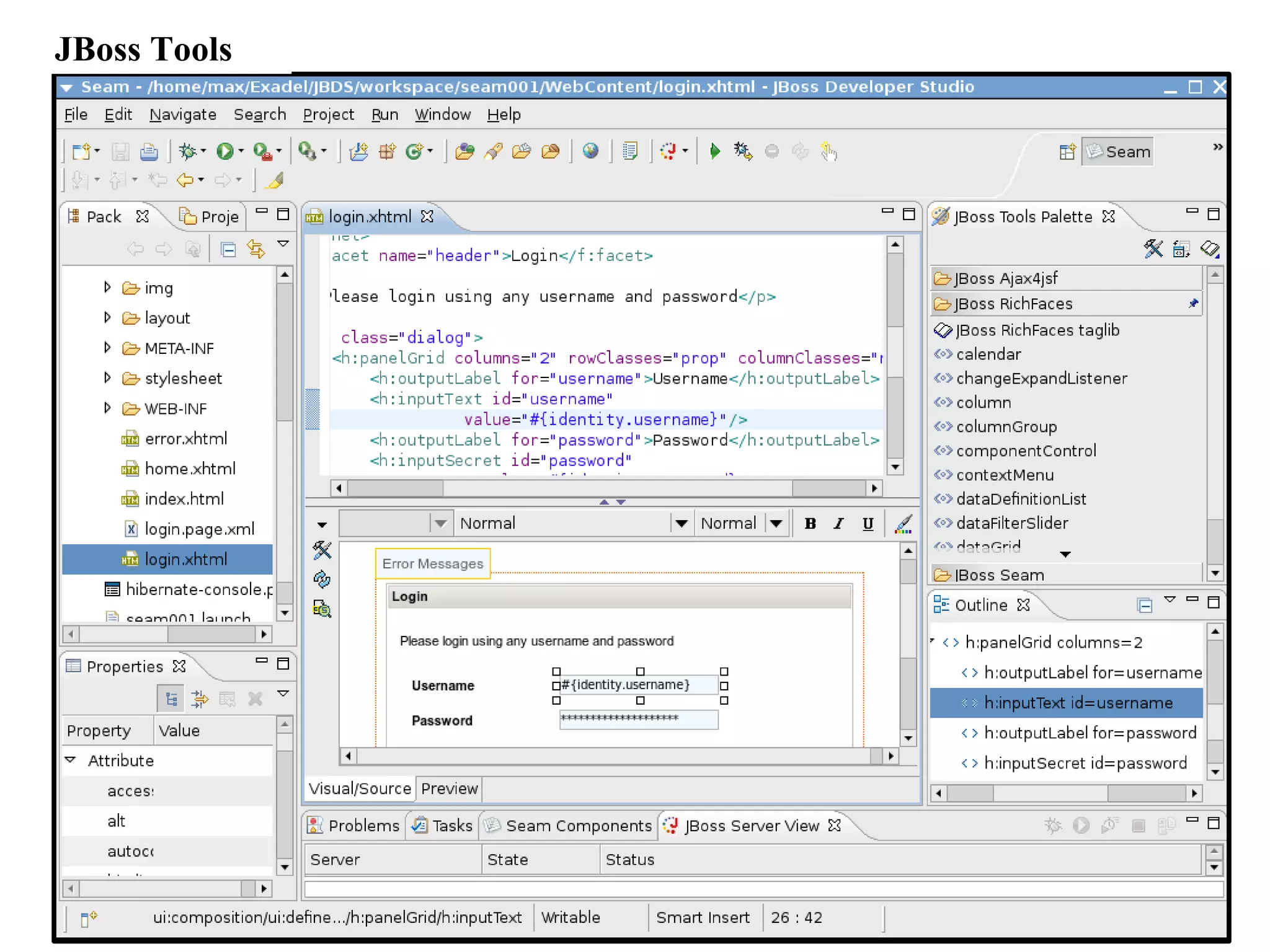

7. JBoss Tools

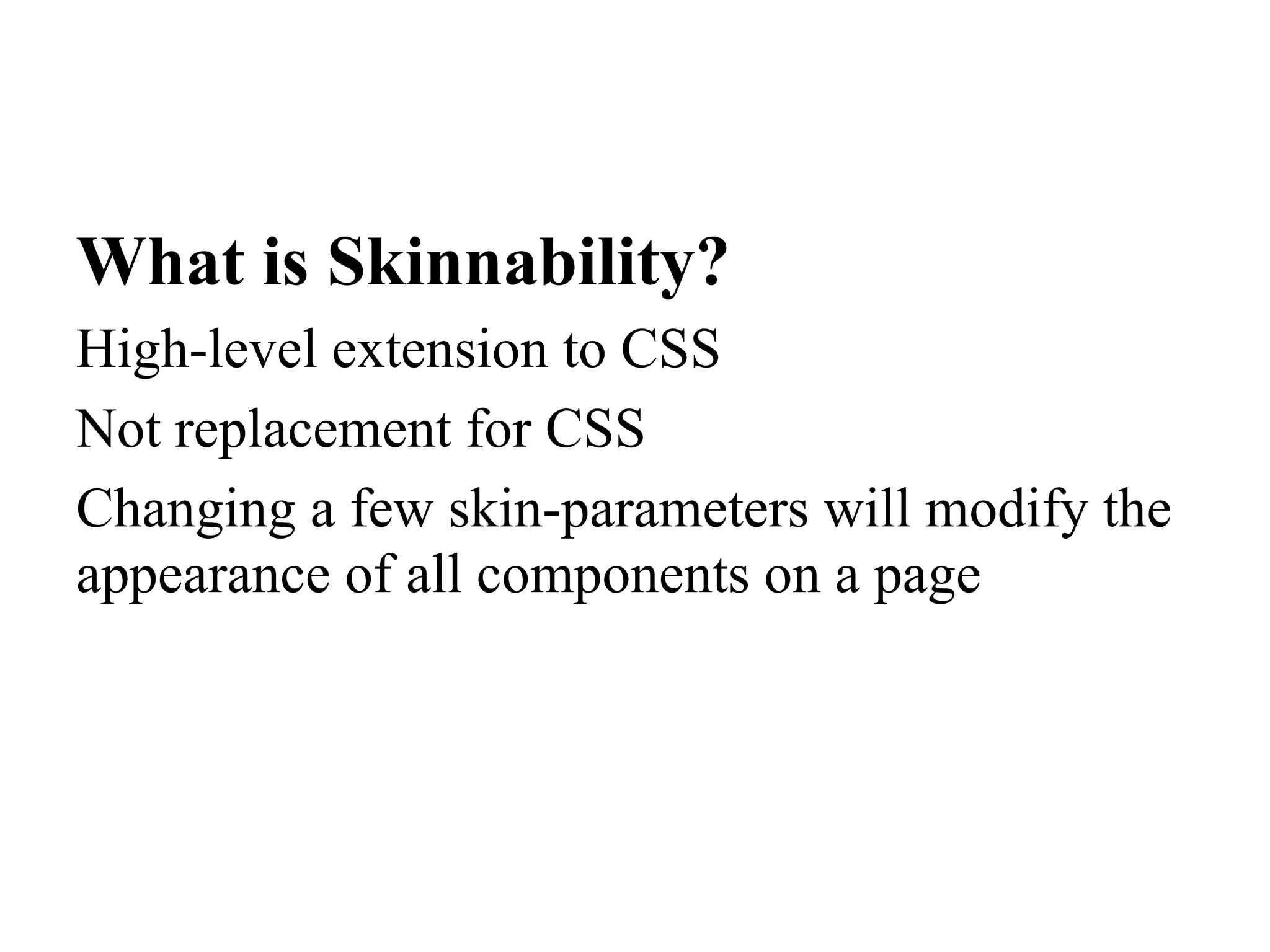

8. What is Skinnability?
High-level extension to CSS
Not replacement for CSS
Changing a few skin-parameters will modify the
appearance of all components on a page

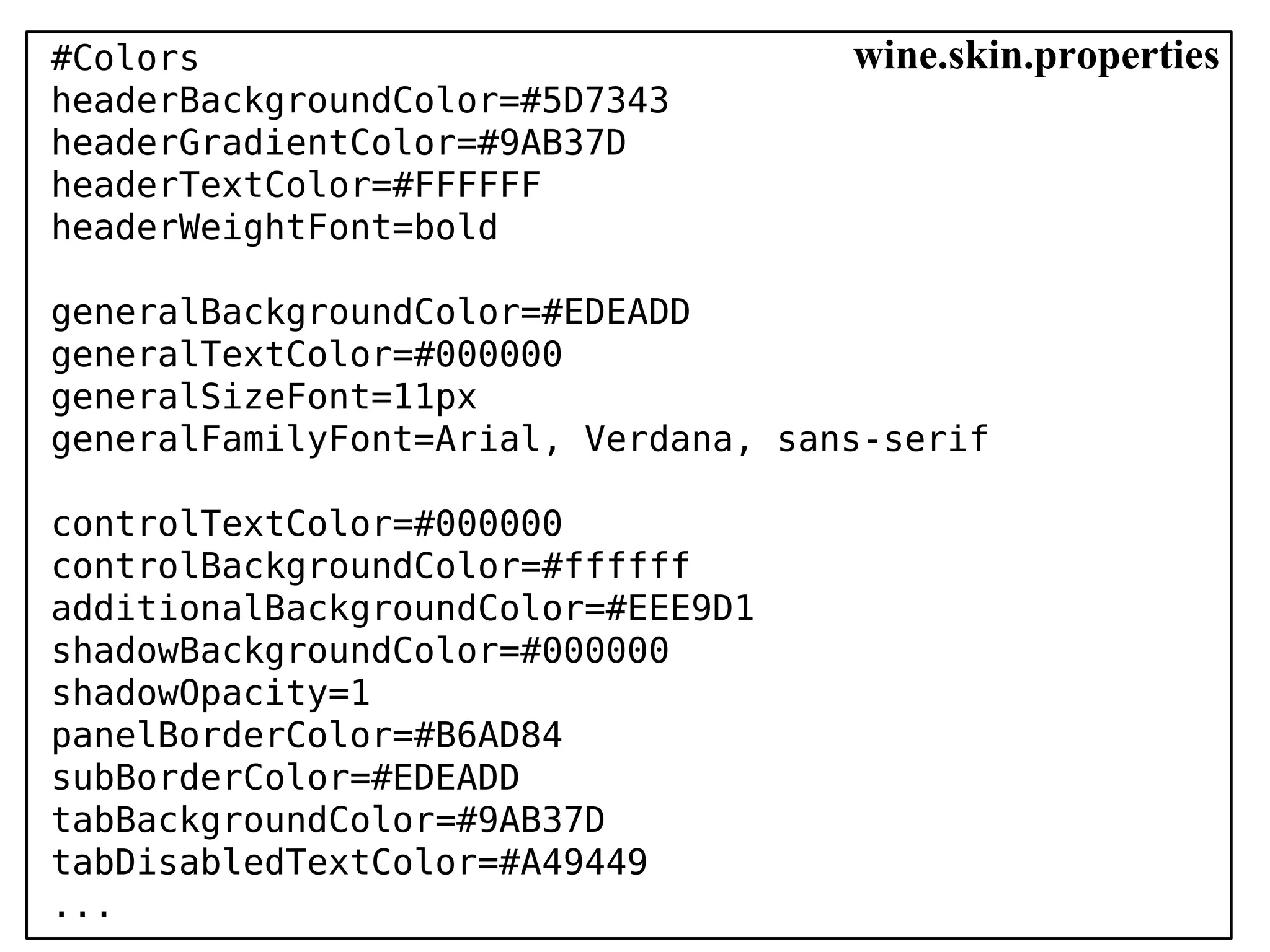

9. #Colors wine.skin.properties
headerBackgroundColor=#5D7343
headerGradientColor=#9AB37D
headerTextColor=#FFFFFF
headerWeightFont=bold
generalBackgroundColor=#EDEADD
generalTextColor=#000000
generalSizeFont=11px
generalFamilyFont=Arial, Verdana, sans-serif
controlTextColor=#000000
controlBackgroundColor=#ffffff
additionalBackgroundColor=#EEE9D1
shadowBackgroundColor=#000000
shadowOpacity=1
panelBorderColor=#B6AD84
subBorderColor=#EDEADD
tabBackgroundColor=#9AB37D
tabDisabledTextColor=#A49449
...

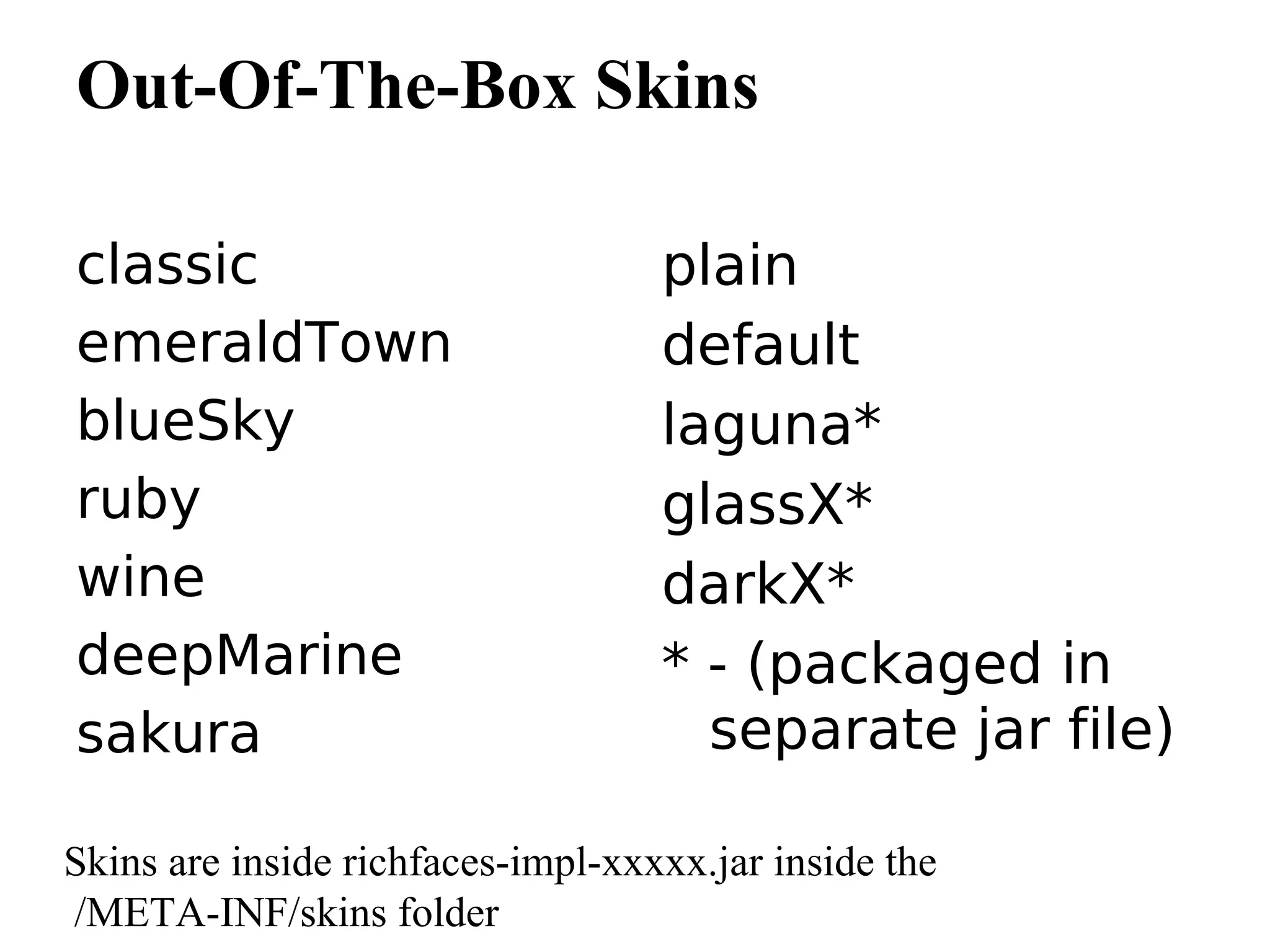

10. Out-Of-The-Box Skins
classic plain
emeraldTown default
blueSky laguna*
ruby glassX*
wine darkX*
deepMarine * - (packaged in
sakura separate jar file)
Skins are inside richfaces-impl-xxxxx.jar inside the
/META-INF/skins folder

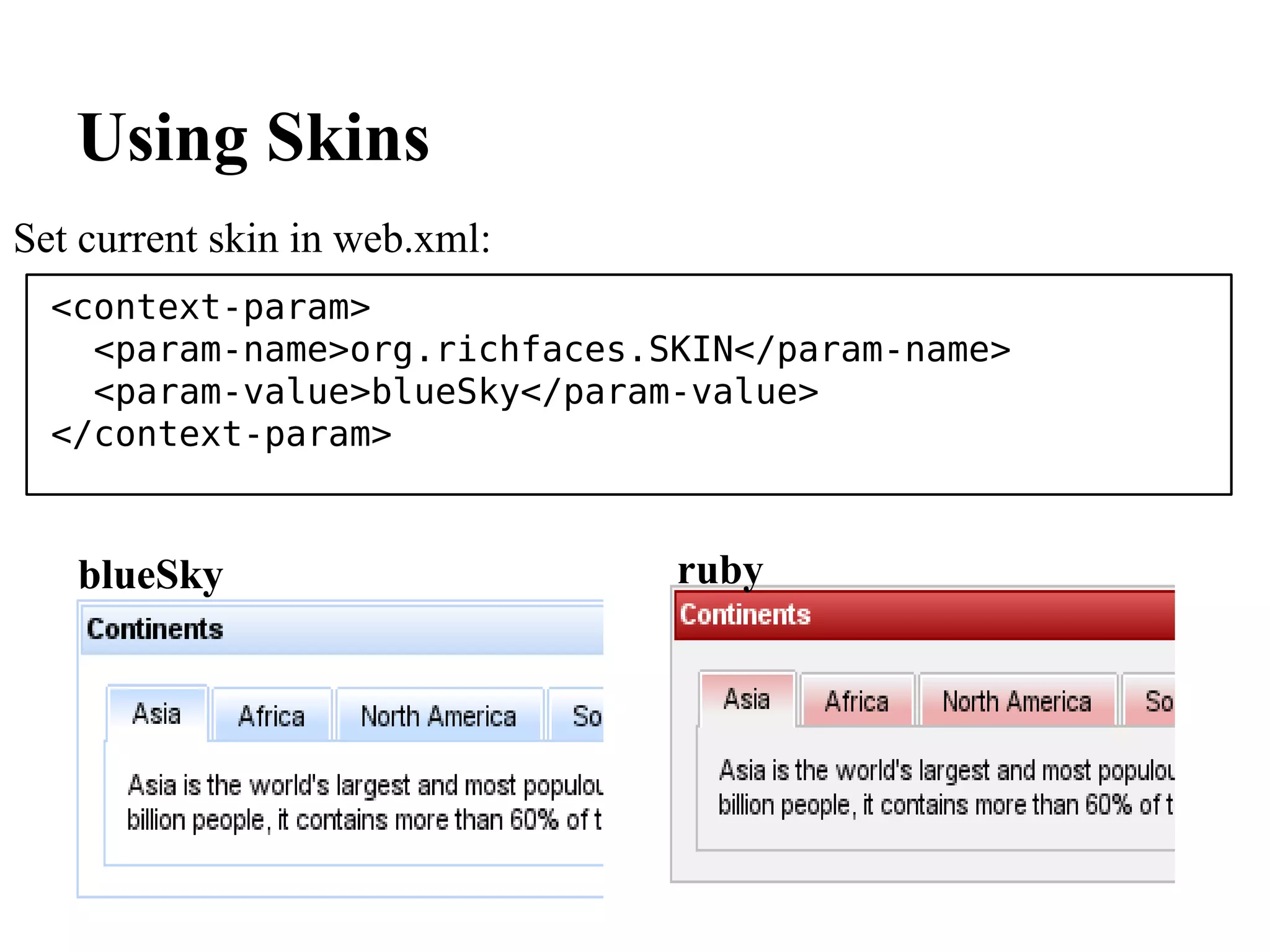

11. Using Skins
Set current skin in web.xml:
<context-param>
<param-name>org.richfaces.SKIN</param-name>
<param-value>blueSky</param-value>
</context-param>
blueSky ruby

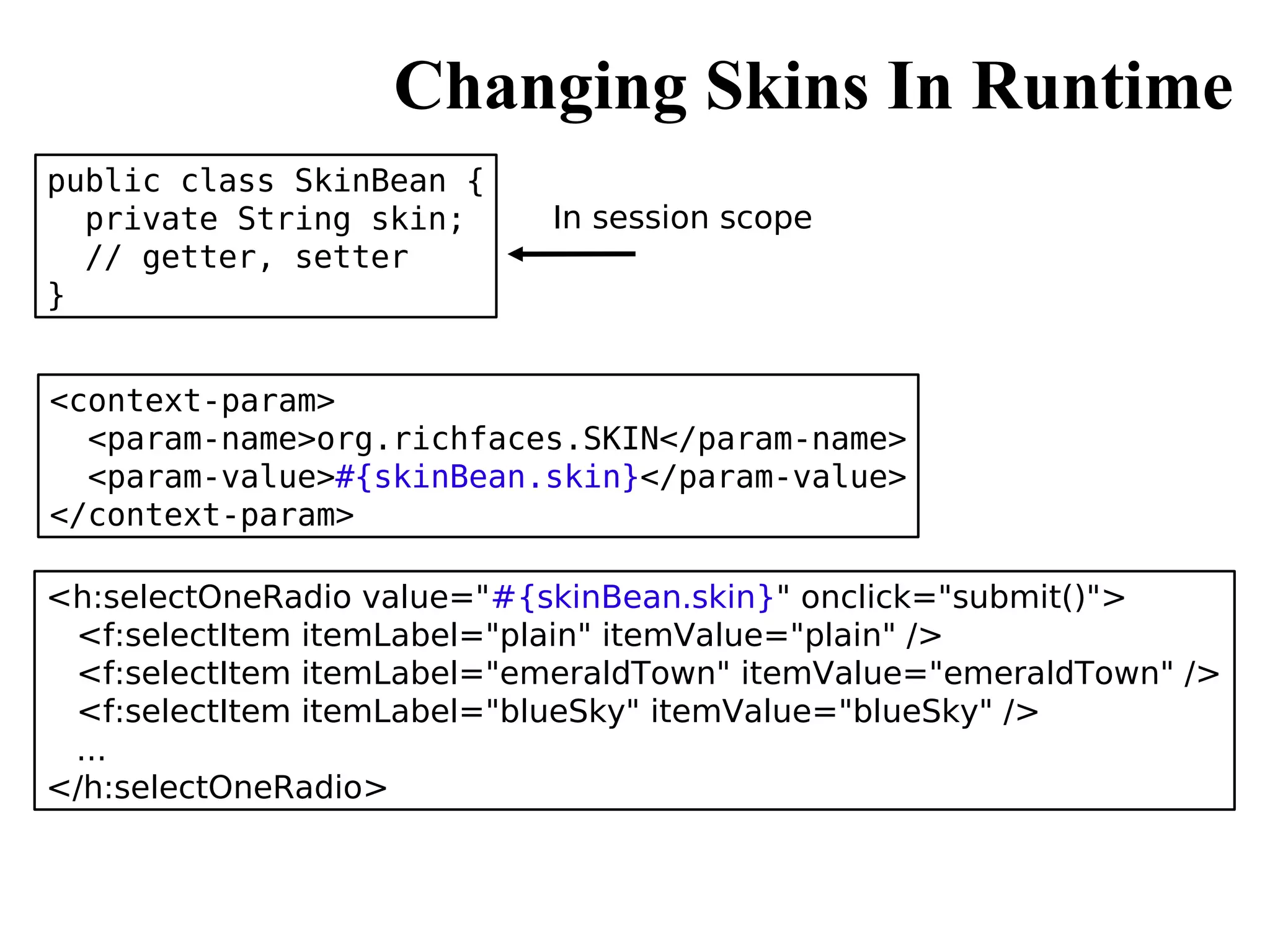

12. Changing Skins In Runtime
public class SkinBean {
private String skin; In session scope
// getter, setter
}
<context-param>
<param-name>org.richfaces.SKIN</param-name>
<param-value>#{skinBean.skin}</param-value>
</context-param>
<h:selectOneRadio value="#{skinBean.skin}" onclick="submit()">
<f:selectItem itemLabel="plain" itemValue="plain" />
<f:selectItem itemLabel="emeraldTown" itemValue="emeraldTown" />
<f:selectItem itemLabel="blueSky" itemValue="blueSky" />
...
</h:selectOneRadio>

13. Creating Custom Skins
1. Take an existing skin and start
modifying it (create as many as you
want)
2. Name the skin <name>.skin.properties
3. Place the skin:
META-INF/skins
WEB-INF/classes
#Colors
4. Register skin in headerBackgroundColor=#5D7343
web.xml file headerGradientColor=#9AB37D
headerTextColor=#FFFFFF
headerWeightFont=bold
...

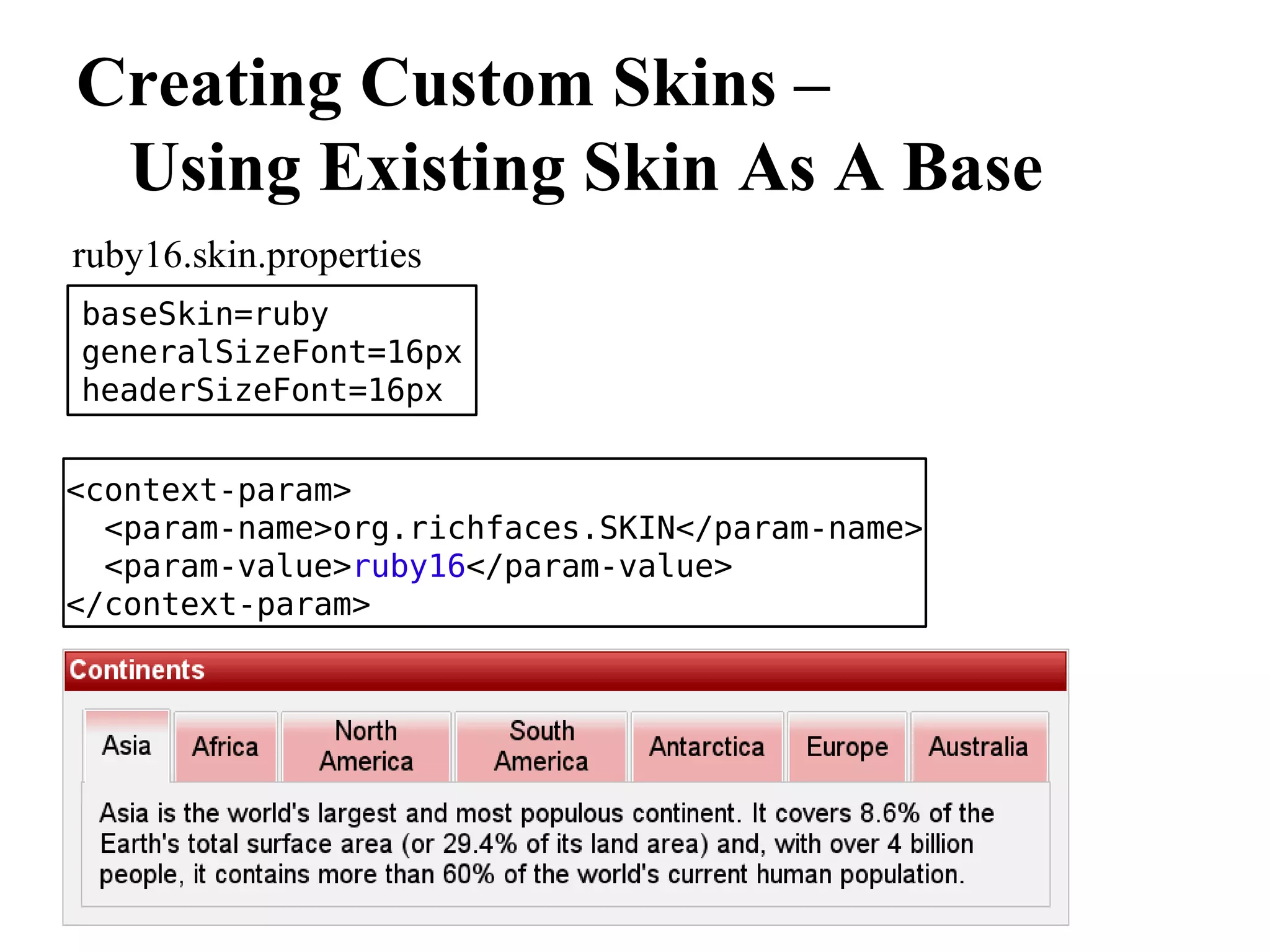

14. Creating Custom Skins –
Using Existing Skin As A Base
ruby16.skin.properties
baseSkin=ruby
generalSizeFont=16px
headerSizeFont=16px
<context-param>
<param-name>org.richfaces.SKIN</param-name>
<param-value>ruby16</param-value>
</context-param>

15. Skin Parameters Redefinition
How to find out how skin parameters map into CSS properties? Every
component has a section like this:

16. Customizing Styles
Four ways:
1. Any of the default skins
2. Create custom skins
3. Skin extension: overwrite skin
generated styles
4. Use component defined style
attributes

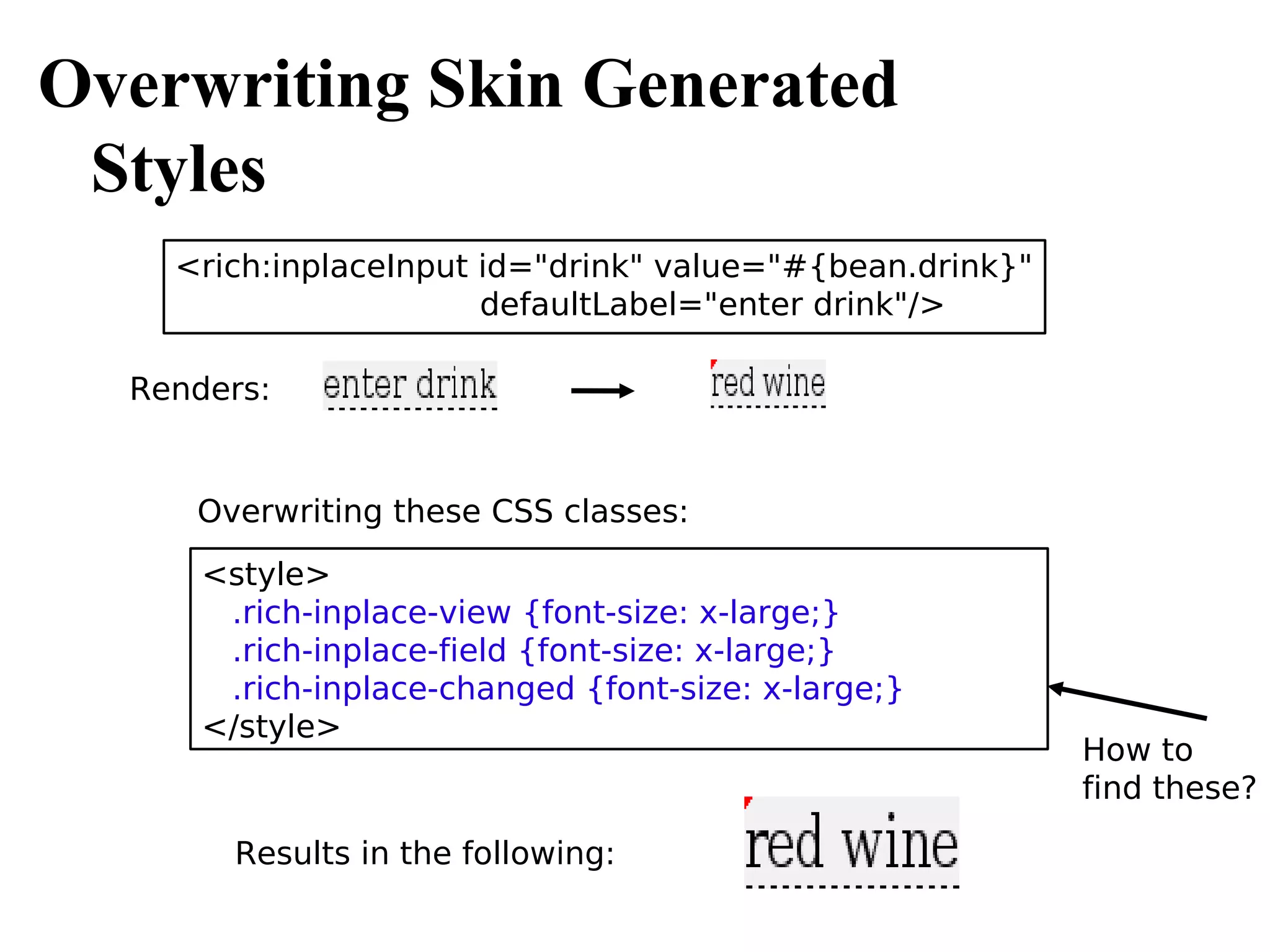

17. Overwriting Skin Generated
Styles
<rich:inplaceInput id="drink" value="#{bean.drink}"
defaultLabel="enter drink"/>
Renders:
Overwriting these CSS classes:
<style>
.rich-inplace-view {font-size: x-large;}
.rich-inplace-field {font-size: x-large;}
.rich-inplace-changed {font-size: x-large;}
</style>
How to
find these?
Results in the following:

18. So, how do you know which
CSS class to overwrite?
Every rich component has
a picture shown on the left
Each picture is followed
by a table (below) describing
Each style class
All styles are available in
RichFaces Developer Guide

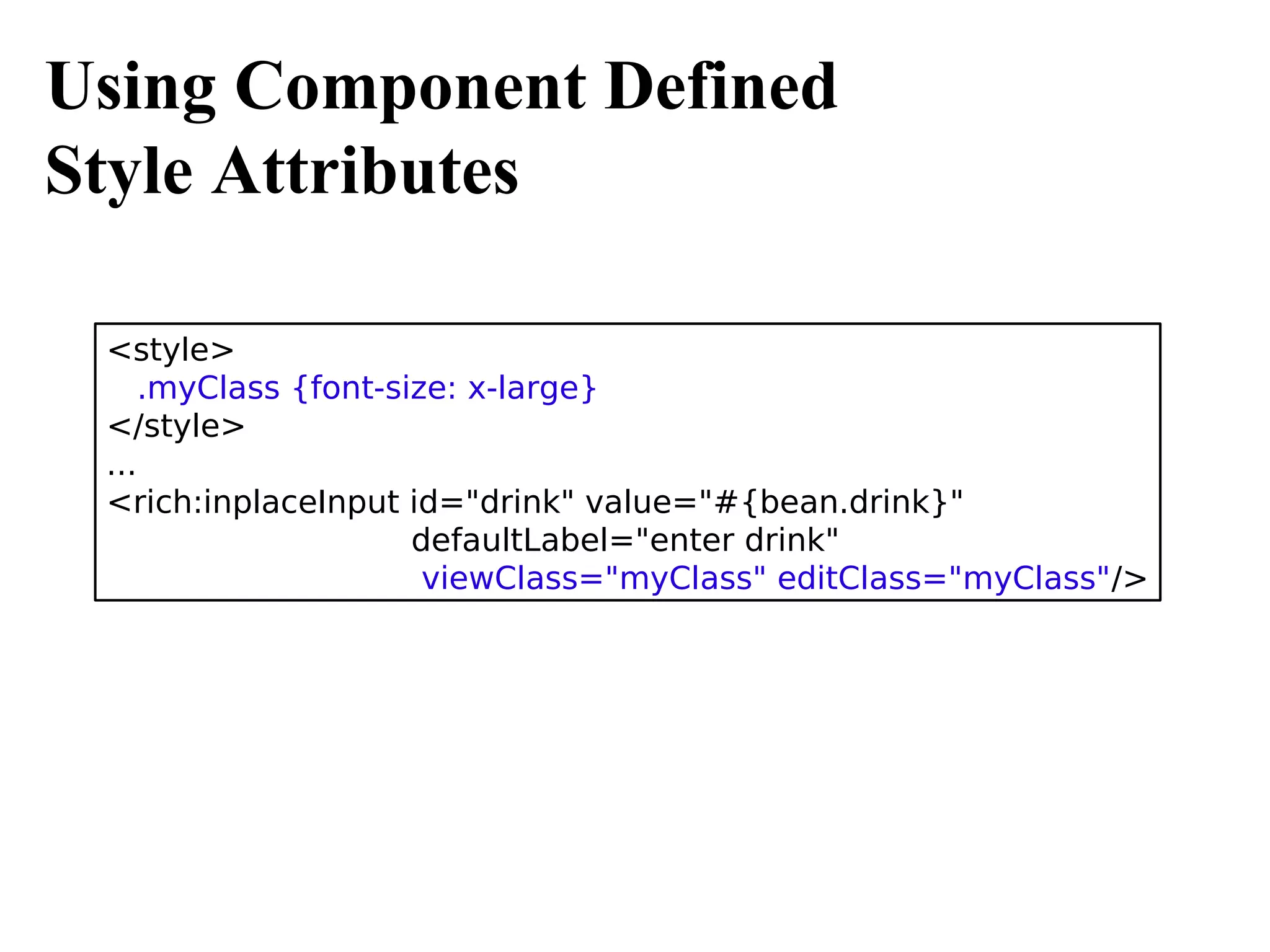

19. Using Component Defined
Style Attributes
<style>
.myClass {font-size: x-large}
</style>
...
<rich:inplaceInput id="drink" value="#{bean.drink}"
defaultLabel="enter drink"
viewClass="myClass" editClass="myClass"/>

20. Standard Control Skinning
Using rich components with standard or HTML controls could result
in the following:
Out of sync button

21. Standard Control Skinning
One option is to use #{richSkin.<skinParam>} implicit
object:
<h:commandButton action="next"
value="Next page -
I want to learn about world oceans!"
style="background-color:#{richSkin.tabBackgroundColor}"/>
All skin parameters are accessible in this fashion

22. Standard Control Skinning
Another option is to set this context param. This will skin all standard
and HTML controls automatically
<context-param>
<param-name>org.richfaces.CONTROL_SKINNING</param-name>
<param-value>enable</param-value>
</context-param>
The following controls will be skinned: Standard:
• input • IE 6
• select • IE 7 (BackComp
• textarea • Mode)
• keygen • Opera
• isindex • Safari
• legend Extended:
• fieldset • IE7
• hr • Firefox
• a (together with a:hover, a:visited "pseudo"-elements) • Chrome

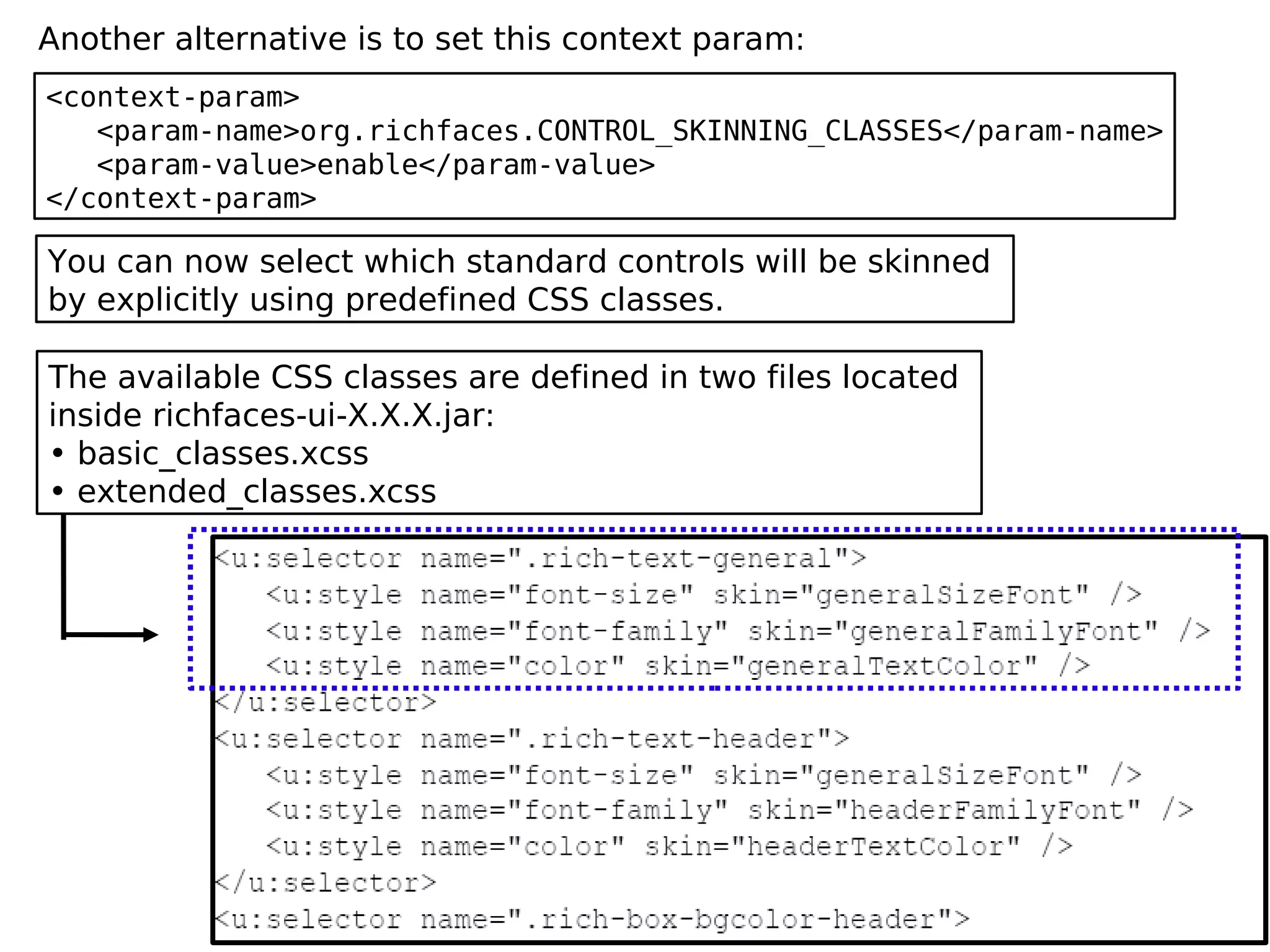

23. Another alternative is to set this context param:
<context-param>
<param-name>org.richfaces.CONTROL_SKINNING_CLASSES</param-name>
<param-value>enable</param-value>
</context-param>
You can now select which standard controls will be skinned
by explicitly using predefined CSS classes.
The available CSS classes are defined in two files located
inside richfaces-ui-X.X.X.jar:
• basic_classes.xcss
• extended_classes.xcss

24. This means that you have the class .rich-text-general
available to use on a page and it consists of:
.rich-text-general {
font-size: generalSizeFont;
font-family: generalFamilyFont;
color: generalTextColor;
}
Instead of applying a CSS class to each component, .rich-container
class can be used to skin all standard components inside a
container <rich:panel>, <h:panelGrid> and <div>:
<h:panelGrid class="rich-container">
...
</h:panelGrid>
<div class="rich-container">
...
</div>

25. RichFaces 3.3.1
Released May 18th, 2009
rich:colorPicker
rich:page
rich:layout, rich:layoutPanel
themes - predefined and packaged
layouts

26. rich:page
header
subheader
sidebar
footer rich:layout, rich:layoutPanel
top
left center right
bottom

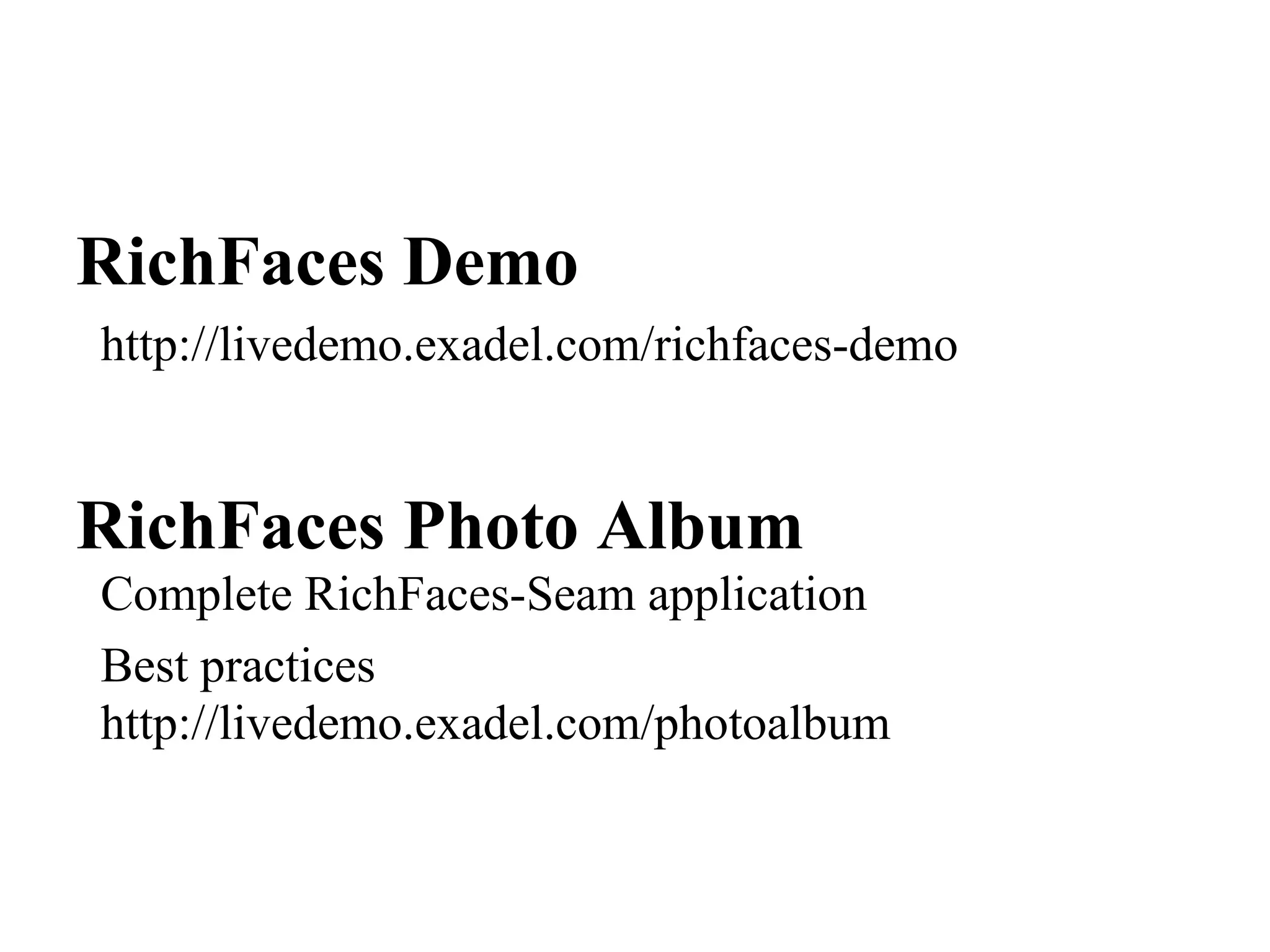

27. RichFaces Demo
http://livedemo.exadel.com/richfaces-demo
RichFaces Photo Album
Complete RichFaces-Seam application
Best practices
http://livedemo.exadel.com/photoalbum

28. RichFaces 4.0
Full integration with JSF 2.0
Will be updated for
consistency, performance
Release schedule (2009):
Alpha June
Beta August
CR September
GA October
http://www.jboss.org/community/wiki/RichFace
s40Planning

29. What We Covered
1.Skins
2.Creating, extending
3.Skinning standard controls

30. Webinar Recordings
http://www.exadel.com/web/portal/webinars

31. JSF/RichFaces Training
On-site 1-3 days
More info: http://mkblog.exadel.com

32. Thank You.
Questions?
mkatz@exadel.com
http://mkblog.exadel.com
