1. REINVENTING EARTH’S ENERGY
World leader in biogas upgrading solutions
Complete and Innovative Solutions in
Upgrading Biogas to RNG. A BC Story
January 2016
3. Greenlane at a Glance
Founded 1986 in New Zealand
Acquired October 2014 by
Pressure Technologies plc
Offices Vancouver, Canada
Sheffield, UK
Auckland, New Zealand
Employees 60+
Projects 90 installations in
North and South America
Europe
Asia (including China)
4. Pressure Technologies Group
Oil and Gas Defence Industrial Gases Alternative Energy
Serving these Markets
Engineered Products Cylinders Alternative Energy
4 Divisions
Precision Machine
Components

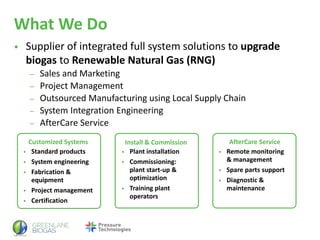

5. What We Do
• Supplier of integrated full system solutions to upgrade
biogas to Renewable Natural Gas (RNG)
– Sales and Marketing
– Project Management
– Outsourced Manufacturing using Local Supply Chain
– System Integration Engineering
– AfterCare Service
Customized Systems AfterCare ServiceInstall & Commission
• Standard products
• System engineering
• Fabrication &
equipment
• Project management
• Certification
• Plant installation
• Commissioning:
plant start-up &
optimization
• Training plant
operators
• Remote monitoring
& management
• Spare parts support
• Diagnostic &
maintenance

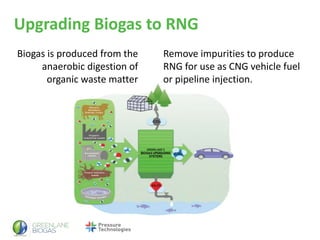

6. Upgrading Biogas to RNG
Biogas is produced from the
anaerobic digestion of
organic waste matter
Remove impurities to produce
RNG for use as CNG vehicle fuel
or pipeline injection.

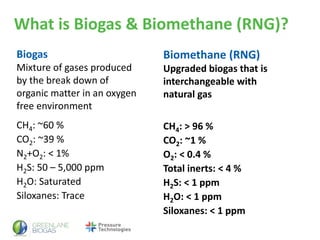

7. What is Biogas & Biomethane (RNG)?
Biogas
Mixture of gases produced
by the break down of
organic matter in an oxygen
free environment
CH4: ~60 %
CO2: ~39 %
N2+O2: < 1%
H2S: 50 – 5,000 ppm
H2O: Saturated
Siloxanes: Trace
Biomethane (RNG)
Upgraded biogas that is
interchangeable with
natural gas

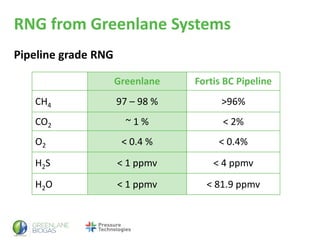

CH4: > 96 %
CO2: ~1 %
O2: < 0.4 %
Total inerts: < 4 %
H2S: < 1 ppm
H2O: < 1 ppm
Siloxanes: < 1 ppm

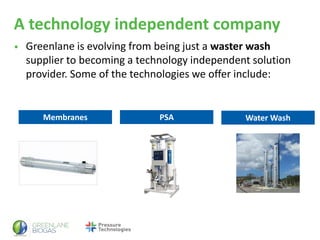

8. A technology independent company
• Greenlane is evolving from being just a waster wash
supplier to becoming a technology independent solution
provider. Some of the technologies we offer include:
Membranes PSA Water Wash

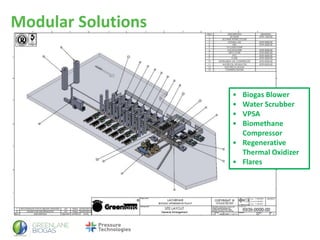

11. A BC Success Story
Greenlane
helps Surrey
produce RNG
in BC
Greenlane
buys 100%
RNG in BC
from FortisBC
Greenlane is
based in BC
and employs
BC residents
Greenlane
hires BC
contractors
to install their
work
Greenlane
designs and
manufactures
their plants in
BC
12. Surrey Biofuels Facility
Project Site
• Source Separated Organics Facility in Surrey BC
Objective
• Close the loop on the city – reduce/recover organic waste
Process
• Produce biogas using anaerobic digesters to break down
organic waste.
• Upgrade biogas to RNG using Greenlane system
• Recover CO2 to use as part of the process.
RNG Use
• Inject into FortisBC pipeline & fuel CNG vehicles.

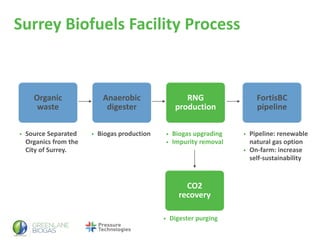

13. Surrey Biofuels Facility Process
Organic
waste
Anaerobic
digester
RNG
production
FortisBC
pipeline
• Source Separated
Organics from the
City of Surrey.
• Biogas production • Biogas upgrading
• Impurity removal
• Pipeline: renewable
natural gas option
• On-farm: increase
self-sustainability
CO2
recovery
• Digester purging

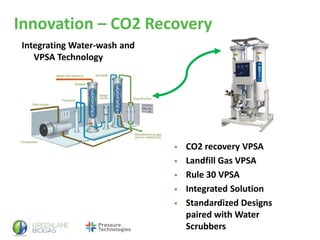

16. Innovation – CO2 Recovery
Integrating Water-wash and
VPSA Technology
• CO2 recovery VPSA
• Landfill Gas VPSA
• Rule 30 VPSA
• Integrated Solution
• Standardized Designs
paired with Water
Scrubbers

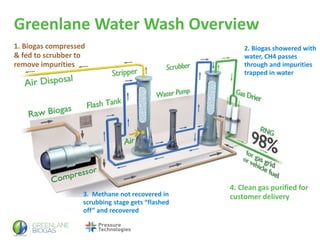

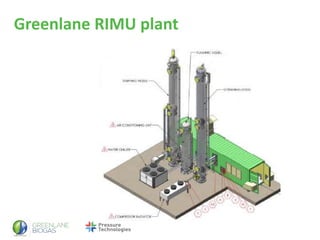

17. Greenlane Water Wash Overview
1. Biogas compressed
& fed to scrubber to
remove impurities
4. Clean gas purified for
customer delivery3. Methane not recovered in
scrubbing stage gets “flashed
off” and recovered
2. Biogas showered with
water, CH4 passes
through and impurities
trapped in water
18. Greenlane System Benefits
Proven
• 90+ installations
• 20+ Years of experience
• Largest Upgrading Facilities in
the World
• Injects into Fortis Pipeline since
2010.
Simple & Robust
• Water, no chemicals
• Reliable & high availability (>95%)
• Sales Gas always available,
process not susceptible to H2S
High Purity RNG
• > 97% biomethane
• N2 and O2 removal. CO2
recovery.
• > 98% methane recovery
• Vehicle fuel or pipeline injection
• Able to meet California’s Rule 30
Cost-Effective and Local
• Standardized units
• Energy efficient
• Low operating costs
• Heat Recovery
• No proprietary media, just water!
• Local support and service.
