1. RFID BASED TOLL ENTRY AND SMART
ROADS
Presented By:
SHAHRUKH UDDIN
RAKESH KUMAR
PRIYANKA JAISWAL
SHIVANI SINGH
1403331130
1403331114
1403331109
1403331139

2. RFID
BASED
TOLL
ENTRY

3. Introduction
• RFID is Radio frequency Identity Detection.
• It is consist of Passive RFID Tag & Receiver.
• It is Non- contact and Non L-O-S.

4. Invention

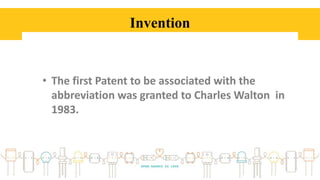

• The first Patent to be associated with the
abbreviation was granted to Charles Walton in
1983.

5. Working Principle
• RFID uses electromagnetic fields to automatically identify tags contain
electronically stored information.
• RFID is one method for Automatic Identification and Data
Capture (AIDC).
• The RFID-TAG is used as a key to open the toll booth.

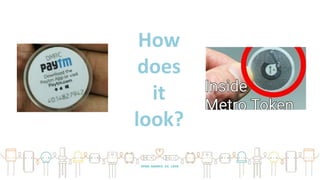

6. How
does
it
look?

7. Components Used

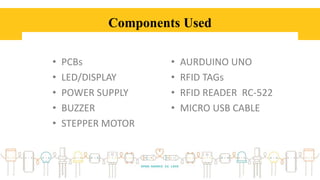

• PCBs
• LED/DISPLAY
• POWER SUPPLY
• BUZZER
• STEPPER MOTOR
• AURDUINO UNO
• RFID TAGs
• RFID READER RC-522
• MICRO USB CABLE

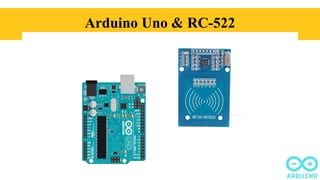

8. Arduino Uno & RC-522

9. Arduino
IDE

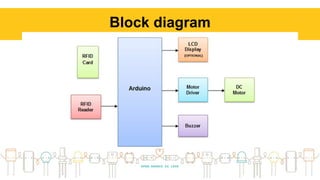

10. Block diagram

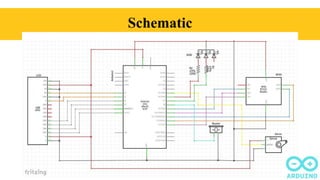

11. Schematic

12. Security Benefits

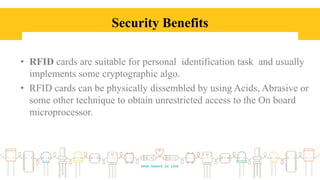

• RFID cards are suitable for personal identification task and usually
implements some cryptographic algo.
• RFID cards can be physically dissembled by using Acids, Abrasive or
some other technique to obtain unrestricted access to the On board
microprocessor.

13. Advantages over other Technologies

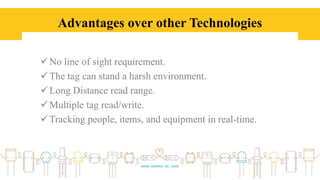

No line of sight requirement.
The tag can stand a harsh environment.
Long Distance read range.
Multiple tag read/write.
Tracking people, items, and equipment in real-time.

14. Rainy Day

15. Rain Prevention
• ROADS become slippery during rain
• Causes vehicle to spin out of control while braking
• So it makes Drivers alert to reduce their Vehicle’s speed during Rain

16. Night View

17. Automatic Lights

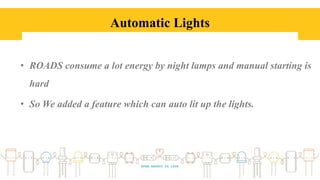

• ROADS consume a lot energy by night lamps and manual starting is
hard
• So We added a feature which can auto lit up the lights.

18. Additional Possibilities

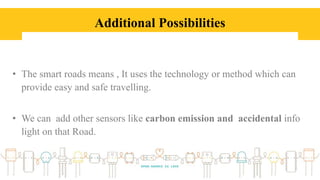

• The smart roads means , It uses the technology or method which can
provide easy and safe travelling.
• We can add other sensors like carbon emission and accidental info
light on that Road.

19. Limitations
• No RFID standard has been set yet.
• Accurate read rates on some items can be very low
• Increase in expenses: the suppliers will have to equip their warehouses
and transport vehicles with readers
