This document outlines a utility-based scheduling approach for distributed computing resources. It discusses motivations for improving on existing scheduling techniques, including reducing queue wait times and increasing resource utilization. The design section describes using a partial utility function that considers job priorities, requirements and relaxation levels to make scheduling decisions. The implementation uses Condor middleware and a utility scheduler to dynamically monitor resources and match jobs. Evaluation results show improvements in resource utilization and ability to run more jobs in parallel with reduced completion times compared to default scheduling.

1. By
Mudit Verma & Radovan Zvonček
KTH Sweden
Supervisor: Luis Veiga, IST Lisbon
December 5, 2012
1

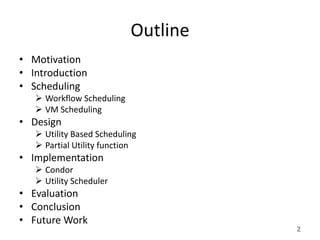

2. Outline
• Motivation
• Introduction
• Scheduling
 Workflow Scheduling
 VM Scheduling
• Design
 Utility Based Scheduling
 Partial Utility function
• Implementation
 Condor
 Utility Scheduler
• Evaluation
• Conclusion
• Future Work
2

3. Motivation
15 Mins + Waiting Time
Time to Reach Office ?
30 Mins
Tuk Tuk
3

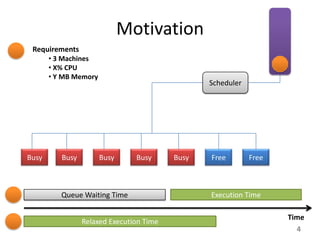

4. Motivation
Requirements
• 3 Machines
• X% CPU
• Y MB Memory
Scheduler
Busy Busy Busy Busy Busy Free Free
Queue Waiting Time Execution Time
Time
Relaxed Execution Time
4

5. Introduction
• Scheduling is at the heart of Distributed Compute .
 PaaS model -> Workflow (job) Scheduling
 IaaS model -> Virtual Machines (VM) Scheduling.
• Scheduler decides which job/VM should go on which machine.
• An effective scheduler can
 Reduce operational costs
 Reduce queue waiting time
 Increase resource utilization
5

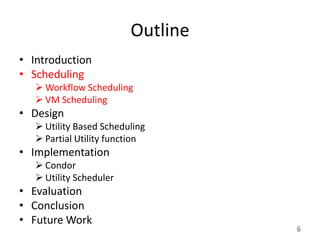

6. Outline
• Introduction
• Scheduling
 Workflow Scheduling
 VM Scheduling
• Design
 Utility Based Scheduling
 Partial Utility function
• Implementation
 Condor
 Utility Scheduler
• Evaluation
• Conclusion
• Future Work
6

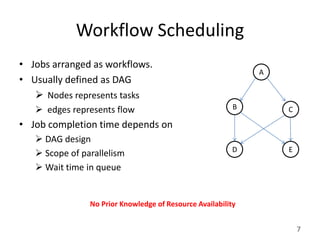

7. Workflow Scheduling
• Jobs arranged as workflows.
A
• Usually defined as DAG
 Nodes represents tasks
 edges represents flow B C
• Job completion time depends on
 DAG design
D E
 Scope of parallelism
 Wait time in queue
No Prior Knowledge of Resource Availability
7

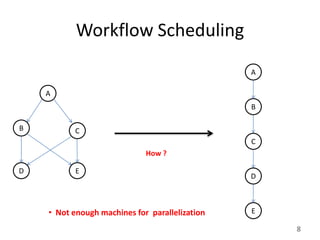

8. Workflow Scheduling
A
A
B
B C
C
How ?
D E
D
• Not enough machines for parallelization E
8

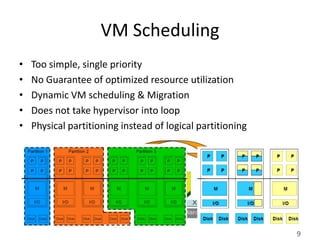

9. VM Scheduling
• Too simple, single priority
• No Guarantee of optimized resource utilization
• Dynamic VM scheduling & Migration
• Does not take hypervisor into loop
• Physical partitioning instead of logical partitioning
9

10. Outline
• Introduction
• Scheduling
 Workflow Scheduling
 VM Scheduling
• Design
 Utility Based Scheduling
 Partial Utility function
• Implementation
 Condor
 Utility Scheduler
• Evaluation
• Conclusion
• Future Work
10

11. Utility Driven Scheduling
• New scheduling paradigm
• Goals
 Optimized resource utilization
 Relaxed QoS in Overcommitted Scenarios
• Approach
 Partial Utility Function
 Continuous resource monitoring & feedback
11

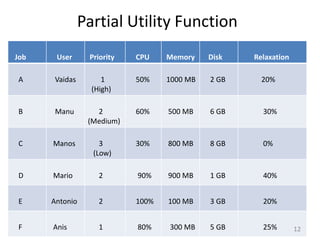

12. Partial Utility Function
Job User Priority CPU Memory Disk Relaxation
A Vaidas 1 50% 1000 MB 2 GB 20%
(High)
B Manu 2 60% 500 MB 6 GB 30%
(Medium)
C Manos 3 30% 800 MB 8 GB 0%
(Low)
D Mario 2 90% 900 MB 1 GB 40%
E Antonio 2 100% 100 MB 3 GB 20%
F Anis 1 80% 300 MB 5 GB 25% 12

13. Outline
• Introduction
• Scheduling
 Workflow Scheduling
 VM Scheduling
• Design
 Utility Based Scheduling
 Partial Utility function
• Implementation
 Condor
 Utility Scheduler
• Evaluation
• Future Work
• Conclusion
13

14. Condor
• Middleware for PaaS
Prescript
A
A
B C B C
D E
D E
Requirements A B C D E
14

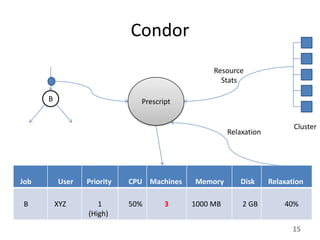

15. Condor
Resource
Stats
B Prescript
Cluster
Relaxation
Job User Priority CPU Machines Memory Disk Relaxation
B XYZ 1 50% 3
5 1000 MB 2 GB 40%
(High)
15

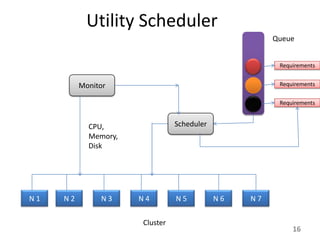

16. Utility Scheduler
Queue
Requirements
Monitor Requirements
Requirements
CPU, Scheduler
Memory,
Disk
N1 N2 N3 N4 N5 N6 N7
Cluster
16

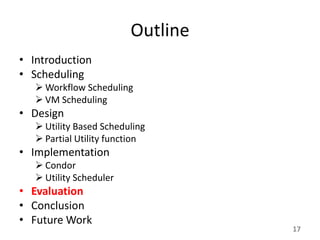

17. Outline
• Introduction
• Scheduling
 Workflow Scheduling
 VM Scheduling
• Design
 Utility Based Scheduling
 Partial Utility function
• Implementation
 Condor
 Utility Scheduler
• Evaluation
• Conclusion
• Future Work
17

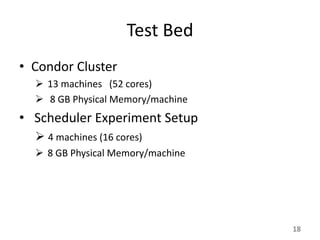

18. Test Bed
• Condor Cluster
 13 machines (52 cores)
 8 GB Physical Memory/machine
• Scheduler Experiment Setup
 4 machines (16 cores)
 8 GB Physical Memory/machine
18

19. Result 1
• 33% of gain in CPU Utilization/core
• Able to run roughly 1.5 times more jobs
19

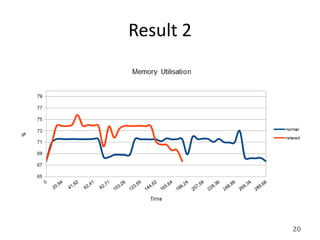

20. Result 2
20

21. Result 3
21

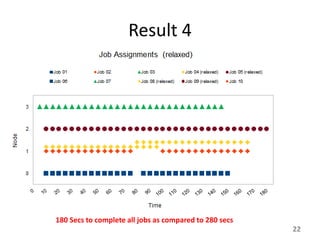

22. Result 4
180 Secs to complete all jobs as compared to 280 secs
22

23. Outline
• Introduction
• Scheduling
 Workflow Scheduling
 VM Scheduling
• Design
 Utility Based Scheduling
 Partial Utility function
• Implementation
 Condor
 Utility Scheduler
• Evaluation
• Conclusion
• Future Work
23

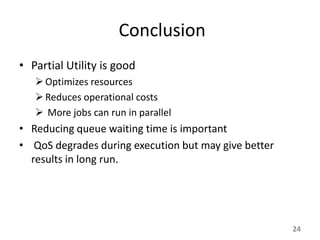

24. Conclusion
• Partial Utility is good
 Optimizes resources
 Reduces operational costs
 More jobs can run in parallel
• Reducing queue waiting time is important
• QoS degrades during execution but may give better
results in long run.
24

25. Future Work
• Use statistics to determine future decisions
• Incorporate Priorities and User Classes
• Incorporate SLA agreements
• Build a cloud middleware for IaaS
• Build a workflow management for PaaS
25
