1. Replacing "exec" with a
type and provider
Return manifests to a declarative
configuration
Dominic Cleal <dcleal@redhat.com>

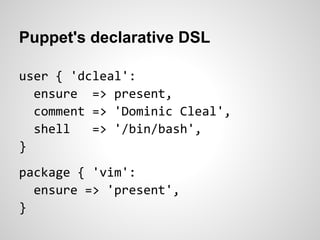

2. Puppet's declarative DSL
user { 'dcleal':
ensure => present,
comment => 'Dominic Cleal',
shell => '/bin/bash',
}
package { 'vim':
ensure => 'present',
}

3. How execs can fail
$ puppet module install puppetlabs-apt
$ vim apt/manifests/key.pp
...
exec { "apt::key ${upkey} absent":
command => "apt-key del '${upkey}'",
path => '/bin:/usr/bin',
onlyif => "apt-key list | grep '${upkey}'",
user => 'root',
group => 'root',
logoutput => 'on_failure',
}

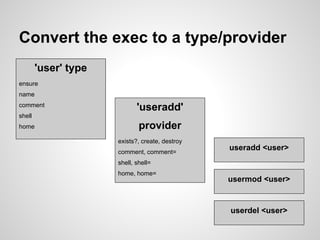

4. Convert the exec to a type/provider
'user' type
ensure
name
comment
'useradd'
shell
home provider
exists?, create, destroy
comment, comment=
useradd <user>
shell, shell=
home, home=
usermod <user>
userdel <user>

5. Types: properties and parameters
● Properties are changeable, e.g. a user's
shell or a service's start-at-boot flag
● Parameters represent other required data, e.
g. hasrestart on service
● All data can be validated and munged
● Types can be "ensurable", if the object can:
○ exist and not exist
○ be created
○ be destroyed

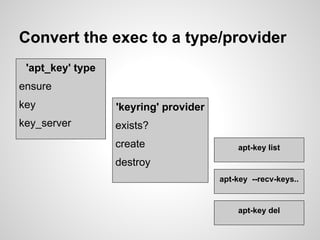

6. Convert the exec to a type/provider
'apt_key' type
ensure
key 'keyring' provider
key_server exists?
create apt-key list
destroy
apt-key --recv-keys..
apt-key del

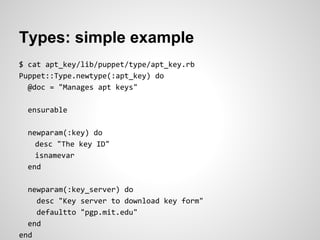

7. Types: simple example
$ cat apt_key/lib/puppet/type/apt_key.rb
Puppet::Type.newtype(:apt_key) do
@doc = "Manages apt keys"
ensurable
newparam(:key) do
desc "The key ID"
isnamevar
end
newparam(:key_server) do
desc "Key server to download key form"
defaultto "pgp.mit.edu"
end
end

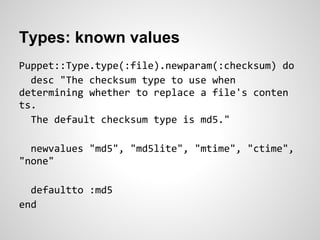

8. Types: known values
Puppet::Type.type(:file).newparam(:checksum) do
desc "The checksum type to use when
determining whether to replace a file's conten
ts.
The default checksum type is md5."
newvalues "md5", "md5lite", "mtime", "ctime",
"none"
defaultto :md5
end

9. Types: validation
module Puppet
newtype(:schedule) do
newparam(:repeat) do
desc "How often a given resource may be applied
in this schedule's `period`. Defaults to 1; must be an
integer."
validate do |value|
unless value.is_a?(Integer) or value =~
/^d+$/
raise Puppet::Error,
"Repeat must be a number"
end
end

10. Providers: getters/setters, ensurable
● getters and setters are implemented for each
property
● ensurable types also have exists?, create
and destroy to manage its existence
● list of commands that are required to run
● confined to certain operating systems via
facts

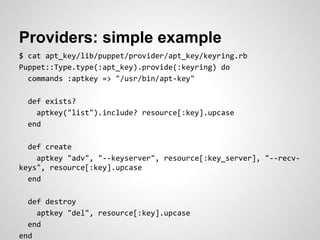

11. Providers: simple example
$ cat apt_key/lib/puppet/provider/apt_key/keyring.rb
Puppet::Type.type(:apt_key).provide(:keyring) do
commands :aptkey => "/usr/bin/apt-key"
def exists?
aptkey("list").include? resource[:key].upcase
end
def create
aptkey "adv", "--keyserver", resource[:key_server], "--recv-
keys", resource[:key].upcase
end
def destroy
aptkey "del", resource[:key].upcase
end
end

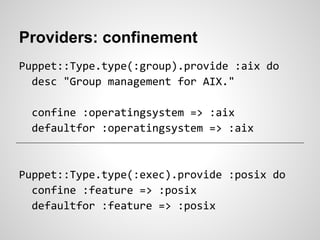

12. Providers: confinement
Puppet::Type.type(:group).provide :aix do
desc "Group management for AIX."
confine :operatingsystem => :aix
defaultfor :operatingsystem => :aix
Puppet::Type.type(:exec).provide :posix do
confine :feature => :posix
defaultfor :feature => :posix

13. Providers: instances and ralsh
$ puppet resource host
host { 'argon':
ensure => 'present',
host_aliases => ['foo'],
ip => '192.168.0.10',
target => '/etc/hosts',
}
host { 'iridium':
ensure => 'present',
host_aliases => ['localhost.localdomain', 'localhost'],
ip => '127.0.0.1',
target => '/etc/hosts',
}

14. Providers: instances and ralsh
def self.instances
resources = []
aptkey("list").each_line { |k| resources << new({:
name => $1}) if k =~ /^pubs+w+/(w+)/ }
resources
end
# puppet resource apt_key
apt_key { '1F41B907':
ensure => 'present'
}
apt_key { '46925553':
ensure => 'present'

15. Testing providers with rspec
prov_c = Puppet::Type.type(:apt_key).provider(:keyring)
describe prov_c do
it "should remove key" do
resource = Puppet::Type.type(:apt_key).new(
:name => '16BA136C',
:ensure => :absent
)
provider = prov_c.new(resource)
provider.expects(:aptkey).with('del', '16BA136C')
provider.destroy
end
end

16. Creating a module
$ puppet module generate domcleal-apt_key
$ cd domcleal-apt_key
$ mkdir -p lib/puppet/type
lib/puppet/provider/apt_key
$ touch lib/puppet/type/apt_key.rb
lib/puppet/provider/apy_key/keyring.rb
$ puppet module build .
upload pkg/domcleal-apt_key-0.0.1.tar.gz

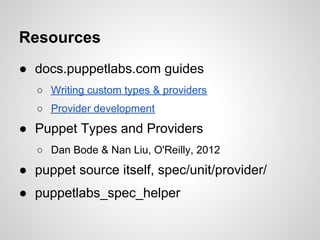

17. Resources
● docs.puppetlabs.com guides
○ Writing custom types & providers
○ Provider development
● Puppet Types and Providers
○ Dan Bode & Nan Liu, O'Reilly, 2012
● puppet source itself, spec/unit/provider/
● puppetlabs_spec_helper
