1. Testing Driven Puppet Modules
[Nan Liu @sesshin]
Copyright 2014
1 / 45

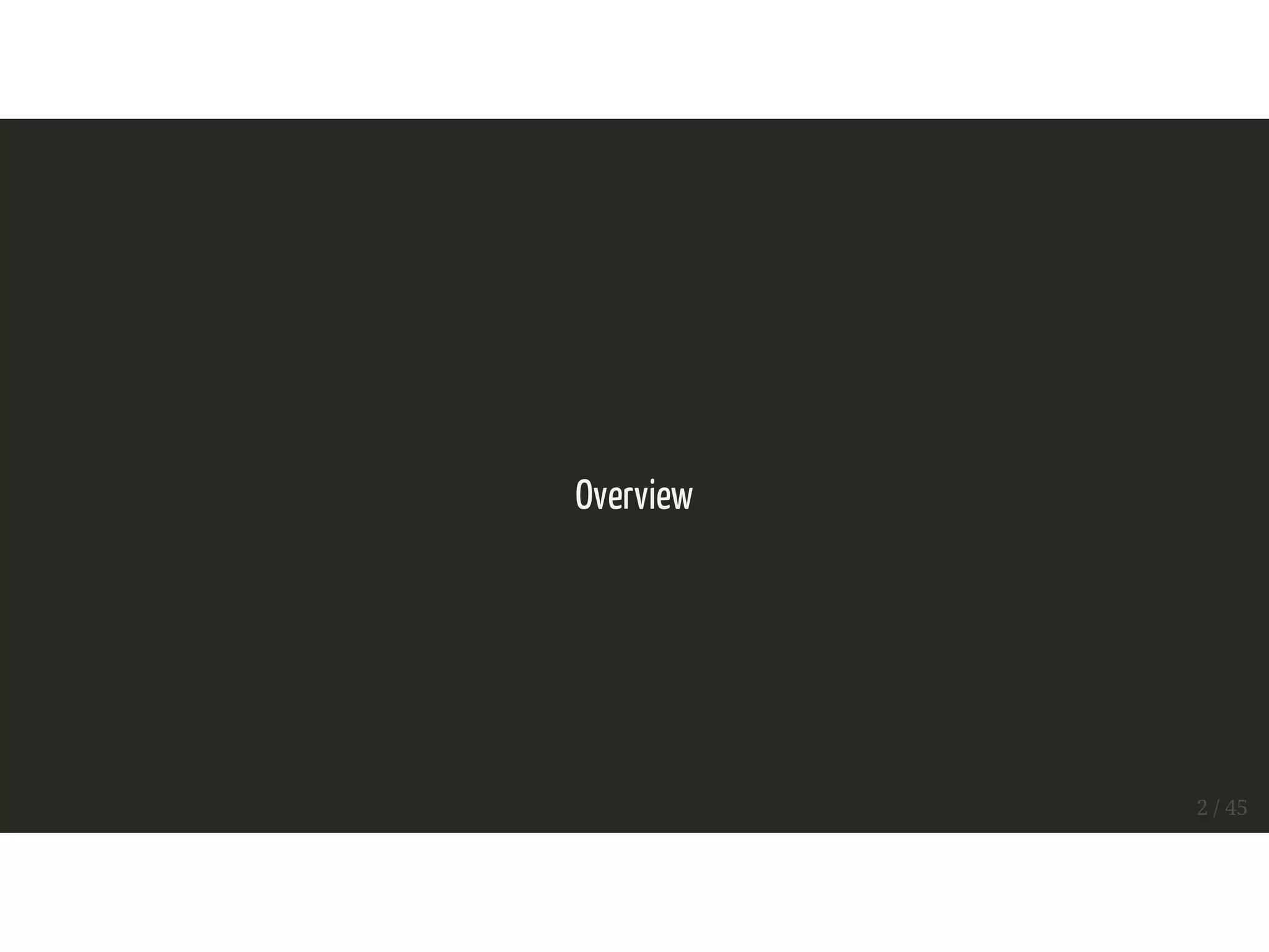

2. Overview
2 / 45

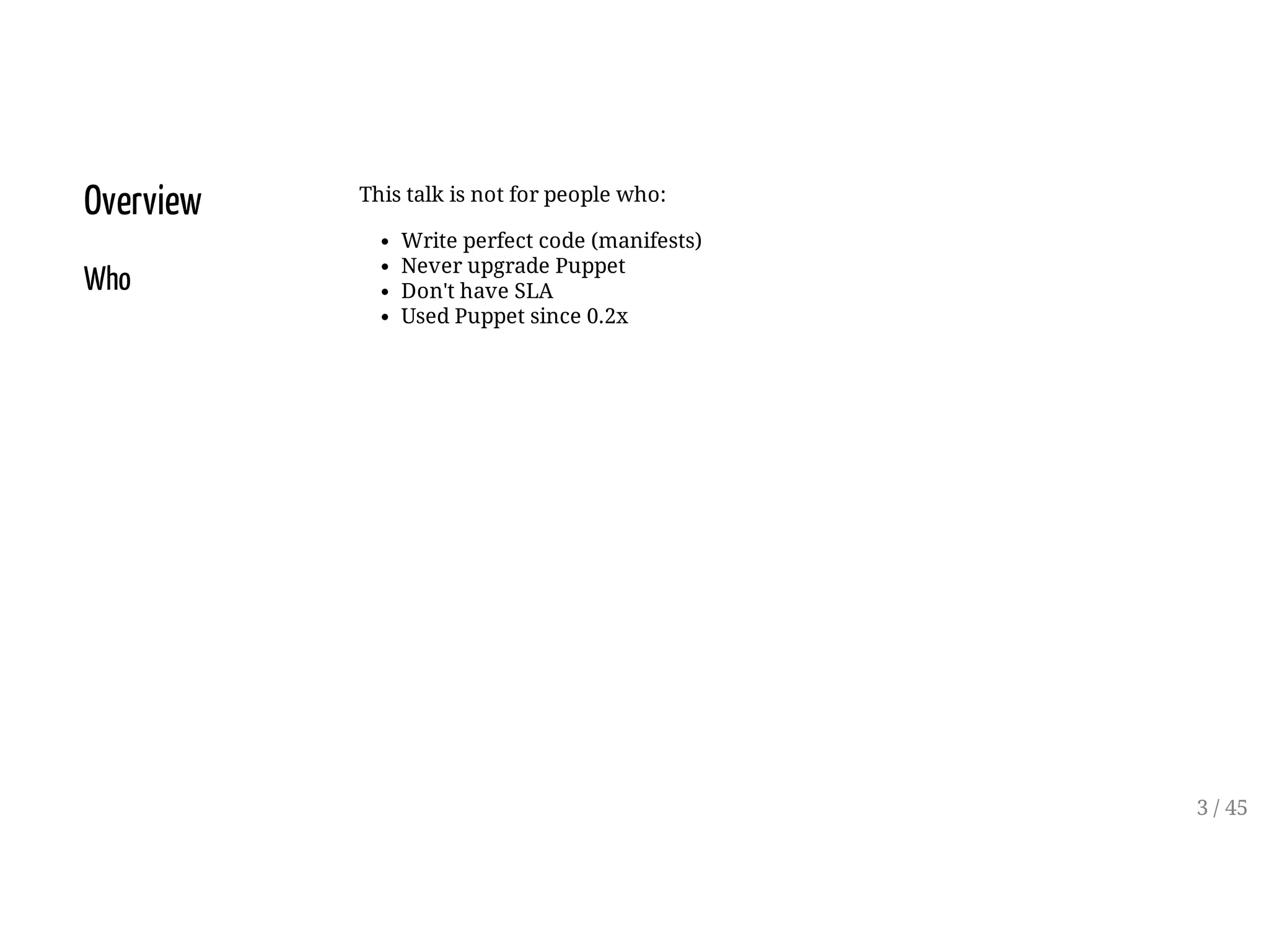

3. Overview
Who
This talk is not for people who:
Write perfect code (manifests)
Never upgrade Puppet
Don't have SLA
Used Puppet since 0.2x
3 / 45

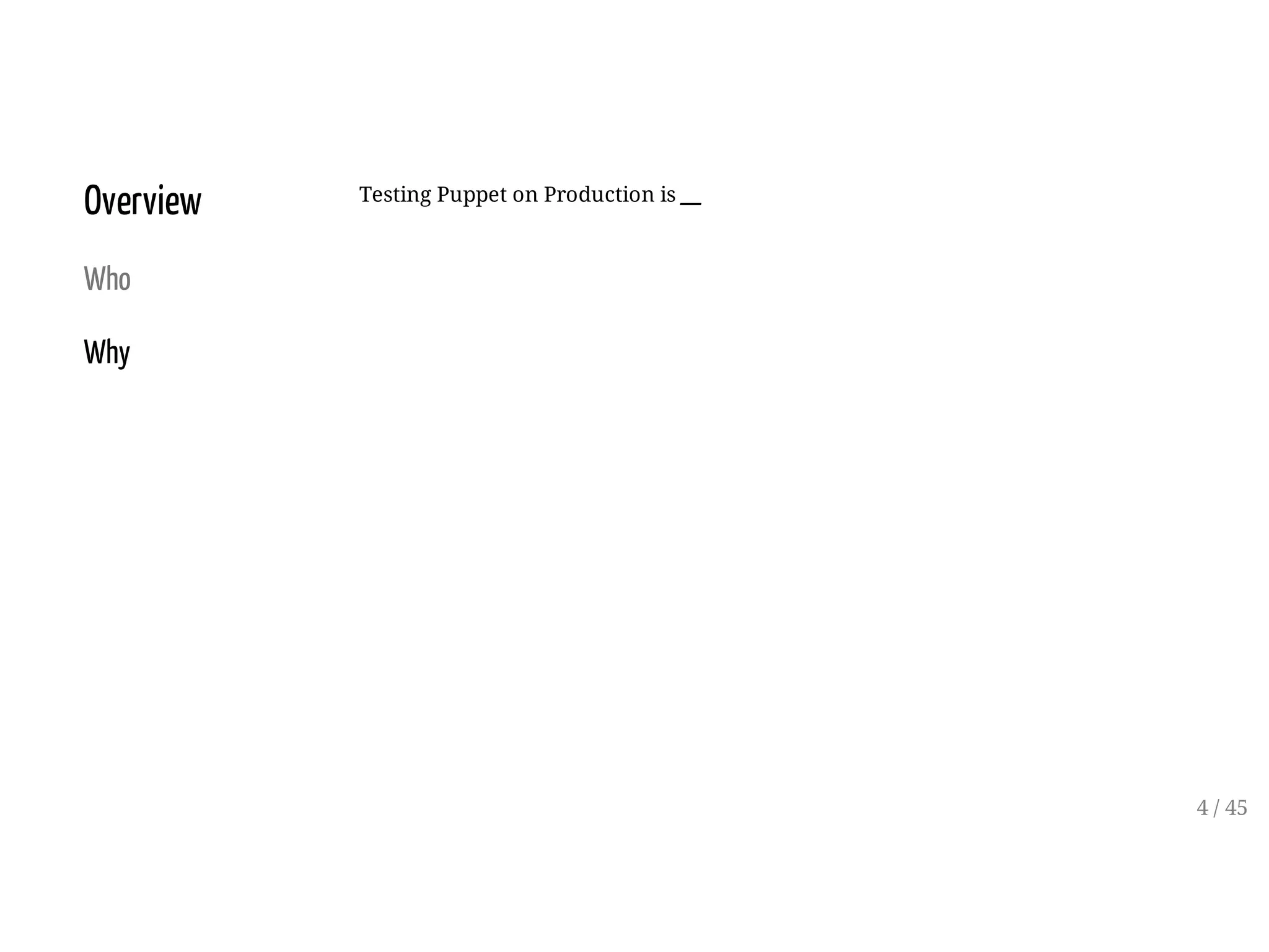

4. Overview
Who
Why
Testing Puppet on Production is __
4 / 45

5. Overview
Who
Why

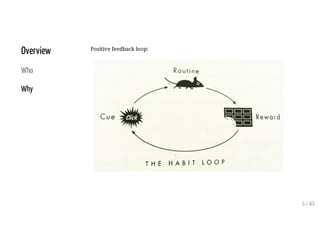

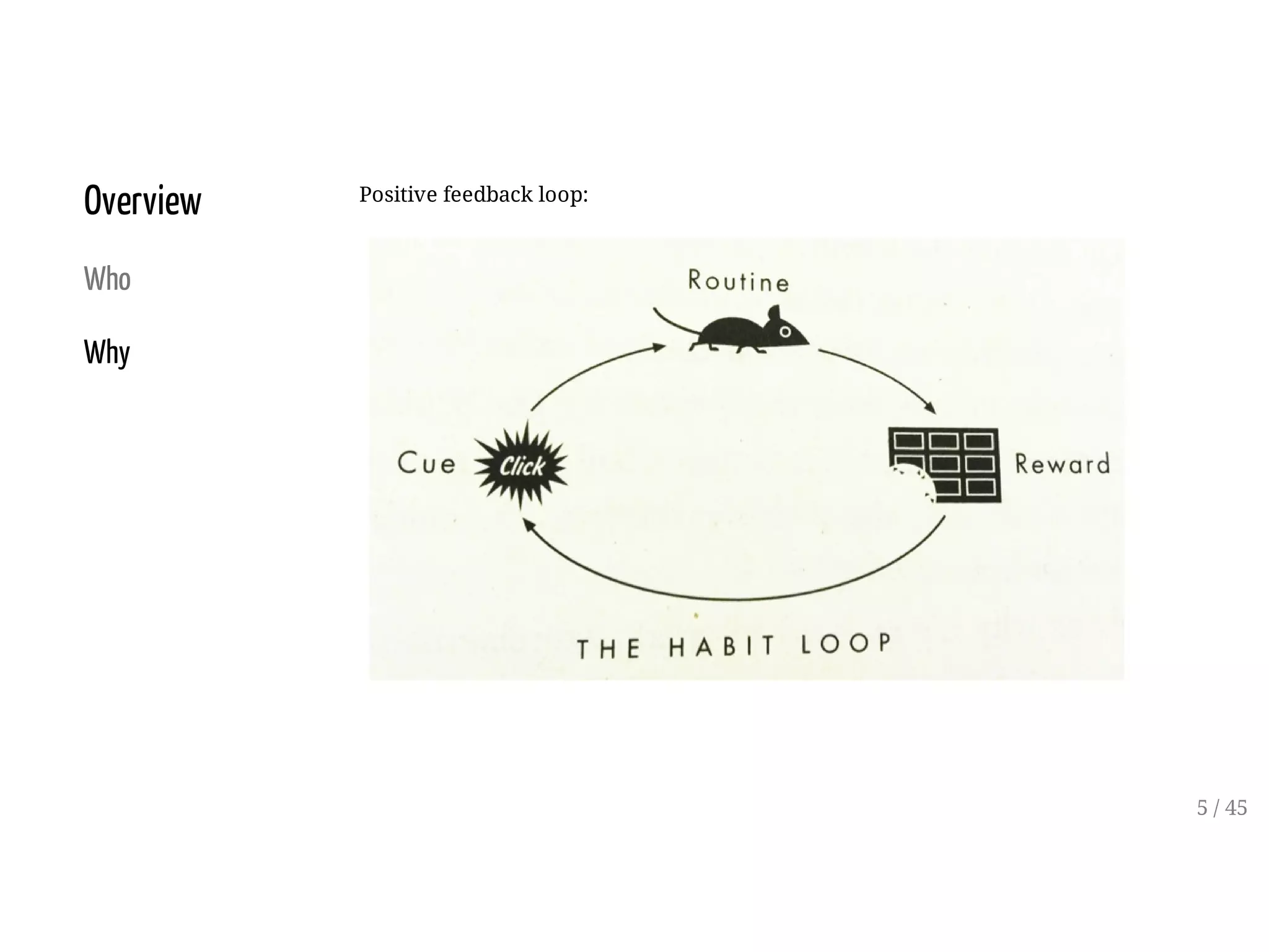

Positive feedback loop:
5 / 45

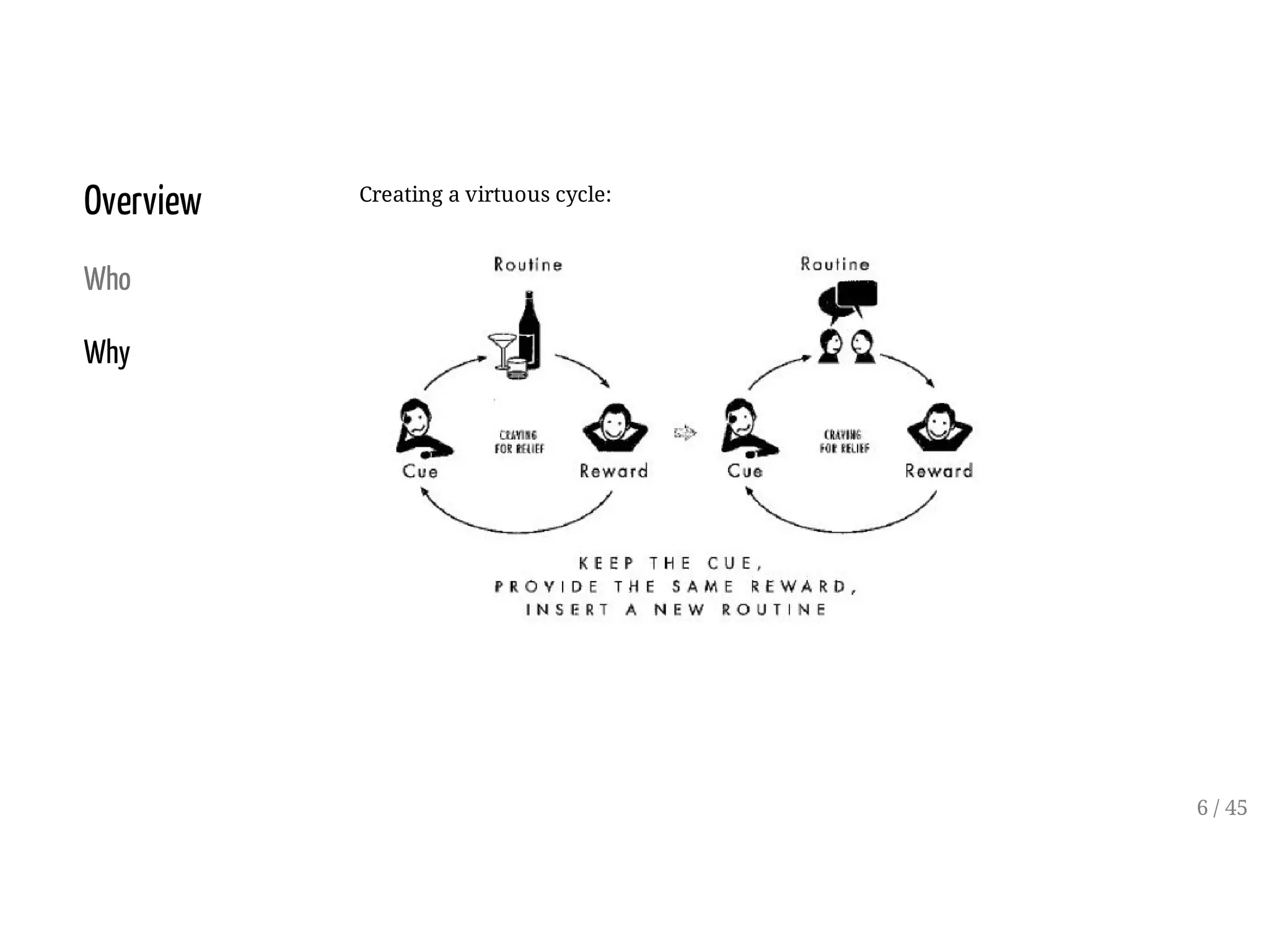

6. Overview
Who
Why
Creating a virtuous cycle:
6 / 45

7. Overview
Who
Why
Creating a virtuous cycle:
7 / 45

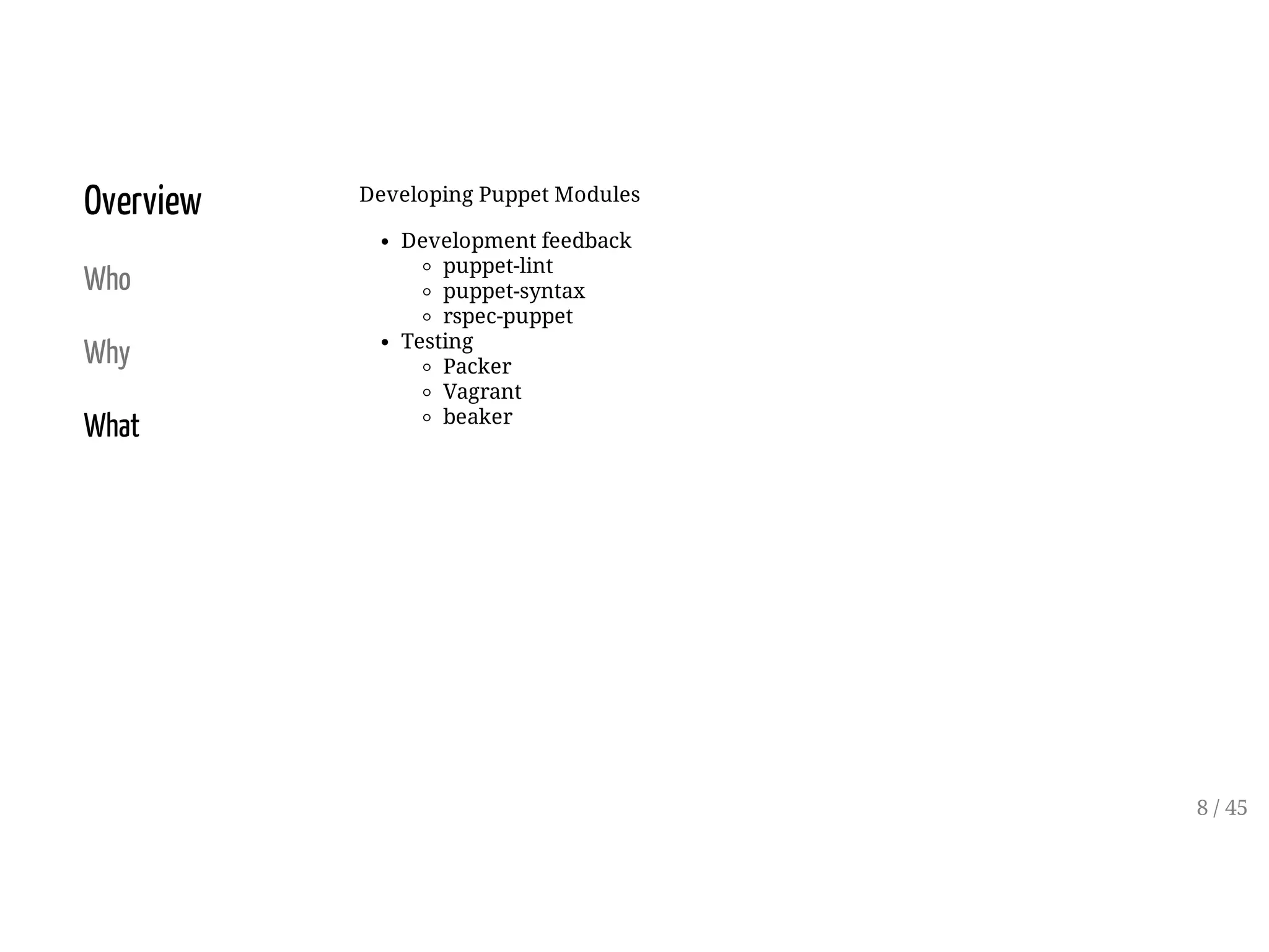

8. Overview
Who
Why
What
Developing Puppet Modules
Development feedback
puppet-lint
puppet-syntax
rspec-puppet
Testing
Packer
Vagrant
beaker
8 / 45

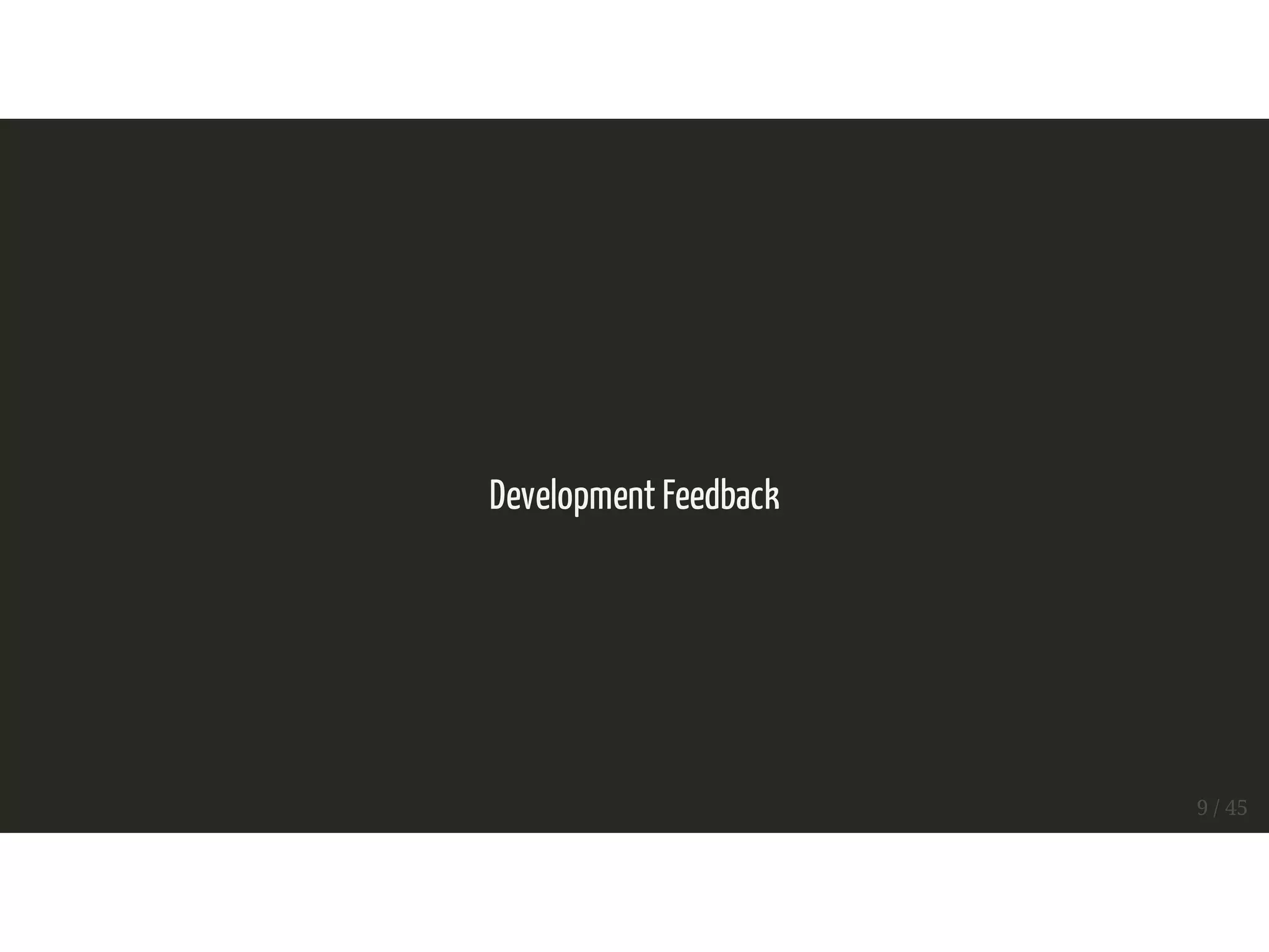

9. Development Feedback
9 / 45

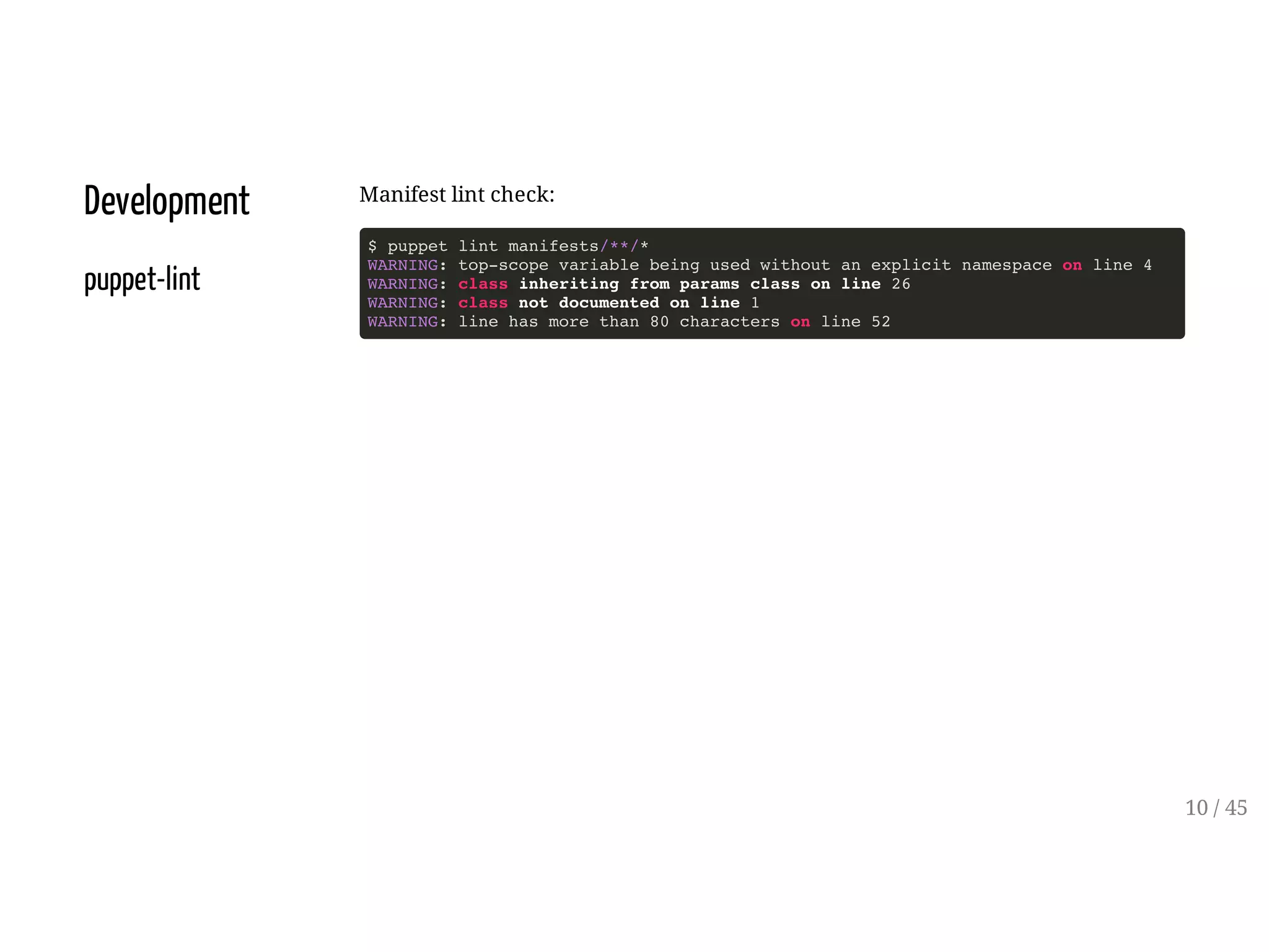

10. Development
puppet-lint
Manifest lint check:
$ puppet lint manifests/**/*
WARNING: top-scope variable being used without an explicit namespace on line 4
WARNING: class inheriting from params class on line 26
WARNING: class not documented on line 1
WARNING: line has more than 80 characters on line 52
10 / 45

11. Development
puppet-lint
Manifest lint cleanup:
$ puppet-lint -f demo.pp
FIXED: string containing only a variable on line 1
FIXED: variable not enclosed in {} on line 5
FIXED: indentation of => is not properly aligned on line 2
FIXED: indentation of => is not properly aligned on line 3
FIXED: indentation of => is not properly aligned on line 5
WARNING: ensure found on line but it's not the first attribute on line 4
11 / 45

12. Development
puppet-lint
Configure puppet-lint behavior
PuppetLint.configuration.disable_80chars
PuppetLint.configuration.disable_arrow_alignment
PuppetLint.configuration.disable_class_inherits_from_params_class
PuppetLint.configuration.disable_class_parameter_defaults
PuppetLint.configuration.fail_on_warnings = true
PuppetLint.configuration.ignore_paths = ['spec/**/*.pp', 'pkg/**/*.pp']
12 / 45

13. Development
puppet-lint
puppet-syntax

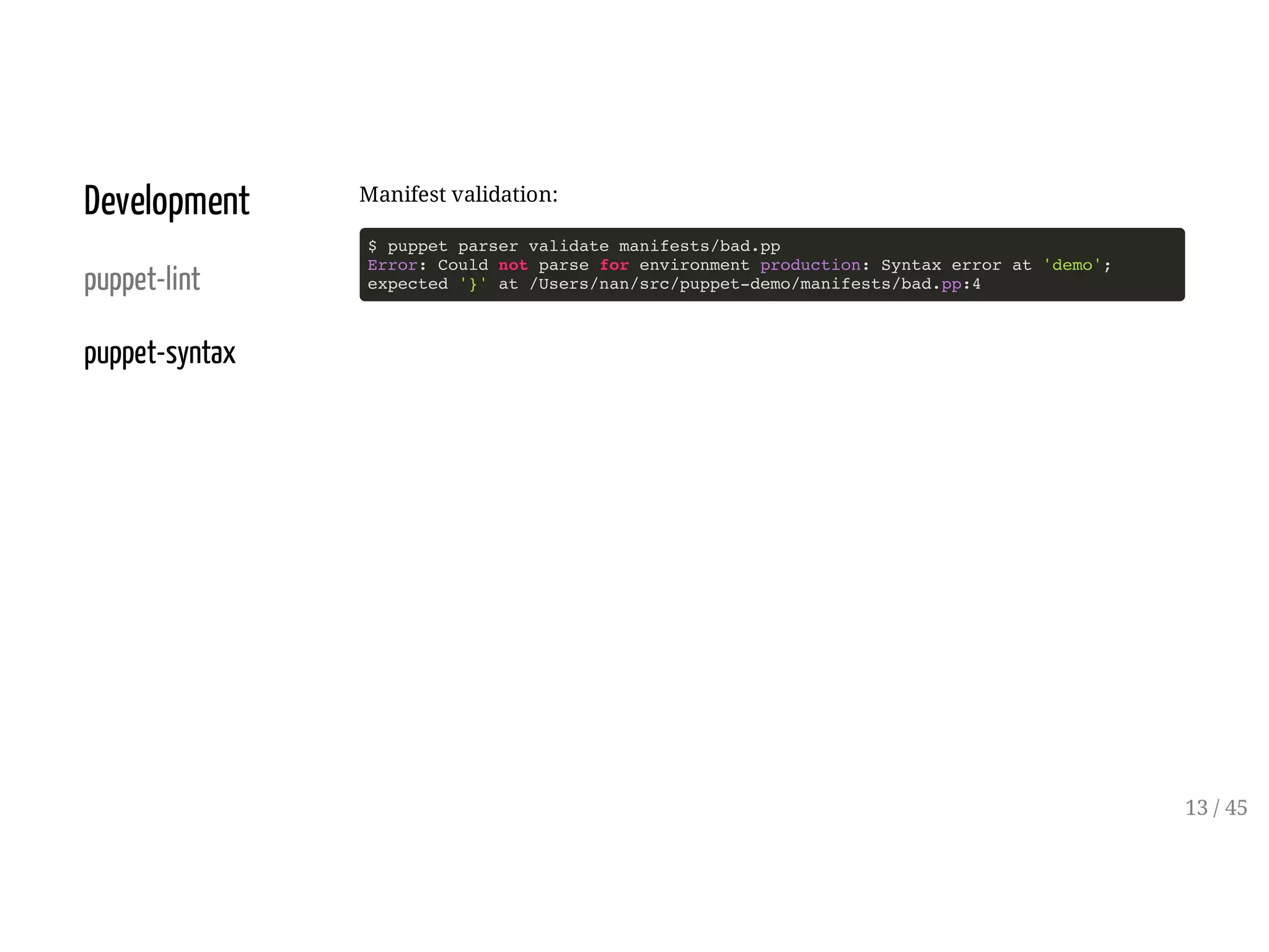

Manifest validation:
$ puppet parser validate manifests/bad.pp
Error: Could not parse for environment production: Syntax error at 'demo';
expected '}' at /Users/nan/src/puppet-demo/manifests/bad.pp:4
13 / 45

14. Development
puppet-lint
puppet-syntax
Rakefile
require 'puppet-syntax/tasks/puppet-syntax'
PuppetSyntax.exclude_paths = ["spec/fixtures/**/*"]
PuppetSyntax.future_parser = true
14 / 45

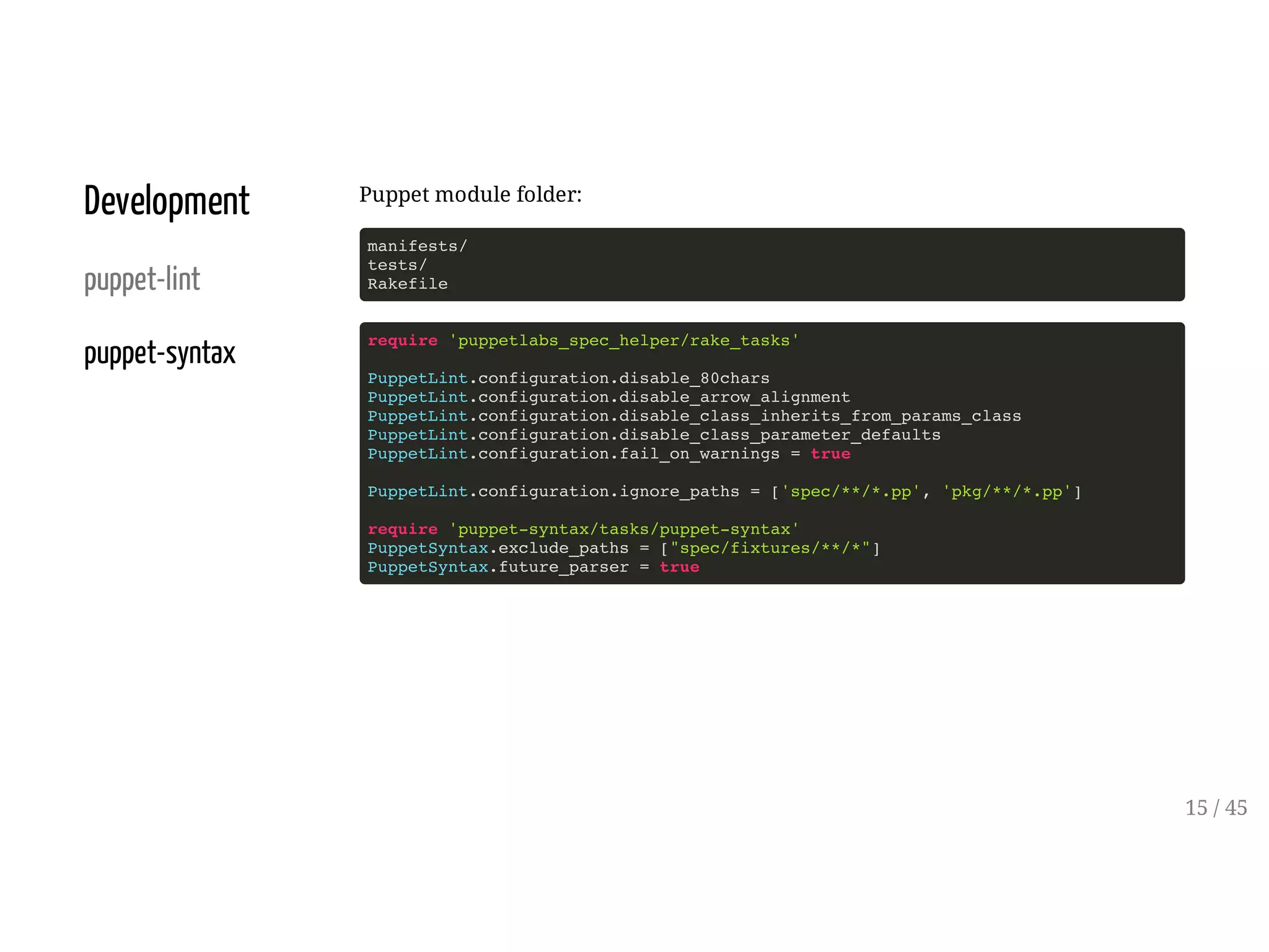

15. Development
puppet-lint
puppet-syntax
Puppet module folder:
manifests/
tests/
Rakefile
require 'puppetlabs_spec_helper/rake_tasks'
PuppetLint.configuration.disable_80chars
PuppetLint.configuration.disable_arrow_alignment
PuppetLint.configuration.disable_class_inherits_from_params_class
PuppetLint.configuration.disable_class_parameter_defaults
PuppetLint.configuration.fail_on_warnings = true
PuppetLint.configuration.ignore_paths = ['spec/**/*.pp', 'pkg/**/*.pp']
require 'puppet-syntax/tasks/puppet-syntax'
PuppetSyntax.exclude_paths = ["spec/fixtures/**/*"]
PuppetSyntax.future_parser = true
15 / 45

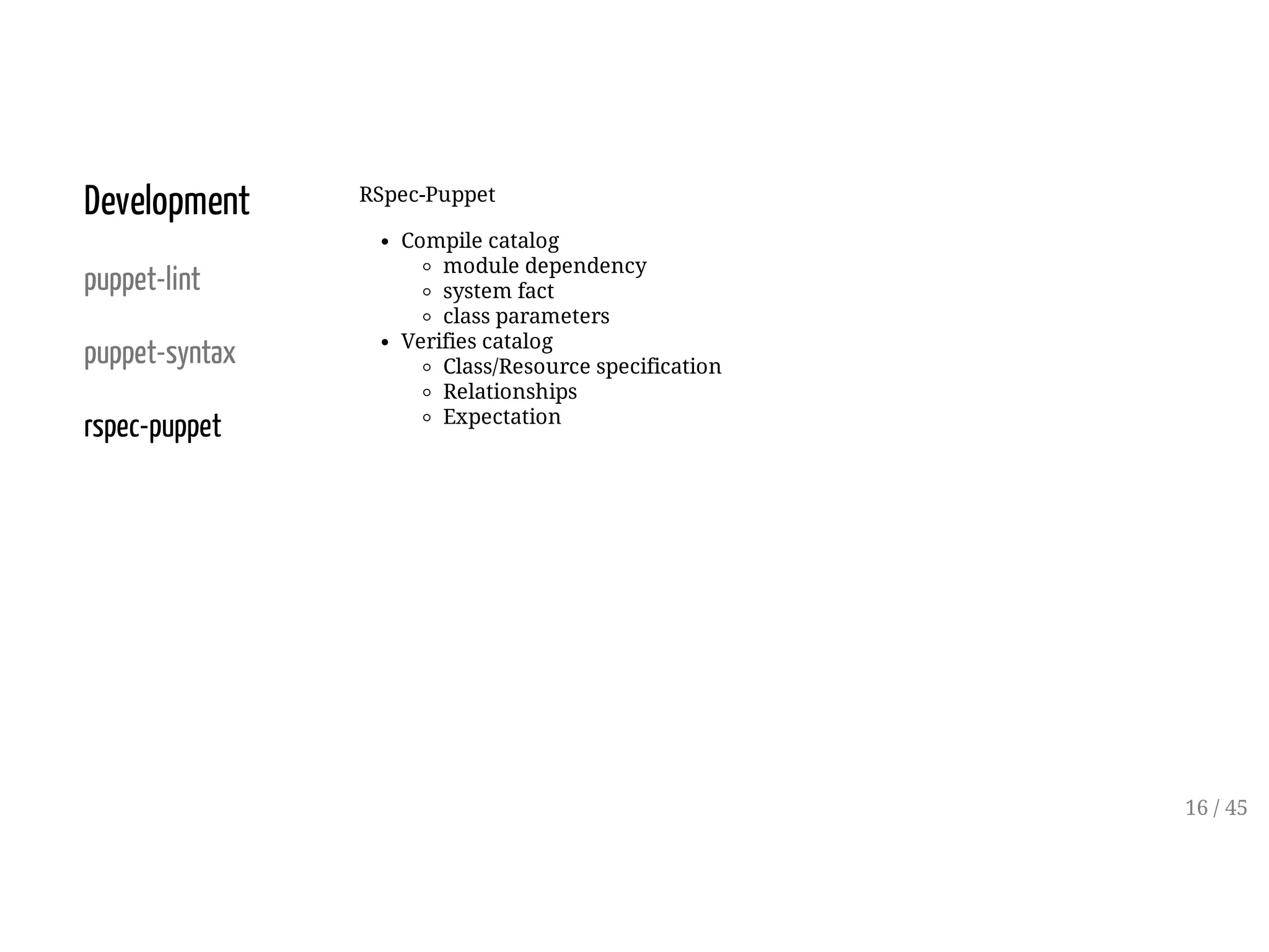

16. Development
puppet-lint
puppet-syntax
rspec-puppet
RSpec-Puppet
Compile catalog
module dependency
system fact
class parameters
Verifies catalog
Class/Resource specification
Relationships
Expectation
16 / 45

17. Development
puppet-lint
puppet-syntax
rspec-puppet
.fixtures.yml
fixtures:
repositories:
apt: "https://github.com/puppetlabs/puppetlabs-apt.git"
stdlib: "https://github.com/puppetlabs/puppetlabs-stdlib.git"
firewall: "https://github.com/puppetlabs/puppetlabs-firewall.git"
concat: "https://github.com/puppetlabs/puppetlabs-concat.git"
symlinks:
postgresql: "#{source_dir}"
17 / 45

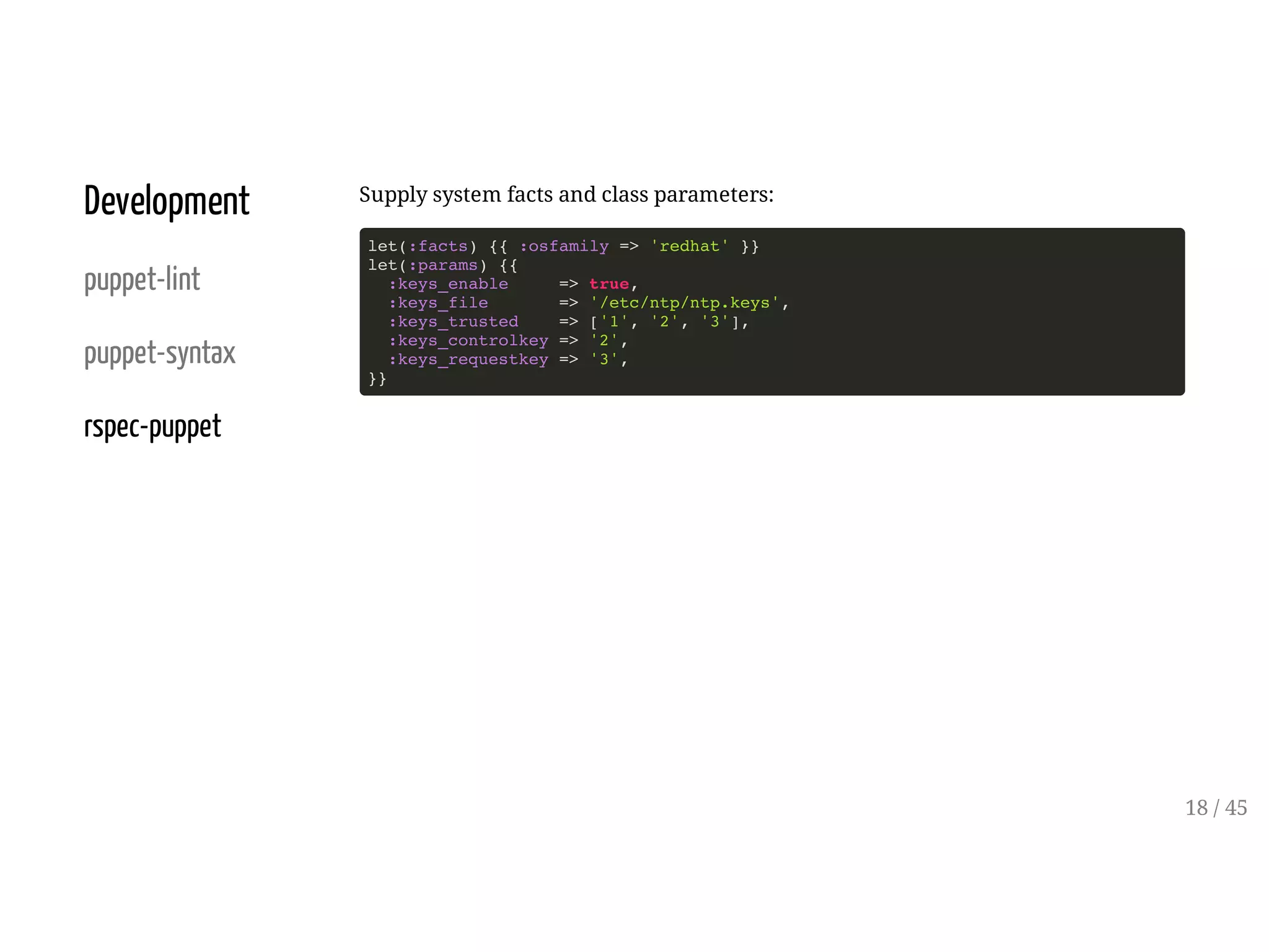

18. Development
puppet-lint
puppet-syntax
rspec-puppet
Supply system facts and class parameters:
let(:facts) {{ :osfamily => 'redhat' }}
let(:params) {{
:keys_enable => true,
:keys_file => '/etc/ntp/ntp.keys',
:keys_trusted => ['1', '2', '3'],
:keys_controlkey => '2',
:keys_requestkey => '3',
}}
18 / 45

19. Development
puppet-lint
puppet-syntax
rspec-puppet
require 'spec_helper'
describe 'ntp' do
Dir.glob('tests/*.pp').each do |file|
let(:facts) {{ :osfamily => 'redhat' }}
context file do
let(:pre_condition) { File.read(file) }
it{ should compile }
end
end
end
19 / 45

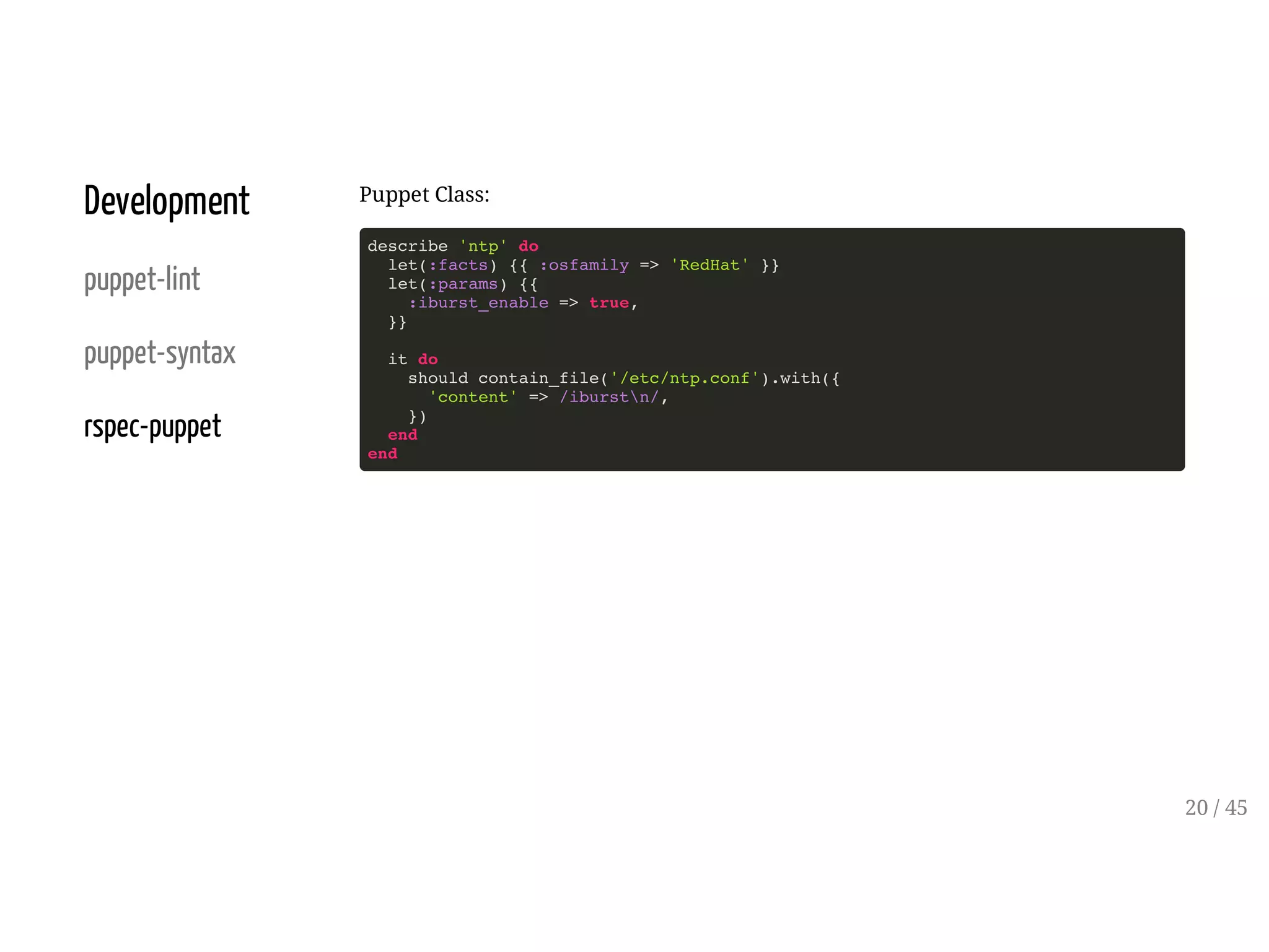

20. Development
puppet-lint
puppet-syntax
rspec-puppet
Puppet Class:
describe 'ntp' do
let(:facts) {{ :osfamily => 'RedHat' }}
let(:params) {{
:iburst_enable => true,
}}
it do
should contain_file('/etc/ntp.conf').with({
'content' => /iburstn/,
})
end
end
20 / 45

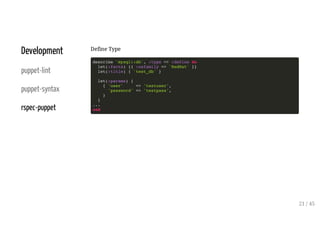

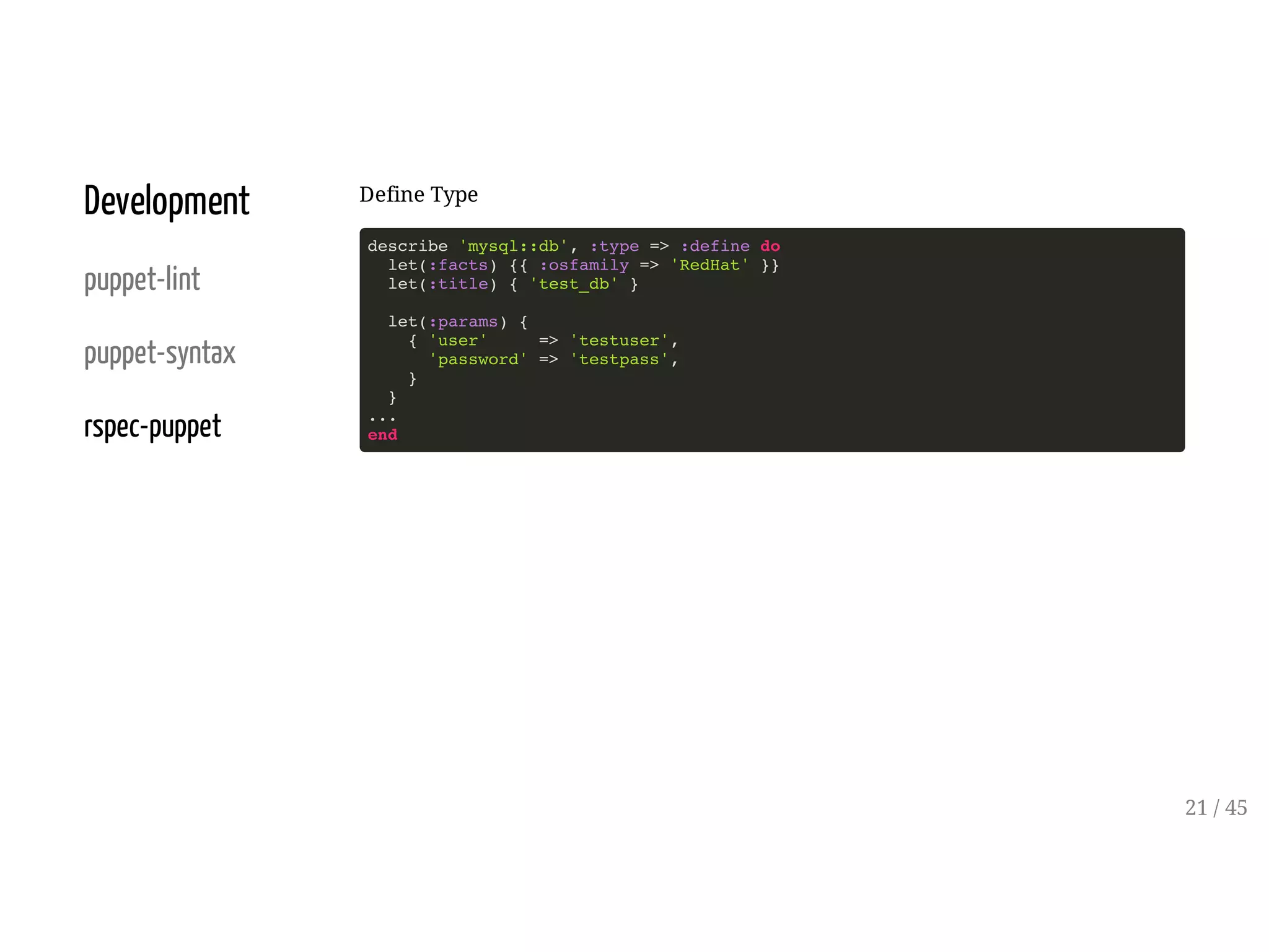

21. Development
puppet-lint
puppet-syntax
rspec-puppet
Define Type
describe 'mysql::db', :type => :define do
let(:facts) {{ :osfamily => 'RedHat' }}
let(:title) { 'test_db' }
let(:params) {
{ 'user' => 'testuser',
'password' => 'testpass',
}
}
...
end
21 / 45

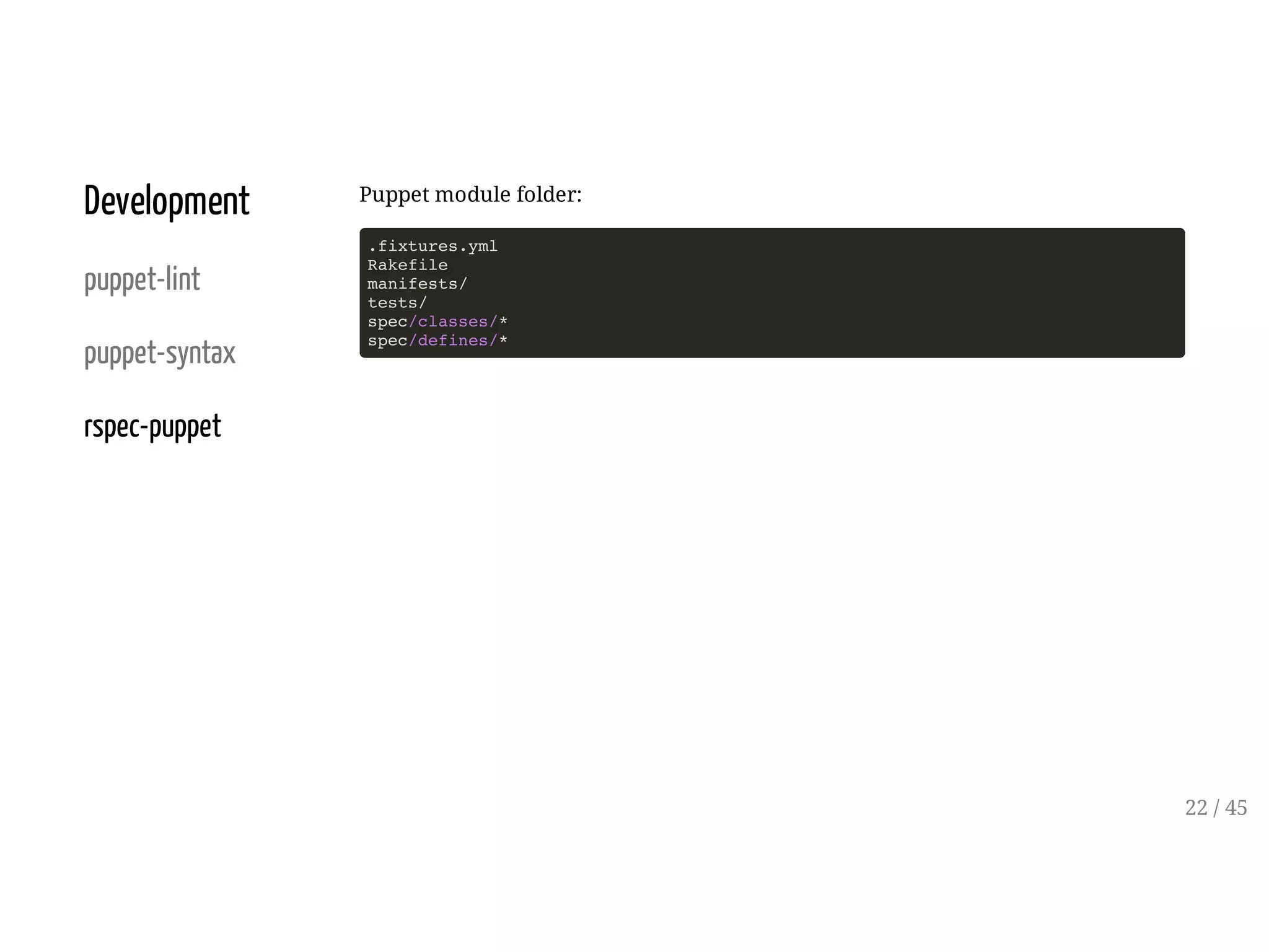

22. Development
puppet-lint
puppet-syntax
rspec-puppet
Puppet module folder:
.fixtures.yml
Rakefile
manifests/
tests/
spec/classes/*
spec/defines/*
22 / 45

23. Development
puppet-lint
puppet-syntax
rspec-puppet
Gemfile
source "https://rubygems.org"
group :test do
gem "rake"
gem "puppet", ENV['GEM_PUPPET_VERSION']
gem "puppet-lint"
gem "rspec-puppet", :git => 'https://github.com/rodjek/rspec-puppet.git'
gem "puppet-syntax"
gem "puppetlabs_spec_helper"
end
23 / 45

24. Development

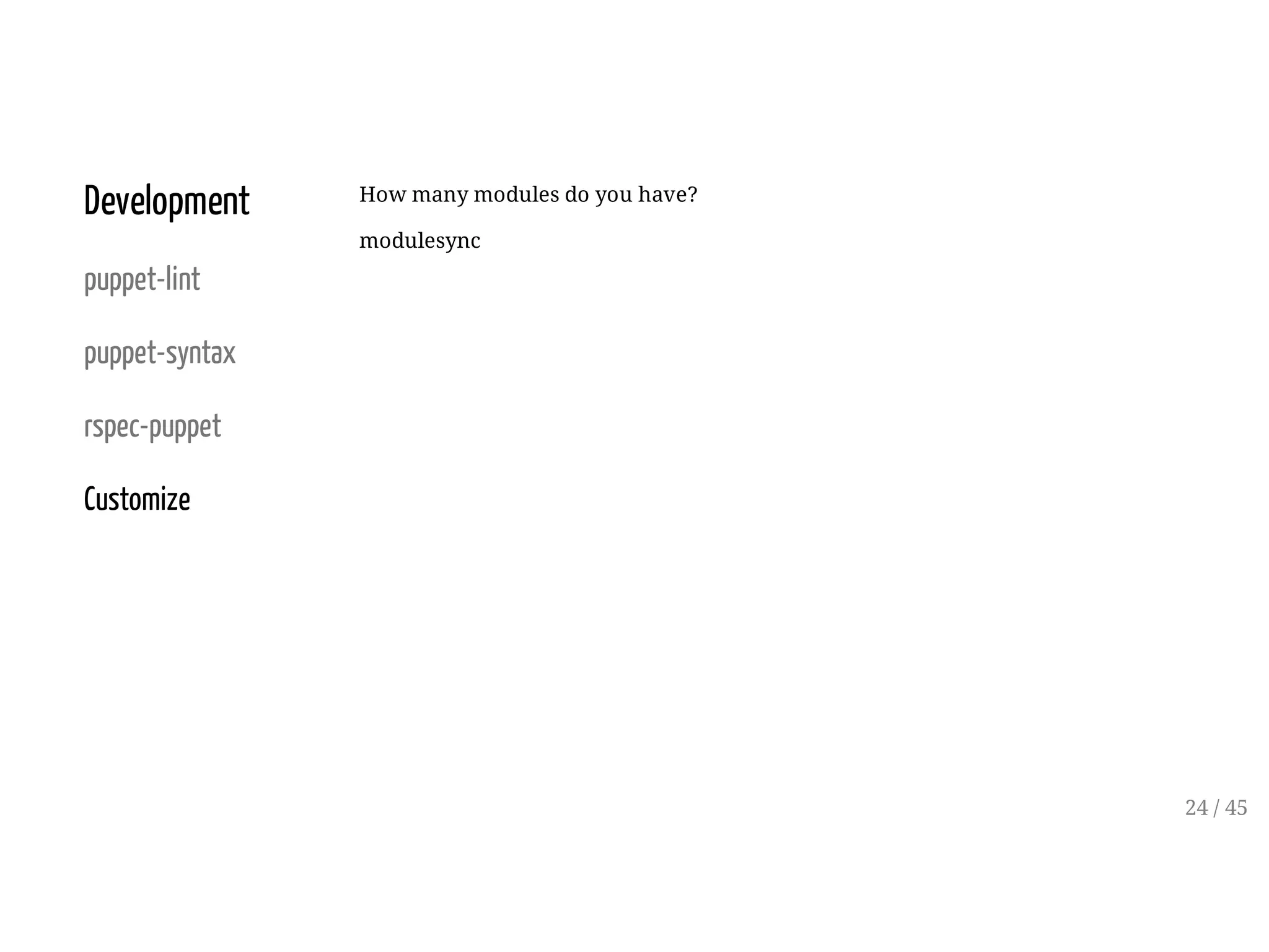

puppet-lint
puppet-syntax
rspec-puppet
Customize
How many modules do you have?
modulesync
24 / 45

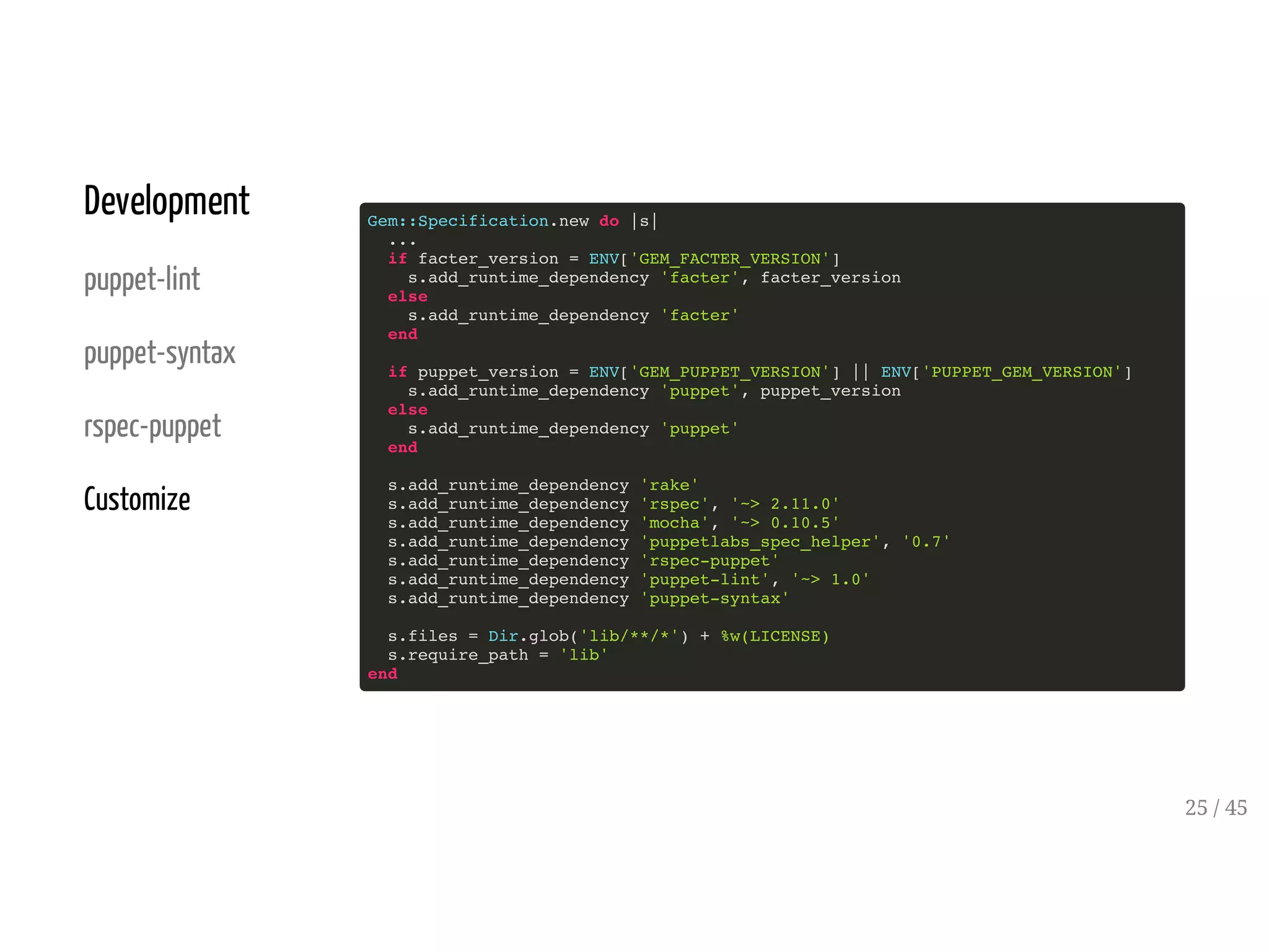

25. Development
puppet-lint
puppet-syntax
rspec-puppet
Customize
Gem::Specification.new do |s|
...
if facter_version = ENV['GEM_FACTER_VERSION']
s.add_runtime_dependency 'facter', facter_version
else
s.add_runtime_dependency 'facter'
end
if puppet_version = ENV['GEM_PUPPET_VERSION'] || ENV['PUPPET_GEM_VERSION']
s.add_runtime_dependency 'puppet', puppet_version
else
s.add_runtime_dependency 'puppet'
end
s.add_runtime_dependency 'rake'
s.add_runtime_dependency 'rspec', '~> 2.11.0'
s.add_runtime_dependency 'mocha', '~> 0.10.5'
s.add_runtime_dependency 'puppetlabs_spec_helper', '0.7'
s.add_runtime_dependency 'rspec-puppet'
s.add_runtime_dependency 'puppet-lint', '~> 1.0'
s.add_runtime_dependency 'puppet-syntax'
s.files = Dir.glob('lib/**/*') + %w(LICENSE)
s.require_path = 'lib'
end
25 / 45

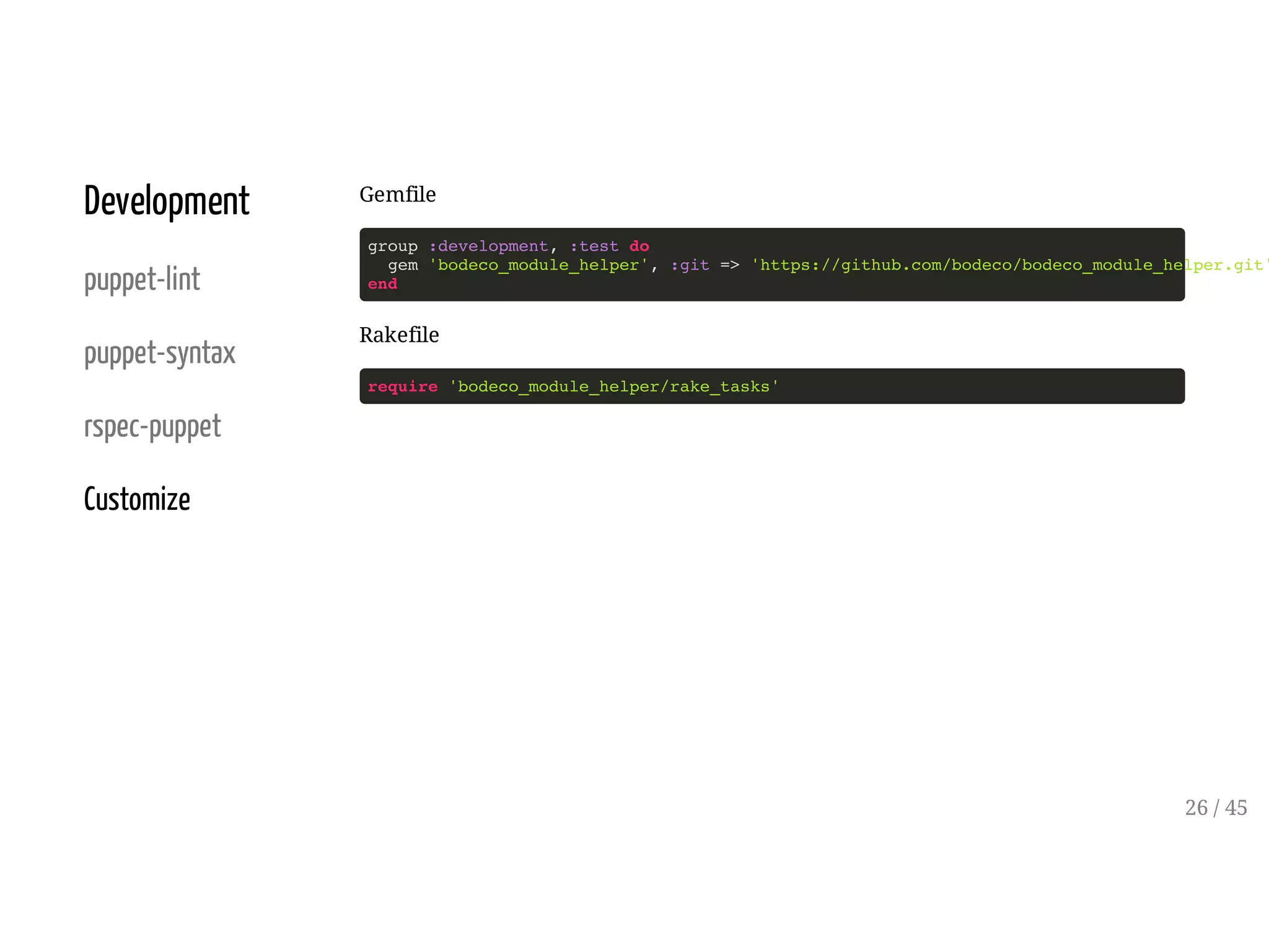

26. Development
puppet-lint
puppet-syntax
rspec-puppet
Customize
Gemfile
group :development, :test do
gem 'bodeco_module_helper', :git => 'https://github.com/bodeco/bodeco_module_helper.git'
end
Rakefile
require 'bodeco_module_helper/rake_tasks'
26 / 45

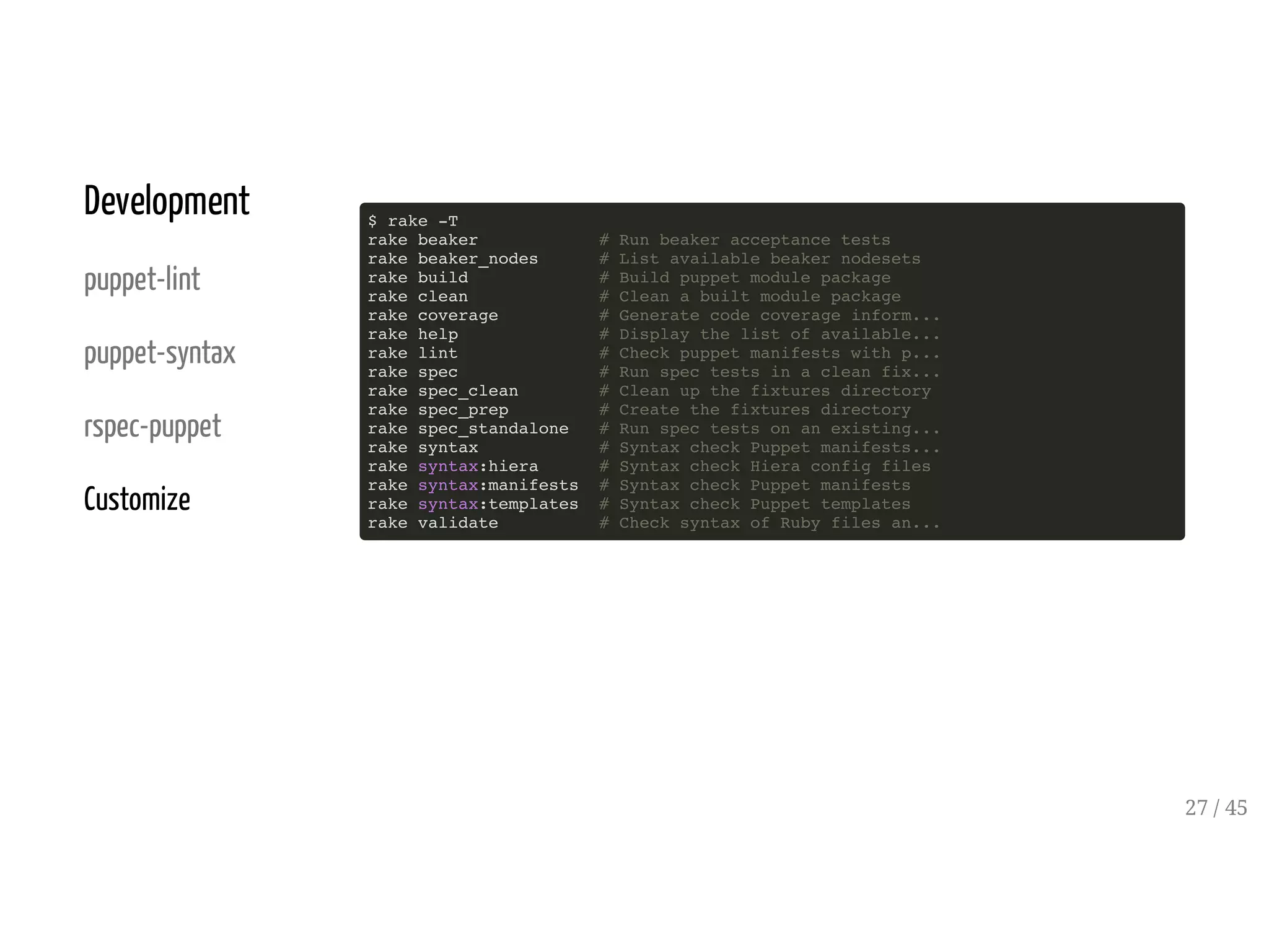

27. Development
puppet-lint
puppet-syntax
rspec-puppet
Customize
$ rake -T
rake beaker # Run beaker acceptance tests
rake beaker_nodes # List available beaker nodesets
rake build # Build puppet module package
rake clean # Clean a built module package
rake coverage # Generate code coverage inform...
rake help # Display the list of available...
rake lint # Check puppet manifests with p...
rake spec # Run spec tests in a clean fix...
rake spec_clean # Clean up the fixtures directory
rake spec_prep # Create the fixtures directory
rake spec_standalone # Run spec tests on an existing...
rake syntax # Syntax check Puppet manifests...
rake syntax:hiera # Syntax check Hiera config files
rake syntax:manifests # Syntax check Puppet manifests
rake syntax:templates # Syntax check Puppet templates
rake validate # Check syntax of Ruby files an...
27 / 45

28. Development
puppet-lint
puppet-syntax
rspec-puppet
Summary
puppet-lint: style enforcer
puppet-syntax: code parse
rspec-puppet: catalog verify
pin your versions
28 / 45

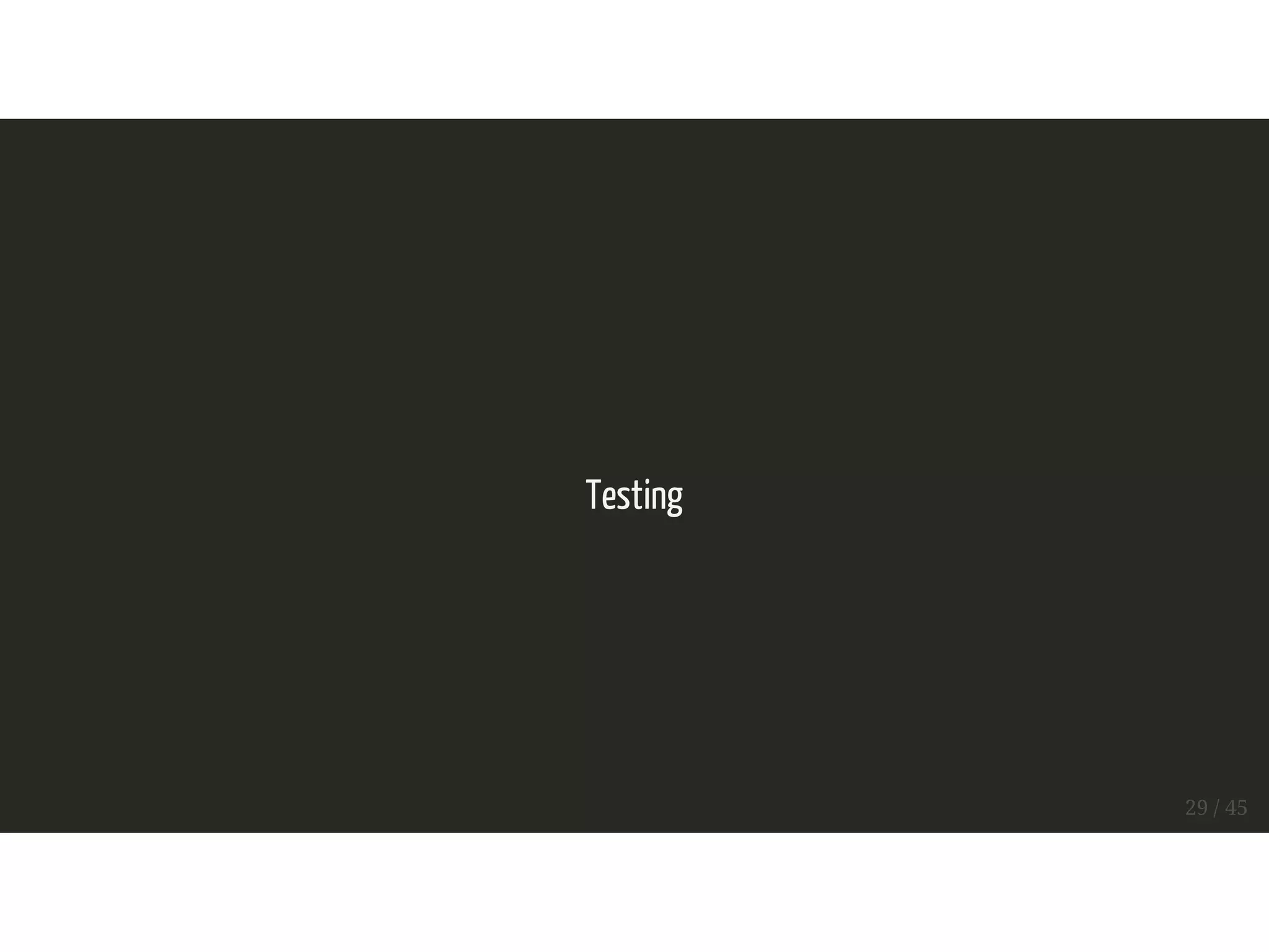

29. Testing
29 / 45

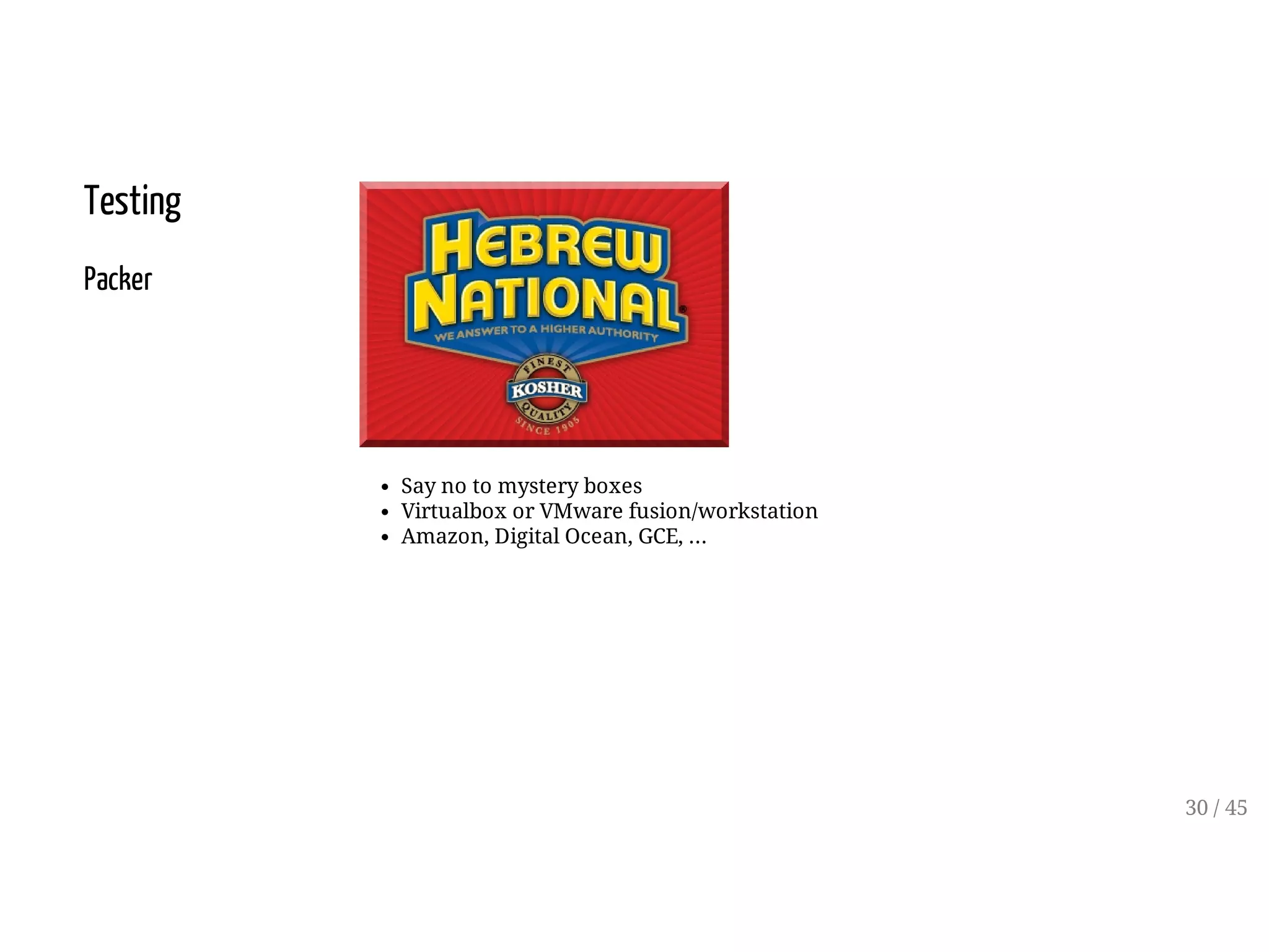

30. Testing
Packer
Say no to mystery boxes
Virtualbox or VMware fusion/workstation
Amazon, Digital Ocean, GCE, ...
30 / 45

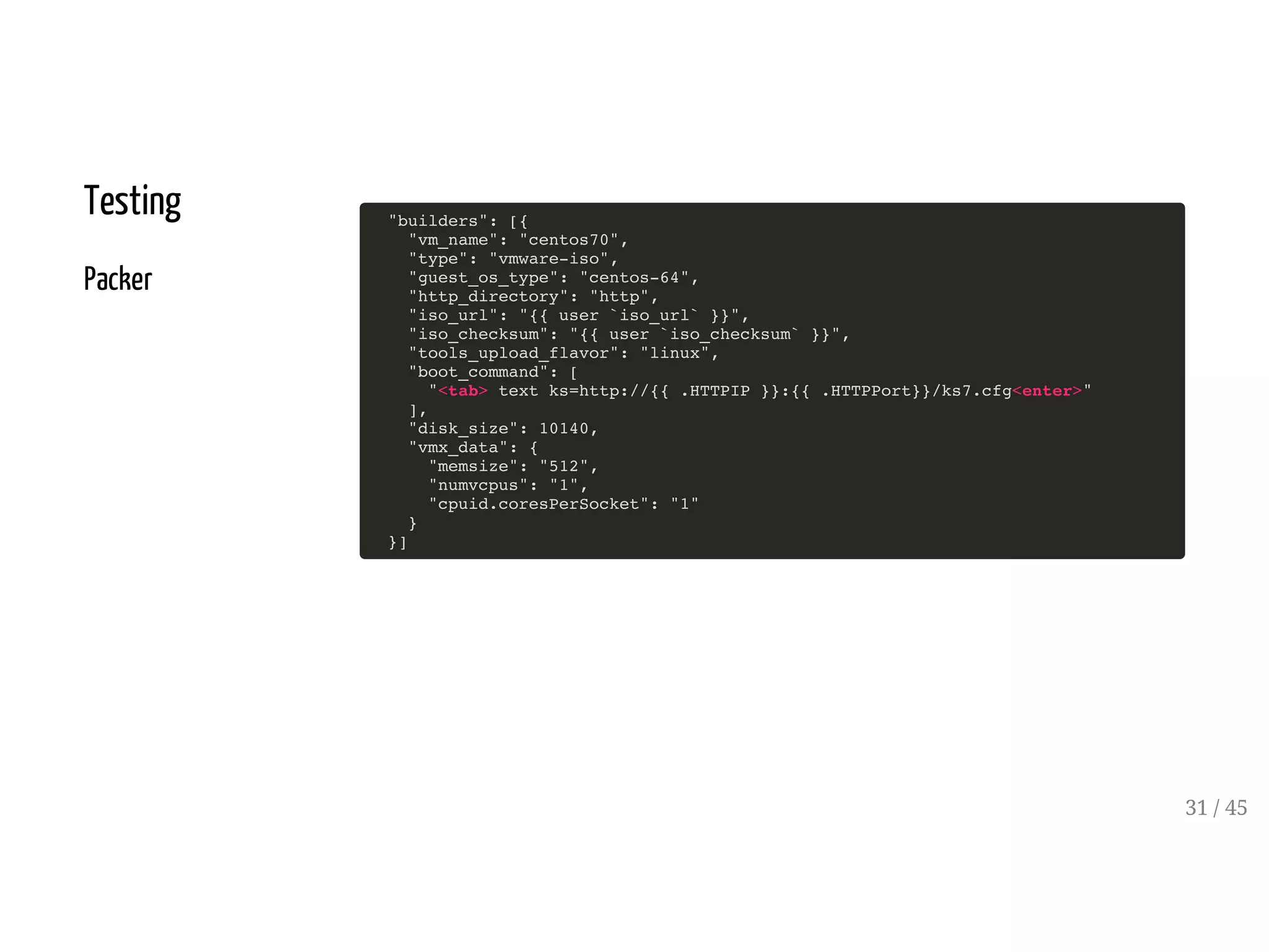

31. Testing
Packer
"builders": [{
"vm_name": "centos70",
"type": "vmware-iso",
"guest_os_type": "centos-64",
"http_directory": "http",
"iso_url": "{{ user `iso_url` }}",
"iso_checksum": "{{ user `iso_checksum` }}",
"tools_upload_flavor": "linux",
"boot_command": [
"<tab> text ks=http://{{ .HTTPIP }}:{{ .HTTPPort}}/ks7.cfg<enter>"
],
"disk_size": 10140,
"vmx_data": {
"memsize": "512",
"numvcpus": "1",
"cpuid.coresPerSocket": "1"
}
}]
31 / 45

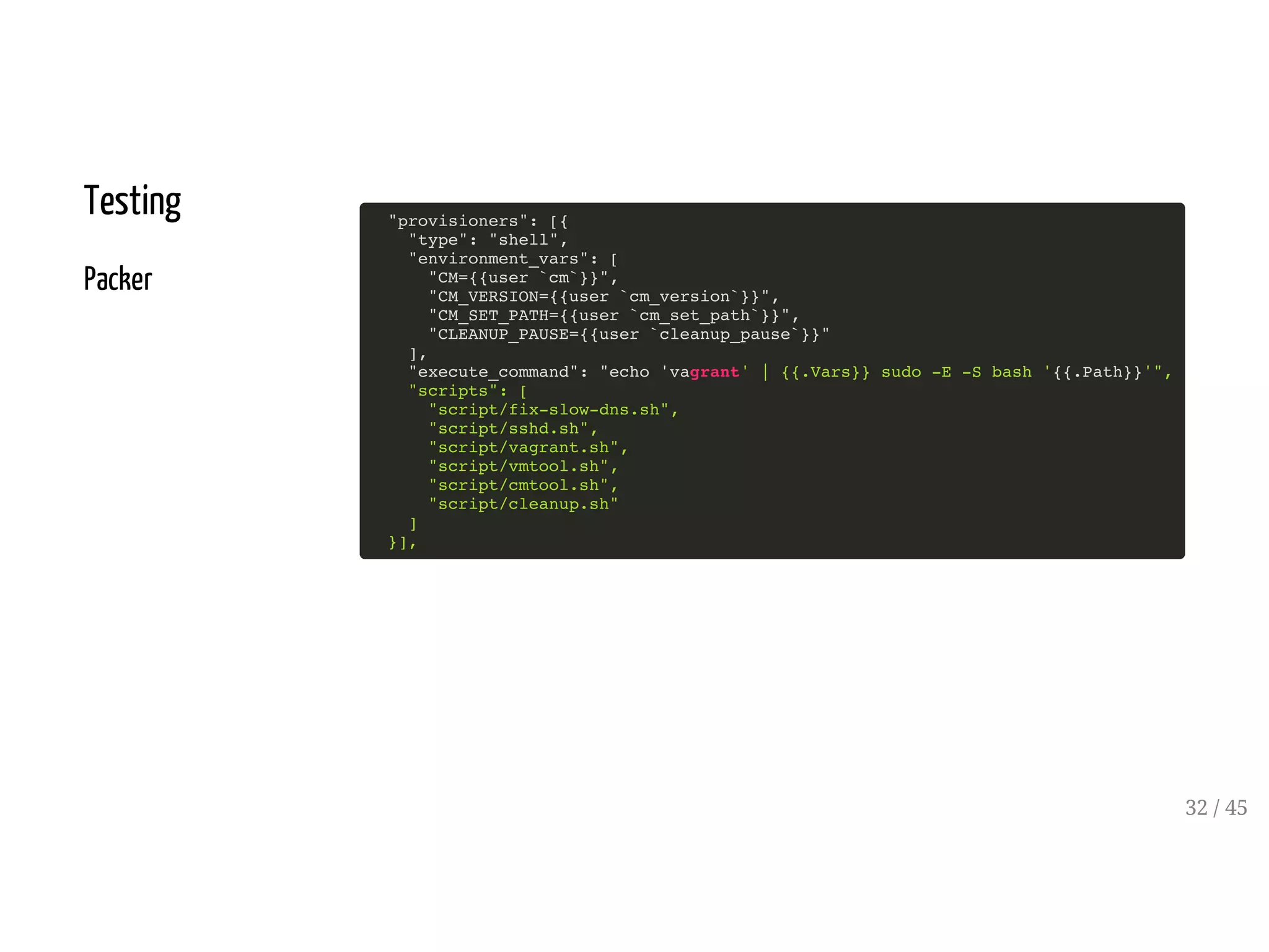

32. Testing
Packer
"provisioners": [{
"type": "shell",
"environment_vars": [
"CM={{user `cm`}}",
"CM_VERSION={{user `cm_version`}}",
"CM_SET_PATH={{user `cm_set_path`}}",
"CLEANUP_PAUSE={{user `cleanup_pause`}}"
],
"execute_command": "echo 'vagrant' | {{.Vars}} sudo -E -S bash '{{.Path}}'",
"scripts": [
"script/fix-slow-dns.sh",
"script/sshd.sh",
"script/vagrant.sh",
"script/vmtool.sh",
"script/cmtool.sh",
"script/cleanup.sh"
]
}],
32 / 45

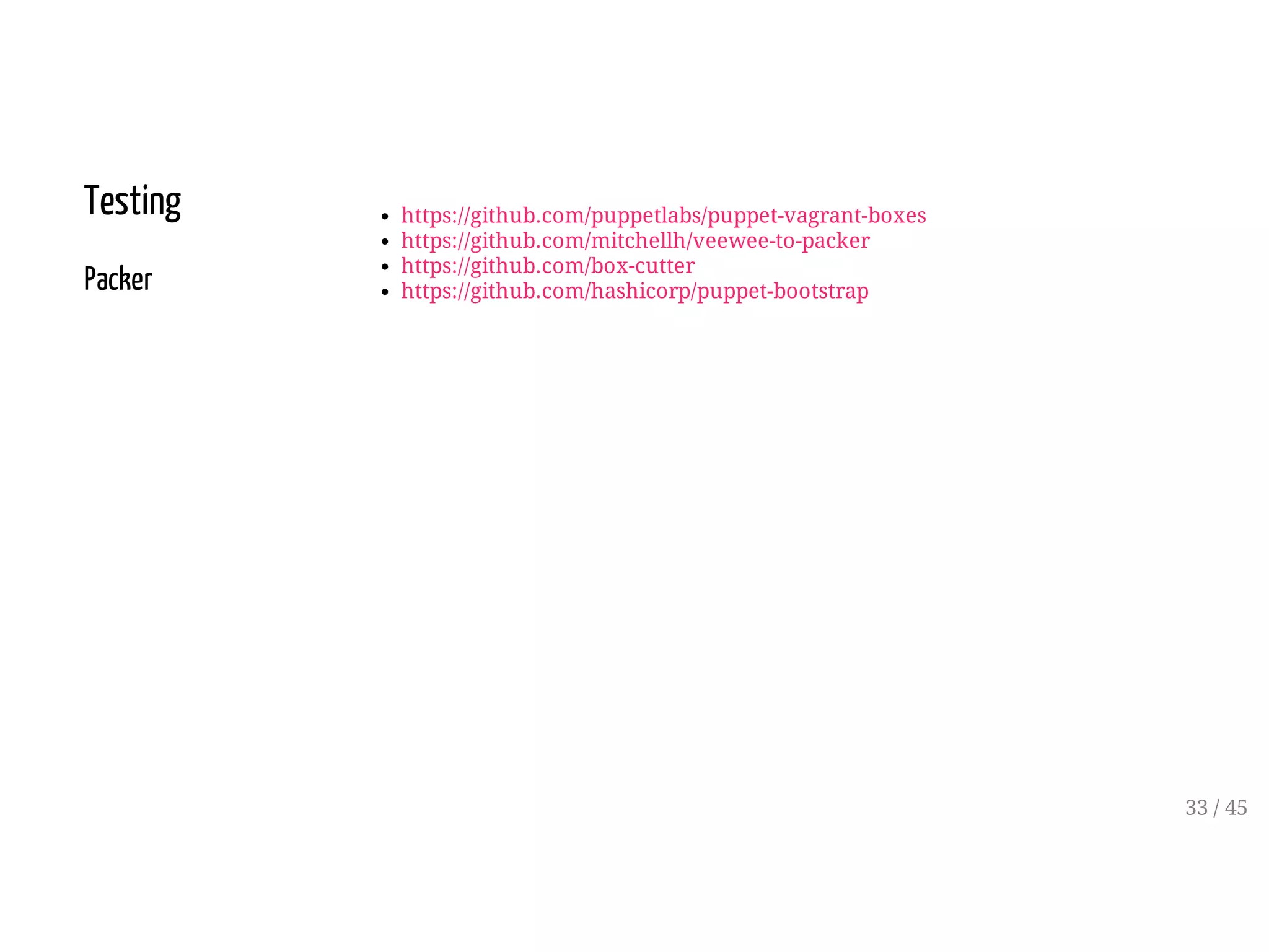

33. Testing
Packer
https://github.com/puppetlabs/puppet-vagrant-boxes
https://github.com/mitchellh/veewee-to-packer
https://github.com/box-cutter
https://github.com/hashicorp/puppet-bootstrap
33 / 45

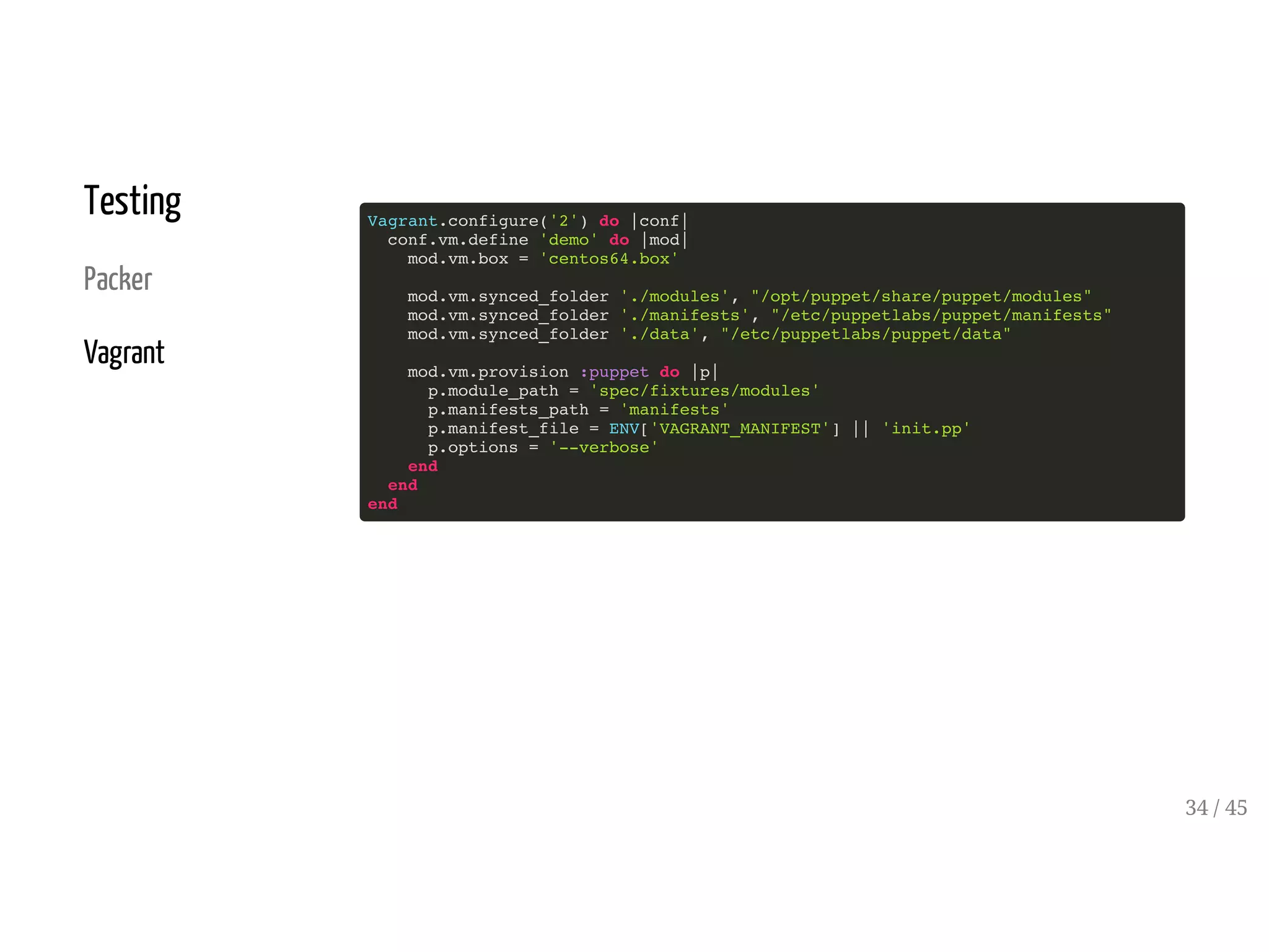

34. Testing
Packer
Vagrant
Vagrant.configure('2') do |conf|
conf.vm.define 'demo' do |mod|
mod.vm.box = 'centos64.box'
mod.vm.synced_folder './modules', "/opt/puppet/share/puppet/modules"
mod.vm.synced_folder './manifests', "/etc/puppetlabs/puppet/manifests"
mod.vm.synced_folder './data', "/etc/puppetlabs/puppet/data"
mod.vm.provision :puppet do |p|
p.module_path = 'spec/fixtures/modules'
p.manifests_path = 'manifests'
p.manifest_file = ENV['VAGRANT_MANIFEST'] || 'init.pp'
p.options = '--verbose'
end
end
end
34 / 45

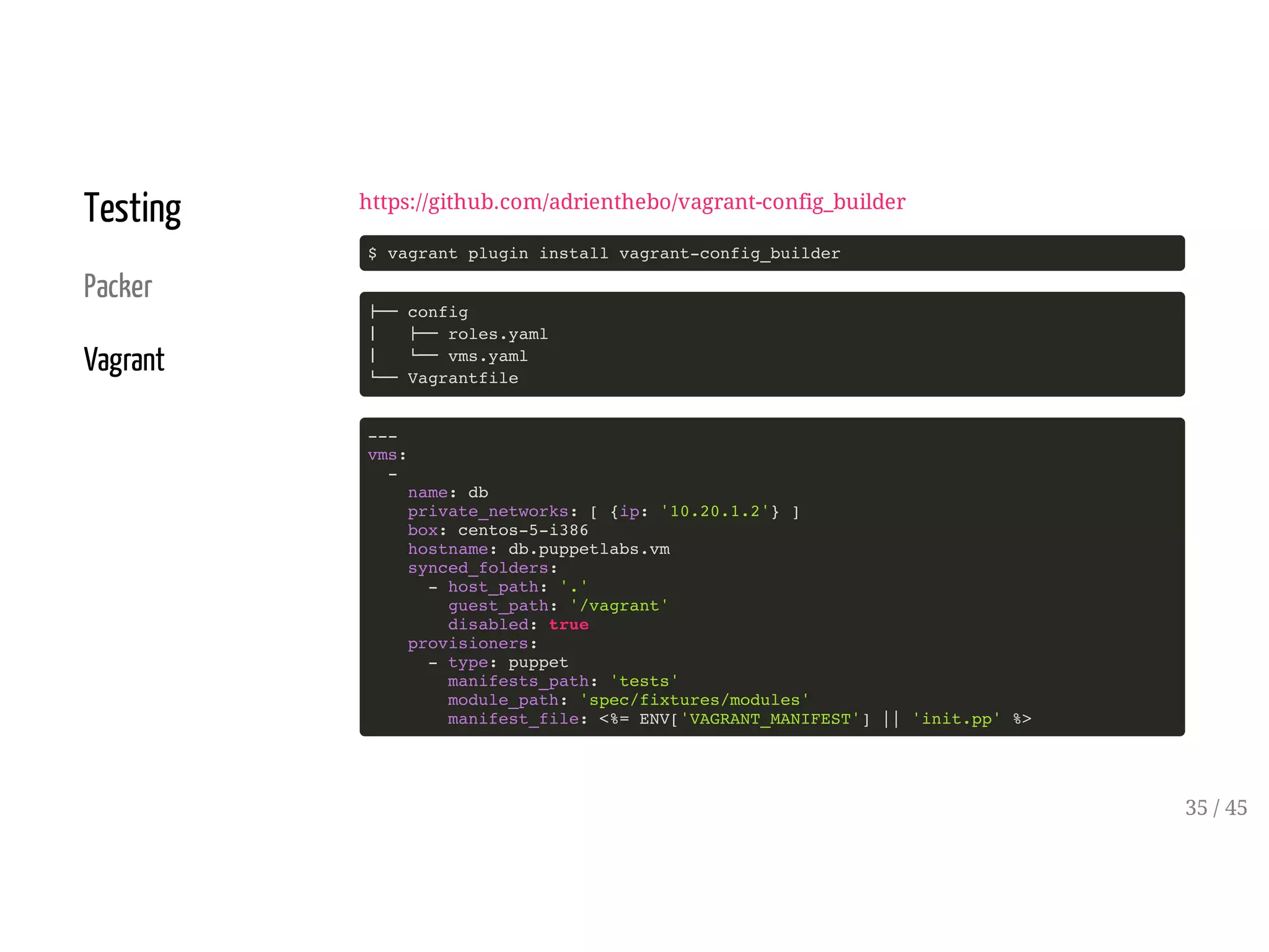

35. Testing
Packer
Vagrant
https://github.com/adrienthebo/vagrant-config_builder
$ vagrant plugin install vagrant-config_builder
├── config
│ ├── roles.yaml
│ └── vms.yaml
└── Vagrantfile
---
vms:
-
name: db
private_networks: [ {ip: '10.20.1.2'} ]
box: centos-5-i386
hostname: db.puppetlabs.vm
synced_folders:
- host_path: '.'
guest_path: '/vagrant'
disabled: true
provisioners:
- type: puppet
manifests_path: 'tests'
module_path: 'spec/fixtures/modules'
manifest_file: <%= ENV['VAGRANT_MANIFEST'] || 'init.pp' %>
35 / 45

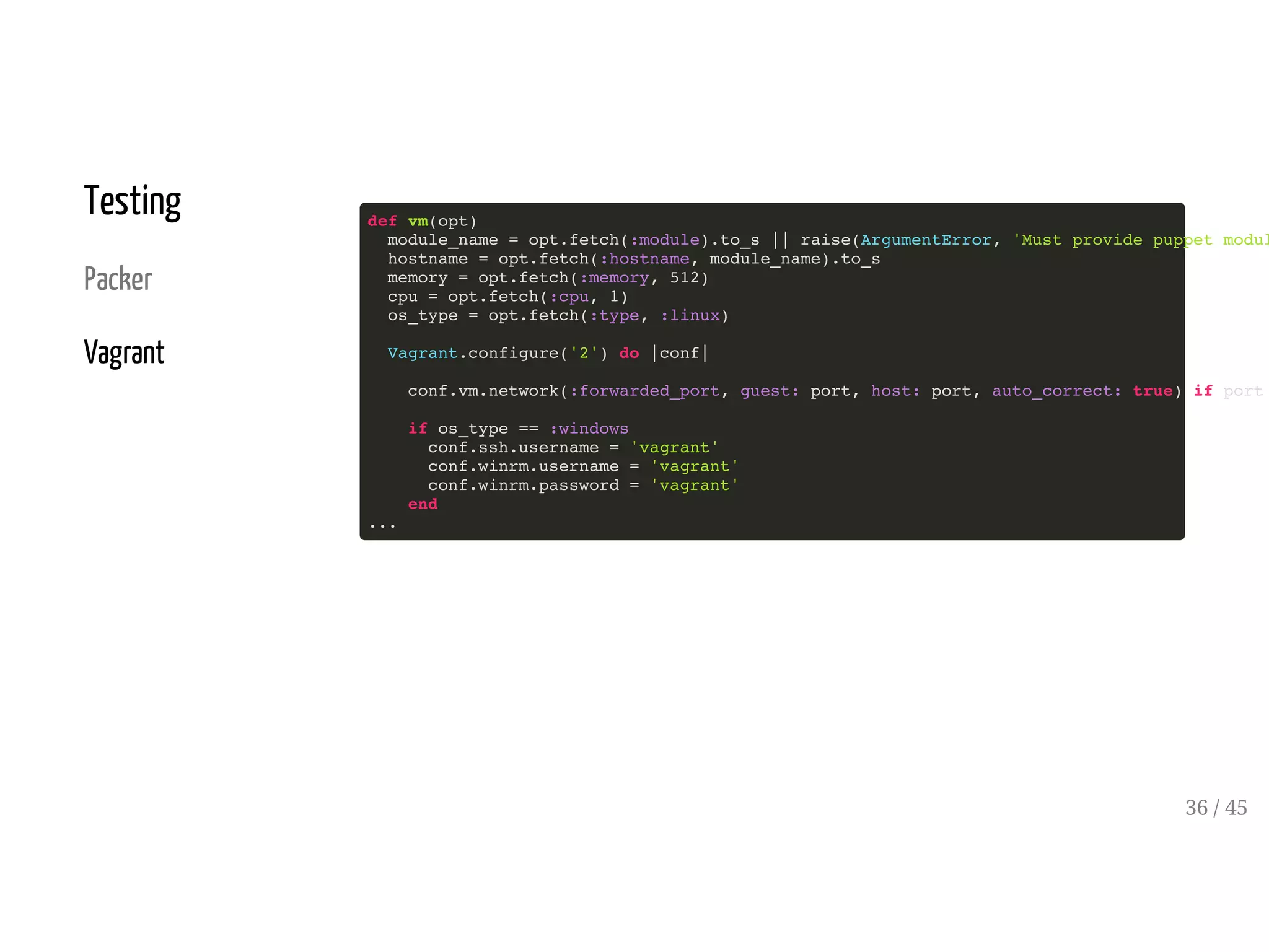

36. Testing
Packer
Vagrant
def vm(opt)
module_name = opt.fetch(:module).to_s || raise(ArgumentError, 'Must provide puppet module hostname = opt.fetch(:hostname, module_name).to_s
memory = opt.fetch(:memory, 512)
cpu = opt.fetch(:cpu, 1)
os_type = opt.fetch(:type, :linux)
Vagrant.configure('2') do |conf|
conf.vm.network(:forwarded_port, guest: port, host: port, auto_correct: true) if port
if os_type == :windows
conf.ssh.username = 'vagrant'
conf.winrm.username = 'vagrant'
conf.winrm.password = 'vagrant'
end
...
36 / 45

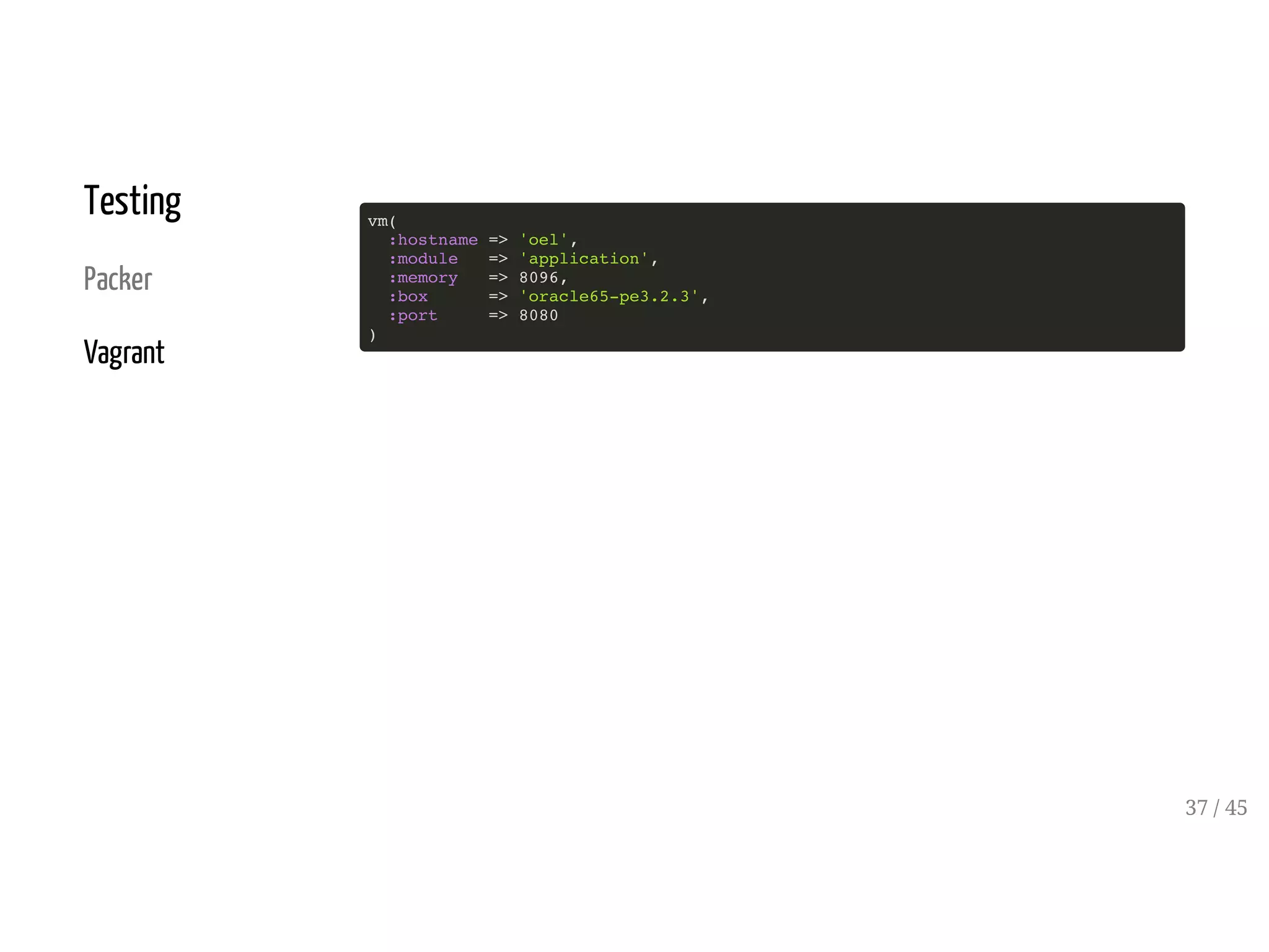

37. Testing
Packer
Vagrant
vm(
:hostname => 'oel',
:module => 'application',
:memory => 8096,
:box => 'oracle65-pe3.2.3',
:port => 8080
)
37 / 45

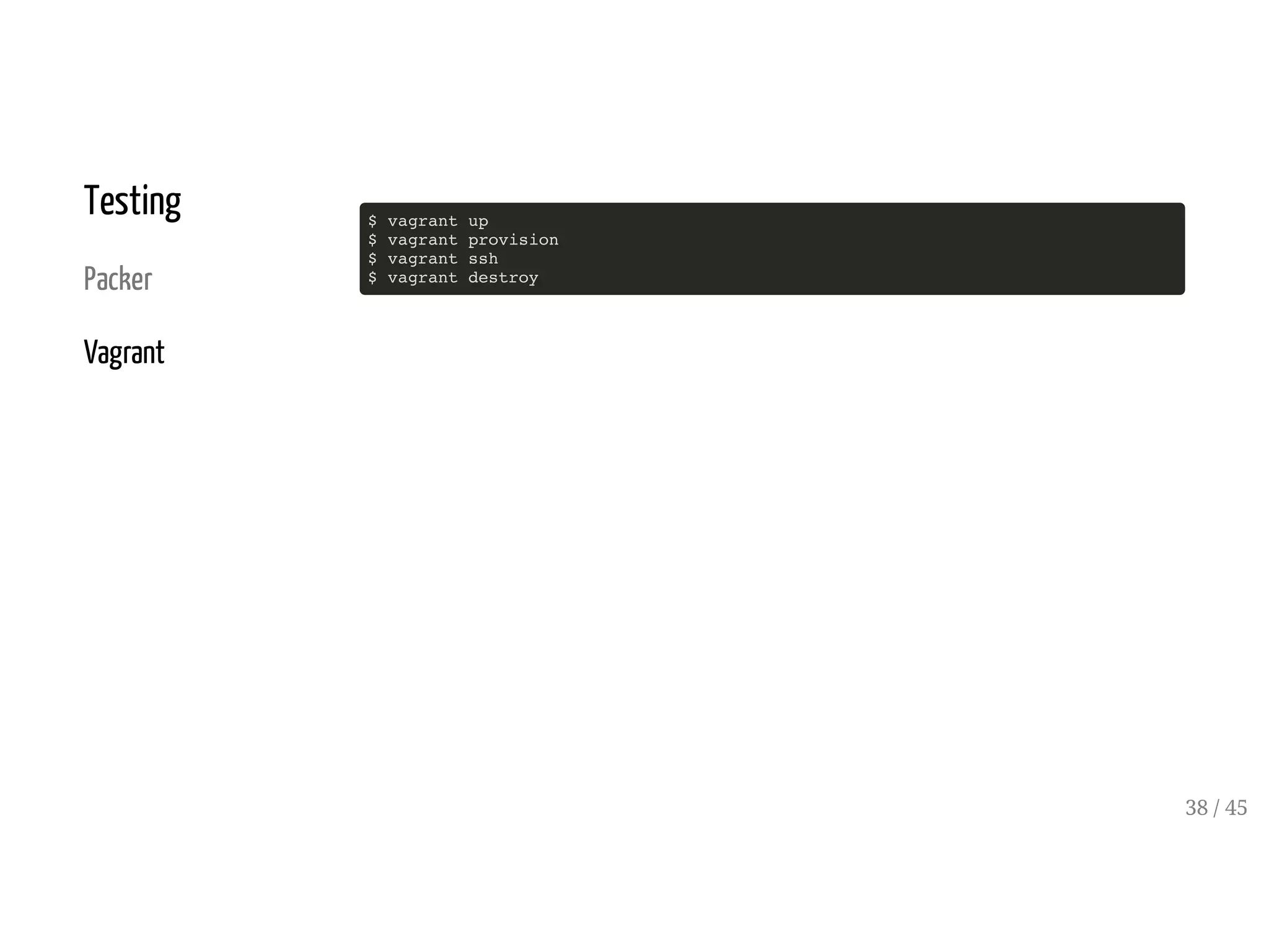

38. Testing
Packer
Vagrant
$ vagrant up
$ vagrant provision
$ vagrant ssh
$ vagrant destroy
38 / 45

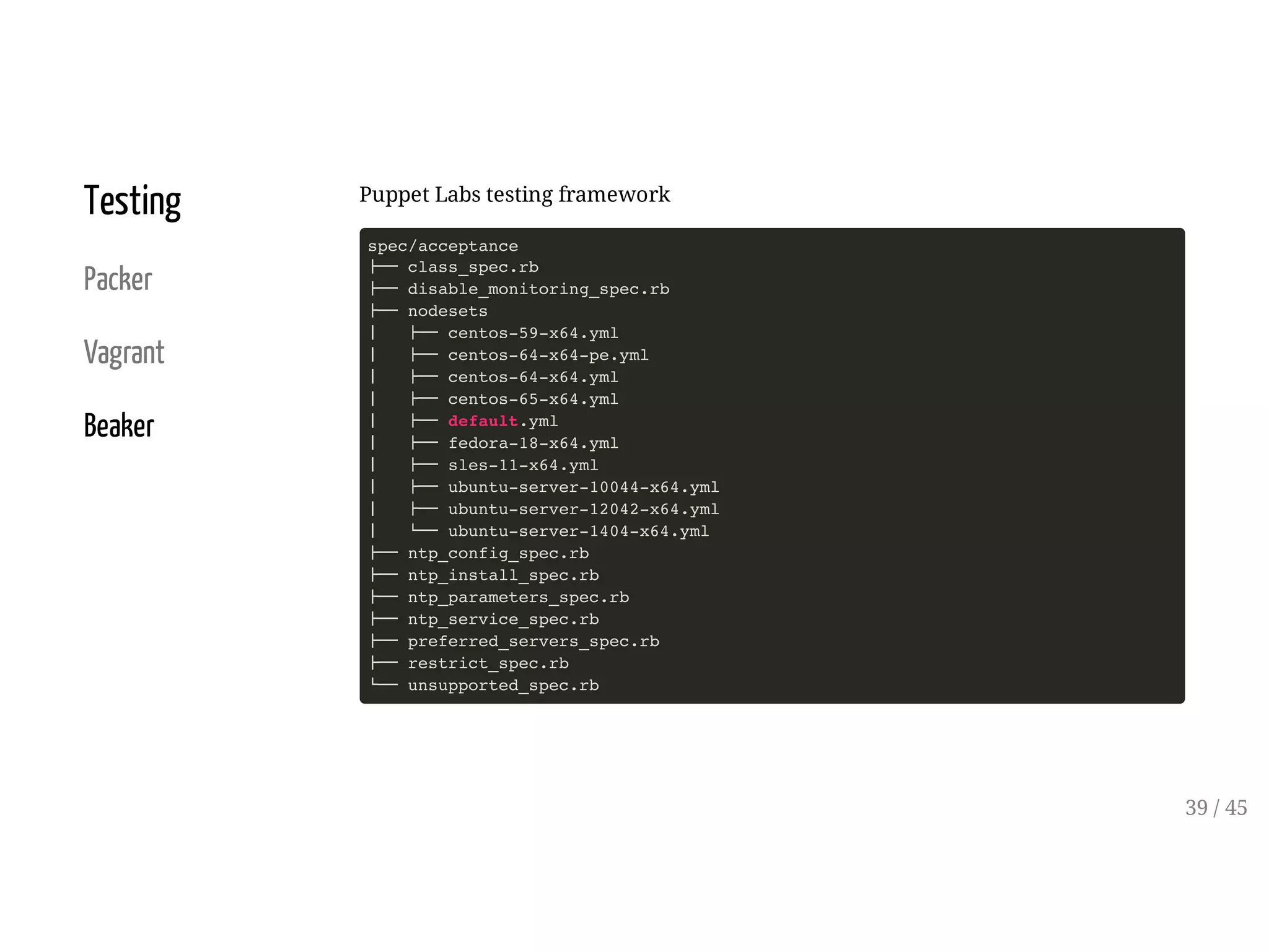

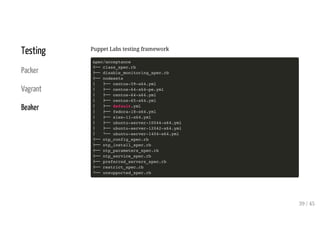

39. Testing
Packer
Vagrant
Beaker
Puppet Labs testing framework
spec/acceptance
├── class_spec.rb
├── disable_monitoring_spec.rb
├── nodesets
│ ├── centos-59-x64.yml
│ ├── centos-64-x64-pe.yml
│ ├── centos-64-x64.yml
│ ├── centos-65-x64.yml
│ ├── default.yml
│ ├── fedora-18-x64.yml
│ ├── sles-11-x64.yml
│ ├── ubuntu-server-10044-x64.yml
│ ├── ubuntu-server-12042-x64.yml
│ └── ubuntu-server-1404-x64.yml
├── ntp_config_spec.rb
├── ntp_install_spec.rb
├── ntp_parameters_spec.rb
├── ntp_service_spec.rb
├── preferred_servers_spec.rb
├── restrict_spec.rb
└── unsupported_spec.rb
39 / 45

40. Testing
Packer
Vagrant
Beaker
HOSTS:
centos-64-x64:
roles:
- master
platform: el-6-x86_64
box : centos-64-x64-vbox4210-nocm
box_url : http://puppet-vagrant-boxes.puppetlabs.com/centos-64-x64-vbox4210-nocm.box
hypervisor : vagrant
CONFIG:
type: foss
40 / 45

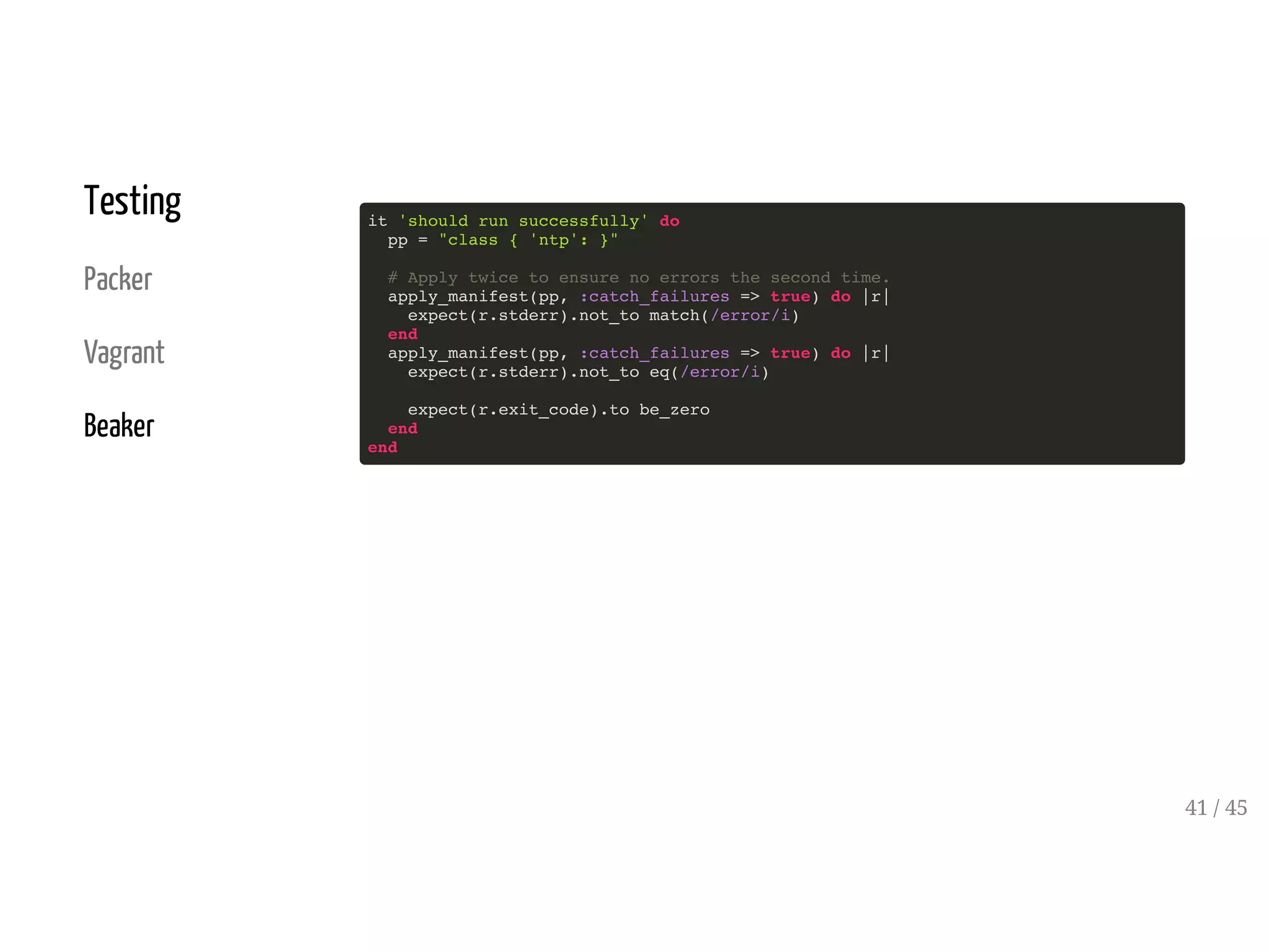

41. Testing
Packer
Vagrant
Beaker
it 'should run successfully' do
pp = "class { 'ntp': }"
# Apply twice to ensure no errors the second time.
apply_manifest(pp, :catch_failures => true) do |r|
expect(r.stderr).not_to match(/error/i)
end
apply_manifest(pp, :catch_failures => true) do |r|
expect(r.stderr).not_to eq(/error/i)
expect(r.exit_code).to be_zero
end
end
41 / 45

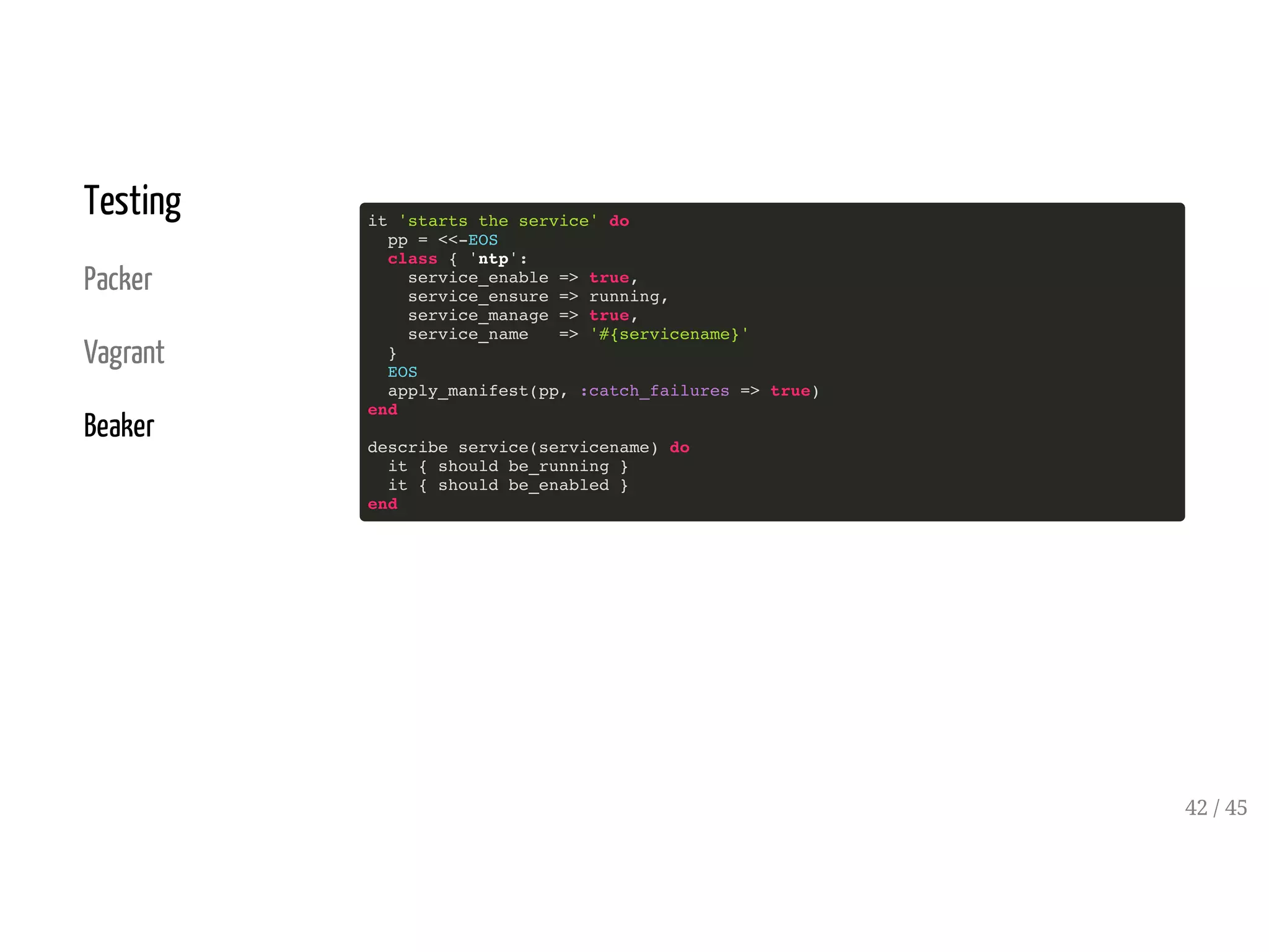

42. Testing
Packer
Vagrant
Beaker
it 'starts the service' do
pp = <<-EOS
class { 'ntp':
service_enable => true,
service_ensure => running,
service_manage => true,
service_name => '#{servicename}'
}
EOS
apply_manifest(pp, :catch_failures => true)
end
describe service(servicename) do
it { should be_running }
it { should be_enabled }
end
42 / 45

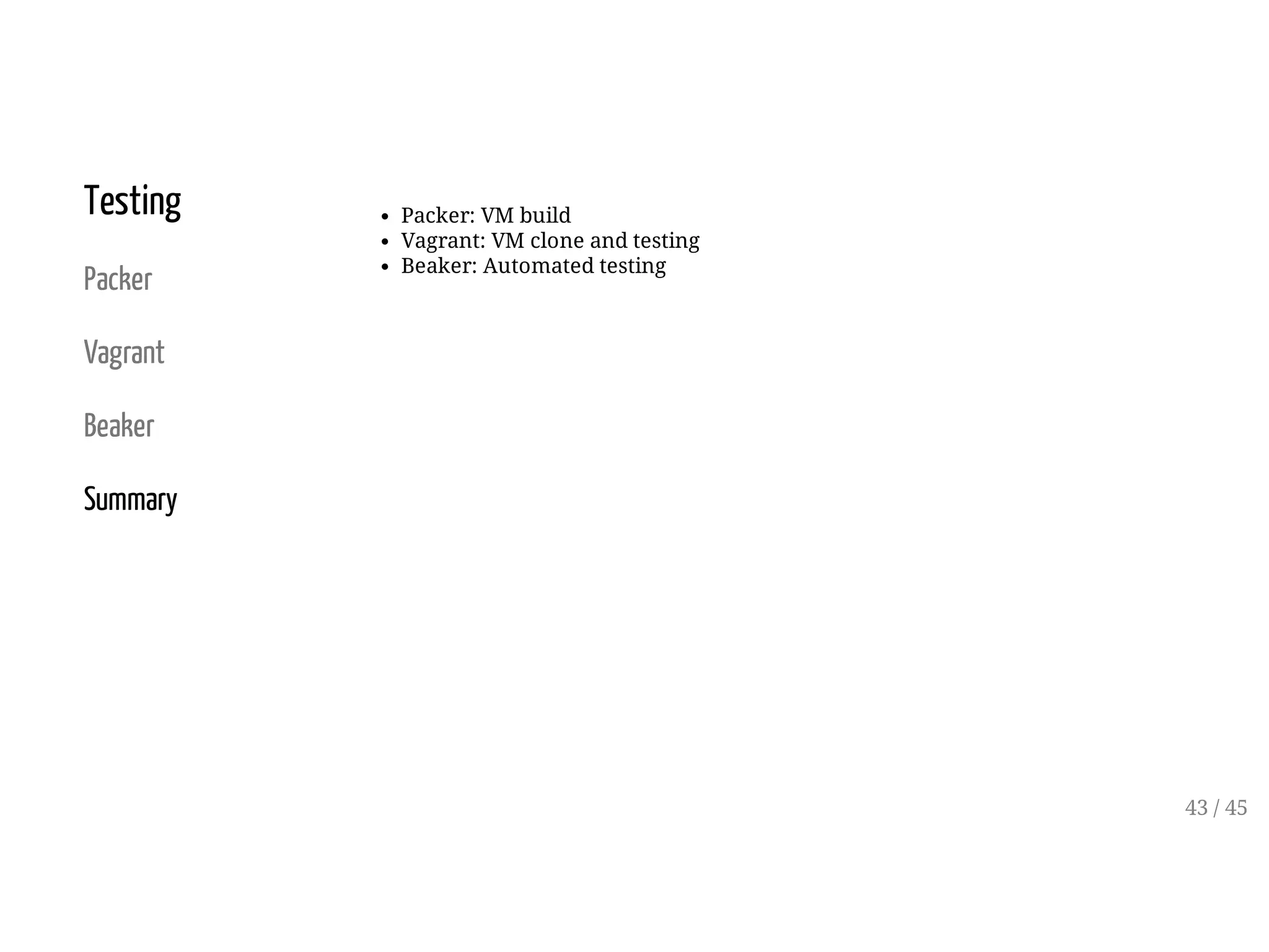

43. Testing
Packer
Vagrant
Beaker
Summary
Packer: VM build
Vagrant: VM clone and testing
Beaker: Automated testing
43 / 45

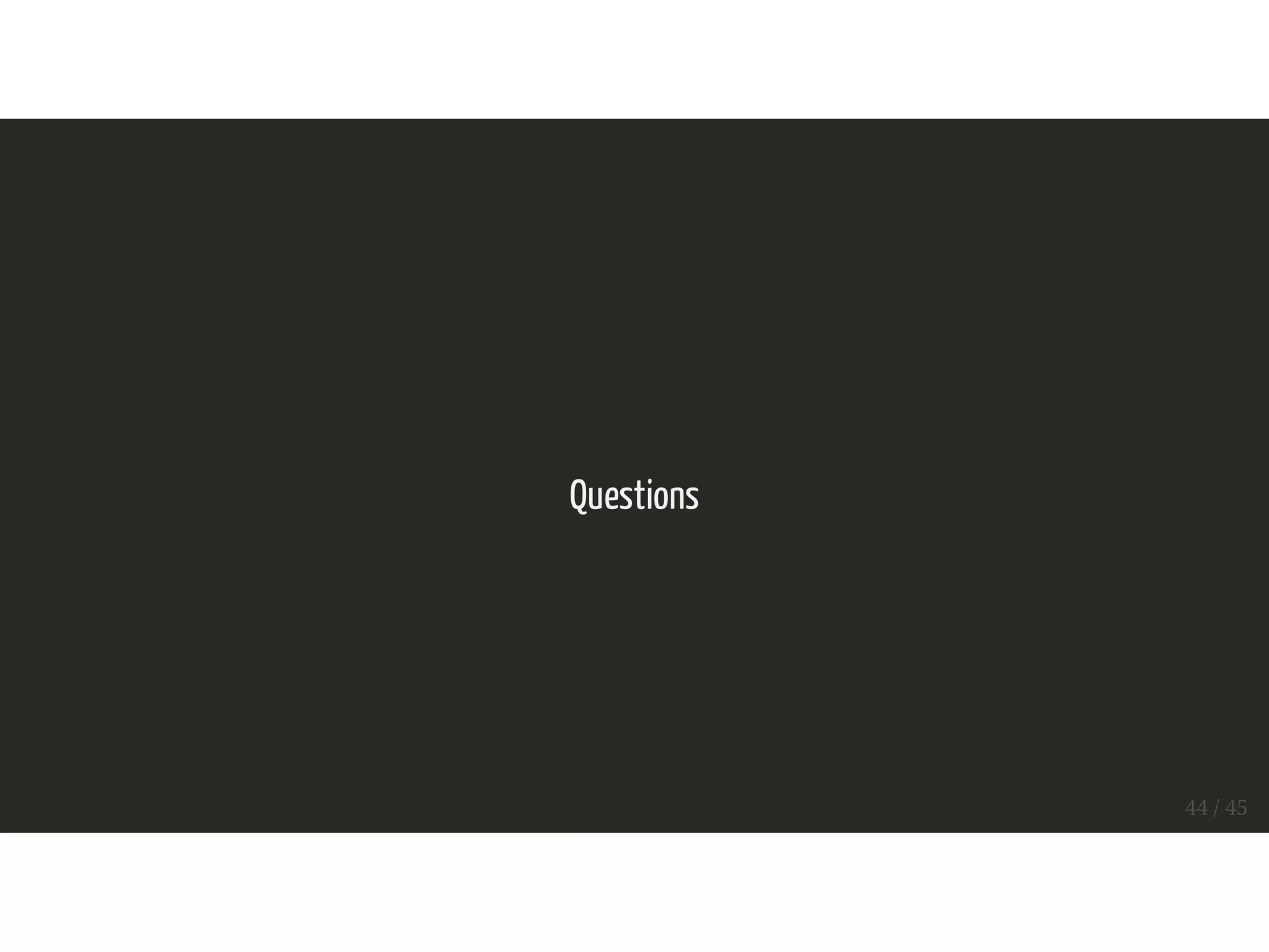

44. Questions
44 / 45

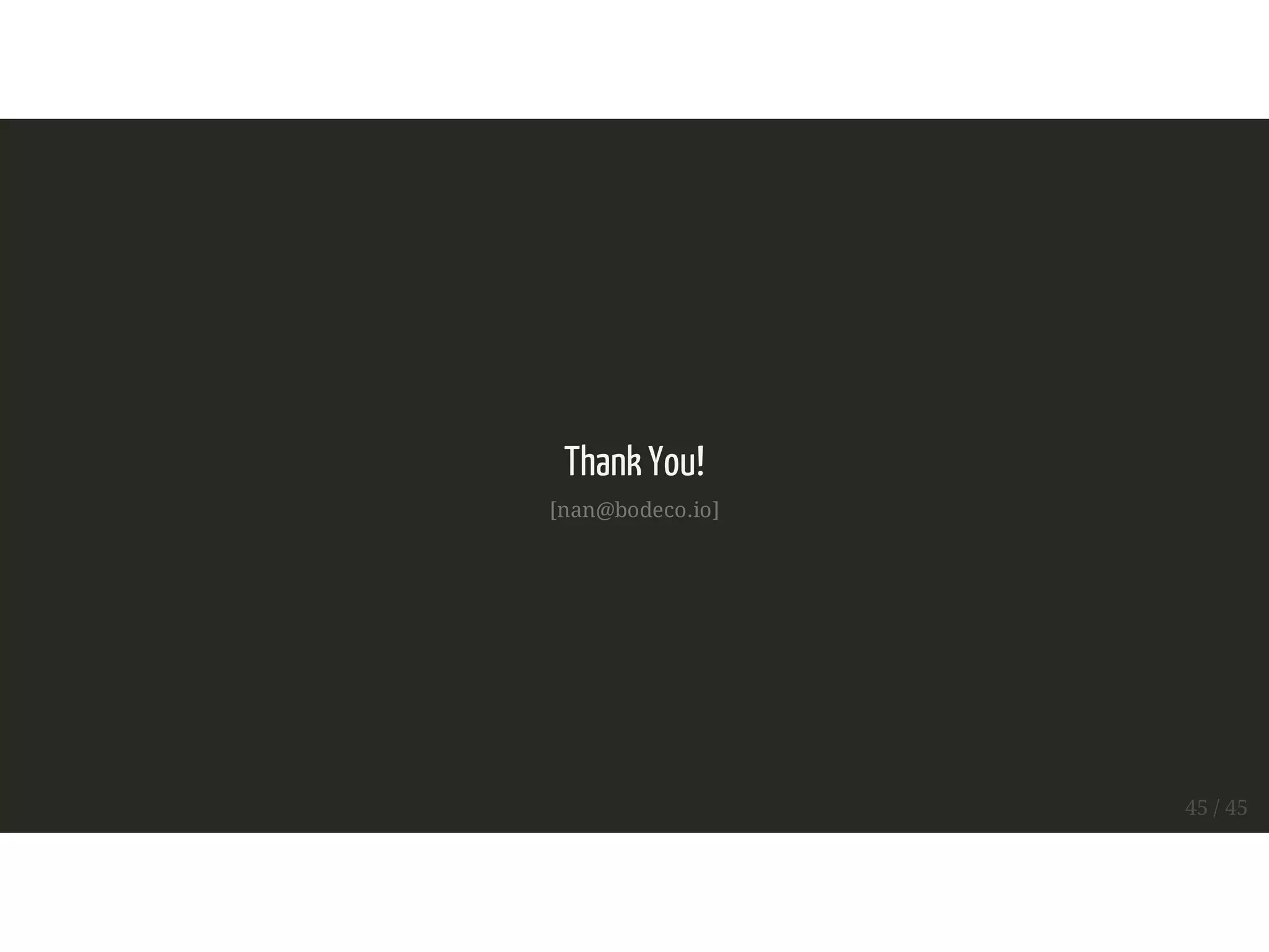

45. Thank You!
[nan@bodeco.io]
45 / 45
