Puppet is a configuration management tool that allows systems to be declared and maintained in a desired state. It uses a declarative domain-specific language to describe system configuration. Resources are used to model system components like packages, services, files and users. Modules bundle related manifests, files and templates. A Puppet master stores configurations and agents pull configurations from the master to make necessary changes. After runs, agents report back metrics and logs to provide visibility into infrastructure changes.

1. What’s Puppet

2. Sysadmin en la onda DevOps
Drupal developer
10 años sysadmin
3 años con Puppet
8 años con Drupal
http://atlantic-canary.net
http://github.com/jonhattan
@_jonhattan_
Jonathan Araña Cruz (aka jonhattan)

3. Caballeros

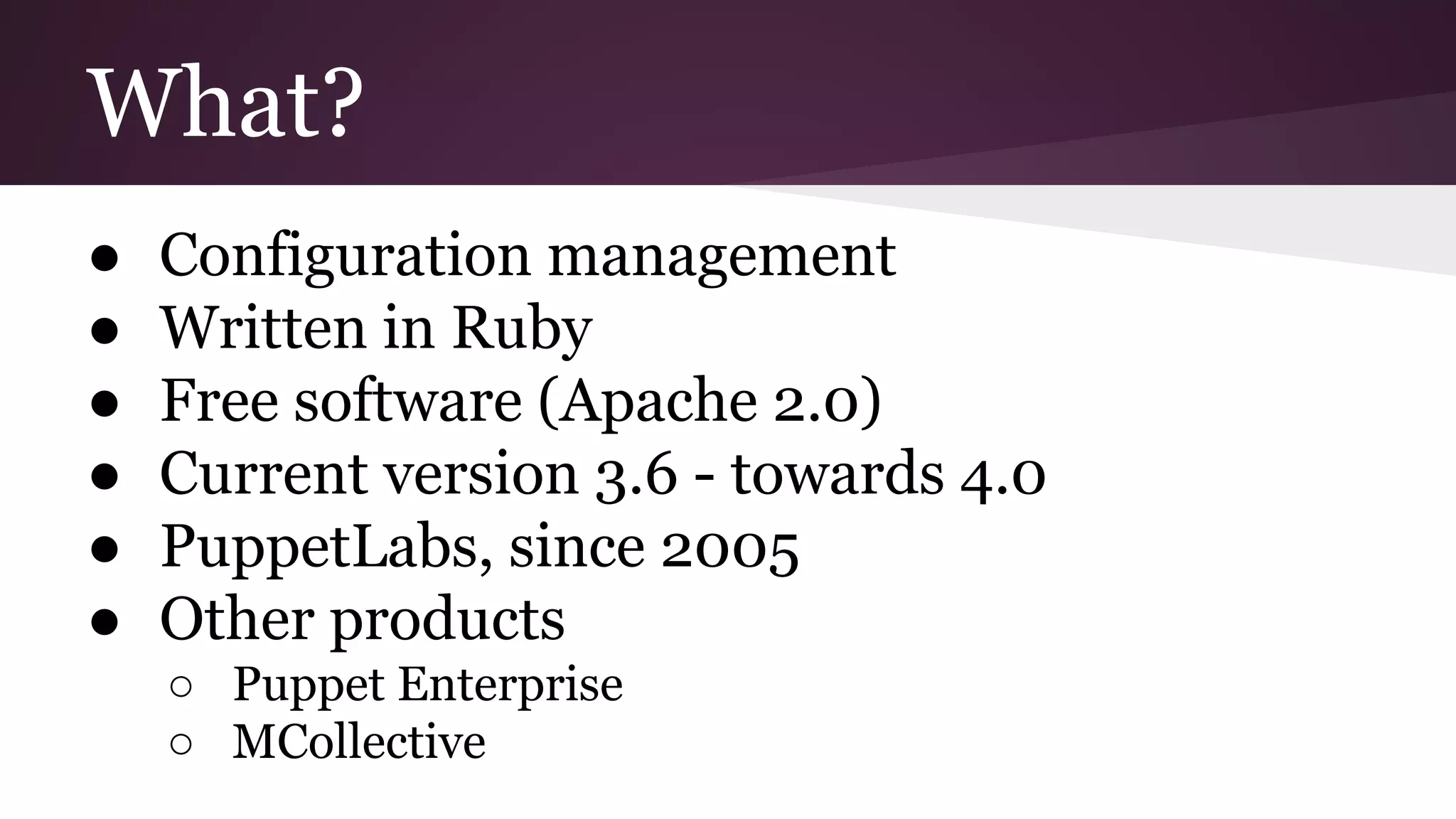

4. What?
● Configuration management
● Written in Ruby
● Free software (Apache 2.0)
● Current version 3.6 - towards 4.0
● PuppetLabs, since 2005
● Other products
○ Puppet Enterprise
○ MCollective

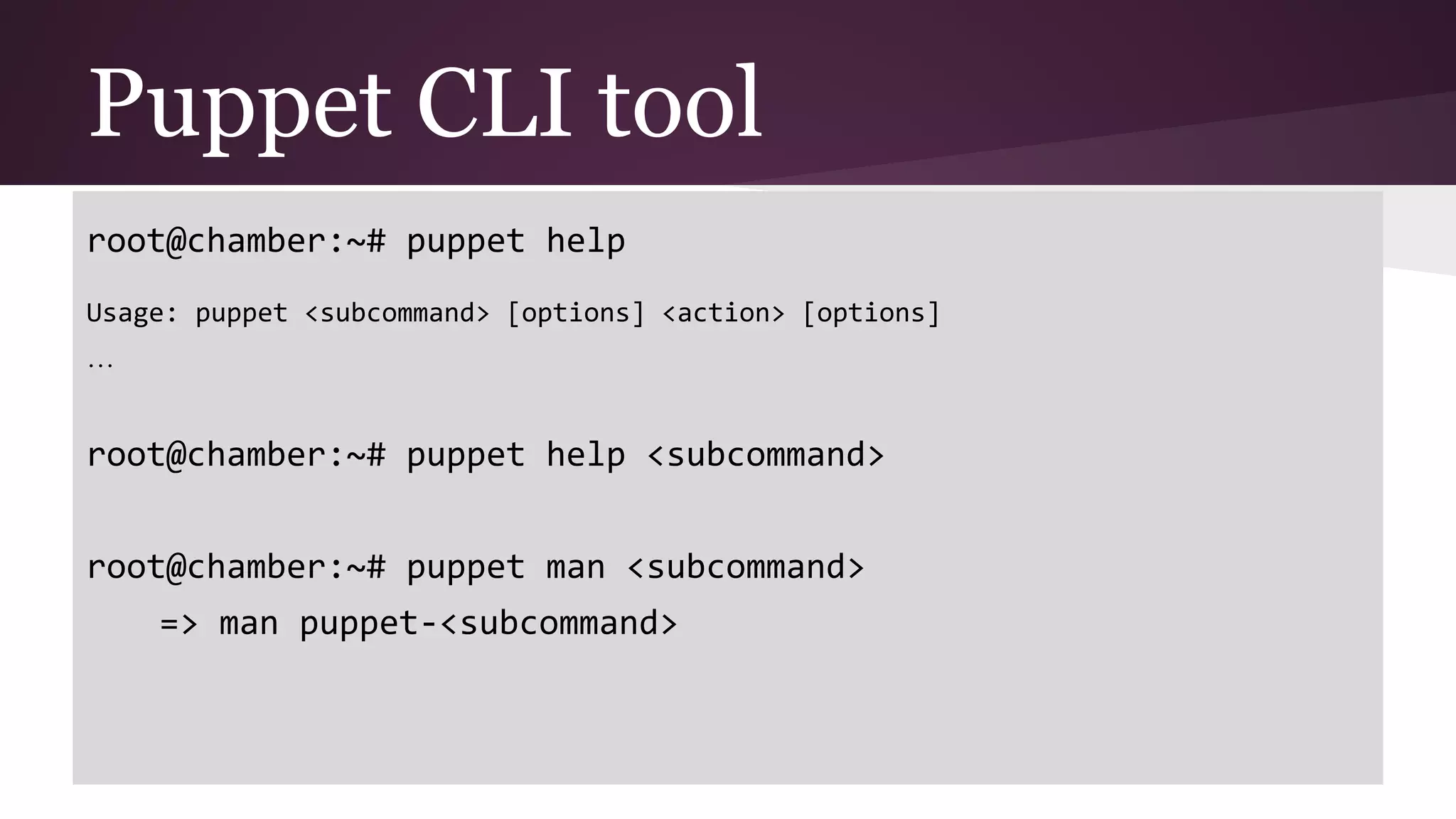

5. Puppet CLI tool
root@chamber:~# puppet help
Usage: puppet <subcommand> [options] <action> [options]
…
root@chamber:~# puppet help <subcommand>
root@chamber:~# puppet man <subcommand>
=> man puppet-<subcommand>

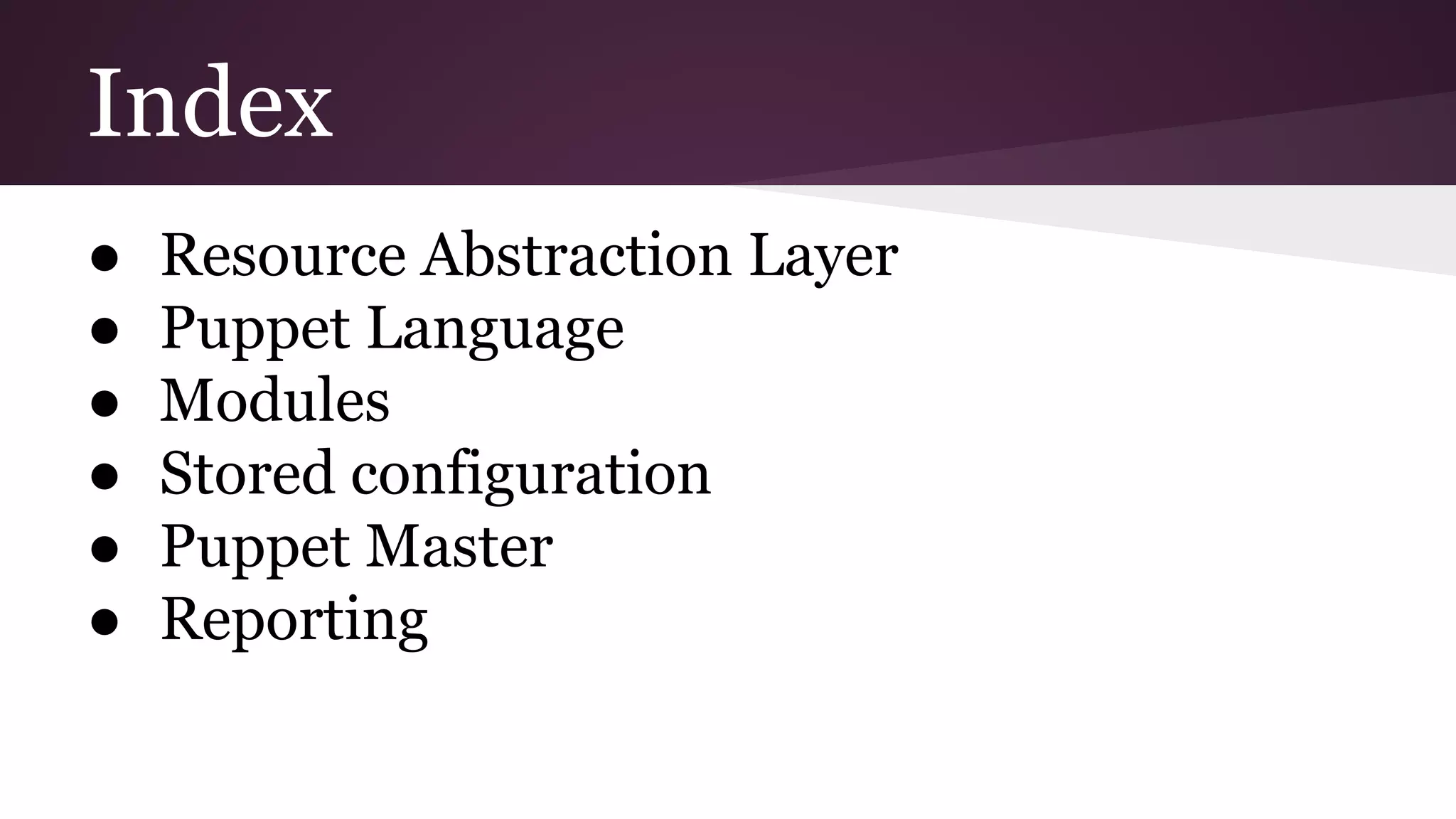

6. Index
● Resource Abstraction Layer
● Puppet Language
● Modules
● Stored configuration
● Puppet Master
● Reporting

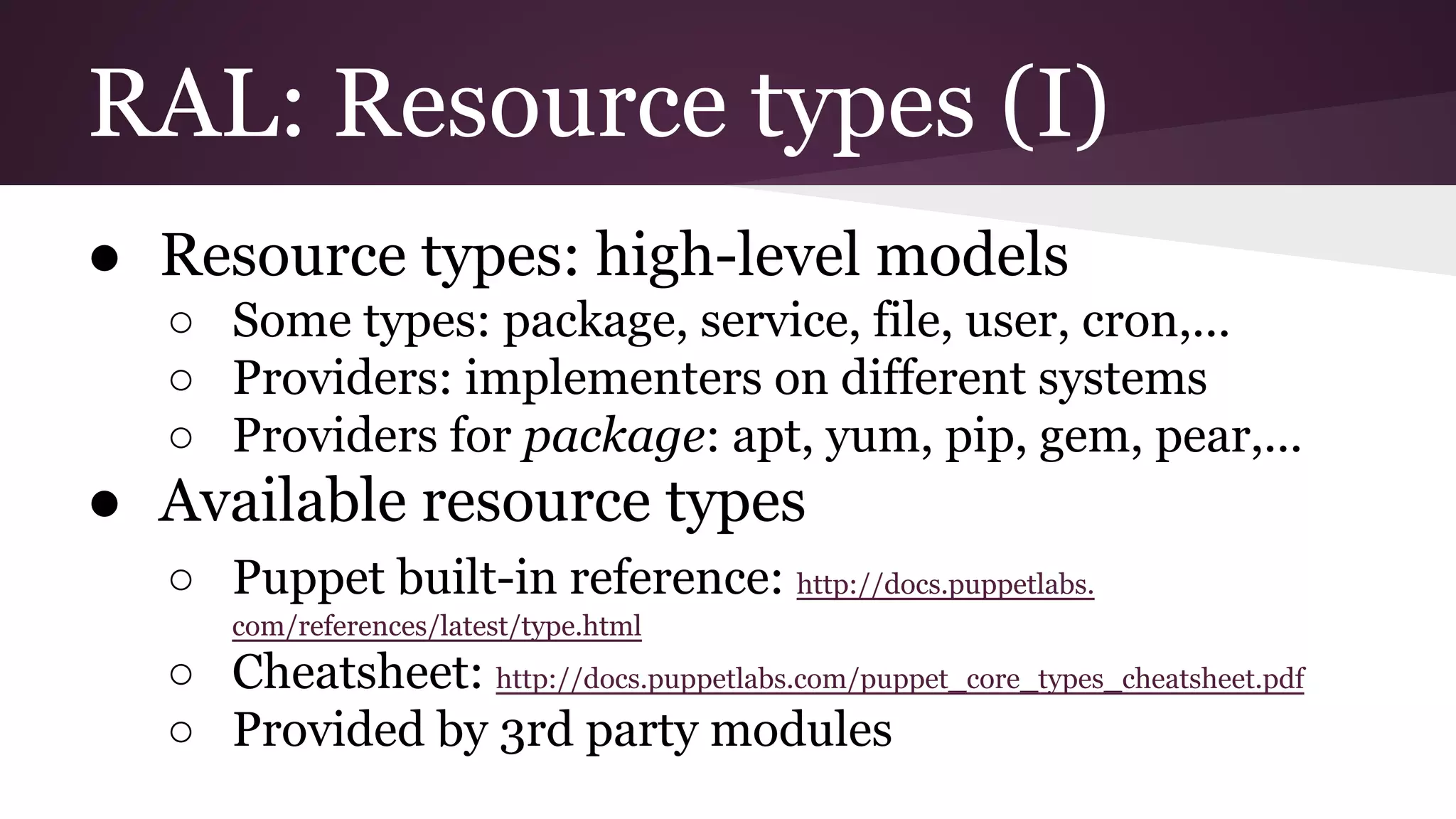

7. RAL: Resource types (I)
● Resource types: high-level models
○ Some types: package, service, file, user, cron,...
○ Providers: implementers on different systems
○ Providers for package: apt, yum, pip, gem, pear,...
● Available resource types
○ Puppet built-in reference: http://docs.puppetlabs.
com/references/latest/type.html
○ Cheatsheet: http://docs.puppetlabs.com/puppet_core_types_cheatsheet.pdf
○ Provided by 3rd party modules

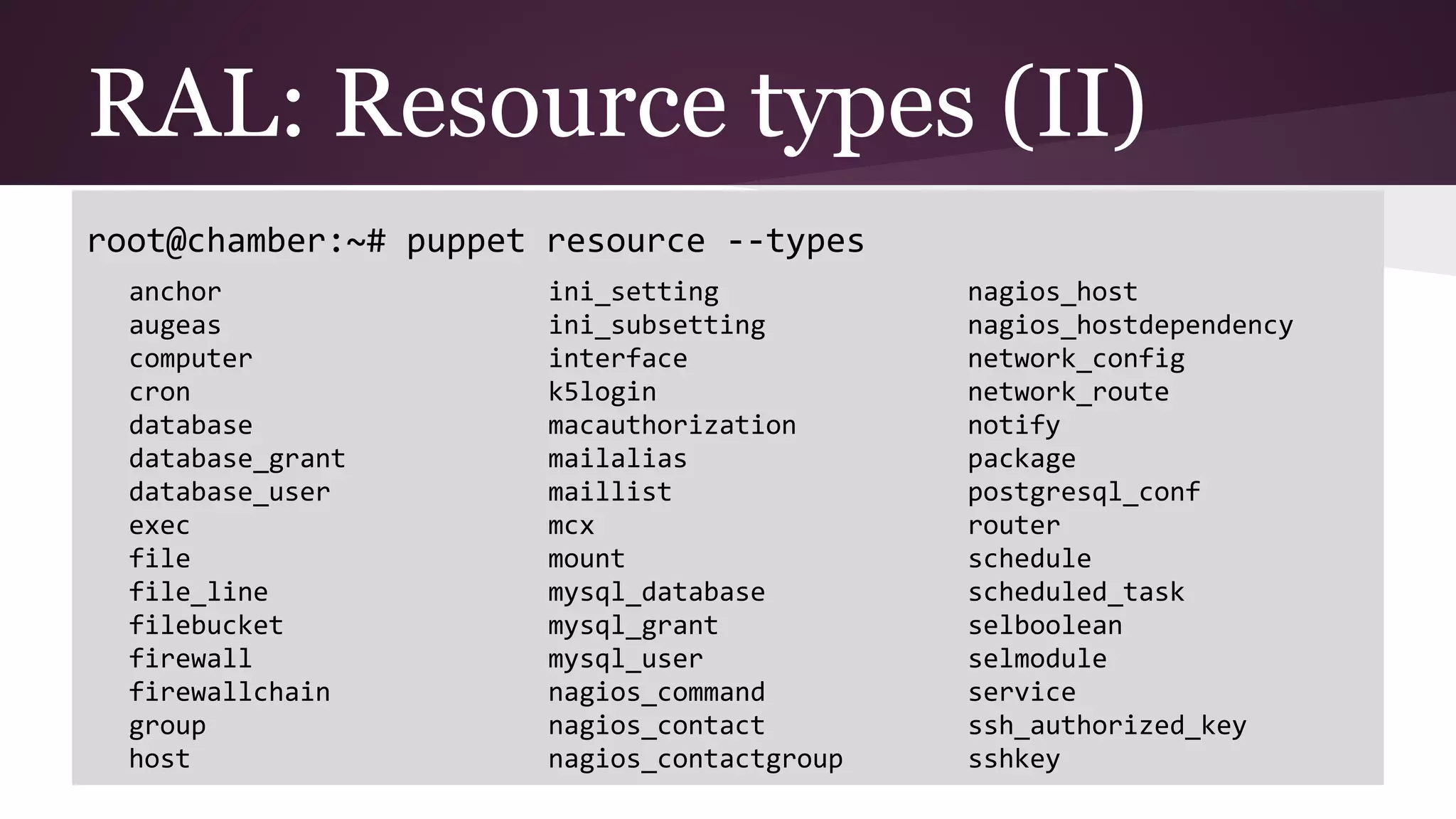

8. root@chamber:~# puppet resource --types
anchor
augeas
computer
cron
database
database_grant
database_user
exec
file
file_line
filebucket
firewall
firewallchain
group
host
ini_setting
ini_subsetting
interface
k5login
macauthorization
mailalias
maillist
mcx
mount
mysql_database
mysql_grant
mysql_user
nagios_command
nagios_contact
nagios_contactgroup
nagios_host
nagios_hostdependency
network_config
network_route
notify
package
postgresql_conf
router
schedule
scheduled_task
selboolean
selmodule
service
ssh_authorized_key
sshkey
RAL: Resource types (II)

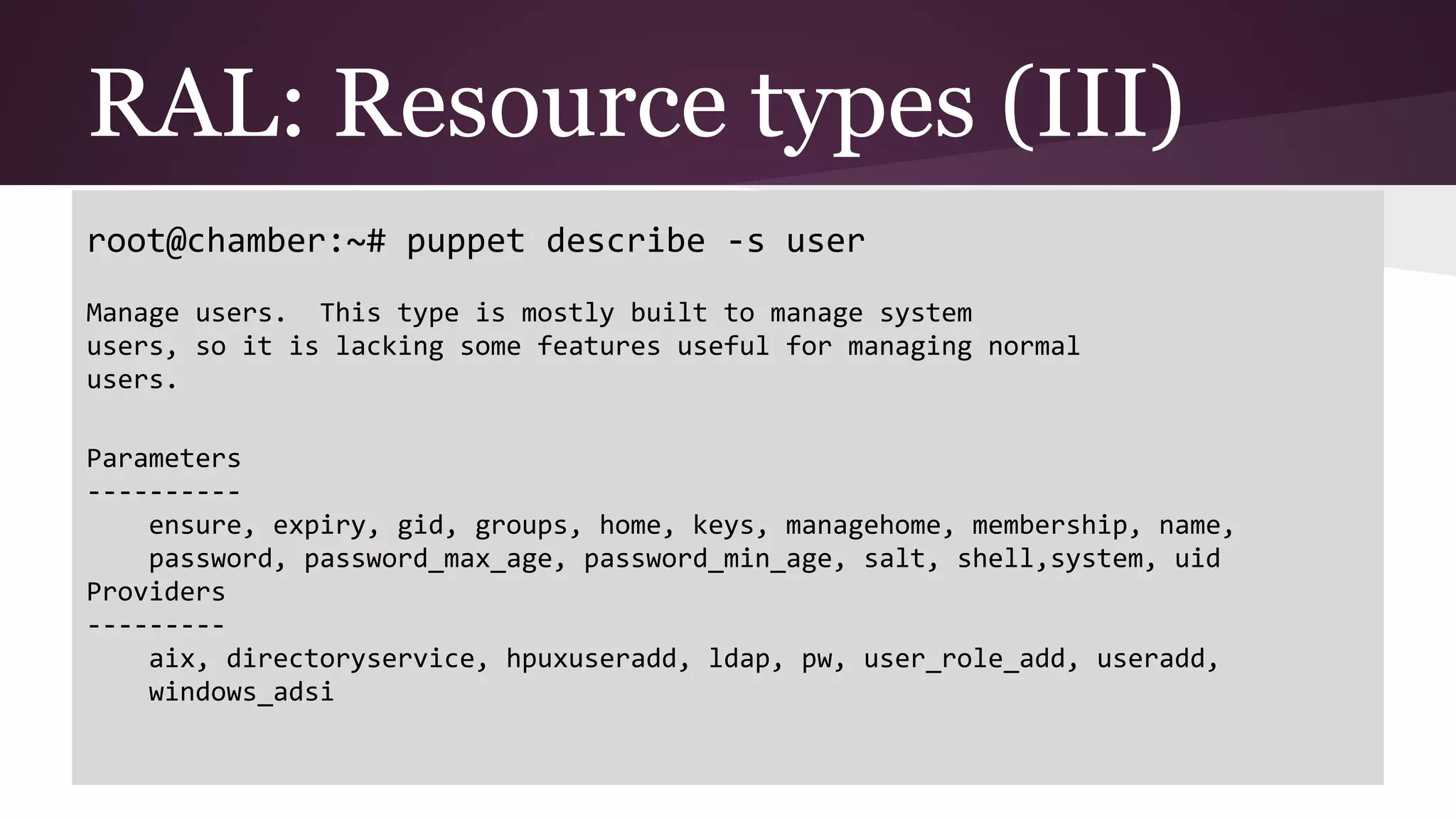

9. root@chamber:~# puppet describe -s user
Manage users. This type is mostly built to manage system
users, so it is lacking some features useful for managing normal
users.
Parameters
----------
ensure, expiry, gid, groups, home, keys, managehome, membership, name,
password, password_max_age, password_min_age, salt, shell,system, uid
Providers
---------
aix, directoryservice, hpuxuseradd, ldap, pw, user_role_add, useradd,
windows_adsi
RAL: Resource types (III)

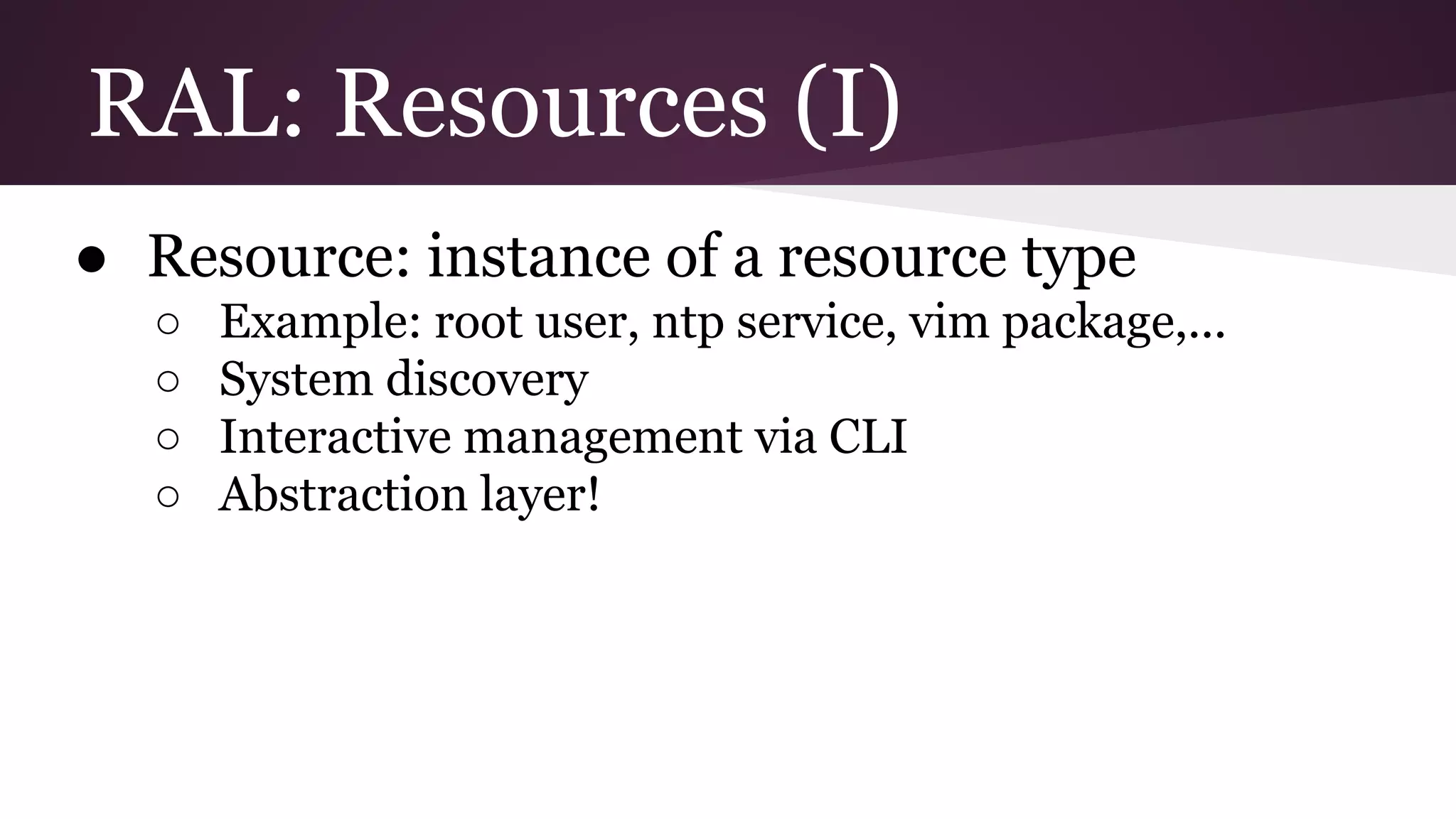

10. RAL: Resources (I)
● Resource: instance of a resource type
○ Example: root user, ntp service, vim package,...
○ System discovery
○ Interactive management via CLI
○ Abstraction layer!

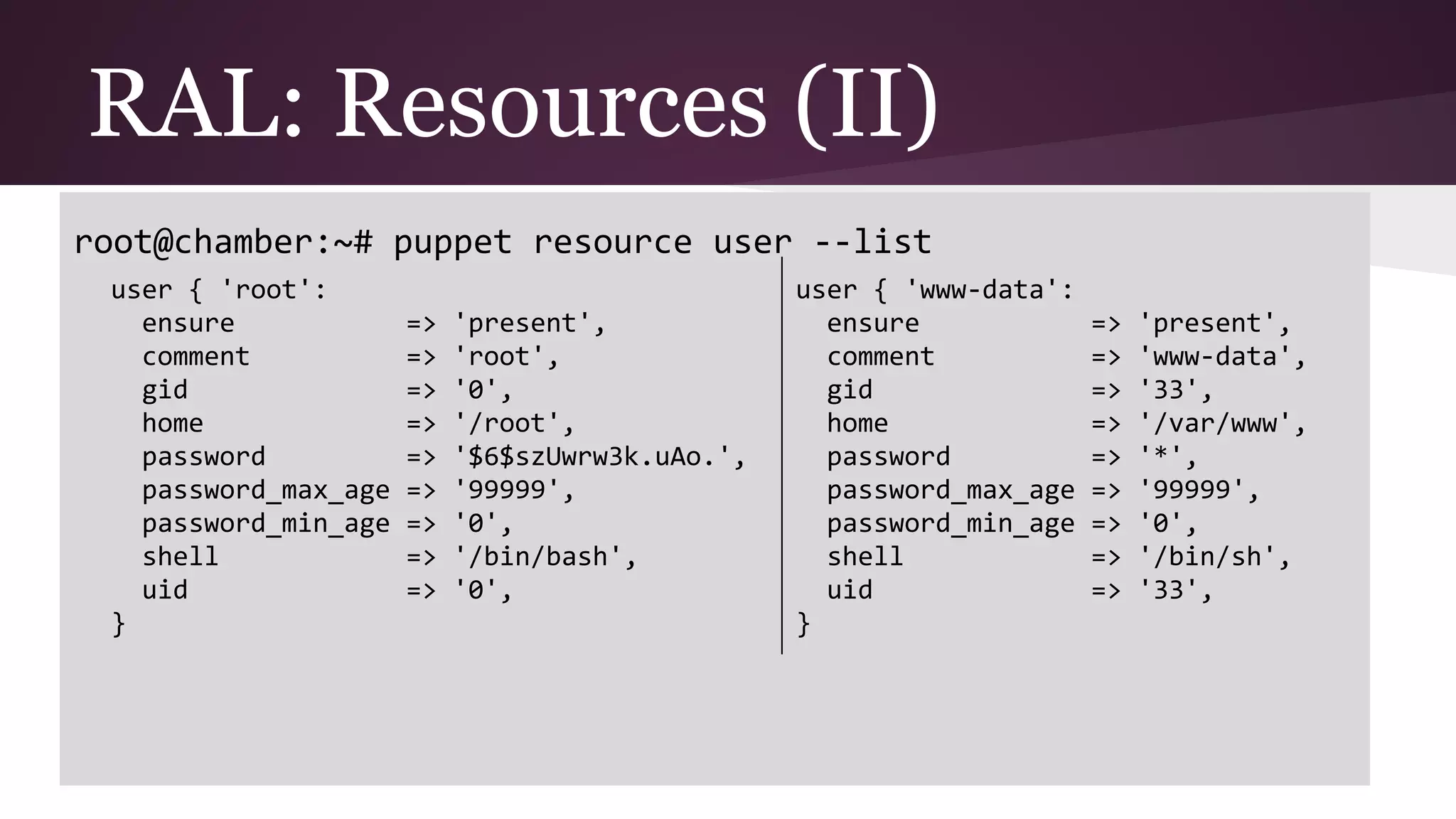

11. RAL: Resources (II)
root@chamber:~# puppet resource user --list
user { 'root':
ensure => 'present',
comment => 'root',
gid => '0',
home => '/root',
password => '$6$szUwrw3k.uAo.',
password_max_age => '99999',
password_min_age => '0',
shell => '/bin/bash',
uid => '0',
}
user { 'www-data':
ensure => 'present',
comment => 'www-data',
gid => '33',
home => '/var/www',
password => '*',
password_max_age => '99999',
password_min_age => '0',
shell => '/bin/sh',
uid => '33',
}

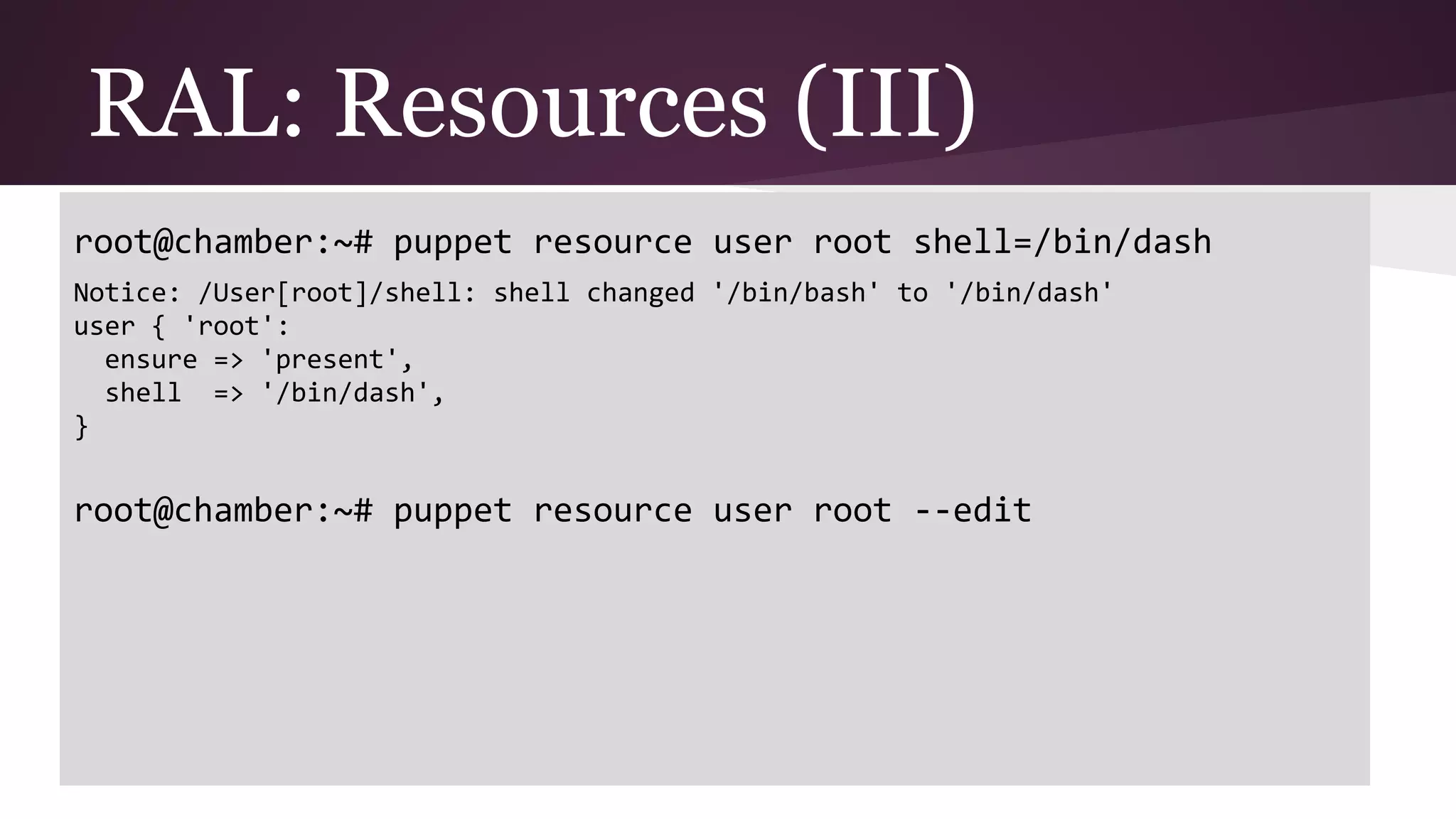

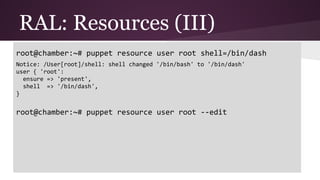

12. RAL: Resources (III)
root@chamber:~# puppet resource user root shell=/bin/dash
Notice: /User[root]/shell: shell changed '/bin/bash' to '/bin/dash'
user { 'root':
ensure => 'present',
shell => '/bin/dash',
}
root@chamber:~# puppet resource user root --edit

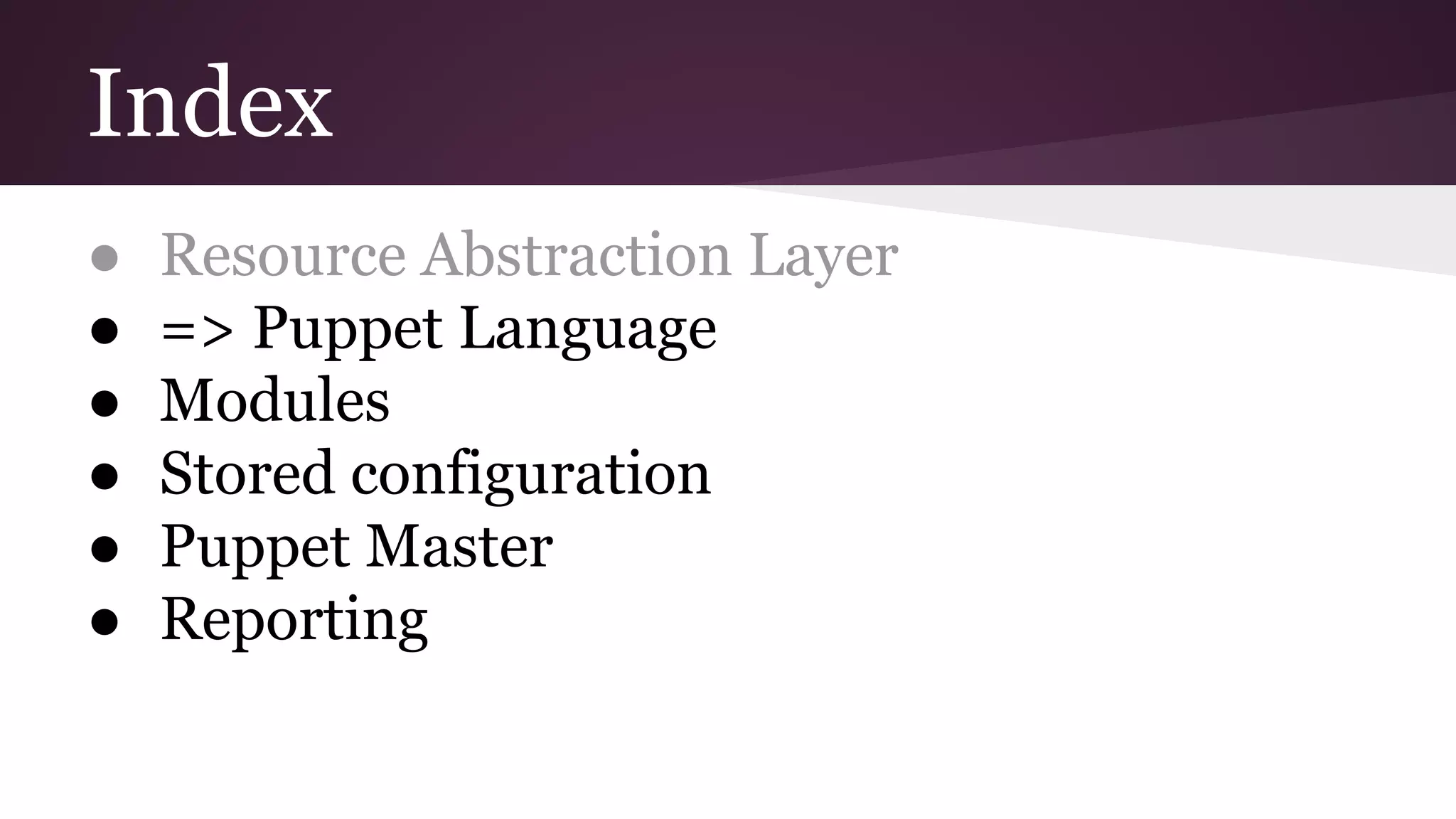

13. Index
● Resource Abstraction Layer
● => Puppet Language
● Modules
● Stored configuration
● Puppet Master
● Reporting

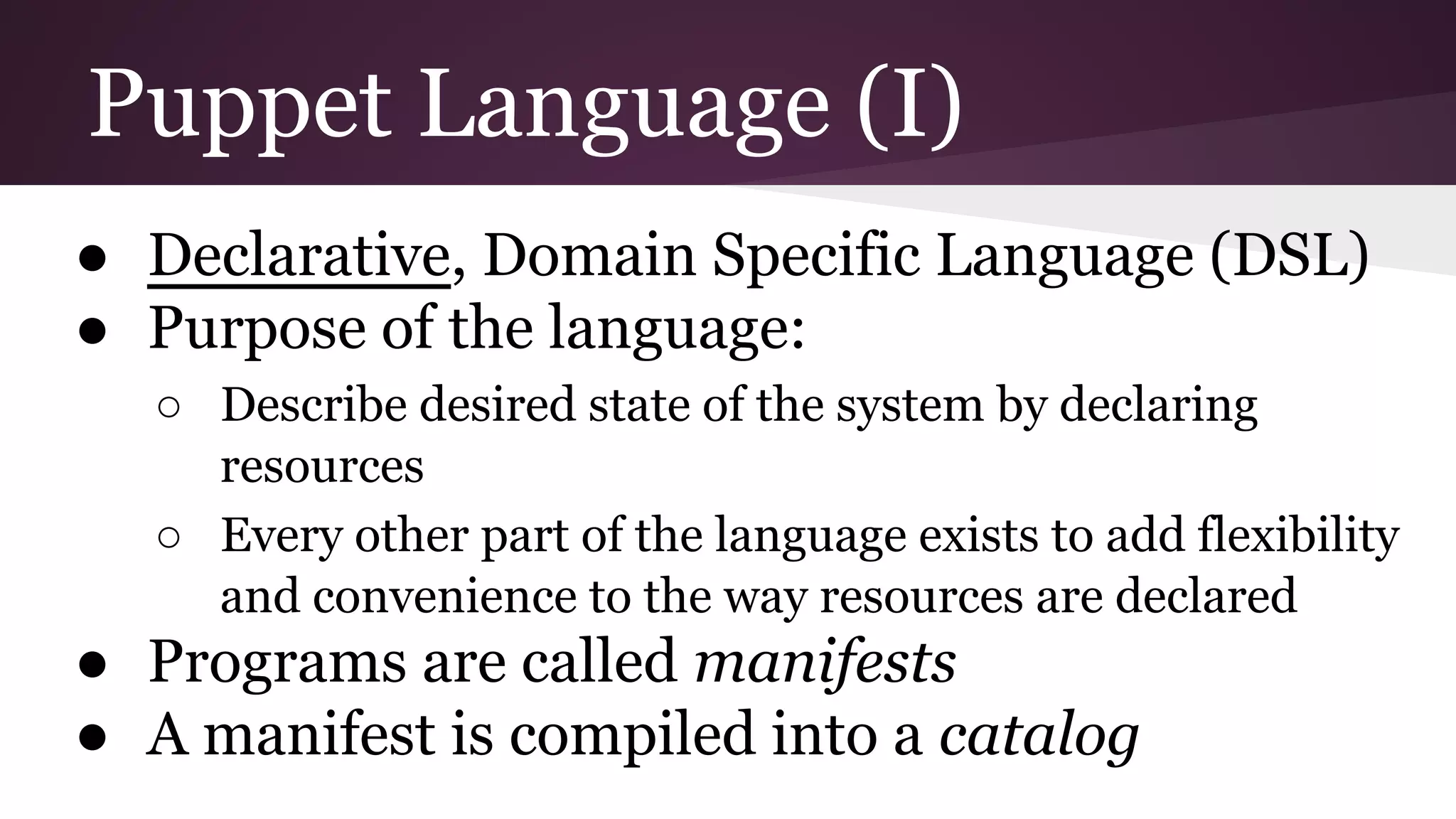

14. Puppet Language (I)
● Declarative, Domain Specific Language (DSL)
● Purpose of the language:
○ Describe desired state of the system by declaring
resources
○ Every other part of the language exists to add flexibility
and convenience to the way resources are declared
● Programs are called manifests
● A manifest is compiled into a catalog

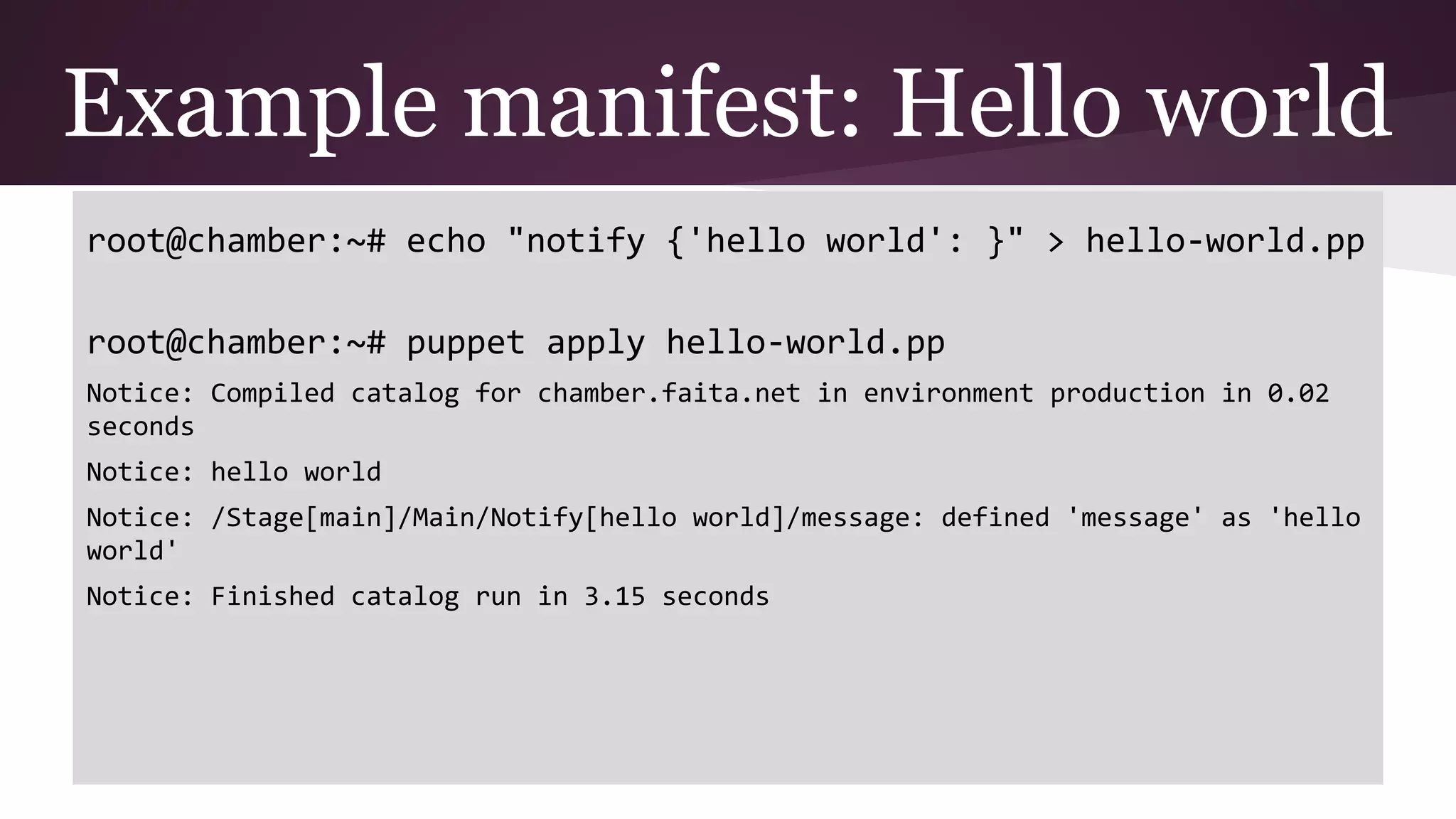

15. Example manifest: Hello world
root@chamber:~# echo "notify {'hello world': }" > hello-world.pp
root@chamber:~# puppet apply hello-world.pp
Notice: Compiled catalog for chamber.faita.net in environment production in 0.02
seconds
Notice: hello world
Notice: /Stage[main]/Main/Notify[hello world]/message: defined 'message' as 'hello
world'
Notice: Finished catalog run in 3.15 seconds

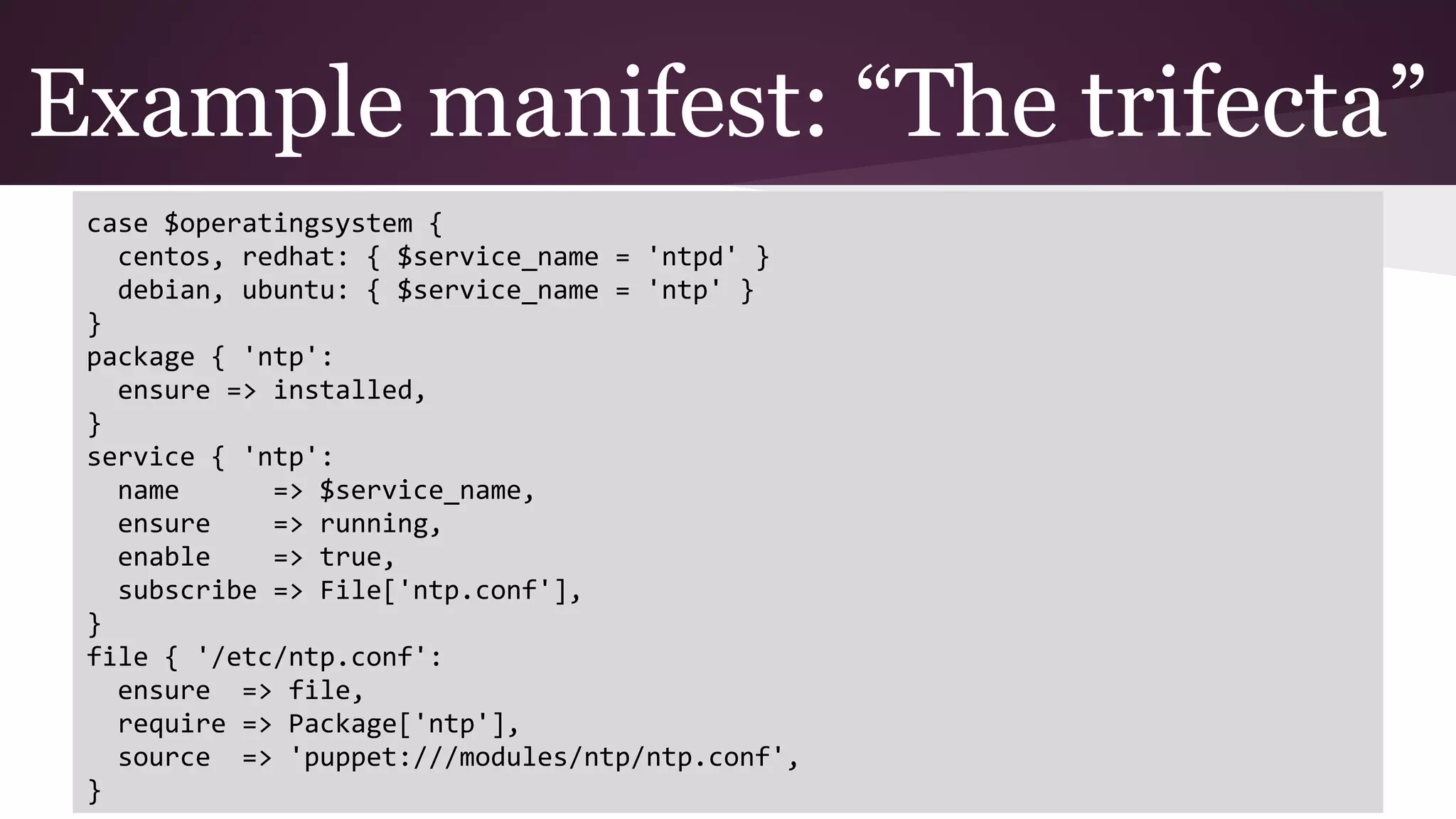

16. Example manifest: “The trifecta”
case $operatingsystem {
centos, redhat: { $service_name = 'ntpd' }
debian, ubuntu: { $service_name = 'ntp' }
}
package { 'ntp':
ensure => installed,
}
service { 'ntp':
name => $service_name,
ensure => running,
enable => true,
subscribe => File['ntp.conf'],
}
file { '/etc/ntp.conf':
ensure => file,
require => Package['ntp'],
source => 'puppet:///modules/ntp/ntp.conf',
}

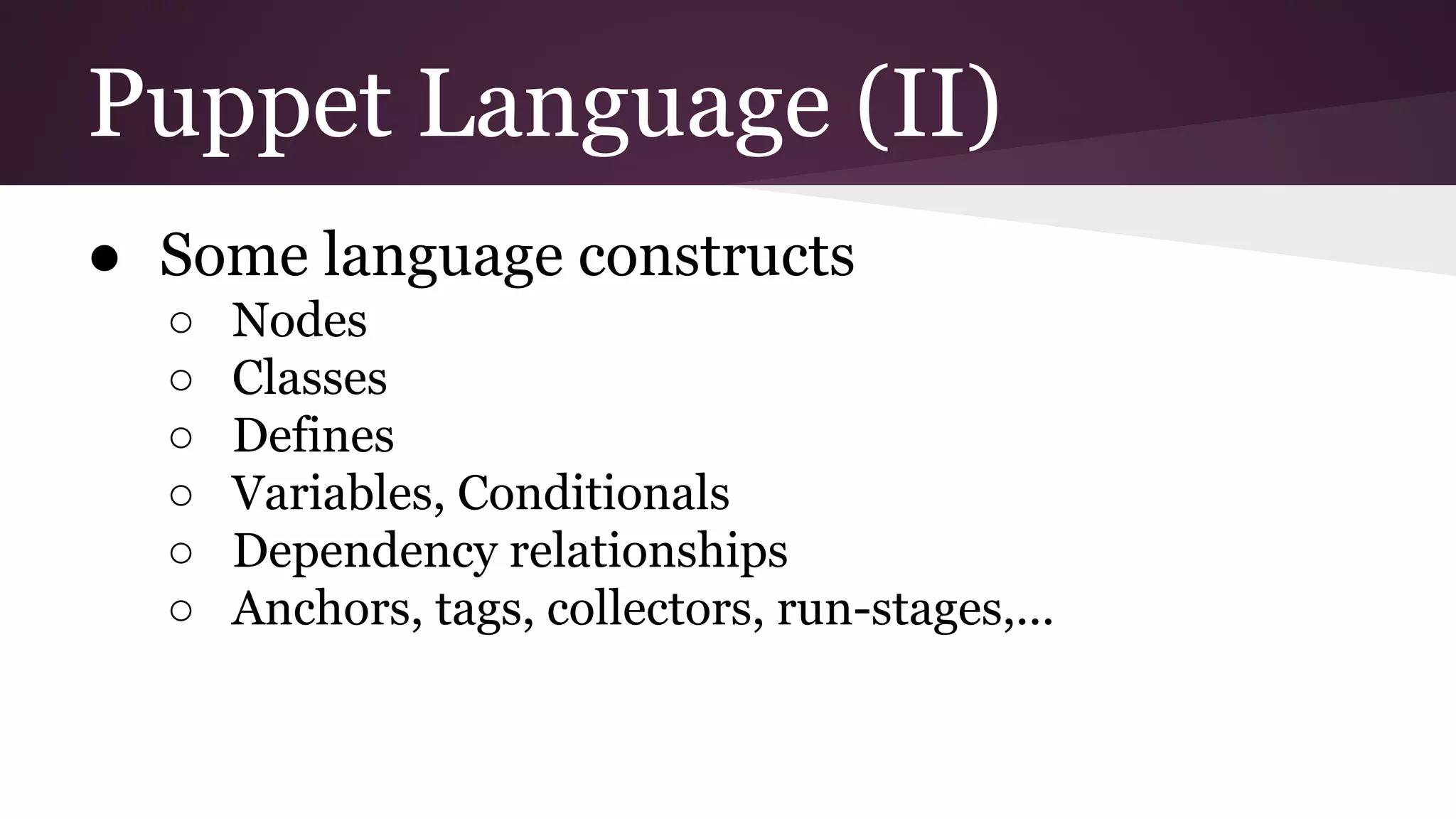

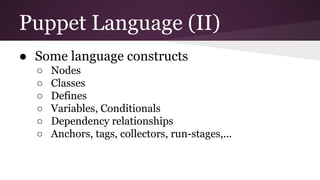

17. Puppet Language (II)
● Some language constructs
○ Nodes
○ Classes
○ Defines
○ Variables, Conditionals
○ Dependency relationships
○ Anchors, tags, collectors, run-stages,...

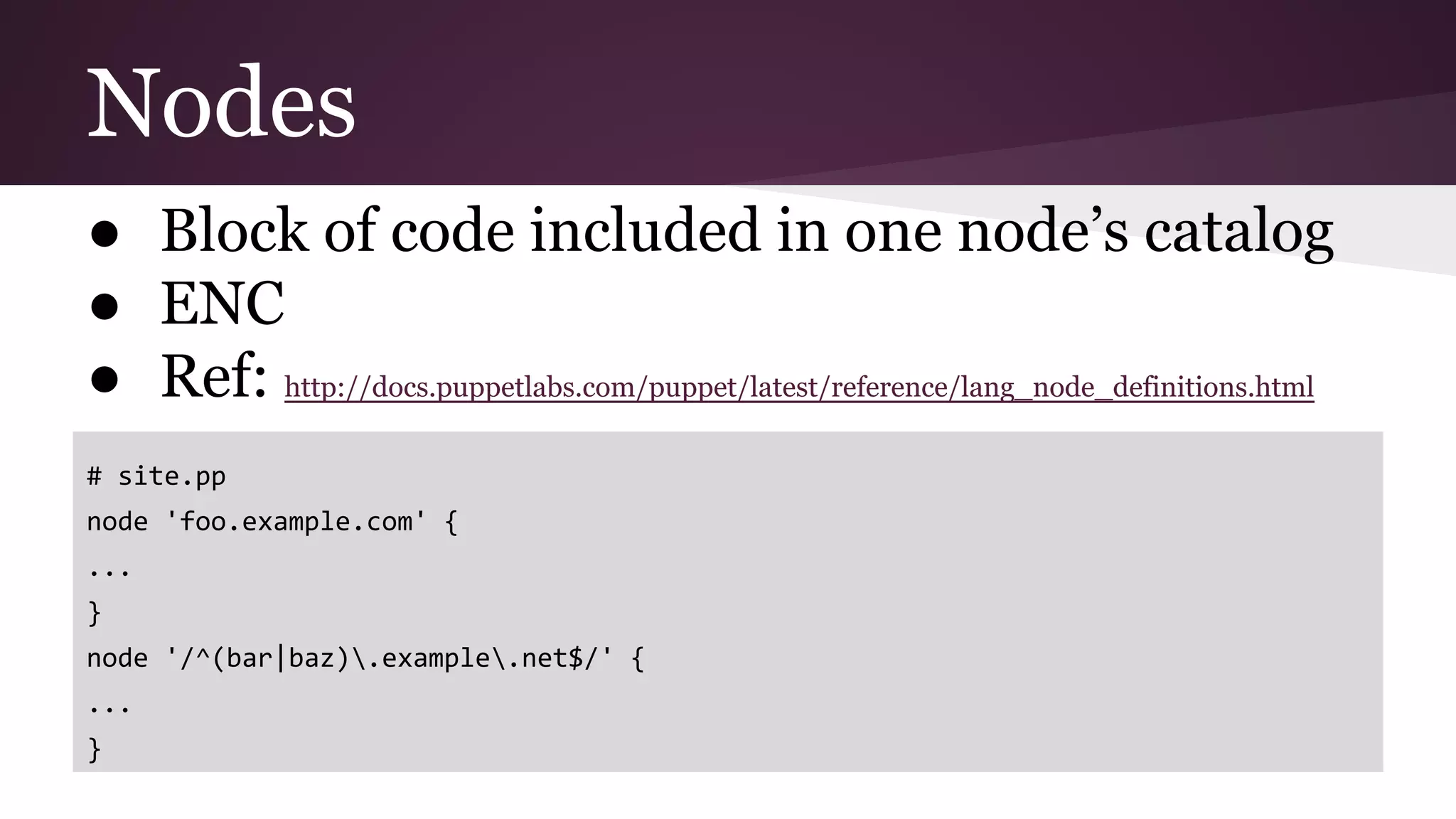

18. Nodes
● Block of code included in one node’s catalog
● ENC
● Ref: http://docs.puppetlabs.com/puppet/latest/reference/lang_node_definitions.html
# site.pp
node 'foo.example.com' {
...
}
node '/^(bar|baz).example.net$/' {
...
}

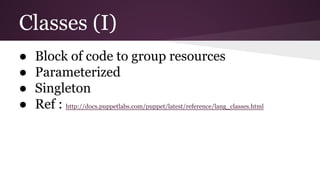

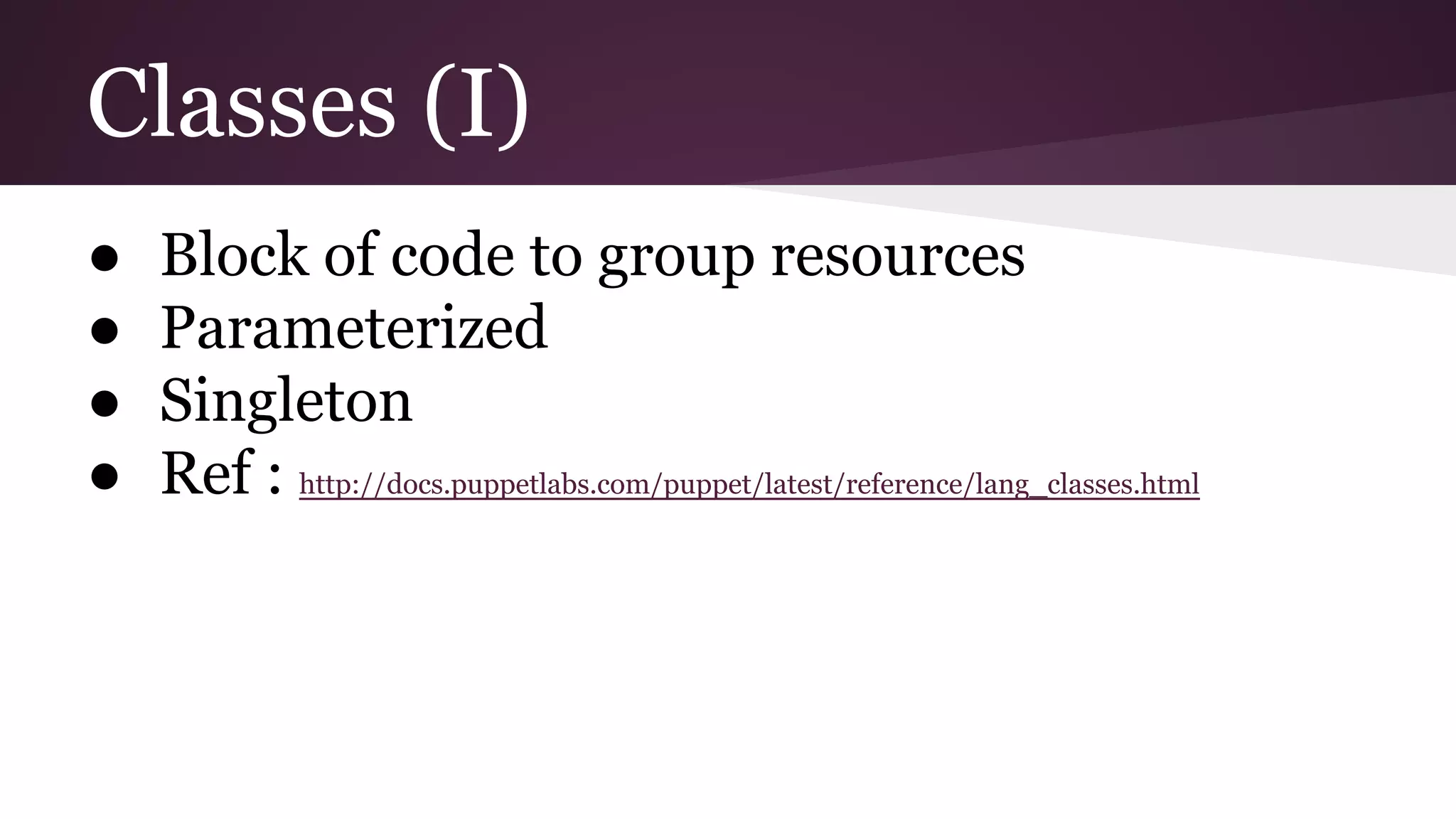

19. Classes (I)
● Block of code to group resources
● Parameterized
● Singleton
● Ref : http://docs.puppetlabs.com/puppet/latest/reference/lang_classes.html

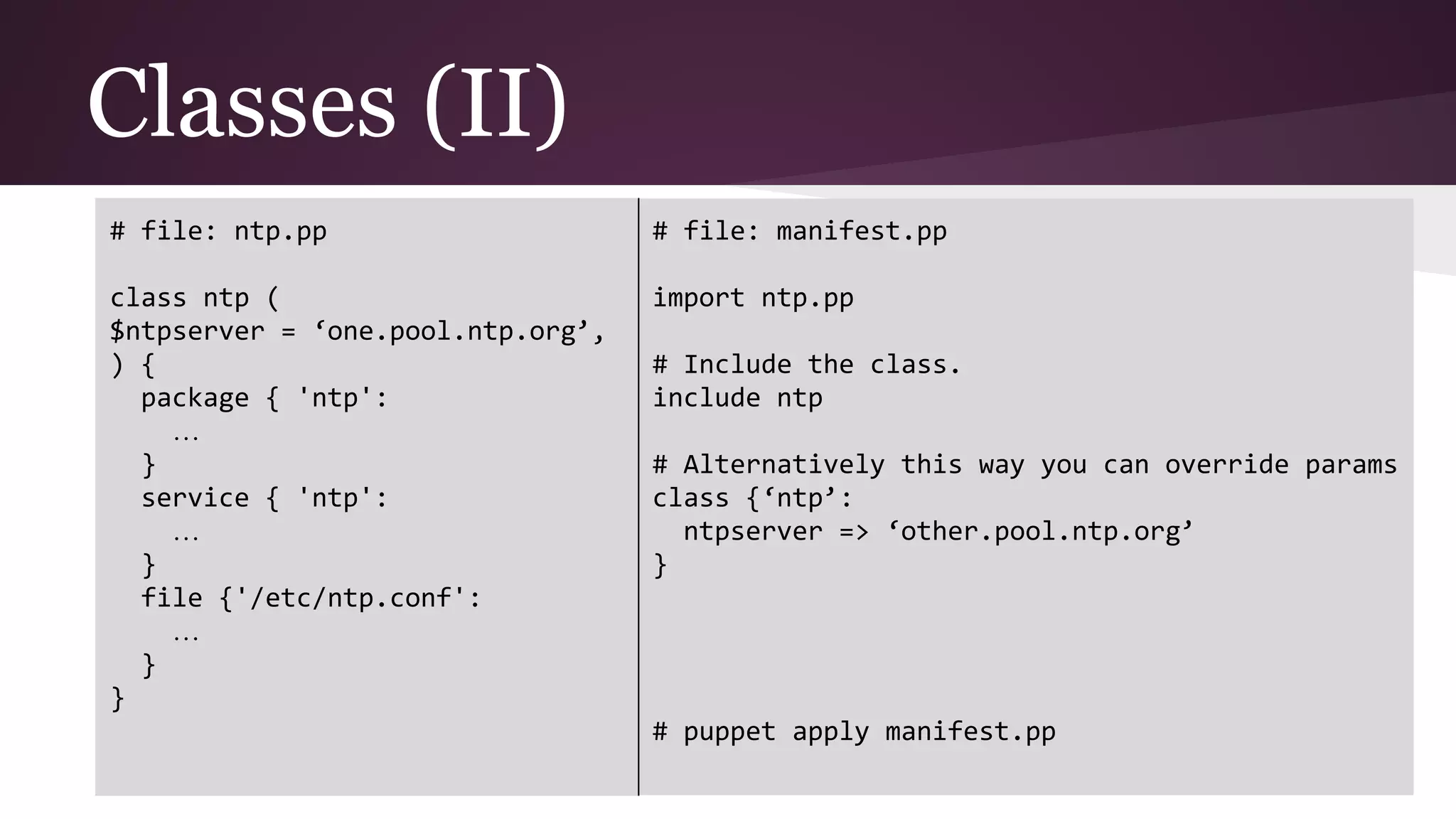

20. Classes (II)
# file: ntp.pp
class ntp (
$ntpserver = ‘one.pool.ntp.org’,
) {
package { 'ntp':
…
}
service { 'ntp':
…
}
file {'/etc/ntp.conf':
…
}
}
# file: manifest.pp
import ntp.pp
# Include the class.
include ntp
# Alternatively this way you can override params
class {‘ntp’:
ntpserver => ‘other.pool.ntp.org’
}
# puppet apply manifest.pp

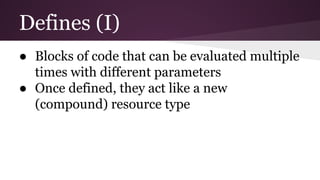

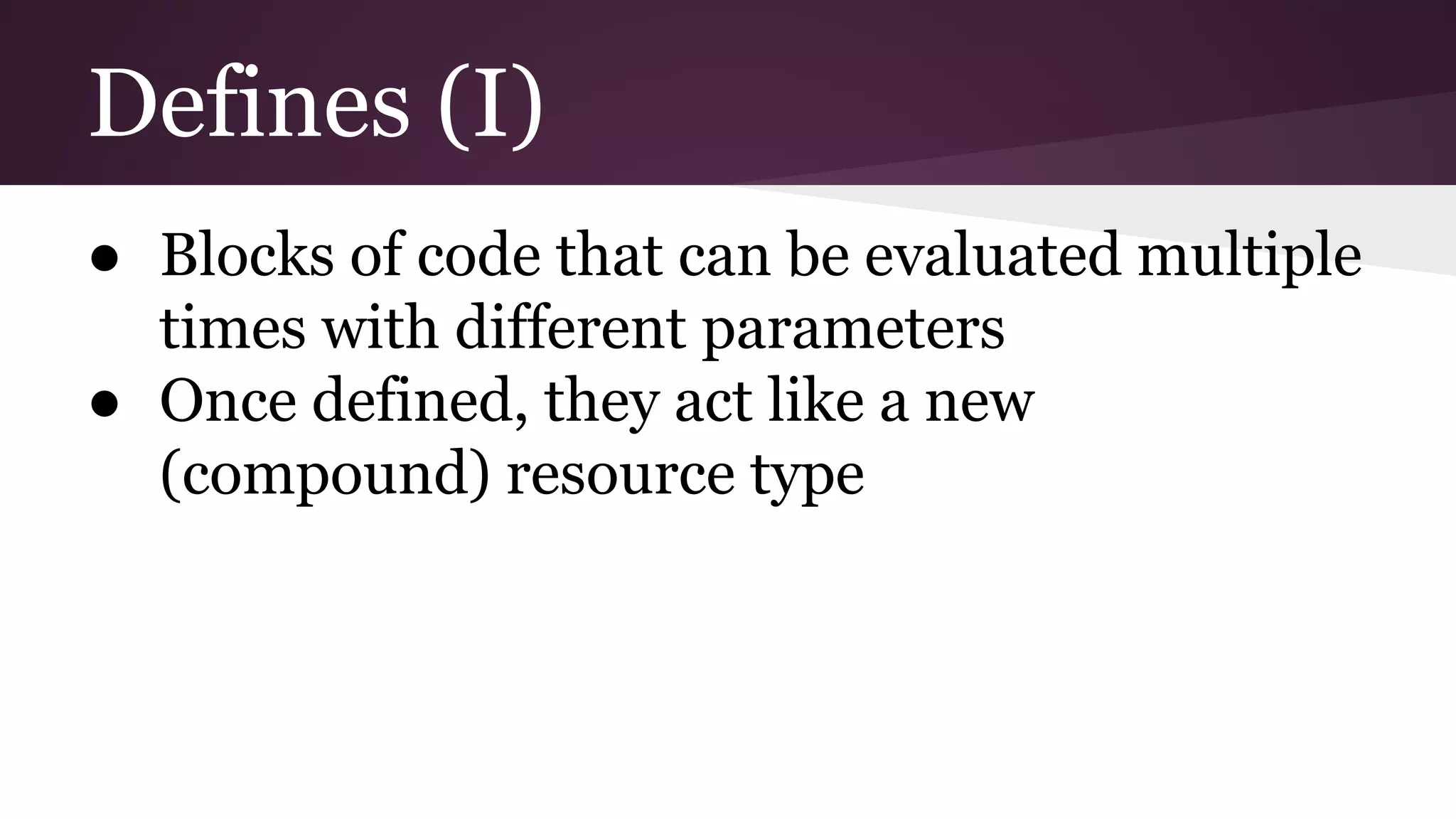

21. Defines (I)
● Blocks of code that can be evaluated multiple
times with different parameters
● Once defined, they act like a new
(compound) resource type

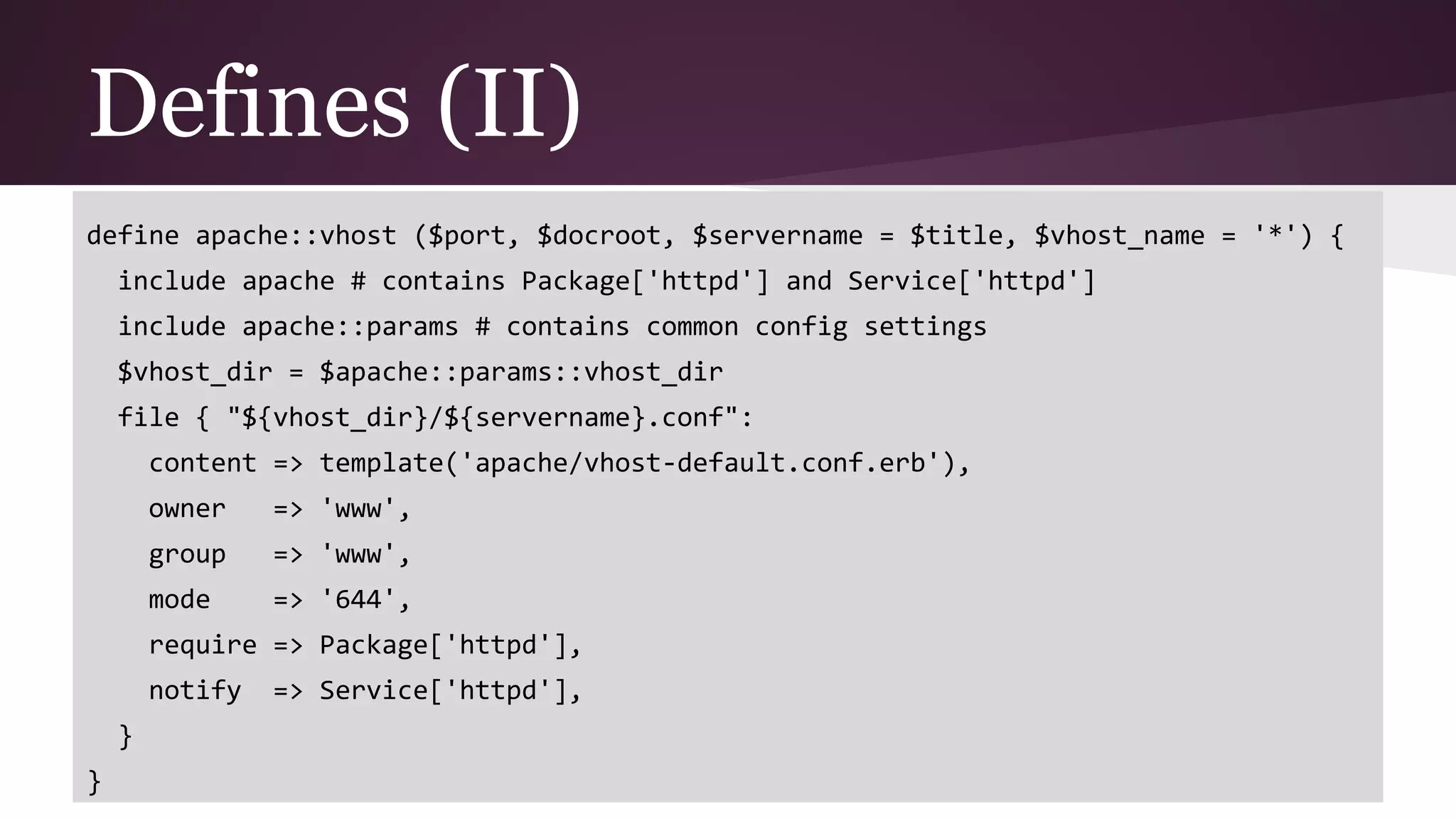

22. Defines (II)
define apache::vhost ($port, $docroot, $servername = $title, $vhost_name = '*') {
include apache # contains Package['httpd'] and Service['httpd']
include apache::params # contains common config settings
$vhost_dir = $apache::params::vhost_dir
file { "${vhost_dir}/${servername}.conf":
content => template('apache/vhost-default.conf.erb'),
owner => 'www',
group => 'www',
mode => '644',
require => Package['httpd'],
notify => Service['httpd'],
}
}

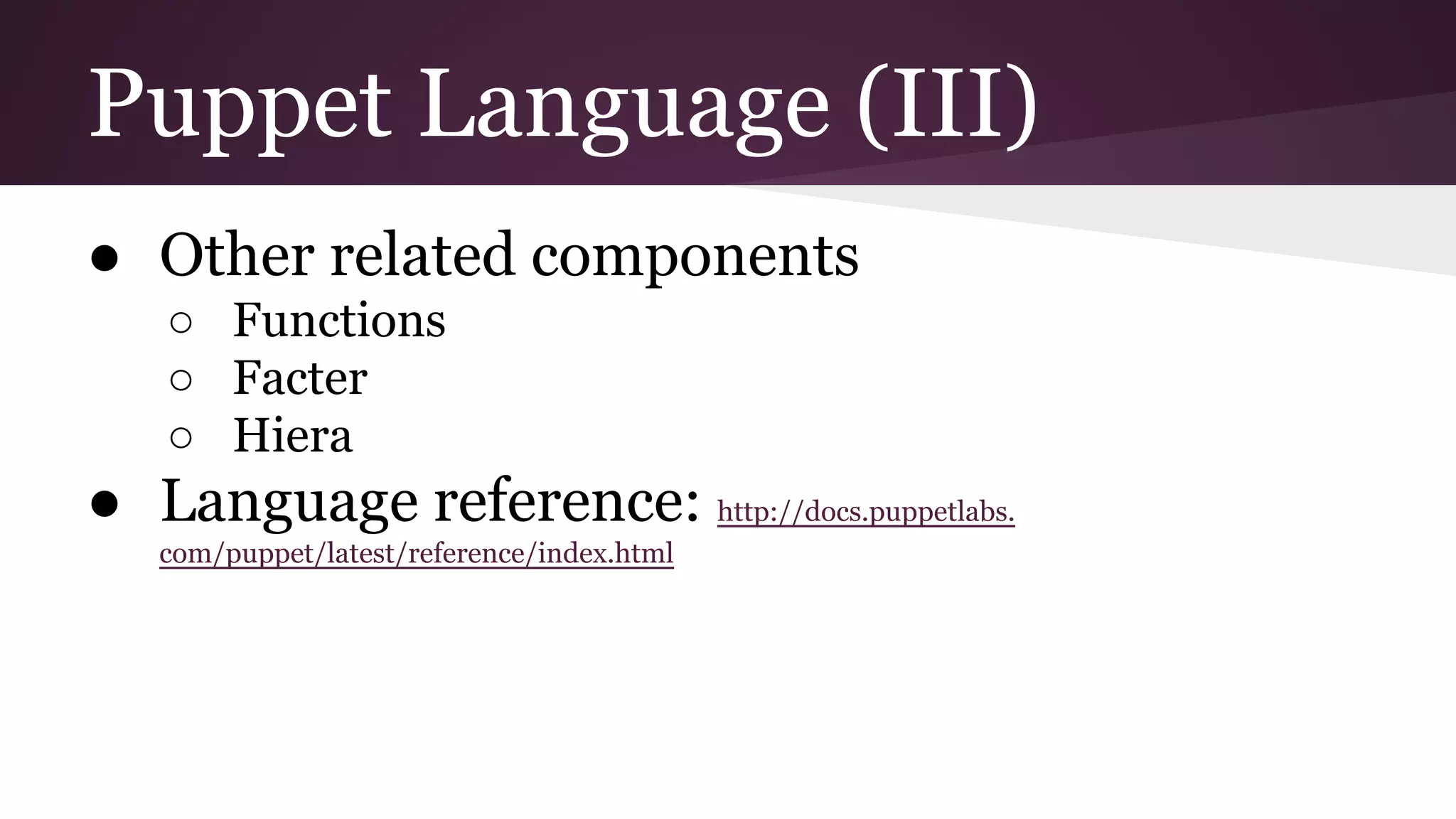

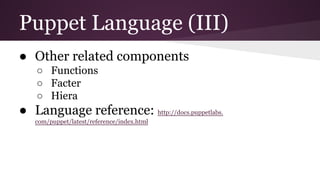

23. Puppet Language (III)
● Other related components
○ Functions
○ Facter
○ Hiera
● Language reference: http://docs.puppetlabs.
com/puppet/latest/reference/index.html

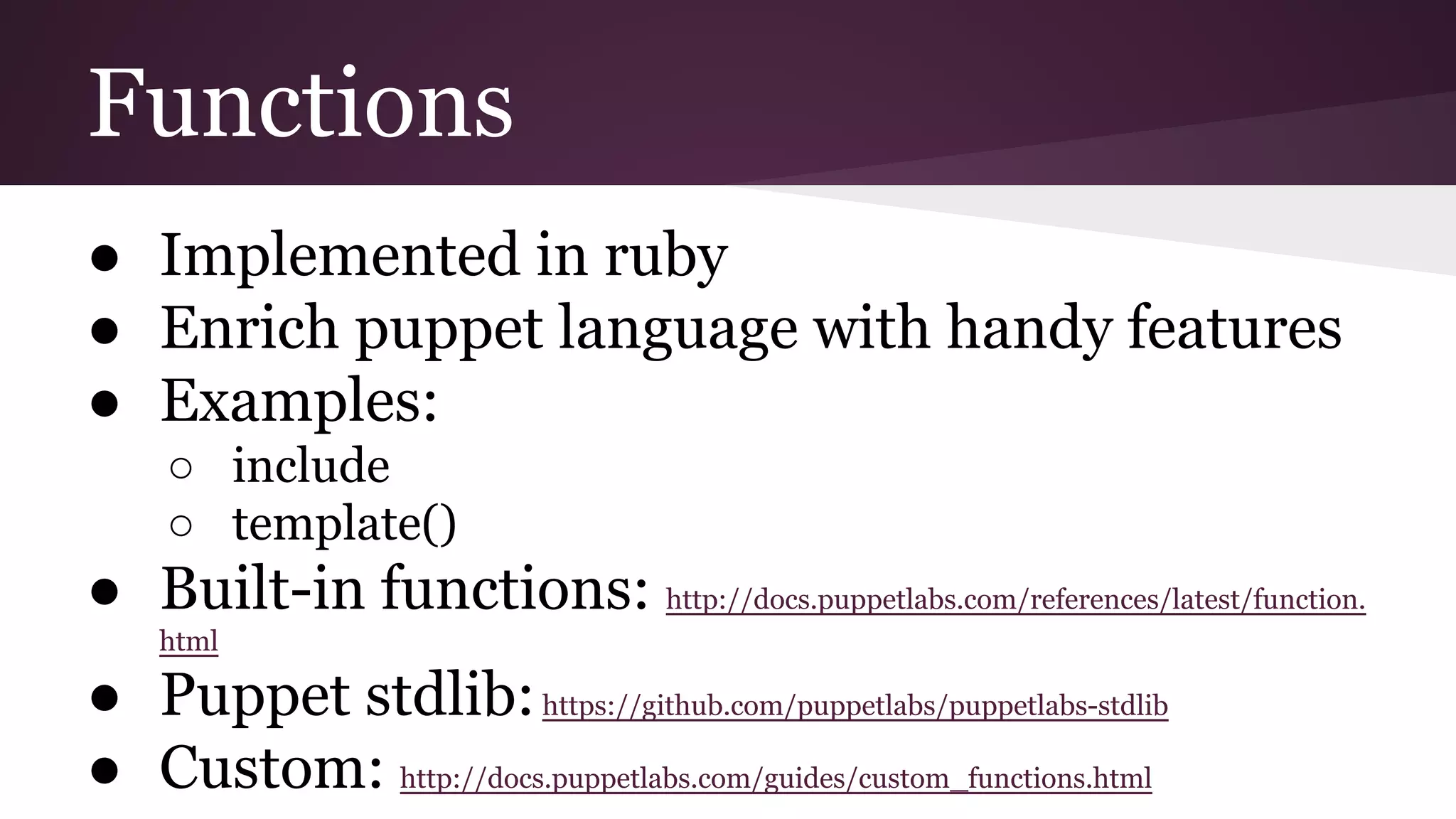

24. Functions
● Implemented in ruby
● Enrich puppet language with handy features
● Examples:
○ include
○ template()
● Built-in functions: http://docs.puppetlabs.com/references/latest/function.
html
● Puppet stdlib:https://github.com/puppetlabs/puppetlabs-stdlib
● Custom: http://docs.puppetlabs.com/guides/custom_functions.html

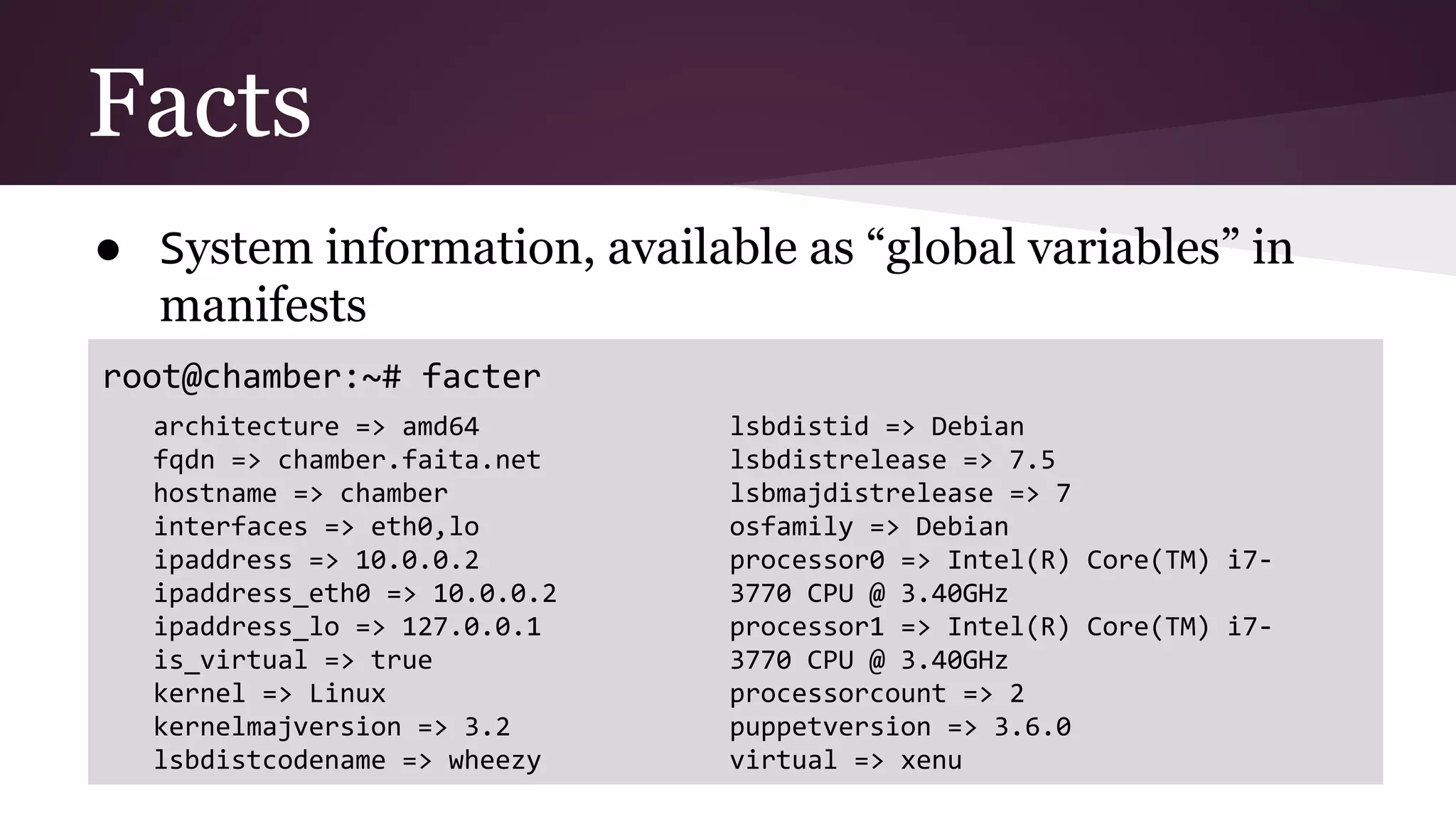

25. Facts
● System information, available as “global variables” in
manifests
root@chamber:~# facter
architecture => amd64
fqdn => chamber.faita.net
hostname => chamber
interfaces => eth0,lo
ipaddress => 10.0.0.2
ipaddress_eth0 => 10.0.0.2
ipaddress_lo => 127.0.0.1
is_virtual => true
kernel => Linux
kernelmajversion => 3.2
lsbdistcodename => wheezy
lsbdistid => Debian
lsbdistrelease => 7.5
lsbmajdistrelease => 7
osfamily => Debian
processor0 => Intel(R) Core(TM) i7-
3770 CPU @ 3.40GHz
processor1 => Intel(R) Core(TM) i7-
3770 CPU @ 3.40GHz
processorcount => 2
puppetversion => 3.6.0
virtual => xenu

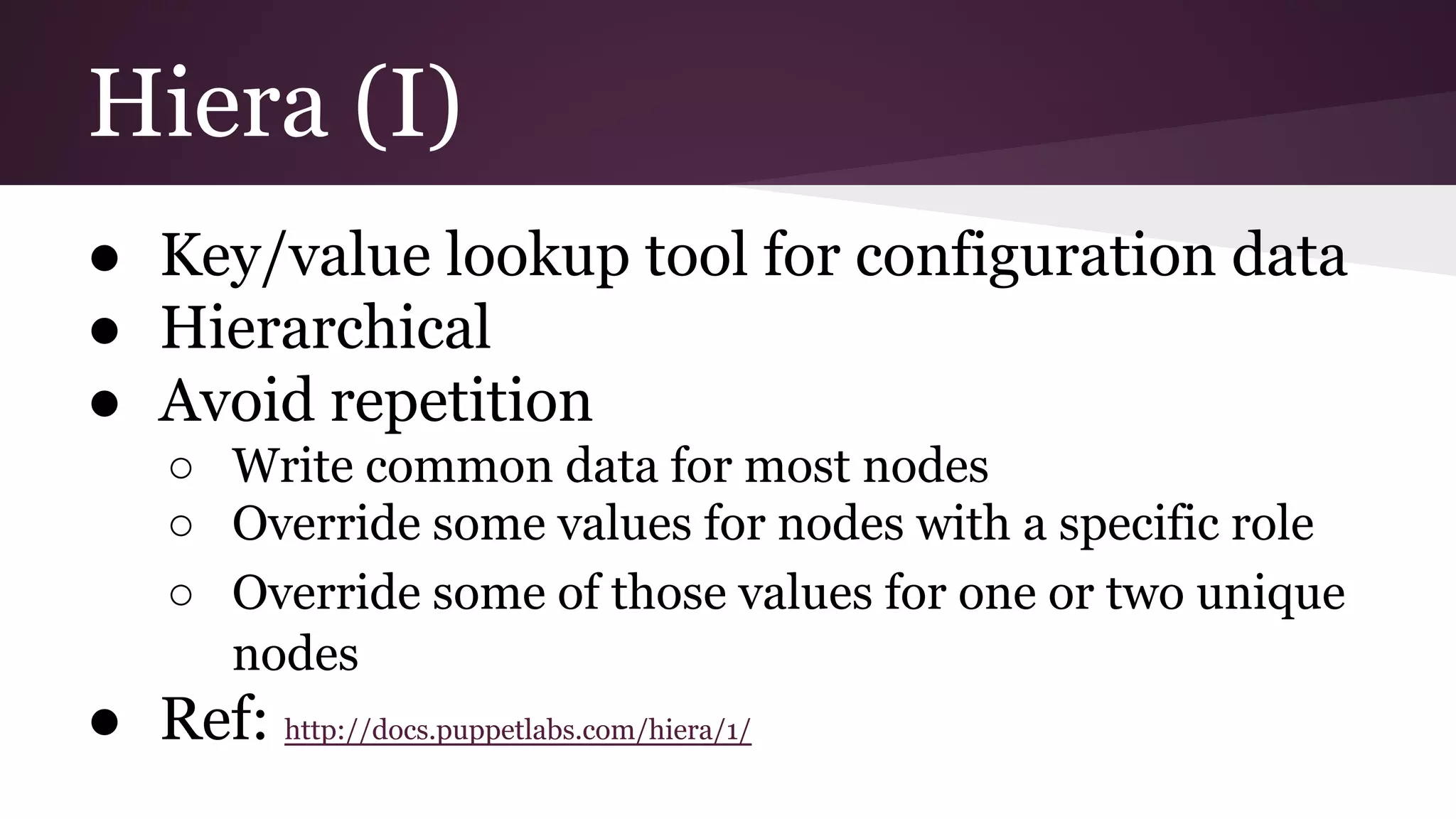

26. Hiera (I)
● Key/value lookup tool for configuration data
● Hierarchical
● Avoid repetition
○ Write common data for most nodes
○ Override some values for nodes with a specific role
○ Override some of those values for one or two unique
nodes
● Ref: http://docs.puppetlabs.com/hiera/1/

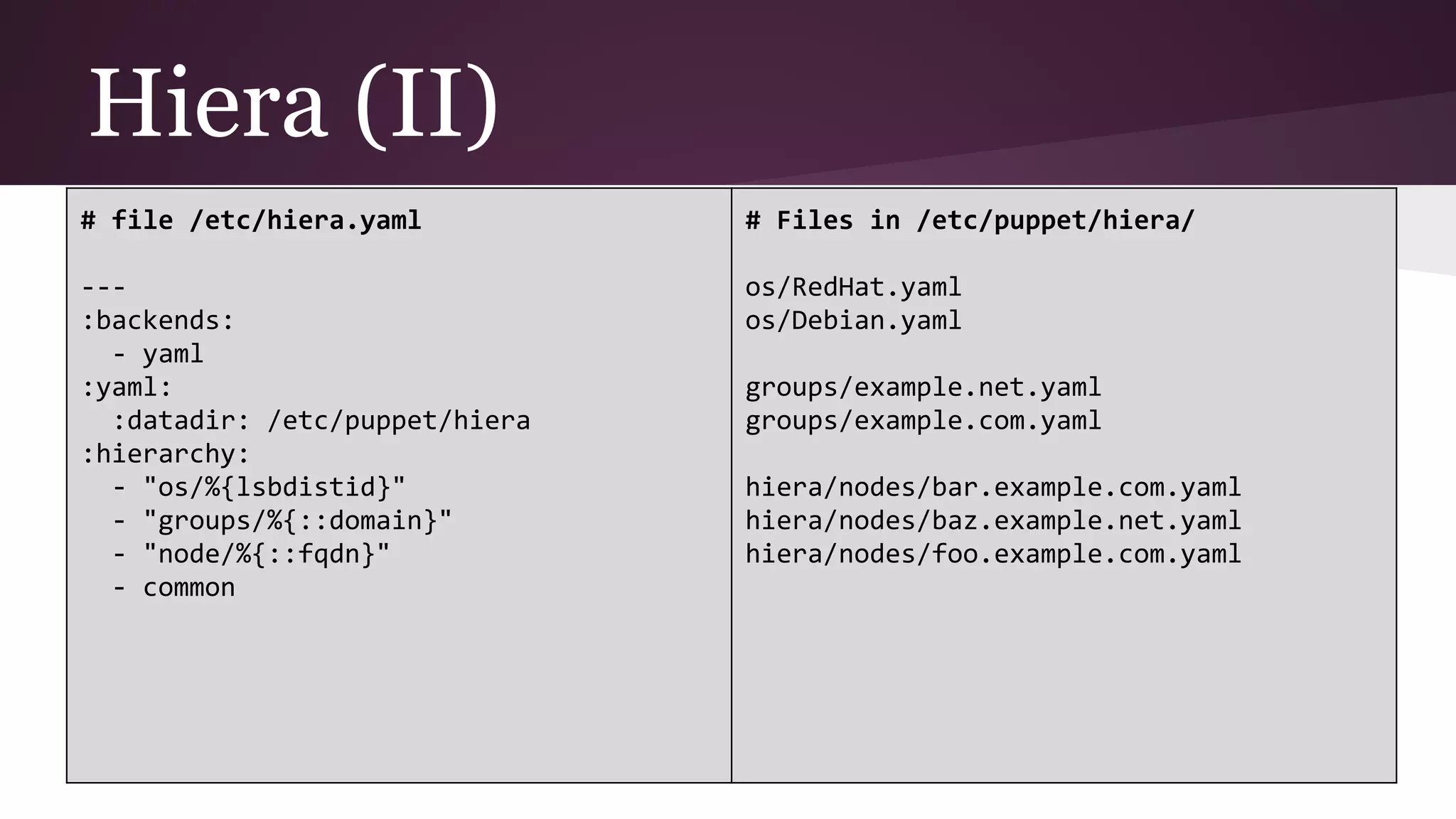

27. Hiera (II)
# file /etc/hiera.yaml
---
:backends:
- yaml
:yaml:
:datadir: /etc/puppet/hiera
:hierarchy:
- "os/%{lsbdistid}"
- "groups/%{::domain}"
- "node/%{::fqdn}"
- common
# Files in /etc/puppet/hiera/
os/RedHat.yaml
os/Debian.yaml
groups/example.net.yaml
groups/example.com.yaml
hiera/nodes/bar.example.com.yaml
hiera/nodes/baz.example.net.yaml
hiera/nodes/foo.example.com.yaml

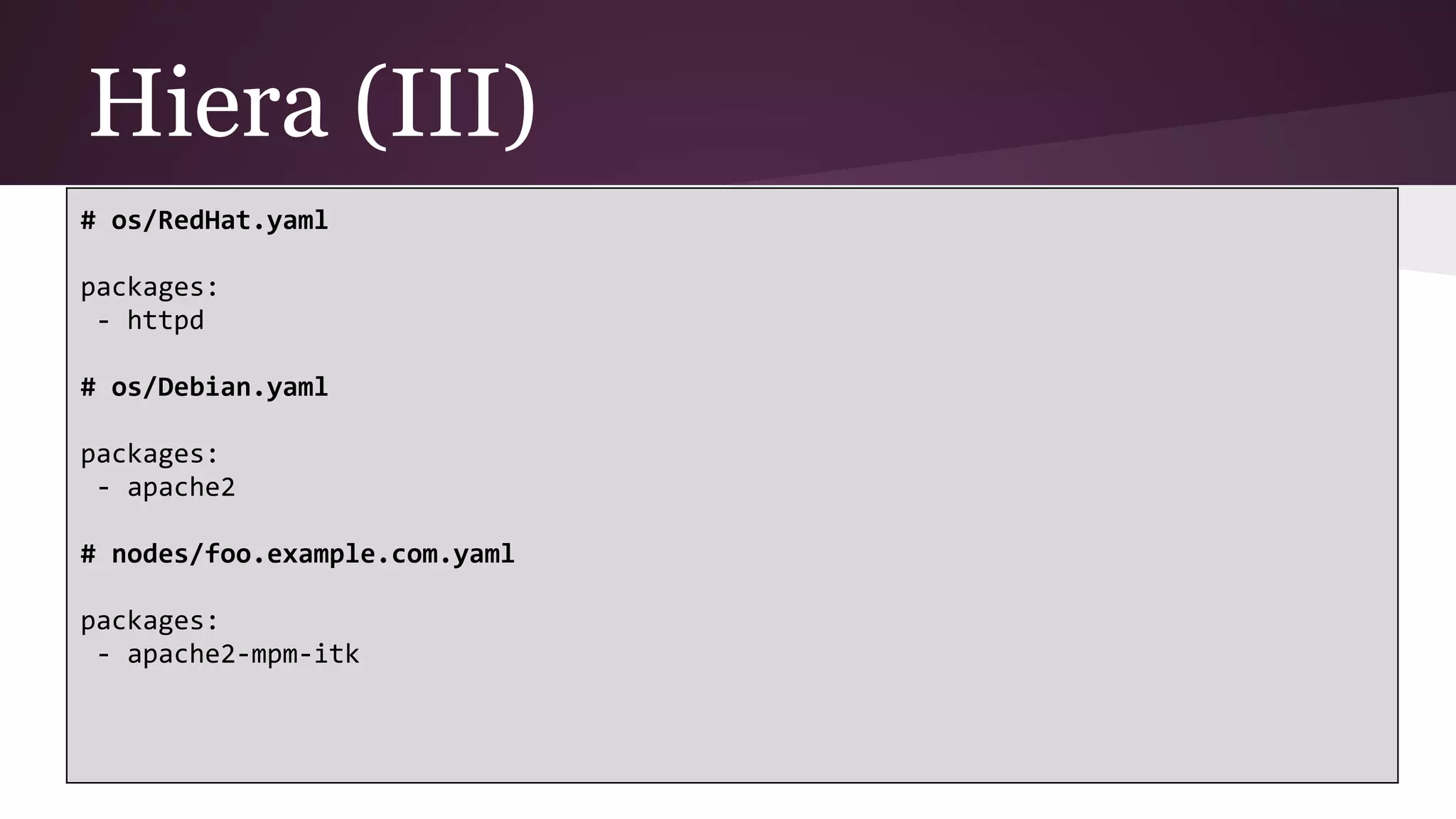

28. Hiera (III)
# os/RedHat.yaml
packages:
- httpd
# os/Debian.yaml
packages:
- apache2
# nodes/foo.example.com.yaml
packages:
- apache2-mpm-itk

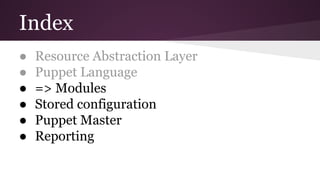

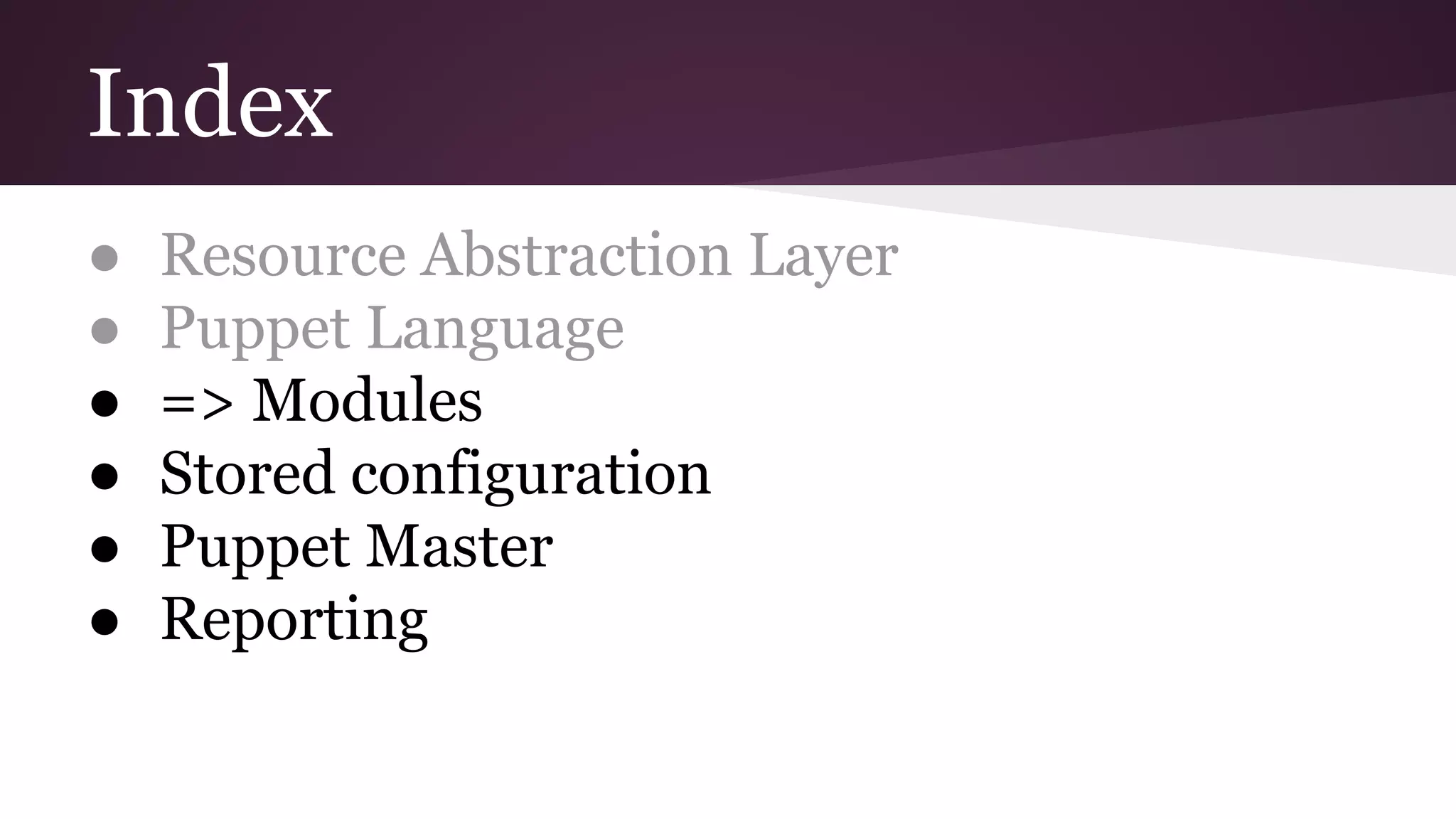

29. Index
● Resource Abstraction Layer
● Puppet Language
● => Modules
● Stored configuration
● Puppet Master
● Reporting

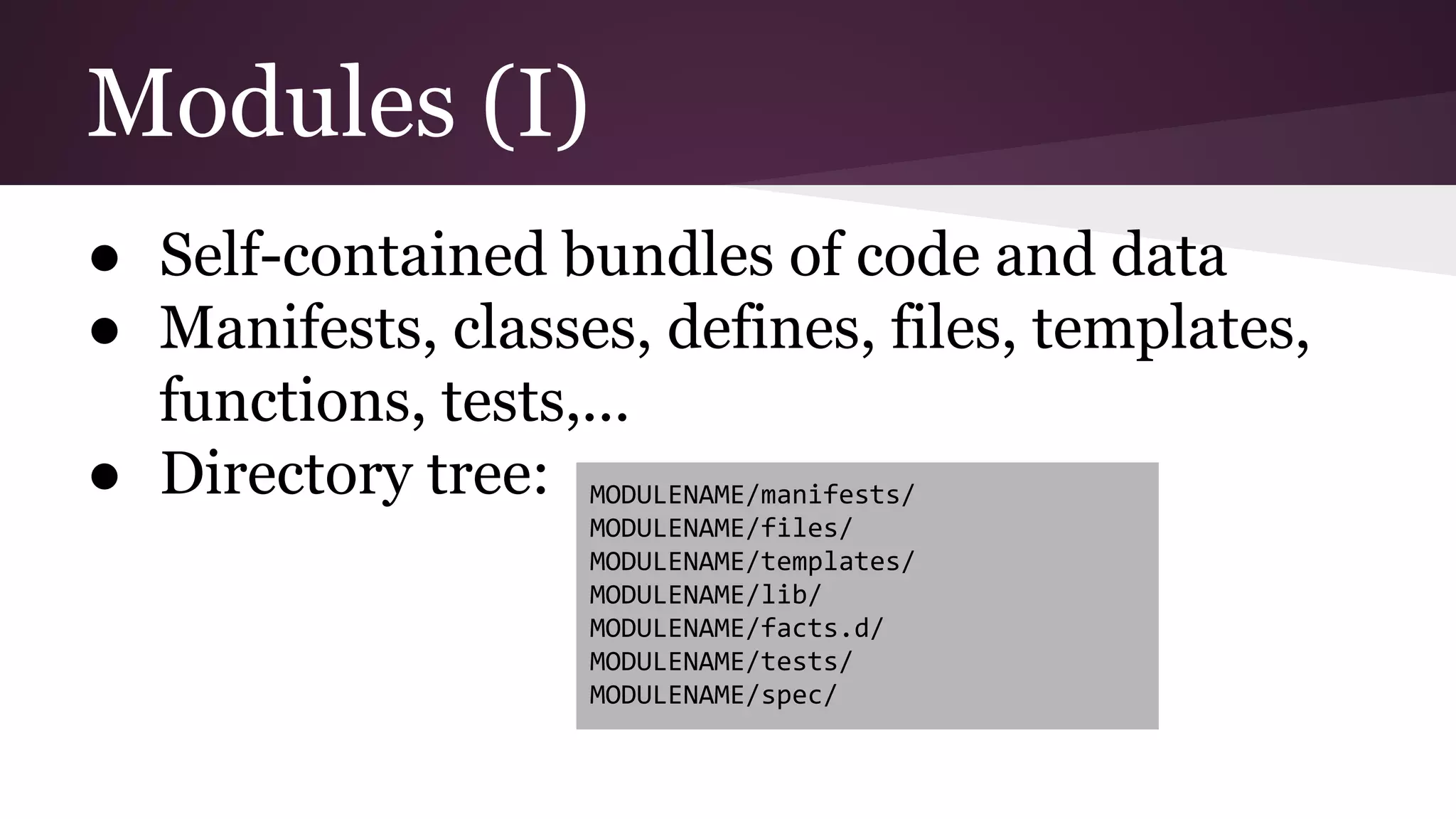

30. Modules (I)
● Self-contained bundles of code and data
● Manifests, classes, defines, files, templates,
functions, tests,...
● Directory tree: MODULENAME/manifests/
MODULENAME/files/
MODULENAME/templates/
MODULENAME/lib/
MODULENAME/facts.d/
MODULENAME/tests/
MODULENAME/spec/

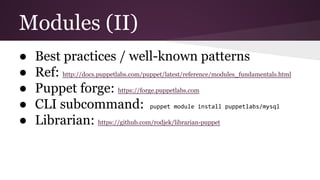

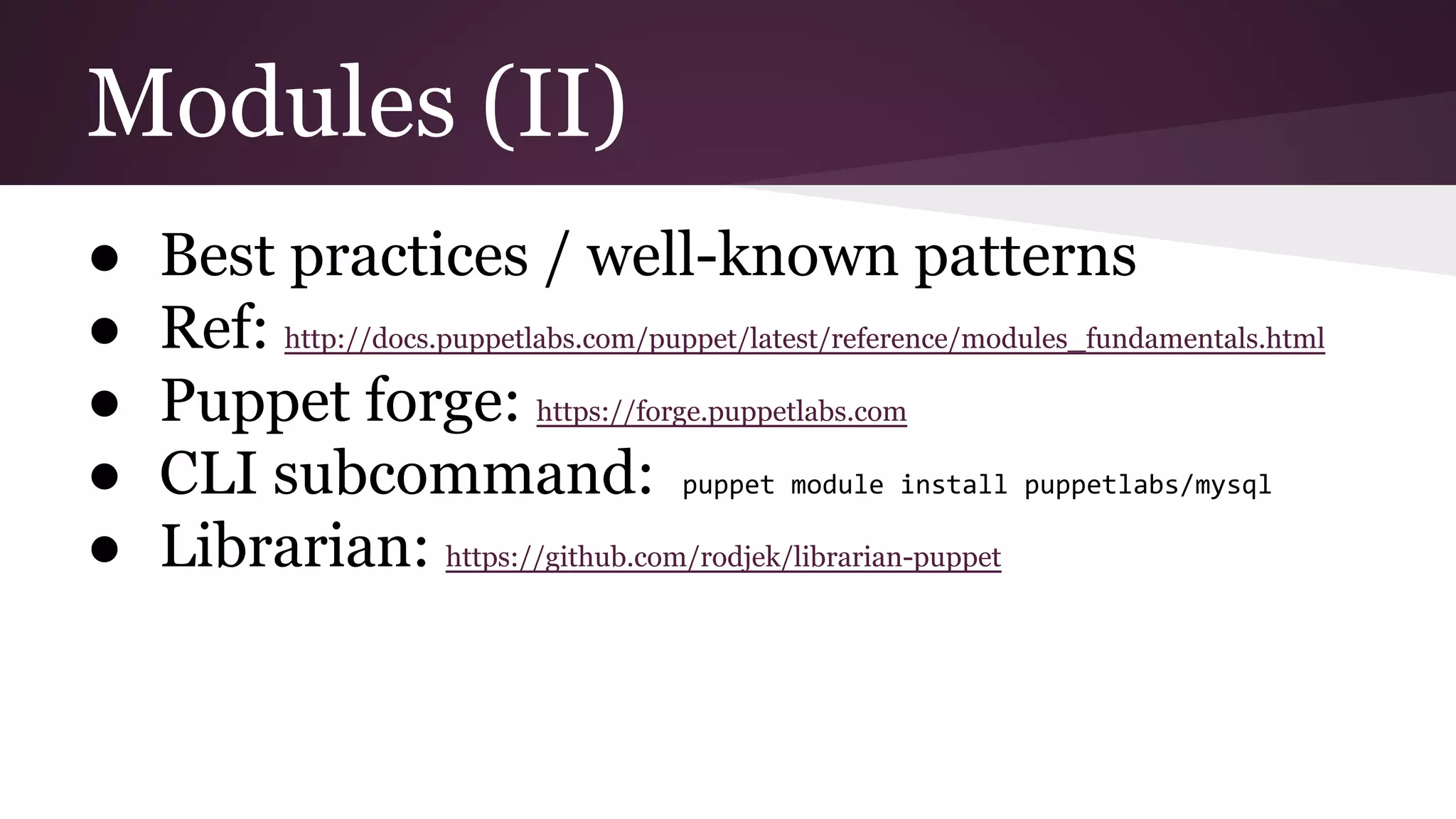

31. Modules (II)
● Best practices / well-known patterns
● Ref: http://docs.puppetlabs.com/puppet/latest/reference/modules_fundamentals.html
● Puppet forge: https://forge.puppetlabs.com
● CLI subcommand: puppet module install puppetlabs/mysql
● Librarian: https://github.com/rodjek/librarian-puppet

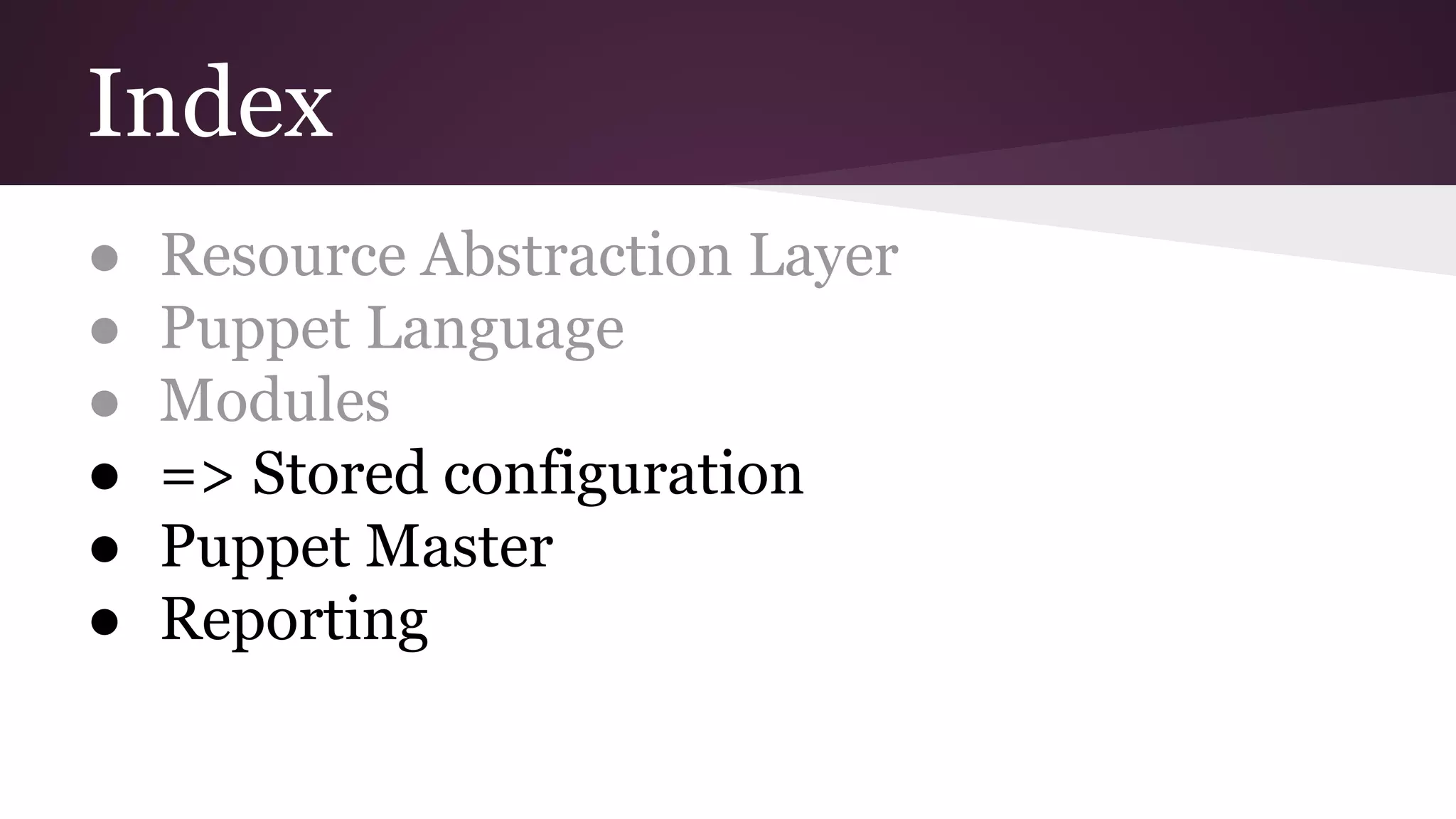

32. Index
● Resource Abstraction Layer
● Puppet Language
● Modules
● => Stored configuration
● Puppet Master
● Reporting

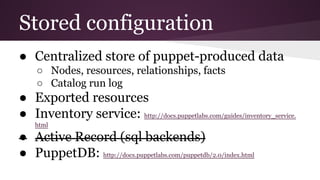

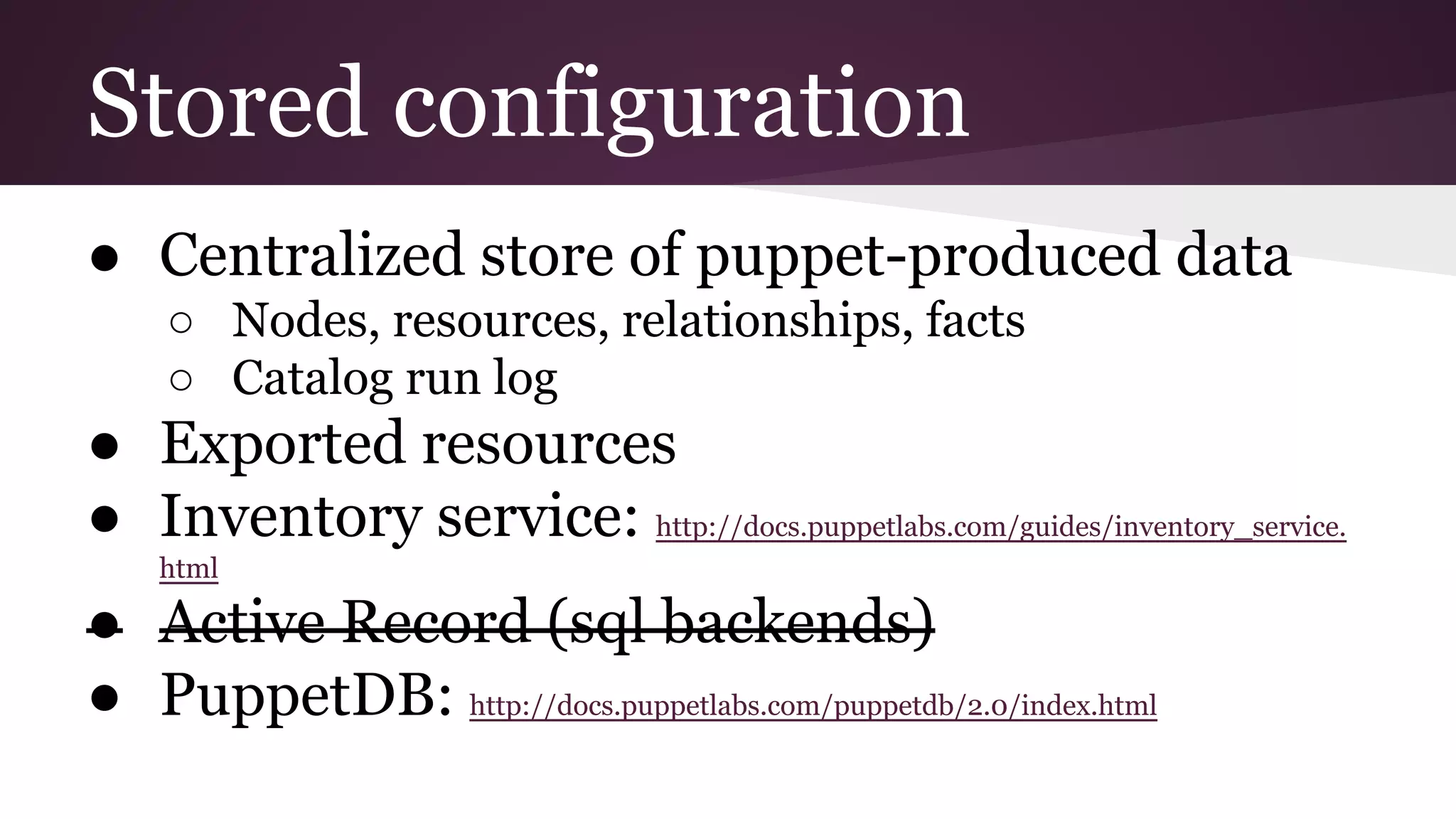

33. Stored configuration
● Centralized store of puppet-produced data
○ Nodes, resources, relationships, facts
○ Catalog run log
● Exported resources
● Inventory service: http://docs.puppetlabs.com/guides/inventory_service.
html
● Active Record (sql backends)
● PuppetDB: http://docs.puppetlabs.com/puppetdb/2.0/index.html

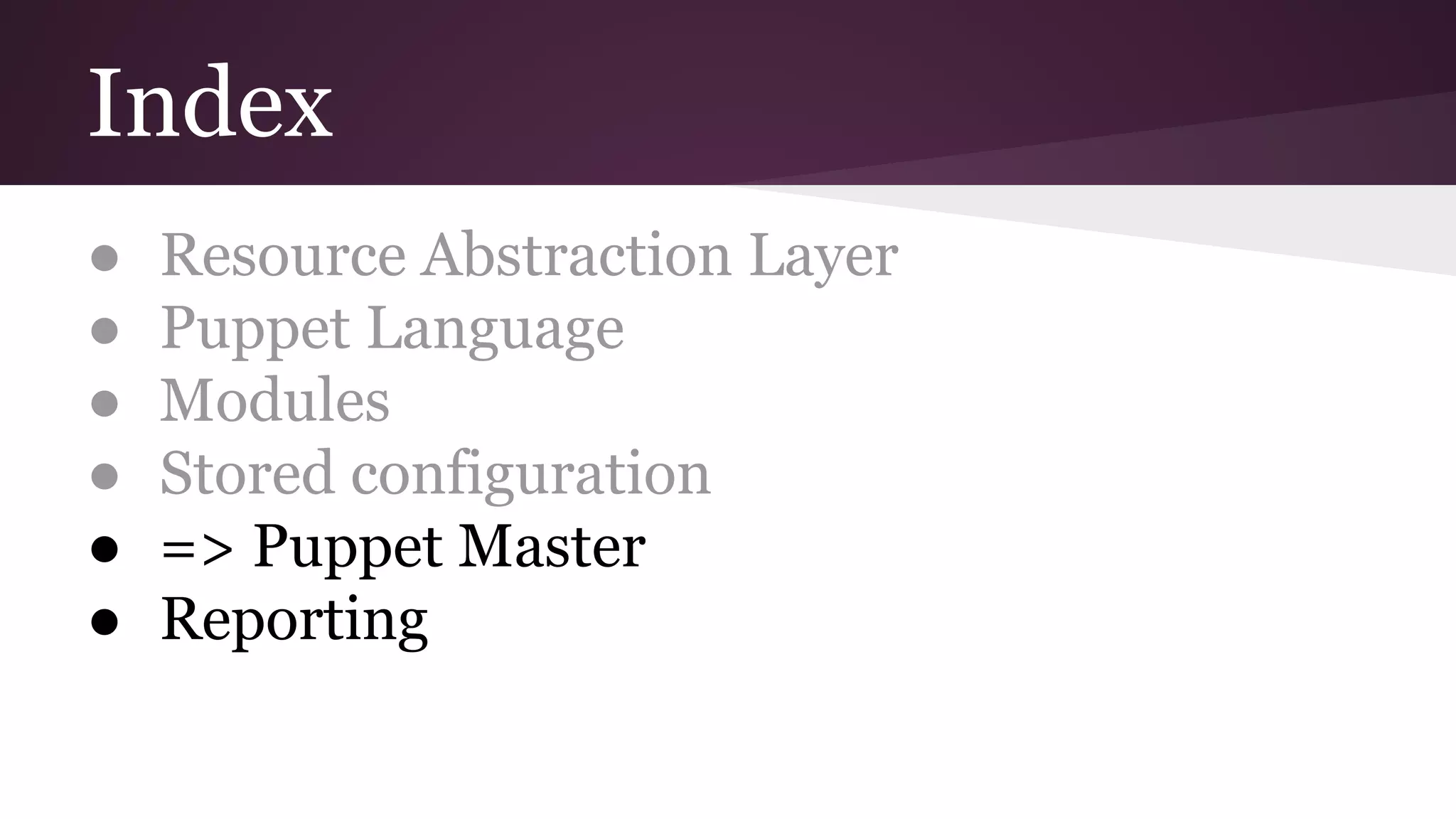

34. Index
● Resource Abstraction Layer
● Puppet Language
● Modules
● Stored configuration
● => Puppet Master
● Reporting

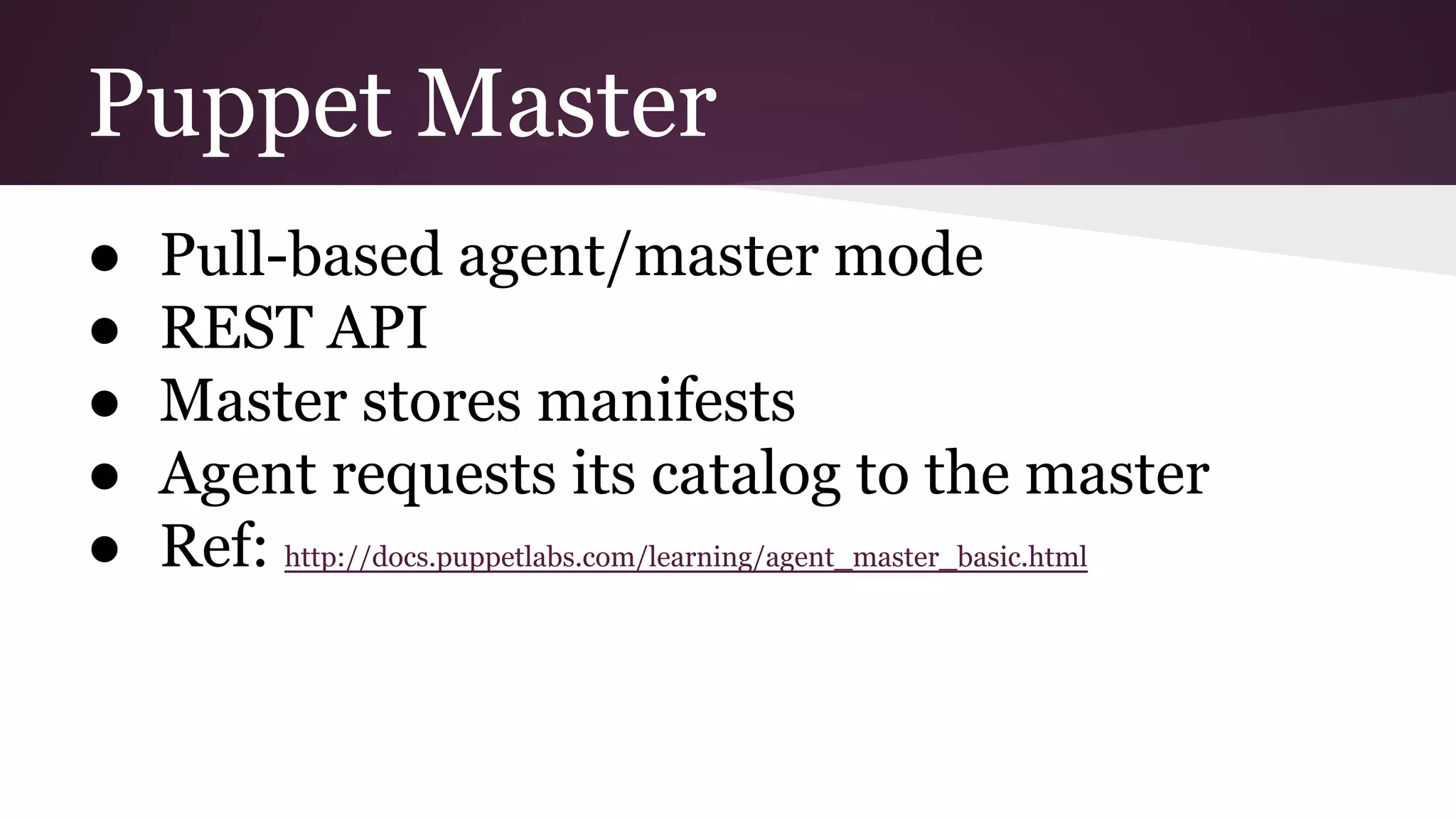

35. Puppet Master
● Pull-based agent/master mode
● REST API
● Master stores manifests
● Agent requests its catalog to the master
● Ref: http://docs.puppetlabs.com/learning/agent_master_basic.html

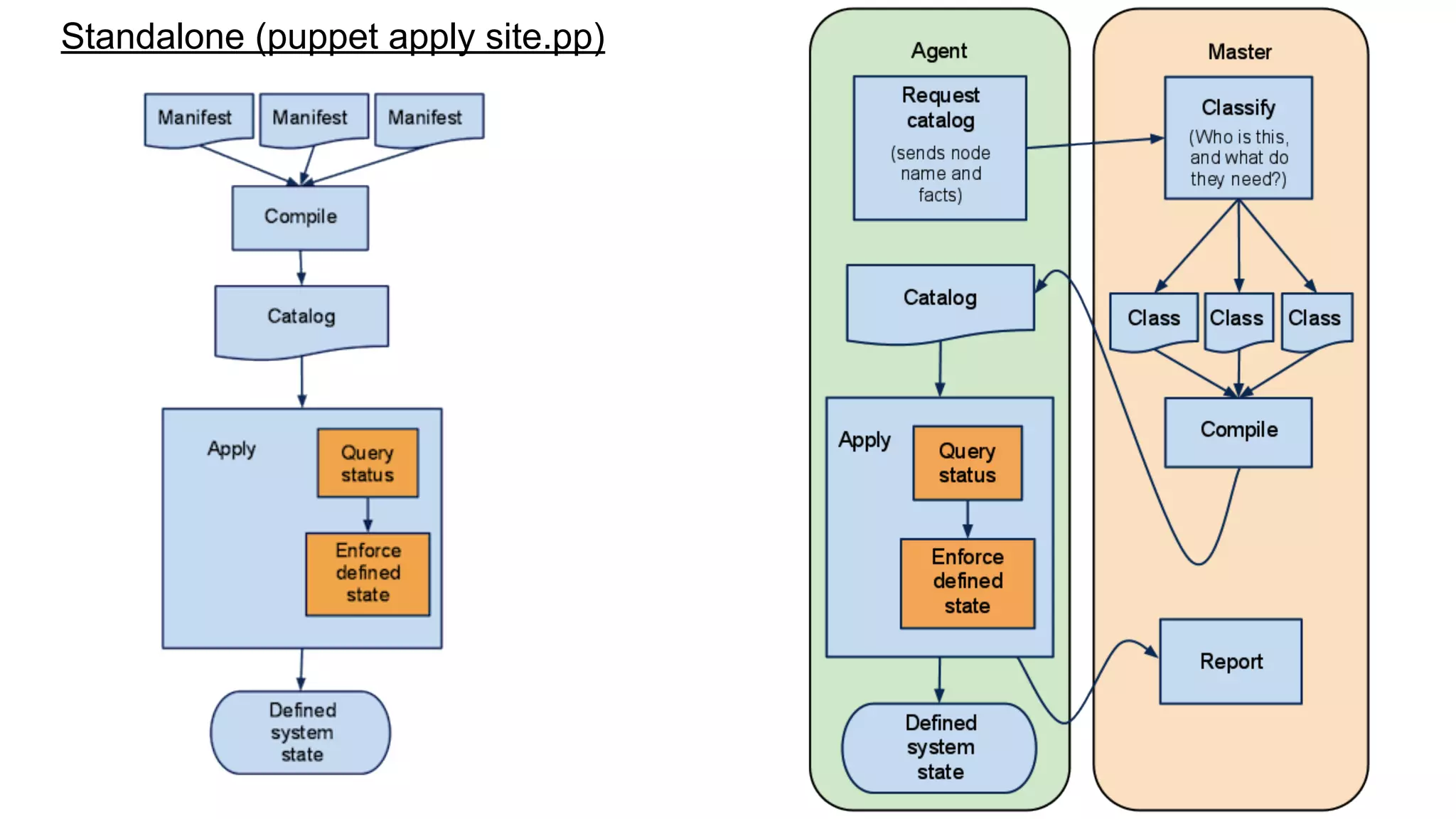

36. Standalone (puppet apply site.pp)

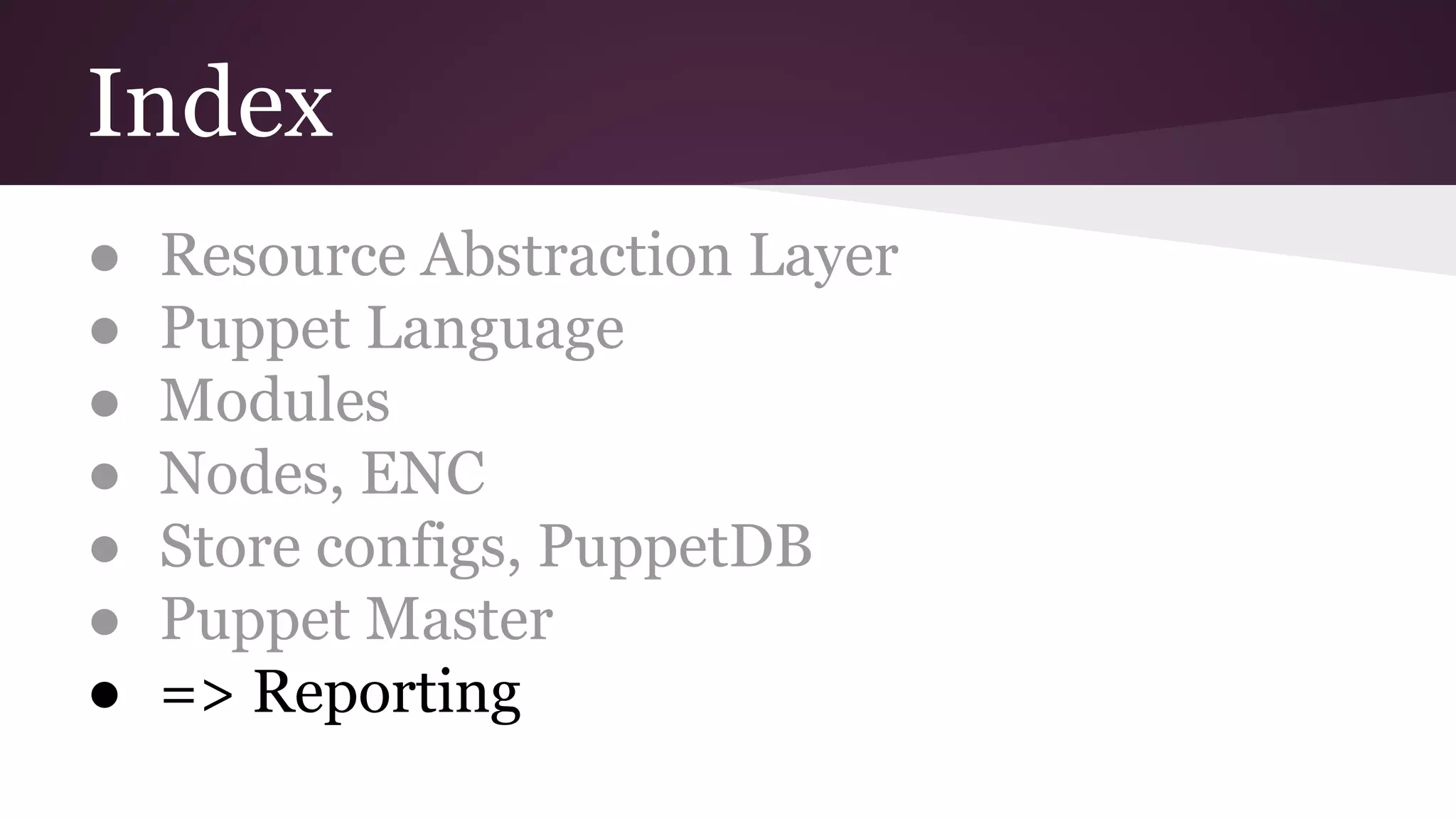

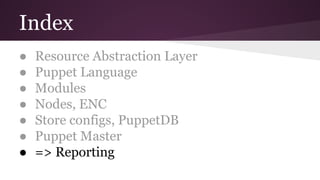

37. Index
● Resource Abstraction Layer
● Puppet Language
● Modules
● Nodes, ENC
● Store configs, PuppetDB
● Puppet Master
● => Reporting

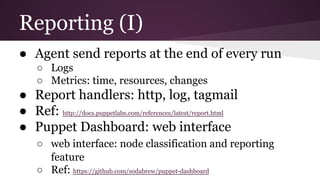

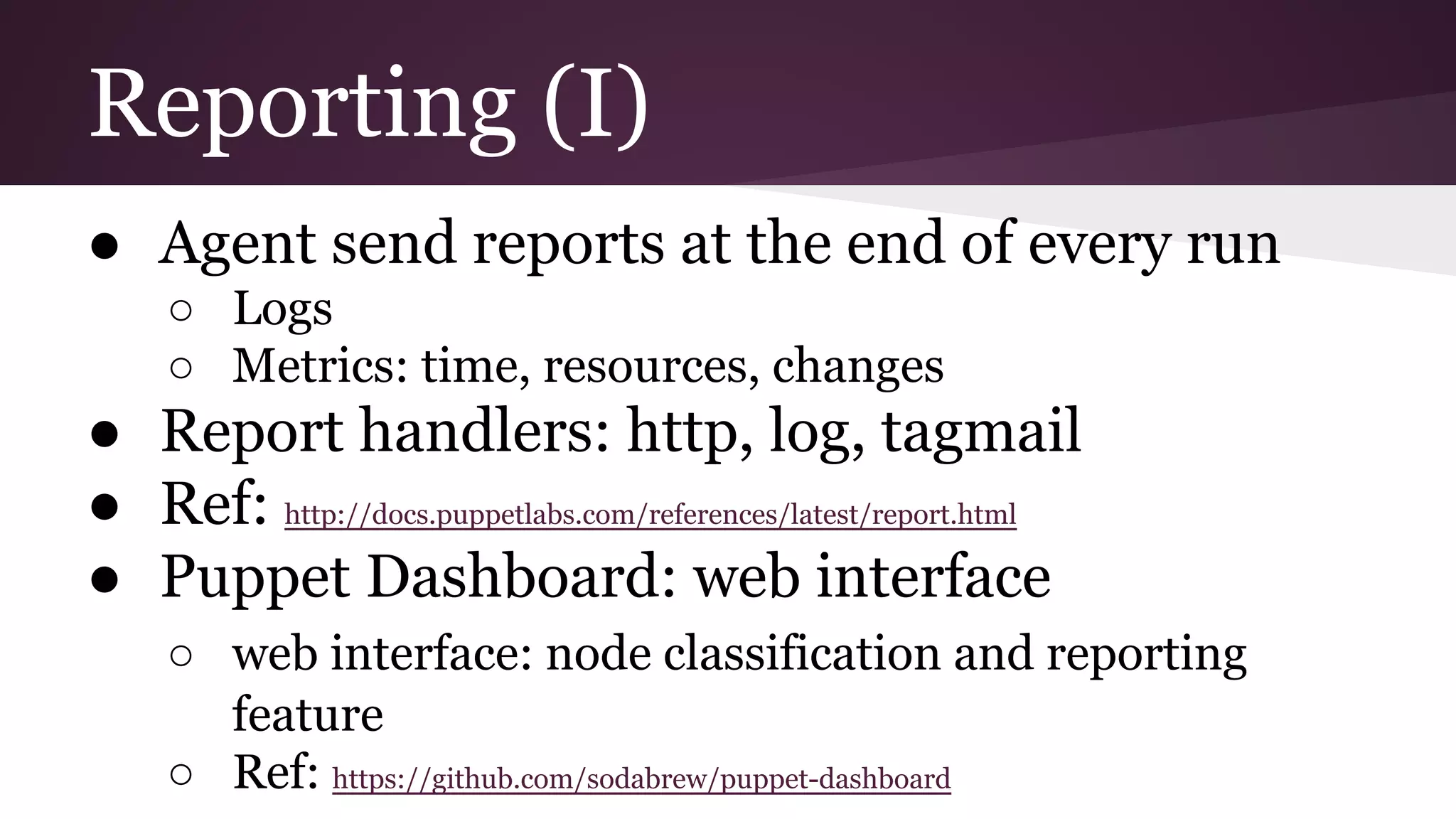

38. Reporting (I)
● Agent send reports at the end of every run
○ Logs
○ Metrics: time, resources, changes
● Report handlers: http, log, tagmail
● Ref: http://docs.puppetlabs.com/references/latest/report.html
● Puppet Dashboard: web interface
○ web interface: node classification and reporting
feature
○ Ref: https://github.com/sodabrew/puppet-dashboard

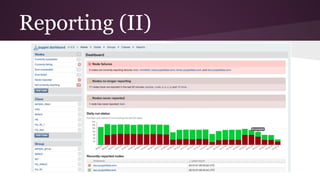

39. Reporting (II)

40. Questions?
