This presentation contains. 1. Definition of Repeater. 2. Types of Repeater. 3. Advantages of Repeater. 4. Disadvantage of Repeater.

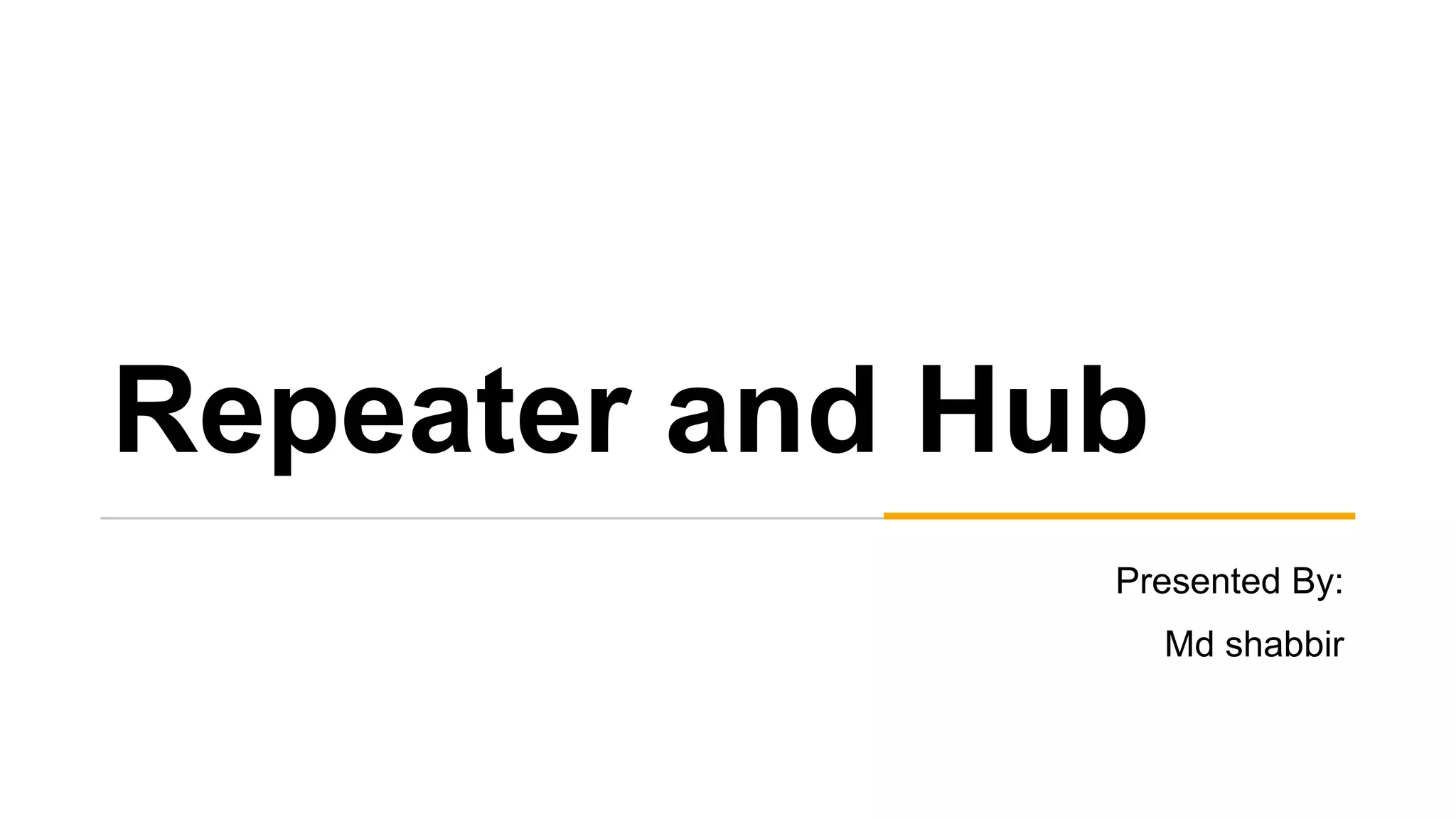

1. Repeater and Hub
Presented By:
Md shabbir

2. Repeaters
• A repeater operates at the physical layer
• Its job is to regenerate the signal over the same
network before the signal becomes too weak or
corrupted so as to extend the length to which the
signal can be transmitted over the same network
• An important point to be noted about repeaters is
that they do not amplify the signal. When the
signal becomes weak, they copy the signal bit by
bit and regenerate it at the original strength. It is a
2 port device.

3. Why are Repeaters needed?
• When an electrical signal is transmitted via a channel,
it gets attenuated depending upon the nature of the
channel or the technology. This poses a limitation
upon the length of the LAN or coverage area of
cellular networks. This problem is alleviated by
installing repeaters at certain intervals.
• Repeaters amplifies the attenuated signal and then
retransmits it. Digital repeaters can even reconstruct
signals distorted by transmission loss.So, repeaters
are popularly incorporated to connect between two
LANs thus forming a large single LAN. This is shown
in the following diagram −

4. Types of Repeaters
• According to the types of signals that they regenerate, repeaters can be classified
into two categories −
• Analog Repeaters − They can only amplify the analog signal.
• Digital Repeaters − They can reconstruct a distorted signal.
• According to the types of networks that they connect, repeaters can be categorized
into two types −
• Wired Repeaters − They are used in wired LANs.
• Wireless Repeaters − They are used in wireless LANs and cellular networks.
• According to the domain of LANs they connect, repeaters can be divided into two
categories −
• Local Repeaters − They connect LAN segments separated by small distance.
• Remote Repeaters − They connect LANs that are far from each other.

5. Advantages
of Repeaters
Repeaters are
simple to install and
can easily extend
the length or the
coverage area of
networks.
They are cost
effective.
Repeaters don’t
require any
processing
overhead. The only
time they need to be
investigated is in
case of degradation
of performance.
They can connect
signals using
different types of
cables.

6. Disadvantages of Repeaters
• Repeaters cannot connect dissimilar networks.
• They cannot differentiate between actual signal and noise.
• They cannot reduce network traffic or congestion.
• Most networks have limitations upon the number of repeaters that can
be deployed.

7. HUBS
• Hubs are networking devices
operating at a physical layer of
the OSI model that are used to
connect multiple devices in a
network. They are generally
used to connect computers in
a LAN.

8. Types of Hubs
Passive Hubs − Passive
hubs connects nodes in
a star configuration by
collecting wiring from
nodes. They broadcast
signals into the network
without amplifying or
regenerating them. As
they cannot extend the
distance between nodes,
they limit the size of the
LAN.
Active Hubs − Active hubs
amplify and regenerate the
incoming electrical signals
before broadcasting them.
They have their own power
supply and serves both as a
repeater as well as connecting
center. Due to their
regenerating capabilities, they
can extend the maximum
distance between nodes, thus
increasing the size of LAN.
Intelligent Hubs −
Intelligent hubs are active
hubs that provide additional
network management
facilities. They can perform
a variety of functions of
more intelligent network
devices like network
management, switching,
providing flexible data rates
etc.
