- 1. Renal Failure & Renal ParenchymalDisease Dr. Niranjan Patil DEPARTMENT OF RADIODIAGNOSIS DR D Y PATIL HOSPITAL KOLHAPUR

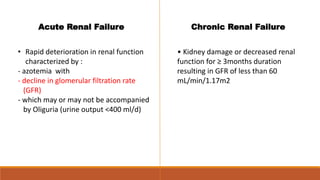

- 2. Acute Renal Failure •Rapid deterioration in renal function characterized by : - azotemia with - decline in glomerular filtration rate (GFR) - which may or may not be accompanied by Oliguria (urine output <400 ml/d) Chronic Renal Failure • Kidney damage or decreased renal function for ≥ 3months duration resulting in GFR of less than 60 mL/min/1.17m2

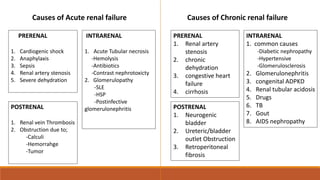

- 3. Causes of Acuterenal failure PRERENAL 1. Cardiogenic shock 2. Anaphylaxis 3. Sepsis 4. Renal artery stenosis 5. Severe dehydration INTRARENAL 1. Acute Tubular necrosis -Hemolysis -Antibiotics -Contrast nephrotoxicty 2. Glomerulopathy -SLE -HSP -Postinfective glomerulonephritis POSTRENAL 1. Renal vein Thrombosis 2. Obstruction due to; -Calculi -Hemorrahge -Tumor Causes of Chronic renal failure PRERENAL 1. Renal artery stenosis 2. chronic dehydration 3. congestive heart failure 4. cirrhosis INTRARENAL 1. common causes -Diabetic nephropathy -Hypertensive -Glomerulosclerosis 2. Glomerulonephritis 3. congenital ADPKD 4. Renal tubular acidosis 5. Drugs 6. TB 7. Gout 8. AIDS nephropathy POSTRENAL 1. Neurogenic bladder 2. Ureteric/bladder outlet Obstruction 3. Retroperitoneal fibrosis
- 4. 1. Enlarged kidneysin the setting of AKI 2. increased renal cortical echogenicity and loss of the normal corticomedullary differentiation 3. Increased cortical thickness 1. Small or atrophic kidneys are often seen with CKD 2. Markedly increased renal cortical echogenicity is seen in CKD 3. Decreased cortical thickness reduced renal cortical thickness <6 mm Ultrasonography Acute RF Chronic RF

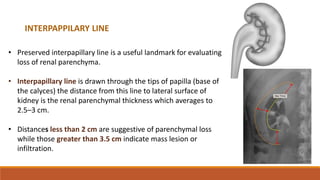

- 5. • Preserved interpapillaryline is a useful landmark for evaluating loss of renal parenchyma. • Interpapillary line is drawn through the tips of papilla (base of the calyces) the distance from this line to lateral surface of kidney is the renal parenchymal thickness which averages to 2.5–3 cm. • Distances less than 2 cm are suggestive of parenchymal loss while those greater than 3.5 cm indicate mass lesion or infiltration. INTERPAPPILARY LINE

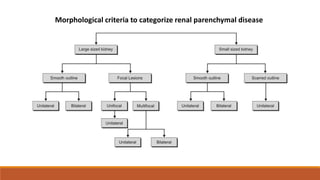

- 6. Morphological criteria tocategorize renal parenchymal disease

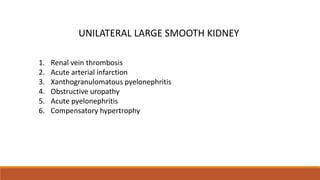

- 7. UNILATERAL LARGE SMOOTHKIDNEY 1. Renal vein thrombosis 2. Acute arterial infarction 3. Xanthogranulomatous pyelonephritis 4. Obstructive uropathy 5. Acute pyelonephritis 6. Compensatory hypertrophy

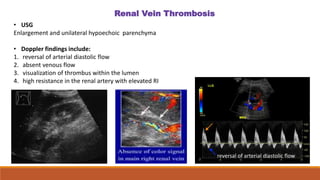

- 8. Renal Vein Thrombosis •USG Enlargement and unilateral hypoechoic parenchyma • Doppler findings include: 1. reversal of arterial diastolic flow 2. absent venous flow 3. visualization of thrombus within the lumen 4. high resistance in the renal artery with elevated RI reversal of arterial diastolic flow

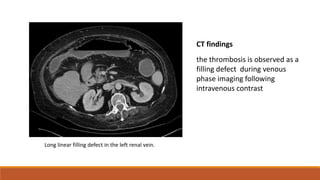

- 9. the thrombosis isobserved as a filling defect during venous phase imaging following intravenous contrast Long linear filling defect in the left renal vein. CT findings

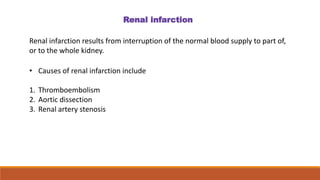

- 10. Renal infarction Renal infarctionresults from interruption of the normal blood supply to part of, or to the whole kidney. • Causes of renal infarction include 1. Thromboembolism 2. Aortic dissection 3. Renal artery stenosis

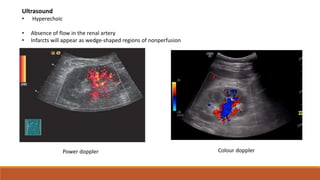

- 11. Power doppler Colourdoppler Ultrasound • Hyperechoic • Absence of flow in the renal artery • Infarcts will appear as wedge-shaped regions of nonperfusion

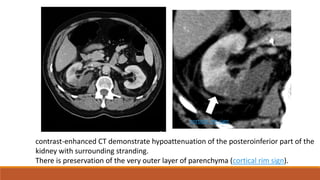

- 12. contrast-enhanced CT demonstratehypoattenuation of the posteroinferior part of the kidney with surrounding stranding. There is preservation of the very outer layer of parenchyma (cortical rim sign). cortical rim sign
- 13.

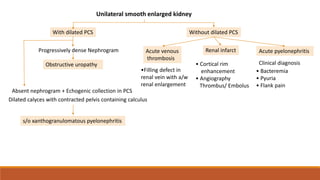

- 14. Without dilated PCS Unilateralsmooth enlarged kidney Progressively dense Nephrogram Obstructive uropathy With dilated PCS Absent nephrogram + Echogenic collection in PCS Dilated calyces with contracted pelvis containing calculus s/o xanthogranulomatous pyelonephritis Acute venous thrombosis Renal infarct • Cortical rim enhancement • Angiography Thrombus/ Embolus •Filling defect in renal vein with a/w renal enlargement Acute pyelonephritis Clinical diagnosis • Bacteremia • Pyuria • Flank pain

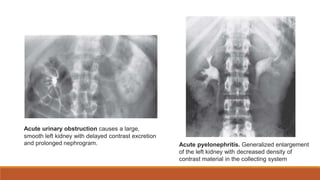

- 15. Acute urinary obstructioncauses a large, smooth left kidney with delayed contrast excretion and prolonged nephrogram. Acute pyelonephritis. Generalized enlargement of the left kidney with decreased density of contrast material in the collecting system

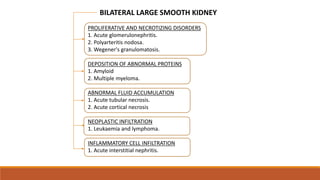

- 16. PROLIFERATIVE AND NECROTIZINGDISORDERS 1. Acute glomerulonephritis. 2. Polyarteritis nodosa. 3. Wegener's granulomatosis. DEPOSITION OF ABNORMAL PROTEINS 1. Amyloid 2. Multiple myeloma. ABNORMAL FLUID ACCUMULATION 1. Acute tubular necrosis. 2. Acute cortical necrosis NEOPLASTIC INFILTRATION 1. Leukaemia and lymphoma. INFLAMMATORY CELL INFILTRATION 1. Acute interstitial nephritis. BILATERAL LARGE SMOOTH KIDNEY

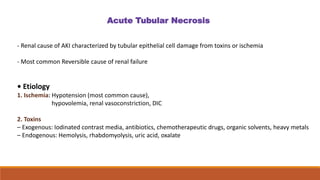

- 17. - Renal causeof AKI characterized by tubular epithelial cell damage from toxins or ischemia - Most common Reversible cause of renal failure • Etiology 1. Ischemia: Hypotension (most common cause), hypovolemia, renal vasoconstriction, DIC 2. Toxins – Exogenous: Iodinated contrast media, antibiotics, chemotherapeutic drugs, organic solvents, heavy metals – Endogenous: Hemolysis, rhabdomyolysis, uric acid, oxalate Acute Tubular Necrosis

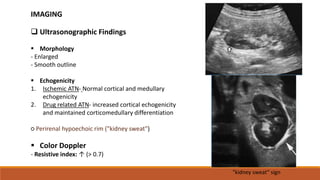

- 18. Ultrasonographic Findings Morphology - Enlarged - Smooth outline Echogenicity 1. Ischemic ATN- Normal cortical and medullary echogenicity 2. Drug related ATN- increased cortical echogenicity and maintained corticomedullary differentiation ○ Perirenal hypoechoic rim ("kidney sweat") Color Doppler - Resistive index: ↑ (> 0.7) IMAGING "kidney sweat“ sign
- 19.
- 20. Characterized by ischemicnecrosis of renal cortex with sparing of renal medulla and thin rim of subcapsular cortex. • Etiology ○ Obstetrical complication (> 50% of cases) – Abruptio placentae, septic abortion, eclampsia ○ Hemolytic uremic syndrome, disseminated intravascular coagulopathy, shock, sickle cell anemia, renal allograft rejection Renal Cortical Necrosis
- 21. Plain Radiography • Corticalcalcification: Dual linear opacities paralleling corticomedullary line ("tram line" sign), which is usually seen after 4 weeks Imaging

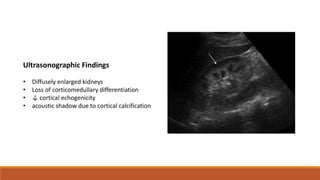

- 22. Ultrasonographic Findings • Diffuselyenlarged kidneys • Loss of corticomedullary differentiation • ↓ cortical echogenicity • acoustic shadow due to cortical calcification

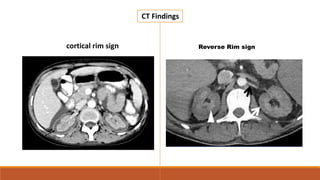

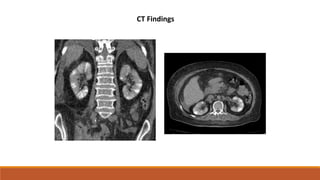

- 23. CT Findings cortical rimsign Reverse Rim sign

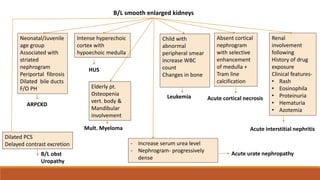

- 24. B/L smooth enlargedkidneys Neonatal/Juvenile age group Associated with striated nephrogram Periportal fibrosis Dilated bile ducts F/O PH ARPCKD Dilated PCS Delayed contrast excretion B/L obst Uropathy - Increase serum urea level - Nephrogram- progressively dense Intense hyperechoic cortex with hypoechoic medulla HUS Elderly pt. Osteopenia vert. body & Mandibular involvement Mult. Myeloma Child with abnormal peripheral smear increase WBC count Changes in bone Leukemia Absent cortical nephrogram with selective enhancement of medulla + Tram line calcification Acute cortical necrosis Renal involvement following History of drug exposure Clinical features- • Rash • Eosinophila • Proteinuria • Hematuria • Azotemia Acute interstitial nephritis Acute urate nephropathy

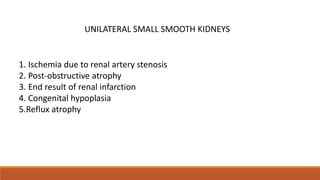

- 25. UNILATERAL SMALL SMOOTHKIDNEYS 1. Ischemia due to renal artery stenosis 2. Post-obstructive atrophy 3. End result of renal infarction 4. Congenital hypoplasia 5.Reflux atrophy

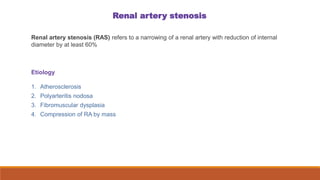

- 26. Renal artery stenosis Renalartery stenosis (RAS) refers to a narrowing of a renal artery with reduction of internal diameter by at least 60% Etiology 1. Atherosclerosis 2. Polyarteritis nodosa 3. Fibromuscular dysplasia 4. Compression of RA by mass

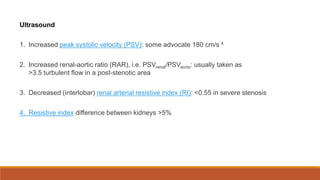

- 27. Ultrasound 1. Increased peaksystolic velocity (PSV): some advocate 180 cm/s 4 2. Increased renal-aortic ratio (RAR), i.e. PSVrenal/PSVaorta: usually taken as >3.5 turbulent flow in a post-stenotic area 3. Decreased (interlobar) renal arterial resistive index (RI): <0.55 in severe stenosis 4. Resistive index difference between kidneys >5%

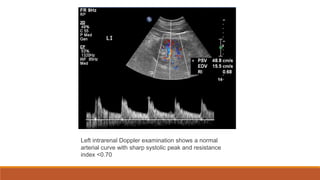

- 28. Left intrarenal Dopplerexamination shows a normal arterial curve with sharp systolic peak and resistance index <0.70

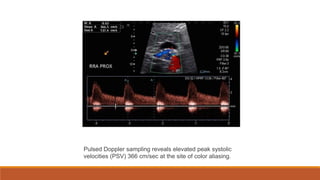

- 29. Pulsed Doppler samplingreveals elevated peak systolic velocities (PSV) 366 cm/sec at the site of color aliasing.

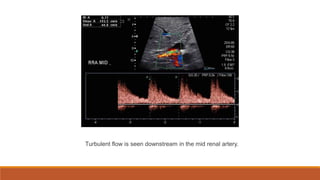

- 30. Turbulent flow isseen downstream in the mid renal artery.

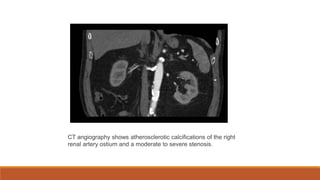

- 31. CT angiography showsatherosclerotic calcifications of the right renal artery ostium and a moderate to severe stenosis.

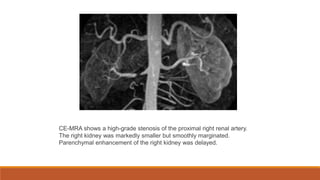

- 32. CE-MRA shows ahigh-grade stenosis of the proximal right renal artery. The right kidney was markedly smaller but smoothly marginated. Parenchymal enhancement of the right kidney was delayed.

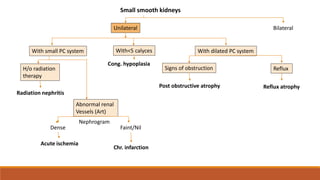

- 33. Small smooth kidneys UnilateralBilateral With small PC system With<5 calyces With dilated PC system Cong. hypoplasia H/o radiation therapy Radiation nephritis Abnormal renal Vessels (Art) Dense Faint/Nil Acute ischemia Signs of obstruction Post obstructive atrophy Reflux Reflux atrophy Chr. infarction Nephrogram

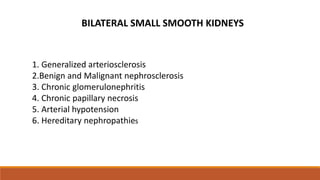

- 34. 1. Generalized arteriosclerosis 2.Benignand Malignant nephrosclerosis 3. Chronic glomerulonephritis 4. Chronic papillary necrosis 5. Arterial hypotension 6. Hereditary nephropathies BILATERAL SMALL SMOOTH KIDNEYS

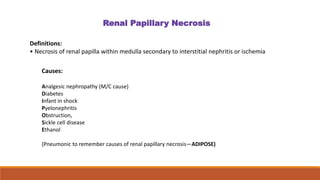

- 35. Definitions: • Necrosis ofrenal papilla within medulla secondary to interstitial nephritis or ischemia Renal Papillary Necrosis Causes: Analgesic nephropathy (M/C cause) Diabetes Infant in shock Pyelonephritis Obstruction, Sickle cell disease Ethanol (Pneumonic to remember causes of renal papillary necrosis—ADIPOSE)

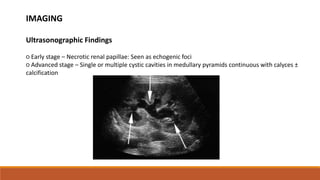

- 36. IMAGING Ultrasonographic Findings ○ Earlystage – Necrotic renal papillae: Seen as echogenic foci ○ Advanced stage – Single or multiple cystic cavities in medullary pyramids continuous with calyces ± calcification

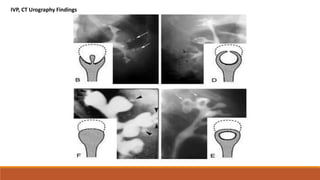

- 37. IVP, CT UrographyFindings

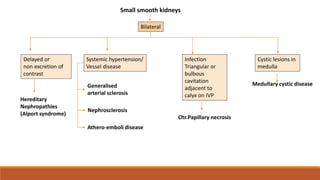

- 39. Small smooth kidneys Bilateral Delayedor non excretion of contrast Hereditary Nephropathies (Alport syndrome) Systemic hypertension/ Vessel disease Generalised arterial sclerosis Nephrosclerosis Athero-emboli disease Infection Triangular or bulbous cavitation adjacent to calyx on IVP Chr.Papillary necrosis Cystic lesions in medulla Medullary cystic disease
- 40. 1.Reflux nephropathy 2.Lobar infarction 3.Tuberculosis 4.Renaldysplasia SMALL SCARRED KIDNEYS

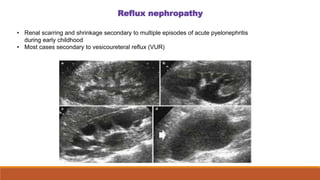

- 41. Reflux nephropathy • Renalscarring and shrinkage secondary to multiple episodes of acute pyelonephritis during early childhood • Most cases secondary to vesicoureteral reflux (VUR)

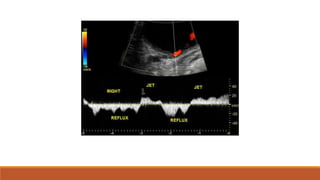

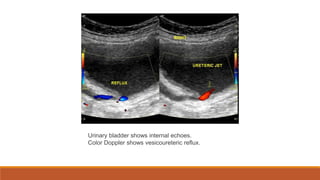

- 42. Urinary bladder showsinternal echoes. Color Doppler shows vesicoureteric reflux.

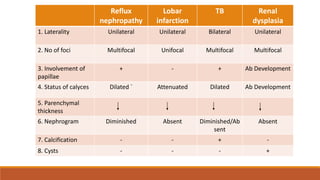

- 44. Reflux nephropathy Lobar infarction TB Renal dysplasia 1. LateralityUnilateral Unilateral Bilateral Unilateral 2. No of foci Multifocal Unifocal Multifocal Multifocal 3. Involvement of papillae + - + Ab Development 4. Status of calyces Dilated ` Attenuated Dilated Ab Development 5. Parenchymal thickness 6. Nephrogram Diminished Absent Diminished/Ab sent Absent 7. Calcification - - + - 8. Cysts - - - +
- 45.
Editor's Notes
- #5 first-choice imaging modality for the kidneys in the context of AKI is US Doppler findings higher RI is associated with intrarenal causes of AKI RI greater than 0.70 (segmental and interlobular arteries)
- #6 Schematic diagram of normal interpapillary line: This line is drawn by joining the tips of renal papillae; smooth uninterrupted interpapillary line is seen in normal kidney
- #7 Morphological criteria are useful to categorize the wide spectrum of renal parenchymal diseases. Evaluation is done based on renal size, contour and laterality of involvement
- #9 Renal vein thrombosis The kidney is greatly enlarged with a hazy, irregular hypoechoic structure. • Nephrotic syndrome and underlying malignancy (usually RCC) are the most common etiologies in adults • Dehydration and sepsis are the most common etiologies in children
- #10 Axial C+ portal venous phase CT Long linear filling defect in the left renal vein
- #12 Power Doppler: avascular area of the upper pole of the right kidney depicting the infarction. Color Doppler: the wedge-shaped avascular region confirms the infarct. On Color Doppler : Complete absence of perfusion when the entire kidney is affected, or patchy if segmental arteries are involved Absence of flow in the renal artery Over time the regions of infarctions shrink, becoming hyperechoic scars Infarcts will appear as wedge-shaped regions of nonperfusion
- #13 absence of contrast enhancement in the cortex and relatively hyperdense medulla and subcapsular cortex, the characteristic ‘cortical rim sign’ Preserved enhancement of thin rim of subcapsular cortical tissue due to separate capsular blood supply

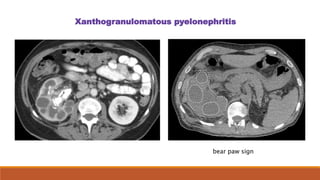

- #14 CT scan demonstrates low density rounded parenchymal collections throughout the right kidney, without hydronephrosis, with a central large (presumably staghorn) calculus. Also note the enlarged periaortic and pericaval lymph nodes. The bear paw sign refers to the cross-sectional appearance of the kidney affected by xanthogranulomatous pyelonephritis. There is a radial arrangement of multiple, low attenuation rounded spaces representing dilated calyces, surrounded by thin renal parenchyma that has higher attenuation or contrast enhancement, mimicking the appearance of the dark toe pads on a polar bear's paw.
