Remote Networks with Aruba Instant
Presented by:
Gokul Rajagopalan – Product Management
Santa PalChaudhuri – Engineering
Neil Kulkarni – Technical Marketing

2. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 2 #airheadsconf
Key Applications & Verticals
Requirements & Challenges
Aruba Instant for Remote Networking

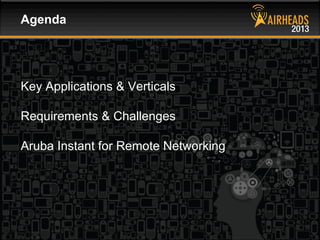

Agenda

3. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 3 #airheadsconf#airheadsconf3
Applications & Verticals

4. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 4 #airheadsconf
Who should care?
Branch office /
Remote teleworker
Retail
K-12
Healthcare

5. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 5 #airheadsconf#airheadsconf5
Requirements & Challenges

6. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 6 #airheadsconf

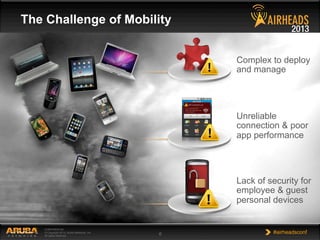

The Challenge of Mobility
Complex to deploy
and manage
Unreliable
connection & poor
app performance
Lack of security for
employee & guest
personal devices

7. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 7 #airheadsconf
Remote Networking Requirements
• Few components on-site
• No special expertise on-site
• Full functionality
• Resiliency
• Centralized management
and debug-ability

8. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 8 #airheadsconf#airheadsconf8
The Instant advantage

9. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 9 #airheadsconf

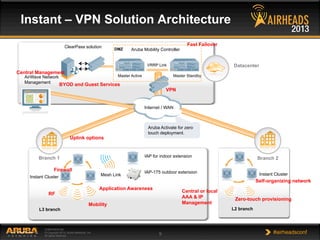

Instant – VPN Solution Architecture
Branch 1
Datacenter
AirWave Network
Management
Aruba Mobility Controller
ClearPass solution
Instant Cluster
VRRP Link
Master Standby
Instant Cluster
Branch 2
L3 branch L2 branch
DMZ
IAP-175 outdoor extension
Mesh Link
IAP for indoor extension
Aruba Activate for zero
touch deployment.
Master Active
RF
Firewall
Uplink options
VPN
Fast Failover
Mobility
Application Awareness
Central Management
BYOD and Guest Services
Zero-touch provisioning
Internet / WAN
Self-organizing network
Central or local
AAA & IP
Management

10. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 10 #airheadsconf
Optional
• VPN – Aruba Mobility Controllers
• Whitelist Management - ClearPass
• Switching – Mobility Access Switches

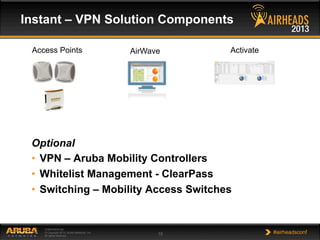

Instant – VPN Solution Components
Access Points AirWave Activate

11. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 11 #airheadsconf

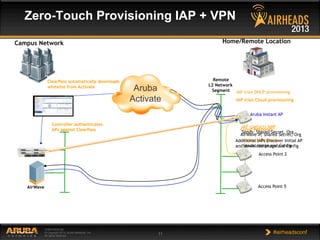

Zero-Touch Provisioning IAP + VPN
Home/Remote LocationCampus Network
Remote
L2 Network
Segment
Aruba Instant AP
IAP tries Cloud provisioning
Sends: Serial #, MAC
IAP tries DHCP provisioning
Cloud Responds:
AirWave IP, Shared Secret, Org
AirWave
IAP contacts AMP
Sends: Shared Secret, Org
AirWave Responds
Sends: Image and Config
Additional IAPs Discover Initial AP
and download image and config
Access Point 2
Access Point 5
ClearPass automatically downloads
whitelist from Activate
Controller authenticates
APs against ClearPass
Aruba
Activate

12. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 12 #airheadsconf

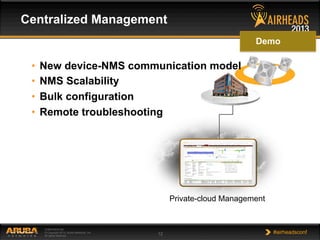

Centralized Management
Demo
Private-cloud Management
• New device-NMS communication model
• NMS Scalability
• Bulk configuration
• Remote troubleshooting

13. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 13 #airheadsconf

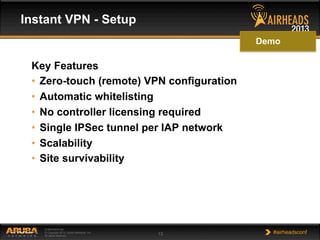

Key Features
• Zero-touch (remote) VPN configuration
• Automatic whitelisting
• No controller licensing required
• Single IPSec tunnel per IAP network
• Scalability
• Site survivability
Instant VPN - Setup
Demo

14. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 14 #airheadsconf

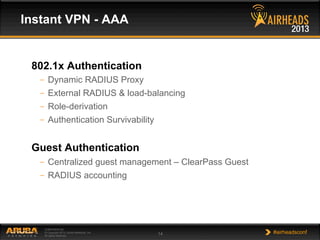

802.1x Authentication
– Dynamic RADIUS Proxy
– External RADIUS & load-balancing
– Role-derivation
– Authentication Survivability
Guest Authentication
– Centralized guest management – ClearPass Guest
– RADIUS accounting
Instant VPN - AAA

15. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 15 #airheadsconf
• Local
– User traffic NATted, virtual-controller assigned IP
• Centralized Layer-2
– User traffic bridged, IP assignment from datacenter
• Distributed Layer-2
– User traffic bridged, IP assignment locally managed
• Distributed Layer-3
– Layer-3 subnet on-site, routed to datacenter, IP assignment
locally managed

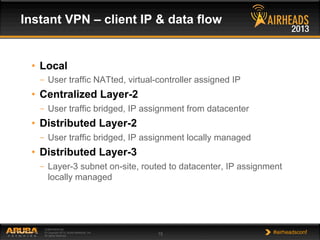

Instant VPN – client IP & data flow

16. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 16 #airheadsconf

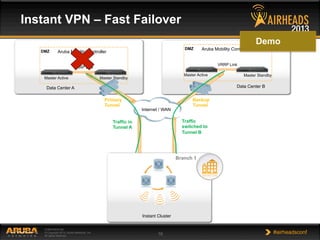

Aruba Mobility Controller
VRRP Link
Master Standby
DMZ
Master Active
Aruba Mobility Controller
VRRP Link
DMZ
Master Active Master Standby
Internet / WAN
Data Center A Data Center B
Instant Cluster
Branch 1
Traffic in
Tunnel A
Traffic
switched to
Tunnel B
Primary
Tunnel
Backup
Tunnel
Instant VPN – Fast Failover
Demo

17. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 17 #airheadsconf#airheadsconf17
Advantages over conventional
solutions

18. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 18 #airheadsconf
Platform
– Independent regulatory domains
– Phased firmware upgrades
– Increased controller scalability, lower licensing costs
– Local management plane - resilient to WAN failure
– Local control plane - enables local services
– Local data plane – highly scalable branch
• Deployment
– Zero-touch provisioning
Advantages of Instant-based solution

19. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 19 #airheadsconf

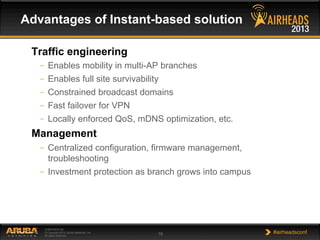

Traffic engineering
– Enables mobility in multi-AP branches
– Enables full site survivability
– Constrained broadcast domains
– Fast failover for VPN
– Locally enforced QoS, mDNS optimization, etc.
Management
– Centralized configuration, firmware management,
troubleshooting
– Investment protection as branch grows into campus
Advantages of Instant-based solution

20. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 20 #airheadsconf#airheadsconf20
Roadmap

21. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 21 #airheadsconf
• Uplink intelligence
• Secondary role-derivation
• Bandwidth management
• Aruba switch integration
• Cloud services
Direction

22. CONFIDENTIAL
© Copyright 2013. Aruba Networks, Inc.
All rights reserved 22 #airheadsconf#airheadsconf
