Reinforcement Learning with Sagemaker, DeepRacer and Robomaker
The document discusses using artificial intelligence and machine learning for autonomous racing. It describes using reinforcement learning to train models to control a miniature race car called AWS DeepRacer. The models are trained in a 3D racing simulator and learn to navigate a track by receiving rewards or penalties. Researchers are exploring using techniques like behavioral cloning and object detection for autonomous driving applications.
More Related Content
Similar to Reinforcement Learning with Sagemaker, DeepRacer and Robomaker
Reinforcement Learning with Sagemaker, DeepRacer and Robomaker
- 1. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Racing with Artificial Intelligence Alex Coqueiro Head of Public Sector Solutions Architecture for Canada, Latin America and Caribbean AWS @alexbcbr
- 2. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Rubik’s cube challenge
- 3. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. 43,252,003,274,489,856,000 43 QUINTILLION UNIQUE COMBINATIONS
- 4. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Don’t code the patterns, let the system learn through data

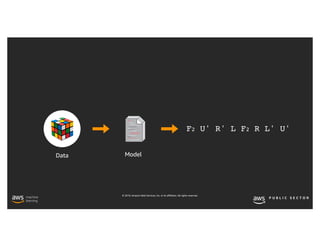

- 5. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. F2 U' R' L F2 R L' U' ModelData
- 6. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. F2 U' R' L F2 R L' U' Confidence 1% accuracy R U r U R U2 r U2% accuracy Training Models Model
- 7. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Confidence 20% accuracy 40% accuracy 60% accuracy 80% accuracy 95% accuracy 2% accuracy R U r U R U2 r U Training Models Model

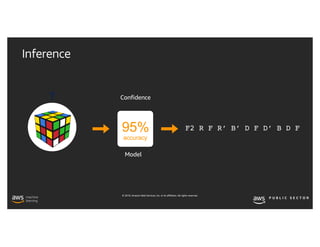

- 8. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Confidence 95% accuracy ? F2 R F R′ B′ D F D′ B D F Inference Model

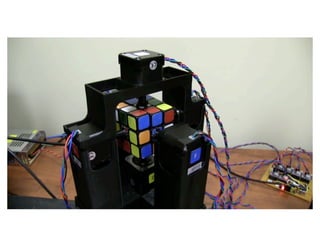

- 9. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved.
- 10. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. SOLVED IN 0.9 SECONDS
- 11. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Show me how to do it
- 12. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. © 2018, Amazon Web Services, Inc. or its affiliates. All rights reserved.Use Case – Autonomous Driving

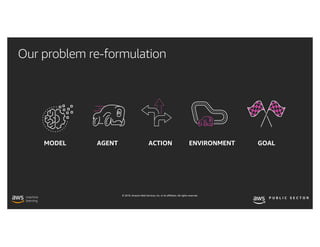

- 13. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Our problem re-formulation

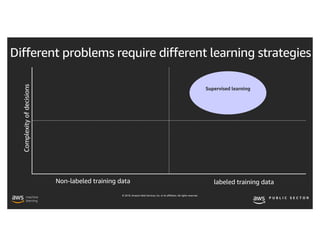

- 14. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Different problems require different learning strategies labeled training data Complexityofdecisions Supervised learning Non-labeled training data

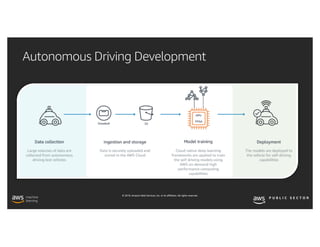

- 15. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Autonomous Driving Development

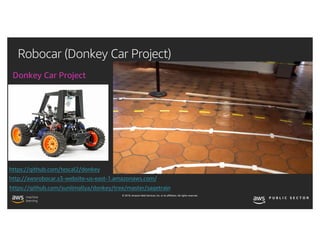

- 16. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Robocar (Donkey Car Project) Donkey Car Project https://github.com/sunilmallya/donkey/tree/master/sagetrain http://awsrobocar.s3-website-us-east-1.amazonaws.com/ https://github.com/tescal2/donkey

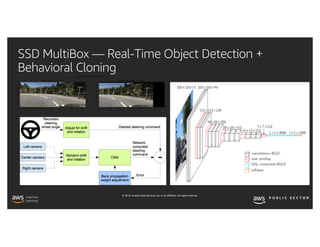

- 17. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. SSD MultiBox — Real-Time Object Detection + Behavioral Cloning

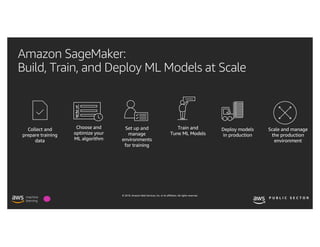

- 18. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Amazon SageMaker: Build, Train, and Deploy ML Models at Scale 1 2 3

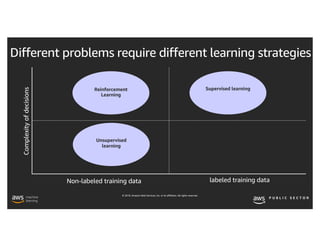

- 19. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Different problems require different learning strategies labeled training data Complexityofdecisions Supervised learning Unsupervised learning Reinforcement Learning Non-labeled training data
- 20. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Reinforcement learning in the real world Reward positive behavior Don’t reward negative behavior The result!

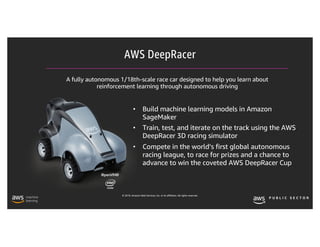

- 21. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. • Build machine learning models in Amazon SageMaker • Train, test, and iterate on the track using the AWS DeepRacer 3D racing simulator • Compete in the world’s first global autonomous racing league, to race for prizes and a chance to advance to win the coveted AWS DeepRacer Cup AWS DeepRacer A fully autonomous 1/18th-scale race car designed to help you learn about reinforcement learning through autonomous driving

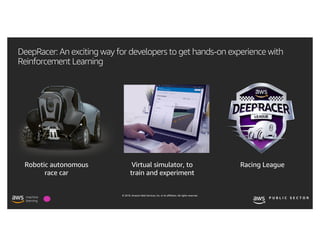

- 22. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Robotic autonomous race car DeepRacer: An exciting way for developers to get hands-on experience with Reinforcement Learning Racing LeagueVirtual simulator, to train and experiment

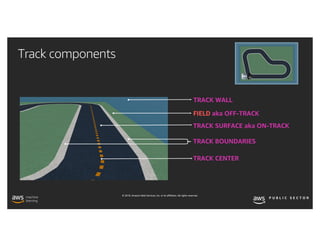

- 23. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Track components TRACK CENTER TRACK WALL TRACK SURFACE aka ON-TRACK FIELD aka OFF-TRACK TRACK BOUNDARIES

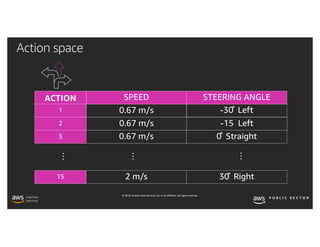

- 24. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Action space

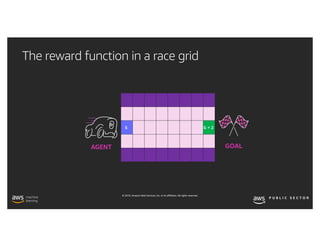

- 25. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. The reward function in a race grid S G = 2 GOALAGENT

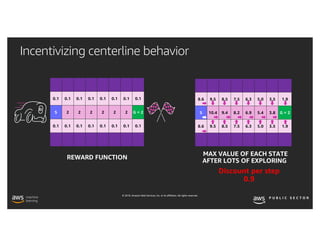

- 26. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Incentivizing centerline behavior 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 S 2 2 2 2 2 2 G = 2 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 REWARD FUNCTION 8.6 9.5 8.5 7.5 6.3 5.0 3.5 1.9 S 10.4 9.4 8.2 6.9 5.4 3.8 G = 2 8.6 9.5 8.5 7.5 6.3 5.0 3.5 1.9 MAX VALUE OF EACH STATE AFTER LOTS OF EXPLORING Discount per step 0.9

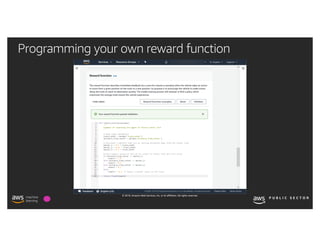

- 27. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Programming your own reward function
- 28. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. © 2018, Amazon Web Services, Inc. or its affiliates. All rights reserved. Let’s go deeper Let’s go deeper…

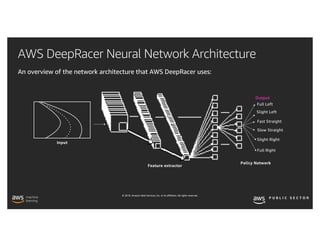

- 29. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. AWS DeepRacer Neural Network Architecture An overview of the network architecture that AWS DeepRacer uses: Output

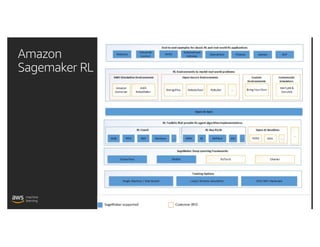

- 30. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Amazon Sagemaker RL

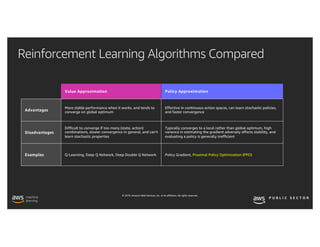

- 31. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Reinforcement Learning Algorithms Compared Value Approximation Policy Approximation Advantages More stable performance when it works, and tends to converge on global optimum Effective in continuous action spaces, can learn stochastic policies, and faster convergence Disadvantages Difficult to converge if too many (state, action) combinations, slower convergence in general, and can’t learn stochastic properties Typically converges to a local rather than global optimum, high variance in estimating the gradient adversely affects stability, and evaluating a policy is generally inefficient Examples Q-Learning, Deep Q Network, Deep Double Q Network Policy Gradient, Proximal Policy Optimization (PPO)
- 32. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Hyper parameters control the training algorithm
- 33. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Coordinate system and track waypoints OUTER BOUNDARY WAYPOINTS TRACK CENTER WAYPOINTS INNER BOUNDARY WAYPOINTS X Y TRACK WIDTH CAR DIRECTION

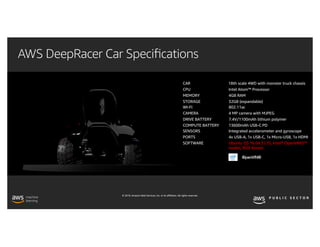

- 34. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. AWS DeepRacer Car Specifications CAR 18th scale 4WD with monster truck chassis CPU Intel Atom™ Processor MEMORY 4GB RAM STORAGE 32GB (expandable) WI-FI 802.11ac CAMERA 4 MP camera with MJPEG DRIVE BATTERY 7.4V/1100mAh lithium polymer COMPUTE BATTERY 13600mAh USB-C PD SENSORS Integrated accelerometer and gyroscope PORTS 4x USB-A, 1x USB-C, 1x Micro-USB, 1x HDMI SOFTWARE Ubuntu OS 16.04.3 LTS, Intel® OpenVINO™ toolkit, ROS Kinetic

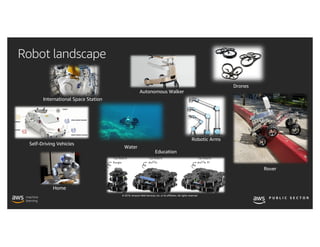

- 35. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Robotic Arms International Space Station Drones Education Water Home Self-Driving Vehicles Autonomous Walker Rover Robot landscape

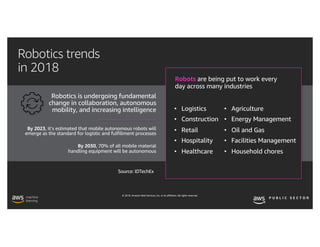

- 36. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Robotics trends in 2018 Robotics is undergoing fundamental change in collaboration, autonomous mobility, and increasing intelligence Source: IDTechEx • Logistics • Construction • Retail • Hospitality • Healthcare Robots are being put to work every day across many industries • Agriculture • Energy Management • Oil and Gas • Facilities Management • Household chores By 2023, it’s estimated that mobile autonomous robots will emerge as the standard for logistic and fulfillment processes By 2030, 70% of all mobile material handling equipment will be autonomous

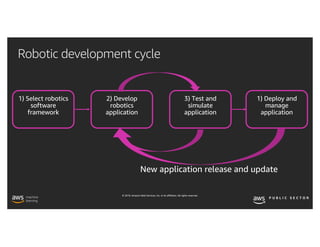

- 37. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Robotic development cycle 2) Develop robotics application 1) Select robotics software framework 1) Deploy and manage application 3) Test and simulate application New application release and update
- 38. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Most widely used software framework for teaching and learning about robotics – over 16 million .deb (Linux Debian) packages downloaded in 2018, a 400% increase since 2014 Founded in Stanford labs over 10 year ago, now managed by the Open Source Robotics Foundation (OSRF) Global open-source community supports two products—Robot Operating System (ROS) and Gazebo ROS A set of software libraries and tools, from drivers to algorithms, that help developers build robot applications Gazebo Robust physics engine, high-quality graphics, and programmatic and graphical interfaces to help developers simulate robots Robot Operating System (ROS) primer
- 39. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Introducing AWS RoboMaker A service that makes it easy for developers to develop, test, and deploy robotics applications, as well as build intelligent robotics functions using cloud services

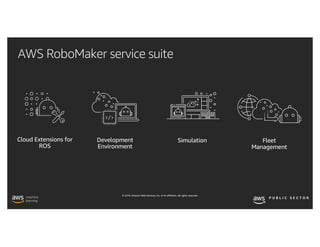

- 40. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. AWS RoboMaker service suite Development Environment SimulationCloud Extensions for ROS Fleet Management
- 41. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. AWS RoboMaker Sample Robot Applications Hello World Navigation and Person Recognition Voice Commands Robot Monitoring Object- following using RL Self- driving using RL

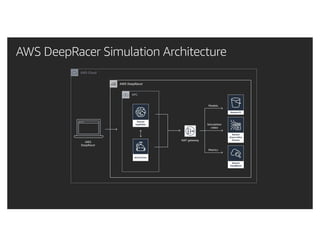

- 42. AWS Cloud AWS DeepRacer NAT gateway VPC AWSDeepRacer Models Simulation video Metrics AWS DeepRacer Simulation Architecture

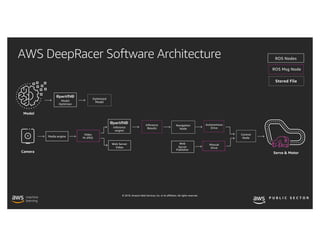

- 43. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. ROS Msg Node Stored File ROS Nodes Model Optimizer Video M-JPEG Web Server Video Inference Results Web Server Publisher Autonomous Drive Control Node Optimized Model Media engine Camera Model Inference engine Manual Drive Navigation Node Servo & Motor AWS DeepRacer Software Architecture
- 44. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. DATA
- 45. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. We are not spectators, but actors of the future Herb Simon, 2000
- 46. © 2019, AmazonWeb Services, Inc. or its affiliates. All rights reserved. ml.aws@alexbcbr
