Building Your Robot using AWS Robomaker
The document discusses the integration of robotics with AWS RoboMaker, emphasizing the importance of robotics in various sectors, including logistics and autonomous vehicles. It explains the components of robot development, such as simulation, iterative development, and fleet management, along with the advantages of using open-source frameworks like ROS. Additionally, it highlights the capabilities of AWS RoboMaker for simulation, deployment, and management of robotic applications at scale.
More Related Content
Similar to Building Your Robot using AWS Robomaker
Building Your Robot using AWS Robomaker
- 1. © 2021, AmazonWeb Services, Inc. or its affiliates. All rights reserved. Building Your Robot using AWS Robomaker Artur Rodrigues & Alex Coqueiro Solutions Architecture Team AWS Public Sector - Canada, Latin America and Caribbean @alexbcbr
- 2. Agenda WHY (Robotics Momentum) WHAT(Robotics in a opensource world) HOW (Development, Simulation, Deployment)
- 3. Agenda WHY (Robotics Momentum) WHAT(Robotics in a opensource world) HOW (Development, Simulation, Deployment)

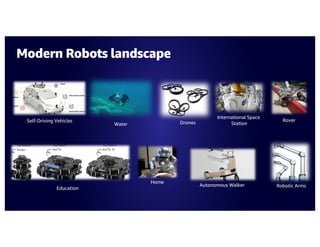

- 4. Robotic Arms International Space Station Drones Education Water Home Self-DrivingVehicles Autonomous Walker Rover Modern Robots landscape

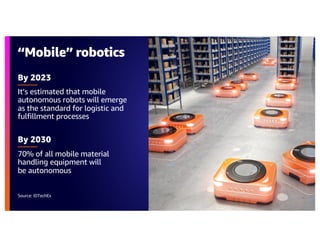

- 6. “Mobile” robotics Source: IDTechEx By2030 70% of all mobile material handling equipment will be autonomous By 2023 It’s estimated that mobile autonomous robots will emerge as the standard for logistic and fulfillment processes

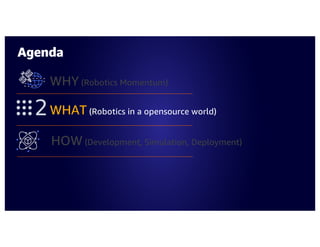

- 7. Agenda WHY (Robotics Momentum) WHAT(Robotics in a opensource world) HOW (Development, Simulation, Deployment)

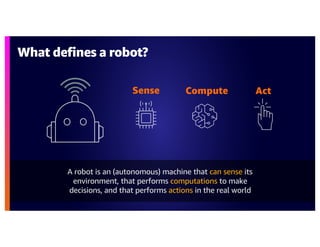

- 8. What defines arobot? A robot is an (autonomous) machine that can sense its environment, that performs computations to make decisions, and that performs actions in the real world Compute Sense Act
- 9. Distinct types ofrobots (Hardware) Drones Robotic arms Ground mobility

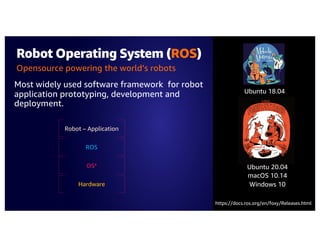

- 10. Robot Operating System(ROS) Ubuntu 18.04 Most widely used software framework for robot application prototyping, development and deployment. Opensource powering the world’s robots Robot – Application ROS OS* Hardware Ubuntu 20.04 macOS 10.14 Windows 10 https://docs.ros.org/en/foxy/Releases.html

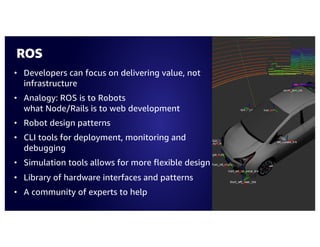

- 11. ROS • Developers canfocus on delivering value, not infrastructure • Analogy: ROS is to Robots what Node/Rails is to web development • Robot design patterns • CLI tools for deployment, monitoring and debugging • Simulation tools allows for more flexible design • Library of hardware interfaces and patterns • A community of experts to help
- 12. ROS 2 isproduction-grade ROS ROS 2 makes it easier to convert ROS-based prototypes into products that work effectively in real-world applications Enterprise features: Production quality core libraries Enhanced security Improved determinism Real time communication support Real world networking support Layered architecture: Multi-OS support Industry-standard middleware layer Improved abstraction Unified API Interoperability with ROS1: ROS1 bridge enables hybrid systems https://aws.amazon.com/blogs/robotics/ros-2-foxy-fitzroy-robot-development
- 13. AWS RoboMaker Simulation ROS open-source tools andcloud extensions Fleet management Development environment

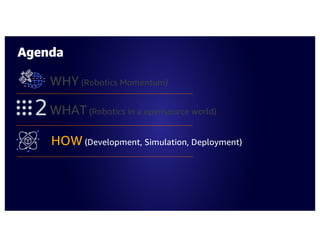

- 14. Agenda WHY (Robotics Momentum) WHAT(Robotics in a opensource world) HOW (Development, Simulation, Deployment)
- 15. © 2018, AmazonWeb Services, Inc. or Its Affiliates. All rights reserved. Demo: Personal Care System

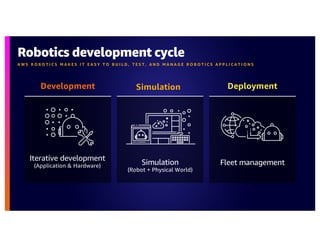

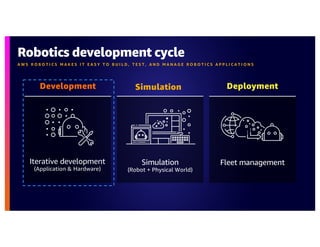

- 16. Robotics development cycle AW S R O B O T I C S M A K E S I T E A S Y T O B U I L D , T E S T , A N D M A N A G E R O B O T I C S A P P L I C A T I O N S Simulation (Robot + Physical World) Iterative development (Application & Hardware) Fleet management Development Simulation Deployment

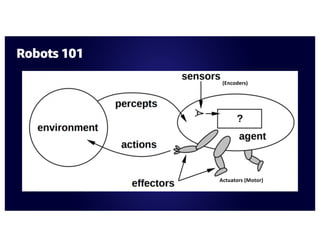

- 17.

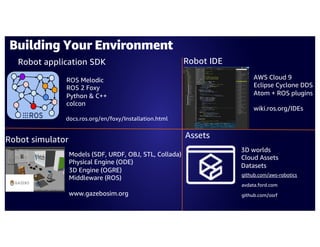

- 18. Building Your Environment Robotapplication SDK Robot simulator Models (SDF, URDF, OBJ, STL, Collada) Physical Engine (ODE) 3D Engine (OGRE) Middleware (ROS) www.gazebosim.org docs.ros.org/en/foxy/Installation.html AWS Cloud 9 Eclipse Cyclone DDS Atom + ROS plugins wiki.ros.org/IDEs Robot IDE Assets github.com/aws-robotics avdata.ford.com github.com/osrf 3D worlds Cloud Assets Datasets ROS Melodic ROS 2 Foxy Python & C++ colcon

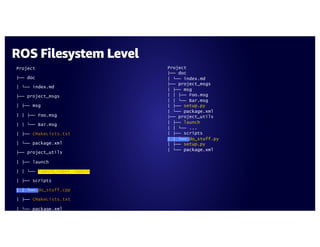

- 19. ROS Filesystem Level Project ├──doc | └── index.md ├── project_msgs | ├── msg | | ├── Foo.msg | | └── Bar.msg | ├── CMakeLists.txt | └── package.xml ├── project_utils | ├── launch | | └── launch_robot.launch | ├── scripts | | └── do_stuff.cpp | ├── CMakeLists.txt | └── package.xml Project ├── doc | └── index.md ├── project_msgs | ├── msg | | ├── Foo.msg | | └── Bar.msg | ├── setup.py | └── package.xml ├── project_utils | ├── launch | | └── ... | ├── scripts | | └── do_stuff.py | ├── setup.py | └── package.xml

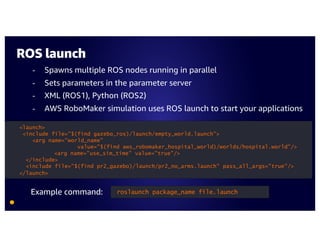

- 20. ROS launch - Spawnsmultiple ROS nodes running in parallel - Sets parameters in the parameter server - XML (ROS1), Python (ROS2) - AWS RoboMaker simulation uses ROS launch to start your applications roslaunch package_name file.launch <launch> <include file="$(find gazebo_ros)/launch/empty_world.launch"> <arg name="world_name" value="$(find aws_robomaker_hospital_world)/worlds/hospital.world"/> <arg name="use_sim_time" value="true"/> </include> <include file="$(find pr2_gazebo)/launch/pr2_no_arms.launch" pass_all_args="true"/> </launch> Example command:

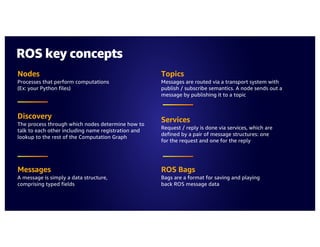

- 21. ROS key concepts Nodes Processesthat perform computations (Ex: your Python files) Discovery The process through which nodes determine how to talk to each other including name registration and lookup to the rest of the Computation Graph Messages A message is simply a data structure, comprising typed fields Topics Messages are routed via a transport system with publish / subscribe semantics. A node sends out a message by publishing it to a topic Services Request / reply is done via services, which are defined by a pair of message structures: one for the request and one for the reply ROS Bags Bags are a format for saving and playing back ROS message data

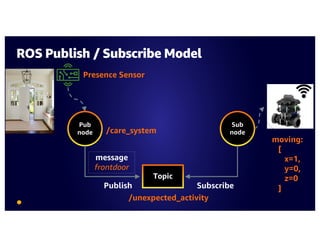

- 22. ROS Publish /Subscribe Model Pub node Sub node Topic Publish Subscribe /unexpected_activity message frontdoor moving: [ x=1, y=0, z=0 ] Presence Sensor /care_system

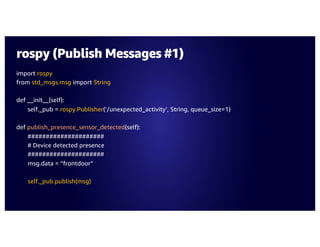

- 23. rospy (Publish Messages#1) import rospy from std_msgs.msg import String def __init__(self): self._pub = rospy.Publisher(‘/unexpected_activity’, String, queue_size=1) def publish_presence_sensor_detected(self): ##################### # Device detected presence ##################### msg.data = ”frontdoor” self._pub.publish(msg)
- 24. rospy (Receiving Messages) importrospy from std_msgs.msg import String def __init__(self): self._hazard = rospy.Subscriber(‘/unexpected_activity’, String, self.callback) def callback(self, data): rospy._loginfo(data.data)

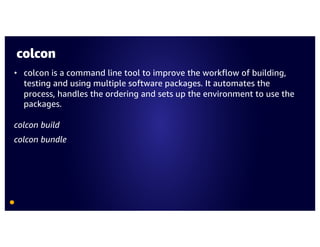

- 25. colcon • colcon isa command line tool to improve the workflow of building, testing and using multiple software packages. It automates the process, handles the ordering and sets up the environment to use the packages. colcon build colcon bundle

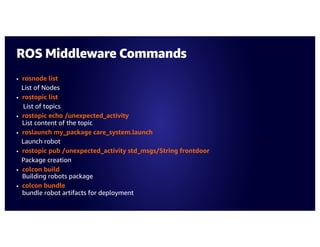

- 26. • rosnode list Listof Nodes • rostopic list List of topics • rostopic echo /unexpected_activity List content of the topic • roslaunch my_package care_system.launch Launch robot • rostopic pub /unexpected_activity std_msgs/String frontdoor Package creation • colcon build Building robots package • colcon bundle bundle robot artifacts for deployment ROS Middleware Commands

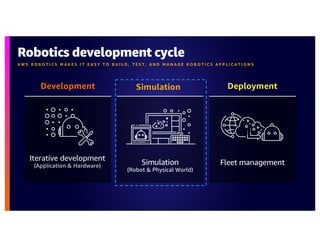

- 27. Robotics development cycle AW S R O B O T I C S M A K E S I T E A S Y T O B U I L D , T E S T , A N D M A N A G E R O B O T I C S A P P L I C A T I O N S Simulation (Robot & Physical World) Iterative development (Application & Hardware) Fleet management Development Simulation Deployment

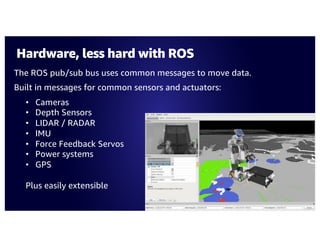

- 28. Hardware, less hardwith ROS The ROS pub/sub bus uses common messages to move data. Built in messages for common sensors and actuators: • Cameras • Depth Sensors • LIDAR / RADAR • IMU • Force Feedback Servos • Power systems • GPS Plus easily extensible

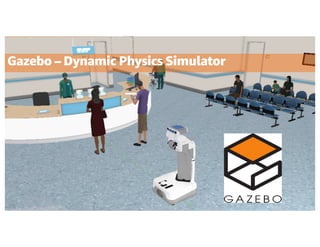

- 29. Gazebo – DynamicPhysics Simulator

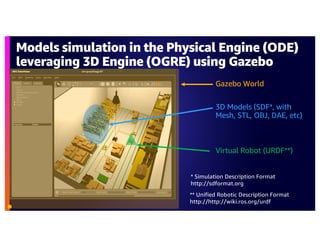

- 30. Models simulation inthe Physical Engine (ODE) leveraging 3D Engine (OGRE) using Gazebo Gazebo World 3D Models (SDF*, with Mesh, STL, OBJ, DAE, etc) Virtual Robot (URDF**) * Simulation Description Format http://sdformat.org ** Unified Robotic Description Format http://http://wiki.ros.org/urdf

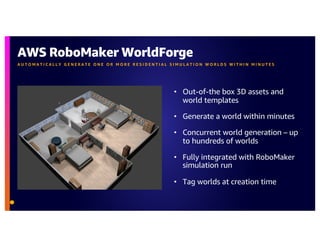

- 31. AWS RoboMaker WorldForge AU T O M A T I C A L L Y G E N E R A T E O N E O R M O R E R E S I D E N T I A L S I M U L A T I O N W O R L D S W I T H I N M I N U T E S • Out-of-the box 3D assets and world templates • Generate a world within minutes • Concurrent world generation – up to hundreds of worlds • Fully integrated with RoboMaker simulation run • Tag worlds at creation time

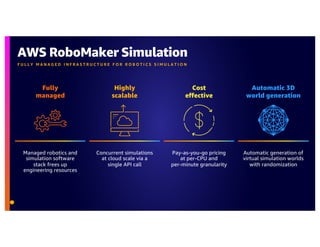

- 32. AWS RoboMaker Simulation FU L L Y M A N A G E D I N F R A S T R U C T U R E F O R R O B O T I C S S I M U L A T I O N Managed robotics and simulation software stack frees up engineering resources Fully managed Concurrent simulations at cloud scale via a single API call Highly scalable Pay-as-you-go pricing at per-CPU and per-minute granularity Cost effective Automatic generation of virtual simulation worlds with randomization Automatic 3D world generation

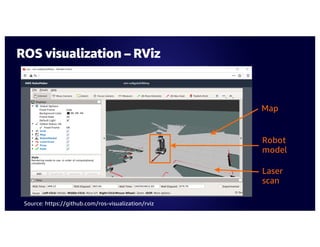

- 33. ROS visualization –RViz Map Robot model Laser scan Source: https://github.com/ros-visualization/rviz
- 34. ROS visualization –RQT Source: http://wiki.ros.org/rqt

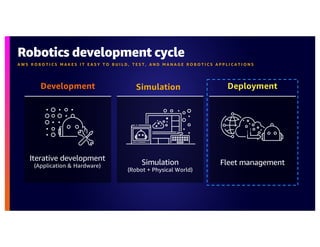

- 35. Robotics development cycle AW S R O B O T I C S M A K E S I T E A S Y T O B U I L D , T E S T , A N D M A N A G E R O B O T I C S A P P L I C A T I O N S Simulation (Robot + Physical World) Iterative development (Application & Hardware) Fleet management Development Simulation Deployment

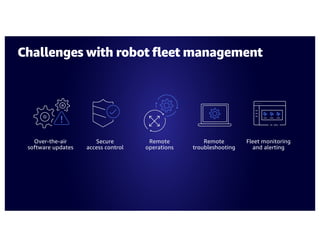

- 36. Challenges with robotfleet management Over-the-air software updates Secure access control Remote operations Remote troubleshooting Fleet monitoring and alerting

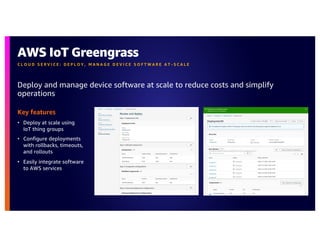

- 37. Key features • Deployat scale using IoT thing groups • Configure deployments with rollbacks, timeouts, and rollouts • Easily integrate software to AWS services AWS IoT Greengrass Deploy and manage device software at scale to reduce costs and simplify operations C L O U D S E R V I C E : D E P L O Y , M A N A G E D E V I C E S O F T W A R E A T - S C A L E

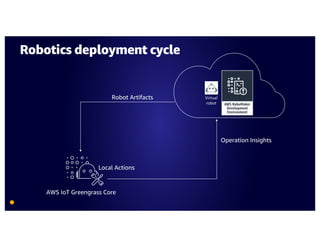

- 38. Local Actions Operation Insights AWSIoT Greengrass Core Virtual robot Robotics deployment cycle Robot Artifacts
- 39. Robotics development cycle AW S R O B O T I C S M A K E S I T E A S Y T O B U I L D , T E S T , A N D M A N A G E R O B O T I C S A P P L I C A T I O N S Simulation (Robot + Physical World) Iterative development (Application & Hardware) Fleet management Development Simulation Deployment

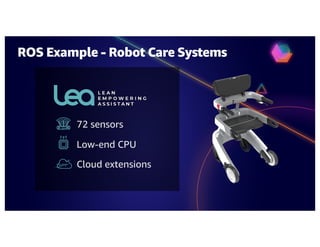

- 40. 72 sensors Low-end CPU Cloudextensions ROS Example - Robot Care Systems
- 41. Resources AWS RoboMaker scenario-basedsimulation launcher https://github.com/aws-samples/aws-robomaker-simulation-launcher 3D Worlds and ROS cloud extensions https://github.com/aws-robotics AWS robotics blog with detailed guides on CI/CD and more https://aws.amazon.com/blogs/robotics Get started with AWS RoboMaker today! https://aws.amazon.com/robomaker Sample application with test node https://github.com/aws-robotics/aws-robomaker-sample-application-cloudwatch Learn about ROS https://ros.org
- 42.
- 43. Thank you! © 2021,Amazon Web Services, Inc. or its affiliates. All rights reserved. Alex Coqueiro Solutions Architecture Team AWS Public Sector - Canada, Latin America and Caribbean @alexbcbr
