Reducing latency on the web with the Azure CDN- TechDays NL 2014
- 2. Laat ons wetenwat u vindt van deze sessie! Vul de evaluatie in via www.techdaysapp.nl en maak kans op een van de 20 prijzen*. Prijswinnaars worden bekend gemaakt via Twitter (#TechDaysNL). Gebruik hiervoor de code op uw badge. Let us know how you feel about this session! Give your feedback via www.techdaysapp.nl and possibly win one of the 20 prizes*. Winners will be announced via Twitter (#TechDaysNL). Use your personal code on your badge. * Over de uitslag kan niet worden gecorrespondeerd, prijzen zijn voorbeelden – All results are final, prizes are examples
- 3. Reducing latency on theweb with the Azure CDN Maarten Balliauw @maartenballiauw

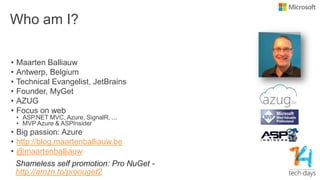

- 4. Who am I? •Maarten Balliauw • Antwerp, Belgium • Technical Evangelist, JetBrains • Founder, MyGet • AZUG • Focus on web • ASP.NET MVC, Azure, SignalR, ... • MVP Azure & ASPInsider • Big passion: Azure • http://blog.maartenballiauw.be • @maartenballiauw Shameless self promotion: Pro NuGet - http://amzn.to/pronuget2

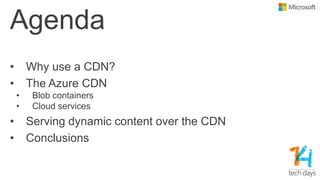

- 5. Agenda • Why usea CDN? • The Azure CDN • Blob containers • Cloud services • Serving dynamic content over the CDN • Conclusions
- 6.

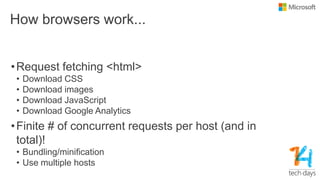

- 7. How browsers work... •Requestfetching <html> • Download CSS • Download images • Download JavaScript • Download Google Analytics •Finite # of concurrent requests per host (and in total)! • Bundling/minification • Use multiple hosts
- 8. How browsers work... http://www.browserscope.org/?category=network Browser# connections / host Max # connections Chrome 32 6 10 Firefox 26 6 17 IE 9 6 35 IE 10 8 16 IE 11 13 17 Safari 7 6 17 Android 4 6 17 IEMobile 9 6 60

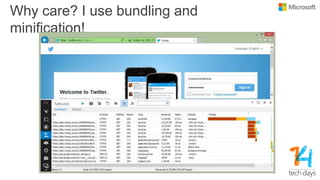

- 9. Why care? Iuse bundling and minification!

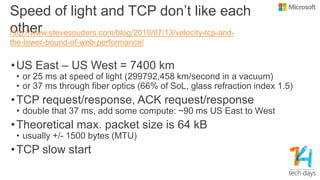

- 10. Speed of lightand TCP don’t like each other •US East – US West = 7400 km • or 25 ms at speed of light (299792,458 km/second in a vacuum) • or 37 ms through fiber optics (66% of SoL, glass refraction index 1.5) •TCP request/response, ACK request/response • double that 37 ms, add some compute: ~90 ms US East to West •Theoretical max. packet size is 64 kB • usually +/- 1500 bytes (MTU) •TCP slow start http://www.stevesouders.com/blog/2010/07/13/velocity-tcp-and- the-lower-bound-of-web-performance/

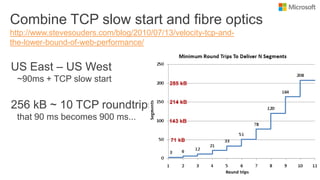

- 11. Combine TCP slowstart and fibre optics US East – US West ~90ms + TCP slow start 256 kB ~ 10 TCP roundtrips that 90 ms becomes 900 ms... http://www.stevesouders.com/blog/2010/07/13/velocity-tcp-and- the-lower-bound-of-web-performance/

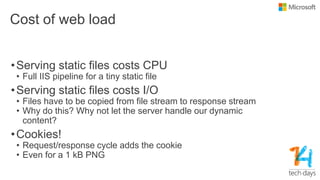

- 12. Cost of webload •Serving static files costs CPU • Full IIS pipeline for a tiny static file •Serving static files costs I/O • Files have to be copied from file stream to response stream • Why do this? Why not let the server handle our dynamic content? •Cookies! • Request/response cycle adds the cookie • Even for a 1 kB PNG

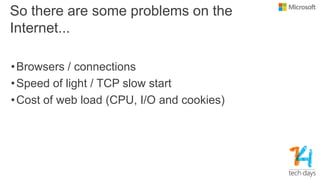

- 13. So there aresome problems on the Internet... •Browsers / connections •Speed of light / TCP slow start •Cost of web load (CPU, I/O and cookies)
- 14. “The Internet sucksand so does your server.” - Andy Cross - @andybareweb

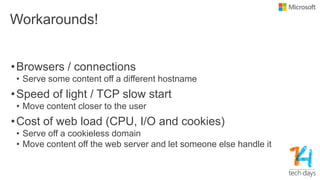

- 15. Workarounds! •Browsers / connections •Serve some content off a different hostname •Speed of light / TCP slow start • Move content closer to the user •Cost of web load (CPU, I/O and cookies) • Serve off a cookieless domain • Move content off the web server and let someone else handle it
- 16.
- 17. The Azure CDN •Servecontent from storage / cloud service •Separate hostname (custom domain possible) •Many locations around the globe •DNS anycast to get content close to user

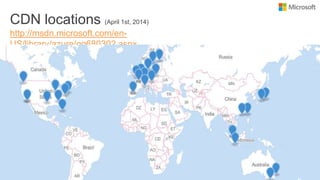

- 18. CDN locations (April1st, 2014) http://msdn.microsoft.com/en- US/library/azure/gg680302.aspx
- 19. How it works:no CDN

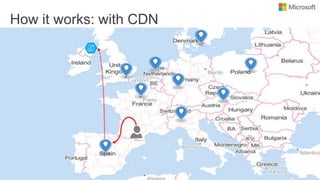

- 20. How it works:with CDN

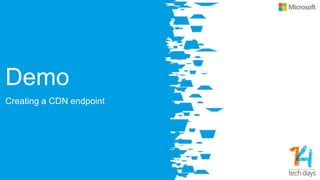

- 21. Demo Creating a CDNendpoint

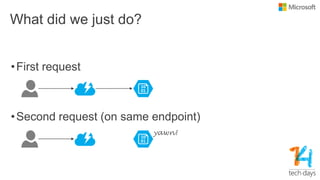

- 22. What did wejust do? •First request •Second request (on same endpoint) yawn!

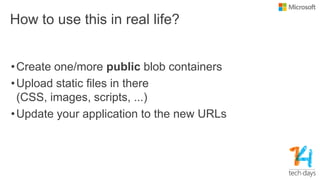

- 23. How to usethis in real life? •Create one/more public blob containers •Upload static files in there (CSS, images, scripts, ...) •Update your application to the new URLs
- 24. Demo An application witha CDN endpoint

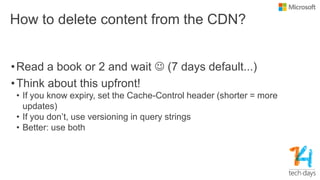

- 25. How to deletecontent from the CDN? •Read a book or 2 and wait (7 days default...) •Think about this upfront! • If you know expiry, set the Cache-Control header (shorter = more updates) • If you don’t, use versioning in query strings • Better: use both

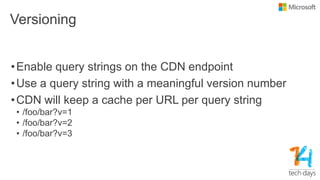

- 26. Versioning •Enable query stringson the CDN endpoint •Use a query string with a meaningful version number •CDN will keep a cache per URL per query string • /foo/bar?v=1 • /foo/bar?v=2 • /foo/bar?v=3

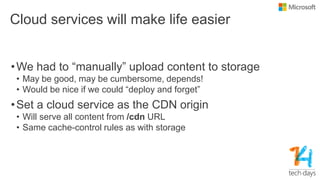

- 27. Cloud services willmake life easier •We had to “manually” upload content to storage • May be good, may be cumbersome, depends! • Would be nice if we could “deploy and forget” •Set a cloud service as the CDN origin • Will serve all content from /cdn URL • Same cache-control rules as with storage
- 28. Demo Using Cloud Servicesas the CDN origin
- 29. Best-practices for contenton the CDN •Set headers! • Cache-Control • Content-Type • Content-Encoding •Version content! •HTTP compression on origin = HTTP compression on CDN
- 30.
- 31. Defining “dynamic content” •Contentthat is generated • Parameters from query string, ASP.NET routing, ... • And/or based on data •Content that refreshes, but not too often • Anything > a couple of minutes •Examples • Charts, images, generated documents, json, API’s, ...
- 32.
- 33.

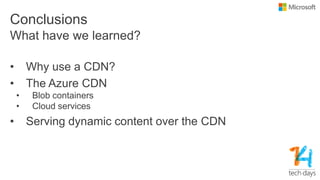

- 34. Conclusions • Why usea CDN? • The Azure CDN • Blob containers • Cloud services • Serving dynamic content over the CDN What have we learned?
- 35.
- 36. Laat ons wetenwat u vindt van deze sessie! Vul de evaluatie in via www.techdaysapp.nl en maak kans op een van de 20 prijzen*. Prijswinnaars worden bekend gemaakt via Twitter (#TechDaysNL). Gebruik hiervoor de code op uw badge. Let us know how you feel about this session! Give your feedback via www.techdaysapp.nl and possibly win one of the 20 prizes*. Winners will be announced via Twitter (#TechDaysNL). Use your personal code on your badge. * Over de uitslag kan niet worden gecorrespondeerd, prijzen zijn voorbeelden – All results are final, prizes are examples
Editor's Notes
- #6 Maarten
- #11 Twitter does too... Still there are 9 requests on this page going to the same host, causing delays in rendering the page.
- #12 TCP slow start: start with 1 concurrent connection, then upgrade to multiple when ACK is received
- #13 So for 256 kB
- #23 Go to the portalCreate a new CDN endpointExplain it can be based on a storage accountExplain it can be based on a cloud serviceExplain options briefly, we’ll cover most of them in more detailExplain linking a custom domain is possibleExplain SSL is possible, unfortunately with a MS provided cert which is useles for custom domainProvisioning takes +/- an hour for settings to propagate to all CDN locations, be patient!Do a tracert to e.g. az591544.vo.msecnd.net and show that it resolves to a nearby location and does not go overseasNow make a request to the CDN https://az591544.vo.msecnd.net/demo/helloworld.gif Explain it is coming from https://azurecdndemo.blob.core.windows.net/demo/helloworld.gif Mention it has to come from a public container
- #26 Open Demo1StaticOpen the _Layout.cshtml and change all scripts/css at the top to the CDN urlsLaunch the application and note it does not work because our content is not on the CDN yetGo to /Home/Synchronize and explain what it does in the background, show the codeExplain what we are doing (uploading, setting content type, ...)Mention by default blobs are cached for 7 days! 7 days!Illustrate this by updating bootstrap.min.js and adding an alert in there, resync and refresh: NOTHING HAPPENSThere are some solutions to this:Set the cache-control header on the blob, see /Home/Synchronize source code for an example. Note you would have toknow what the expiry will be...Work with query string parameters, for example version. Update our _Layout.cshtml to use a version / timestamp / whatever query stringThe CDN will now create a cache per file/querystring
- #30 Open Demo2StaticOpen the _Layout.cshtml and note the application is using bundlingLet’s configure bundling to use the CDN when not debuggingOpen bundle config and mention we can enable CDN, which will use the alternate URL when not in debug mode. This allos nice debug/release workflow.Mention we still want to use the query string versioning! New deployment should yield new contents! // Configure CDN var version = System.Reflection.Assembly.GetAssembly(typeof(BundleConfig)).GetName().Version.ToString(); var cdnUrl = "http://az592218.vo.msecnd.net/demo2static/{0}?" + version; bundles.UseCdn = true;Explain the URL we are using as the alternative URL and why there is no /cdn in thereDEPLOY! Run the application and notice it fails because no content could be found. Why???We’re not rewriting content to the /cdn folder! Good thing is we can solve that with some Web.config rewrite rulesAdd <rewite> block and explain what it doesDeploy, now it works, yay!Go through some other web.config options:setting cache-control and expires headers!http compression!
- #34 Open Demo2StaticShow the application: /MemeGenerator with some quotes (when i peel onions, onions cry – counted to infinity, twice – can divide, by zero – refactors, with his fists)Open the MemeGeneratorController and go through codeExplain this one is not too heavy, but still measuring strings, doing computation, ...Imagine world cup score table, a bit more dynamic (where we hope Belgium score increases pretty much all the time) and high load, why not serve that up through the CDN. Yes, delay on data freshness, but fast and not too much work for the server.http://az592218.vo.msecnd.net/demo2static/MemeGenerator/Show?top=When%20I%20peel%20onions&bottom=Onions%20cry
