This document discusses techniques for optimizing web performance on mobile. It begins by noting common metrics for performance goals like first meaningful paint and interactive. It then discusses challenges of mobile like slower cellular networks and how users leave pages that take over 3 seconds to load. The rest of the document provides tips in several areas: optimizing the first load, improving data transfer, better resource loading, optimizing images, and enhancing the user experience. Specific techniques mentioned include avoiding extra roundtrips, using modern cache controls, preloading resources, lazy loading images, leveraging new APIs, and getting reports from the browser. The overall message is that web performance should be a top priority.

1. Picture from Simon Howden freedigitalphotos.net!
hacking web
performance
maximiliano firtman
@firt
firt.mobi

2. Picture from Simon Howden freedigitalphotos.net!
hacking web
performance
maximiliano firtman
@firt
firt.mobi
9

3. Picture from Simon Howden freedigitalphotos.net!
hacking web
performance
m9o firtman
@firt
firt.mobi

4. Picture from Simon Howden freedigitalphotos.net!
hacking web
performance
max firtman
@firt
firt.mobi

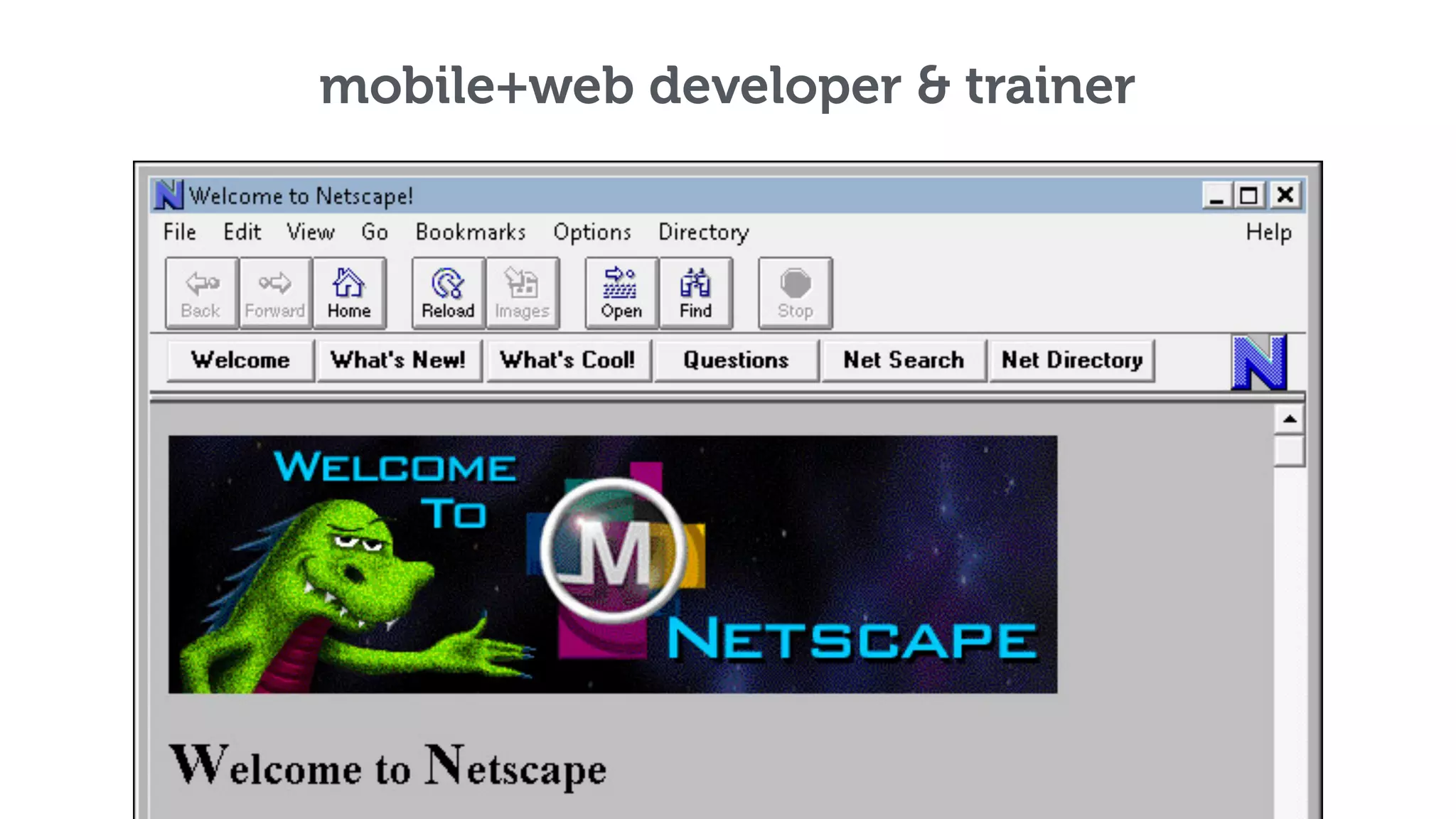

5. mobile+web developer & trainer

7. trainer

8. SOON

11. I have 2 goals…

12. Make you feel bad

13. Show you new tricks
😁

14. Let’s Start!

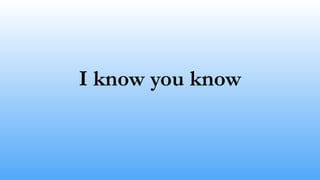

15. I know you know

16. http://www.flickr.com/photos/steenslag/22689920/ - borrowed fromSteve Souders

17. Picture from Simon Howden freedigitalphotos.net

18. 18
Picture from Simon Howden freedigitalphotos.net

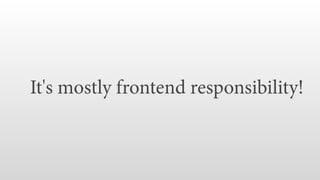

19. It's mostly frontend responsibility!

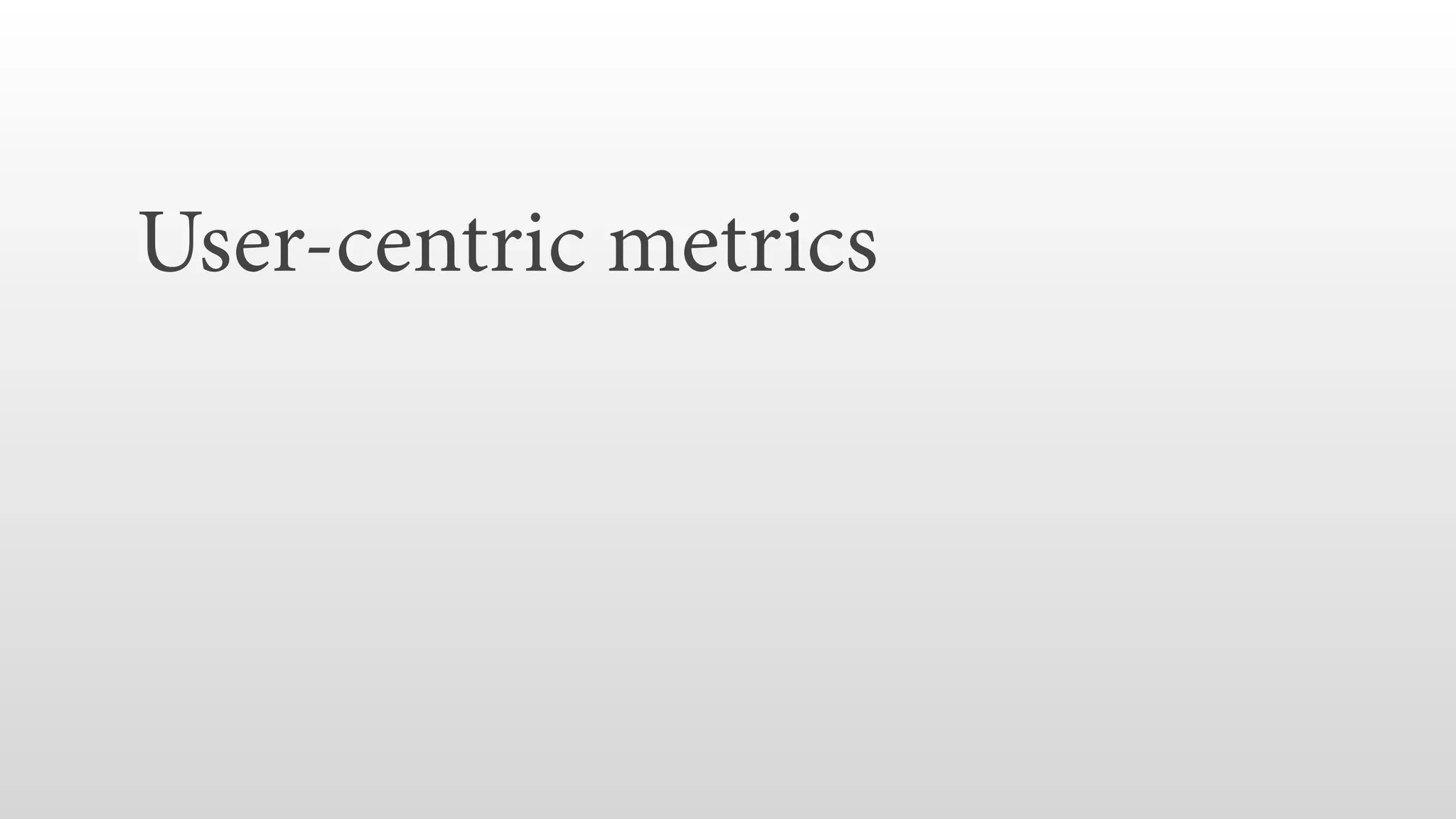

20. User-centric metrics

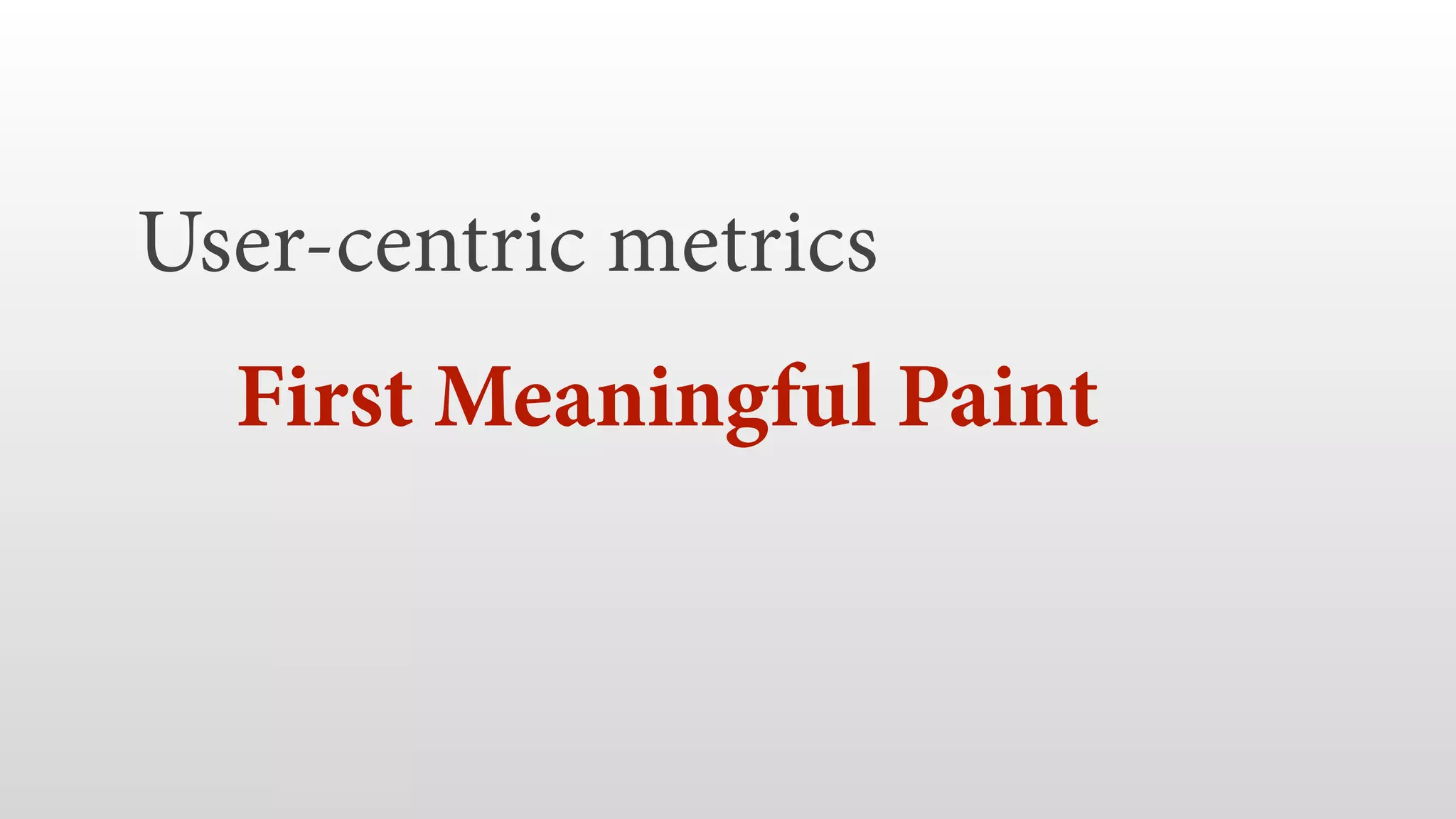

21. User-centric metrics
First Meaningful Paint

22. User-centric metrics
First Interactive

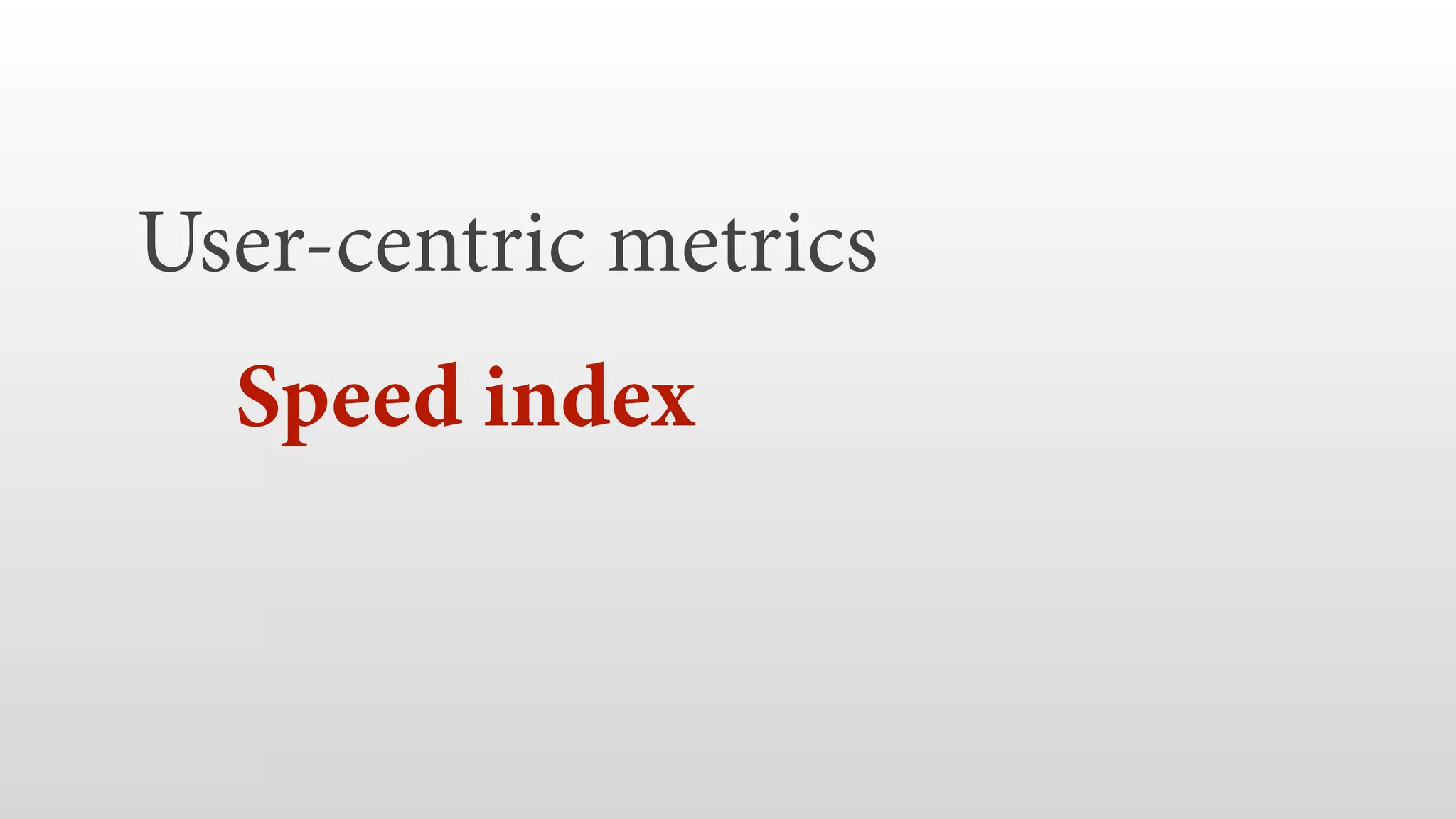

23. User-centric metrics
Speed index

24. Goals
First Meaningful Paint: 1-3s
First Interactive: 2-4s
Speed Index: 2-3s

25. You are already…

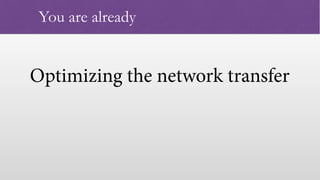

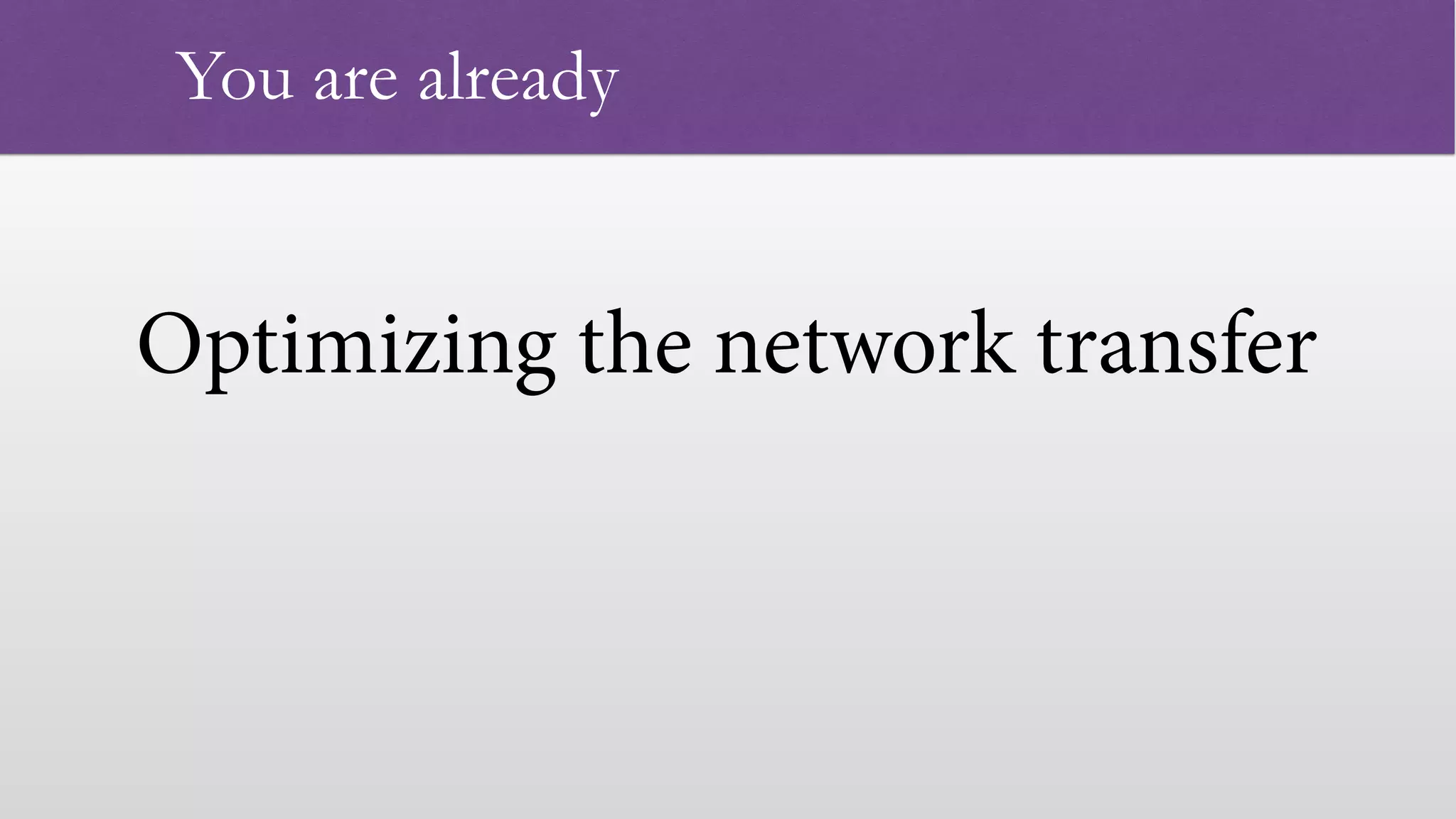

26. Optimizing the network transfer
You are already

27. Working with TLS and HTTP/2
You are already

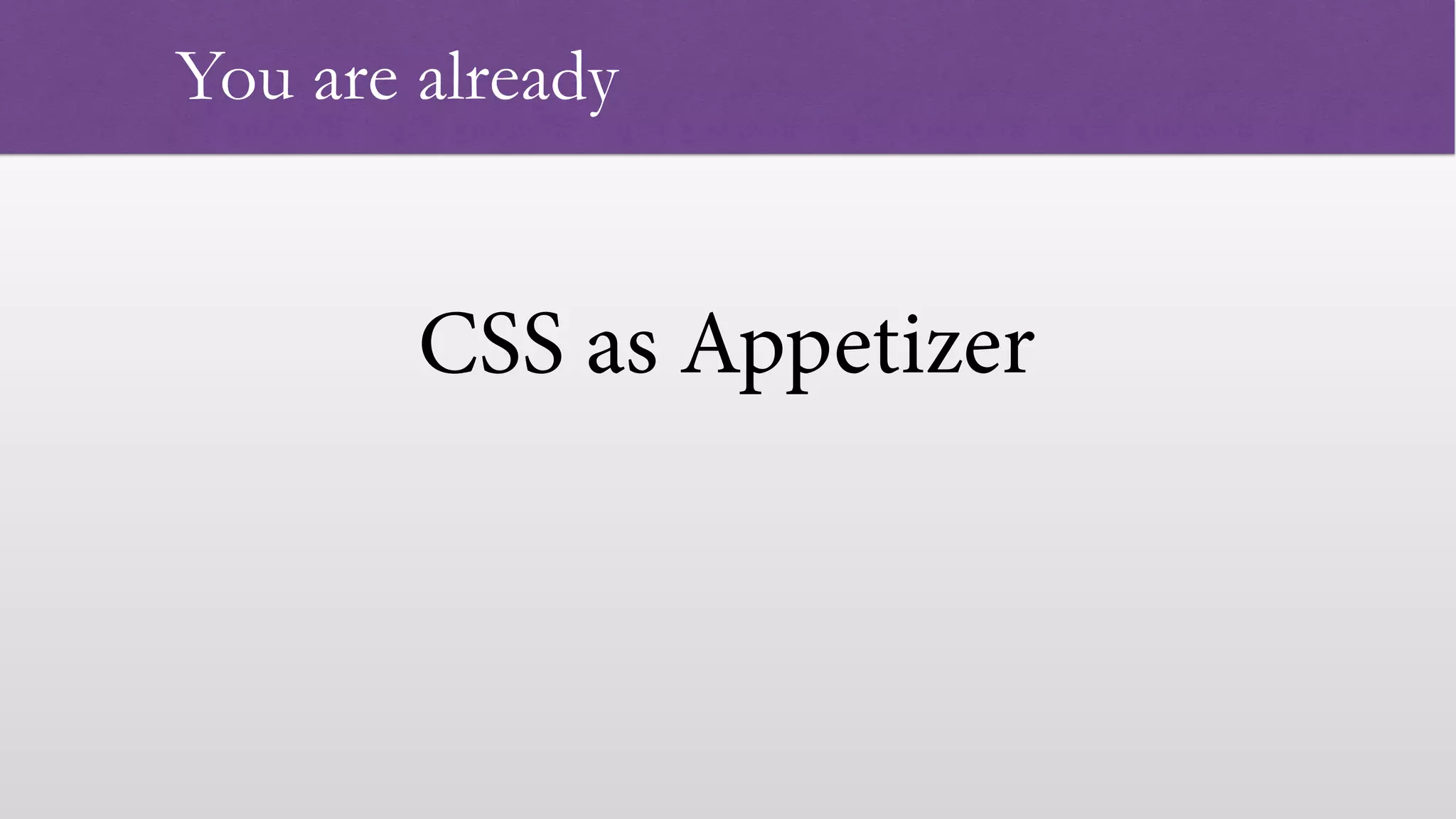

28. CSS as Appetizer
You are already

29. JavaScript as Dessert
You are already

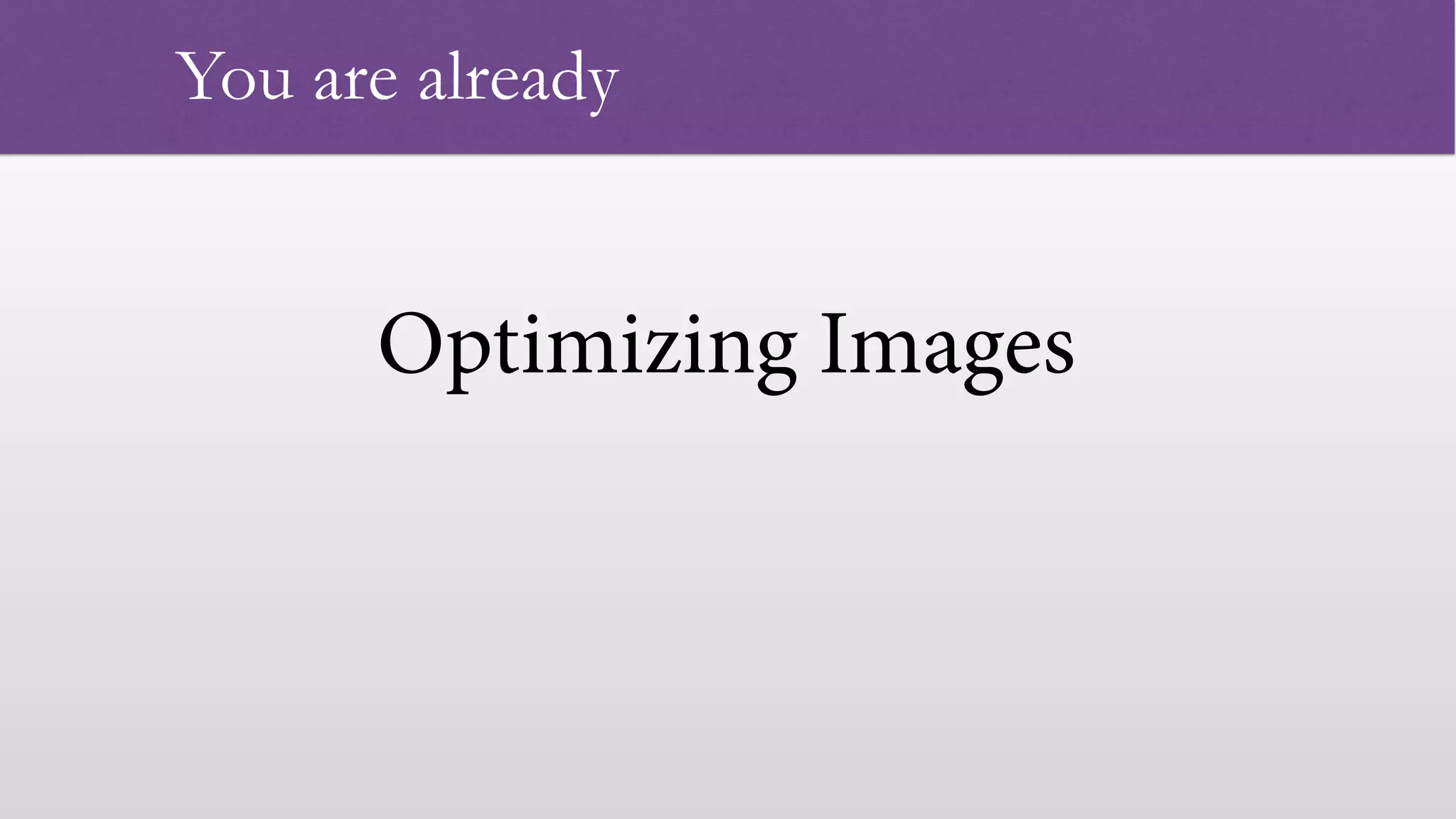

30. Optimizing Images
You are already

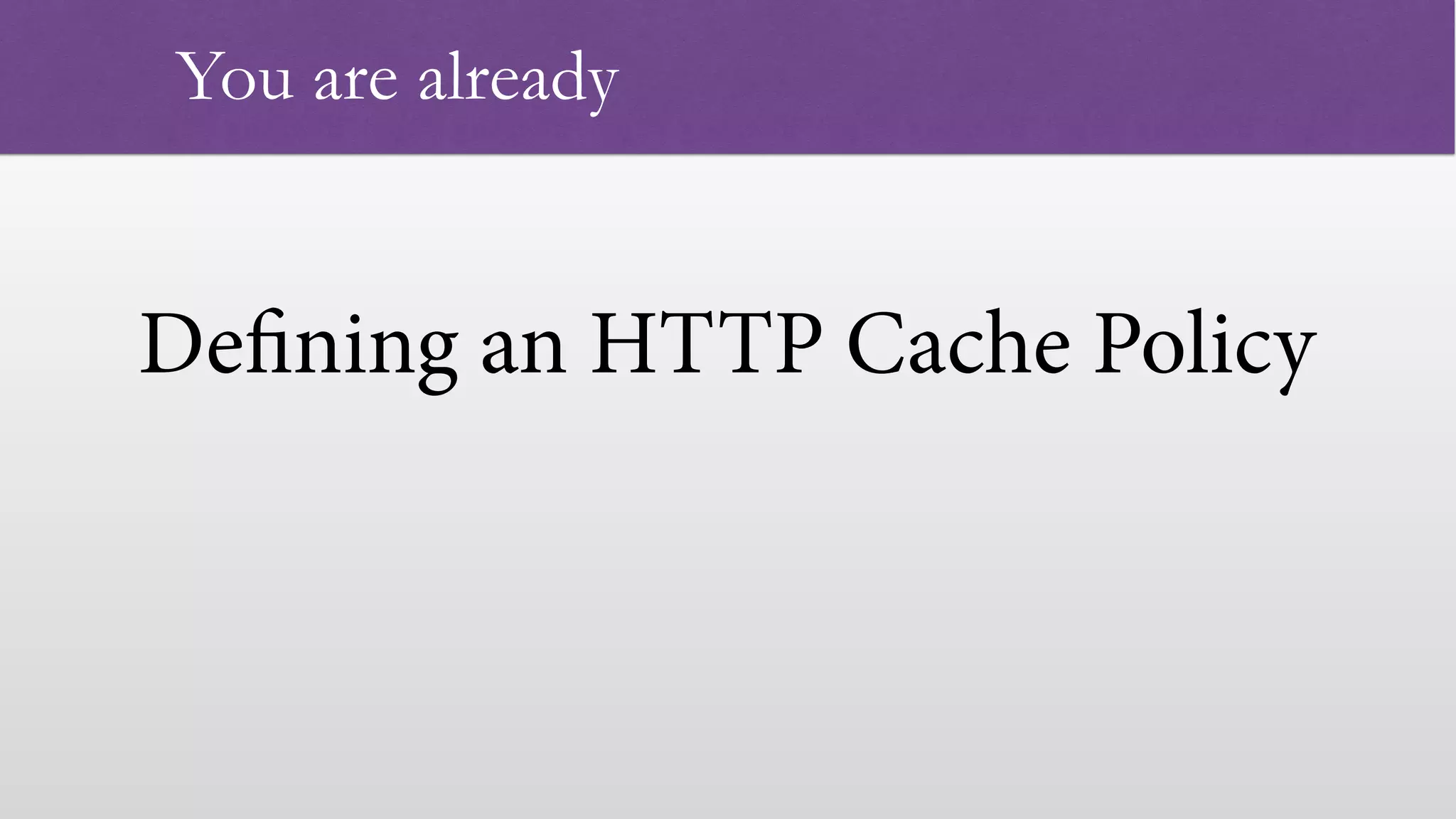

31. Defining an HTTP Cache Policy
You are already

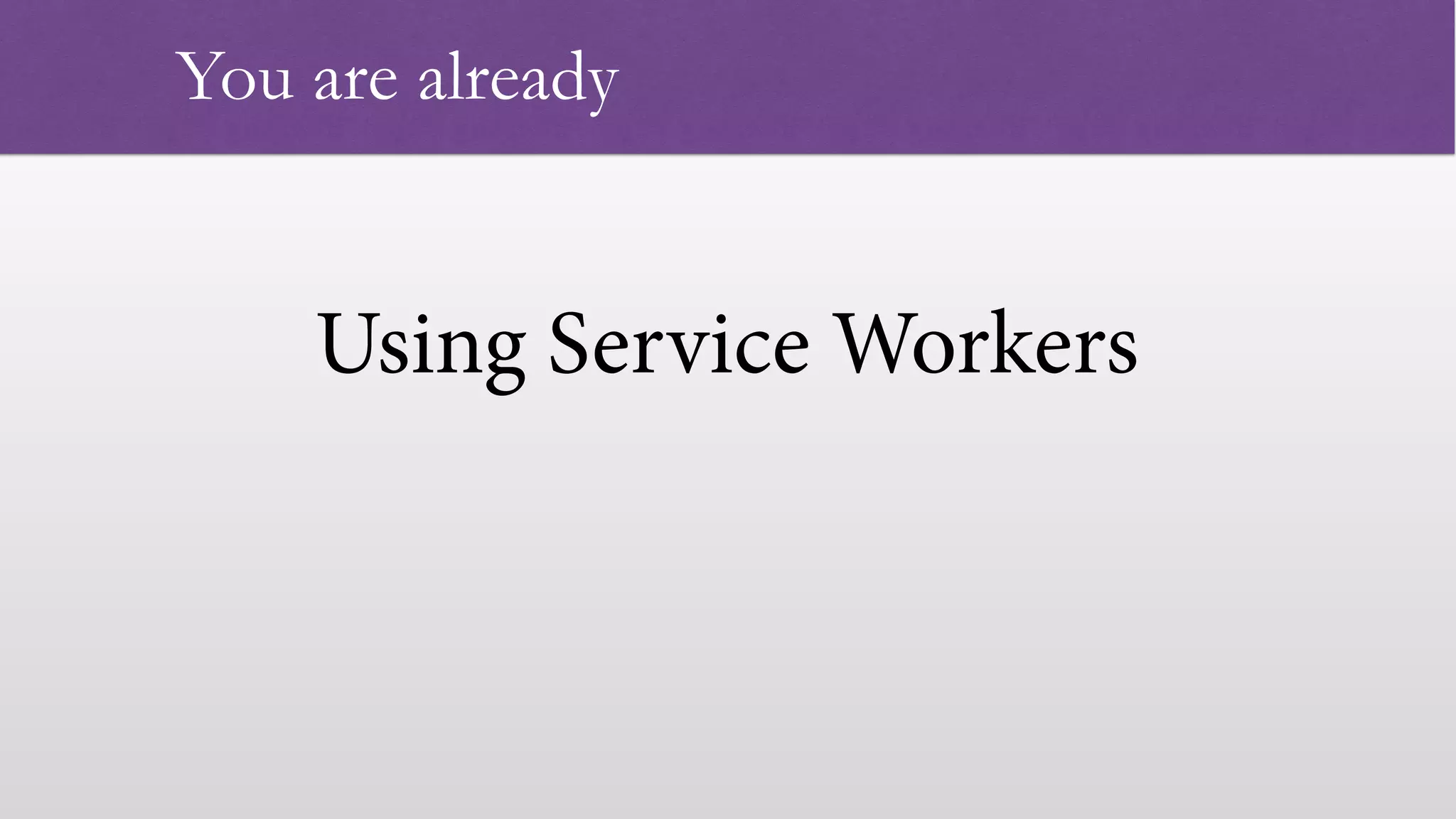

32. Using Service Workers
You are already

33. You are already doing this

34. What’s the problem then?

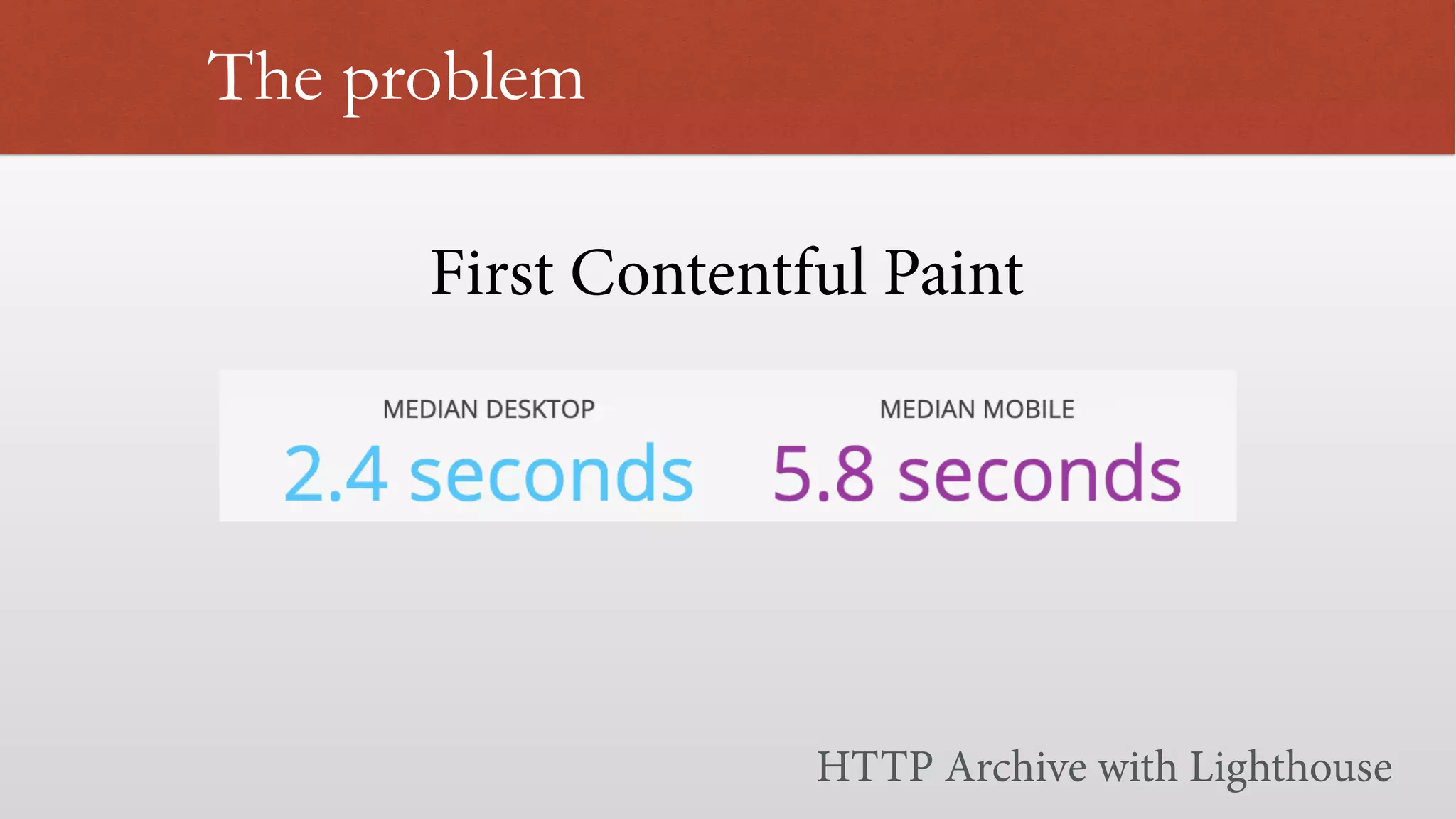

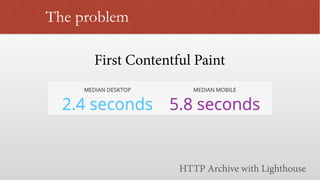

35. First Contentful Paint
The problem
HTTP Archive with Lighthouse

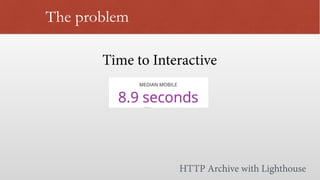

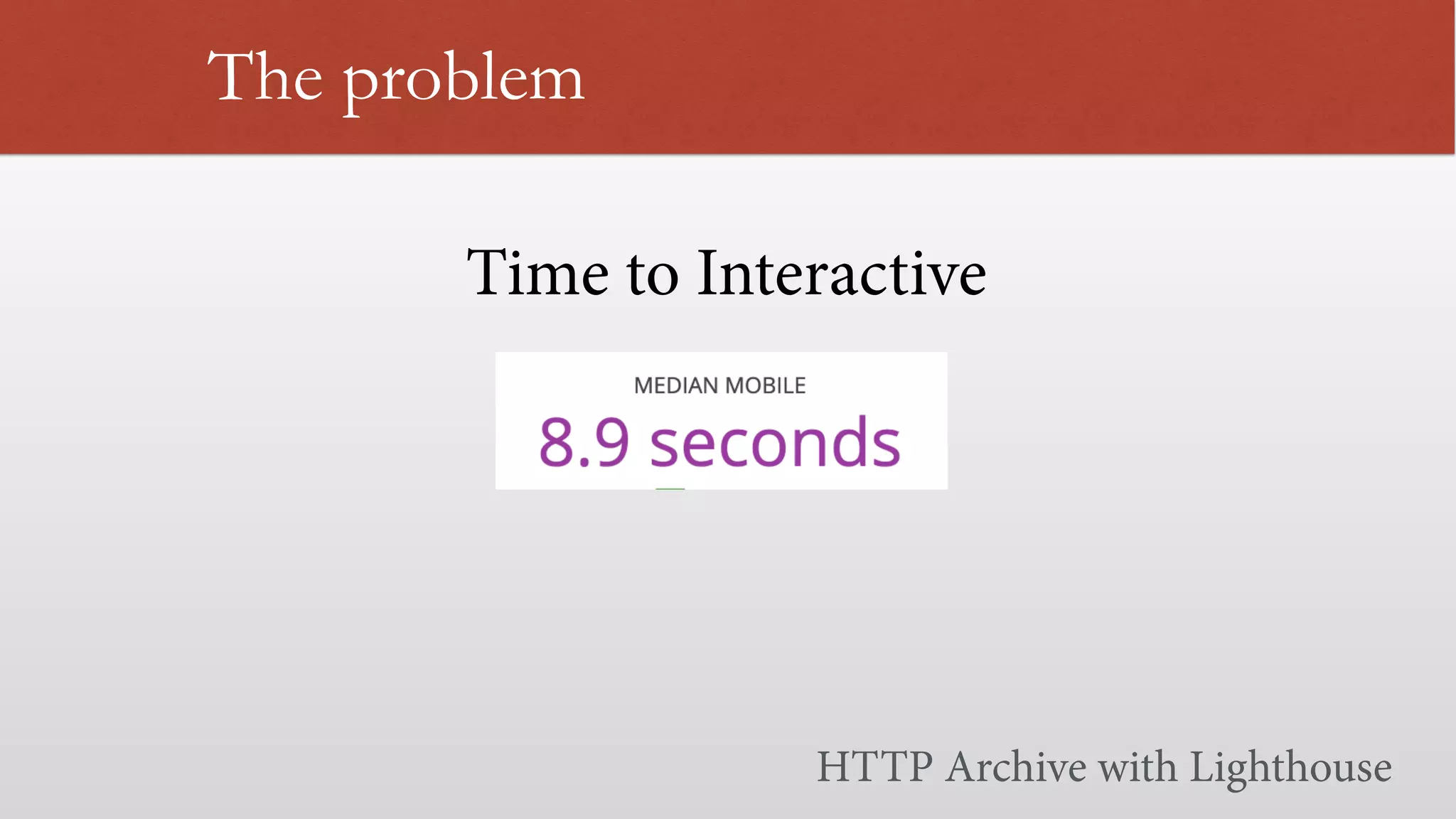

36. Time to Interactive
The problem
HTTP Archive with Lighthouse

37. 2 3 4
5 6 7 8
8.9
1

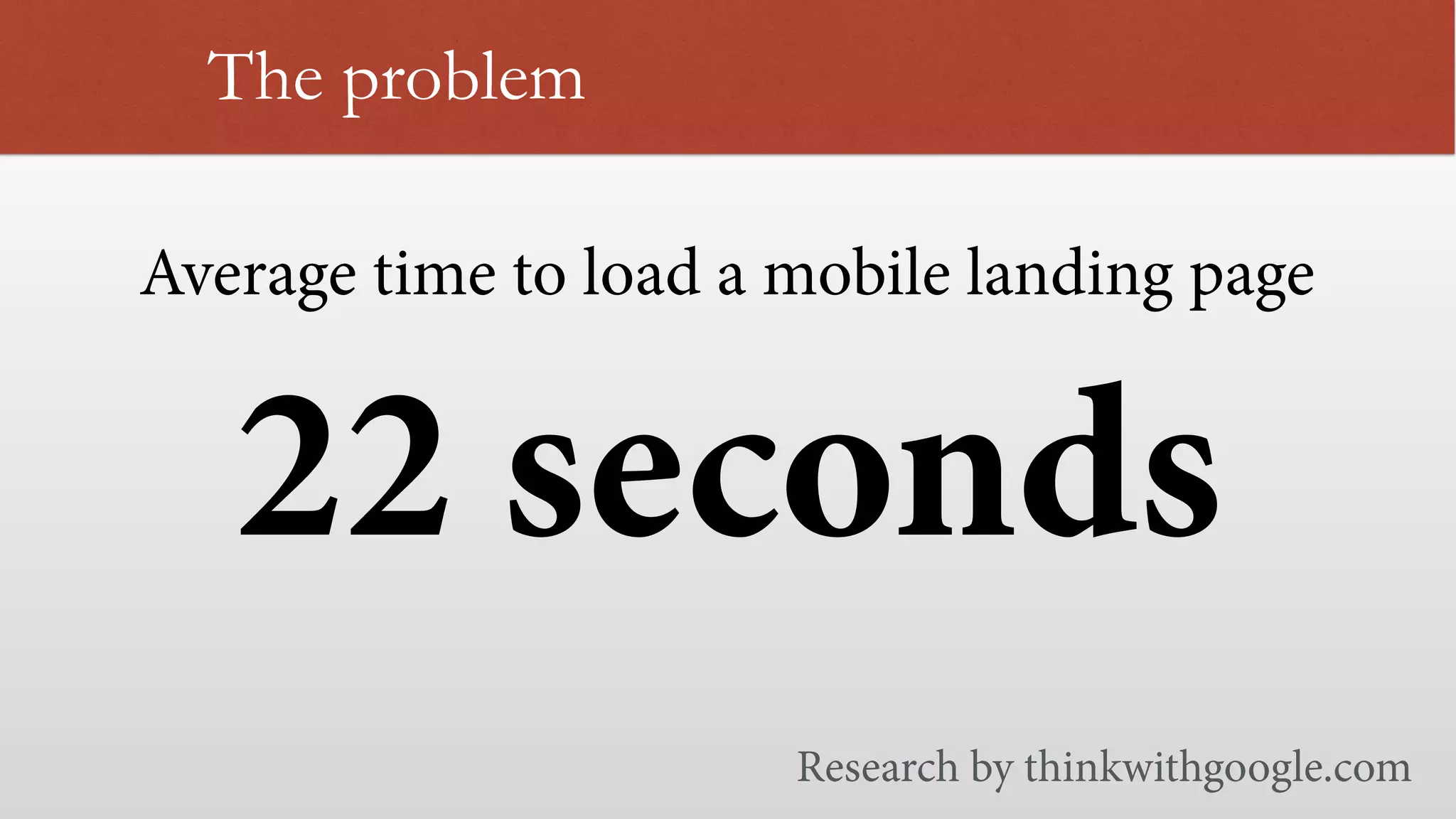

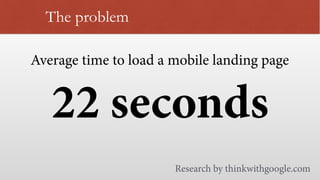

38. Average time to load a mobile landing page
The problem
22 seconds
Research by thinkwithgoogle.com

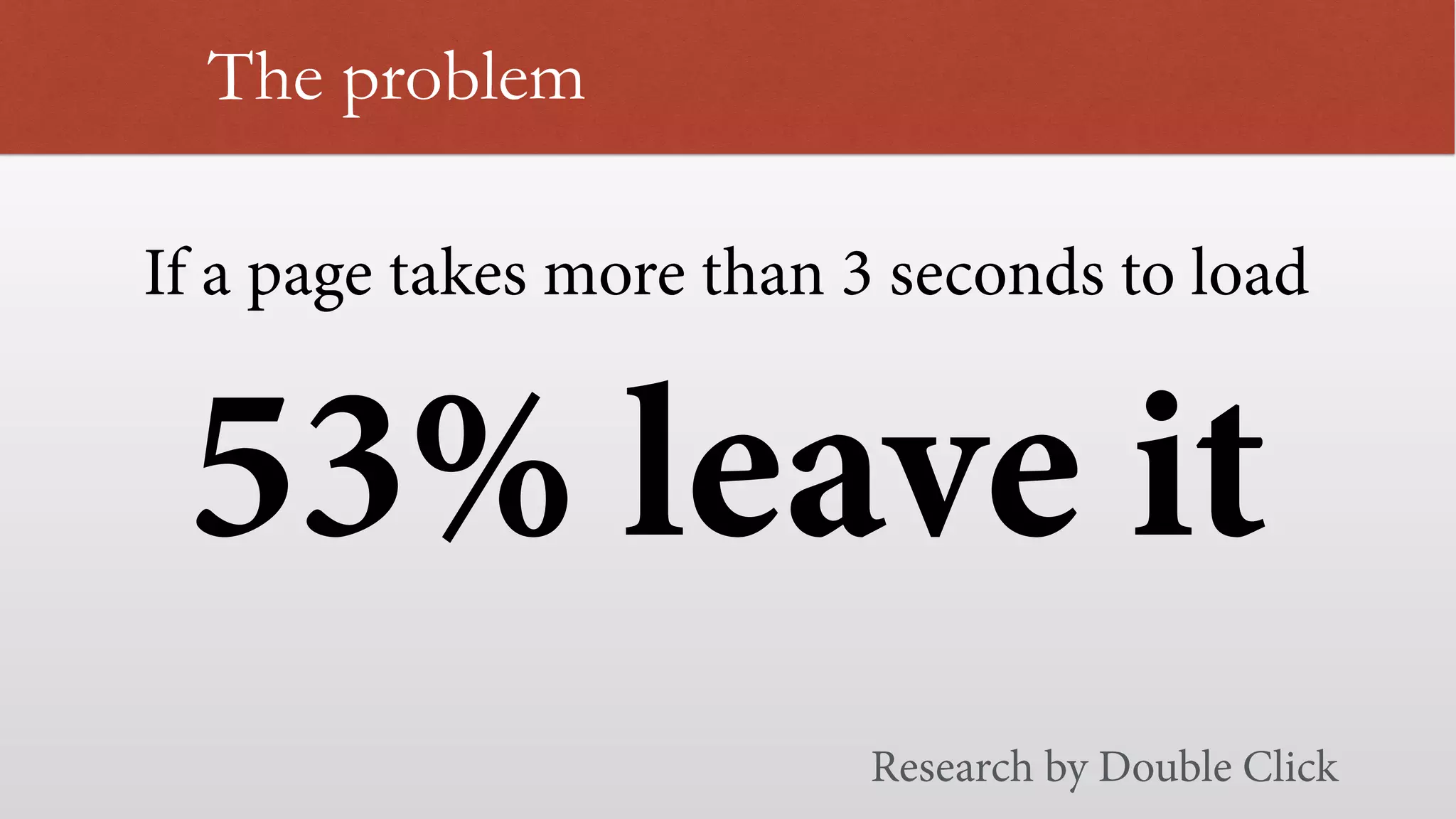

39. If a page takes more than 3 seconds to load
The problem
53% leave it
Research by Double Click

40. The problem
We always
underestimate
mobile

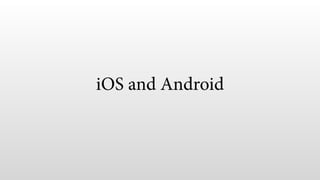

41. iOS and Android

42. Safari and Chrome?

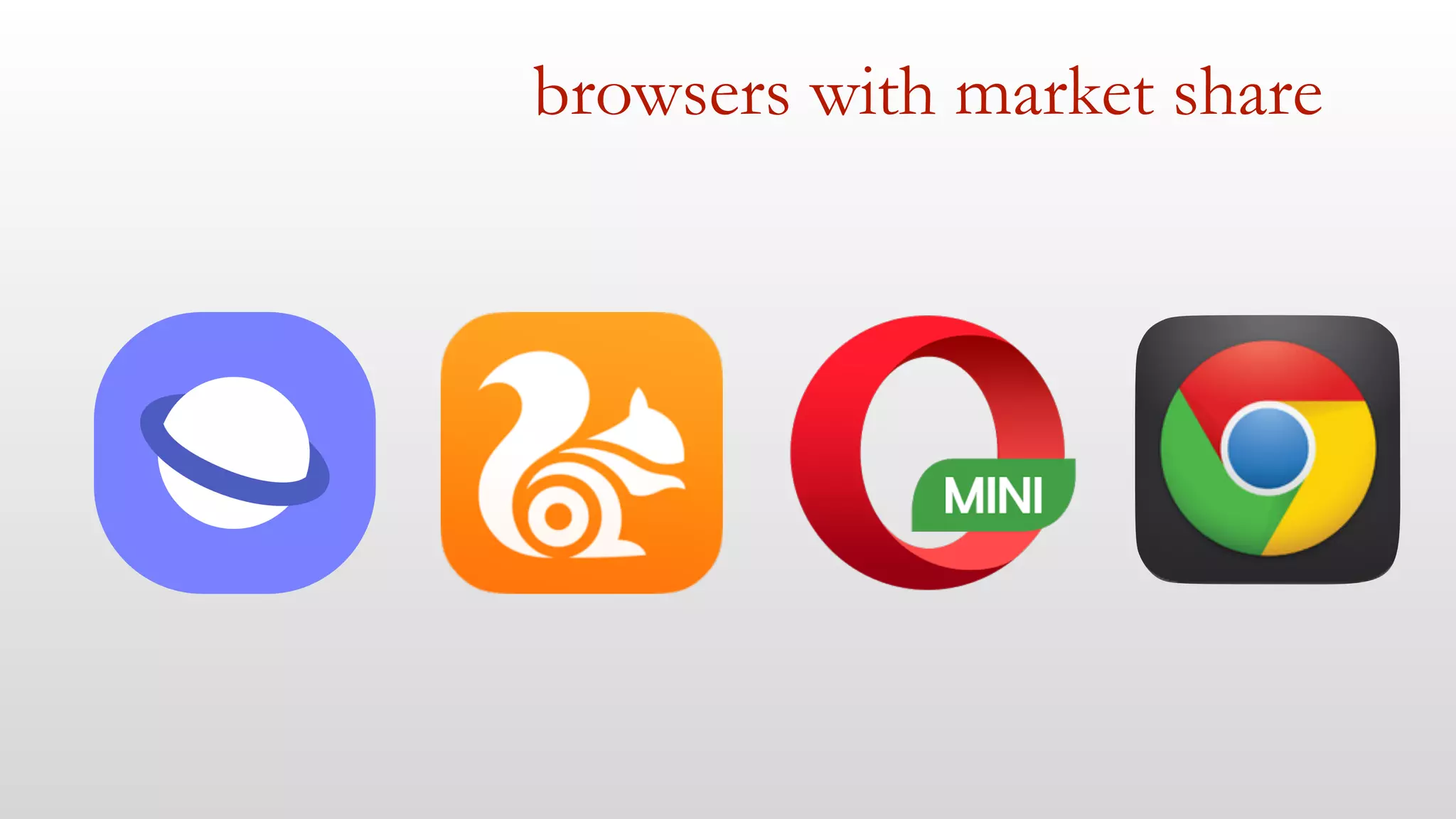

43. browsers with market share

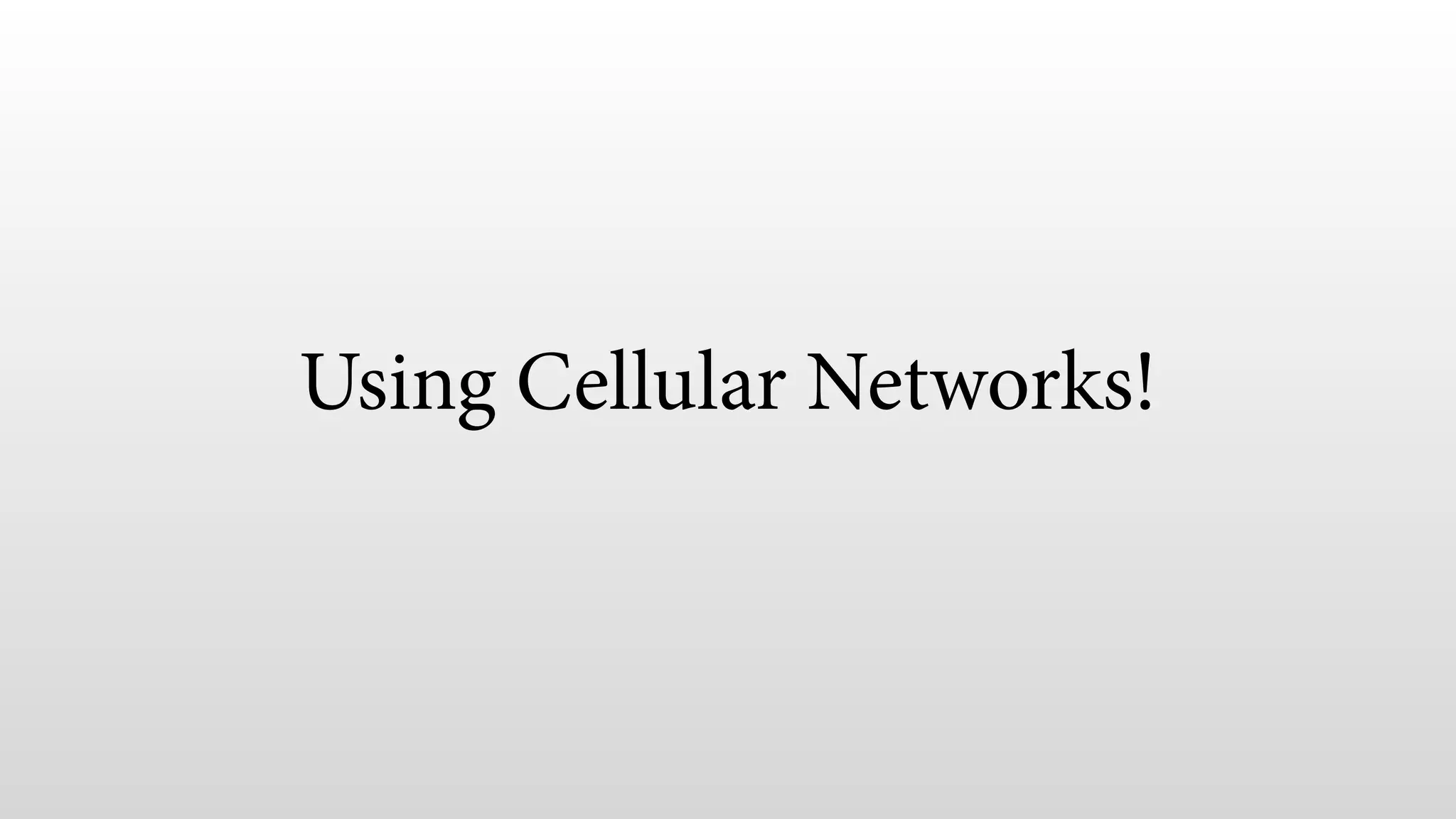

46. Using Cellular Networks!

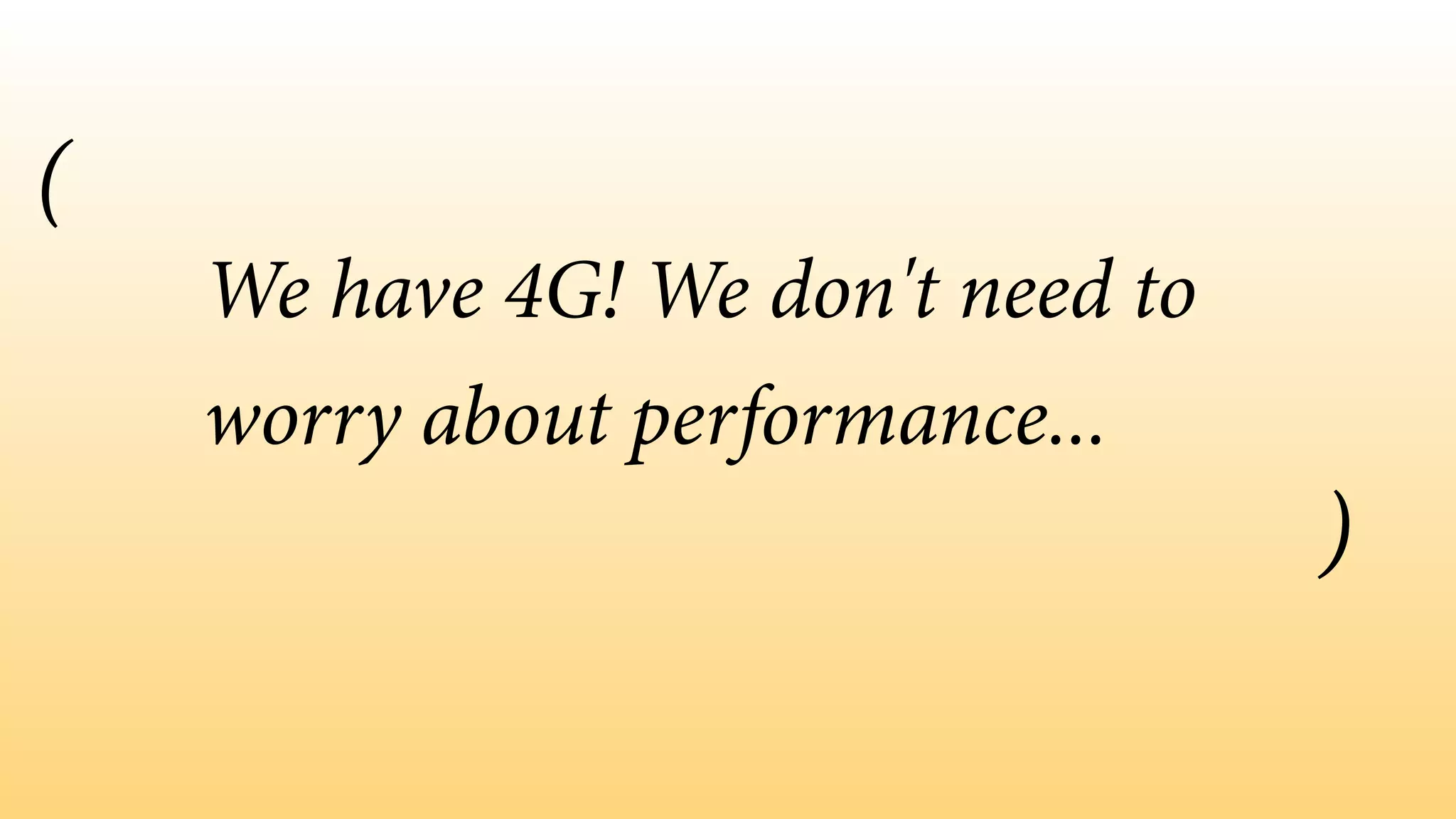

47. We have 4G! We don't need to
worry about performance...
(
)

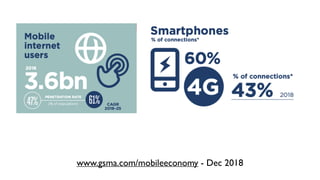

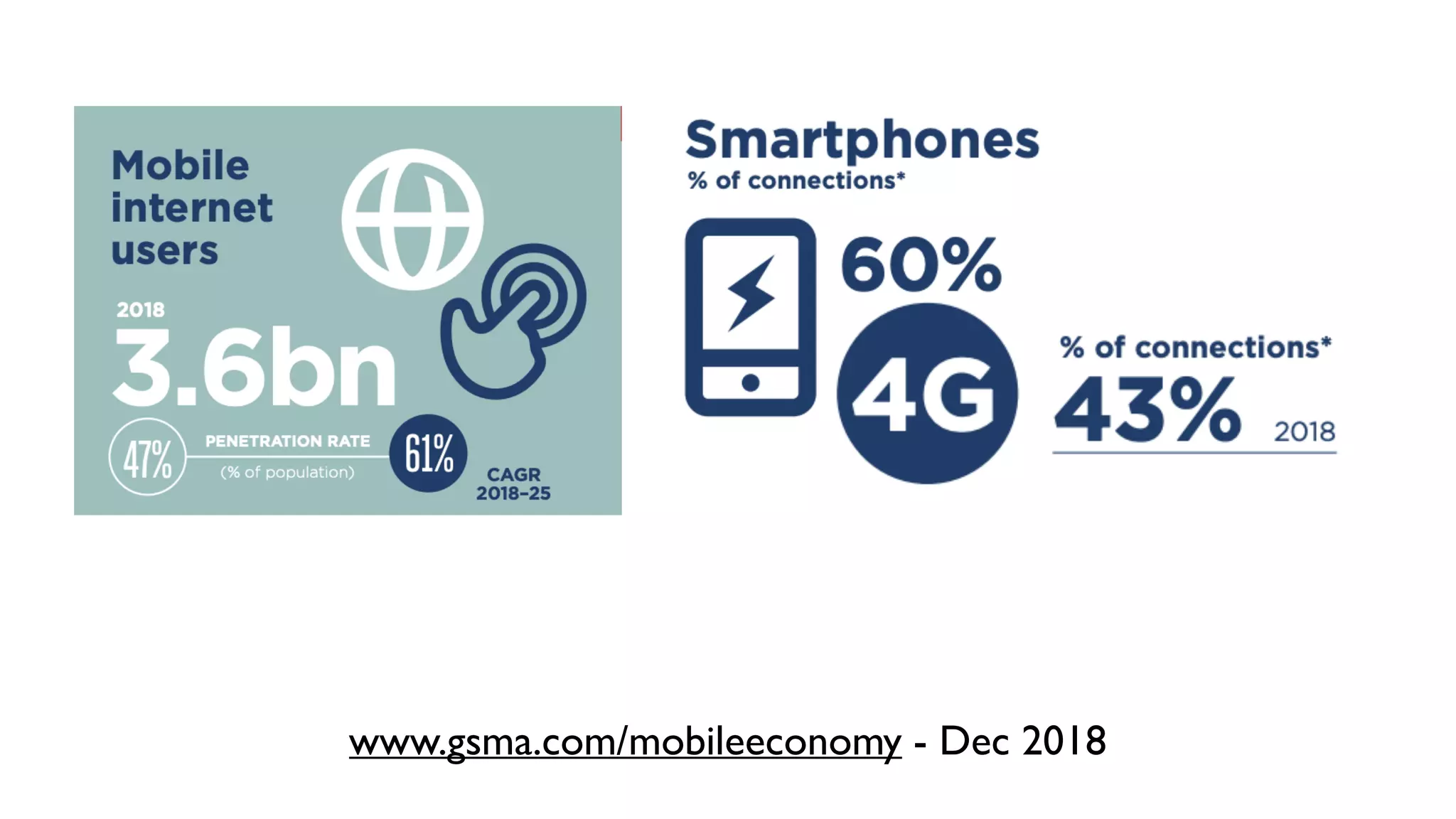

48. www.gsma.com/mobileeconomy - Dec 2018

49. www.gsma.com/mobileeconomy - Dec 2018
~10% of the time 4G is not used

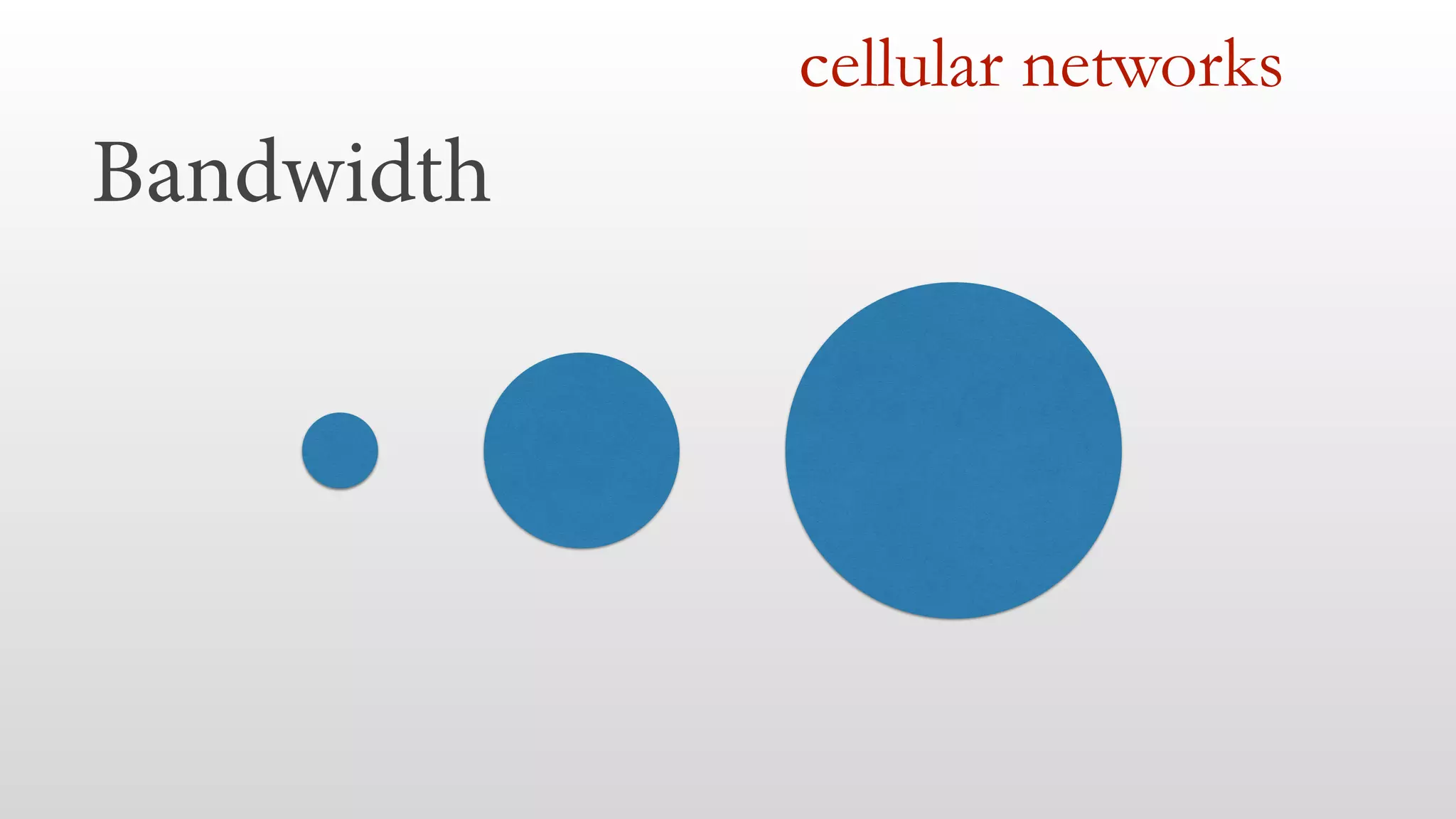

50. Bandwidth
cellular networks

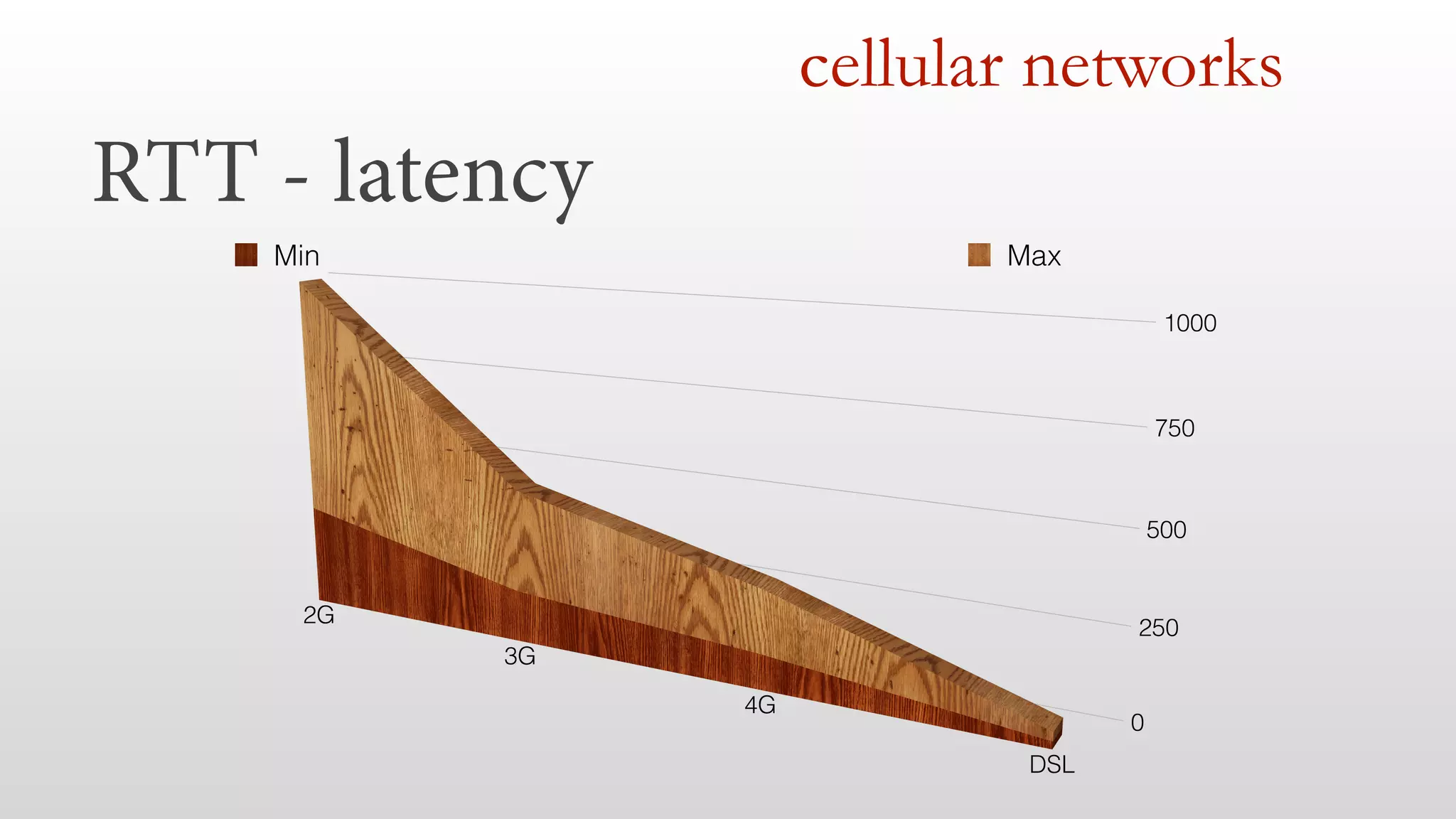

51. RTT - latency
cellular networks
Min Max

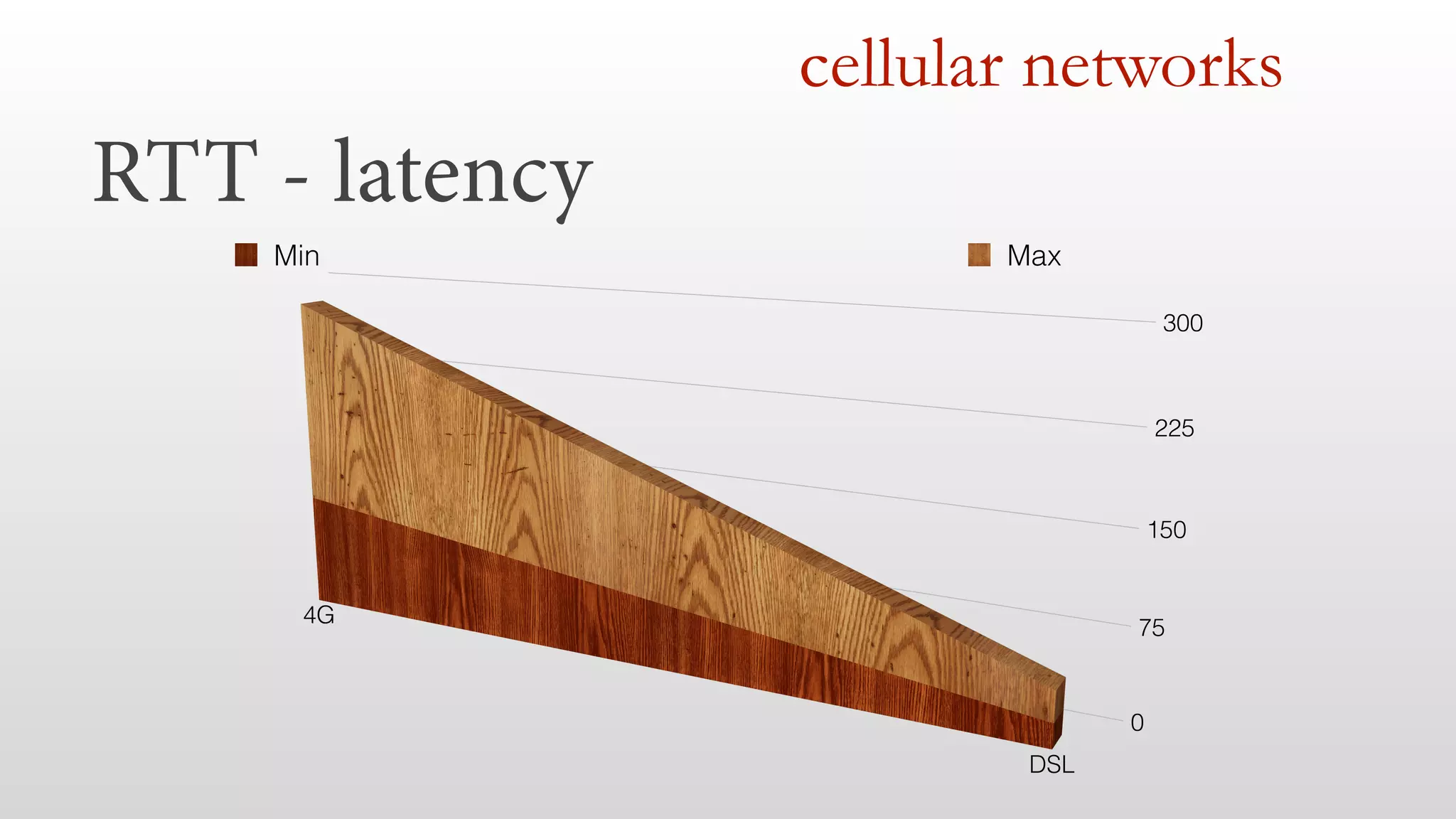

52. RTT - latency
cellular networks
Min Max

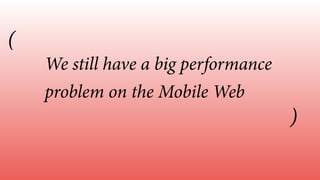

53. We still have a big performance
problem on the Mobile Web
(
)

54. Chrome Lite Pages 🆕

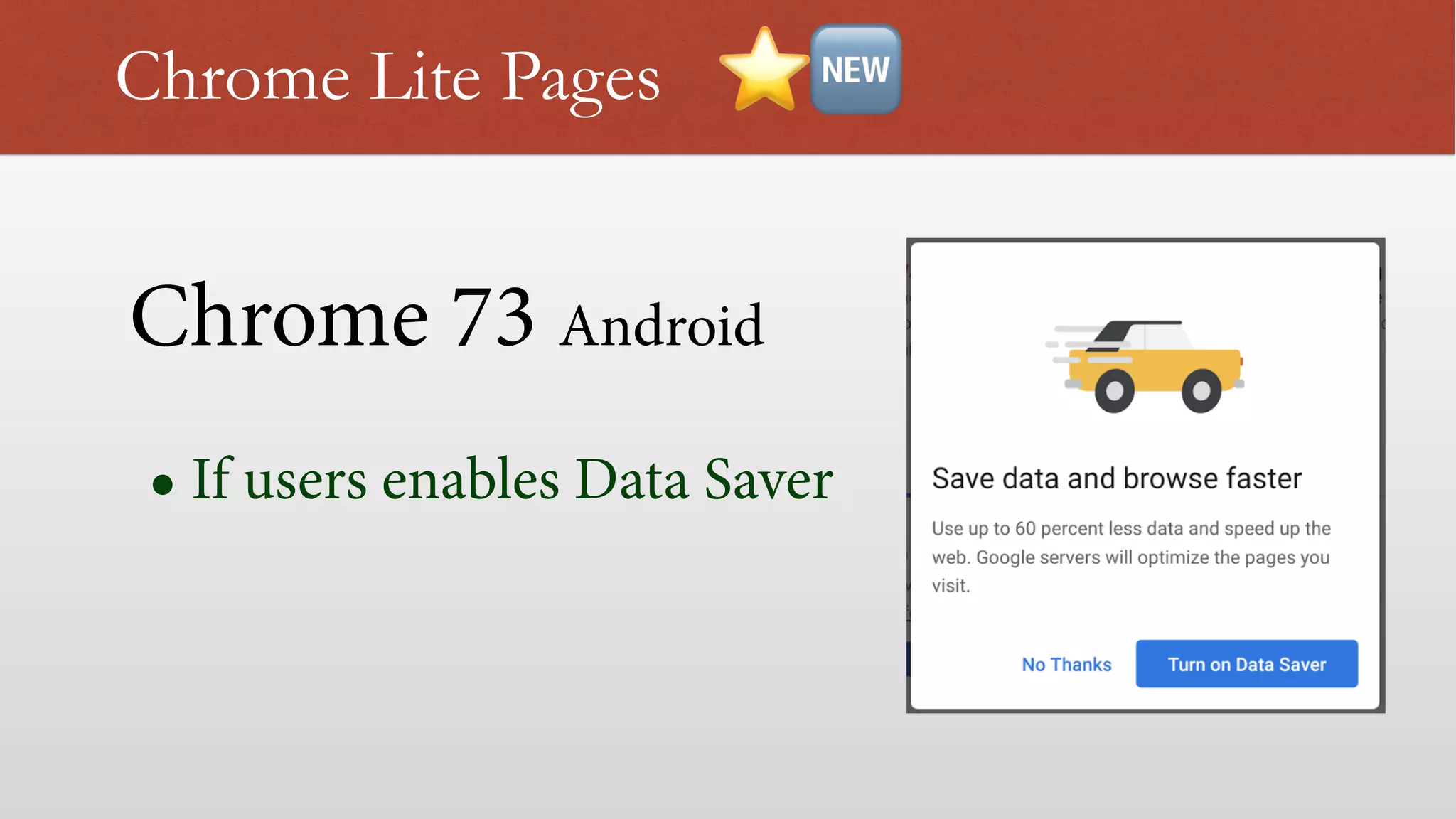

55. Chrome 73 Android
Chrome Lite Pages
• If users enables Data Saver
⭐🆕

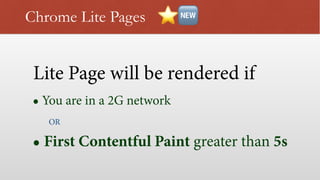

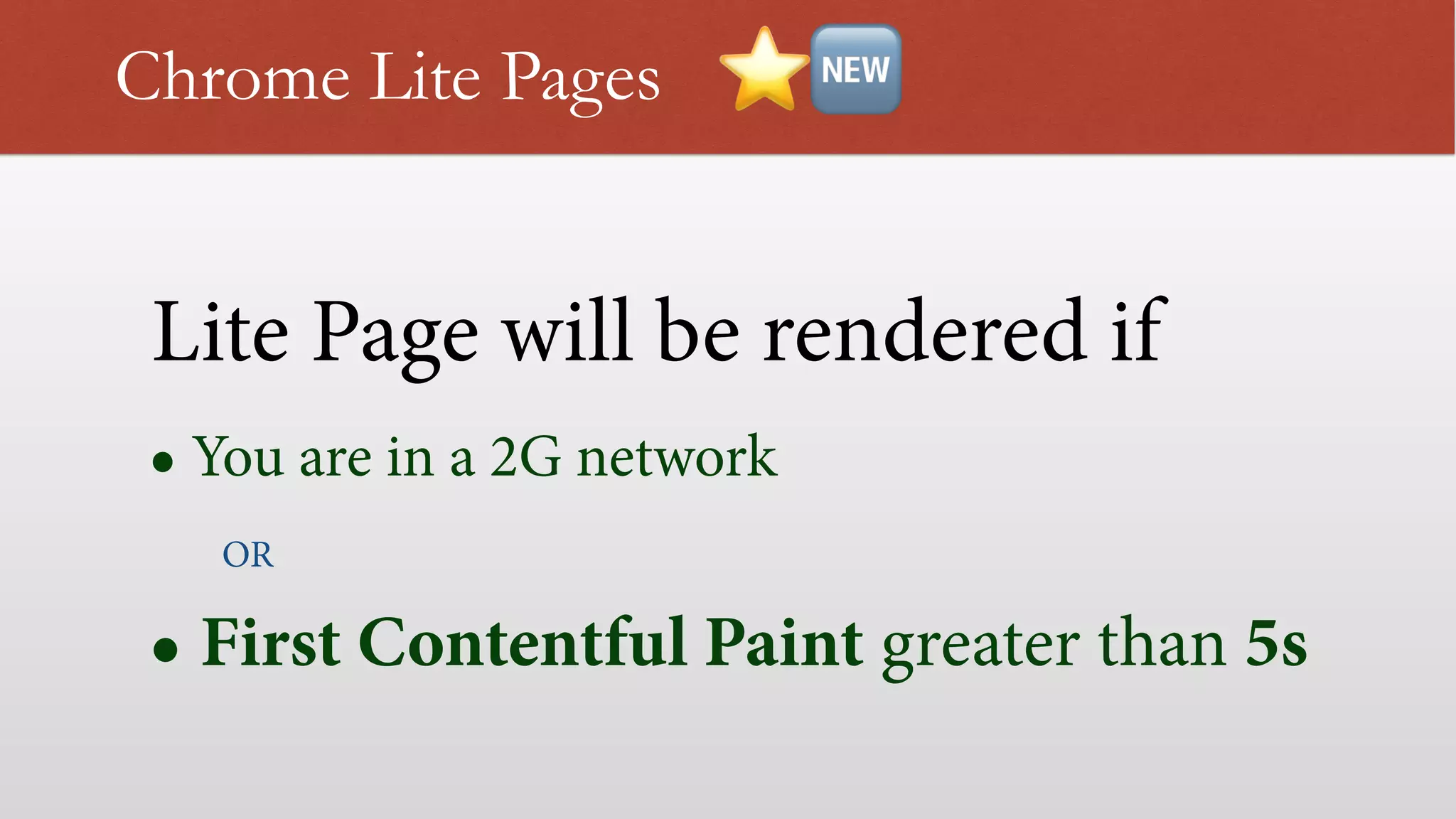

56. Lite Page will be rendered if
Chrome Lite Pages
• You are in a 2G network
OR
• First Contentful Paint greater than 5s
⭐🆕

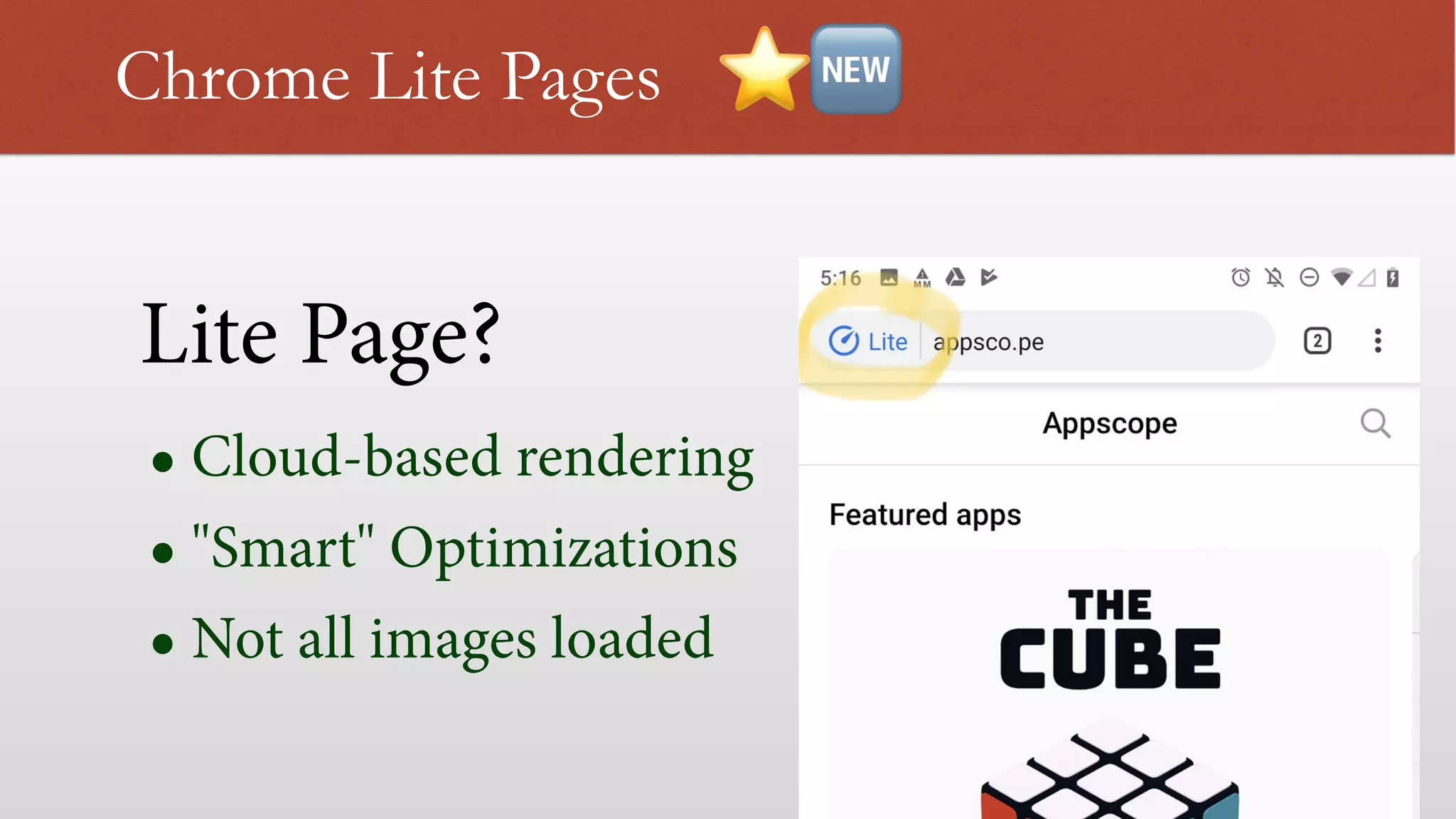

57. Lite Page?
Chrome Lite Pages
• Cloud-based rendering
• "Smart" Optimizations
• Not all images loaded
⭐🆕

58. Try it!
Chrome Lite Pages ⭐🆕

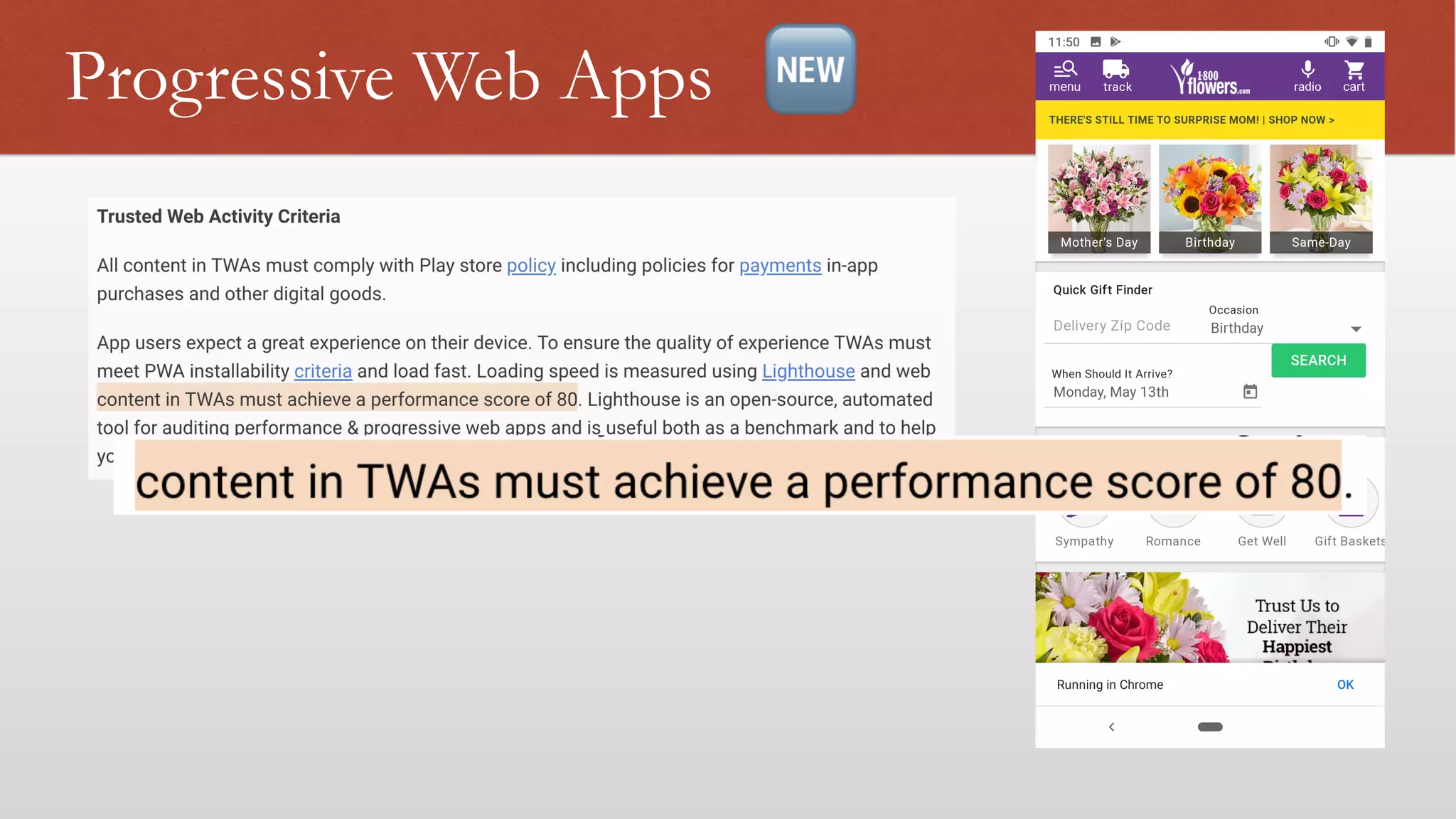

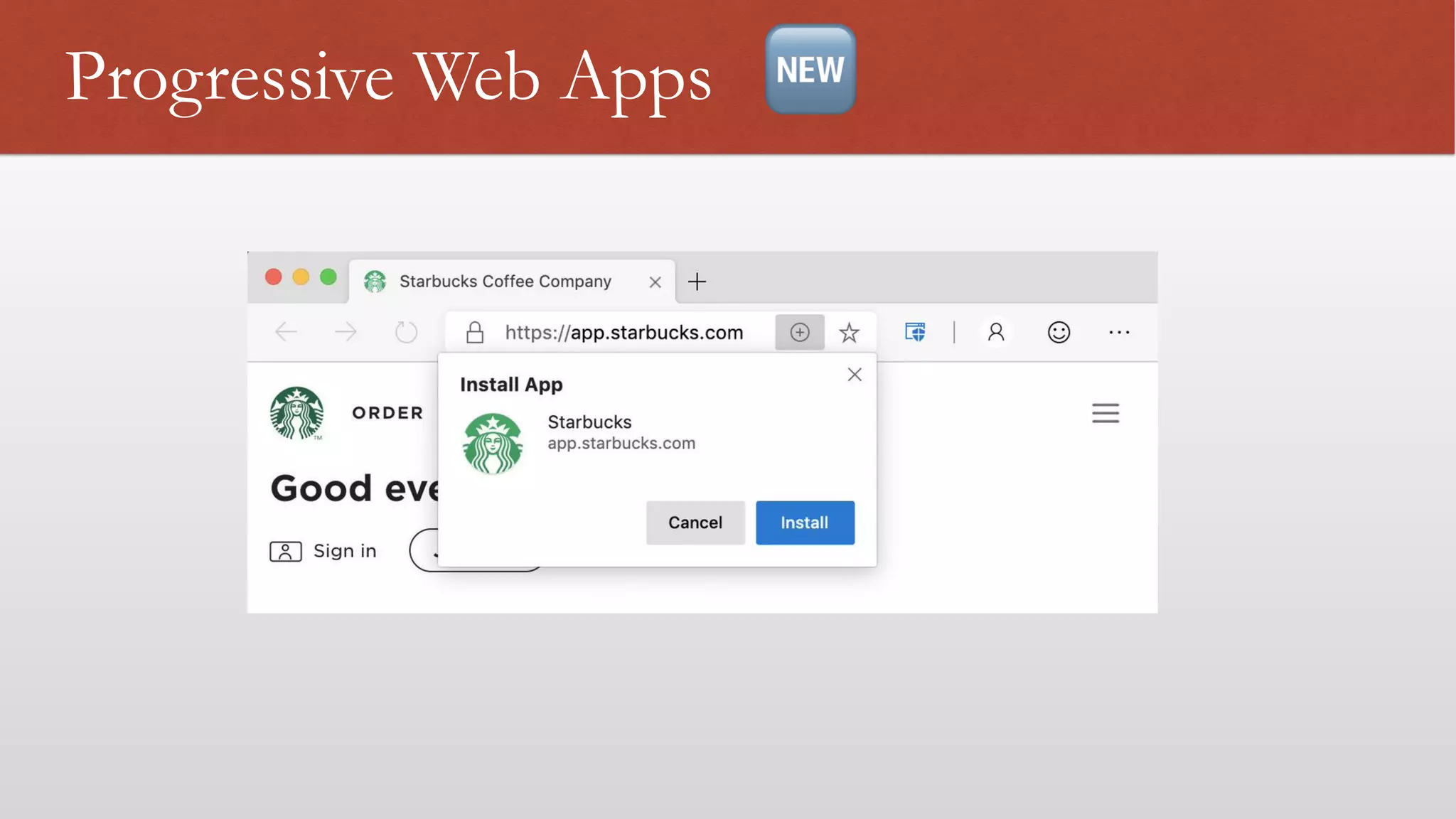

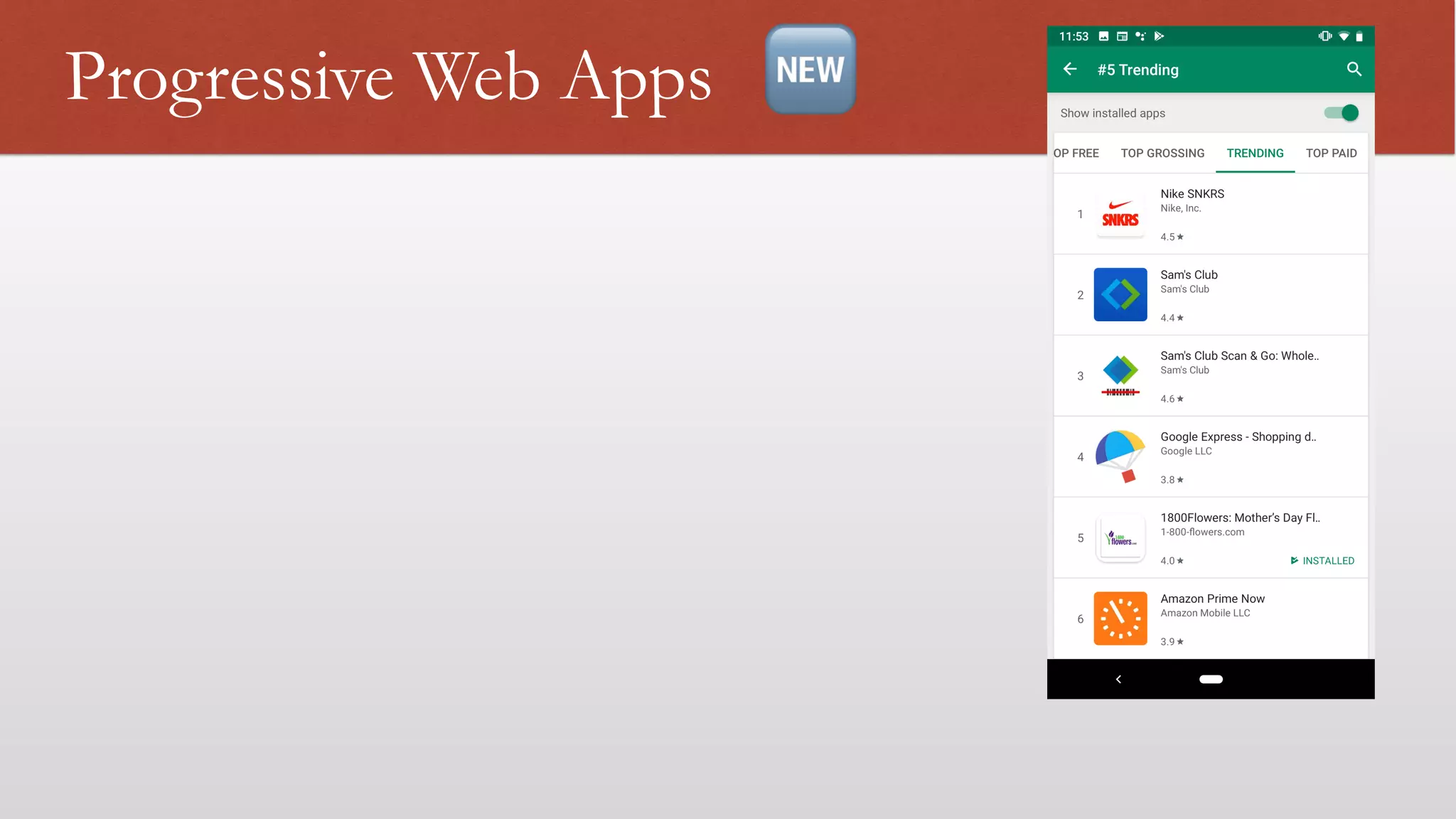

59. Progressive Web Apps 🆕

60. Progressive Web Apps 🆕

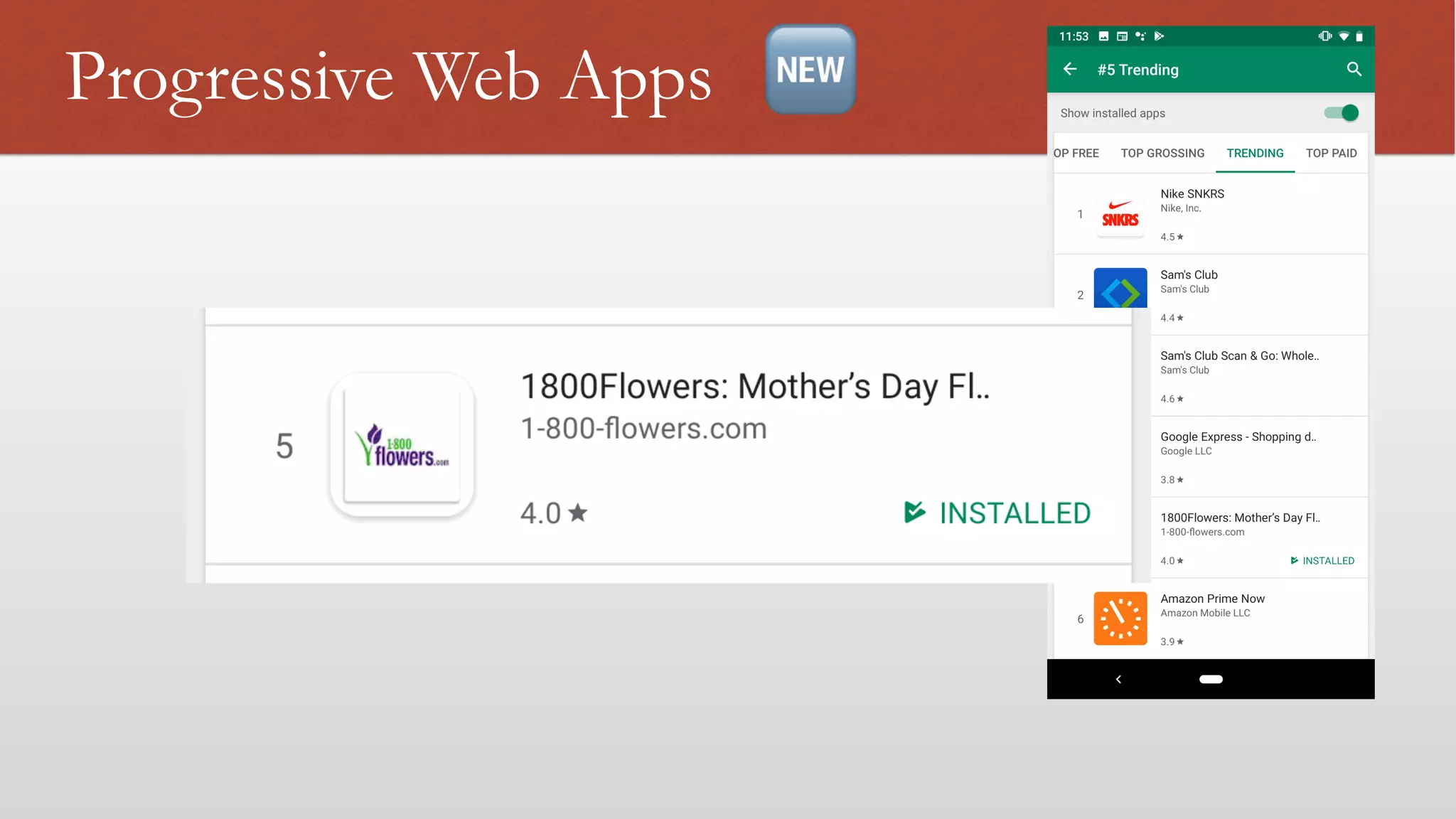

61. Progressive Web Apps 🆕

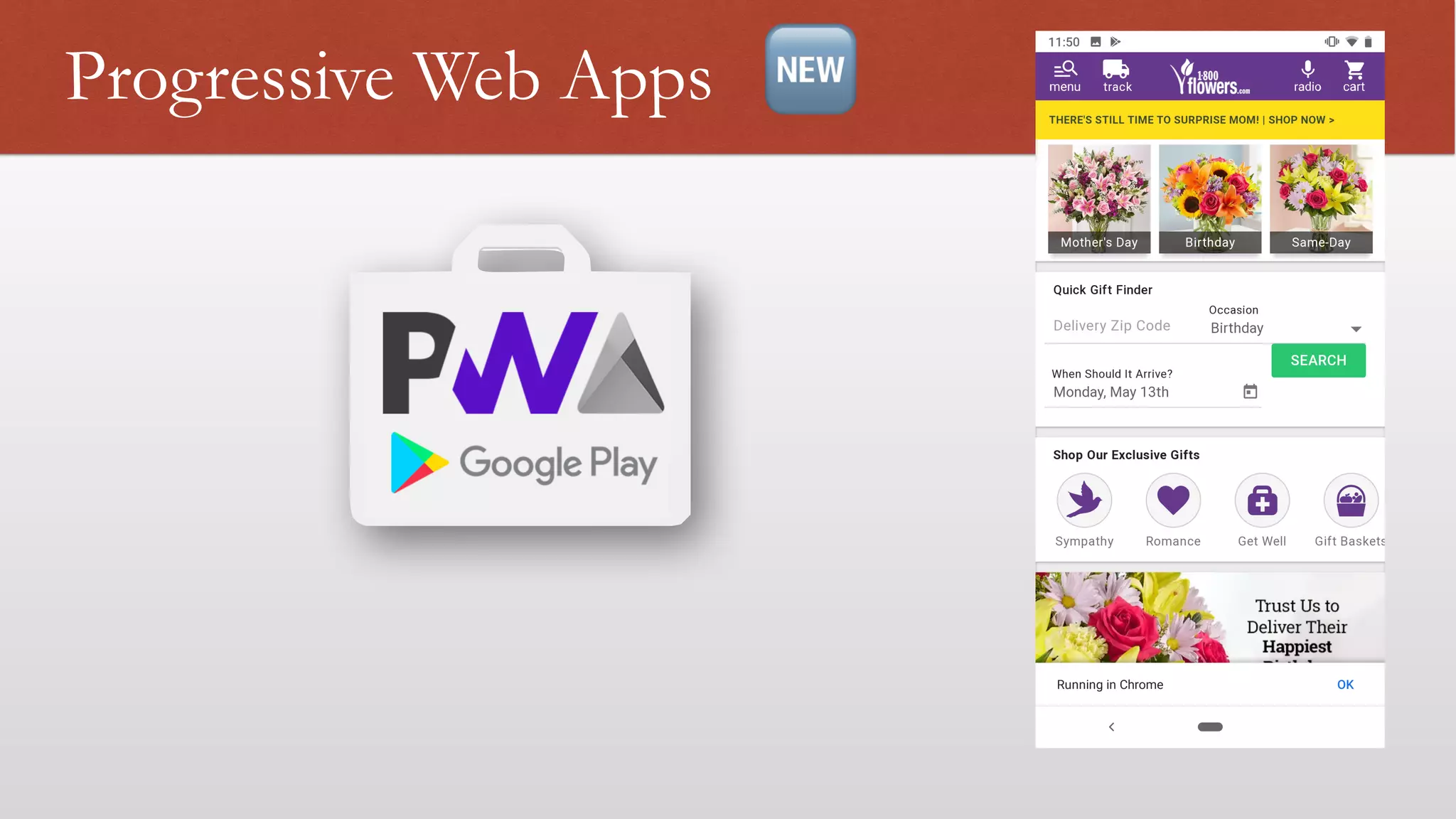

62. Progressive Web Apps 🆕

63. Progressive Web Apps 🆕

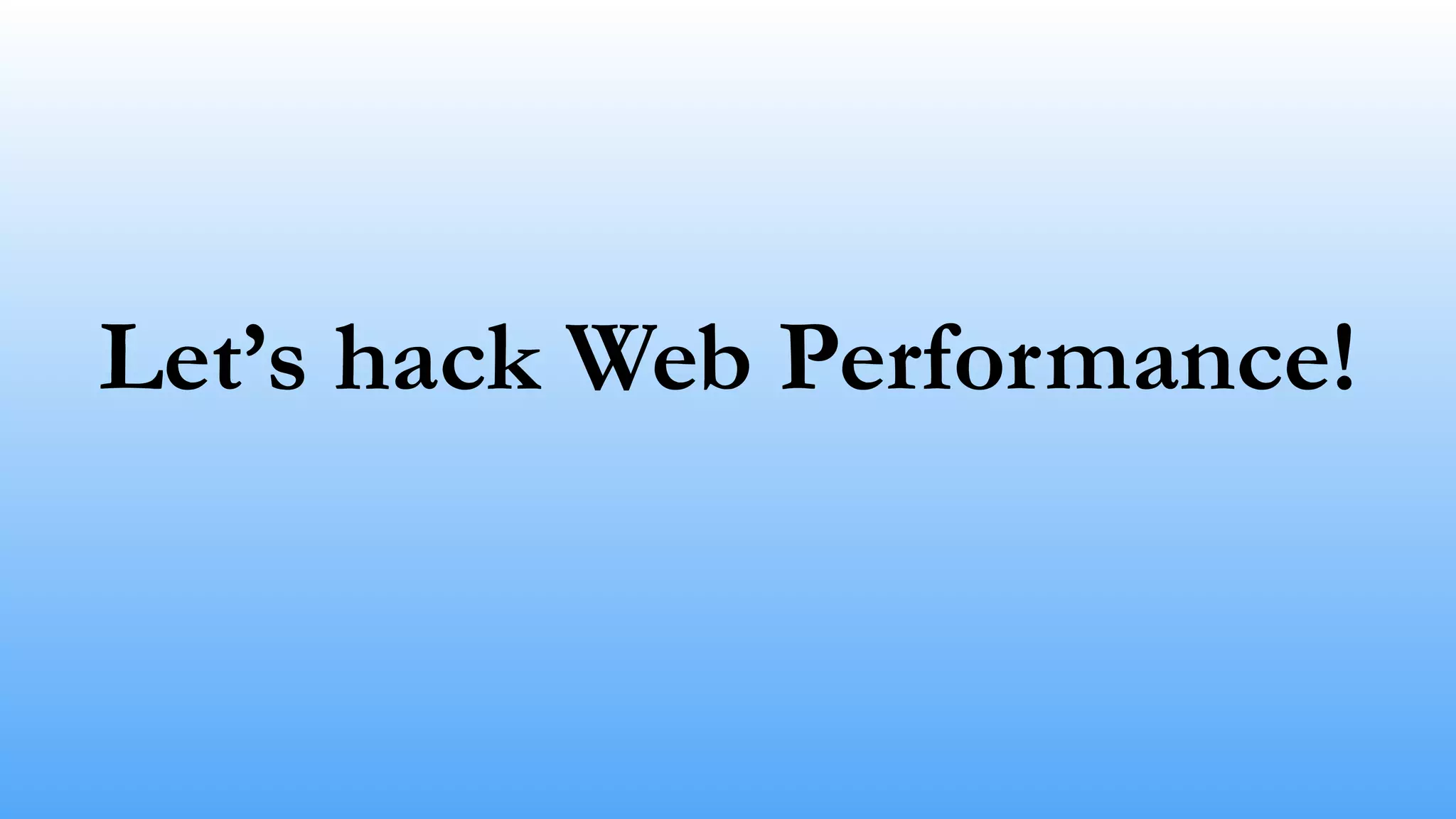

64. Let’s hack Web Performance!

65. Hack First Load

66. Avoid more than one roundtrip
First Load
• TCP Slow Start - initial congestion window
(initcwnd)
• Linux: 14.6 KiB

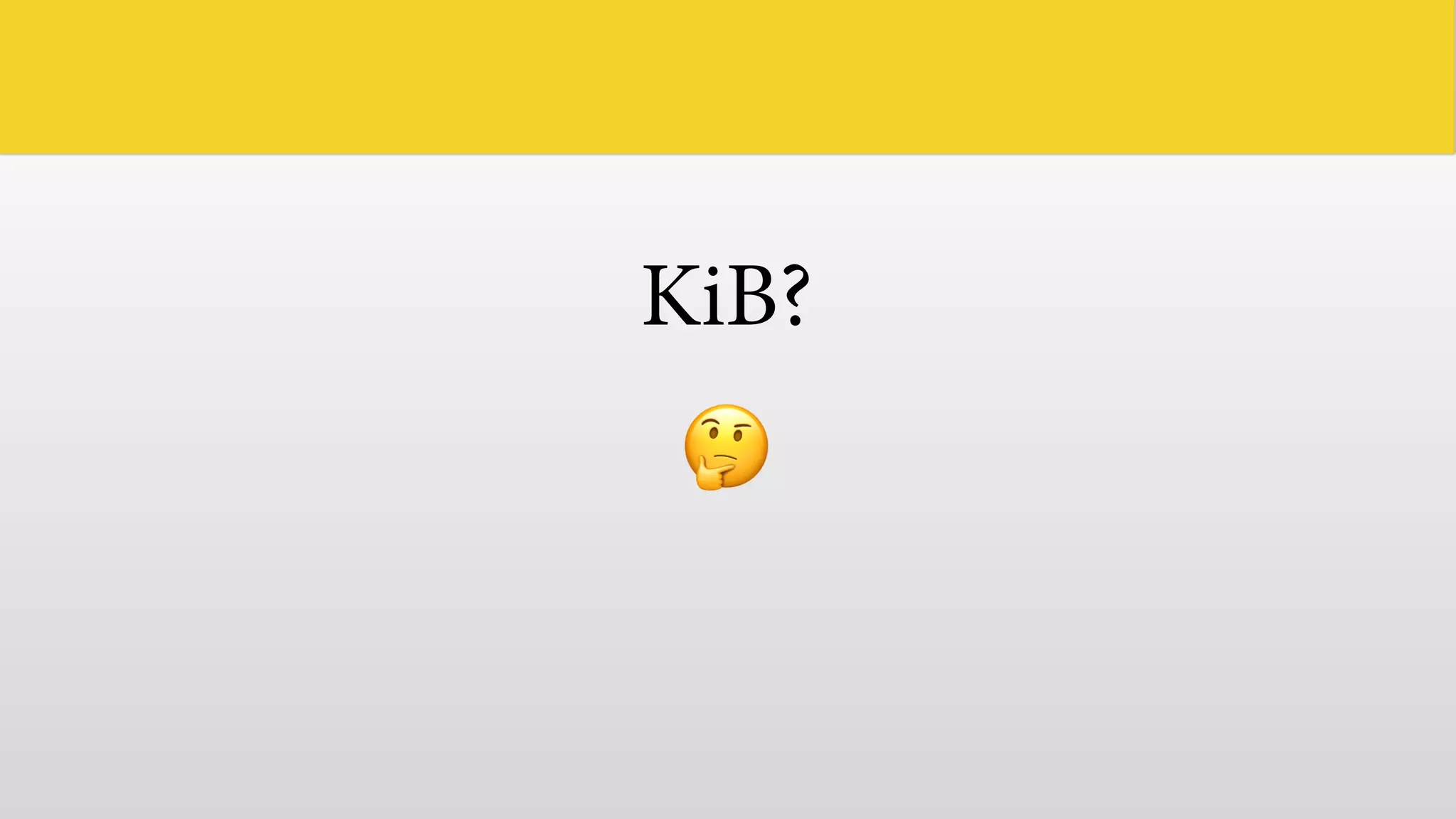

67. KiB?
🤔

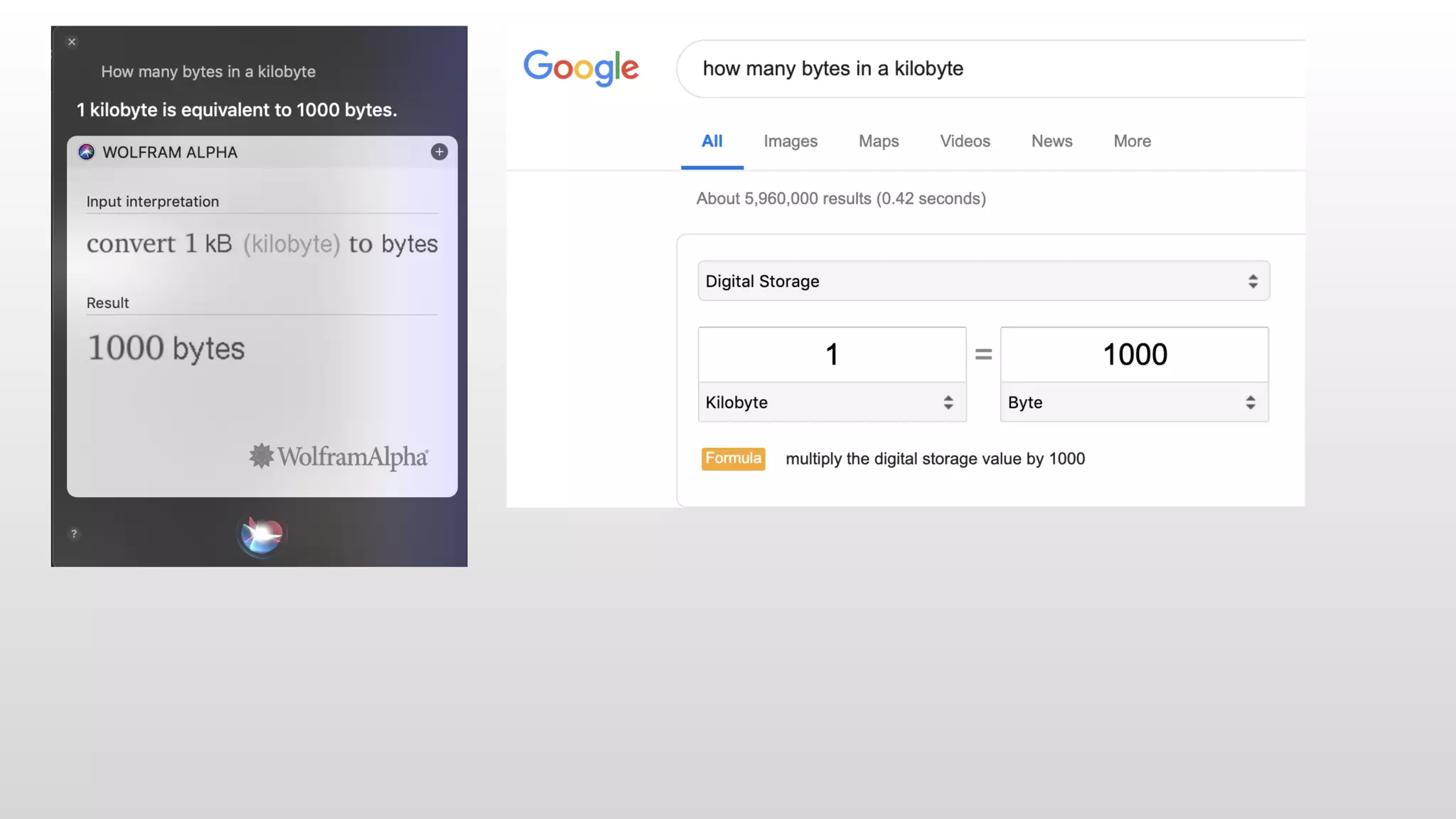

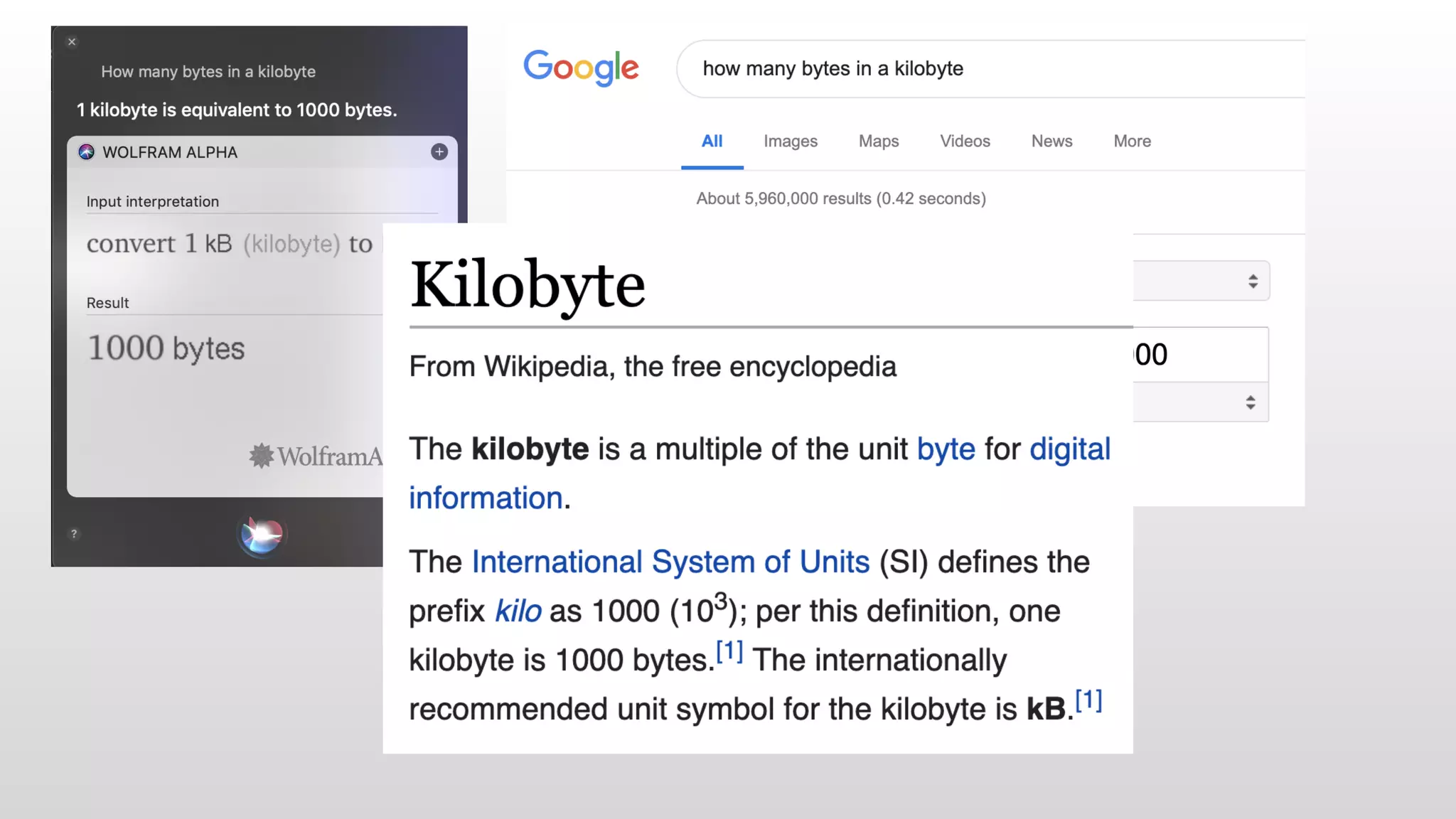

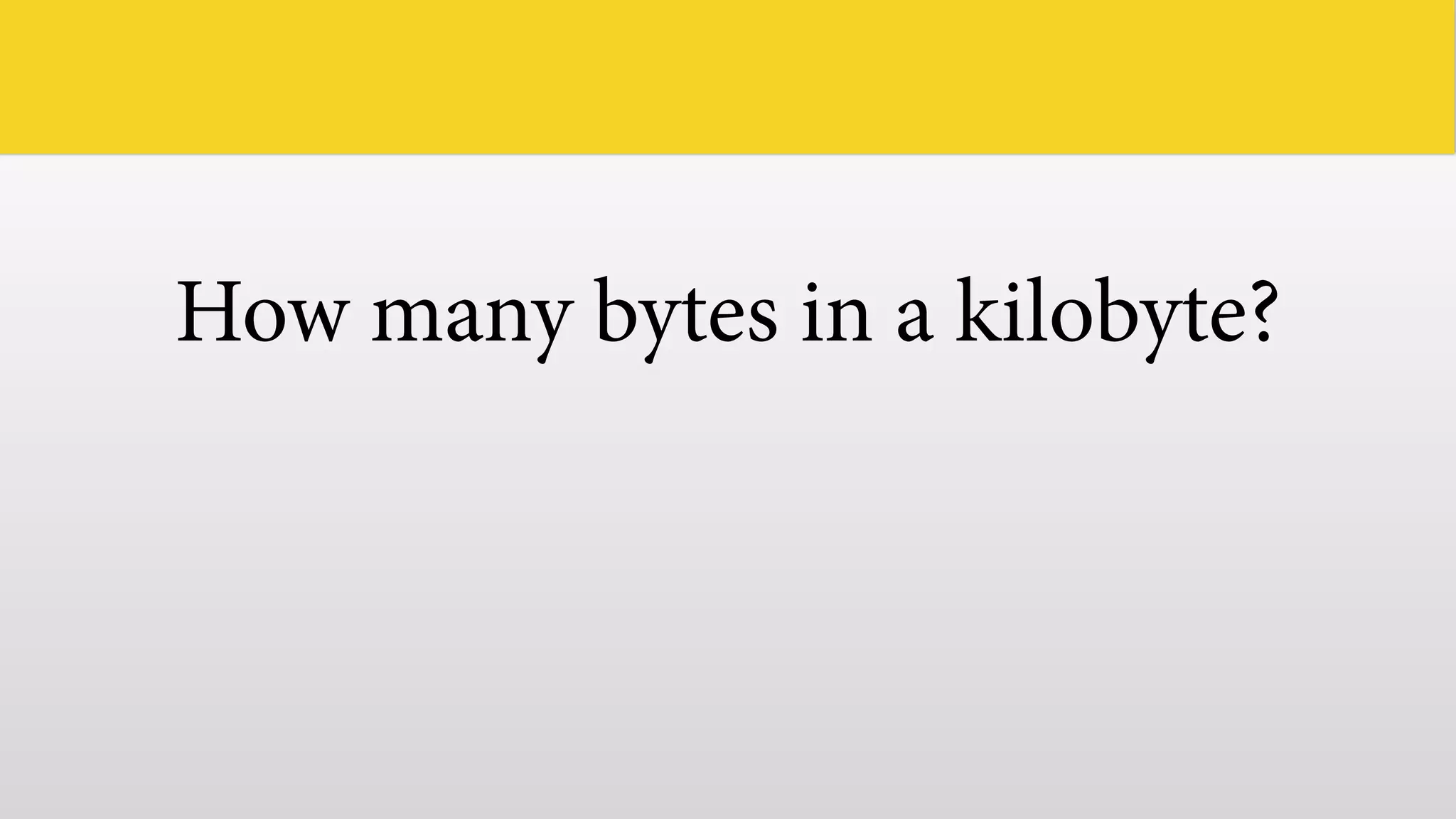

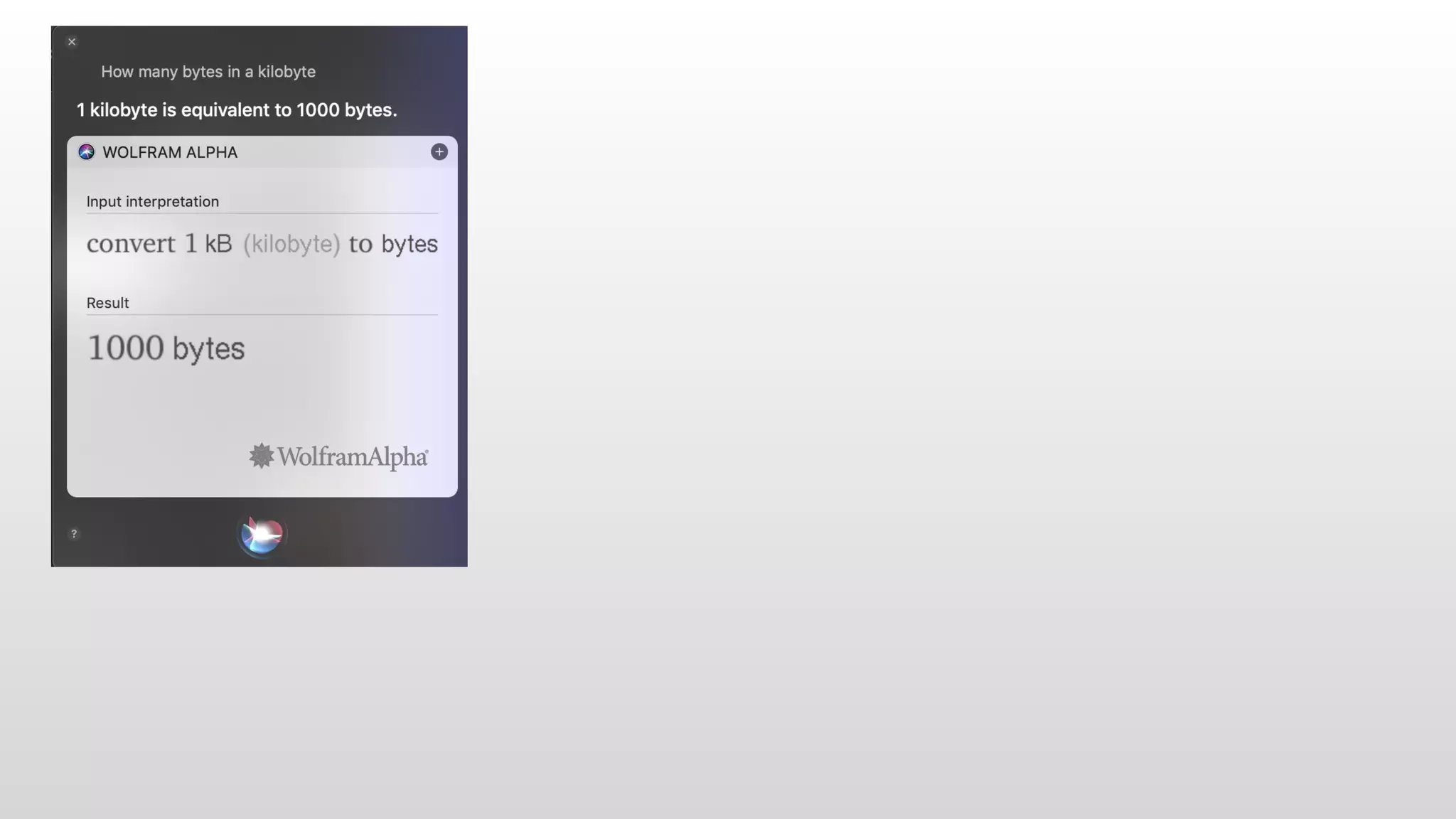

68. How many bytes in a kilobyte?

69. 1 KB = 1024 bytes

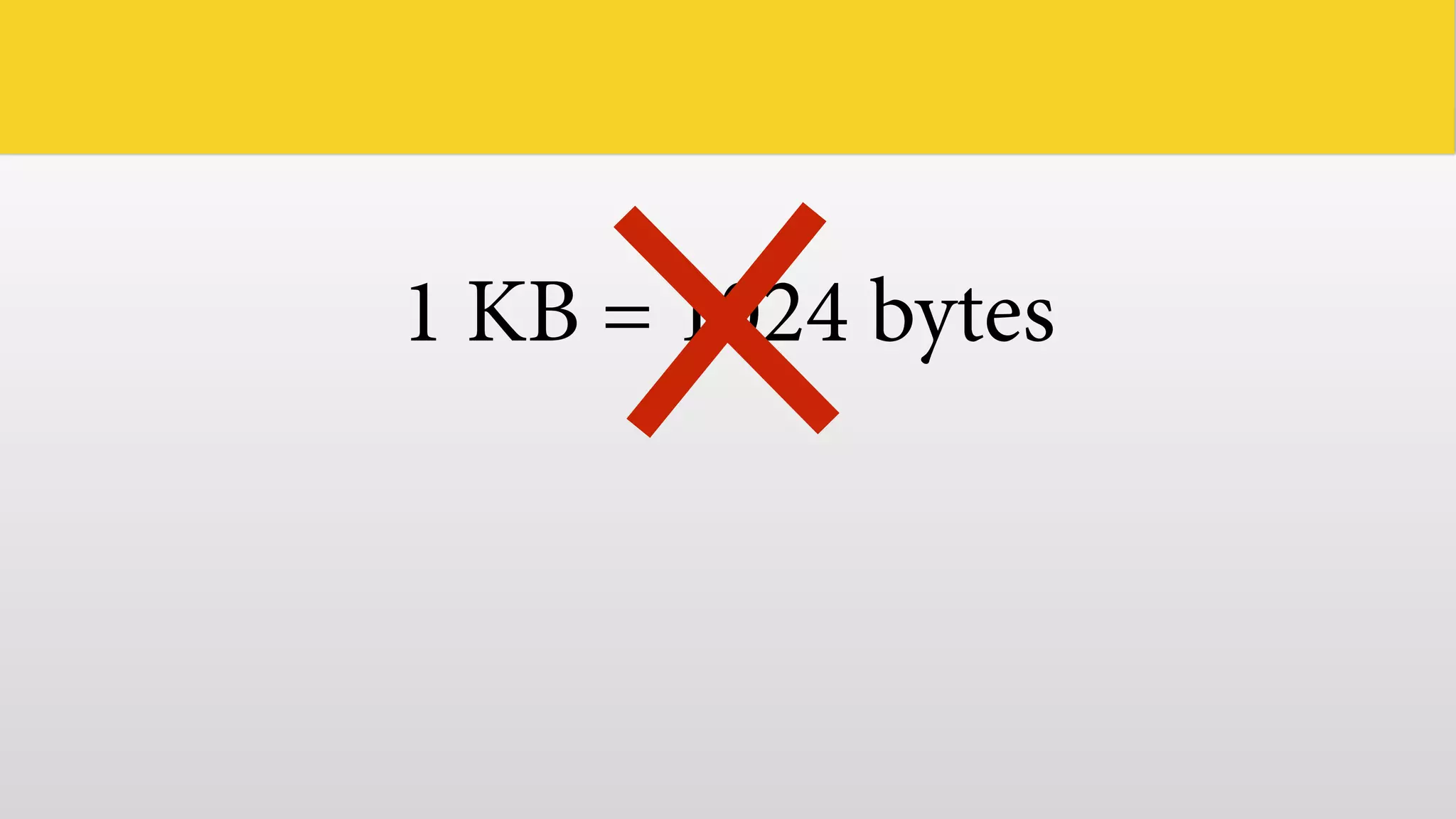

70. 1 KB = 1024 bytes

71. 1 KB = 1000 bytes

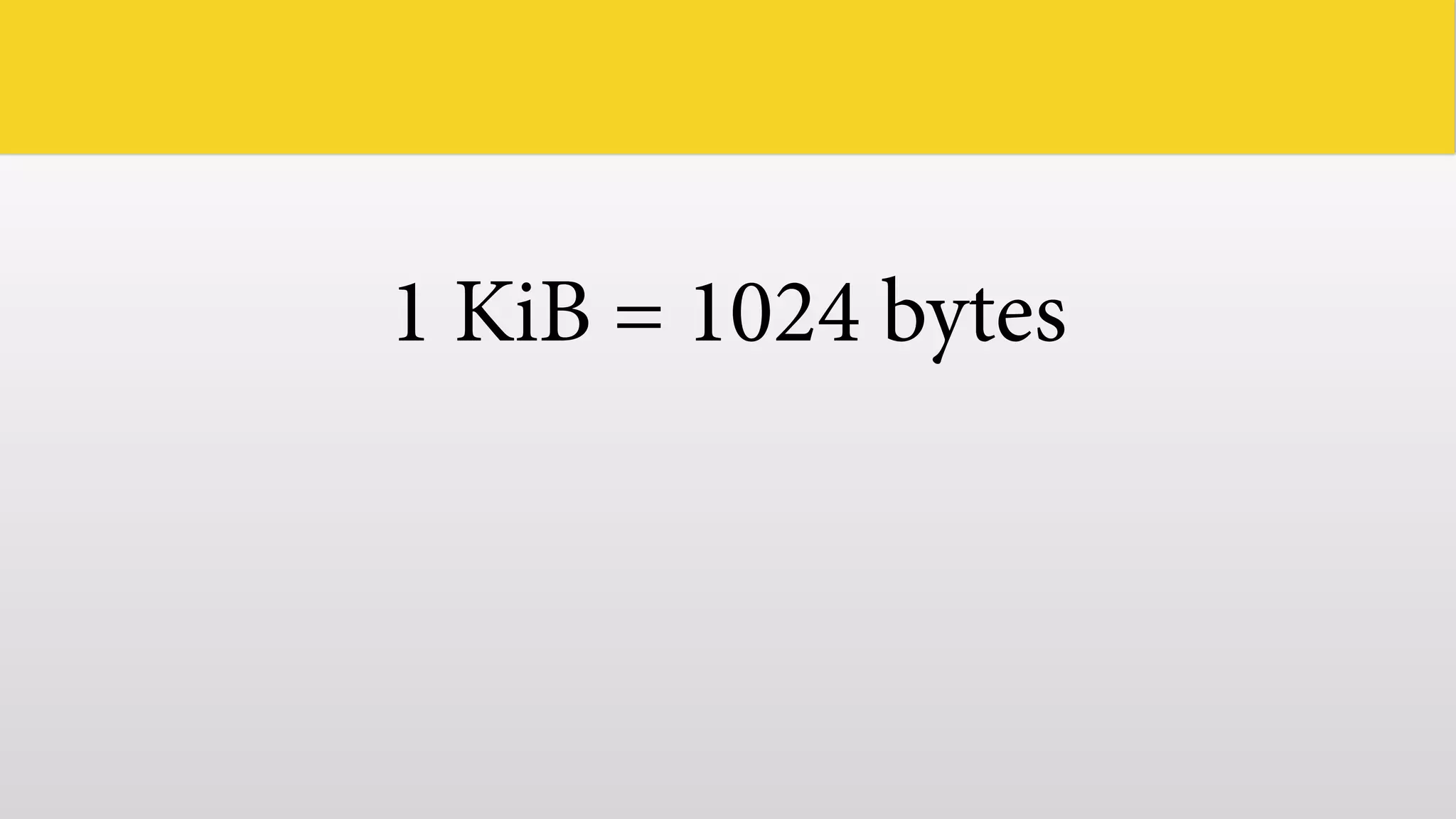

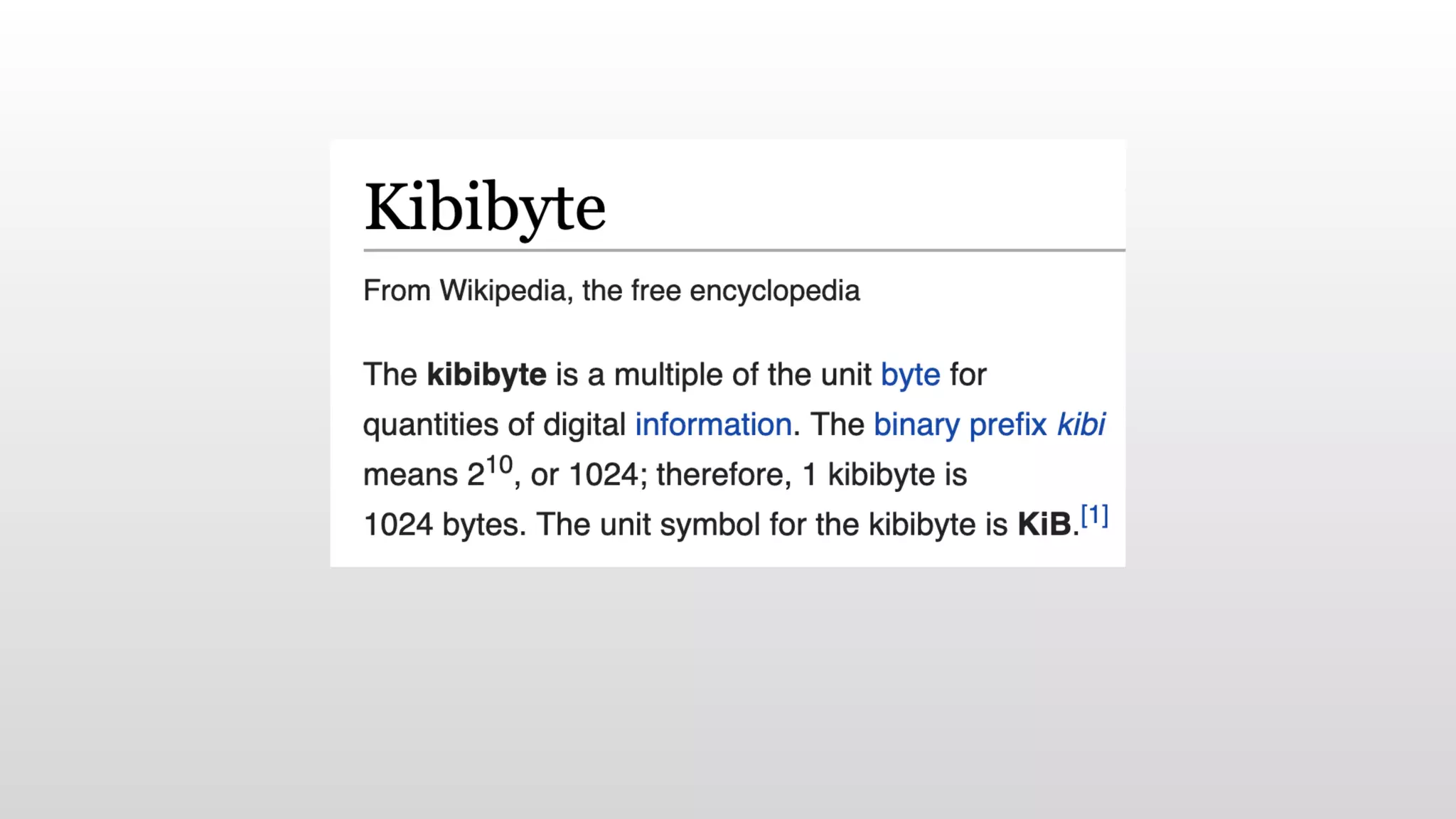

76. 1 KiB = 1024 bytes

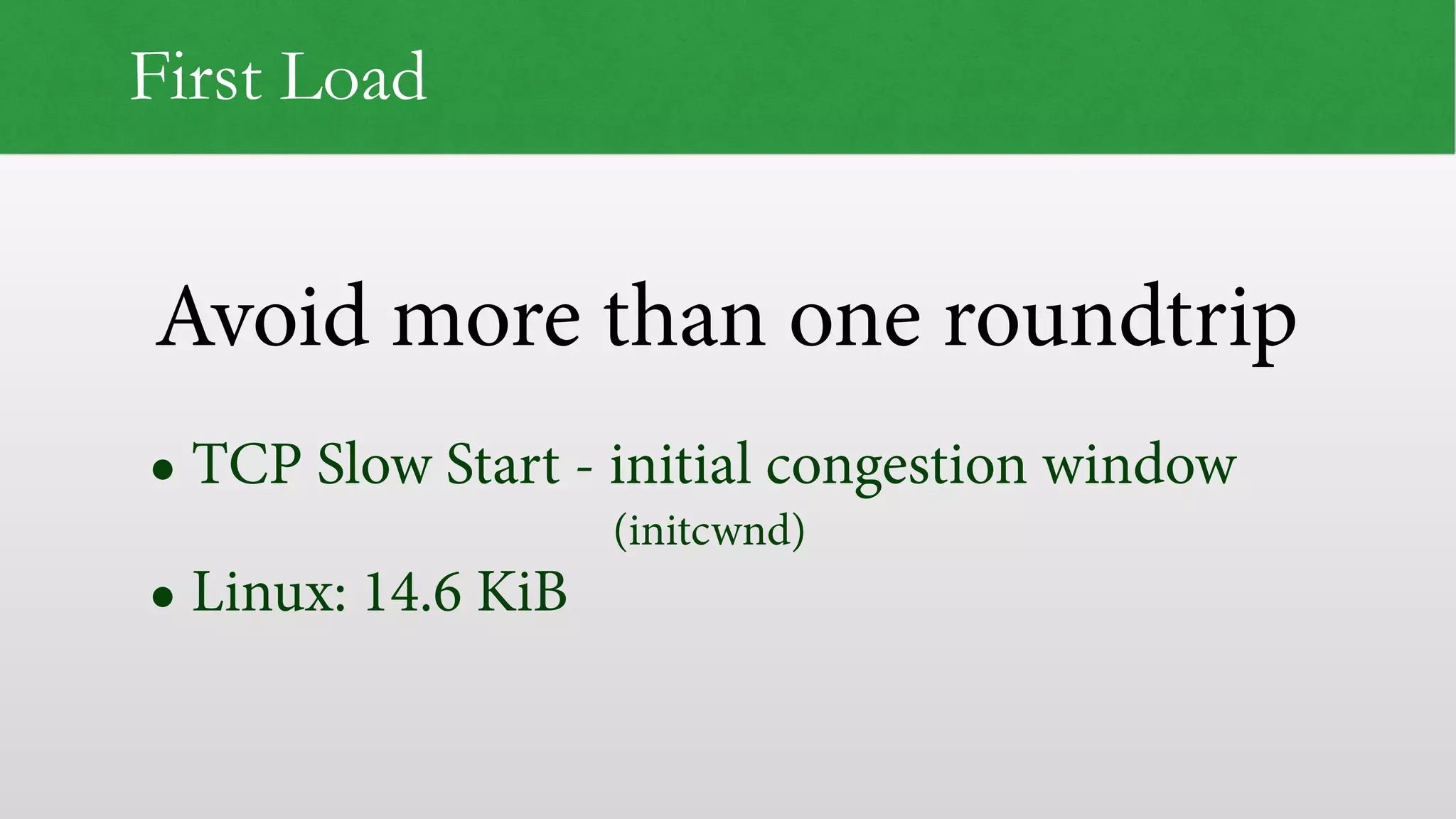

77. Avoid more than one roundtrip
First Load
• TCP Slow Start - initial congestion window
(initcwnd)
• Linux: 14.6 KiB

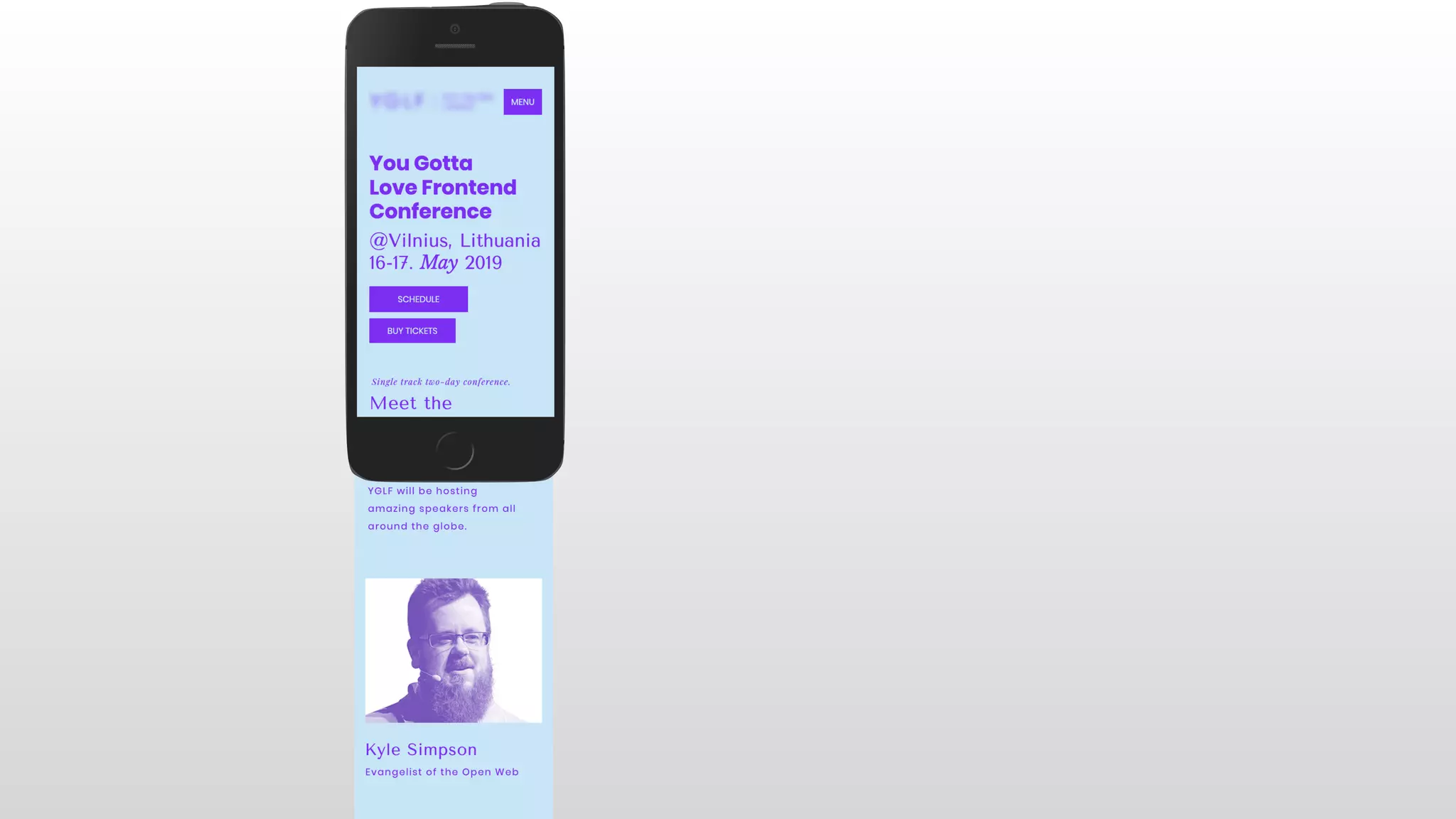

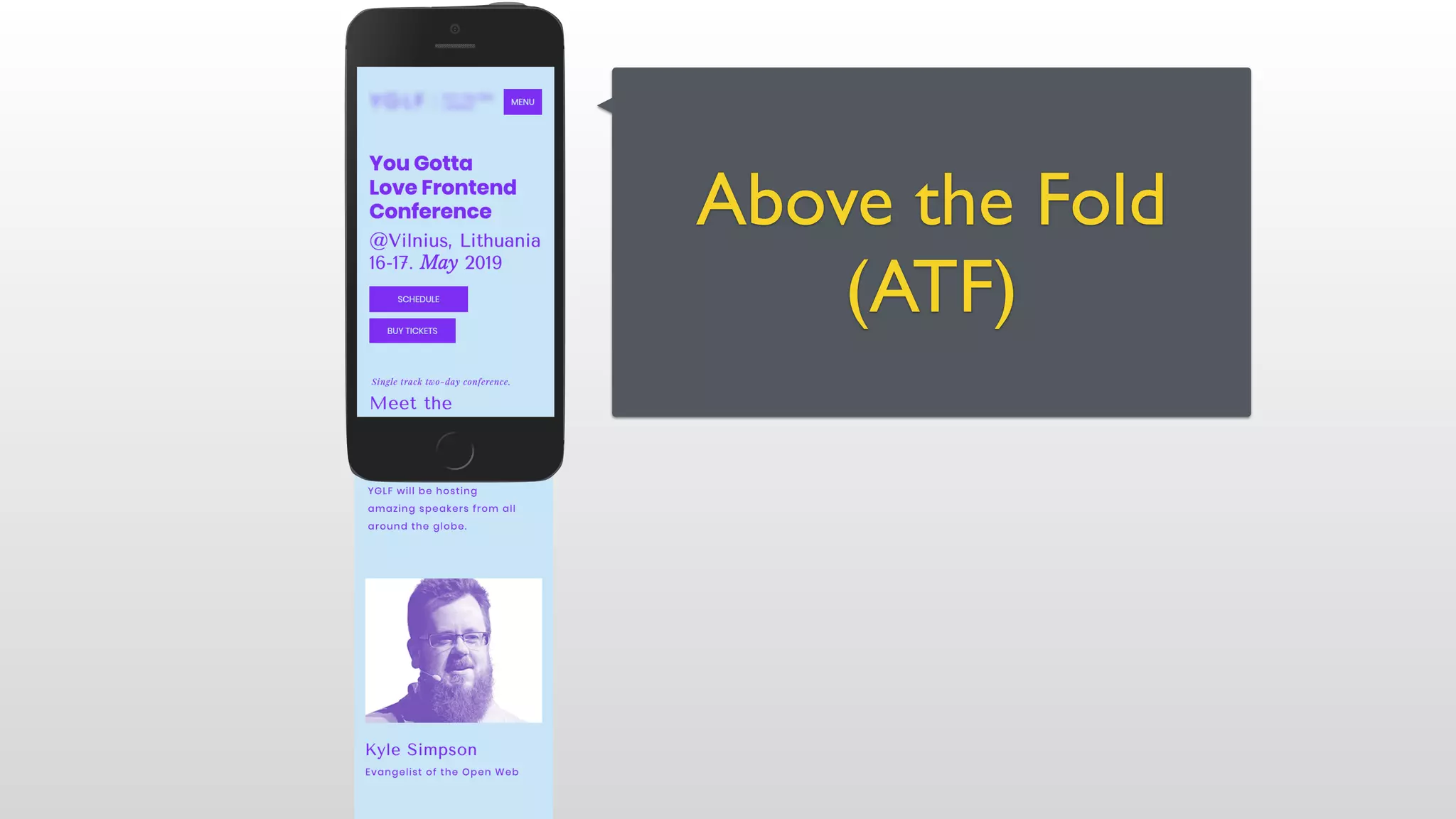

79. Above the Fold
(ATF)

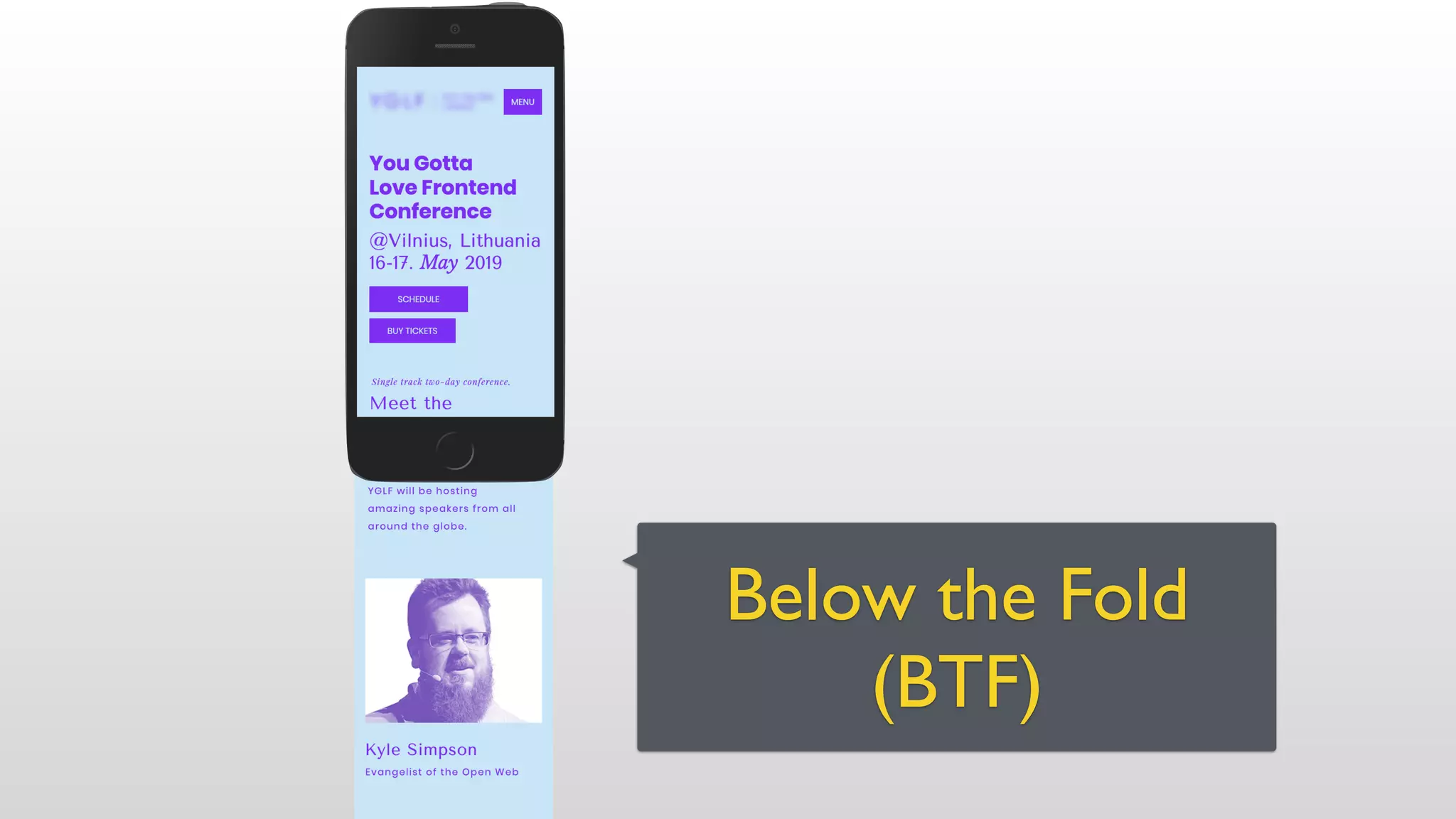

80. Below the Fold
(BTF)

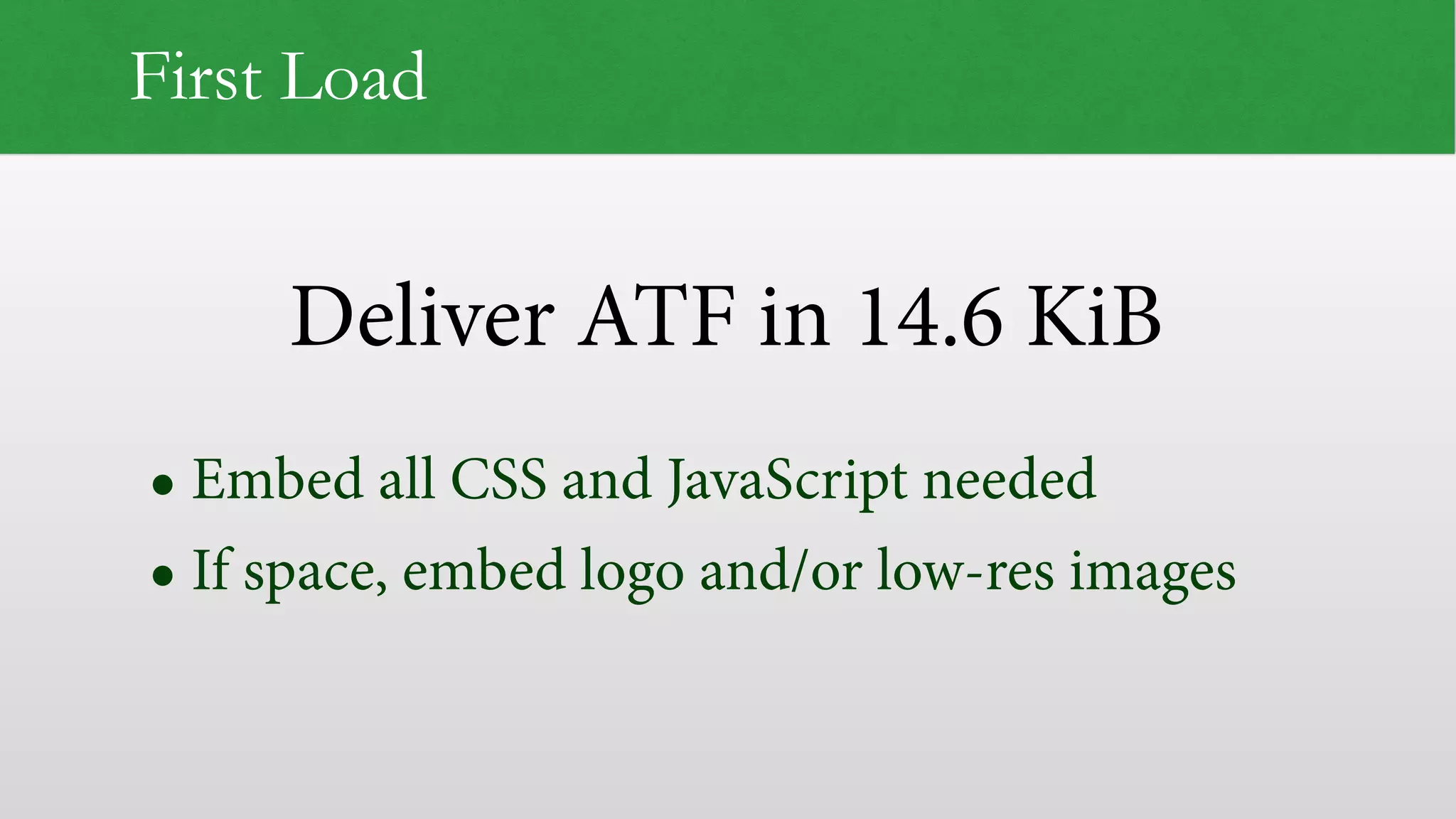

81. Deliver ATF in 14.6 KiB
First Load
• Embed all CSS and JavaScript needed
• If space, embed logo and/or low-res images

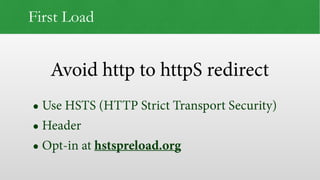

82. Avoid http to httpS redirect
First Load
• Use HSTS (HTTP Strict Transport Security)
• Header
• Opt-in at hstspreload.org

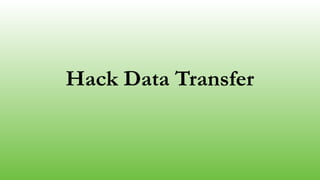

83. Hack Data Transfer

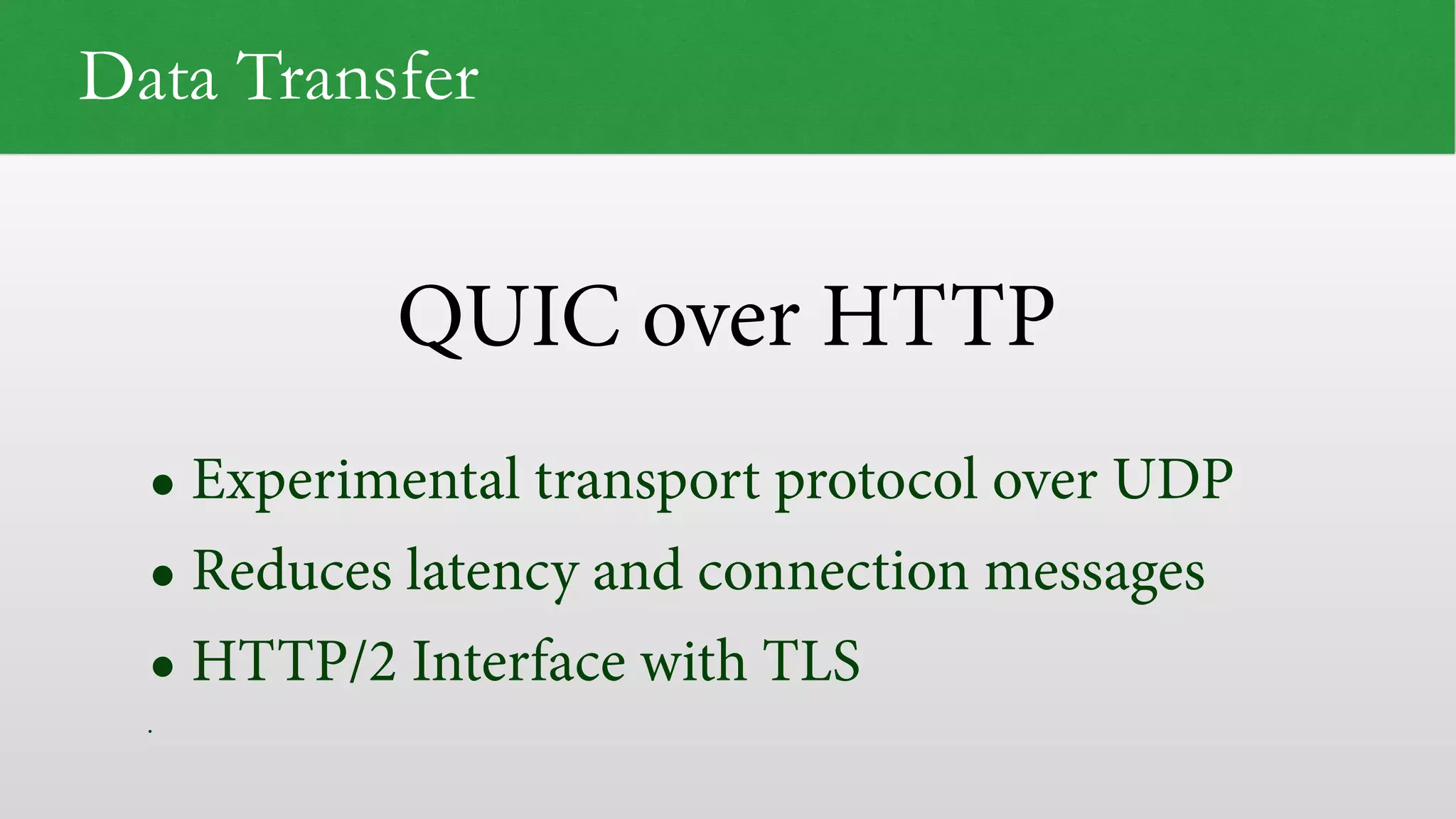

84. QUIC over HTTP
Data Transfer
• Experimental transport protocol over UDP
• Reduces latency and connection messages
• HTTP/2 Interface with TLS
•

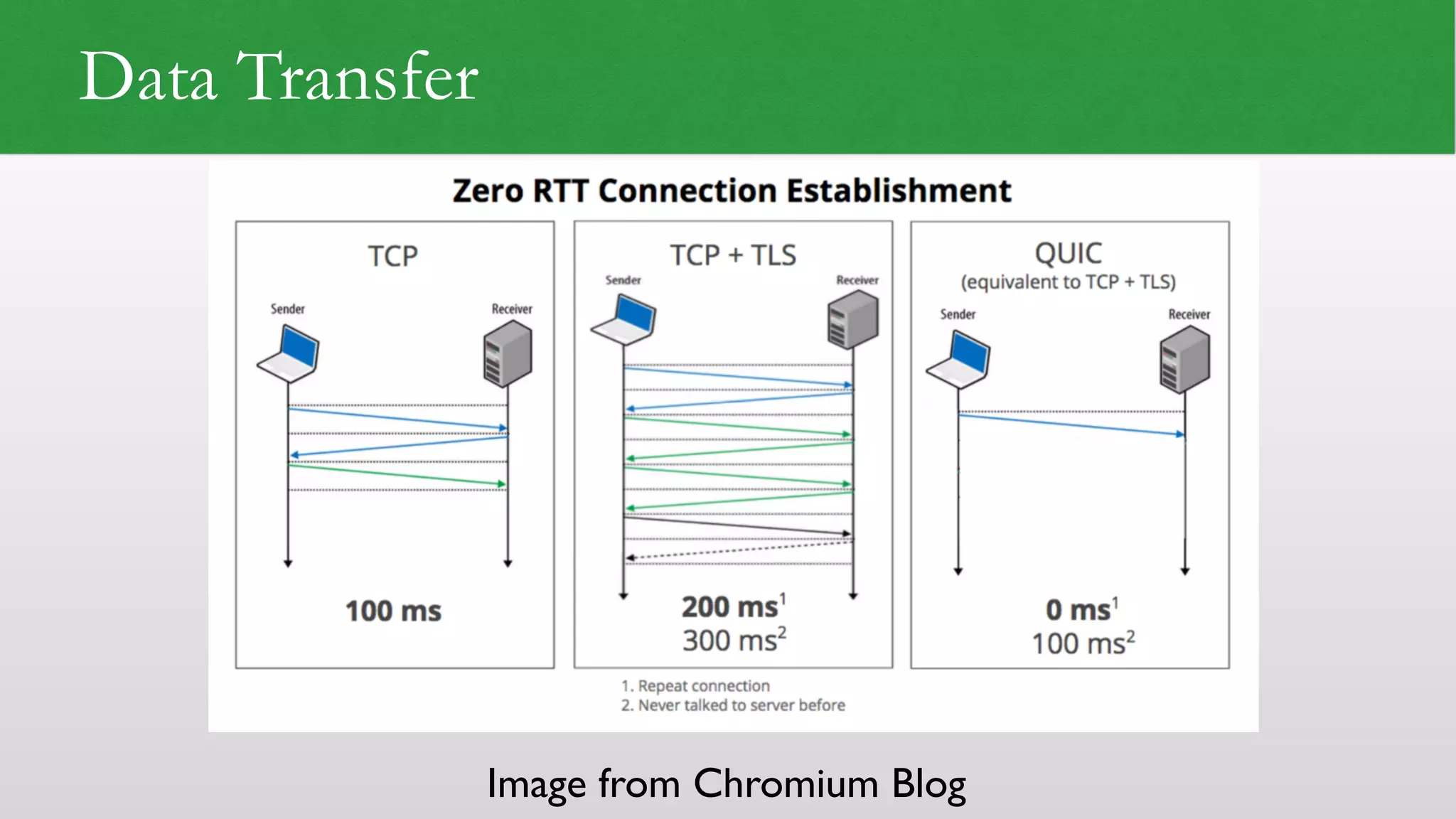

85. Data Transfer
Image from Chromium Blog

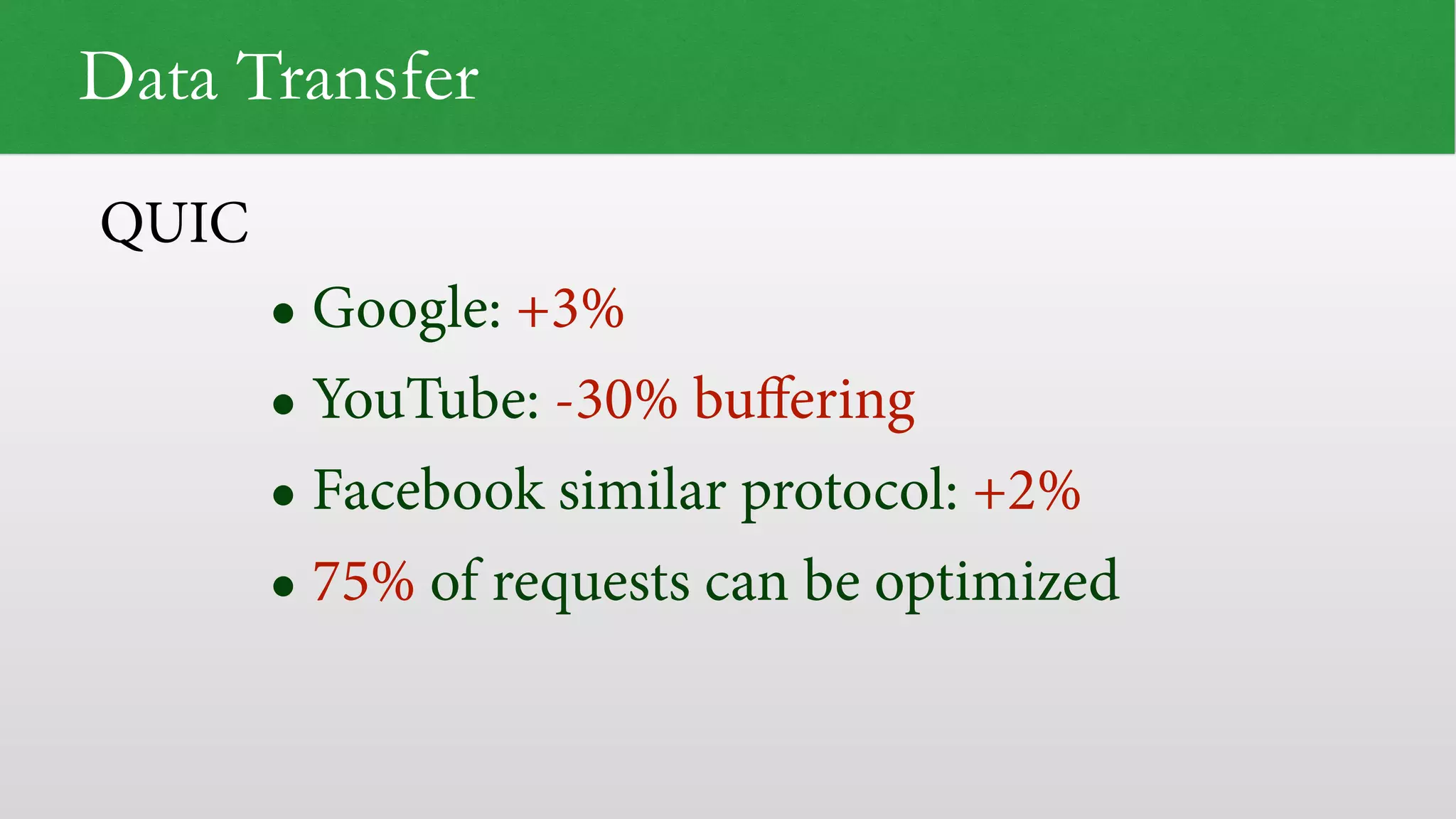

86. Data Transfer
• Google: +3%
• YouTube: -30% buffering
• Facebook similar protocol: +2%
• 75% of requests can be optimized
QUIC

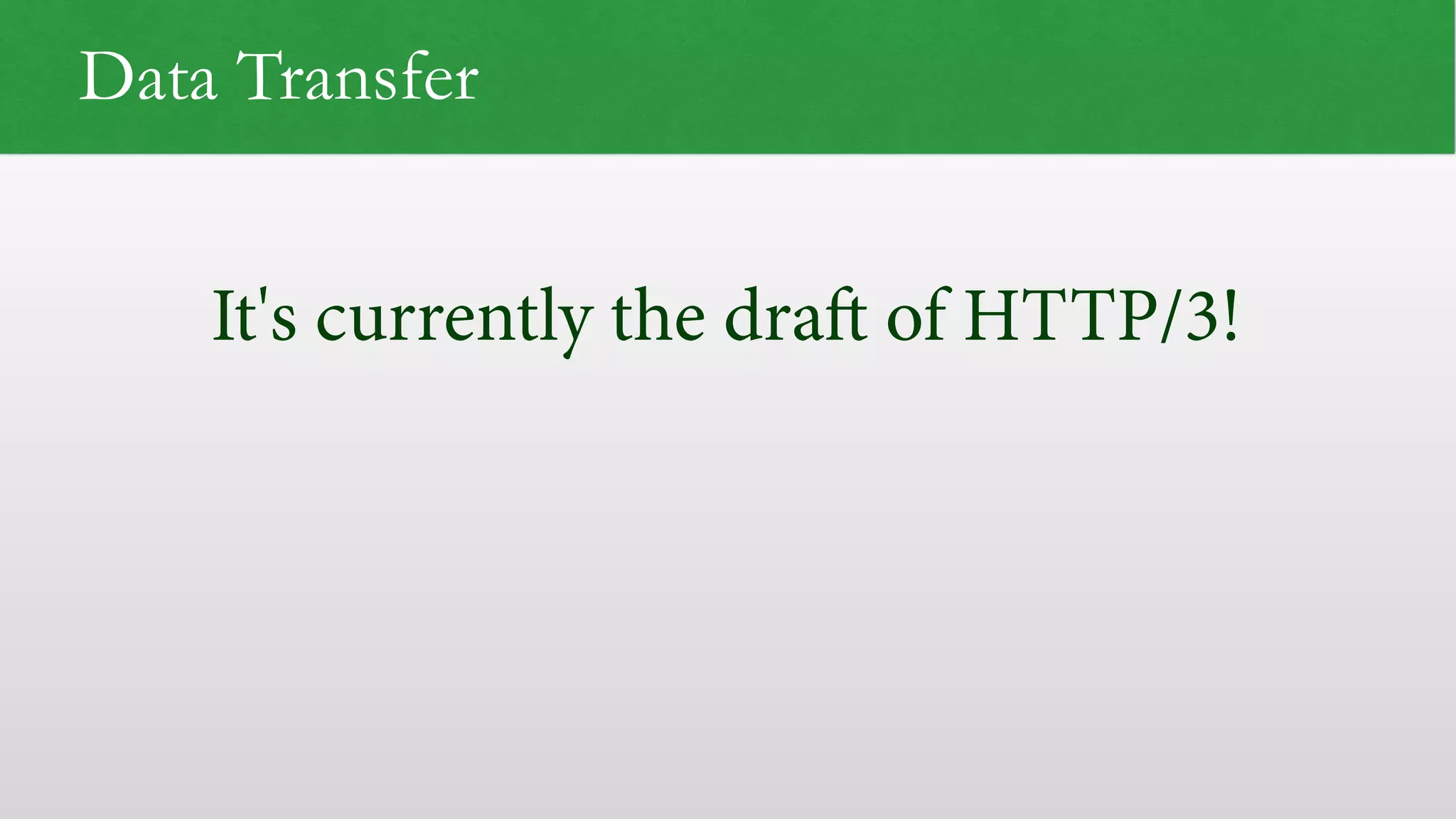

87. Data Transfer
It's currently the draft of HTTP/3!

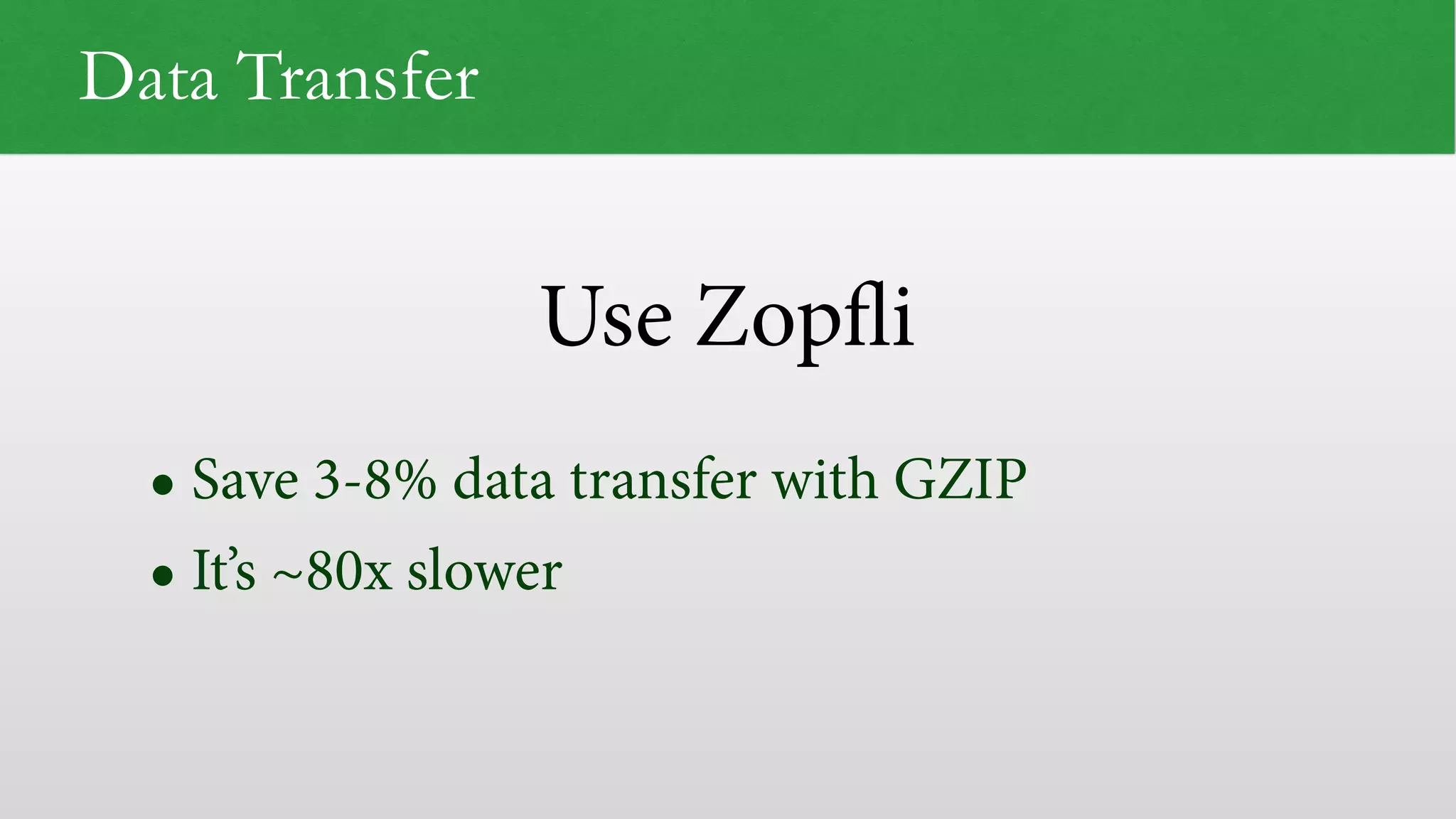

88. Use Zopfli
Data Transfer
• Save 3-8% data transfer with GZIP
• It’s ~80x slower

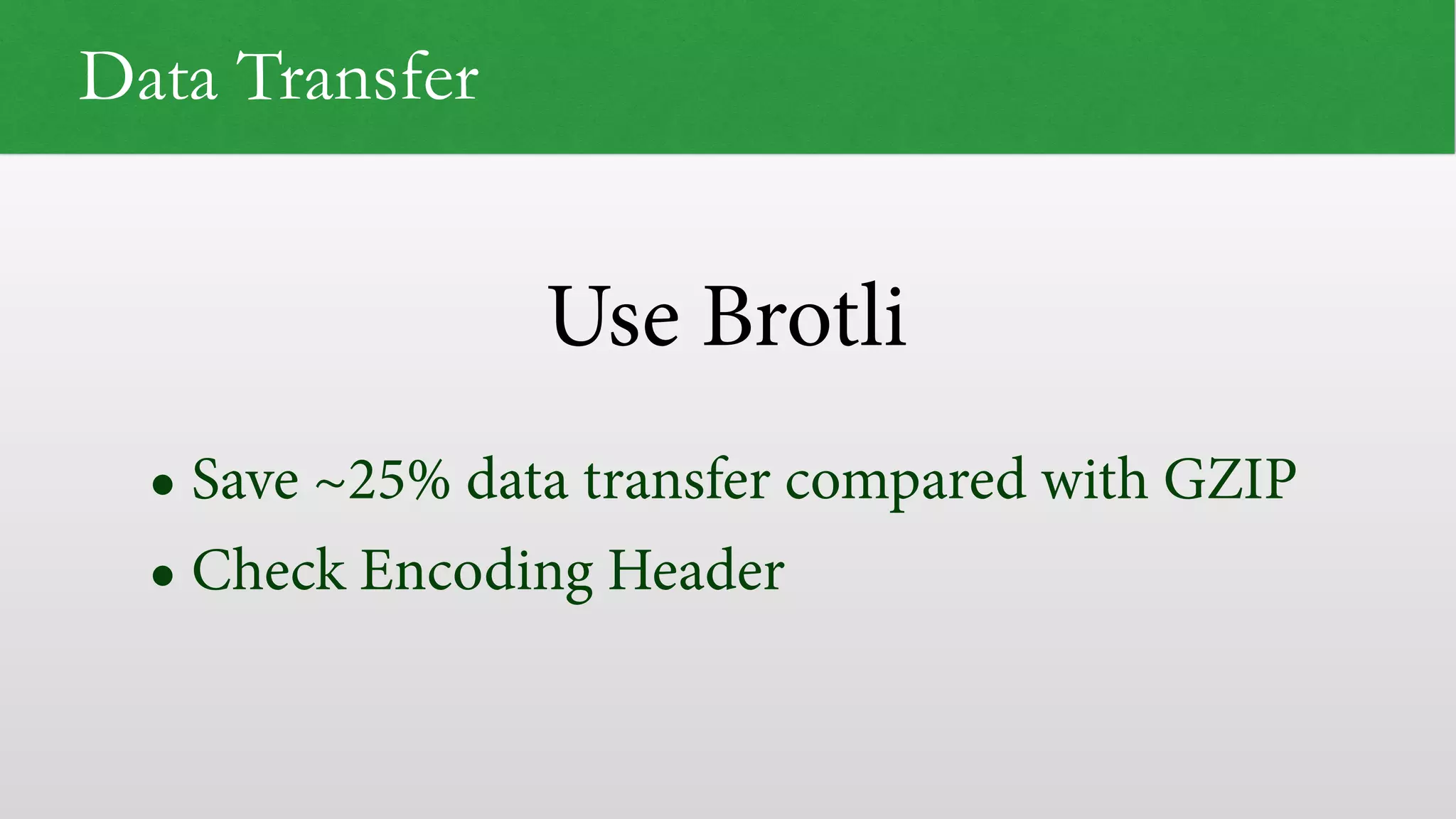

89. Use Brotli
Data Transfer
• Save ~25% data transfer compared with GZIP
• Check Encoding Header

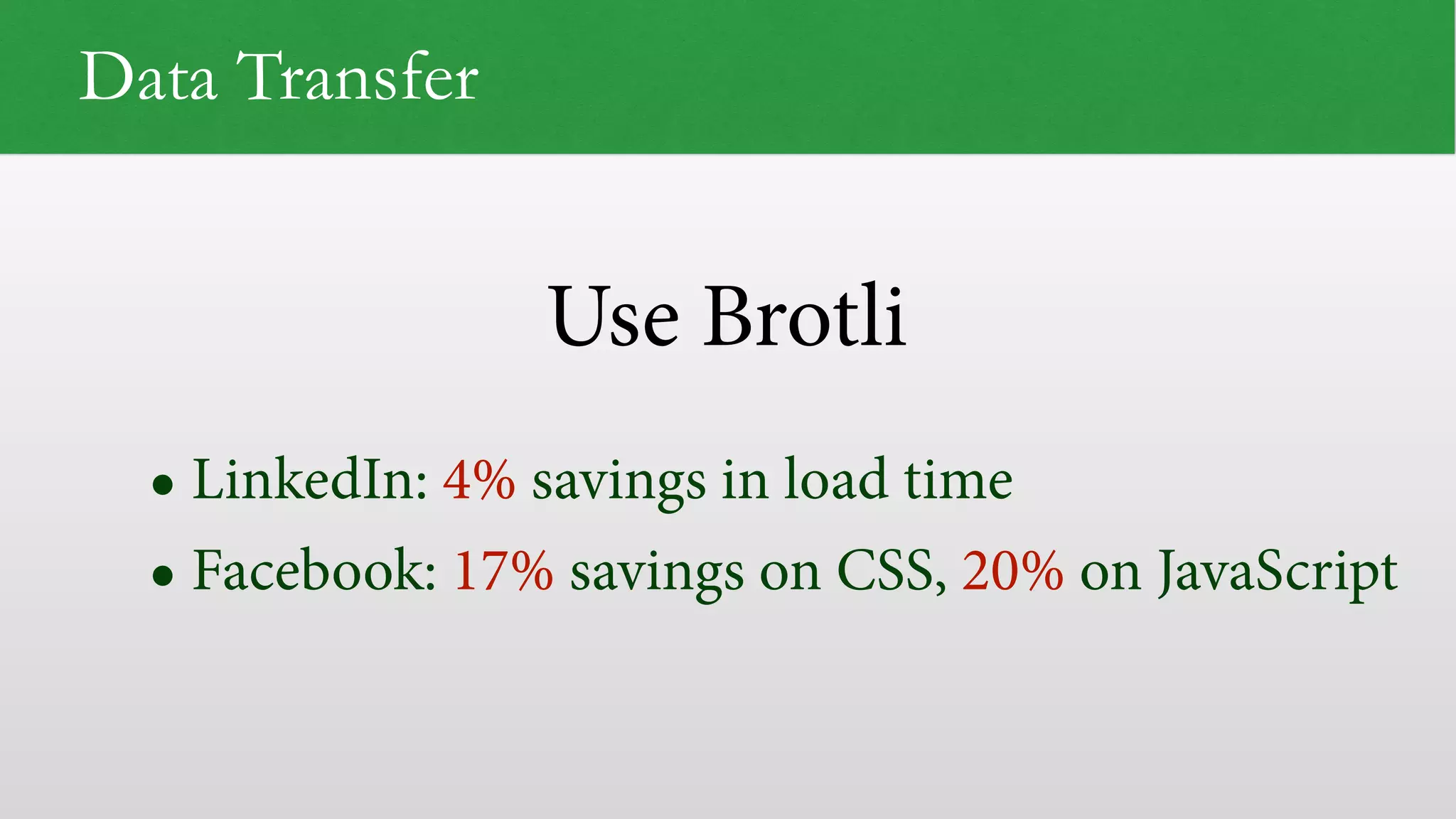

90. Use Brotli
Data Transfer
• LinkedIn: 4% savings in load time
• Facebook: 17% savings on CSS, 20% on JavaScript

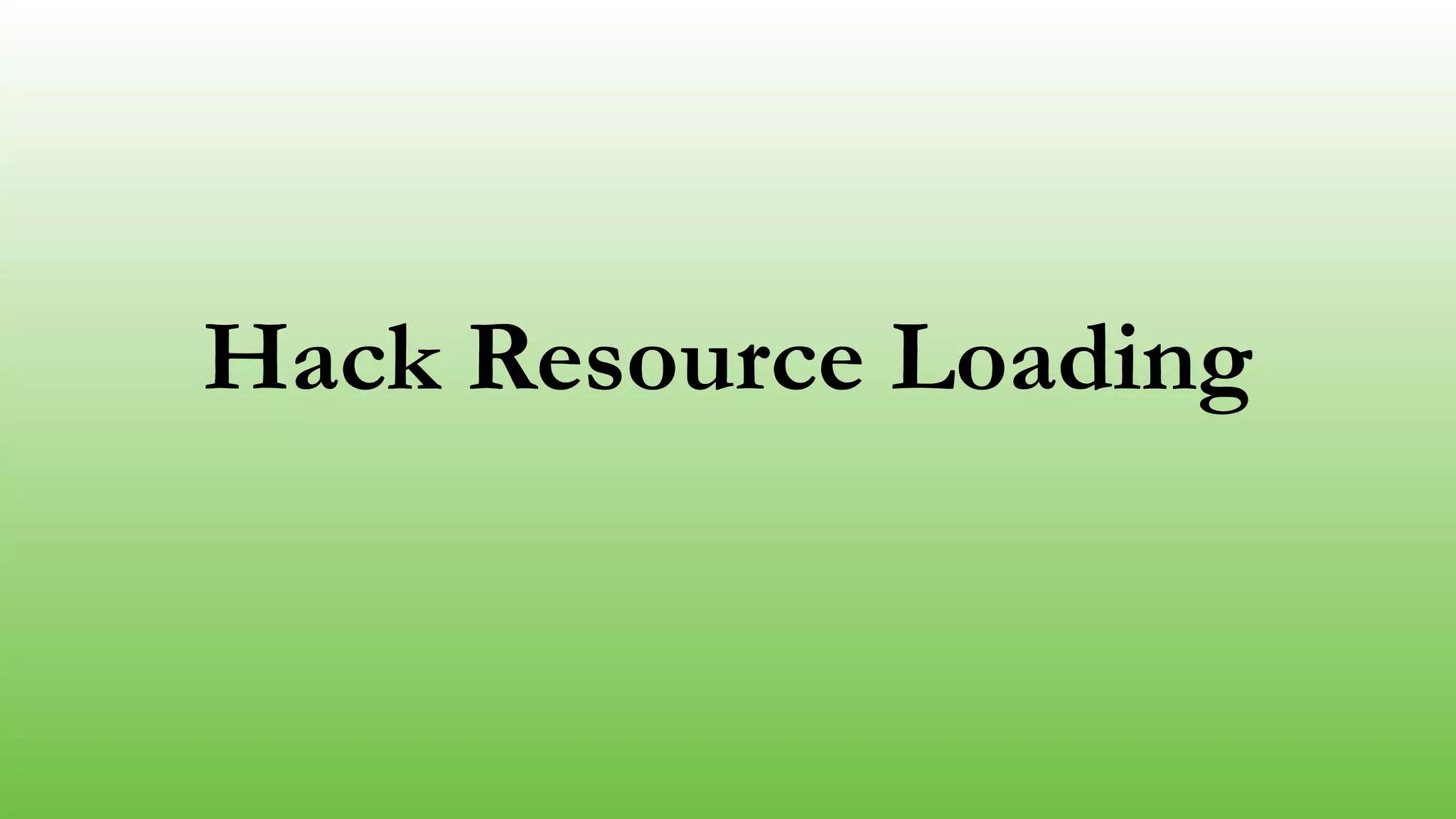

91. Hack Resource Loading

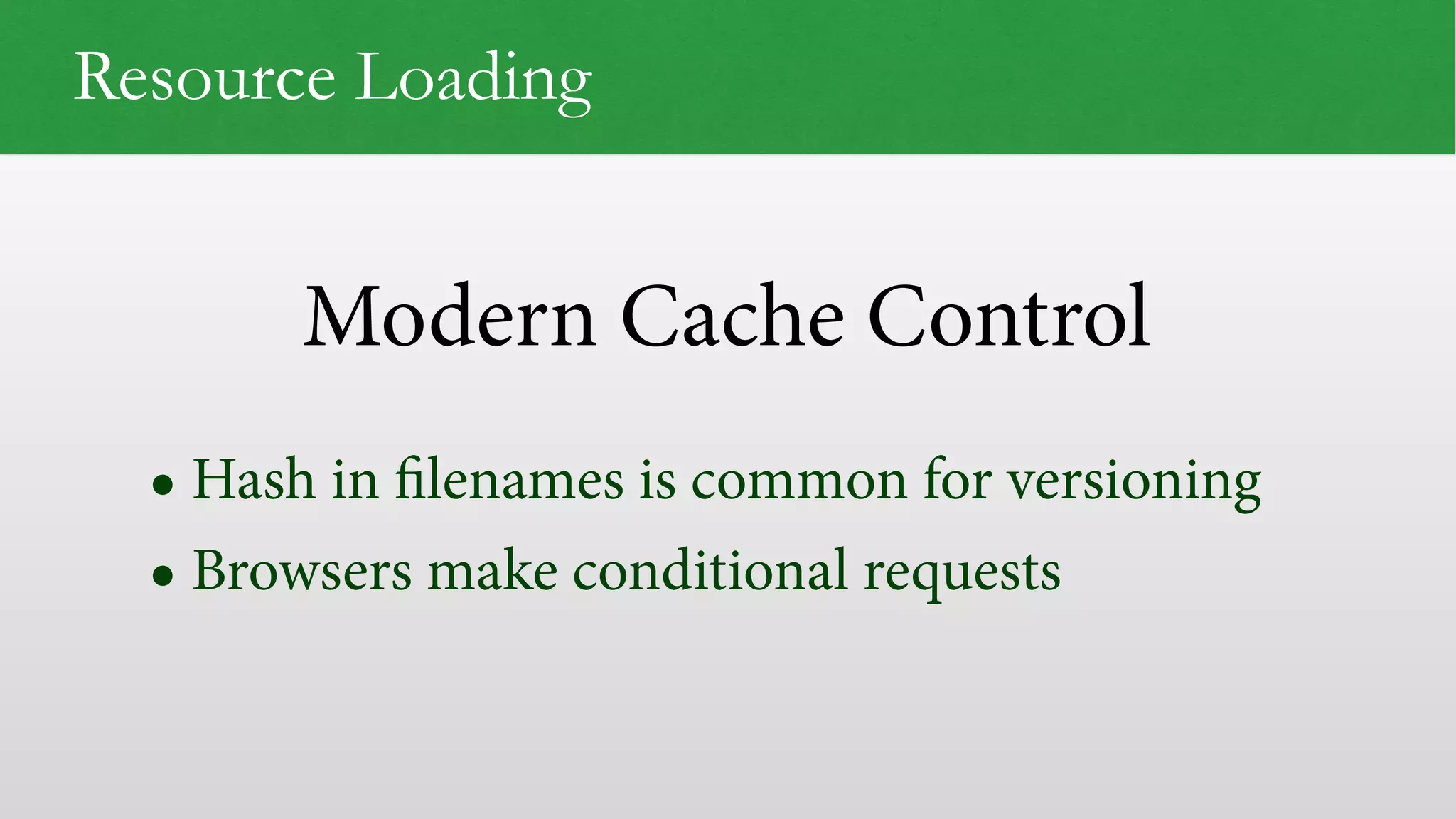

92. Modern Cache Control
Resource Loading
• Hash in filenames is common for versioning
• Browsers make conditional requests

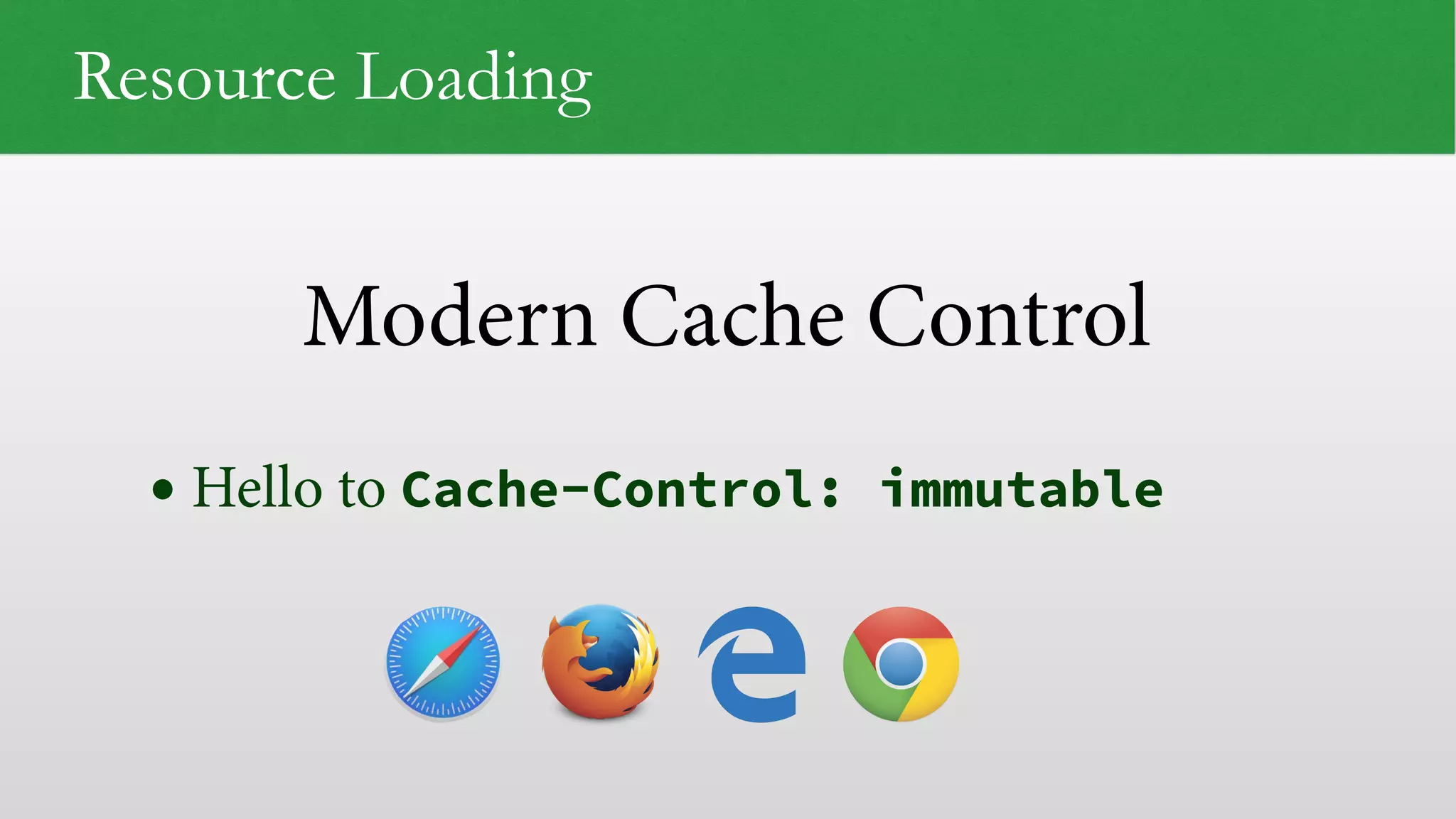

93. Modern Cache Control
Resource Loading
• Hello to Cache-Control: immutable

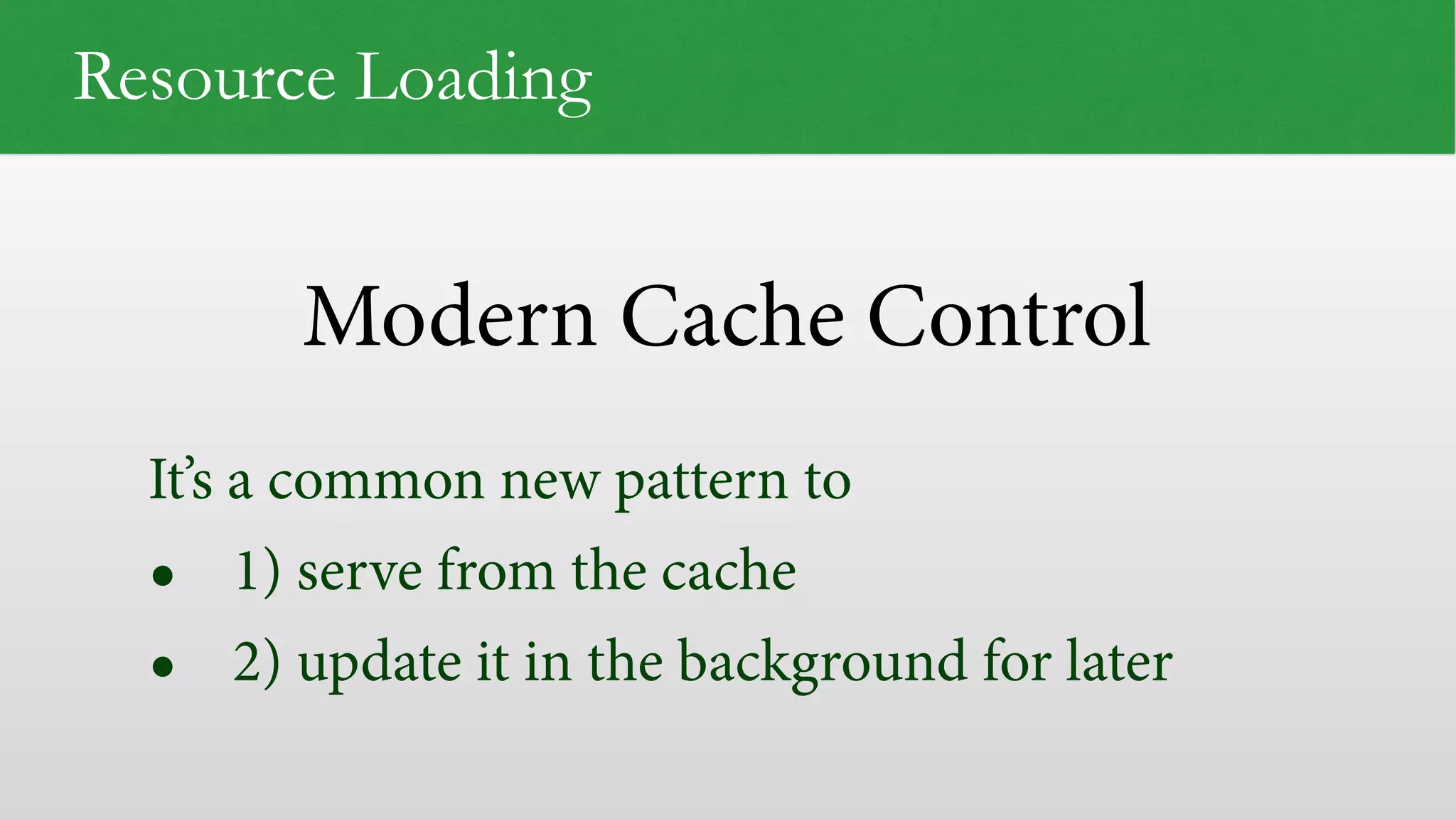

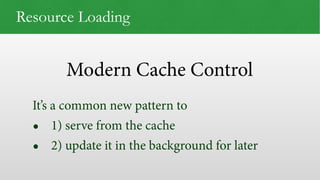

94. Modern Cache Control
Resource Loading
It’s a common new pattern to
• 1) serve from the cache
• 2) update it in the background for later

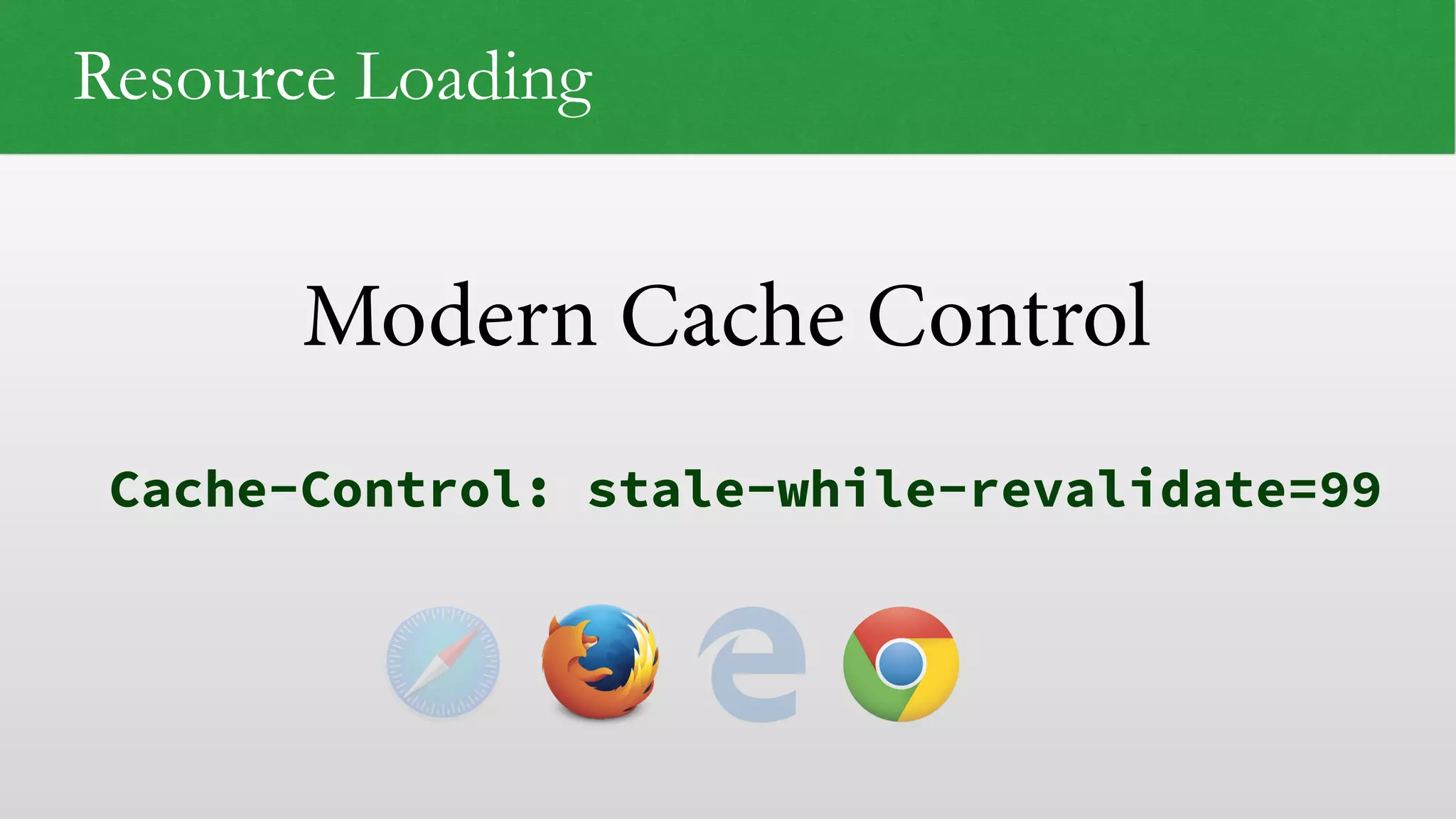

95. Modern Cache Control
Resource Loading
Cache-Control: stale-while-revalidate=99

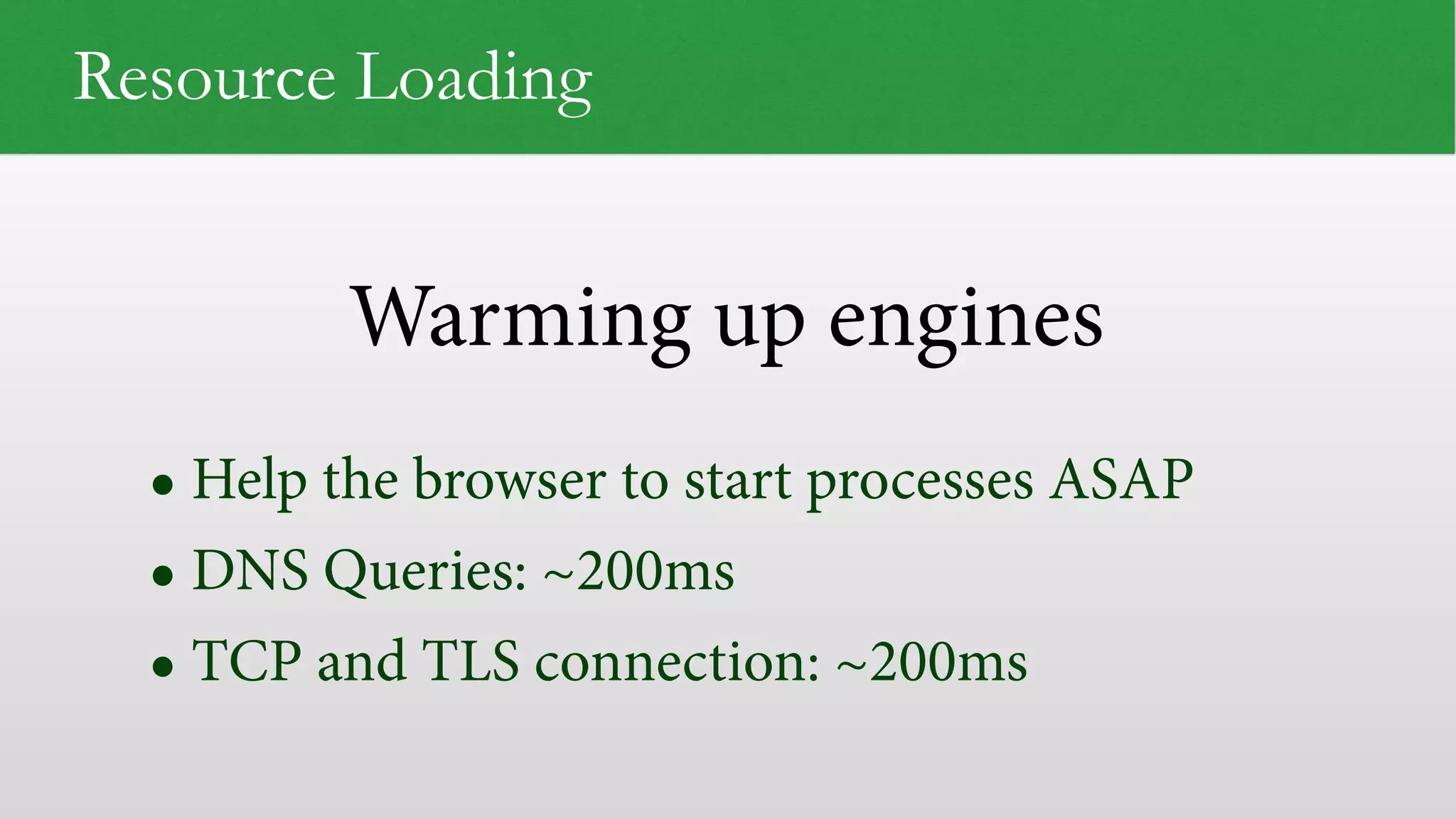

96. Warming up engines
Resource Loading
• Help the browser to start processes ASAP
• DNS Queries: ~200ms
• TCP and TLS connection: ~200ms

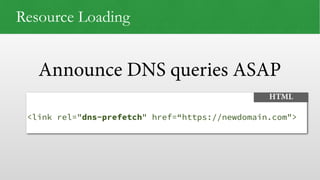

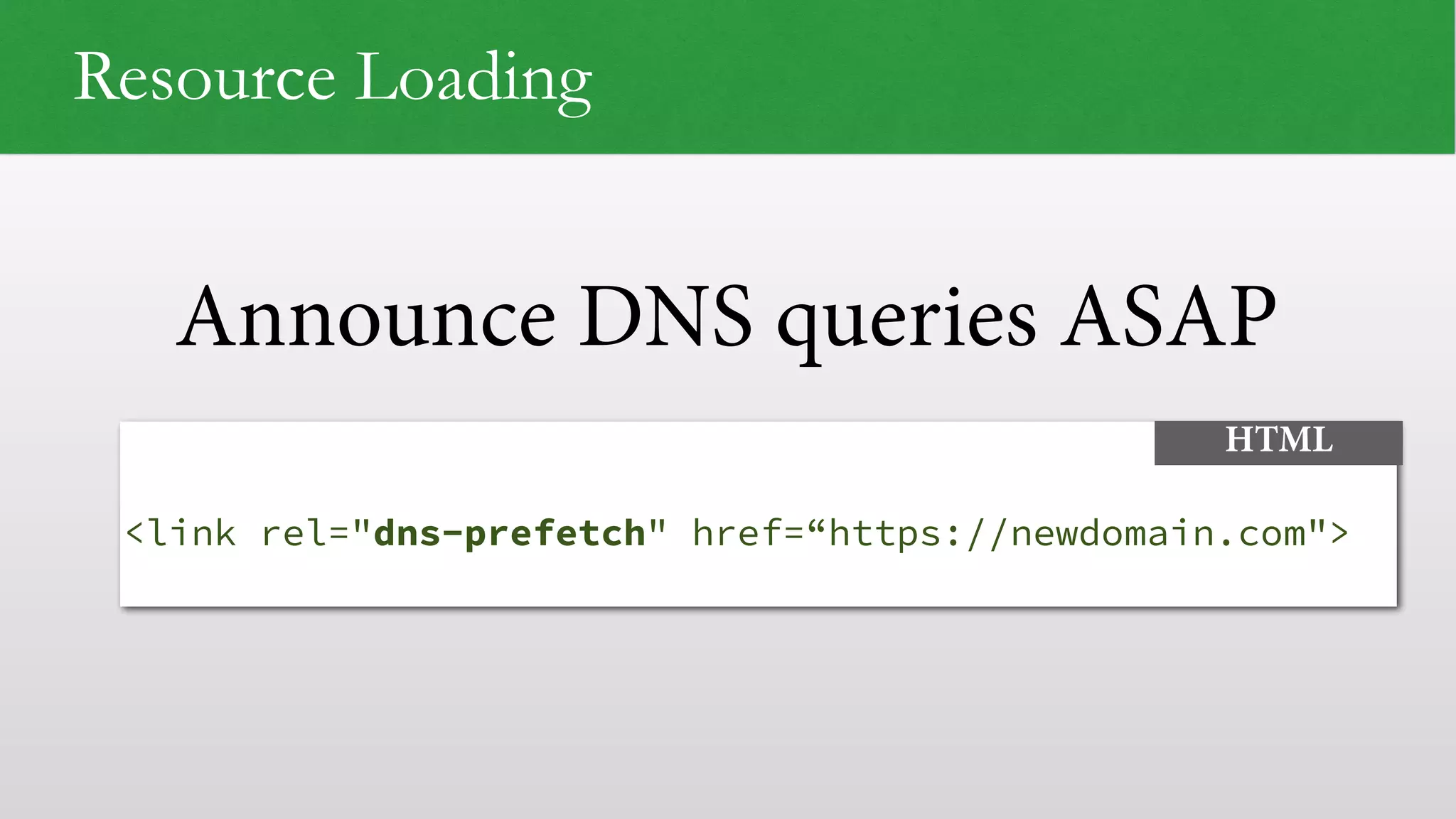

97. Announce DNS queries ASAP
<link rel="dns-prefetch" href=“https://newdomain.com">
HTML
Resource Loading

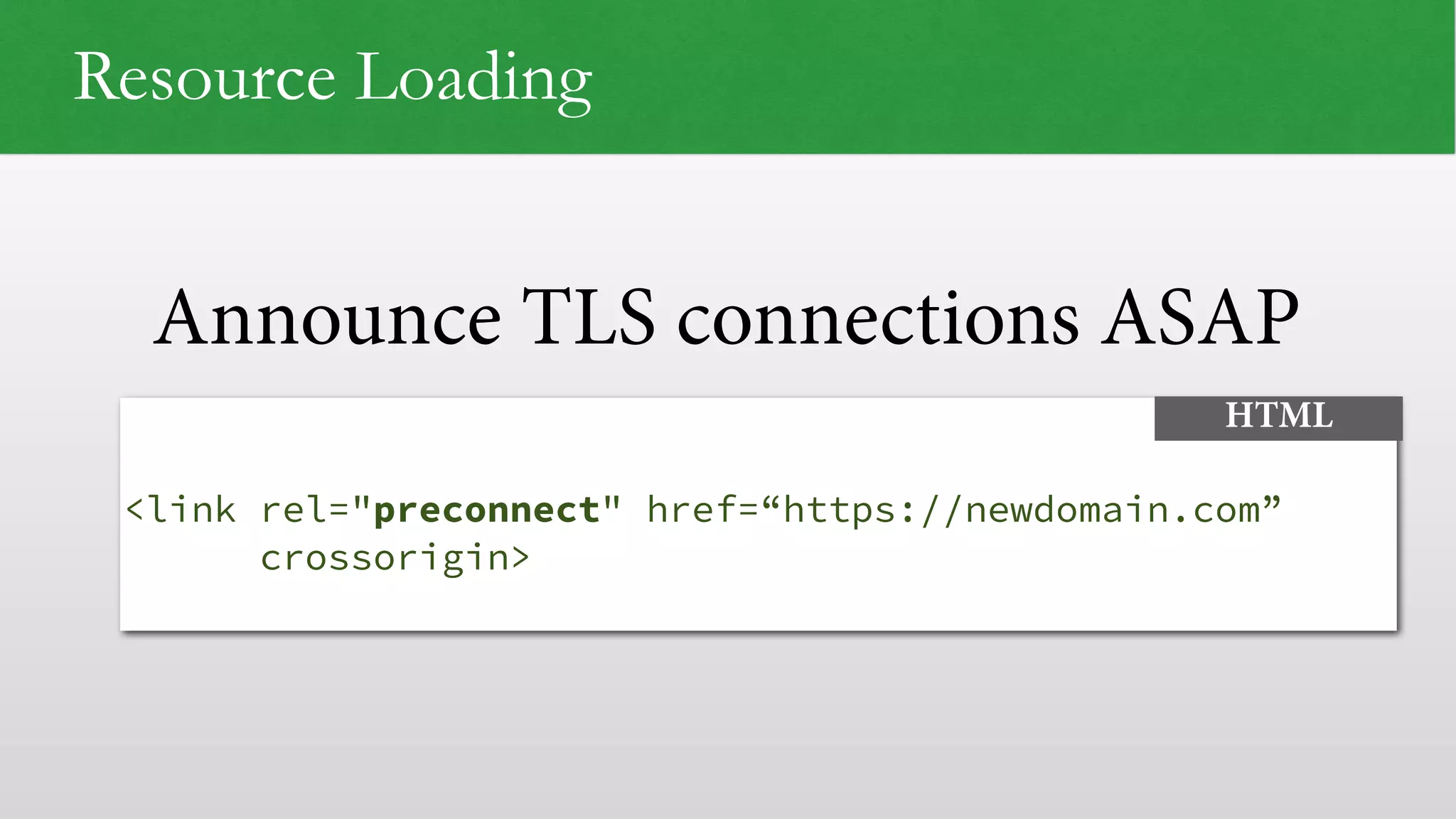

98. Announce TLS connections ASAP
<link rel="preconnect" href=“https://newdomain.com”
crossorigin>
HTML
Resource Loading

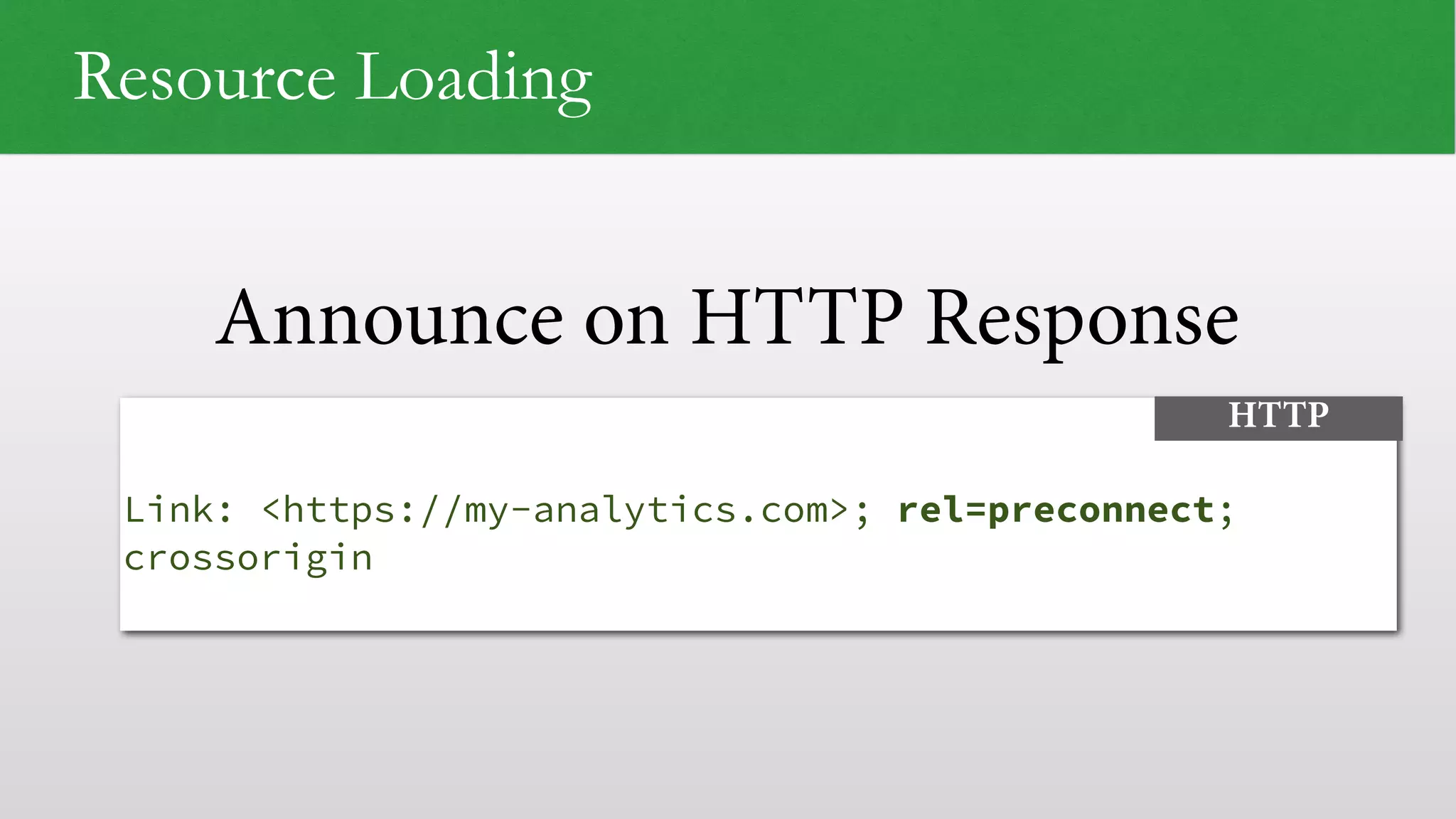

99. Announce on HTTP Response
Link: <https://my-analytics.com>; rel=preconnect;
crossorigin
HTTP
Resource Loading

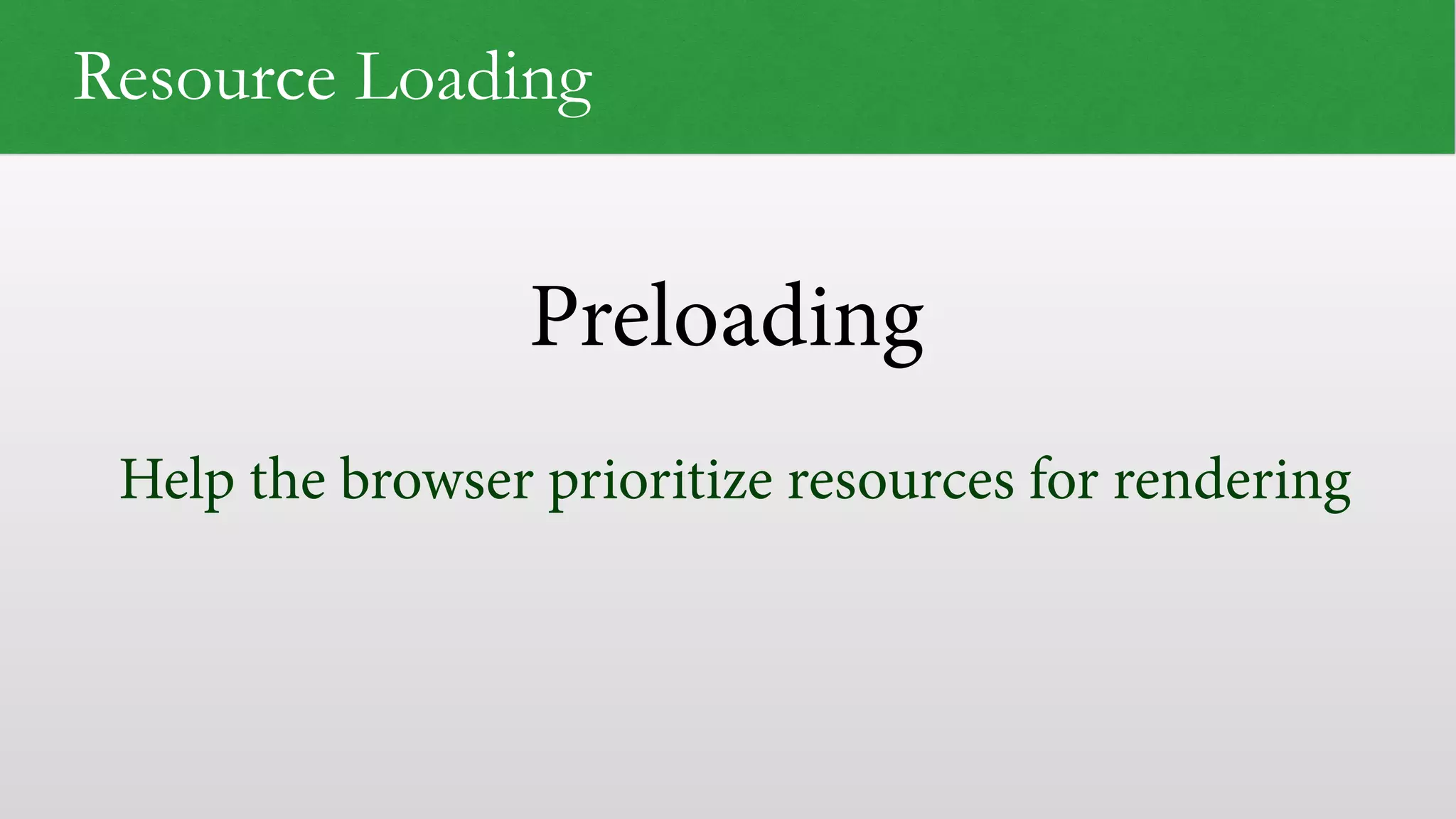

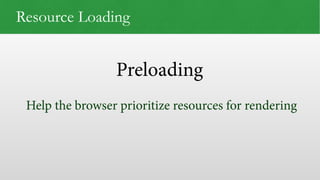

100. Preloading
Resource Loading
Help the browser prioritize resources for rendering

101. Preloading
Resource Loading
<link rel="preload" href=“styles.css” as=“style”>
HTML

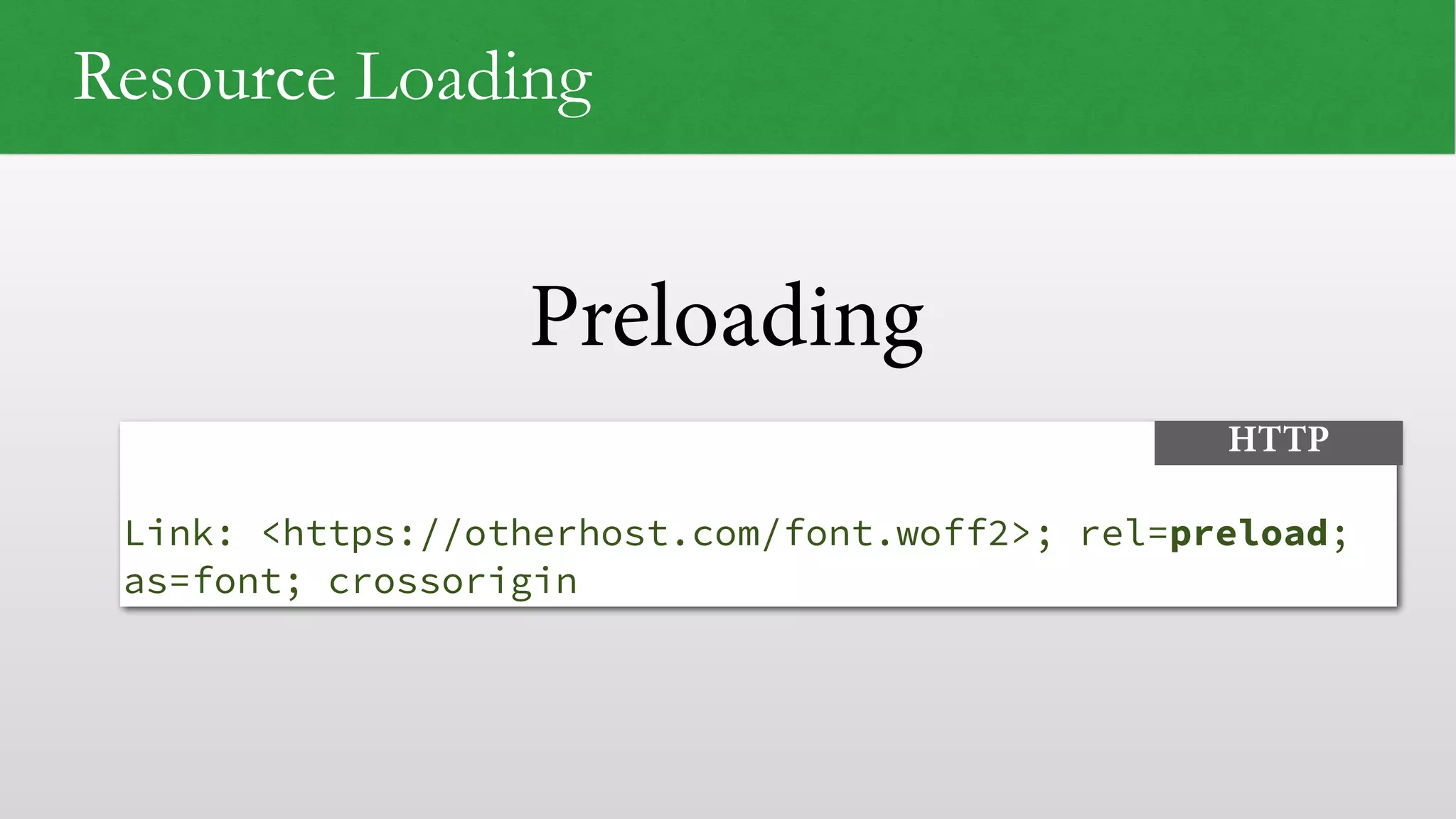

102. Preloading
Resource Loading
Link: <https://otherhost.com/font.woff2>; rel=preload;
as=font; crossorigin
HTTP

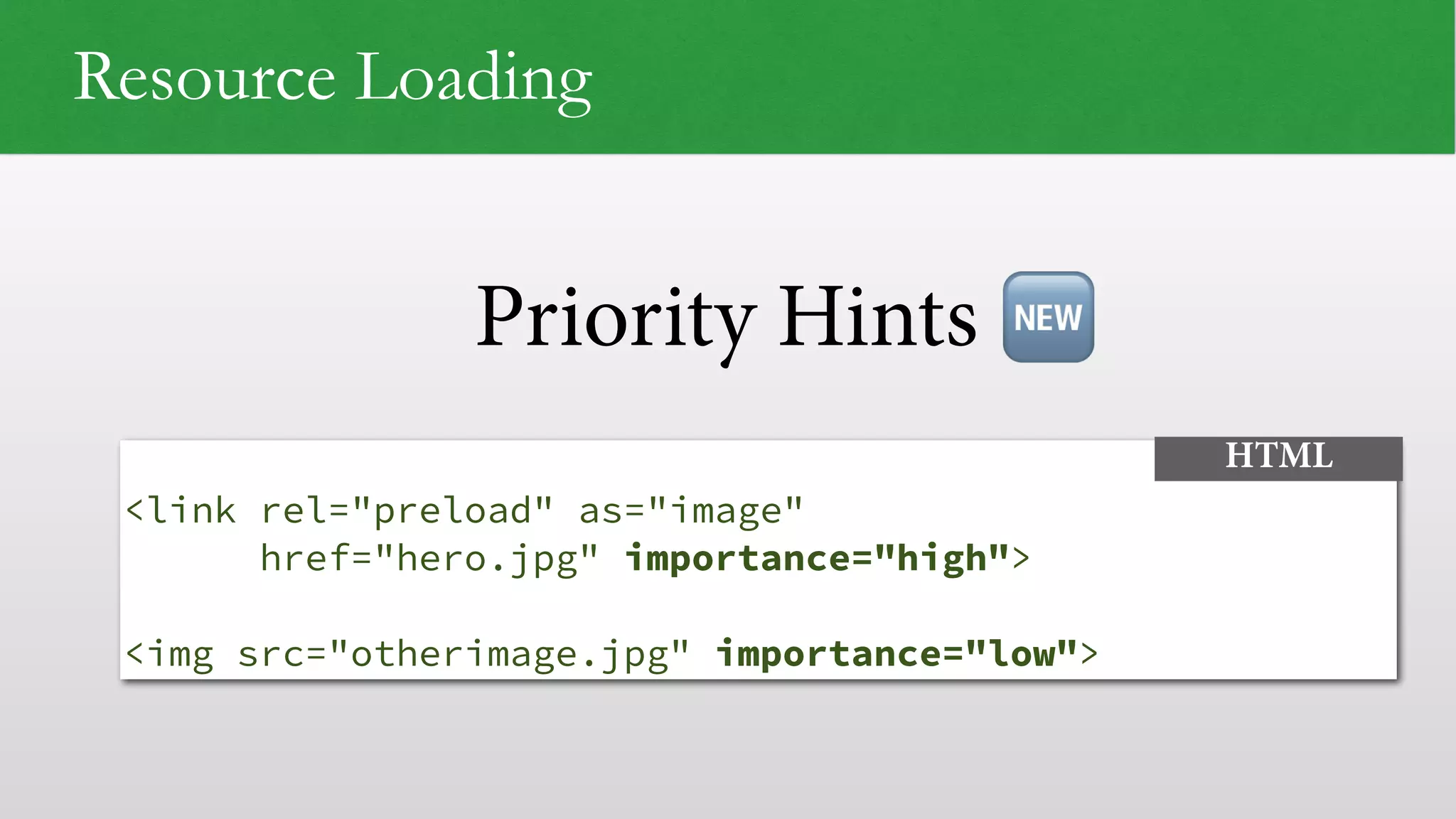

103. Priority Hints
Resource Loading
<link rel="preload" as="image"
href="hero.jpg" importance="high">
<img src="otherimage.jpg" importance="low">
HTML
🆕

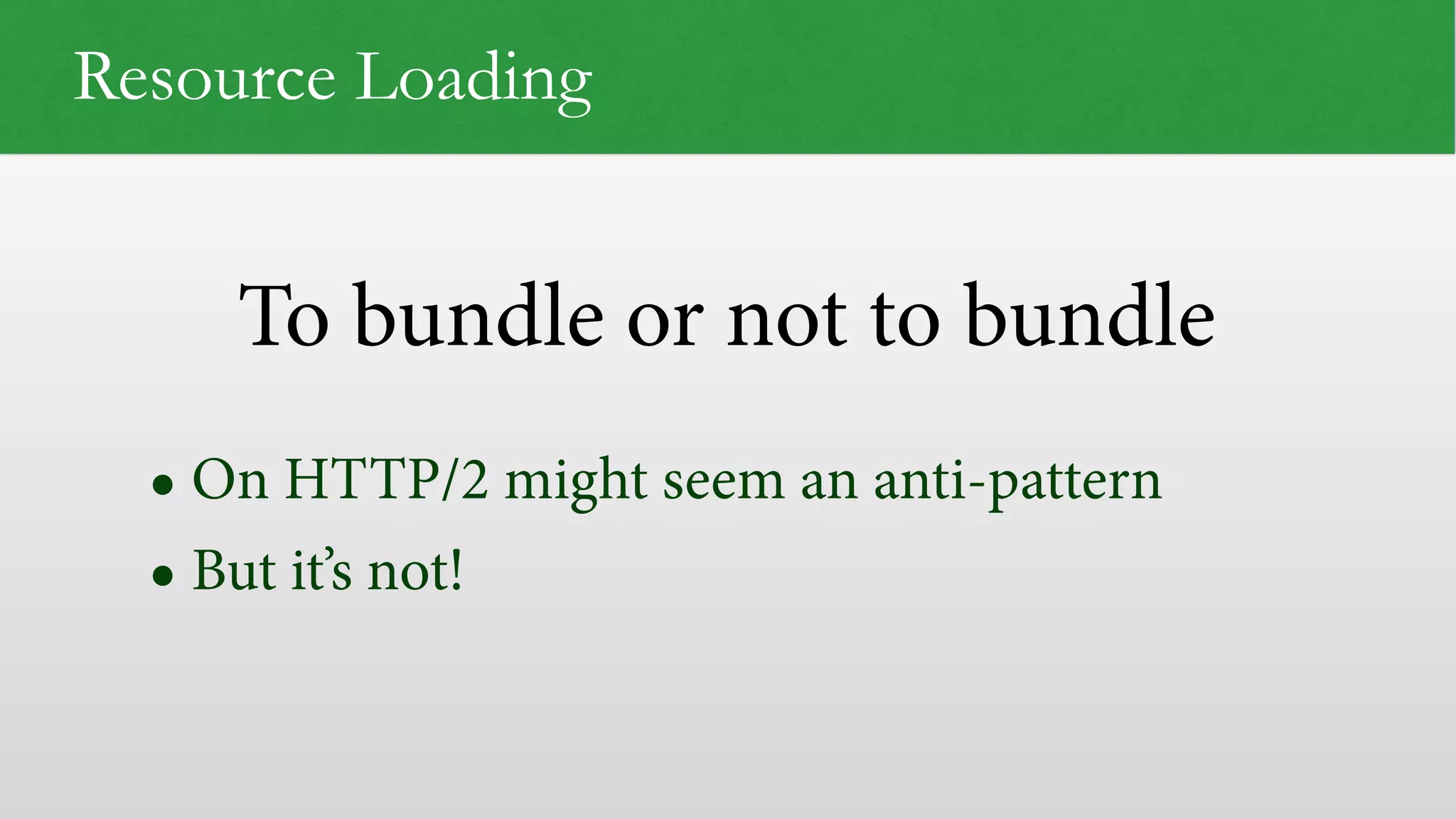

104. To bundle or not to bundle
Resource Loading
• On HTTP/2 might seem an anti-pattern
• But it’s not!

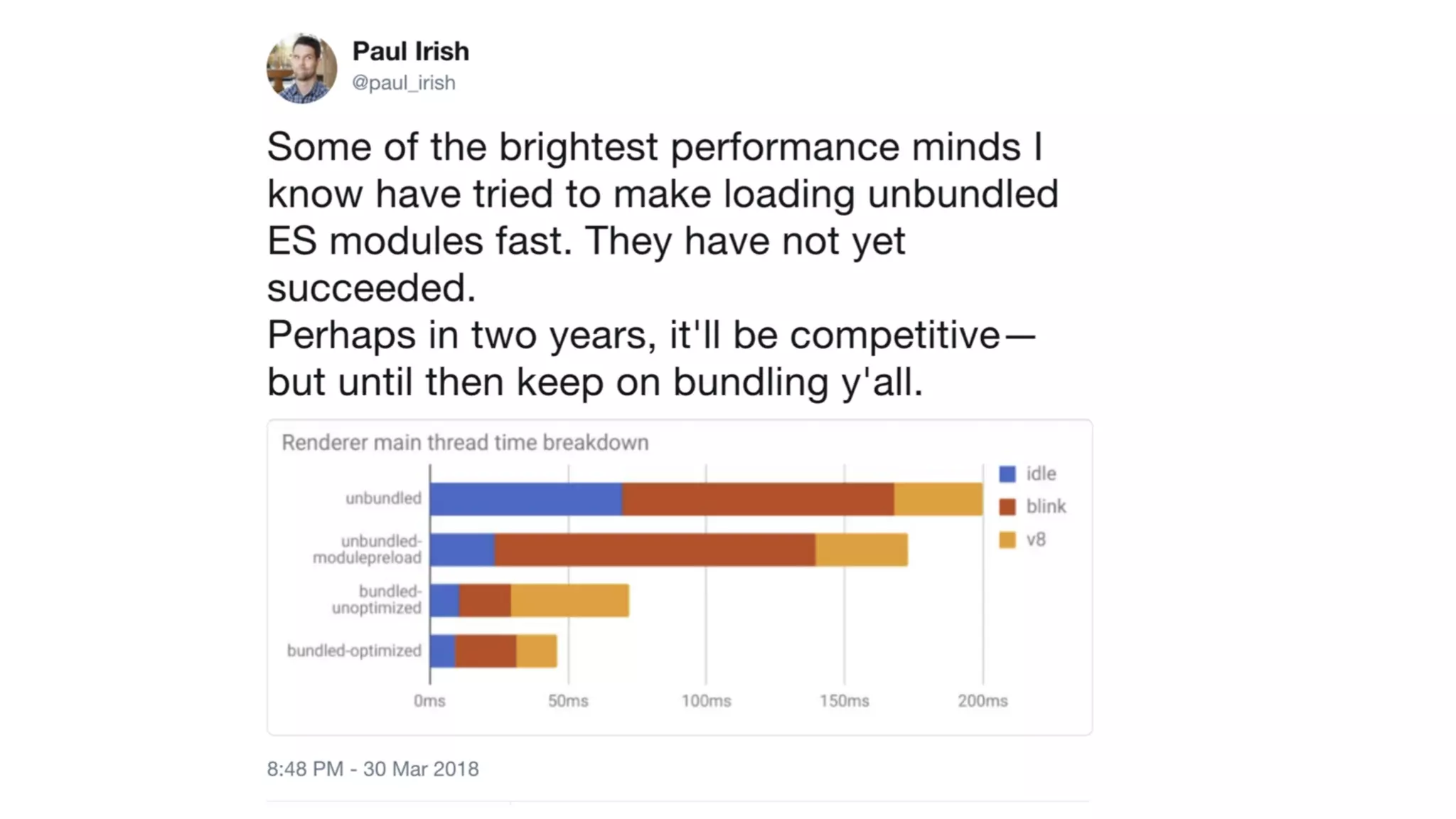

105. Resource Loading

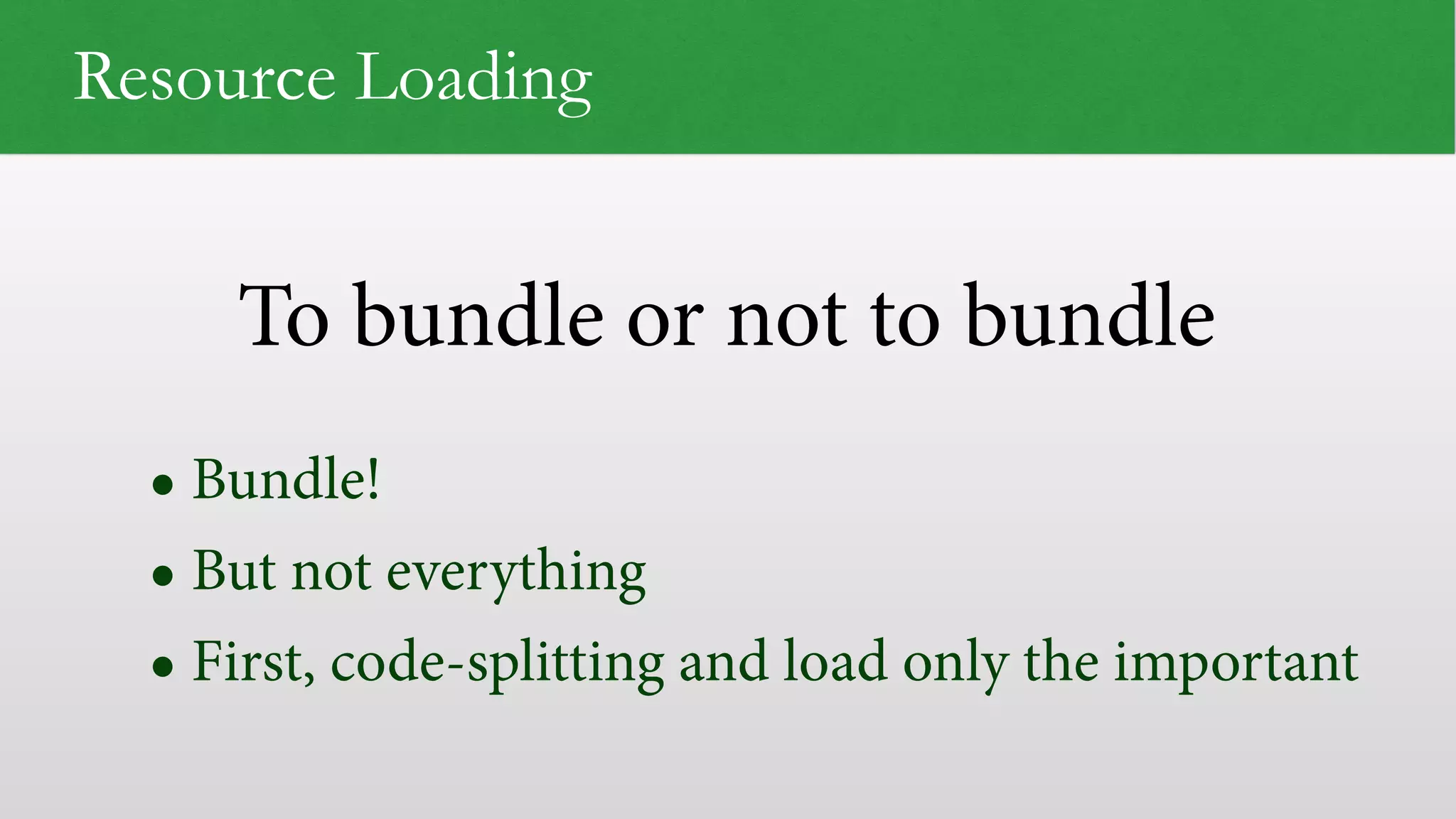

106. To bundle or not to bundle
Resource Loading
• Bundle!
• But not everything
• First, code-splitting and load only the important

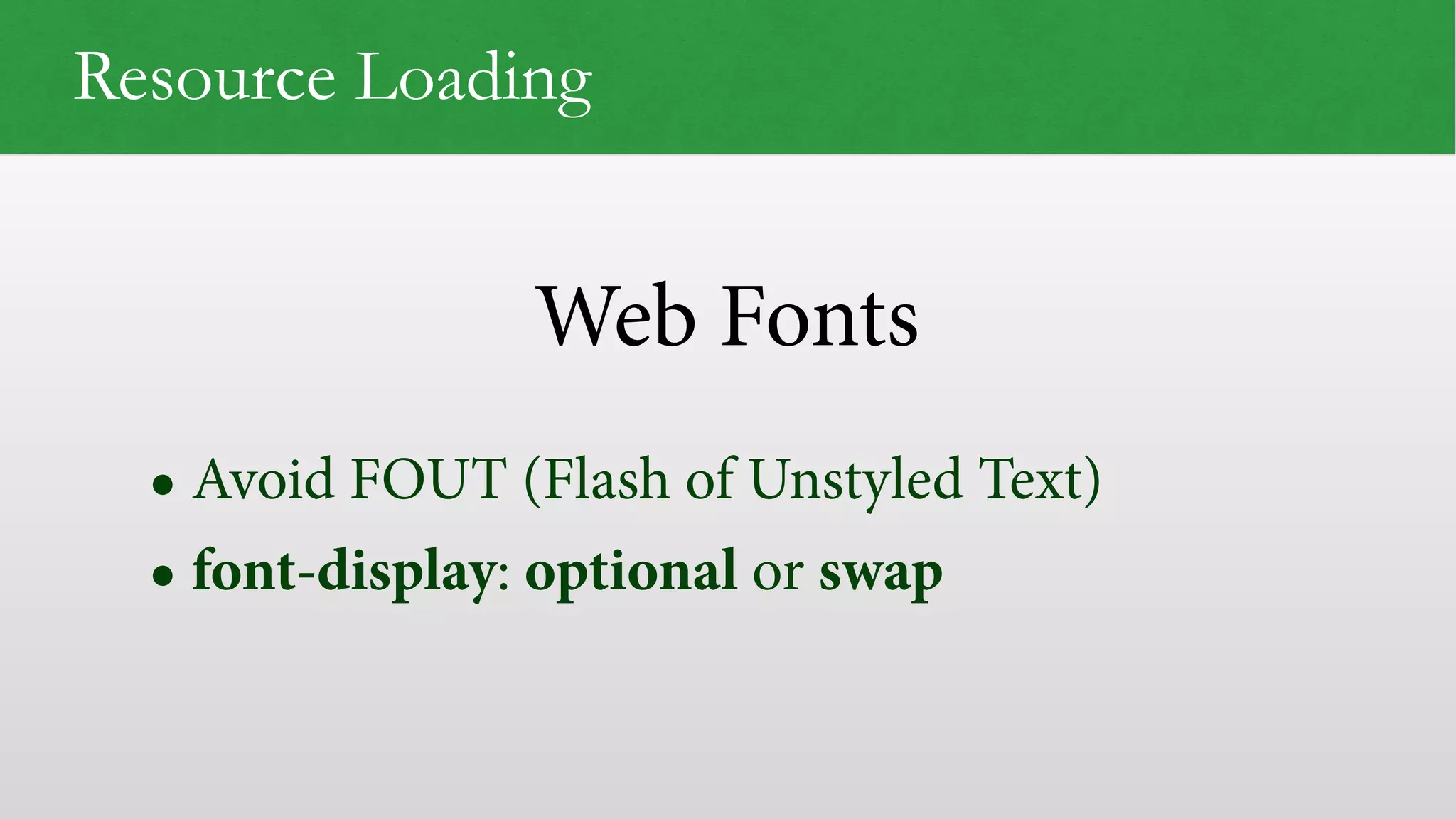

107. Web Fonts
Resource Loading
• Avoid FOUT (Flash of Unstyled Text)
• font-display: optional or swap

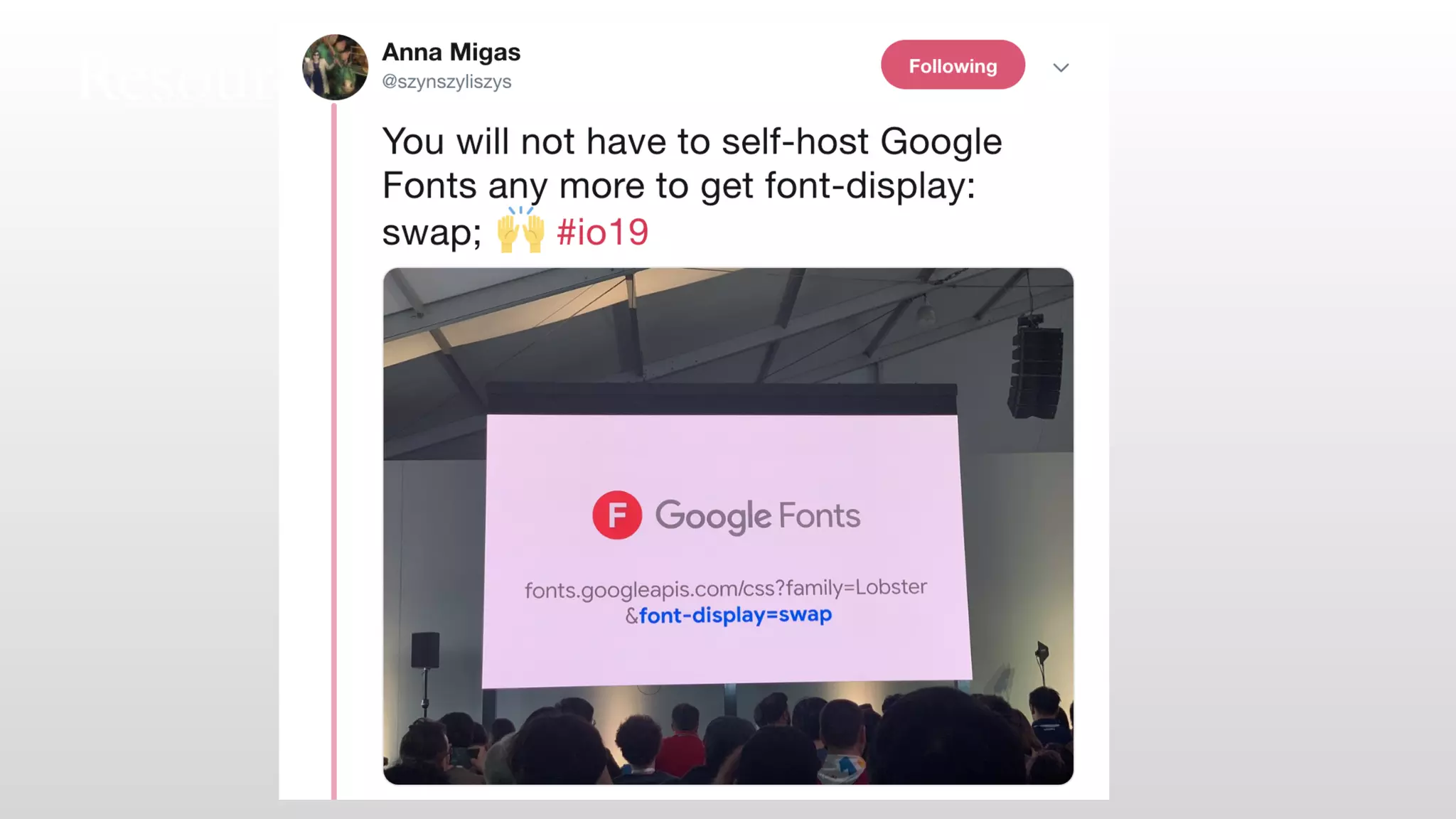

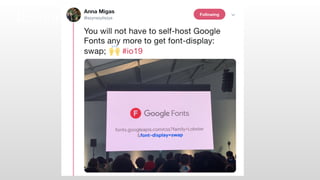

108. Resource Loading

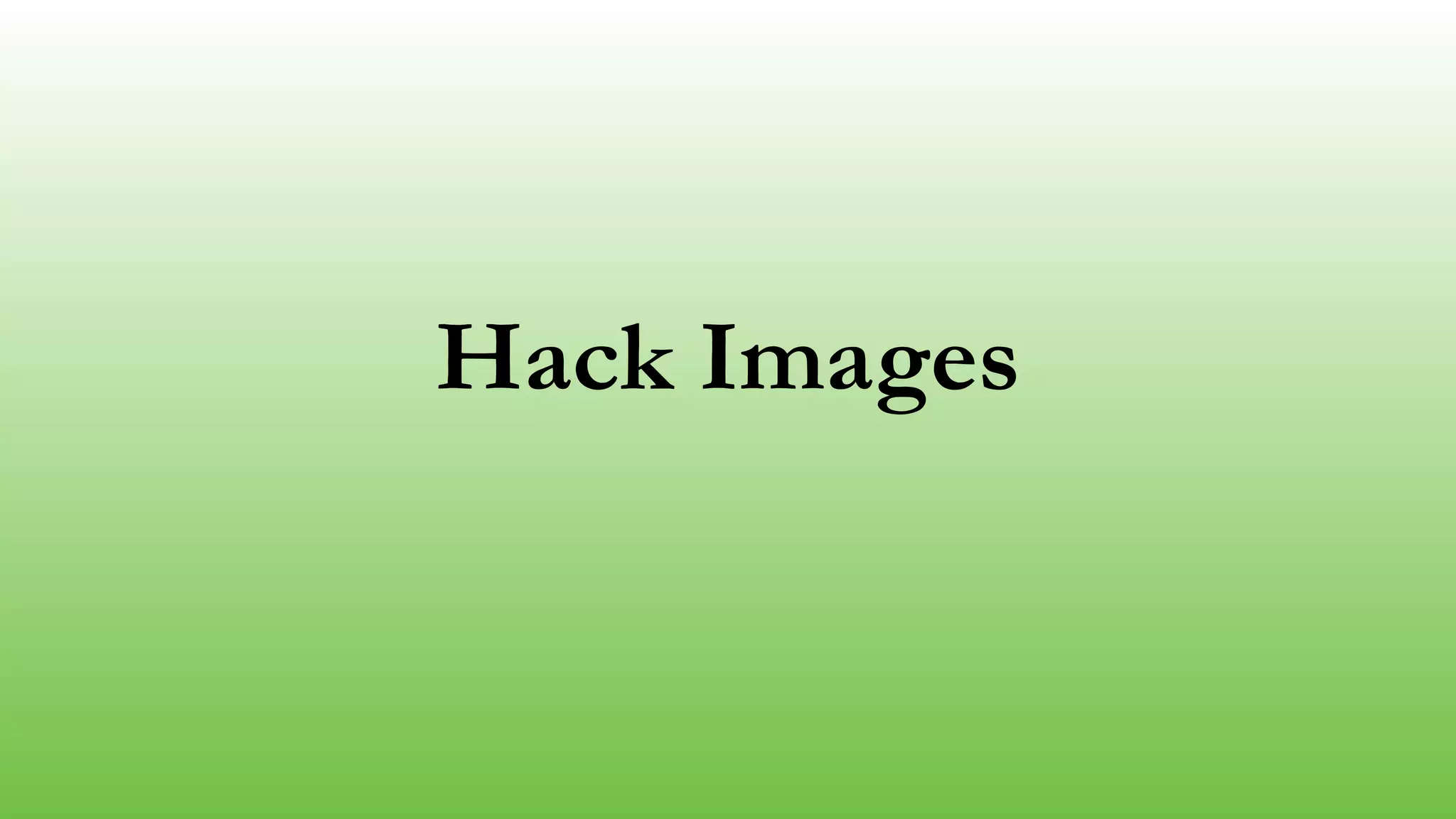

109. Hack Images

110. http://www.flickr.com/photos/steenslag/22689920/ - borrowed fromSteve Souders
A picture is worth a thousand
words…

111. … if it loads

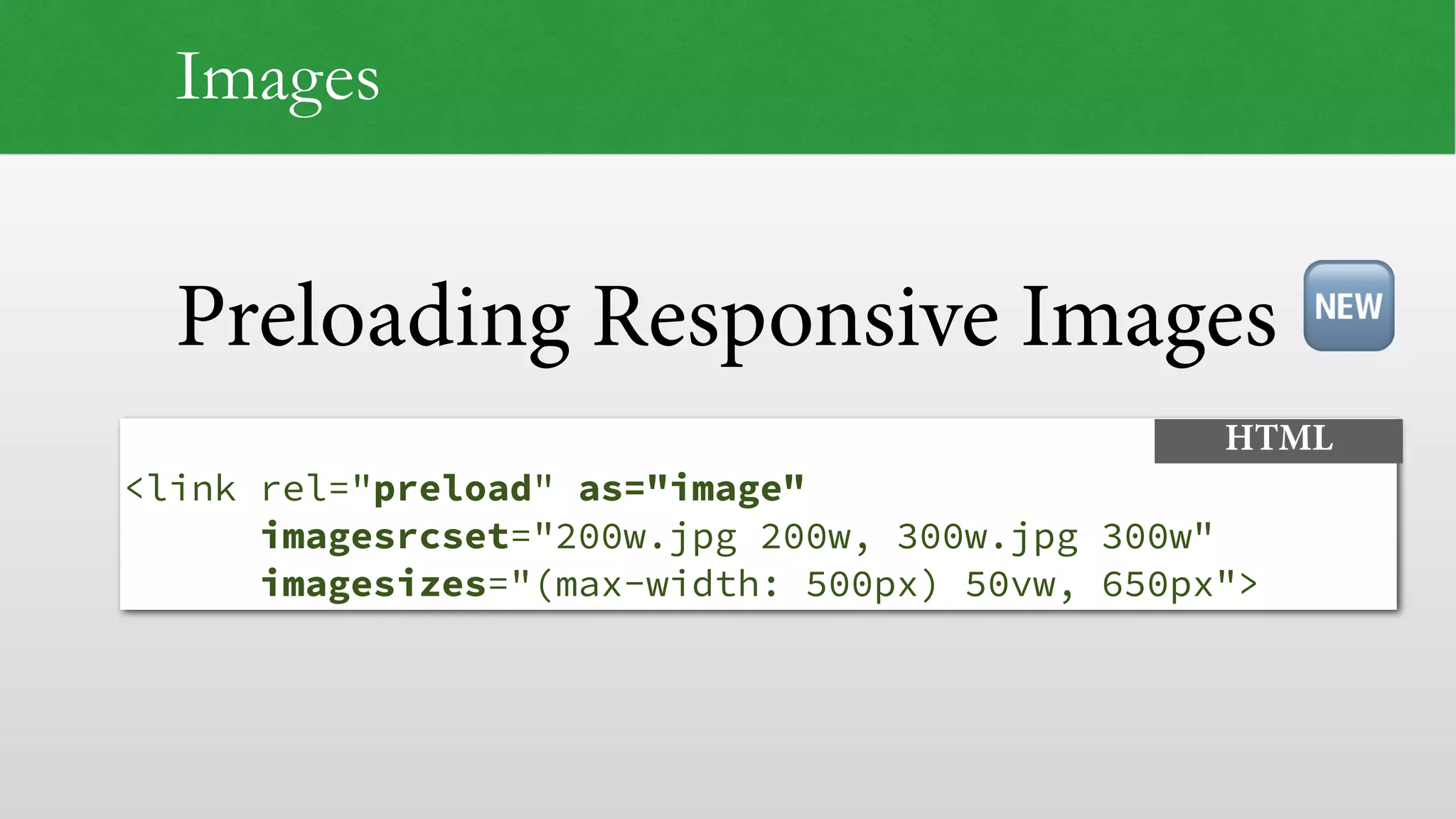

112. Preloading Responsive Images
<link rel="preload" as="image"
imagesrcset="200w.jpg 200w, 300w.jpg 300w"
imagesizes="(max-width: 500px) 50vw, 650px">
HTML
🆕
Images

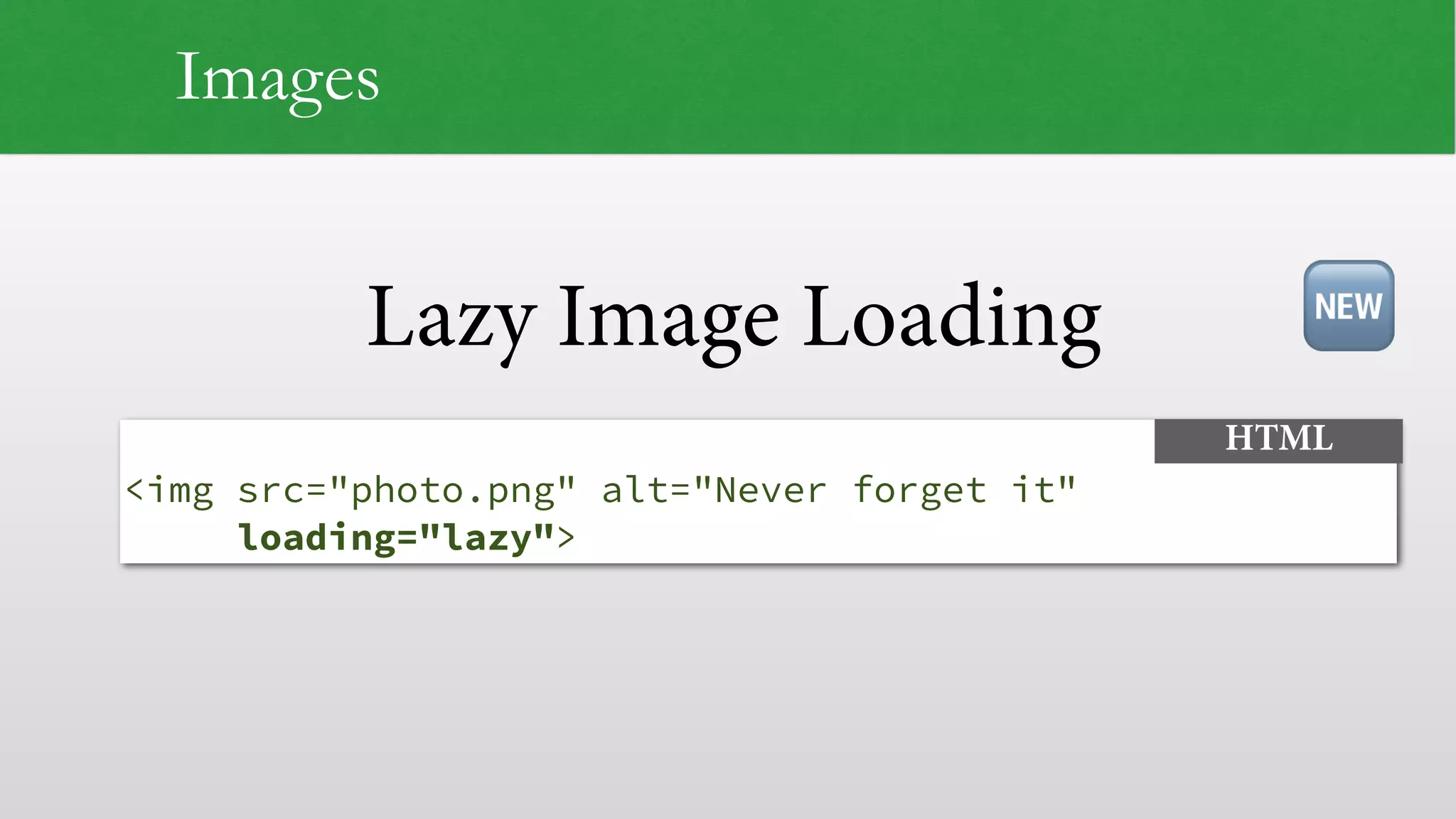

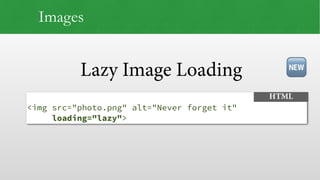

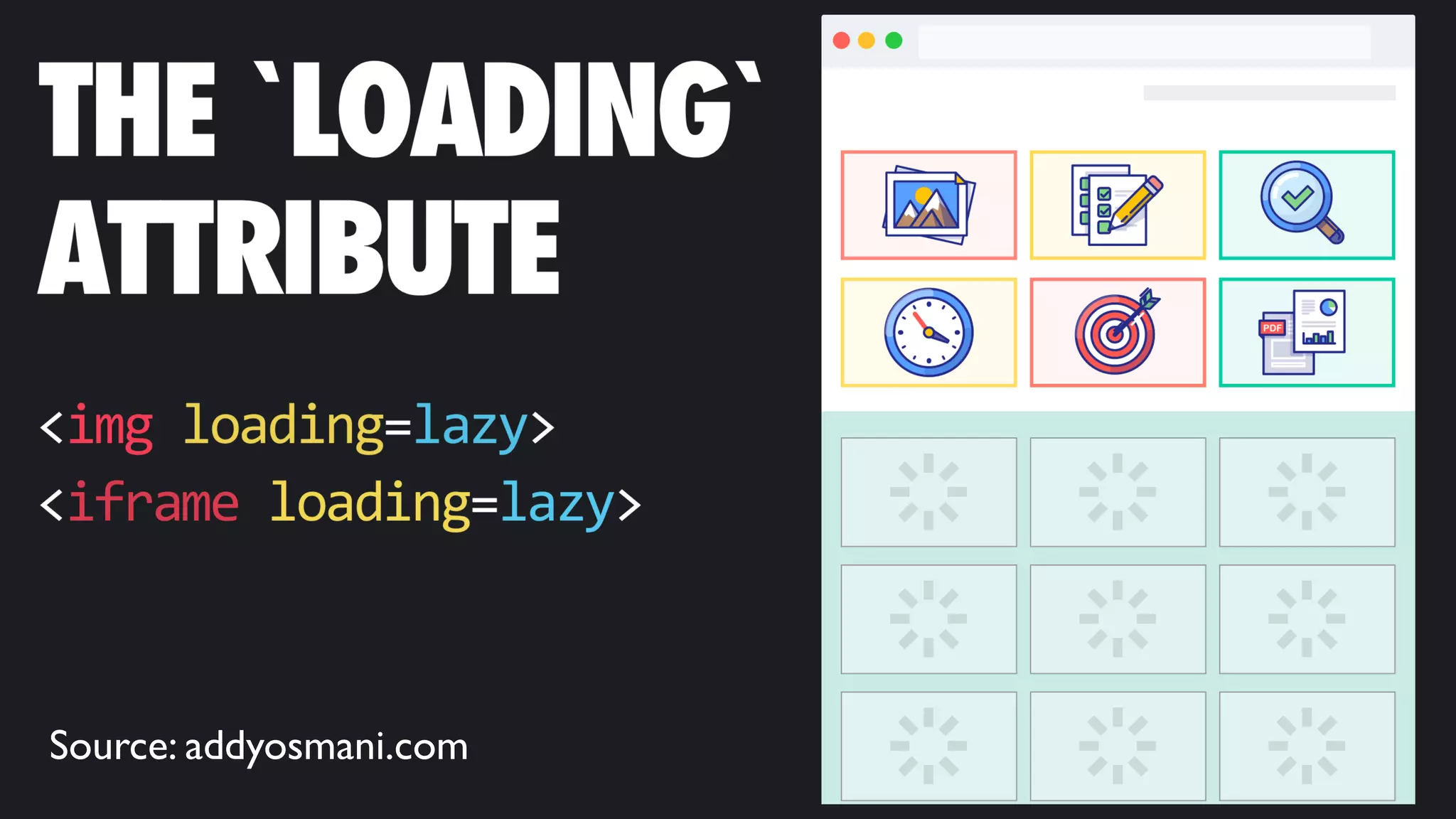

113. Lazy Image Loading
<img src="photo.png" alt="Never forget it"
loading="lazy">
HTML
🆕
Images

114. Source: addyosmani.com

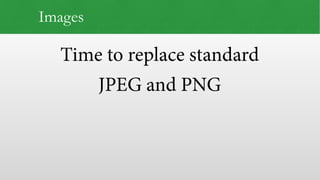

115. Time to replace standard
JPEG and PNG
Images

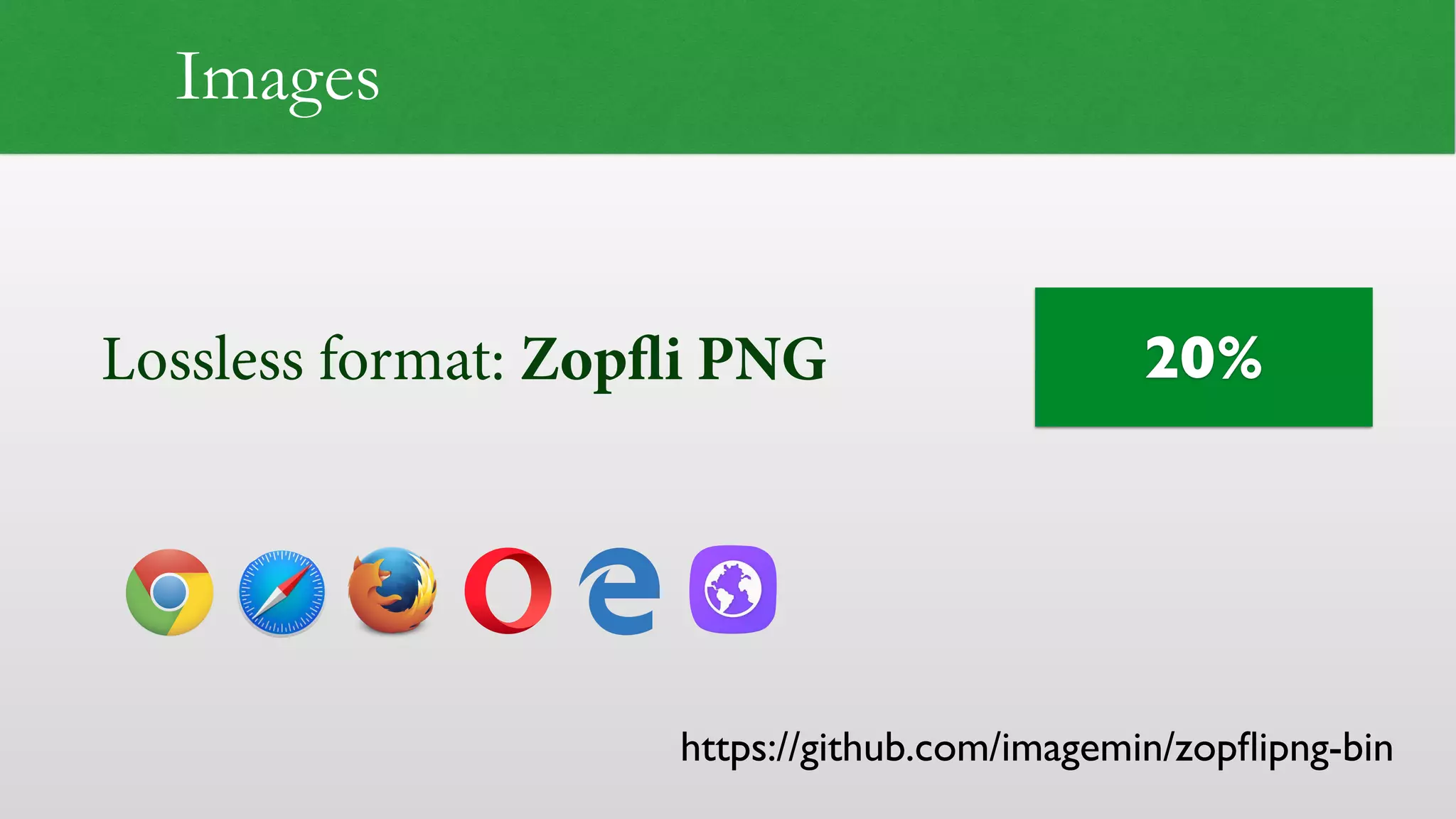

116. Lossless format: Zopfli PNG
https://github.com/imagemin/zopflipng-bin
20%
Images

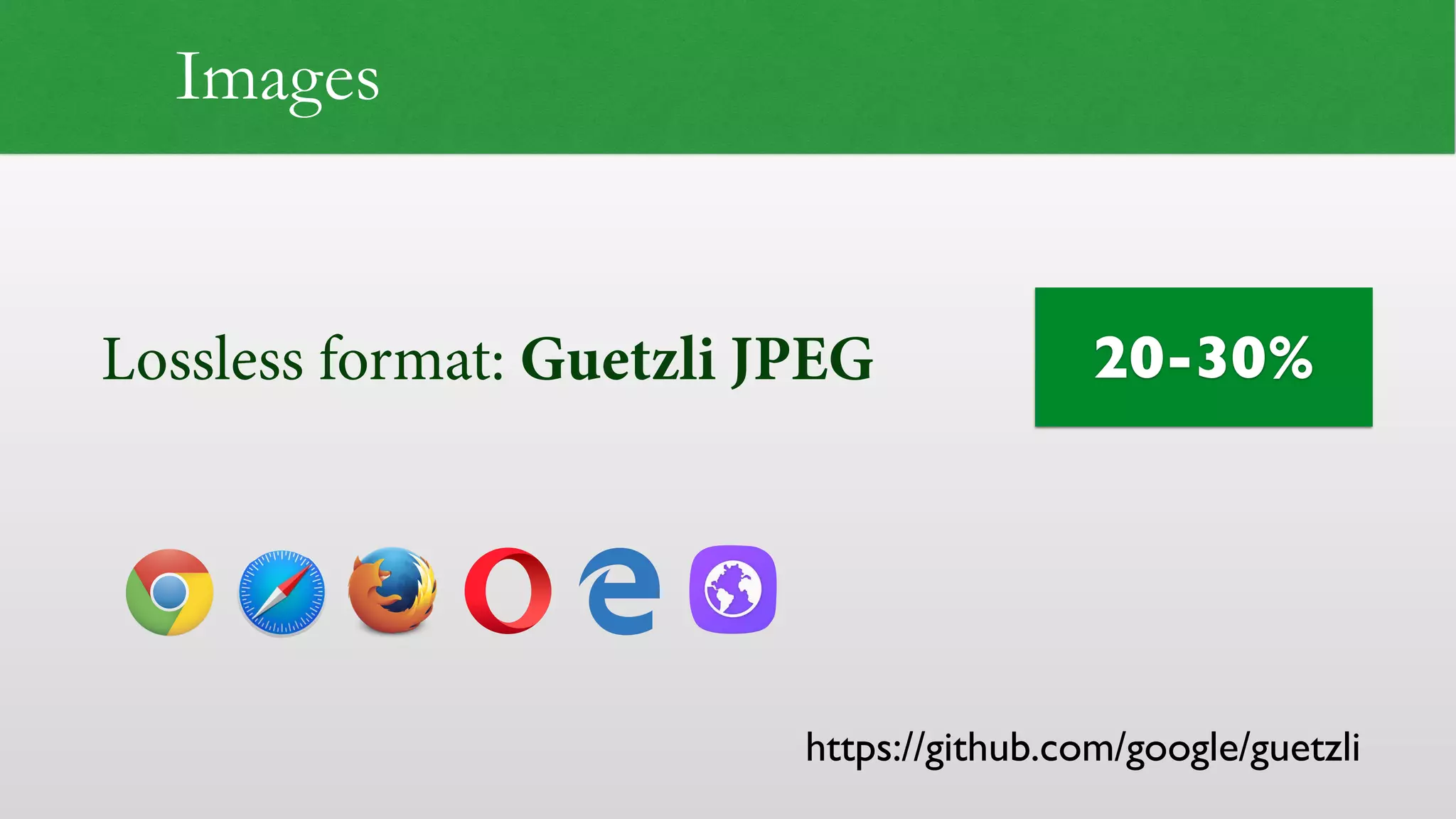

117. Lossless format: Guetzli JPEG
https://github.com/google/guetzli
20-30%
Images

118. Hack User Experience

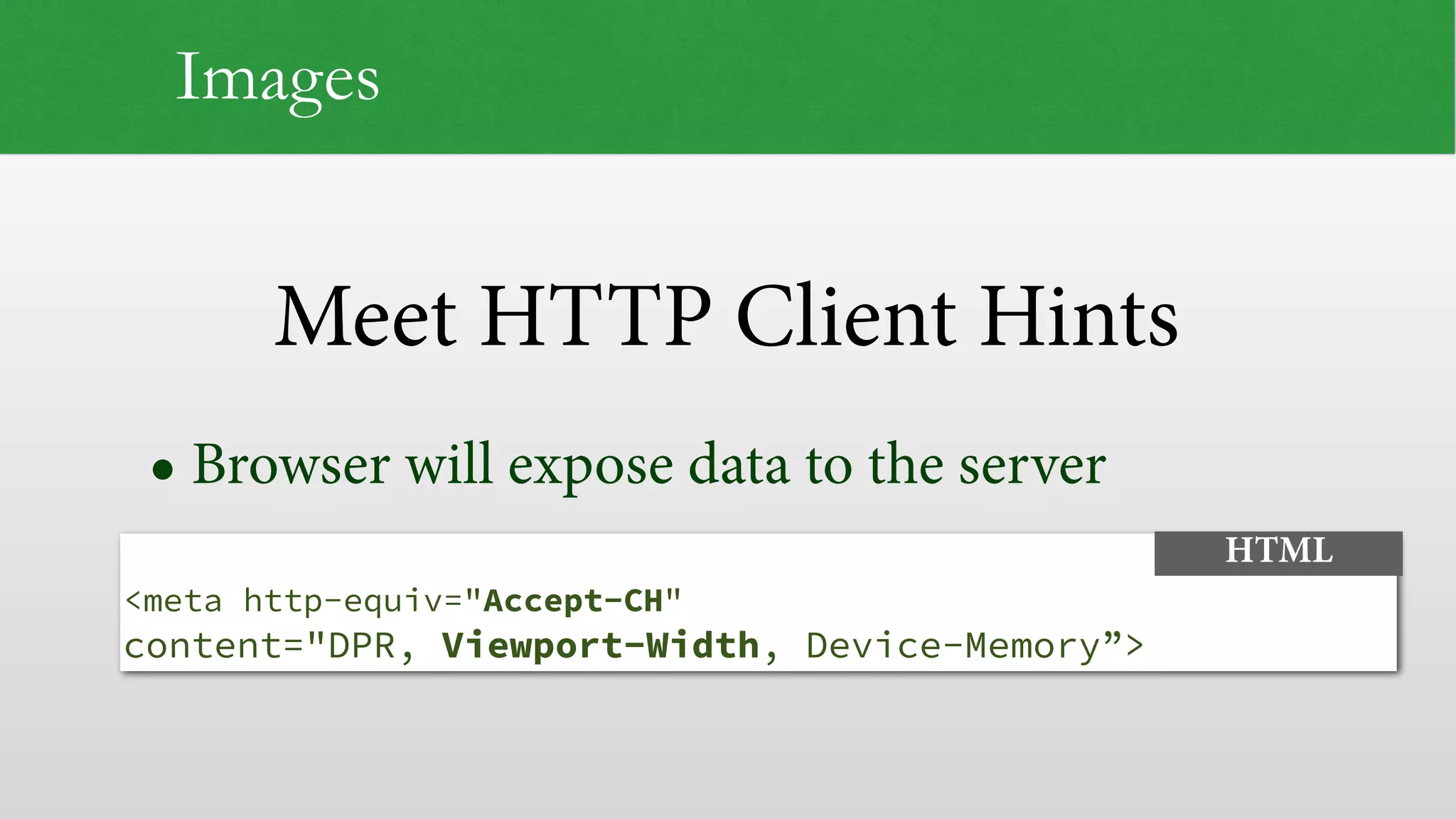

119. Meet HTTP Client Hints
Images
• Browser will expose data to the server
<meta http-equiv="Accept-CH"
content="DPR, Viewport-Width, Device-Memory”>
HTML

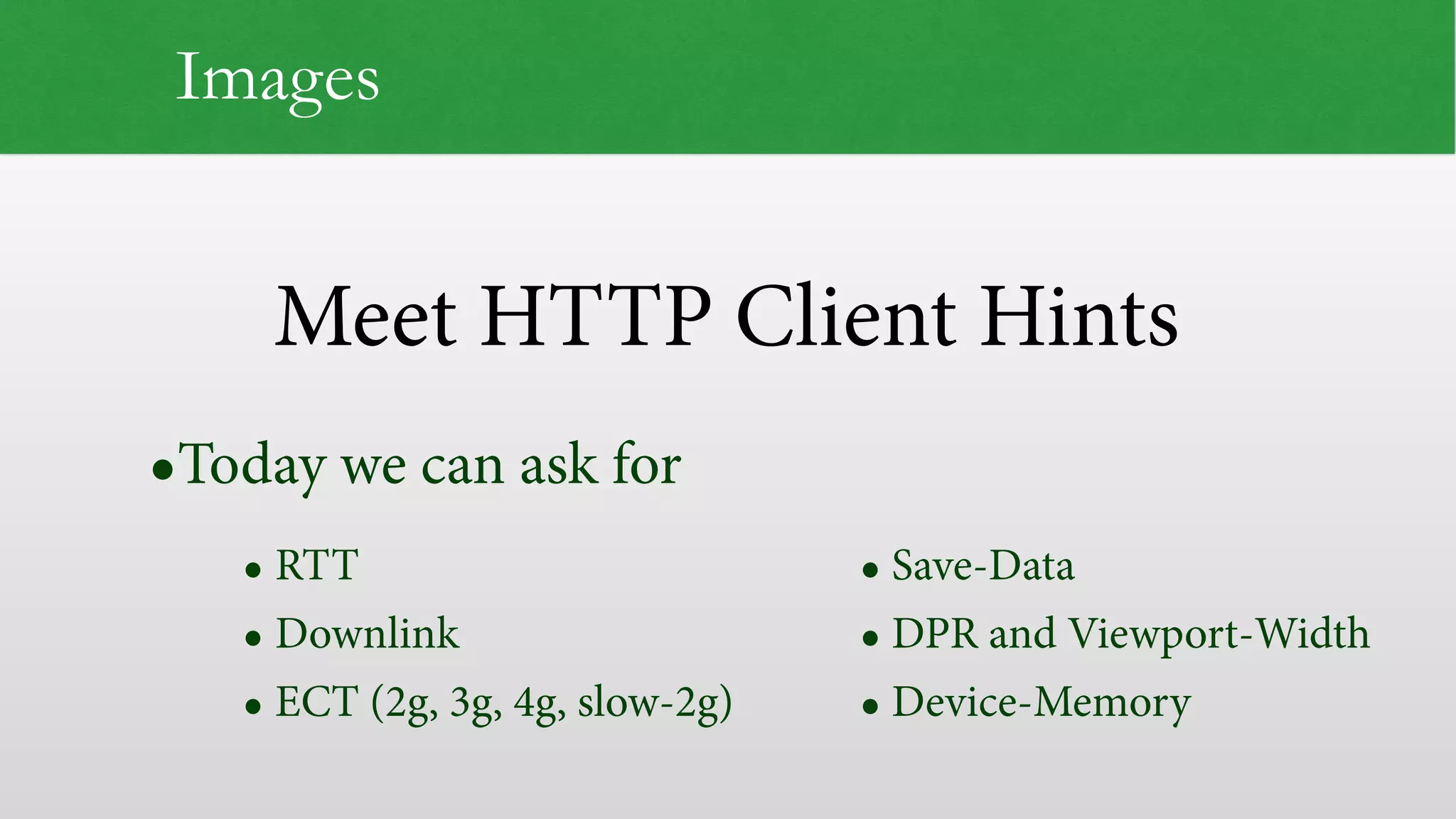

120. Meet HTTP Client Hints
Images
•Today we can ask for
• RTT
• Downlink
• ECT (2g, 3g, 4g, slow-2g)
• Save-Data
• DPR and Viewport-Width
• Device-Memory

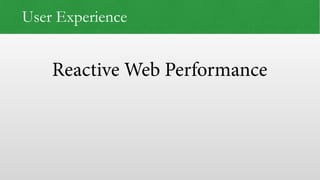

122. Reactive Web Performance
User Experience

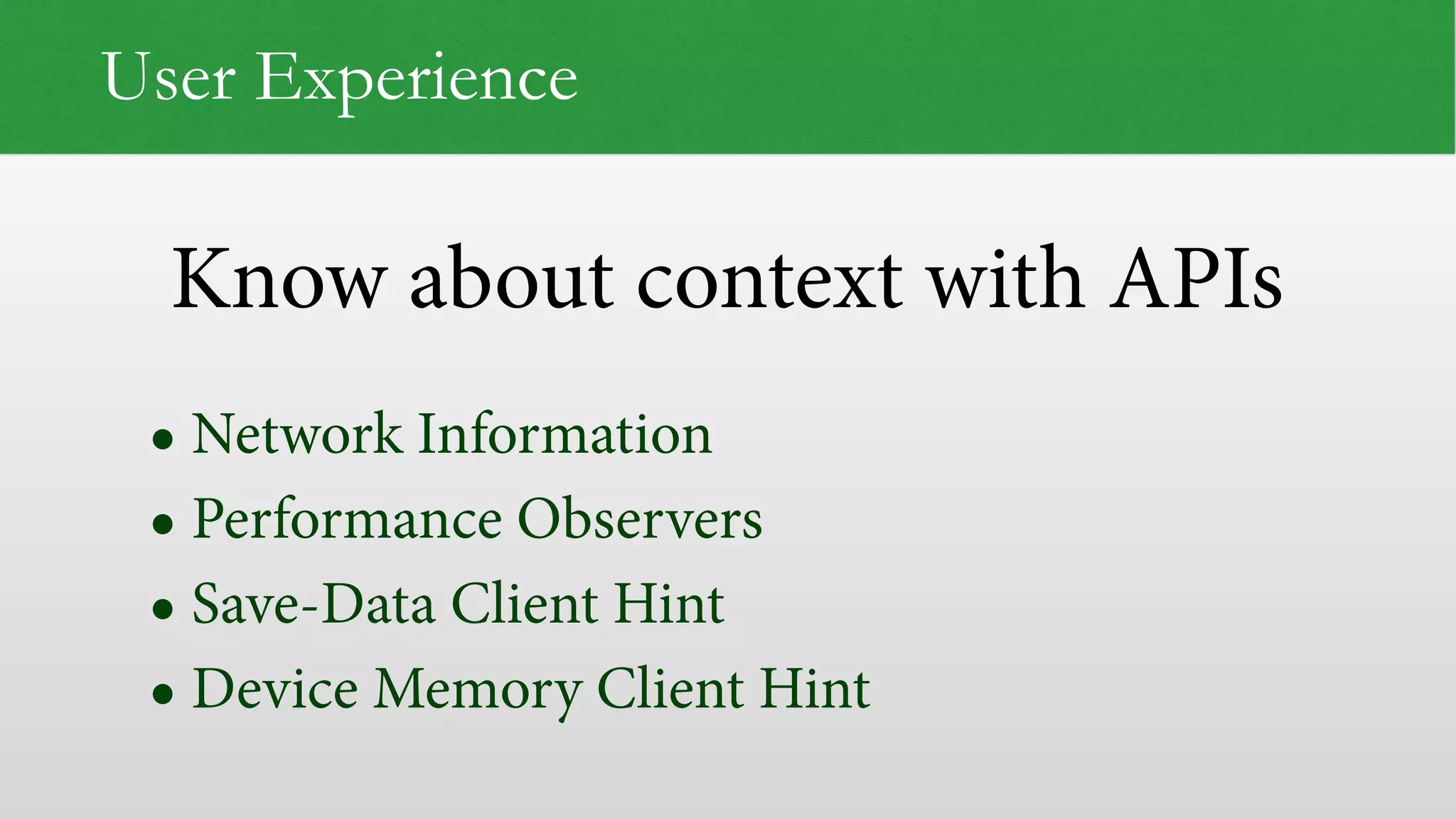

123. Know about context with APIs
User Experience
• Network Information
• Performance Observers
• Save-Data Client Hint
• Device Memory Client Hint

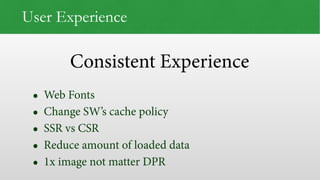

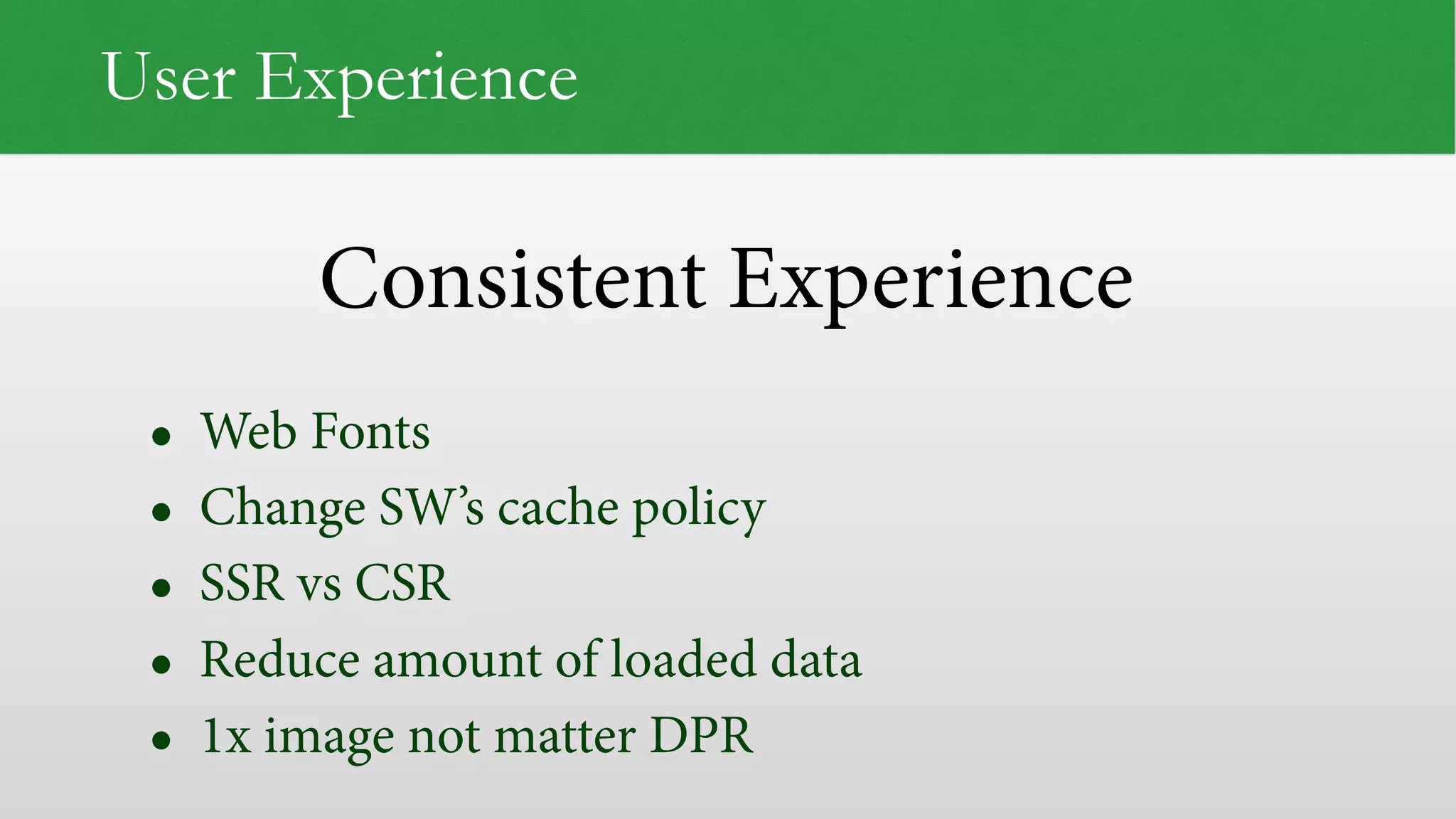

124. Consistent Experience
User Experience
• Web Fonts
• Change SW’s cache policy
• SSR vs CSR
• Reduce amount of loaded data
• 1x image not matter DPR

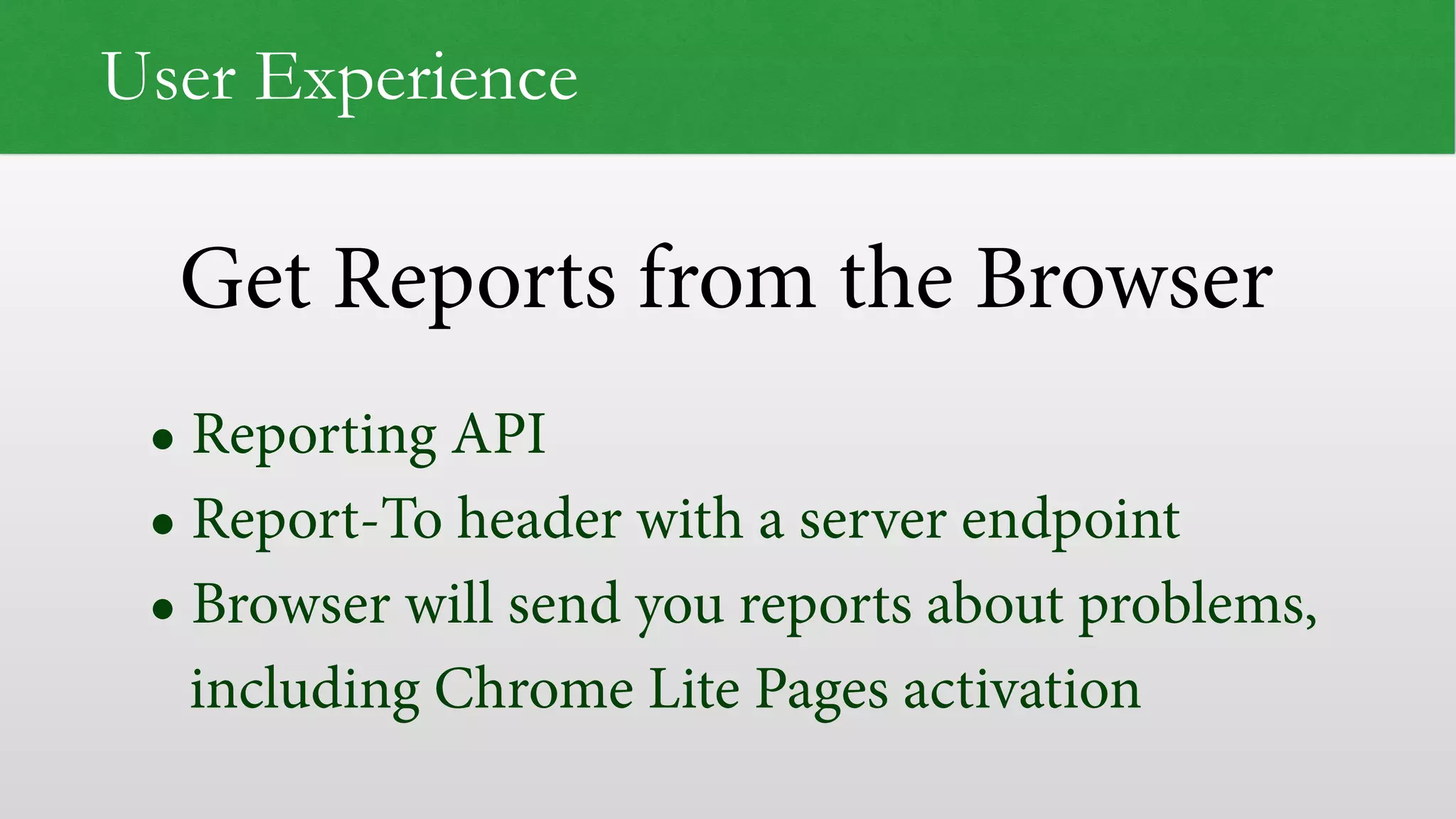

125. Get Reports from the Browser
User Experience
• Reporting API
• Report-To header with a server endpoint
• Browser will send you reports about problems,
including Chrome Lite Pages activation

127. First Load
Data Transfer
Resource Loading
Images
User Experience
Hack
Why Performance

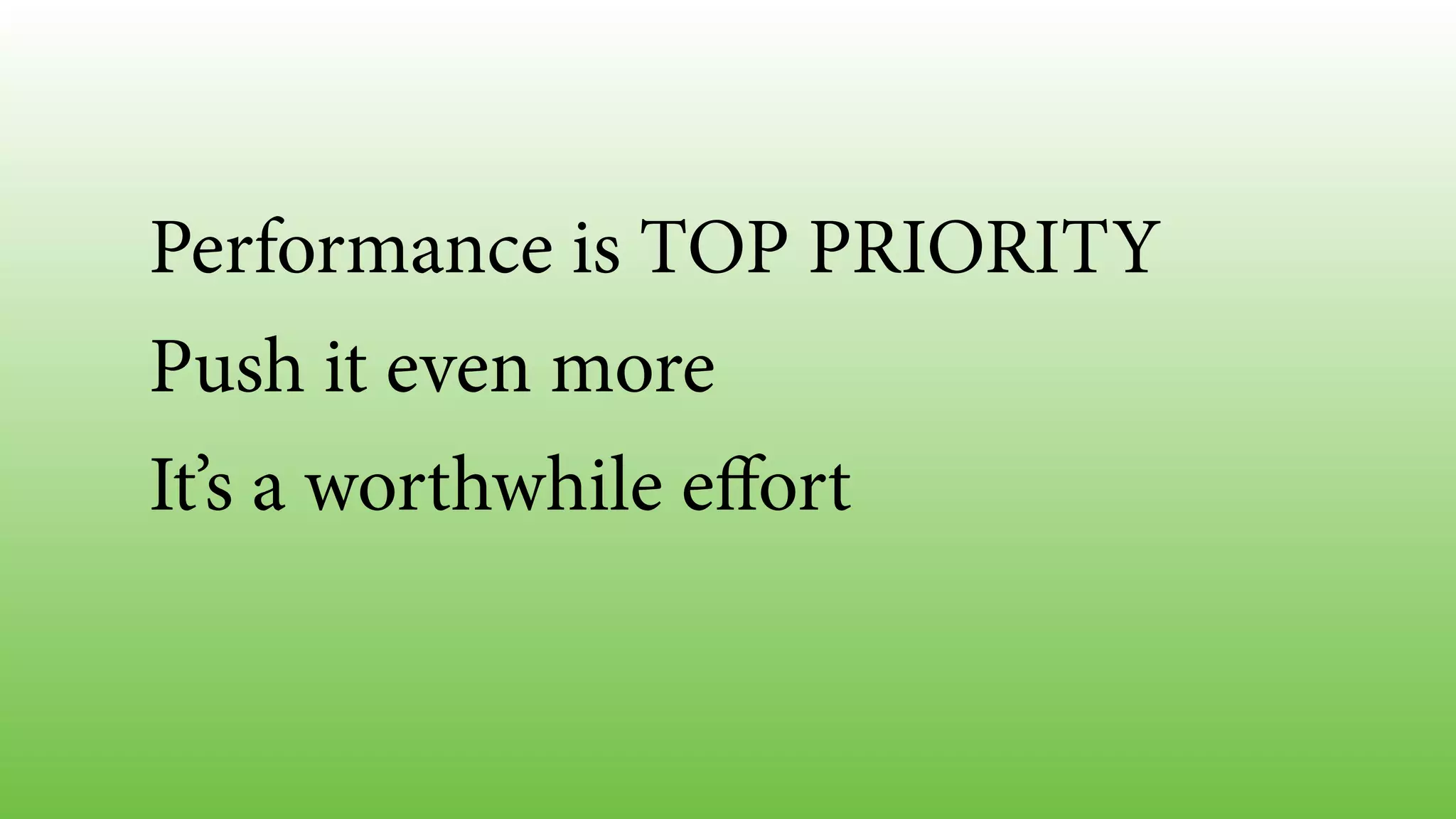

128. Performance is TOP PRIORITY
Push it even more
It’s a worthwhile effort

129. Feeling bad enough?

130. Foto de freefoto.com
www.firt.mobi
@firt
FREE!
