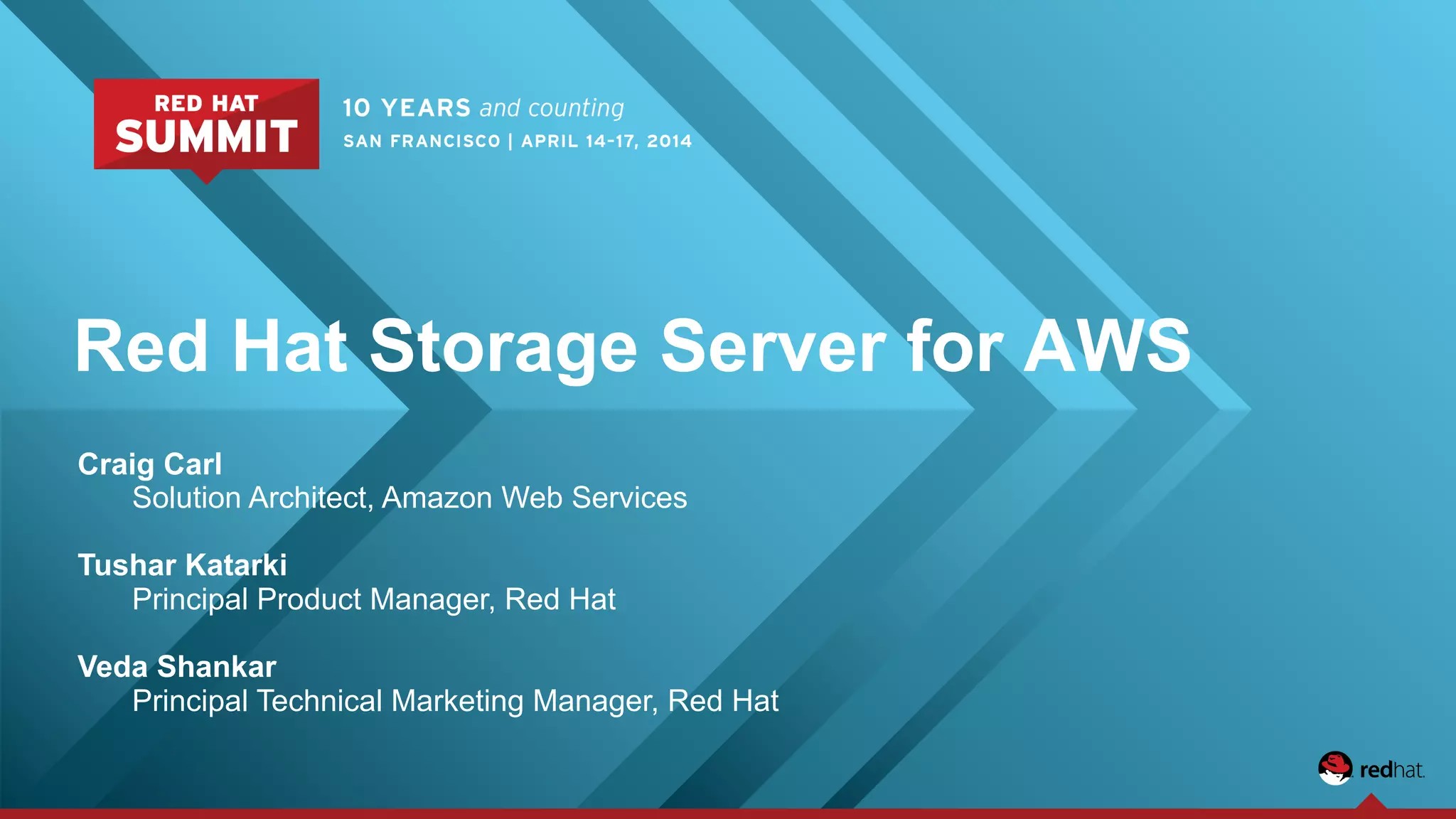

1. Red Hat Storage Server for AWS
Craig Carl
Solution Architect, Amazon Web Services
Tushar Katarki
Principal Product Manager, Red Hat
Veda Shankar
Principal Technical Marketing Manager, Red Hat

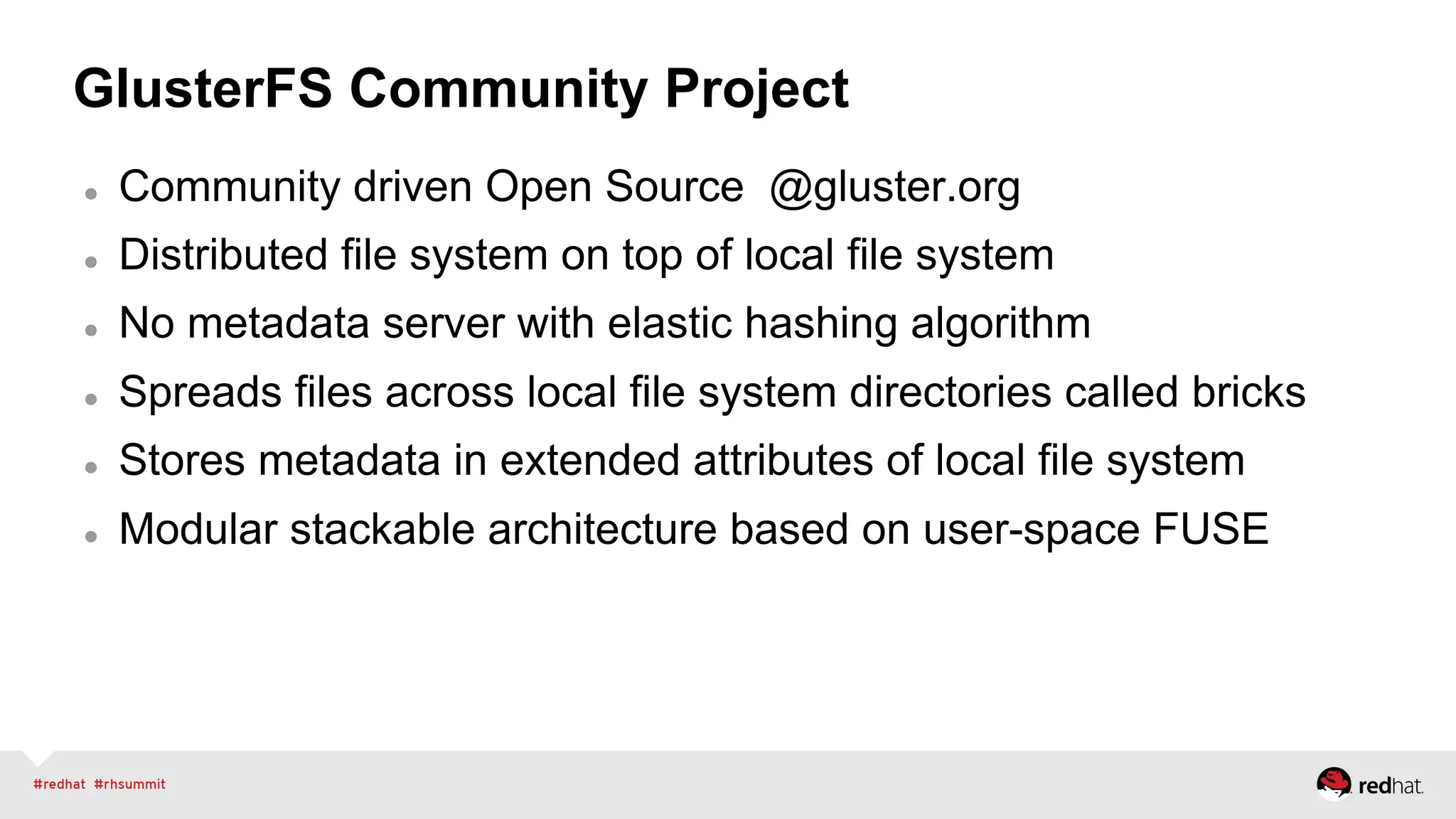

2. GlusterFS Community Project
l Community driven Open Source @gluster.org
l Distributed file system on top of local file system
l No metadata server with elastic hashing algorithm
l Spreads files across local file system directories called bricks
l Stores metadata in extended attributes of local file system
l Modular stackable architecture based on user-space FUSE

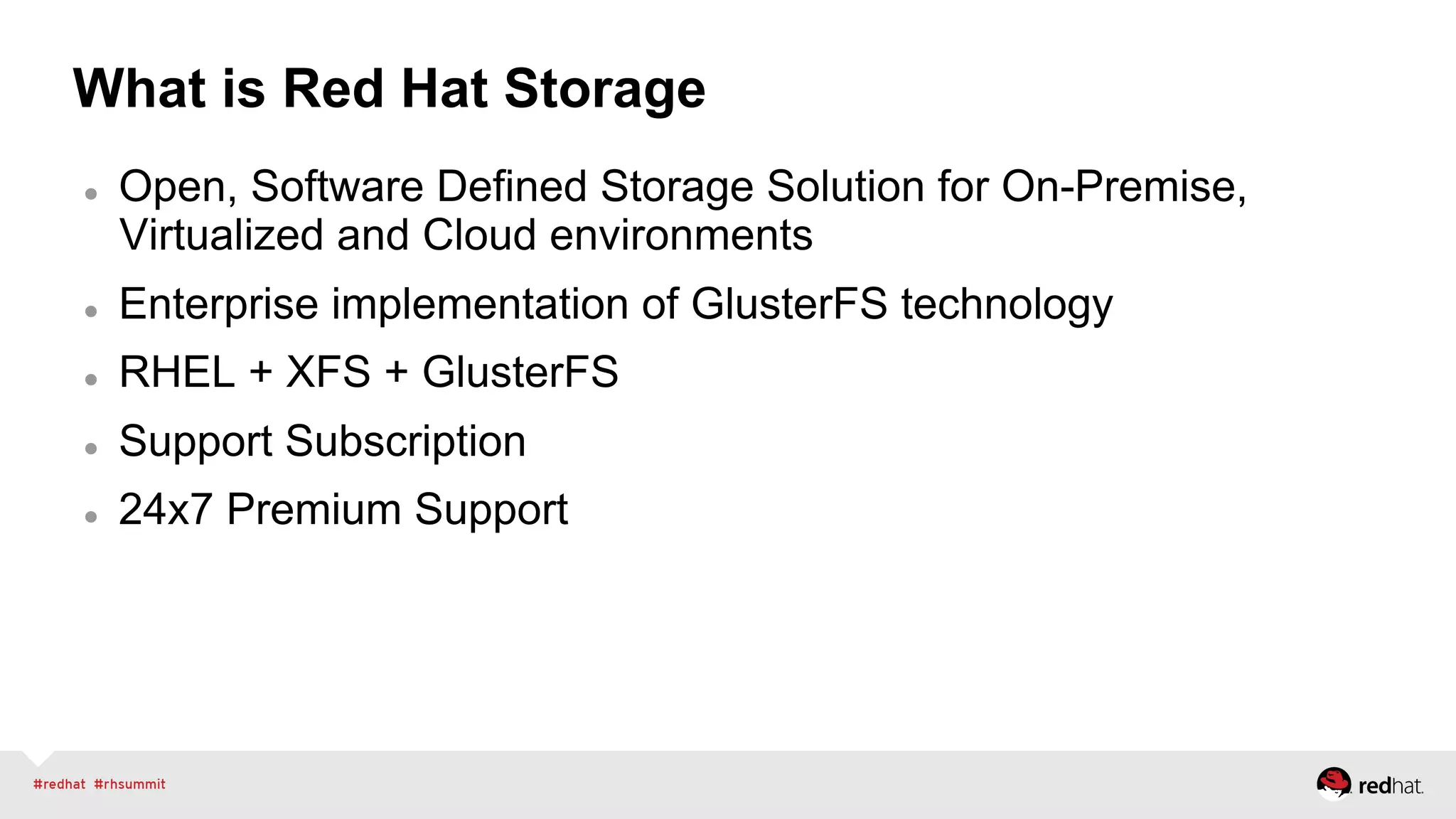

3. What is Red Hat Storage
l Open, Software Defined Storage Solution for On-Premise,
Virtualized and Cloud environments
l Enterprise implementation of GlusterFS technology
l RHEL + XFS + GlusterFS
l Support Subscription
l 24x7 Premium Support

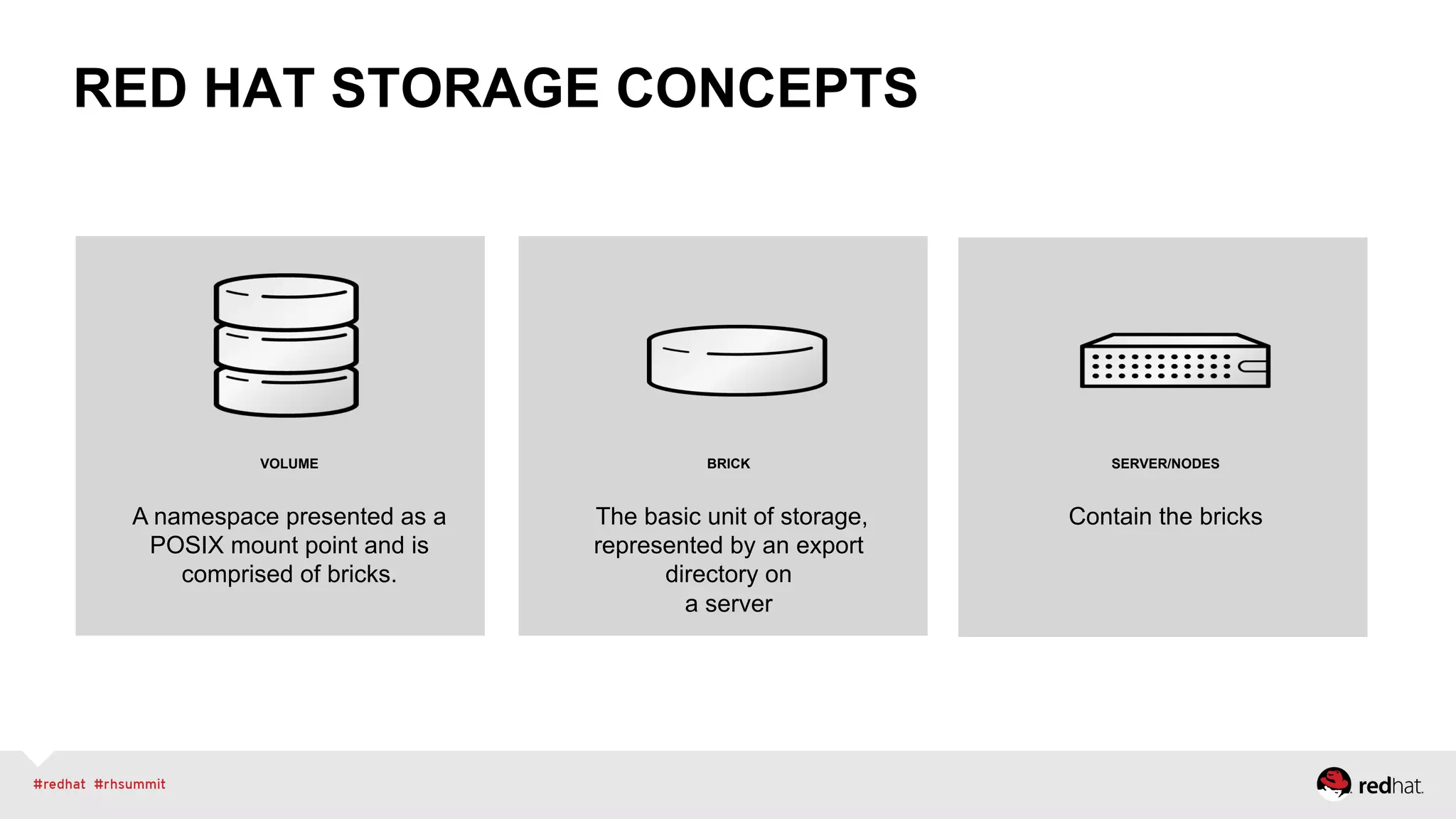

4. RED HAT STORAGE CONCEPTS
VOLUME
A namespace presented as a
POSIX mount point and is
comprised of bricks.
BRICK
The basic unit of storage,
represented by an export
directory on
a server
SERVER/NODES
Contain the bricks

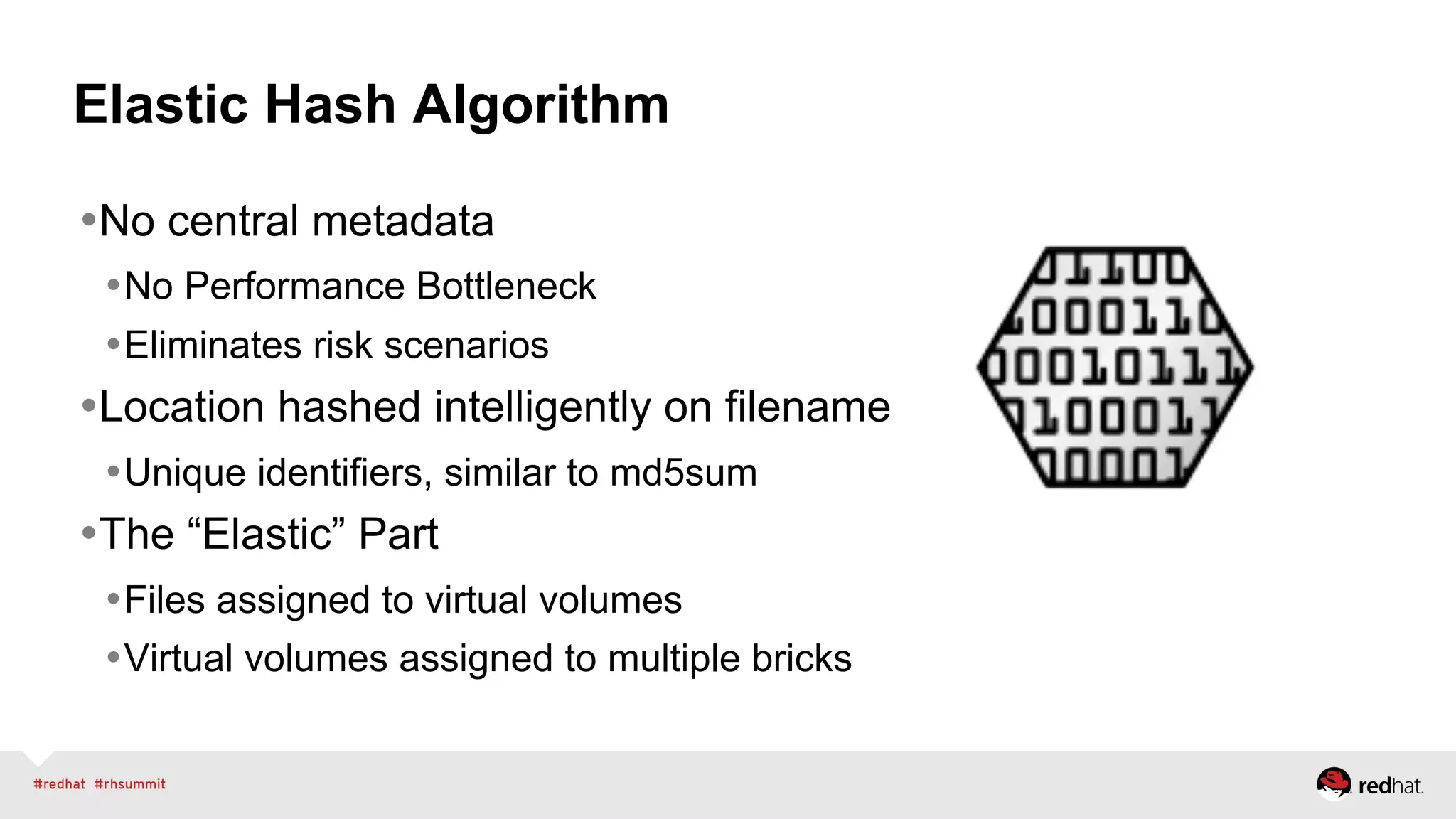

5. Elastic Hash Algorithm
• No central metadata
• No Performance Bottleneck
• Eliminates risk scenarios
• Location hashed intelligently on filename
• Unique identifiers, similar to md5sum
• The “Elastic” Part
• Files assigned to virtual volumes
• Virtual volumes assigned to multiple bricks

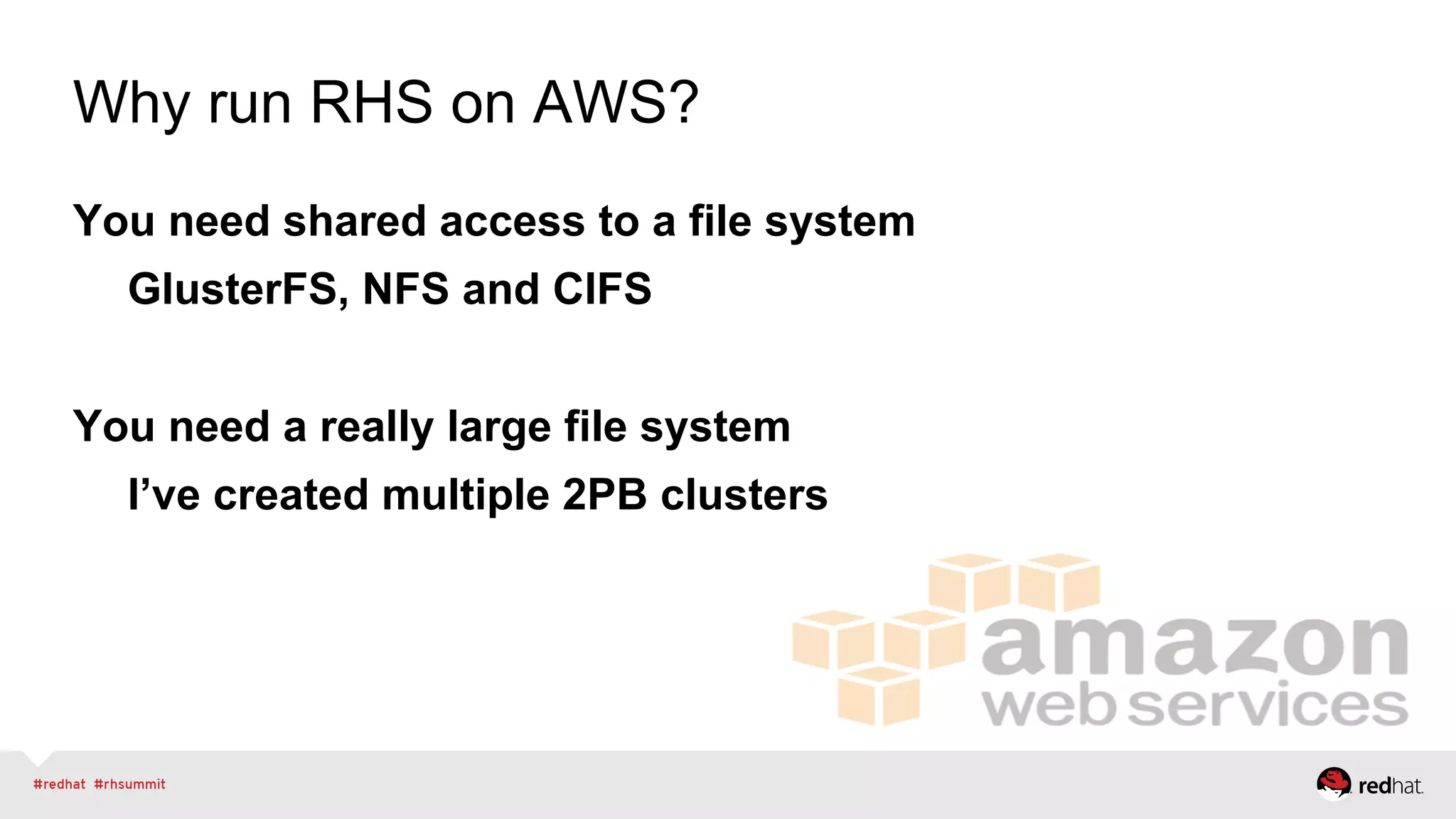

7. Why run RHS on AWS?
You need shared access to a file system
GlusterFS, NFS and CIFS
You need a really large file system
I’ve created multiple 2PB clusters

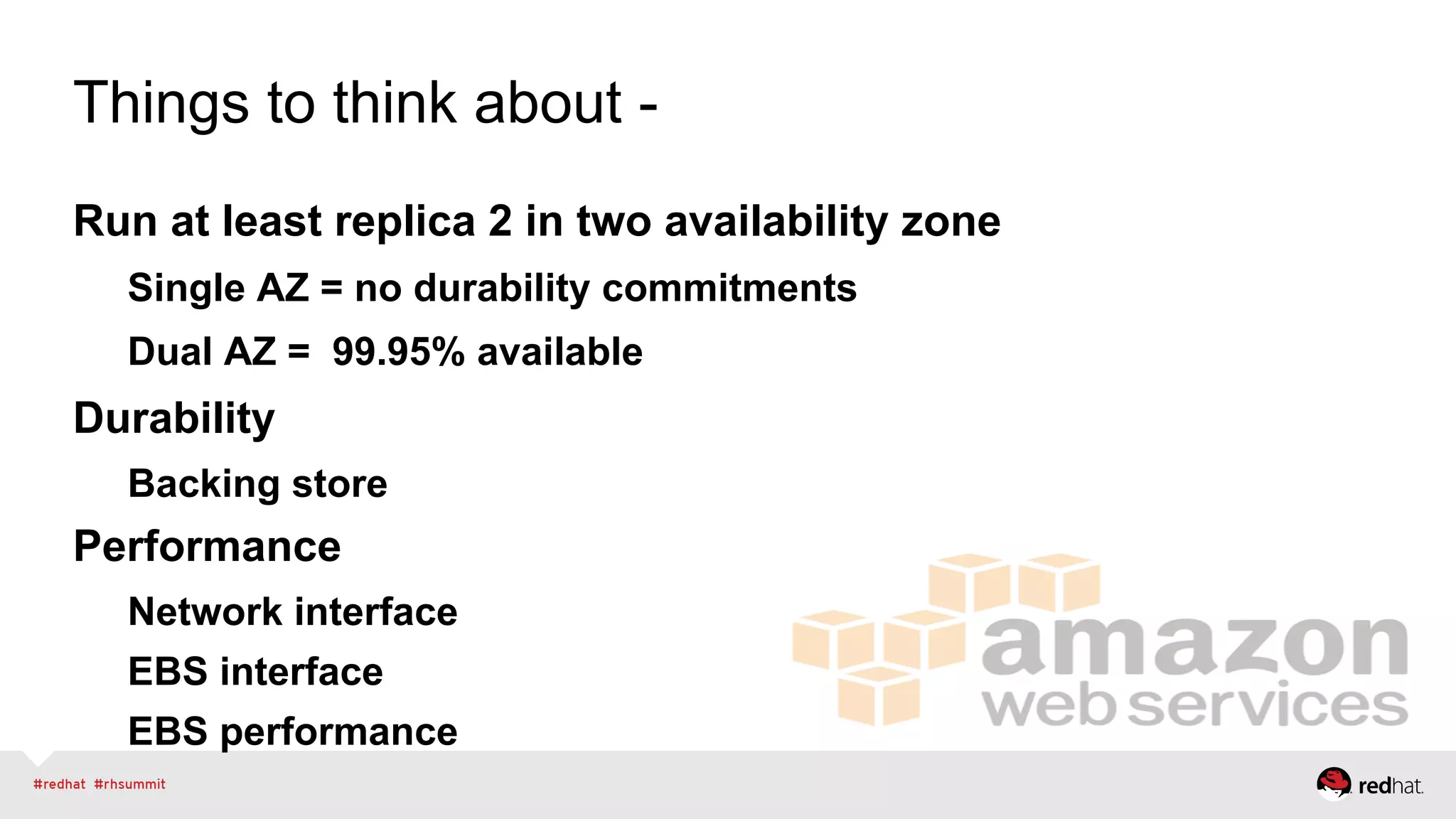

8. Things to think about -
Run at least replica 2 in two availability zone
Single AZ = no durability commitments
Dual AZ = 99.95% available
Durability
Backing store
Performance
Network interface
EBS interface
EBS performance

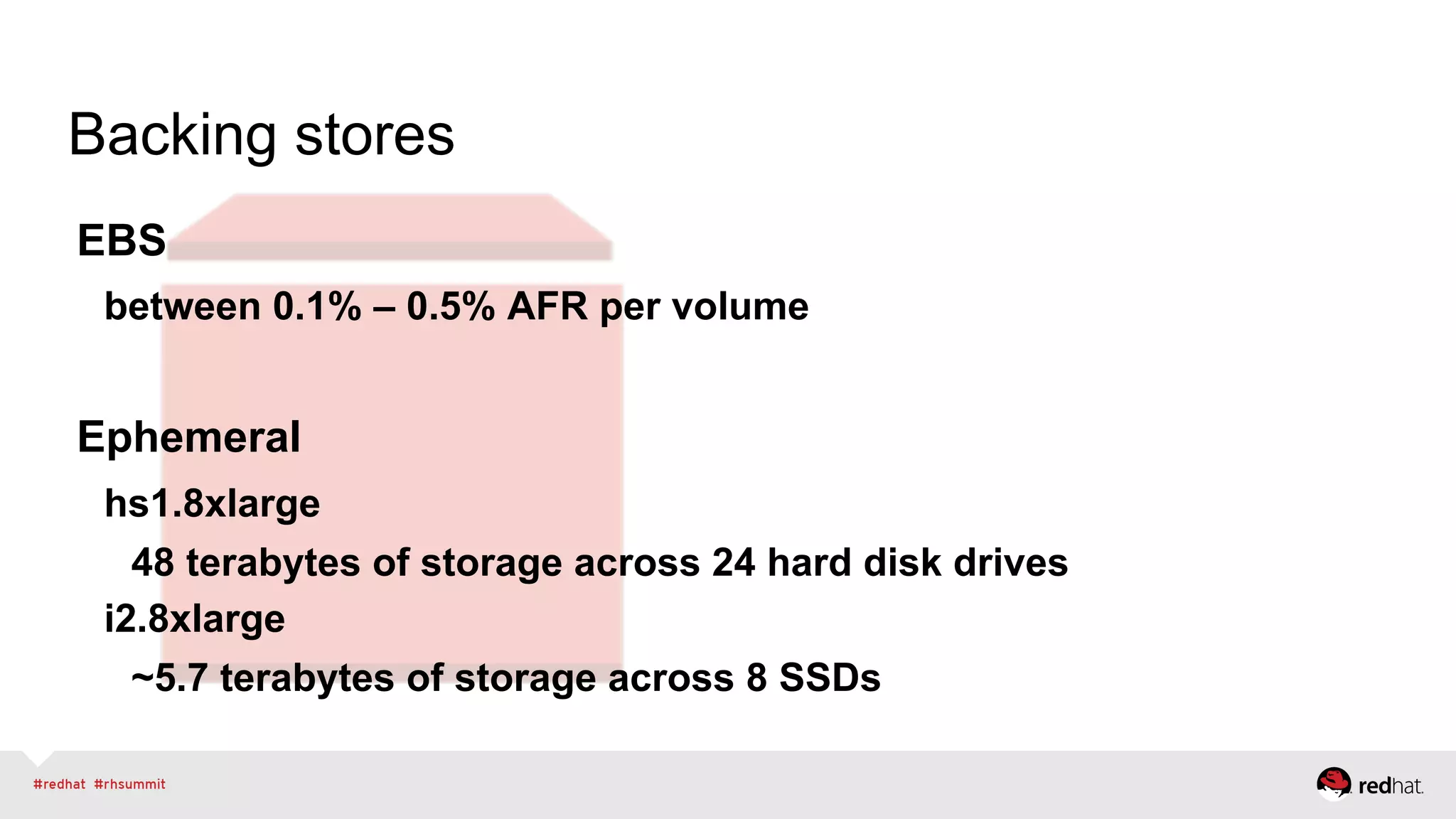

9. Backing stores
EBS
between 0.1% – 0.5% AFR per volume
Ephemeral
hs1.8xlarge
48 terabytes of storage across 24 hard disk drives
i2.8xlarge
~5.7 terabytes of storage across 8 SSDs

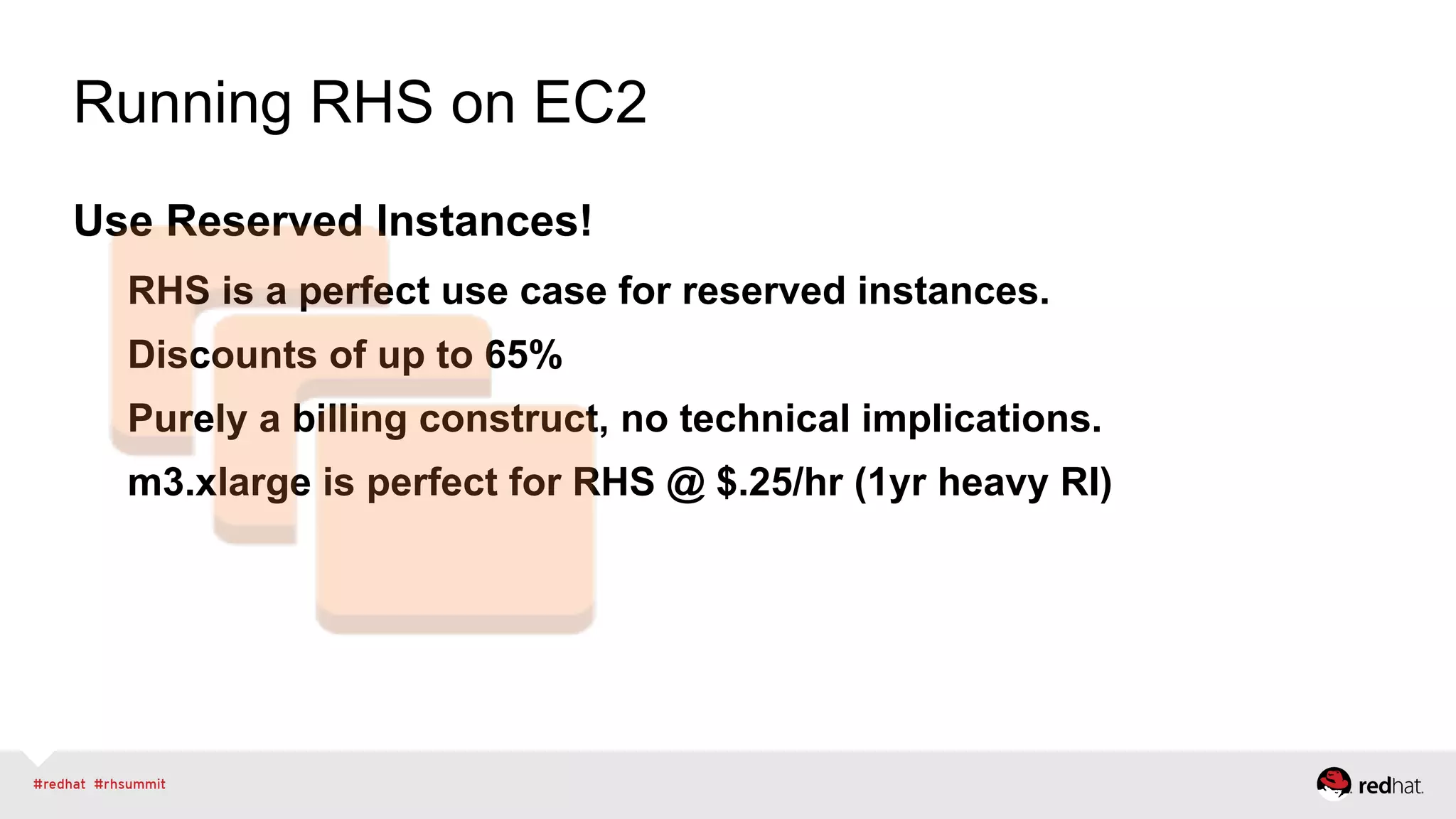

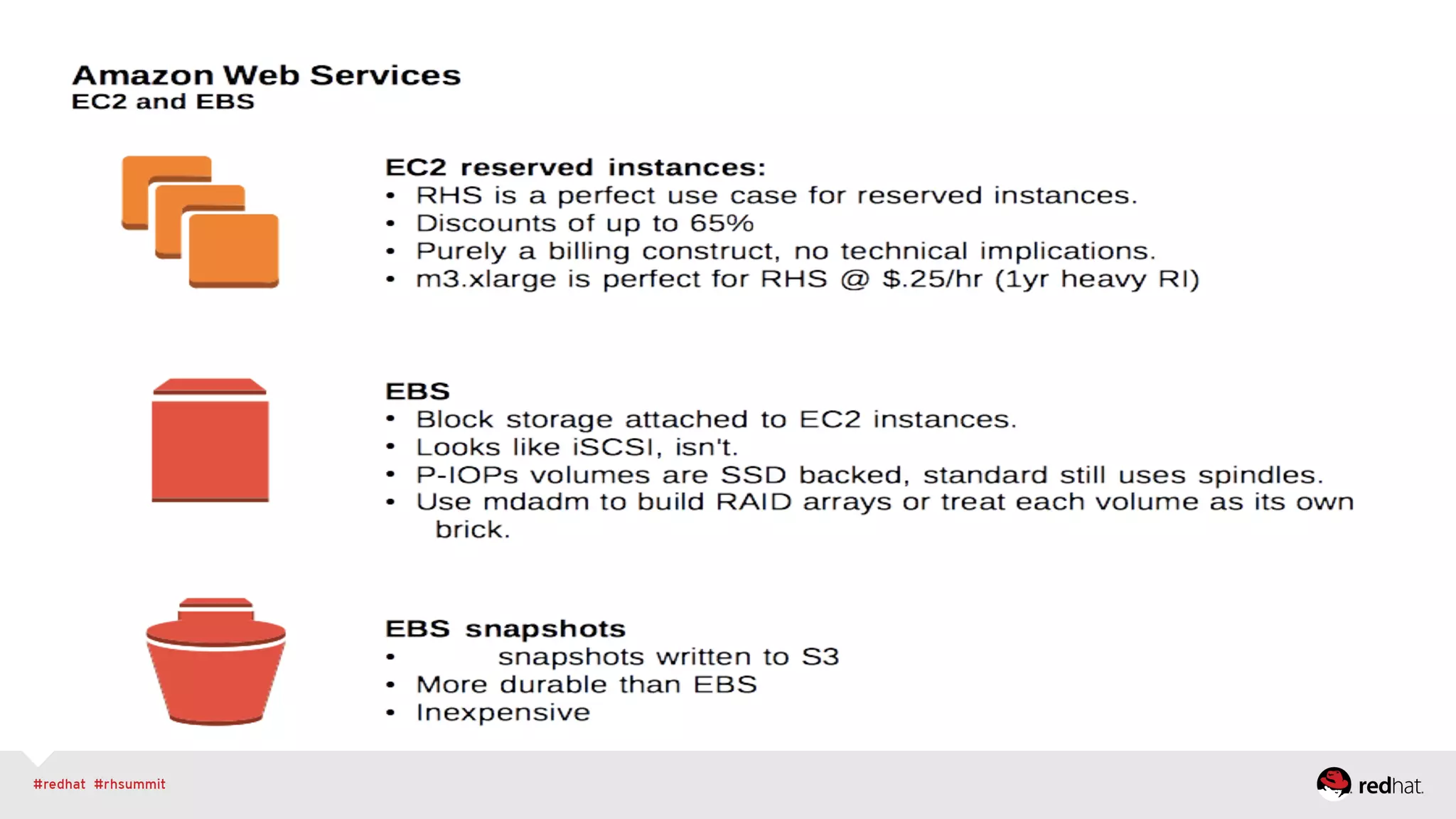

10. Running RHS on EC2
Use Reserved Instances!
RHS is a perfect use case for reserved instances.
Discounts of up to 65%
Purely a billing construct, no technical implications.
m3.xlarge is perfect for RHS @ $.25/hr (1yr heavy RI)

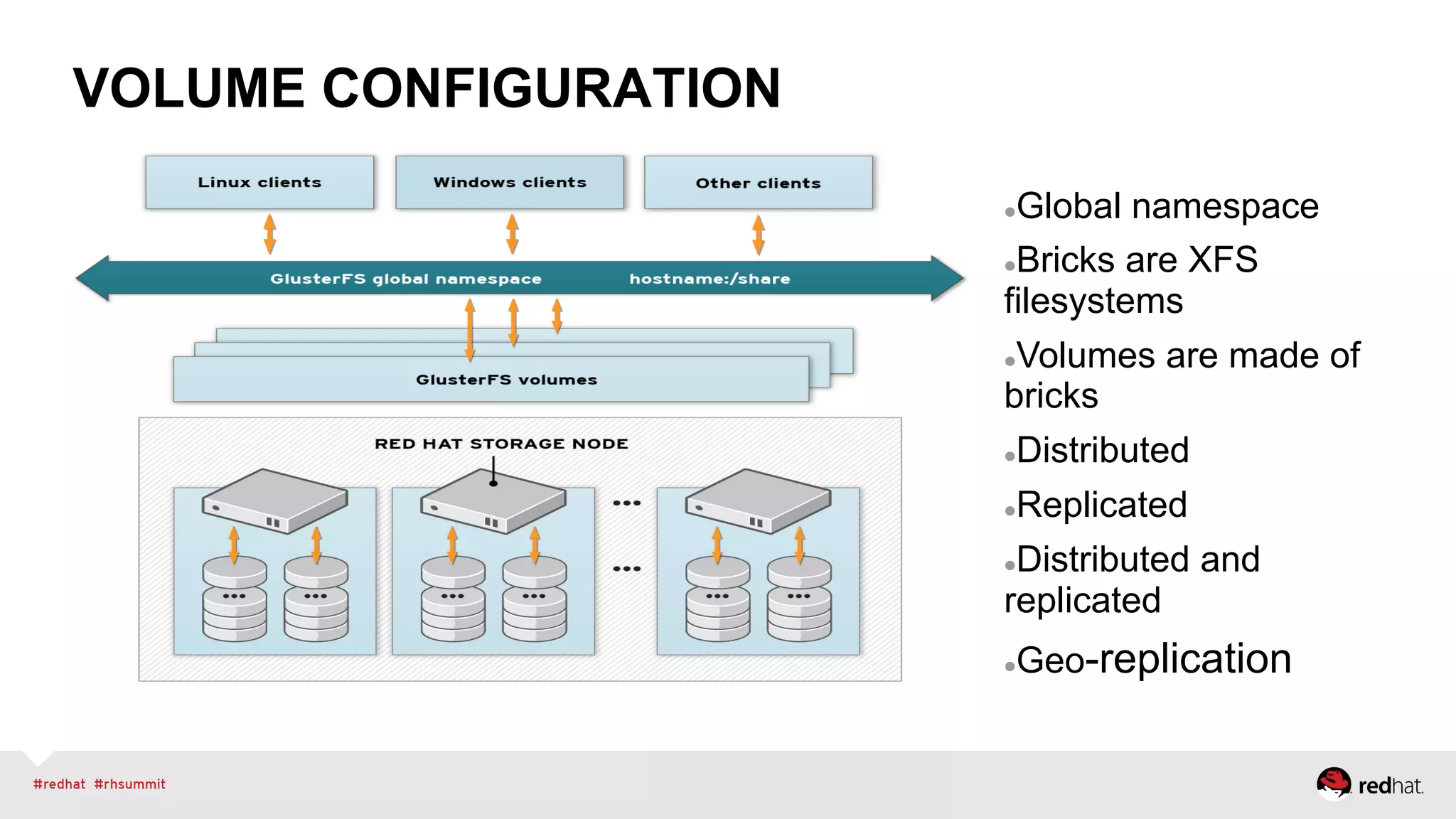

11. VOLUME CONFIGURATION
l Global namespace
l Bricks are XFS
filesystems
l Volumes are made of
bricks
l Distributed
l Replicated
l Distributed and
replicated
l Geo-replication

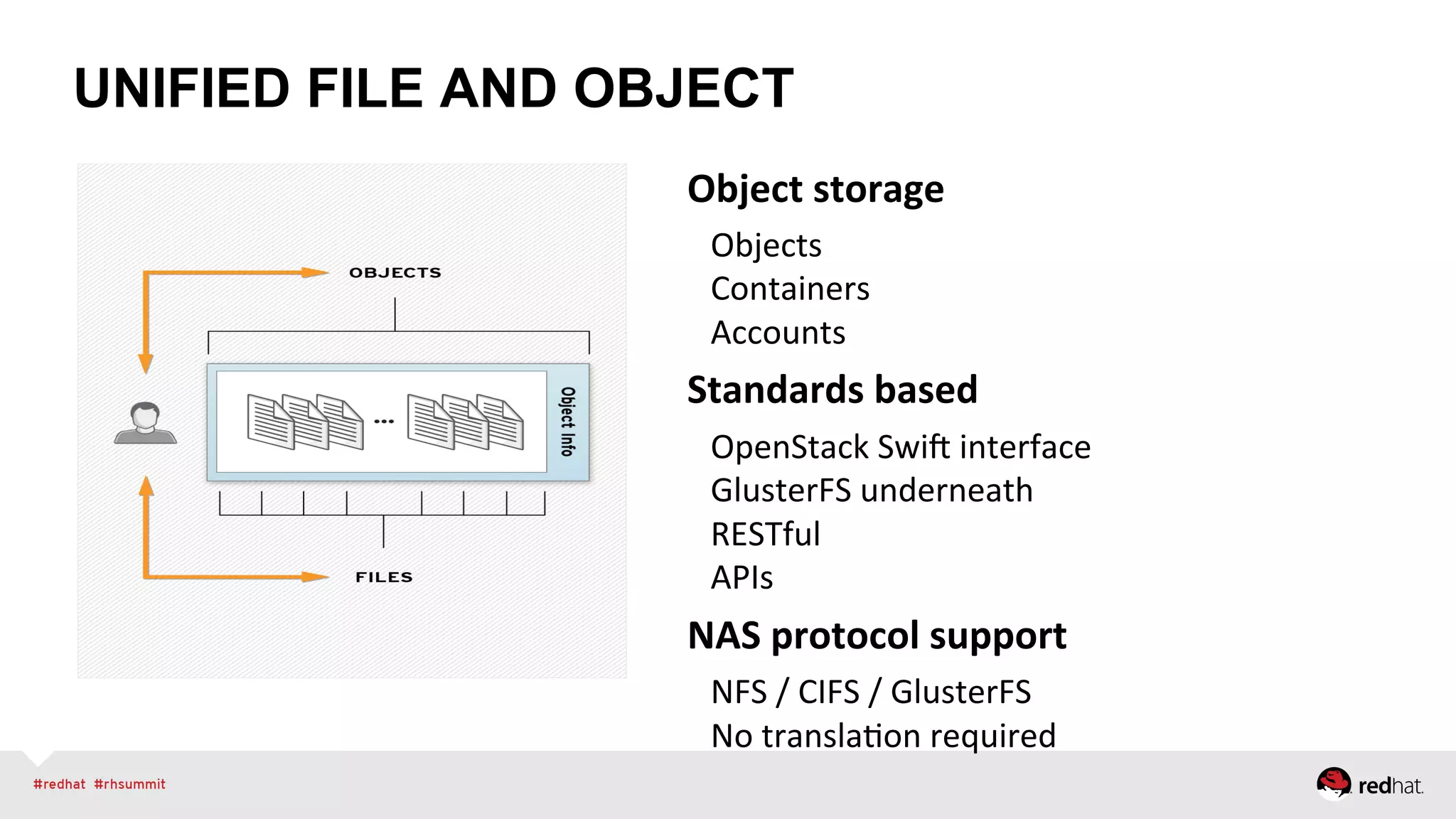

12. UNIFIED FILE AND OBJECT
Object
storage
• Objects
• Containers
• Accounts
Standards
based
• OpenStack
Swi5
interface
• GlusterFS
underneath
• RESTful
• APIs
NAS
protocol
support
• NFS
/
CIFS
/
GlusterFS
• No
translaCon
required

13. Clients
talk
directly
to
necessary
nodes

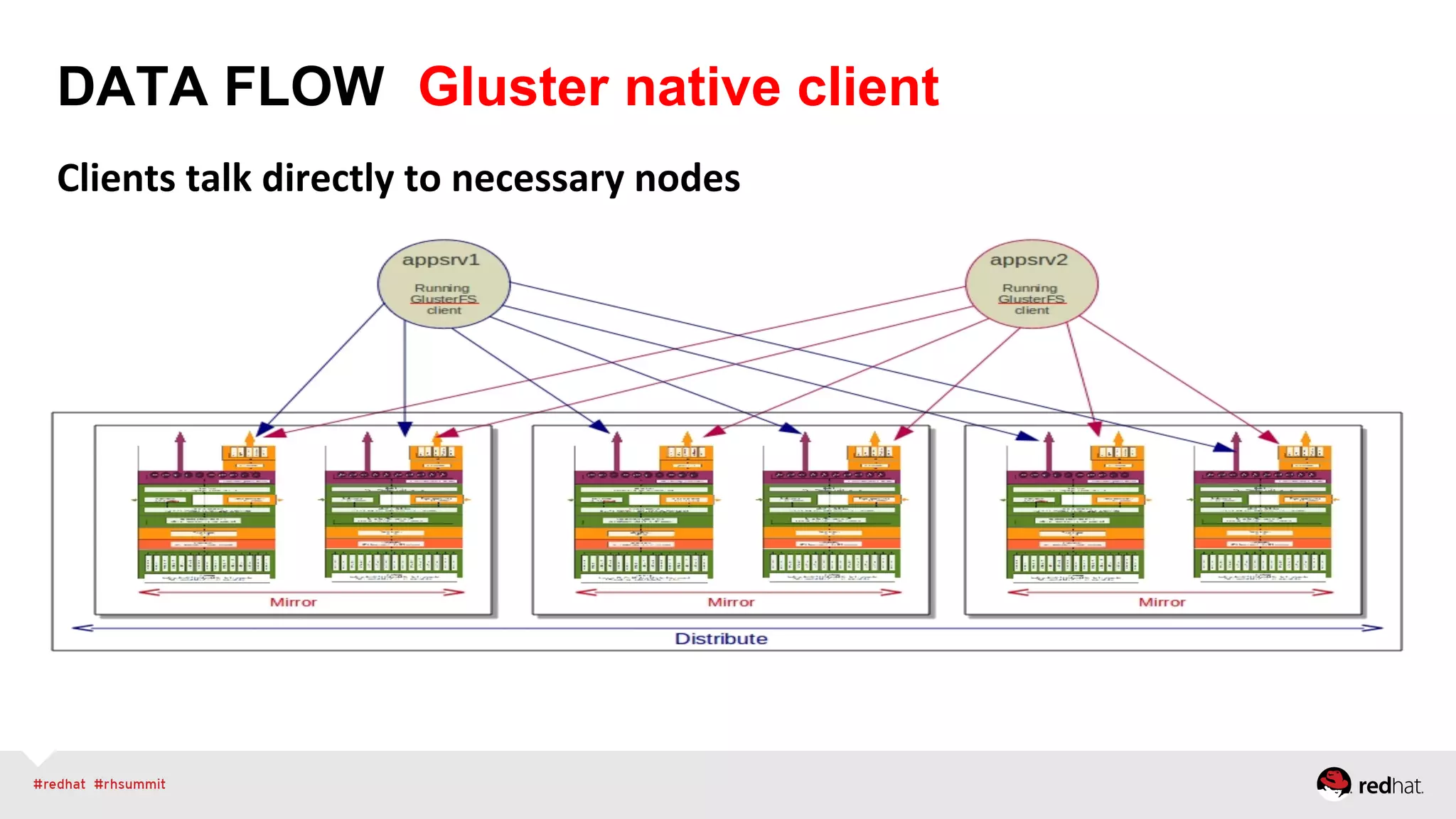

DATA FLOW: Gluster native client

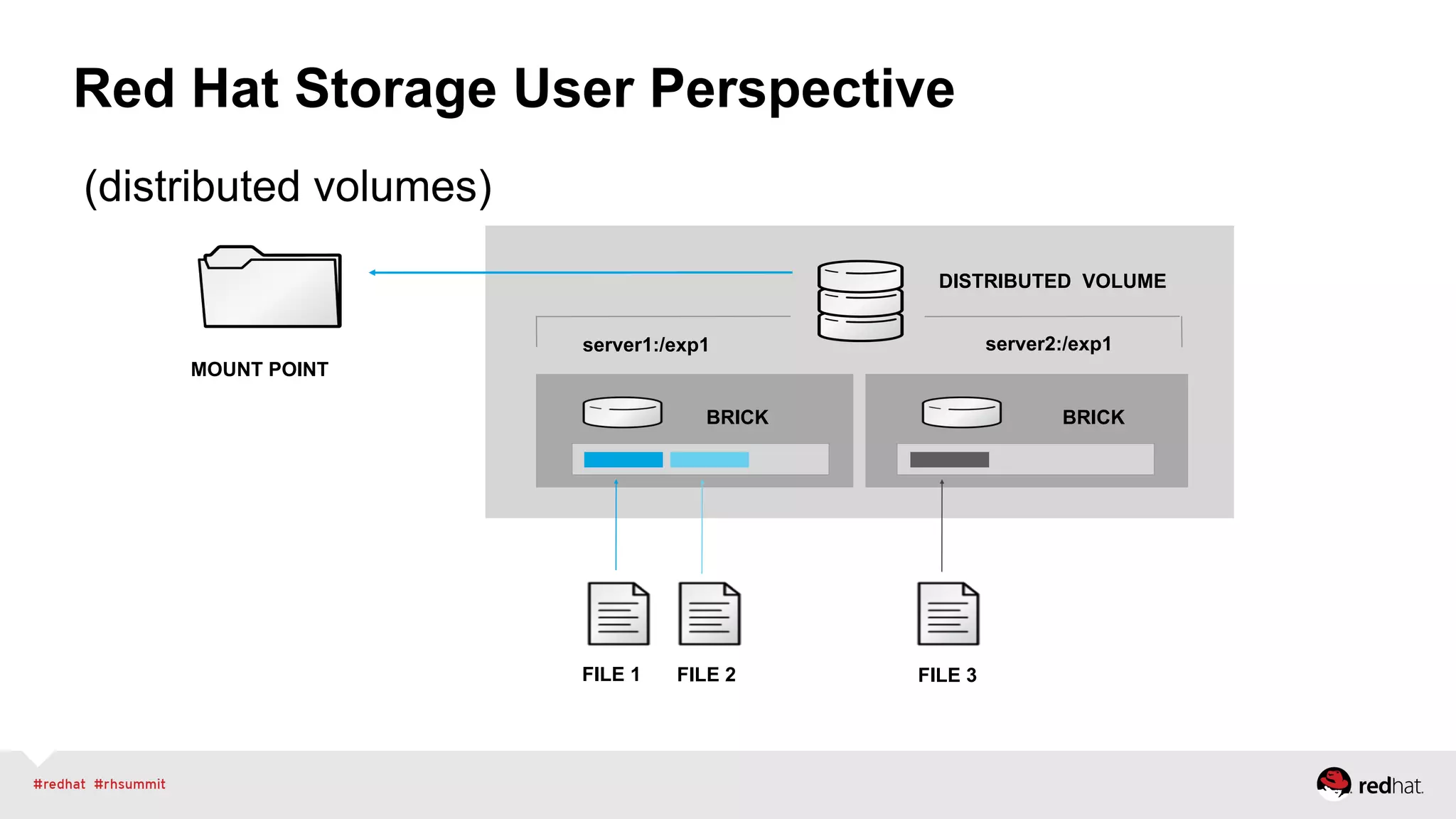

14. Red Hat Storage User Perspective
(distributed volumes)
server1:/exp1 server2:/exp1
DISTRIBUTED VOLUME
FILE 1 FILE 2 FILE 3
BRICK BRICK
MOUNT POINT
server1:/exp1 server2:/exp1
DISTRIBUTED VOLUME
BRICK BRICK

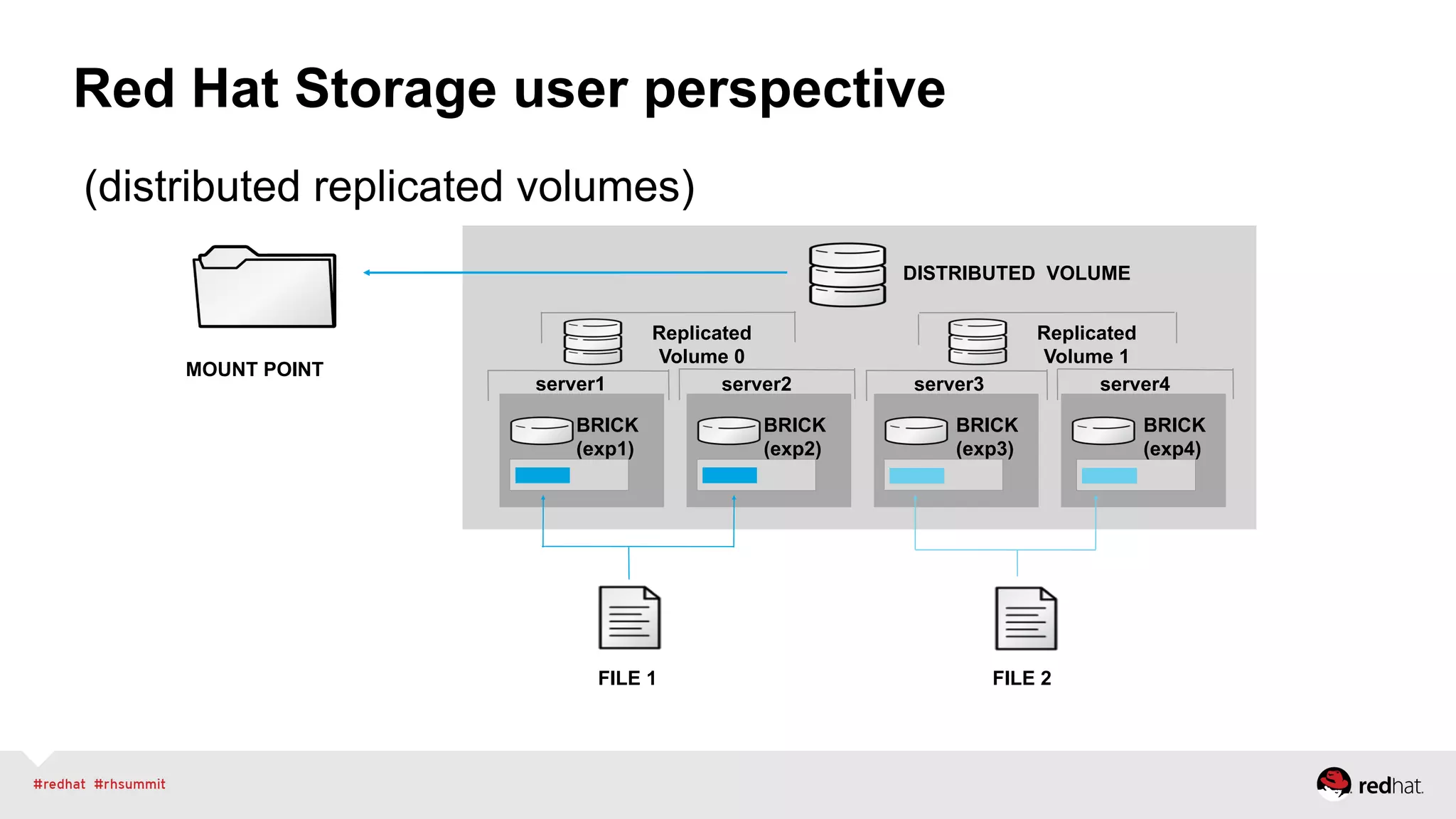

15. Red Hat Storage user perspective
(distributed replicated volumes)
MOUNT POINT
Replicated
Volume 0
DISTRIBUTED VOLUME
FILE 1 FILE 2
BRICK
(exp1)
Replicated
Volume 1
BRICK
(exp2)
server1 server2
BRICK
(exp3)
BRICK
(exp4)
server3 server4

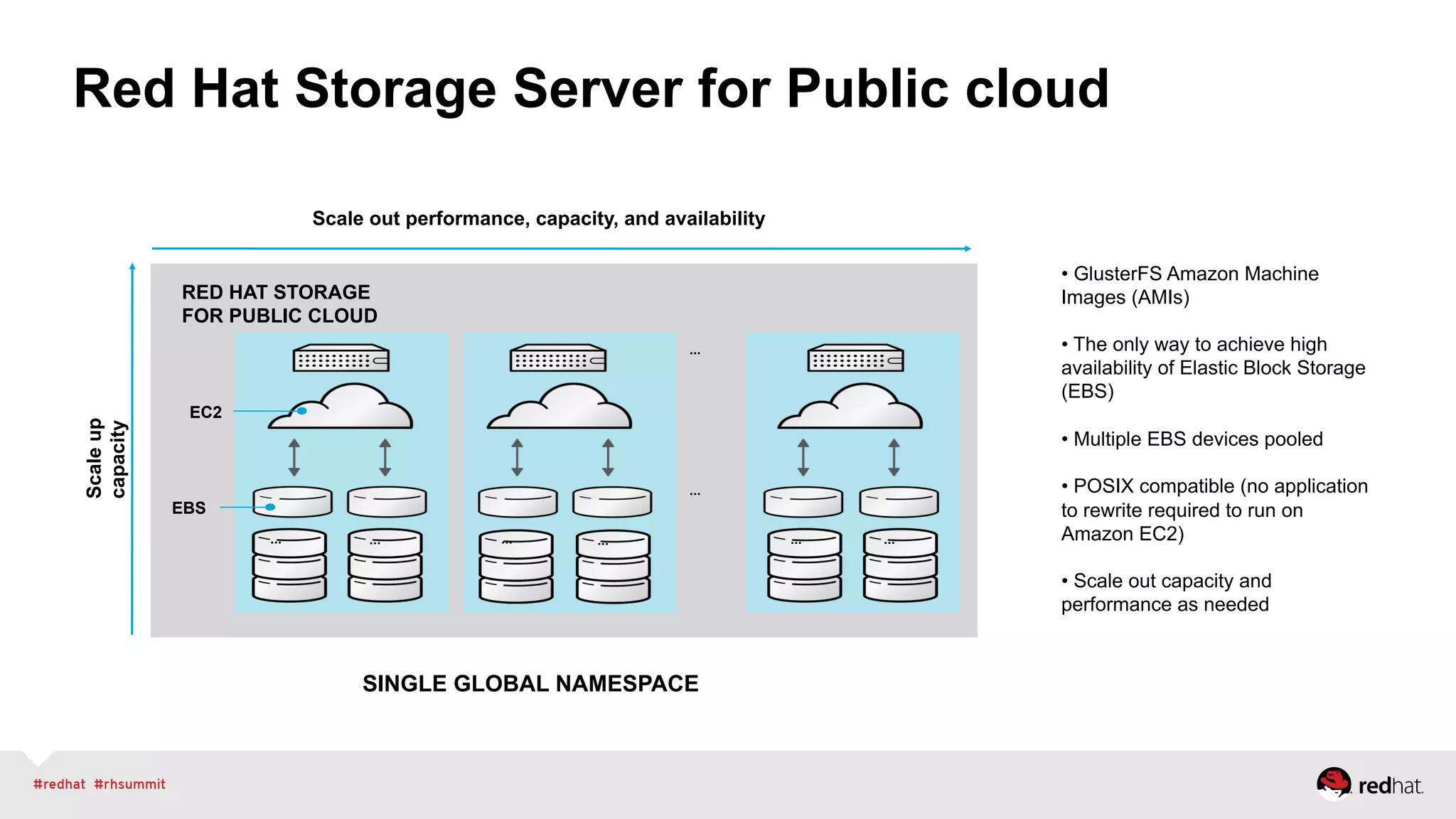

16. Red Hat Storage Server for Public cloud
RED HAT STORAGE
FOR PUBLIC CLOUD
EBS
Scale out performance, capacity, and availability
Scaleup
capacity
• GlusterFS Amazon Machine
Images (AMIs)
• The only way to achieve high
availability of Elastic Block Storage
(EBS)
• Multiple EBS devices pooled
• POSIX compatible (no application
to rewrite required to run on
Amazon EC2)
• Scale out capacity and
performance as needed
SINGLE GLOBAL NAMESPACE
...
...
EC2
............ ... ...

17. Red Hat Storage Use Cases in AWS EC2

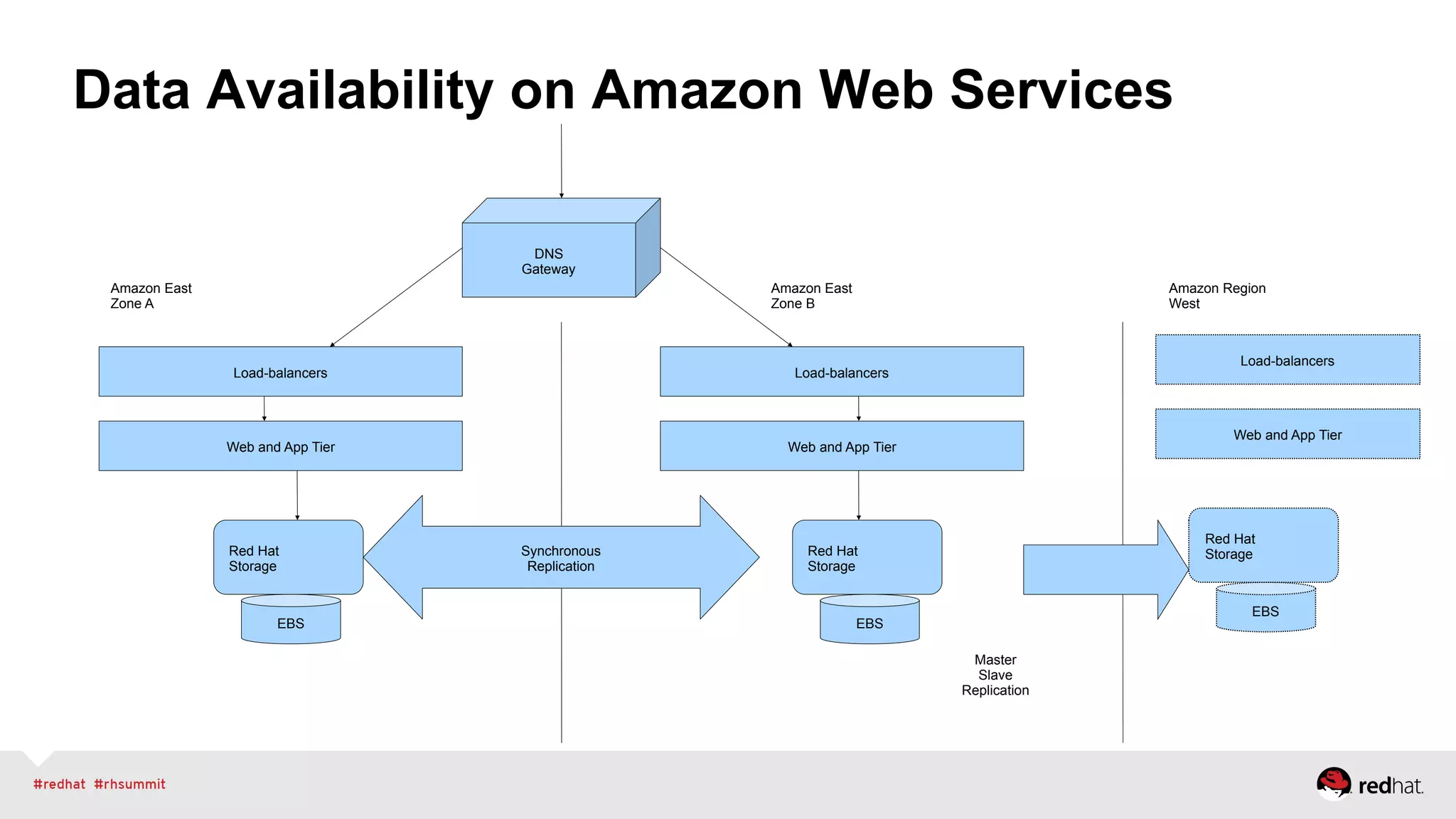

18. Data Availability on Amazon Web Services
DNS
Gateway
EBS
Red Hat
Storage
Web and App Tier Web and App Tier
EBS
Red Hat
Storage
Load-balancers Load-balancers
Amazon East
Zone A
Amazon East
Zone B
EBS
Red Hat
Storage
Amazon Region
West
Synchronous
Replication
Master
Slave
Replication
Web and App Tier
Load-balancers

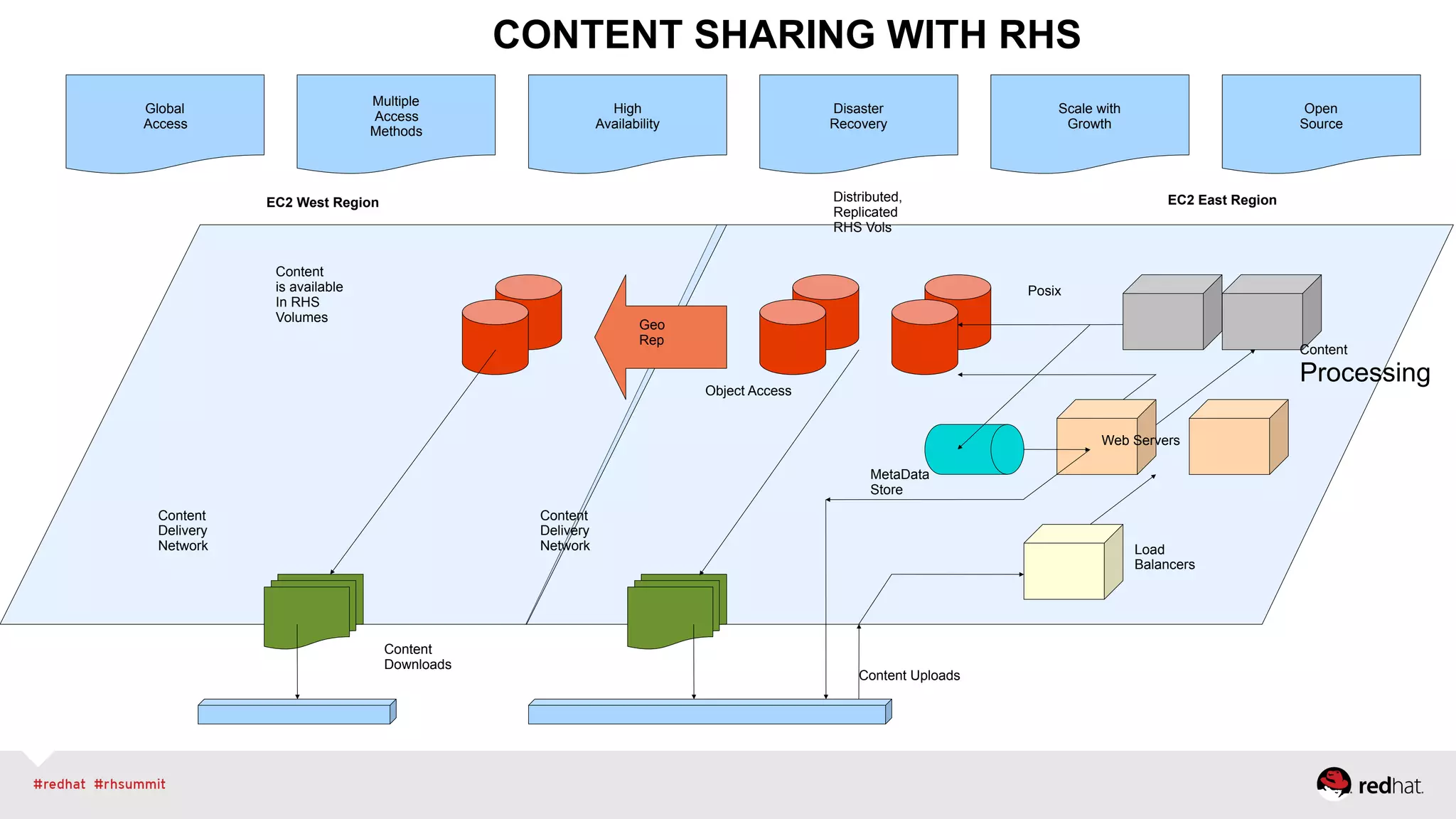

19. Web Servers
Content
Processing
Load
Balancers
Geo
Rep
MetaData
Store
Distributed,
Replicated
RHS Vols
Content
Delivery
Network
Content
Delivery
Network
Content
is available
In RHS
Volumes
EC2 West Region EC2 East Region
Content Uploads
Content
Downloads
Global
Access
Scale with
Growth
High
Availability
Disaster
Recovery
Open
Source
Multiple
Access
Methods
Object Access
Posix
CONTENT SHARING WITH RHS

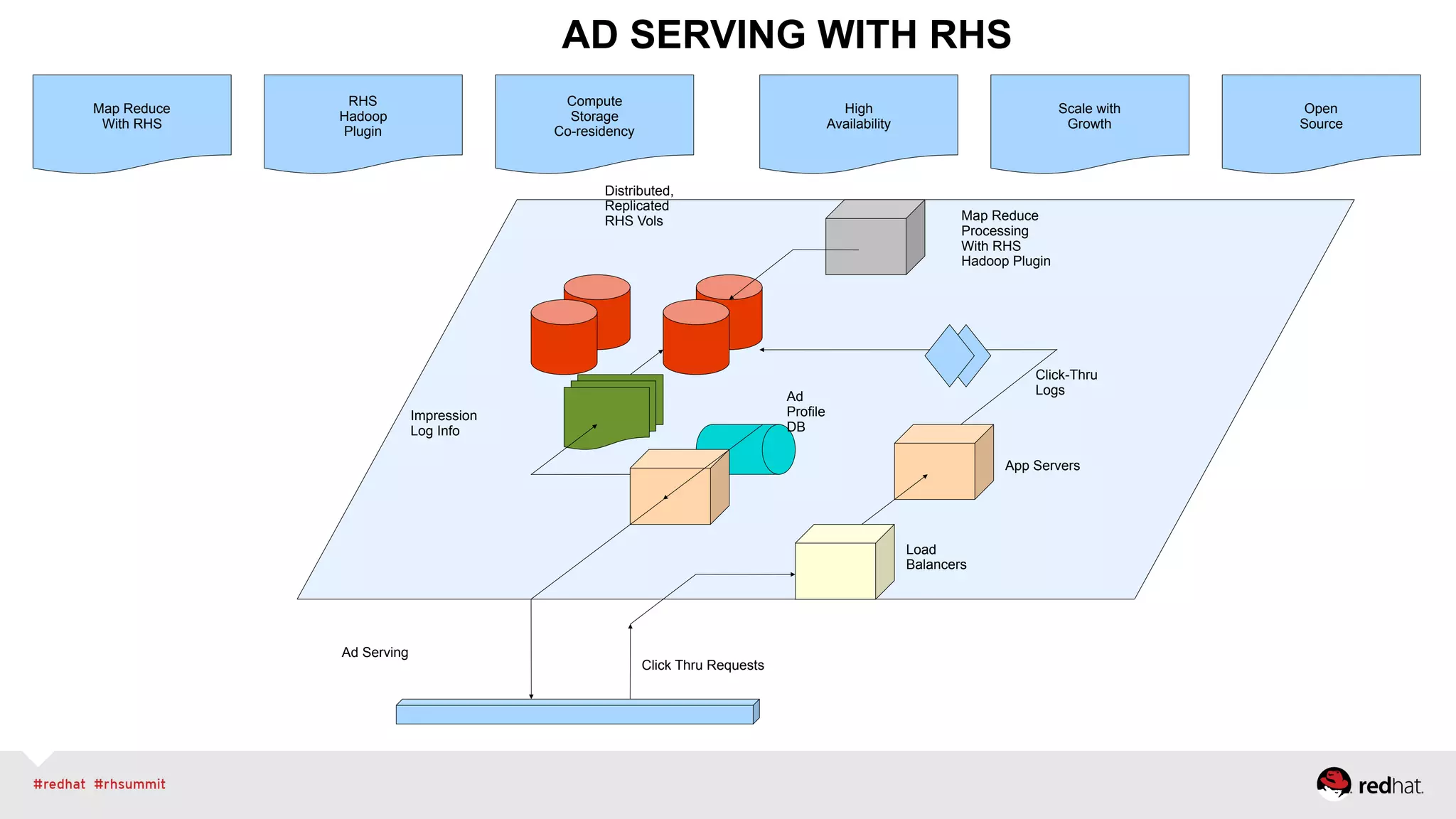

20. App Servers
Map Reduce
Processing
With RHS
Hadoop Plugin
Load
Balancers
Ad
Profile
DB
Distributed,
Replicated
RHS Vols
Impression
Log Info
Click Thru Requests
RHS
Hadoop
Plugin
Scale with
Growth
High
Availability
Open
Source
Map Reduce
With RHS
AD SERVING WITH RHS
Click-Thru
Logs
Compute
Storage
Co-residency
Ad Serving

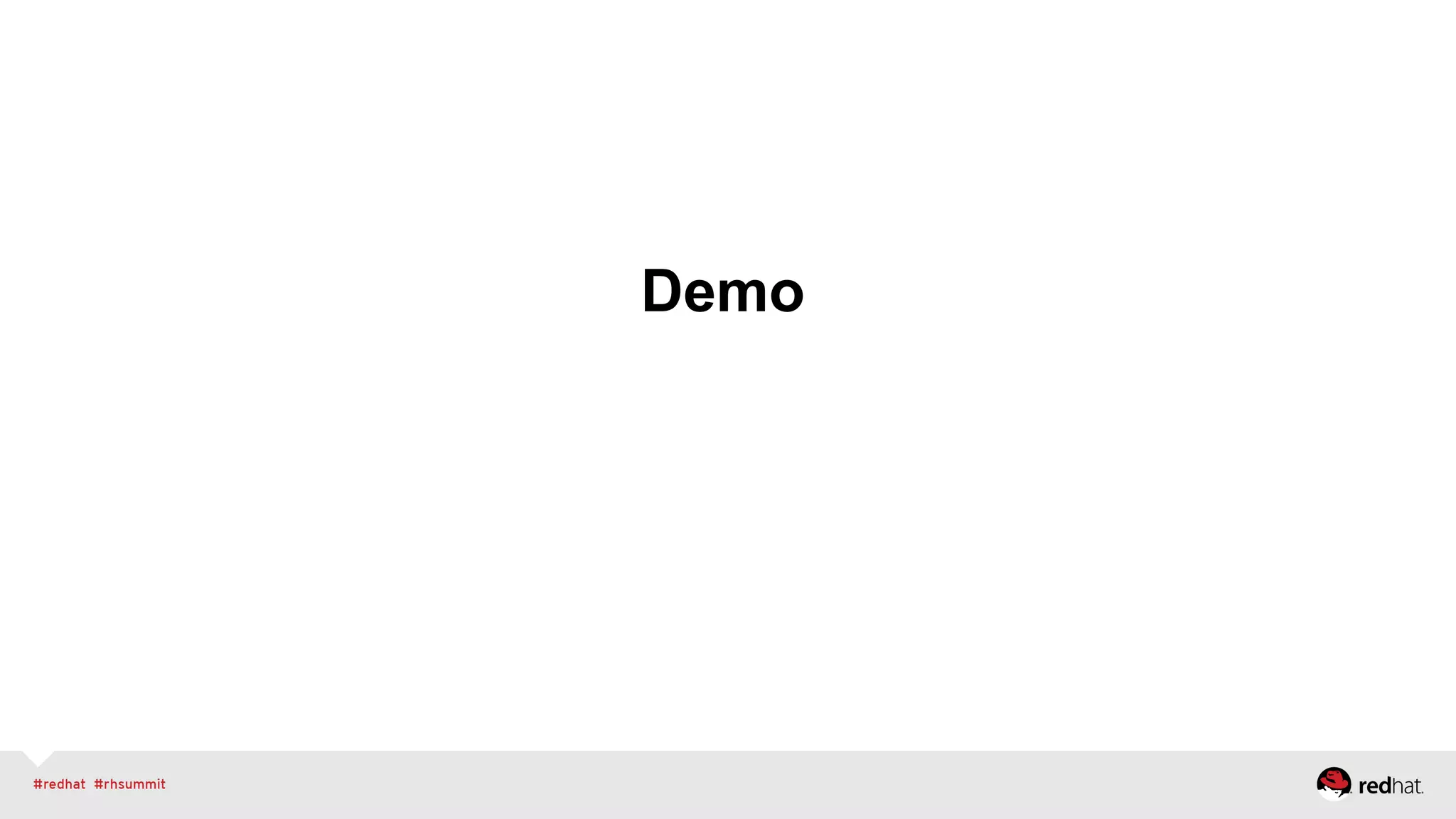

21. Demo

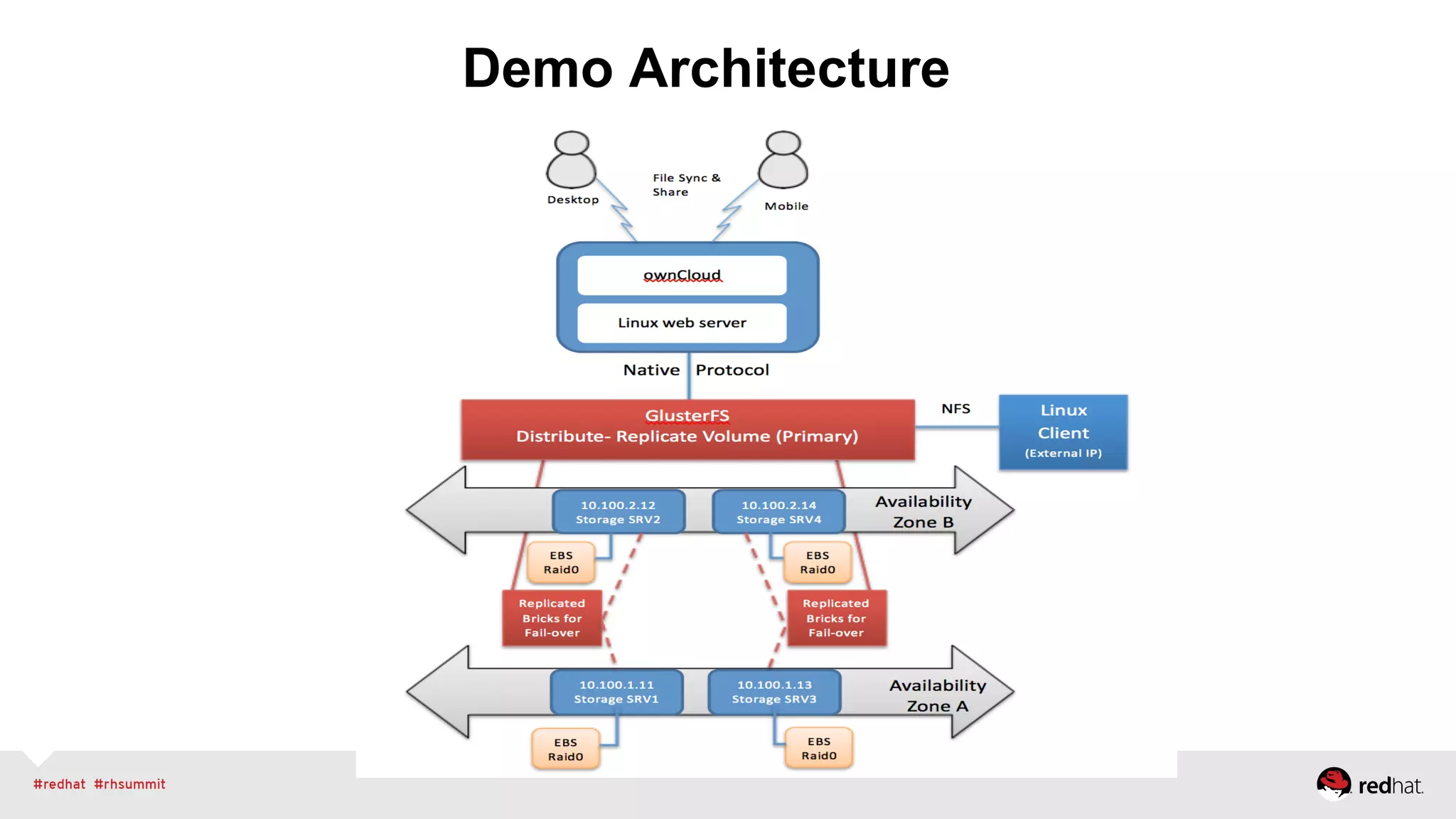

22. Demo Architecture

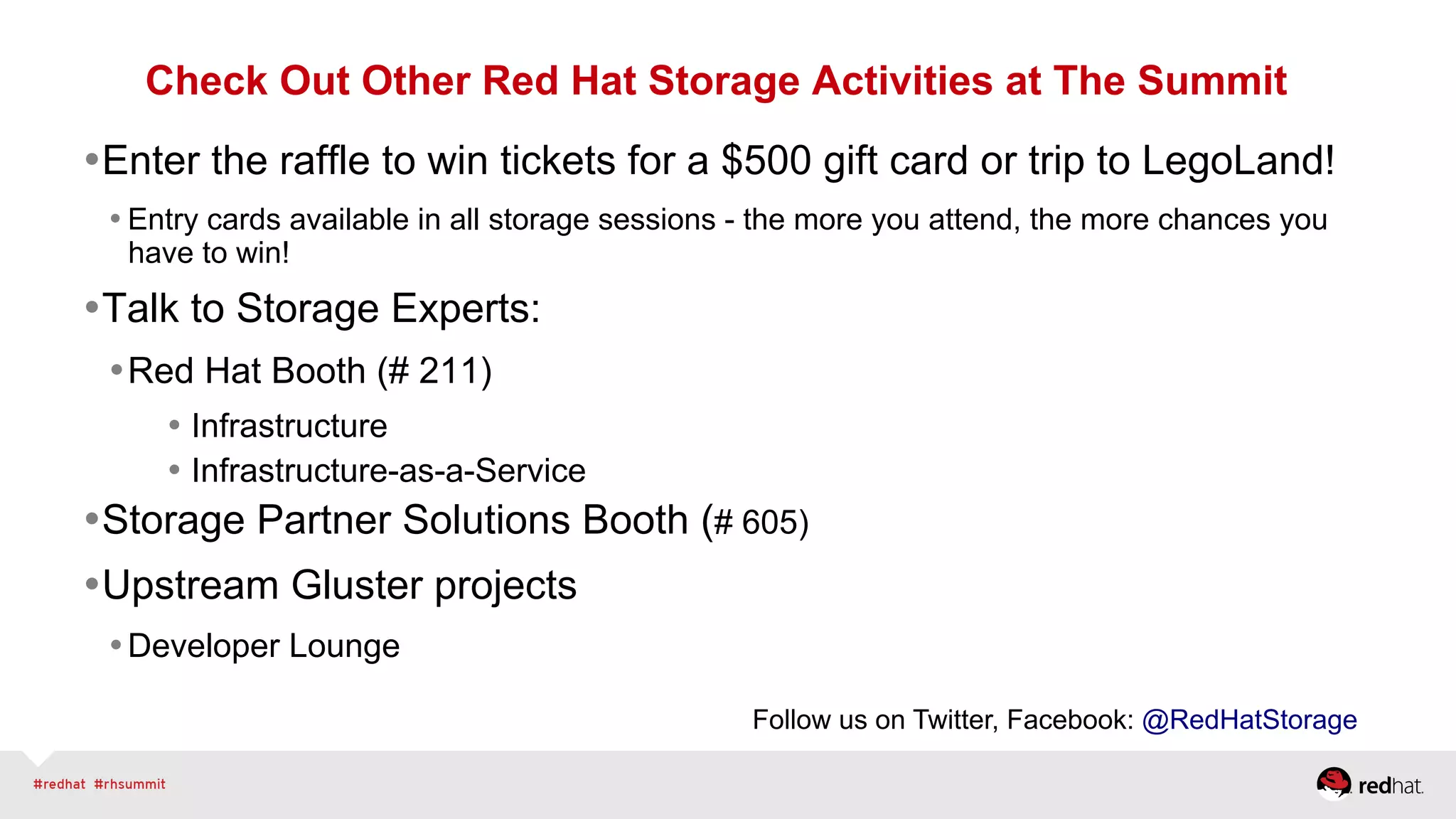

23. Check Out Other Red Hat Storage Activities at The Summit
• Enter the raffle to win tickets for a $500 gift card or trip to LegoLand!
• Entry cards available in all storage sessions - the more you attend, the more chances you
have to win!
• Talk to Storage Experts:
• Red Hat Booth (# 211)
• Infrastructure
• Infrastructure-as-a-Service
• Storage Partner Solutions Booth (# 605)
• Upstream Gluster projects
• Developer Lounge
Follow us on Twitter, Facebook: @RedHatStorage
