1. Recursive Descent Parsing
In practice with PHP

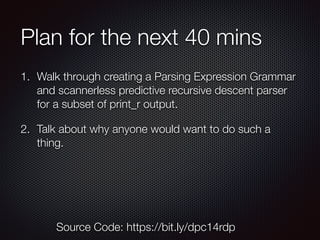

2. Plan for the next 40 mins
1. Walk through creating a Parsing Expression Grammar
and scannerless predictive recursive descent parser
for a subset of print_r output.
2. Talk about why anyone would want to do such a
thing.
Source Code: https://bit.ly/dpc14rdp

3. Disclaimer: I am not …

4. I am Boy Baukema
Senior Software Engineer @ ibuildings.nl

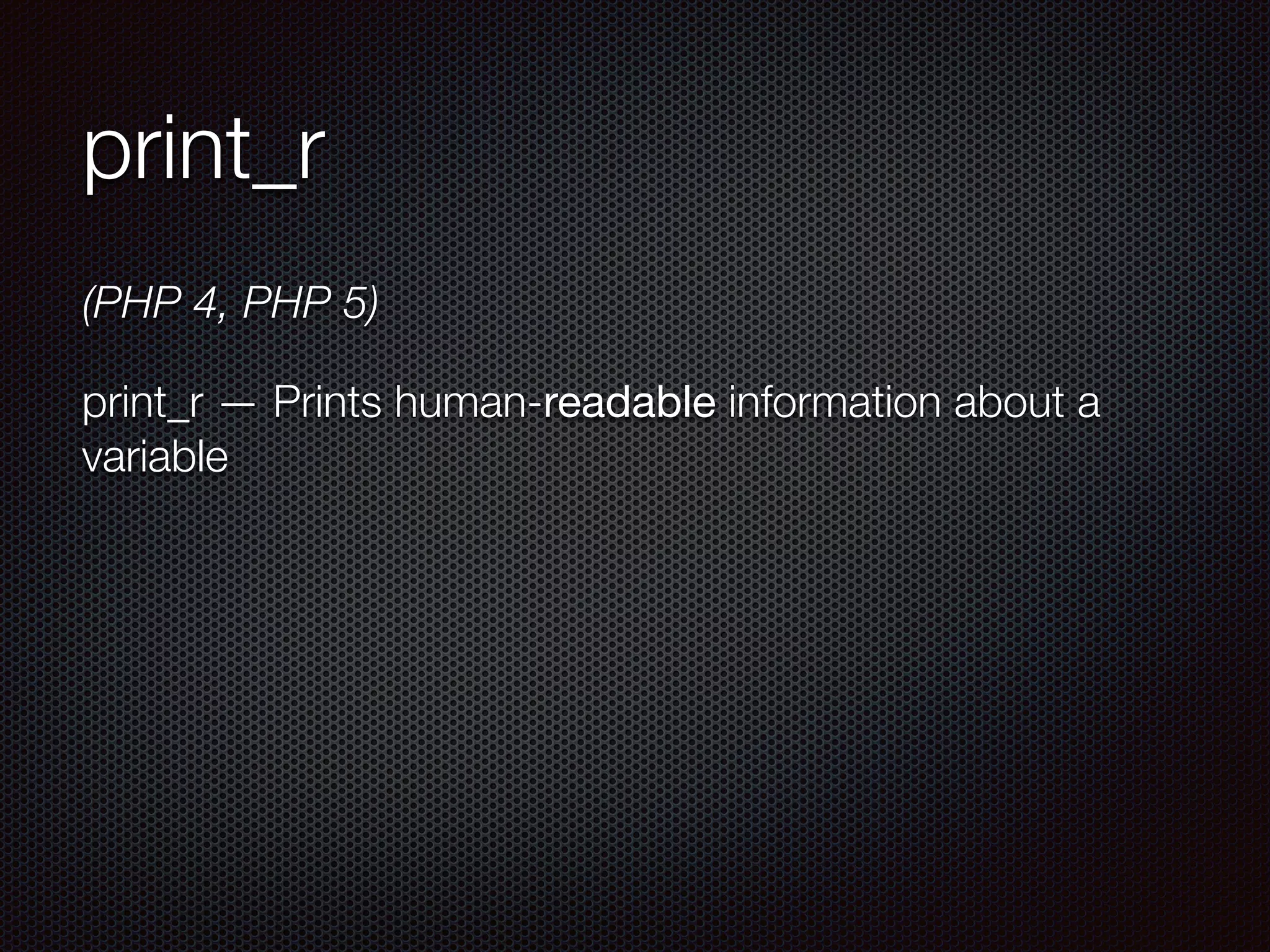

5. print_r
(PHP 4, PHP 5)
print_r — Prints human-readable information about a
variable

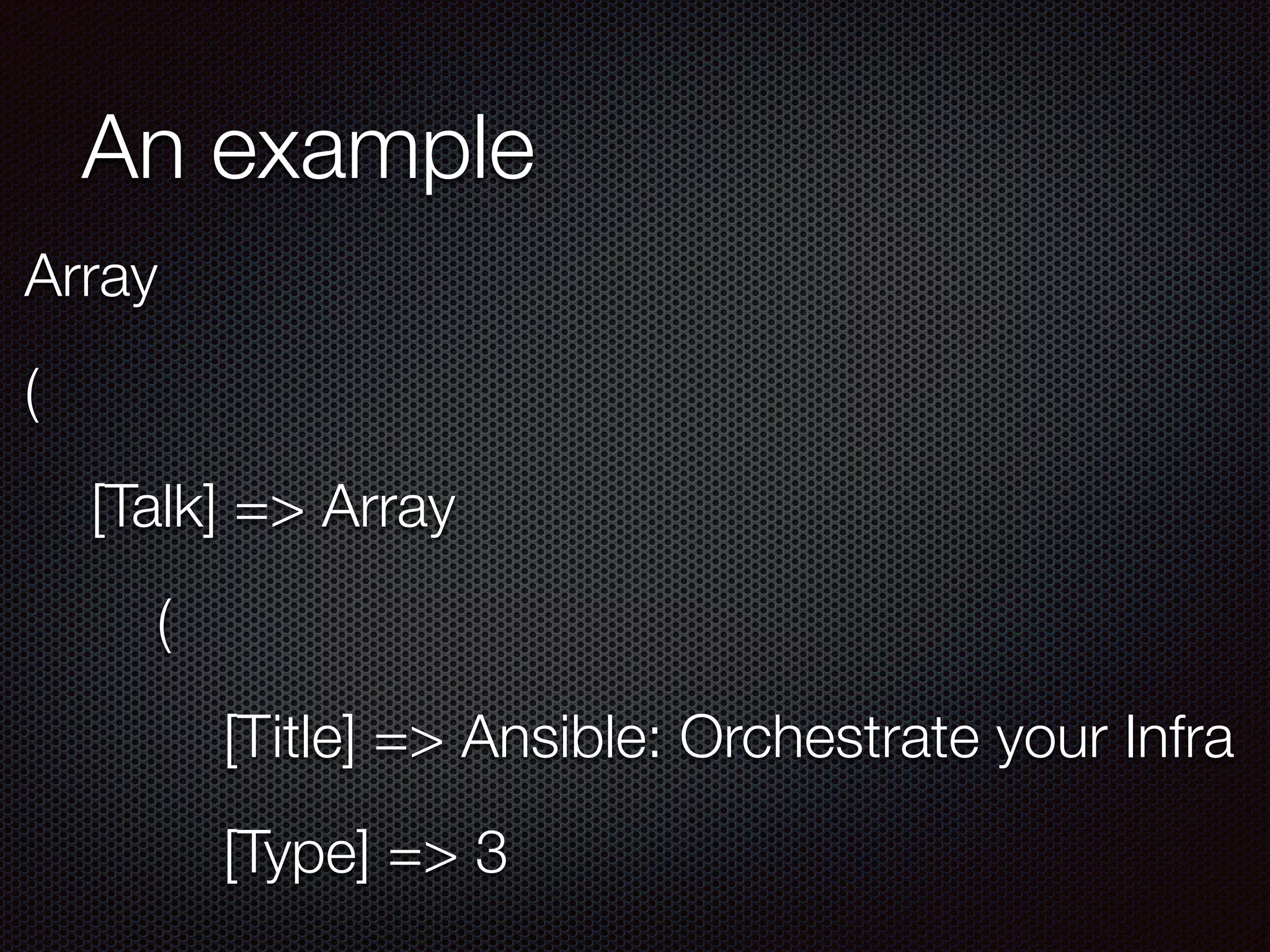

6. An example
Array
(
[Talk] => Array
(
[Title] => Ansible: Orchestrate
[Type] => 3

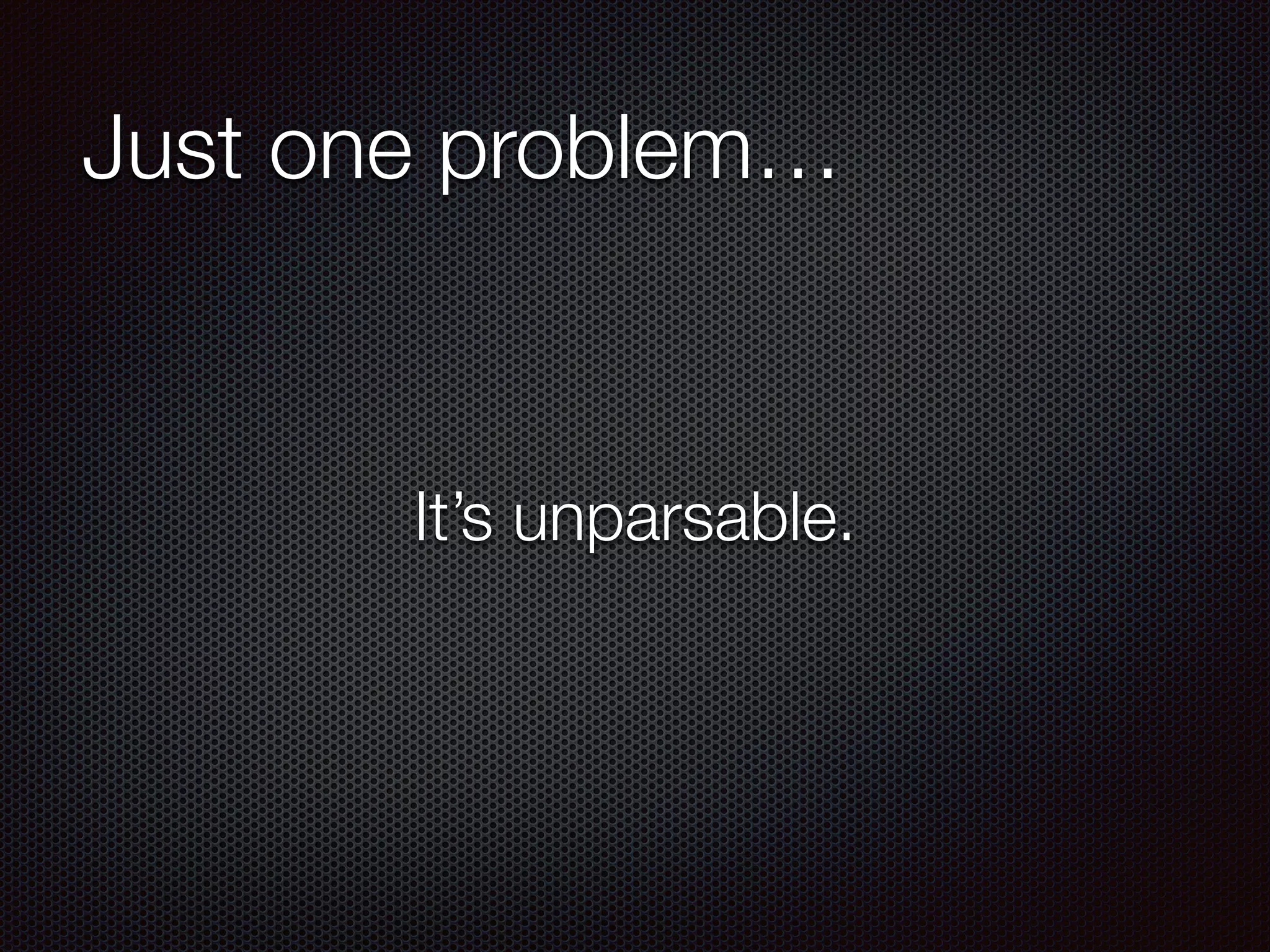

7. Just one problem…
!
!
It’s unparsable.

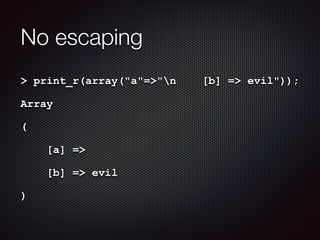

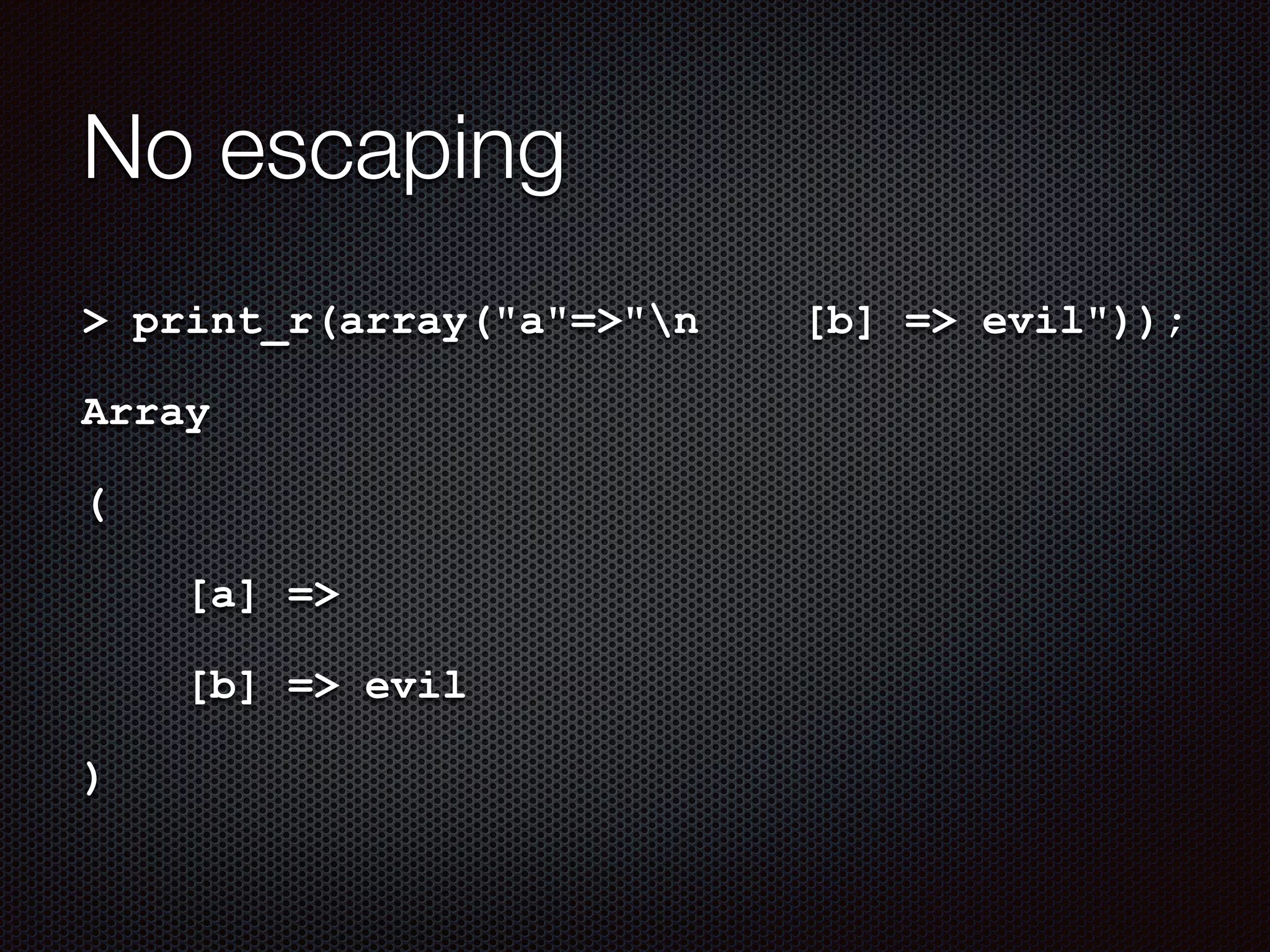

8. No escaping
> print_r(array("a"=>"n [b] => evil"));
Array
(
[a] =>
[b] => evil
)

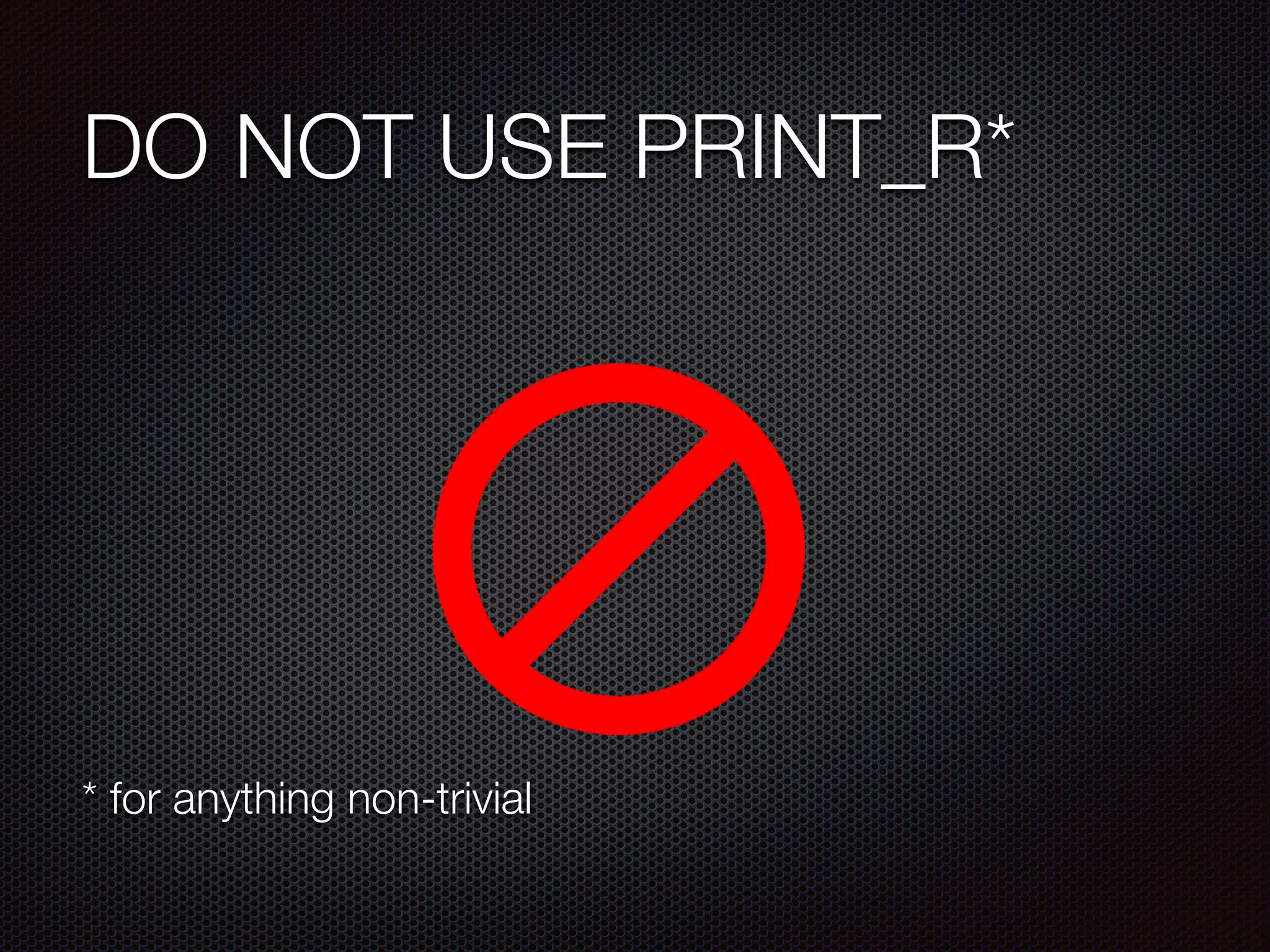

9. print_r
* for anything non-trivial

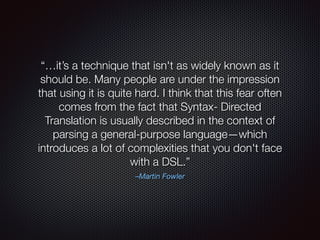

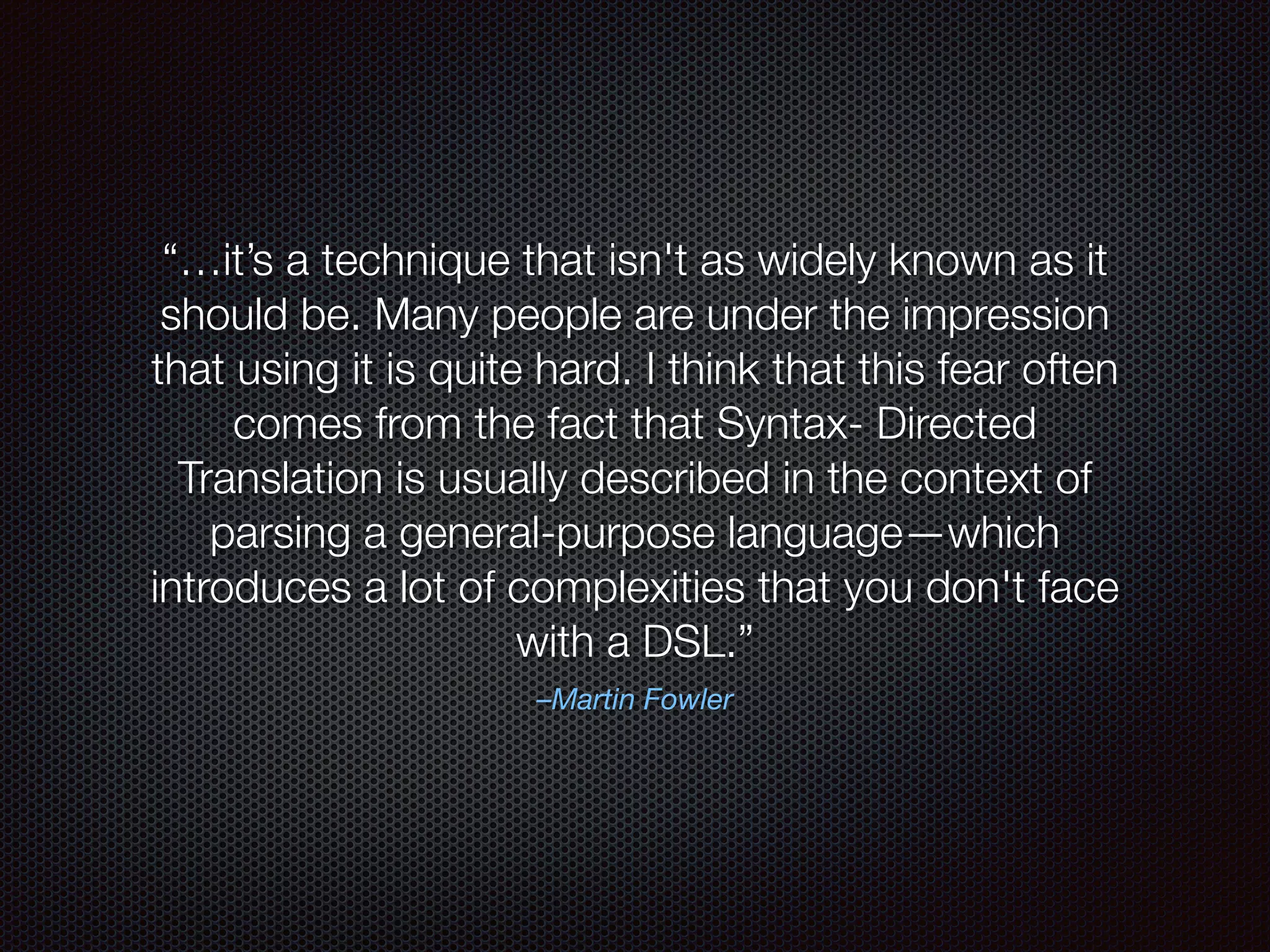

10. –Martin Fowler
“…it’s a technique that isn't as widely known as it
should be. Many people are under the impression
that using it is quite hard. I think that this fear often
comes from the fact that Syntax- Directed
Translation is usually described in the context of
parsing a general-purpose language—which
introduces a lot of complexities that you don't face
with a DSL.”

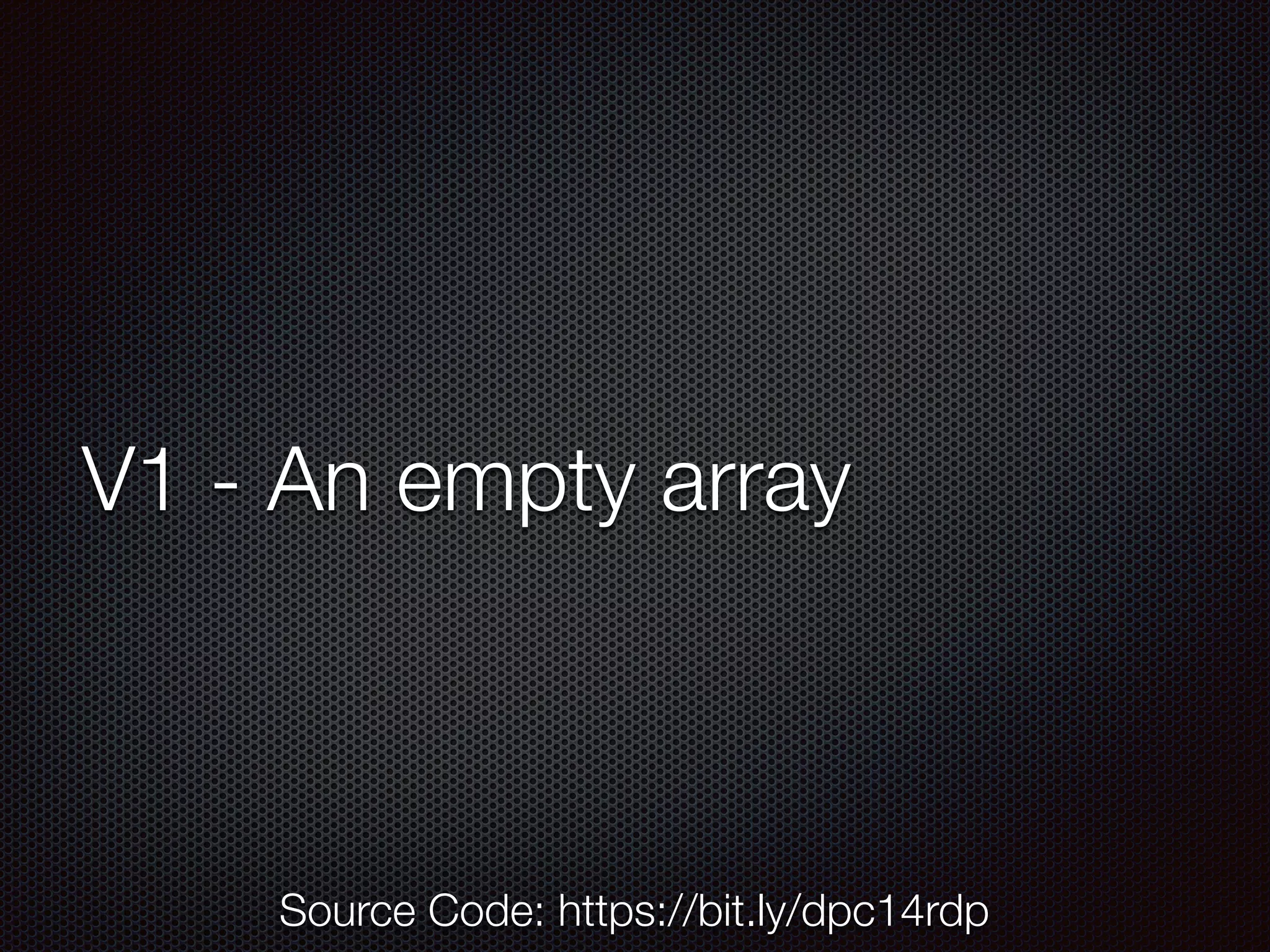

11. V1 - An empty array
Source Code: https://bit.ly/dpc14rdp

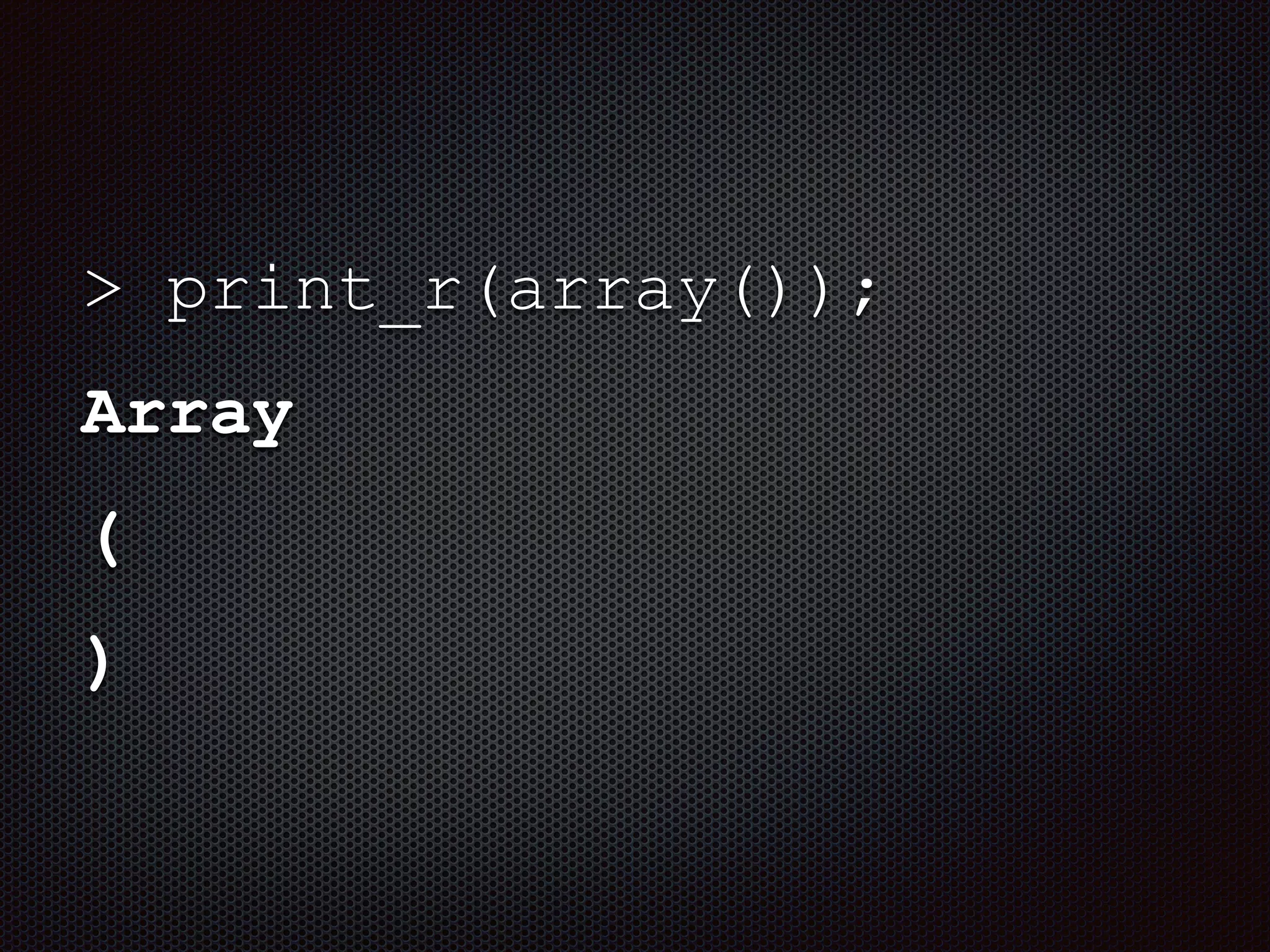

12. > print_r(array());
Array
(
)

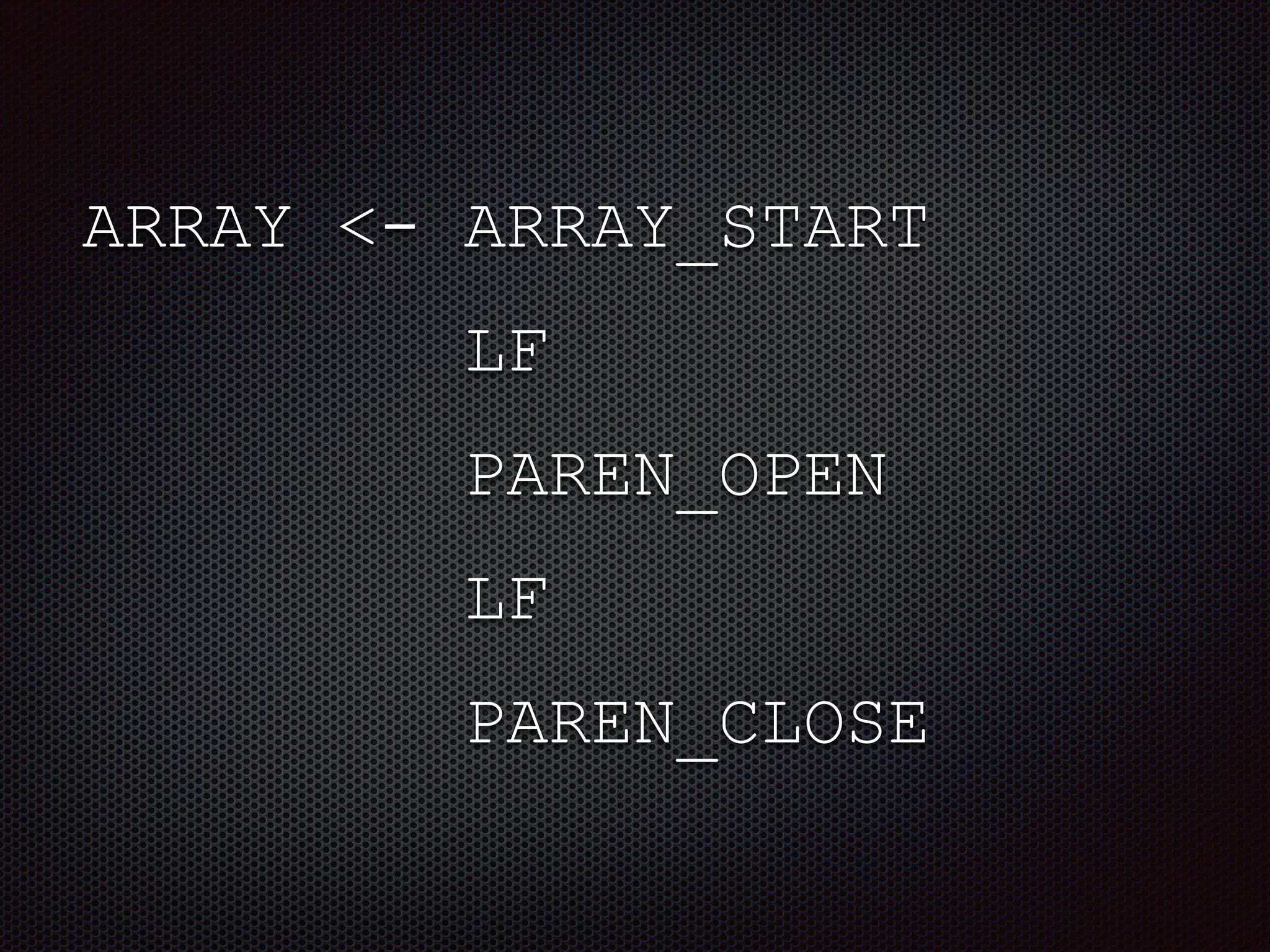

13. ARRAY <- ARRAY_START
LF
PAREN_OPEN
LF
PAREN_CLOSE
LF

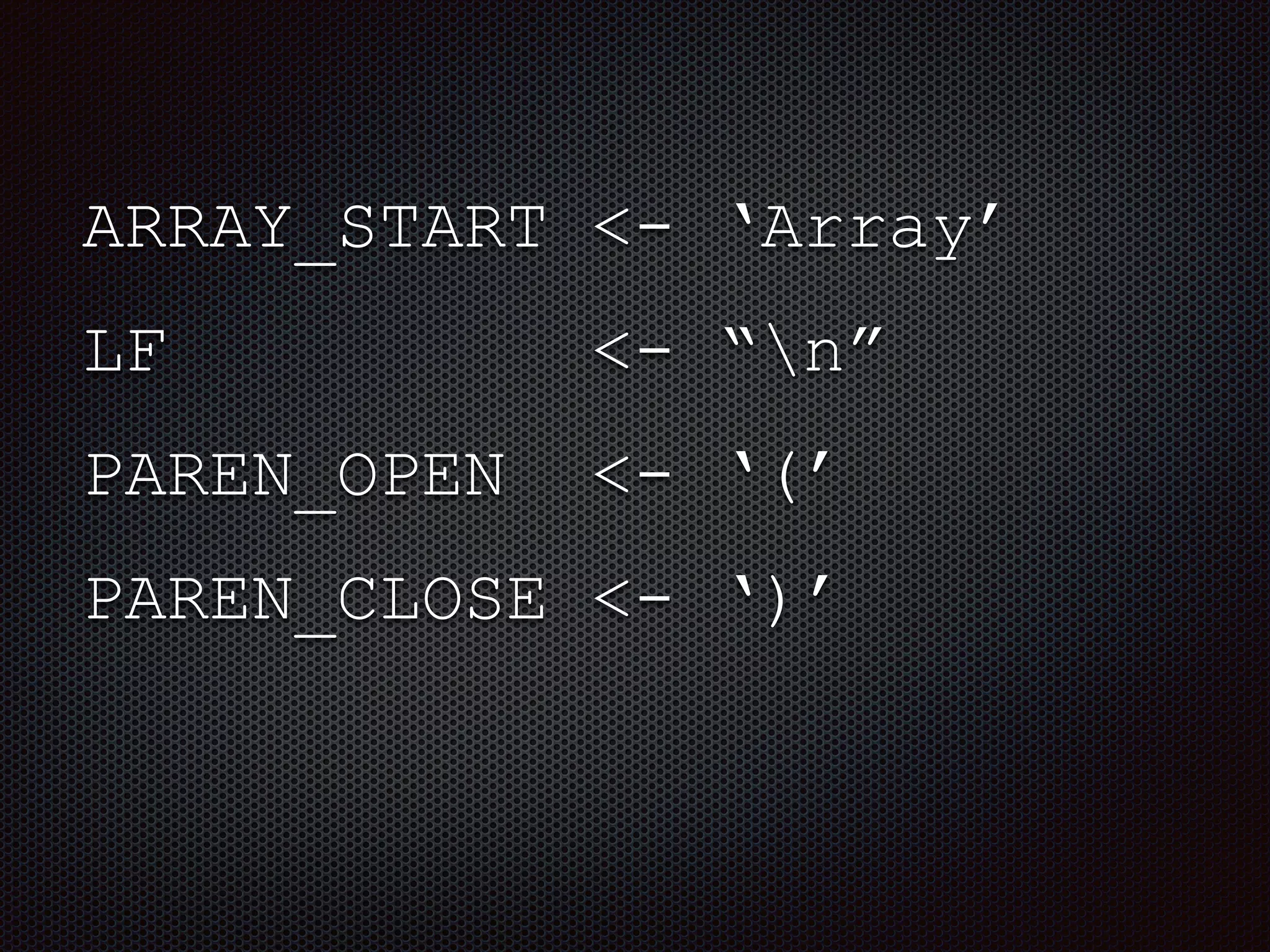

14. ARRAY_START <- ‘Array’
LF <- “n”
PAREN_OPEN <- ‘(’
PAREN_CLOSE <- ‘)’

15. PrintRLang V1
RecursiveDescentParser
- $content : string
+ __construct ( string $content )
+ consume ( string $terminal )
+ lookAhead ( string $terminal )
Source Code: https://bit.ly/dpc14rdp

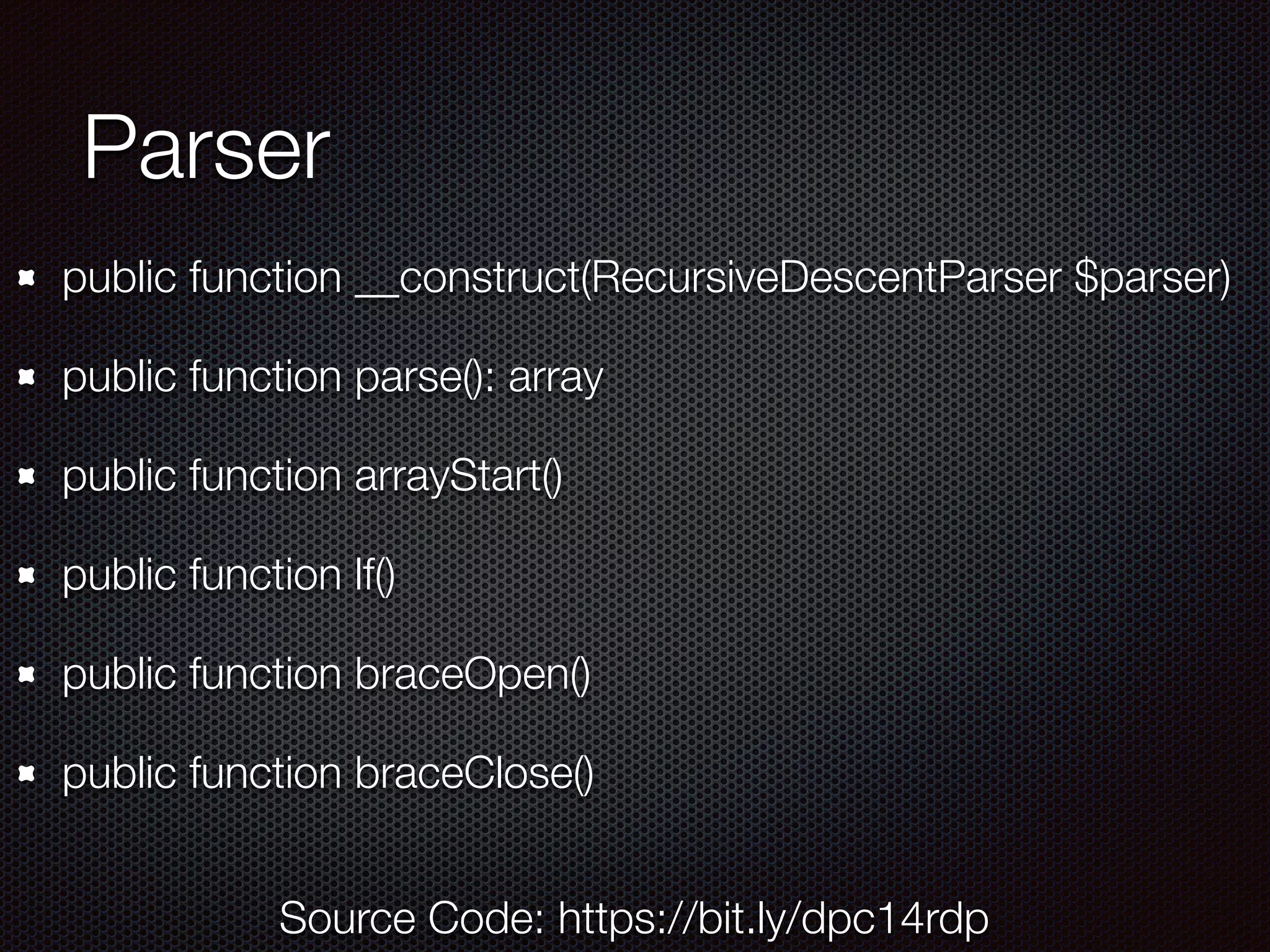

16. PrintRLang V1
ArrayParser
- $parser : RecursiveDescentParser
+ __construct(RecursiveDescentParser $parser)
+ parse(): array
+ arrayStart()
+ lf()
+ braceOpen()
+ braceClose()
Source Code: https://bit.ly/dpc14rdp

17. !
$parser = new PrintRLang ArrayParser(
new PrintRLang RecursiveDescentParser(
"Arrayn(n)n"
)
);
$parser->parse();

18. public function parse() {
$this->arrayStart();
$this->lf();
$this->braceOpen();
$this->lf()
$this->braceClose();
$this->lf();
return array();
}

19. A r r a y n ( n ) n
public function arrayStart() {
$this->parser->consume('Array');
}
n ( n ) n

20. n ( n ) n
public function lf() {
$this->parser->consume("n");
}
( n ) n

21. ( n ) n
public function braceOpen() {
$this->parser->consume('(');
}
n ) n

22. n ) n
public function lf() {
$this->parser->consume("n");
}
) n

23. ) n
public function braceClose() {
$this->parser->consume(')');
}
n

24. n
public function lf() {
$this->parser->consume("n");
}

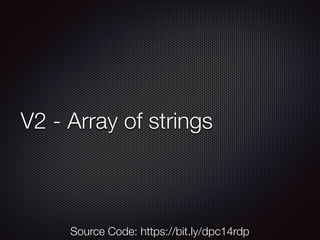

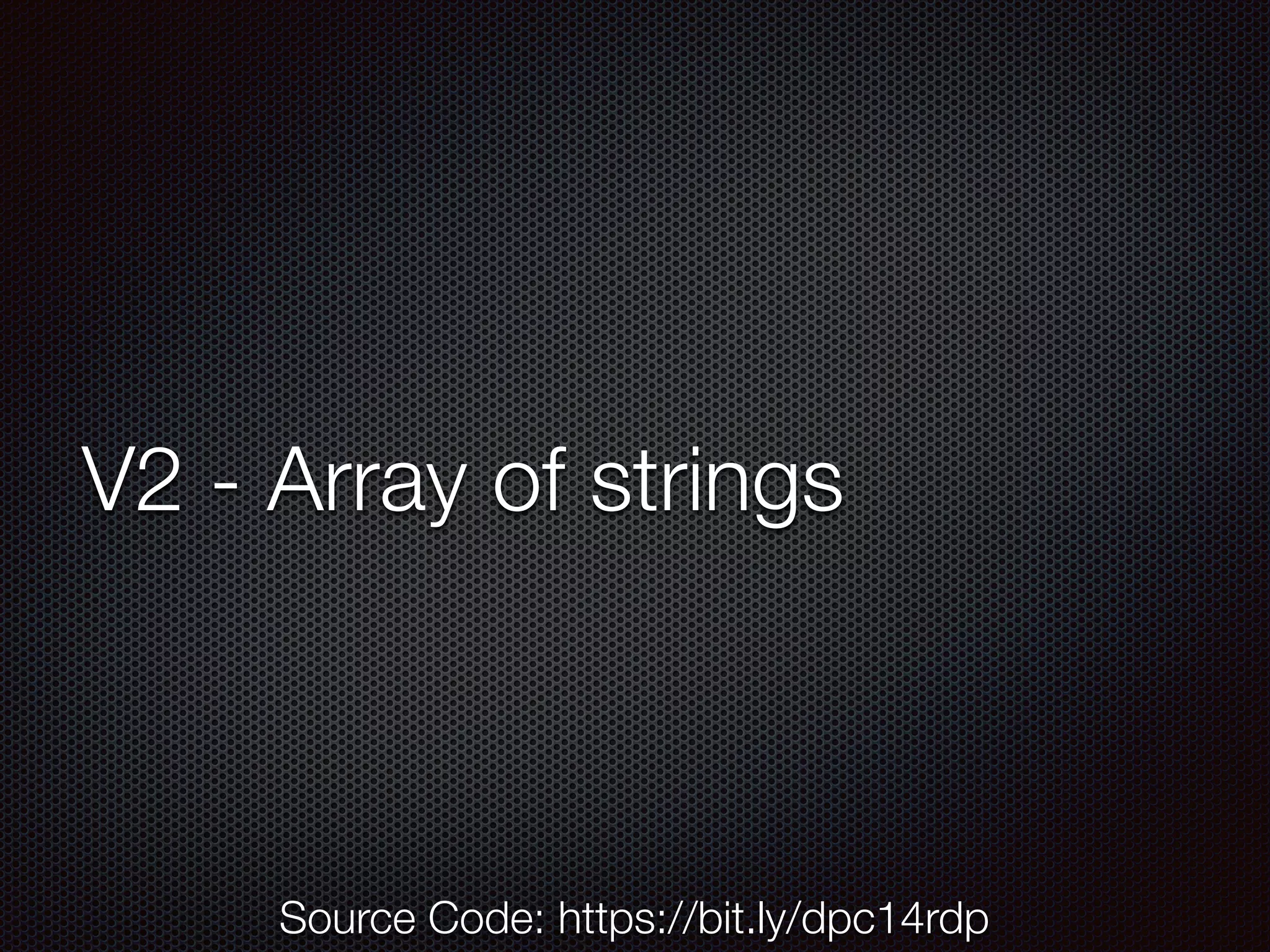

25. V2 - Array of strings
Source Code: https://bit.ly/dpc14rdp

26. Array
(
[Room] => E104
[Difficulty] => 2
[Type] => 1
)

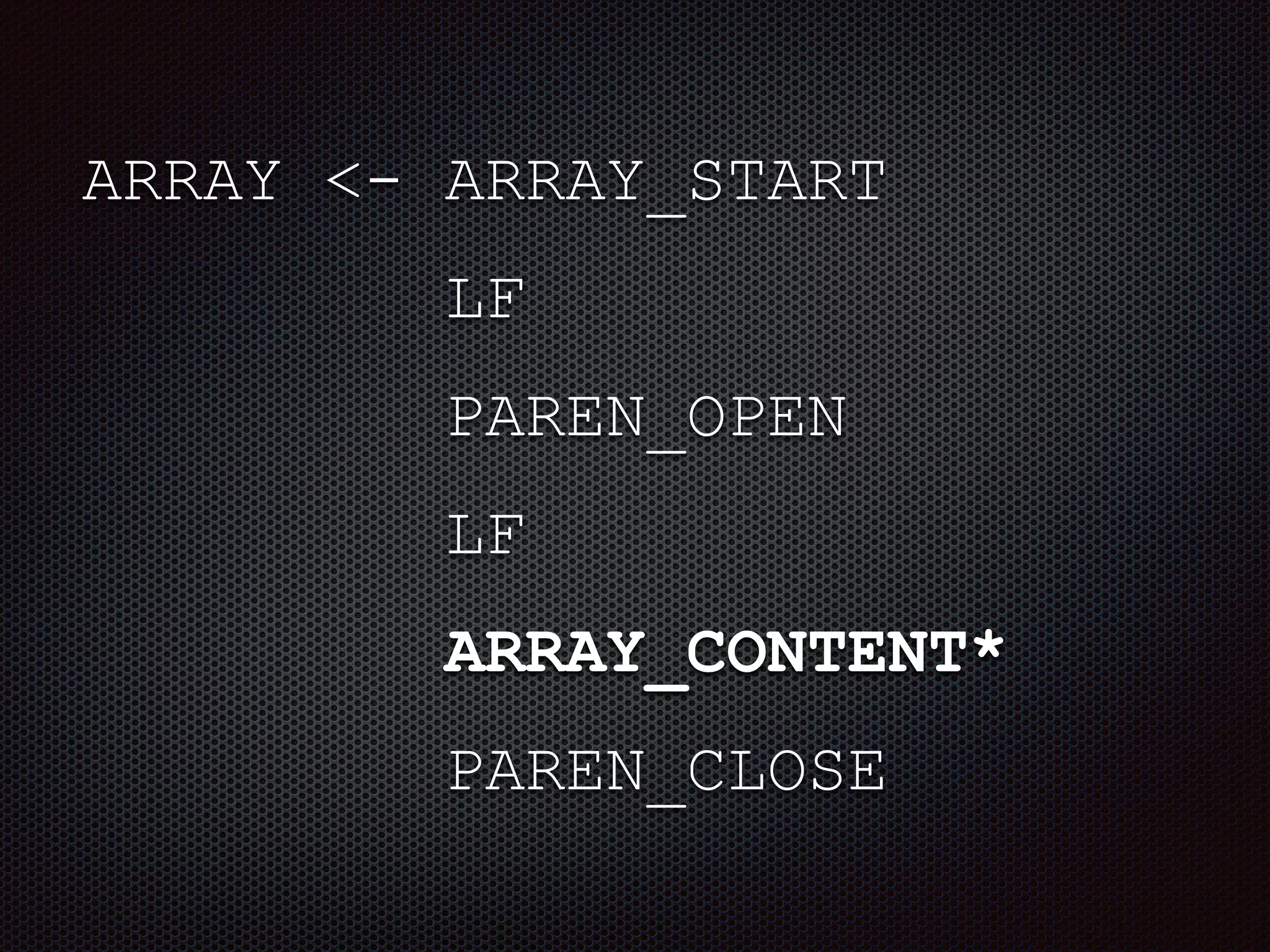

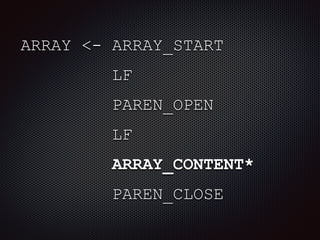

27. ARRAY <- ARRAY_START
LF
PAREN_OPEN
LF
ARRAY_ASSIGN*
PAREN_CLOSE
LF

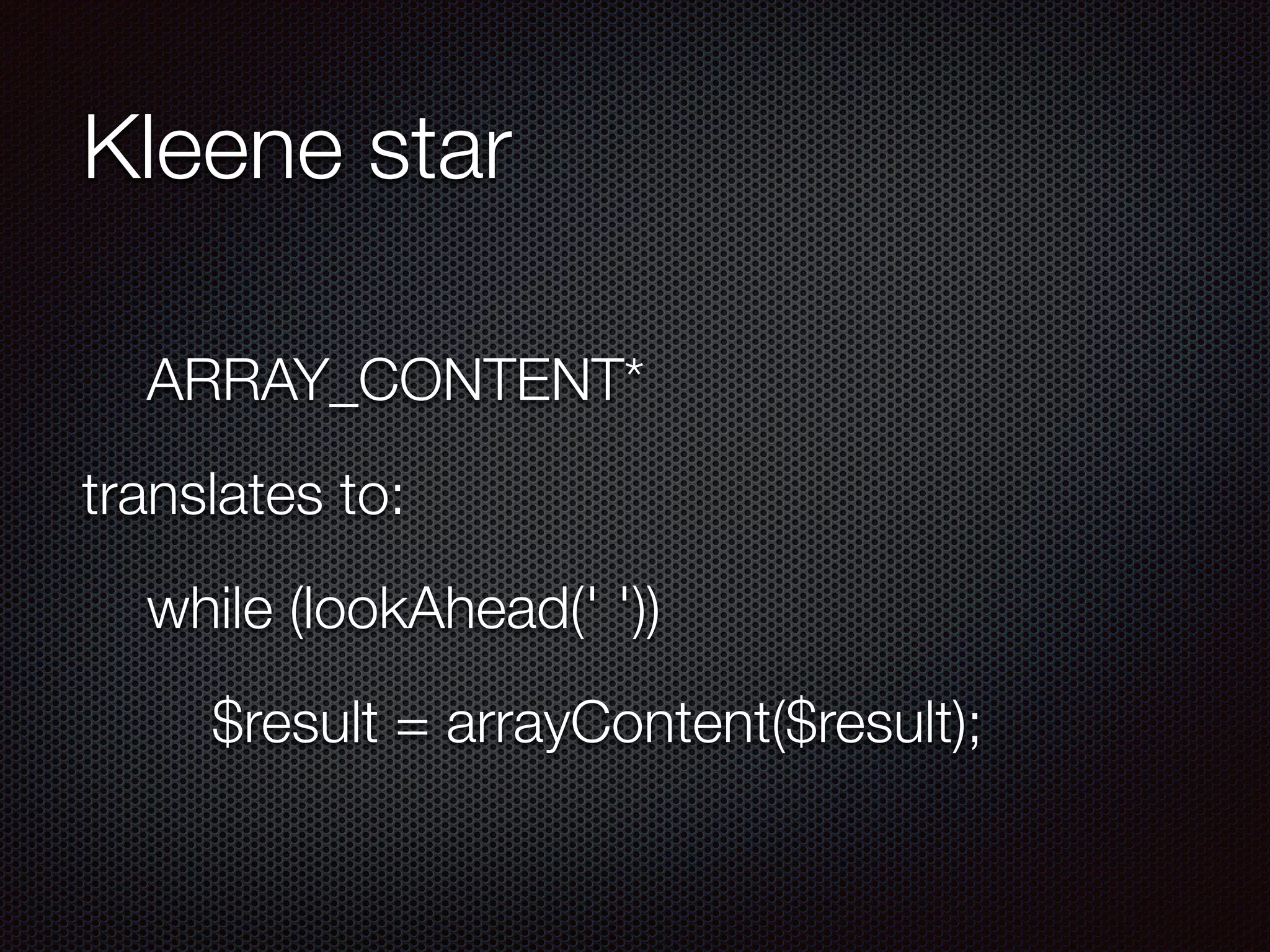

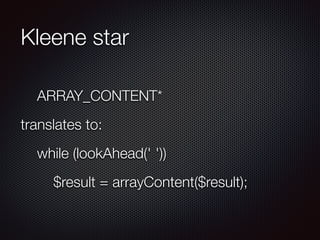

28. Kleene star
translates to:
ARRAY_ASSIGN*
while (lookAhead(' '))
$result = arrayAssign($result)

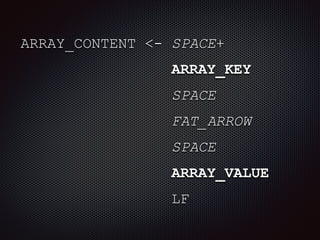

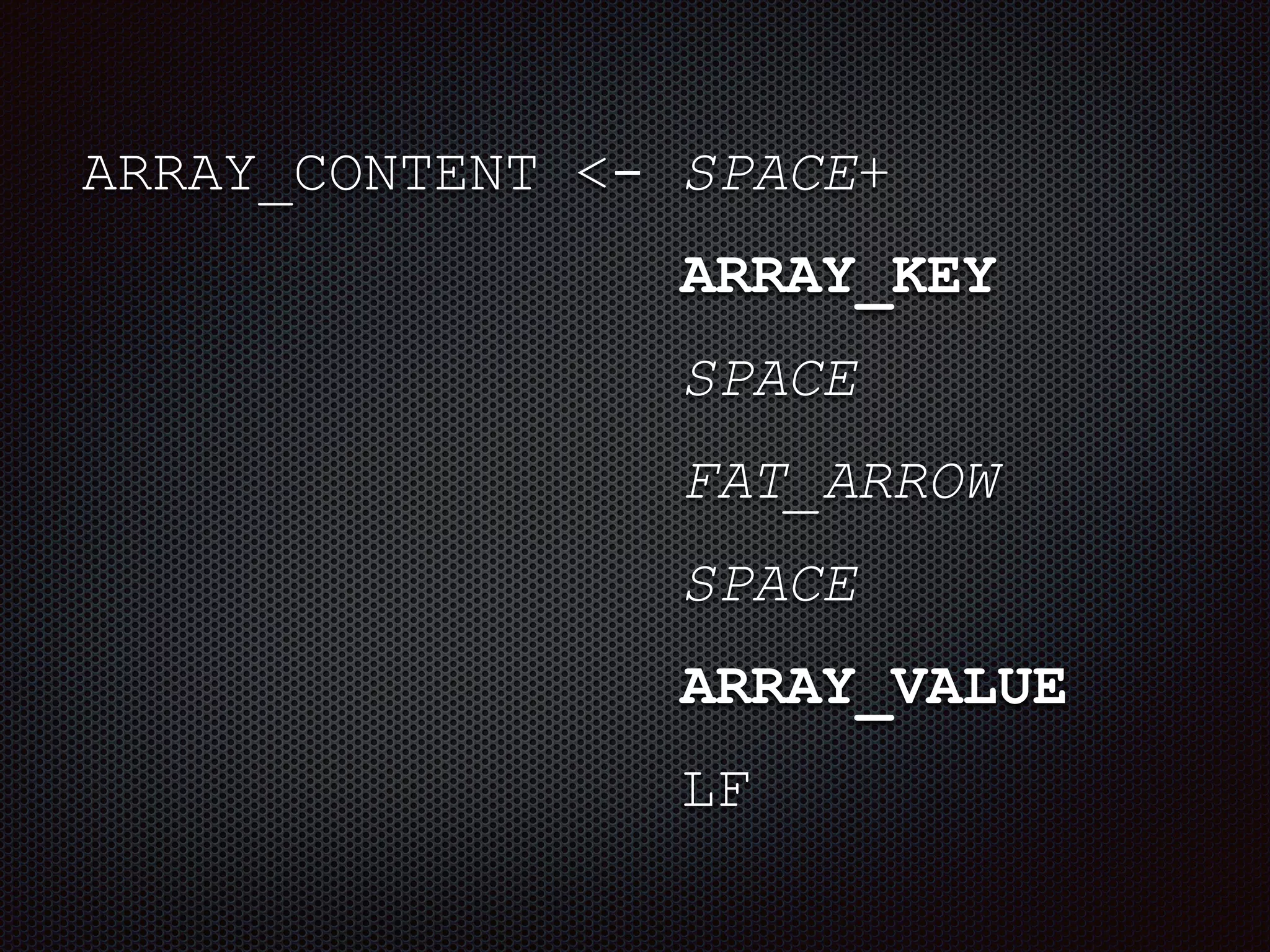

29. ARRAY_ASSIGN <- SPACE+
ARRAY_KEY
SPACE
FAT_ARROW
SPACE
ARRAY_VALUE
LF

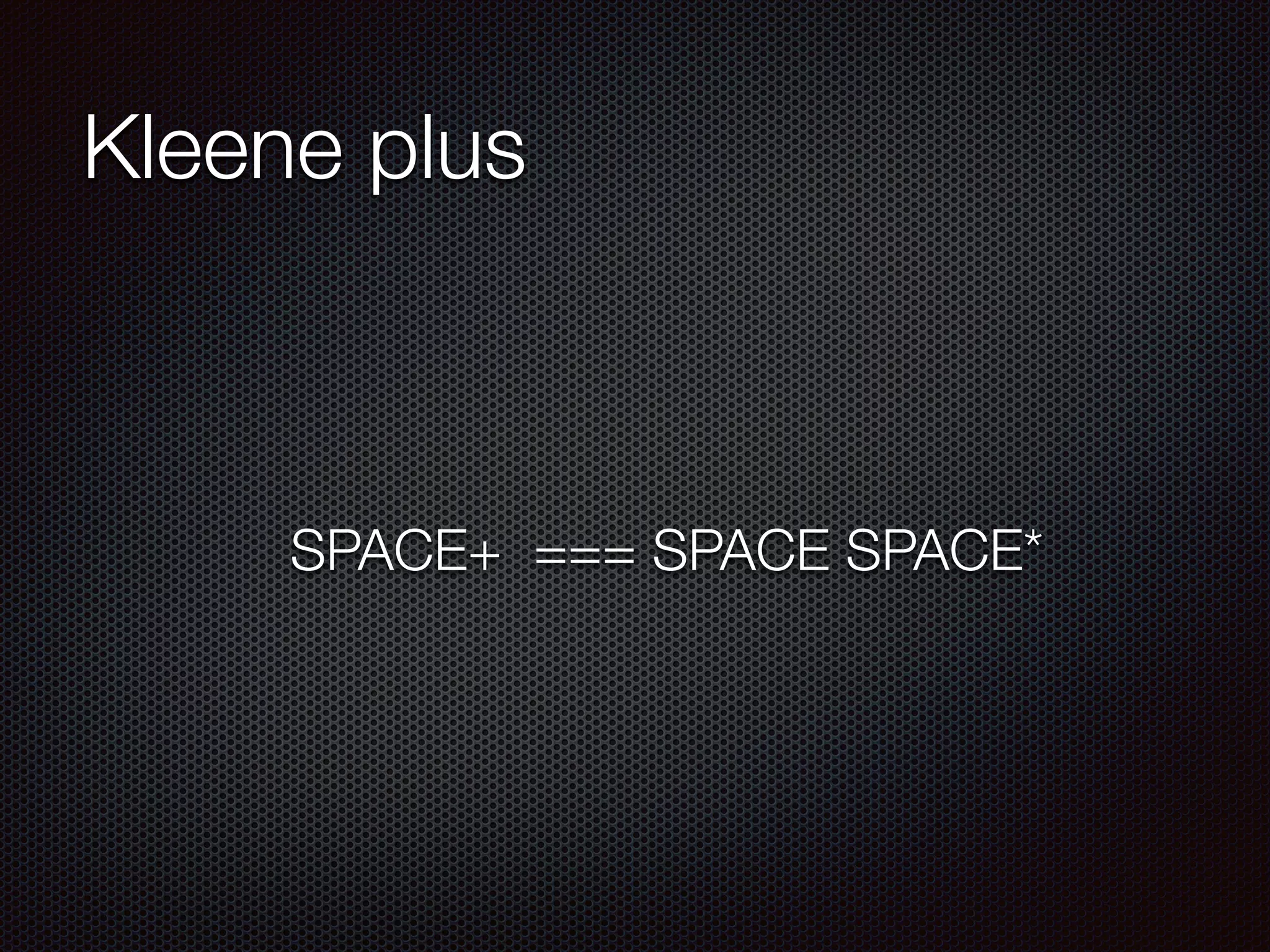

30. Kleene plus
SPACE+ === SPACE SPACE*

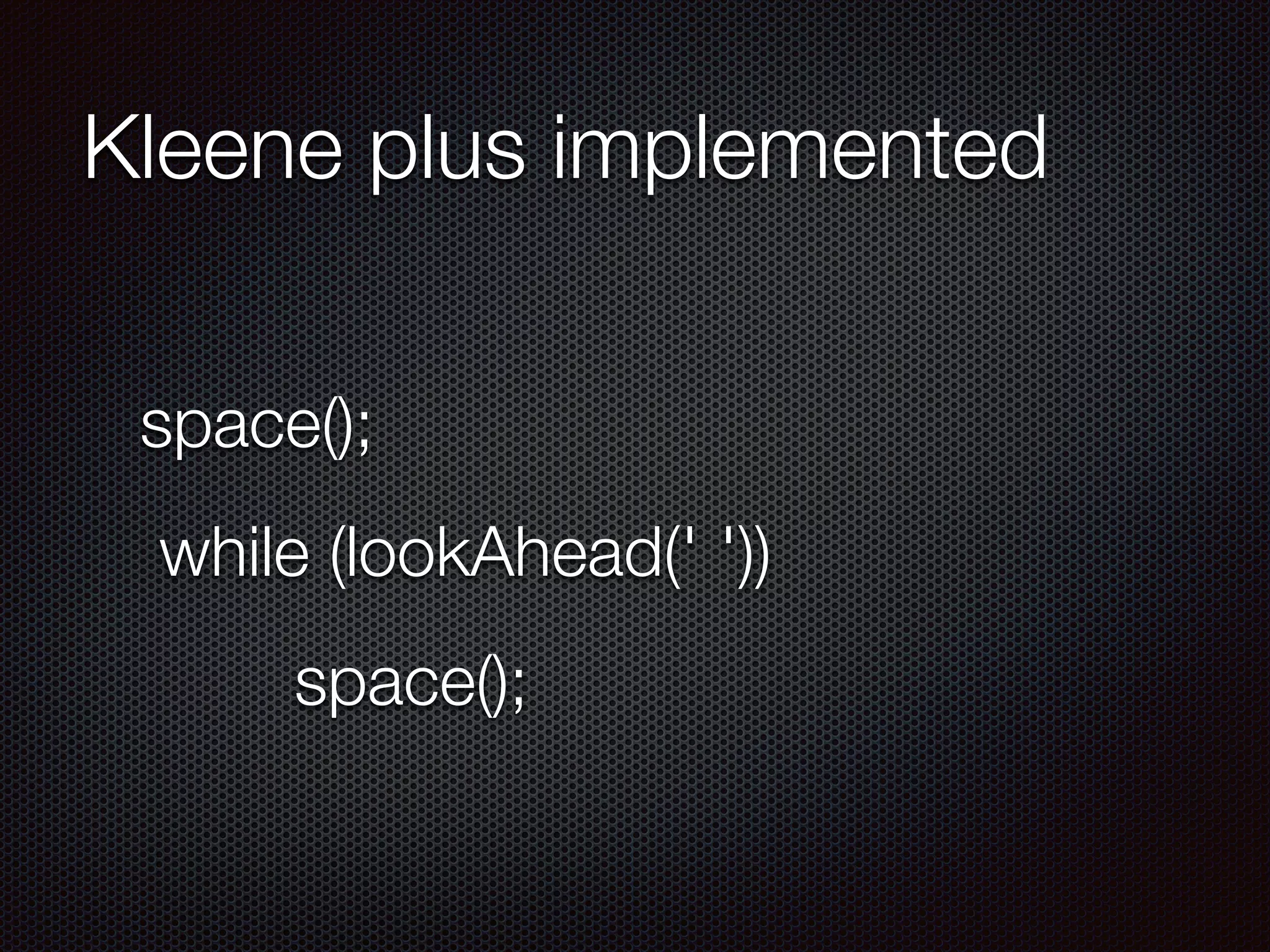

31. Kleene plus implemented
space()
while (lookAhead(' '))
space()

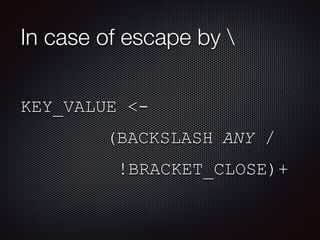

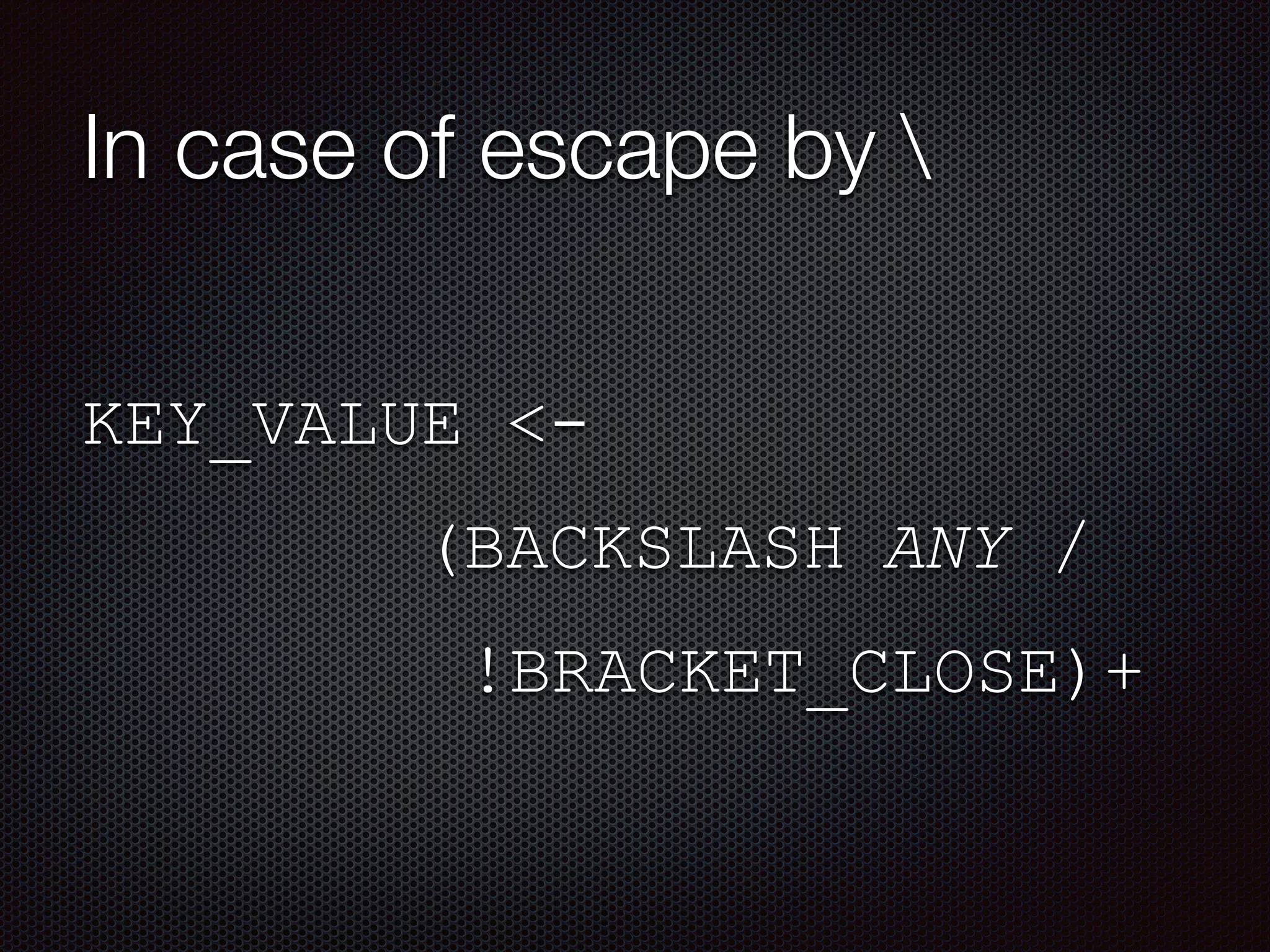

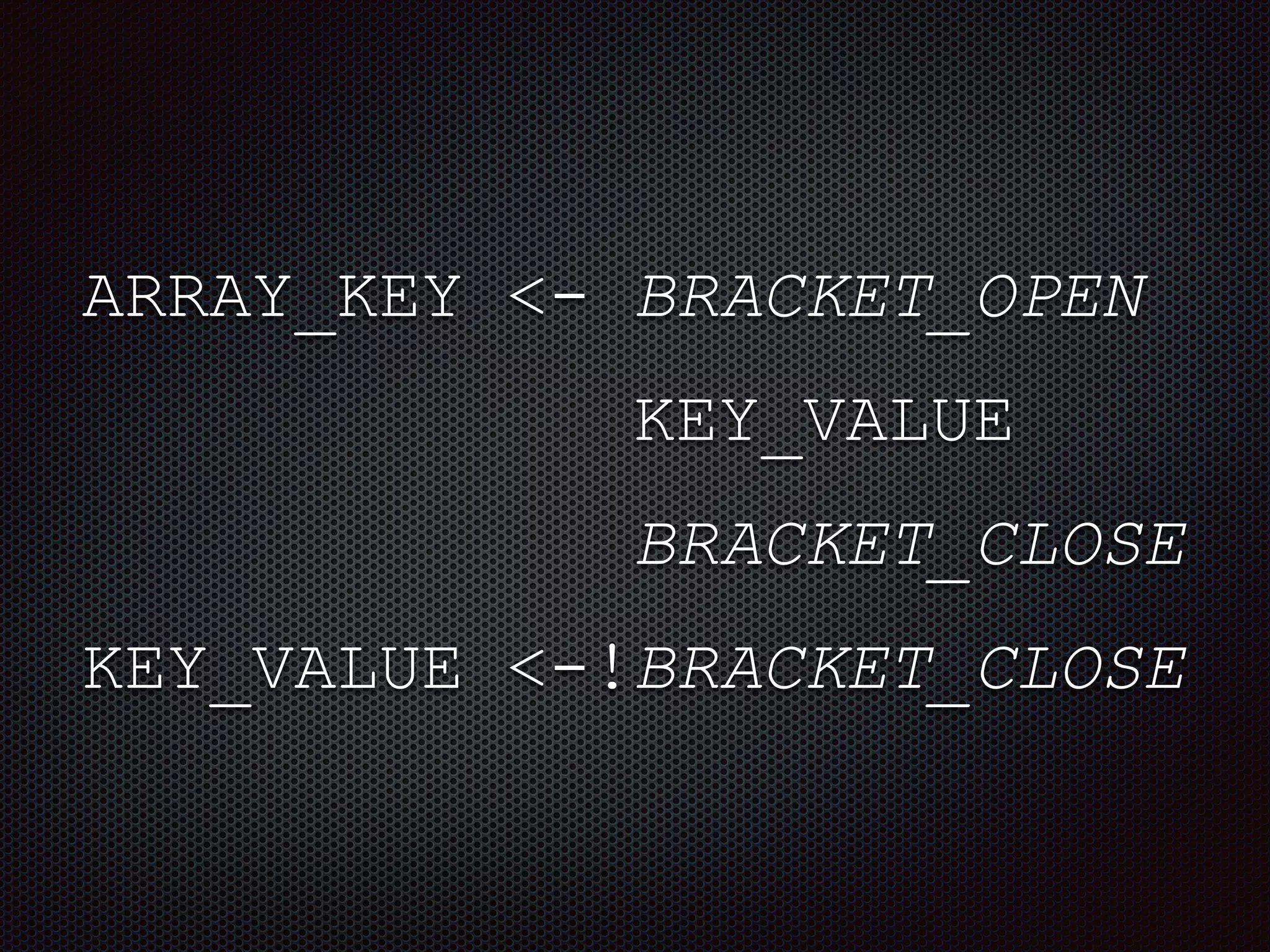

32. ARRAY_KEY <- BRACKET_OPEN
KEY_VALUE
BRACKET_CLOSE
KEY_VALUE <-!BRACKET_CLOSE

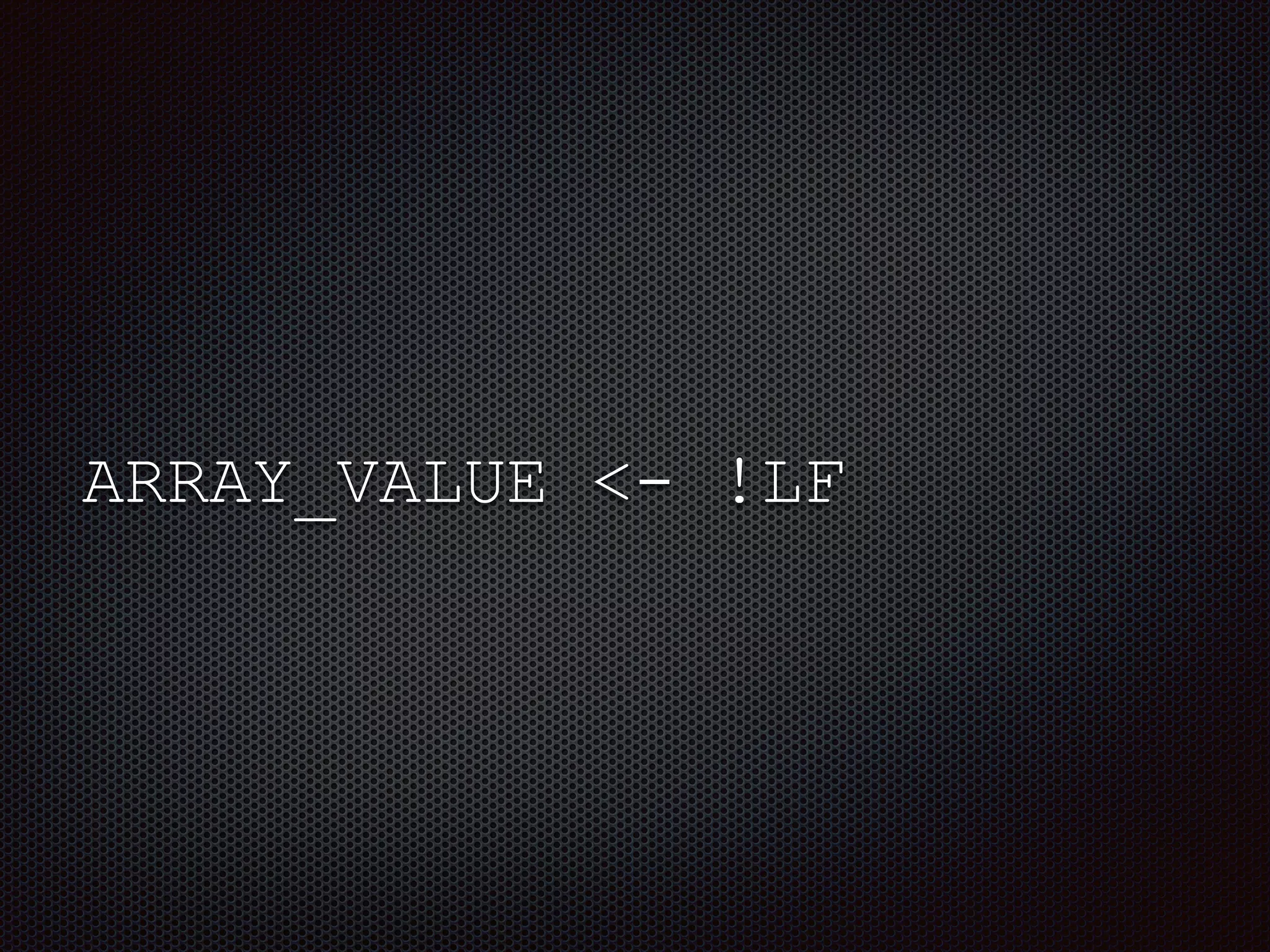

33. ARRAY_VALUE <- !LF

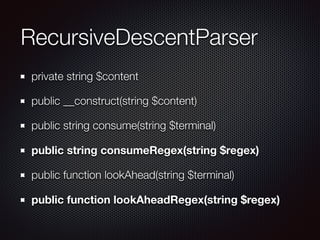

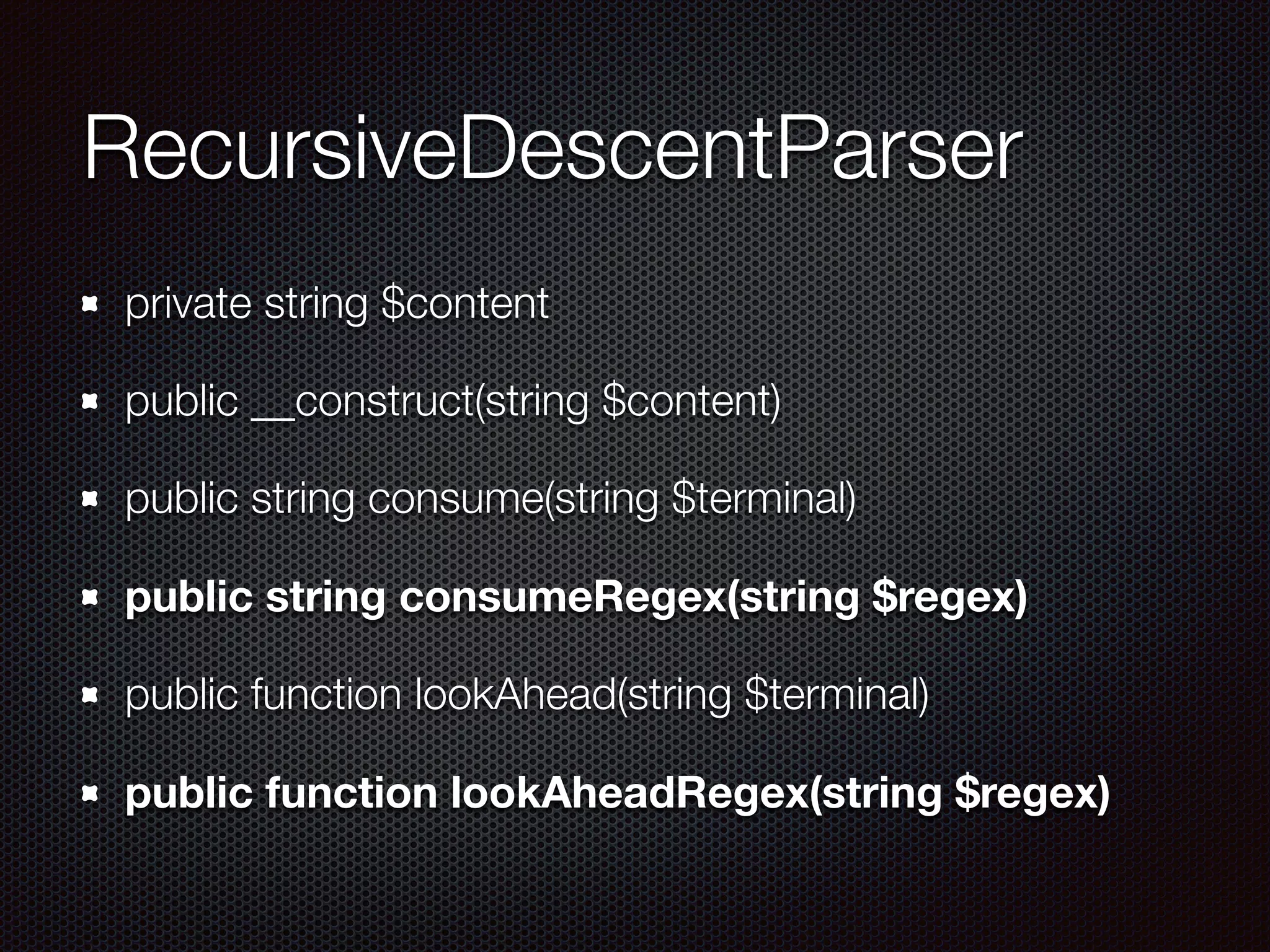

34. PrintRLang V2
RecursiveDescentParser
- $content : string
+ __construct ( string $content )
+ consume ( string $terminal )
+ consumeRegex( string $regex )
+ lookAhead ( string $terminal )
+ lookAheadRegex( string $regex
Source Code: https://bit.ly/dpc14rdp

35. PrintRLang V2
ArrayParser
- $parser : RecursiveDescentParser
...
+ arrayAssign( array $result )
+ arrayKey() : string
+ arrayValue() : string
+ space()
+ fatArrow
...

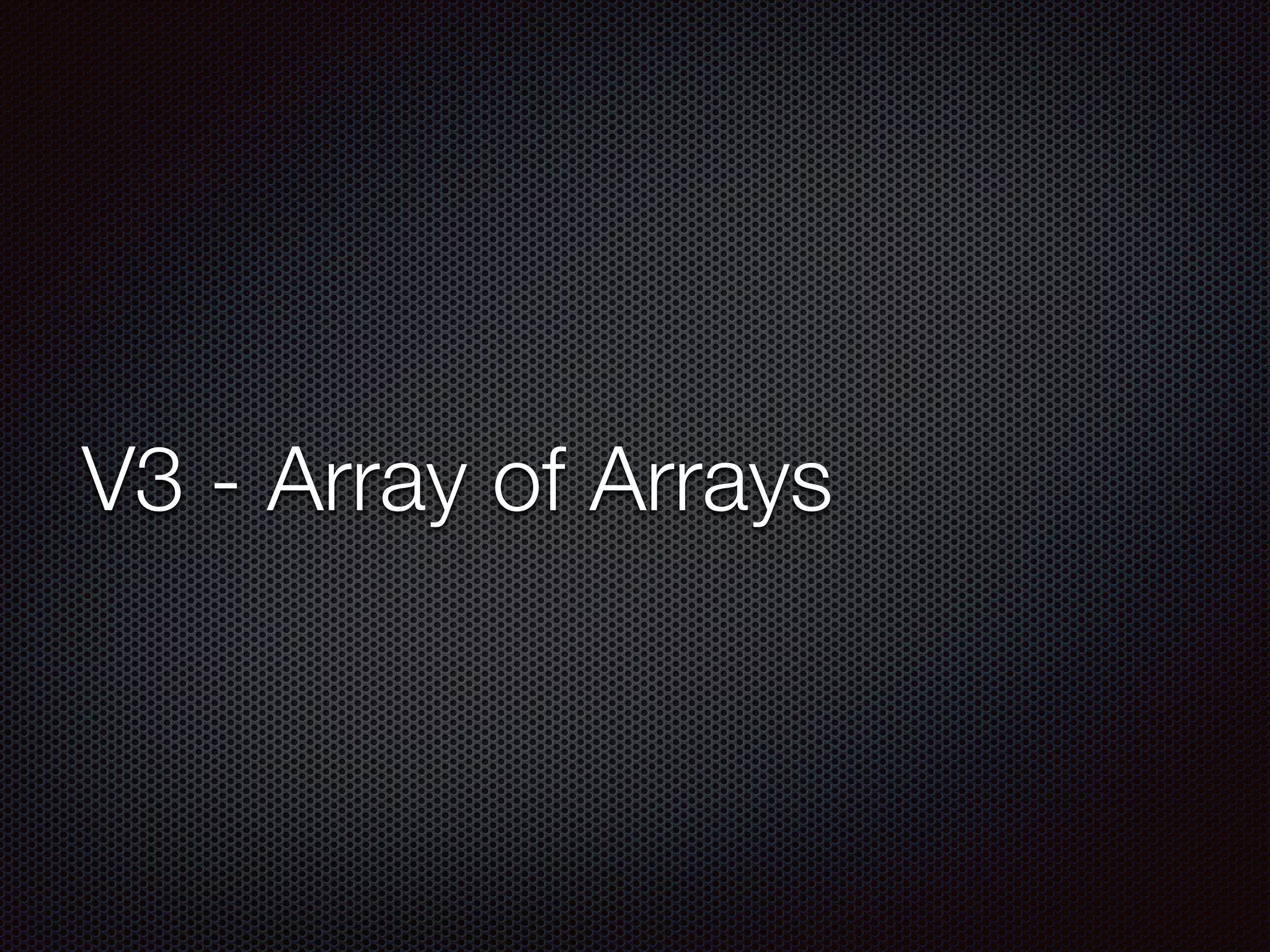

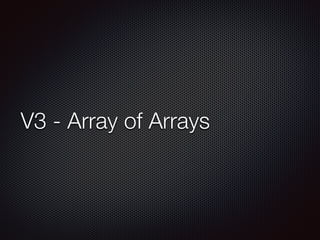

36. V3 - Array of Arrays

37. Array
(
[Talk] => Array
(
[Title] => Ansible: Orchestrate
[Type] => 3
)
)

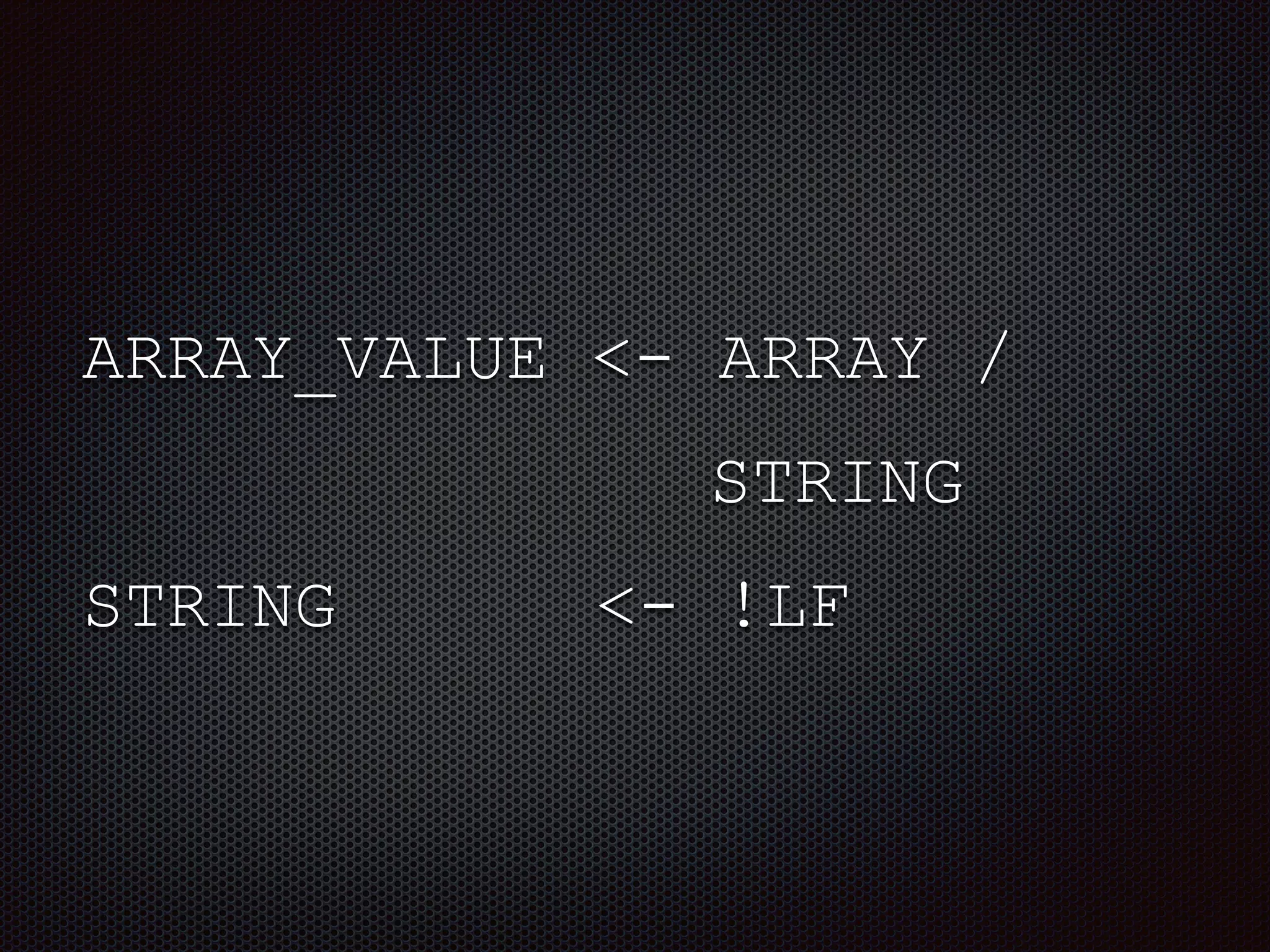

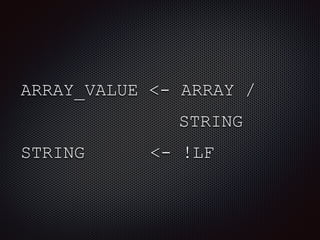

38. ARRAY_VALUE <- ARRAY /
STRING
STRING <- !LF

39. ARRAY <- ARRAY_START
LF
SPACE*
PAREN_OPEN
LF
ARRAY_ASSIGN*
SPACE*
PAREN_CLOSE

40. PrintRLang V3
ArrayParser
- $parser : RecursiveDescentParser
...
+ string()
...

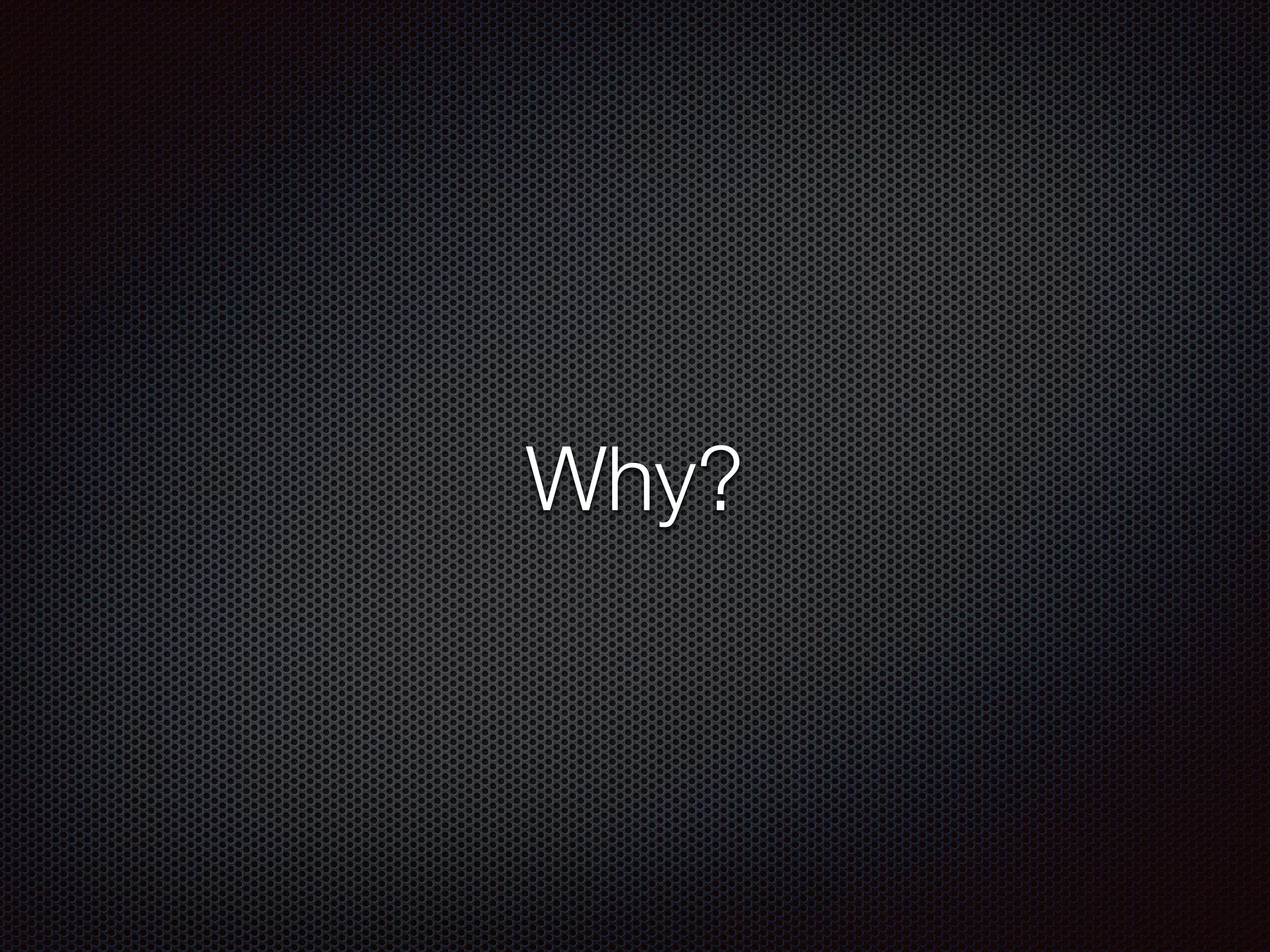

41. Why?

42. – Steve Yegge, Rich Programmer Food
“If you don't know how parsing works, you'll do it
badly with regular expressions, or if you don't know
those, then with hand-rolled state machines that are
thousands of lines of incomprehensible code that
doesn't actually work.”

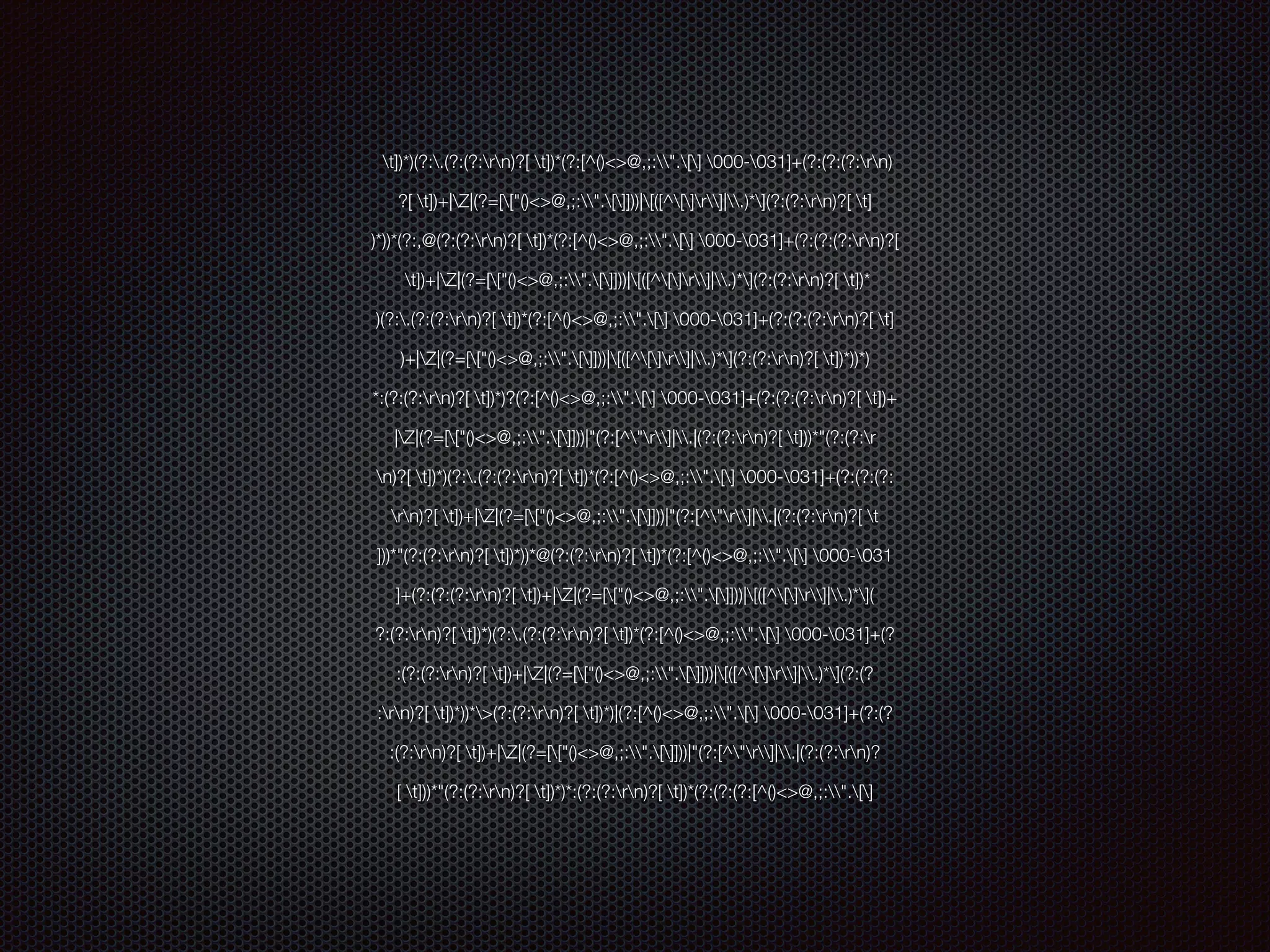

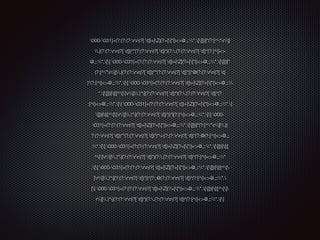

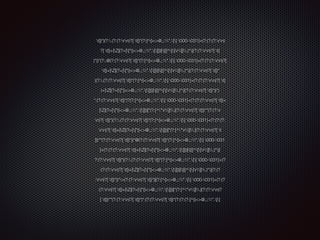

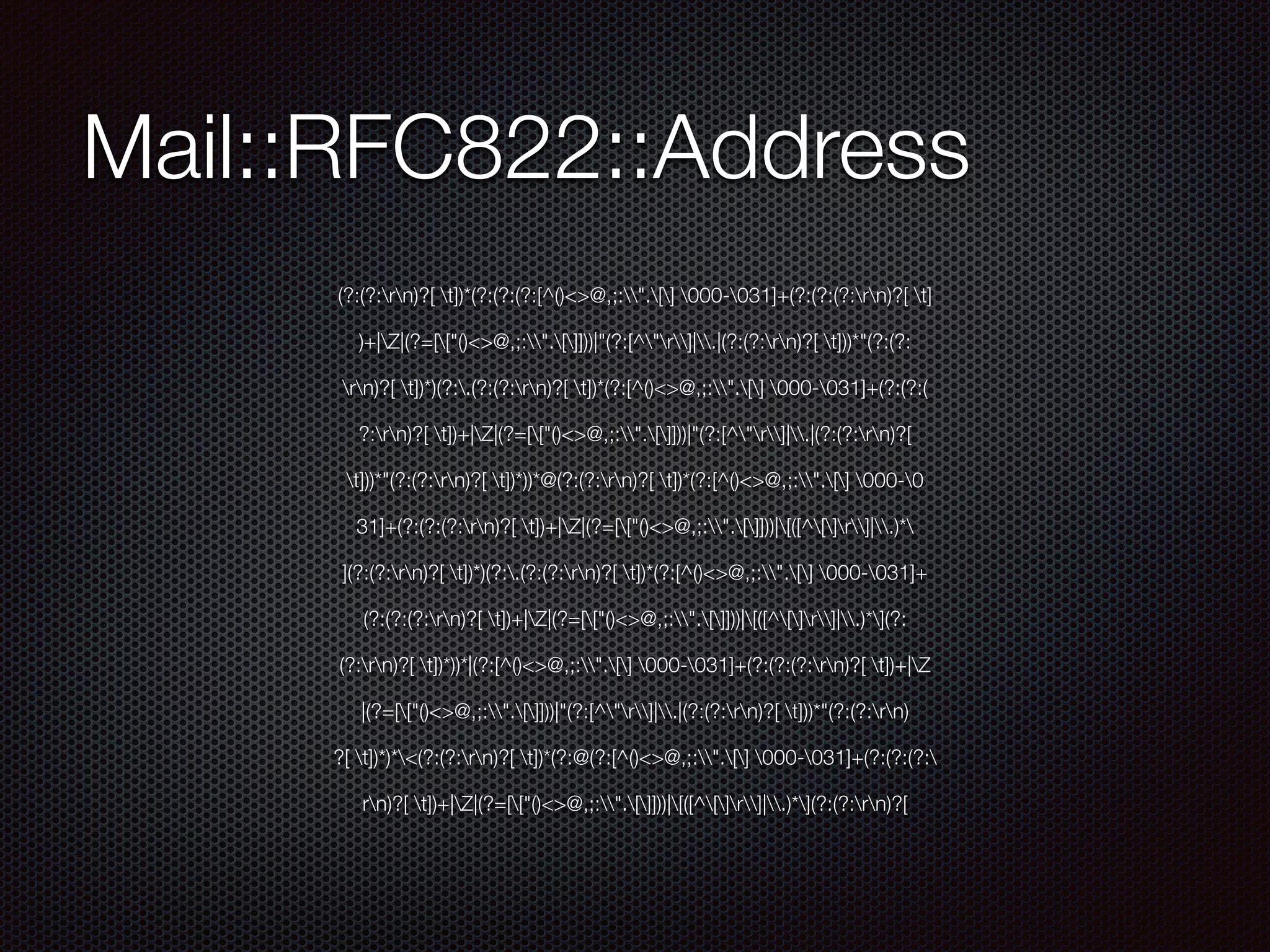

43. Mail::RFC822::Address
(?:(?:rn)?[ t])*(?:(?:(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t]
)+|Z|(?=[["()<>@,;:".[]]))|"(?:[^"r]|.|(?:(?:rn)?[ t]))*"(?:(?:
rn)?[ t])*)(?:.(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(
?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|"(?:[^"r]|.|(?:(?:rn)?[
t]))*"(?:(?:rn)?[ t])*))*@(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-0
31]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*
](?:(?:rn)?[ t])*)(?:.(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+
(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*](?:
(?:rn)?[ t])*))*|(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z
|(?=[["()<>@,;:".[]]))|"(?:[^"r]|.|(?:(?:rn)?[ t]))*"(?:(?:rn)
?[ t])*)*<(?:(?:rn)?[ t])*(?:@(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:
rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*](?:(?:rn)?[

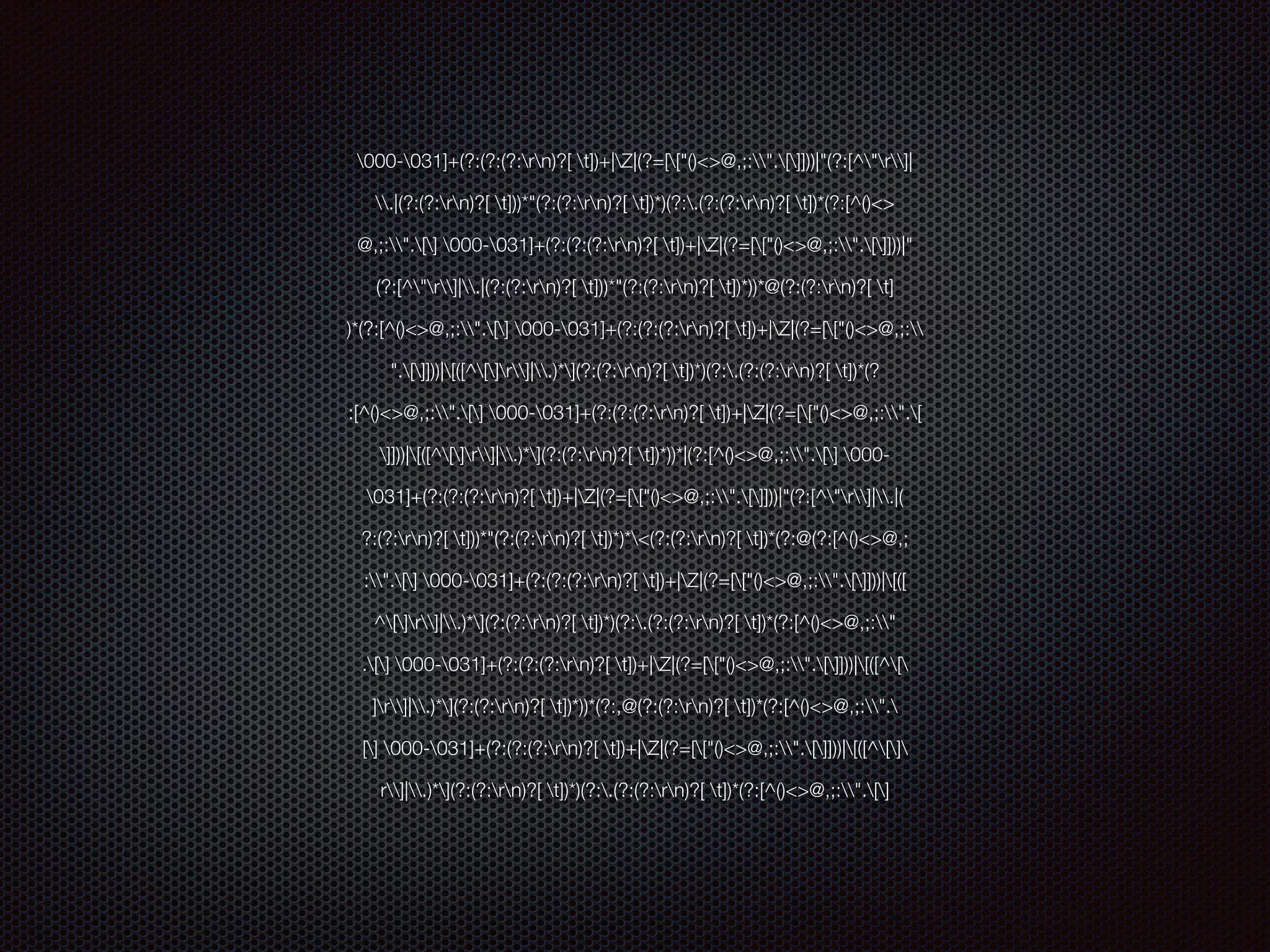

44. t])*)(?:.(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)
?[ t])+|Z|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t]
)*))*(?:,@(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[
t])+|Z|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*
)(?:.(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t]
)+|Z|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*))*)
*:(?:(?:rn)?[ t])*)?(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+
|Z|(?=[["()<>@,;:".[]]))|"(?:[^"r]|.|(?:(?:rn)?[ t]))*"(?:(?:r
n)?[ t])*)(?:.(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:
rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|"(?:[^"r]|.|(?:(?:rn)?[ t
]))*"(?:(?:rn)?[ t])*))*@(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031
]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*](
?:(?:rn)?[ t])*)(?:.(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?
:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*](?:(?
:rn)?[ t])*))*>(?:(?:rn)?[ t])*)|(?:[^()<>@,;:".[] 000-031]+(?:(?
:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|"(?:[^"r]|.|(?:(?:rn)?
[ t]))*"(?:(?:rn)?[ t])*)*:(?:(?:rn)?[ t])*(?:(?:(?:[^()<>@,;:".[]

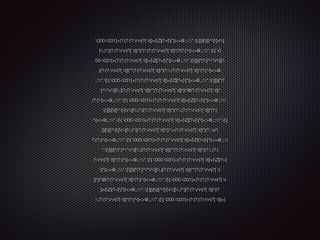

45. 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|"(?:[^"r]|
.|(?:(?:rn)?[ t]))*"(?:(?:rn)?[ t])*)(?:.(?:(?:rn)?[ t])*(?:[^()<>
@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|"
(?:[^"r]|.|(?:(?:rn)?[ t]))*"(?:(?:rn)?[ t])*))*@(?:(?:rn)?[ t]
)*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:
".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*)(?:.(?:(?:rn)?[ t])*(?
:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[
]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*))*|(?:[^()<>@,;:".[] 000-
031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|"(?:[^"r]|.|(
?:(?:rn)?[ t]))*"(?:(?:rn)?[ t])*)*<(?:(?:rn)?[ t])*(?:@(?:[^()<>@,;
:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|[([
^[]r]|.)*](?:(?:rn)?[ t])*)(?:.(?:(?:rn)?[ t])*(?:[^()<>@,;:"
.[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|[([^[
]r]|.)*](?:(?:rn)?[ t])*))*(?:,@(?:(?:rn)?[ t])*(?:[^()<>@,;:".
[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|[([^[]
r]|.)*](?:(?:rn)?[ t])*)(?:.(?:(?:rn)?[ t])*(?:[^()<>@,;:".[]

46. 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|[([^[]r]
|.)*](?:(?:rn)?[ t])*))*)*:(?:(?:rn)?[ t])*)?(?:[^()<>@,;:".[] 0
00-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|"(?:[^"r]|
.|(?:(?:rn)?[ t]))*"(?:(?:rn)?[ t])*)(?:.(?:(?:rn)?[ t])*(?:[^()<>@,
;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]]))|"(?
:[^"r]|.|(?:(?:rn)?[ t]))*"(?:(?:rn)?[ t])*))*@(?:(?:rn)?[ t])*
(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".
[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*)(?:.(?:(?:rn)?[ t])*(?:[
^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[]
]))|[([^[]r]|.)*](?:(?:rn)?[ t])*))*>(?:(?:rn)?[ t])*)(?:,s*(
?:(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:
".[]]))|"(?:[^"r]|.|(?:(?:rn)?[ t]))*"(?:(?:rn)?[ t])*)(?:.(?:(
?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[
["()<>@,;:".[]]))|"(?:[^"r]|.|(?:(?:rn)?[ t]))*"(?:(?:rn)?[ t
])*))*@(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t
])+|Z|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*)(?
:.(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|

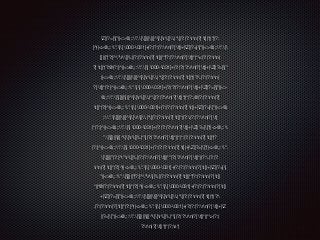

47. Z|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*))*|(?:
[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".[
]]))|"(?:[^"r]|.|(?:(?:rn)?[ t]))*"(?:(?:rn)?[ t])*)*<(?:(?:rn)
?[ t])*(?:@(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["
()<>@,;:".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*)(?:.(?:(?:rn)
?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>
@,;:".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*))*(?:,@(?:(?:rn)?[
t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,
;:".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*)(?:.(?:(?:rn)?[ t]
)*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:
".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*))*)*:(?:(?:rn)?[ t])*)?
(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[["()<>@,;:".
[]]))|"(?:[^"r]|.|(?:(?:rn)?[ t]))*"(?:(?:rn)?[ t])*)(?:.(?:(?:
rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z|(?=[[
"()<>@,;:".[]]))|"(?:[^"r]|.|(?:(?:rn)?[ t]))*"(?:(?:rn)?[ t])
*))*@(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])
+|Z|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*)(?:
.(?:(?:rn)?[ t])*(?:[^()<>@,;:".[] 000-031]+(?:(?:(?:rn)?[ t])+|Z
|(?=[["()<>@,;:".[]]))|[([^[]r]|.)*](?:(?:rn)?[ t])*))*>(?:(
?:rn)?[ t])*))*)?;s*)

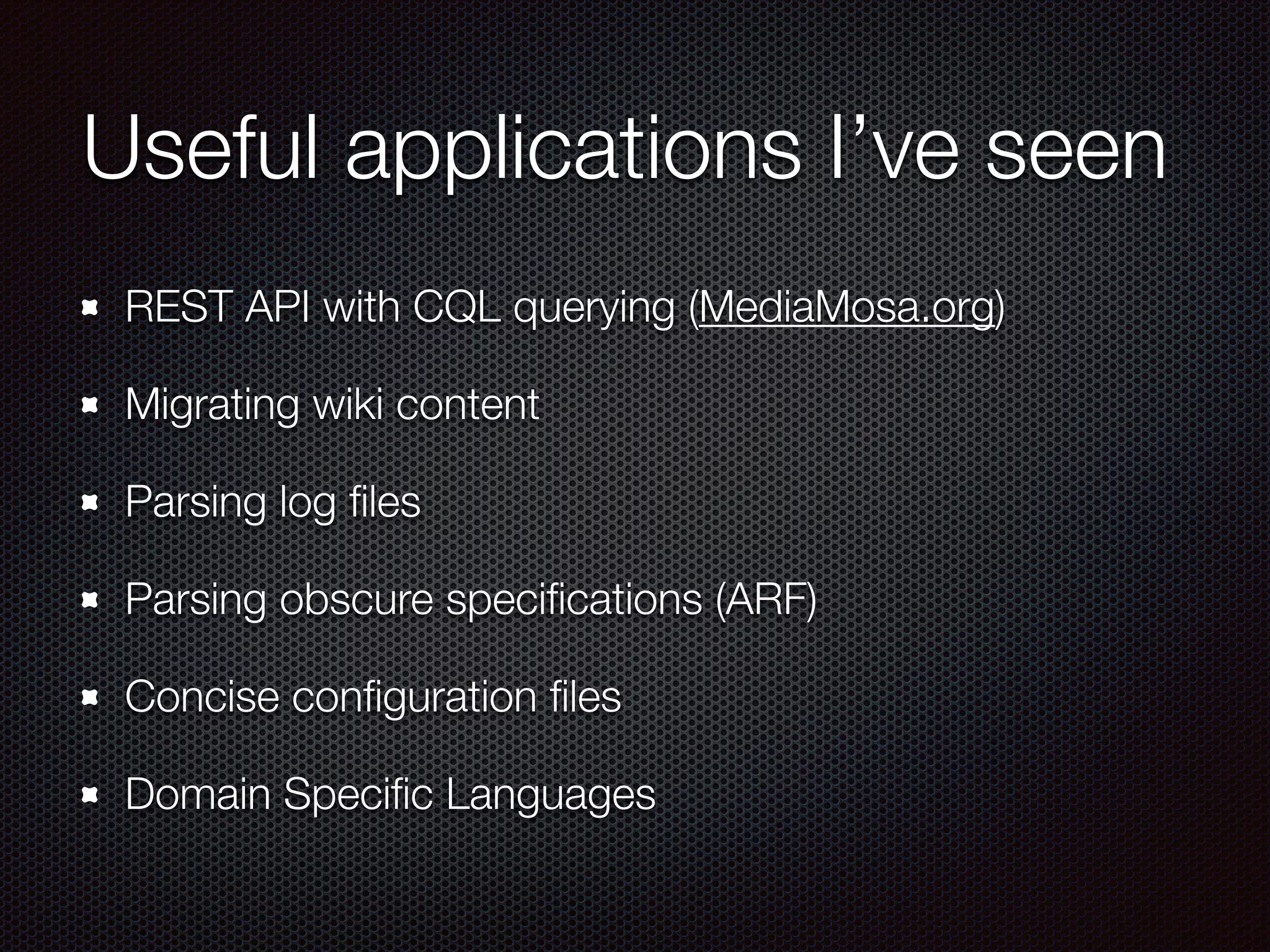

48. Useful applications I’ve seen
REST API with CQL querying (MediaMosa.org)
Migrating wiki content
Parsing log files
Parsing obscure specifications (ARF)
Concise configuration files
Domain Specific Languages

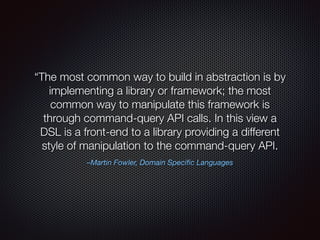

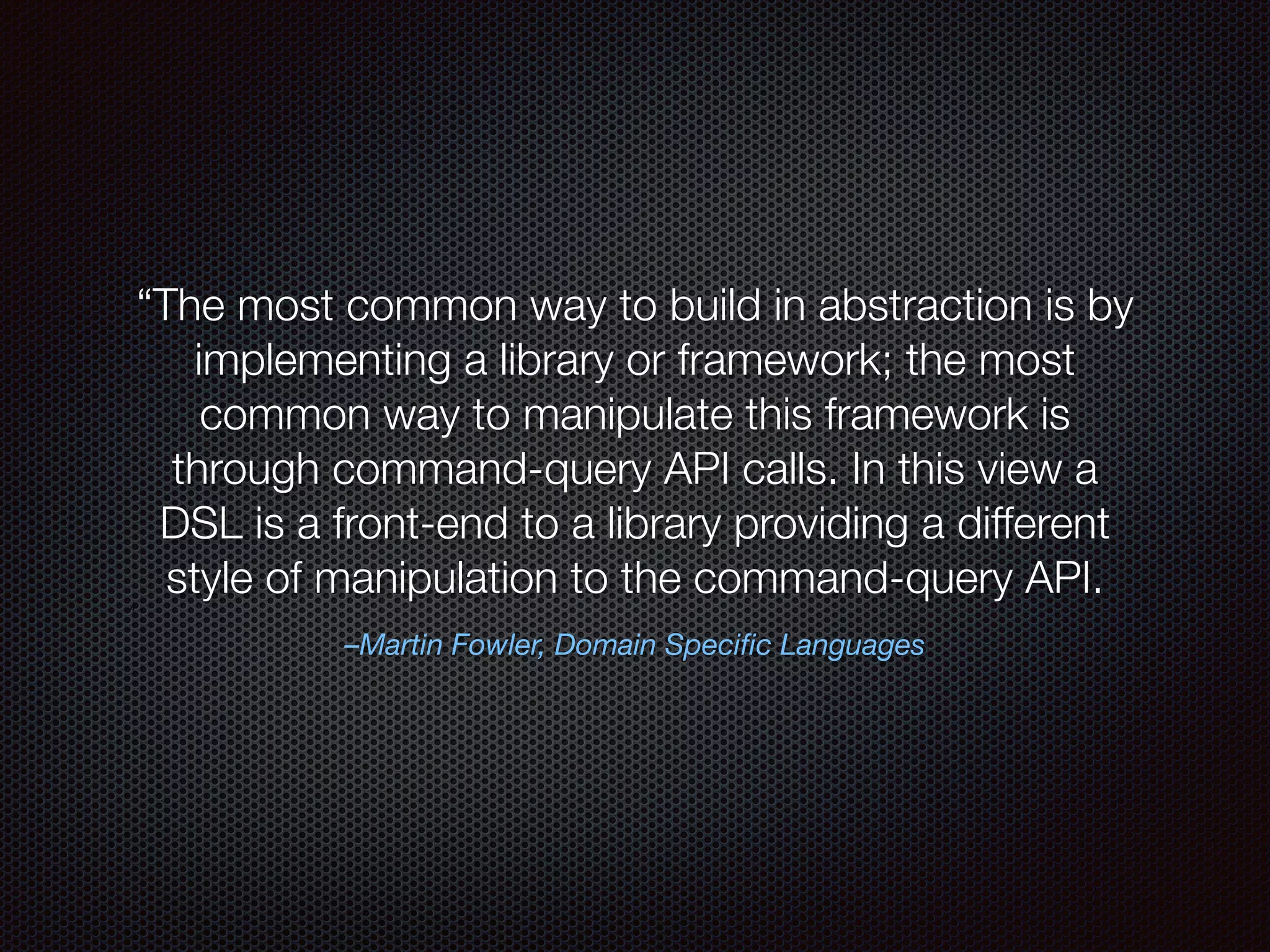

49. –Martin Fowler, Domain Specific Languages
“a DSL is a front-end to a library providing a different
style of manipulation to the command-query API.
”

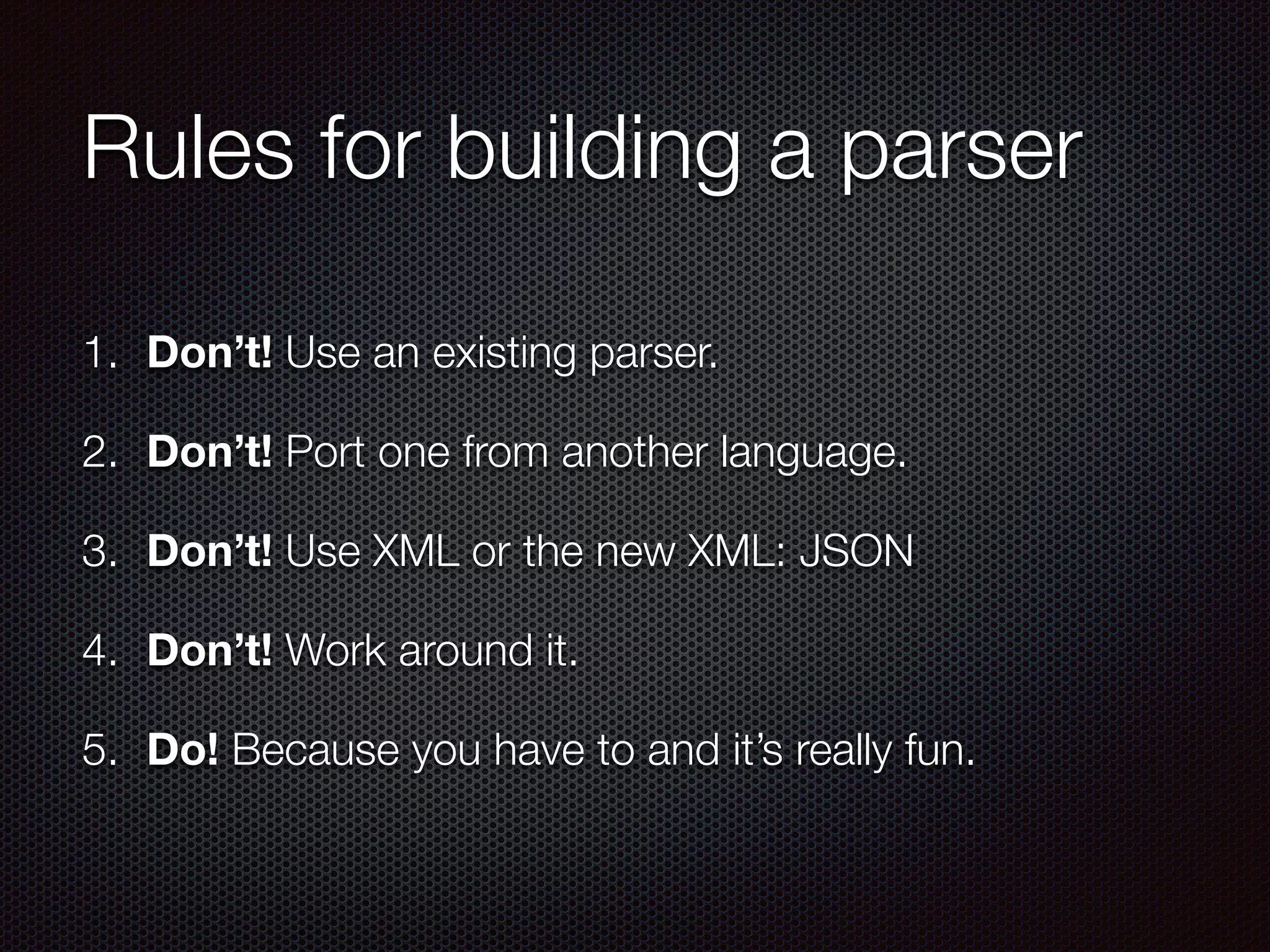

50. Rules for building a parser
Consider using an existing parser.
Consider porting one from another language.
Consider XML or the new XMLs: JSON / YAML
Consider working around it.
Then and only then consider building your own
parser

51. Whereto from here?

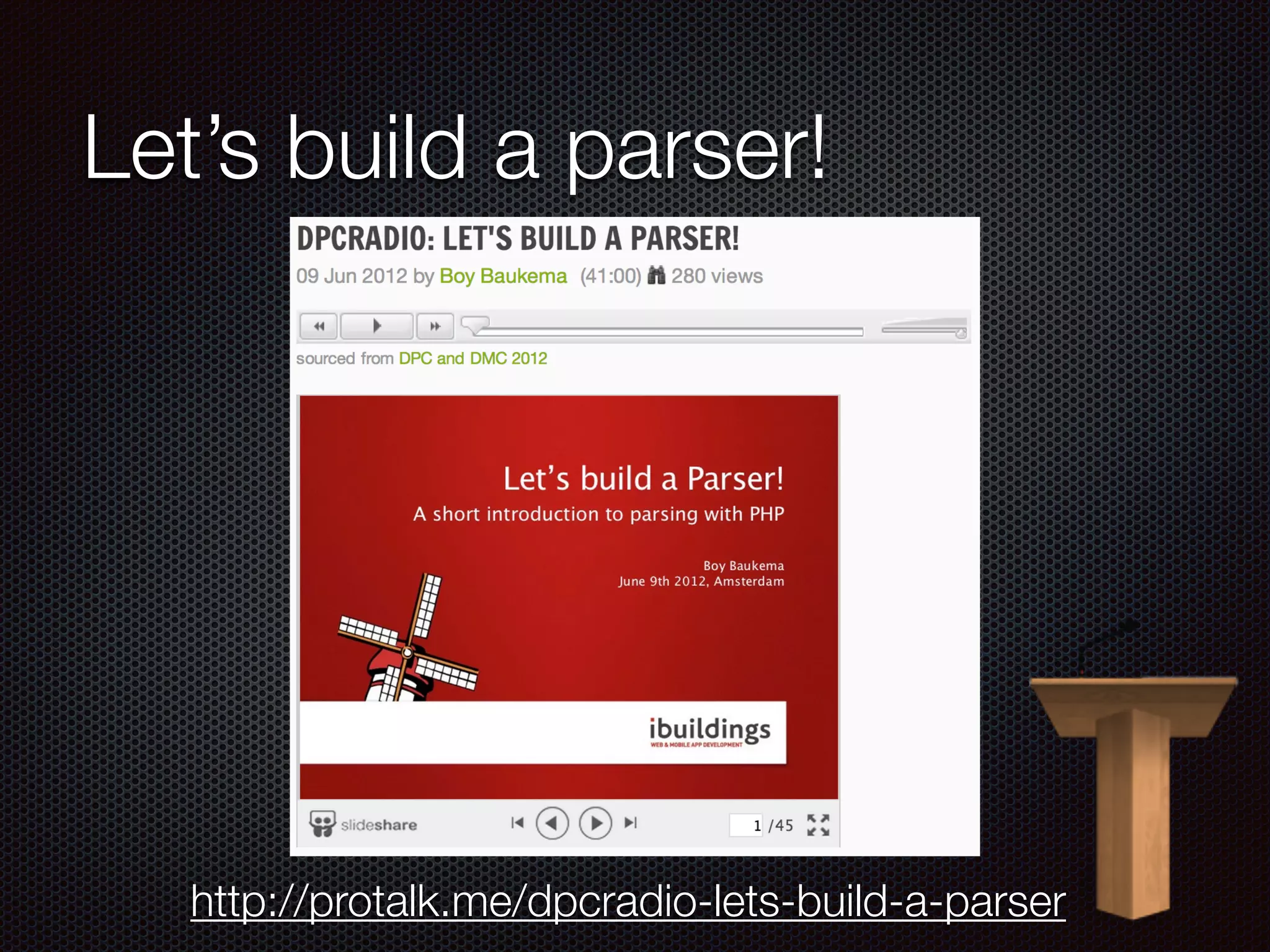

52. Let’s build a parser!
http://protalk.me/dpcradio-lets-build-a-parser

53. Thank you for your time and attention!
Questions?
Tweet to @relaxnow
Rate @ https://joind.in/10859
Slides @ https://joind.in/10859
Code @ https://bit.ly/dpc14rdp
