Real time network monitoring tracks network activity on a daily basis to indicate both immediate and future potential problems. It can be performed on both the GUI and command line, with the GUI providing more complete information at once. Common GUI monitoring applications include Observium, Ganglia, and Piecework. Command line network tools that can be used for monitoring include ping to test availability, tracert to check the path between computers, ipconfig to display IP addresses, nslookup to check DNS, net start to view running services, and netstat to view connections.

1. Real Time Network
Monitoring
BY SUMIT RAJPAL

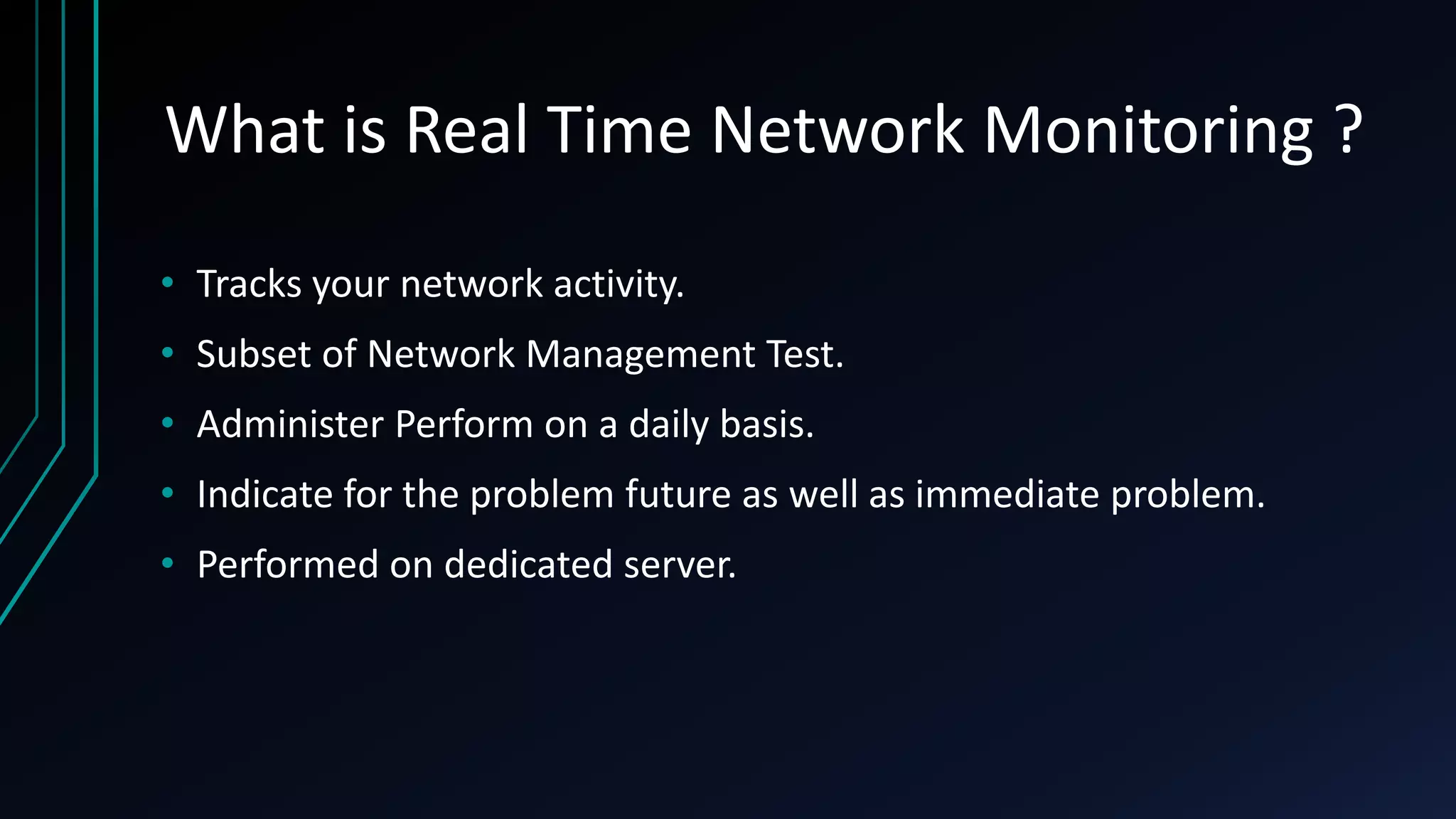

2. What is Real Time Network Monitoring ?
• Tracks your network activity.
• Subset of Network Management Test.
• Administer Perform on a daily basis.
• Indicate for the problem future as well as immediate problem.
• Performed on dedicated server.

3. Where Monitoring is done ?
•GUI or Command line ?

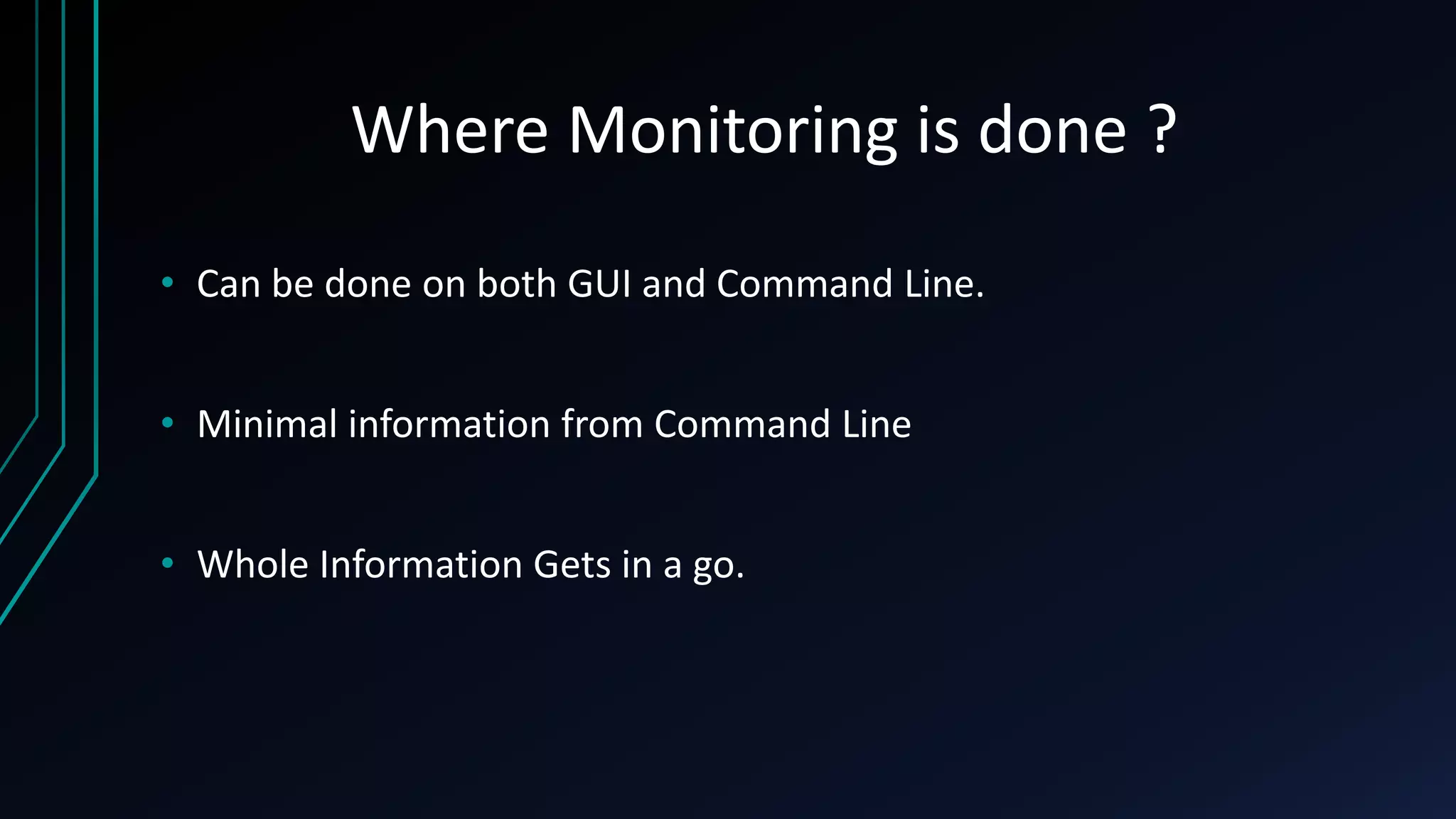

4. Where Monitoring is done ?
• Can be done on both GUI and Command Line.
• Minimal information from Command Line
• Whole Information Gets in a go.

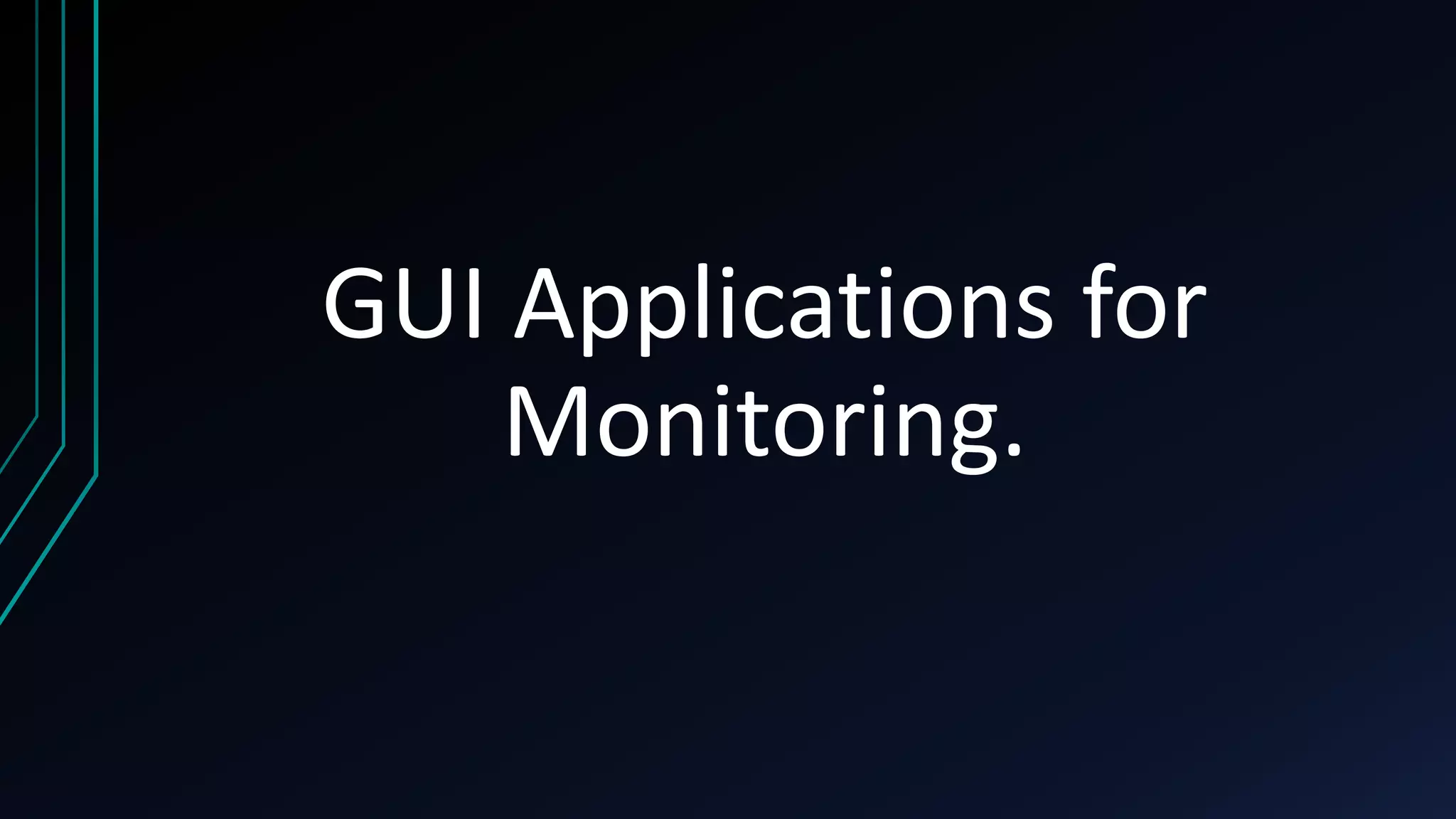

5. GUI Applications for
Monitoring.

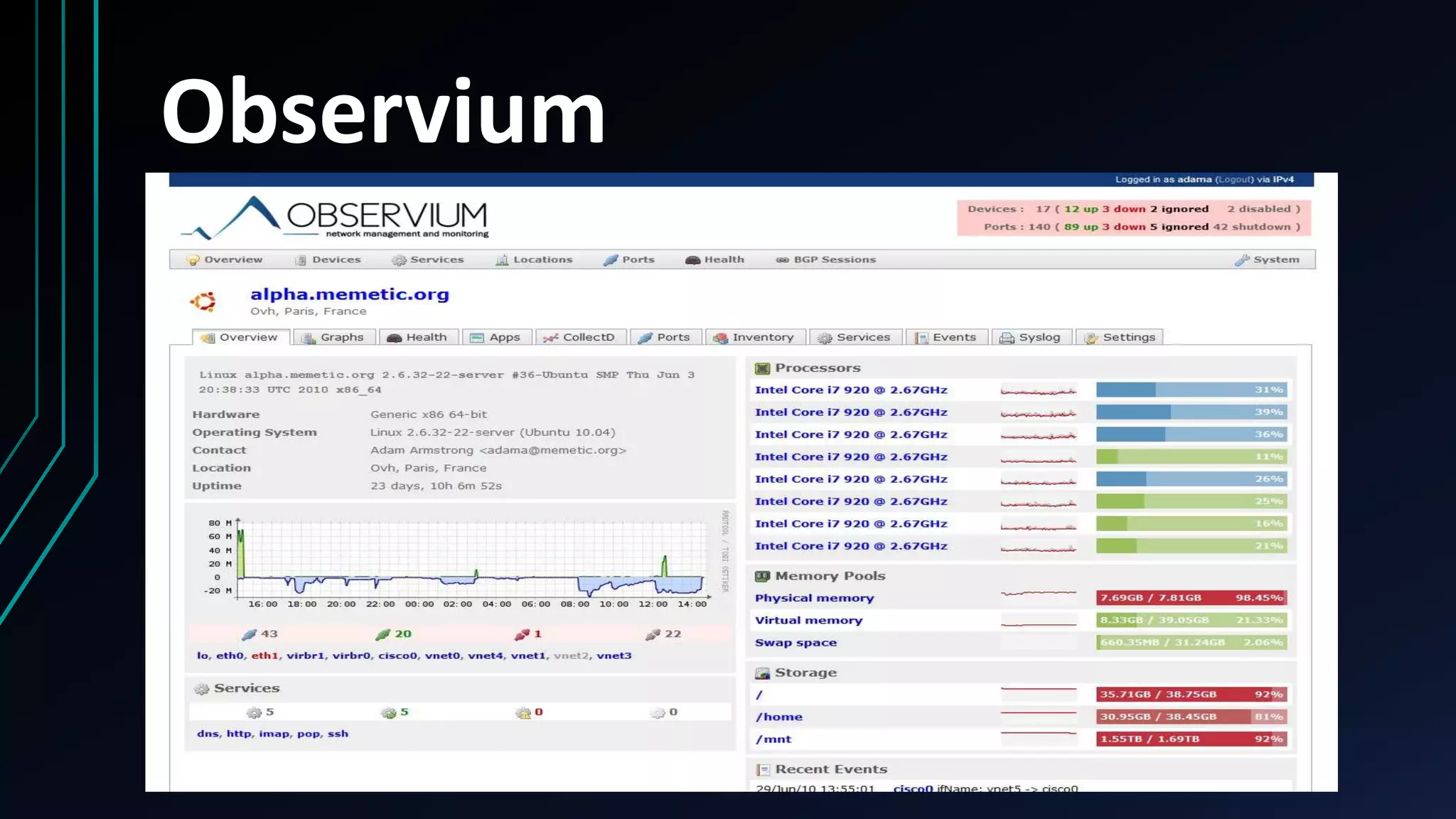

6. Observium

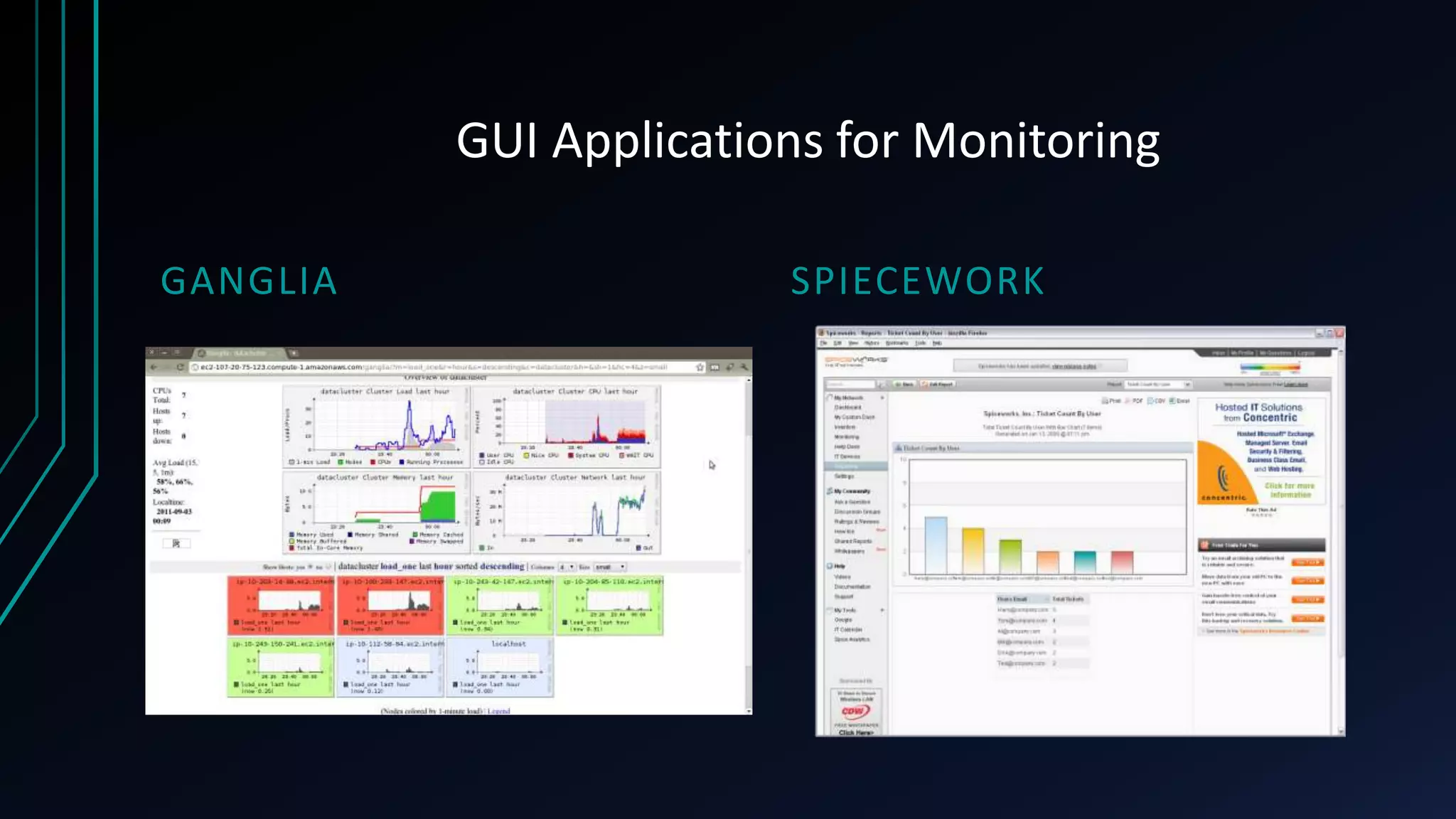

7. GUI Applications for Monitoring
GANGLIA
SPIECEWORK

8. • Command line Monitoring.

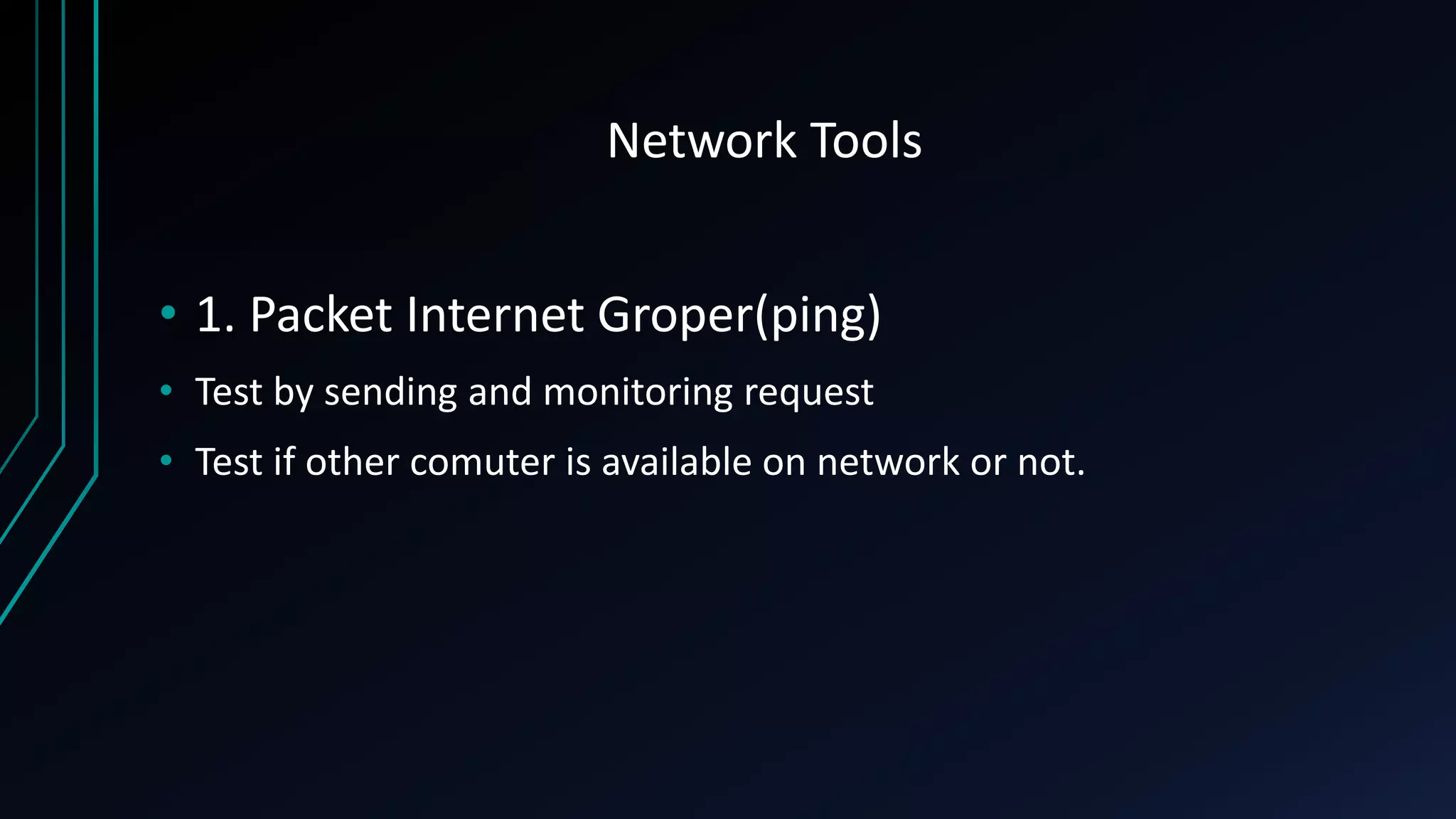

9. Network Tools
• 1. Packet Internet Groper(ping)
• Test by sending and monitoring request
• Test if other comuter is available on network or not.

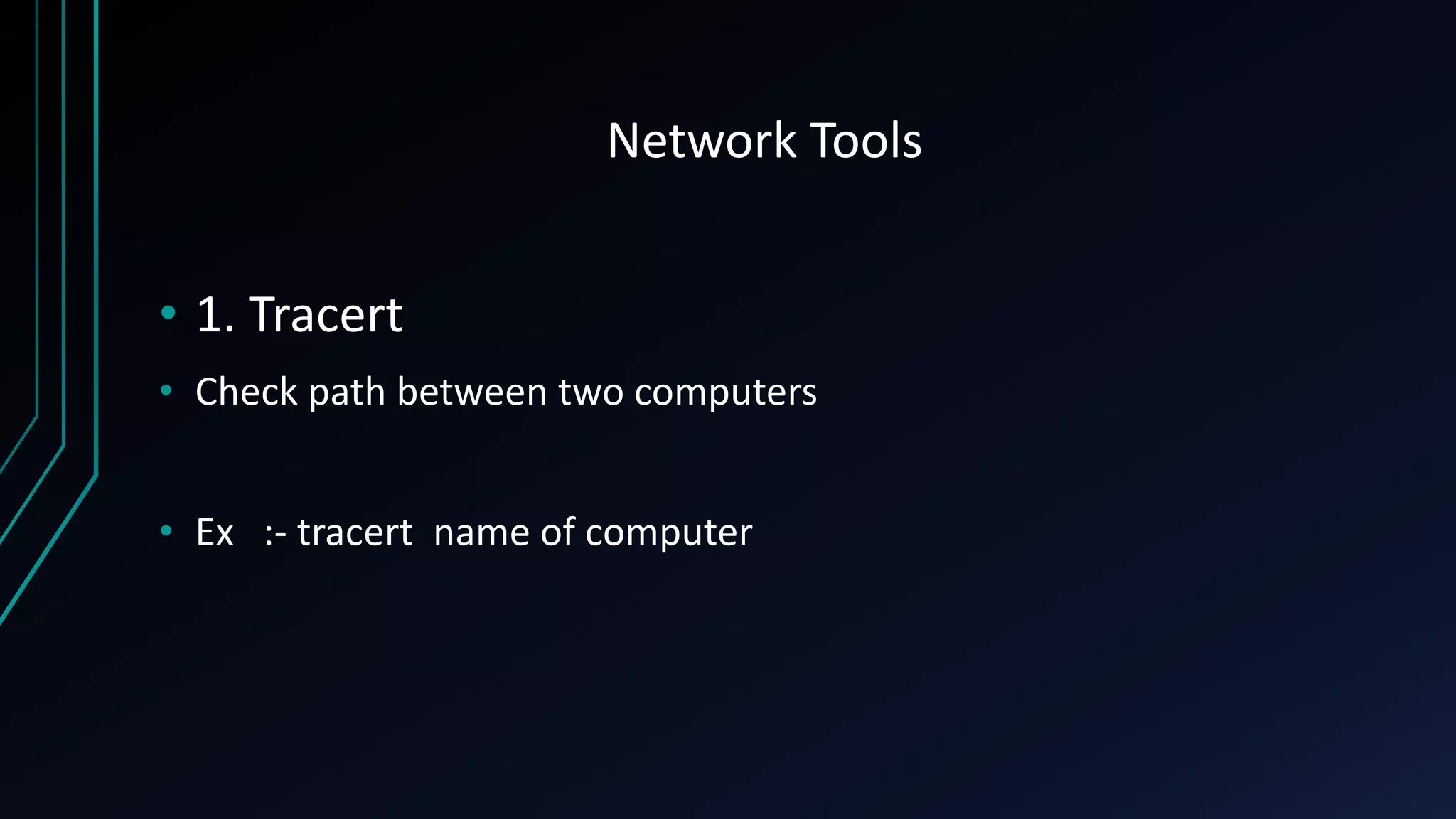

10. Network Tools
• 1. Tracert
• Check path between two computers
• Ex :- tracert name of computer

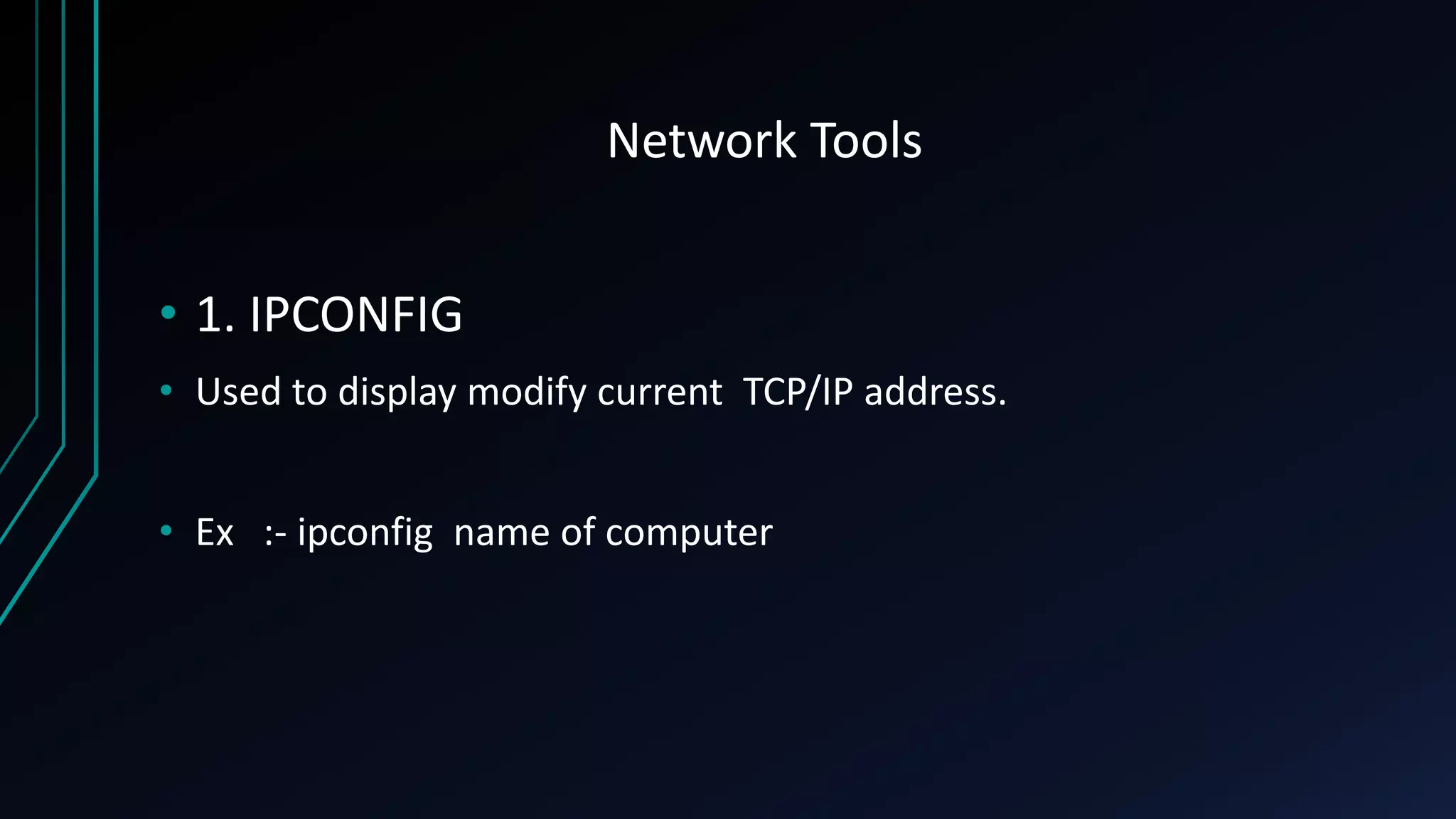

11. Network Tools
• 1. IPCONFIG
• Used to display modify current TCP/IP address.
• Ex :- ipconfig name of computer

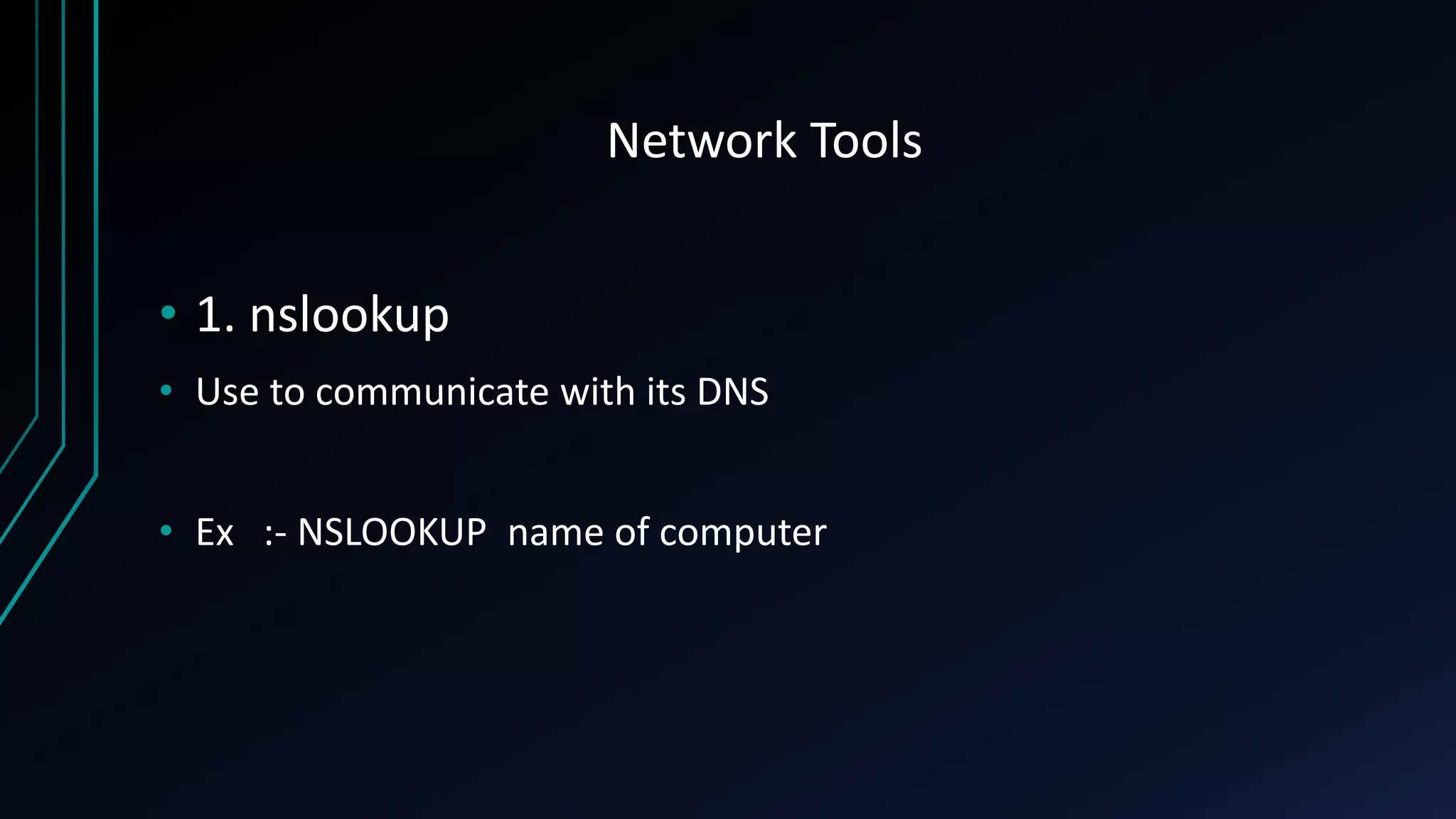

12. Network Tools
• 1. nslookup
• Use to communicate with its DNS
• Ex :- NSLOOKUP name of computer

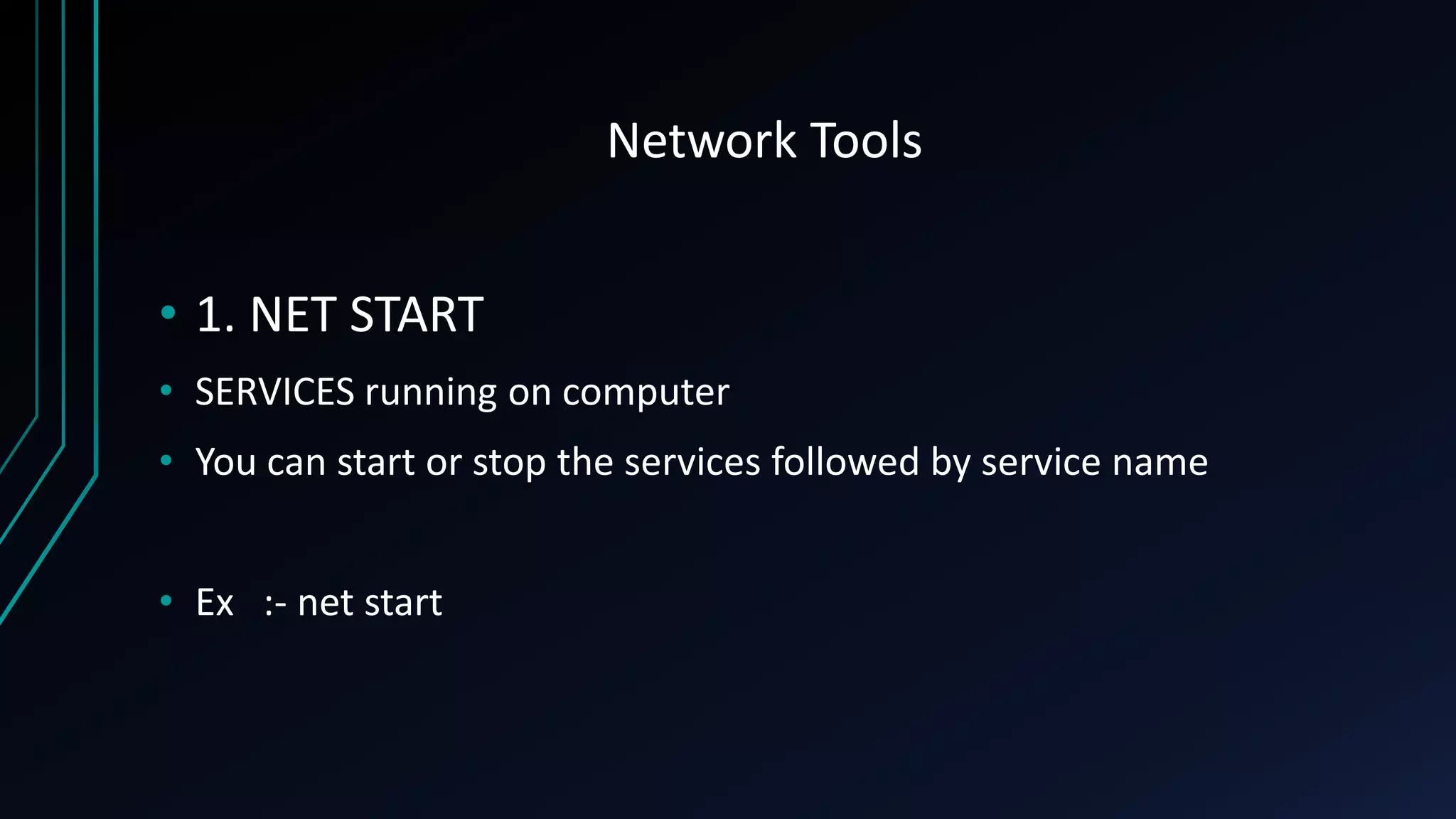

13. Network Tools
• 1. NET START
• SERVICES running on computer
• You can start or stop the services followed by service name
• Ex :- net start

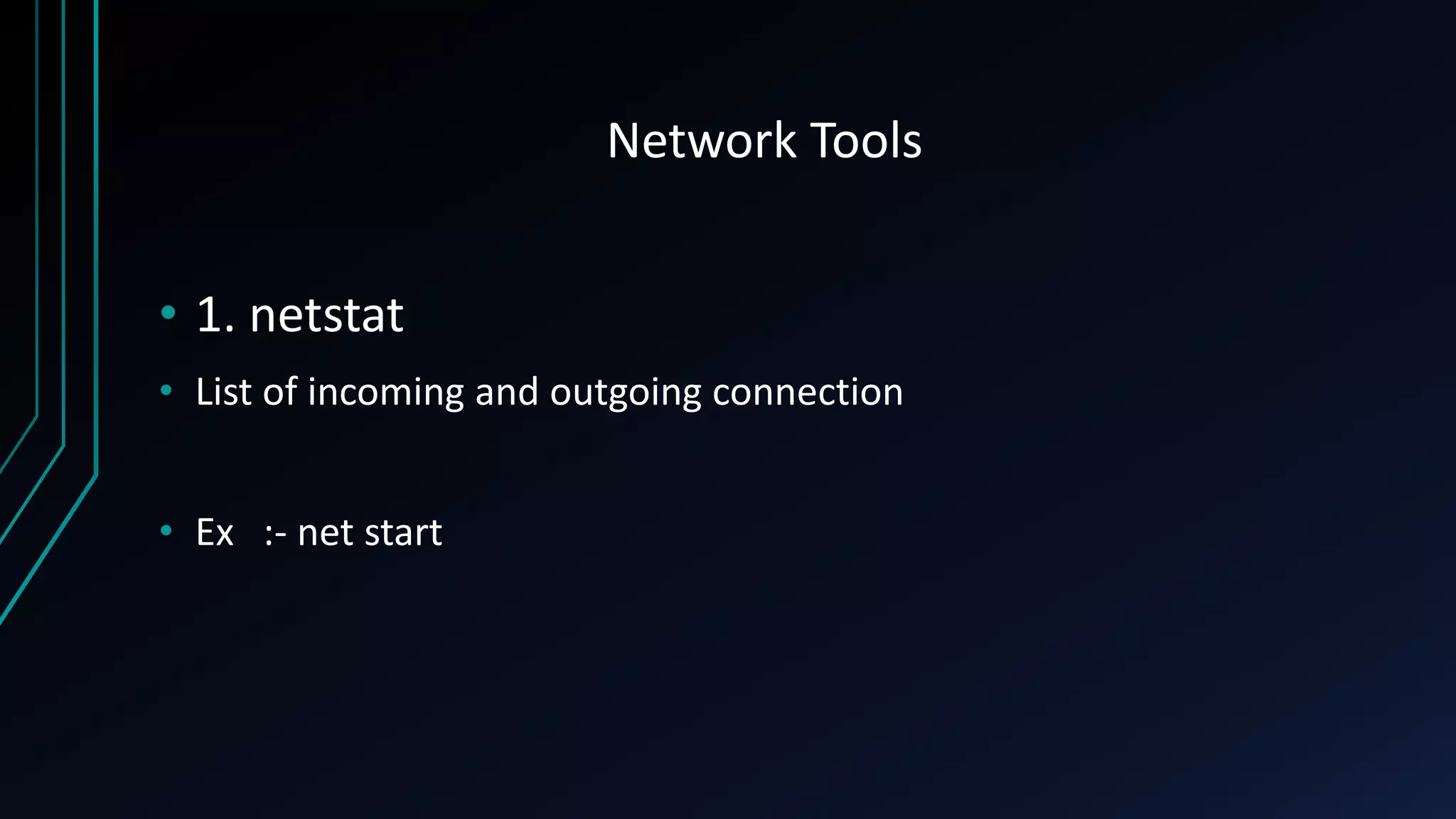

14. Network Tools
• 1. netstat
• List of incoming and outgoing connection
• Ex :- net start
